mp-643708/LiH2IO/anharm

Space group: Pmma (51)
Link: Materials Project
Download: mp-643708.tar.gz

Harmonic properties

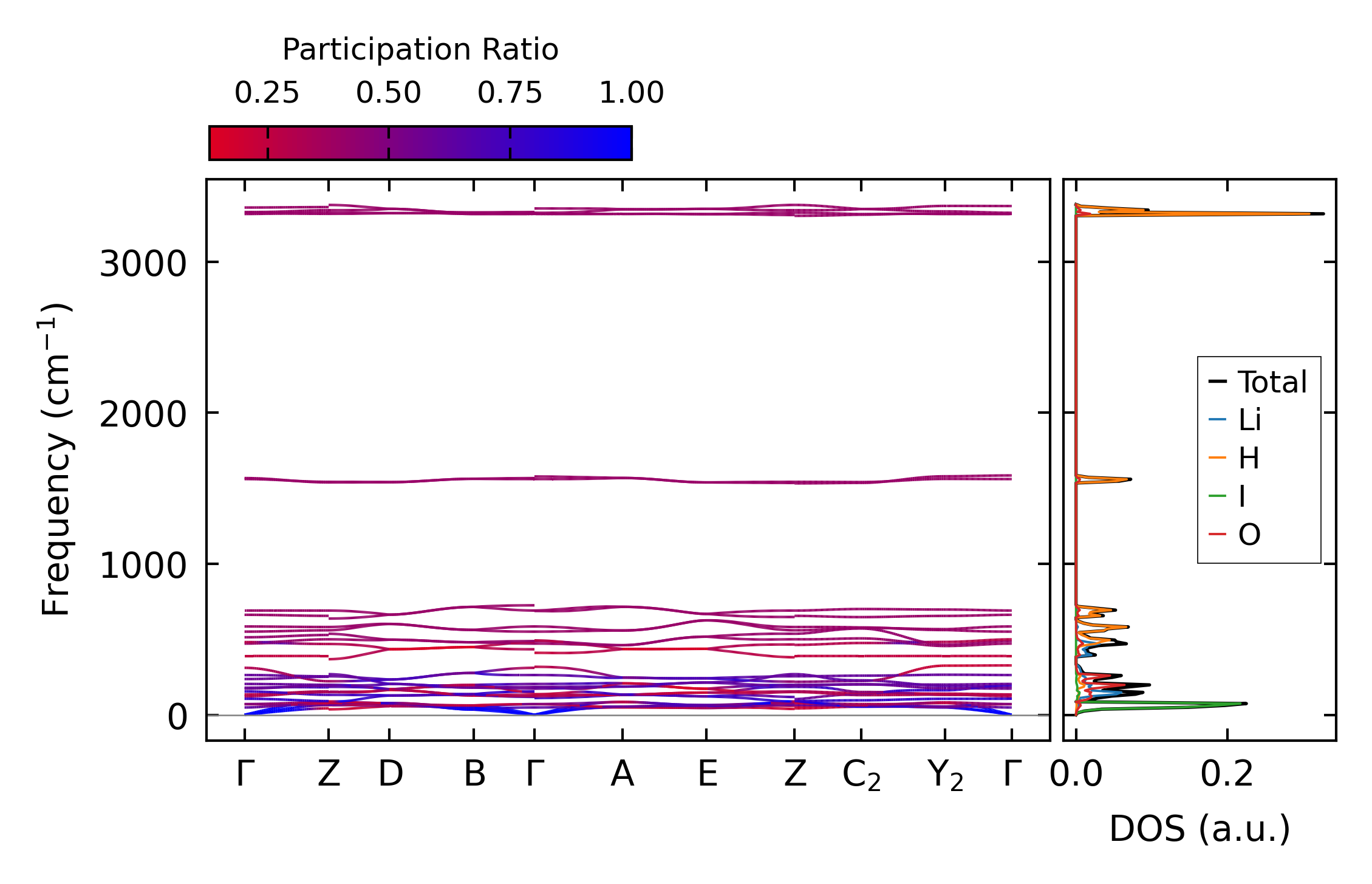

../../_images/fig_bandos_pr5519.png — (a) Phonon dispersion with participation ratio and DOS

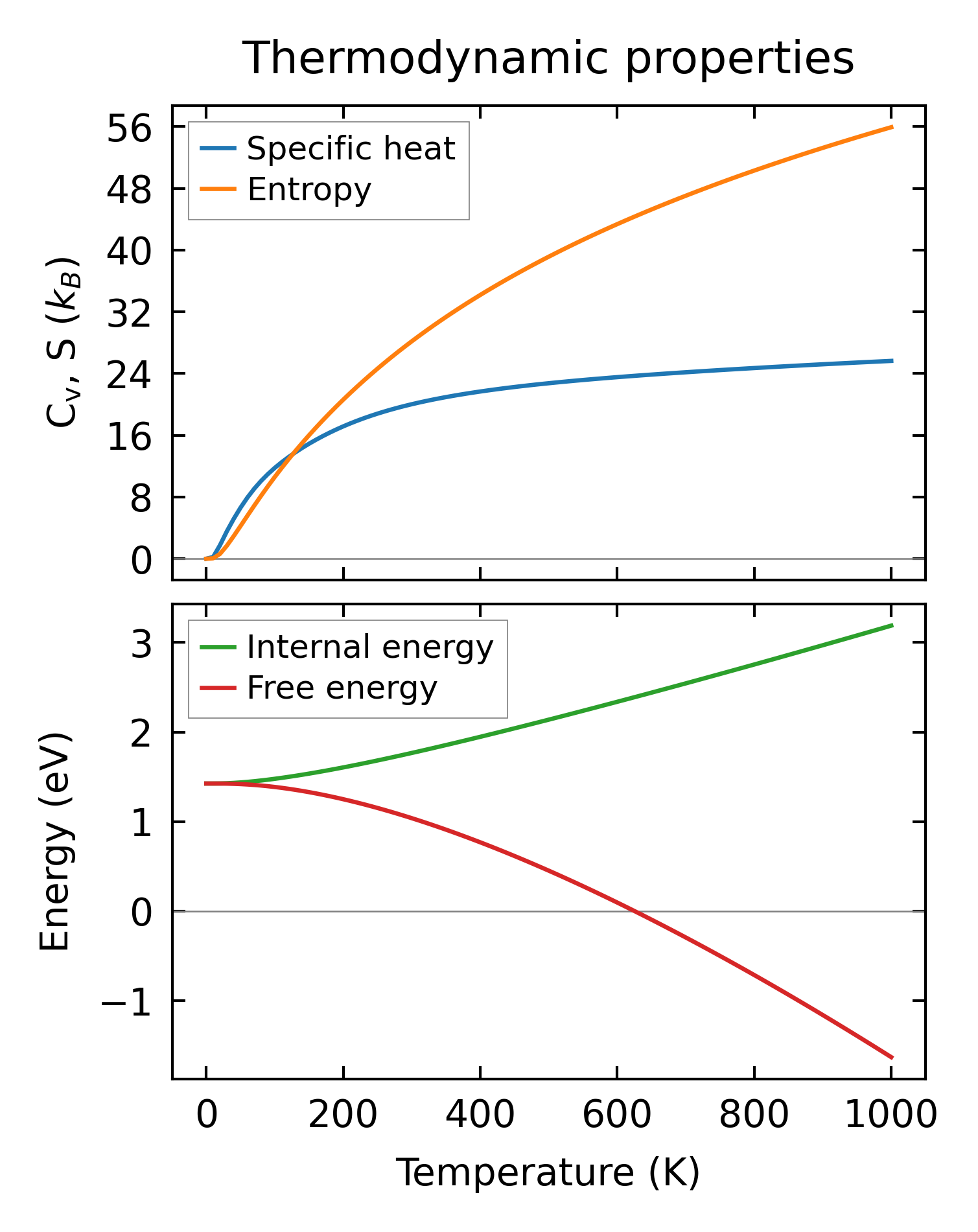

../../_images/fig_thermo5519.png — (b) Thermodynamic properties

Grüneisen parameters

../../_images/fig_gru_all2300.png — (a) Grüneisen parameters

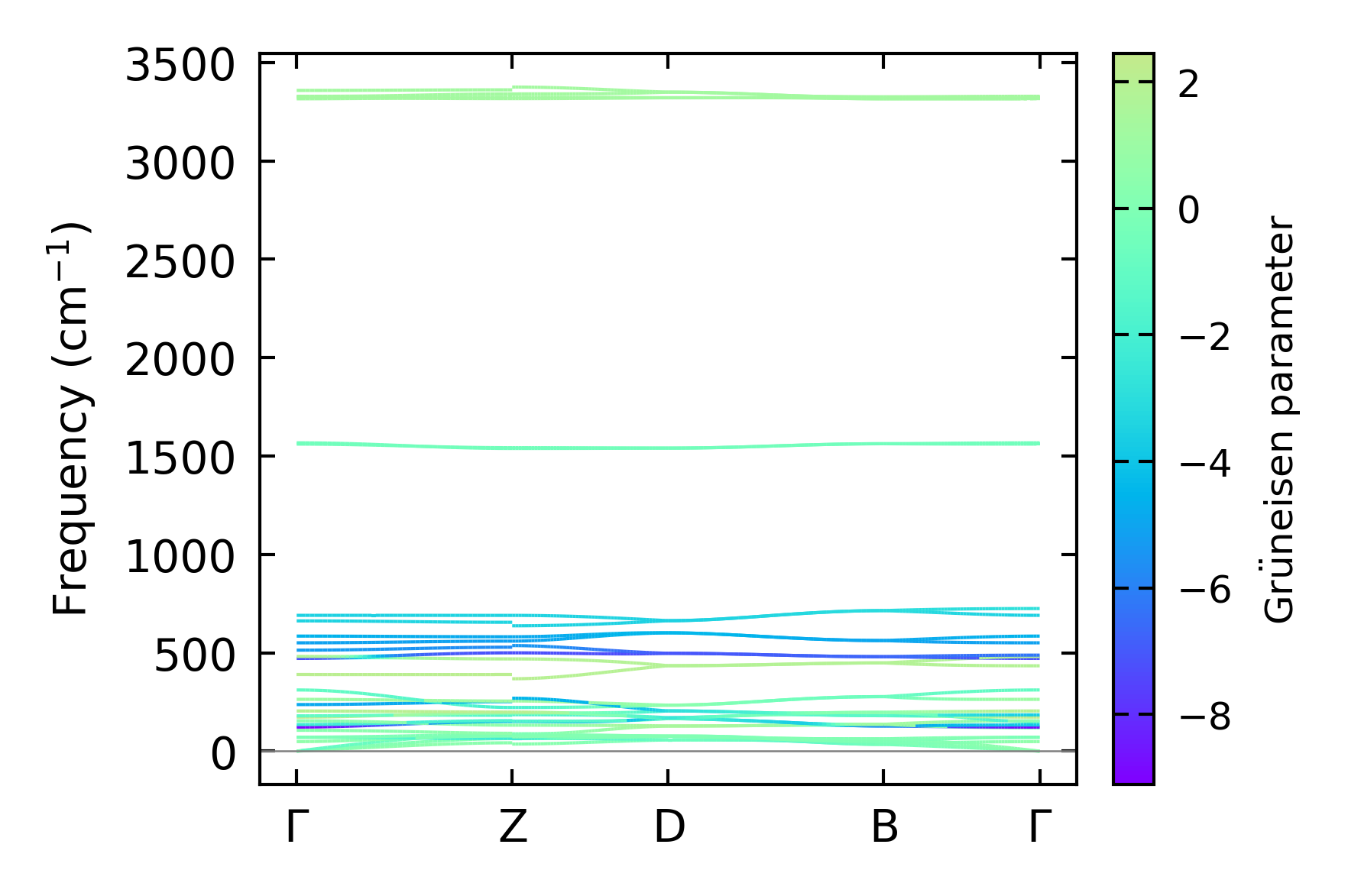

../../_images/fig_gruneisen2300.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 13x16x11, supercell: 2x3x2

../../_images/fig_kappa4397.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size2330.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

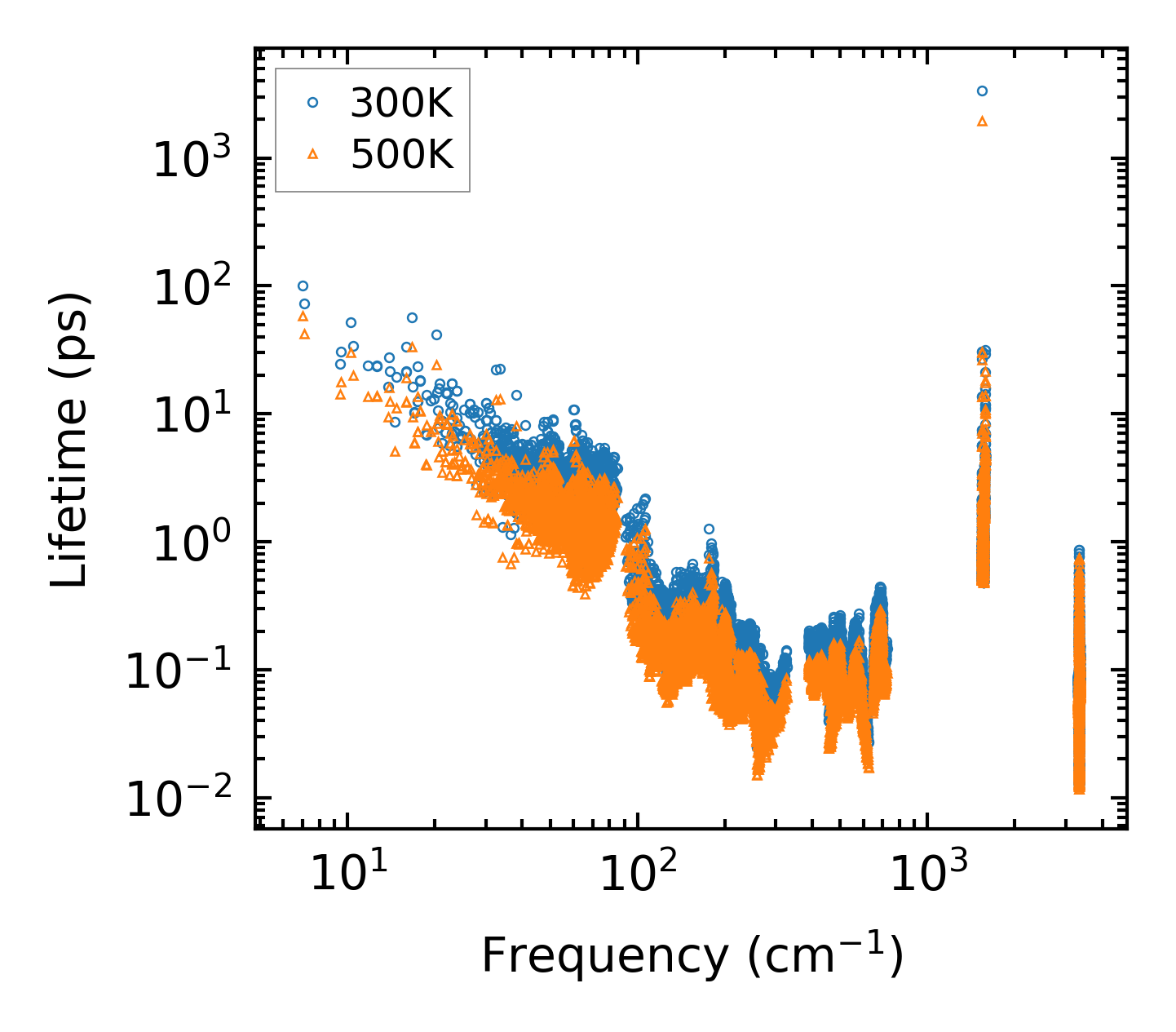

../../_images/fig_lifetime2285.png — (a) Phonon lifetime due to phonon-phonon scattering

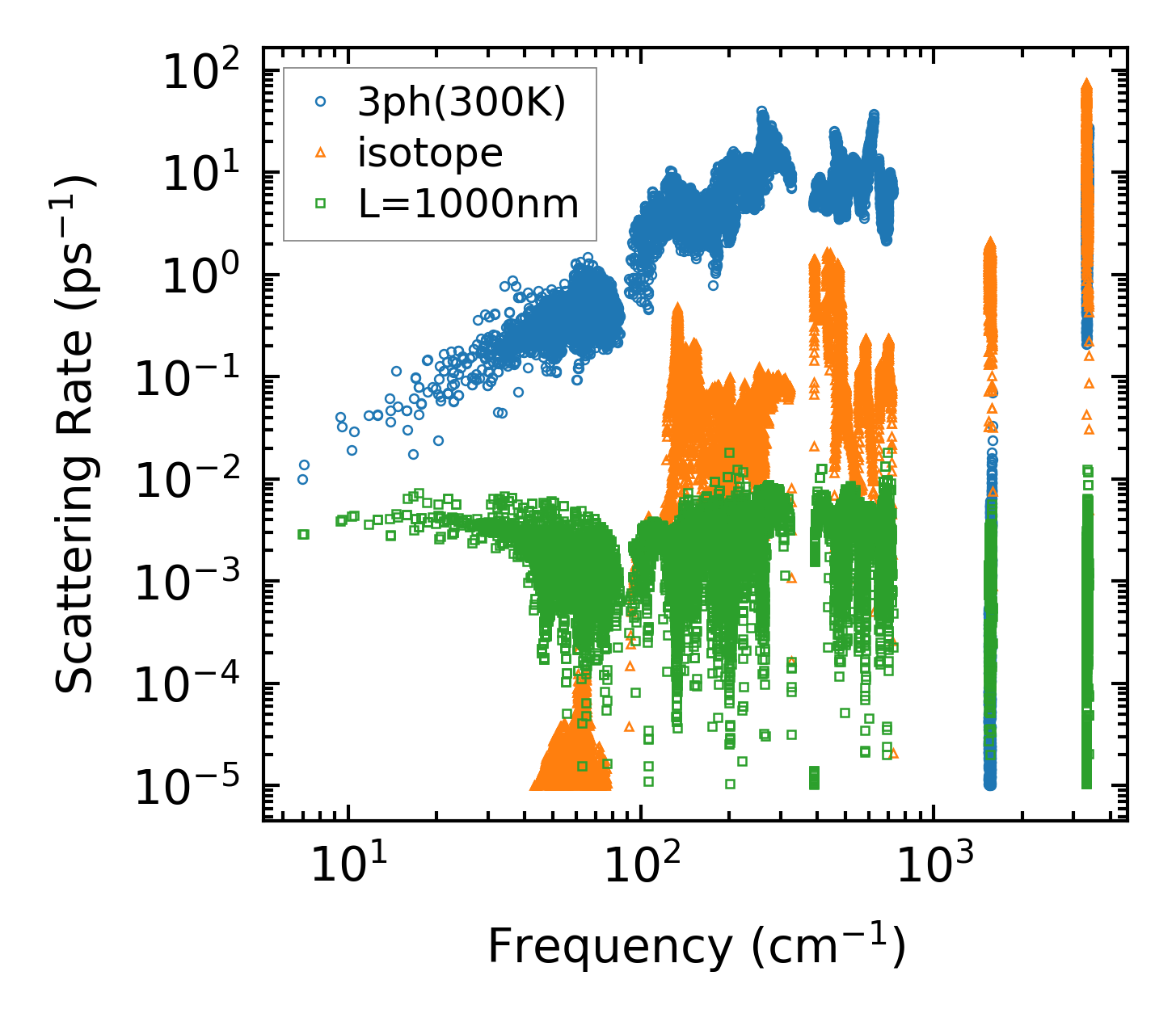

../../_images/fig_scat_rates2284.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

../../_images/fig_cumu_frequency2285.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

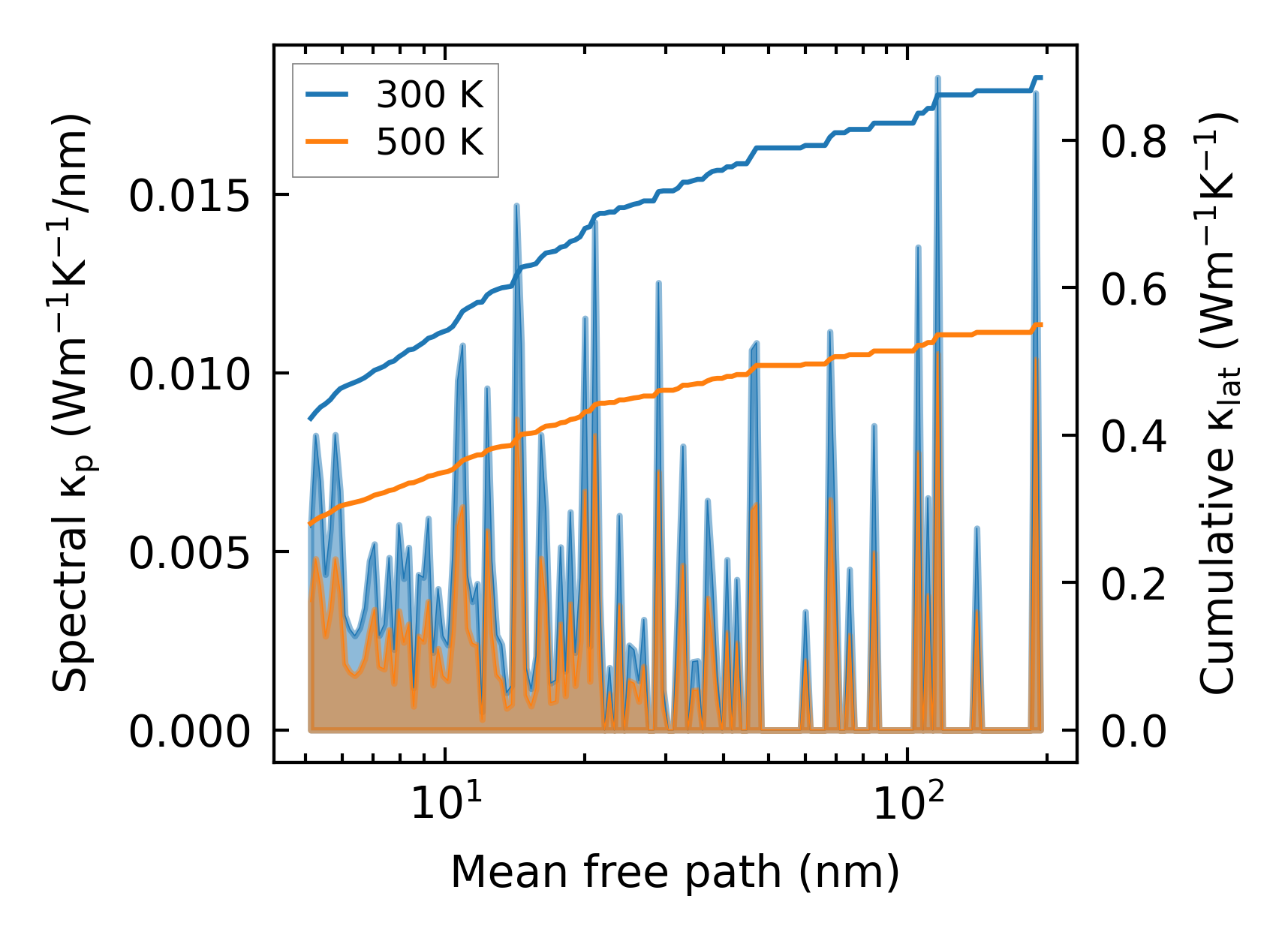

../../_images/fig_cumu_mfp2285.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

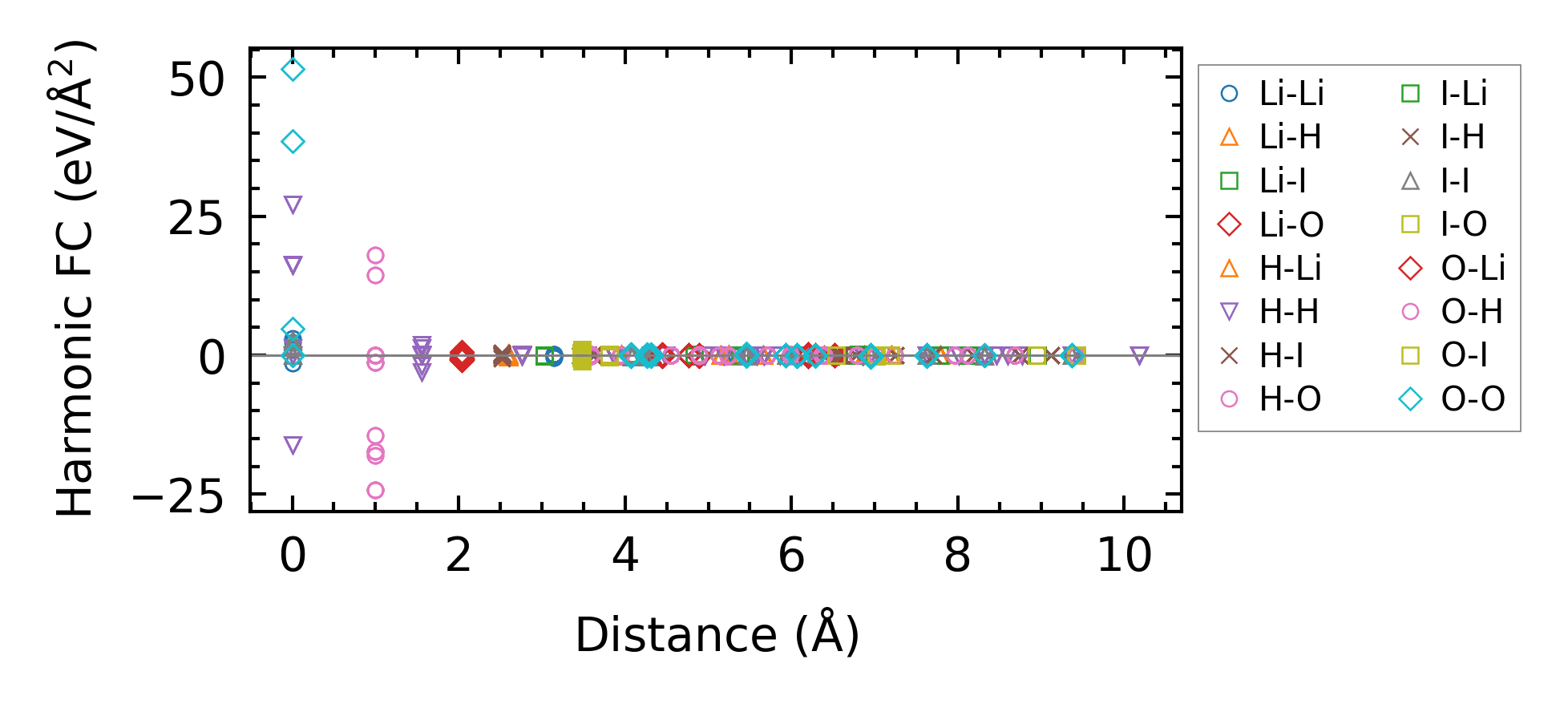

../../_images/fig_fc25321.png — (a) Force constants w.r.t atomic distance

Summary

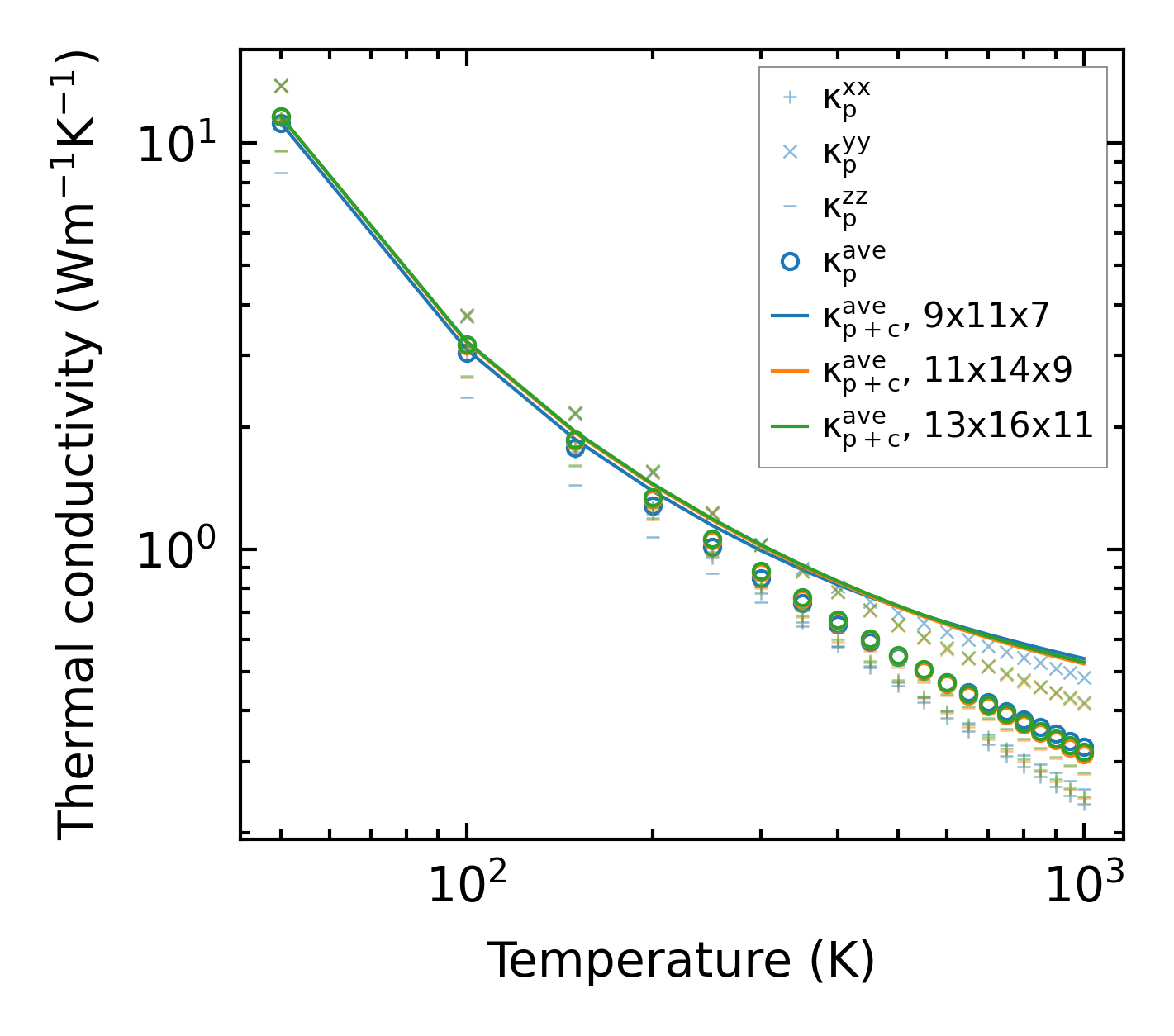

../../_images/fig_kappa4398.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_times9969.png — (b) Computation time
