mp-643279/K2H6Pt/anharm

Space group: Fm-3m (225)
Link: Materials Project
Download: mp-643279.tar.gz

Harmonic properties

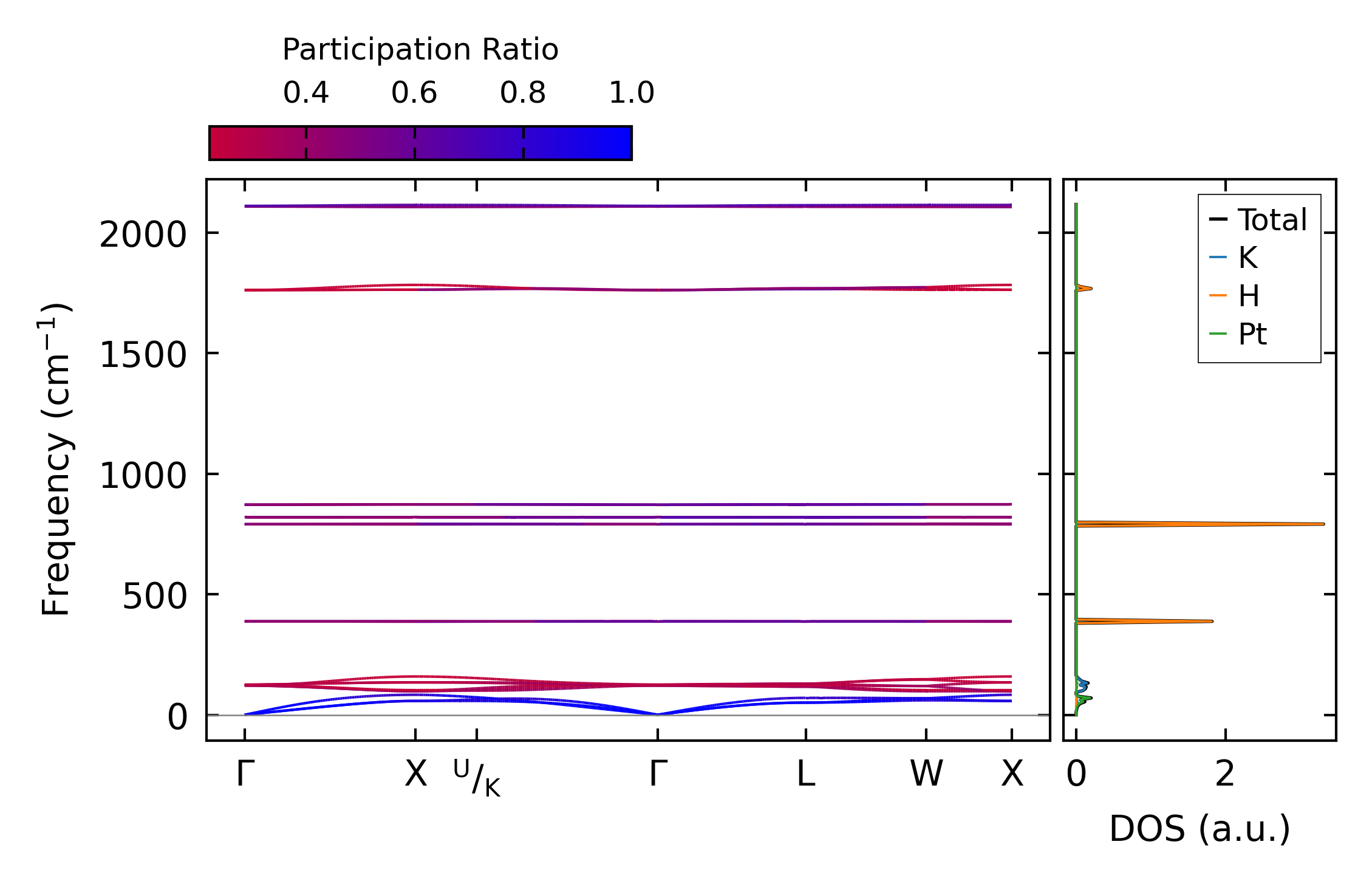

../../_images/fig_bandos_pr5491.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo5491.png — (b) Thermodynamic properties

Grüneisen parameters

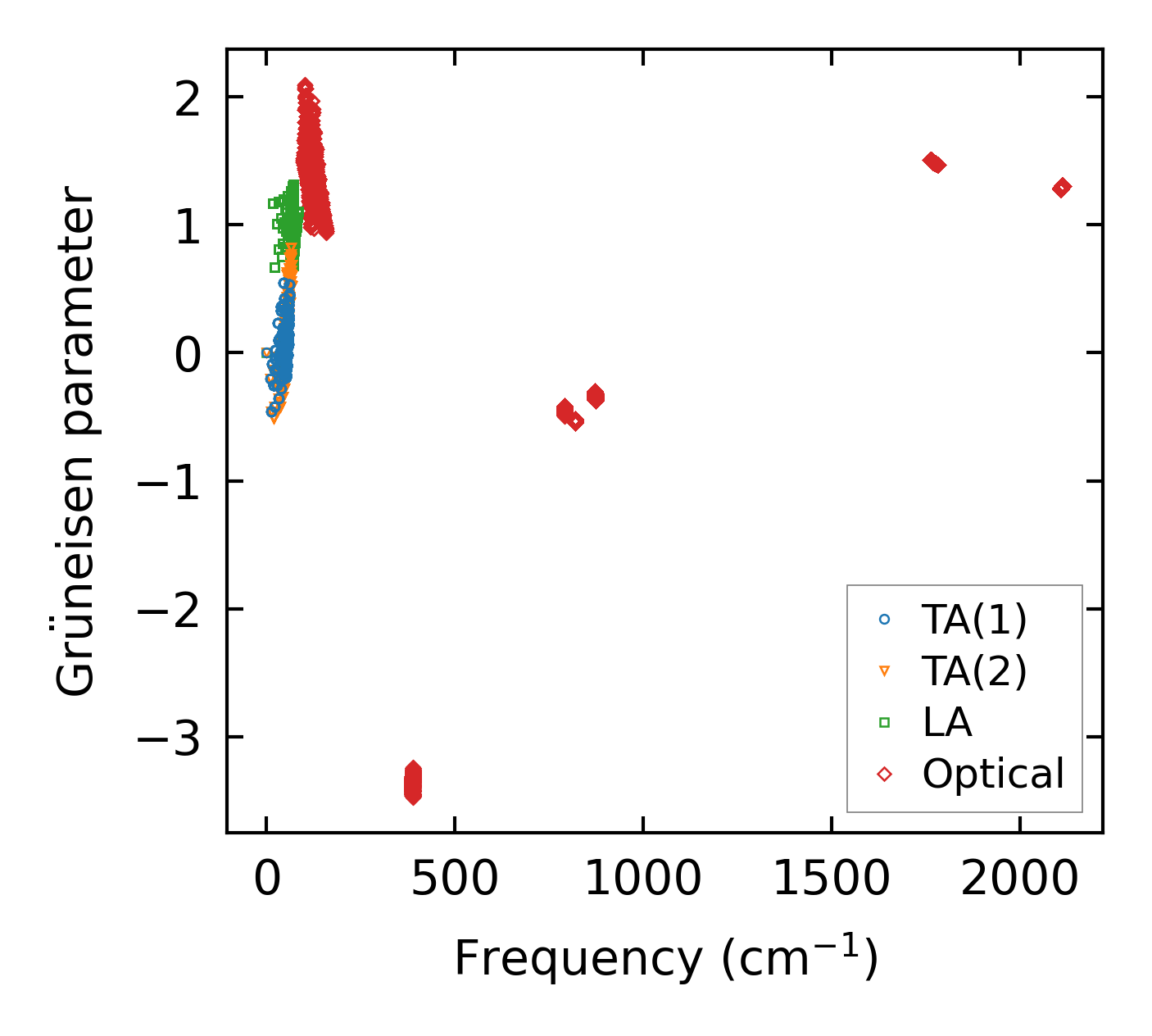

../../_images/fig_gru_all2287.png — (a) Grüneisen parameters

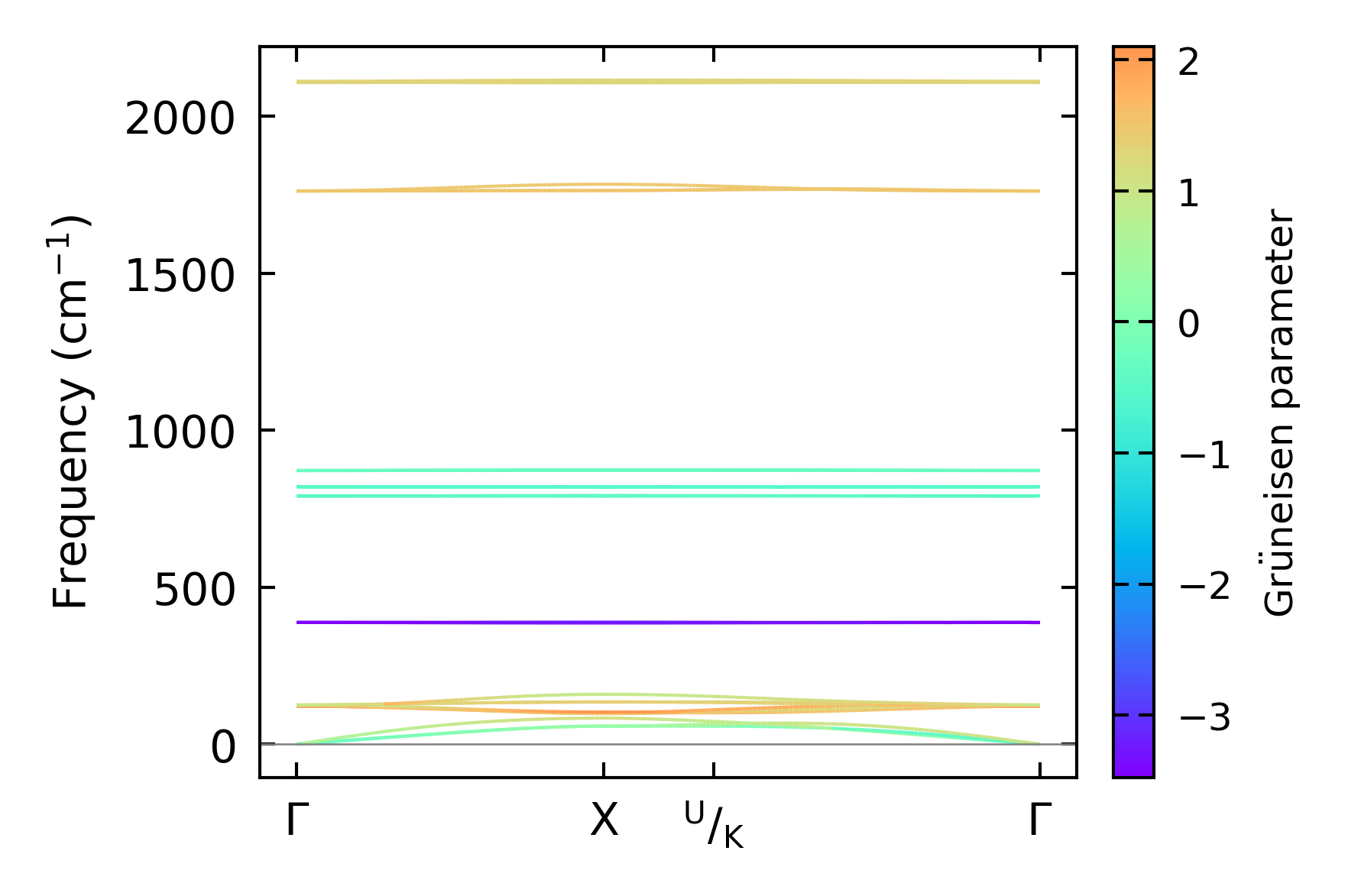

../../_images/fig_gruneisen2287.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon — q-mesh: 14x14x14, supercell: 1x1x1

../../_images/fig_kappa4373.png — (a) Temperature-dependent lattice thermal conductivity

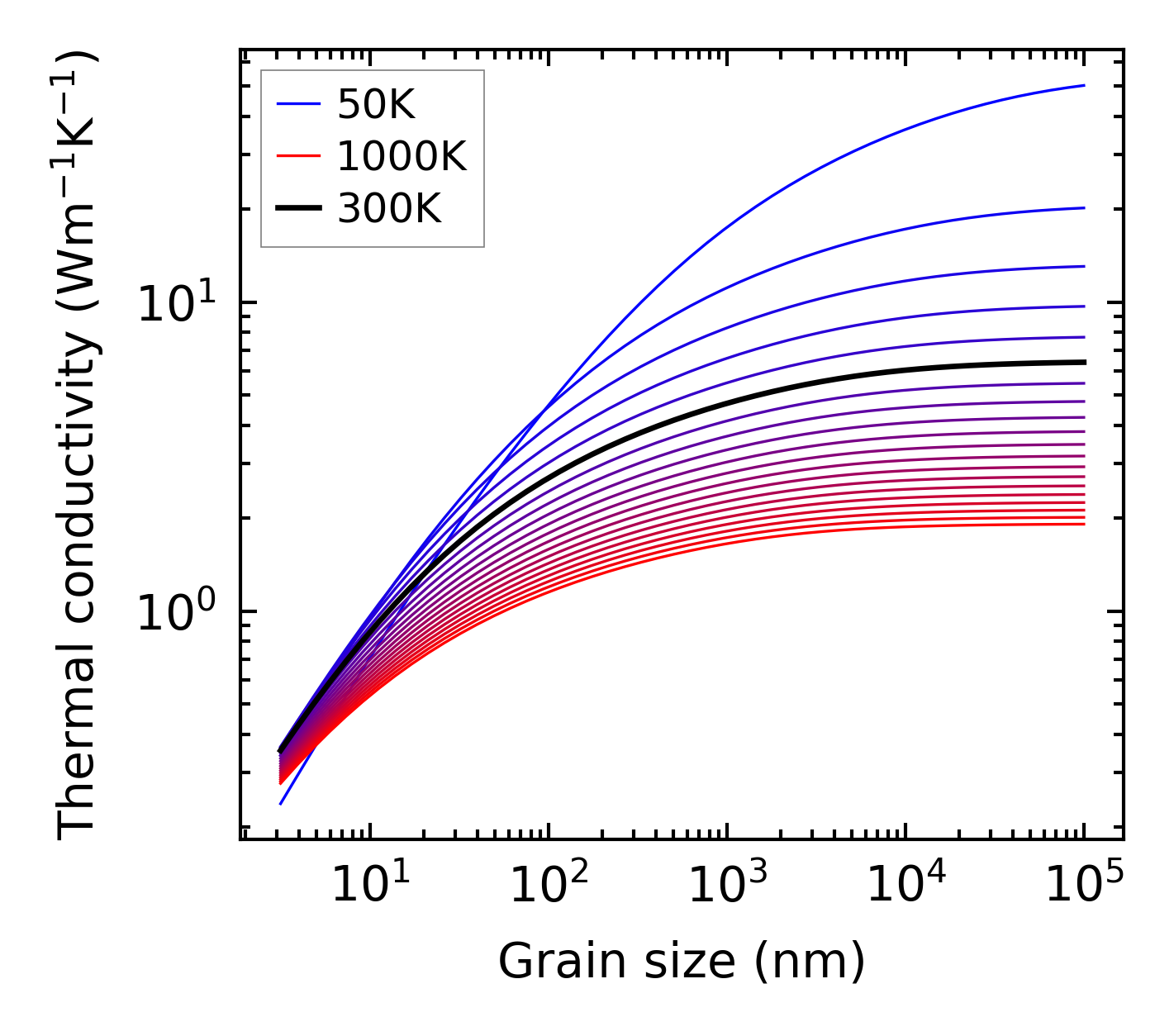

../../_images/fig_kappa_vs_grain_size2317.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

../../_images/fig_lifetime2272.png — (a) Phonon lifetime due to phonon-phonon scattering

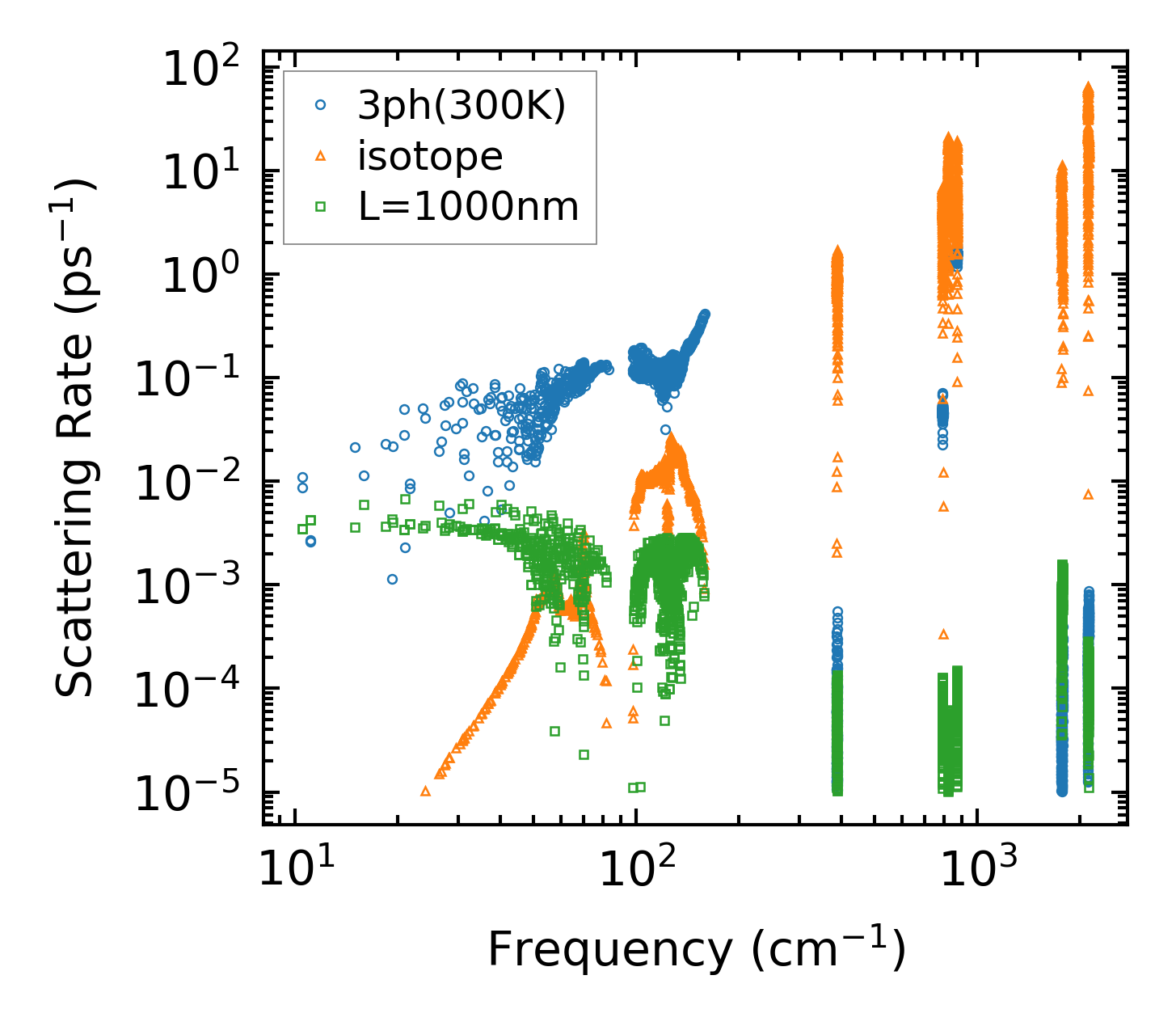

../../_images/fig_scat_rates2271.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

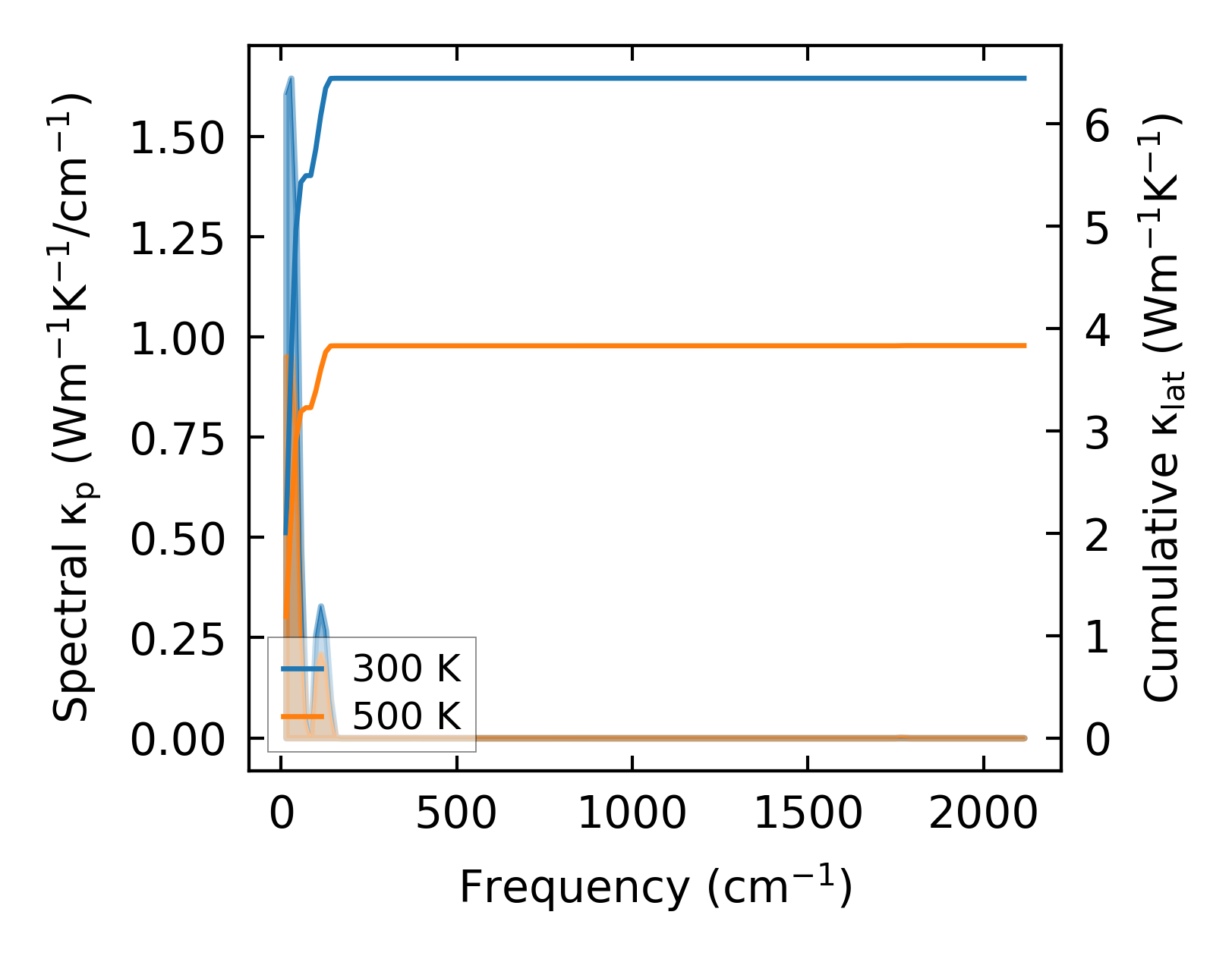

../../_images/fig_cumu_frequency2272.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

../../_images/fig_cumu_mfp2272.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

../../_images/fig_fc3197.png — (a) Force constants w.r.t atomic distance

Summary

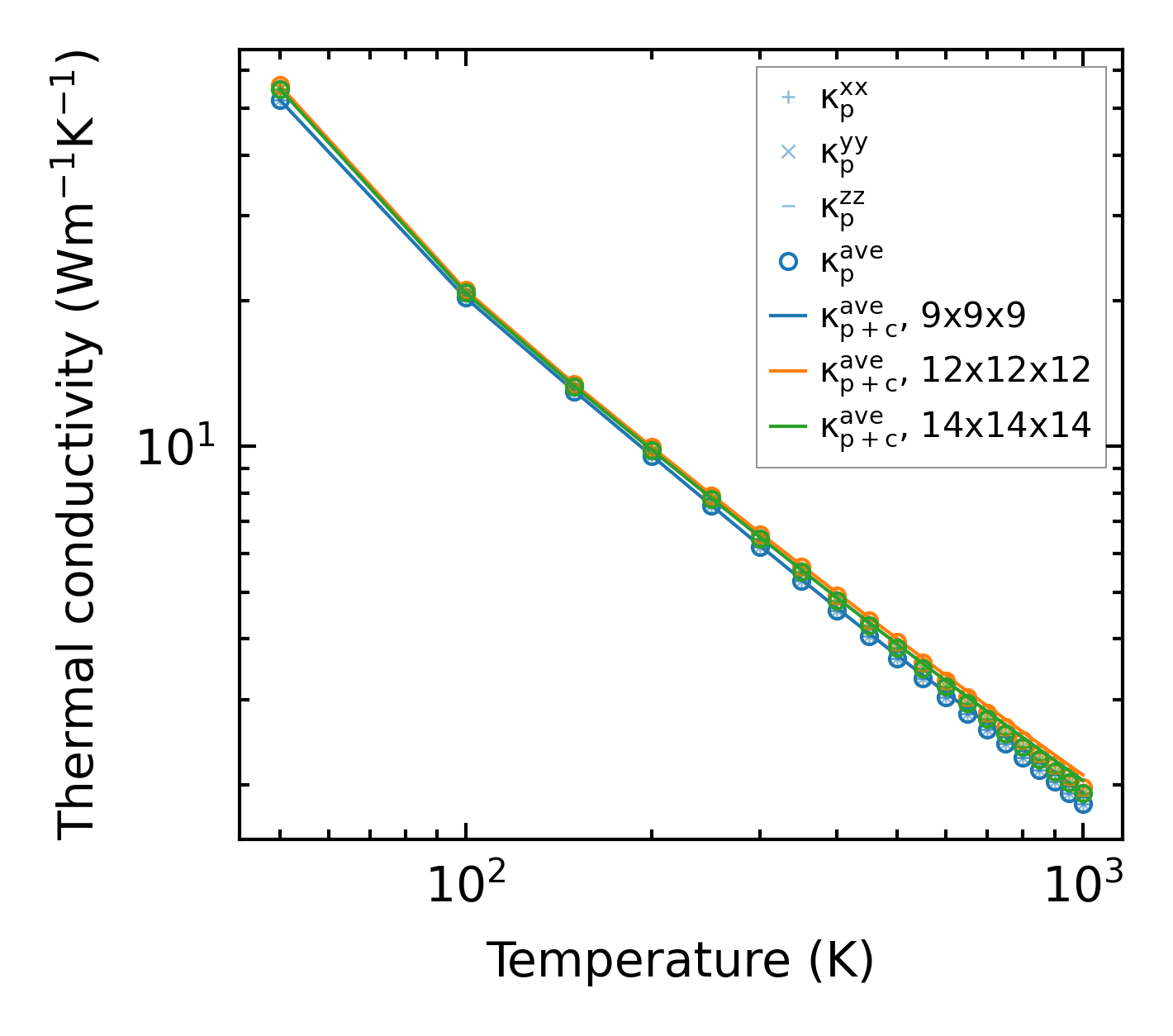

../../_images/fig_kappa4374.png — (a) Temperature-dependent lattice thermal conductivity

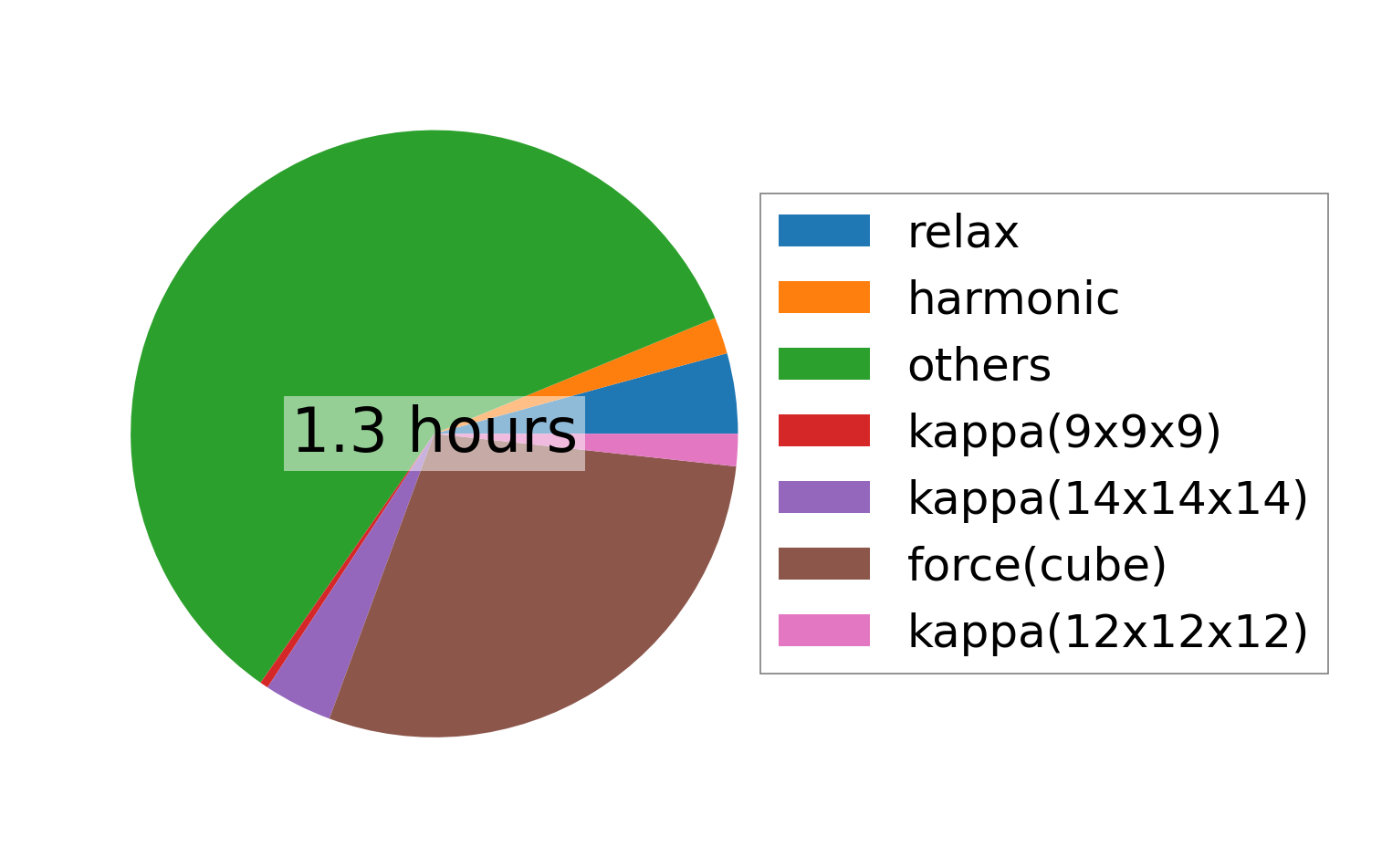

../../_images/fig_times9925.png — (b) Computation time
