mp-643108-2/Yb4Mg3H14/harm

Equation of state

../../_images/fig_bm2669.png

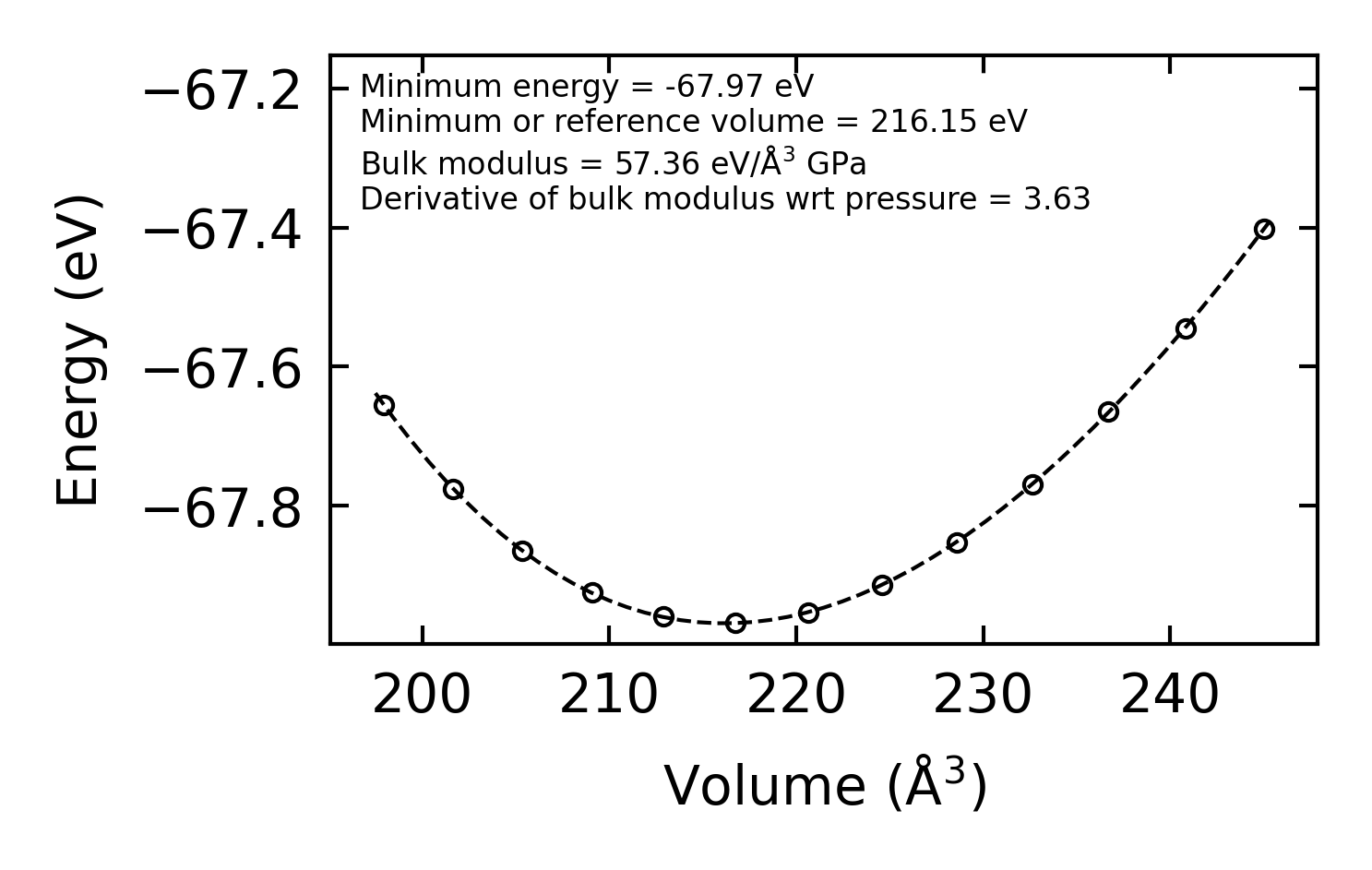

(a) Equation of state

Harmonic properties

../../_images/fig_bandos_pr5477.png

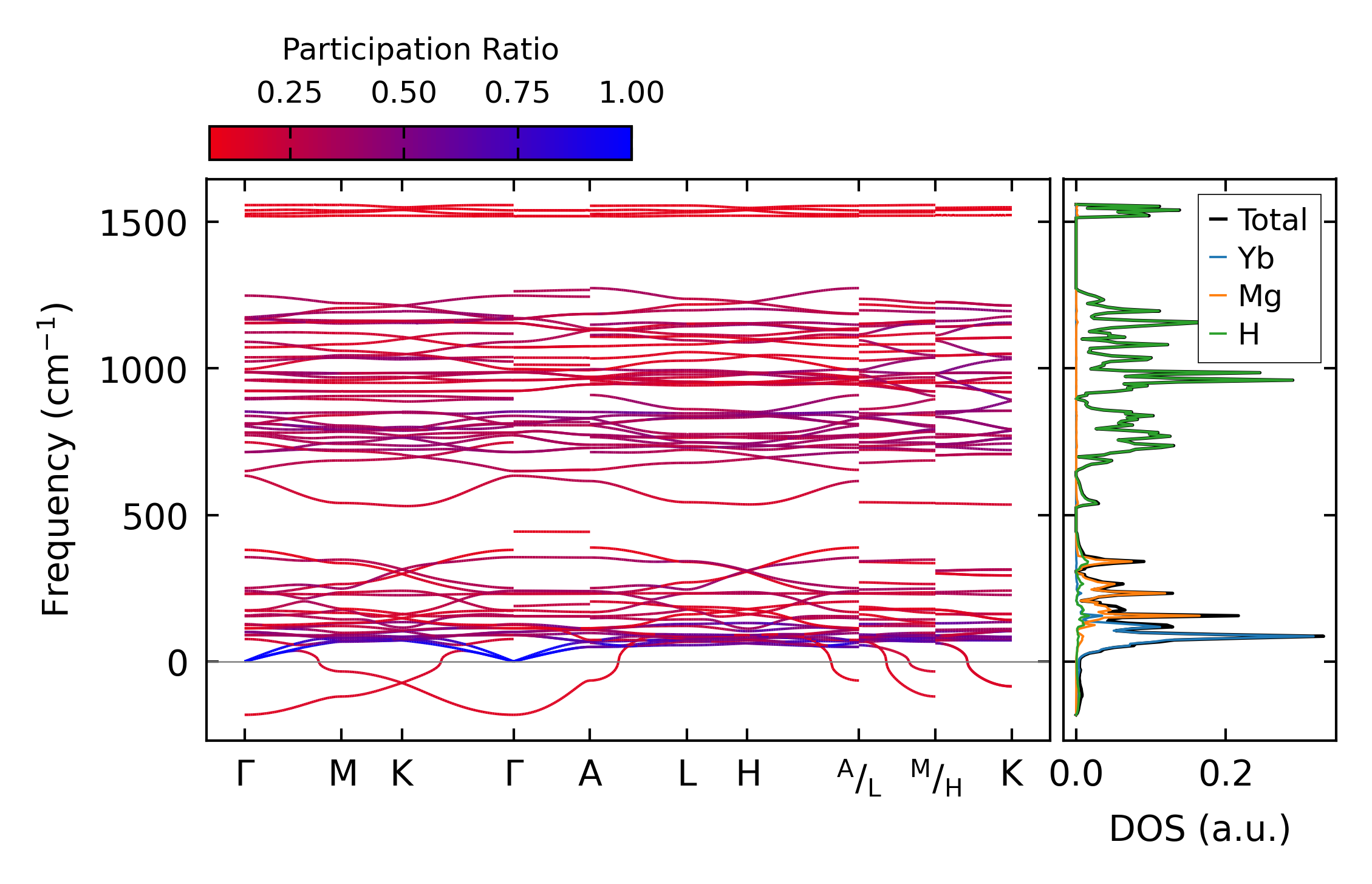

(a) Phonon dispersion with participation ratio and DOS

../../_images/fig_bandos7880.png

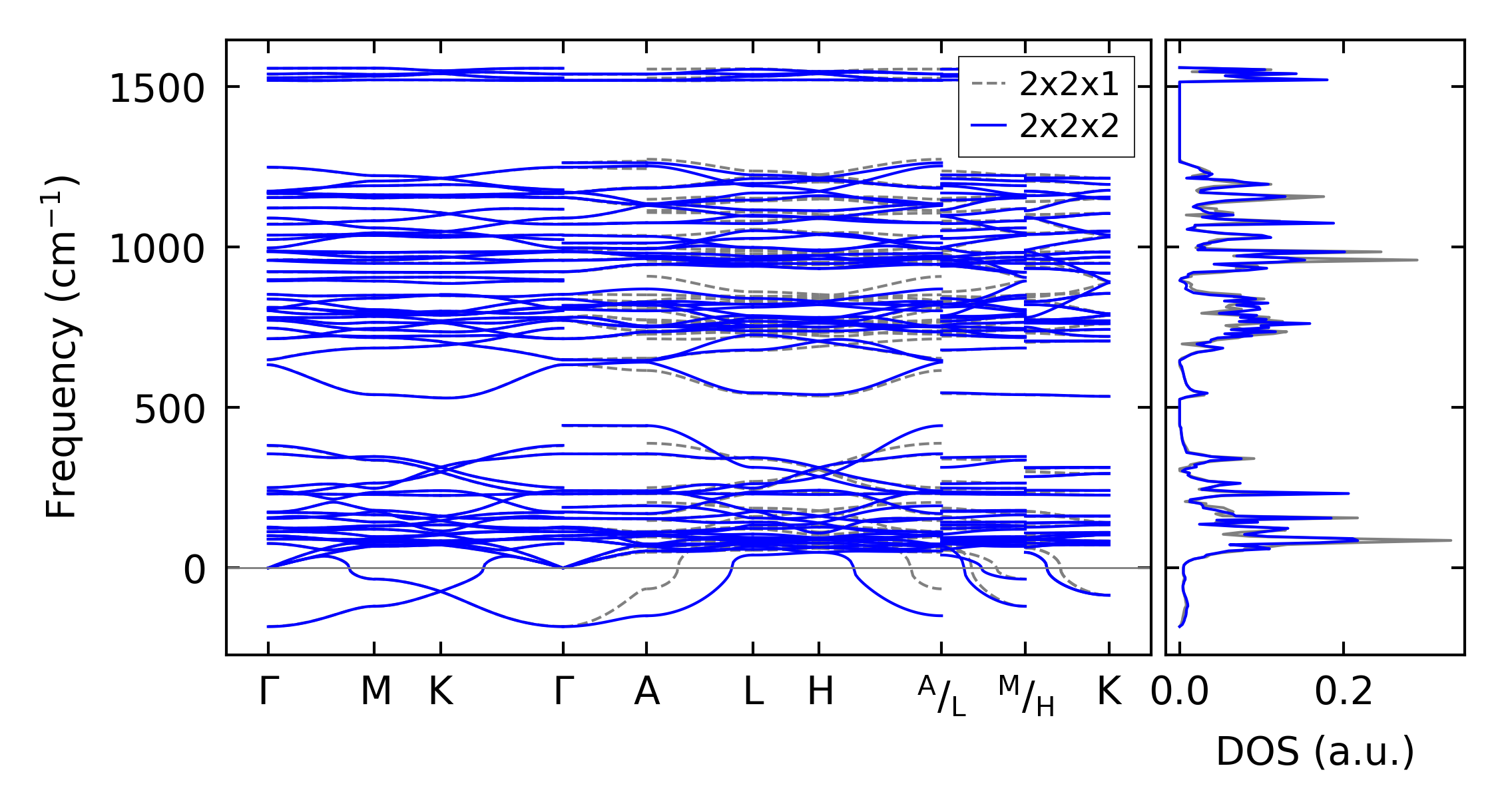

(b) Phonon dispersion and DOS

../../_images/fig_thermo5477.png

(c) Thermodynamic properties

Force constants

../../_images/fig_fc25281.png

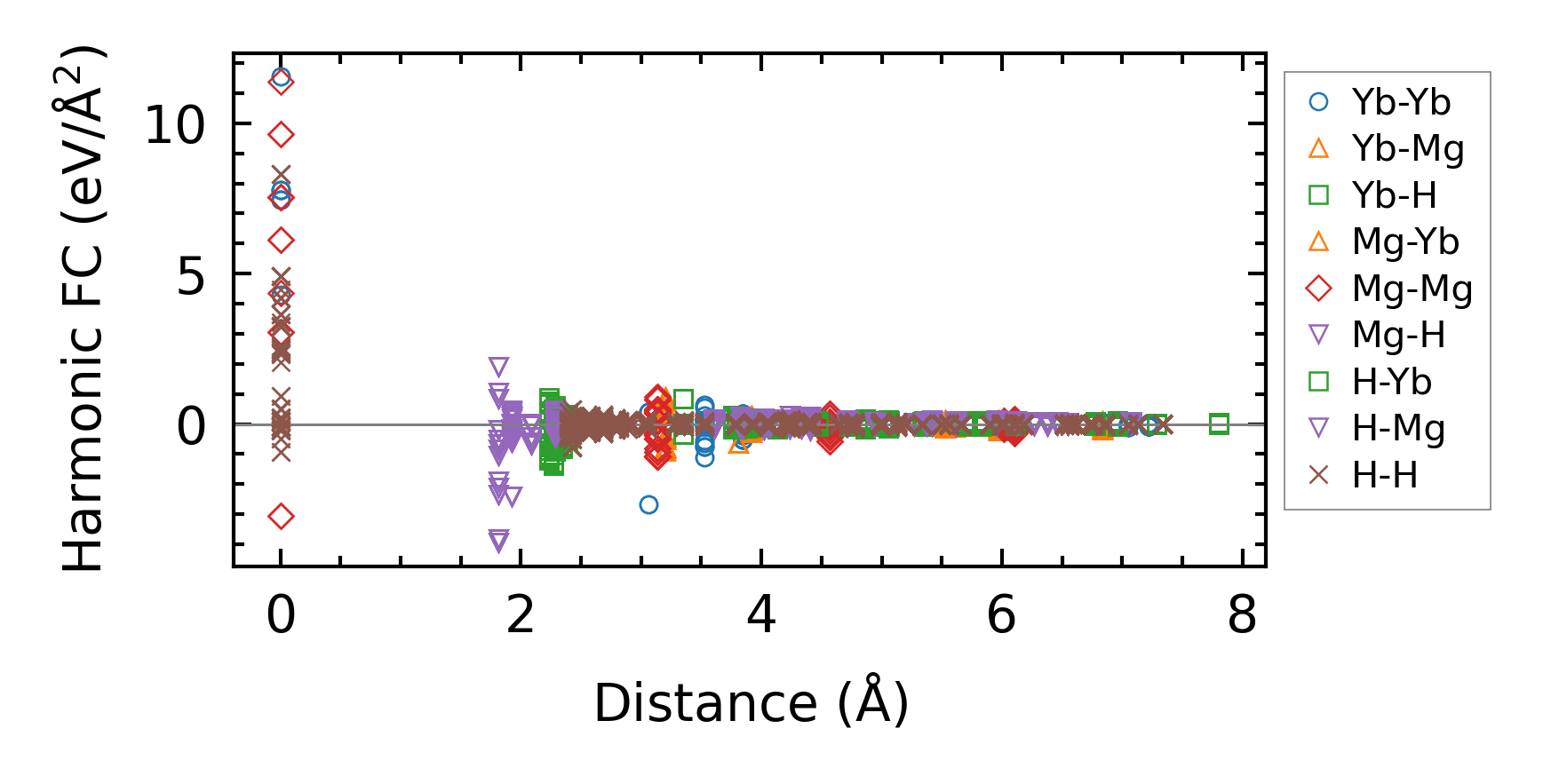

(a) Force constants w.r.t atomic distance

Summary

../../_images/fig_times9907.png

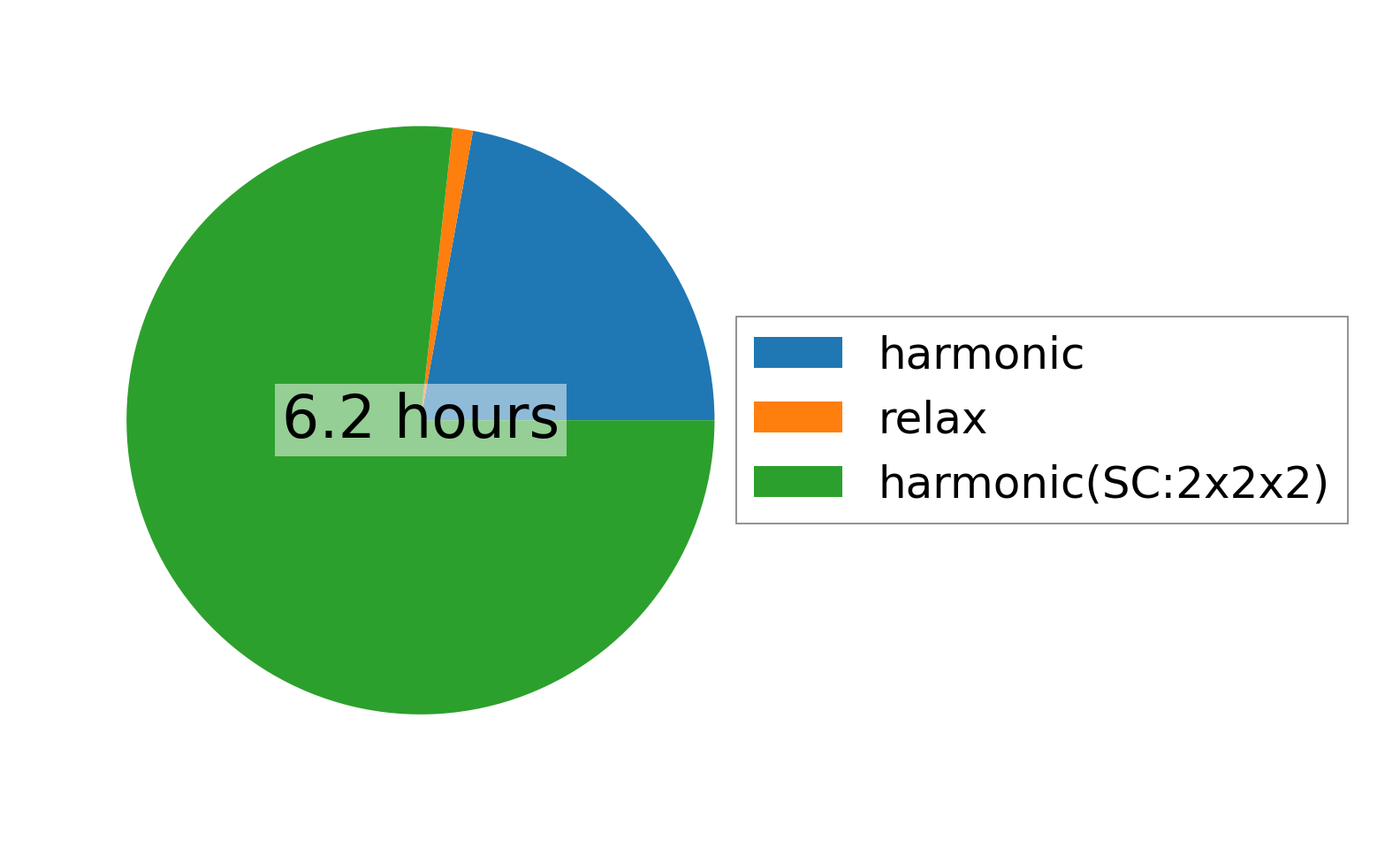

(a) Computation time
