mp-643071/Yb4Mg4Fe3H22/anharm

Space group: P-43m (215)
Link: Materials Project
Download: mp-643071.tar.gz

Harmonic properties

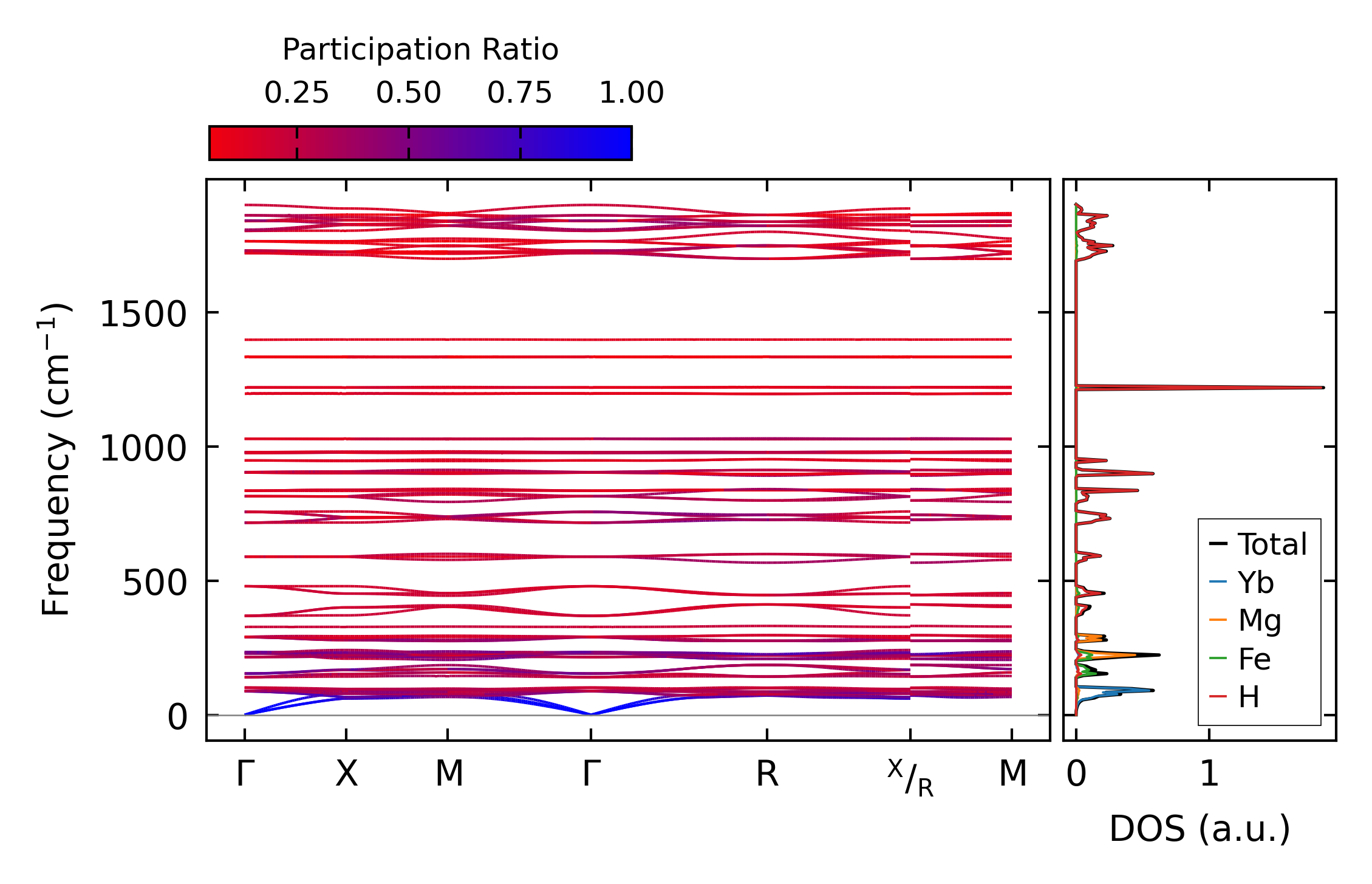

../../_images/fig_bandos_pr5472.png — (a) Phonon dispersion with participation ratio and DOS

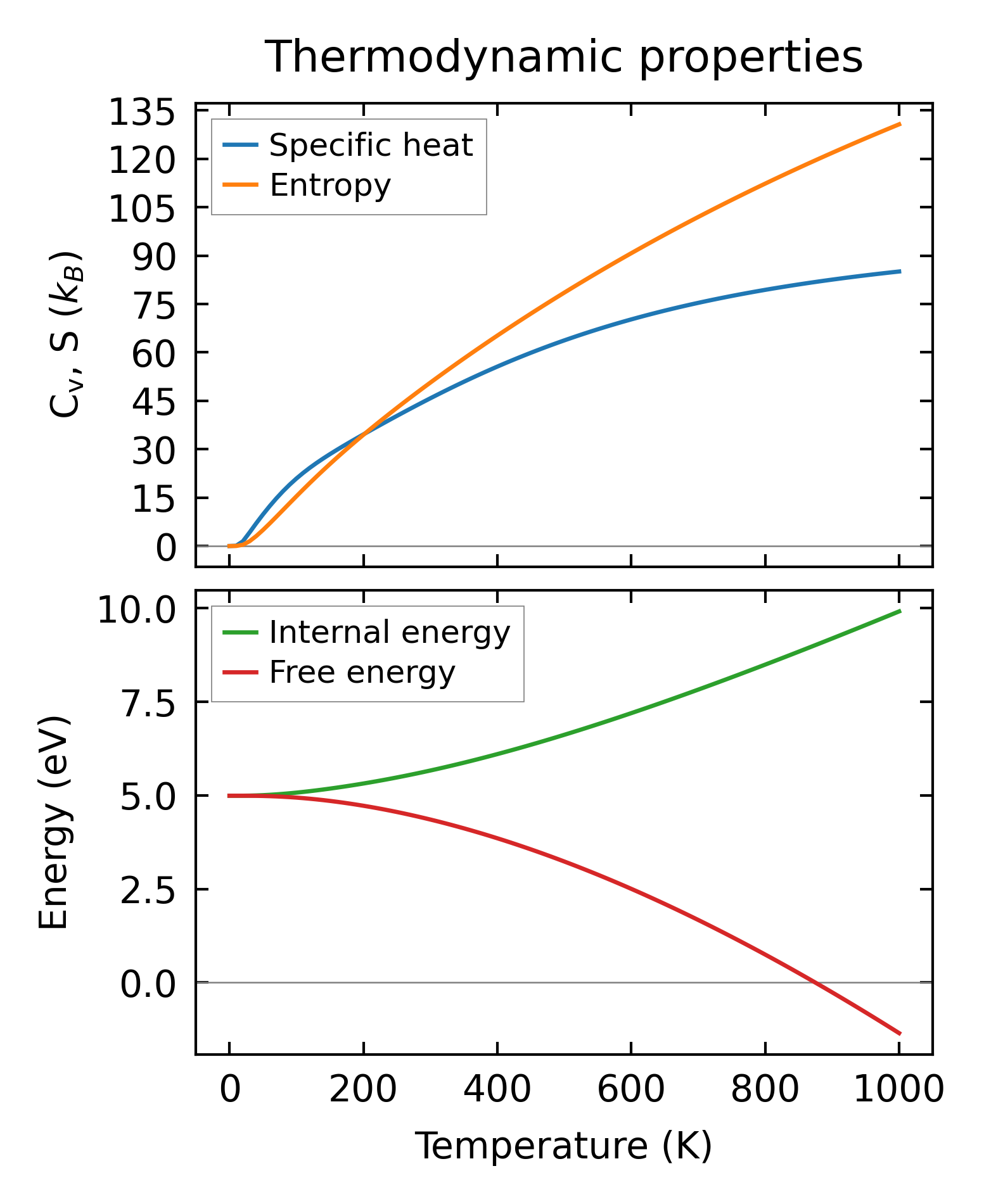

../../_images/fig_thermo5472.png — (b) Thermodynamic properties

Grüneisen parameters

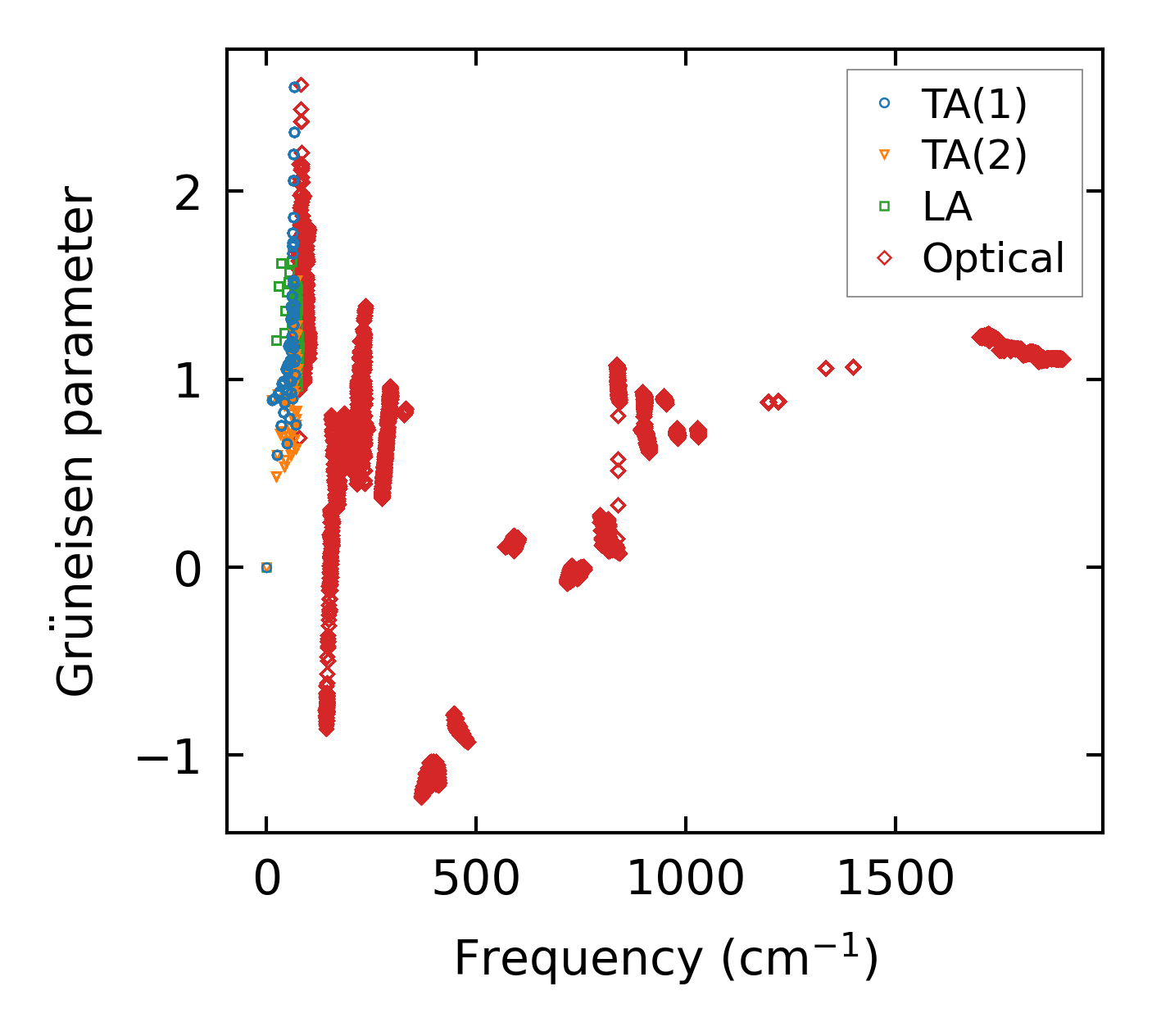

../../_images/fig_gru_all2277.png — (a) Grüneisen parameters

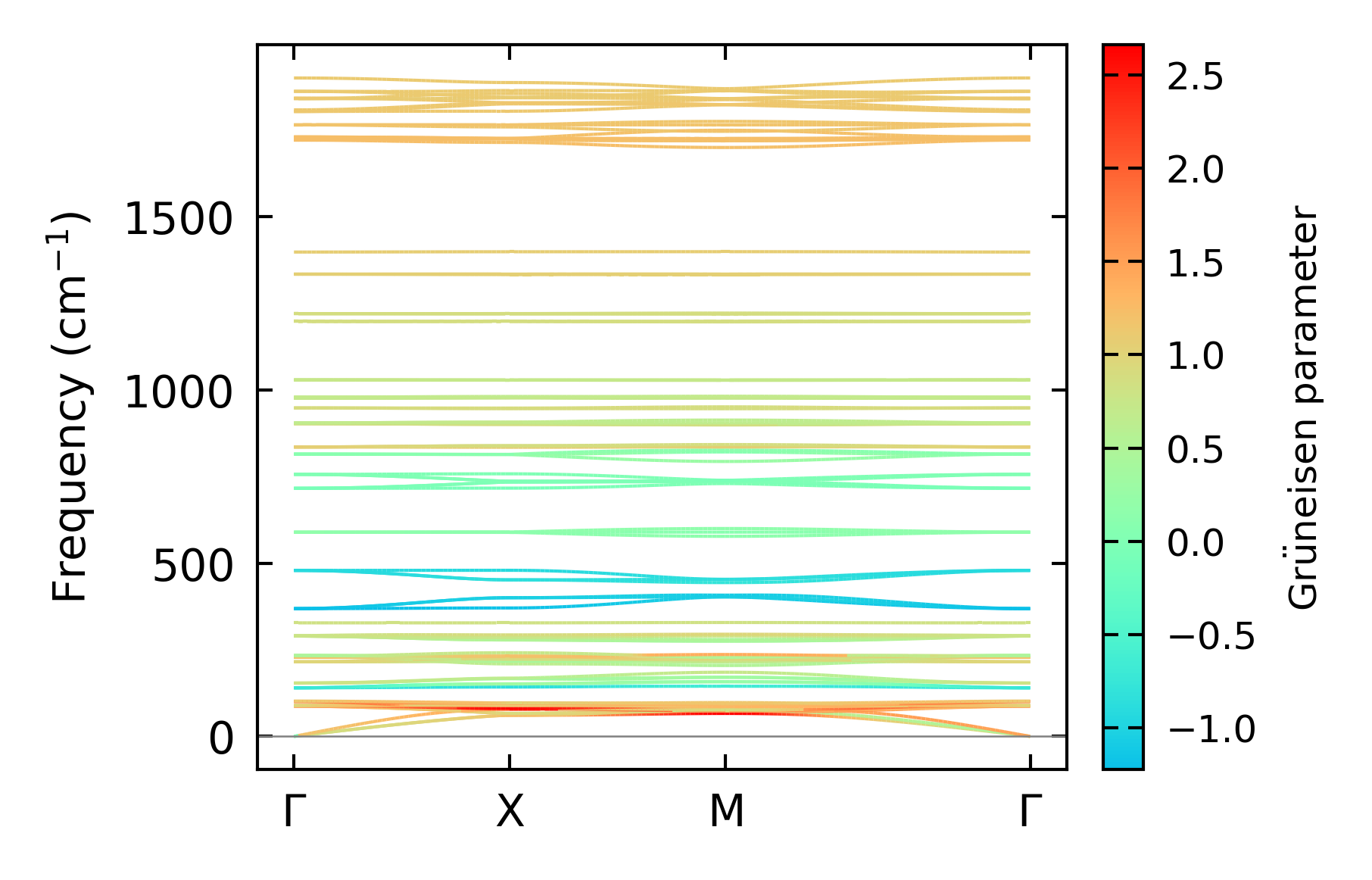

../../_images/fig_gruneisen2277.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 11x11x11, supercell: 1x1x1

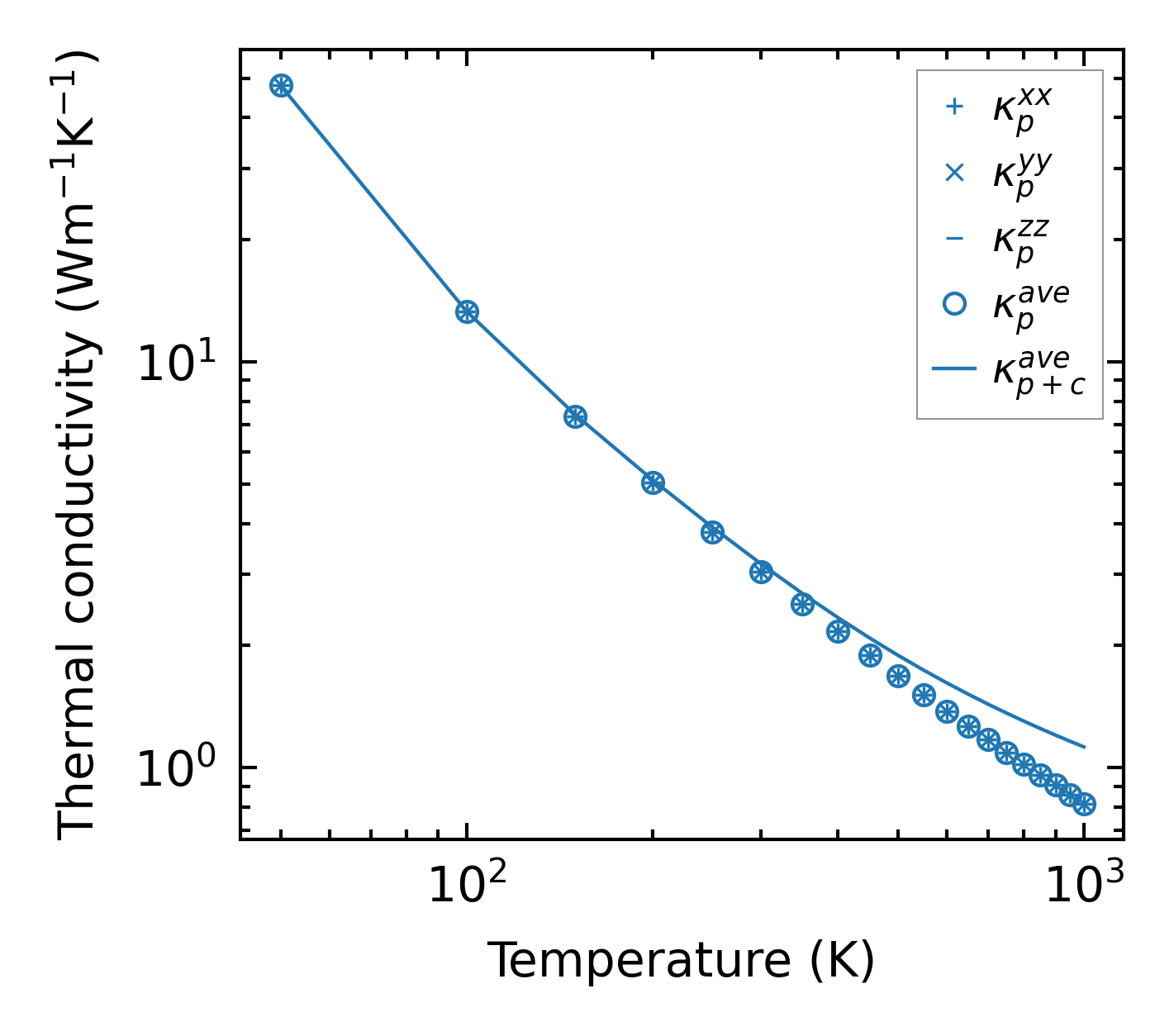

../../_images/fig_kappa4354.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size2307.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

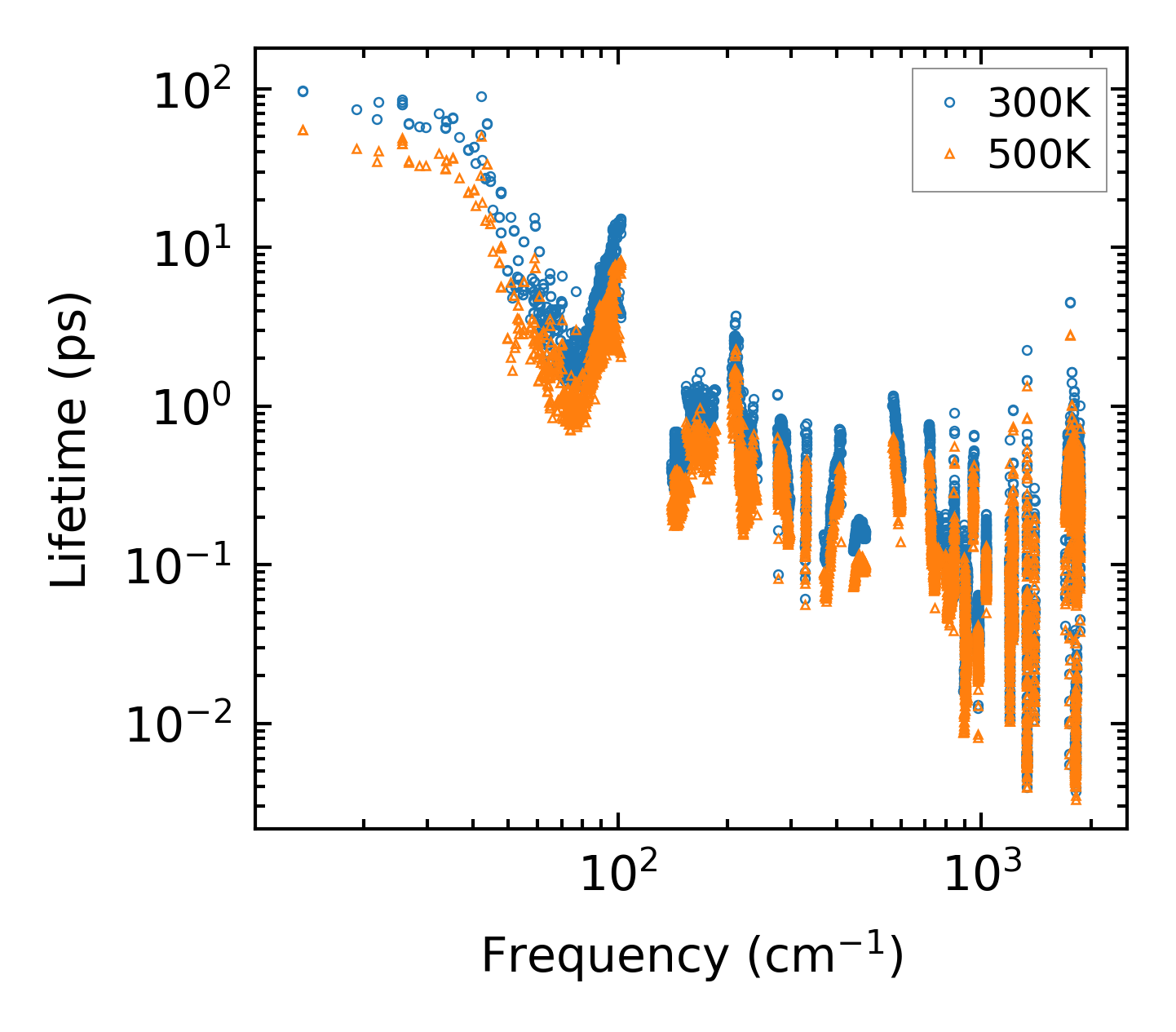

../../_images/fig_lifetime2262.png — (a) Phonon lifetime due to phonon-phonon scattering

../../_images/fig_scat_rates2261.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

../../_images/fig_cumu_frequency2262.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

../../_images/fig_cumu_mfp2262.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

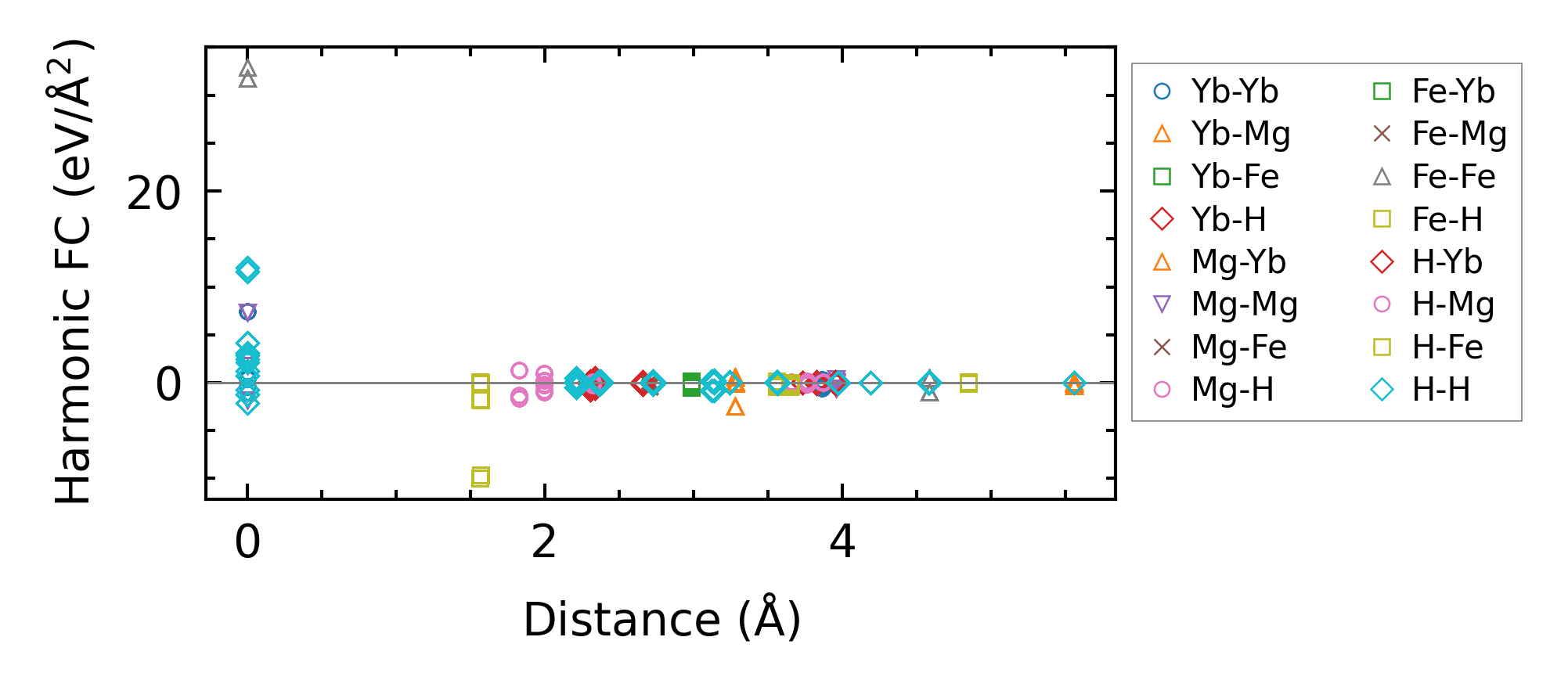

../../_images/fig_fc25277.png — (a) Force constants w.r.t atomic distance

Summary

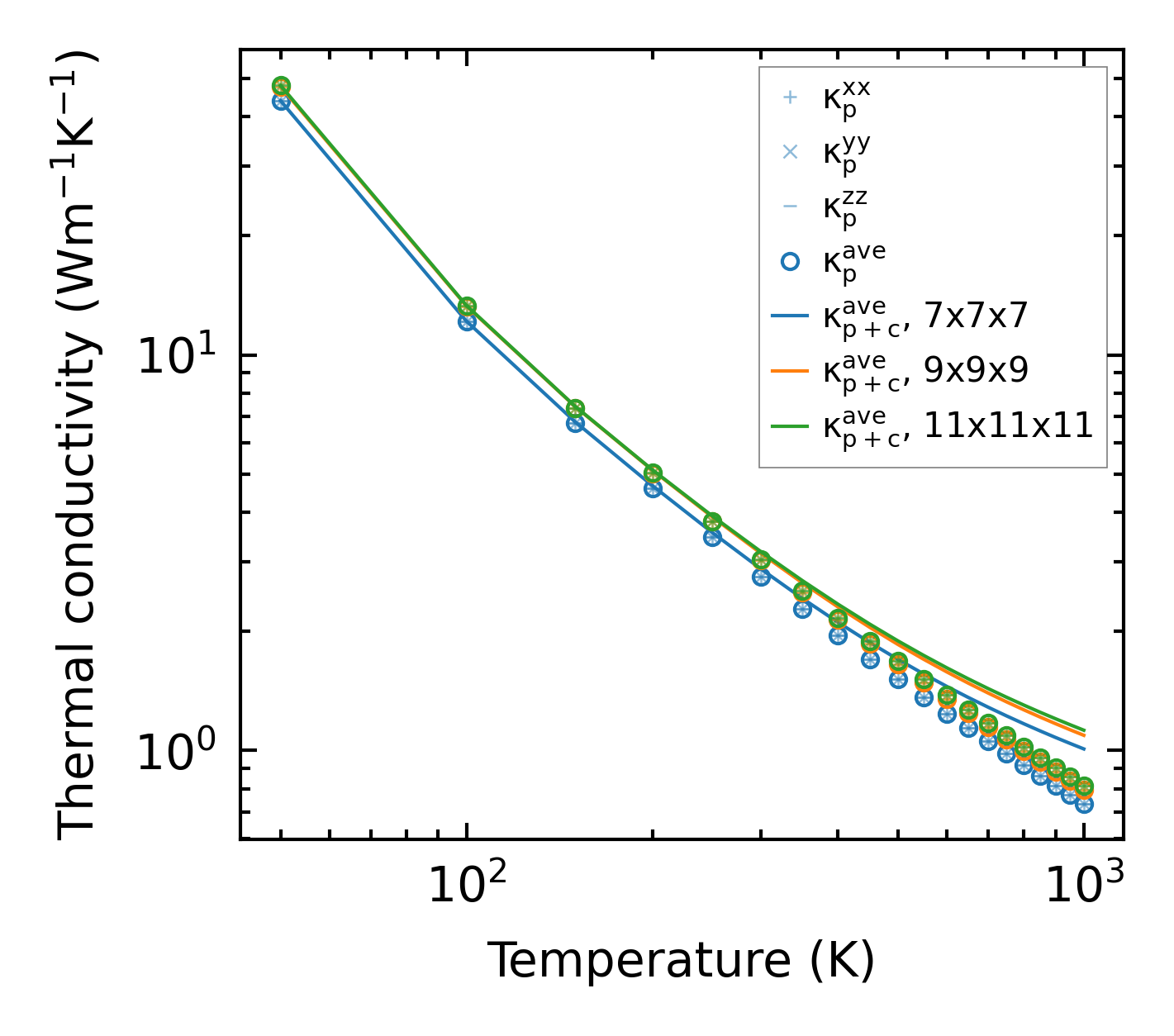

../../_images/fig_kappa4355.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_times9900.png — (b) Computation time
