mp-643253/Ba2H6Pt/anharm

Space group: Cmce (64)
Link: Materials Project
Download: mp-643253.tar.gz

Harmonic properties

../../_images/fig_bandos_pr5484.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo5484.png — (b) Thermodynamic properties

Grüneisen parameters

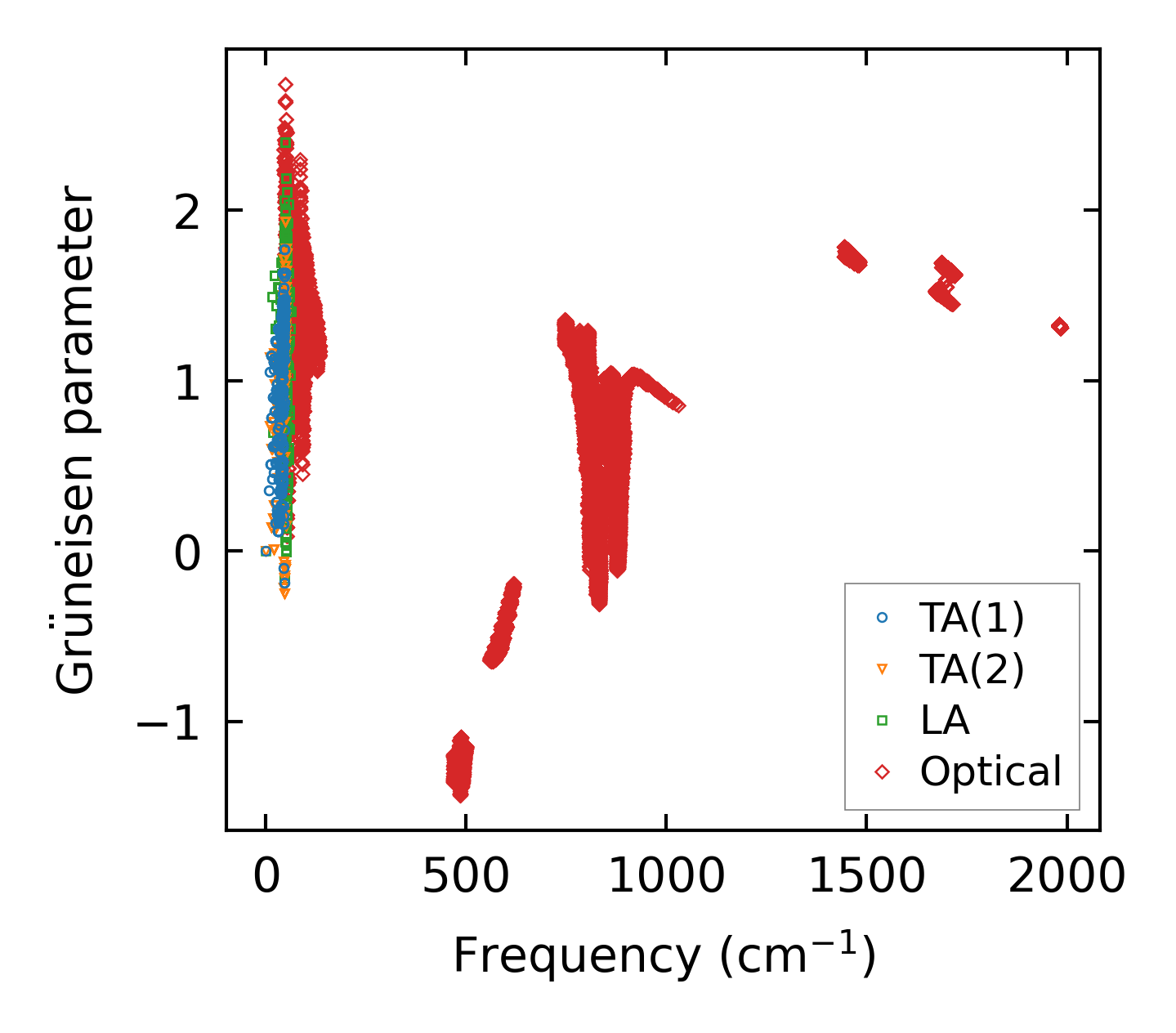

../../_images/fig_gru_all2282.png — (a) Grüneisen parameters

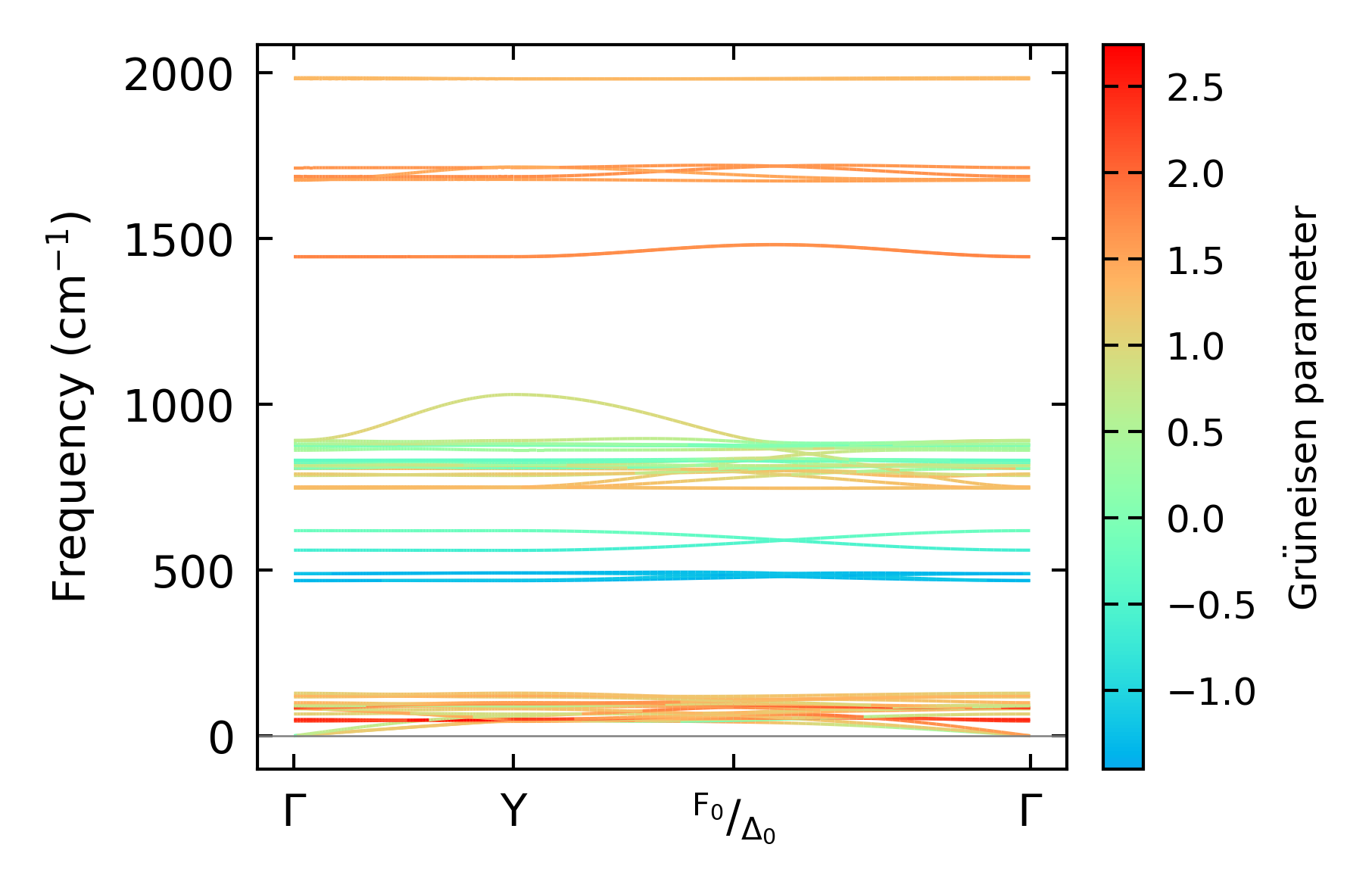

../../_images/fig_gruneisen2282.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 10x10x13, supercell: 1x2x2

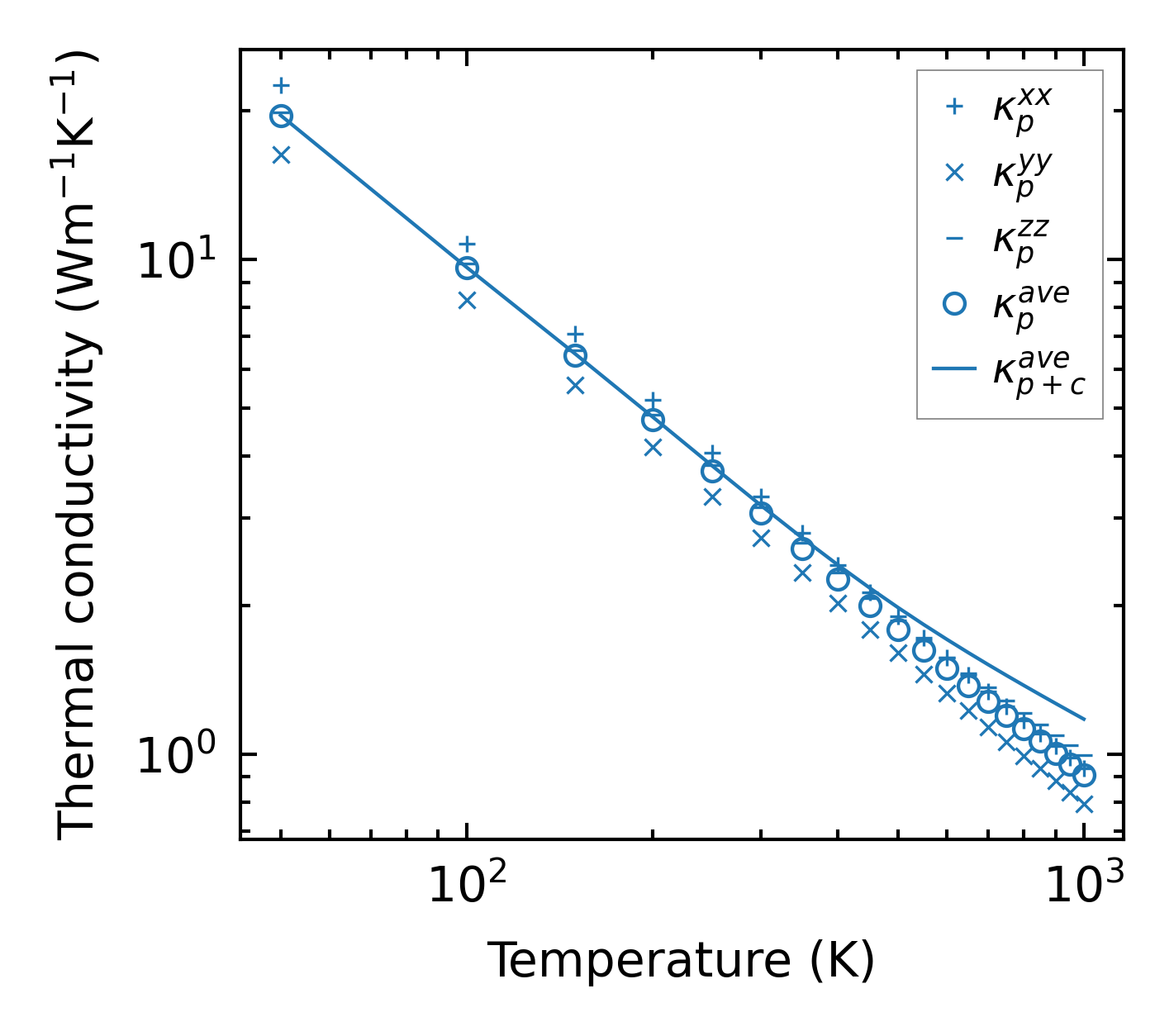

../../_images/fig_kappa4363.png — (a) Temperature-dependent lattice thermal conductivity

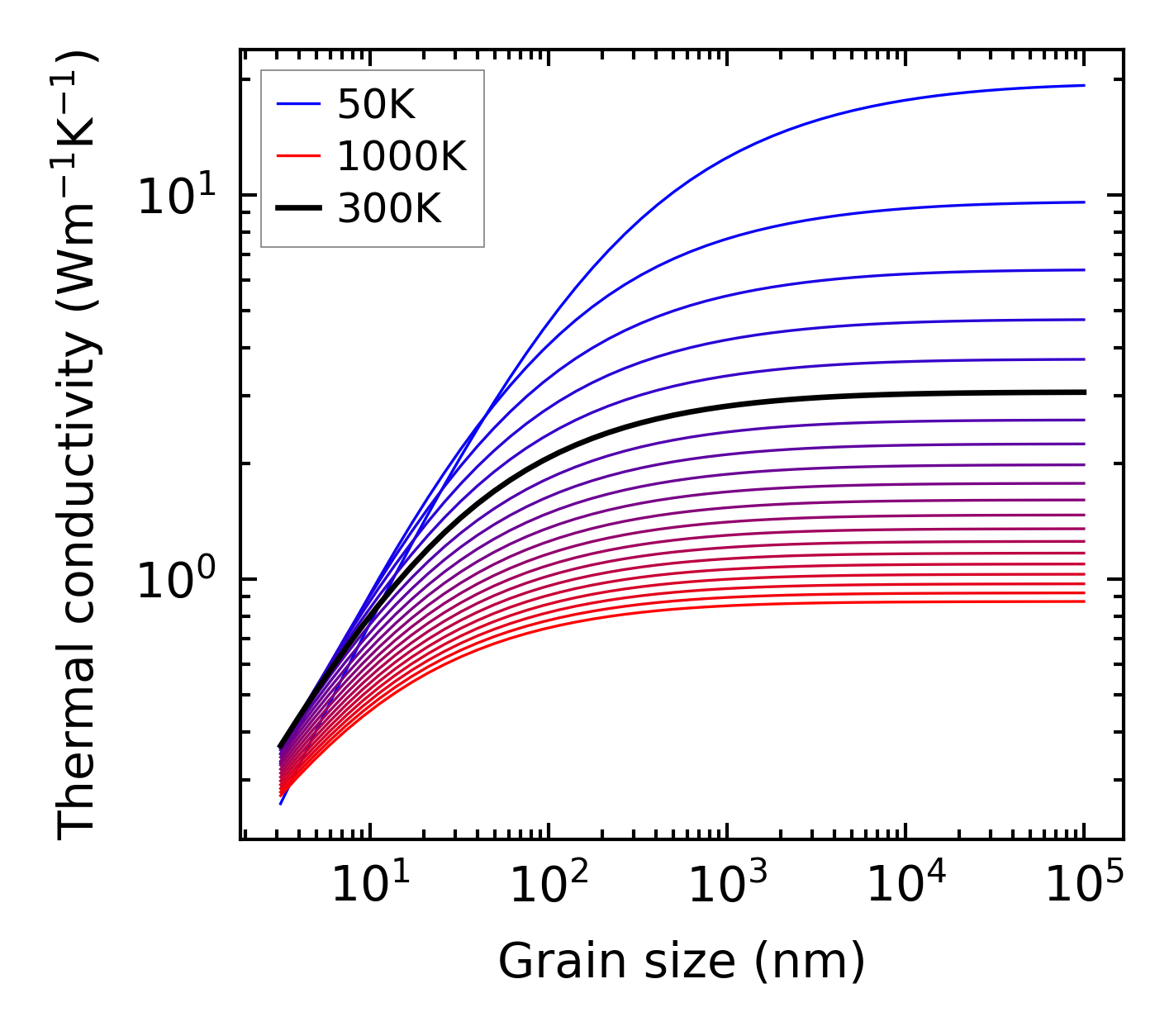

../../_images/fig_kappa_vs_grain_size2312.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

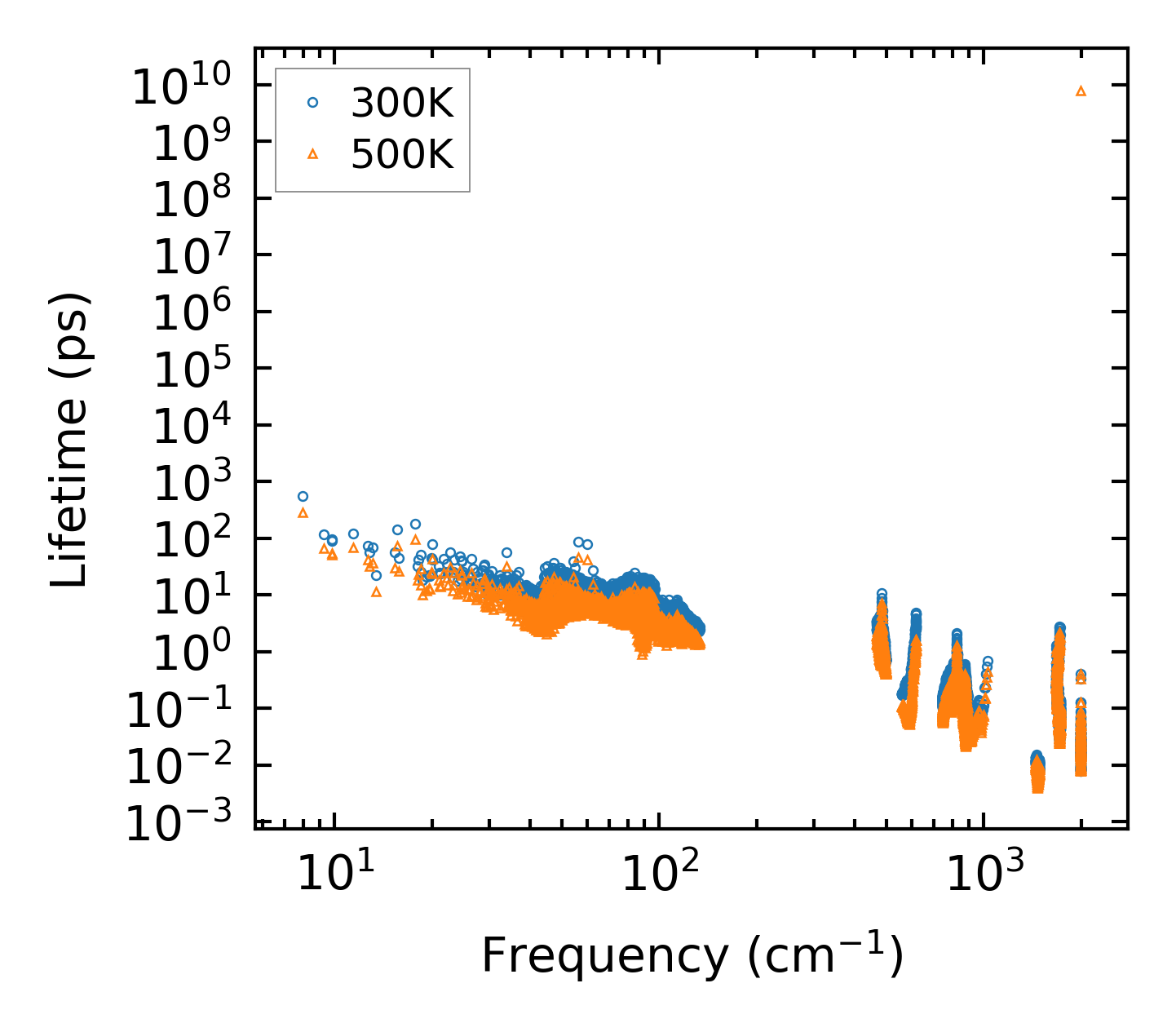

../../_images/fig_lifetime2267.png — (a) Phonon lifetime due to phonon-phonon scattering

../../_images/fig_scat_rates2266.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

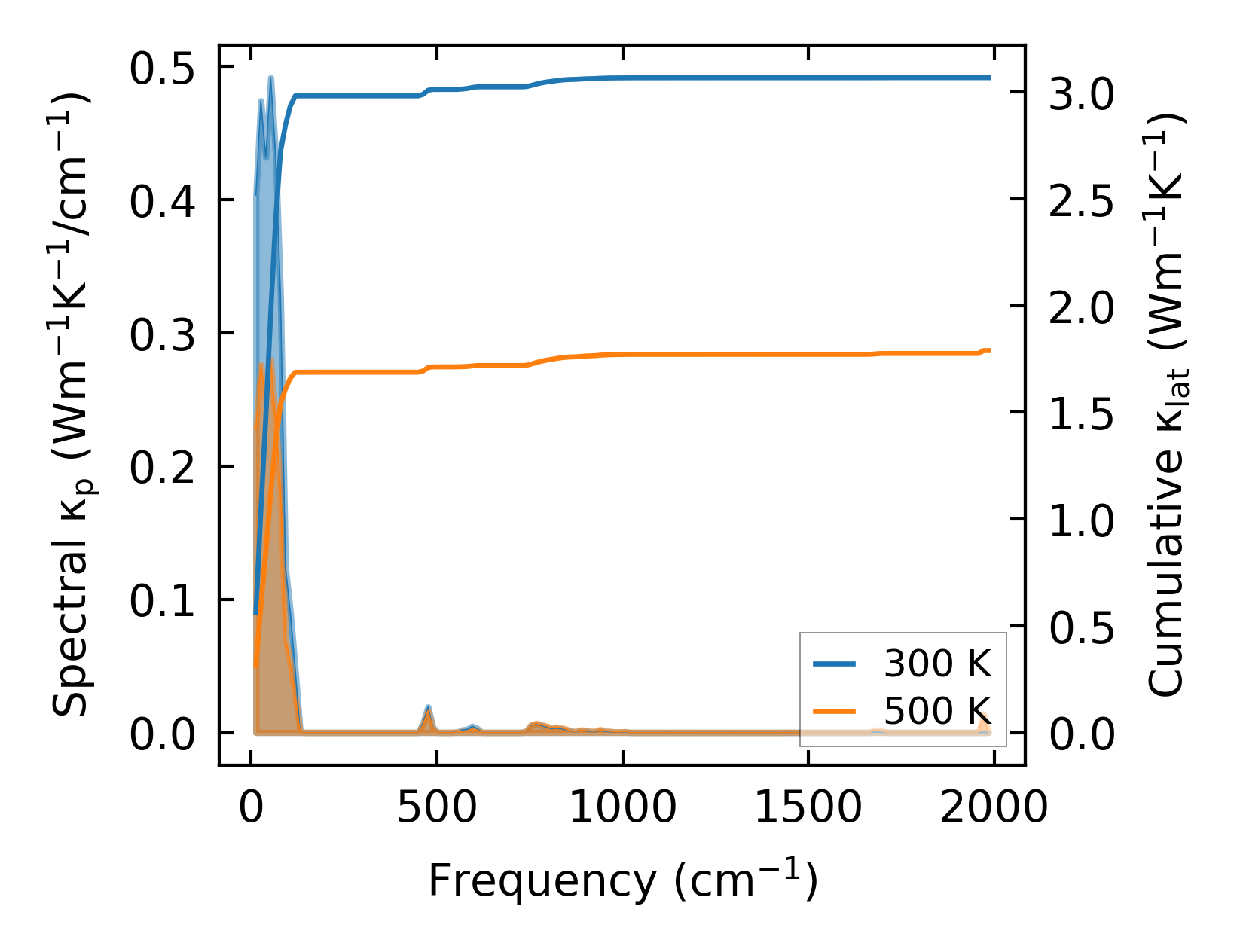

../../_images/fig_cumu_frequency2267.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

../../_images/fig_cumu_mfp2267.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

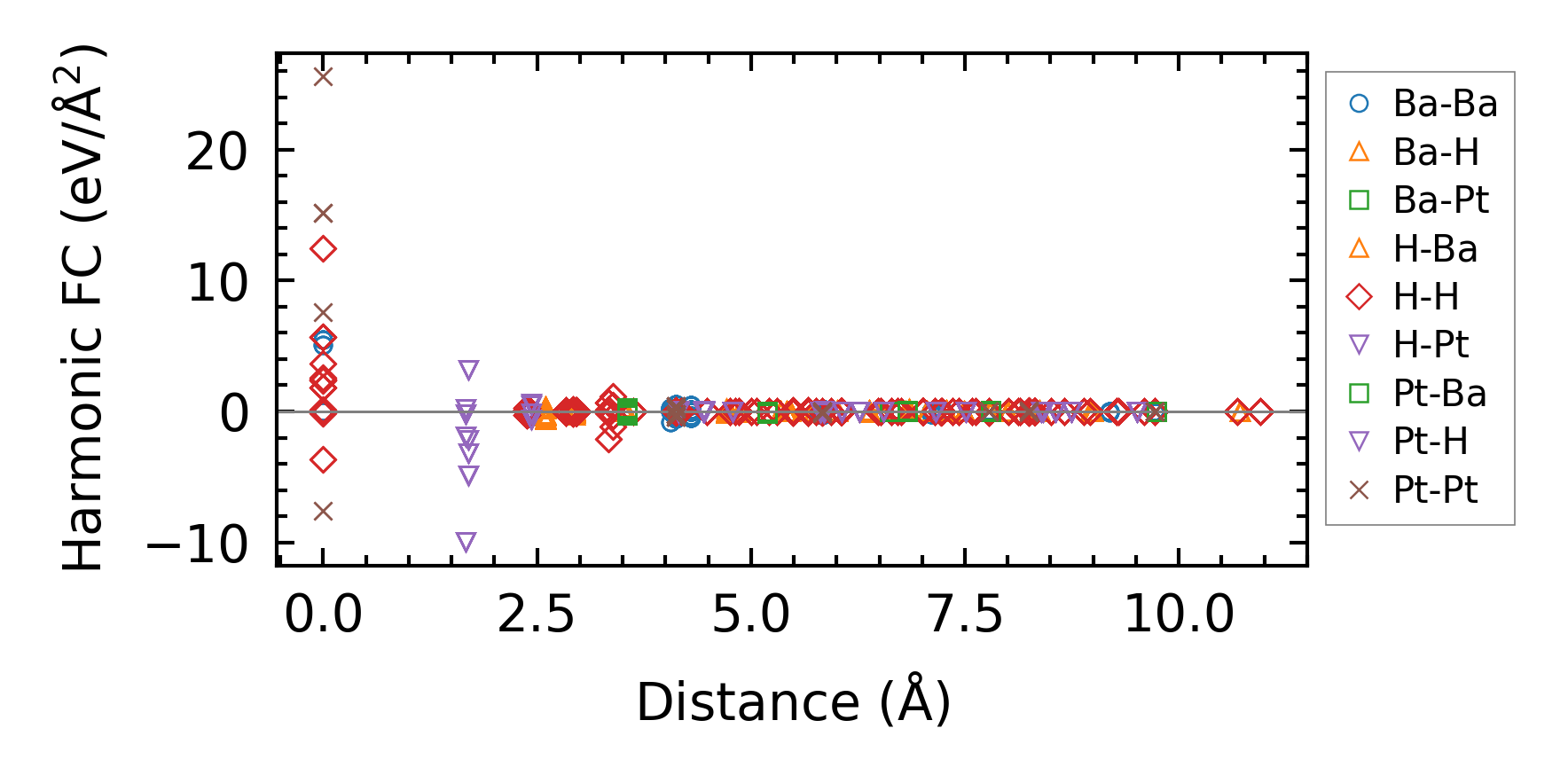

../../_images/fig_fc25287.png — (a) Force constants w.r.t atomic distance

Summary

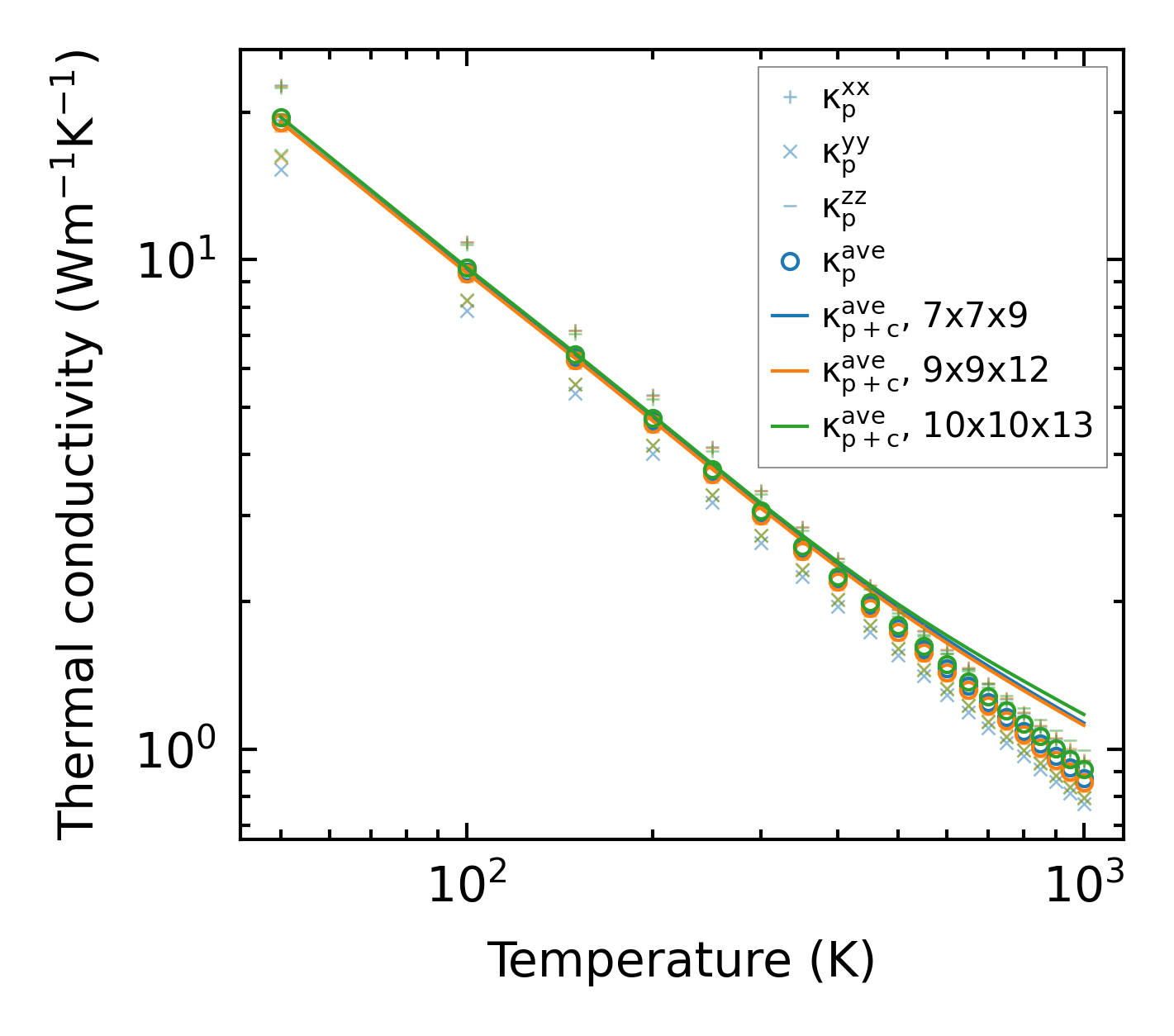

../../_images/fig_kappa4364.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_times9914.png — (b) Computation time
