mp-643023/Mg2H4Ru/anharm

Space group: Cmcm (63)
Link: Materials Project
Download: mp-643023.tar.gz

Harmonic properties

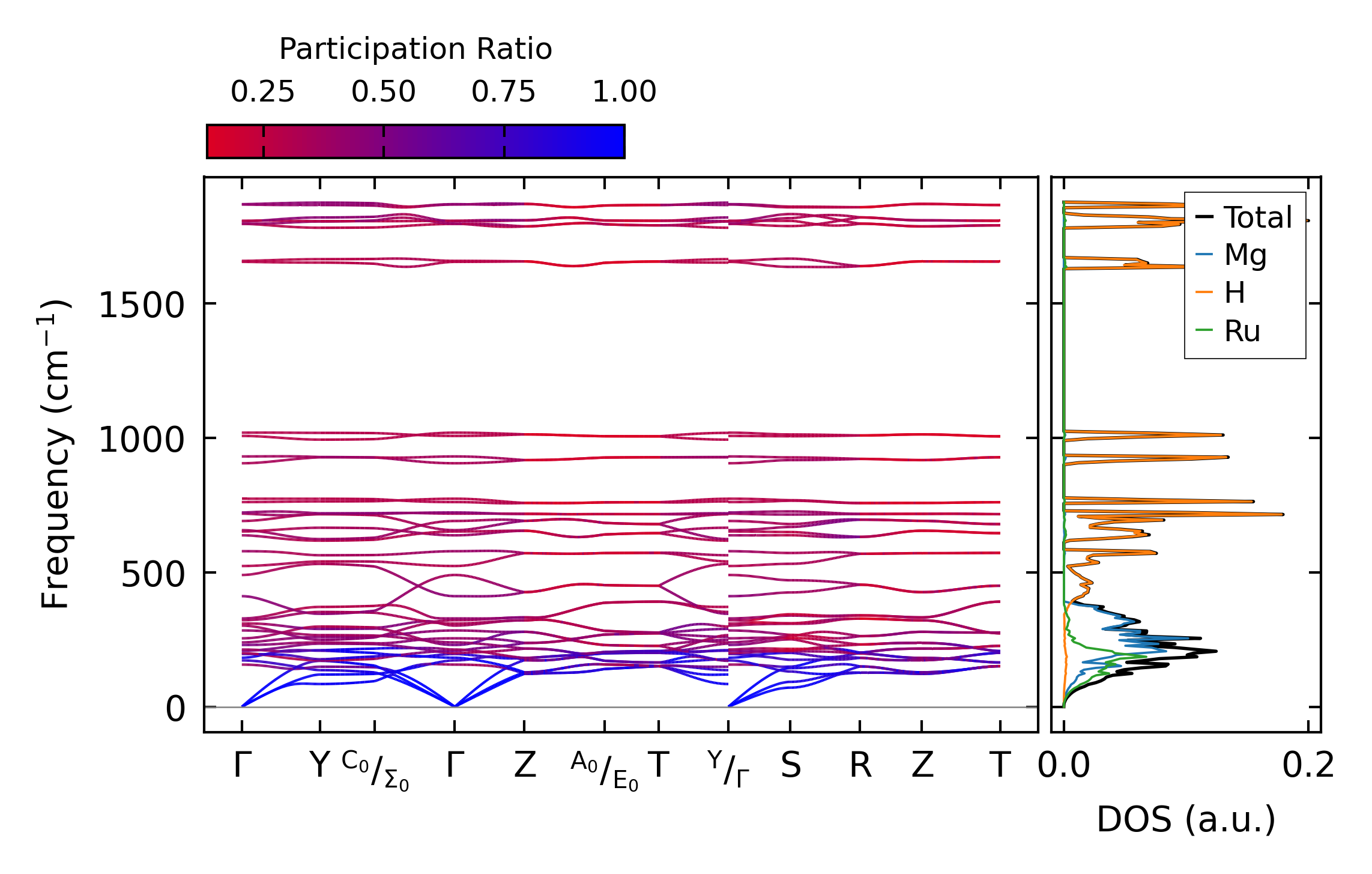

../../_images/fig_bandos_pr5463.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo5463.png — (b) Thermodynamic properties

Grüneisen parameters

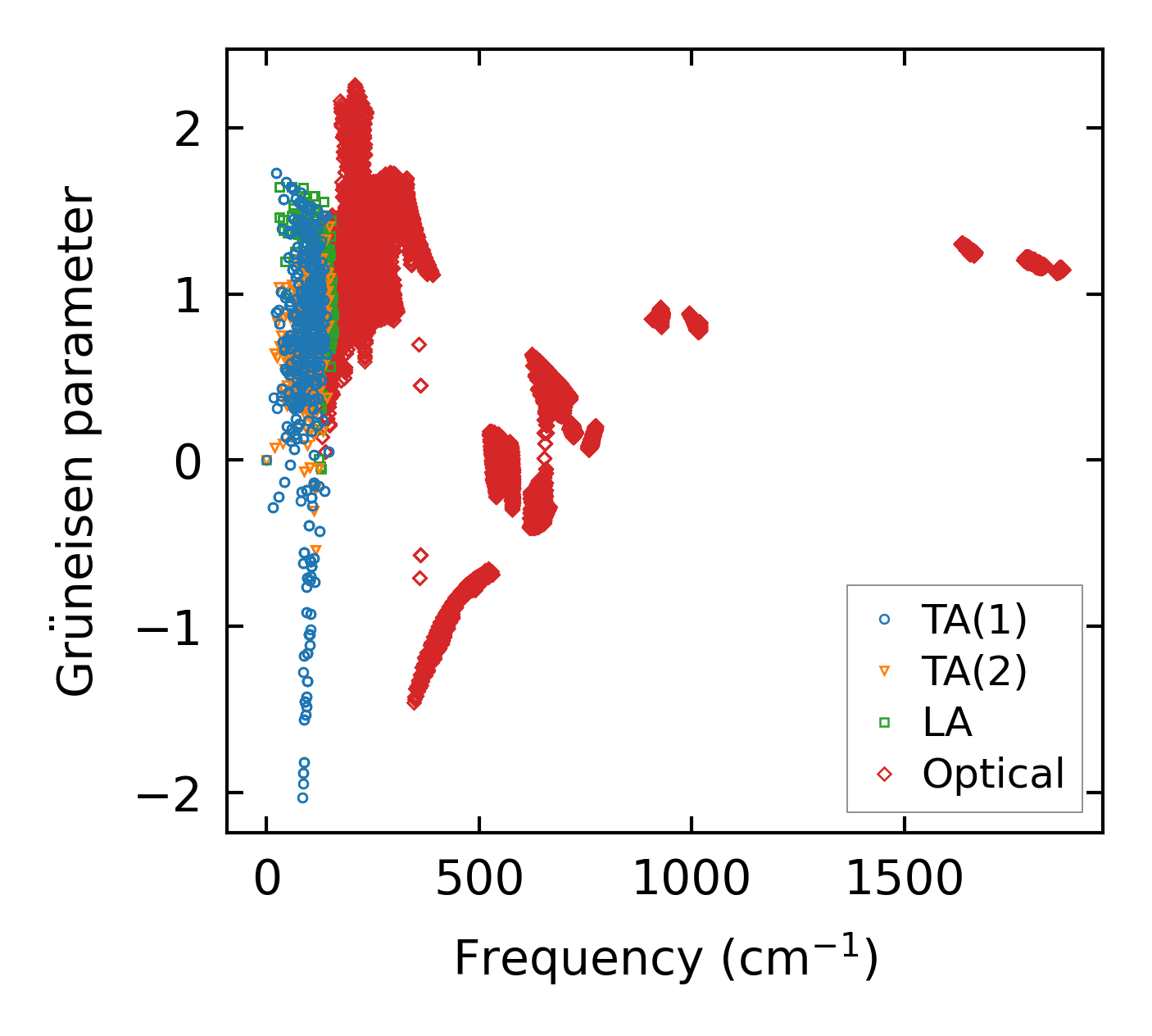

../../_images/fig_gru_all2273.png — (a) Grüneisen parameters

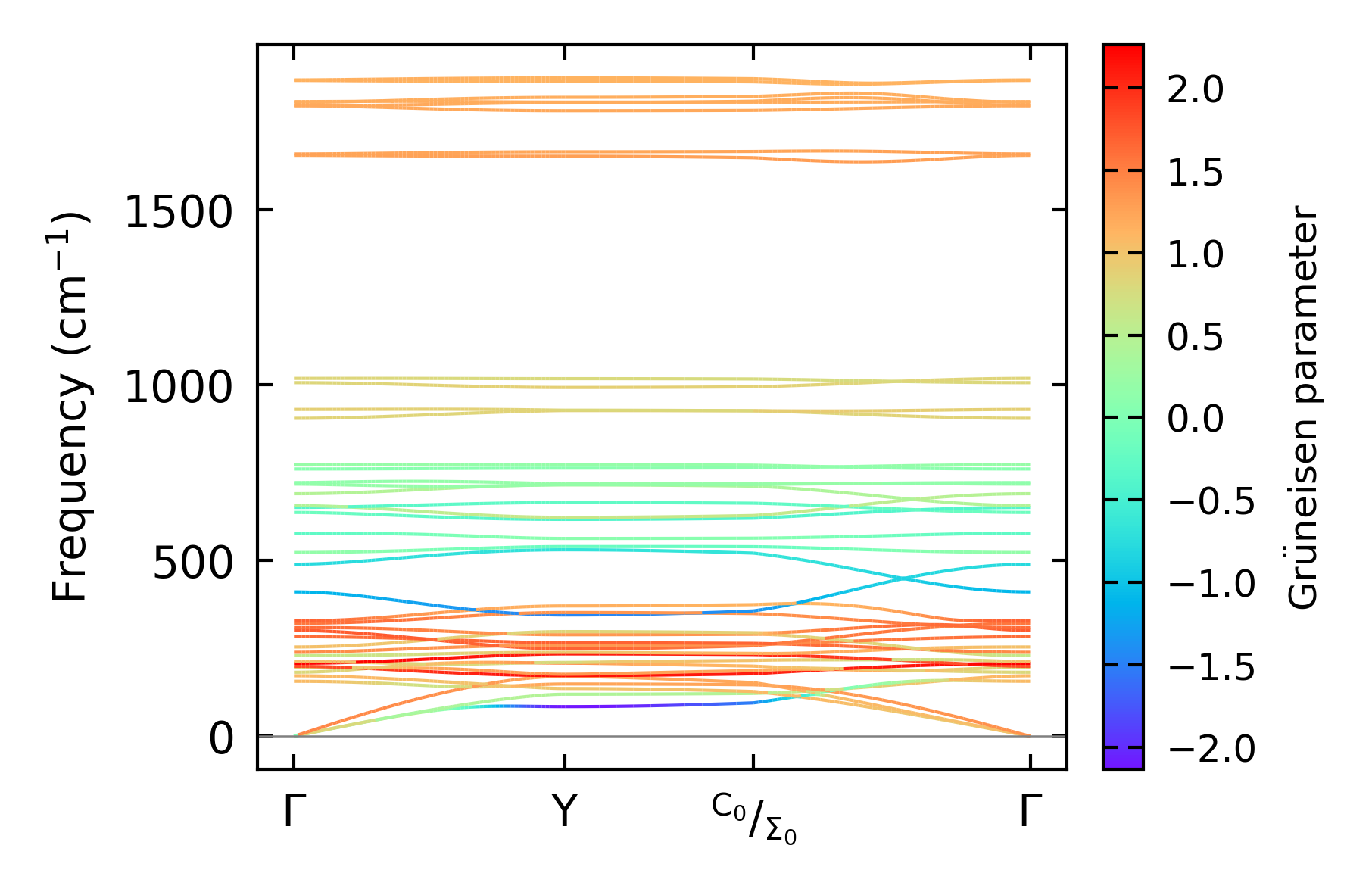

../../_images/fig_gruneisen2273.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 13x13x15, supercell: 2x1x2

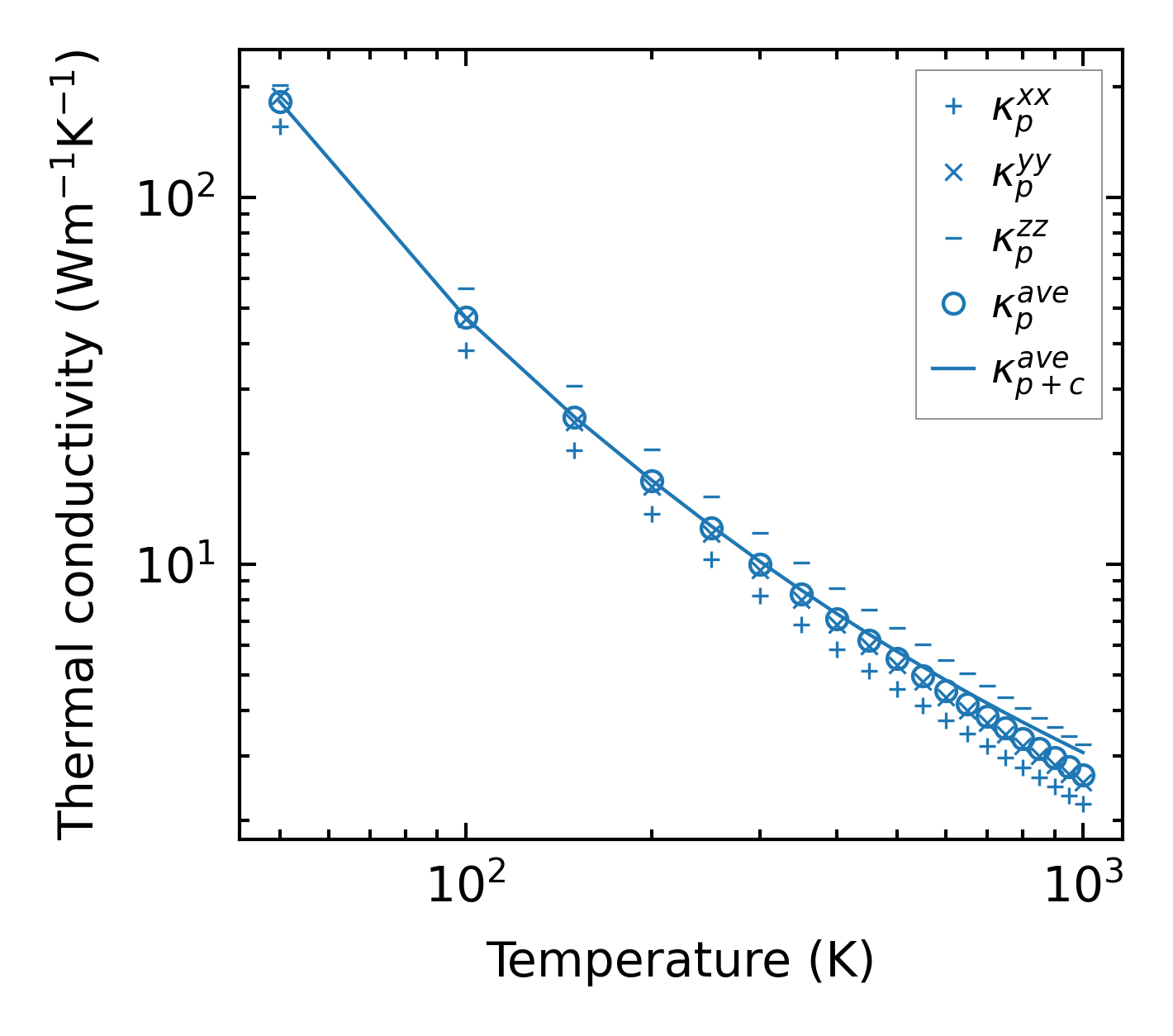

../../_images/fig_kappa4347.png — (a) Temperature-dependent lattice thermal conductivity

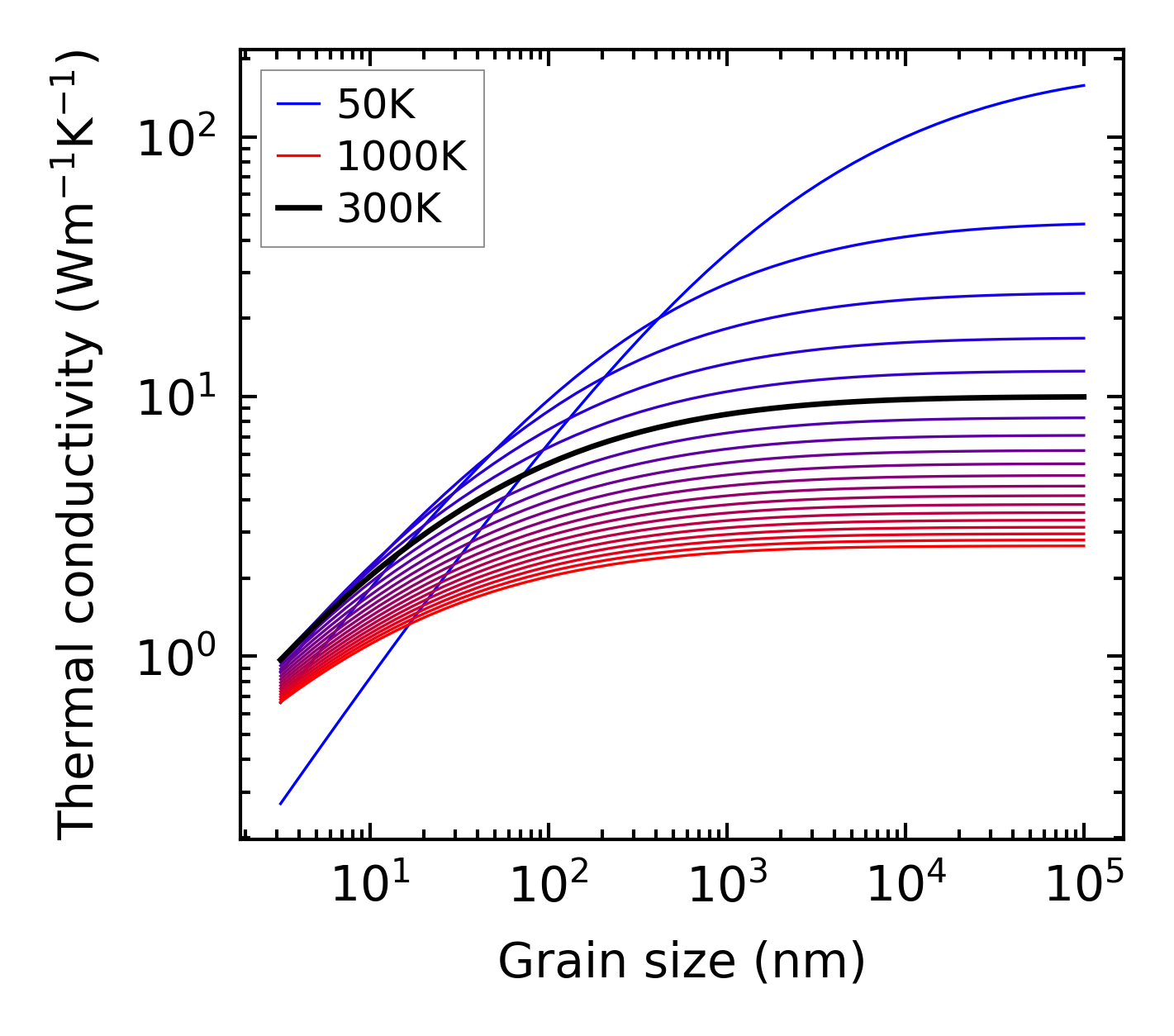

../../_images/fig_kappa_vs_grain_size2303.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

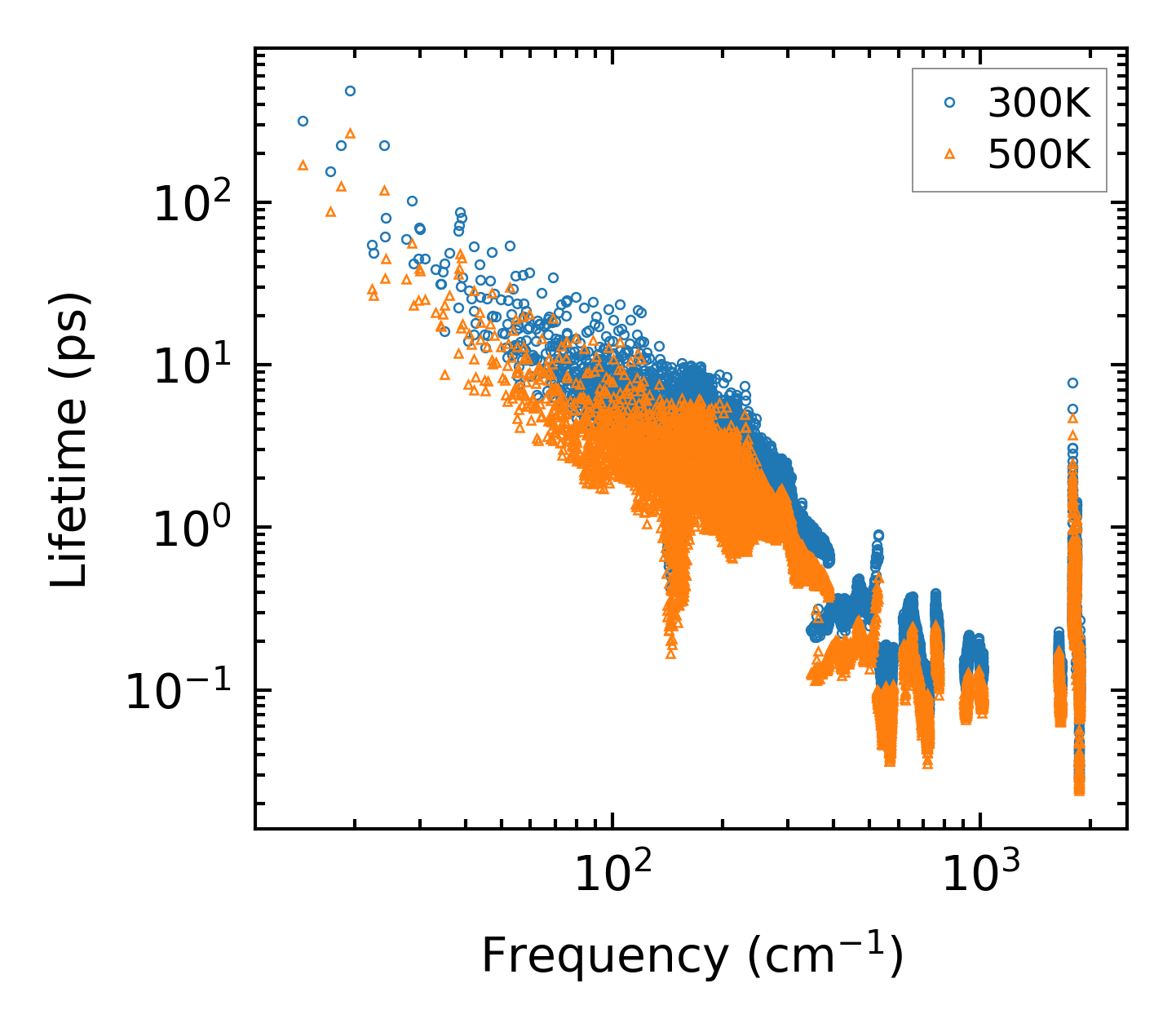

../../_images/fig_lifetime2258.png — (a) Phonon lifetime due to phonon-phonon scattering

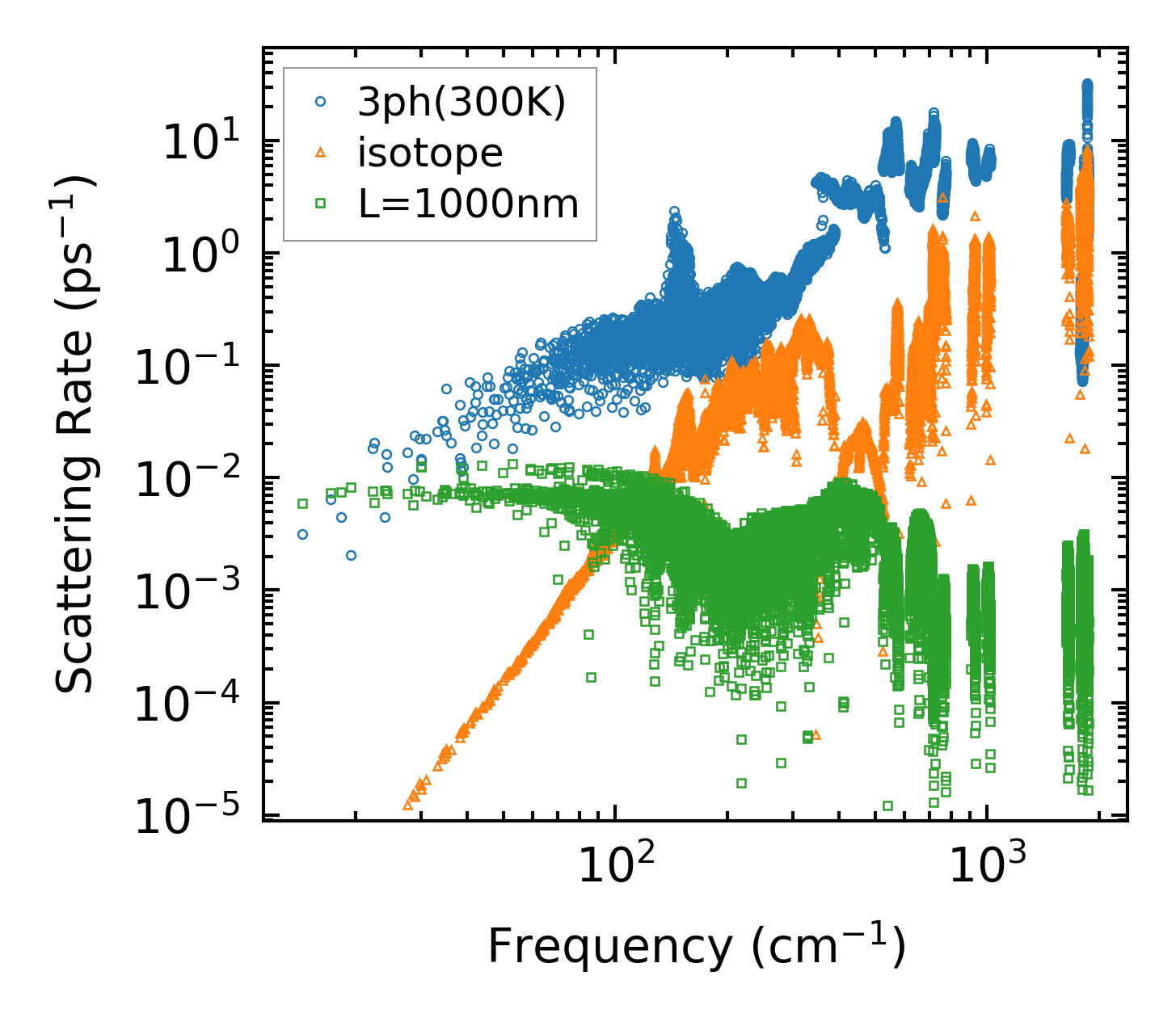

../../_images/fig_scat_rates2257.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

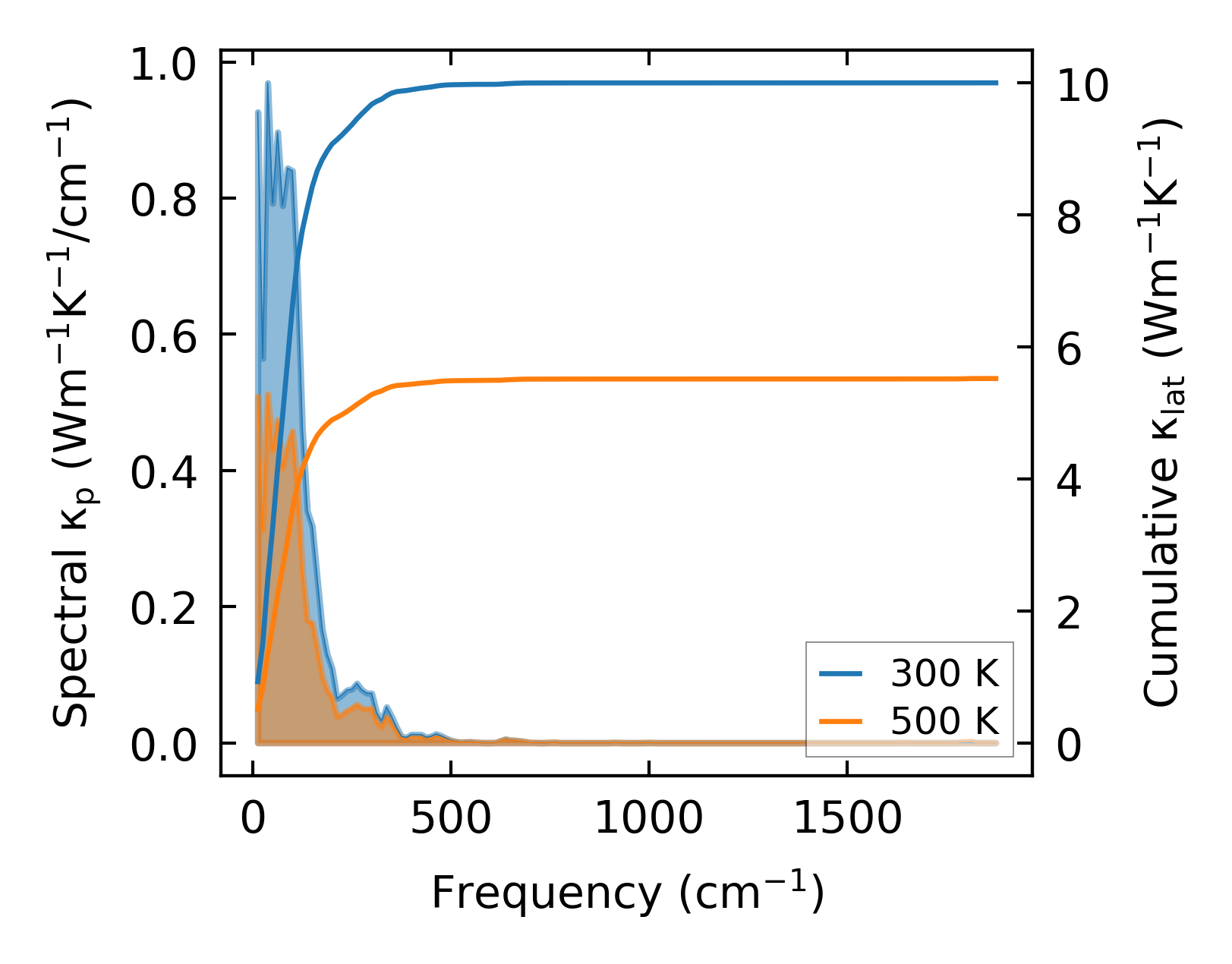

../../_images/fig_cumu_frequency2258.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

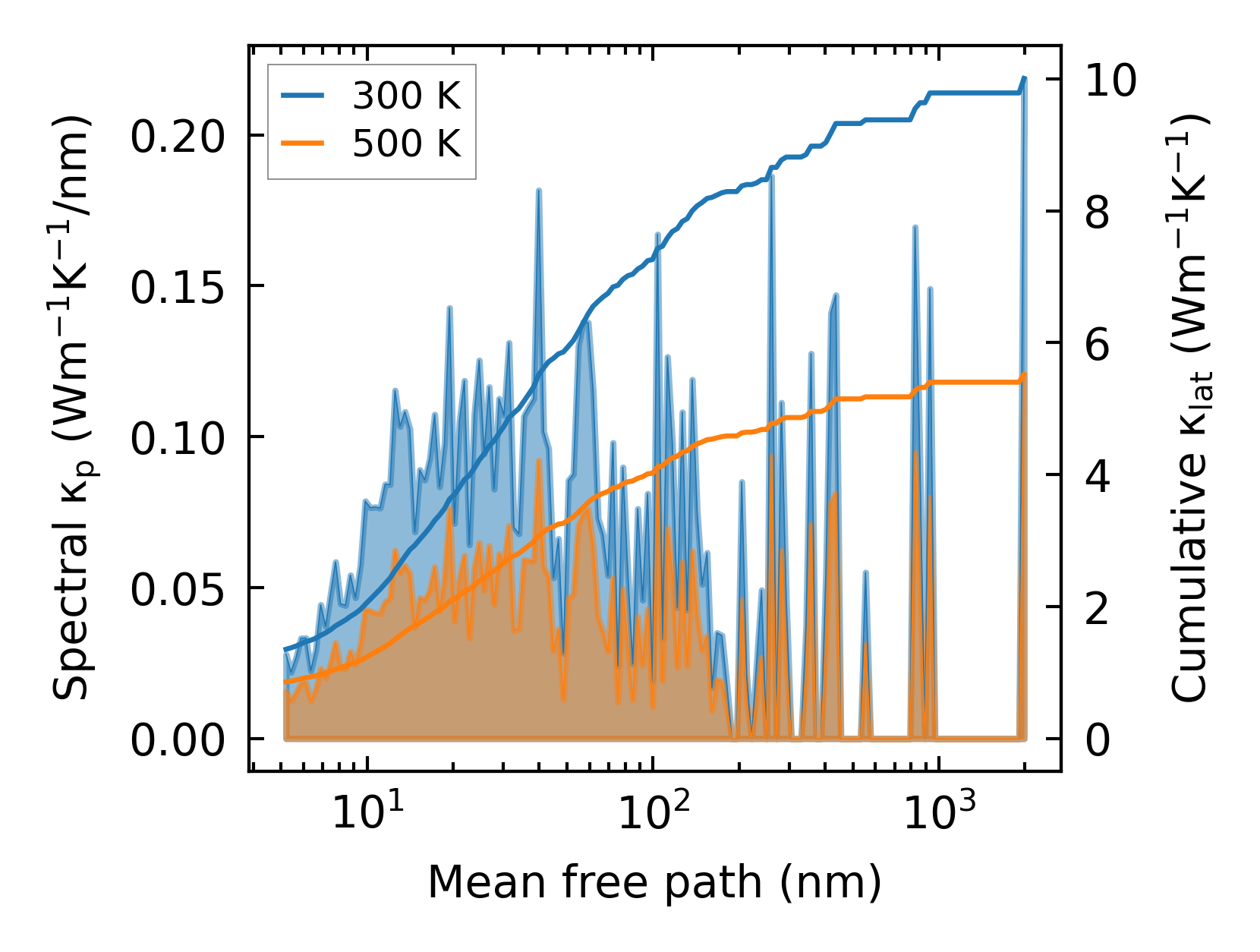

../../_images/fig_cumu_mfp2258.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

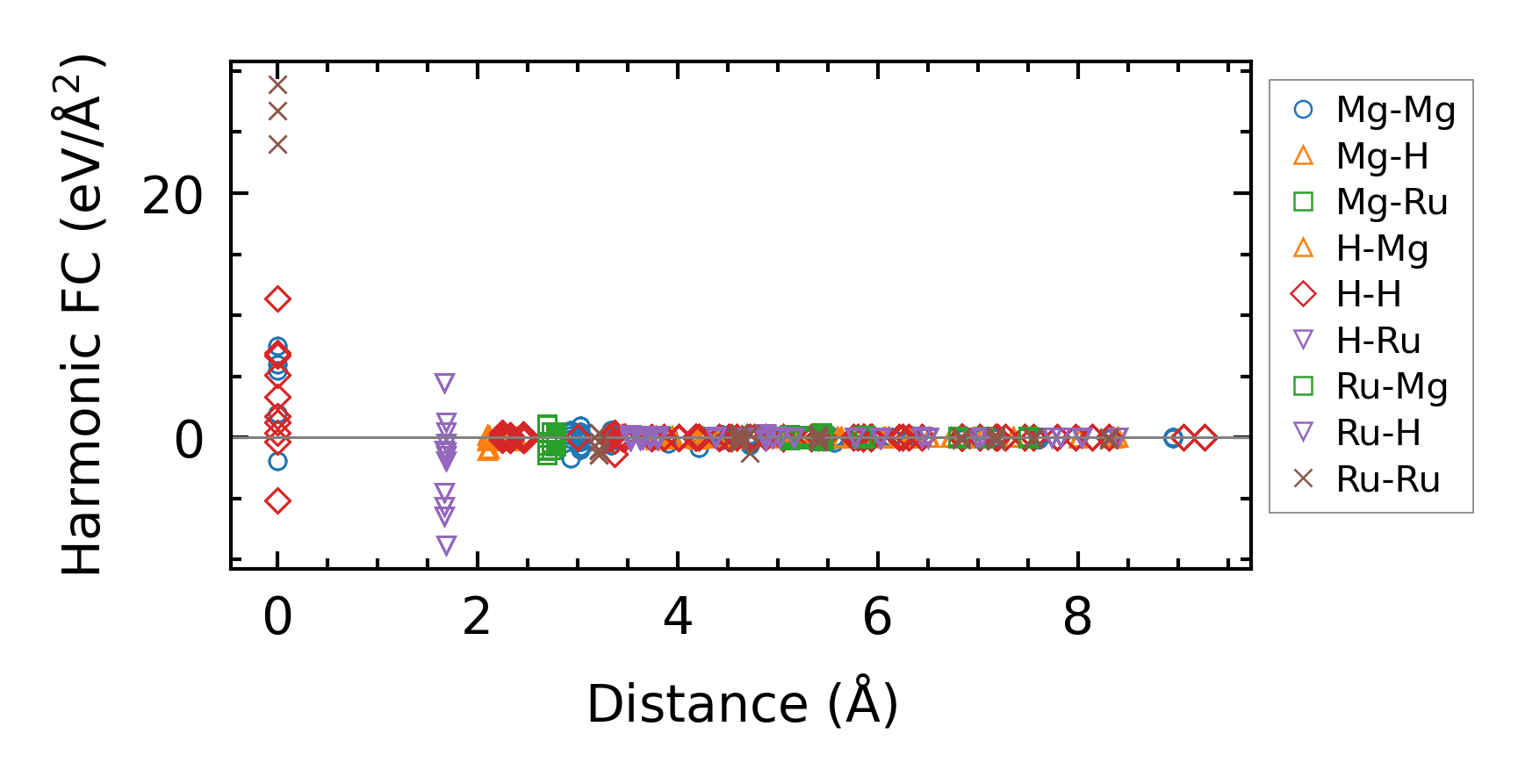

../../_images/fig_fc25268.png — (a) Force constants w.r.t atomic distance

Summary

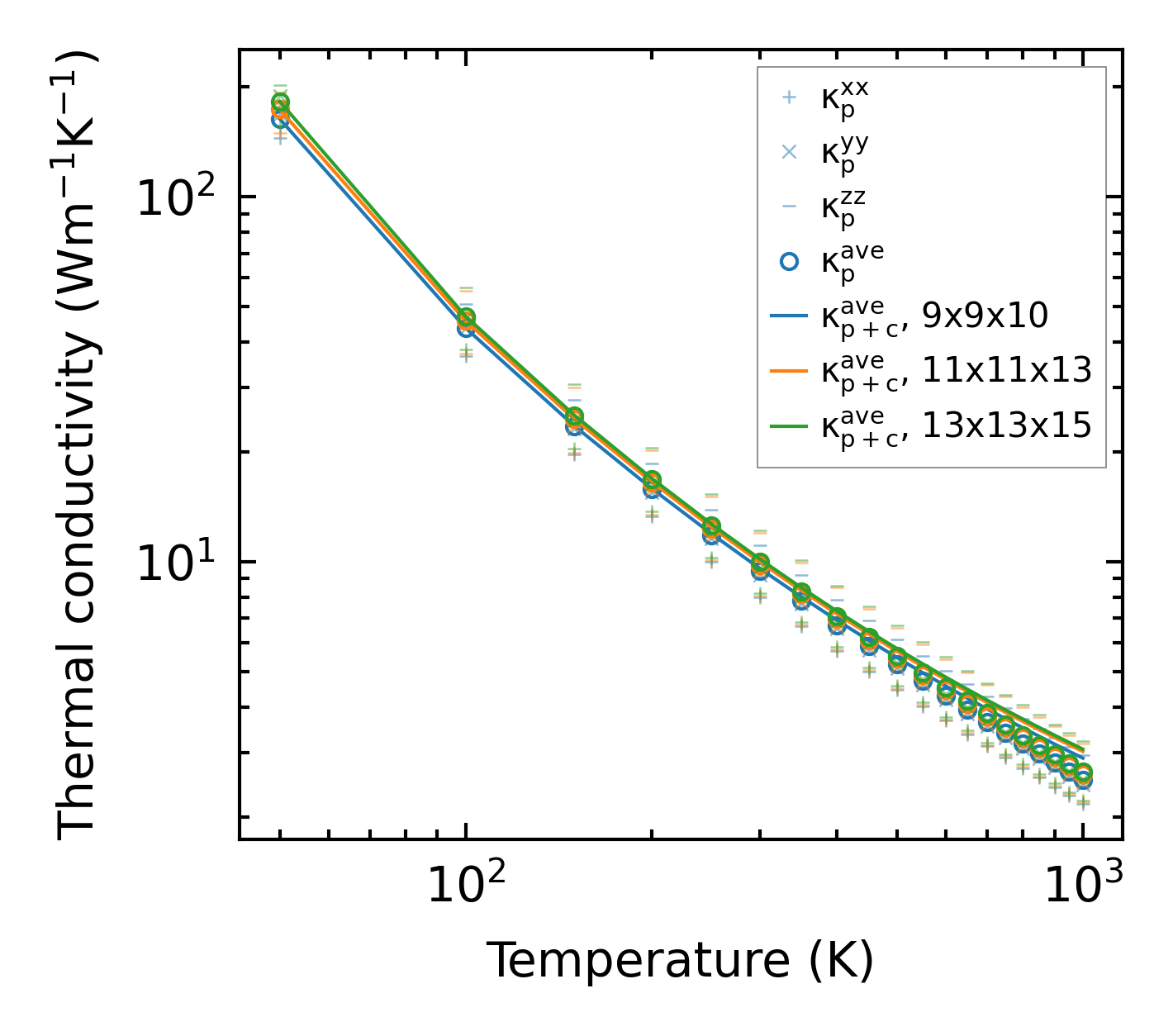

../../_images/fig_kappa4348.png — (a) Temperature-dependent lattice thermal conductivity

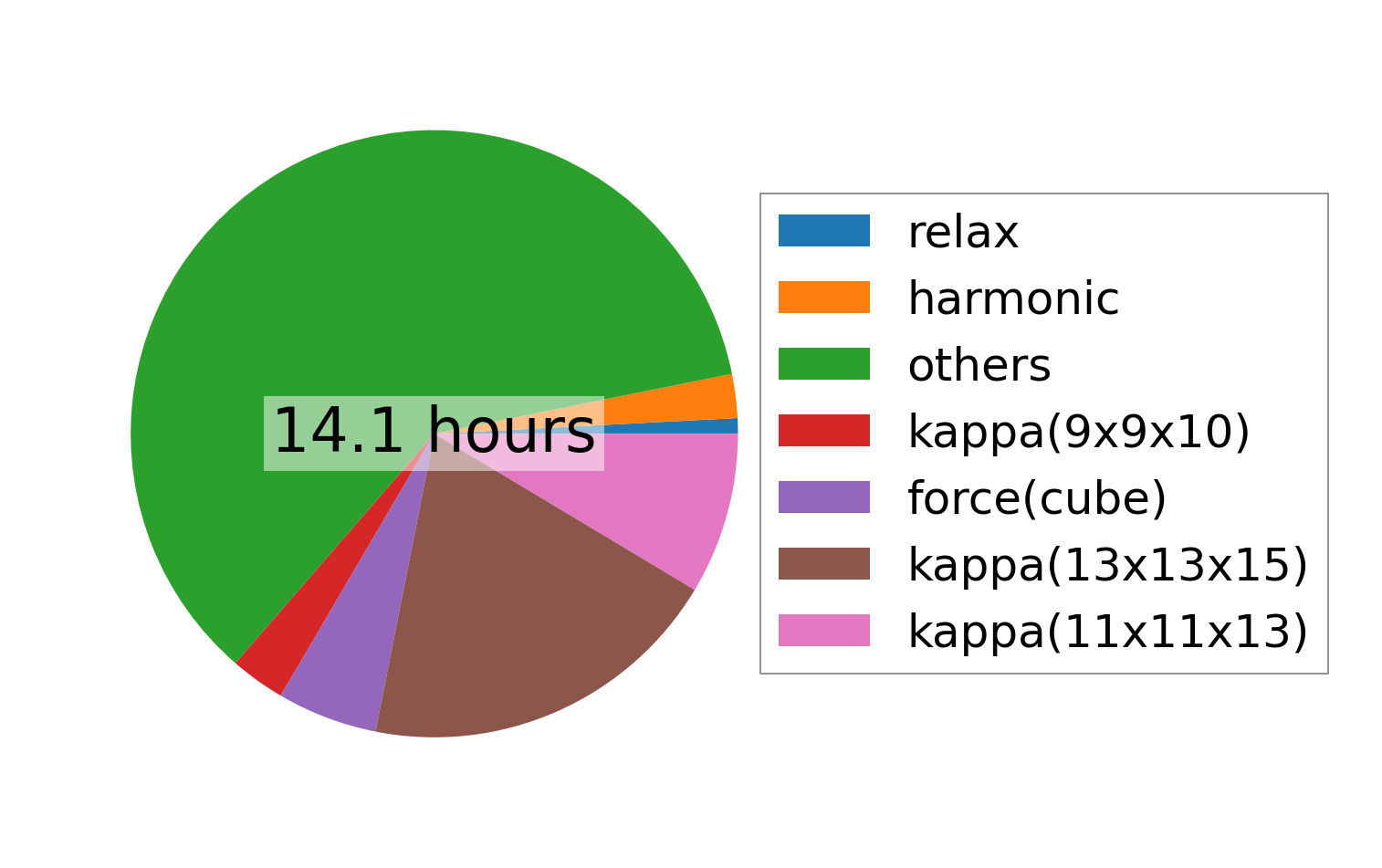

../../_images/fig_times9885.png — (b) Computation time
