mp-643010/Cs2H4Pt/anharm

Space group: P4_2/mnm (136)
Link: Materials Project
Download: mp-643010.tar.gz

Harmonic properties

../../_images/fig_bandos_pr5461.png — (a) Phonon dispersion with participation ratio and DOS

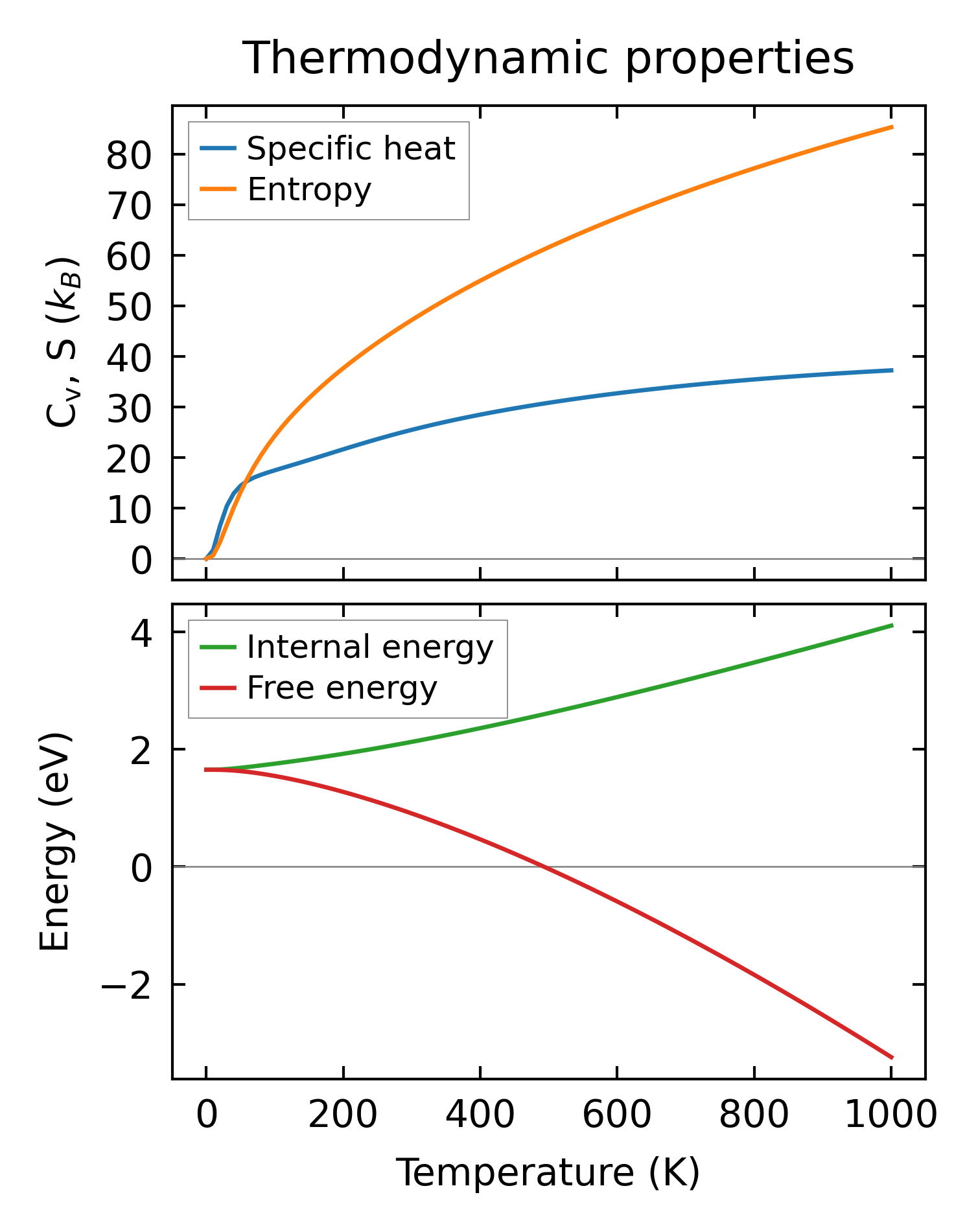

../../_images/fig_thermo5461.png — (b) Thermodynamic properties

Grüneisen parameters

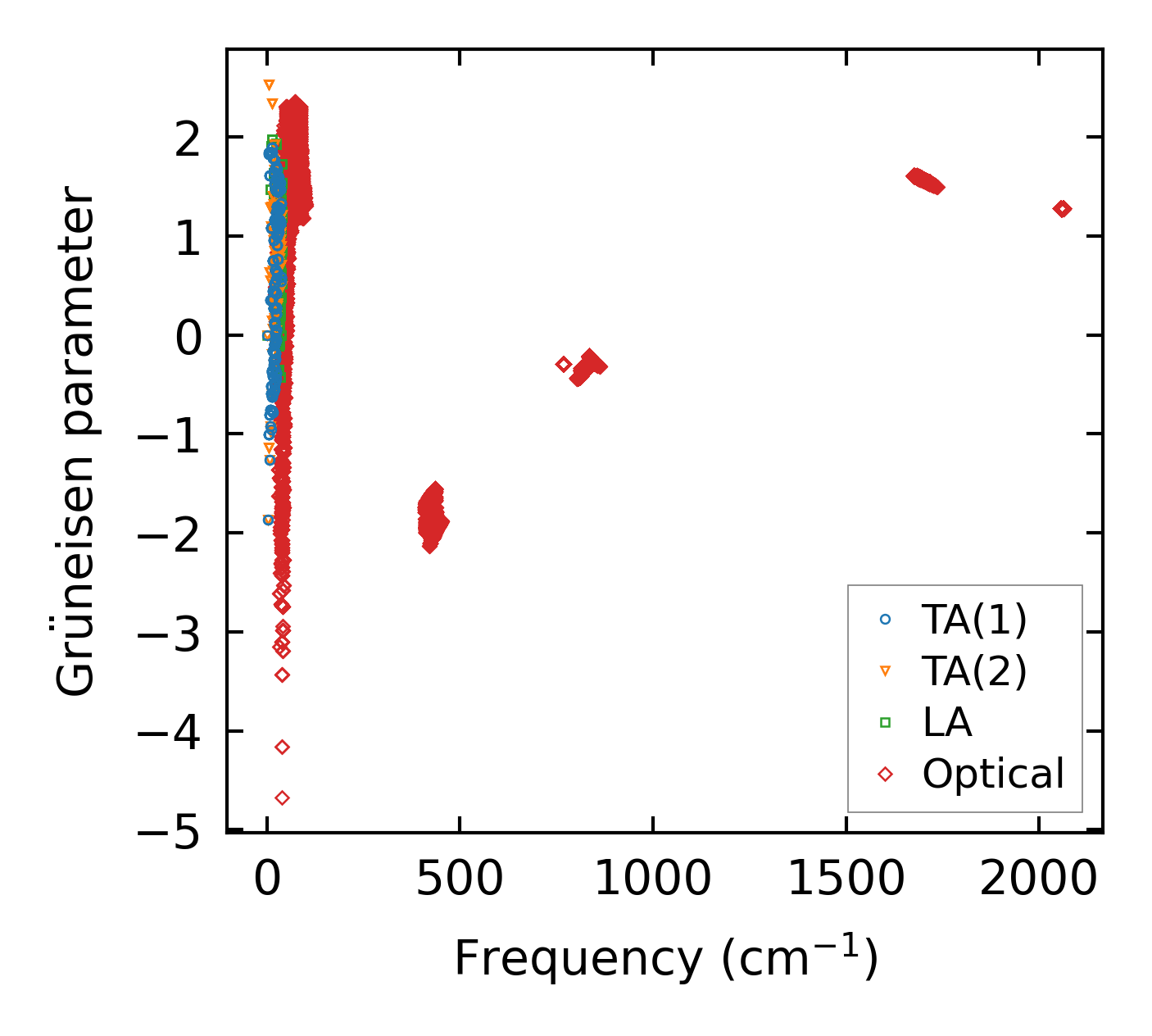

../../_images/fig_gru_all2271.png — (a) Grüneisen parameters

../../_images/fig_gruneisen2271.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 11x11x8, supercell: 2x2x2

../../_images/fig_kappa4343.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size2301.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

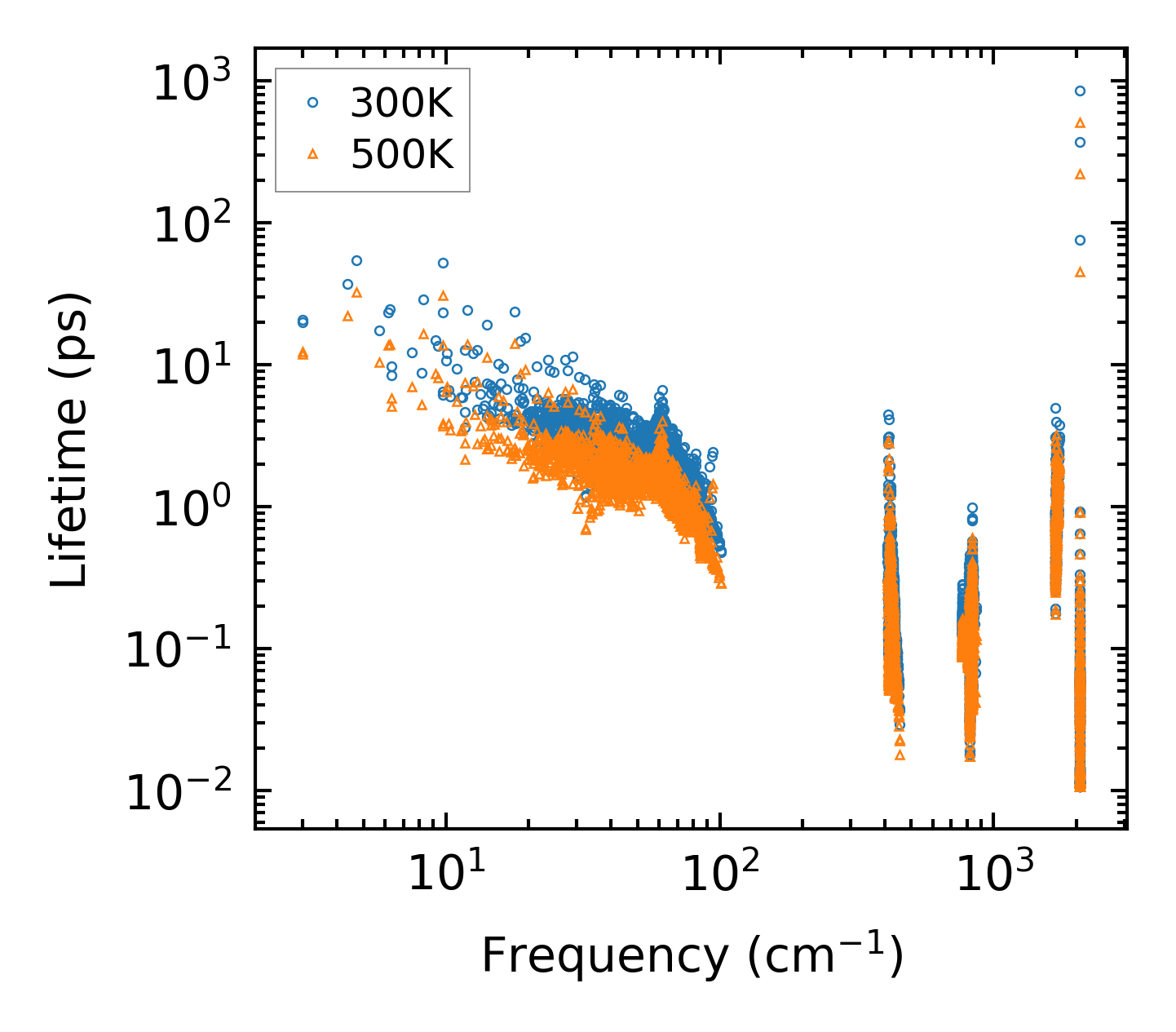

../../_images/fig_lifetime2256.png — (a) Phonon lifetime due to phonon-phonon scattering

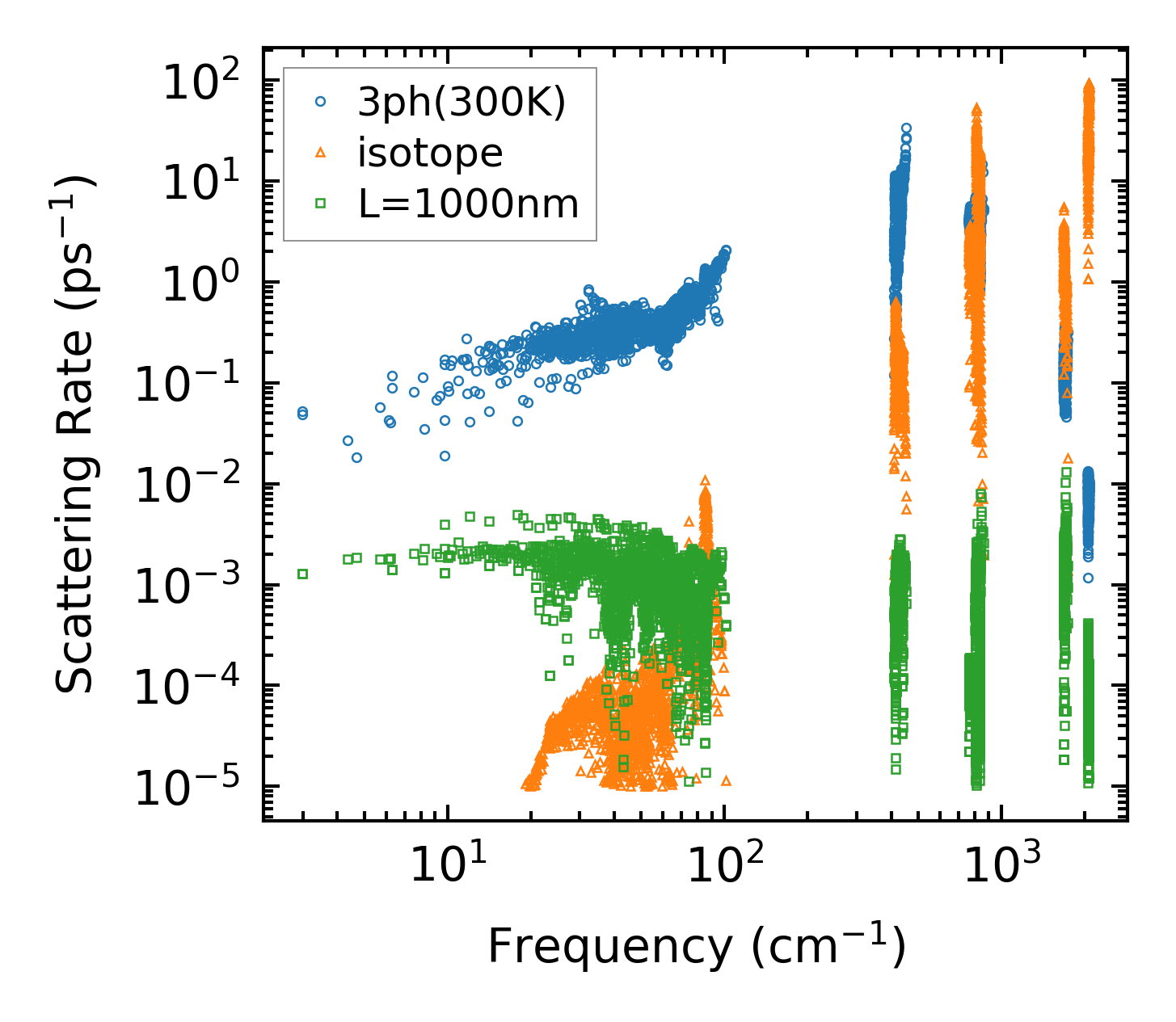

../../_images/fig_scat_rates2255.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

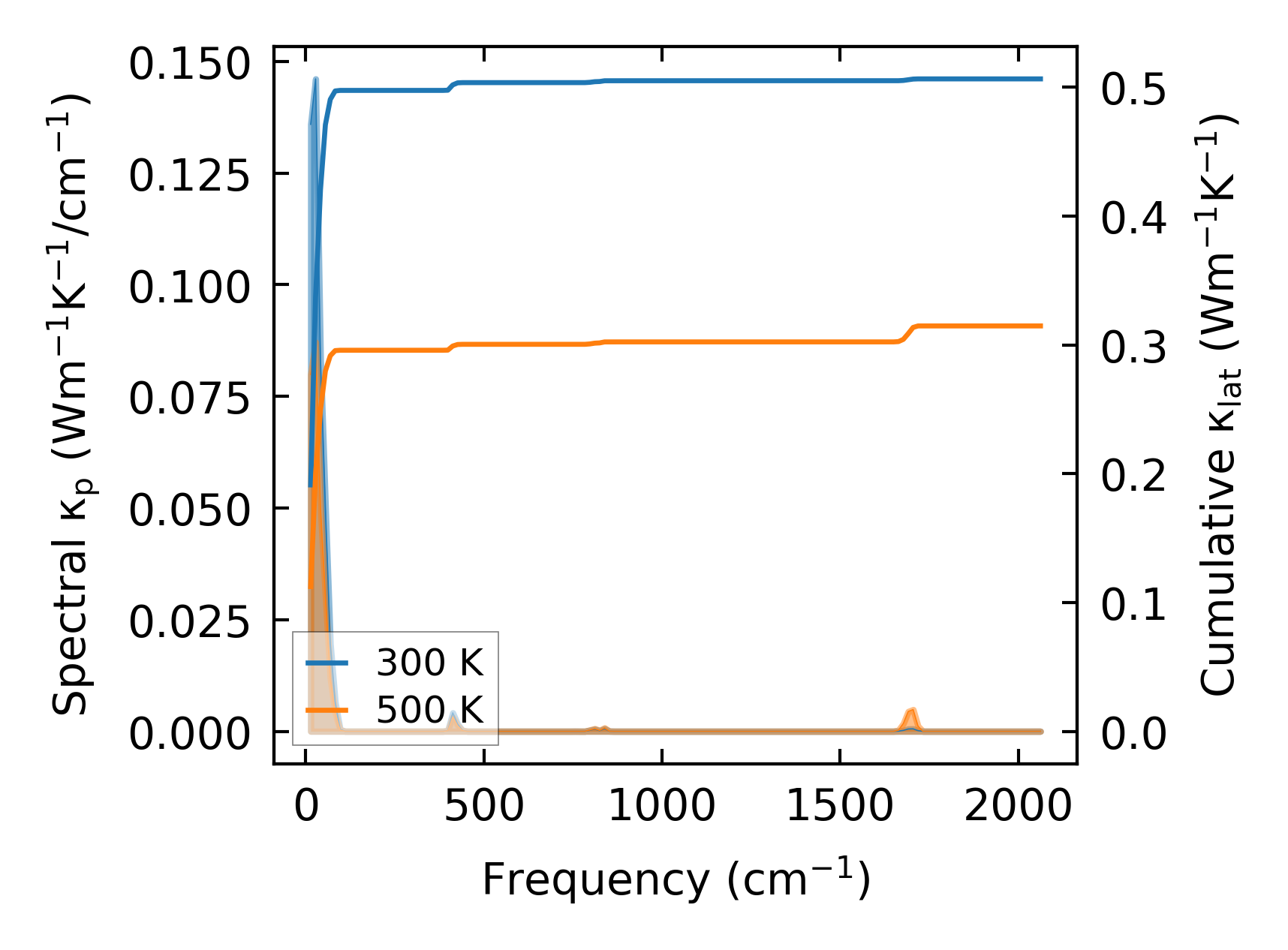

../../_images/fig_cumu_frequency2256.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

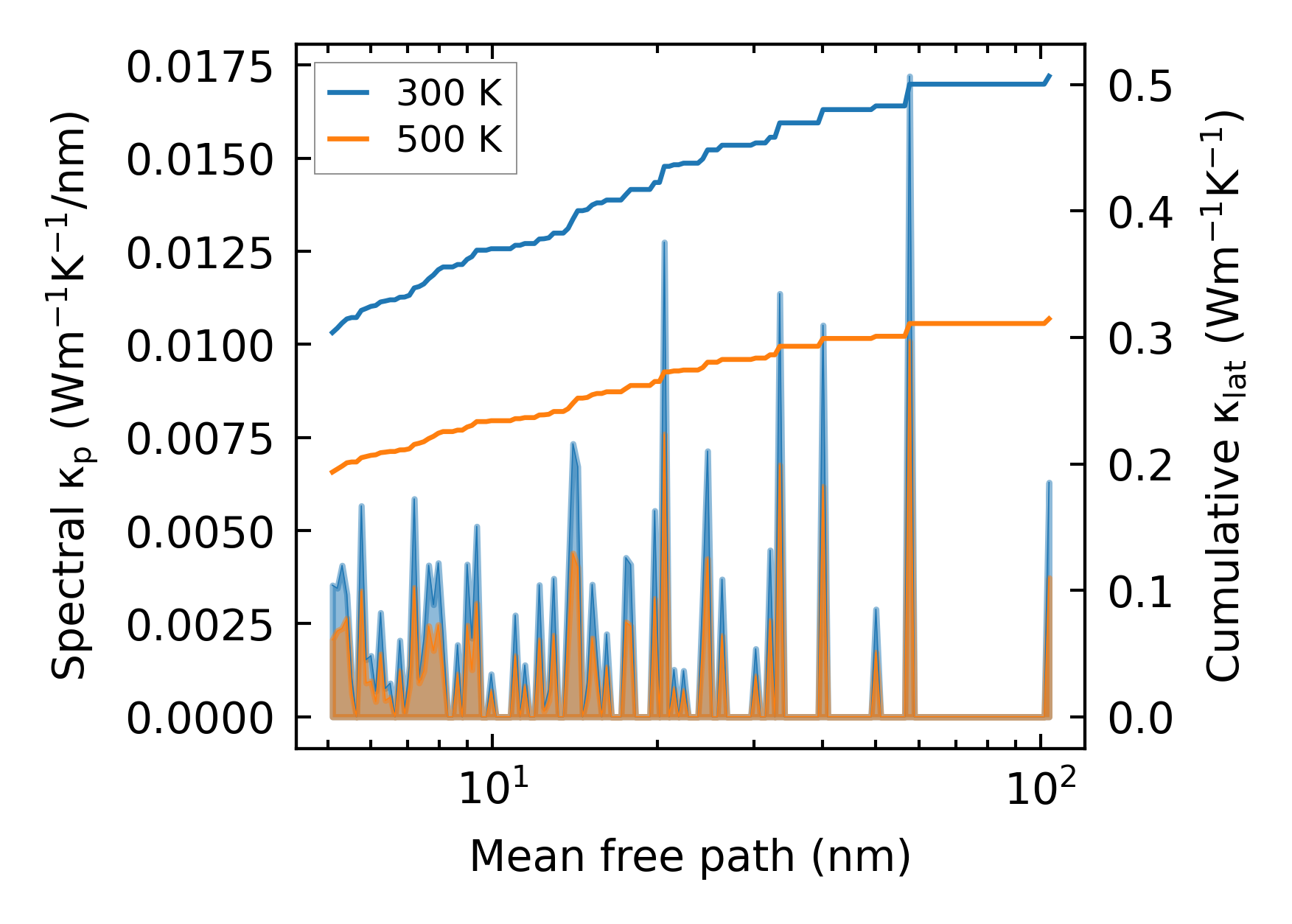

../../_images/fig_cumu_mfp2256.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

../../_images/fig_fc25266.png — (a) Force constants w.r.t atomic distance

Summary

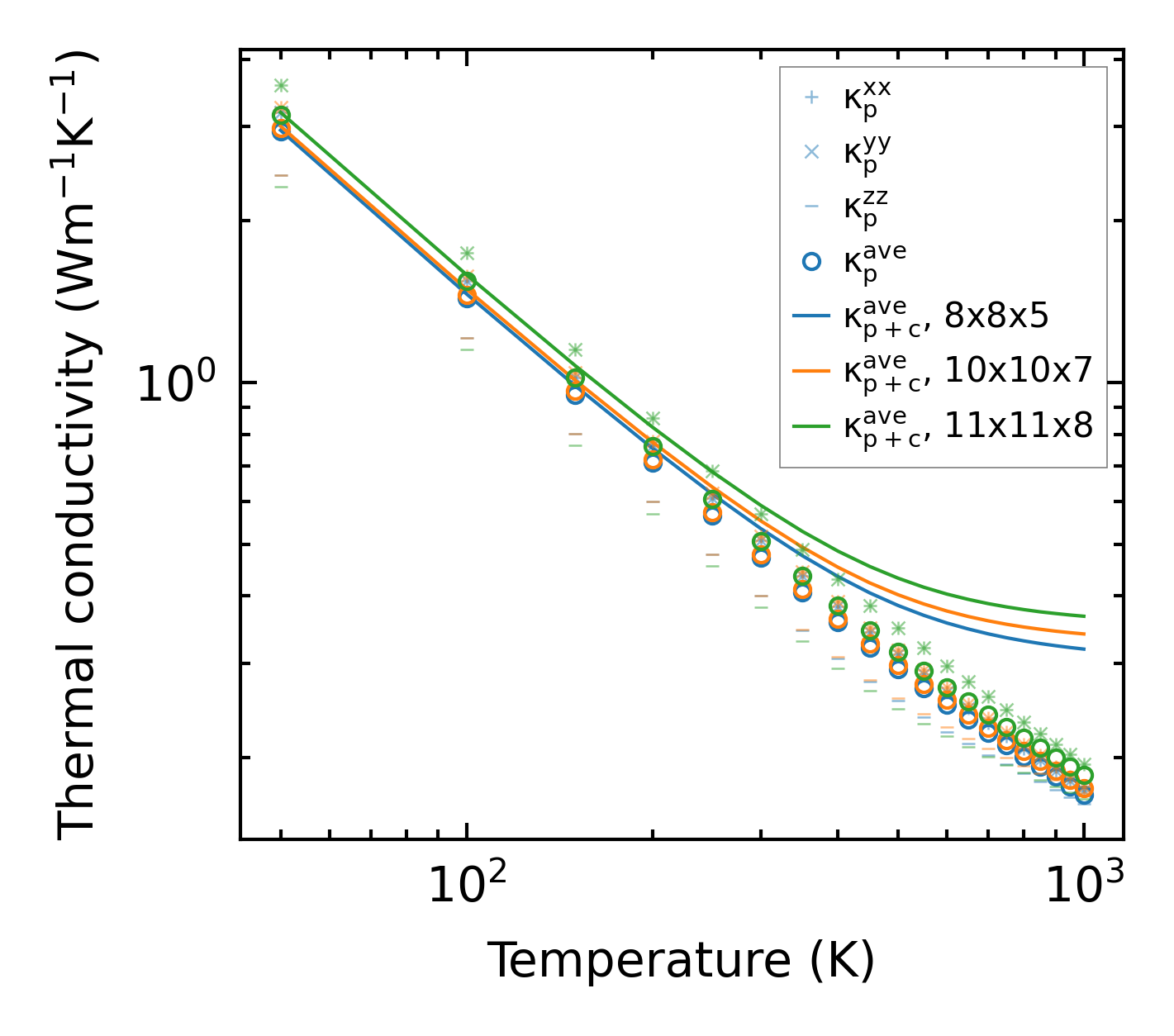

../../_images/fig_kappa4344.png — (a) Temperature-dependent lattice thermal conductivity

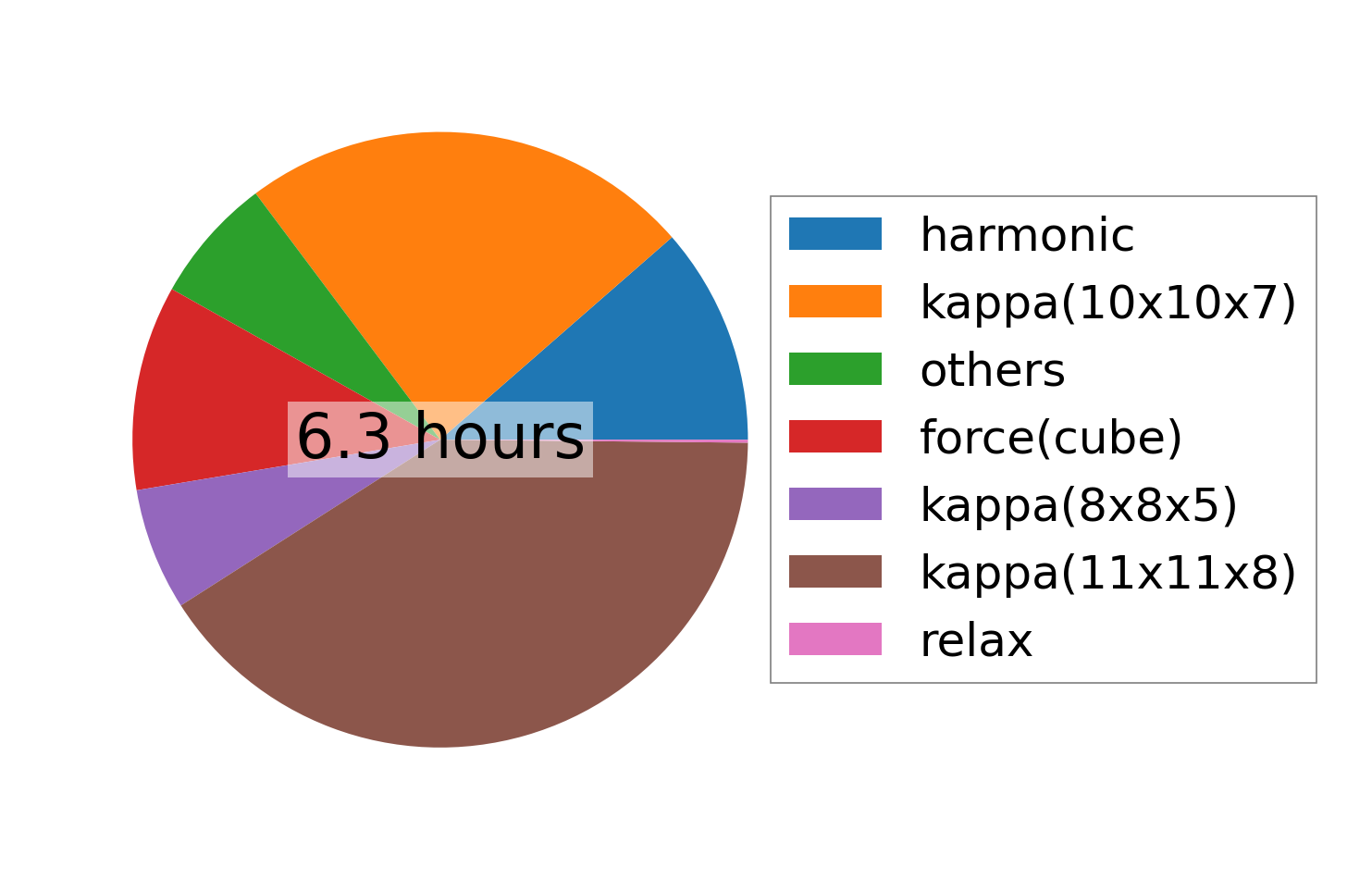

../../_images/fig_times9883.png — (b) Computation time
