mp-569613/Ba2P7Cl/anharm

Space group: P2_1/m (11)
Link: Materials Project
Download: mp-569613.tar.gz

Harmonic properties

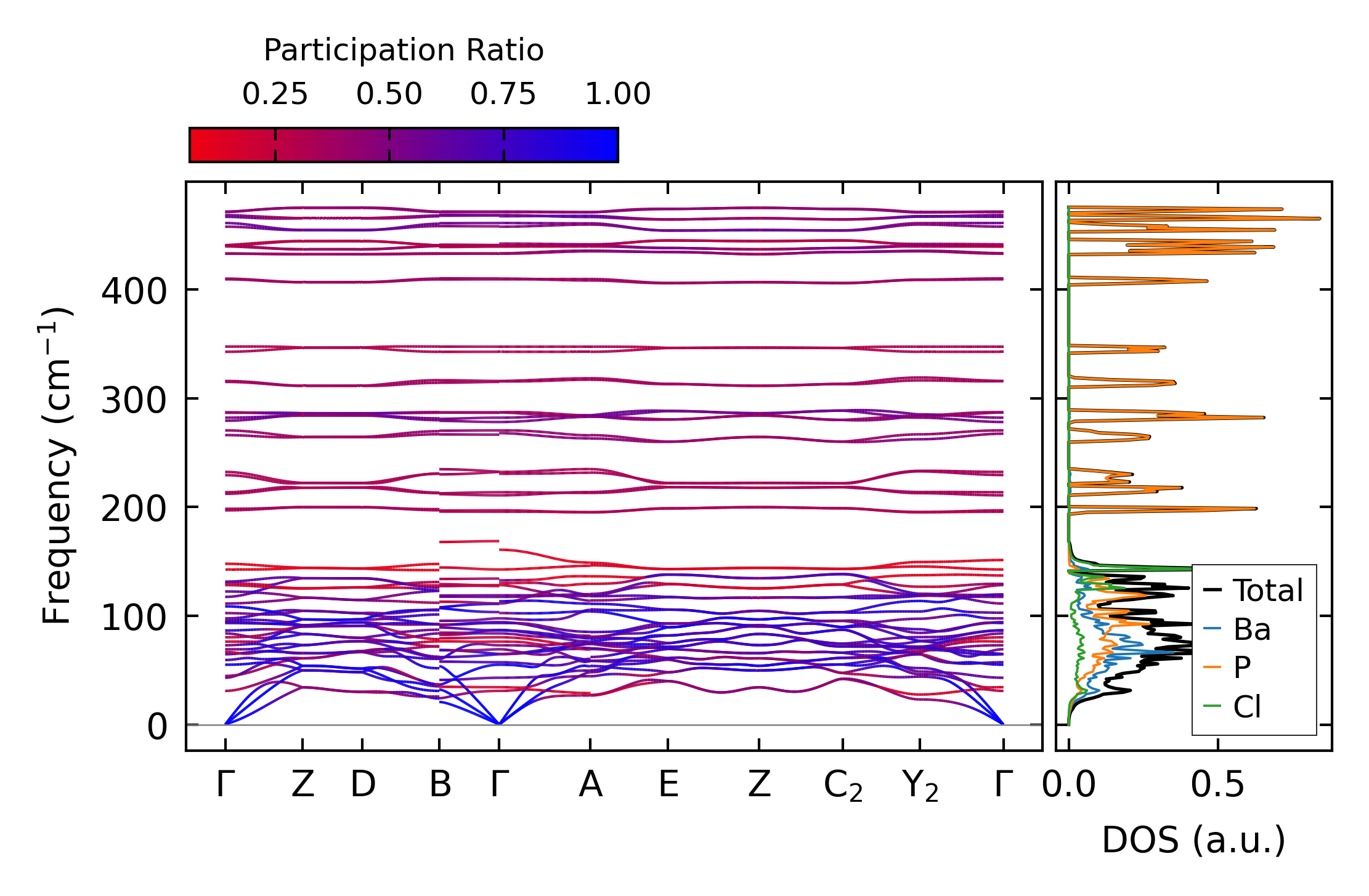

../../_images/fig_bandos_pr7042.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo7042.png — (b) Thermodynamic properties

Grüneisen parameters

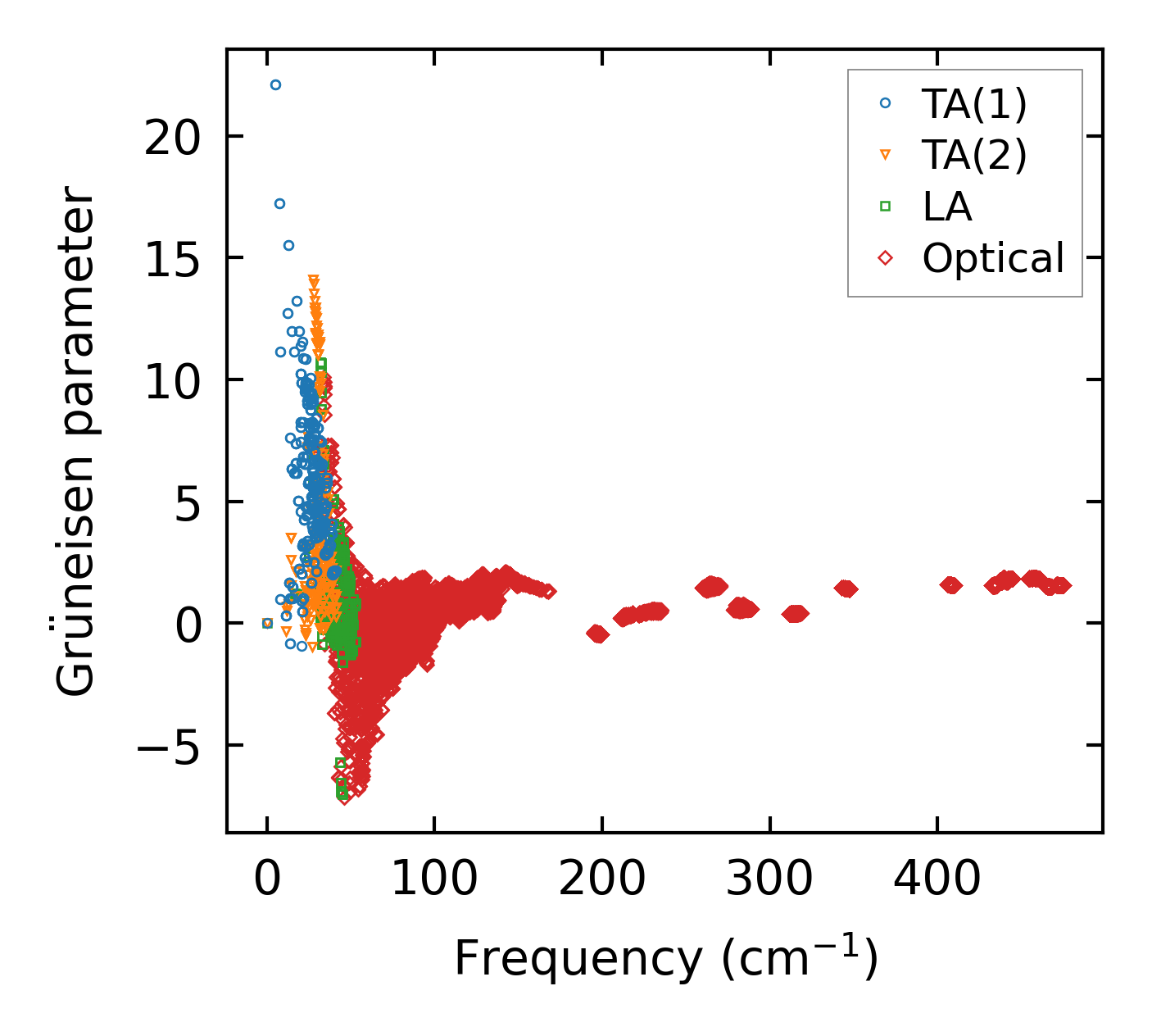

../../_images/fig_gru_all2934.png — (a) Grüneisen parameters

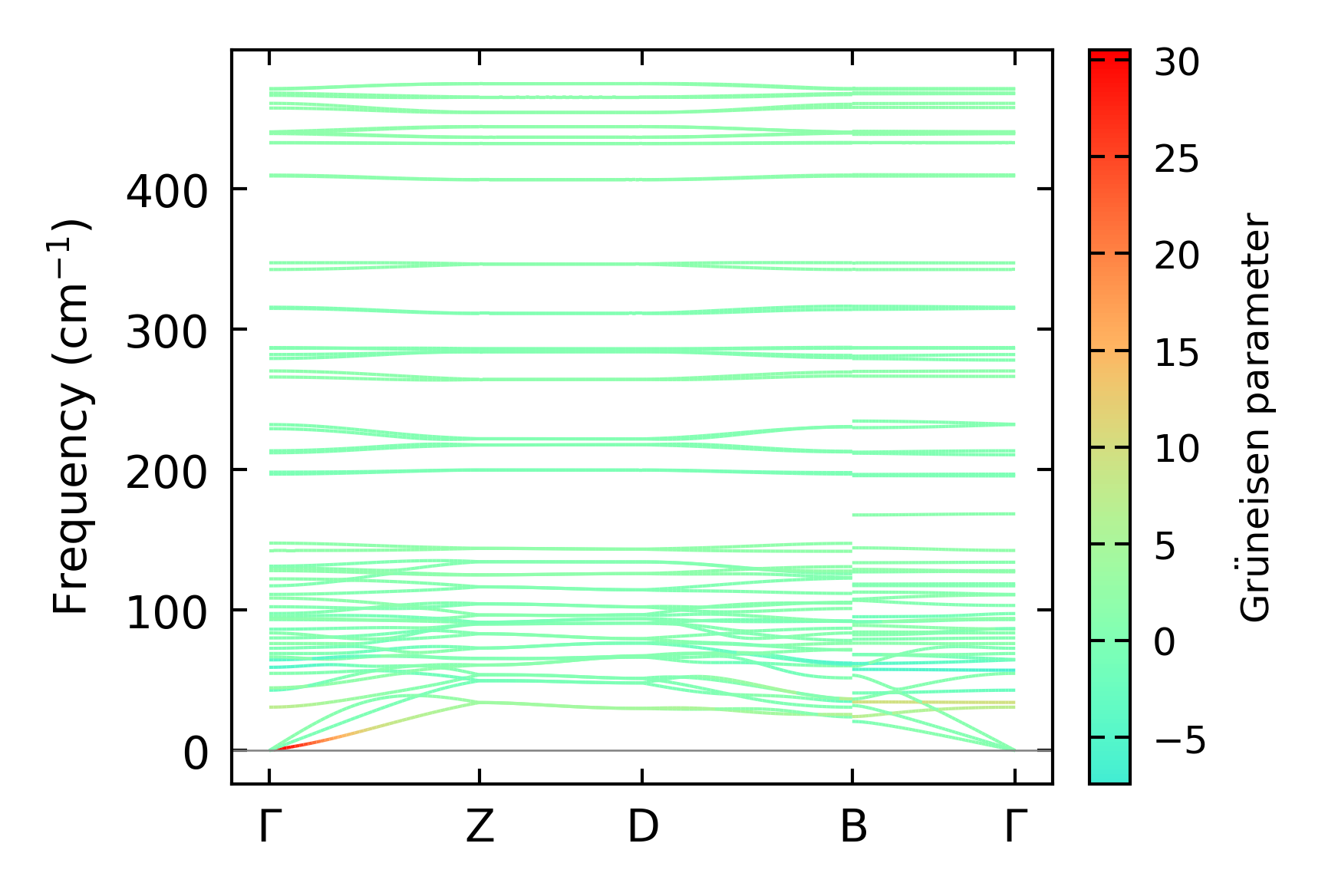

../../_images/fig_gruneisen2934.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 11x10x6, supercell: 2x2x1

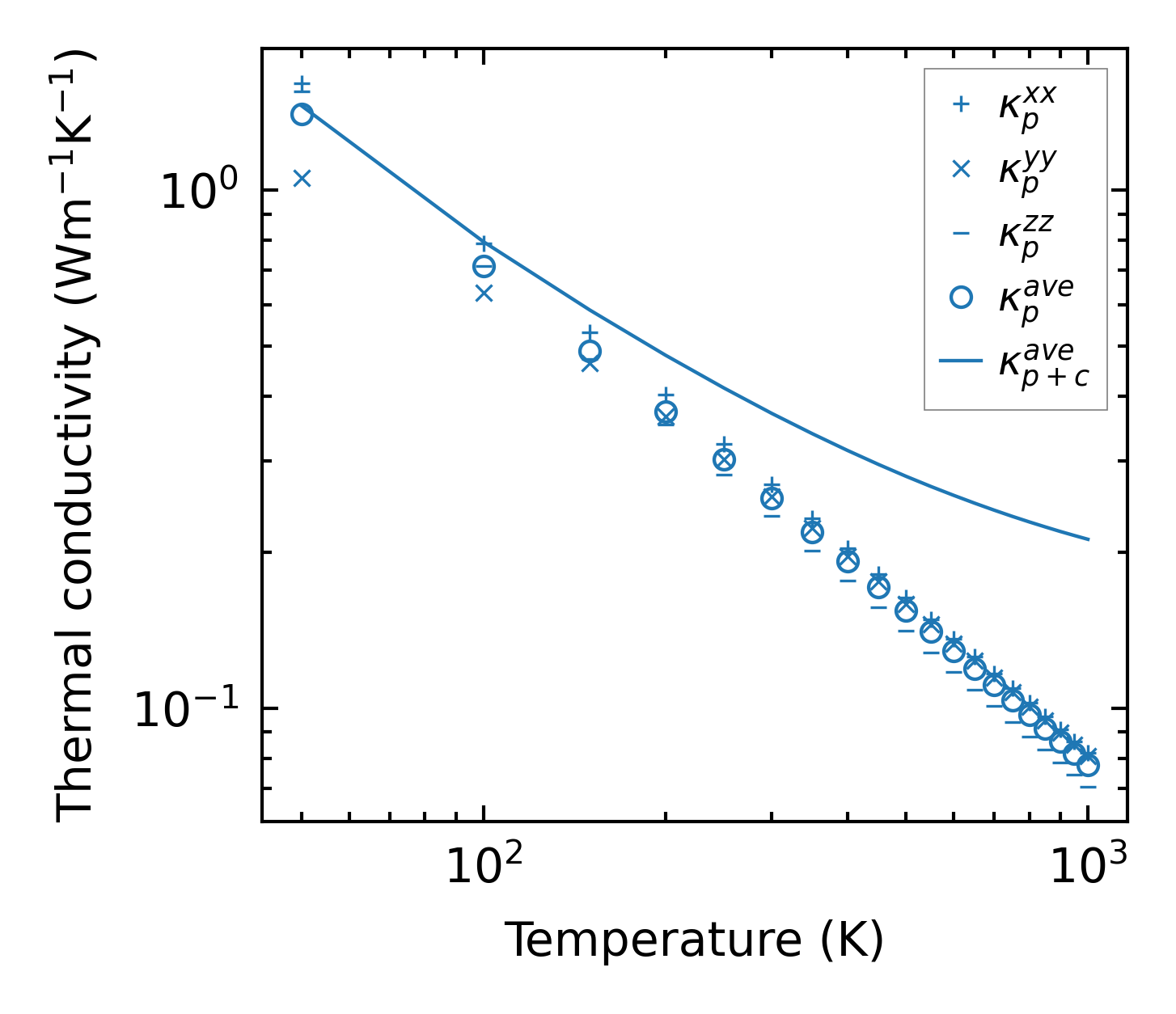

../../_images/fig_kappa5566.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size2976.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

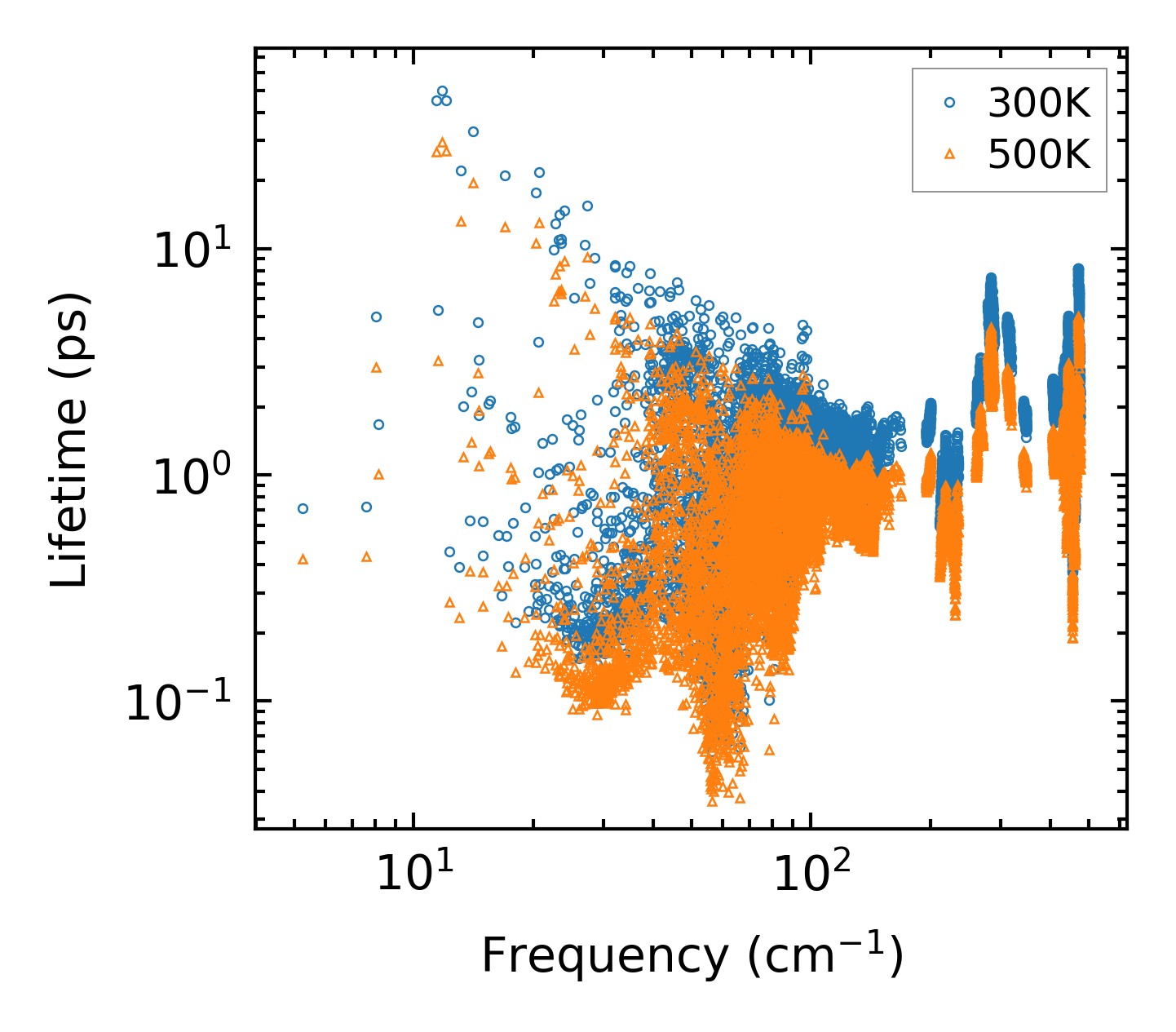

../../_images/fig_lifetime2910.png — (a) Phonon lifetime due to phonon-phonon scattering

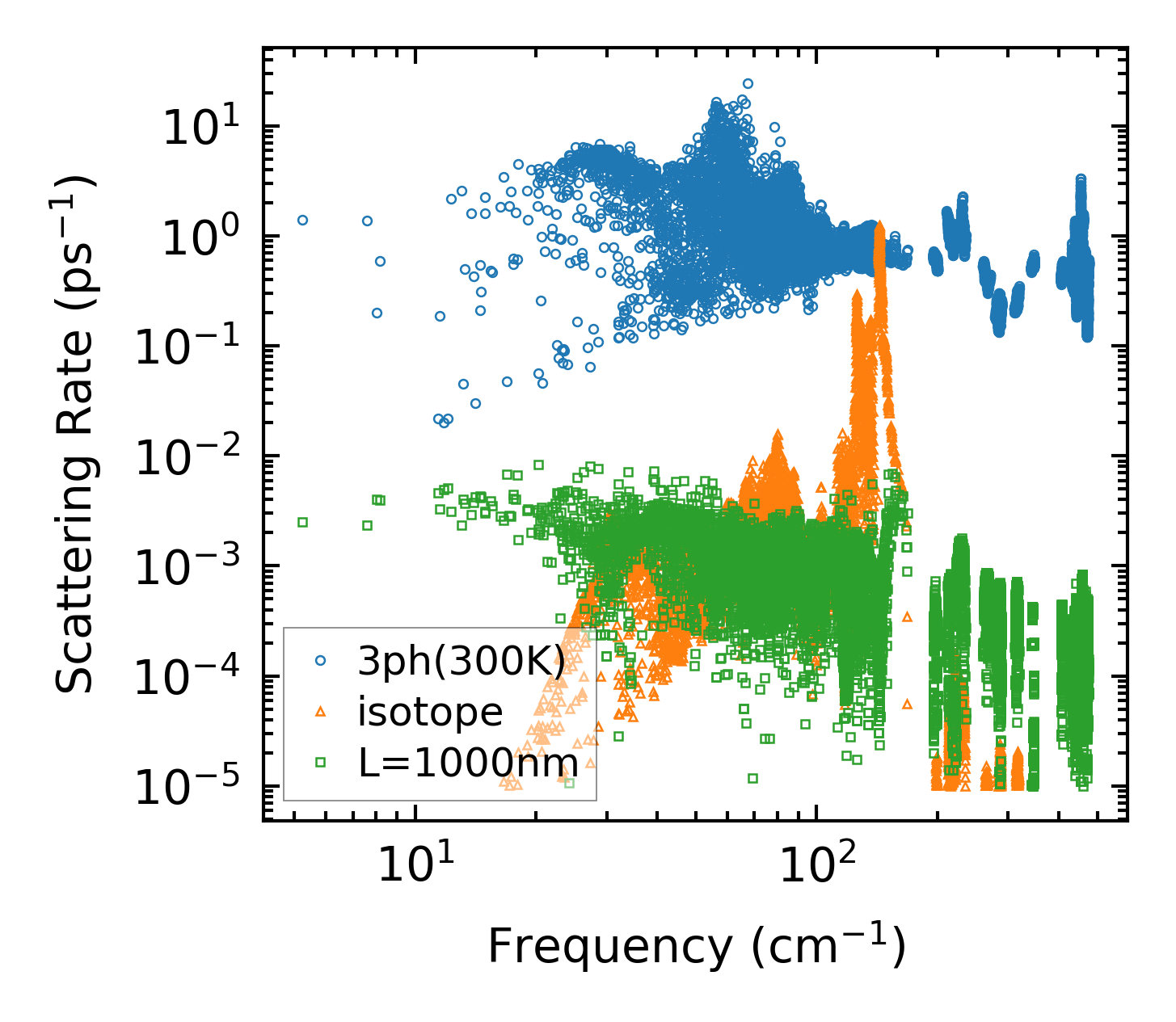

../../_images/fig_scat_rates2909.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

../../_images/fig_cumu_frequency2910.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

../../_images/fig_cumu_mfp2909.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

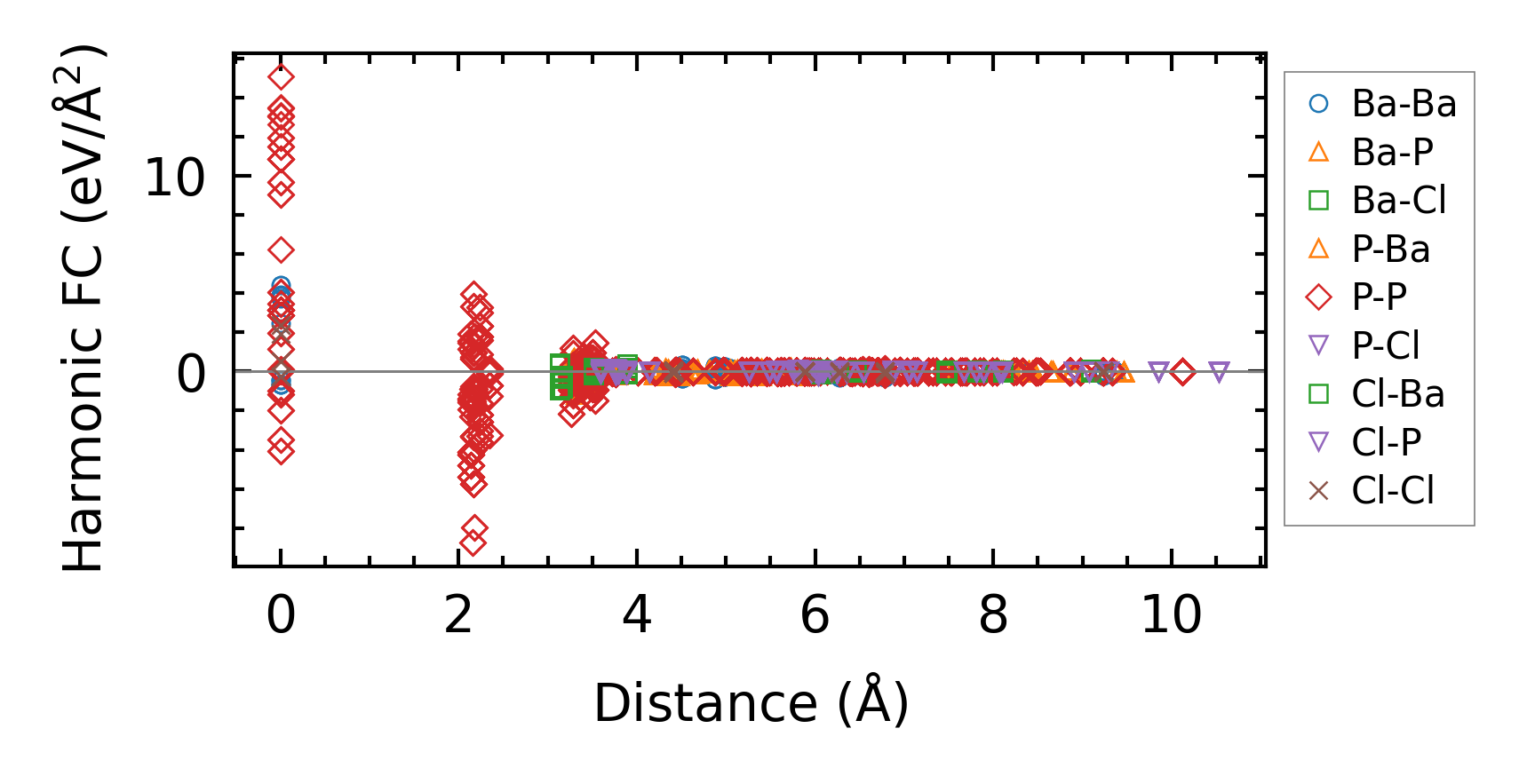

../../_images/fig_fc26819.png — (a) Force constants w.r.t atomic distance

Summary

../../_images/fig_kappa5567.png — (a) Temperature-dependent lattice thermal conductivity

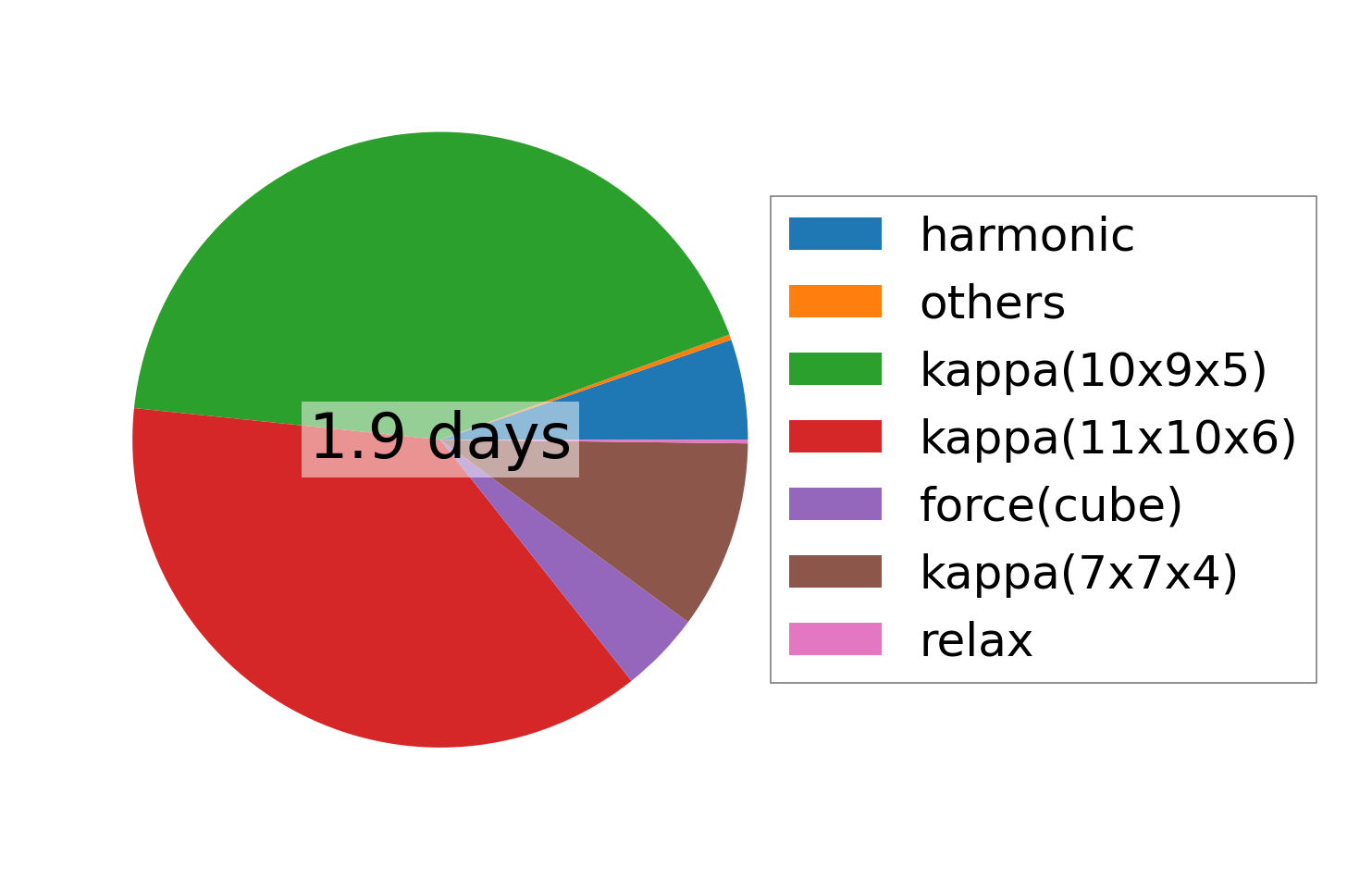

../../_images/fig_times12578.png — (b) Computation time
