mp-569450/LiB6C/anharm

Space group: Amm2 (38)
Link: Materials Project
Download: mp-569450.tar.gz

Harmonic properties

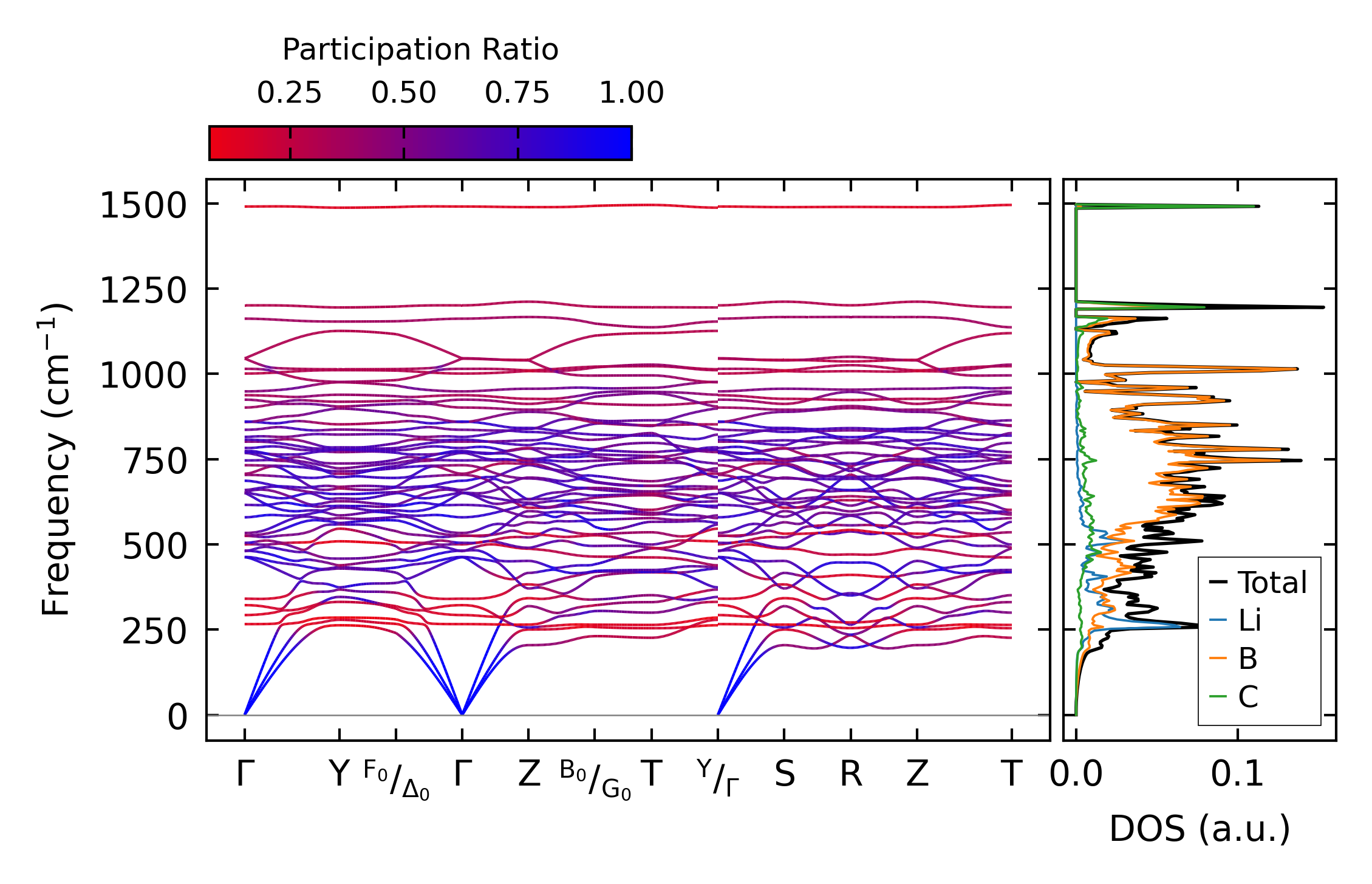

../../_images/fig_bandos_pr7023.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo7023.png — (b) Thermodynamic properties

Grüneisen parameters

../../_images/fig_gru_all2924.png — (a) Grüneisen parameters

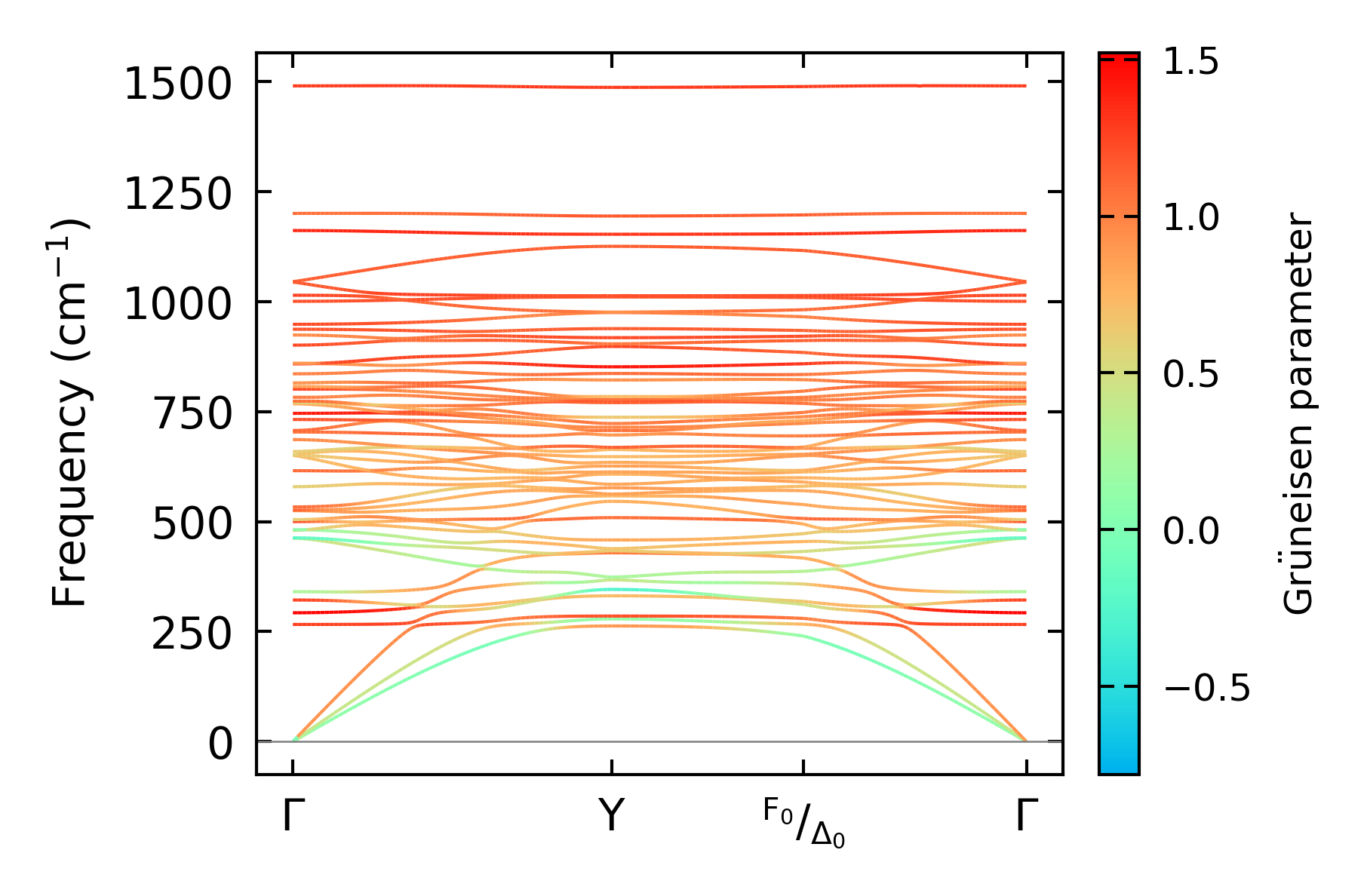

../../_images/fig_gruneisen2924.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 15x14x14, supercell: 2x1x2

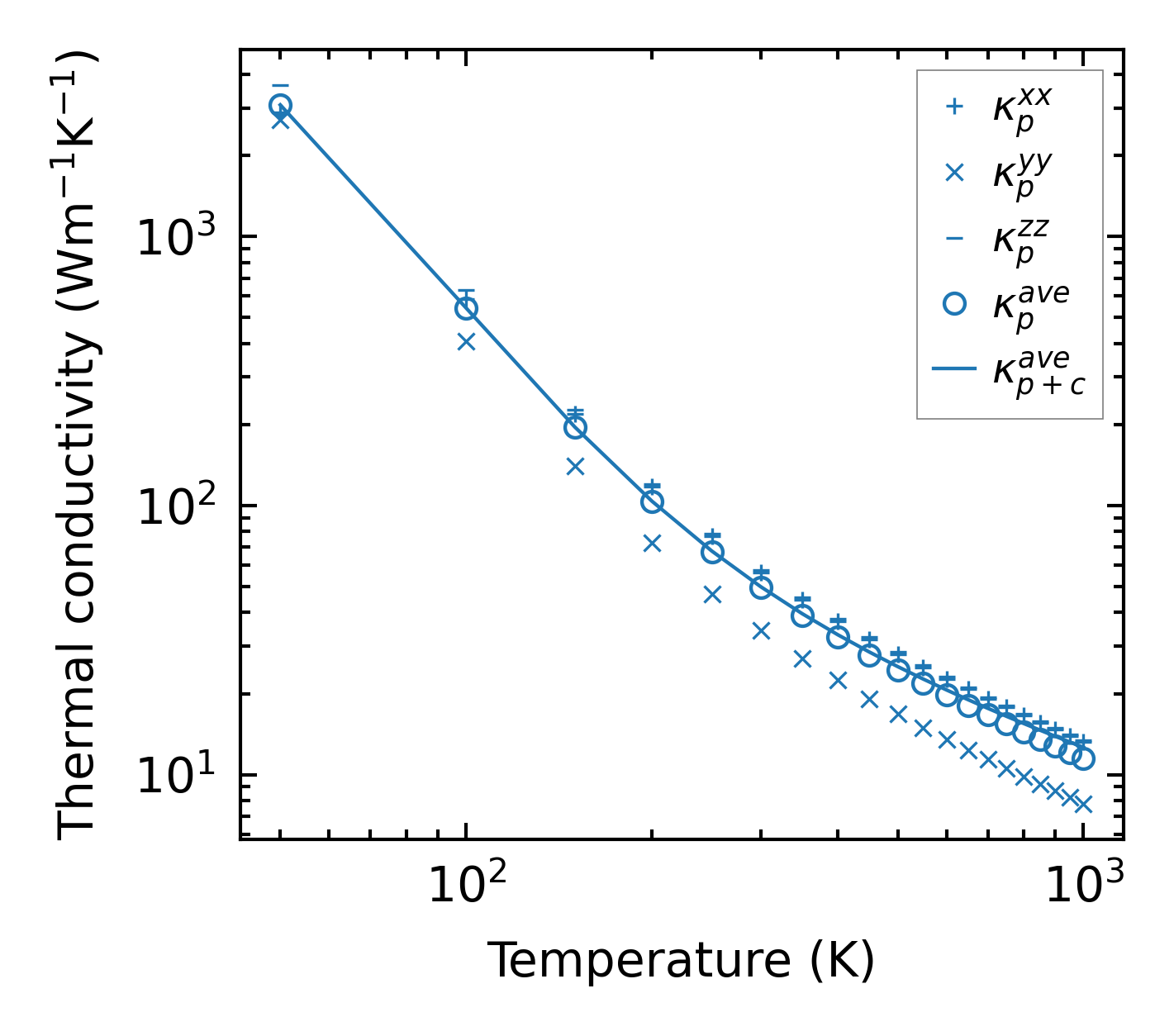

../../_images/fig_kappa5546.png — (a) Temperature-dependent lattice thermal conductivity

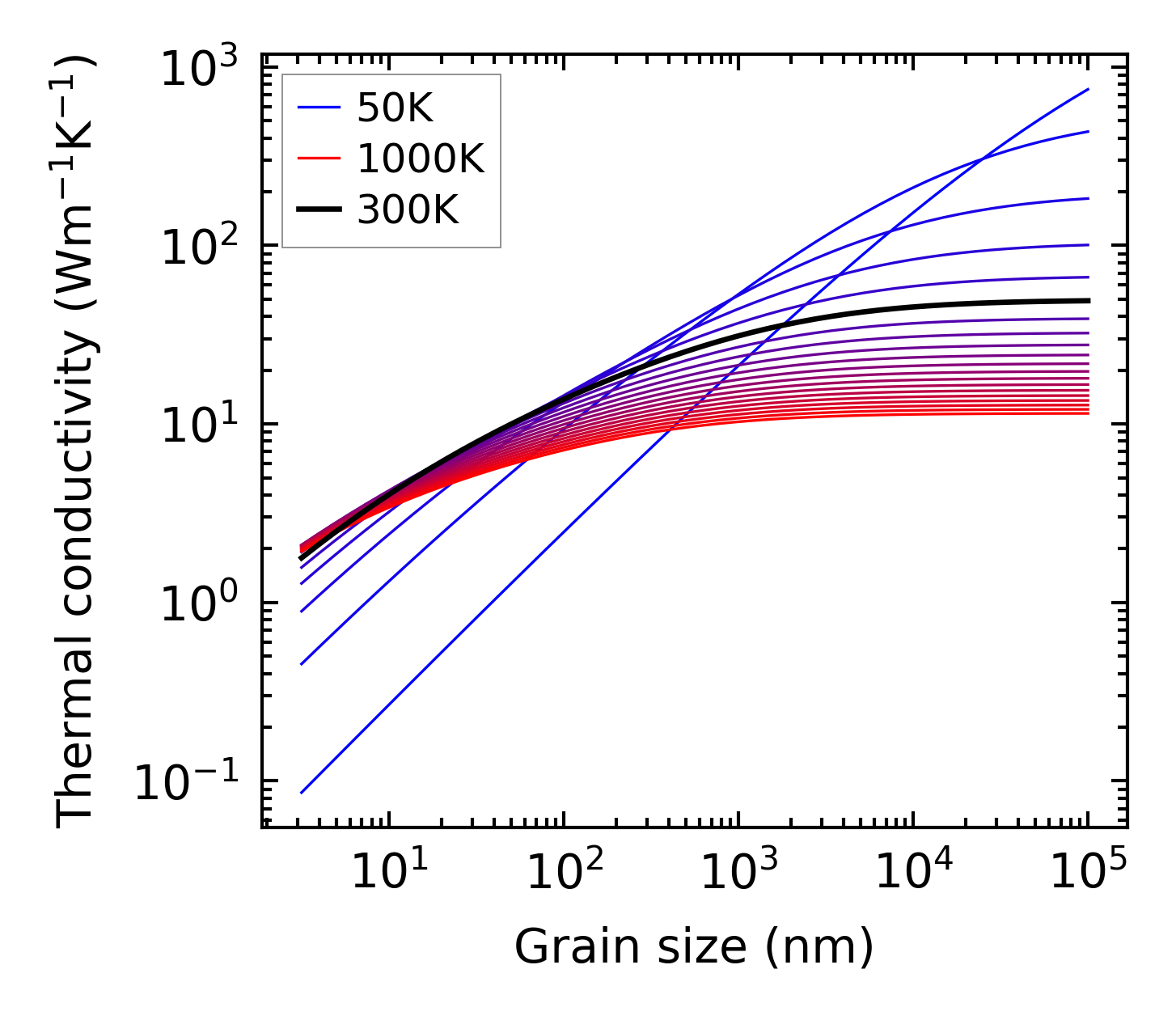

../../_images/fig_kappa_vs_grain_size2966.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

../../_images/fig_lifetime2900.png — (a) Phonon lifetime due to phonon-phonon scattering

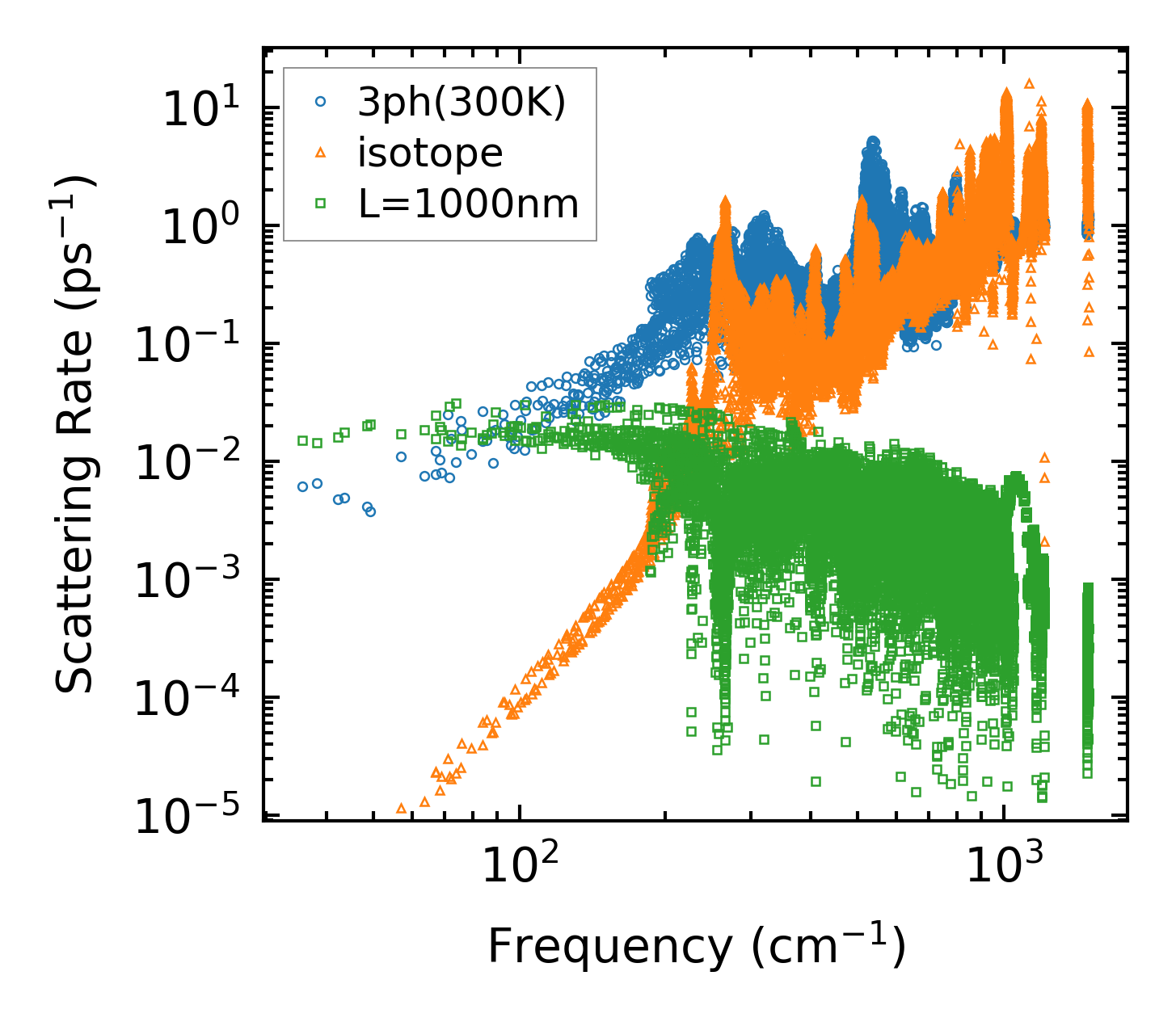

../../_images/fig_scat_rates2899.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

../../_images/fig_cumu_frequency2900.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

../../_images/fig_cumu_mfp2899.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

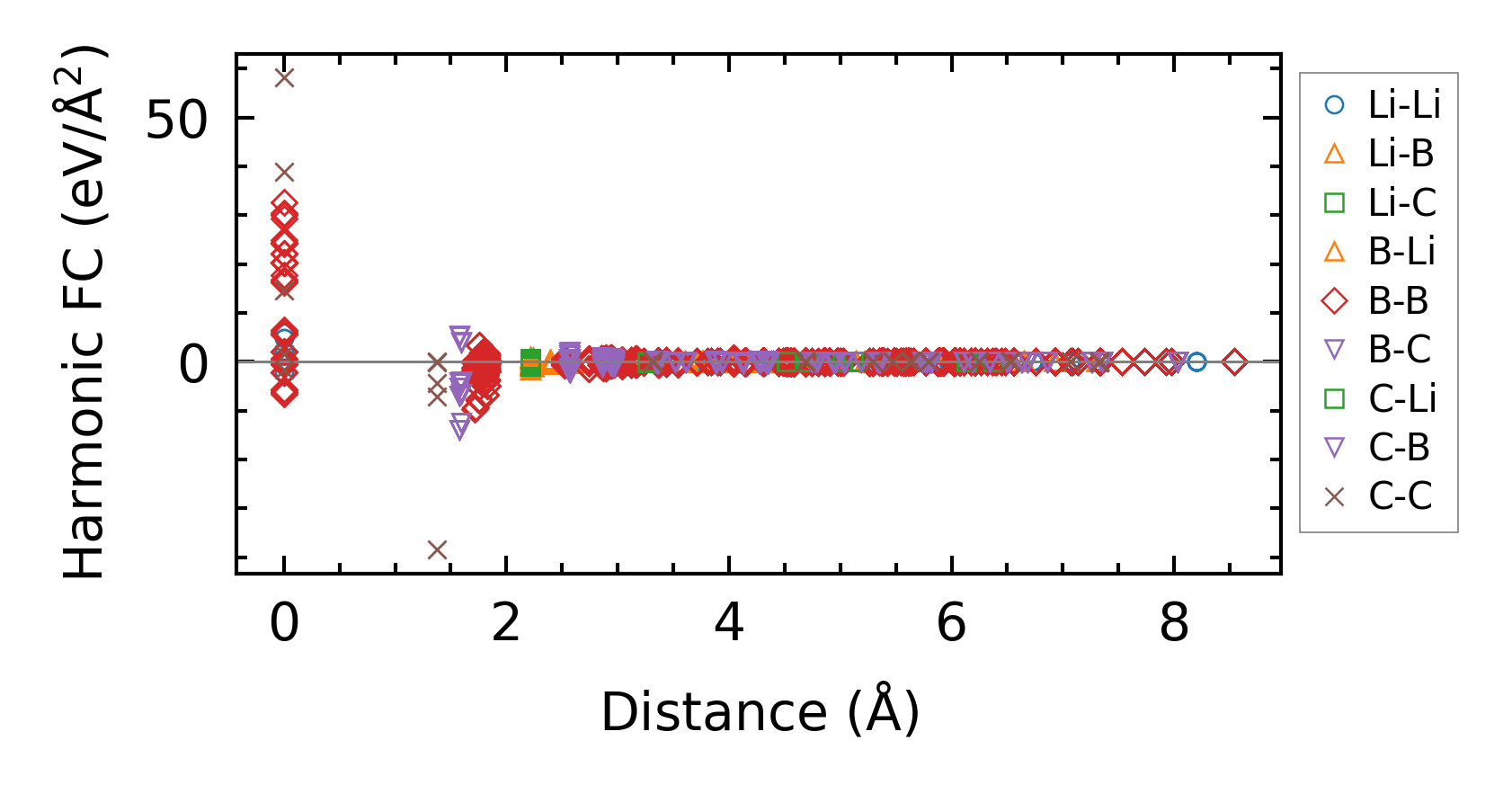

../../_images/fig_fc26800.png — (a) Force constants w.r.t atomic distance

Summary

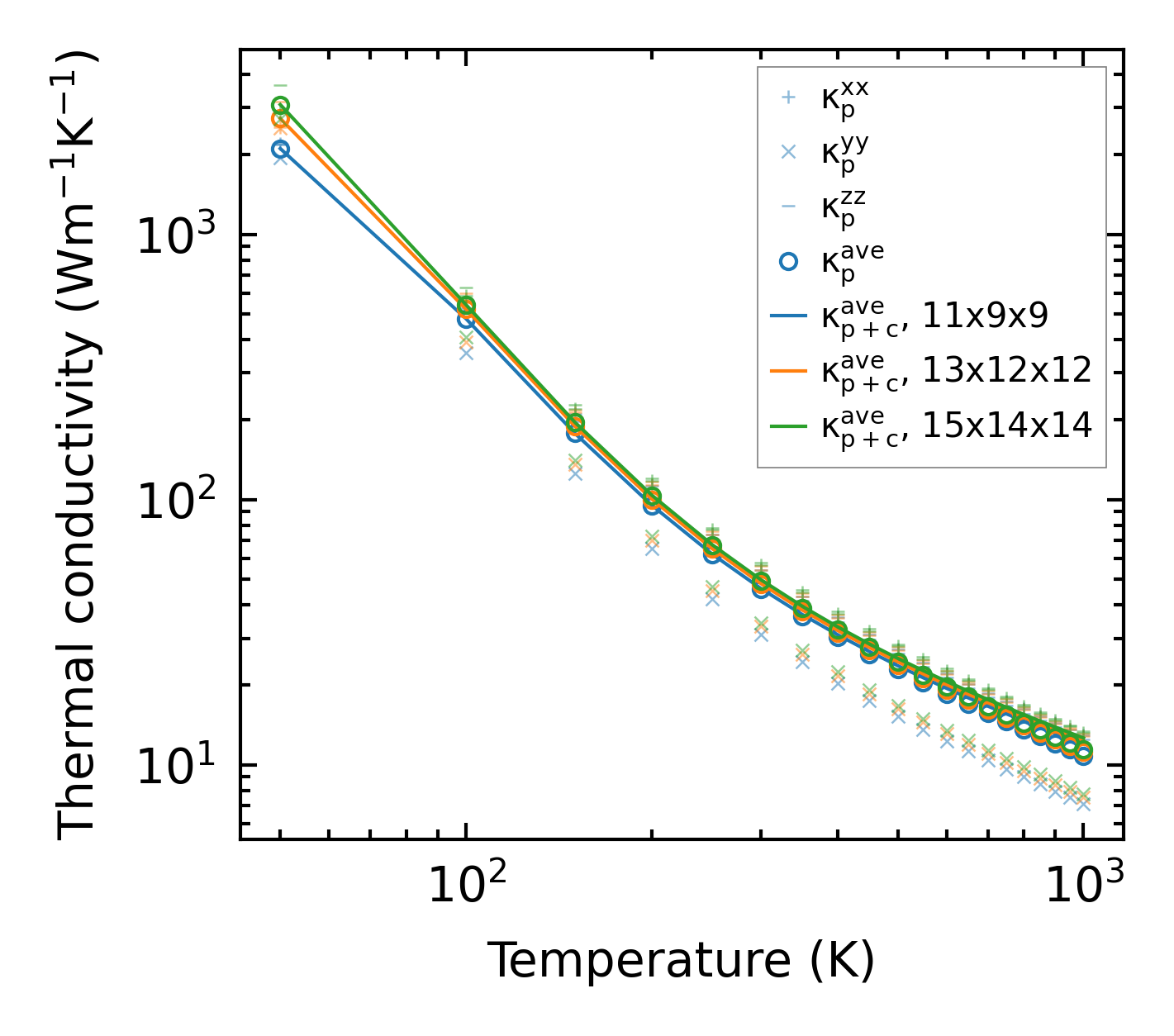

../../_images/fig_kappa5547.png — (a) Temperature-dependent lattice thermal conductivity

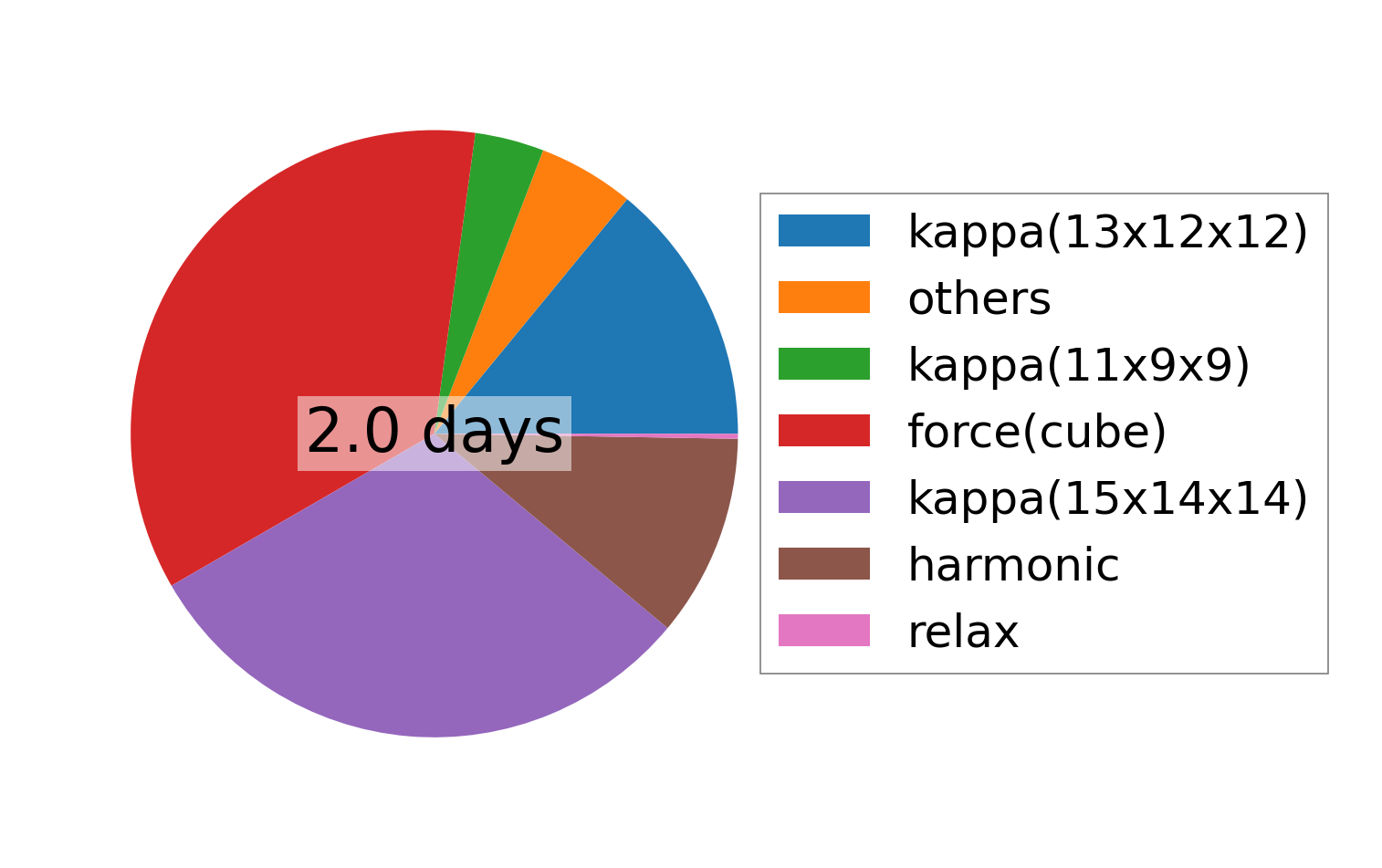

../../_images/fig_times12551.png — (b) Computation time
