mp-569450-2/LiB6C/anharm

Space group: Amm2 (38)
Link: Materials Project
Download: mp-569450-2.tar.gz

Equation of state

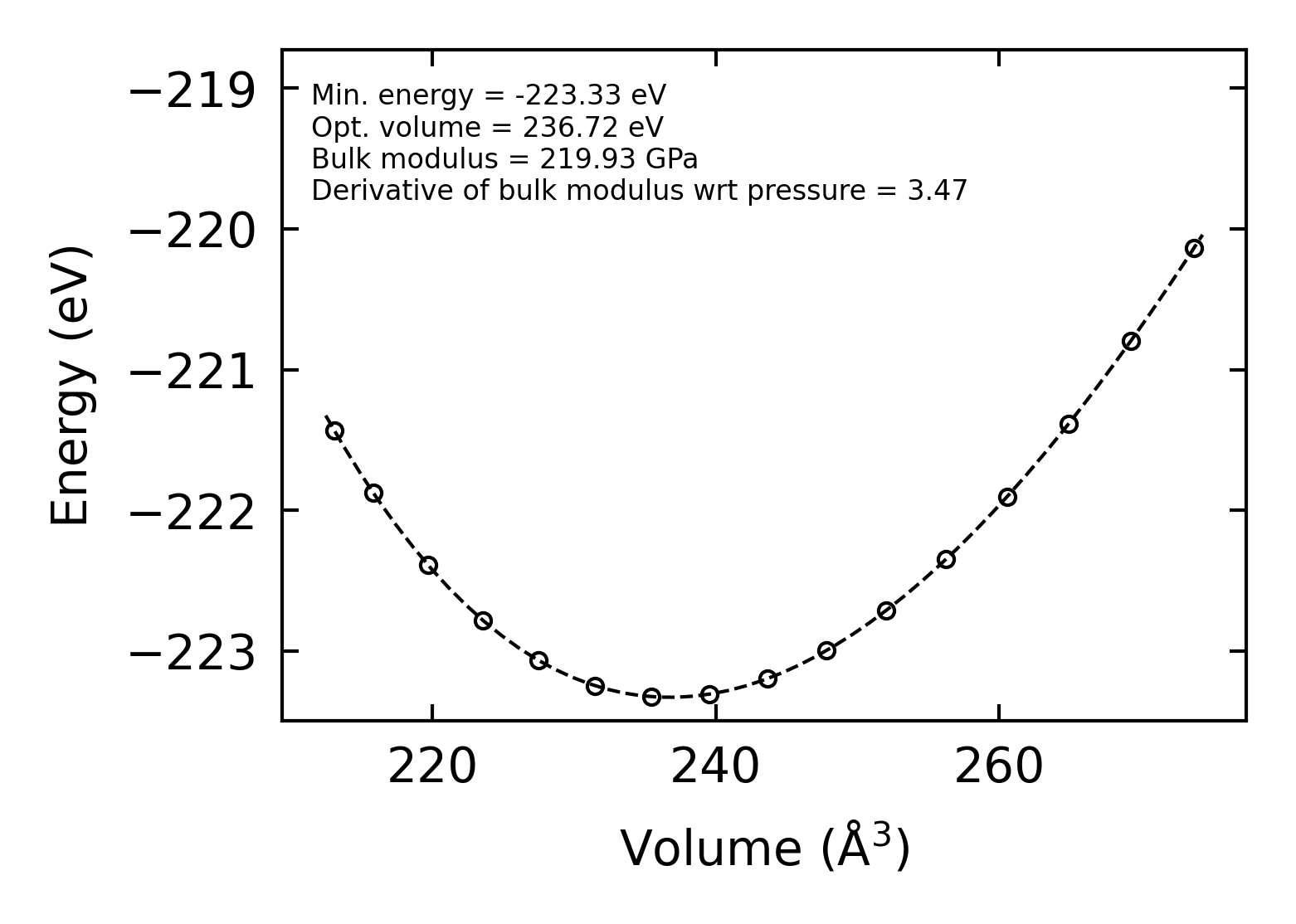

../../_images/fig_bm3742.png — (a) Equation of state

Harmonic properties

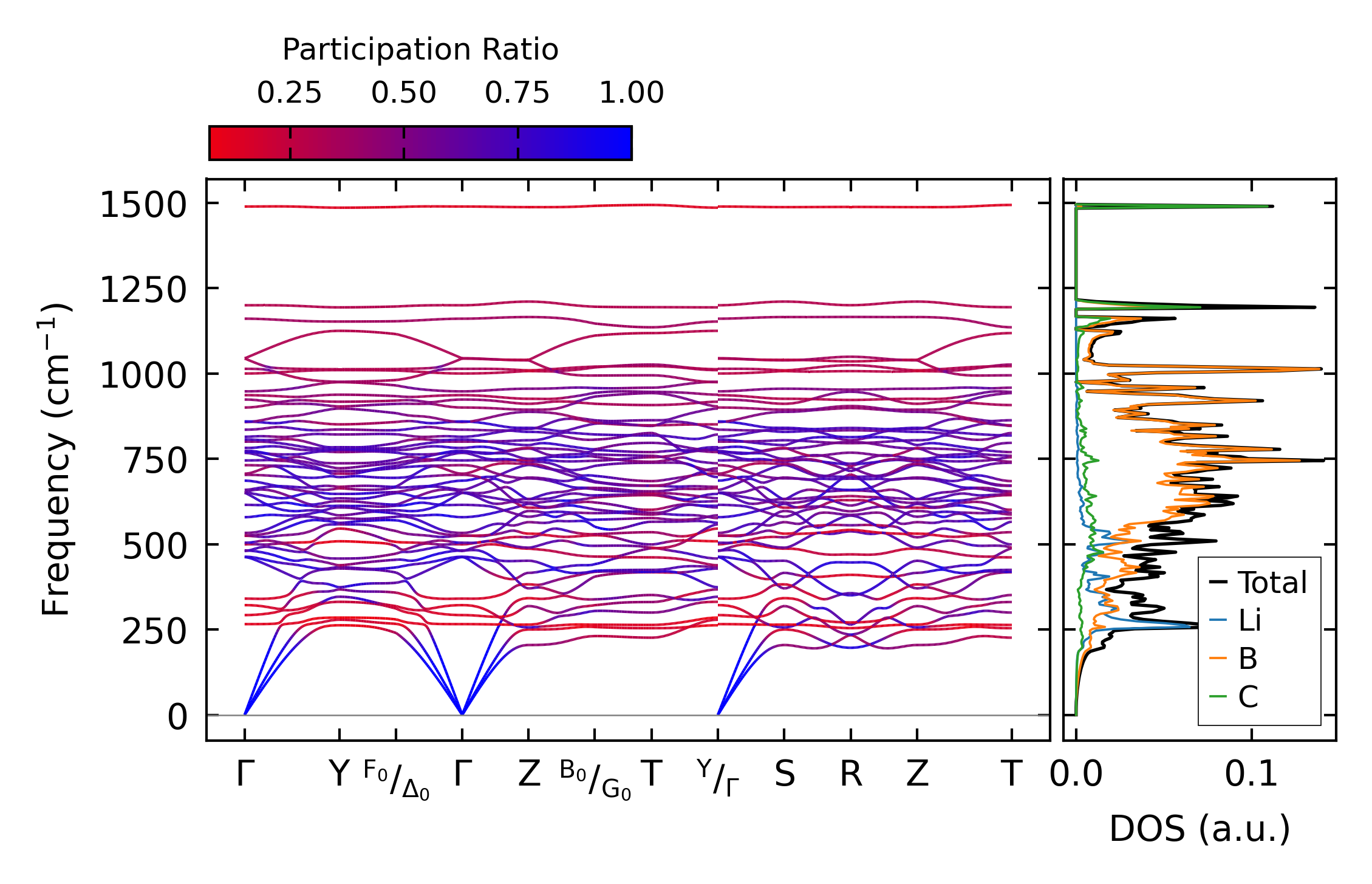

../../_images/fig_bandos_pr7024.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo7024.png — (b) Thermodynamic properties

Grüneisen parameters

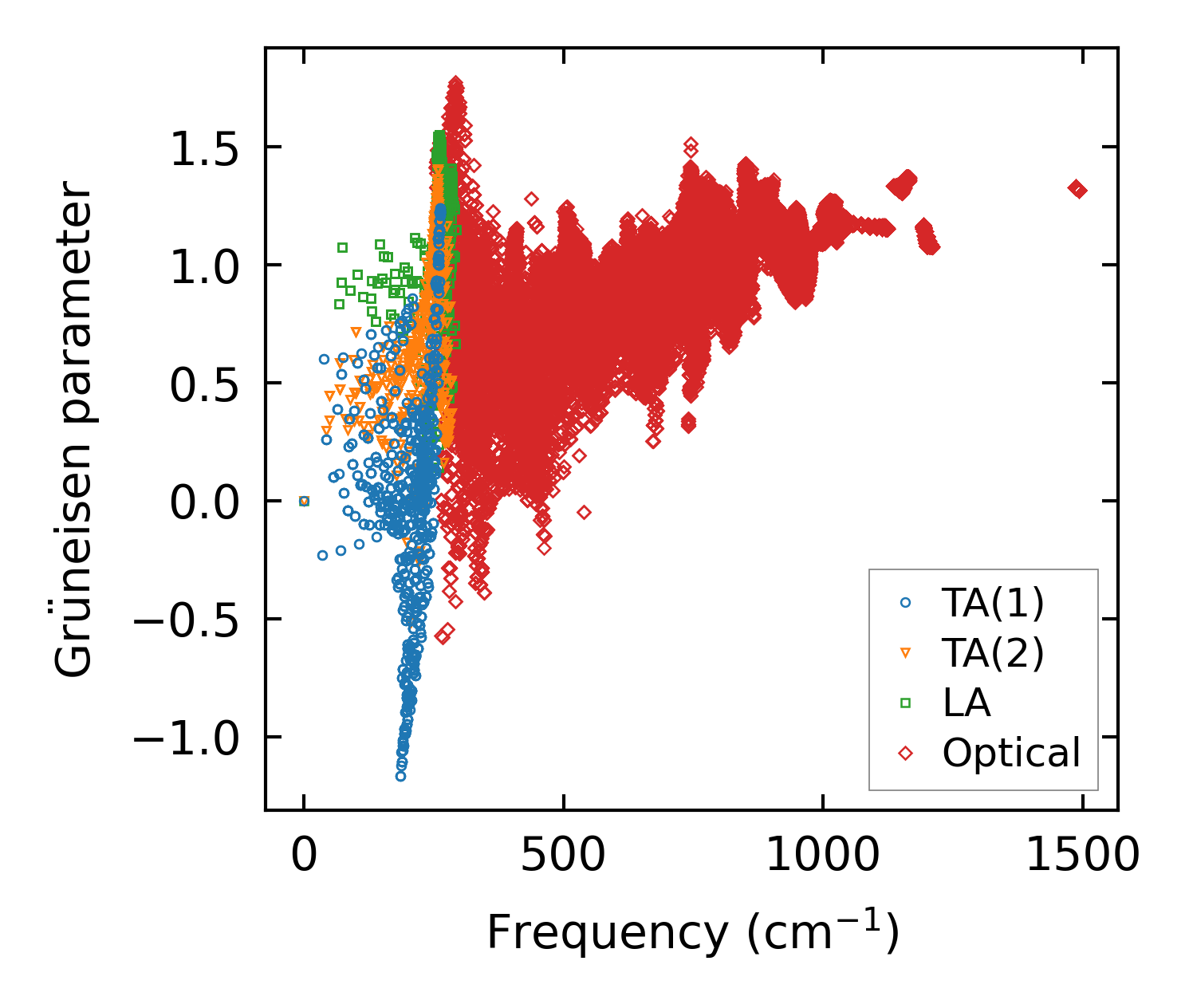

../../_images/fig_gru_all2925.png — (a) Grüneisen parameters

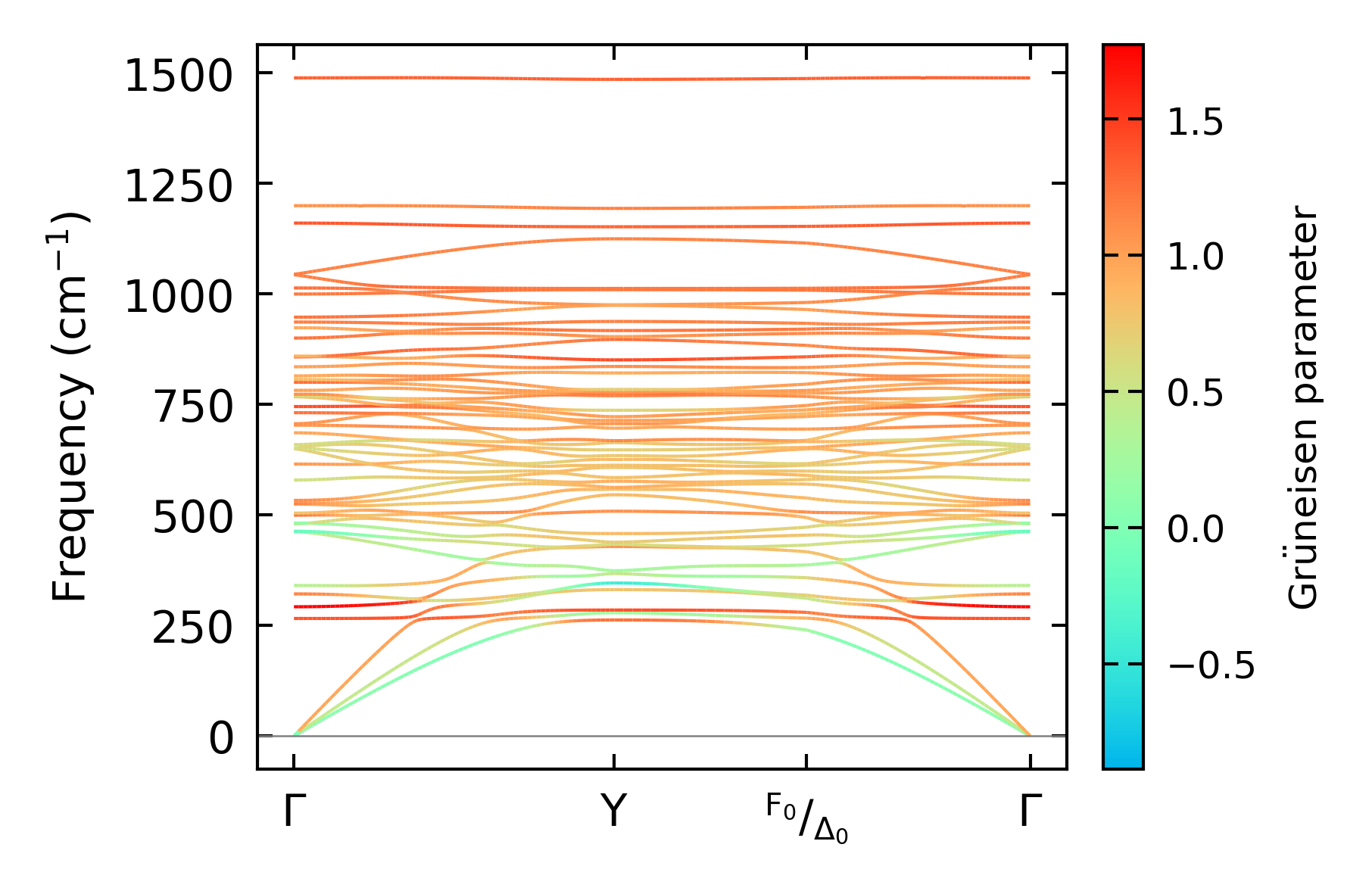

../../_images/fig_gruneisen2925.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 15x14x14, supercell: 2x1x2

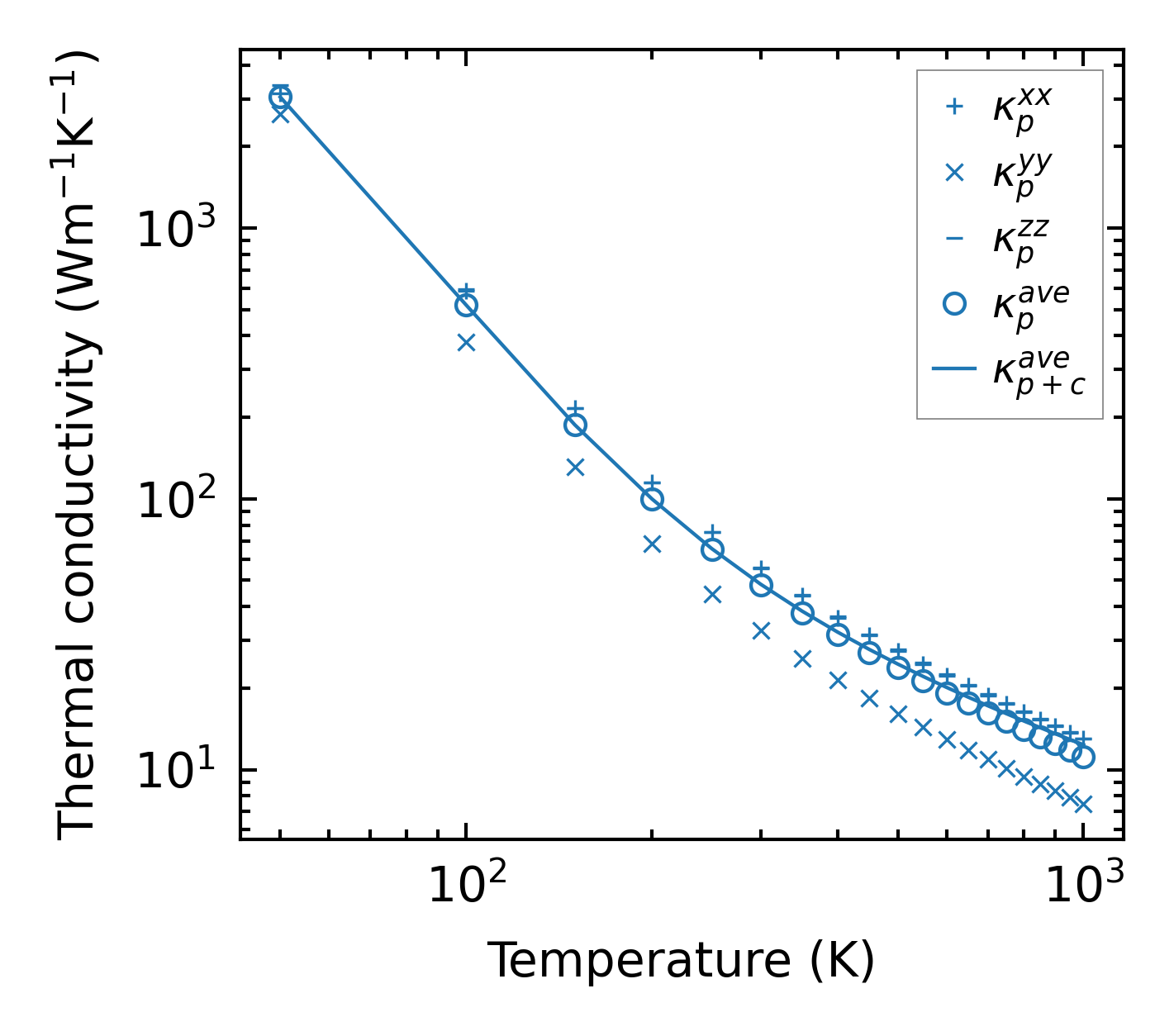

../../_images/fig_kappa5548.png — (a) Temperature-dependent lattice thermal conductivity

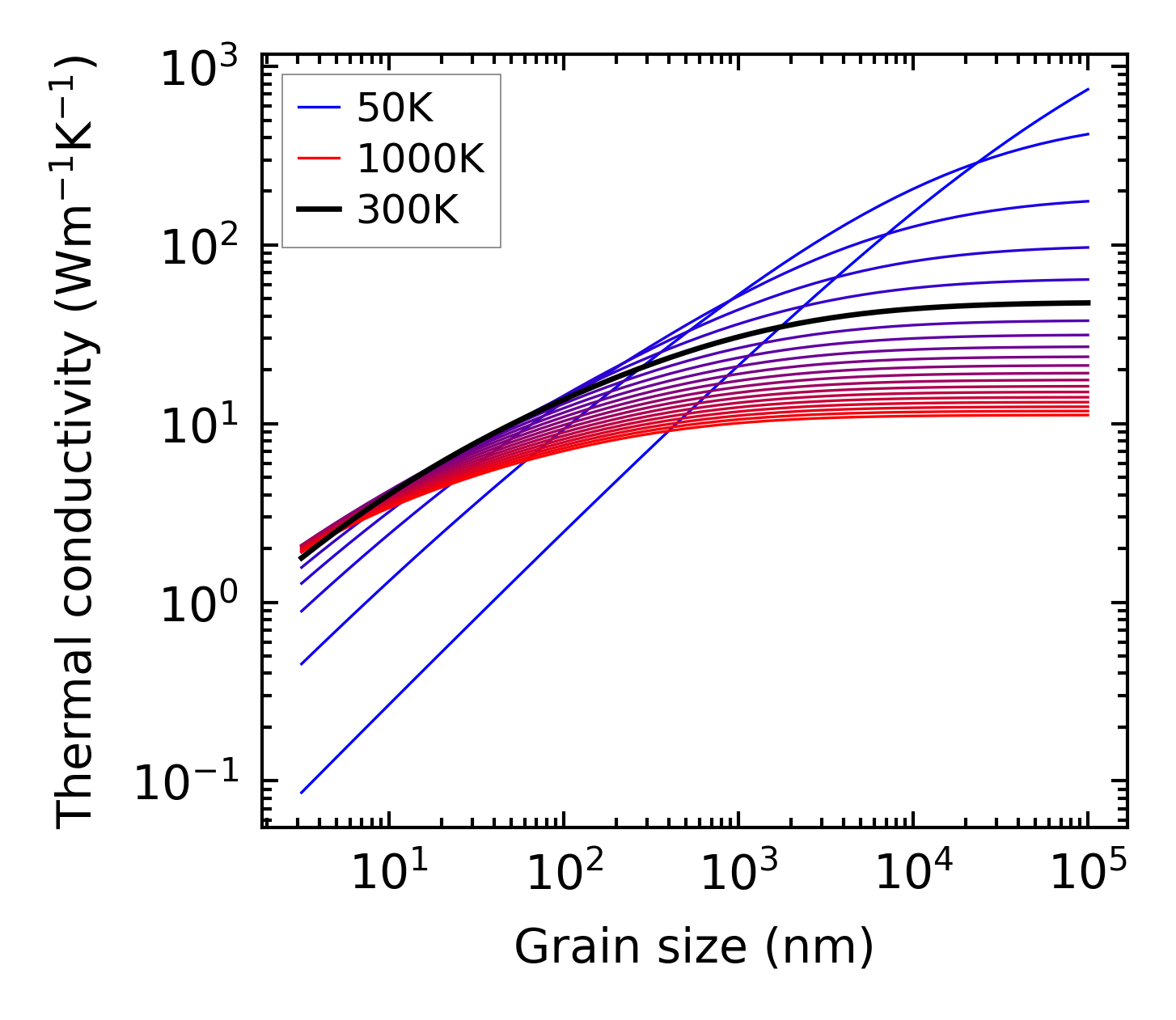

../../_images/fig_kappa_vs_grain_size2967.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

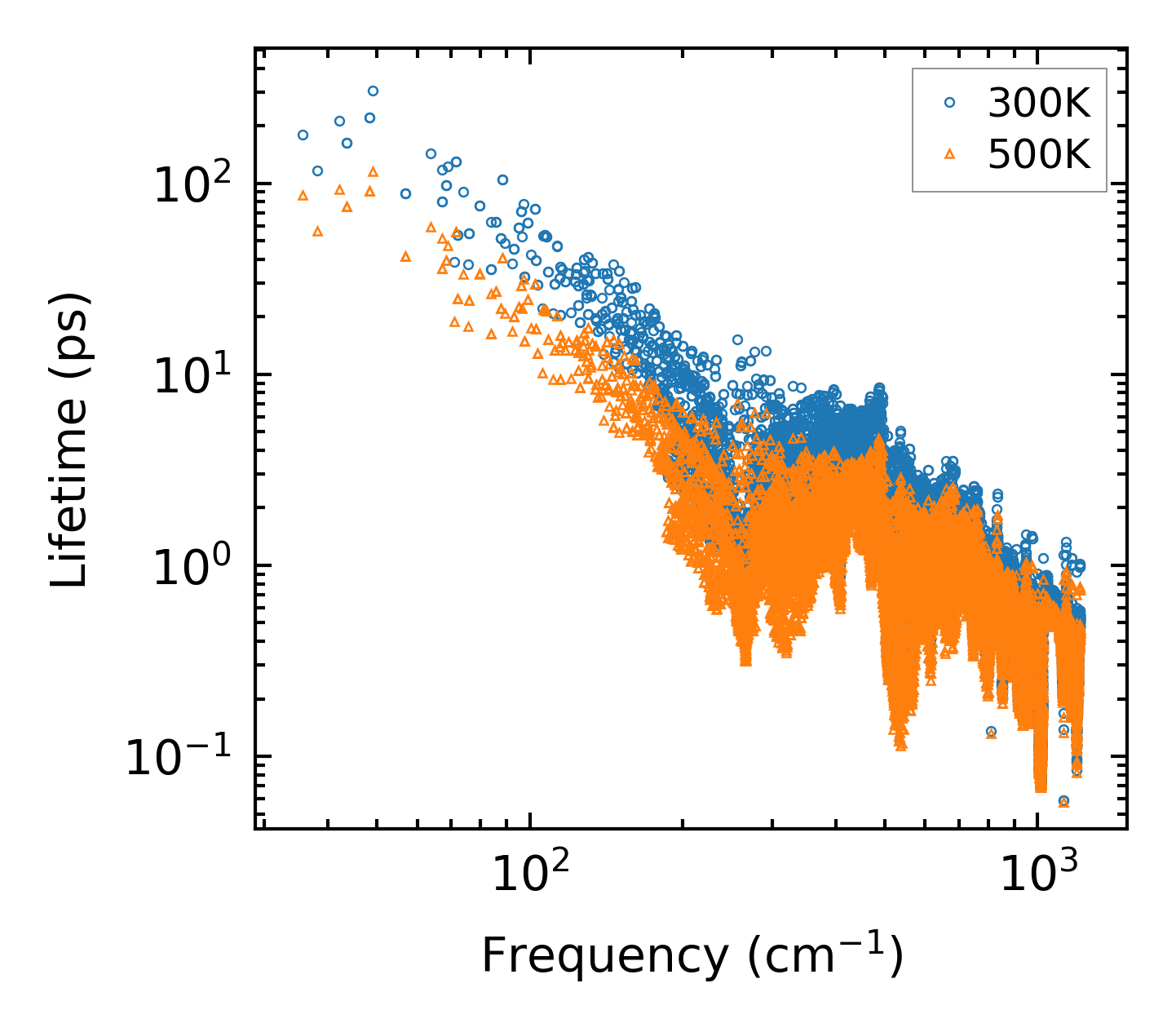

../../_images/fig_lifetime2901.png — (a) Phonon lifetime due to phonon-phonon scattering

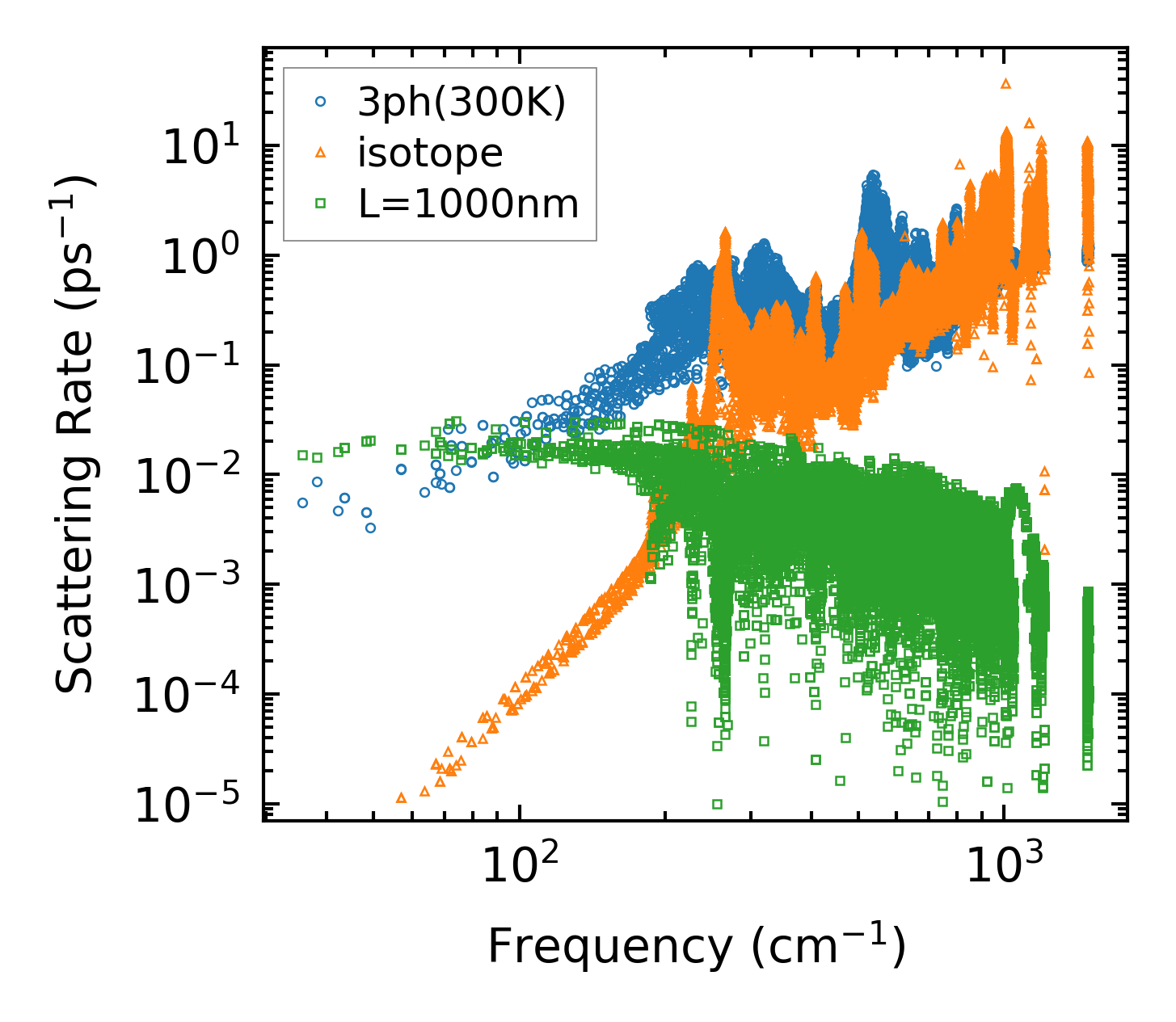

../../_images/fig_scat_rates2900.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

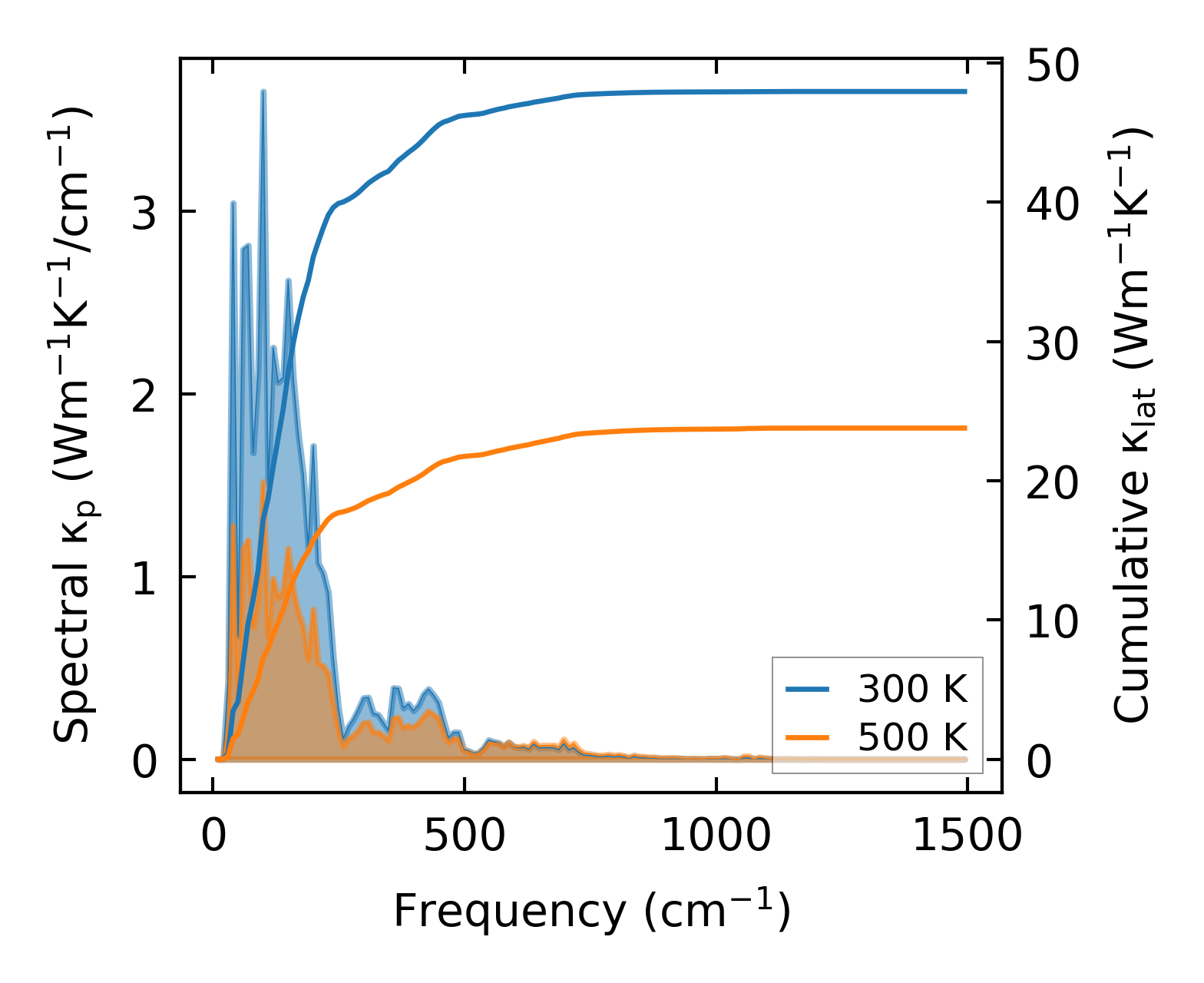

../../_images/fig_cumu_frequency2901.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

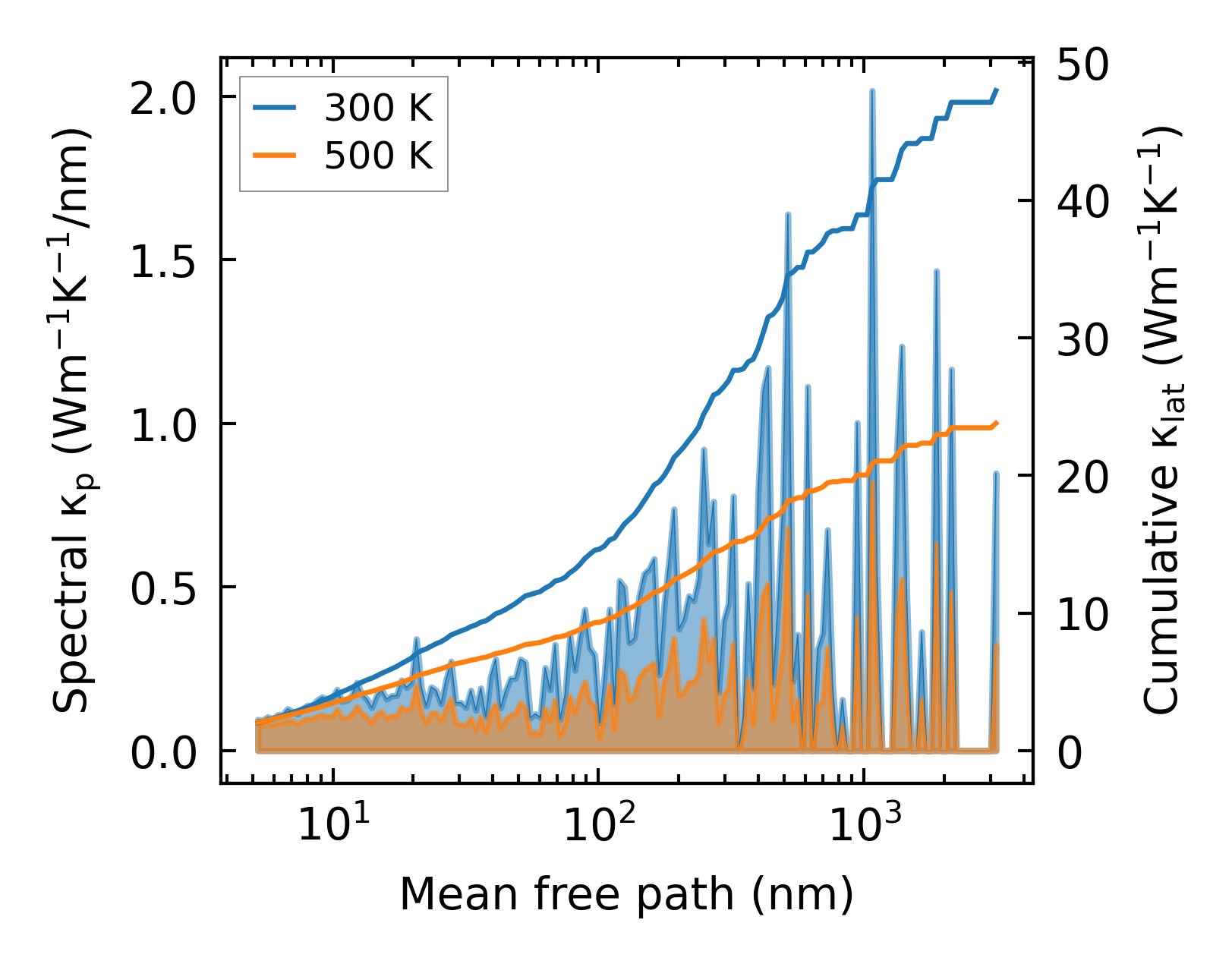

../../_images/fig_cumu_mfp2900.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

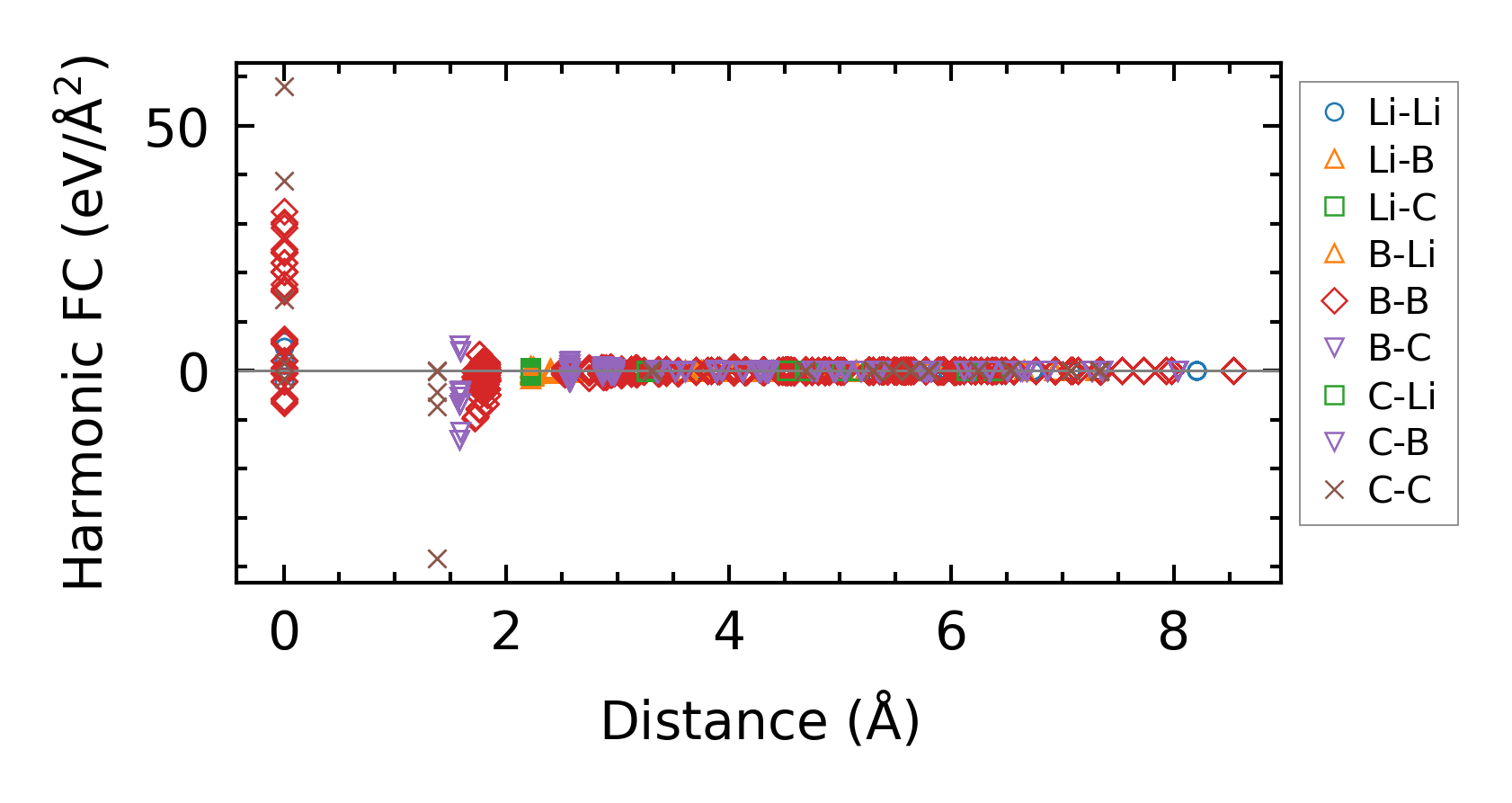

../../_images/fig_fc26801.png — (a) Force constants w.r.t atomic distance

Summary

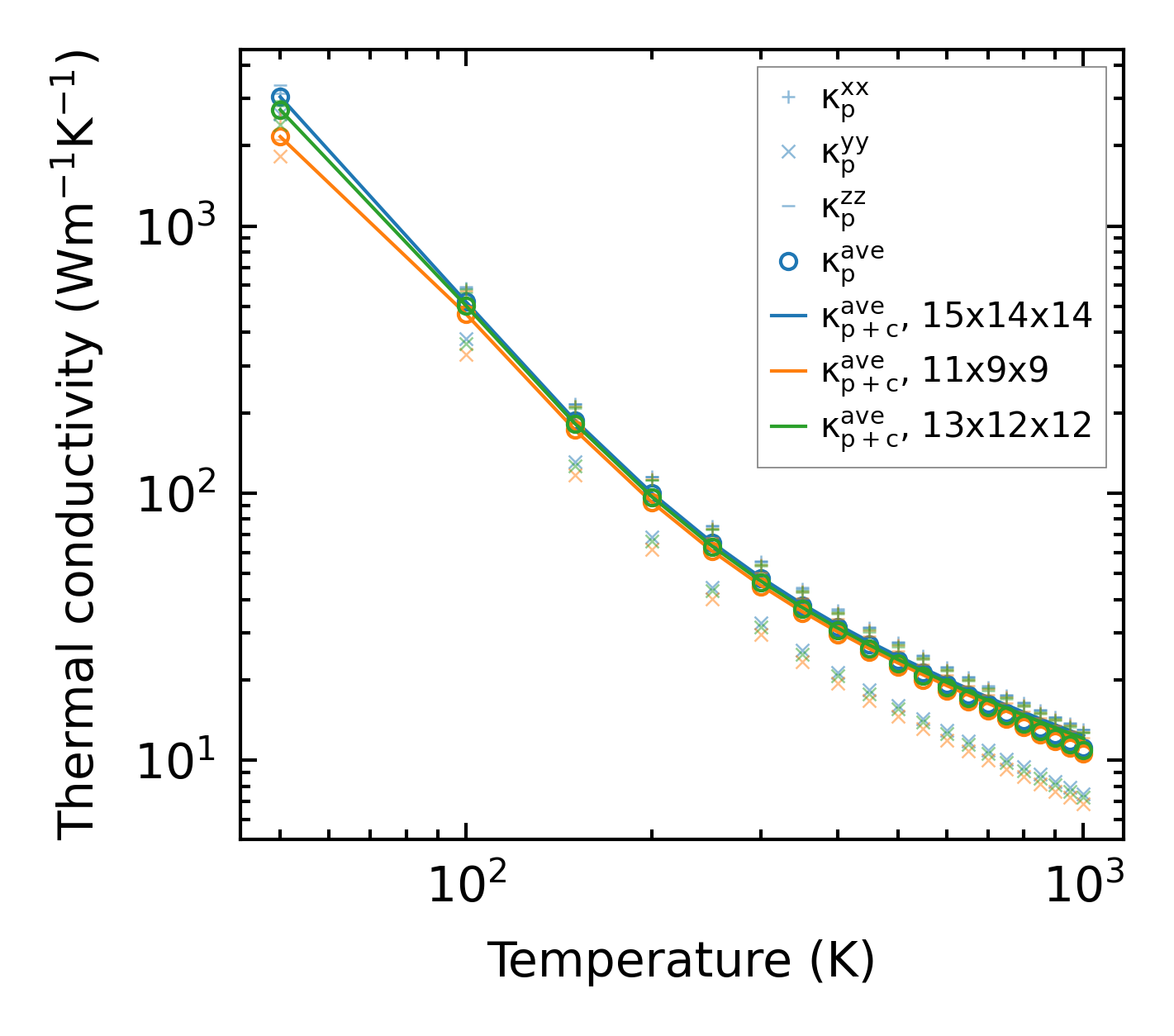

../../_images/fig_kappa5549.png — (a) Temperature-dependent lattice thermal conductivity

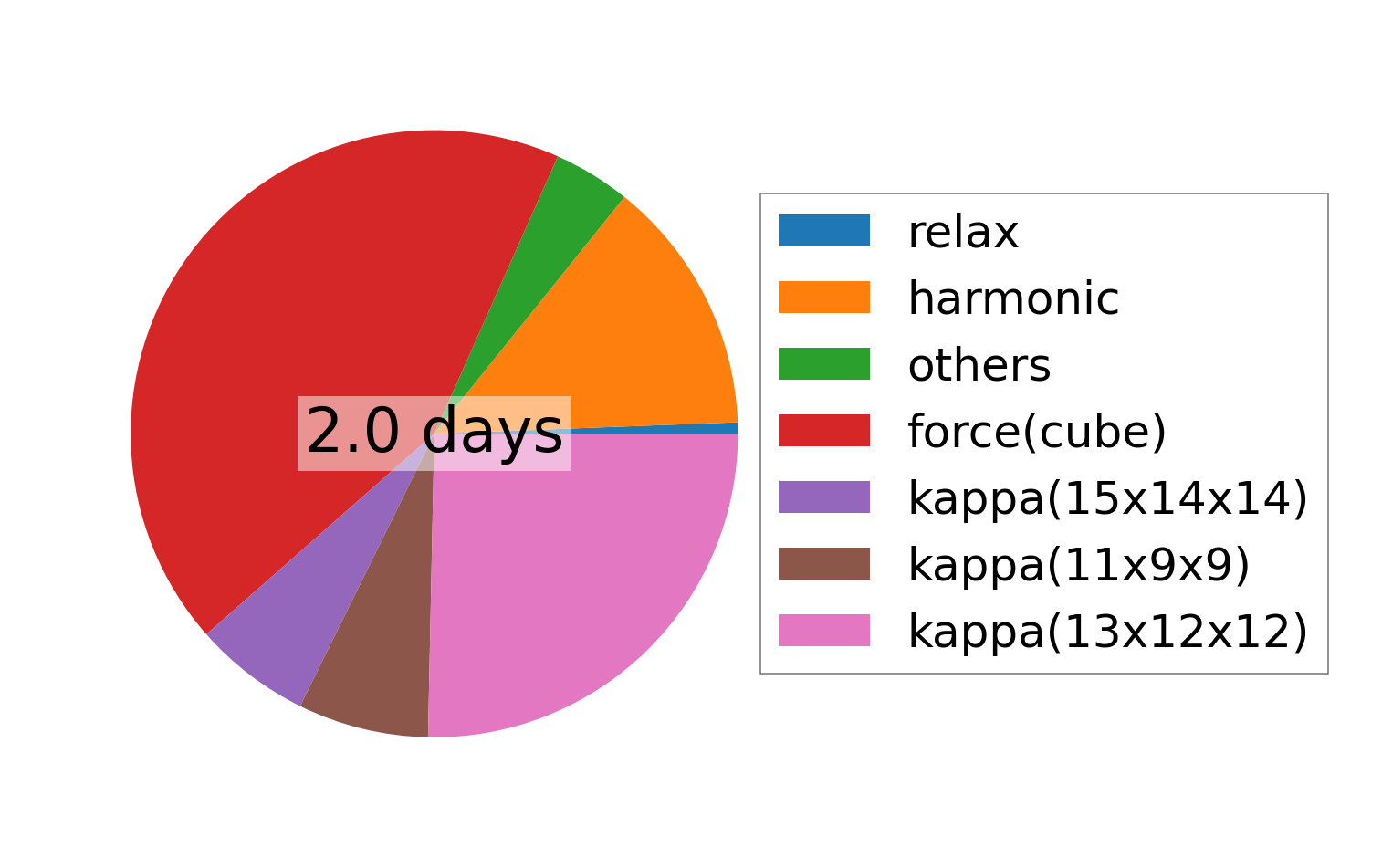

../../_images/fig_times12552.png — (b) Computation time
