mp-569193/Cs4P2Se9/anharm

Space group: C2/c (15)
Link: Materials Project
Download: mp-569193.tar.gz

Equation of state

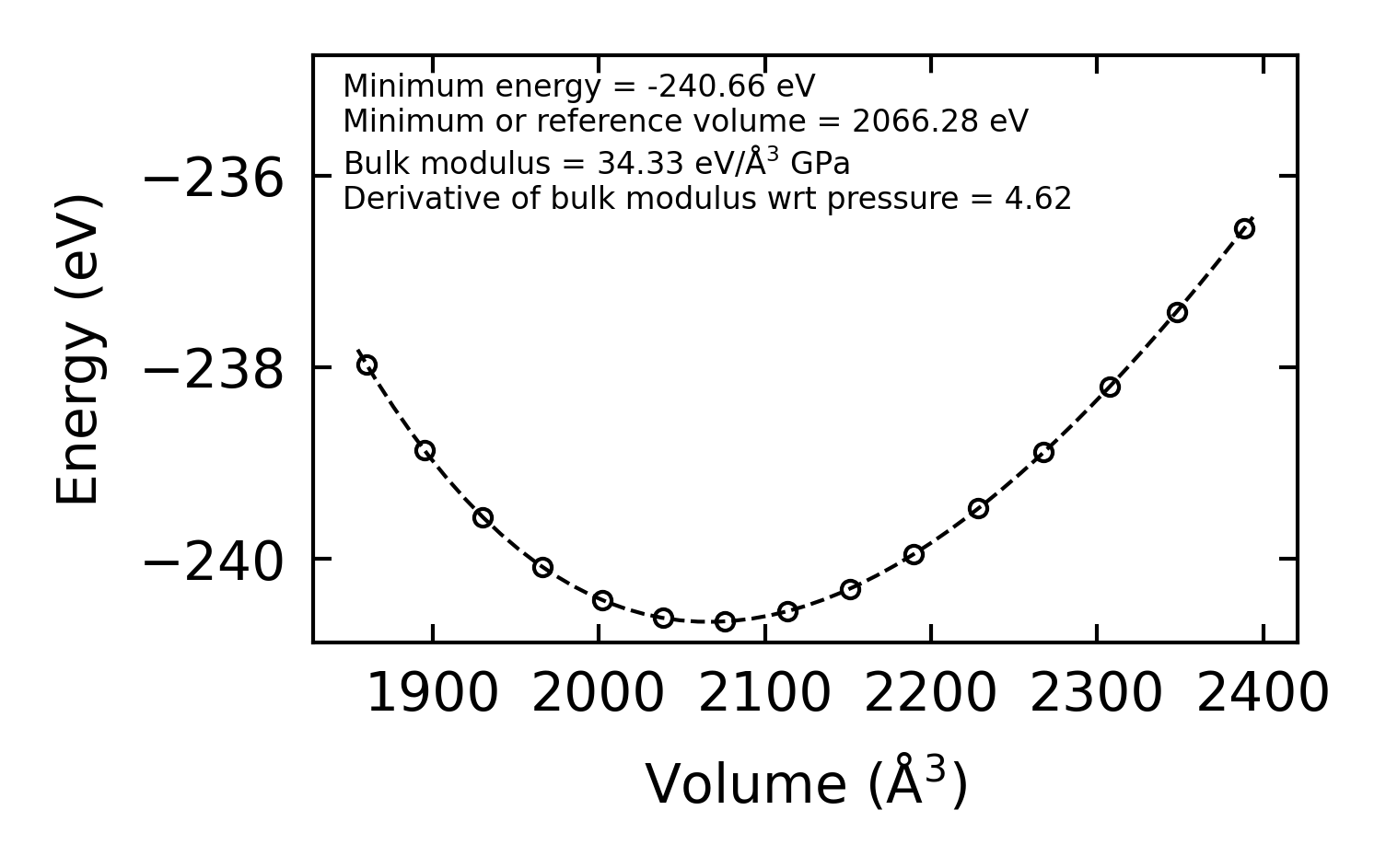

../../_images/fig_bm3738.png — (a) Equation of state

Harmonic properties

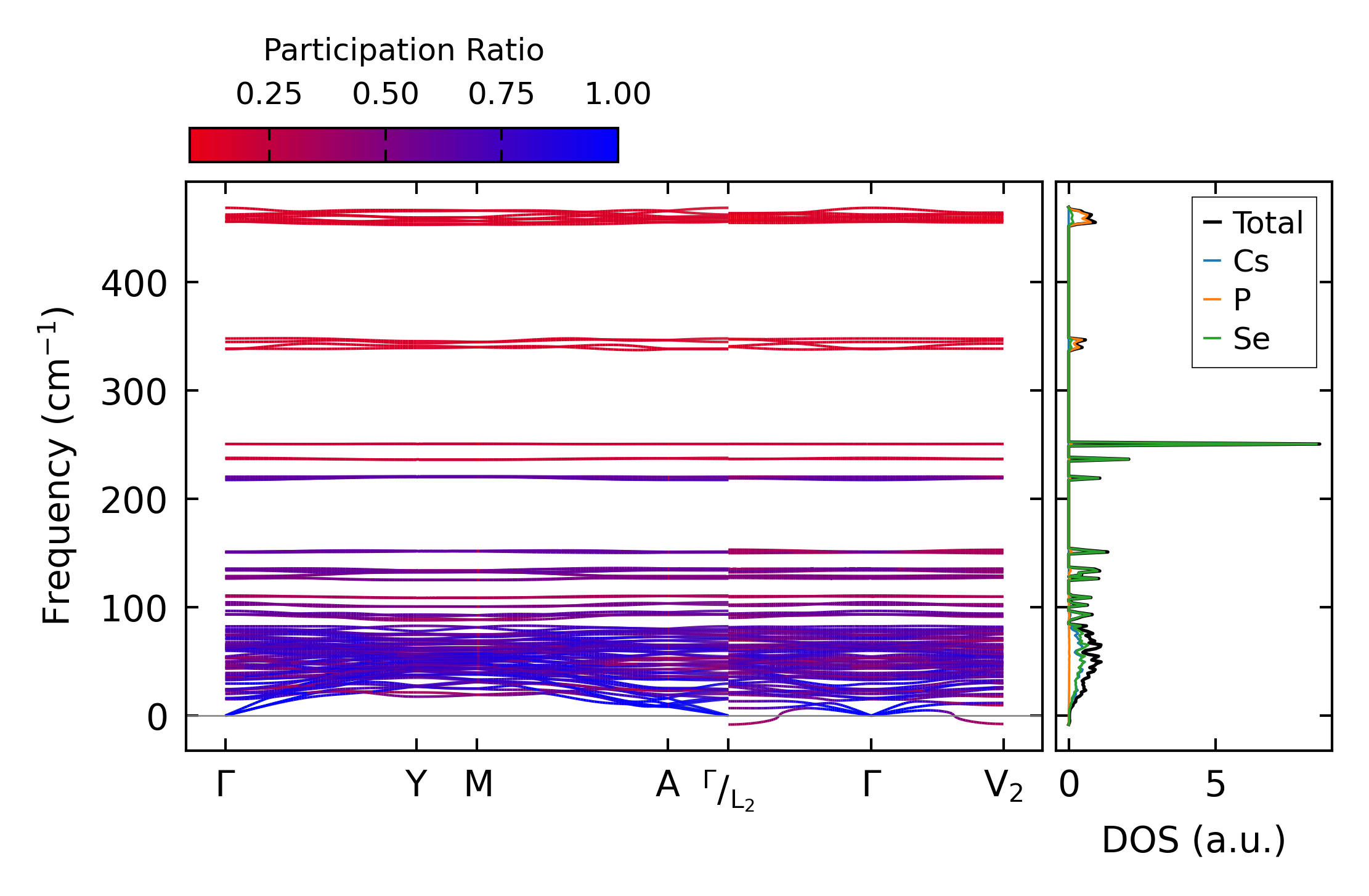

../../_images/fig_bandos_pr7000.png — (a) Phonon dispersion with participation ratio and DOS

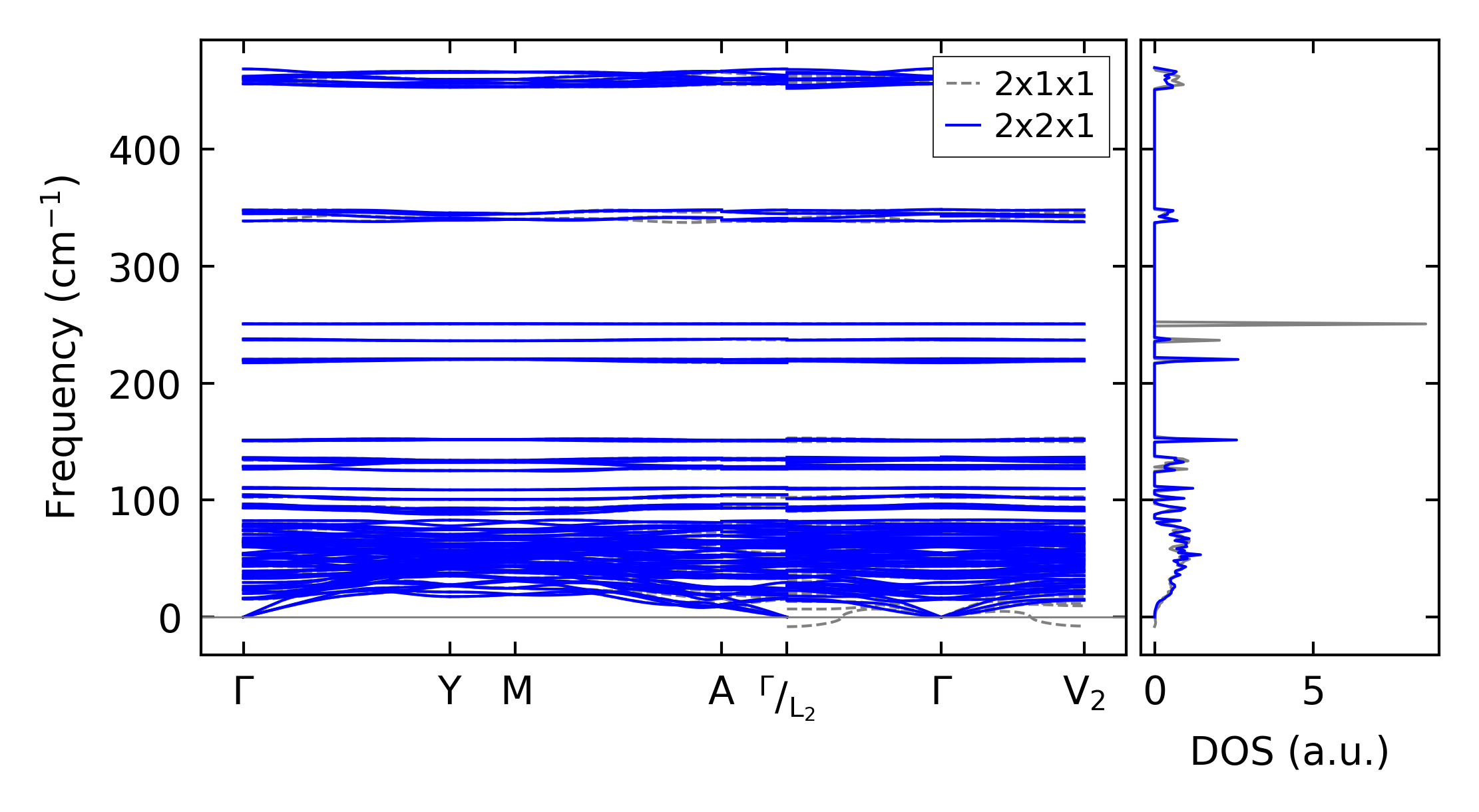

../../_images/fig_bandos9984.png — (b) Phonon dispersion and DOS

../../_images/fig_thermo7000.png — (c) Thermodynamic properties

Grüneisen parameters

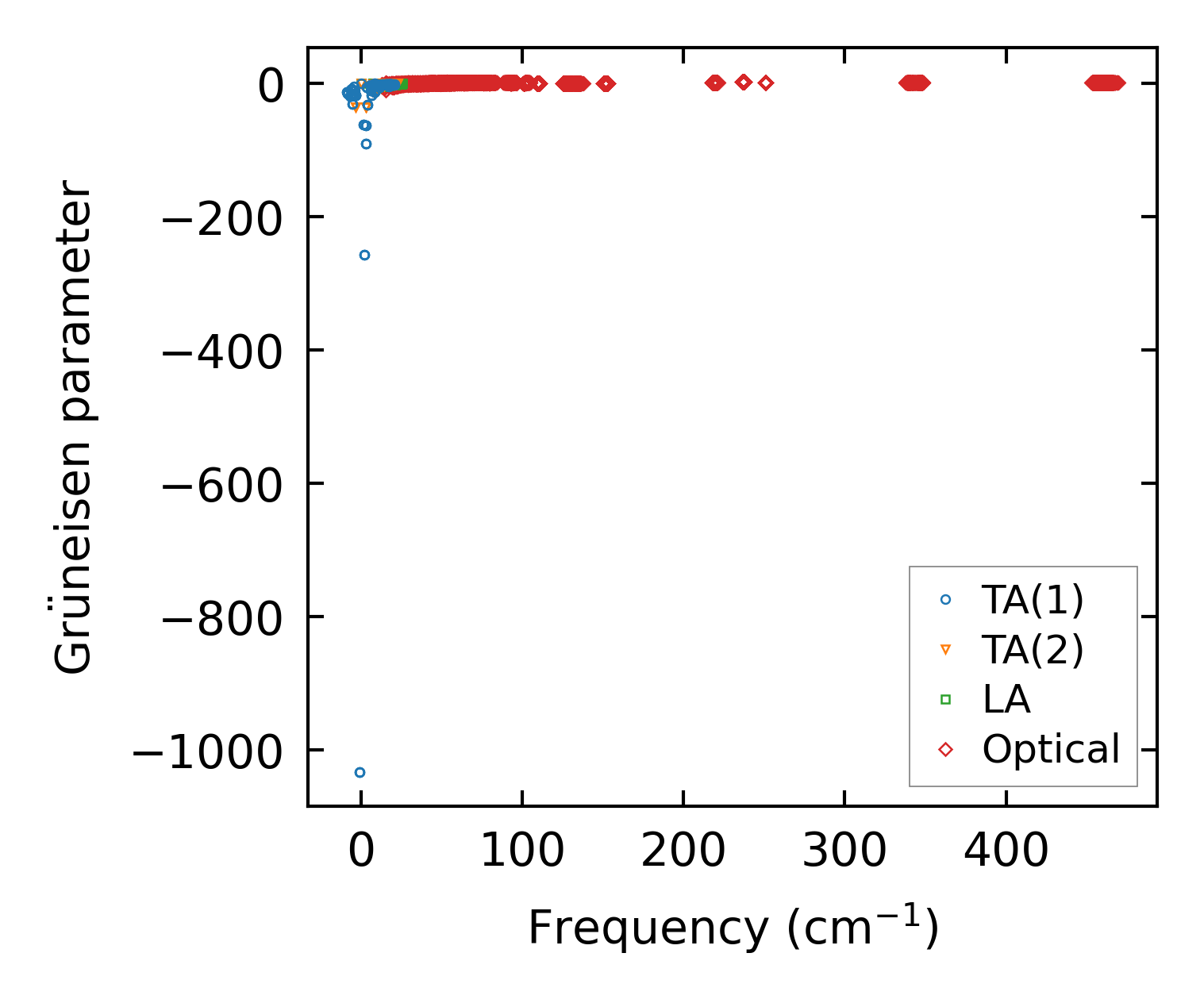

../../_images/fig_gru_all2910.png — (a) Grüneisen parameters

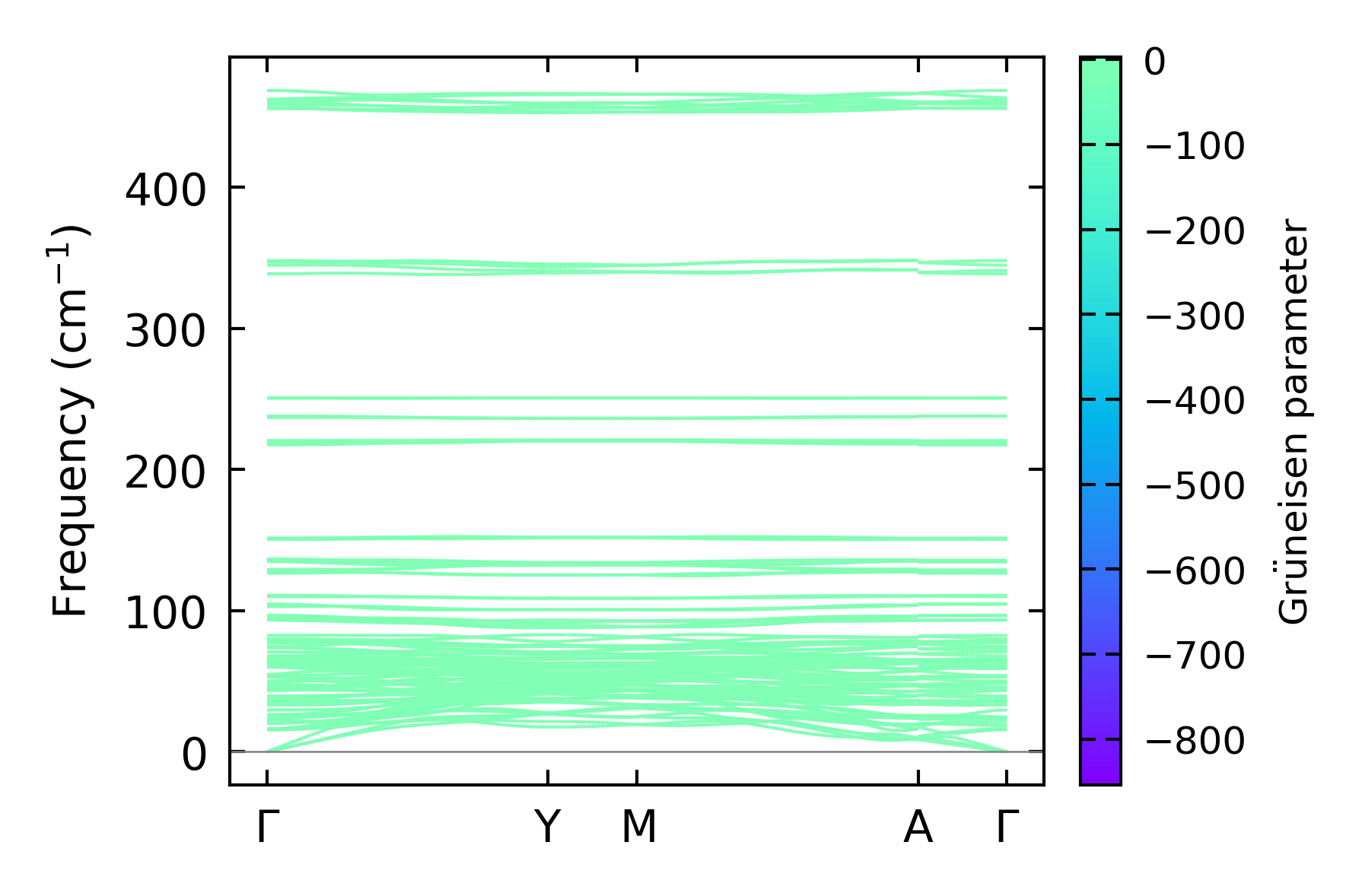

../../_images/fig_gruneisen2910.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO), supercell 2x2x1 — q-mesh: 9x9x3, supercell: 2x2x1

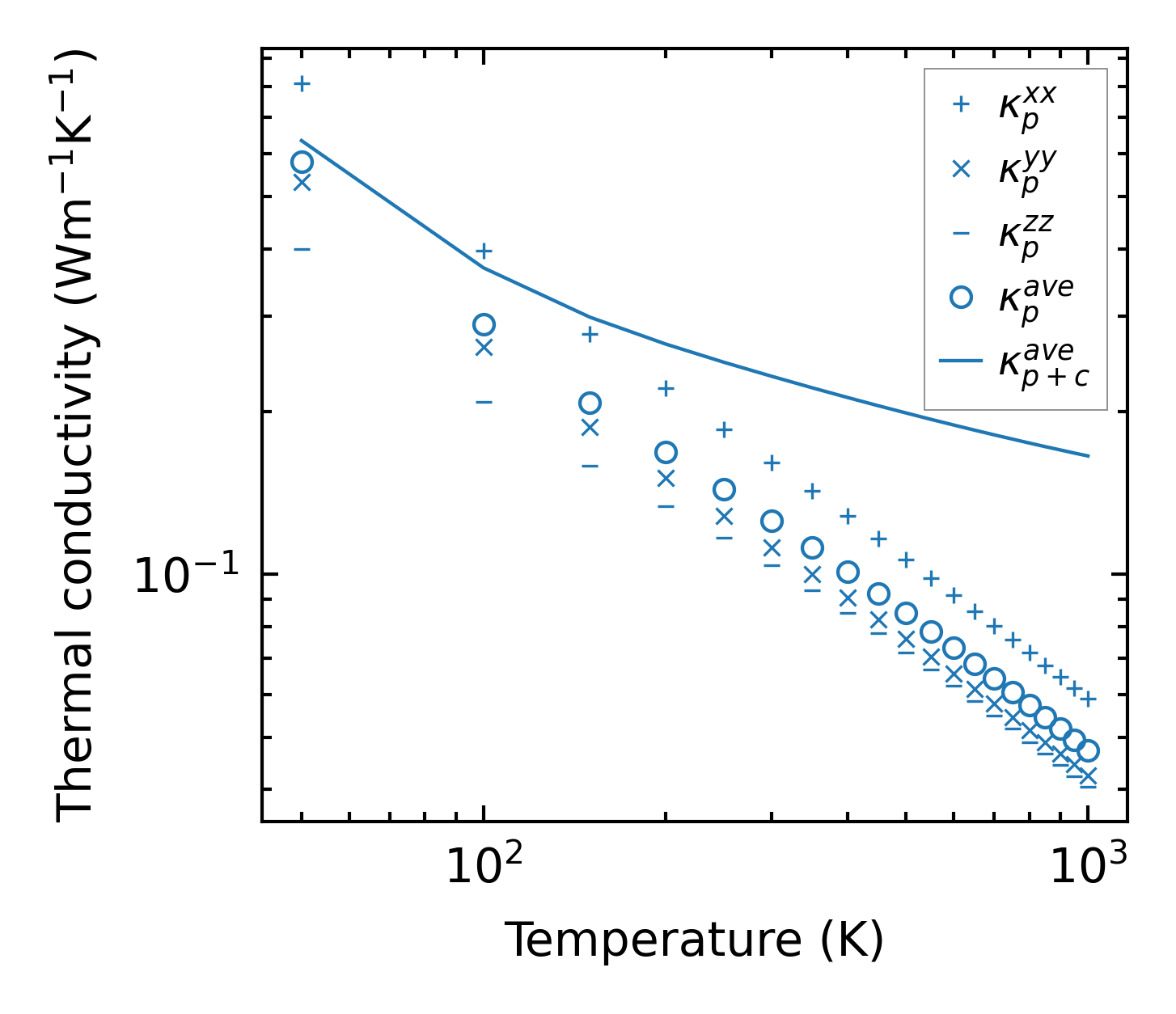

../../_images/fig_kappa5520.png — (a) Temperature-dependent lattice thermal conductivity

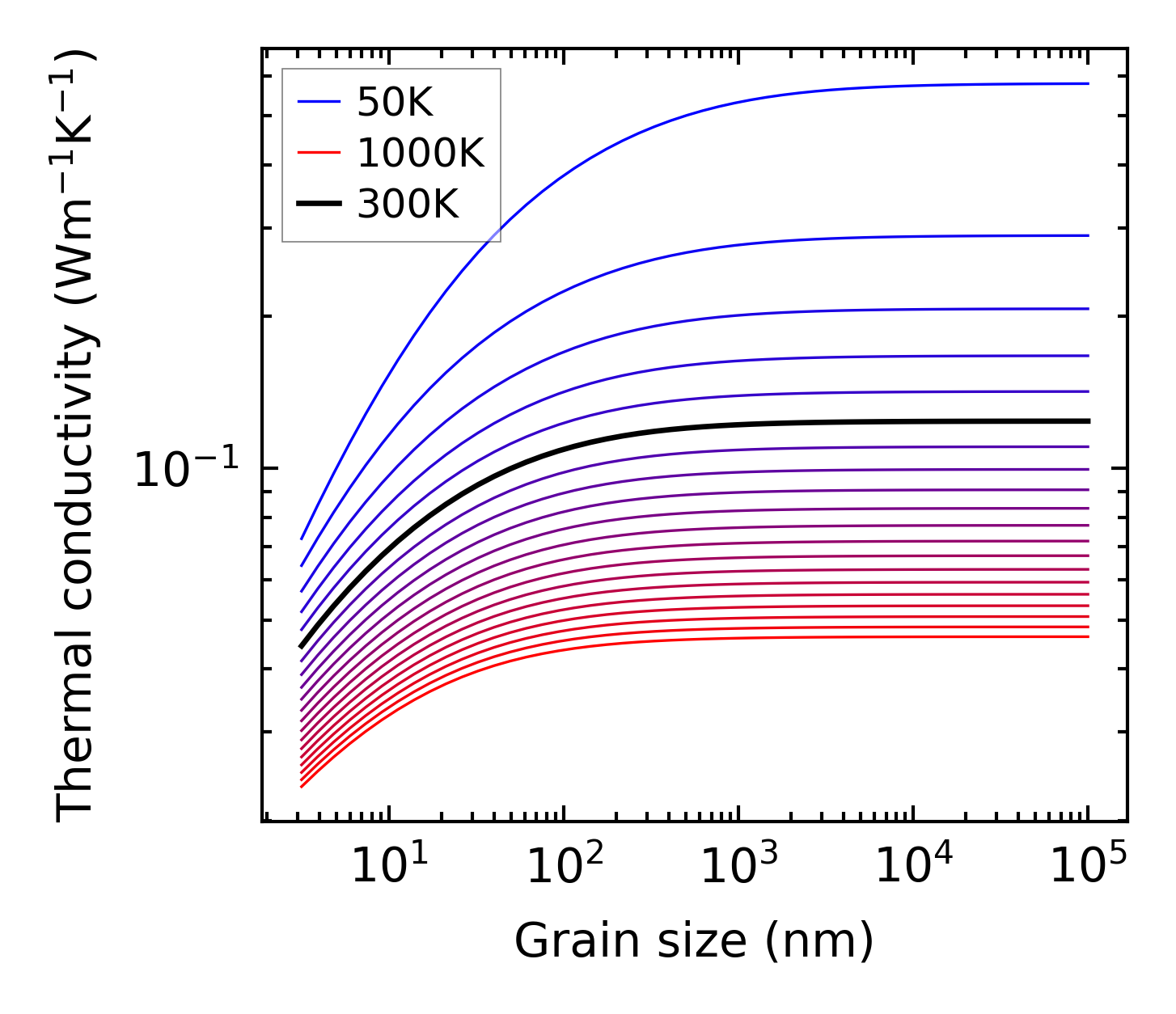

../../_images/fig_kappa_vs_grain_size2952.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

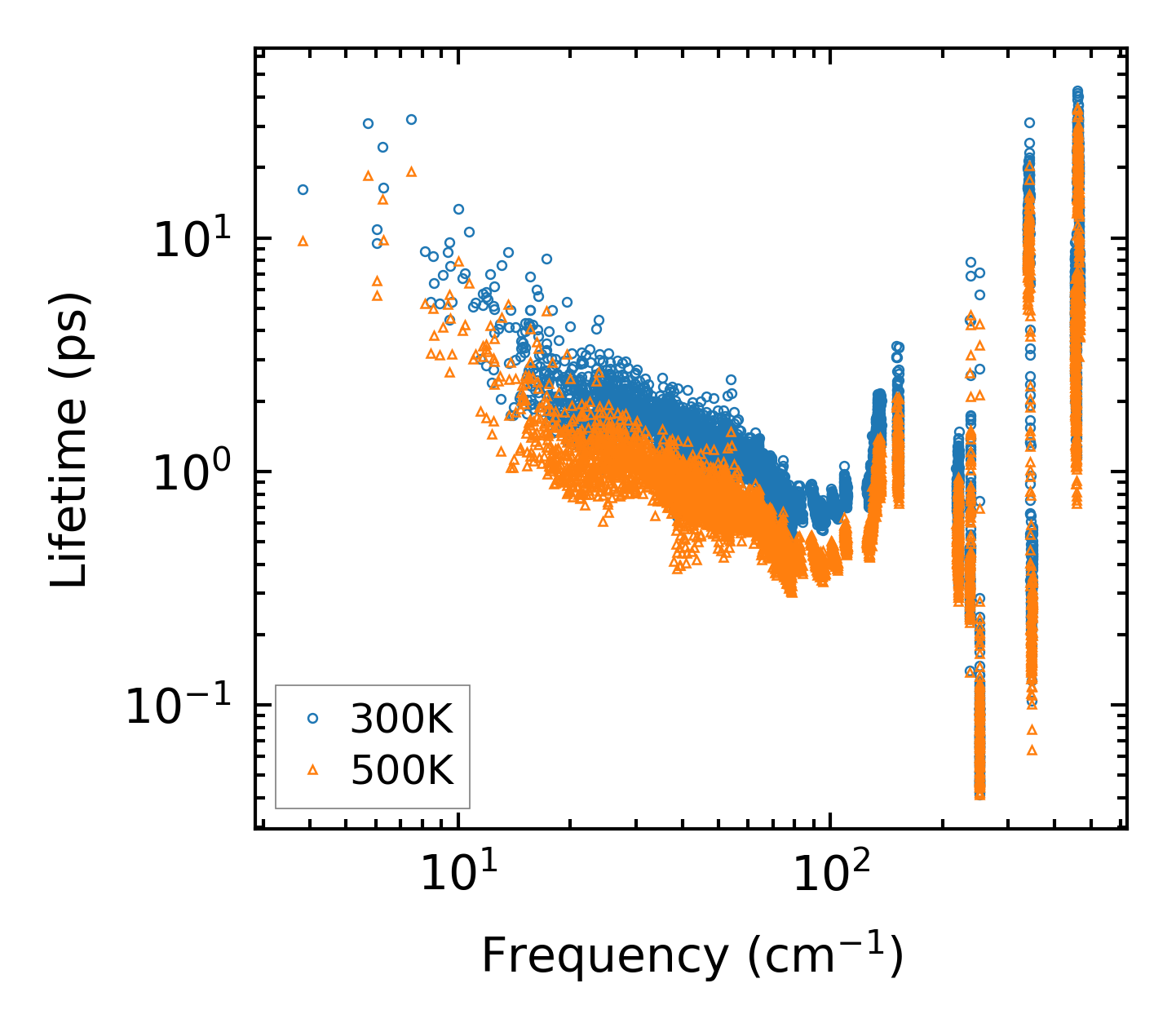

../../_images/fig_lifetime2886.png — (a) Phonon lifetime due to phonon-phonon scattering

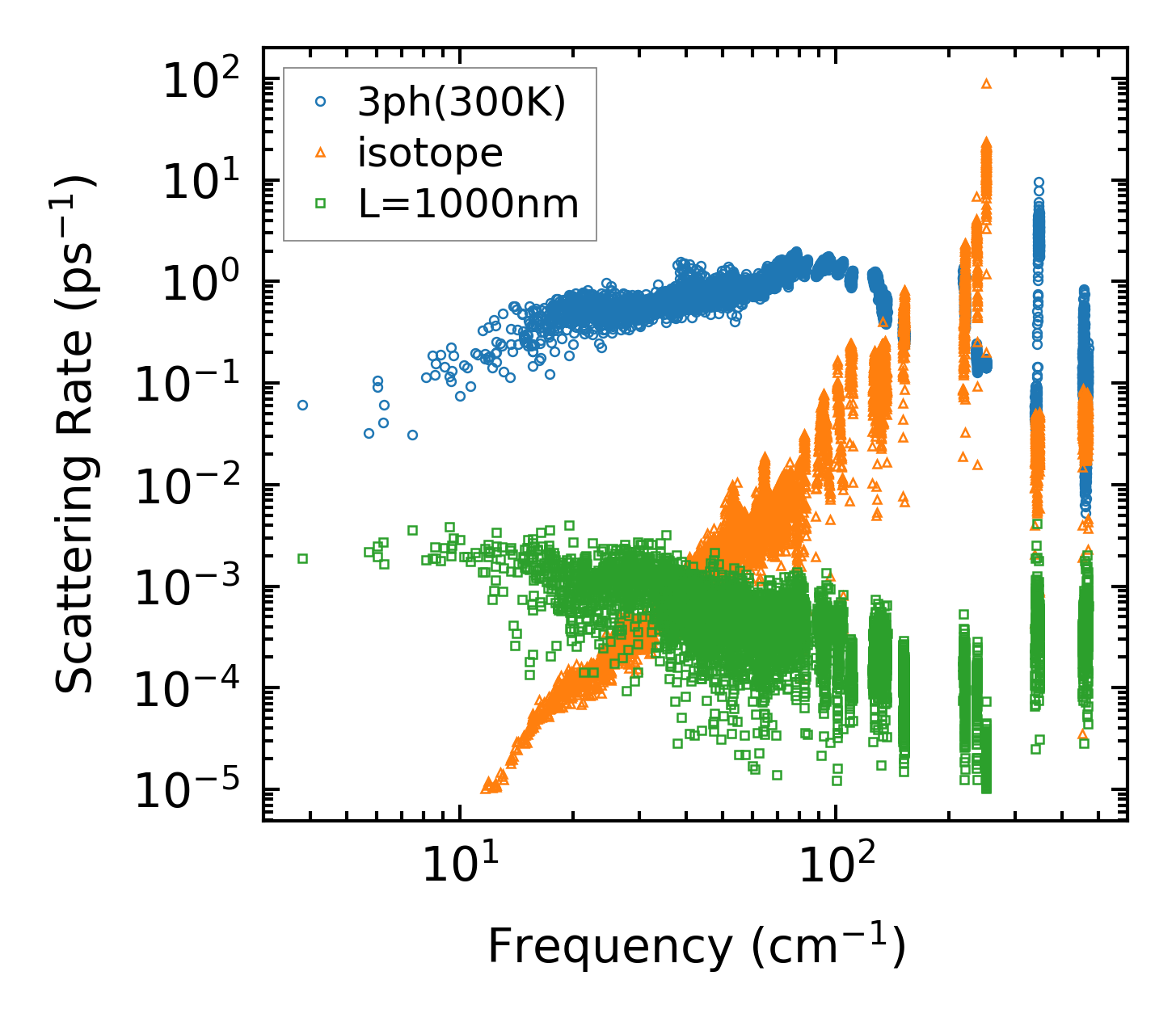

../../_images/fig_scat_rates2885.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

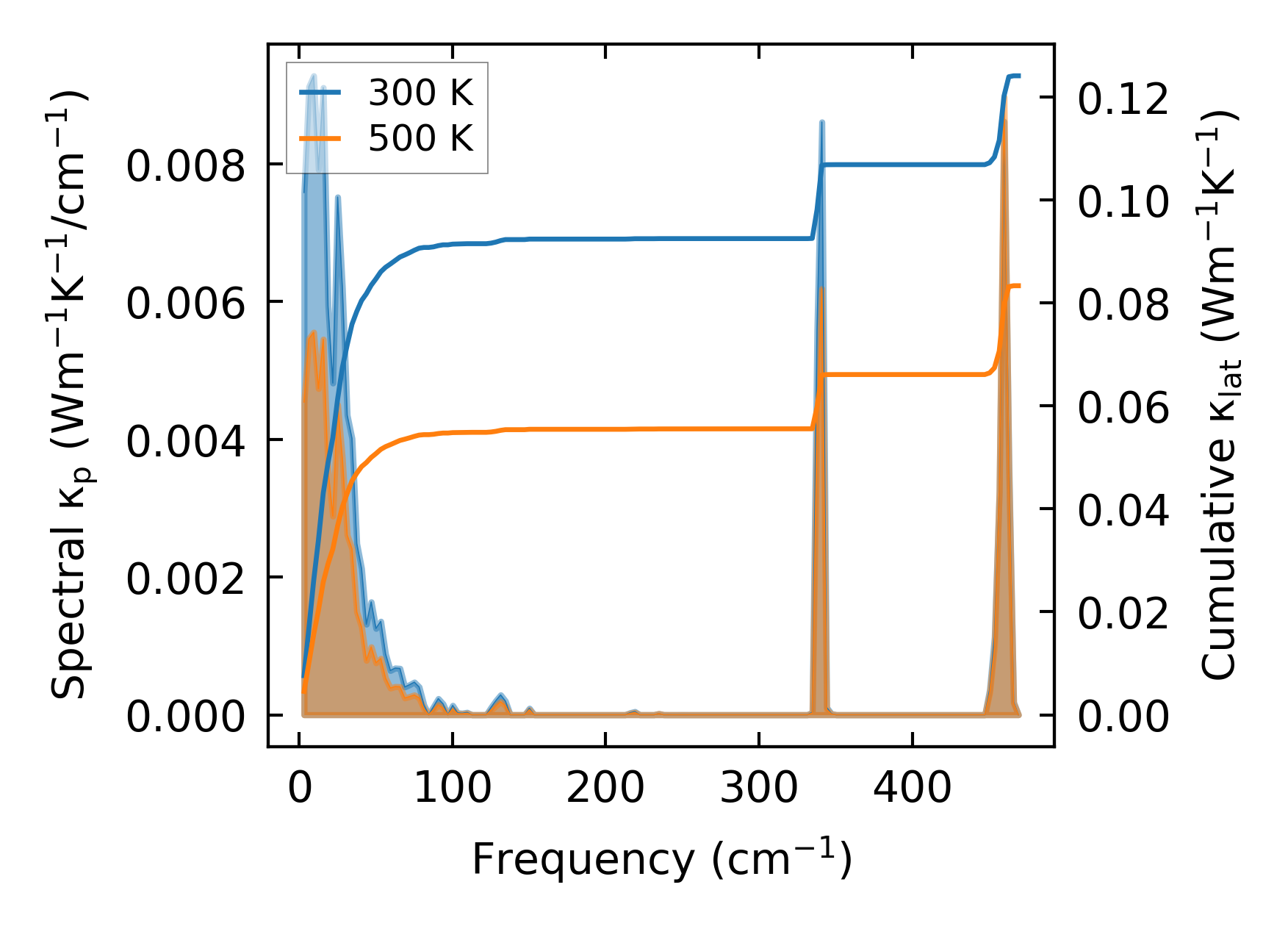

../../_images/fig_cumu_frequency2886.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

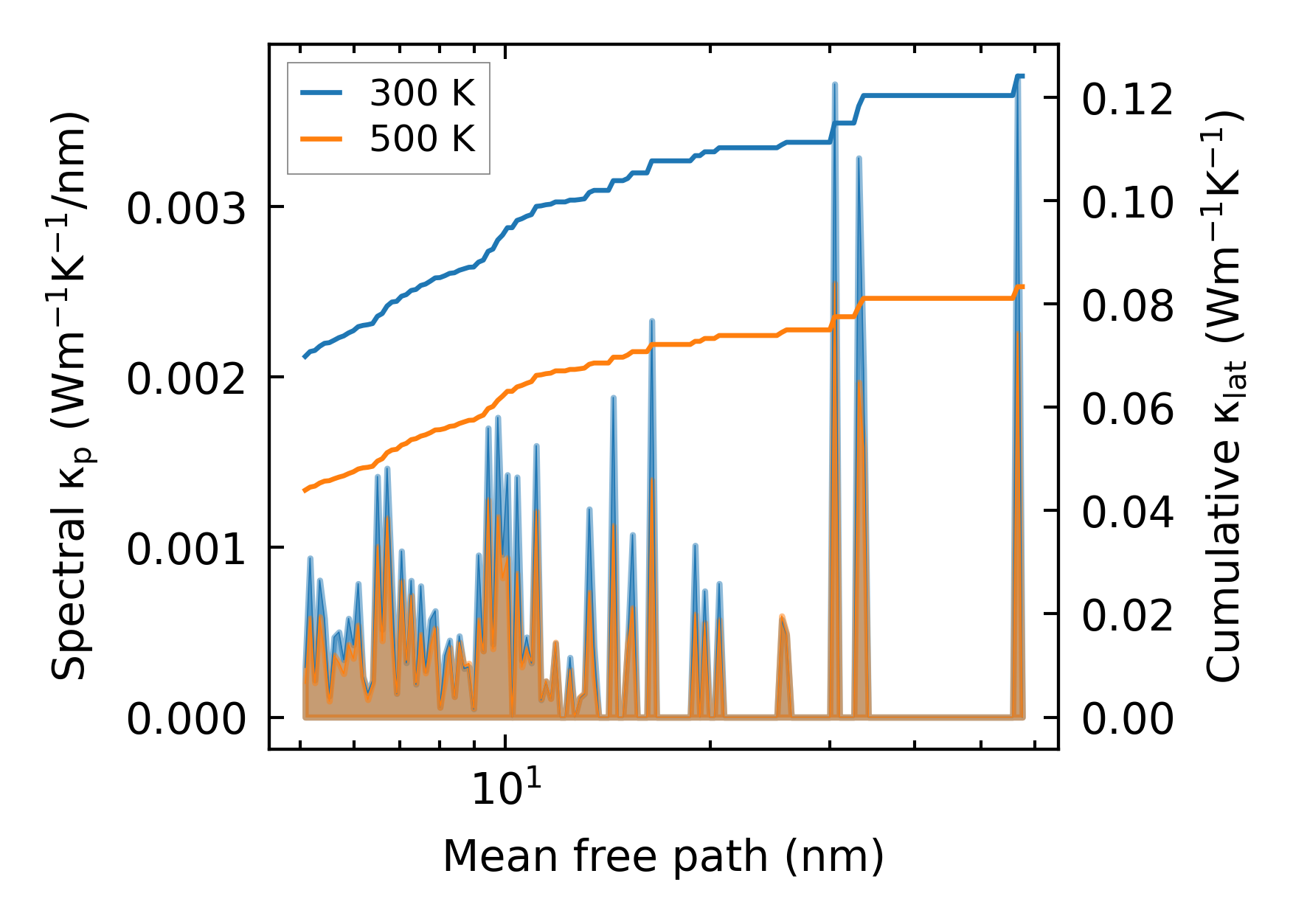

../../_images/fig_cumu_mfp2885.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

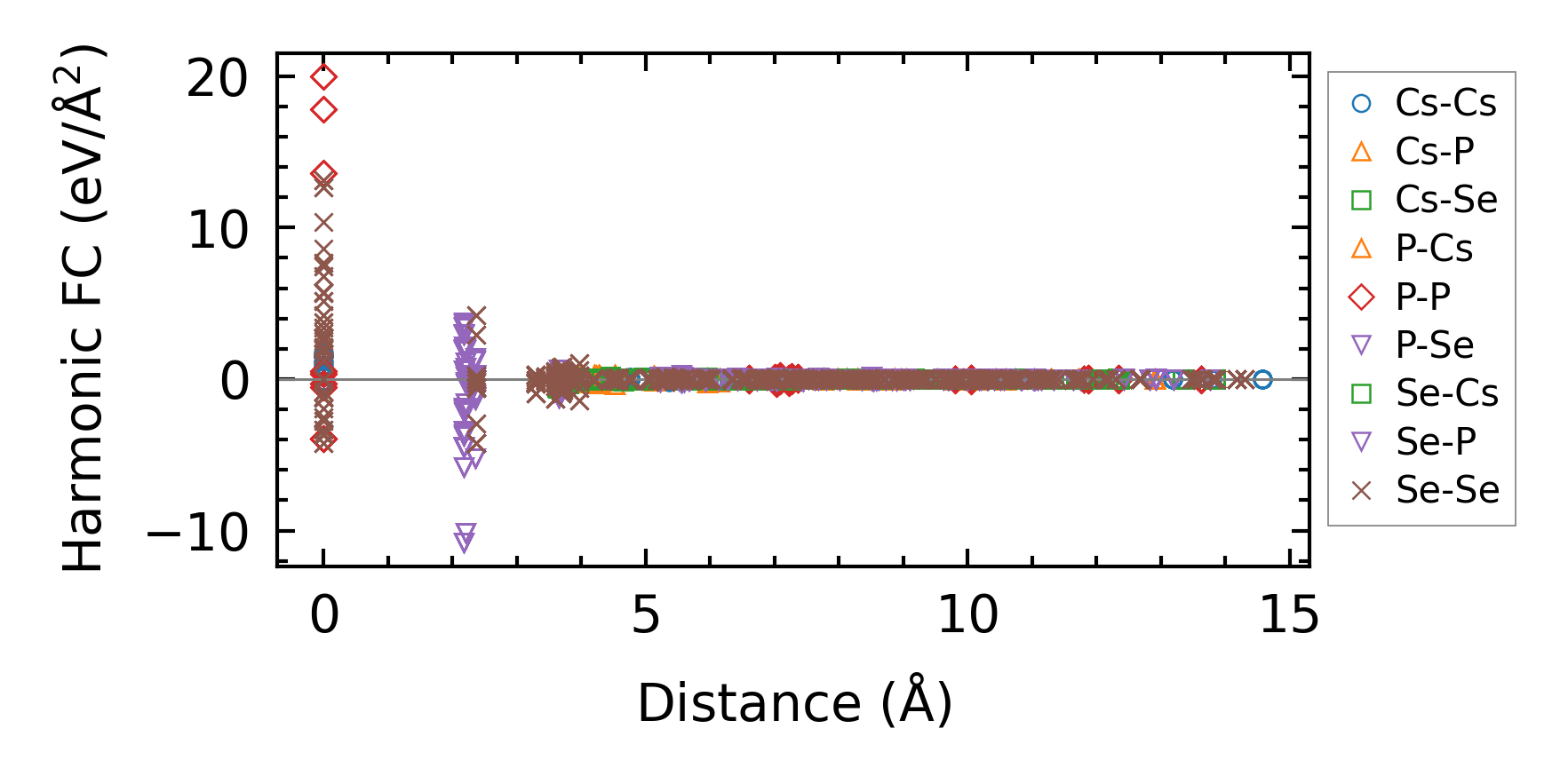

../../_images/fig_fc26777.png — (a) Force constants w.r.t atomic distance

Summary

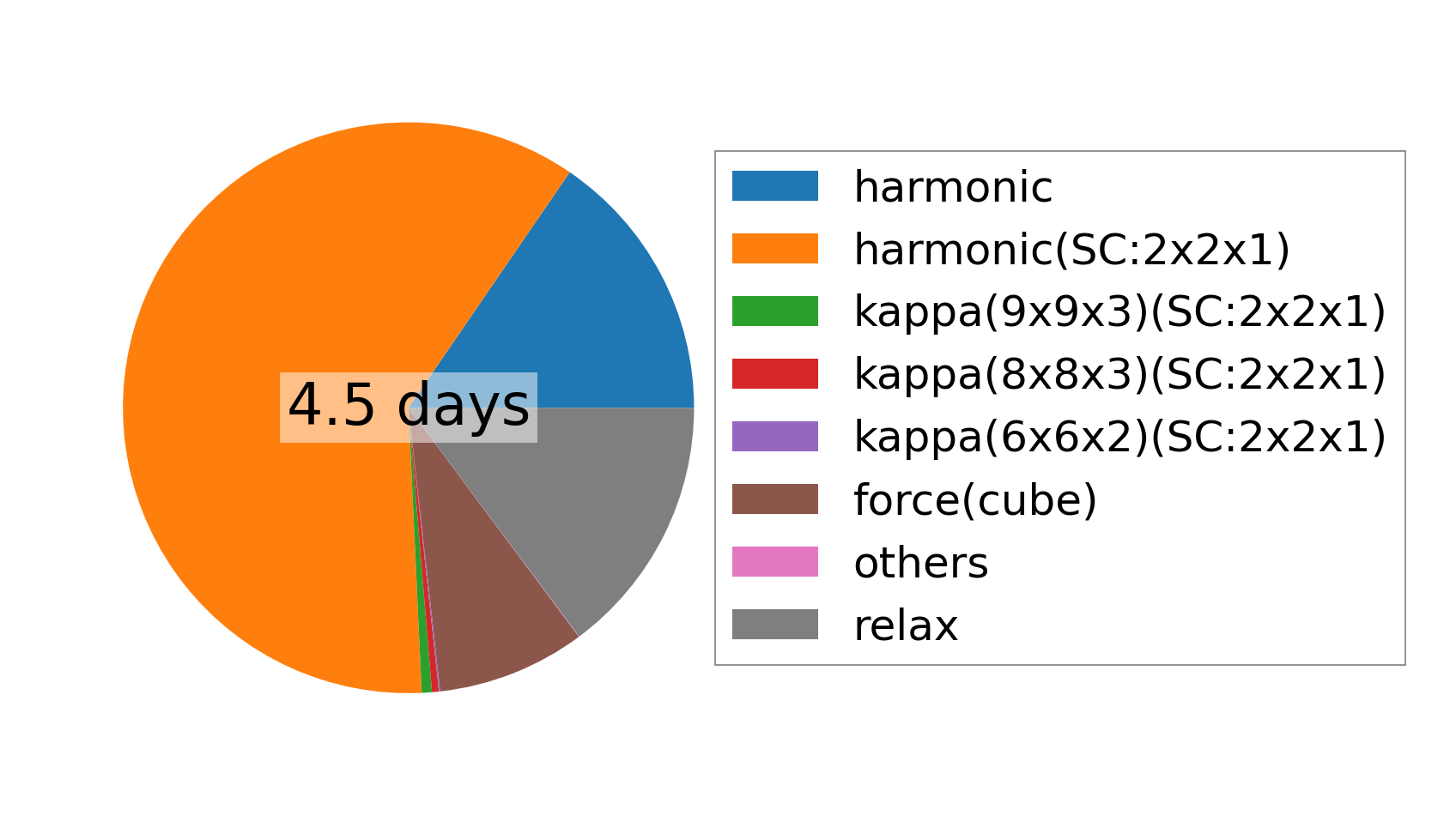

../../_images/fig_times12522.png — (a) Computation time
