mp-569299/BeB2C2/anharm

Space group: Pmmn (59)
Link: Materials Project
Download: mp-569299.tar.gz

Harmonic properties

../../_images/fig_bandos_pr7012.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo7012.png — (b) Thermodynamic properties

Grüneisen parameters

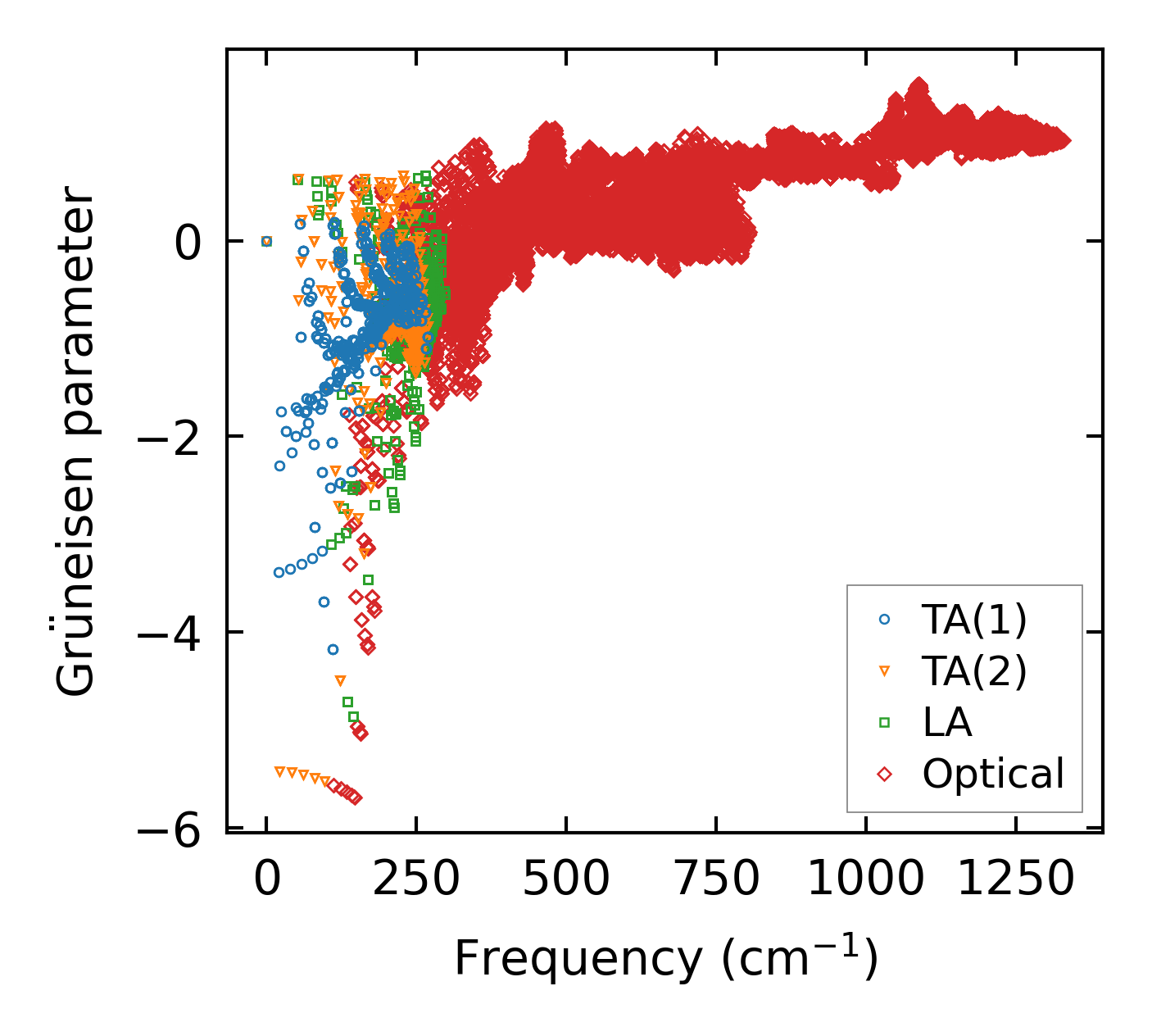

../../_images/fig_gru_all2916.png — (a) Grüneisen parameters

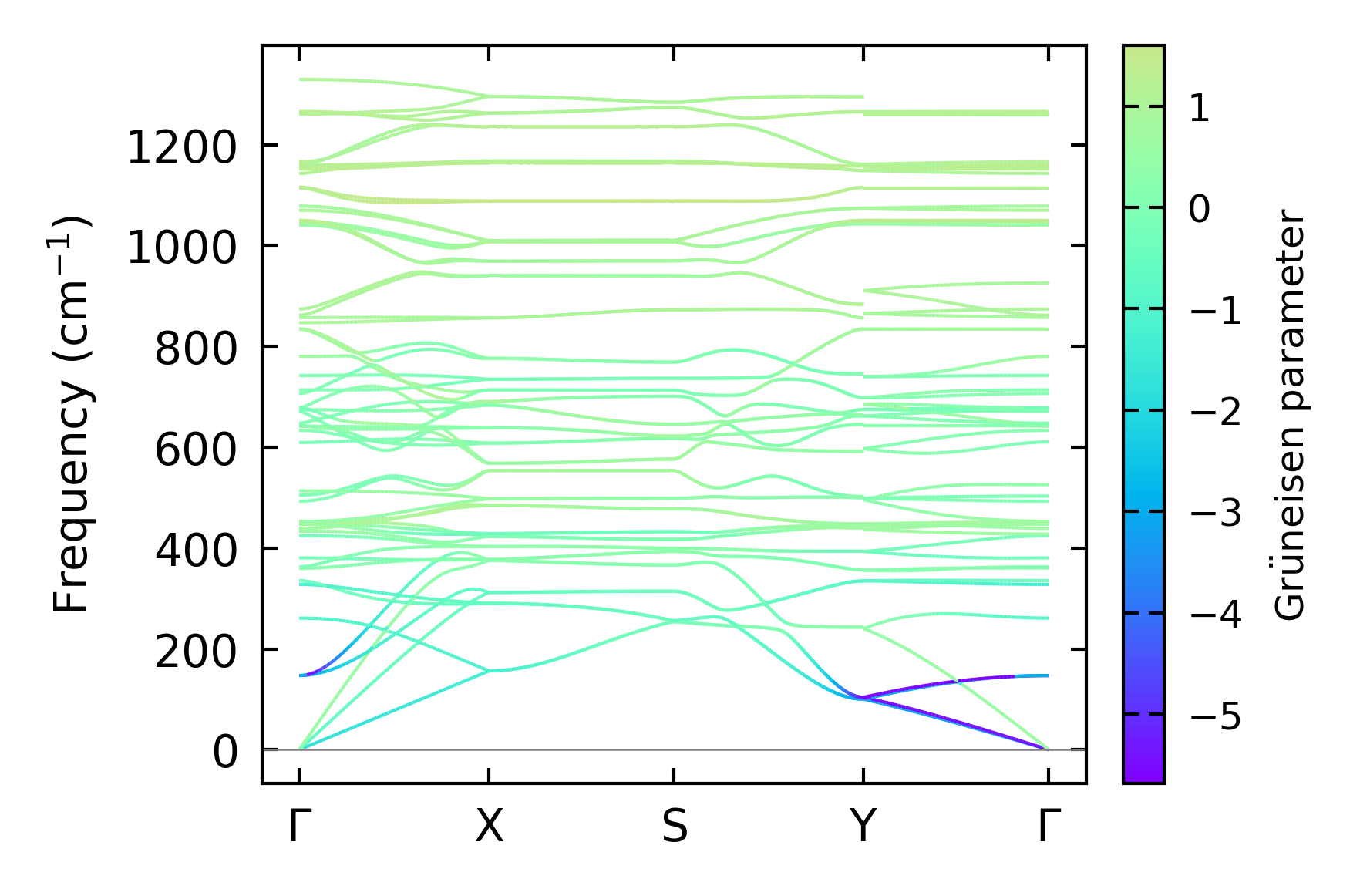

../../_images/fig_gruneisen2916.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 13x11x15, supercell: 2x1x2

../../_images/fig_kappa5530.png — (a) Temperature-dependent lattice thermal conductivity

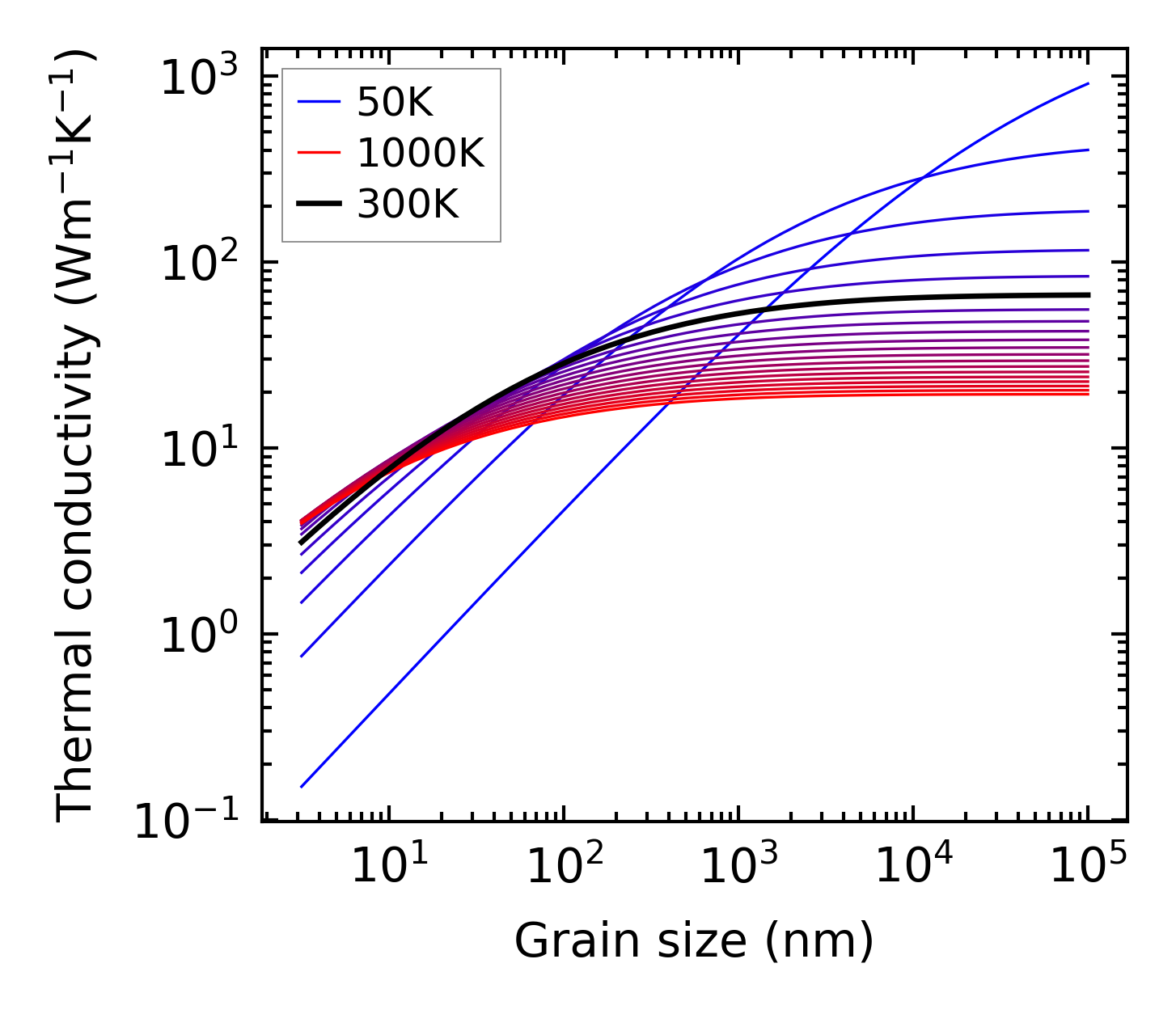

../../_images/fig_kappa_vs_grain_size2958.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

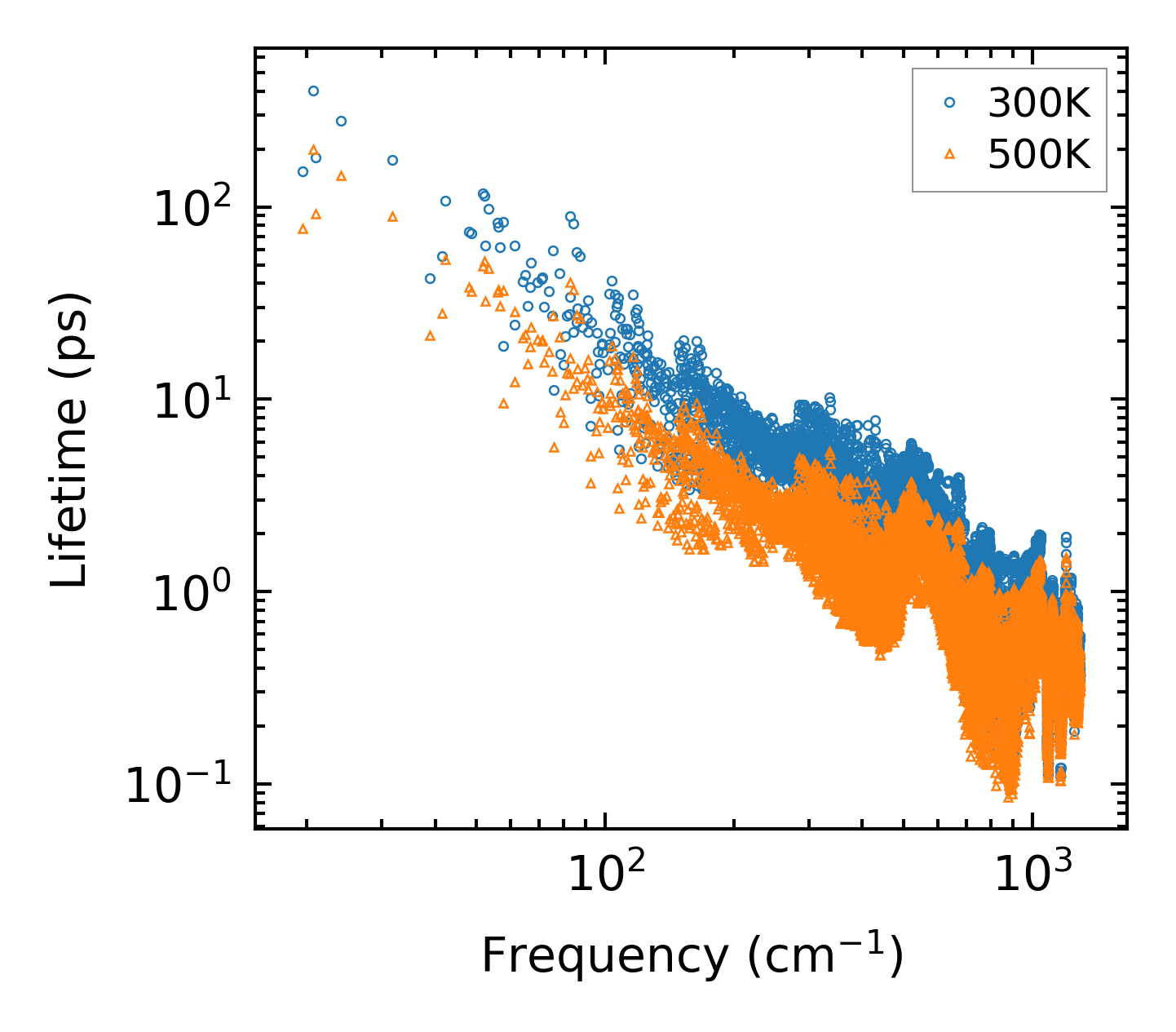

../../_images/fig_lifetime2892.png — (a) Phonon lifetime due to phonon-phonon scattering

../../_images/fig_scat_rates2891.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

../../_images/fig_cumu_frequency2892.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

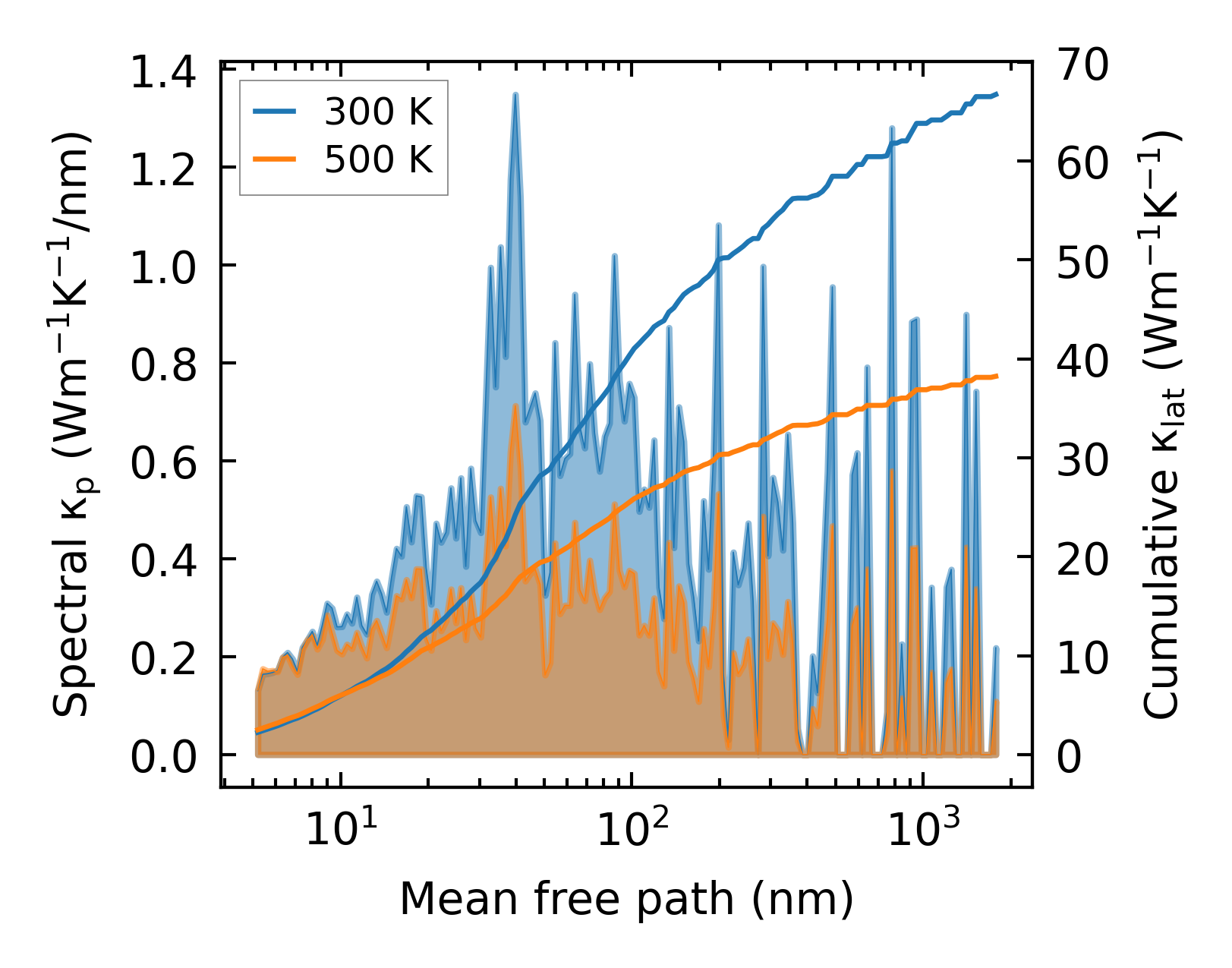

../../_images/fig_cumu_mfp2891.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

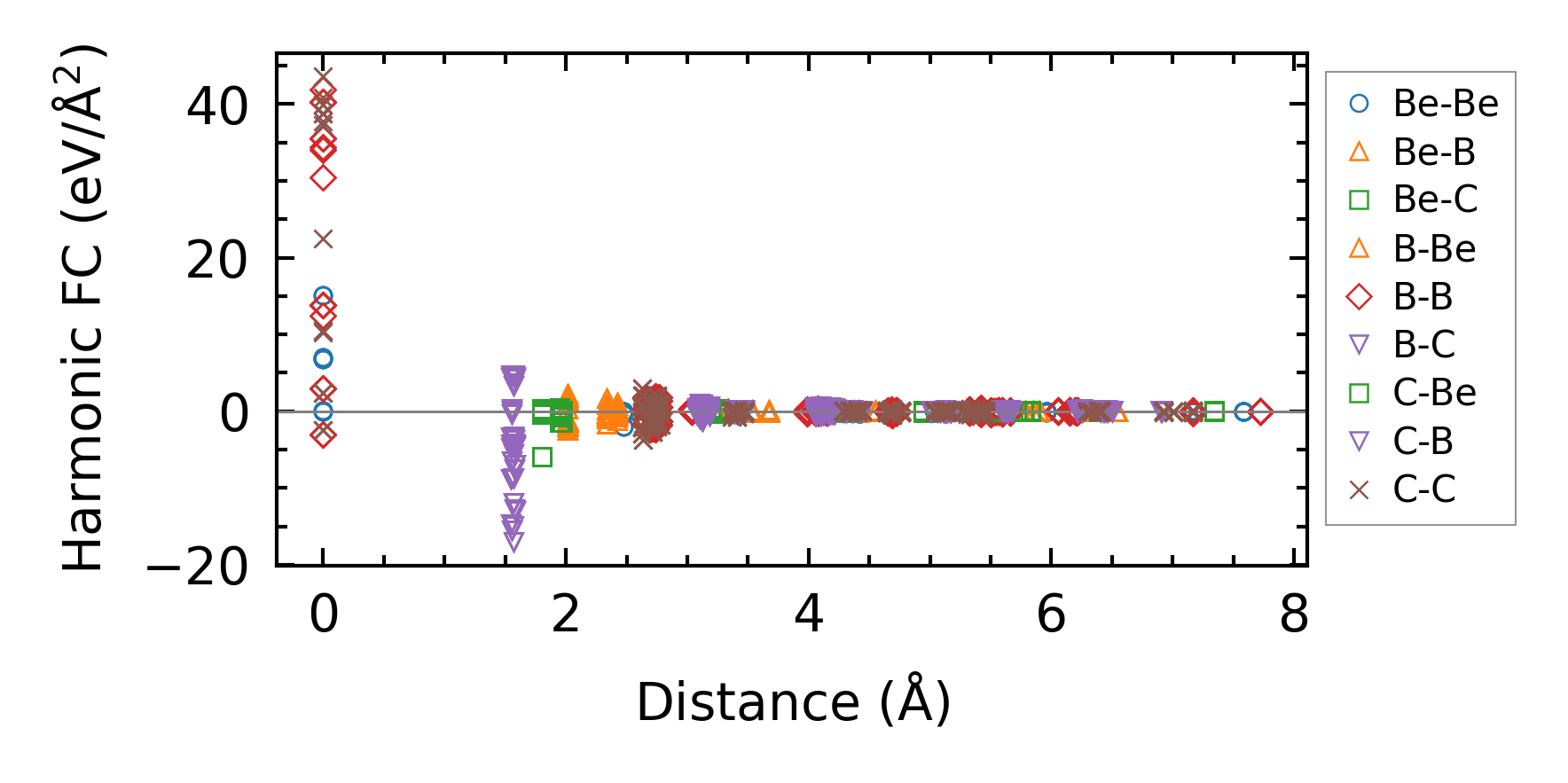

../../_images/fig_fc26789.png — (a) Force constants w.r.t atomic distance

Summary

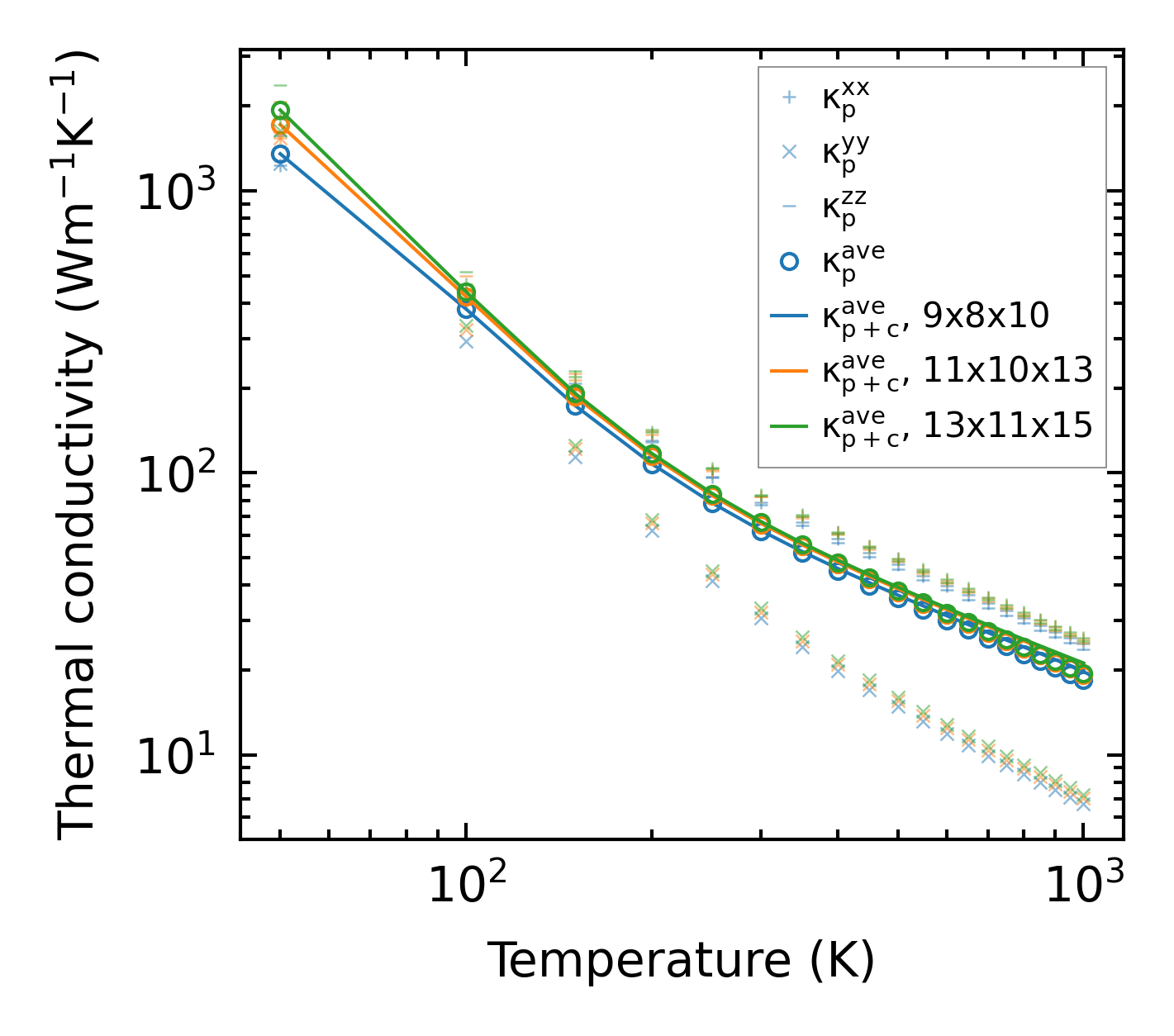

../../_images/fig_kappa5531.png — (a) Temperature-dependent lattice thermal conductivity

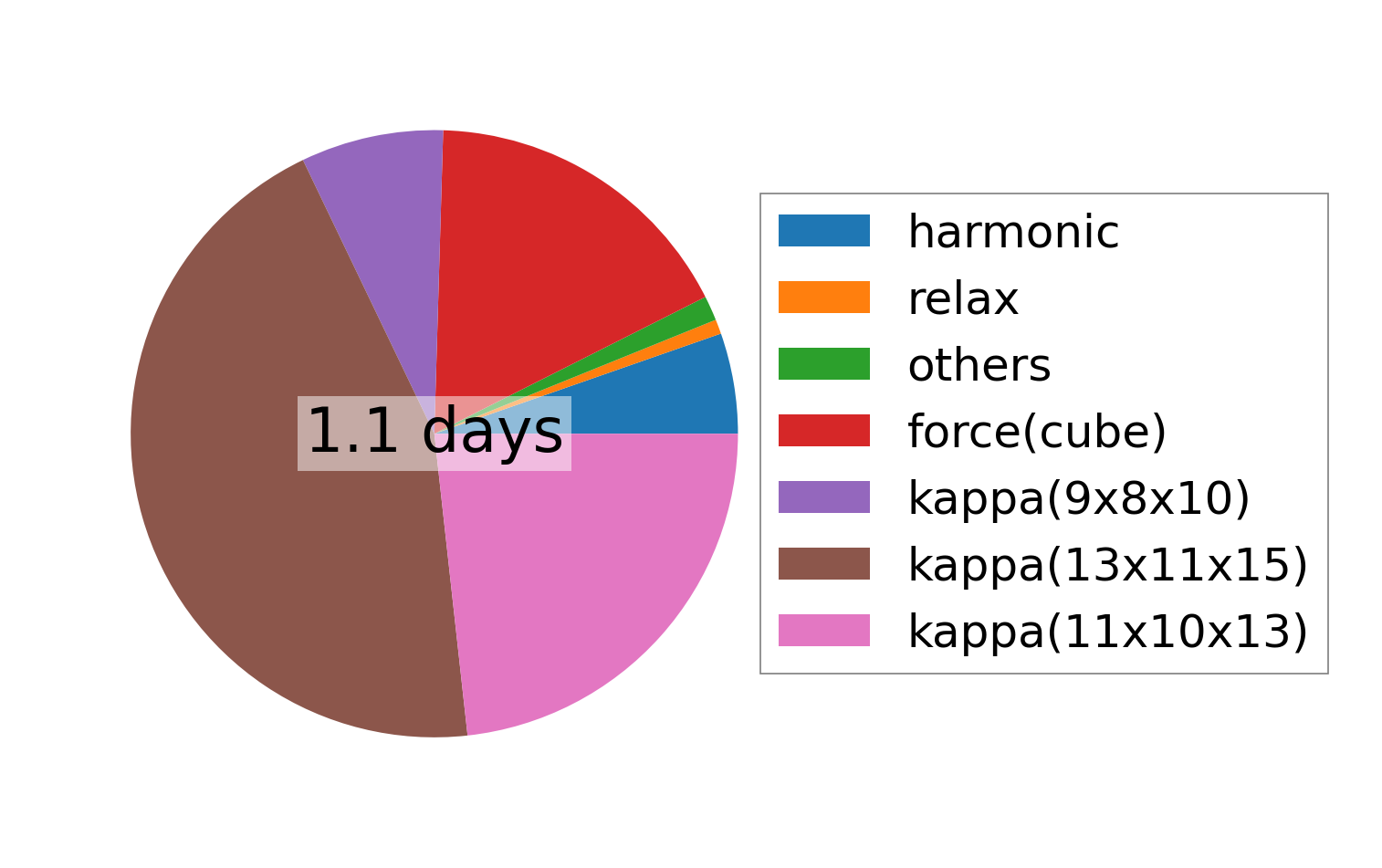

../../_images/fig_times12536.png — (b) Computation time
