mp-569051/MgH2/anharm

Space group: Pbcn (60)
Link: Materials Project
Download: mp-569051.tar.gz

Harmonic properties

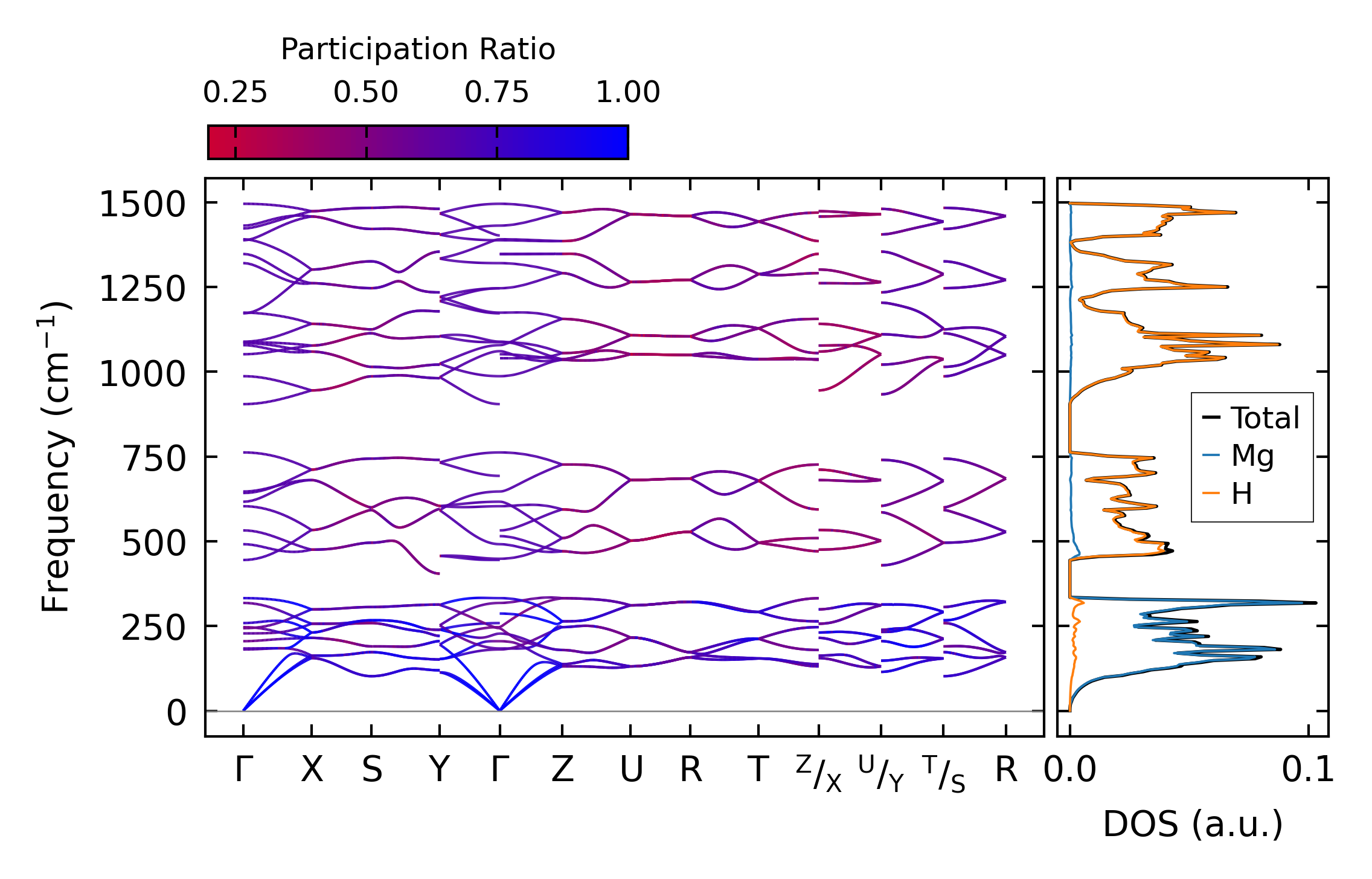

../../_images/fig_bandos_pr6985.png — (a) Phonon dispersion with participation ratio and DOS

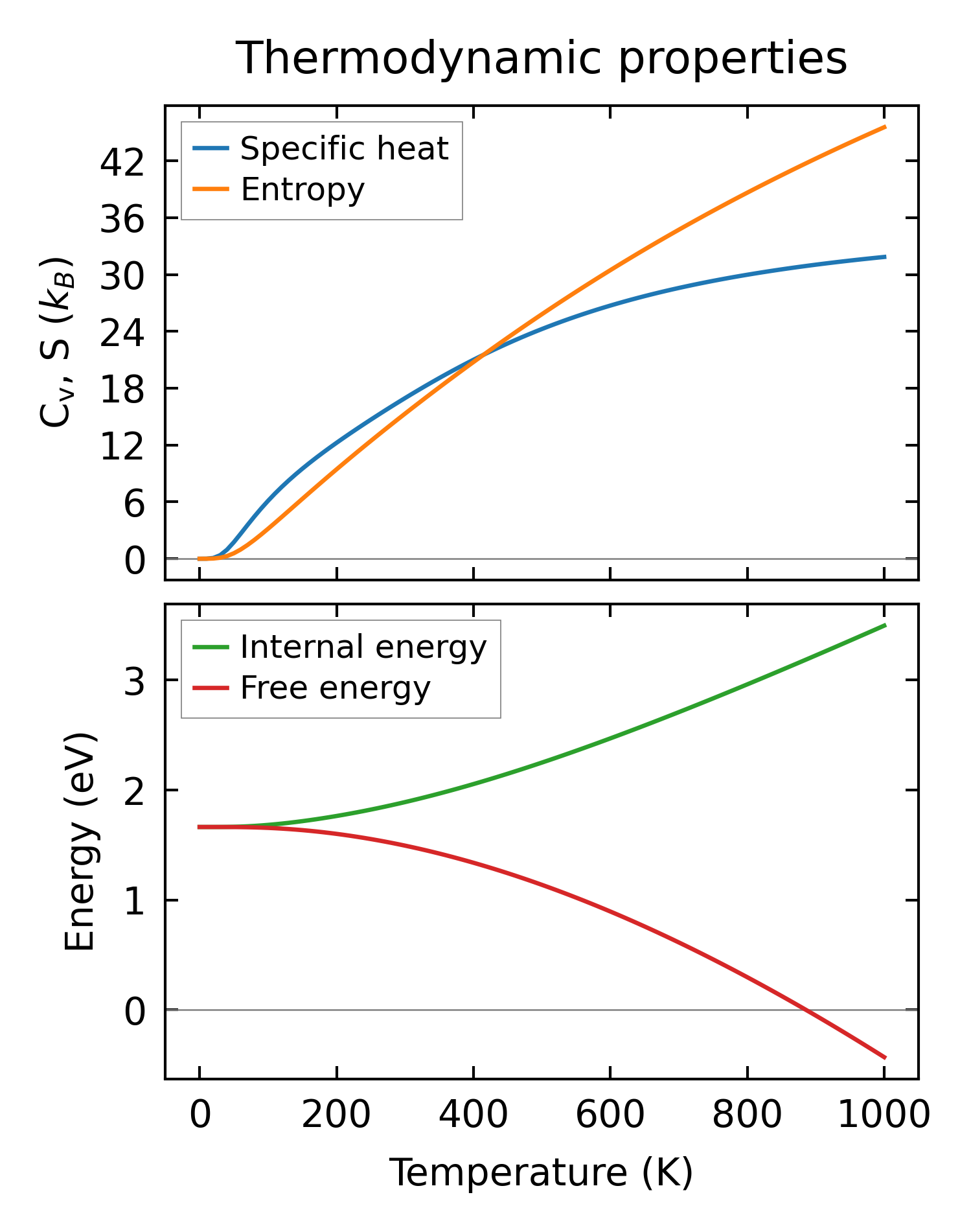

../../_images/fig_thermo6985.png — (b) Thermodynamic properties

Grüneisen parameters

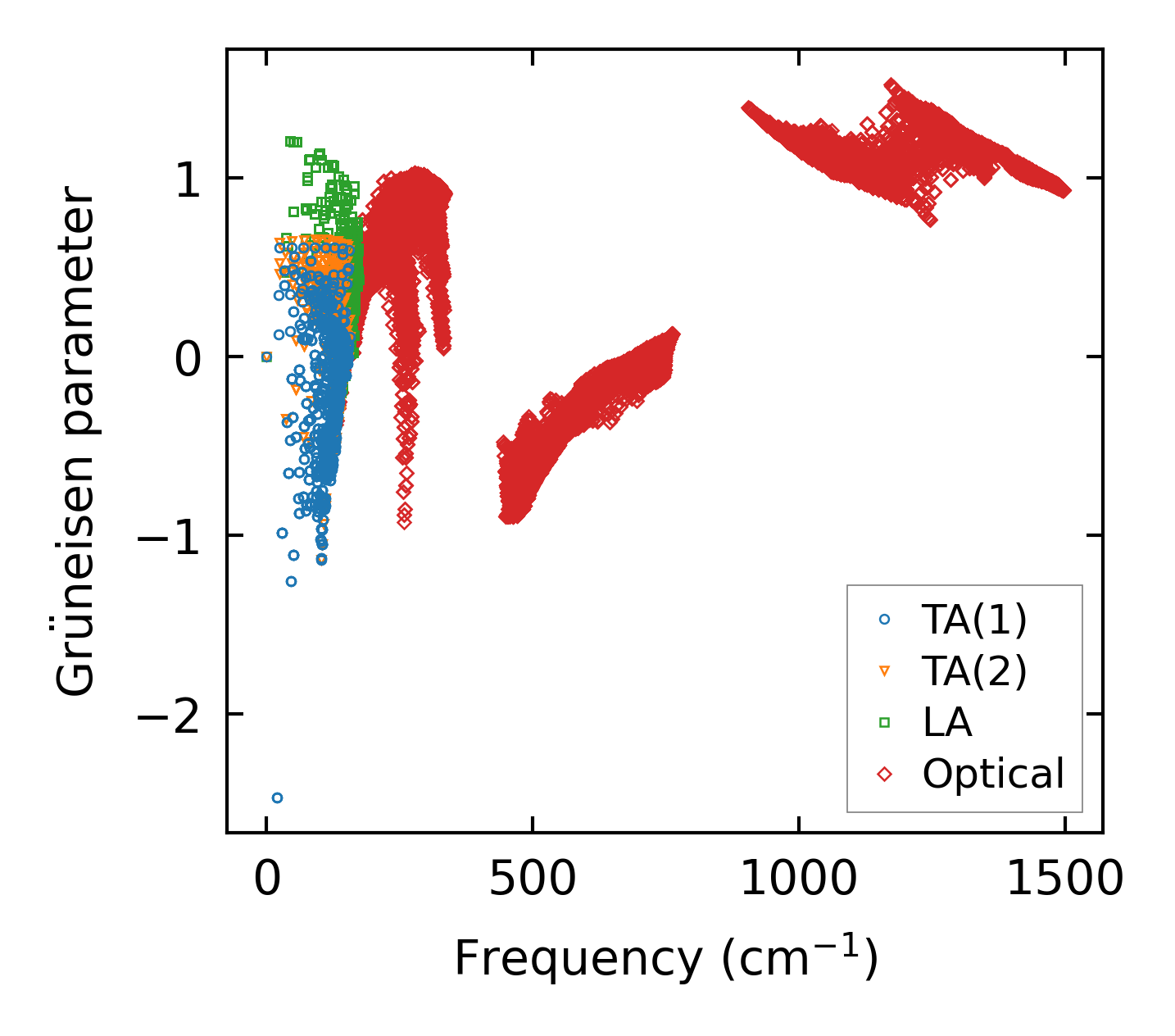

../../_images/fig_gru_all2898.png — (a) Grüneisen parameters

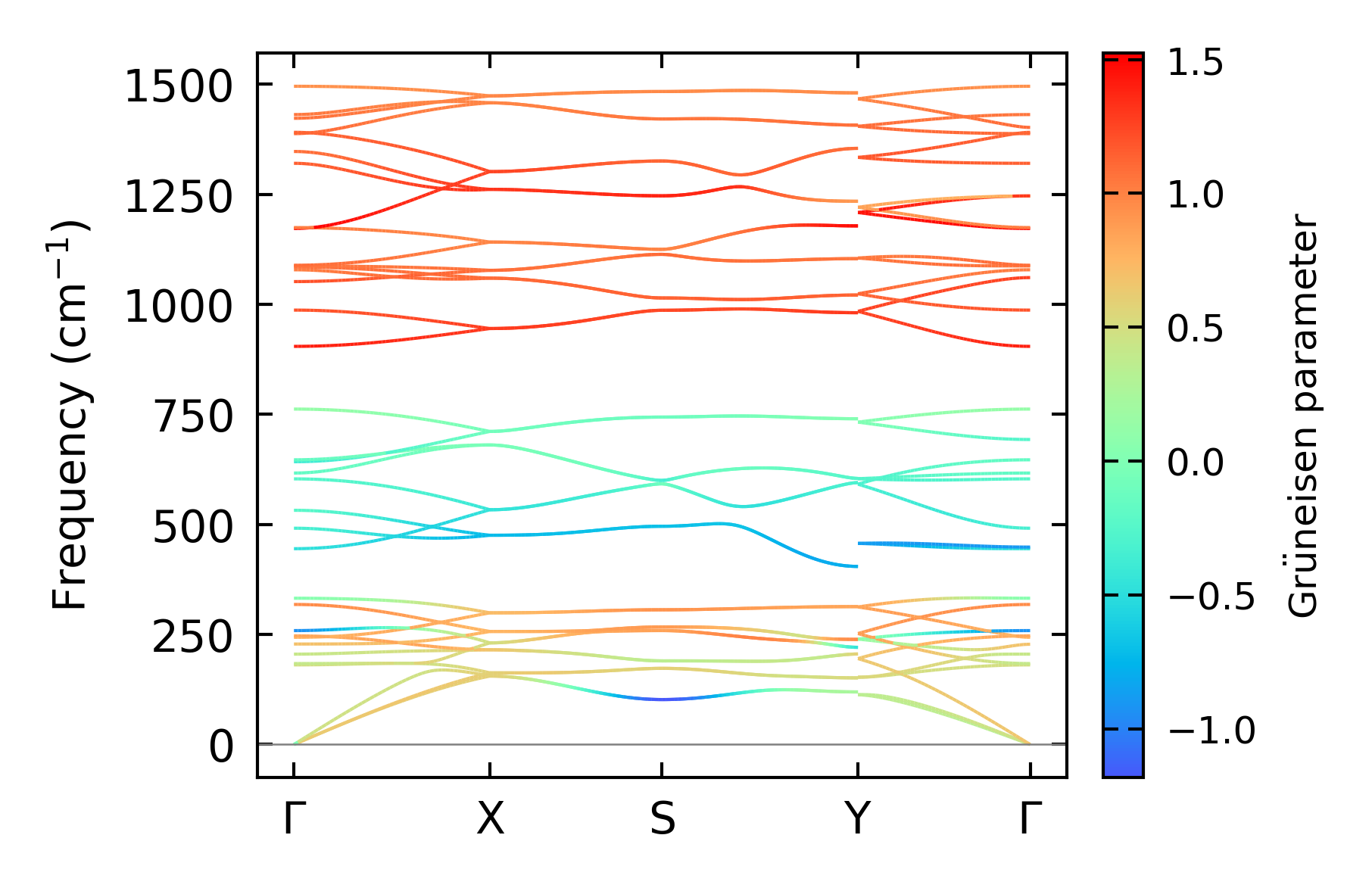

../../_images/fig_gruneisen2898.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 16x13x14, supercell: 2x3x2

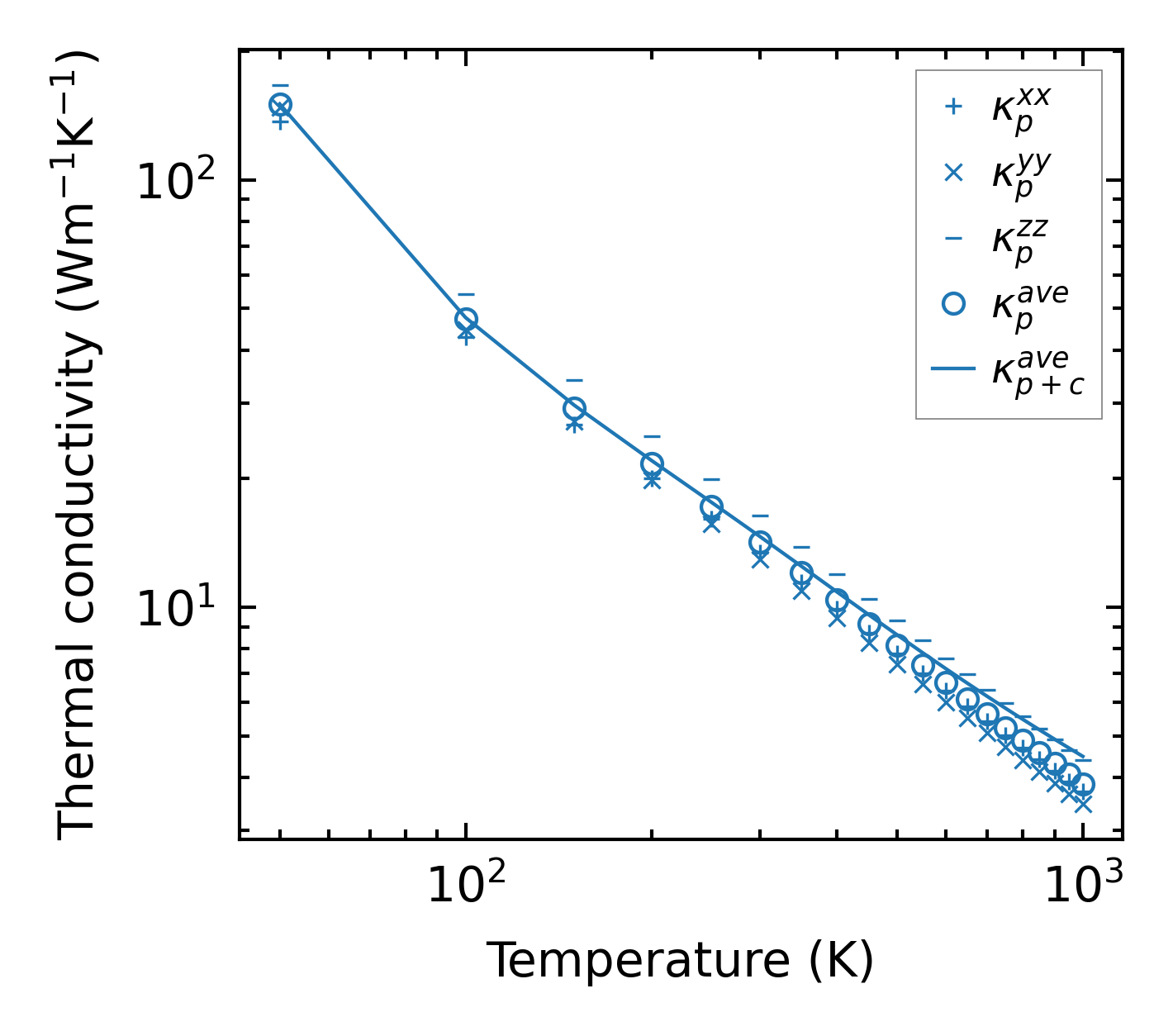

../../_images/fig_kappa5497.png — (a) Temperature-dependent lattice thermal conductivity

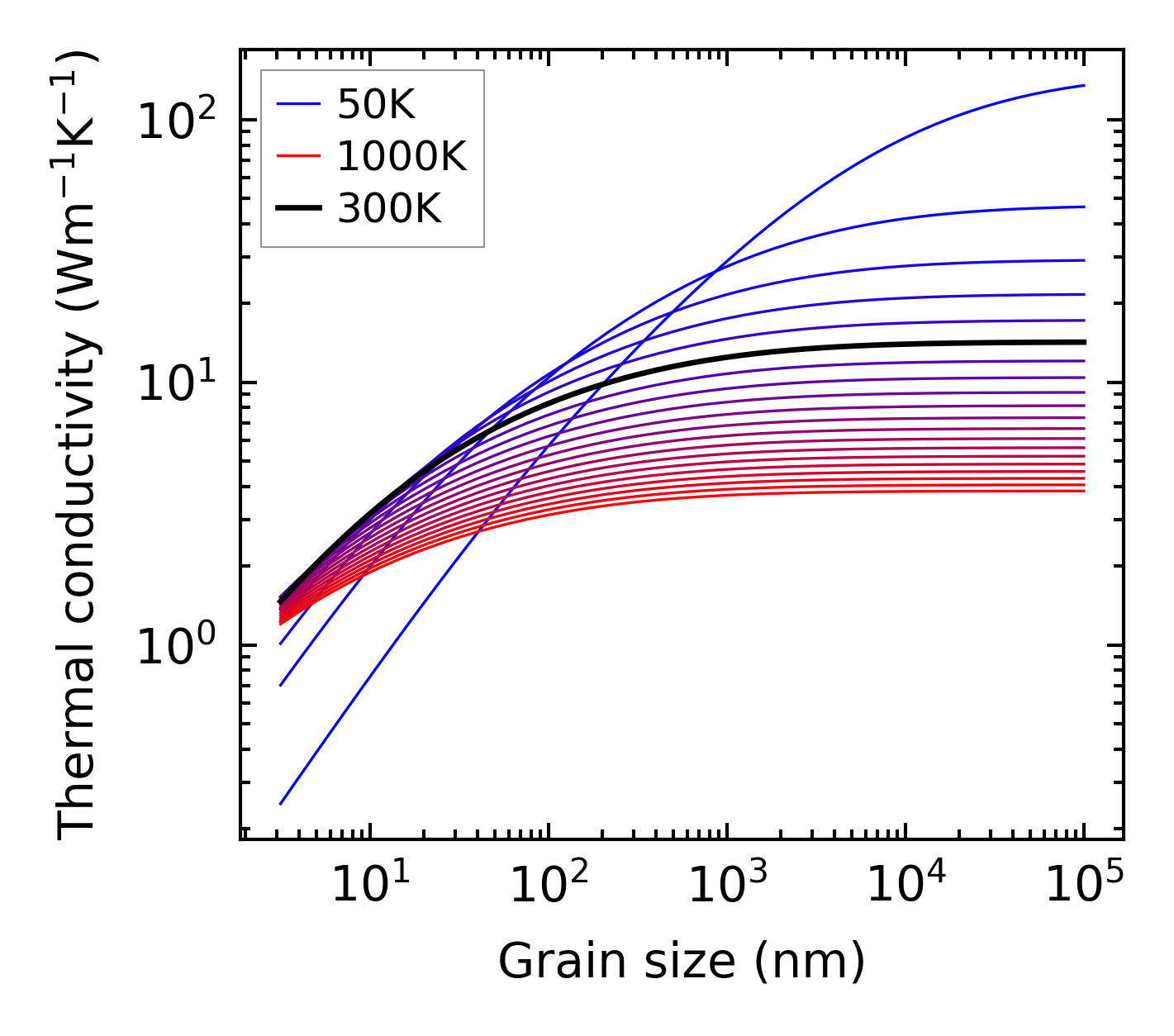

../../_images/fig_kappa_vs_grain_size2940.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

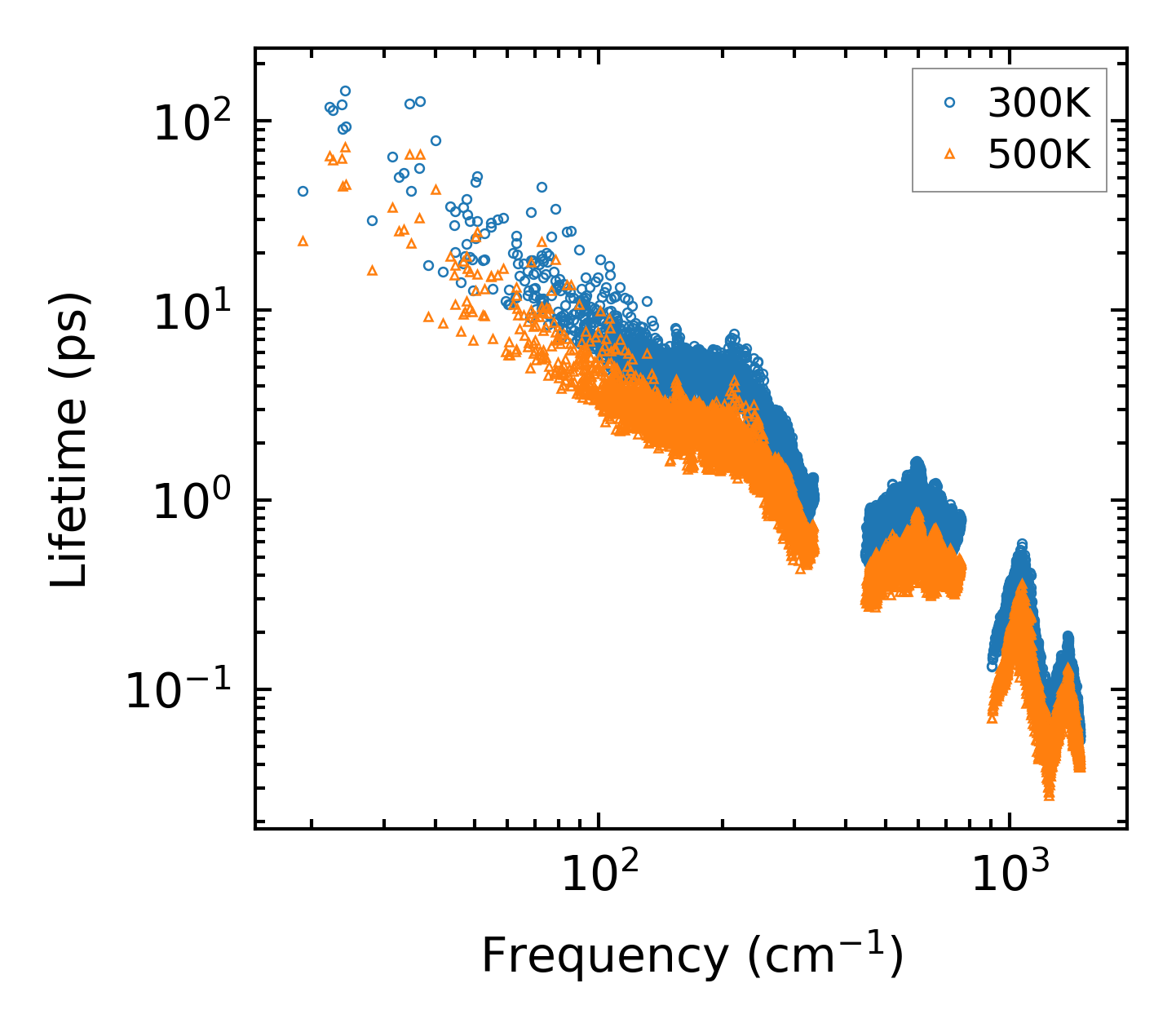

../../_images/fig_lifetime2874.png — (a) Phonon lifetime due to phonon-phonon scattering

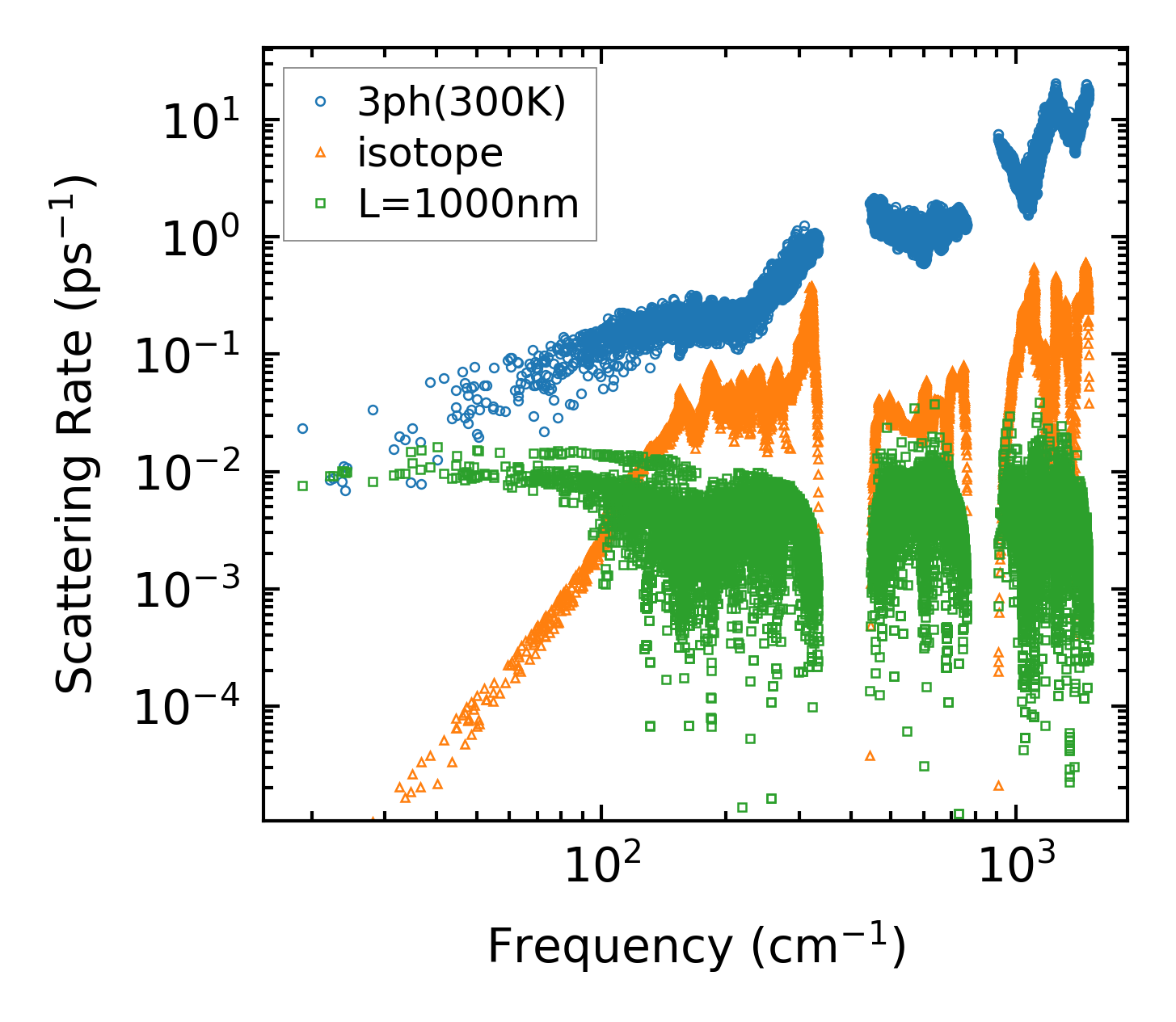

../../_images/fig_scat_rates2873.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

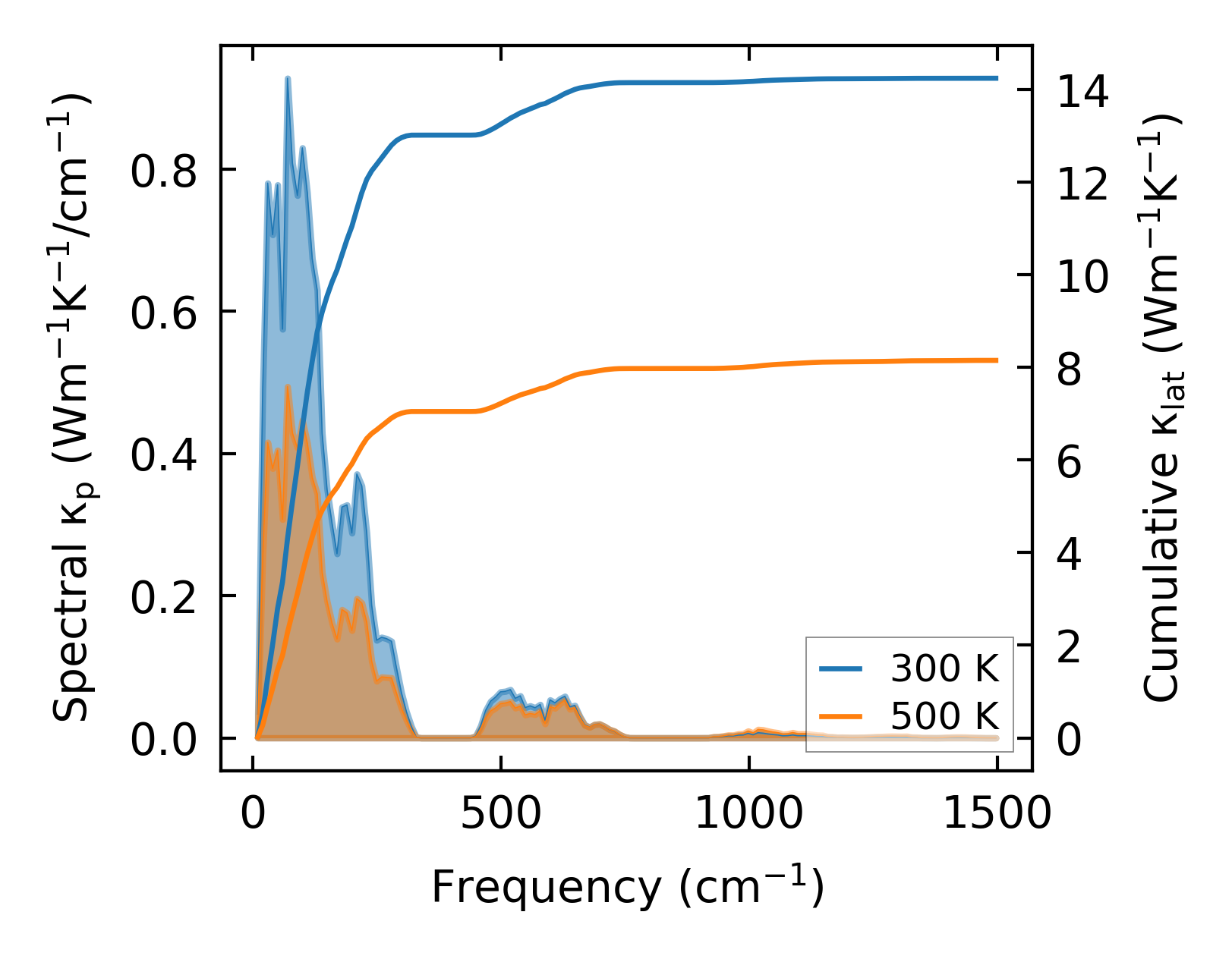

../../_images/fig_cumu_frequency2874.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

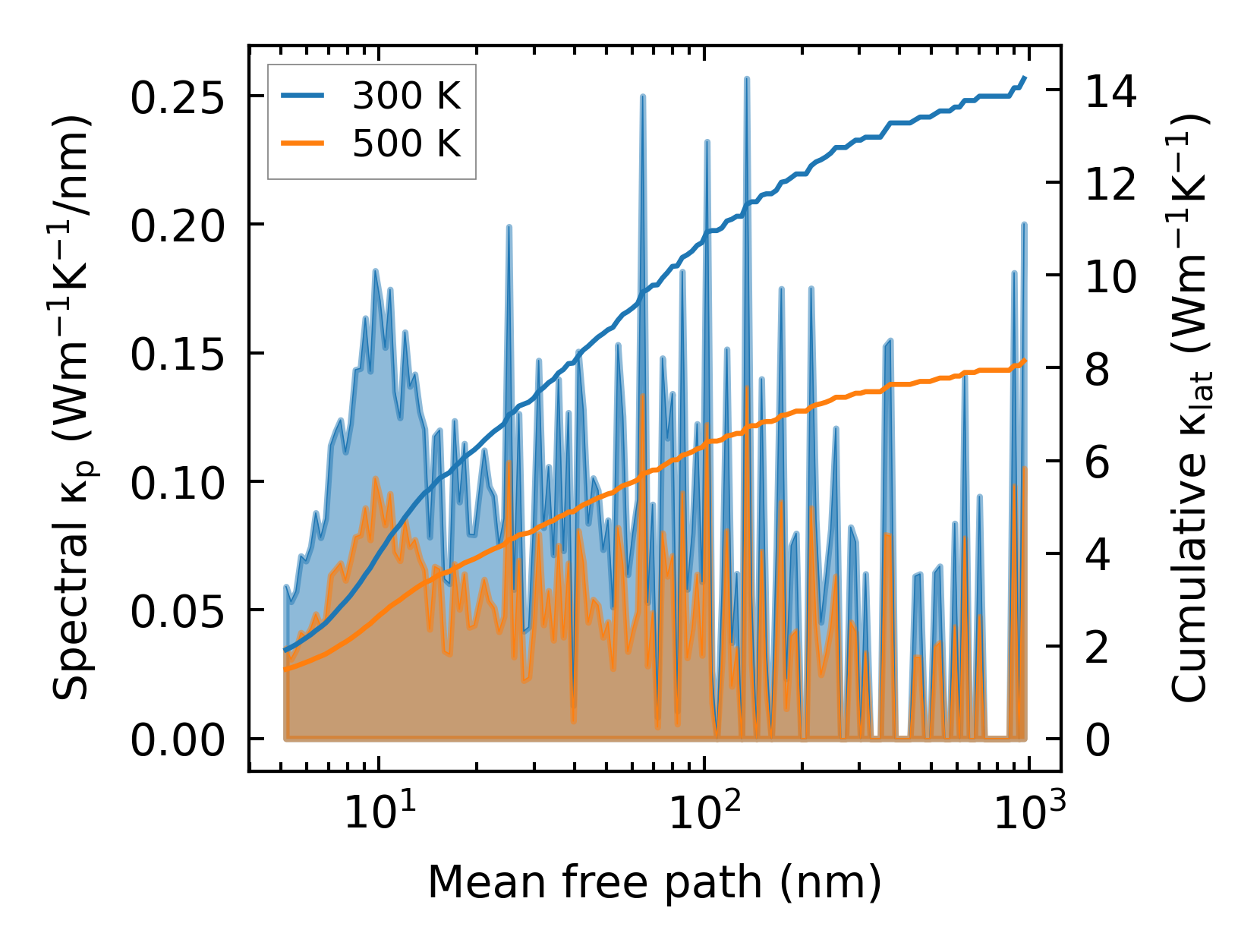

../../_images/fig_cumu_mfp2873.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

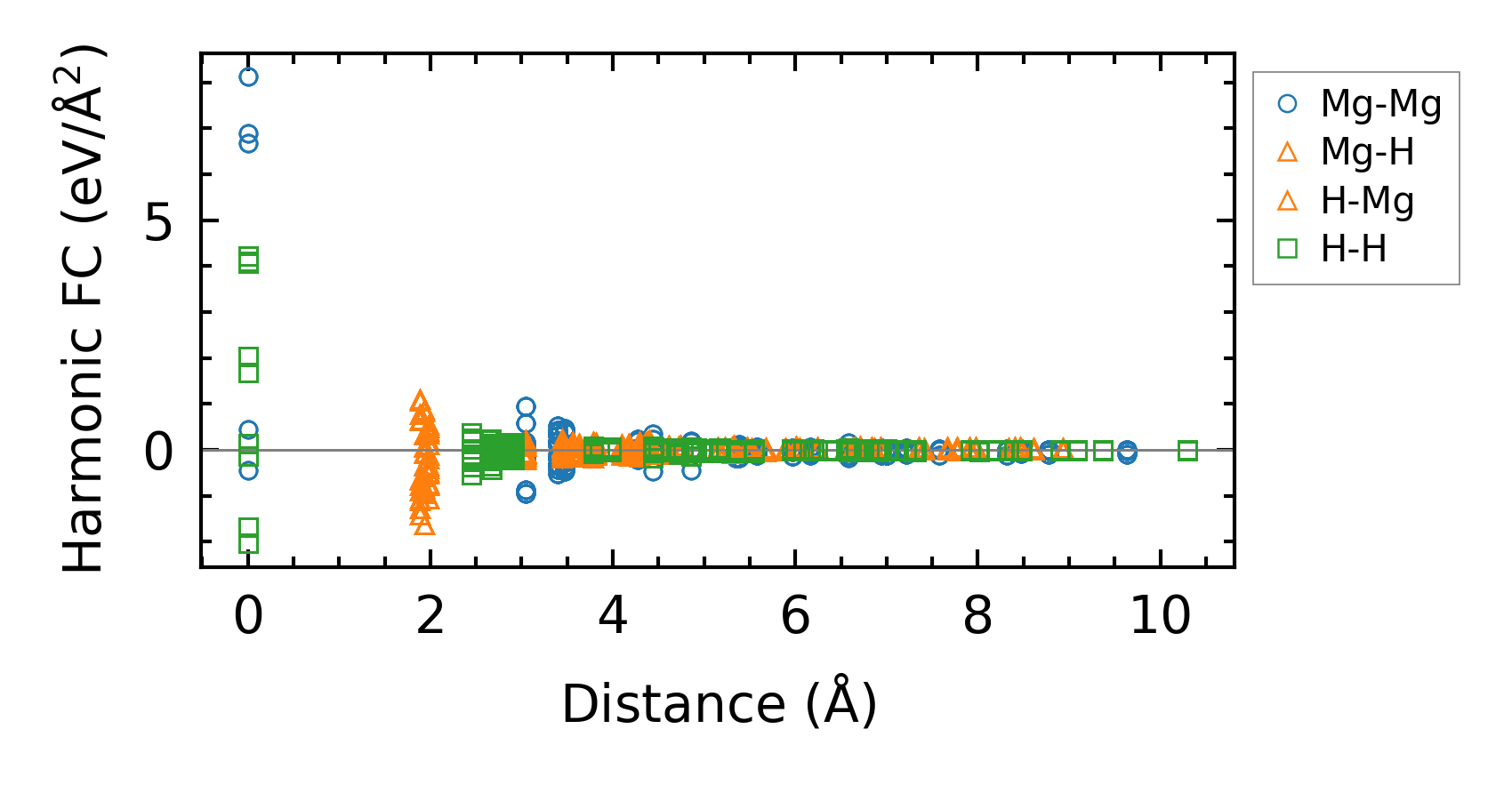

../../_images/fig_fc26763.png — (a) Force constants w.r.t atomic distance

Summary

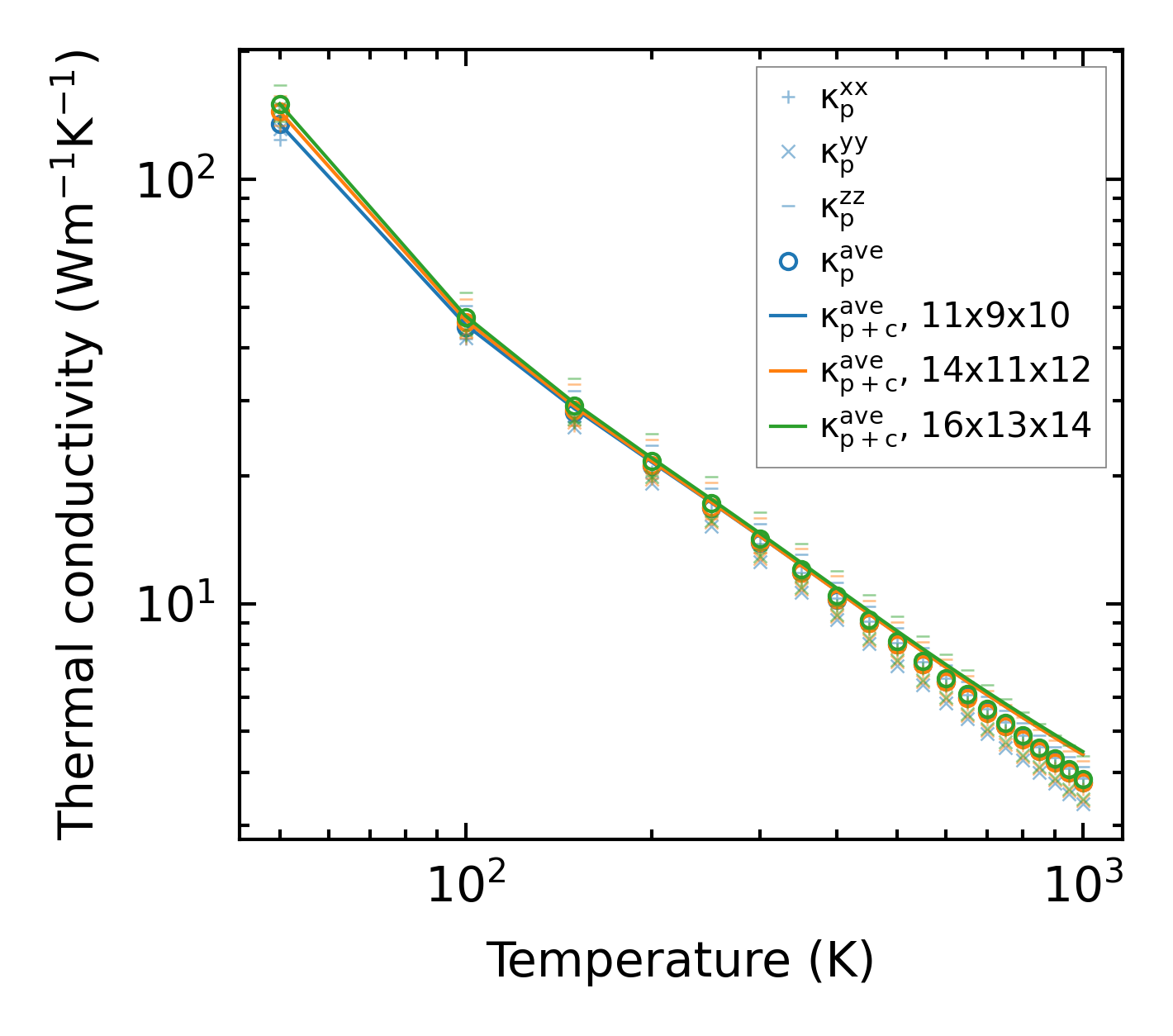

../../_images/fig_kappa5498.png — (a) Temperature-dependent lattice thermal conductivity

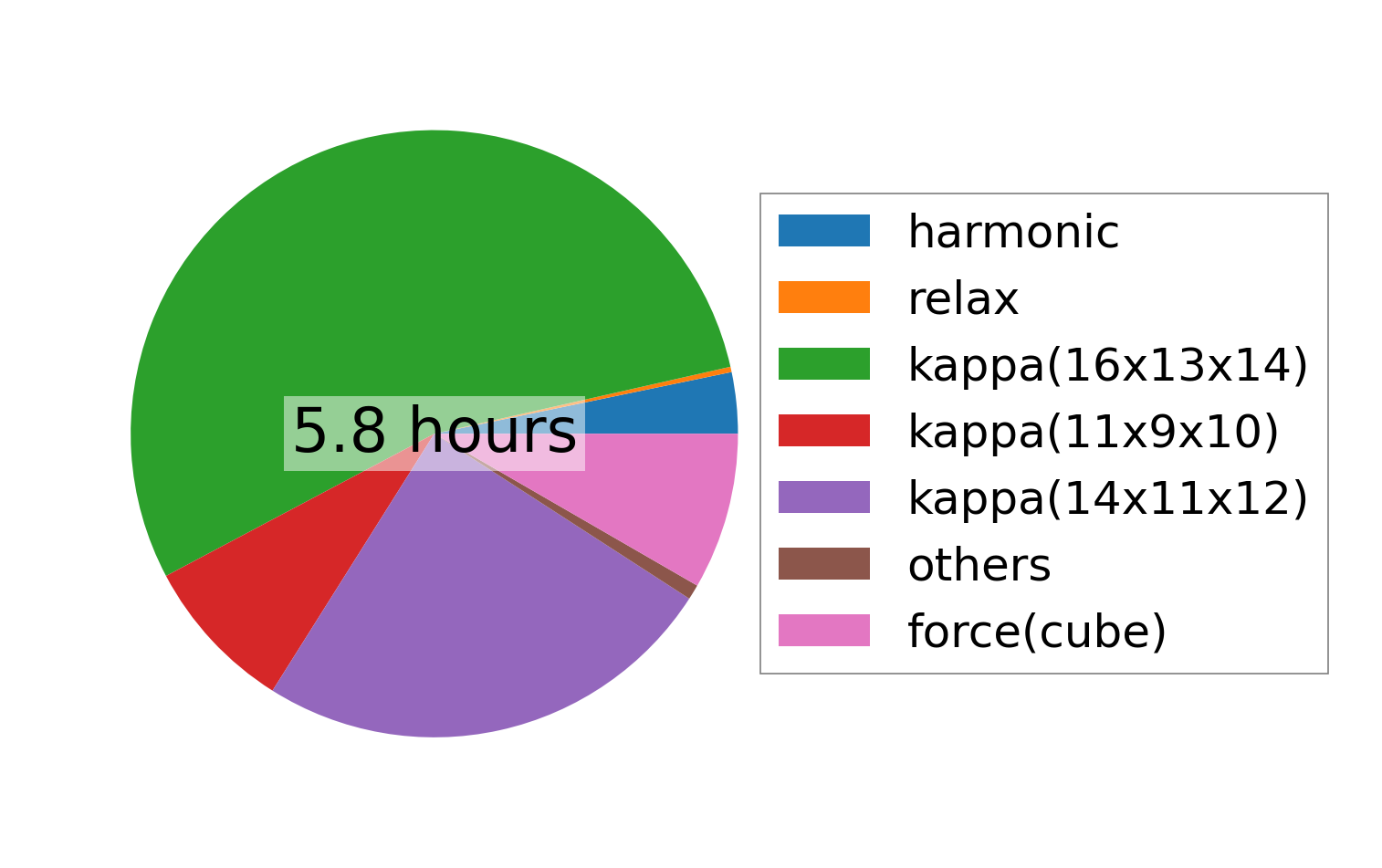

../../_images/fig_times12497.png — (b) Computation time
