mp-1190915-2/TcCl3/anharm

Space group: R-3m (166)
Link: Materials Project
Download: mp-1190915-2.tar.gz

Equation of state

../../_images/fig_bm7705.png — (a) Equation of state

Harmonic properties

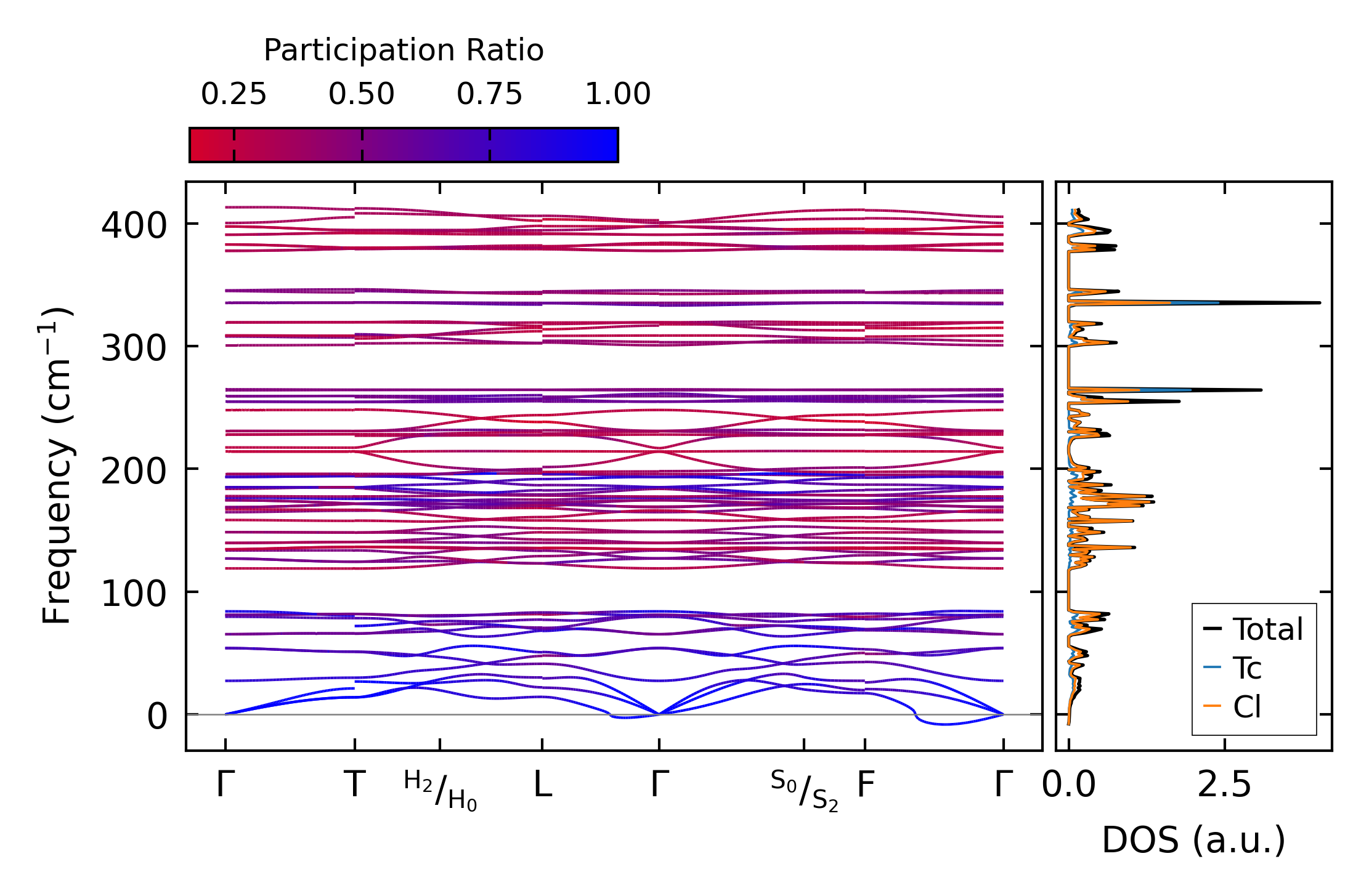

../../_images/fig_bandos_pr16031.png — (a) Phonon dispersion with participation ratio and DOS

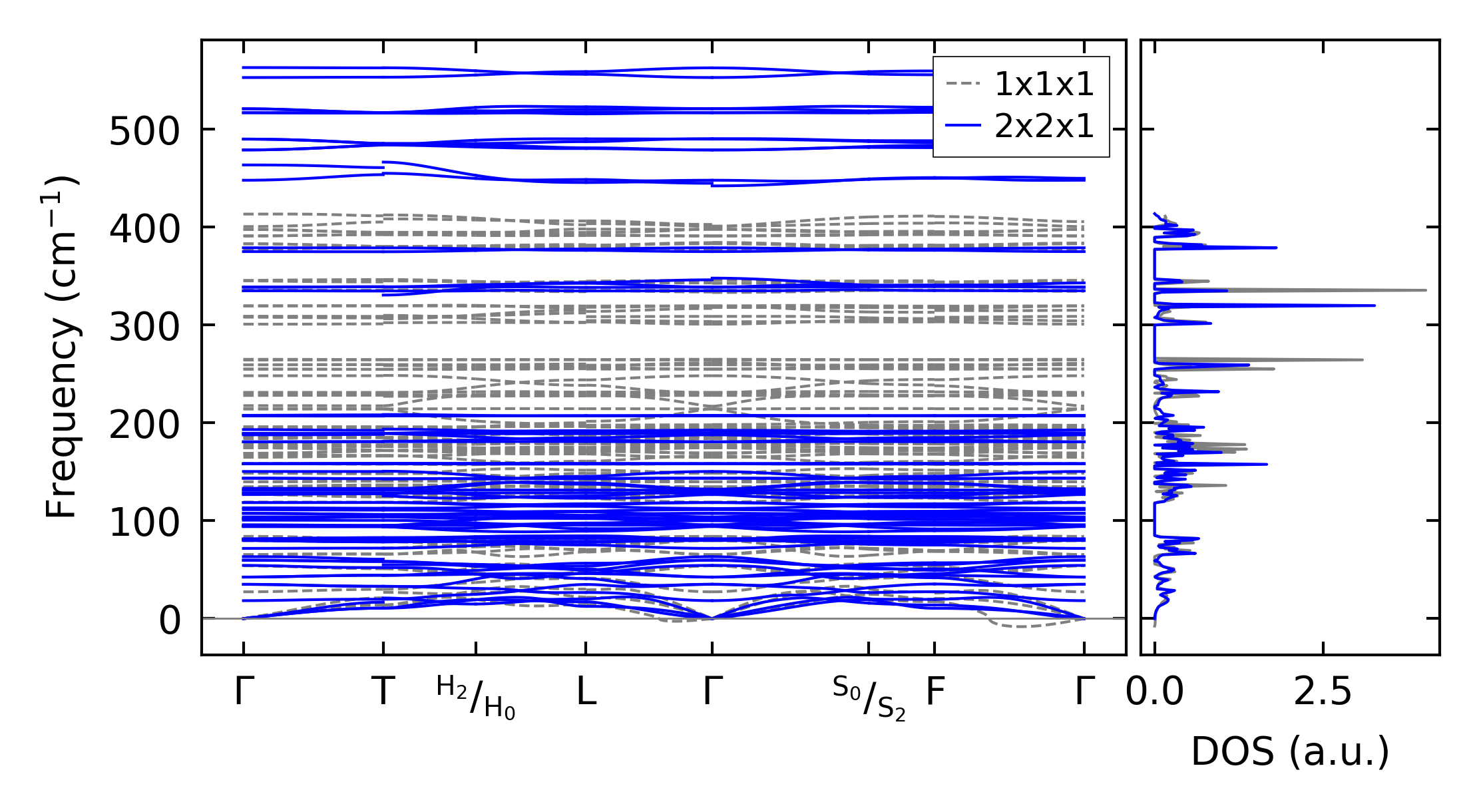

../../_images/fig_bandos20448.png — (b) Phonon dispersion and DOS

../../_images/fig_thermo16030.png — (c) Thermodynamic properties

Grüneisen parameters

../../_images/fig_gru_all6953.png — (a) Grüneisen parameters

../../_images/fig_gruneisen6953.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO), supercell 2x2x1 — q-mesh: 8x8x8, supercell: 2x2x1

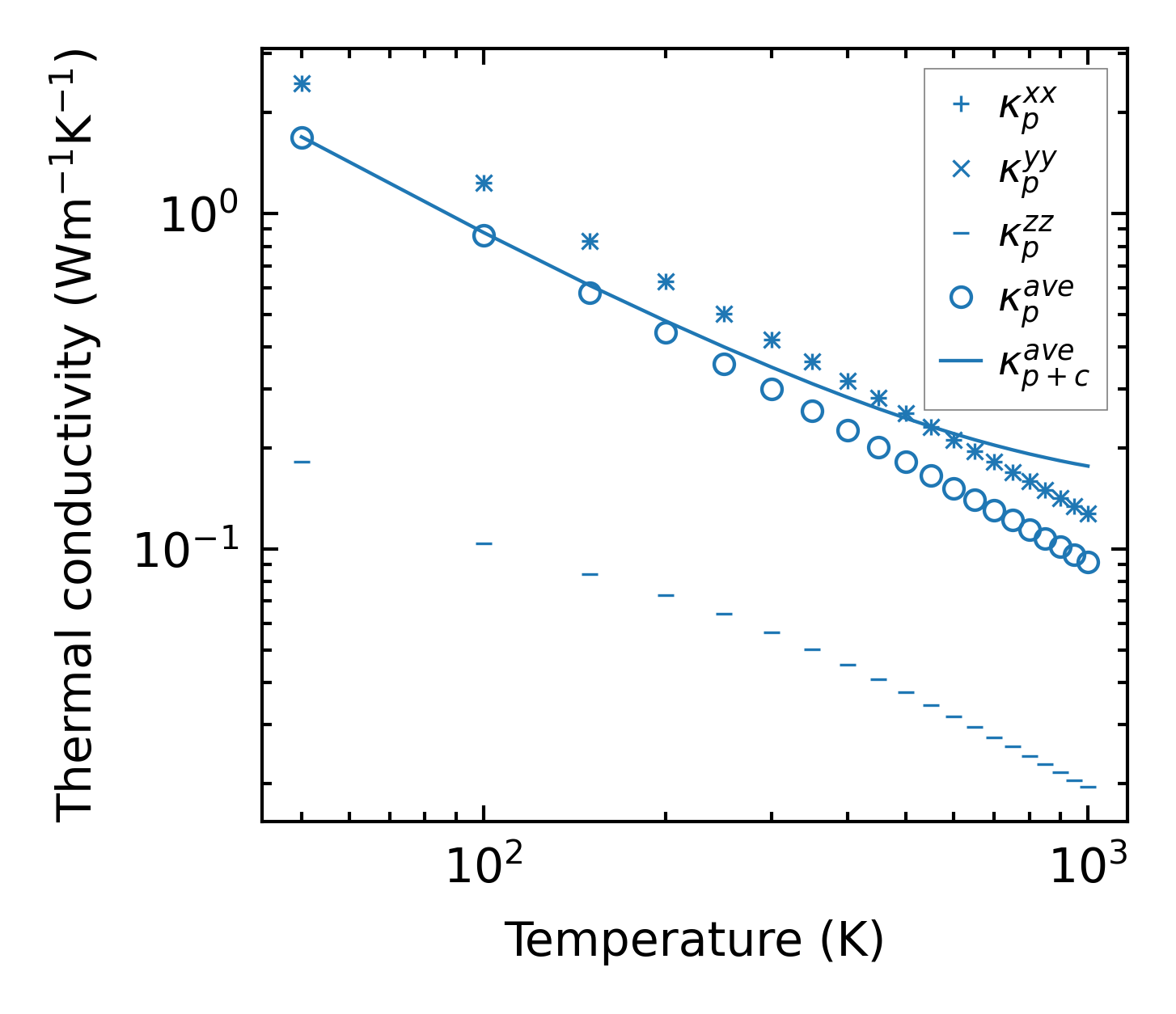

../../_images/fig_kappa13091.png — (a) Temperature-dependent lattice thermal conductivity

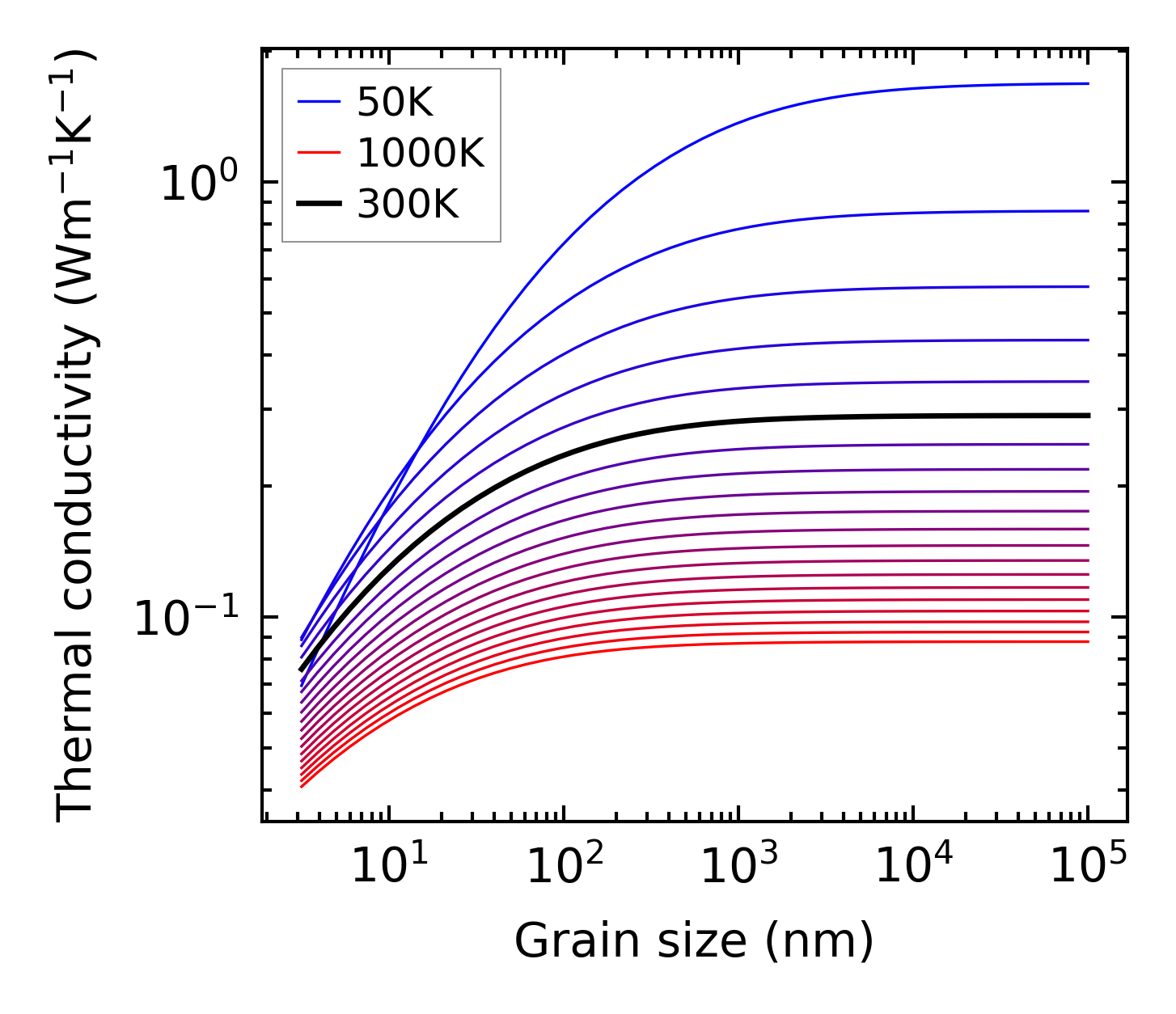

../../_images/fig_kappa_vs_grain_size7034.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

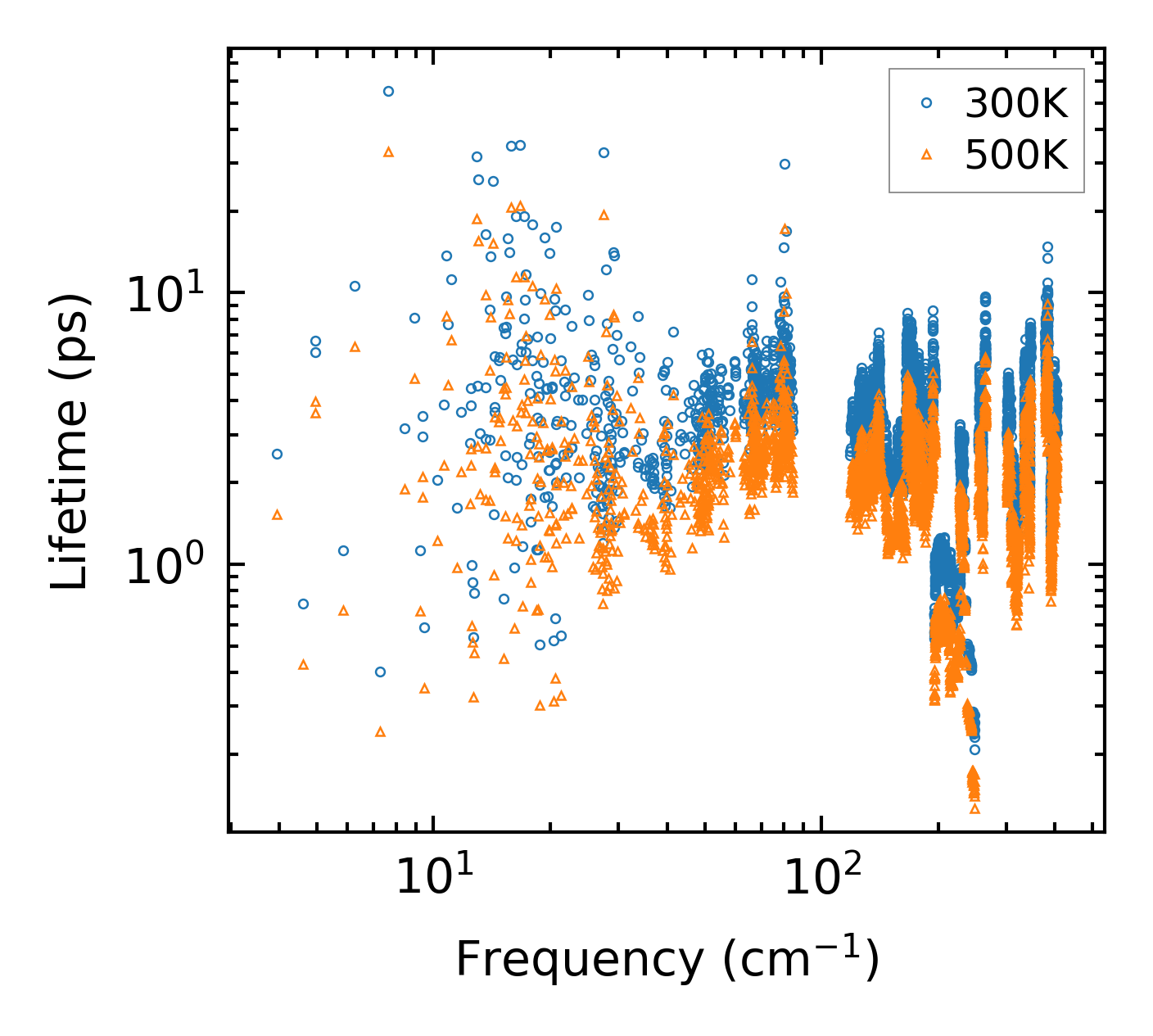

../../_images/fig_lifetime6887.png — (a) Phonon lifetime due to phonon-phonon scattering

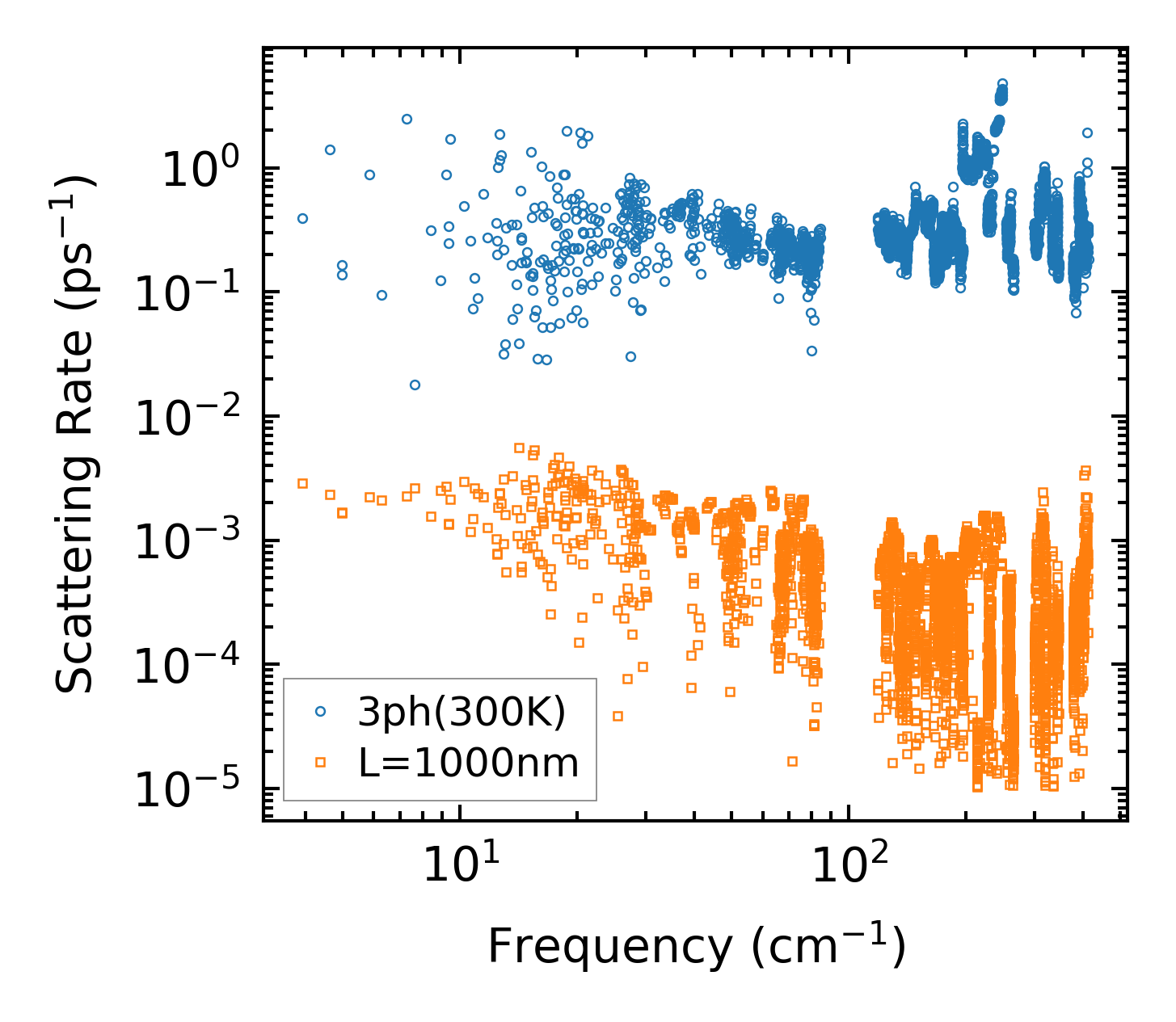

../../_images/fig_scat_rates6886.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

../../_images/fig_cumu_frequency6887.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

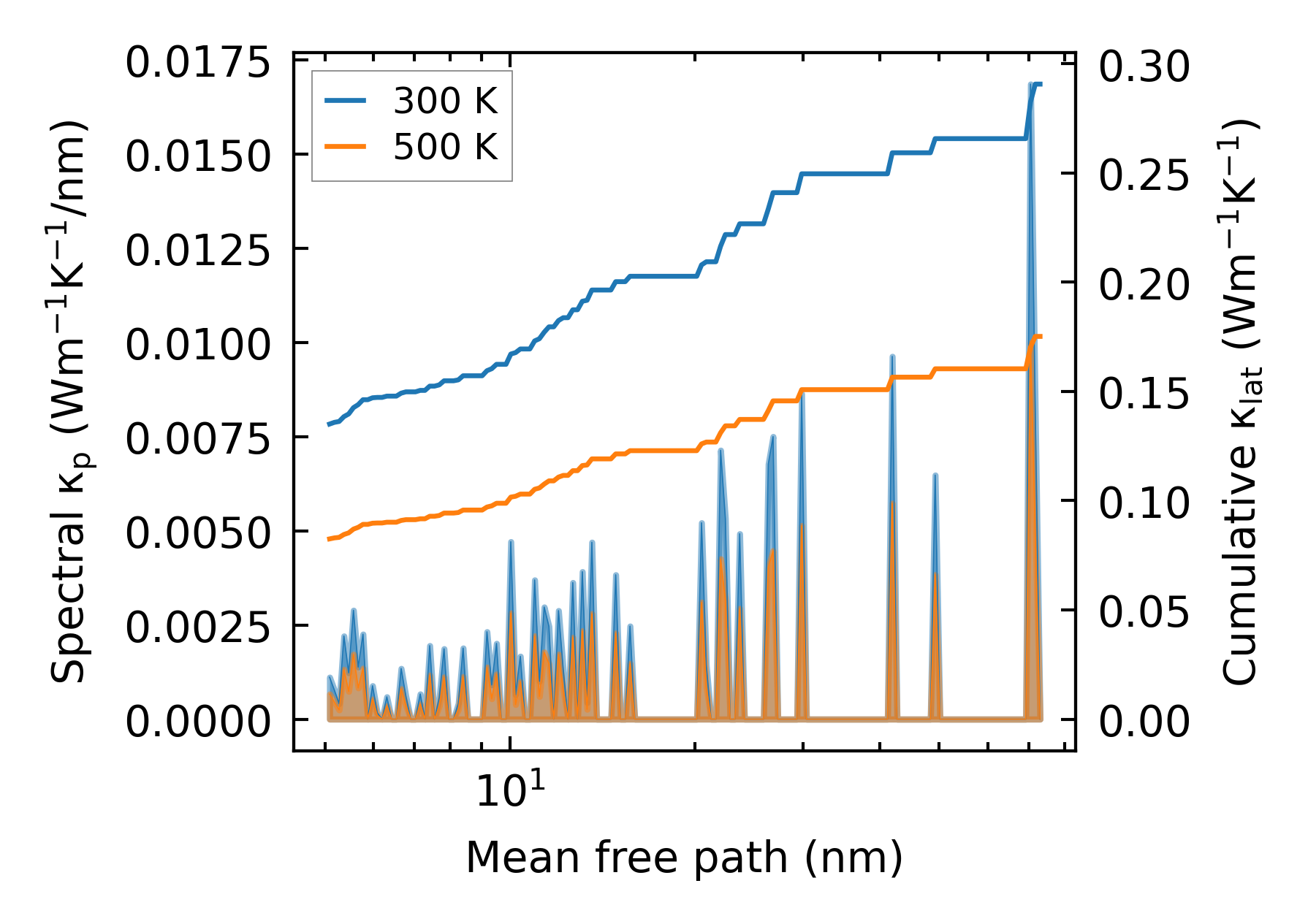

../../_images/fig_cumu_mfp6886.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

../../_images/fig_fc215626.png — (a) Force constants w.r.t atomic distance

Summary

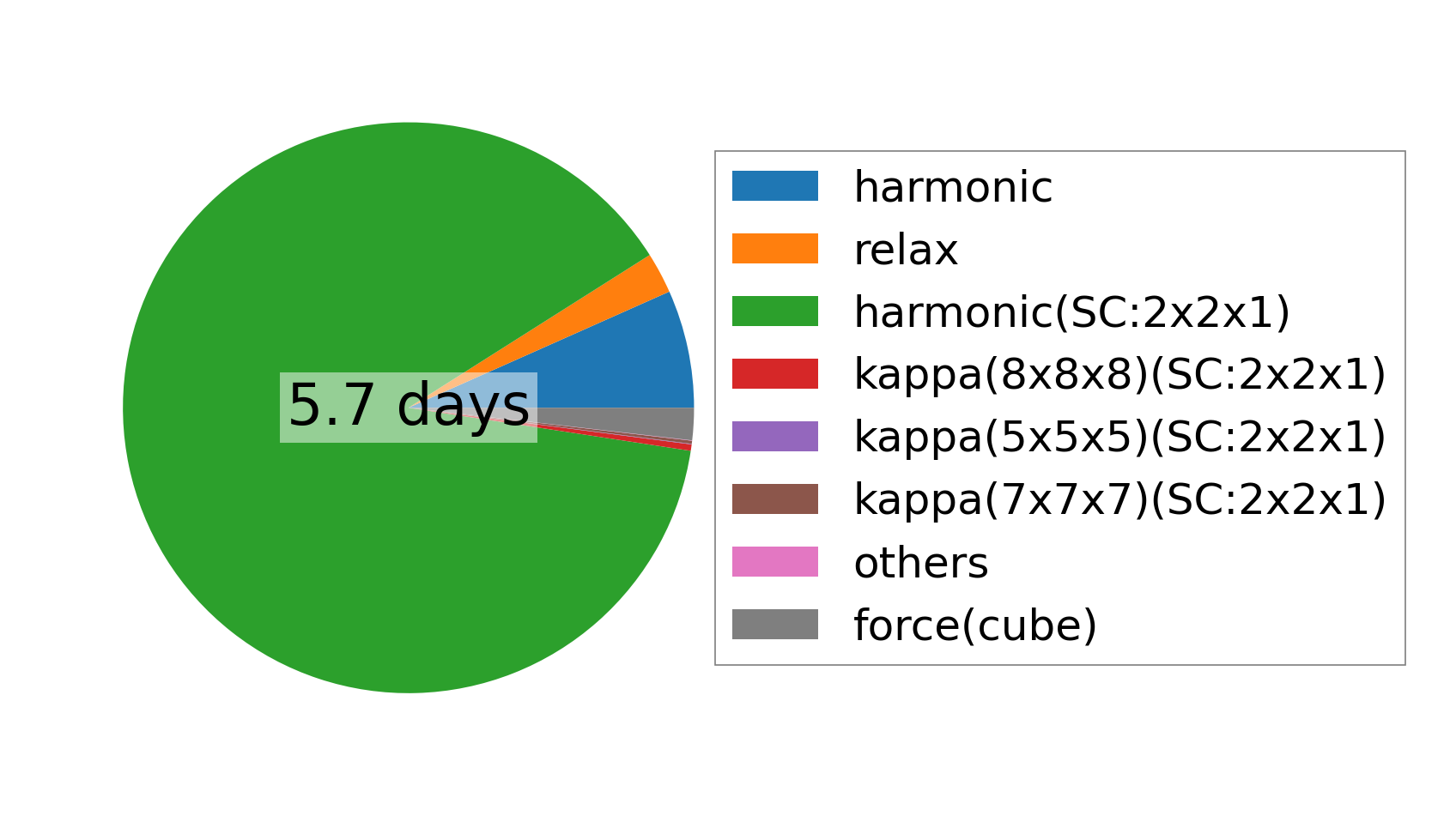

../../_images/fig_times26387.png — (a) Computation time
