mp-1190024/Ba3NaSbO6/anharm

Space group: R-3c (167)
Link: Materials Project
Download: mp-1190024.tar.gz

Harmonic properties

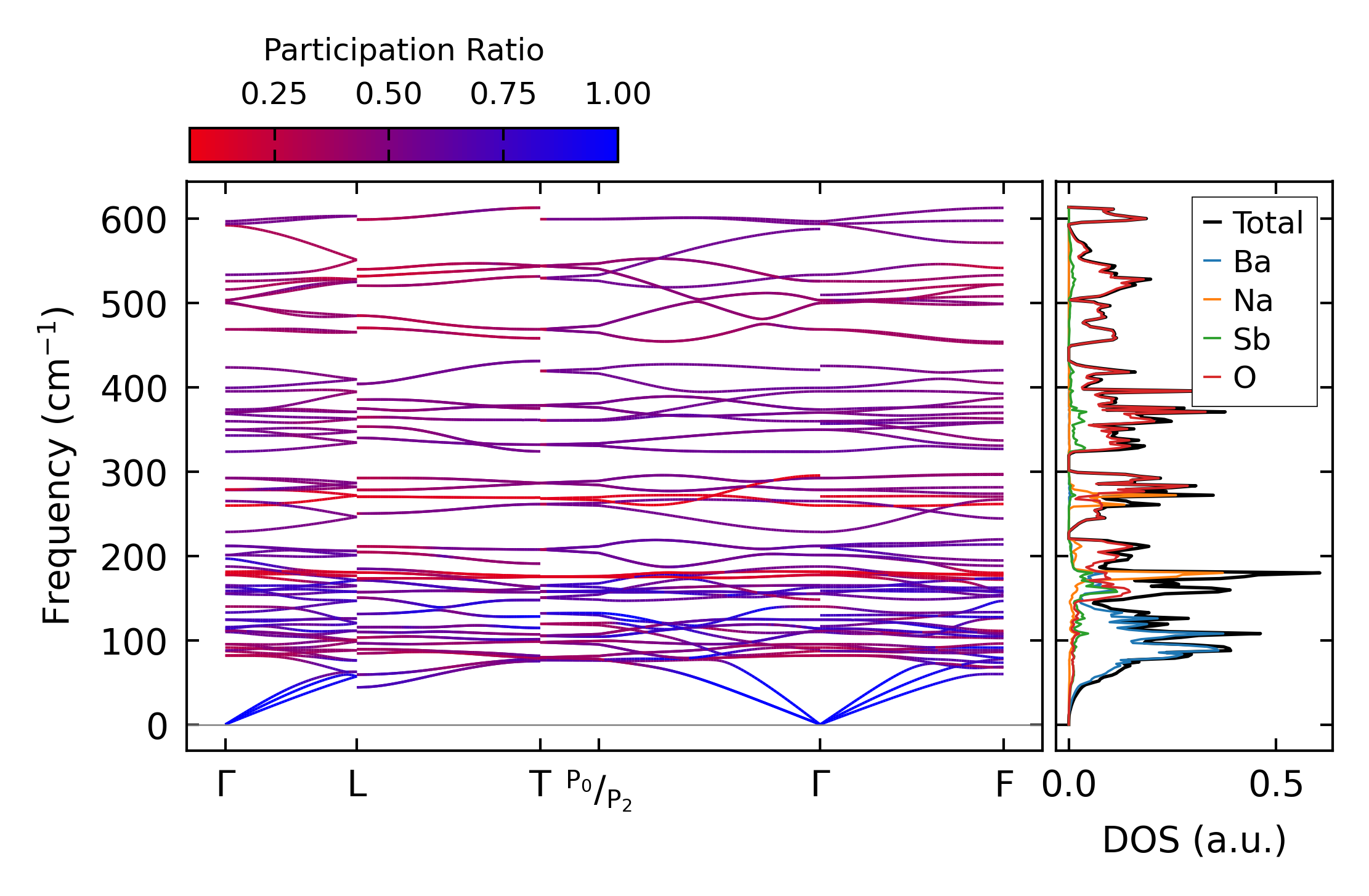

../../_images/fig_bandos_pr15952.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo15951.png — (b) Thermodynamic properties

Grüneisen parameters

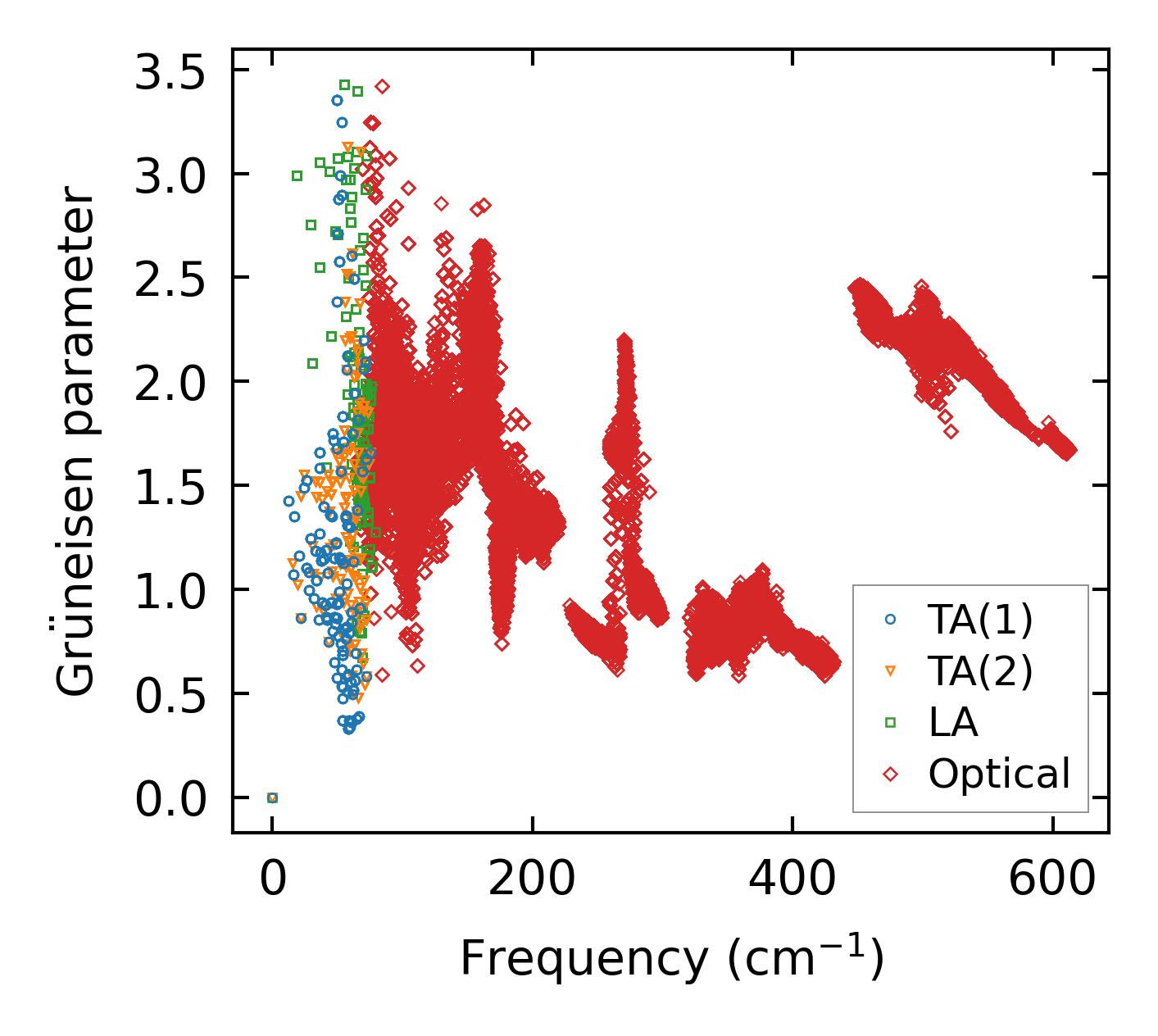

../../_images/fig_gru_all6917.png — (a) Grüneisen parameters

../../_images/fig_gruneisen6917.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 10x10x10, supercell: 1x1x1

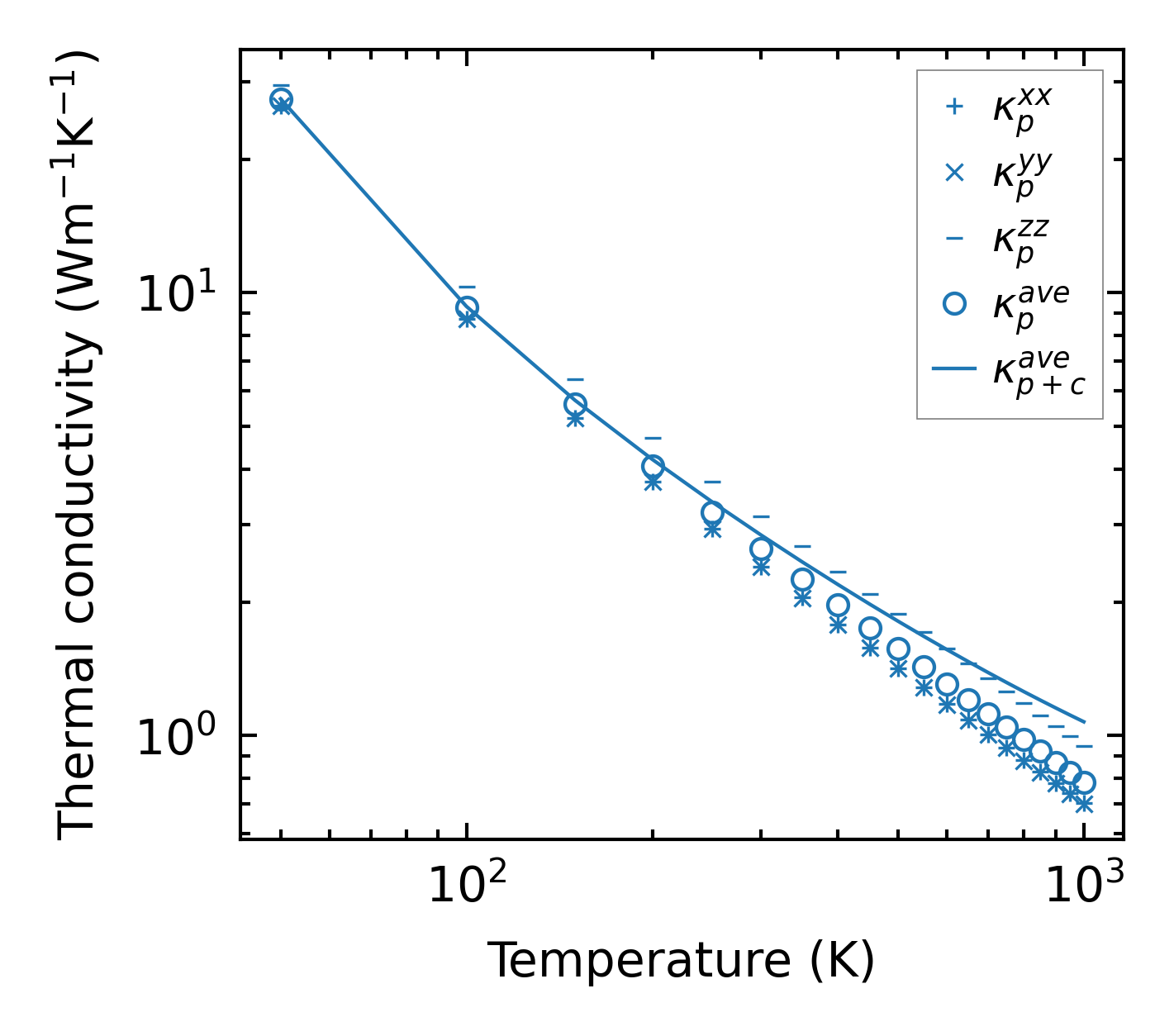

../../_images/fig_kappa13023.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size6998.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

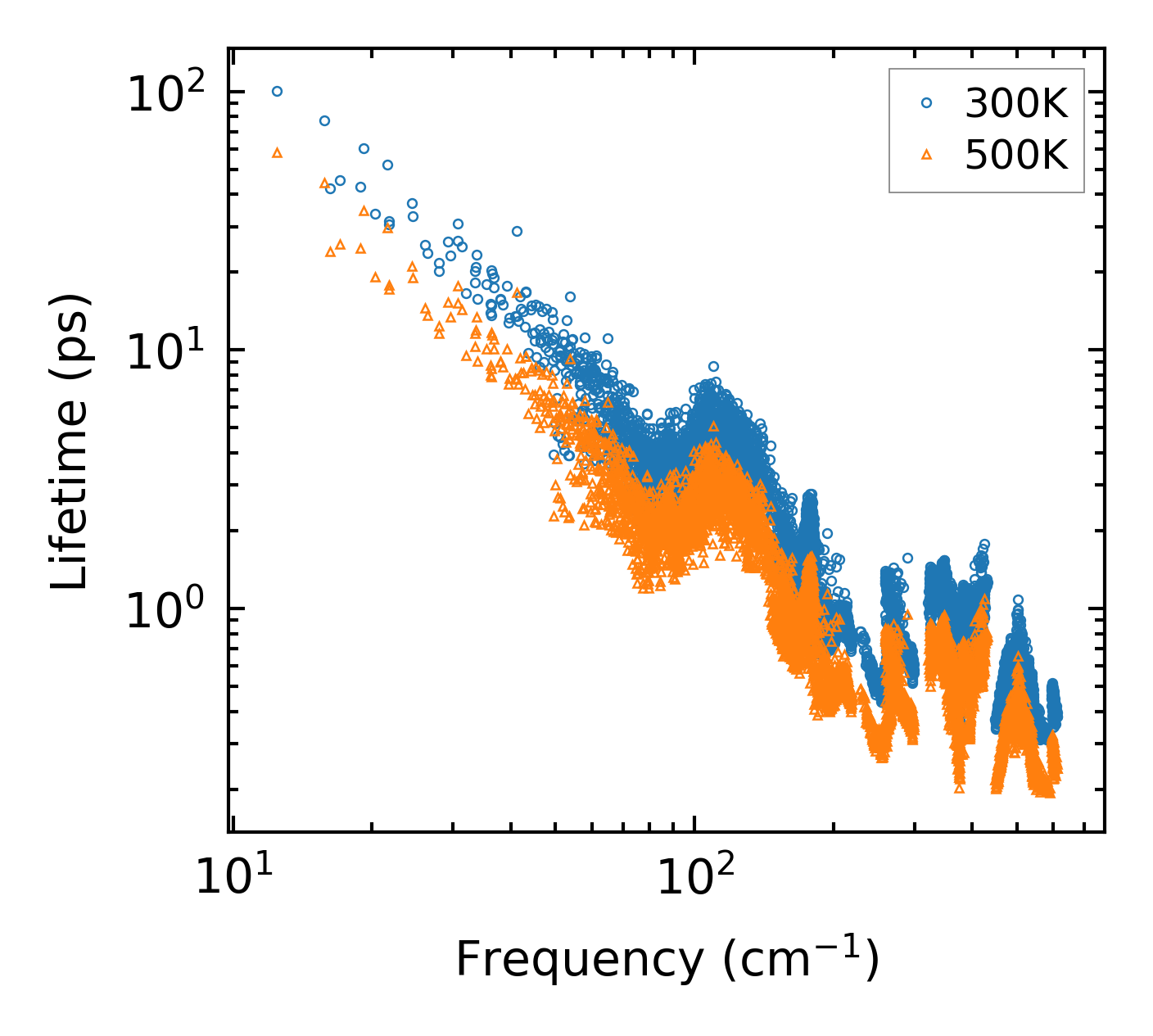

../../_images/fig_lifetime6851.png — (a) Phonon lifetime due to phonon-phonon scattering

../../_images/fig_scat_rates6850.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

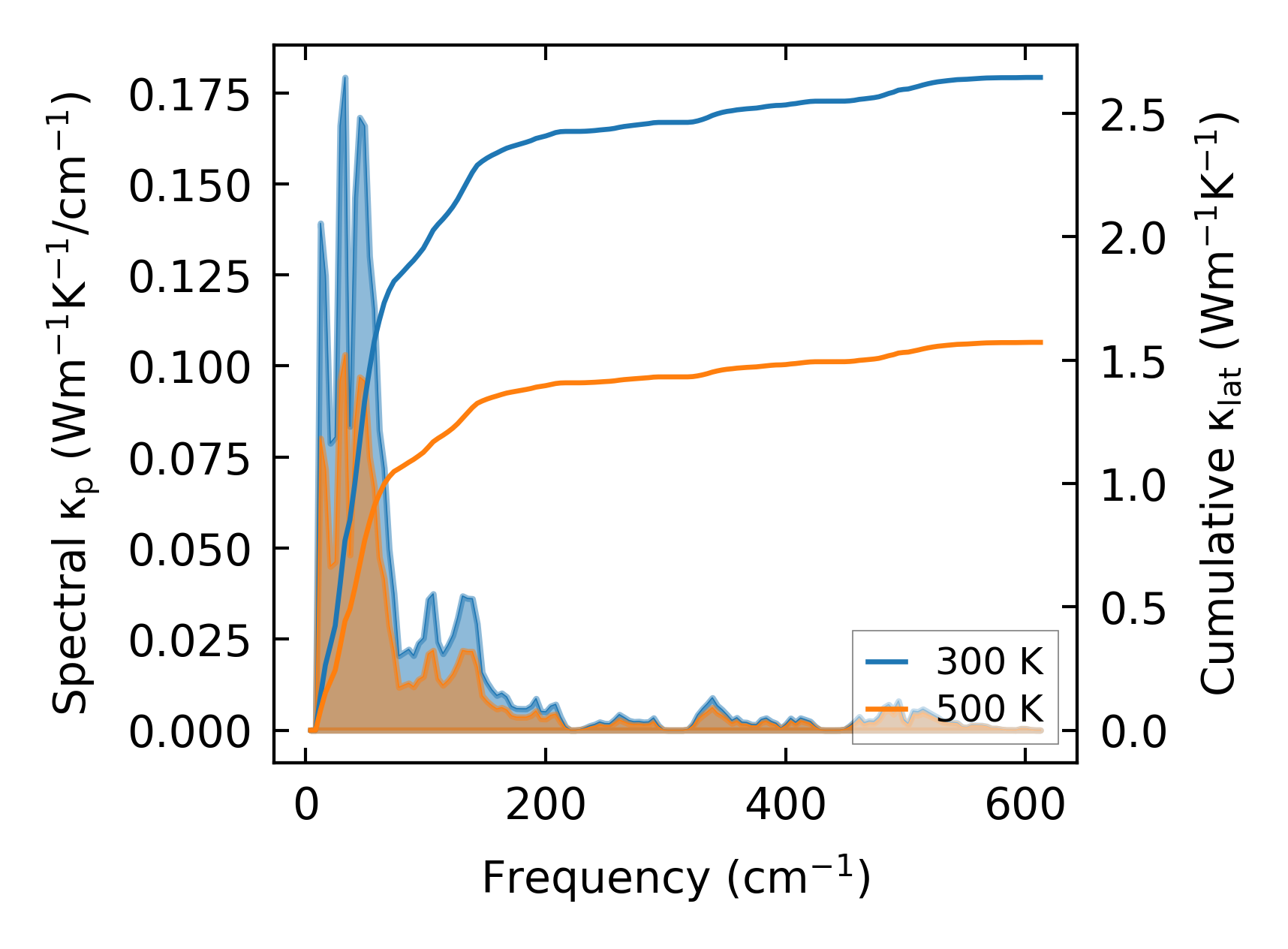

../../_images/fig_cumu_frequency6851.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

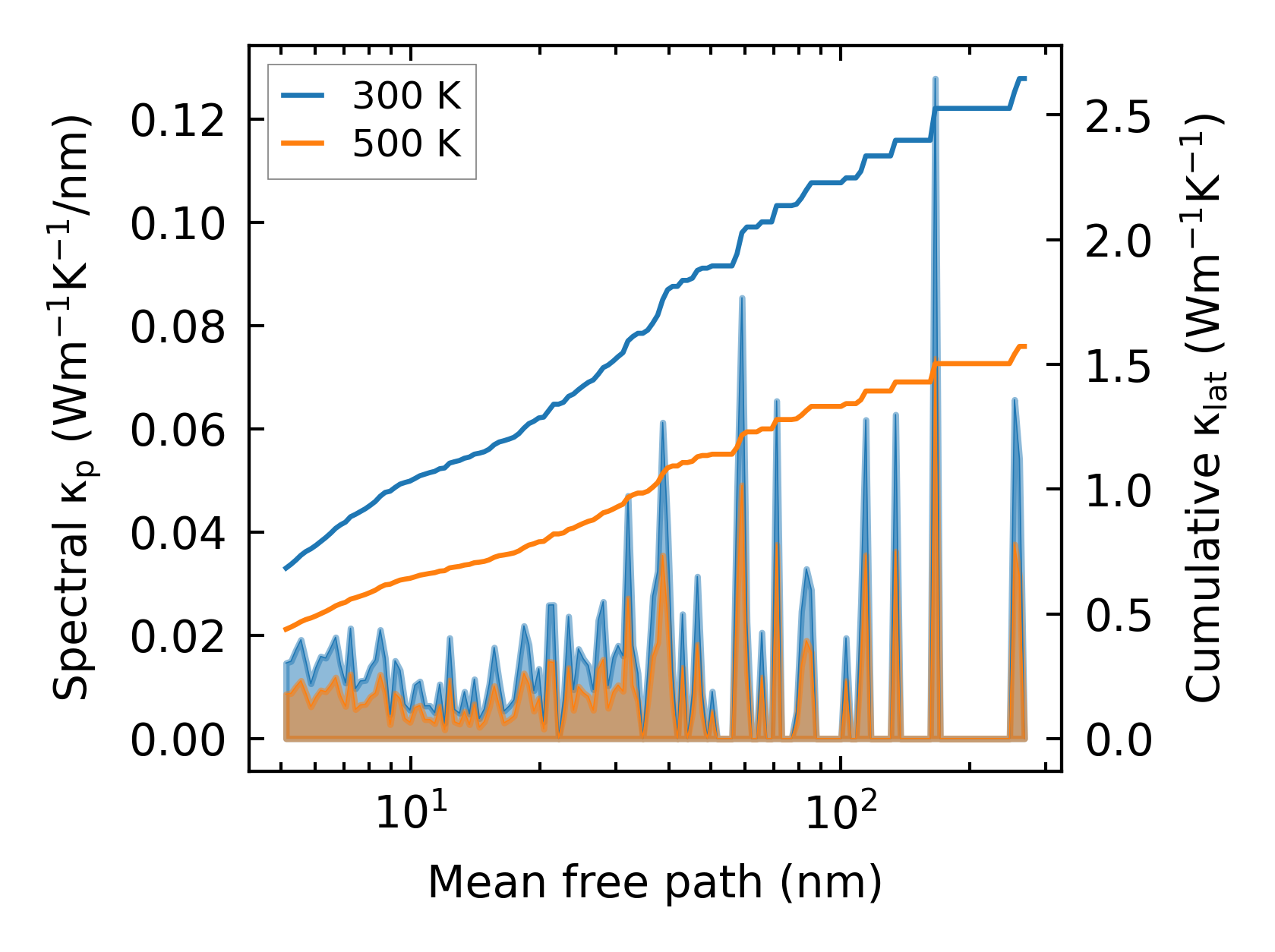

../../_images/fig_cumu_mfp6850.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

../../_images/fig_fc215547.png — (a) Force constants w.r.t atomic distance

Summary

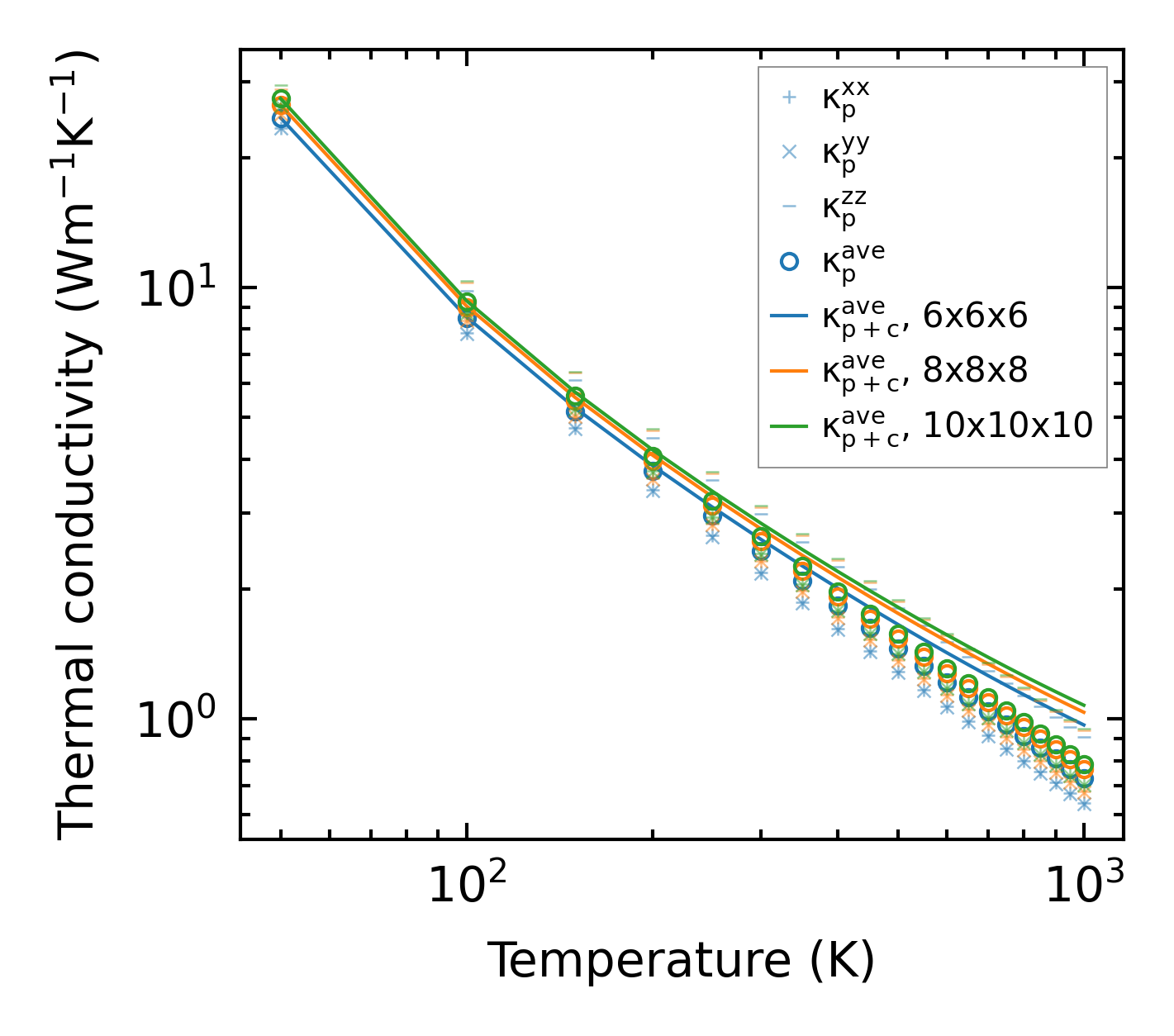

../../_images/fig_kappa13024.png — (a) Temperature-dependent lattice thermal conductivity

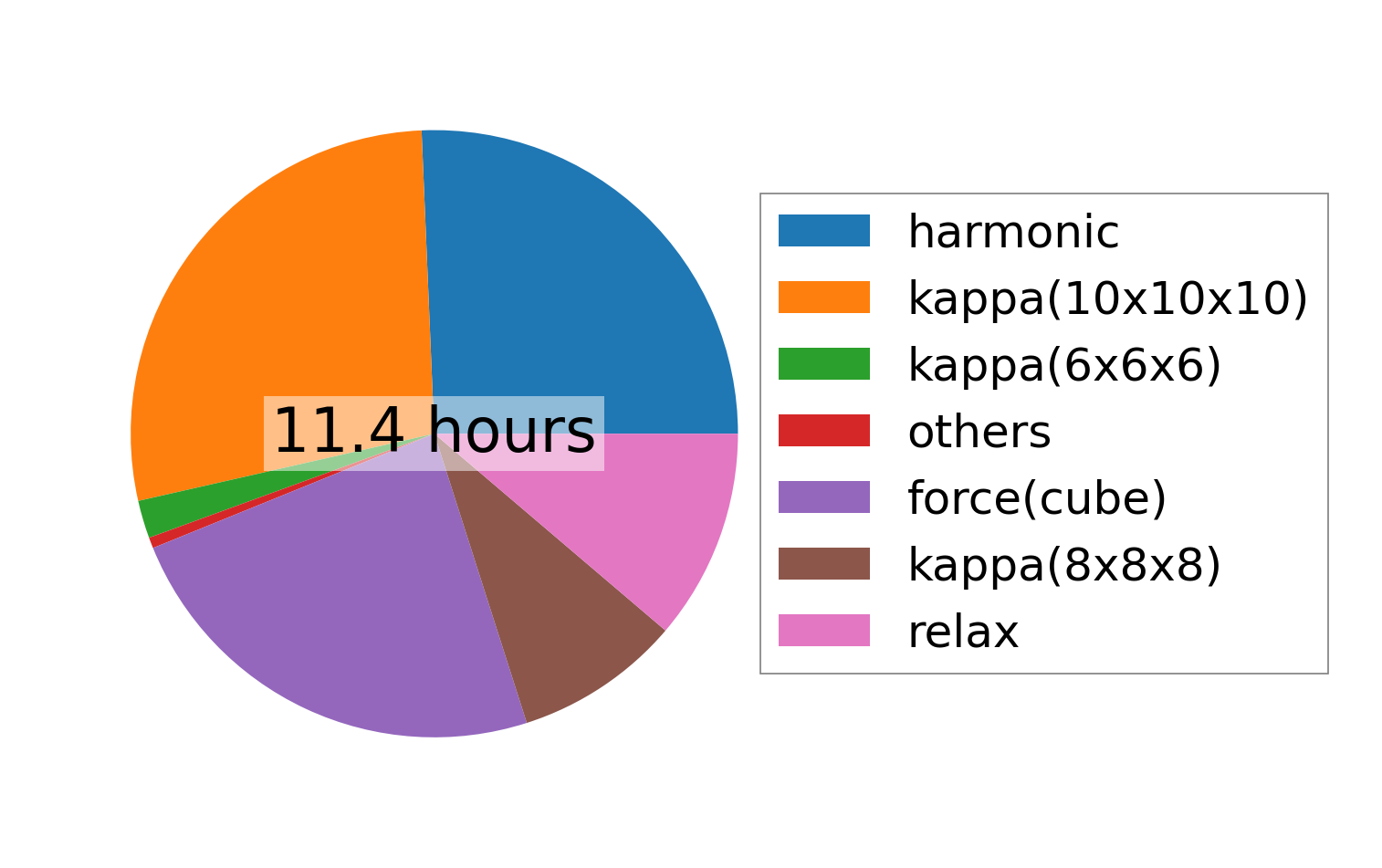

../../_images/fig_times26269.png — (b) Computation time
