mp-1190246/Ir2Pb2O7/anharm

Space group: Fd-3m (227)
Link: Materials Project
Download: mp-1190246.tar.gz

Harmonic properties

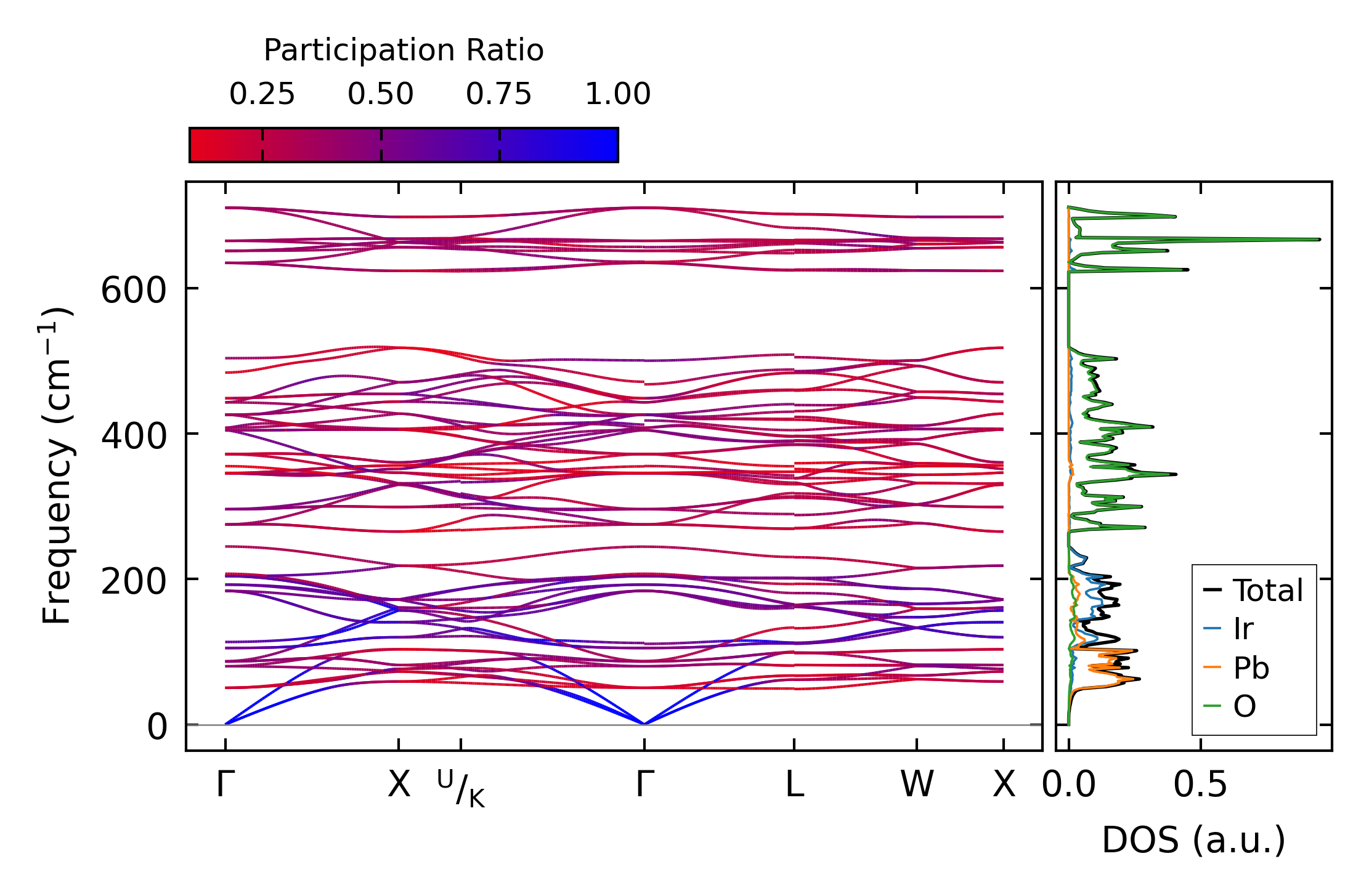

../../_images/fig_bandos_pr15968.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo15967.png — (b) Thermodynamic properties

Grüneisen parameters

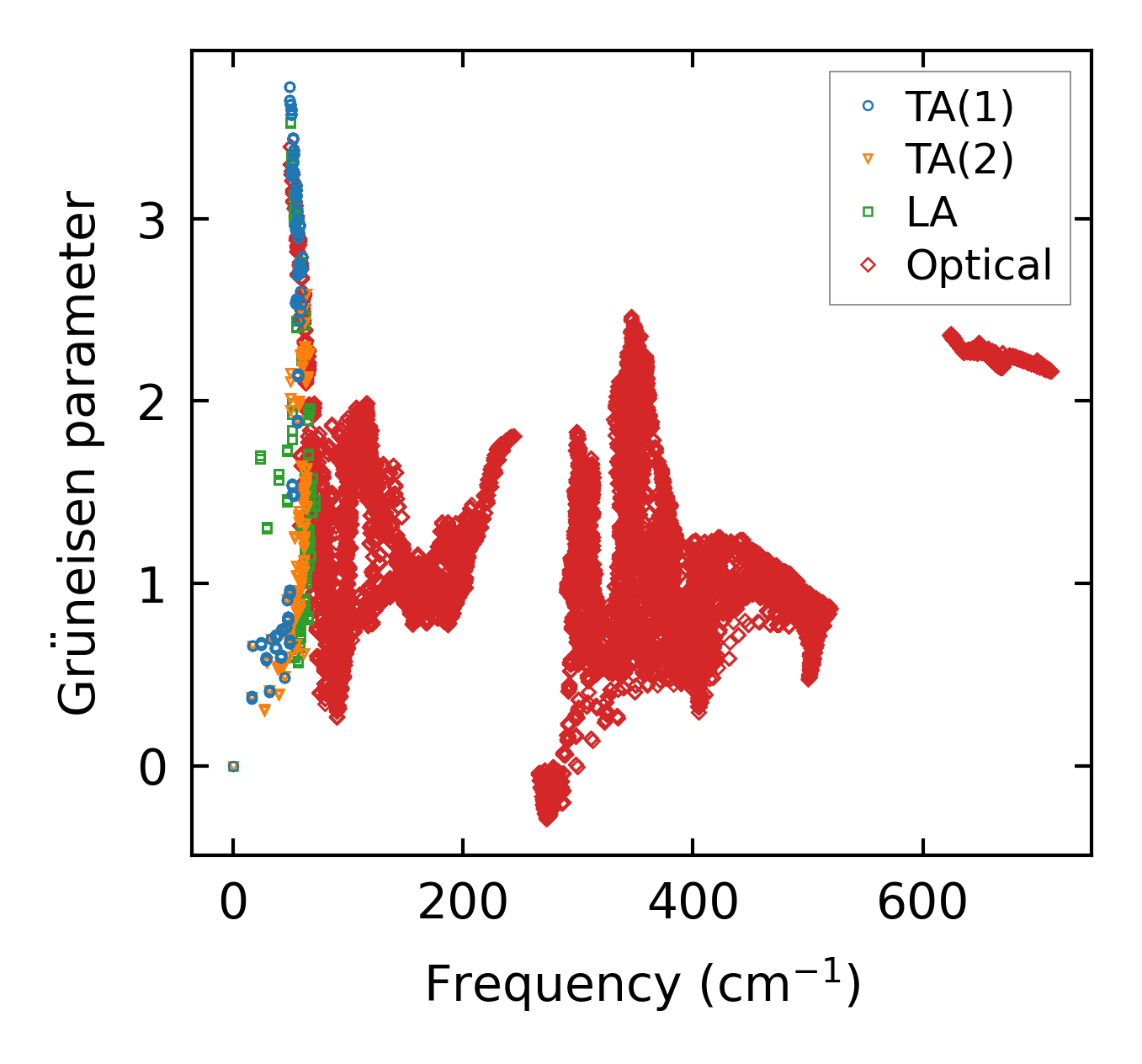

../../_images/fig_gru_all6927.png — (a) Grüneisen parameters

../../_images/fig_gruneisen6927.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 11x11x11, supercell: 1x1x1

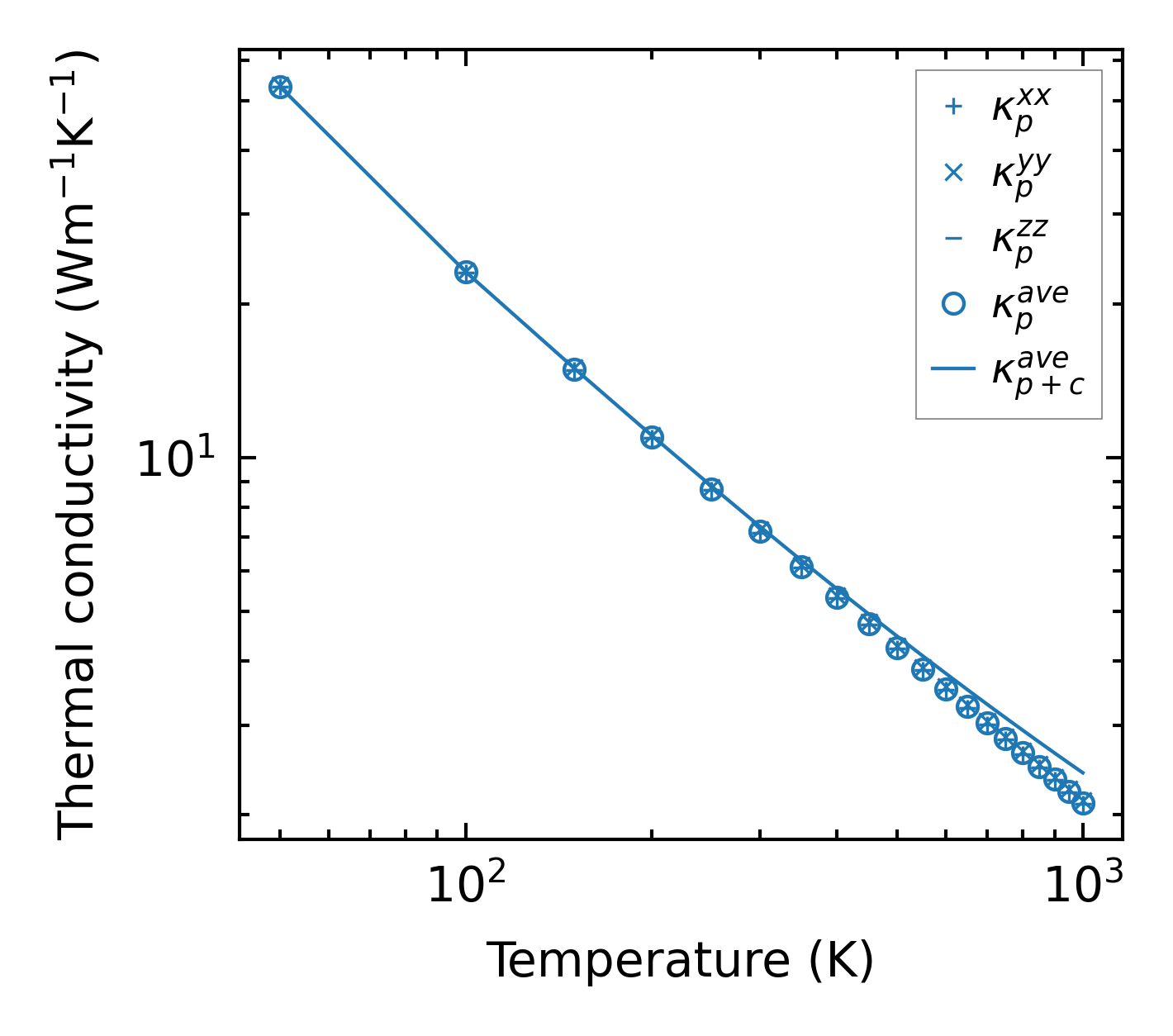

../../_images/fig_kappa13043.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size7008.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

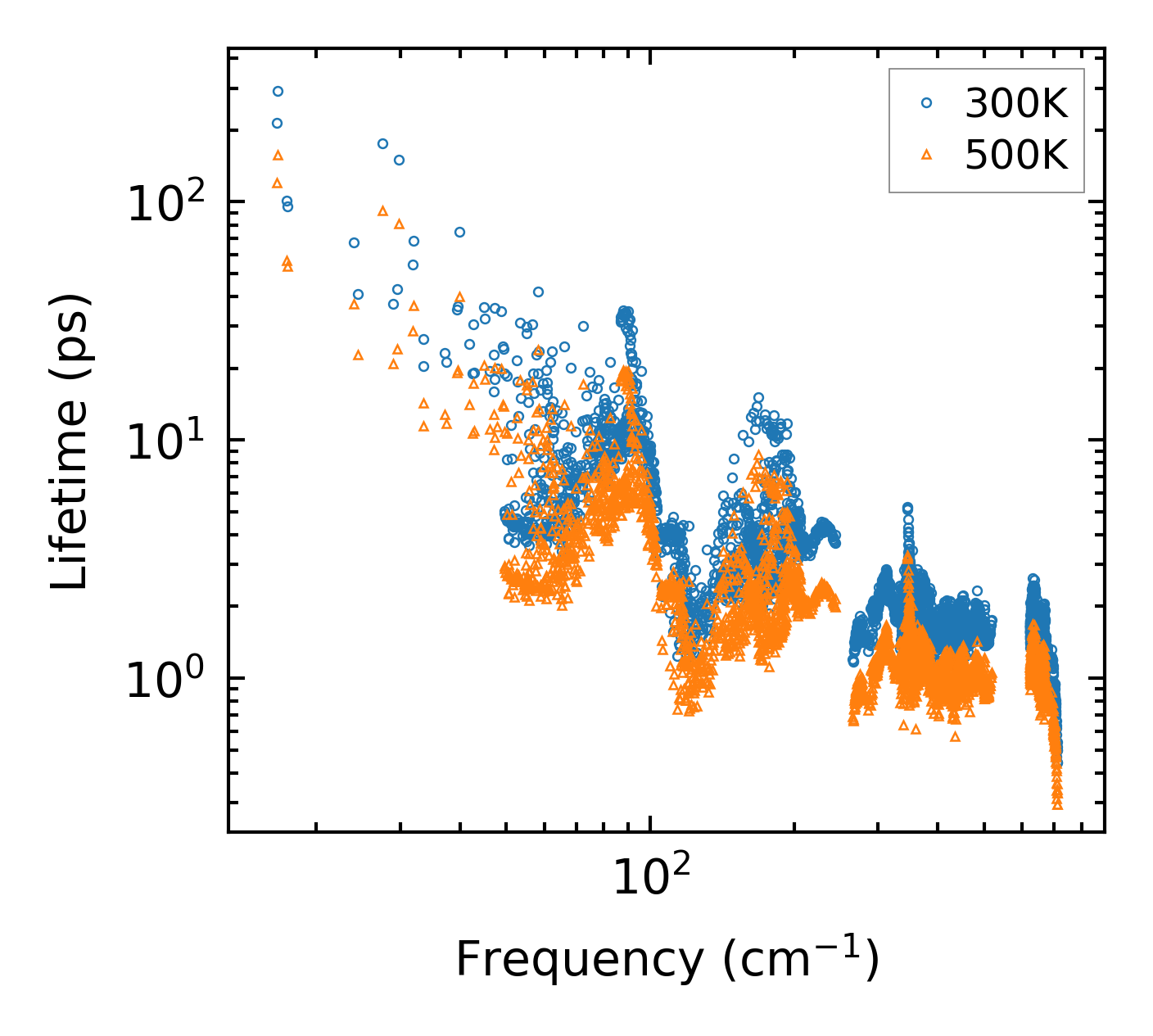

../../_images/fig_lifetime6861.png — (a) Phonon lifetime due to phonon-phonon scattering

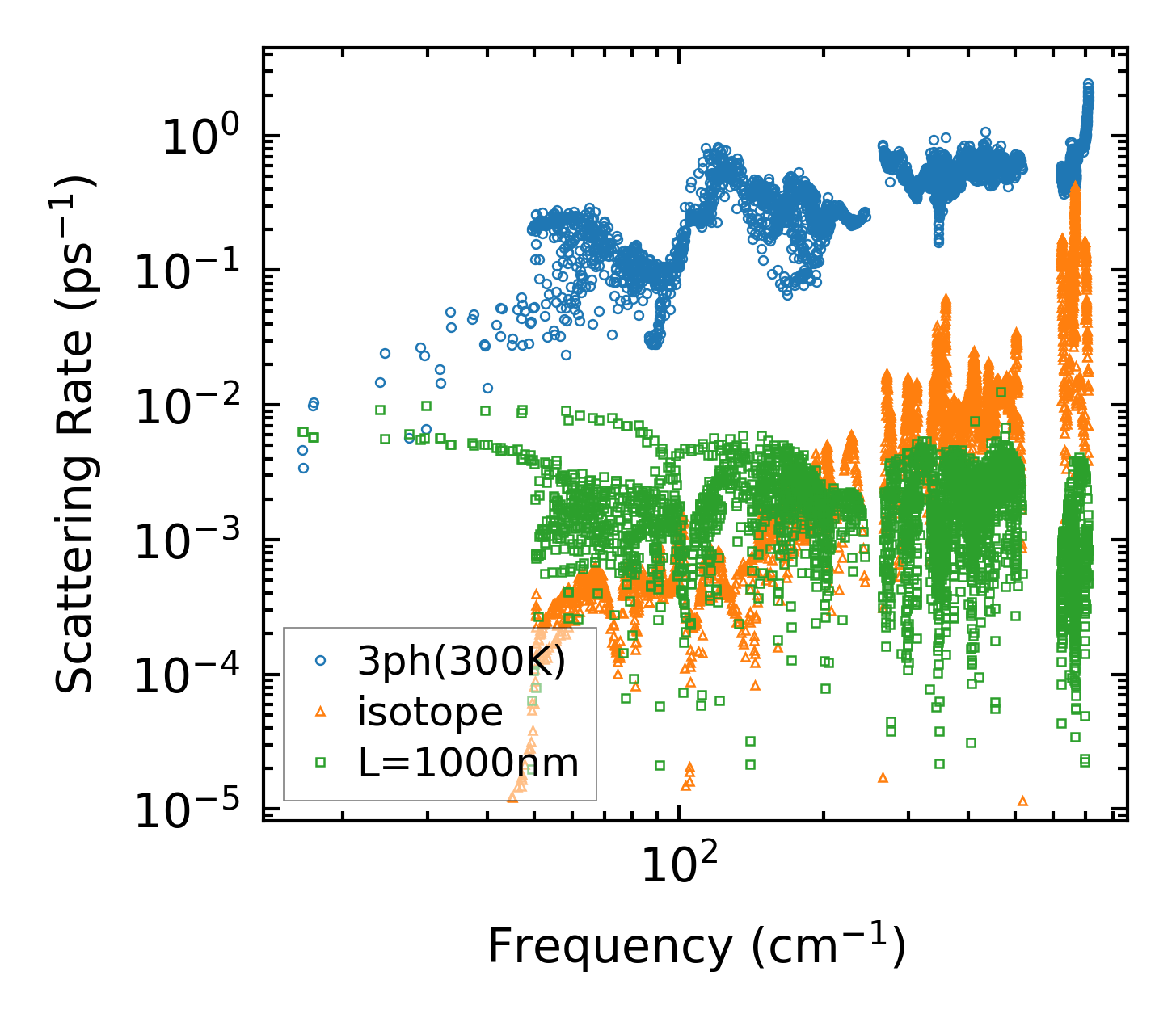

../../_images/fig_scat_rates6860.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

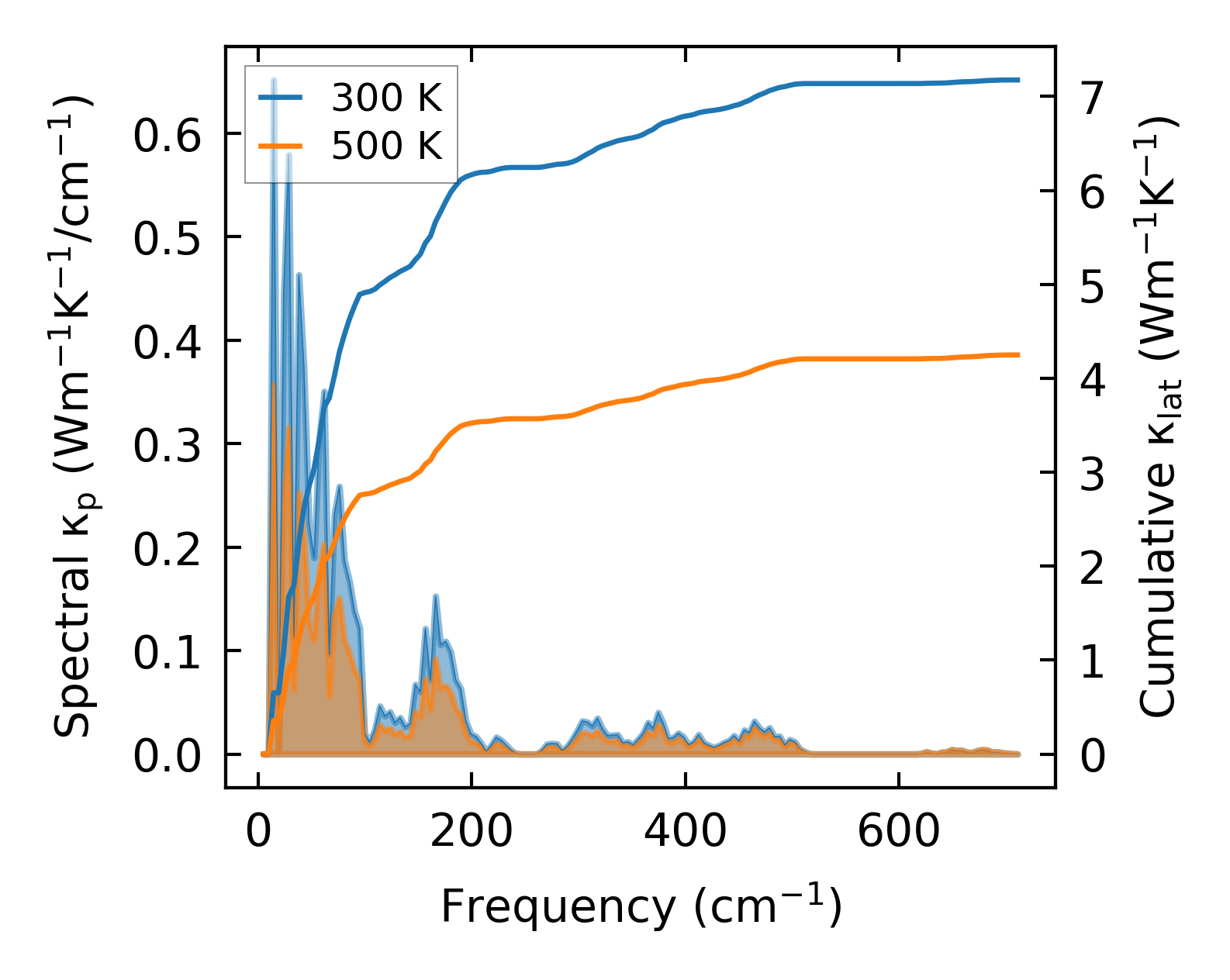

../../_images/fig_cumu_frequency6861.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

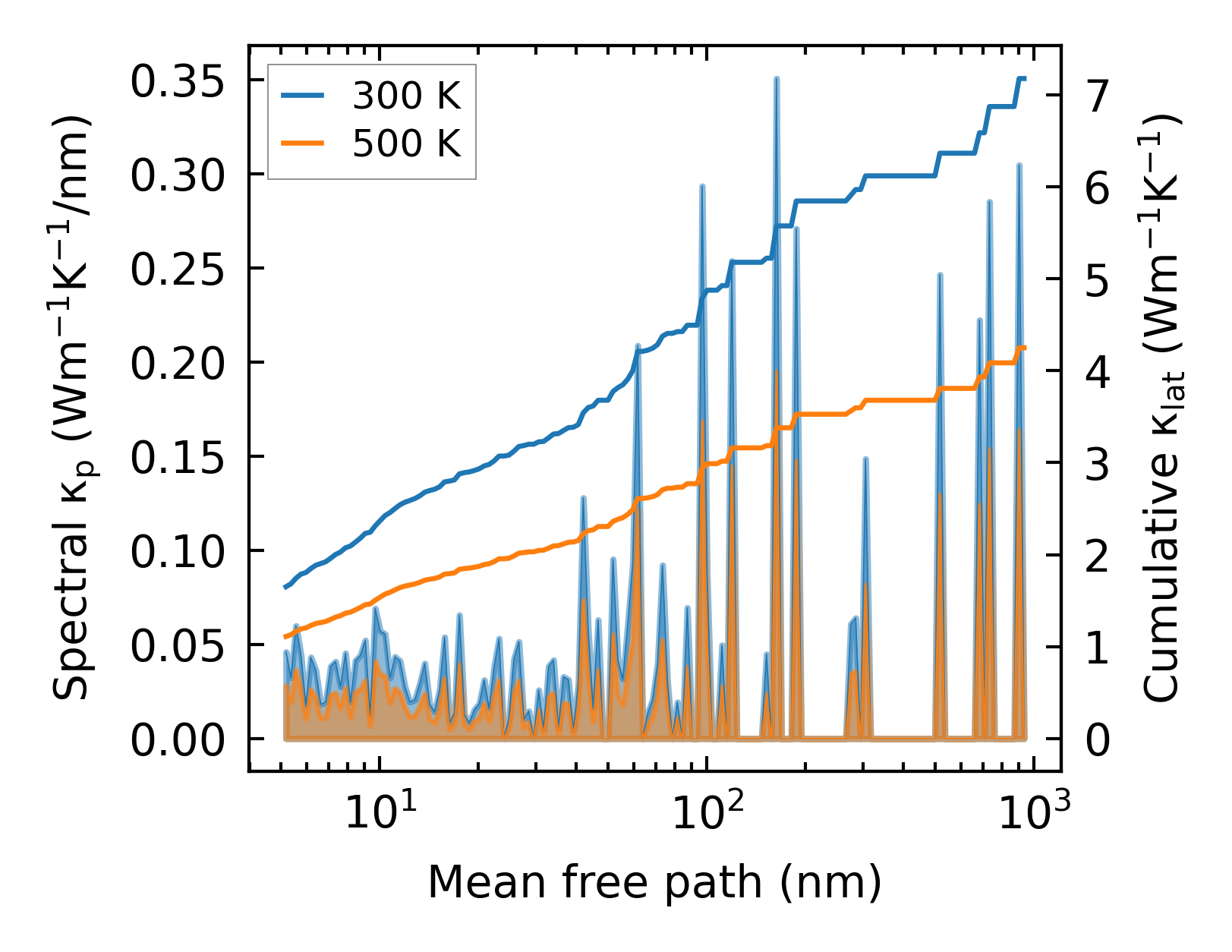

../../_images/fig_cumu_mfp6860.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

../../_images/fig_fc215563.png — (a) Force constants w.r.t atomic distance

Summary

../../_images/fig_kappa13044.png — (a) Temperature-dependent lattice thermal conductivity

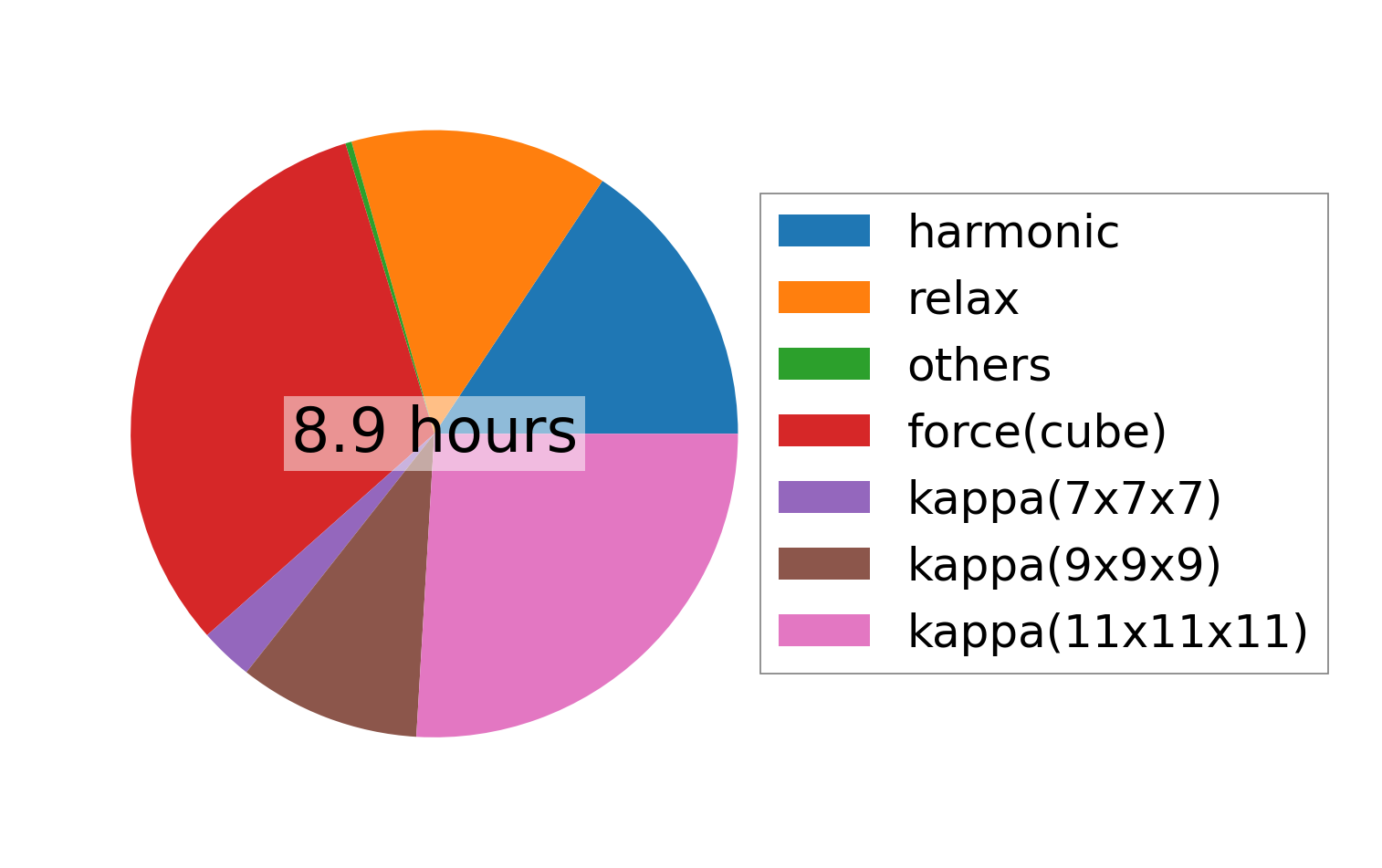

../../_images/fig_times26293.png — (b) Computation time
