mp-1190516/CsSm2Ag3Te5/anharm

Space group: Cmcm (63)
Link: Materials Project
Download: mp-1190516.tar.gz

Harmonic properties

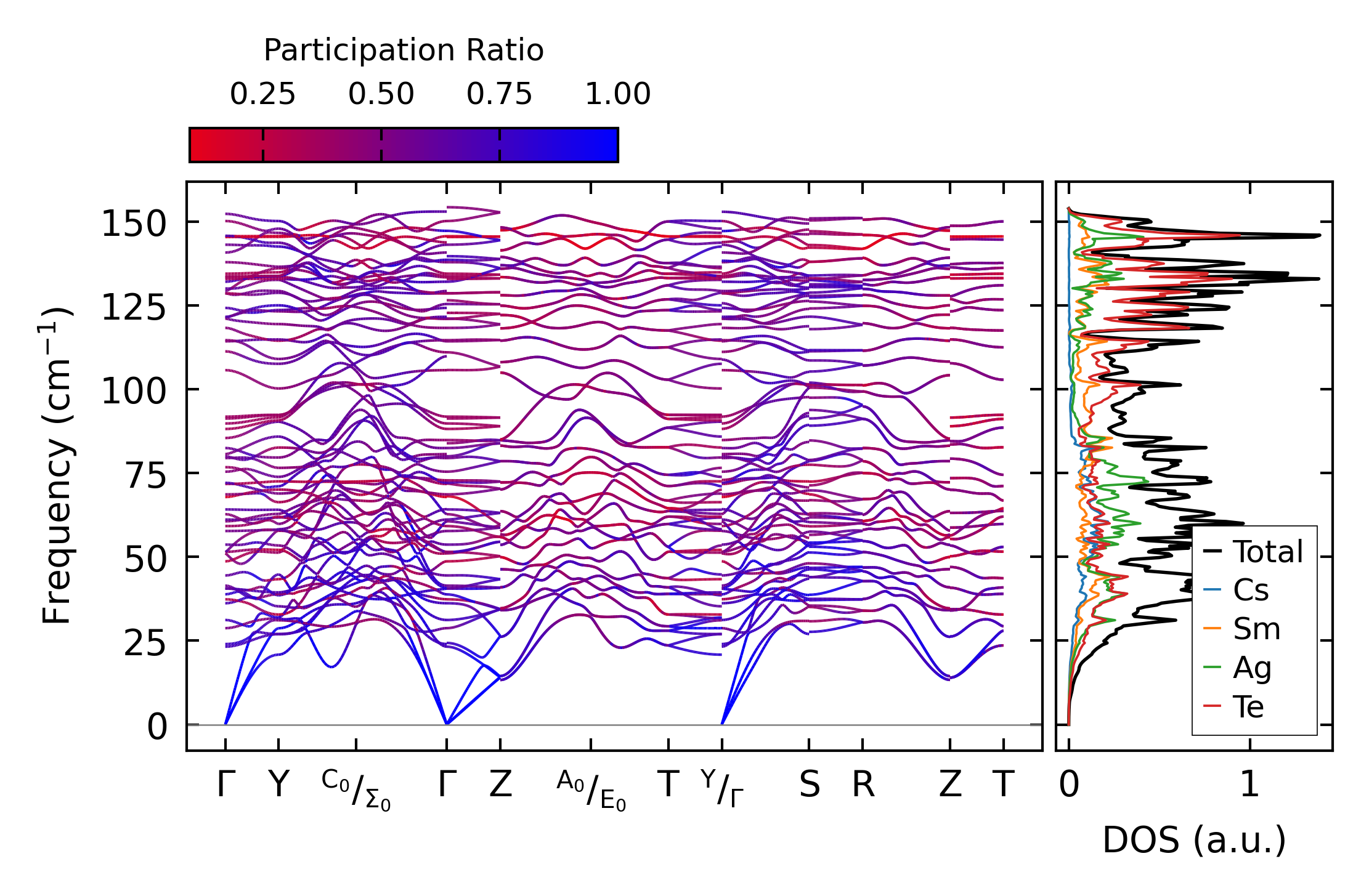

../../_images/fig_bandos_pr15994.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo15993.png — (b) Thermodynamic properties

Grüneisen parameters

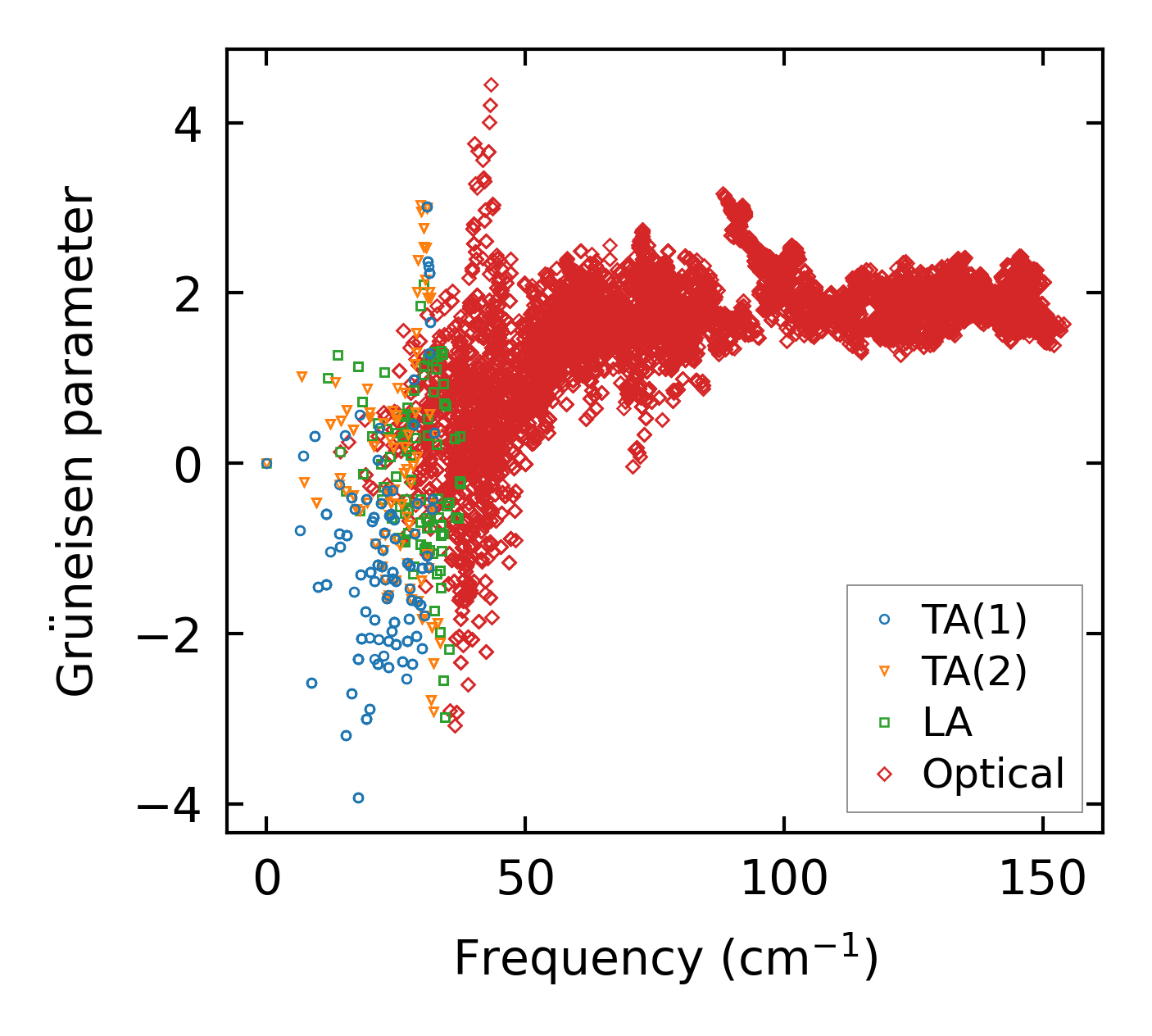

../../_images/fig_gru_all6938.png — (a) Grüneisen parameters

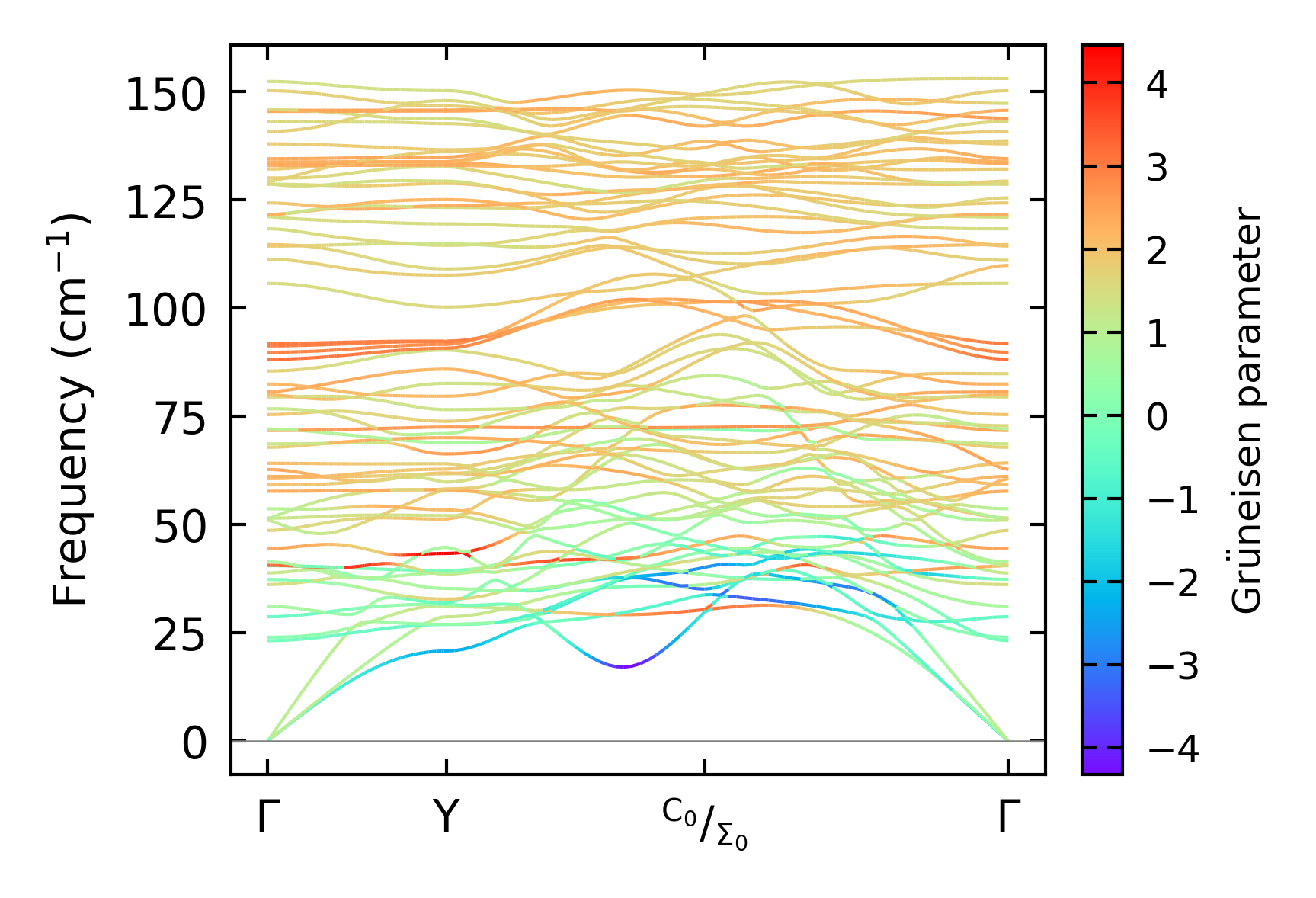

../../_images/fig_gruneisen6938.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 10x10x4, supercell: 3x1x1

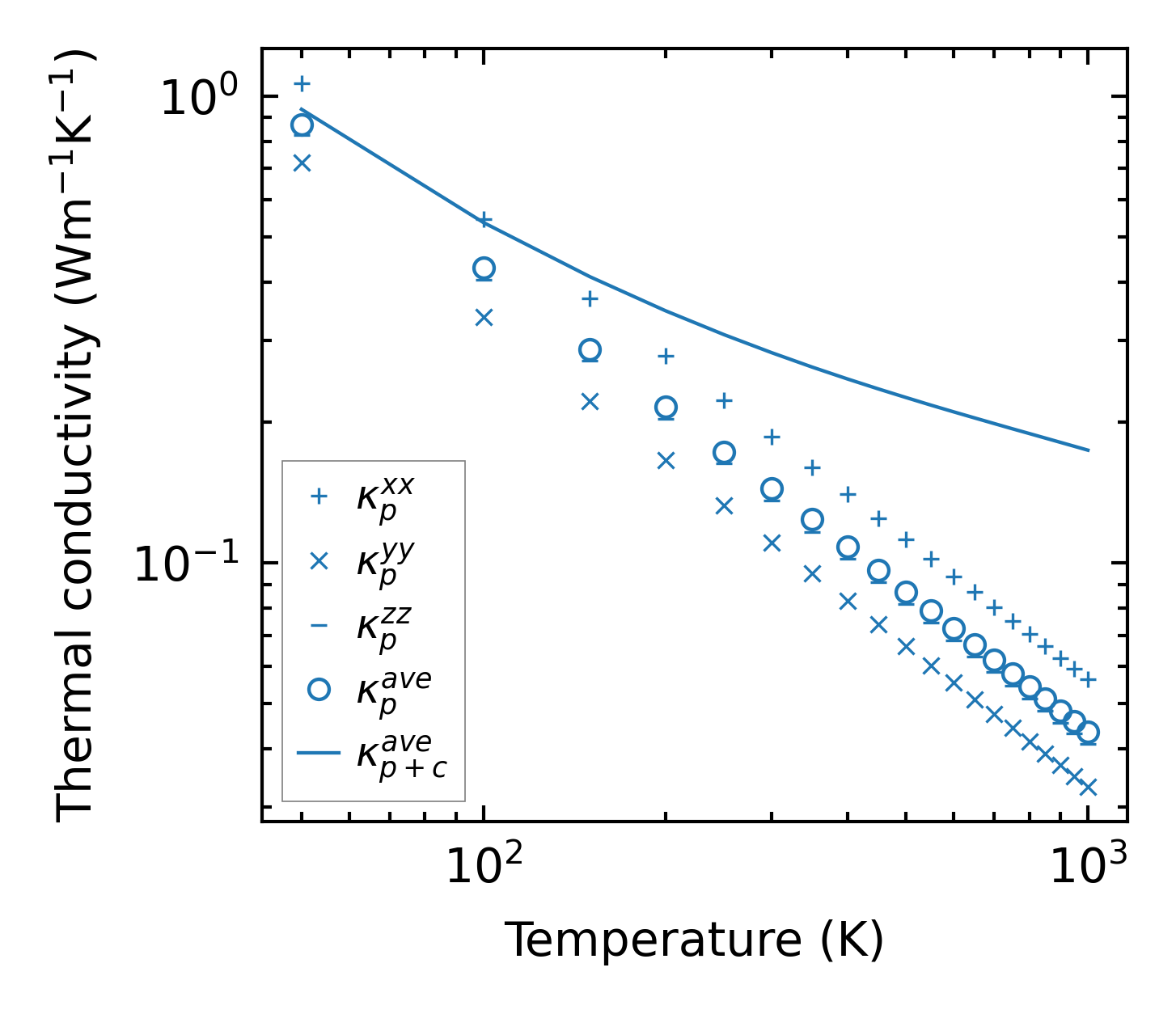

../../_images/fig_kappa13064.png — (a) Temperature-dependent lattice thermal conductivity

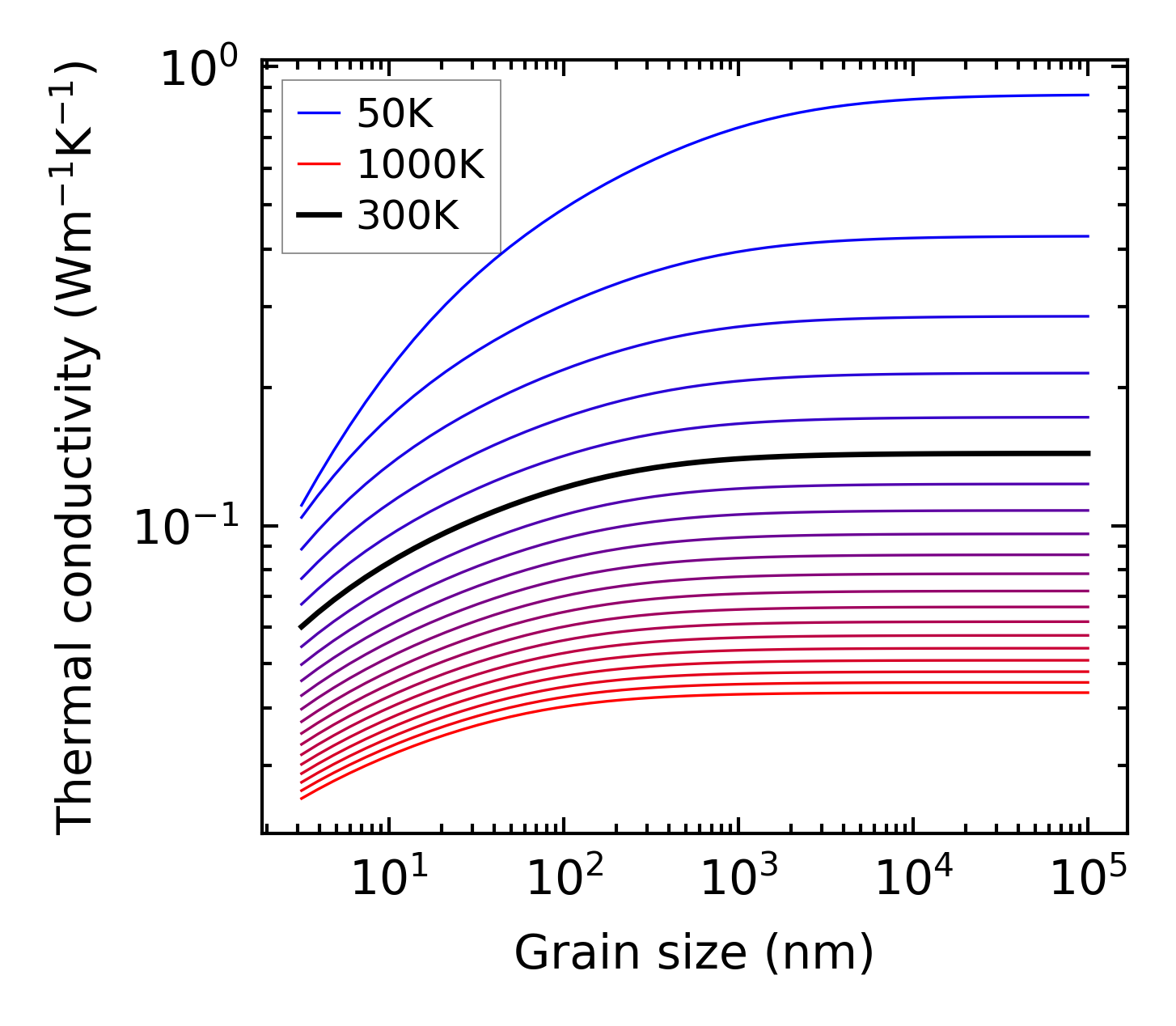

../../_images/fig_kappa_vs_grain_size7019.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

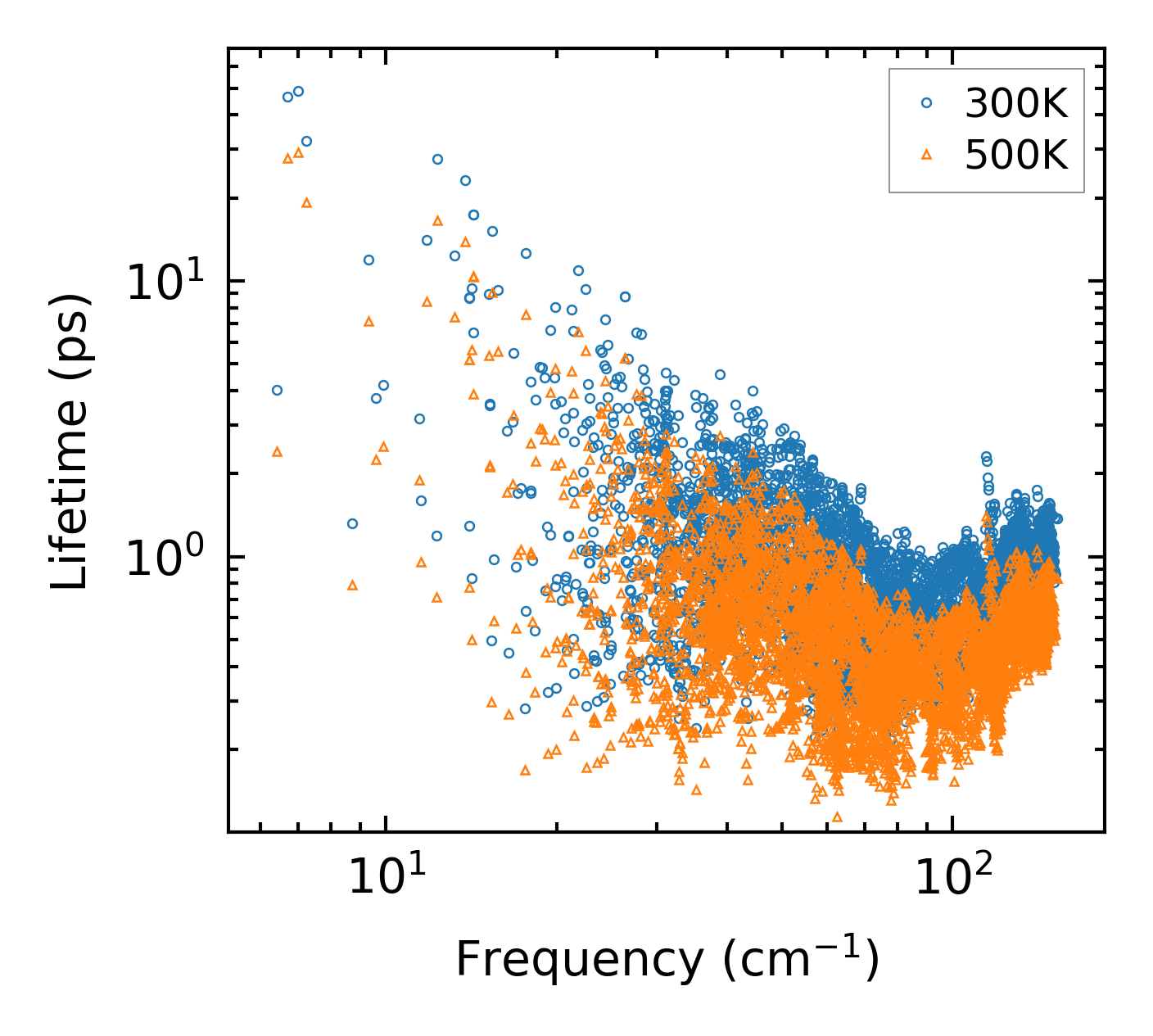

../../_images/fig_lifetime6872.png — (a) Phonon lifetime due to phonon-phonon scattering

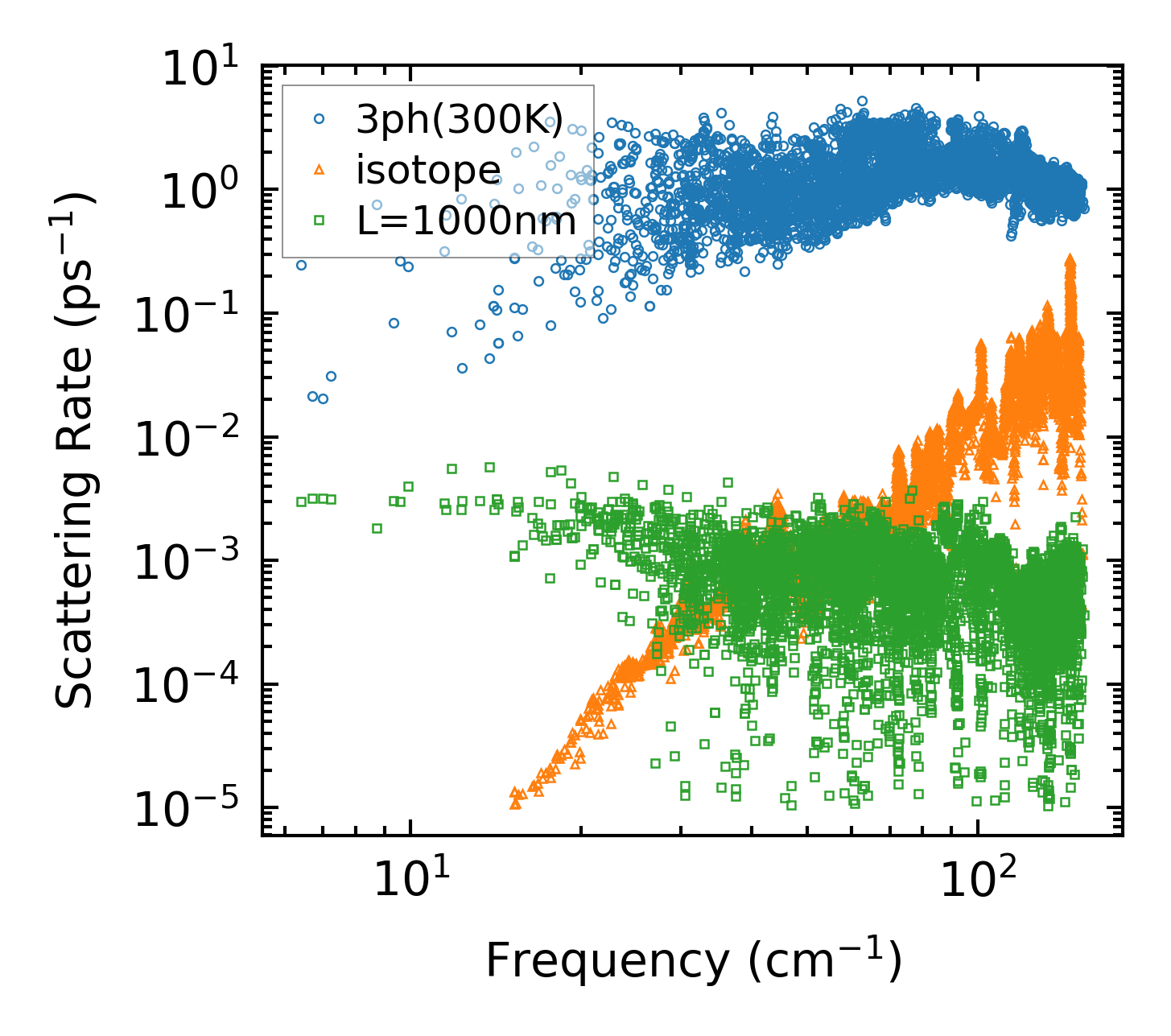

../../_images/fig_scat_rates6871.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

../../_images/fig_cumu_frequency6872.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

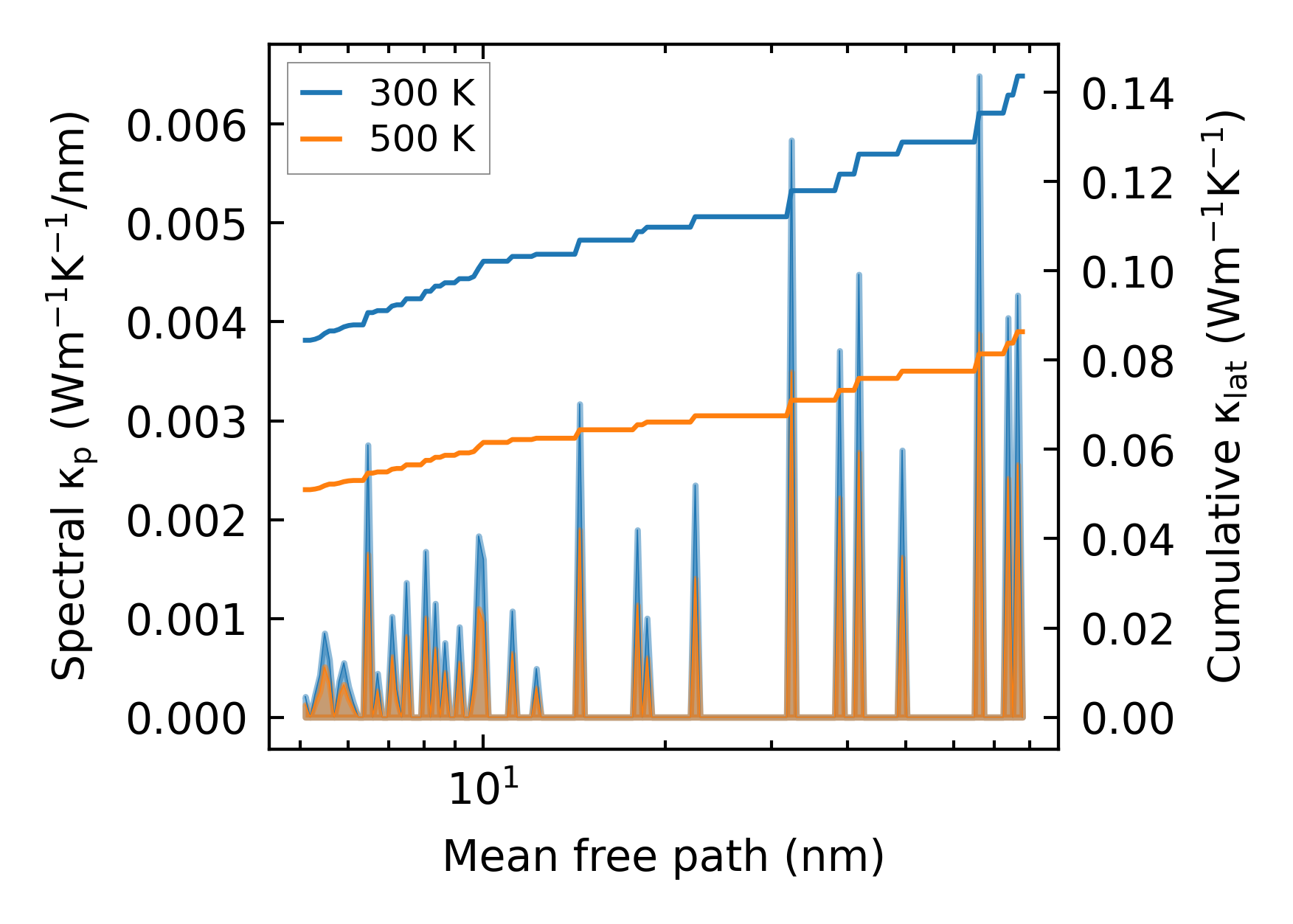

../../_images/fig_cumu_mfp6871.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

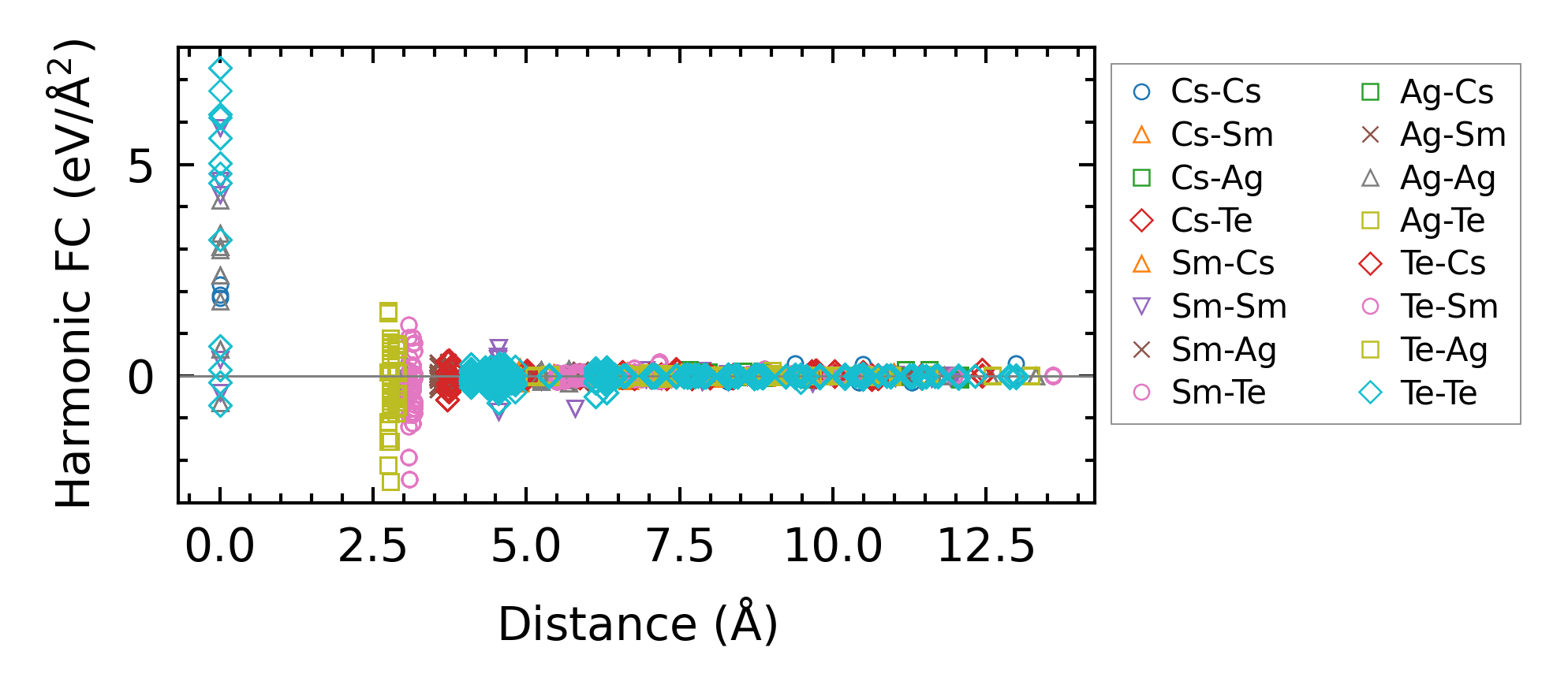

../../_images/fig_fc215589.png — (a) Force constants w.r.t atomic distance

Summary

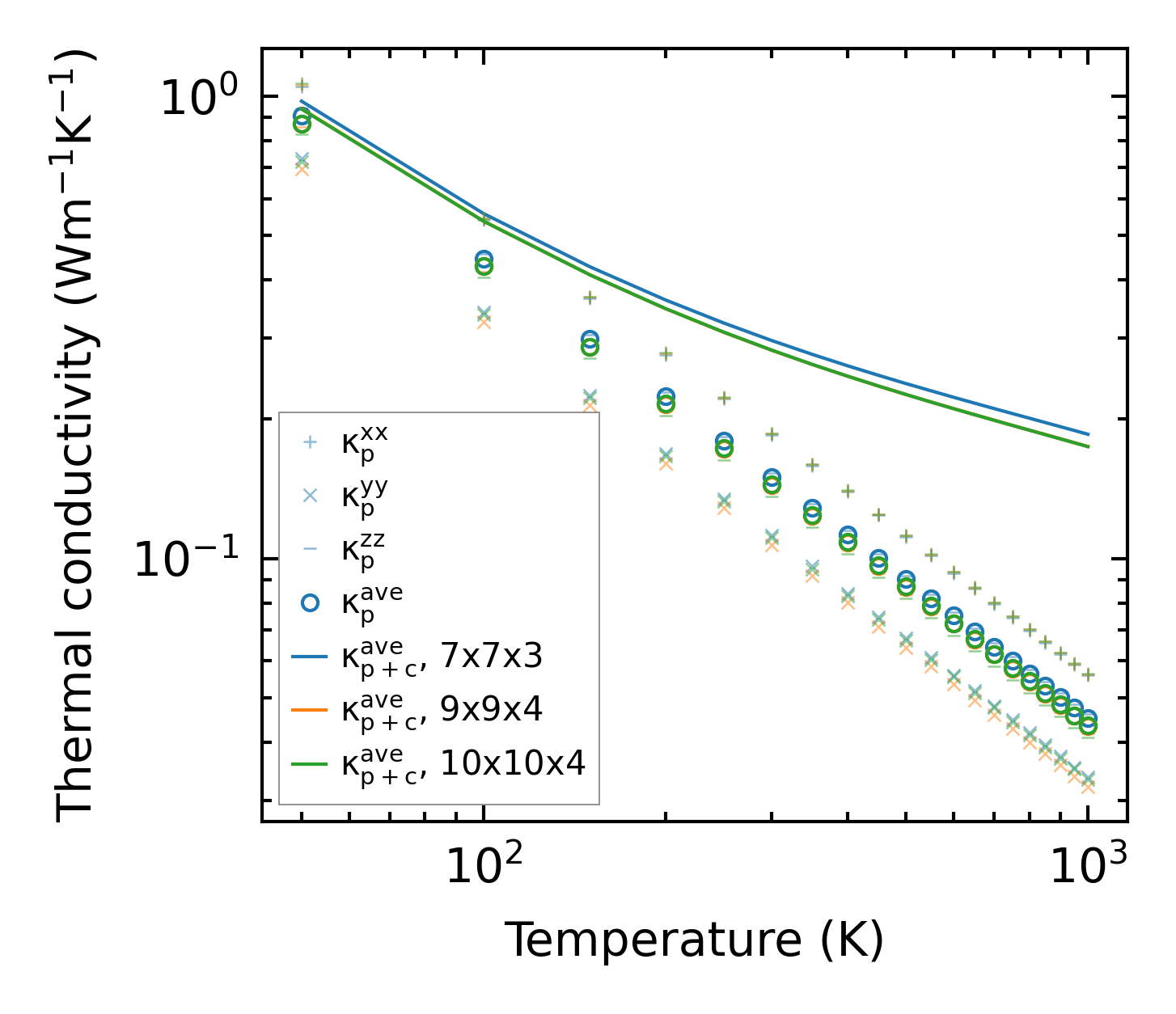

../../_images/fig_kappa13065.png — (a) Temperature-dependent lattice thermal conductivity

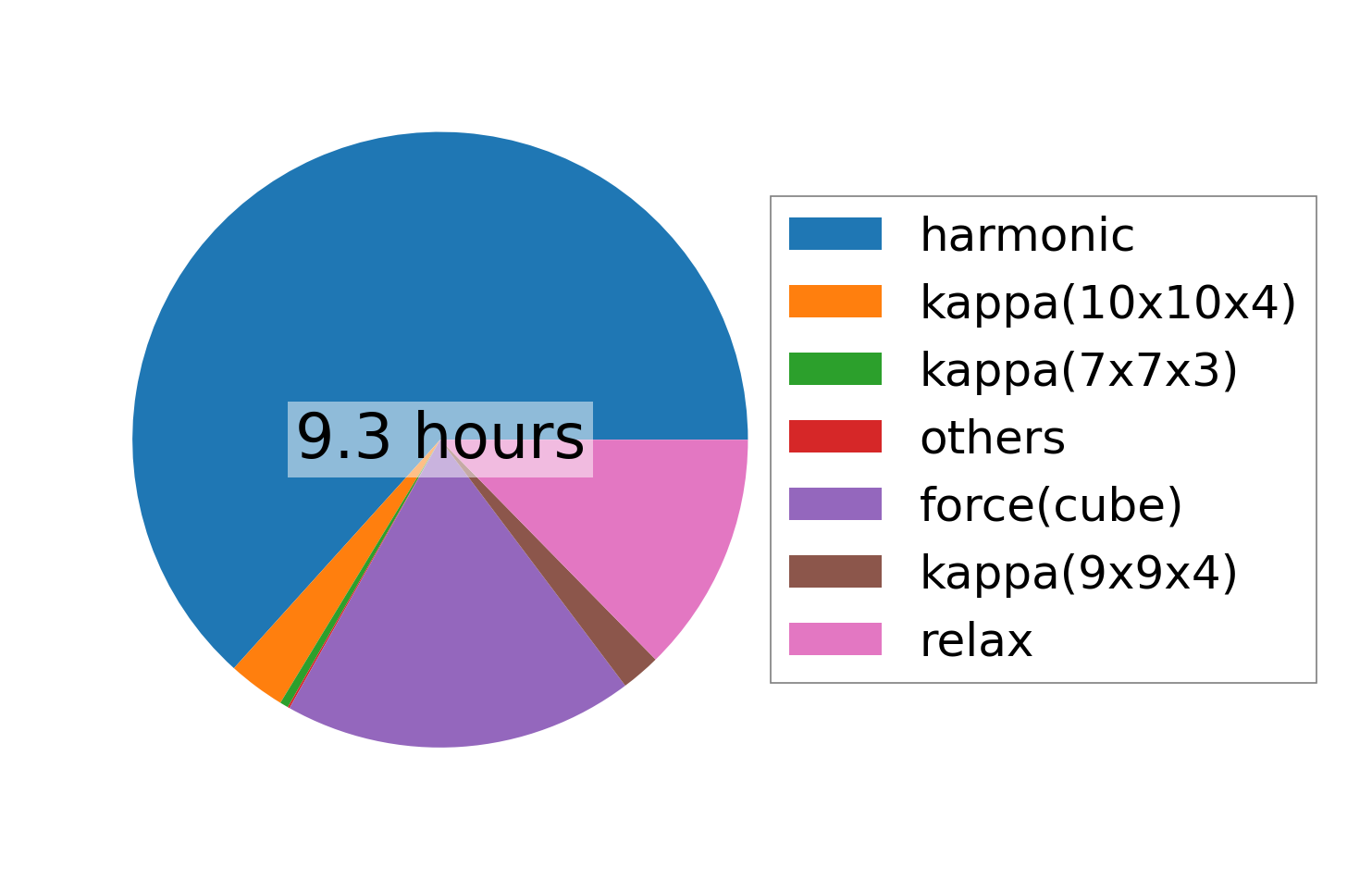

../../_images/fig_times26334.png — (b) Computation time
