mp-1190733/Cs4PbCl6/anharm

Space group: R-3c (167)
Link: Materials Project
Download: mp-1190733.tar.gz

Harmonic properties

../../_images/fig_bandos_pr16015.png — (a) Phonon dispersion with participation ratio and DOS

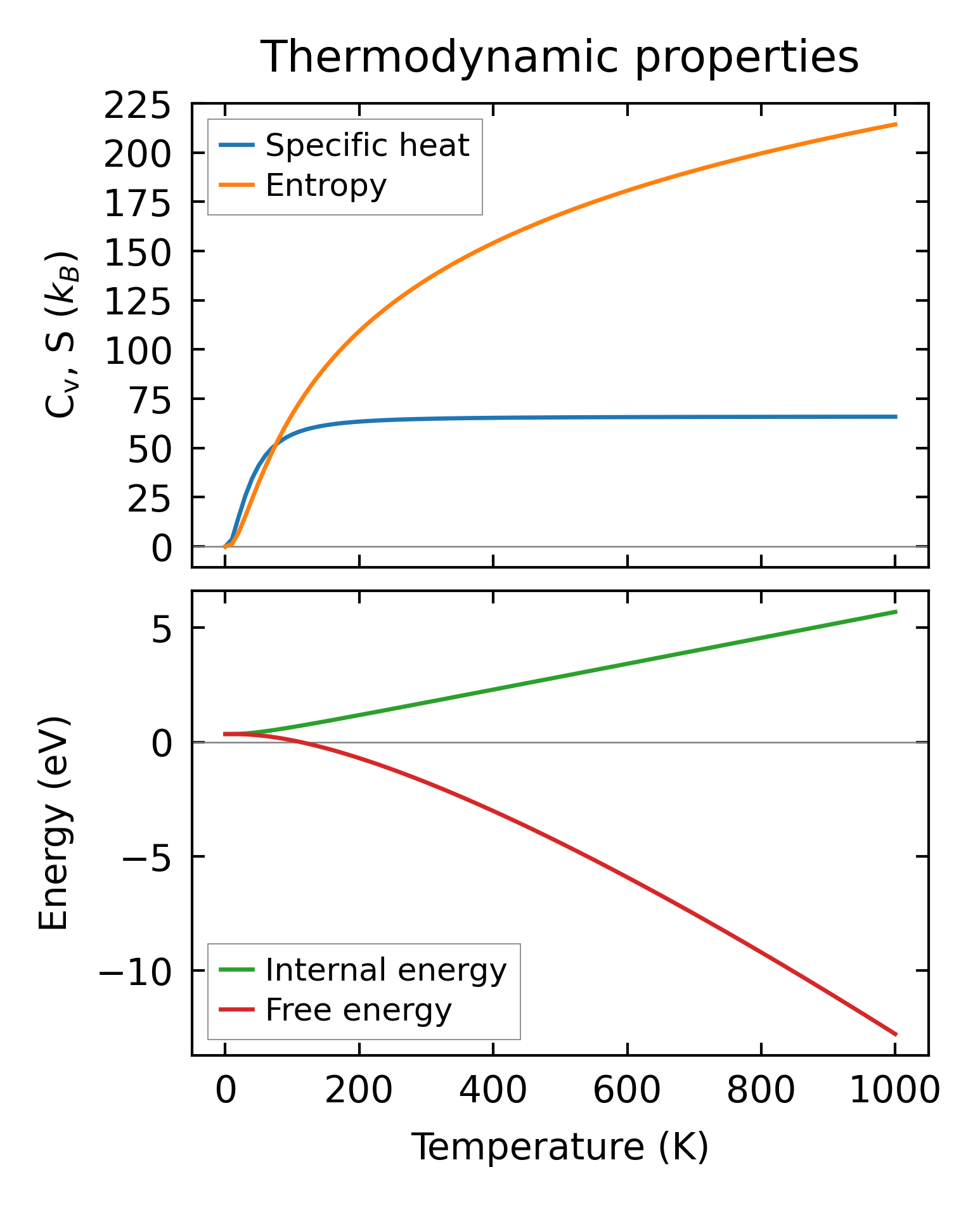

../../_images/fig_thermo16014.png — (b) Thermodynamic properties

Grüneisen parameters

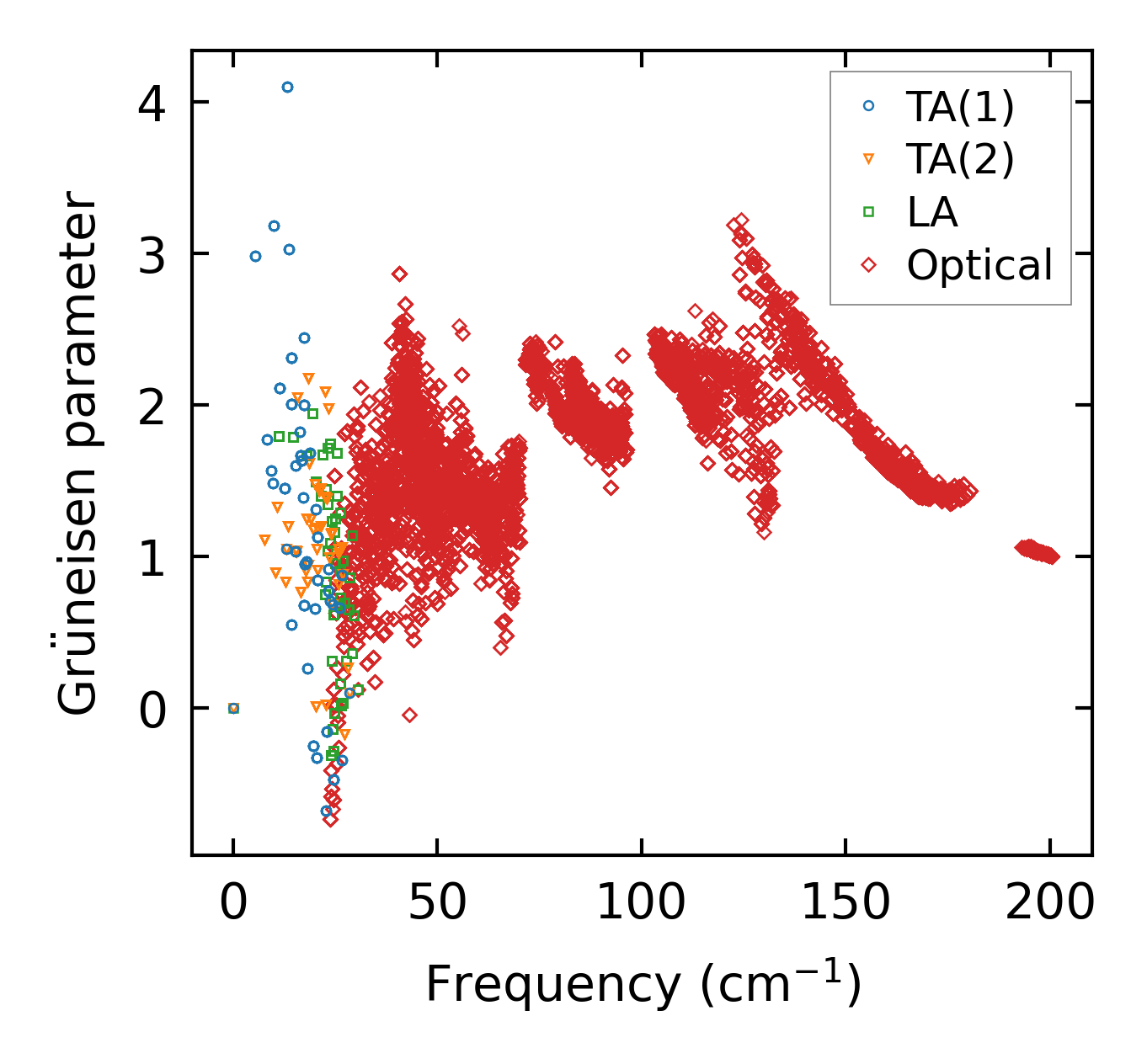

../../_images/fig_gru_all6947.png — (a) Grüneisen parameters

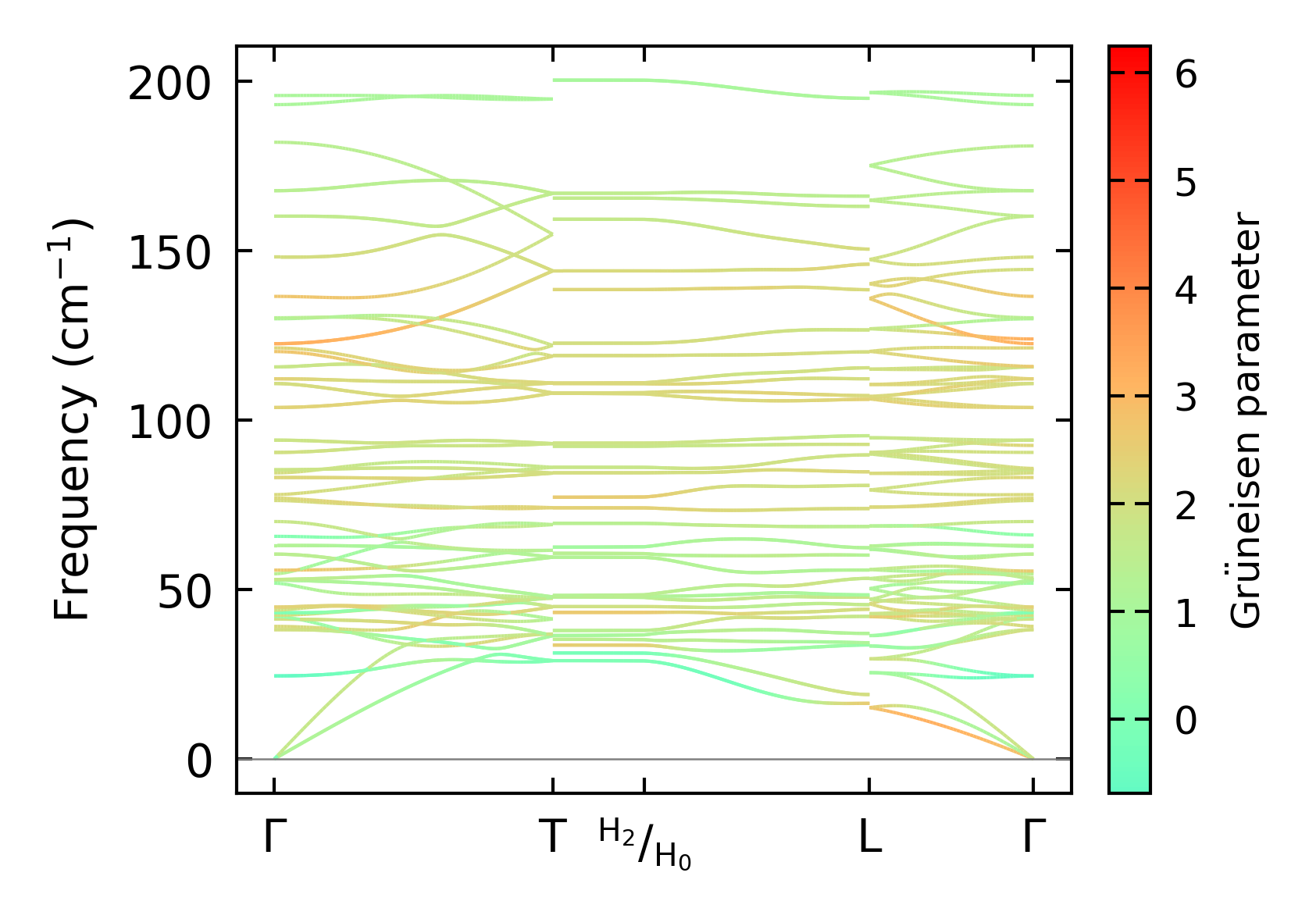

../../_images/fig_gruneisen6947.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 7x7x7, supercell: 1x1x1

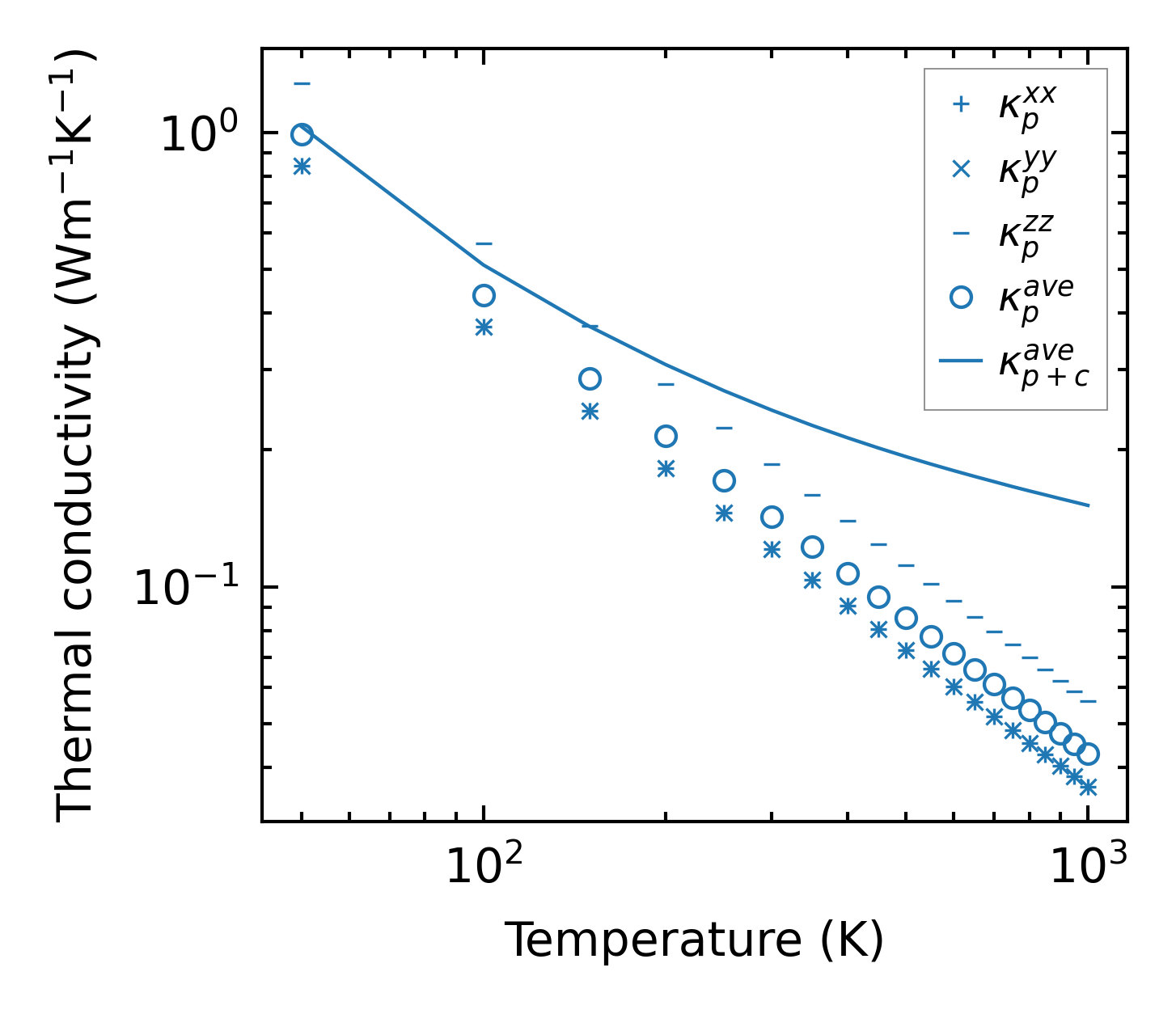

../../_images/fig_kappa13080.png — (a) Temperature-dependent lattice thermal conductivity

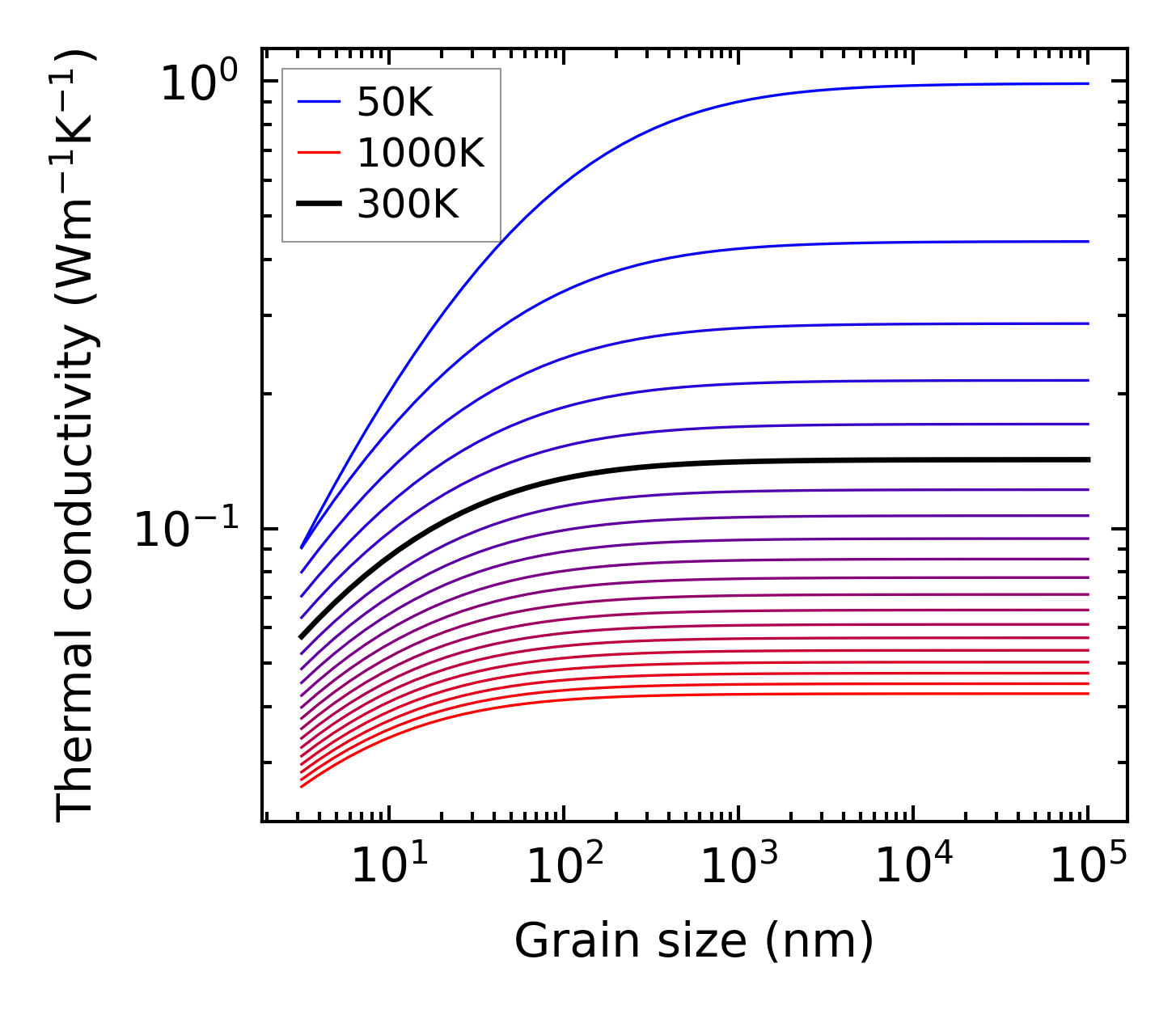

../../_images/fig_kappa_vs_grain_size7028.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

../../_images/fig_lifetime6881.png — (a) Phonon lifetime due to phonon-phonon scattering

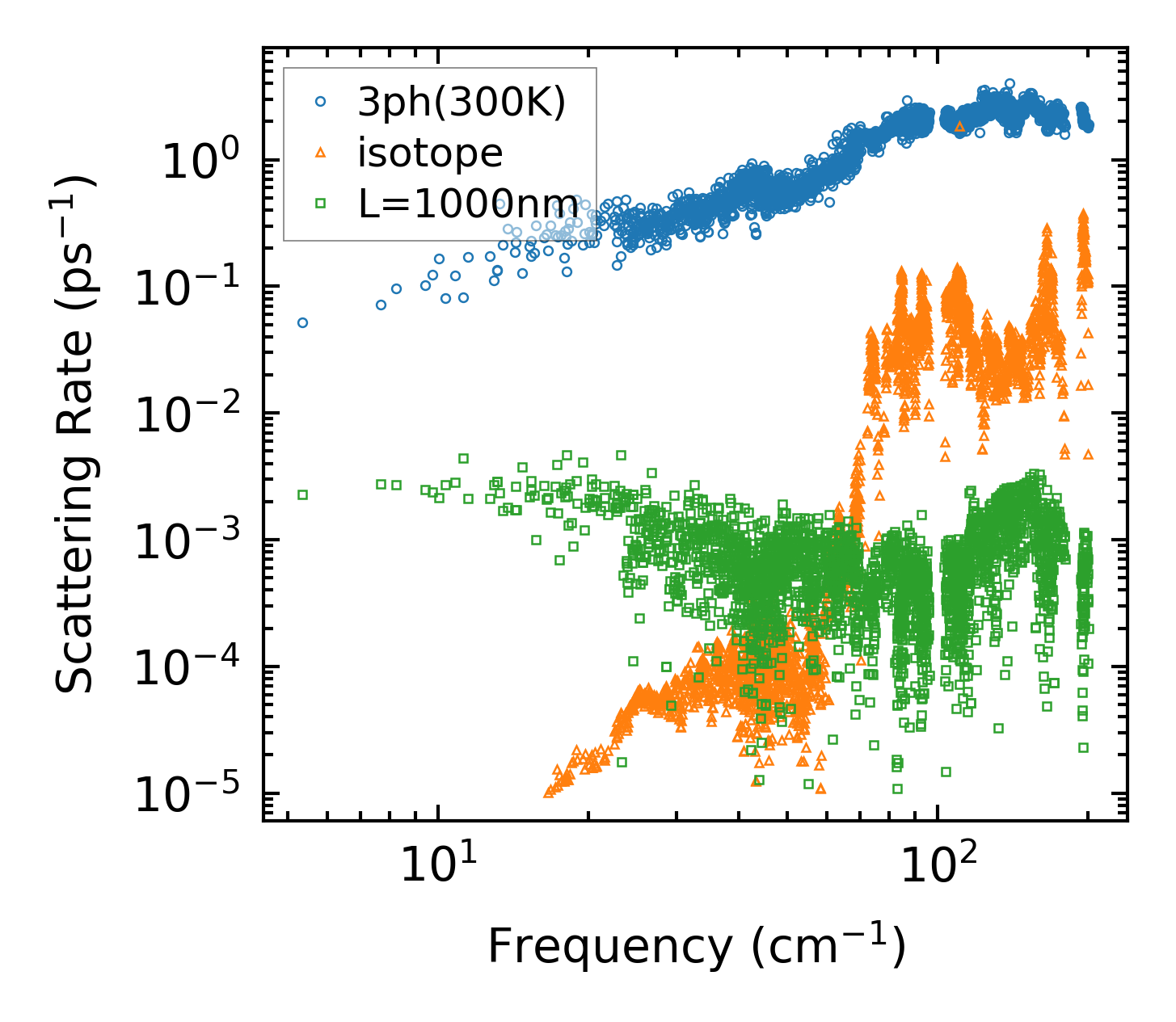

../../_images/fig_scat_rates6880.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

../../_images/fig_cumu_frequency6881.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

../../_images/fig_cumu_mfp6880.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

../../_images/fig_fc215610.png — (a) Force constants w.r.t atomic distance

Summary

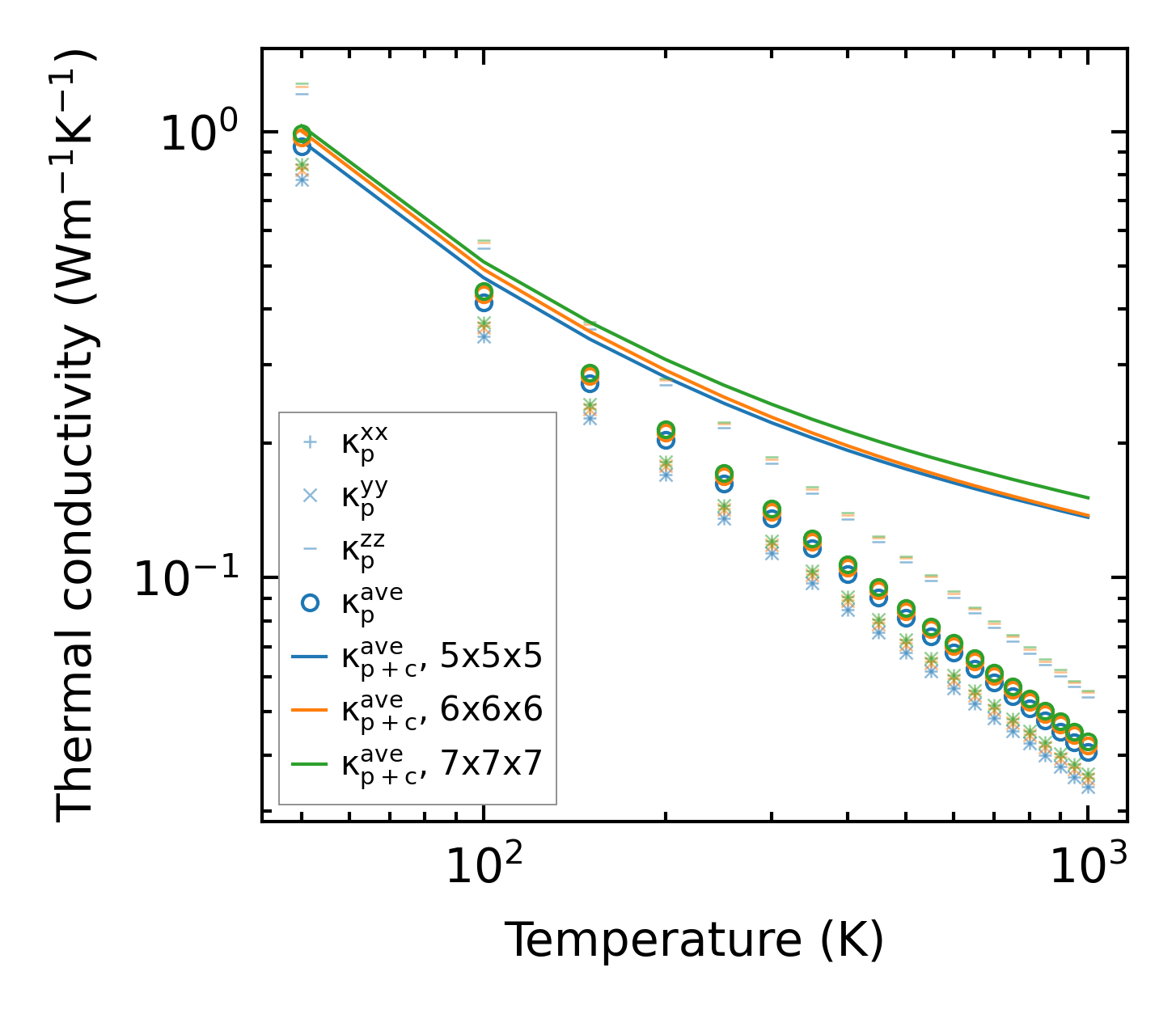

../../_images/fig_kappa13081.png — (a) Temperature-dependent lattice thermal conductivity

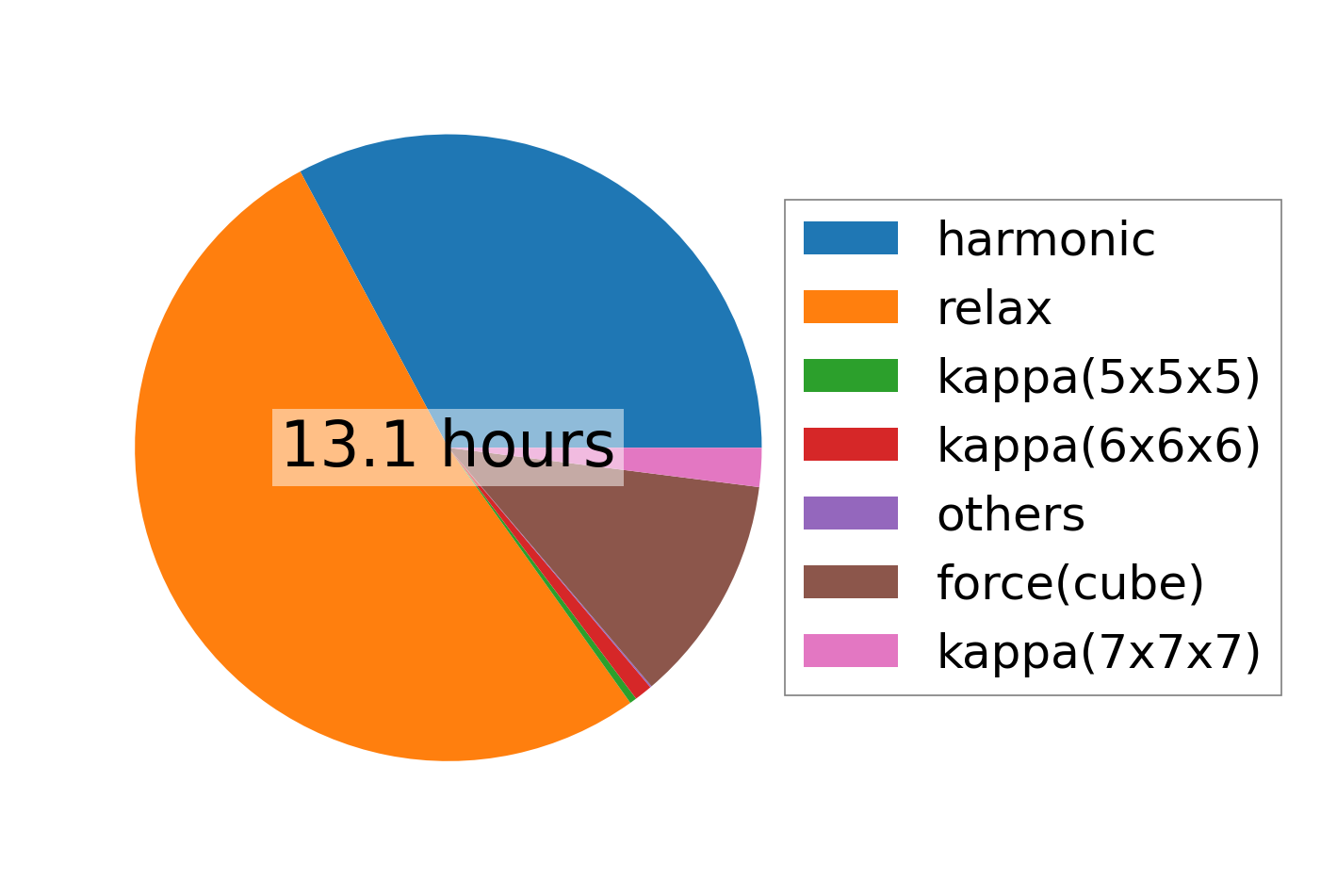

../../_images/fig_times26367.png — (b) Computation time
