mp-20546-2/Ba2In2O5/anharm

Space group: Ima2 (46)
Link: Materials Project
Download: mp-20546-2.tar.gz

Equation of state

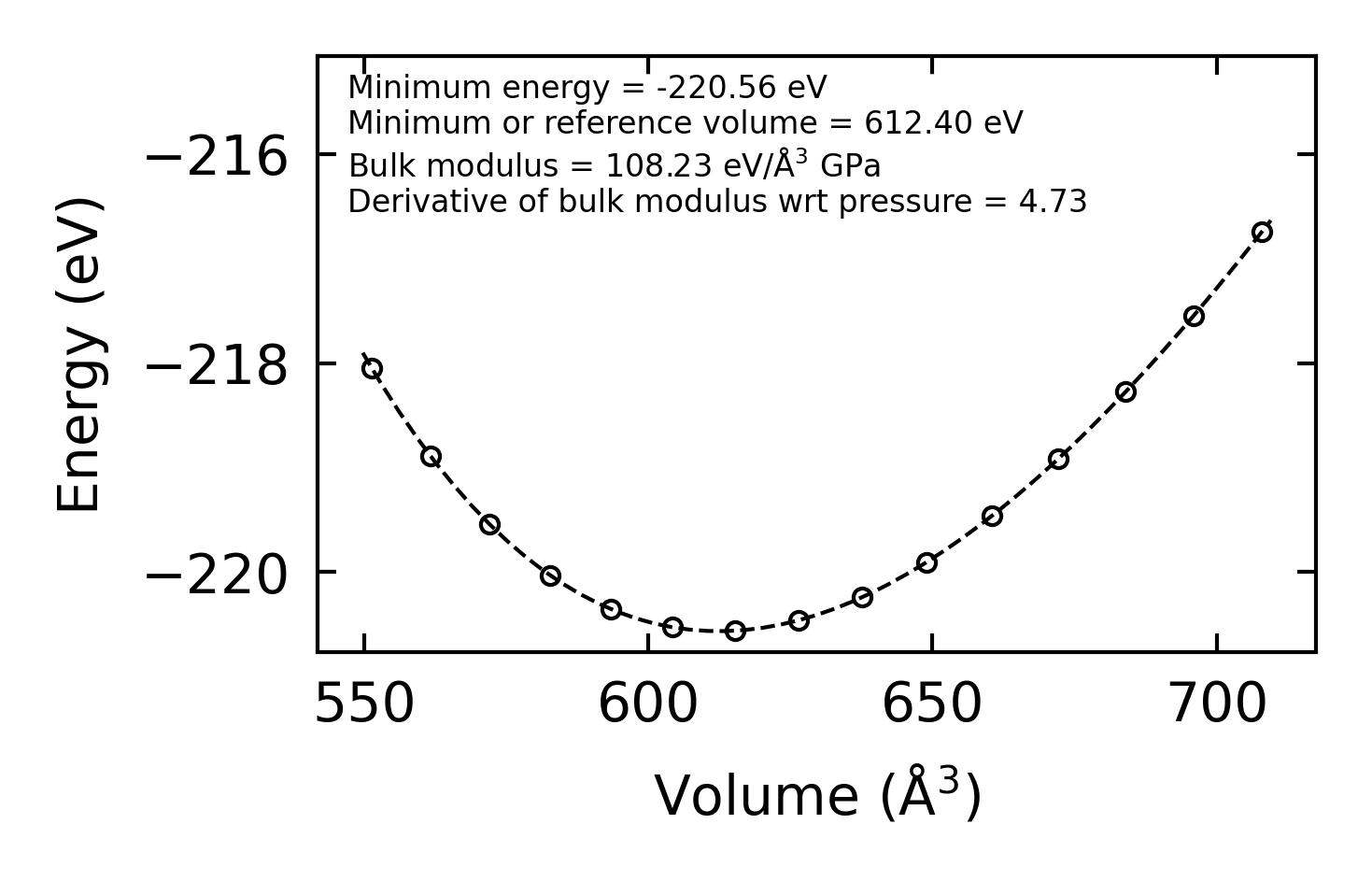

../../_images/fig_bm6734.png — (a) Equation of state

Harmonic properties

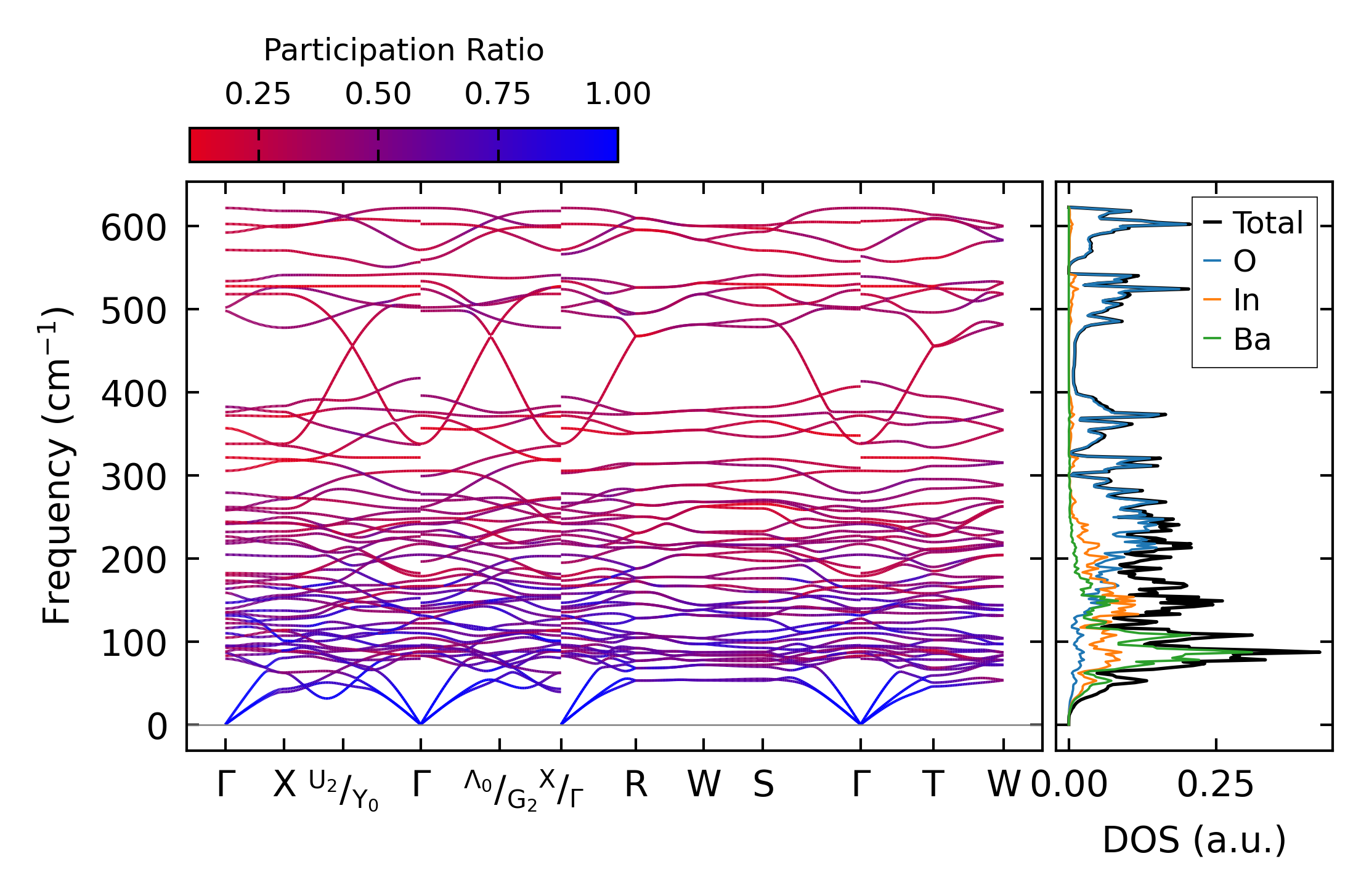

../../_images/fig_bandos_pr13487.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_bandos17843.png — (b) Phonon dispersion and DOS

../../_images/fig_thermo13487.png — (c) Thermodynamic properties

Grüneisen parameters

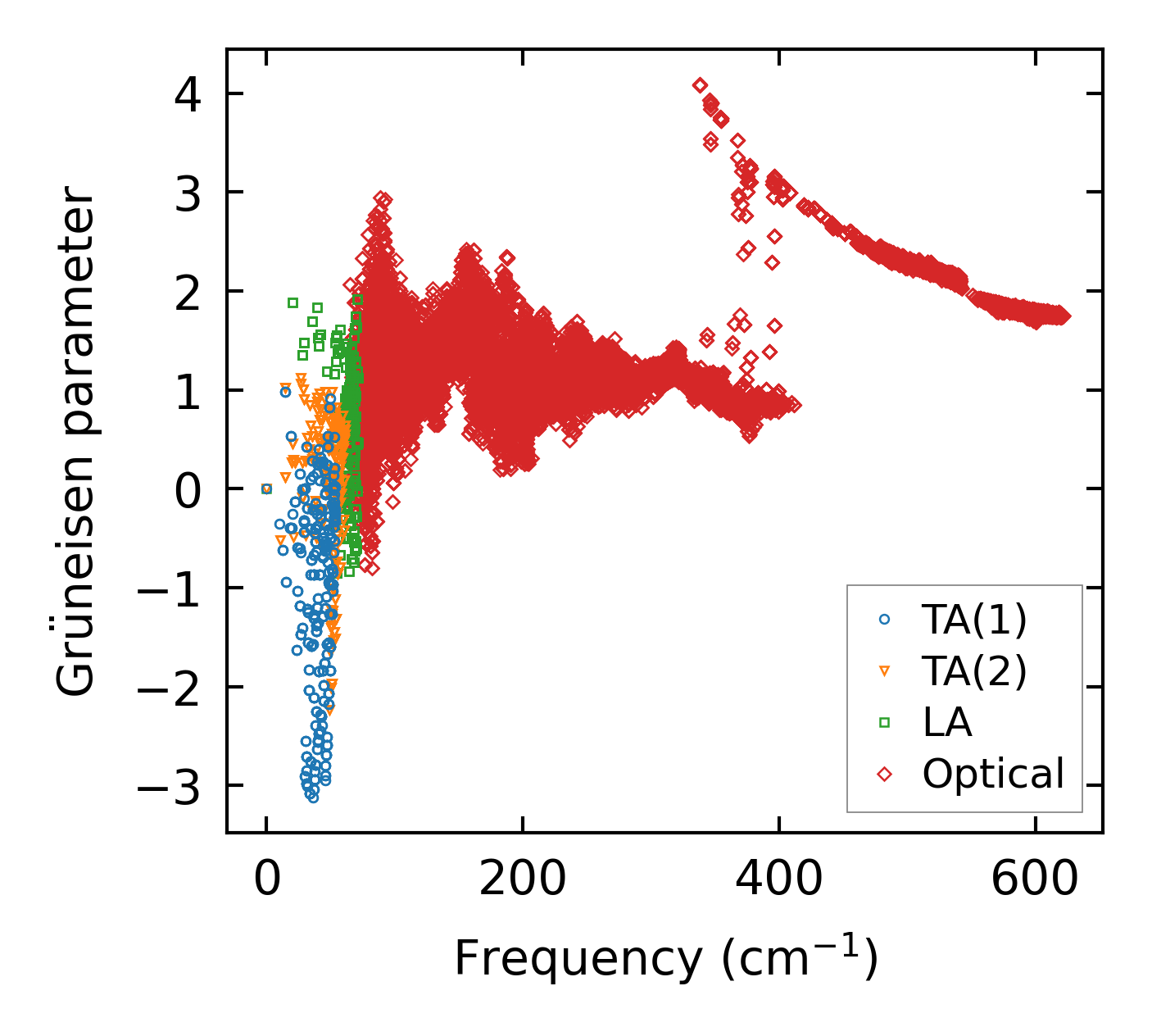

../../_images/fig_gru_all5700.png — (a) Grüneisen parameters

../../_images/fig_gruneisen5700.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 10x10x10, supercell: 1x2x2

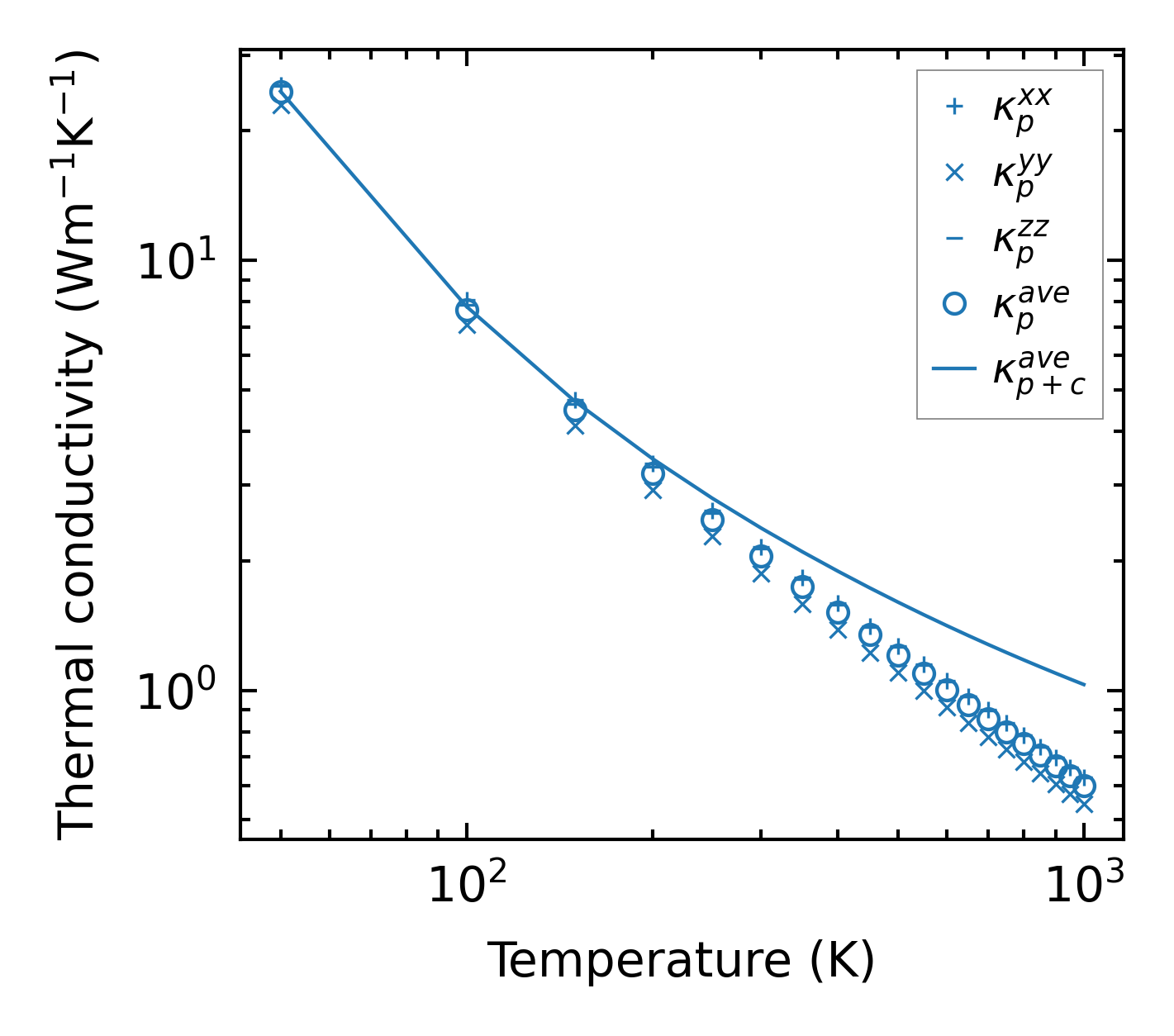

../../_images/fig_kappa10712.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size5767.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

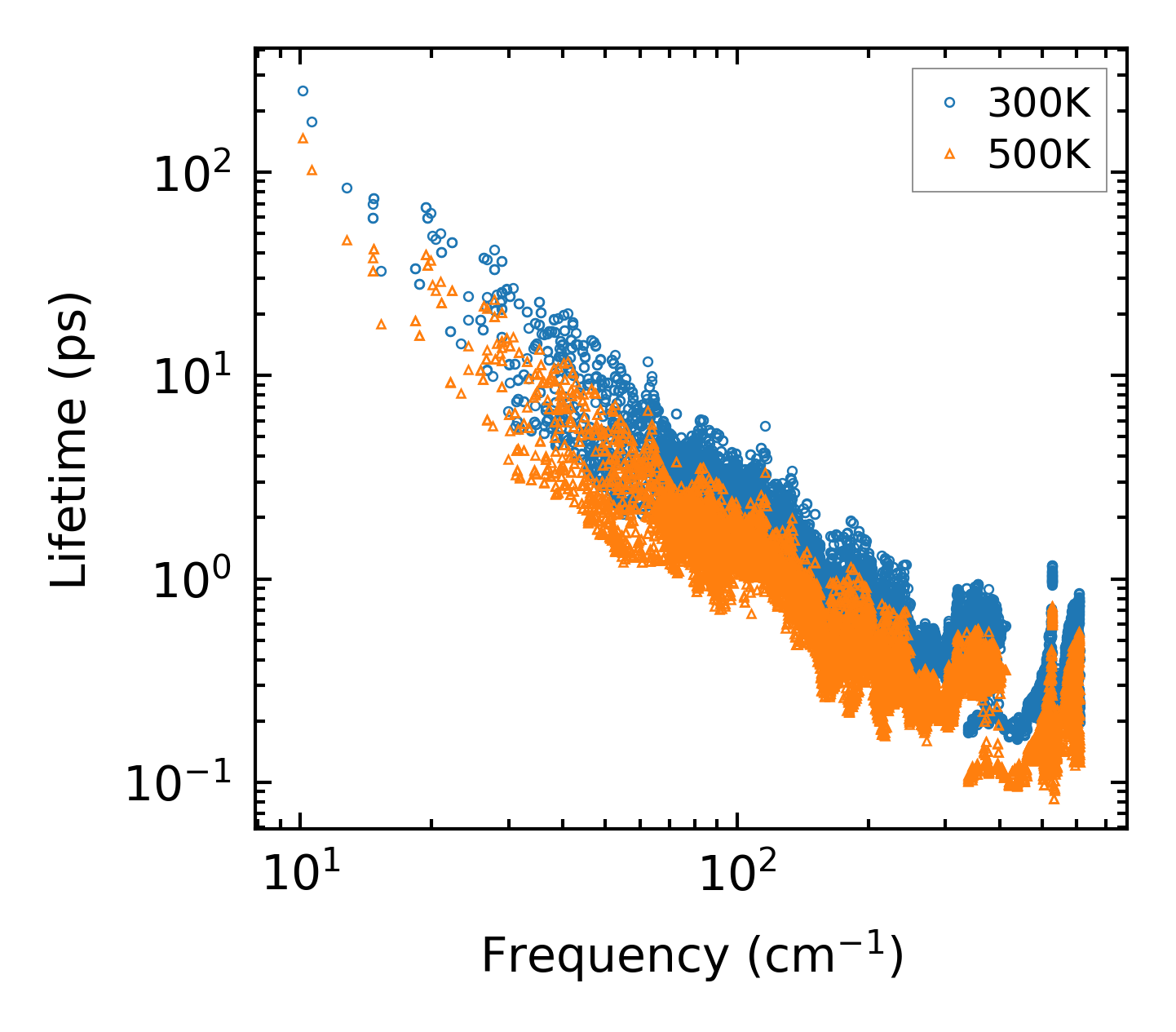

../../_images/fig_lifetime5645.png — (a) Phonon lifetime due to phonon-phonon scattering

../../_images/fig_scat_rates5644.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

../../_images/fig_cumu_frequency5645.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

../../_images/fig_cumu_mfp5644.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

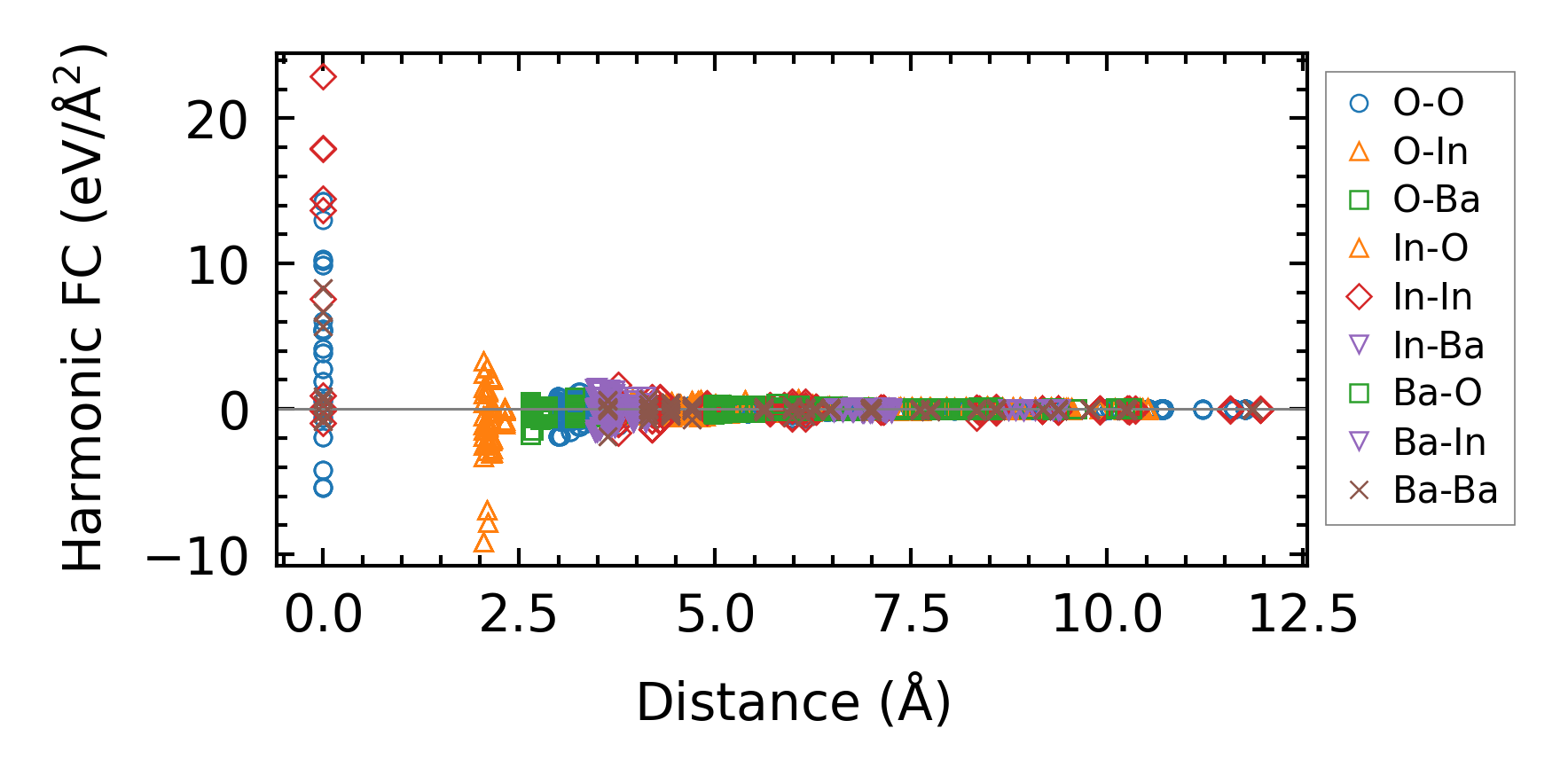

../../_images/fig_fc213122.png — (a) Force constants w.r.t atomic distance

Summary

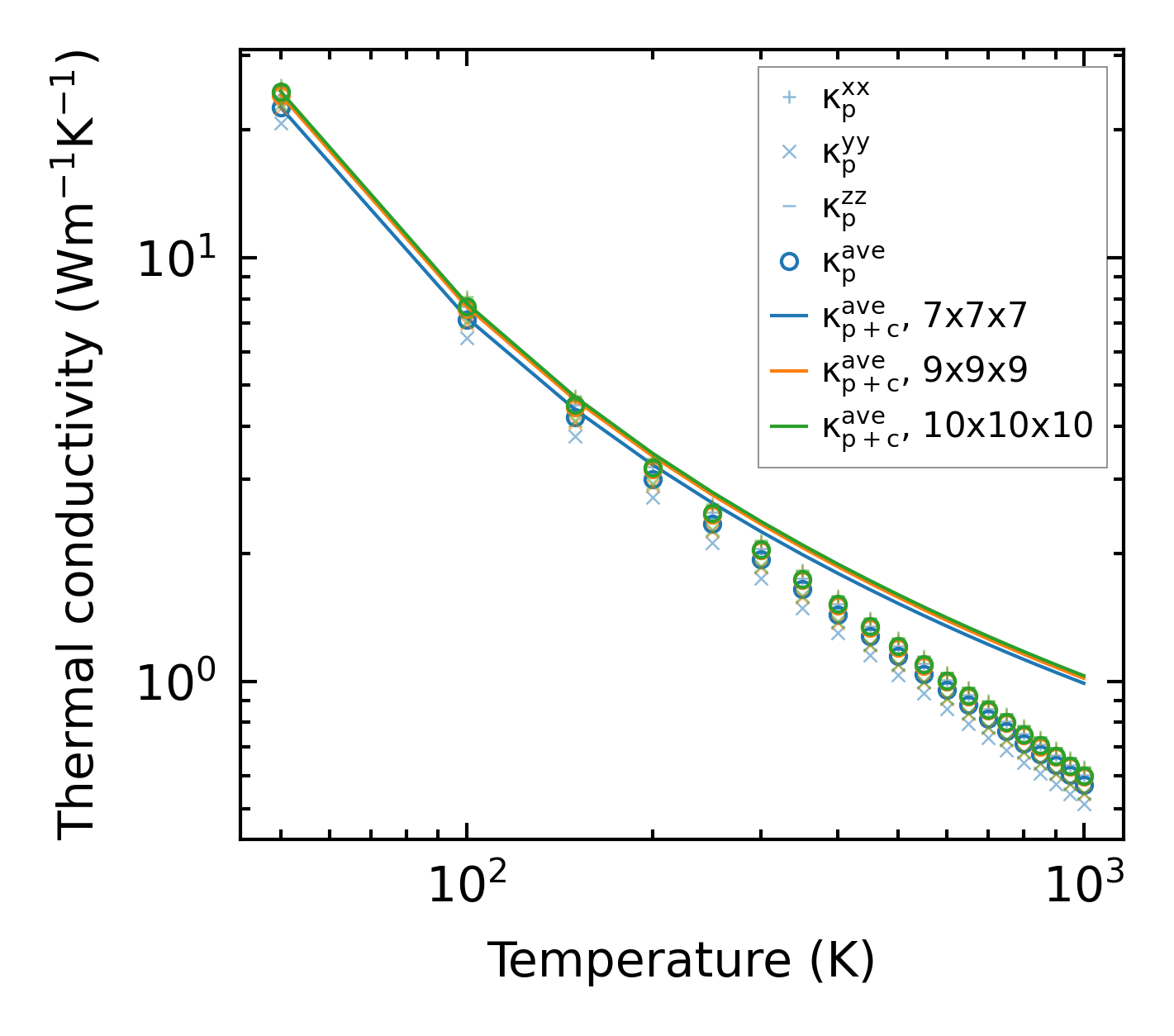

../../_images/fig_kappa10713.png — (a) Temperature-dependent lattice thermal conductivity

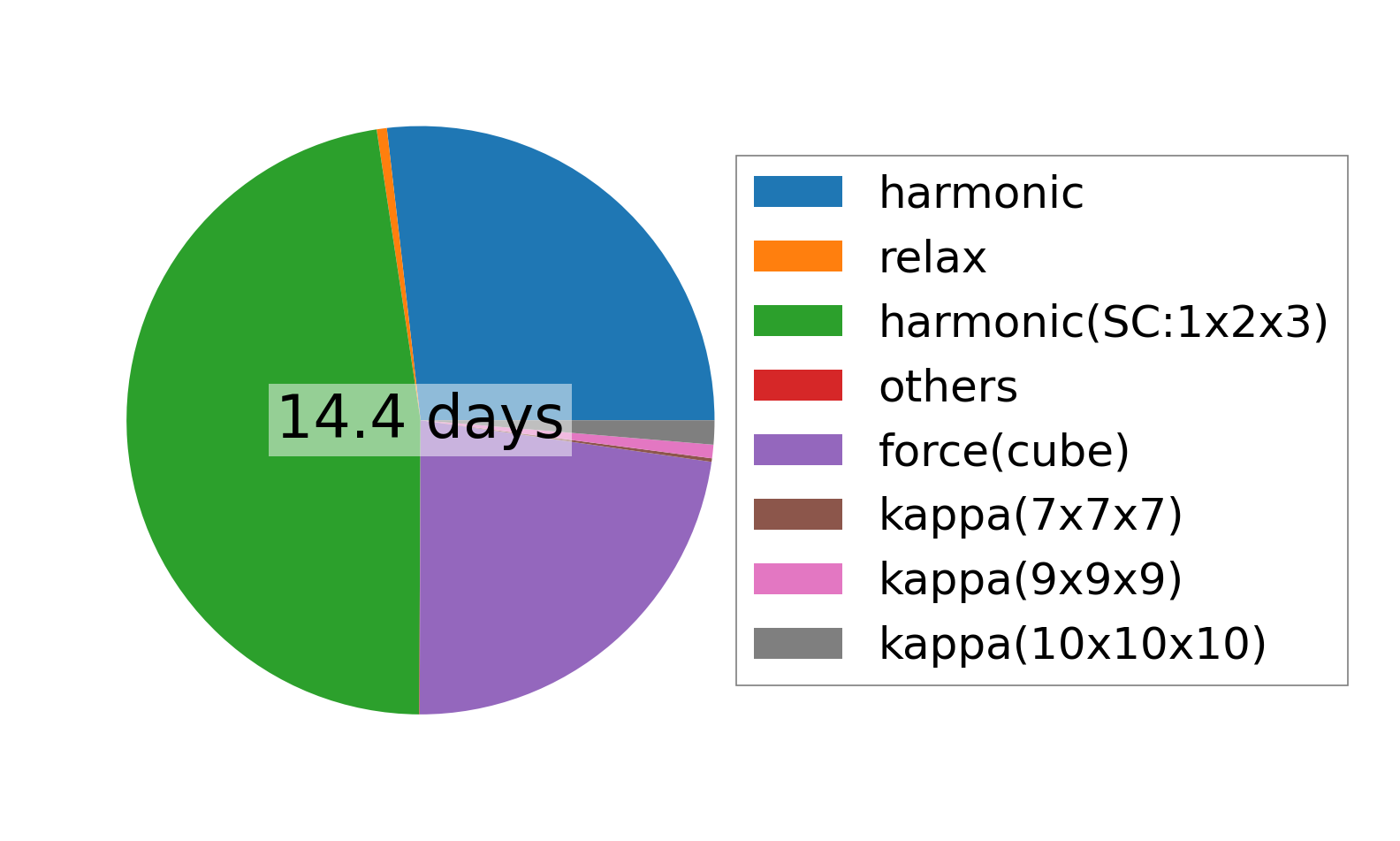

../../_images/fig_times22690.png — (b) Computation time
