mp-20496/Ga2PbO4/anharm

Space group: Ama2 (40)
Link: Materials Project
Download: mp-20496.tar.gz

Equation of state

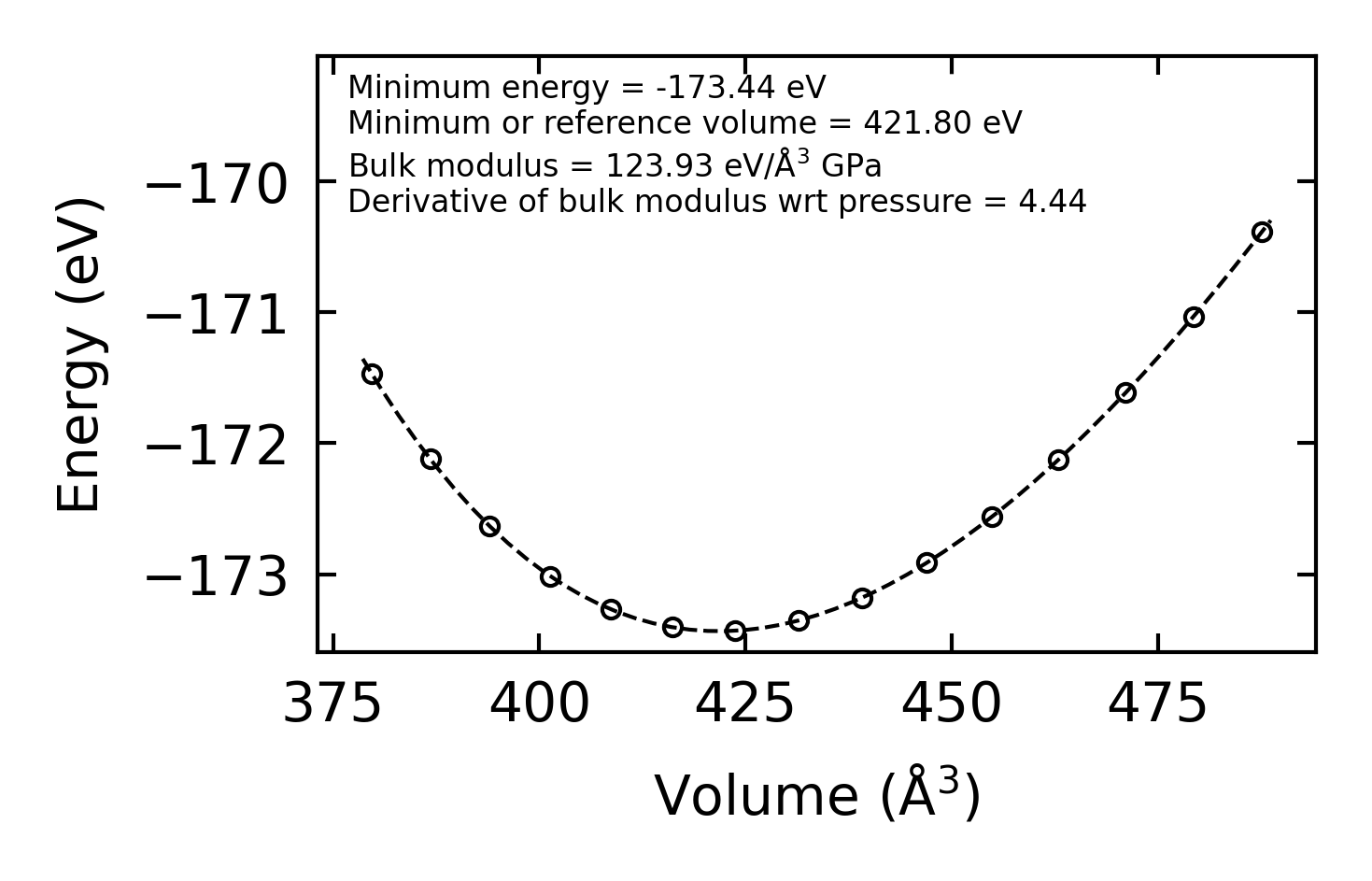

../../_images/fig_bm6732.png — (a) Equation of state

Harmonic properties

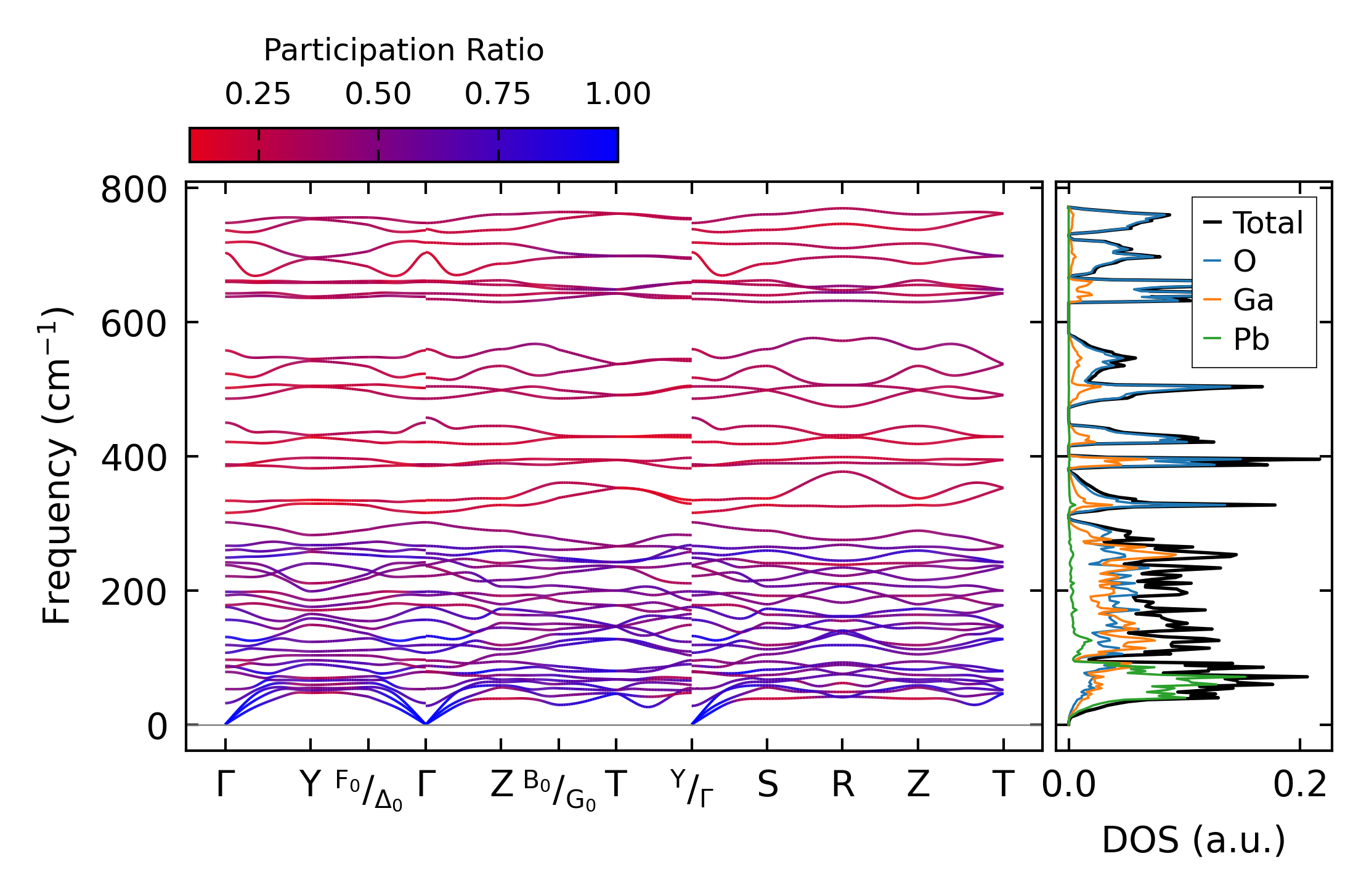

../../_images/fig_bandos_pr13483.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo13483.png — (b) Thermodynamic properties

Grüneisen parameters

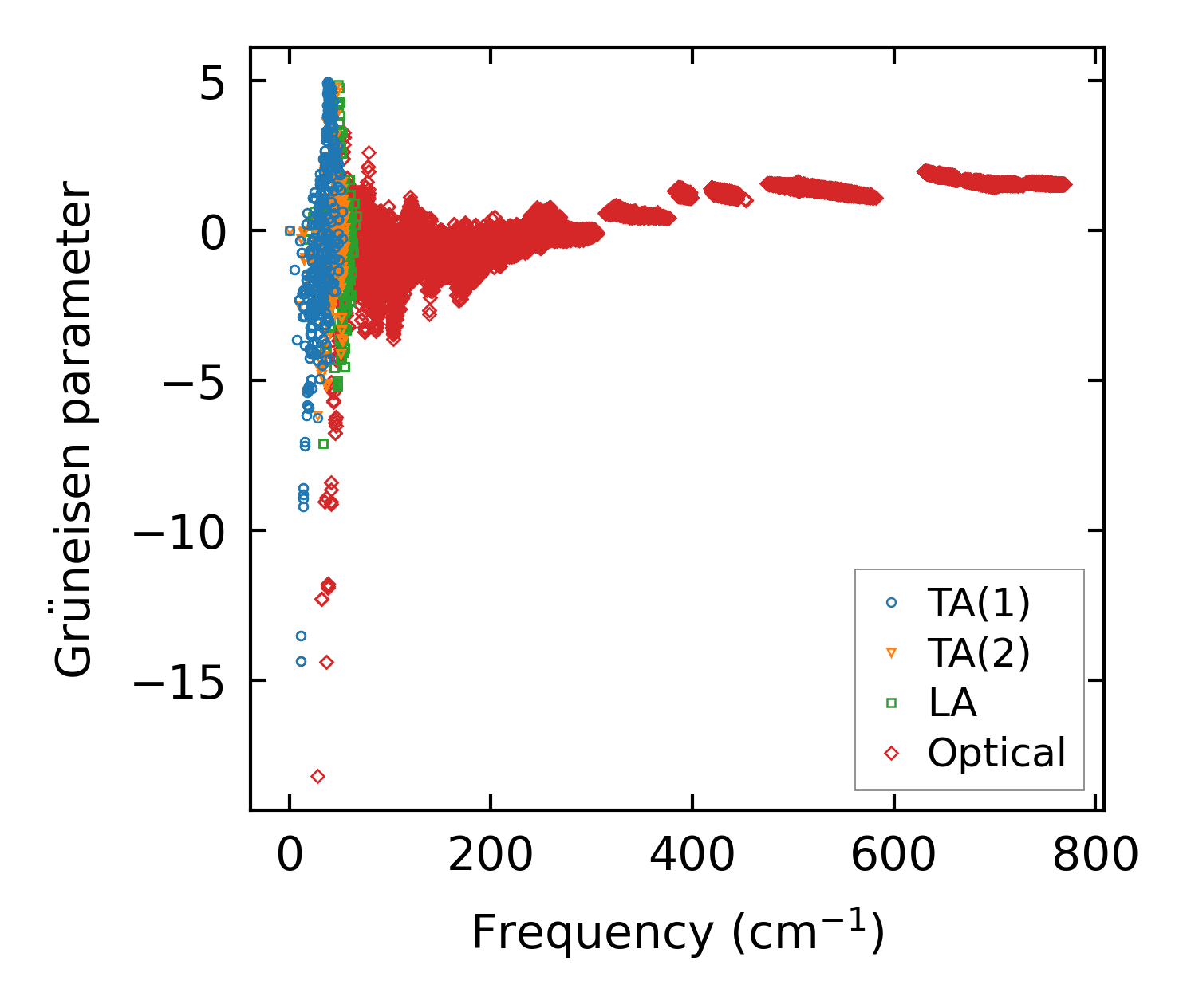

../../_images/fig_gru_all5698.png — (a) Grüneisen parameters

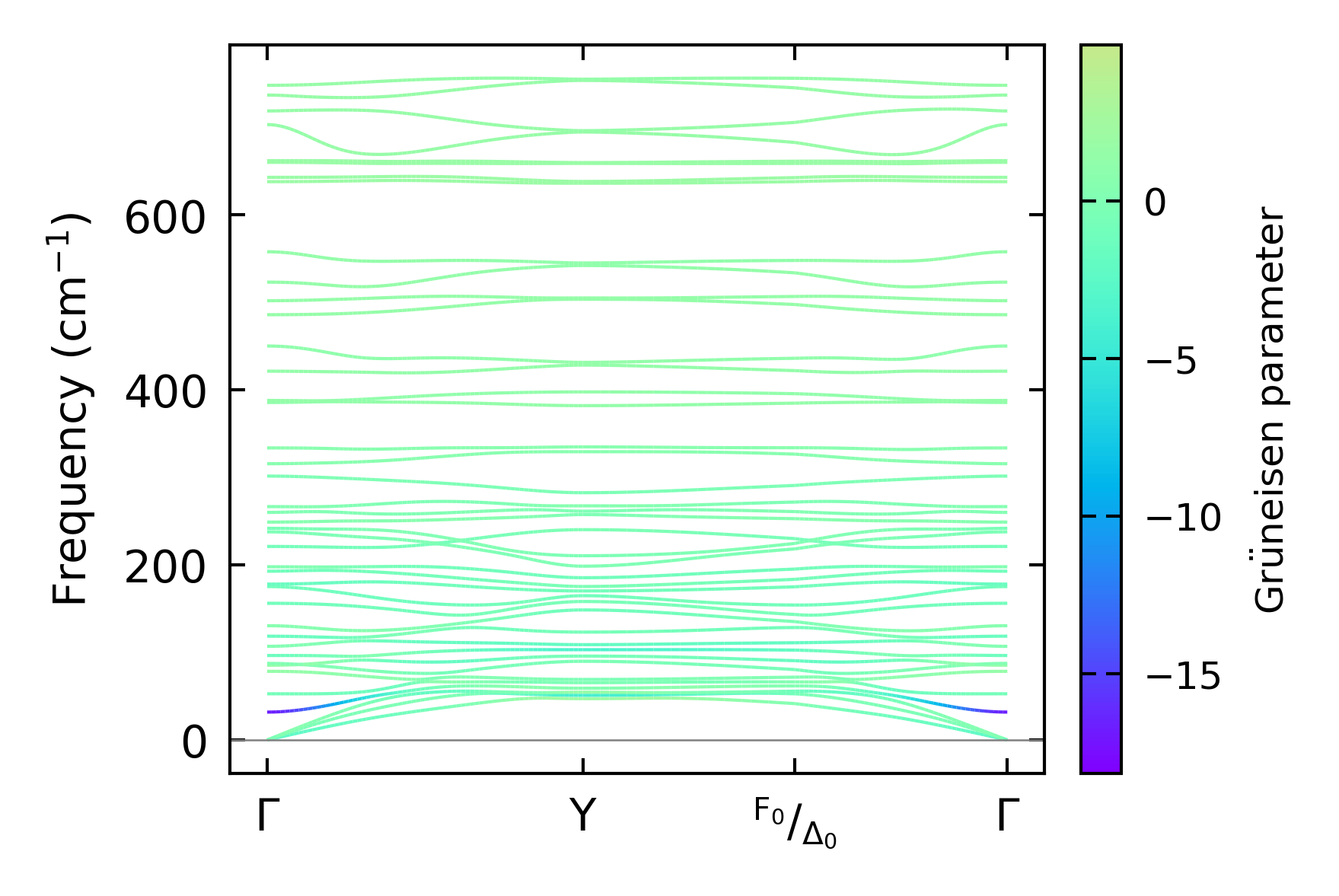

../../_images/fig_gruneisen5698.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 8x14x14, supercell: 2x1x2

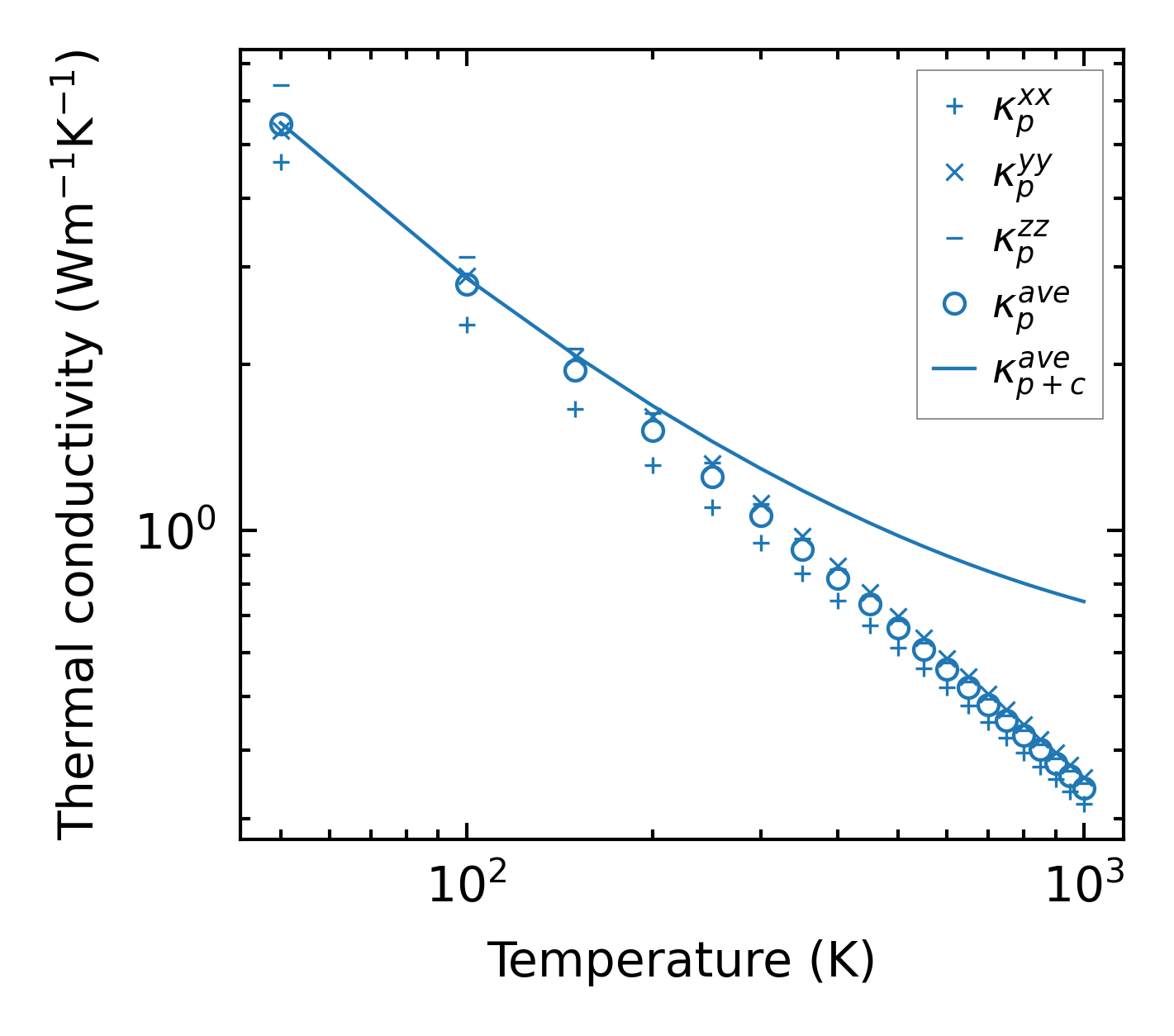

../../_images/fig_kappa10708.png — (a) Temperature-dependent lattice thermal conductivity

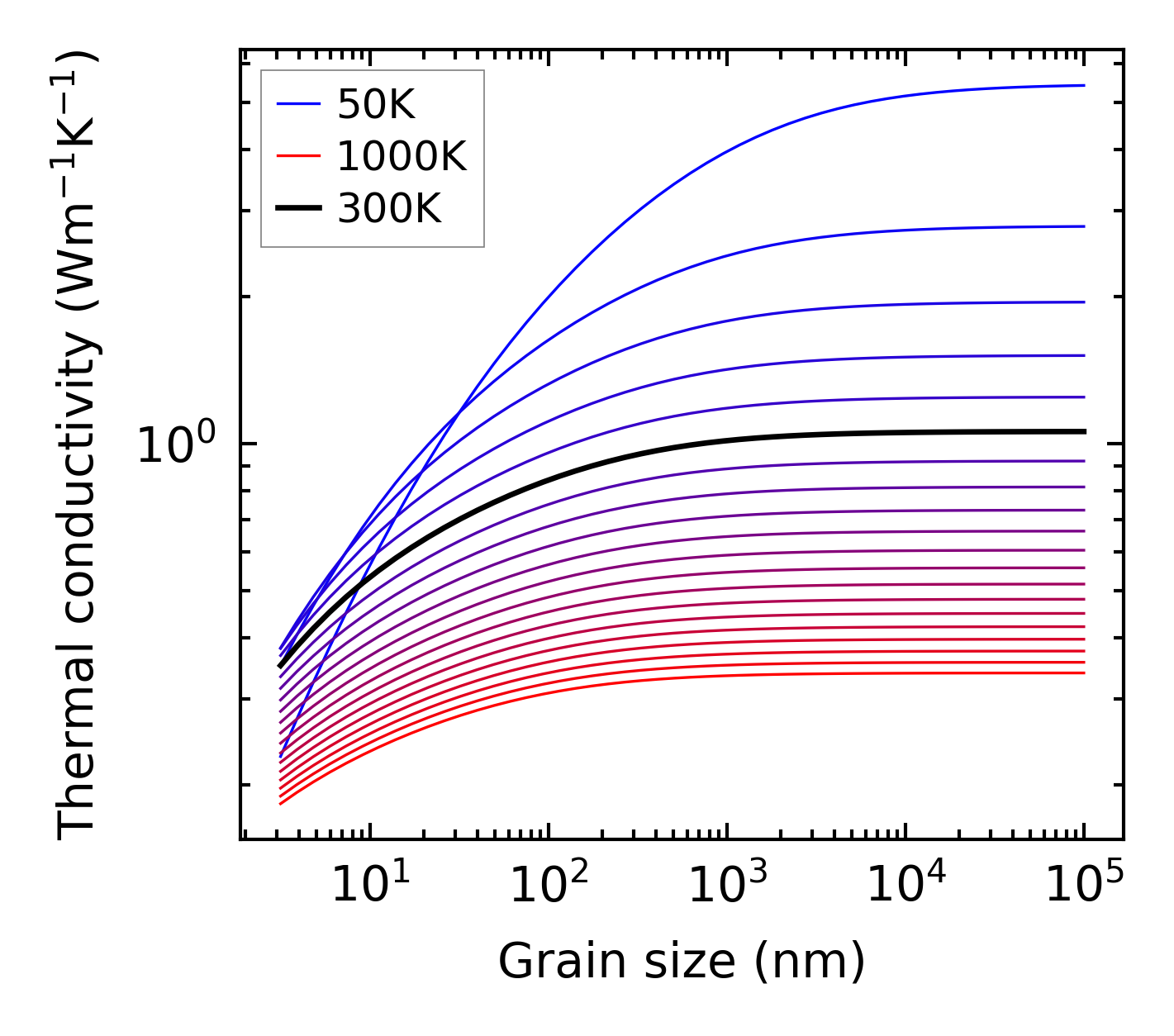

../../_images/fig_kappa_vs_grain_size5764.png — (b) Peierls lattice thermal conductivity w.r.t grain size

3-phonon (LASSO), supercell 2x2x2 — q-mesh: 8x14x14, supercell: 2x2x2

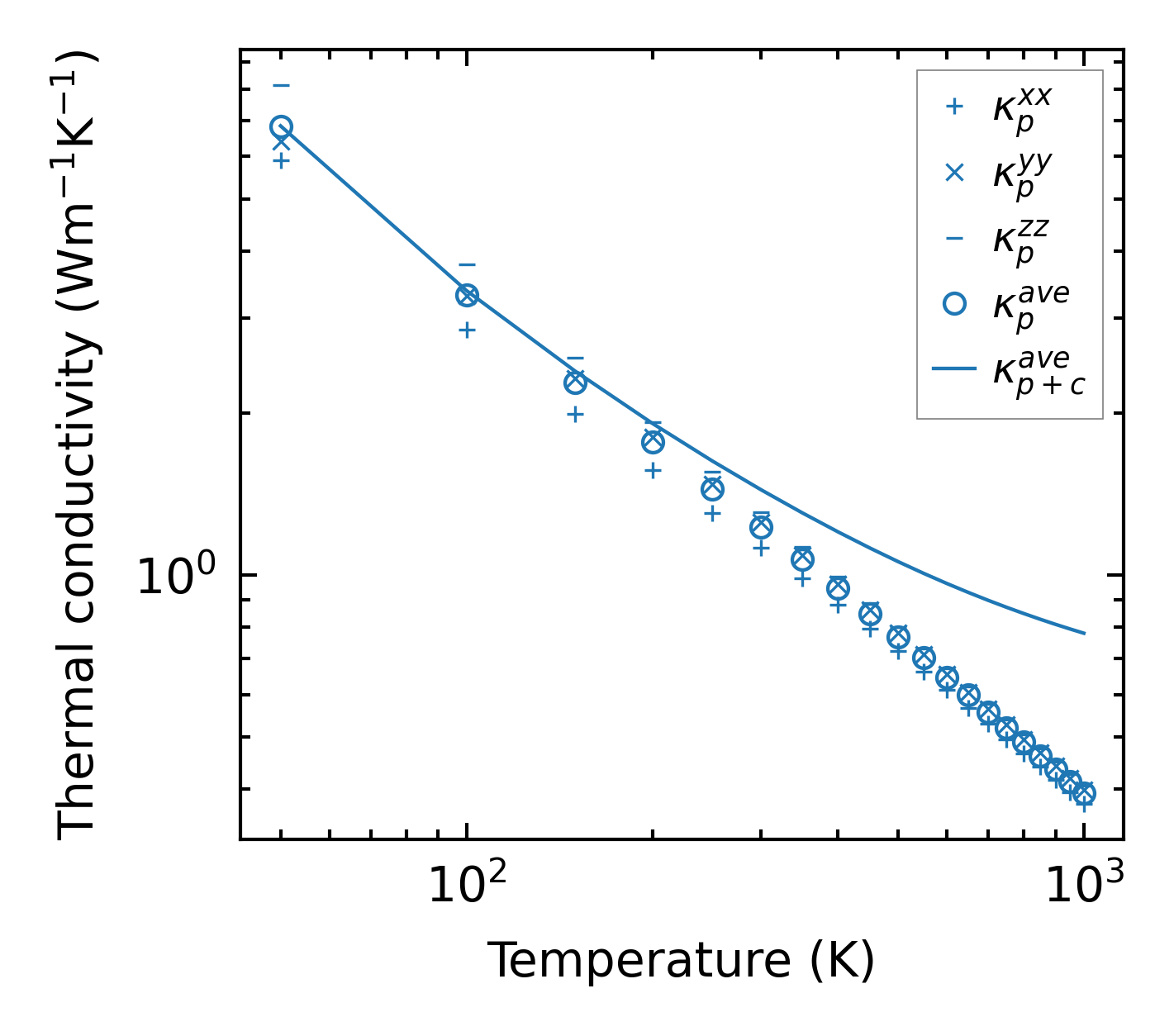

../../_images/fig_kappa10709.png — (a) Temperature-dependent lattice thermal conductivity

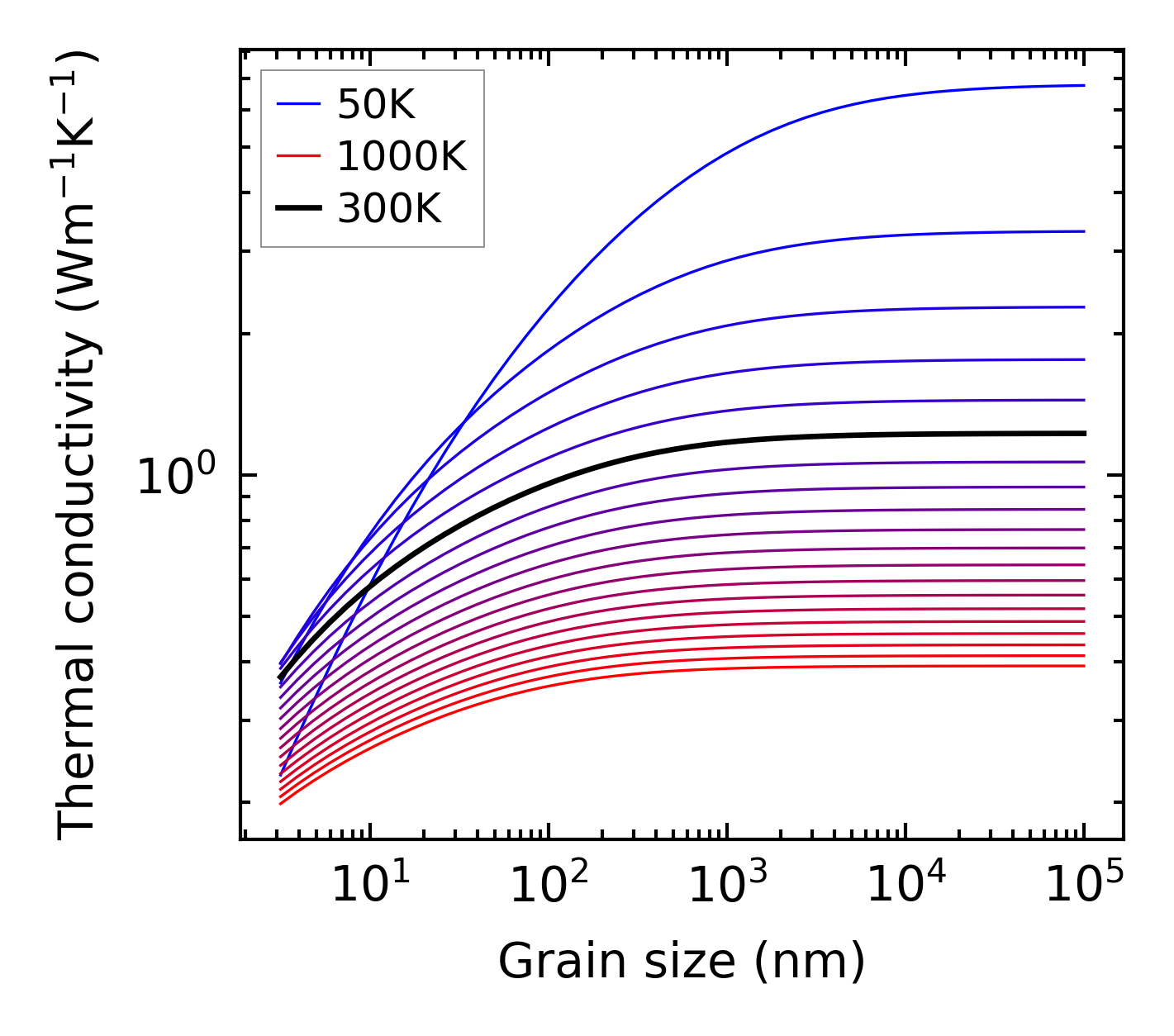

../../_images/fig_kappa_vs_grain_size5765.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

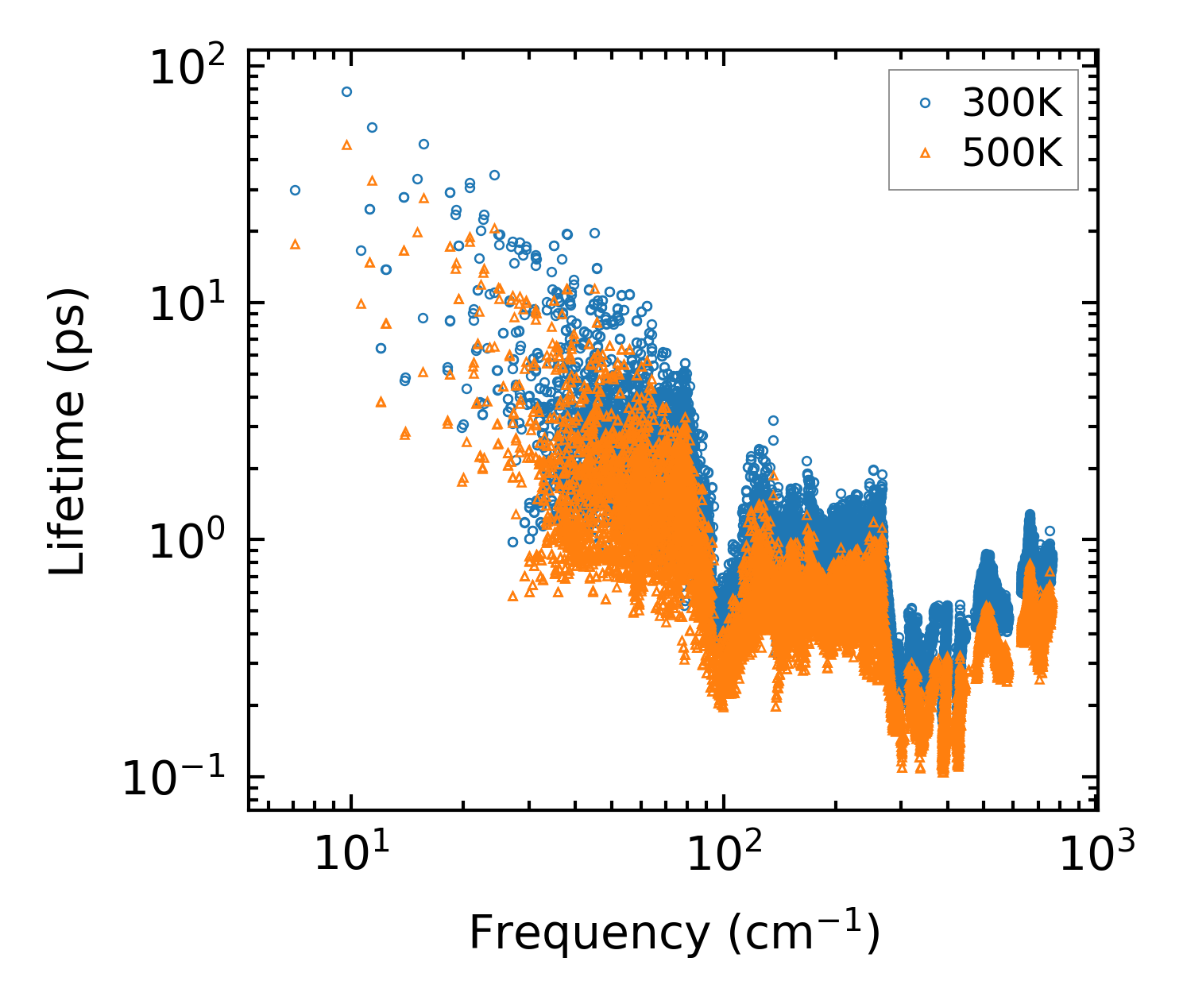

../../_images/fig_lifetime5643.png — (a) Phonon lifetime due to phonon-phonon scattering

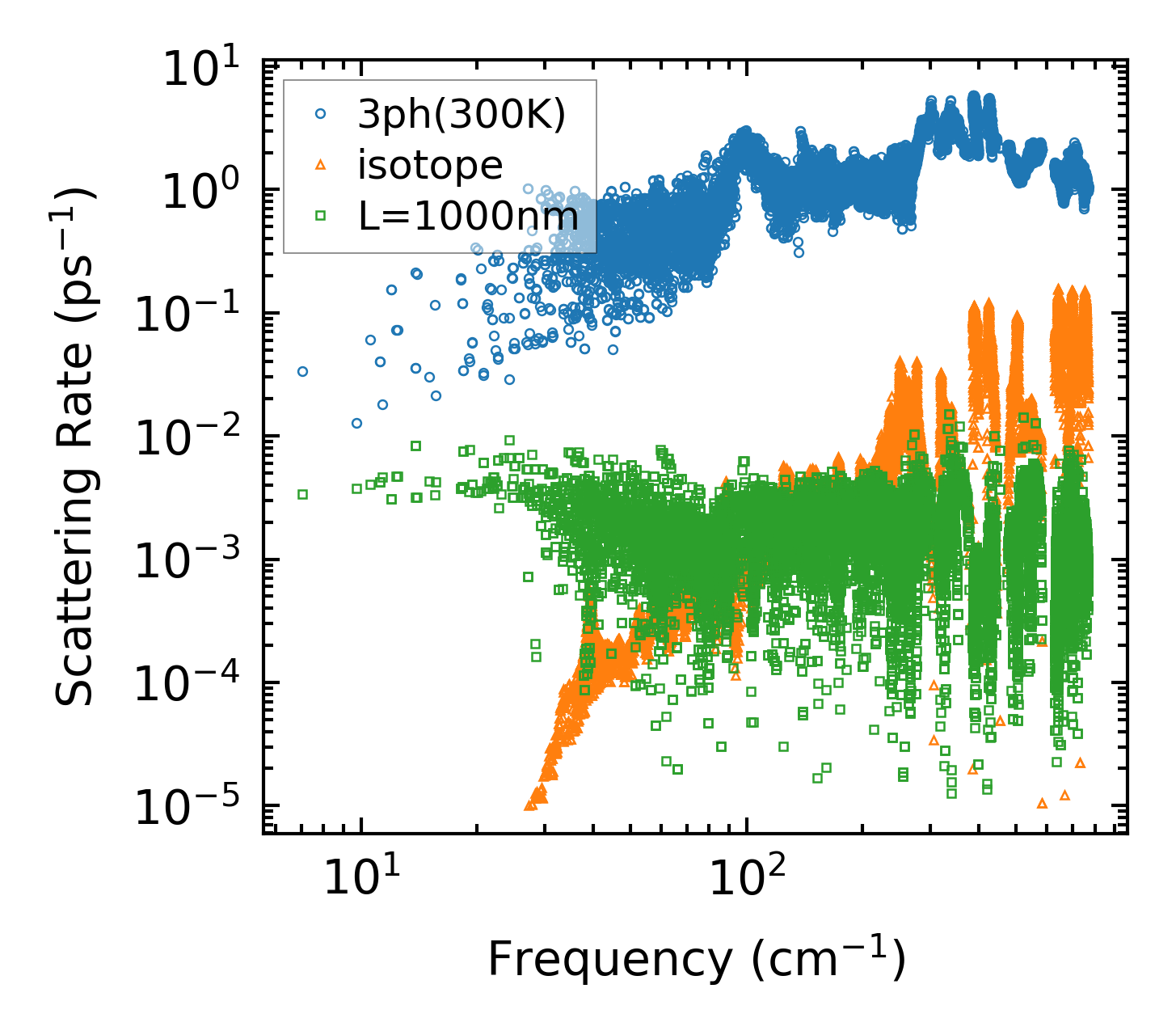

../../_images/fig_scat_rates5642.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

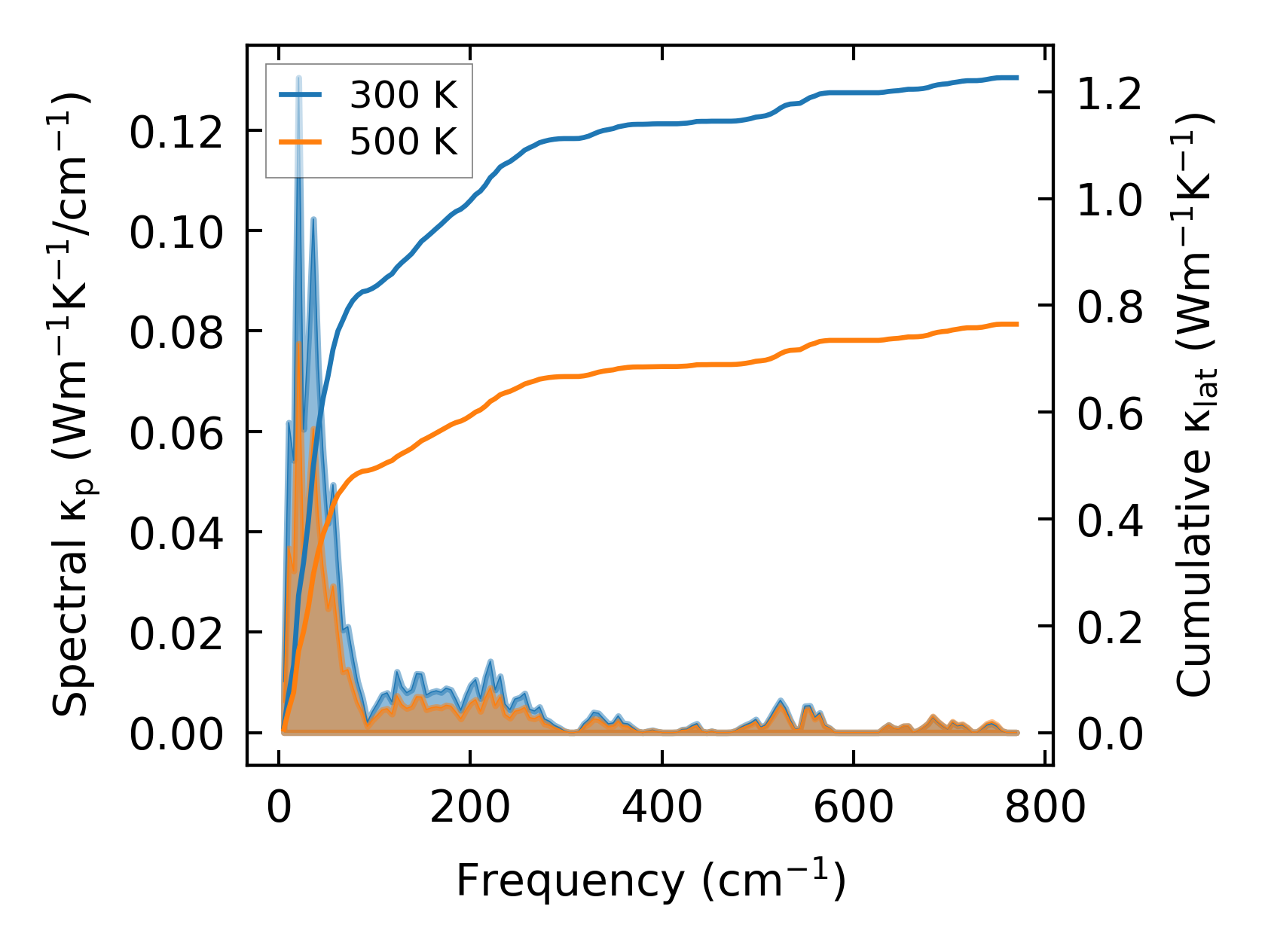

../../_images/fig_cumu_frequency5643.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

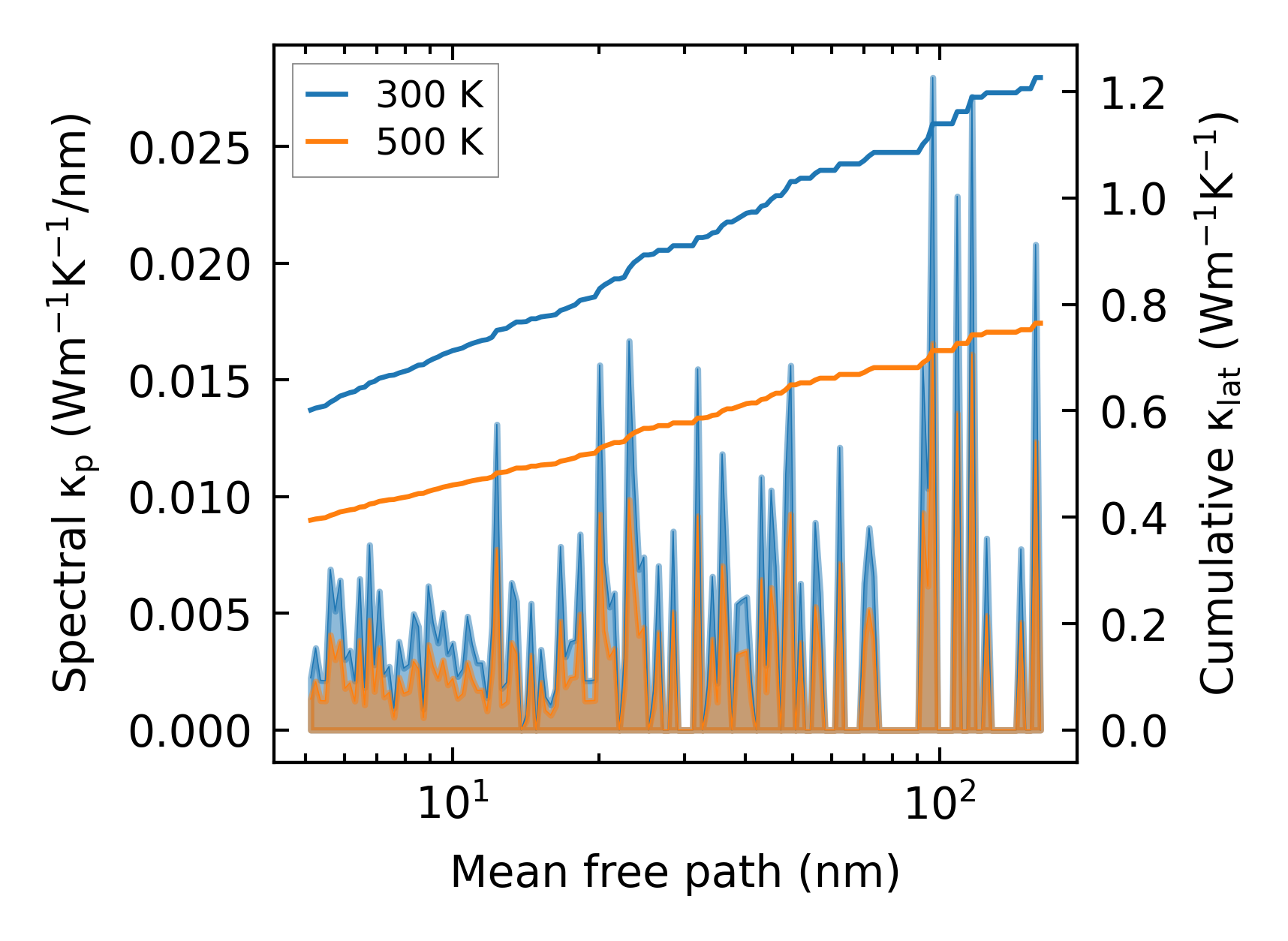

../../_images/fig_cumu_mfp5642.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

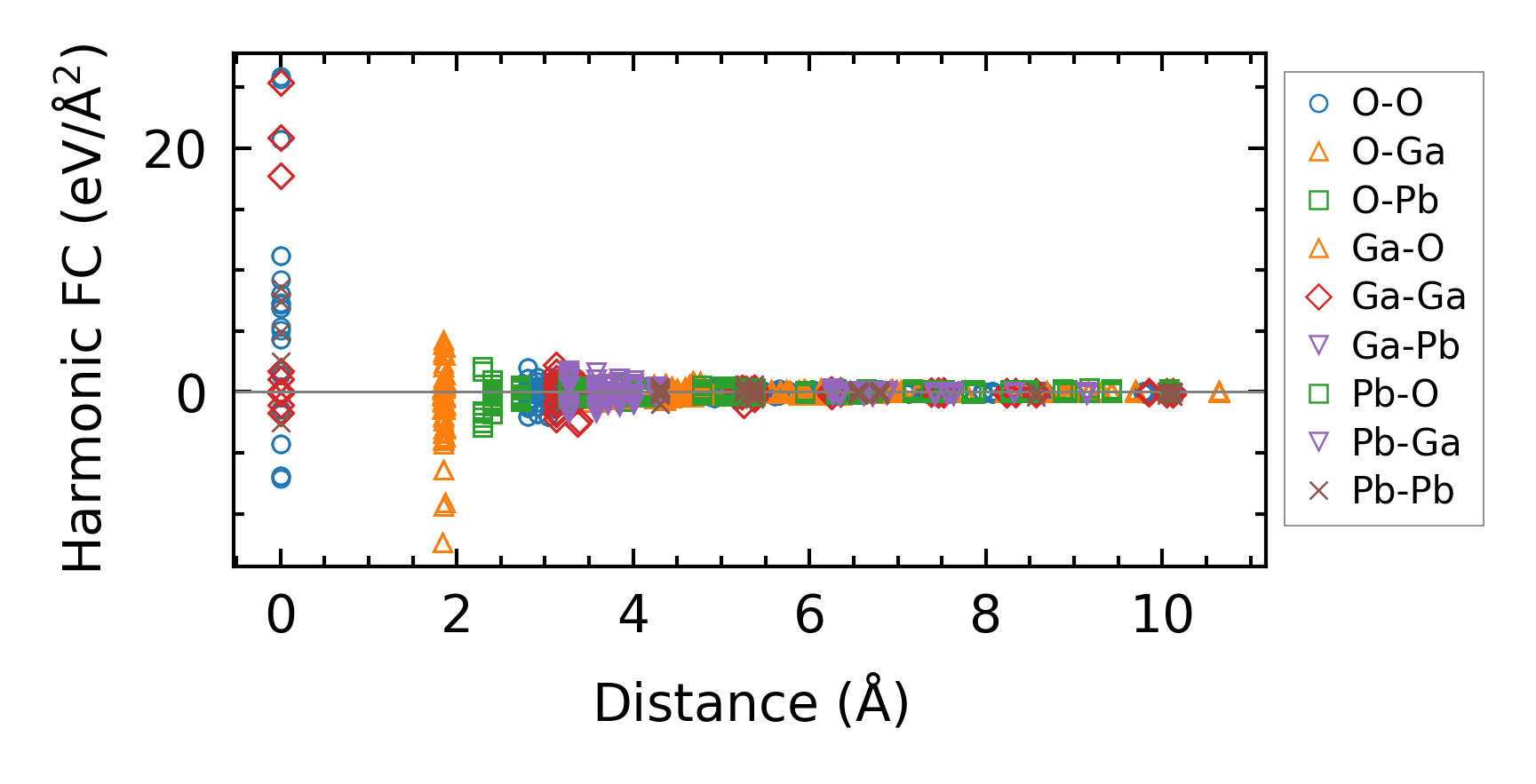

../../_images/fig_fc213118.png — (a) Force constants w.r.t atomic distance

Summary

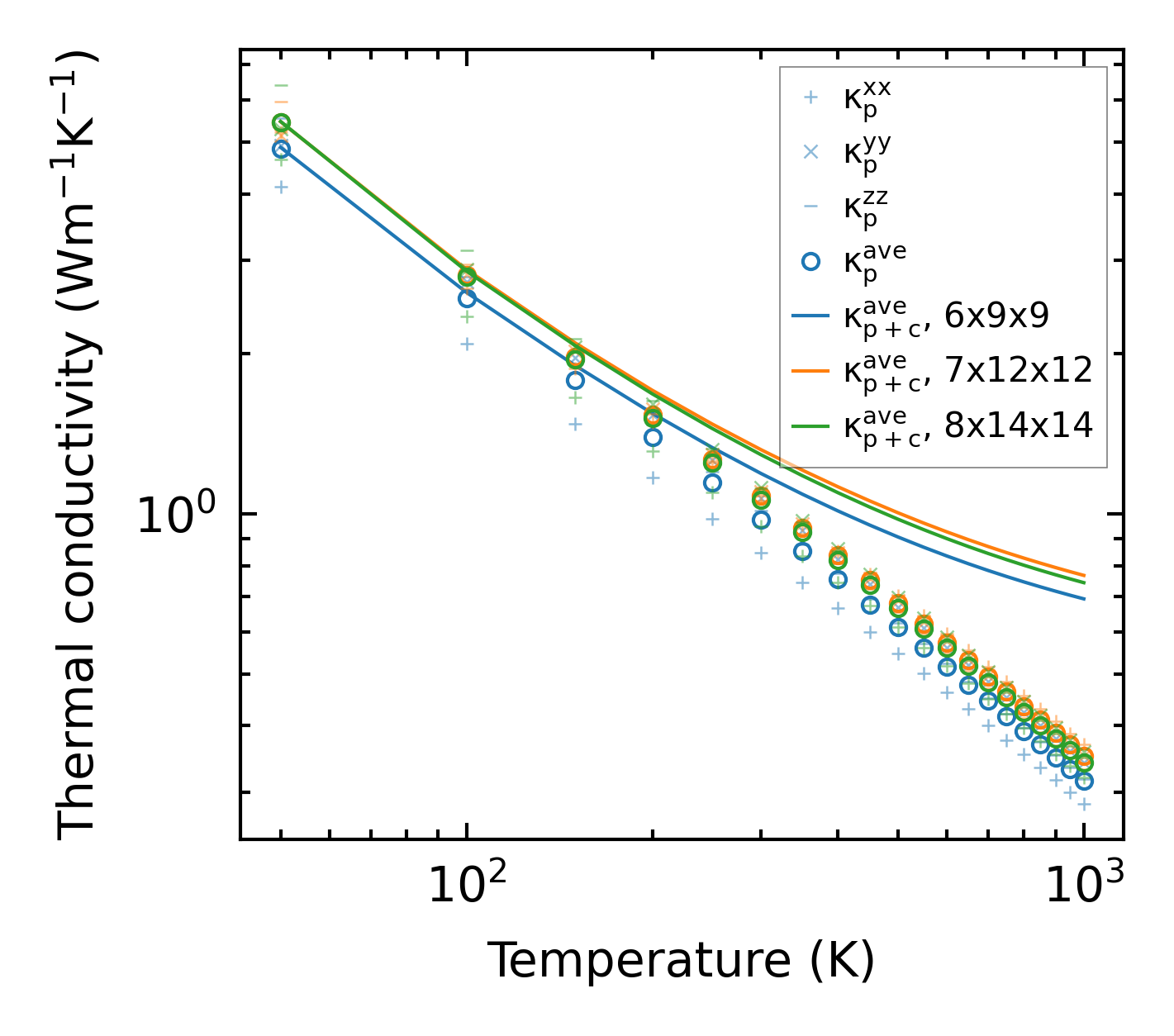

../../_images/fig_kappa10710.png — (a) Temperature-dependent lattice thermal conductivity

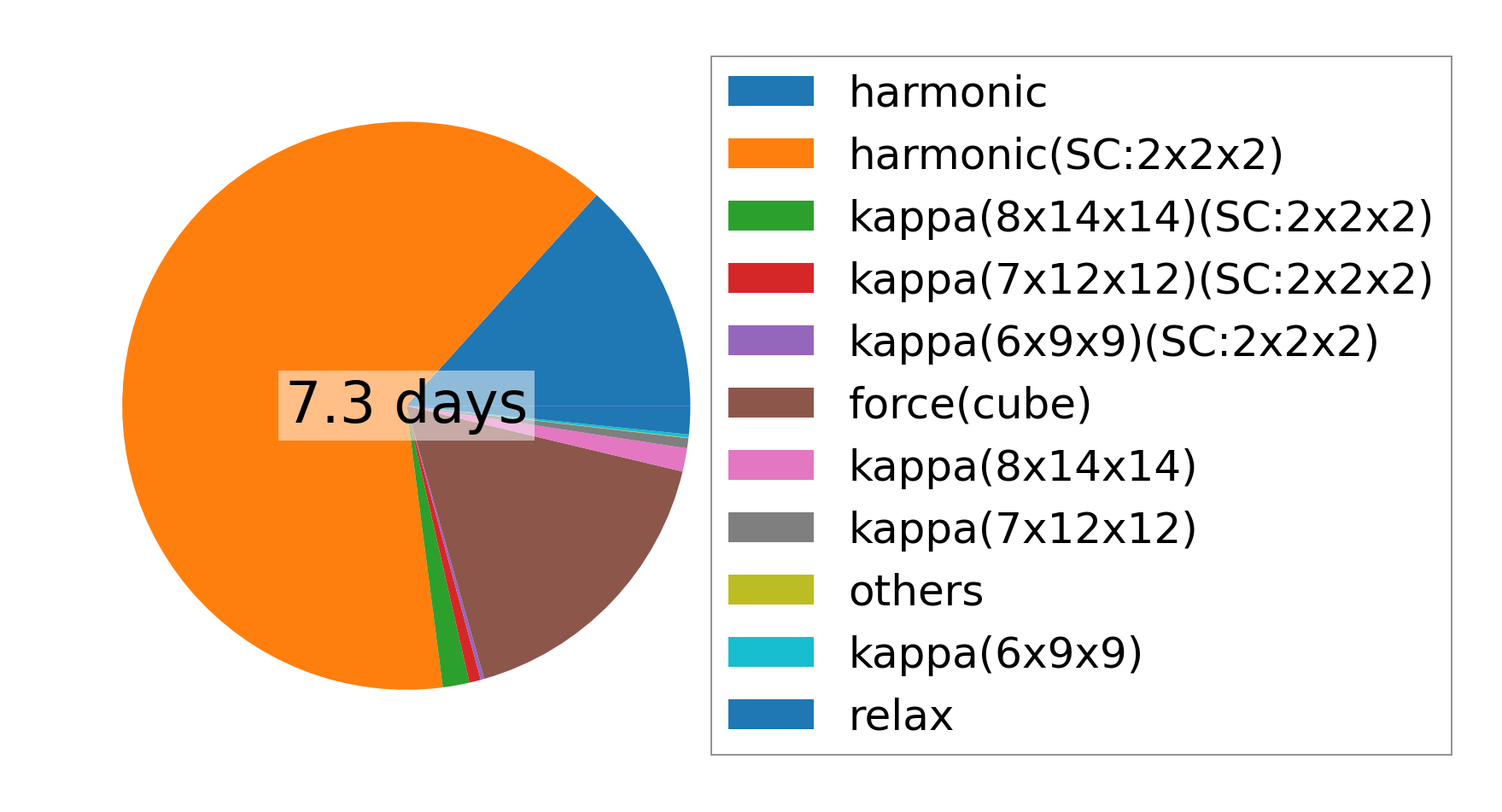

../../_images/fig_times22685.png — (b) Computation time
