mp-20254/Na2Te2O7/anharm

Space group: Imma (74)
Link: Materials Project
Download: mp-20254.tar.gz

Harmonic properties

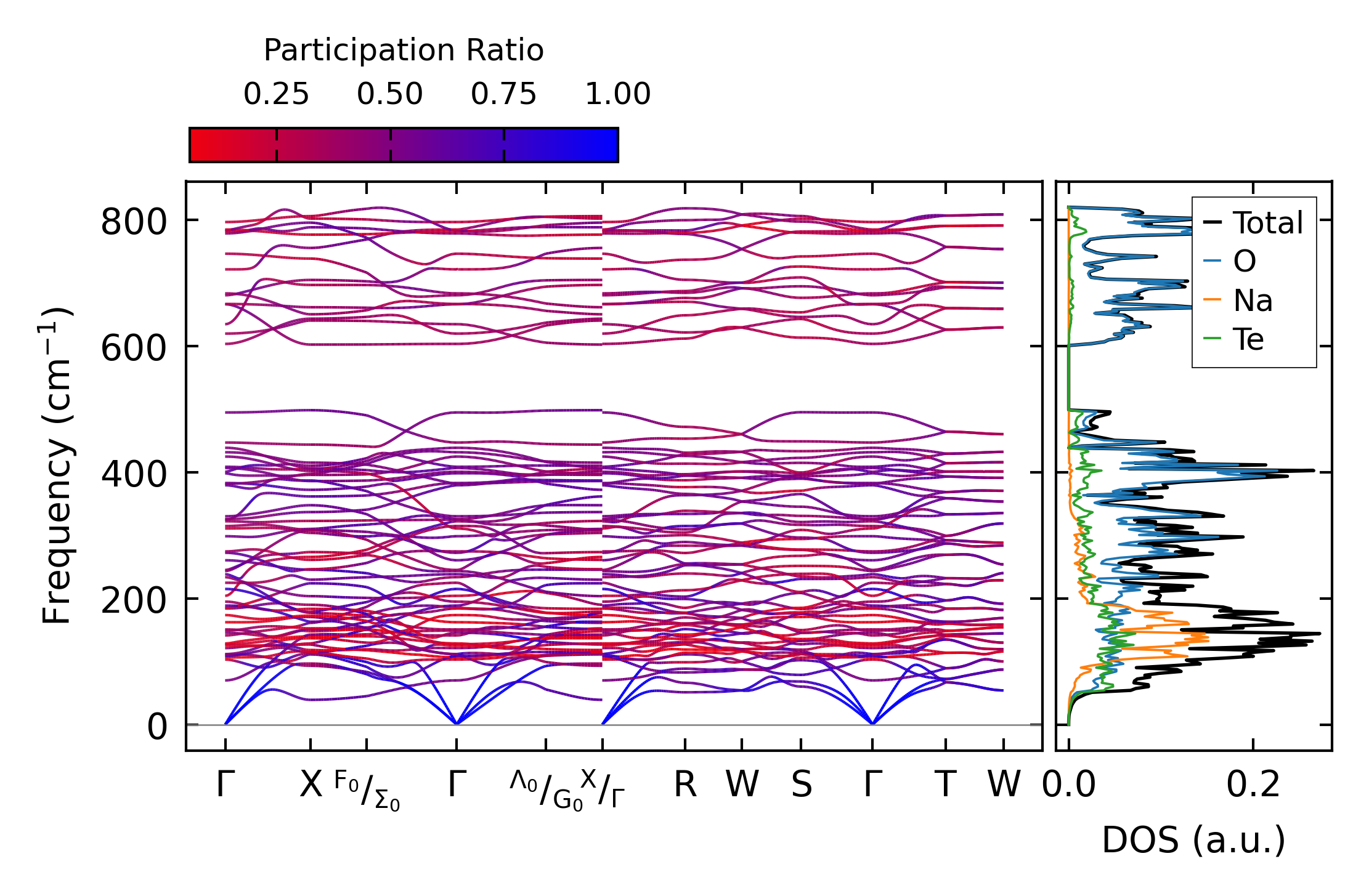

../../_images/fig_bandos_pr13446.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo13446.png — (b) Thermodynamic properties

Grüneisen parameters

../../_images/fig_gru_all5677.png — (a) Grüneisen parameters

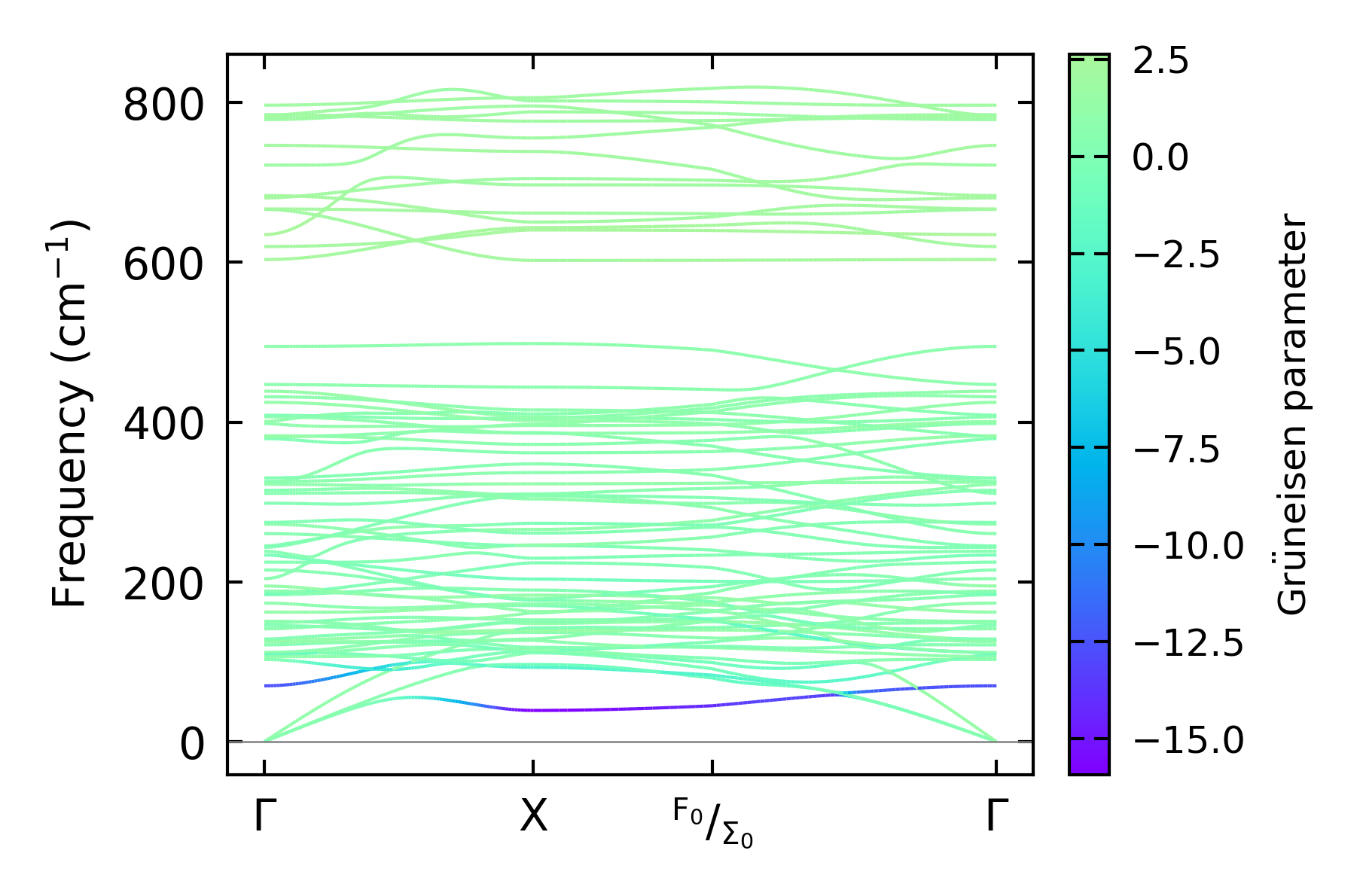

../../_images/fig_gruneisen5677.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 11x11x11, supercell: 1x2x1

../../_images/fig_kappa10666.png — (a) Temperature-dependent lattice thermal conductivity

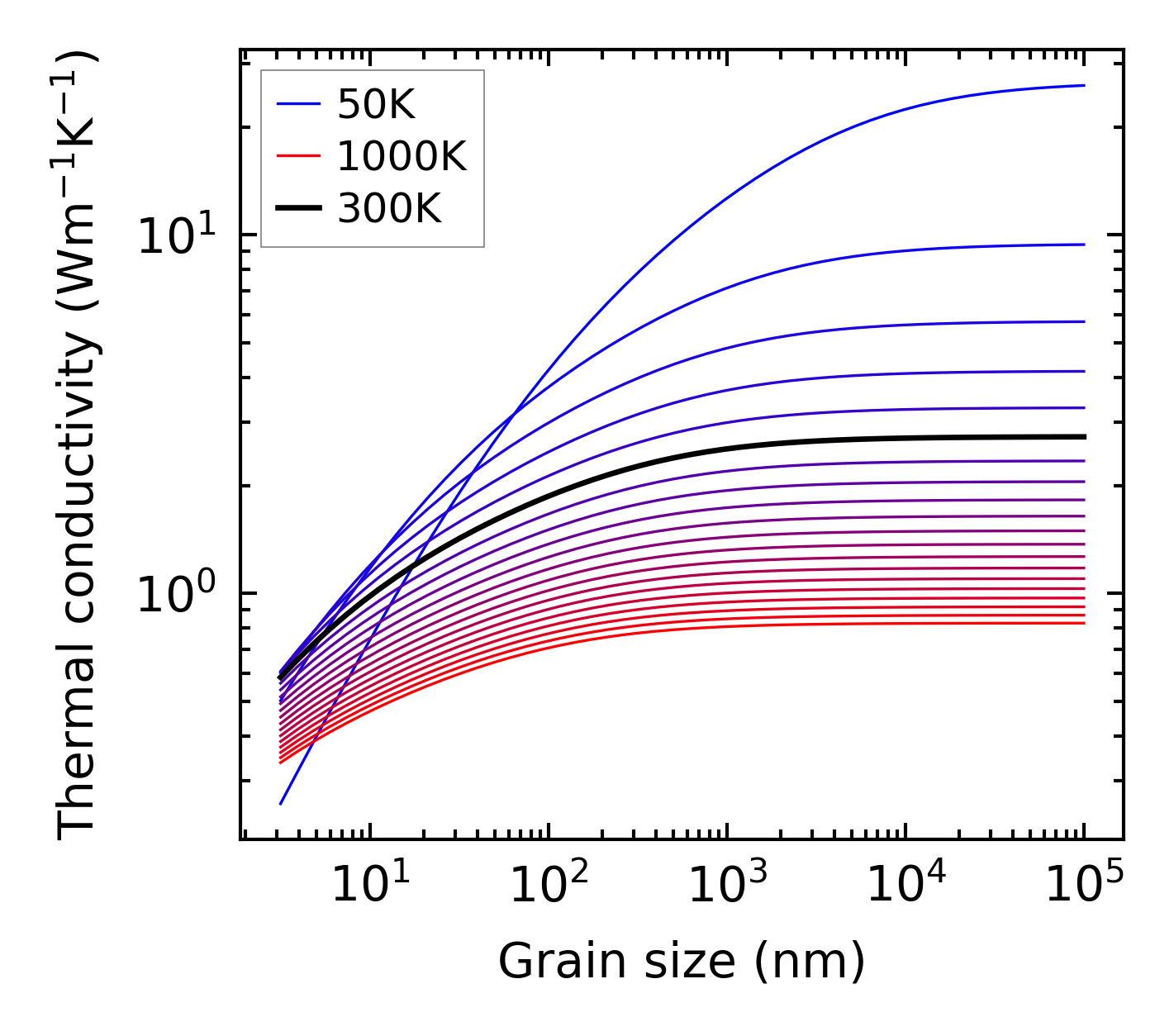

../../_images/fig_kappa_vs_grain_size5743.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

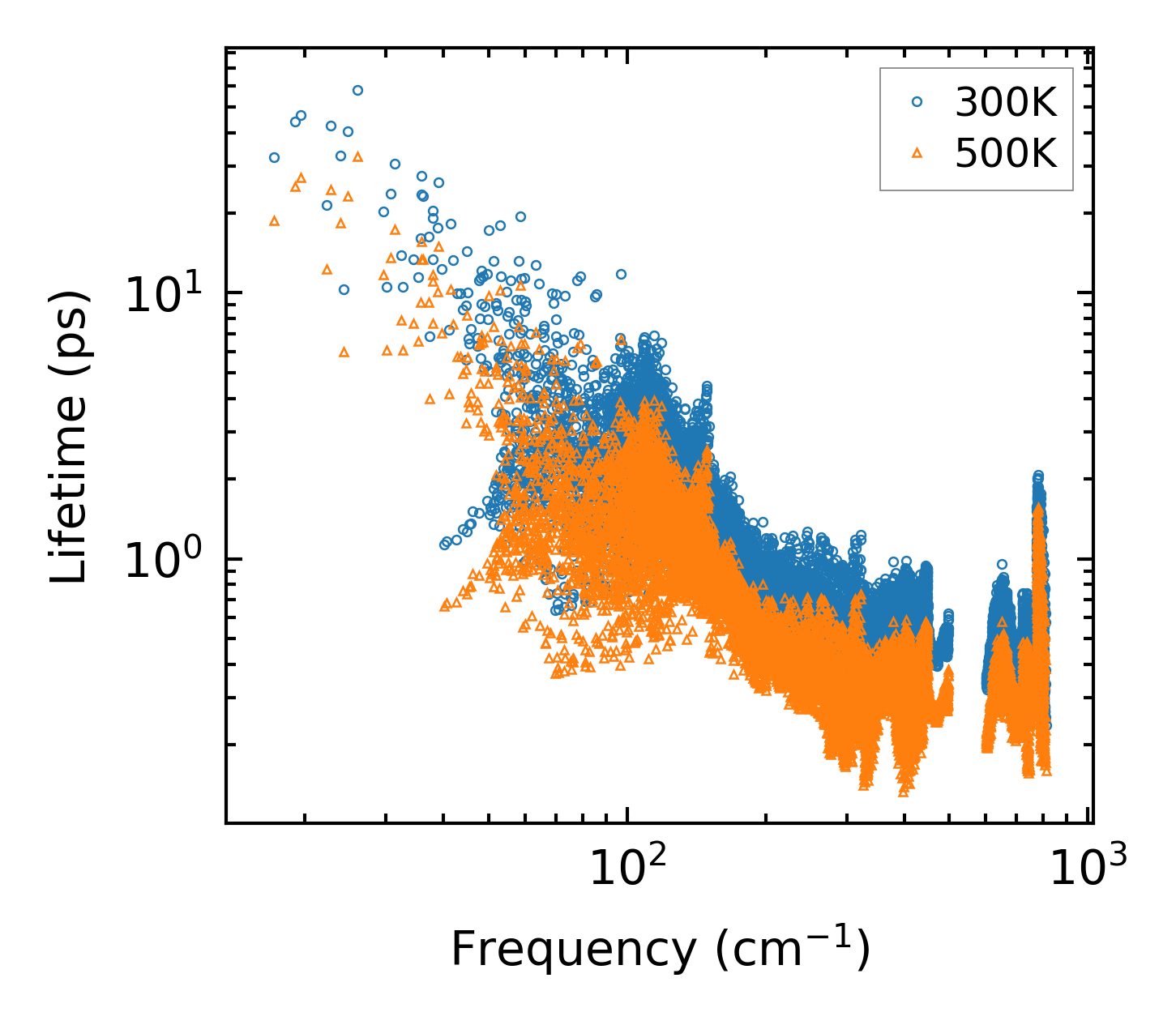

../../_images/fig_lifetime5622.png — (a) Phonon lifetime due to phonon-phonon scattering

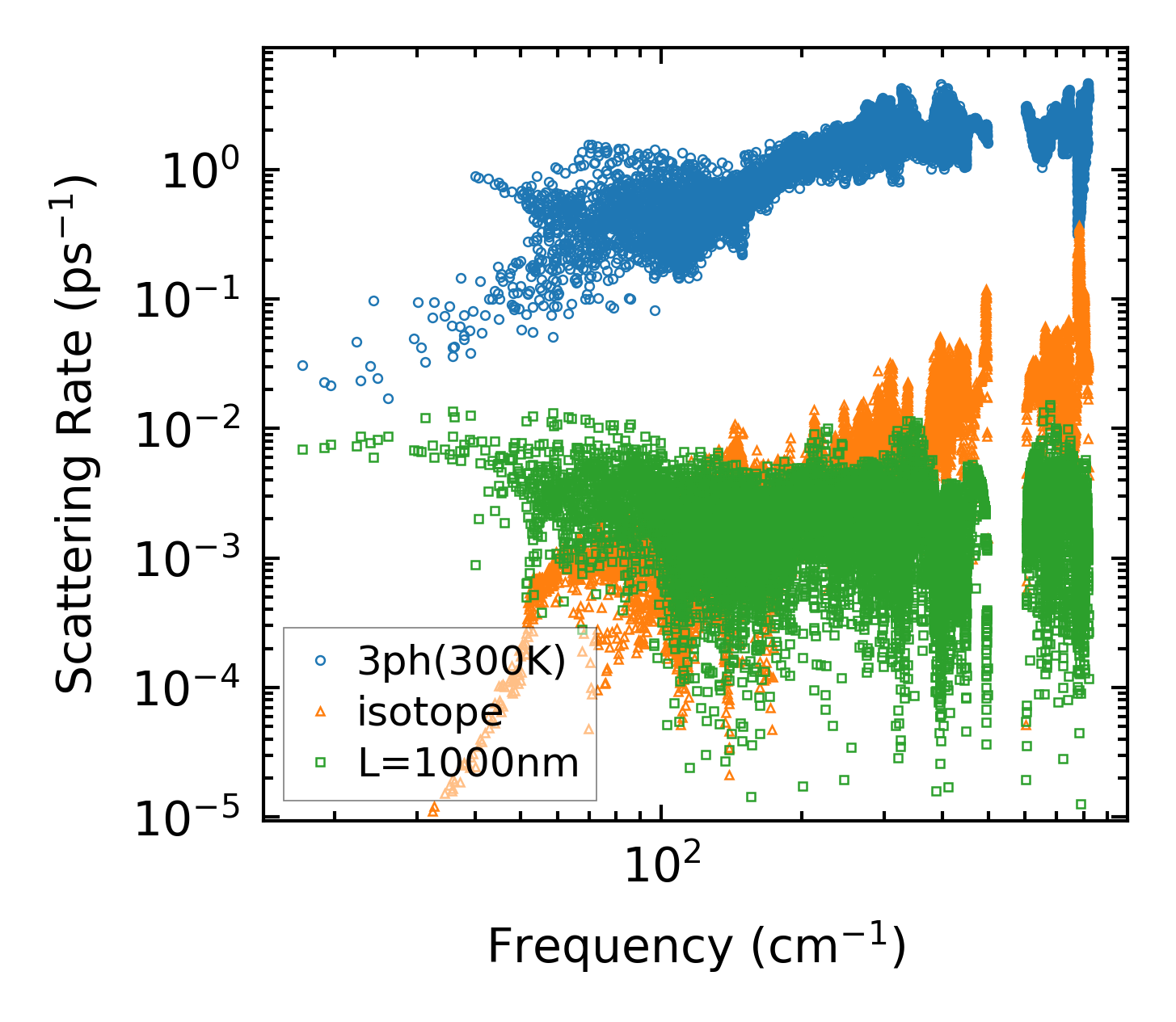

../../_images/fig_scat_rates5621.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

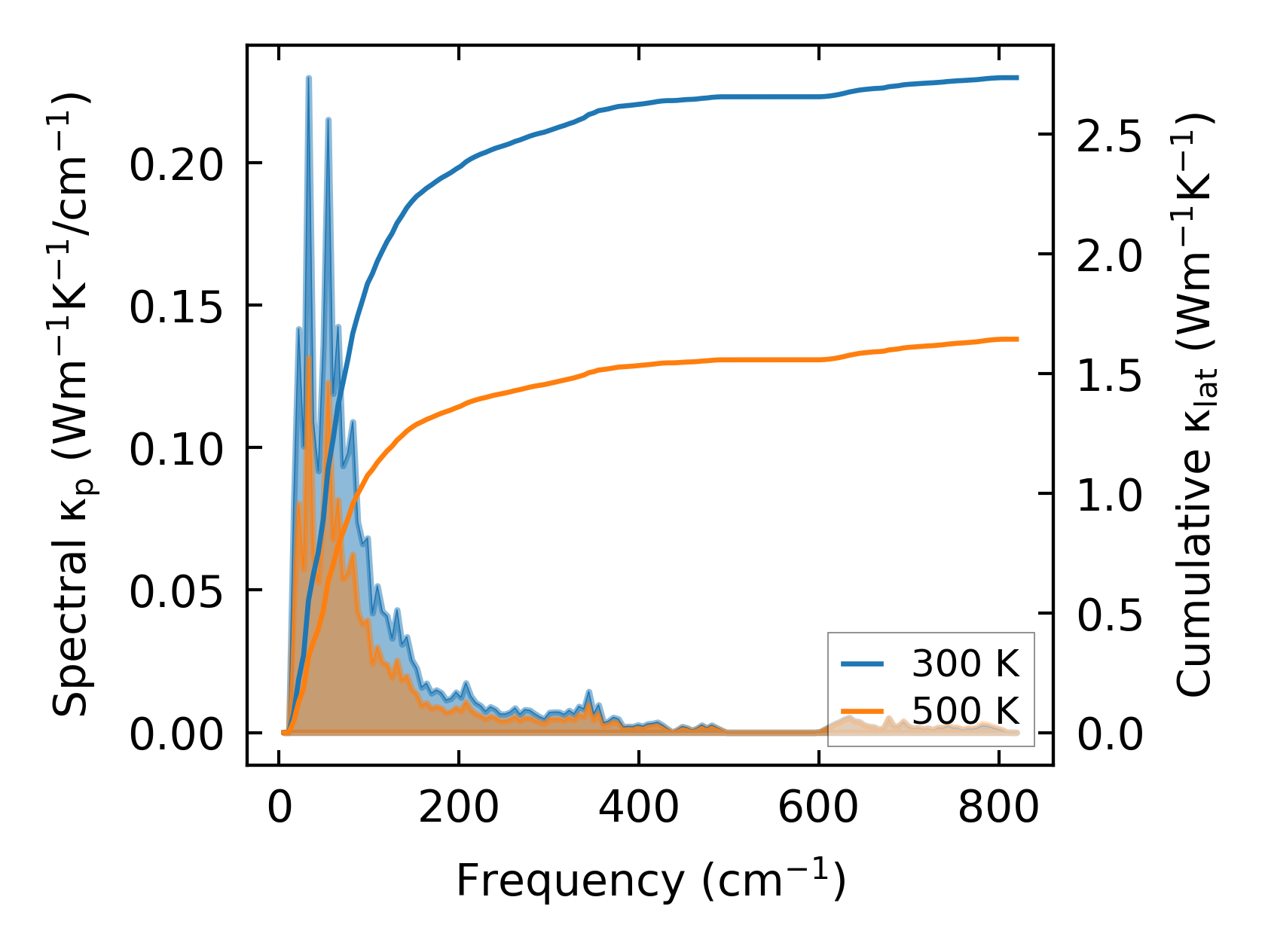

../../_images/fig_cumu_frequency5622.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

../../_images/fig_cumu_mfp5621.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

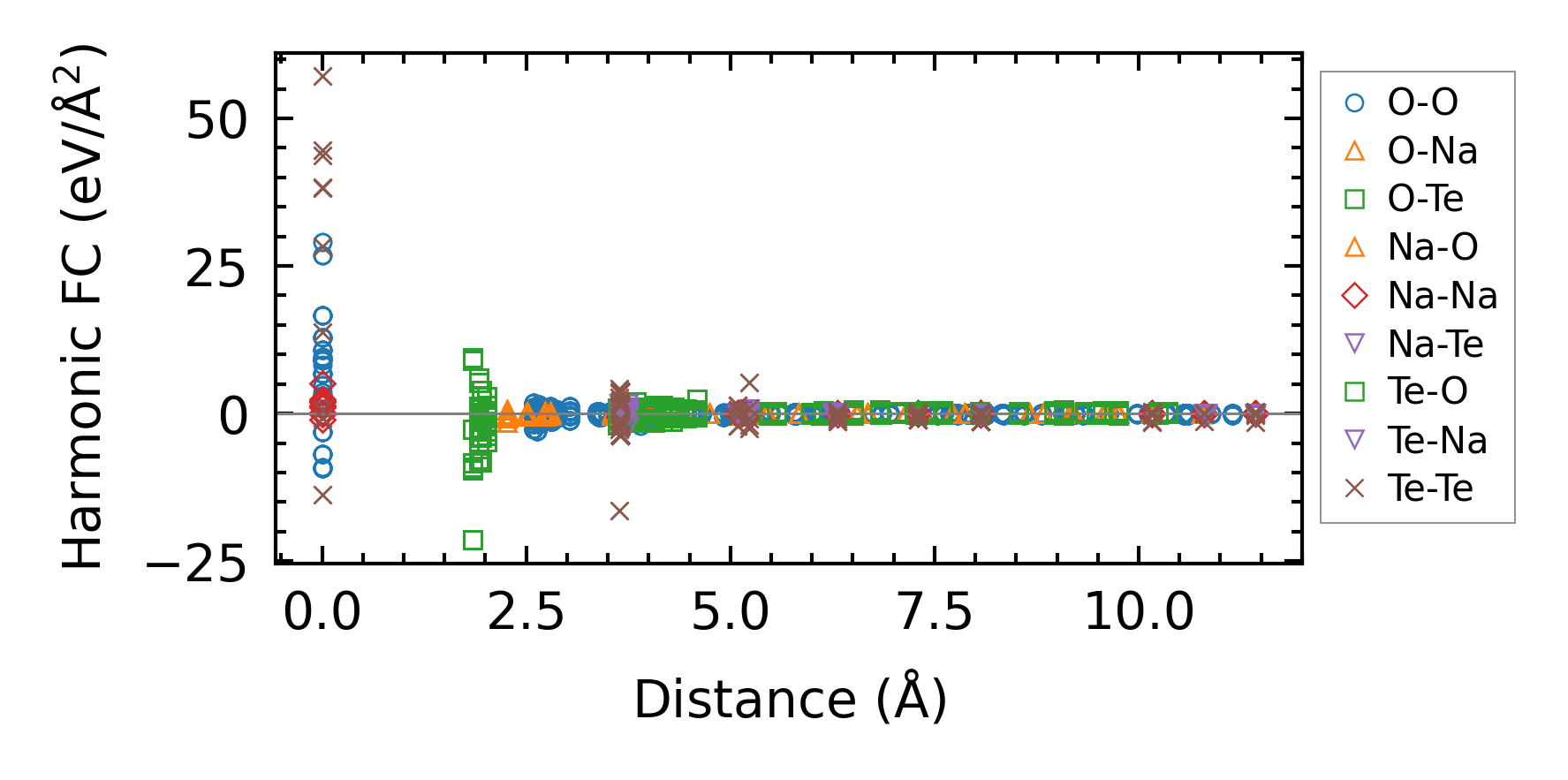

../../_images/fig_fc213082.png — (a) Force constants w.r.t atomic distance

Summary

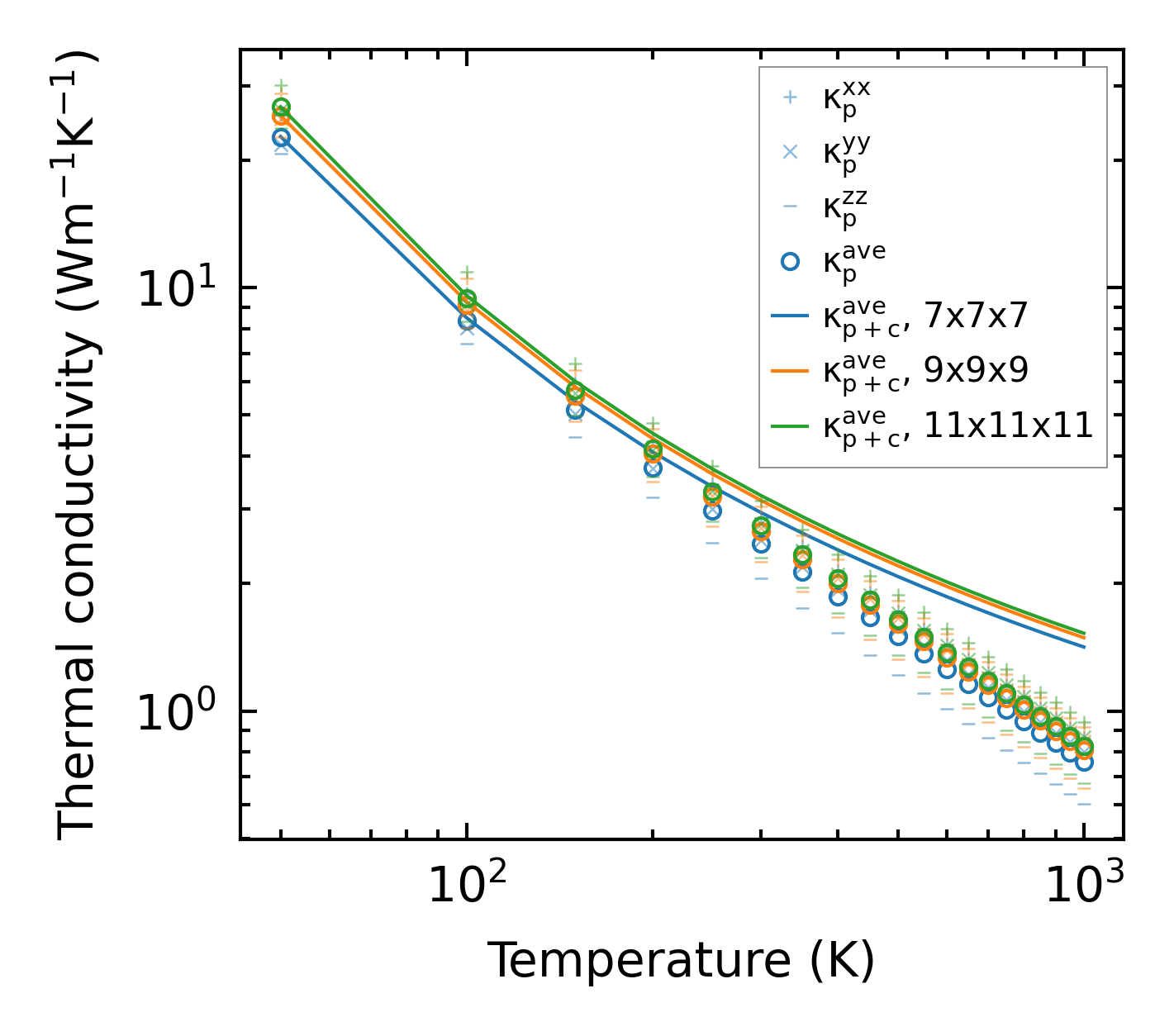

../../_images/fig_kappa10667.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_times22641.png — (b) Computation time
