mp-20066/CO2/anharm

Space group: Pa-3 (205)
Link: Materials Project
Download: mp-20066.tar.gz

Equation of state

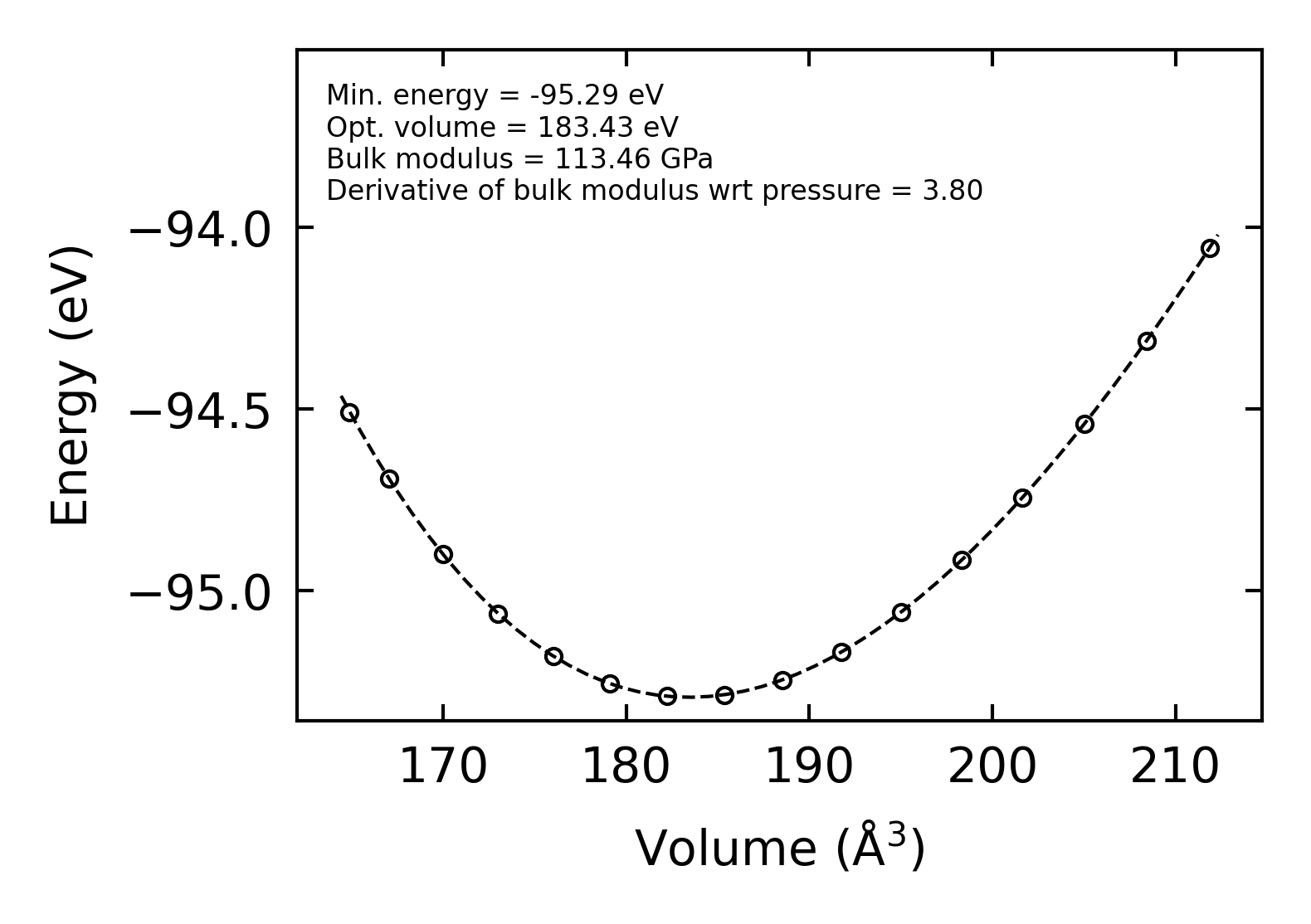

../../_images/fig_bm6708.png — (a) Equation of state

Harmonic properties

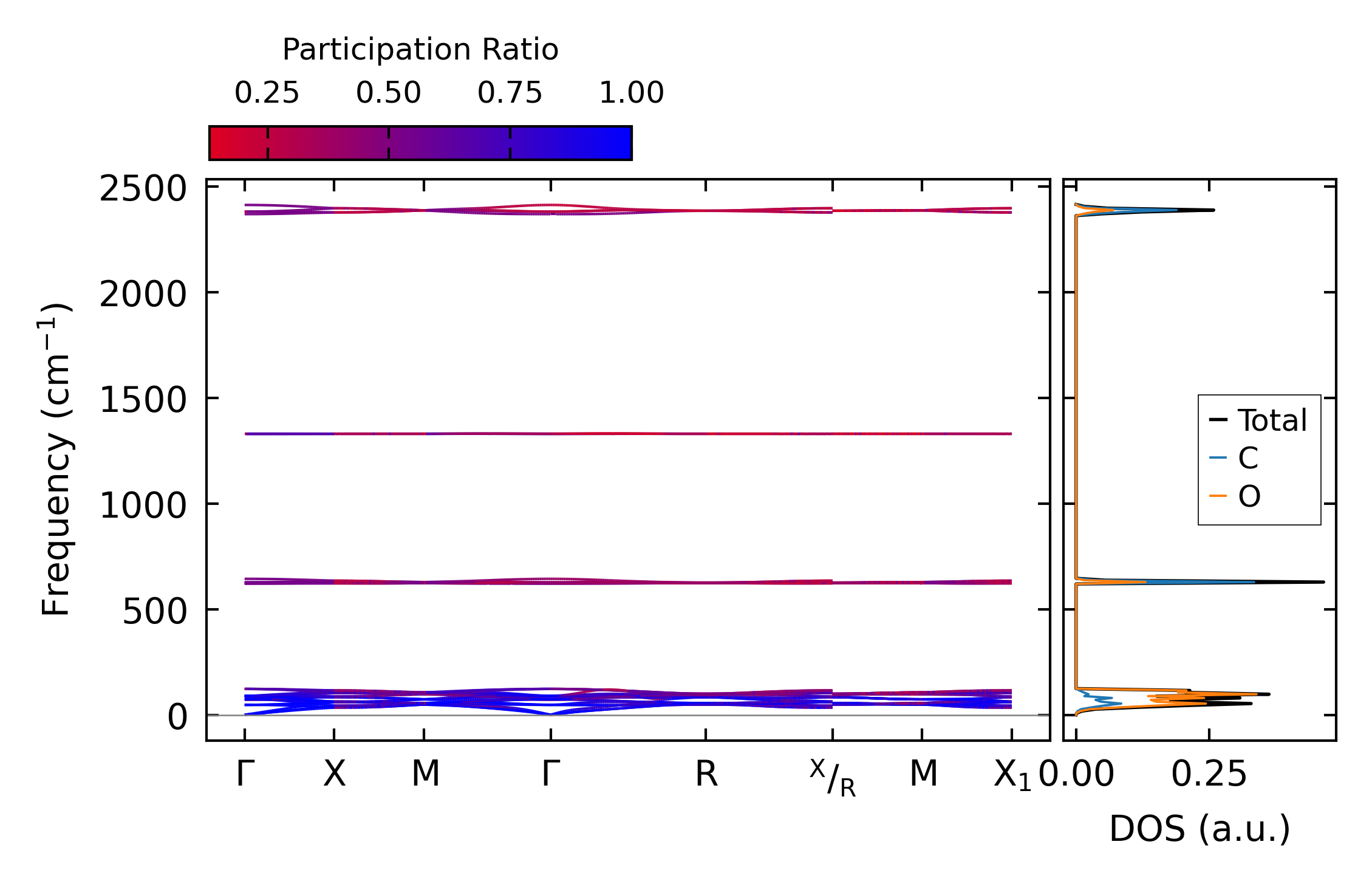

../../_images/fig_bandos_pr13427.png — (a) Phonon dispersion with participation ratio and DOS

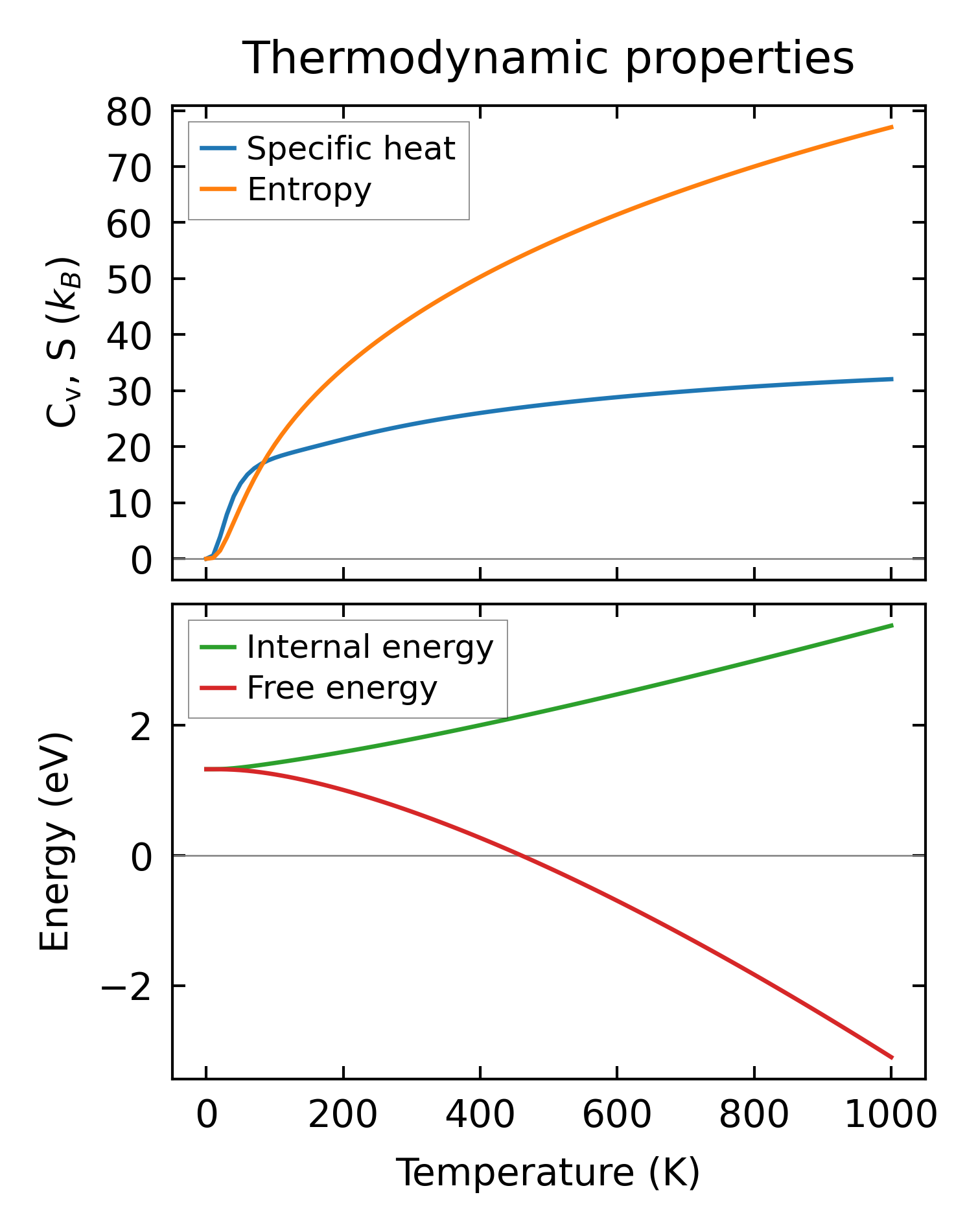

../../_images/fig_thermo13427.png — (b) Thermodynamic properties

Grüneisen parameters

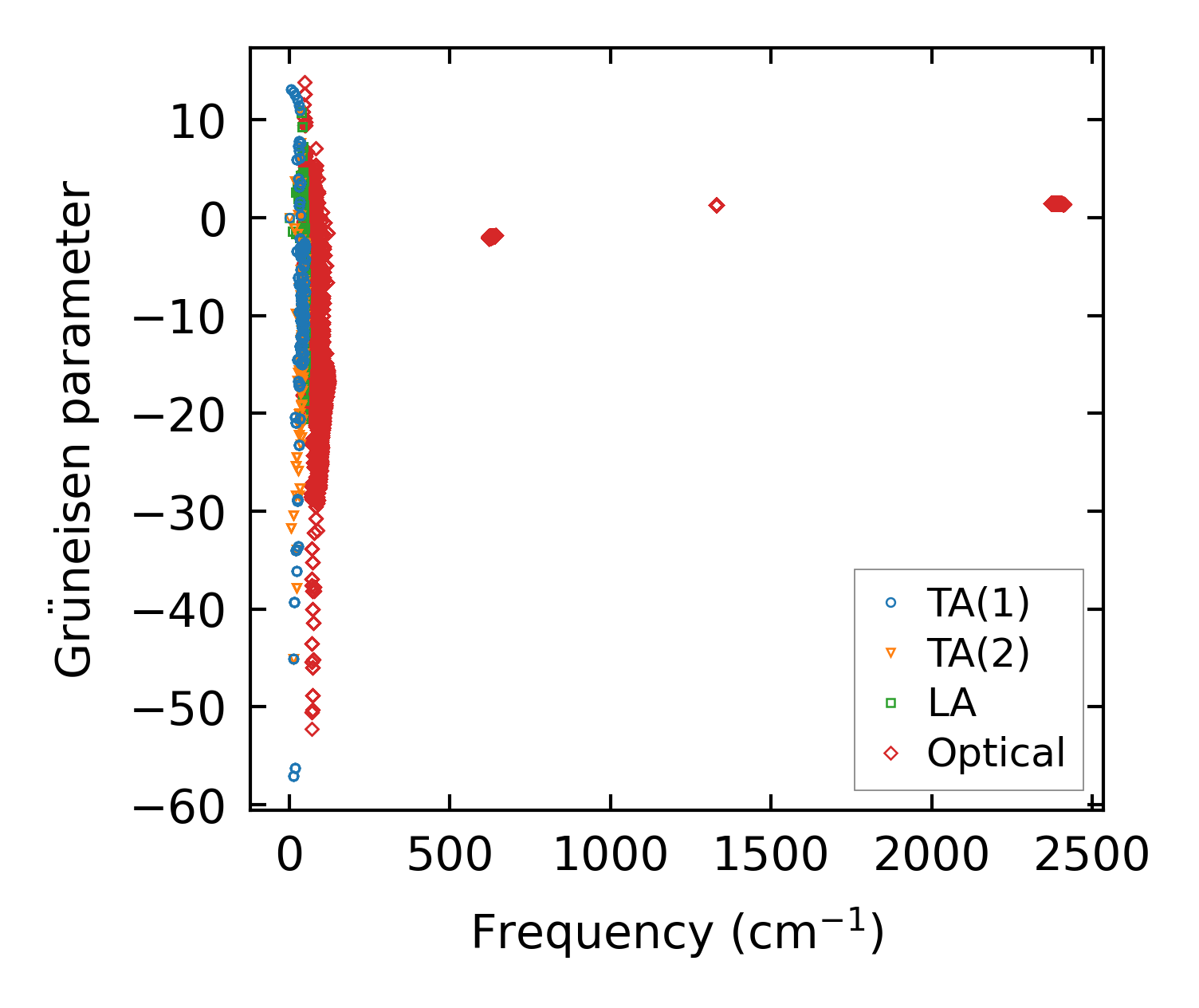

../../_images/fig_gru_all5664.png — (a) Grüneisen parameters

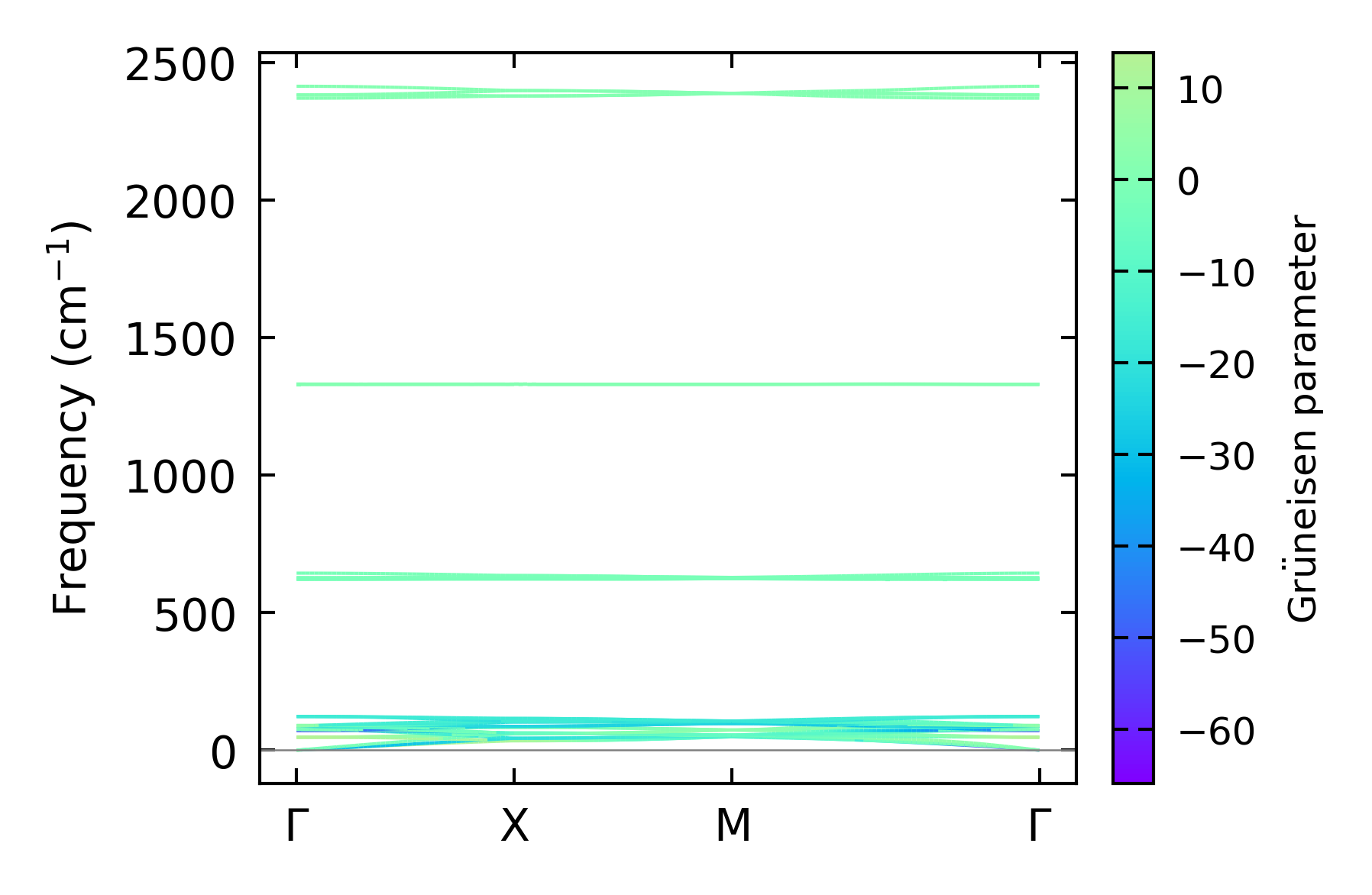

../../_images/fig_gruneisen5664.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 12x12x12, supercell: 2x2x2

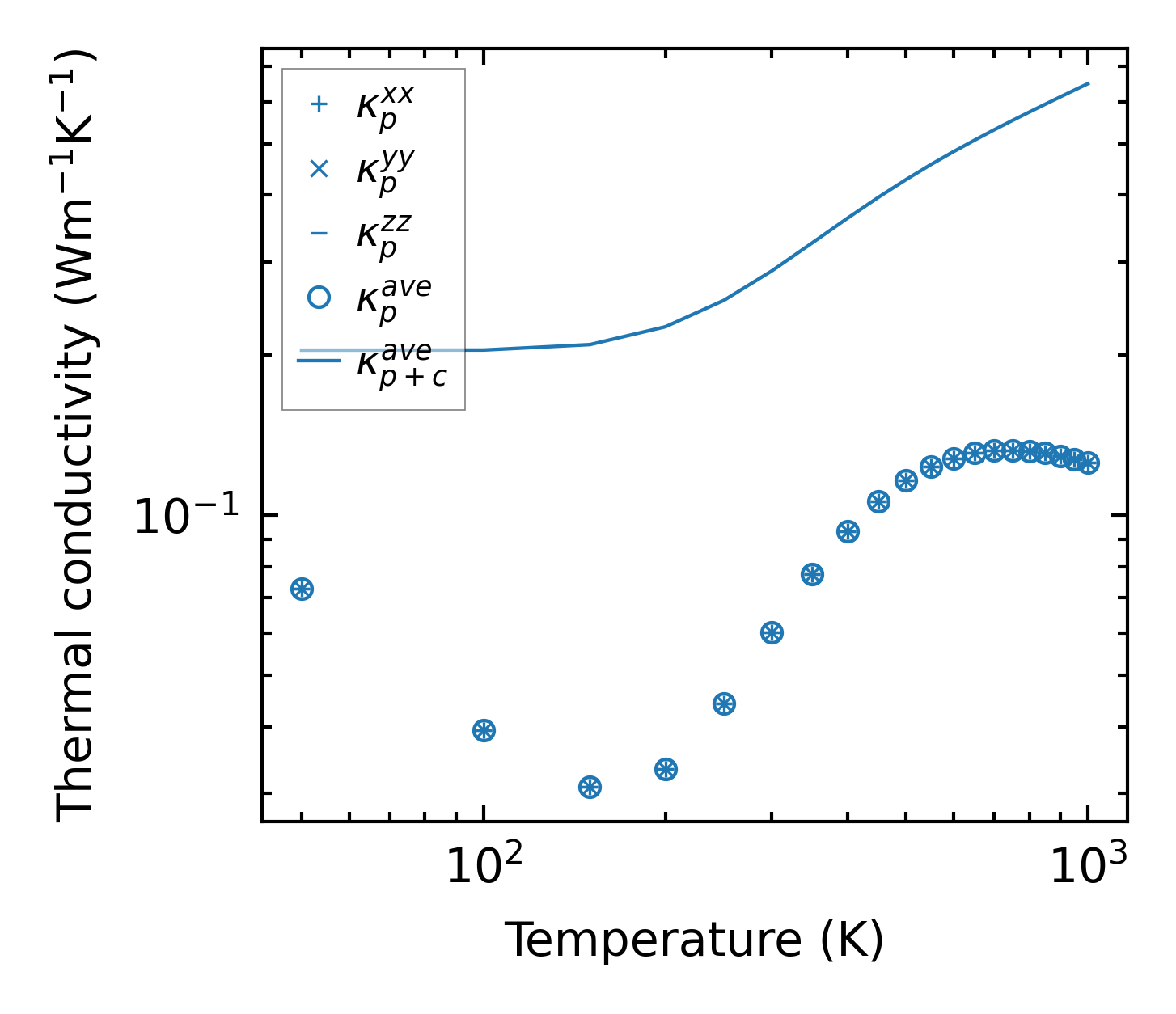

../../_images/fig_kappa10643.png — (a) Temperature-dependent lattice thermal conductivity

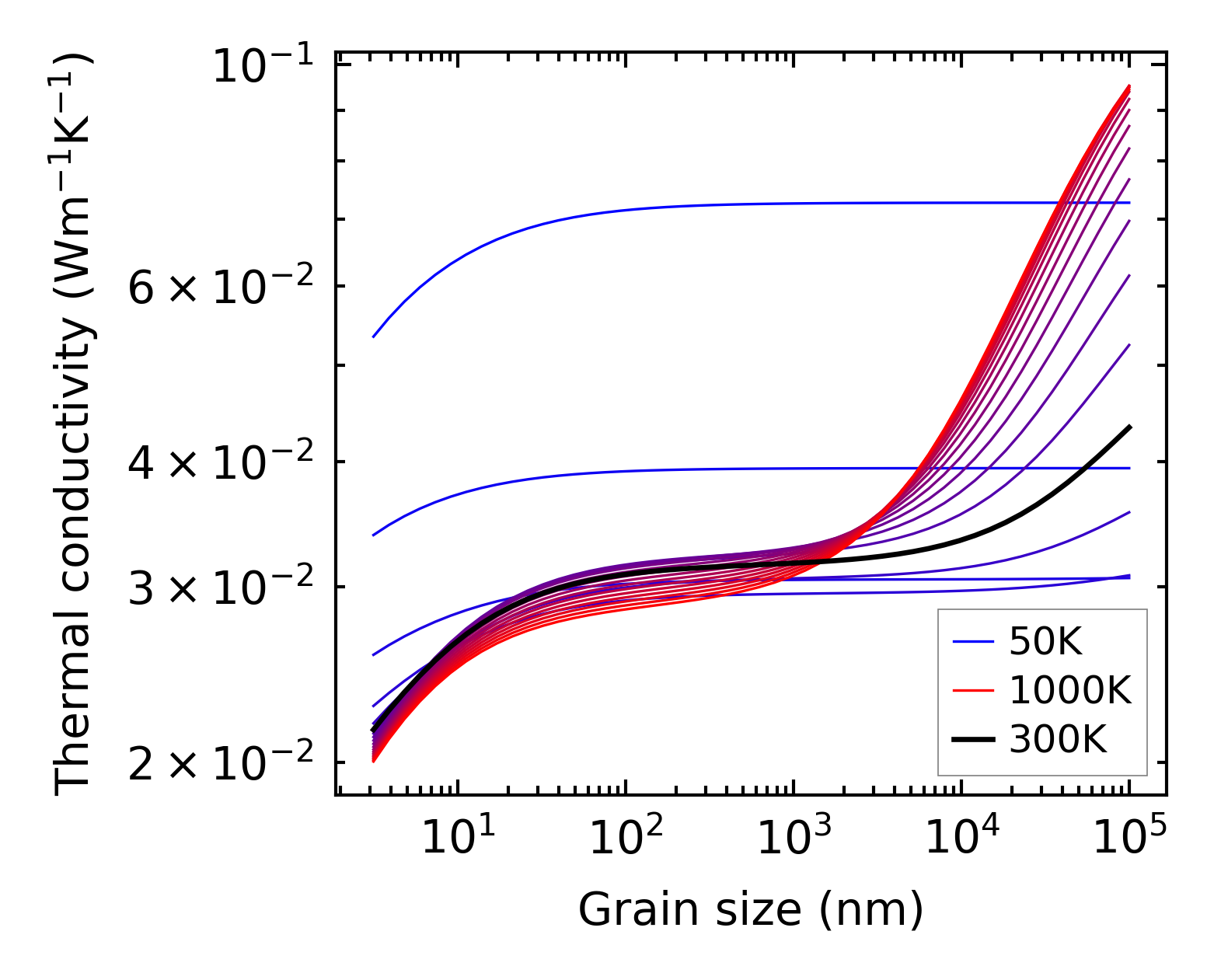

../../_images/fig_kappa_vs_grain_size5730.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

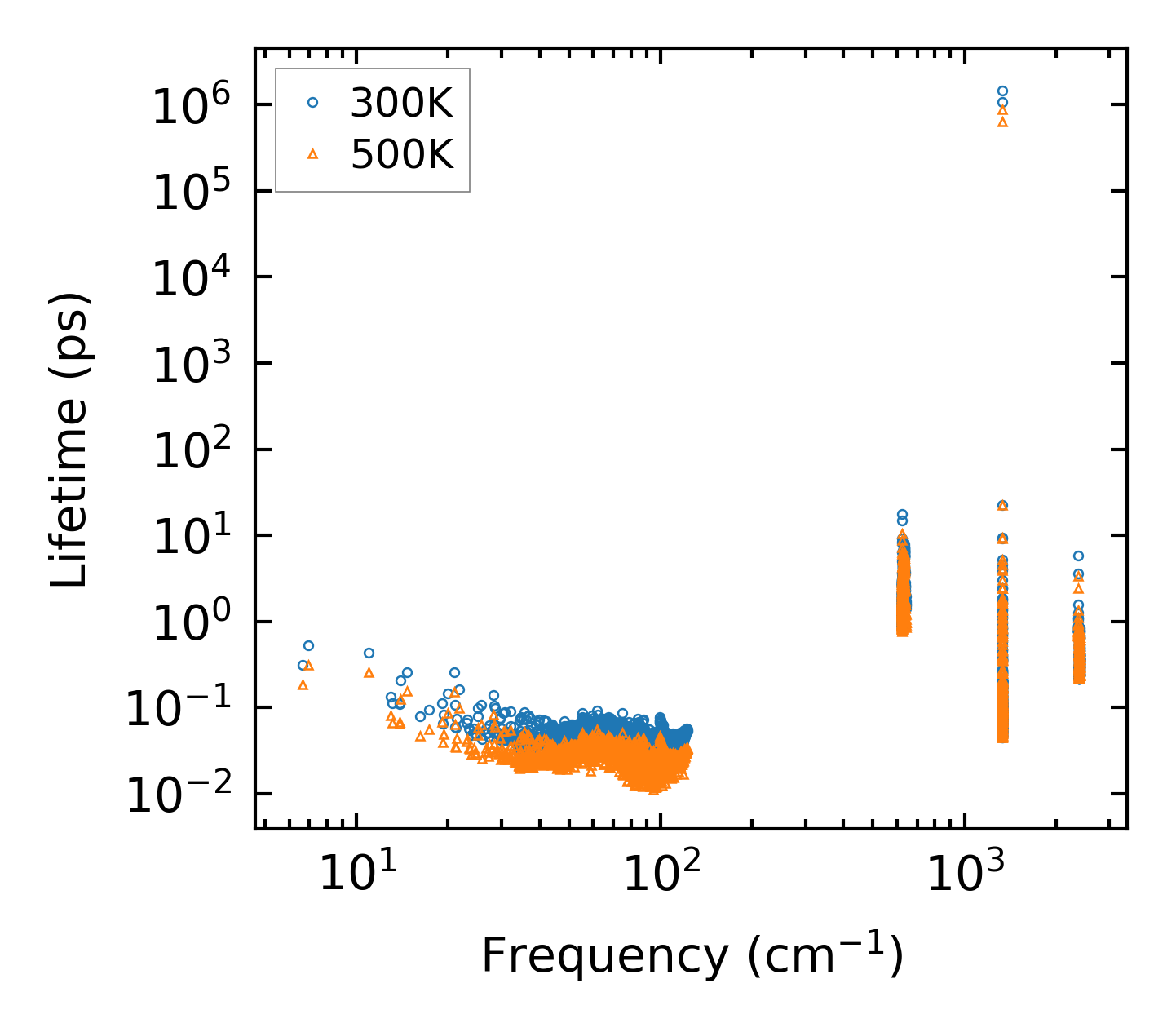

../../_images/fig_lifetime5609.png — (a) Phonon lifetime due to phonon-phonon scattering

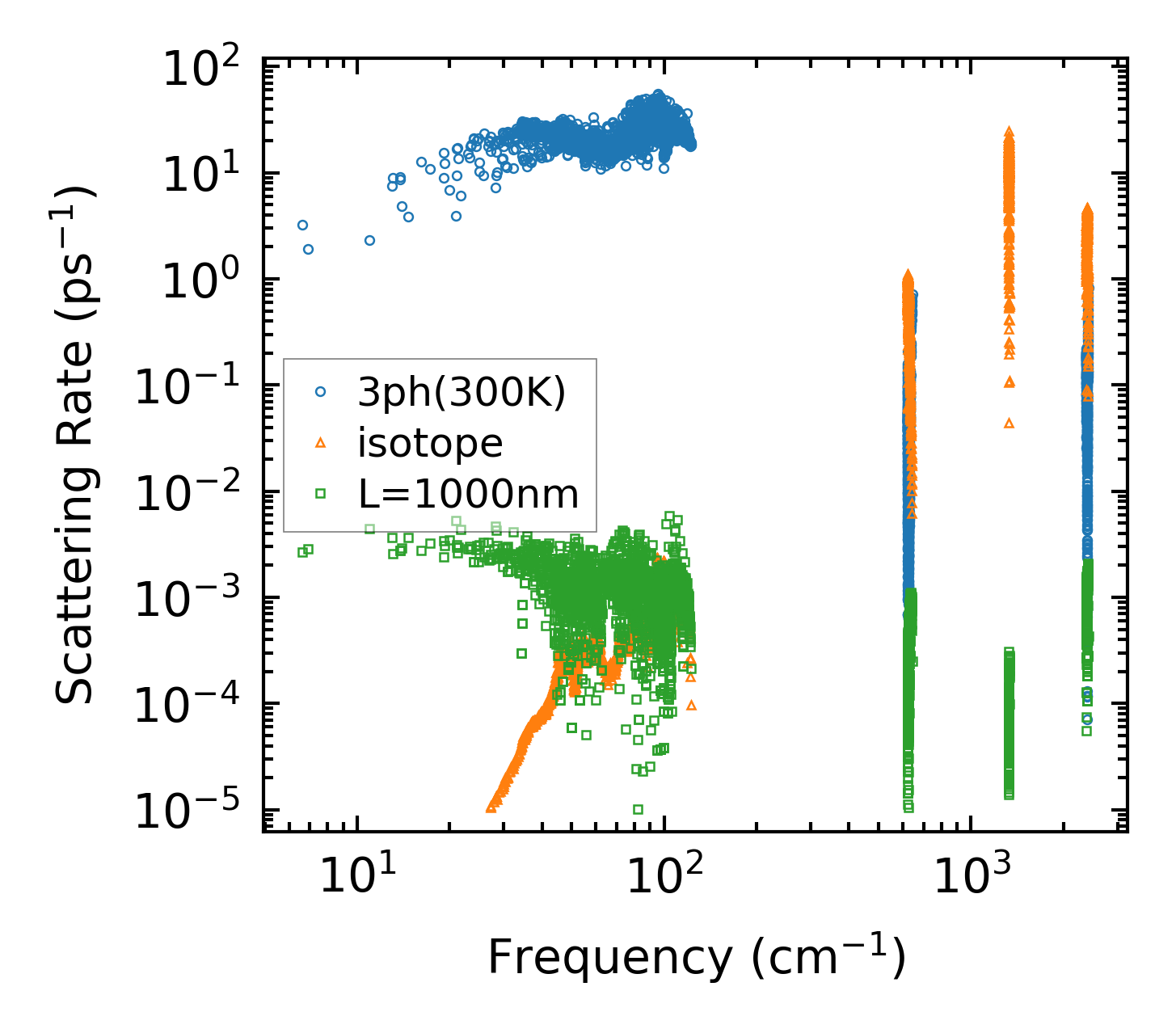

../../_images/fig_scat_rates5608.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

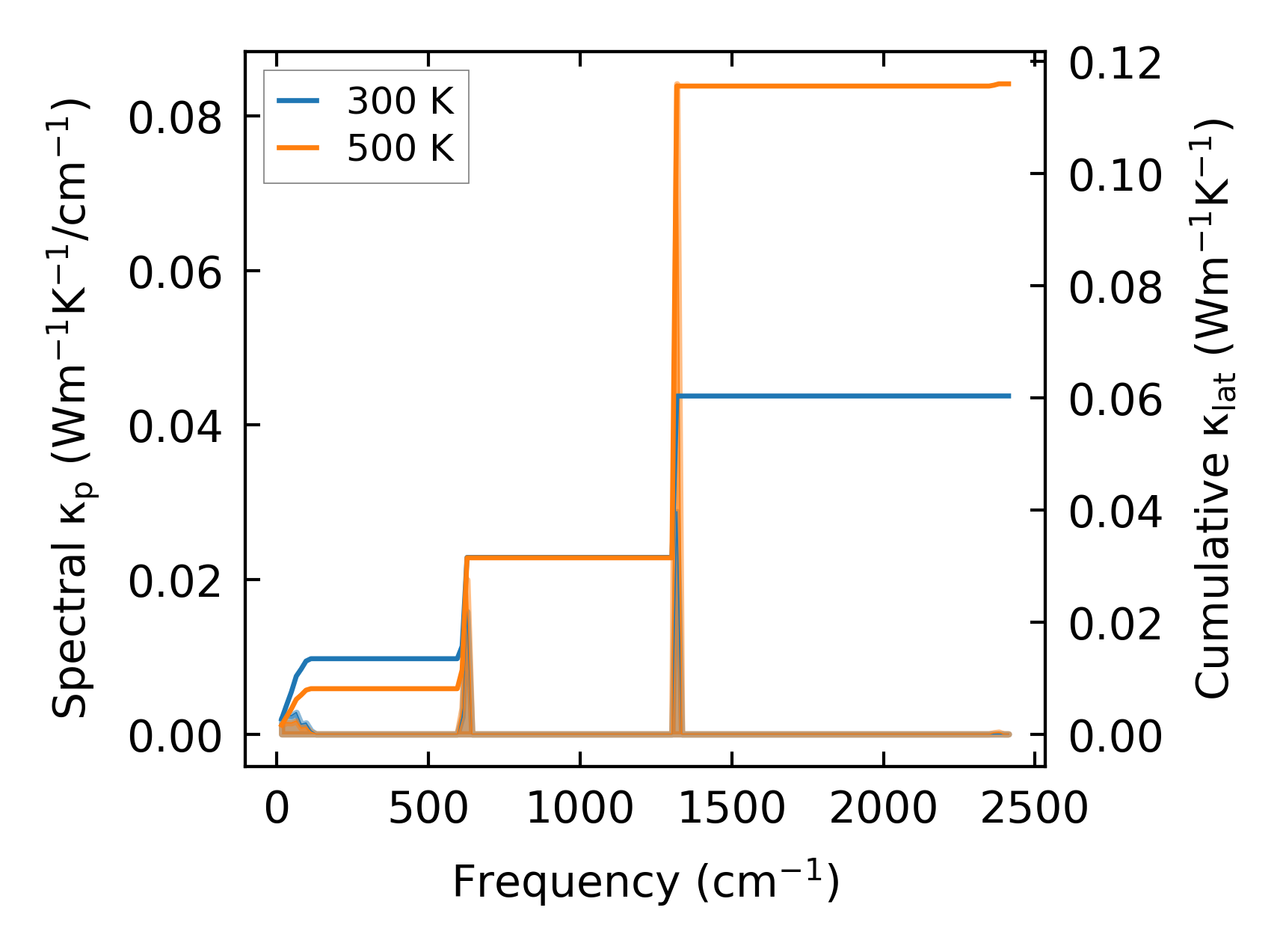

../../_images/fig_cumu_frequency5609.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

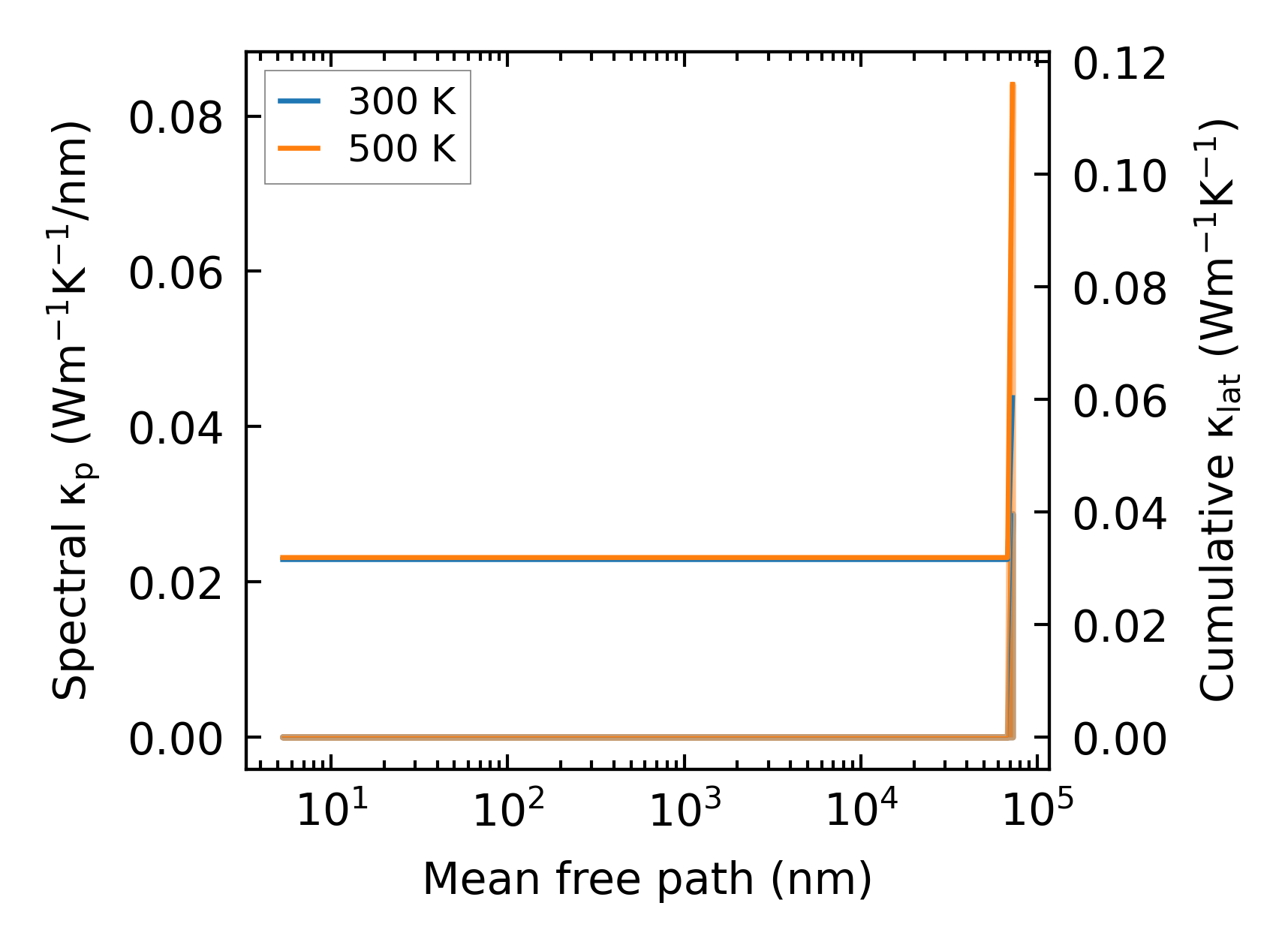

../../_images/fig_cumu_mfp5608.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

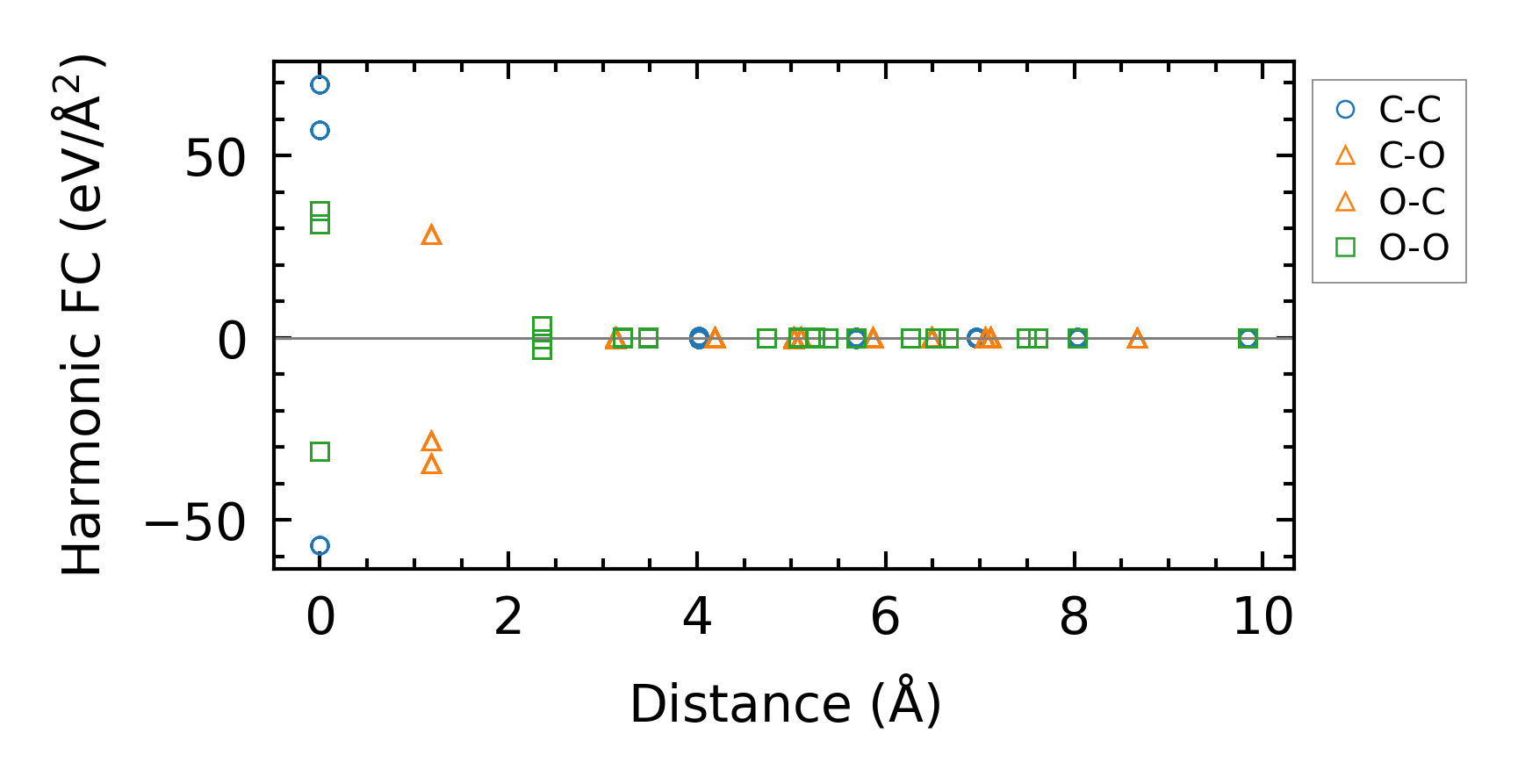

../../_images/fig_fc213064.png — (a) Force constants w.r.t atomic distance

Summary

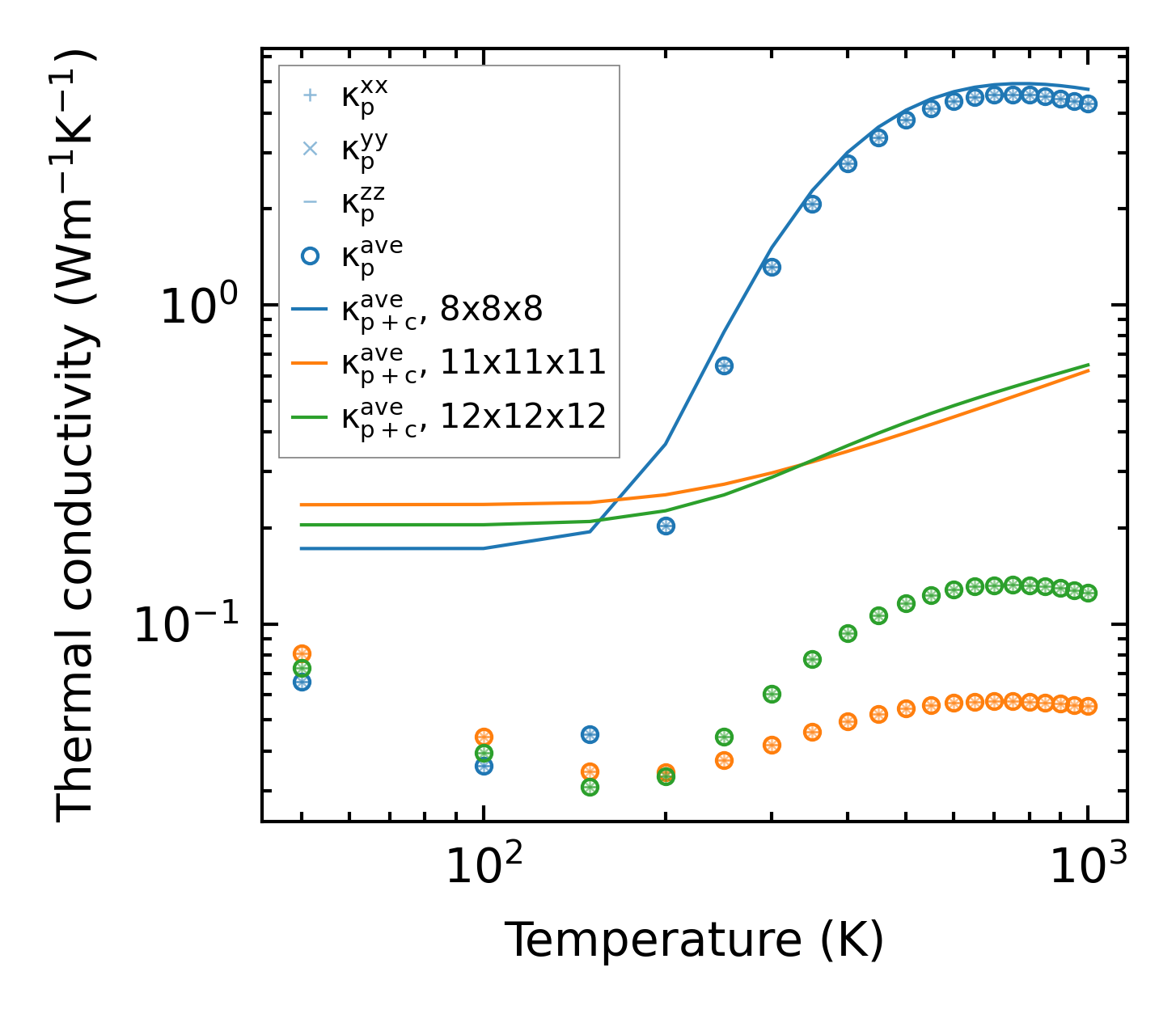

../../_images/fig_kappa10644.png — (a) Temperature-dependent lattice thermal conductivity

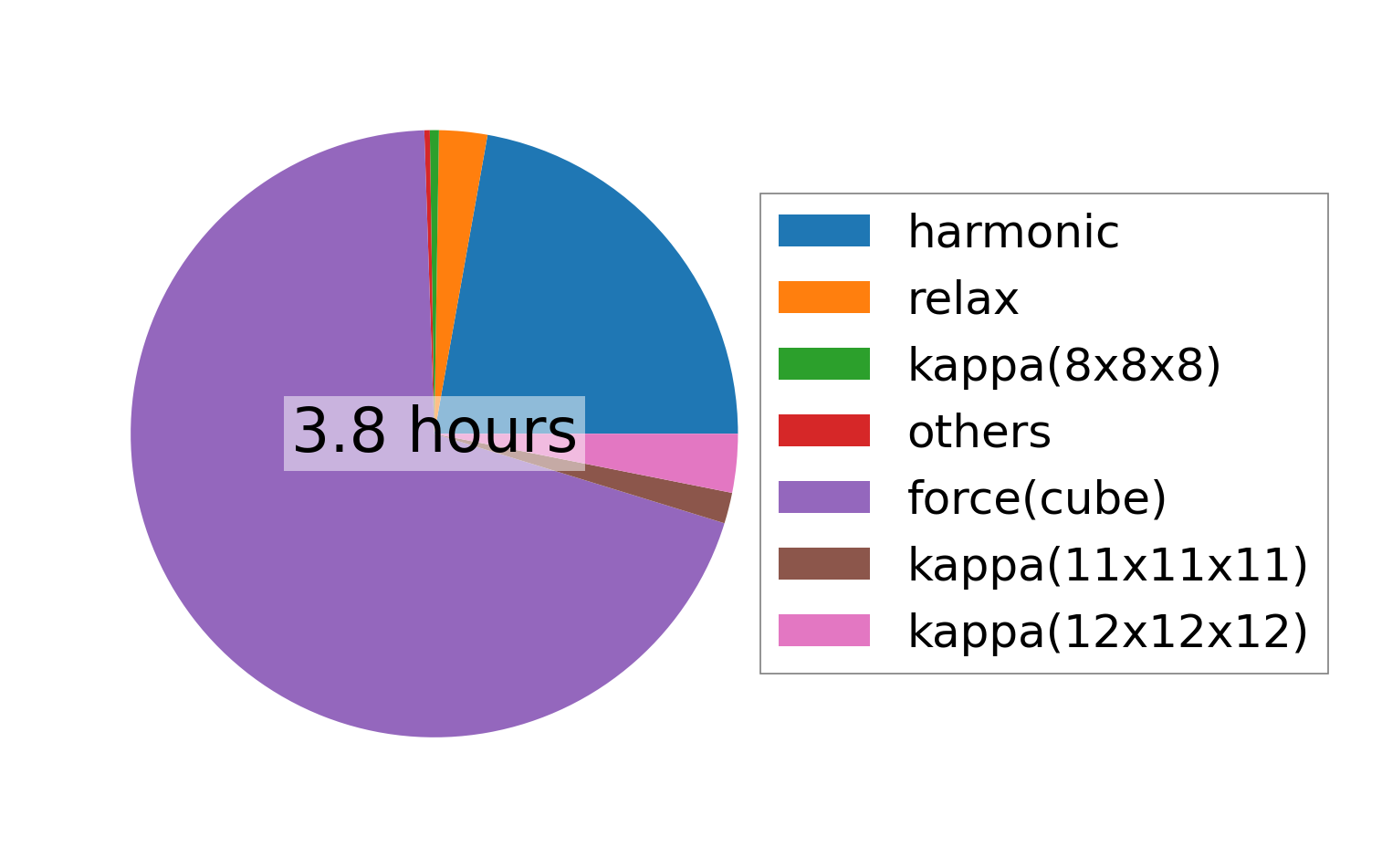

../../_images/fig_times22612.png — (b) Computation time
