mp-20099/In6WO12/anharm

Space group: R-3 (148)
Link: Materials Project
Download: mp-20099.tar.gz

Harmonic properties

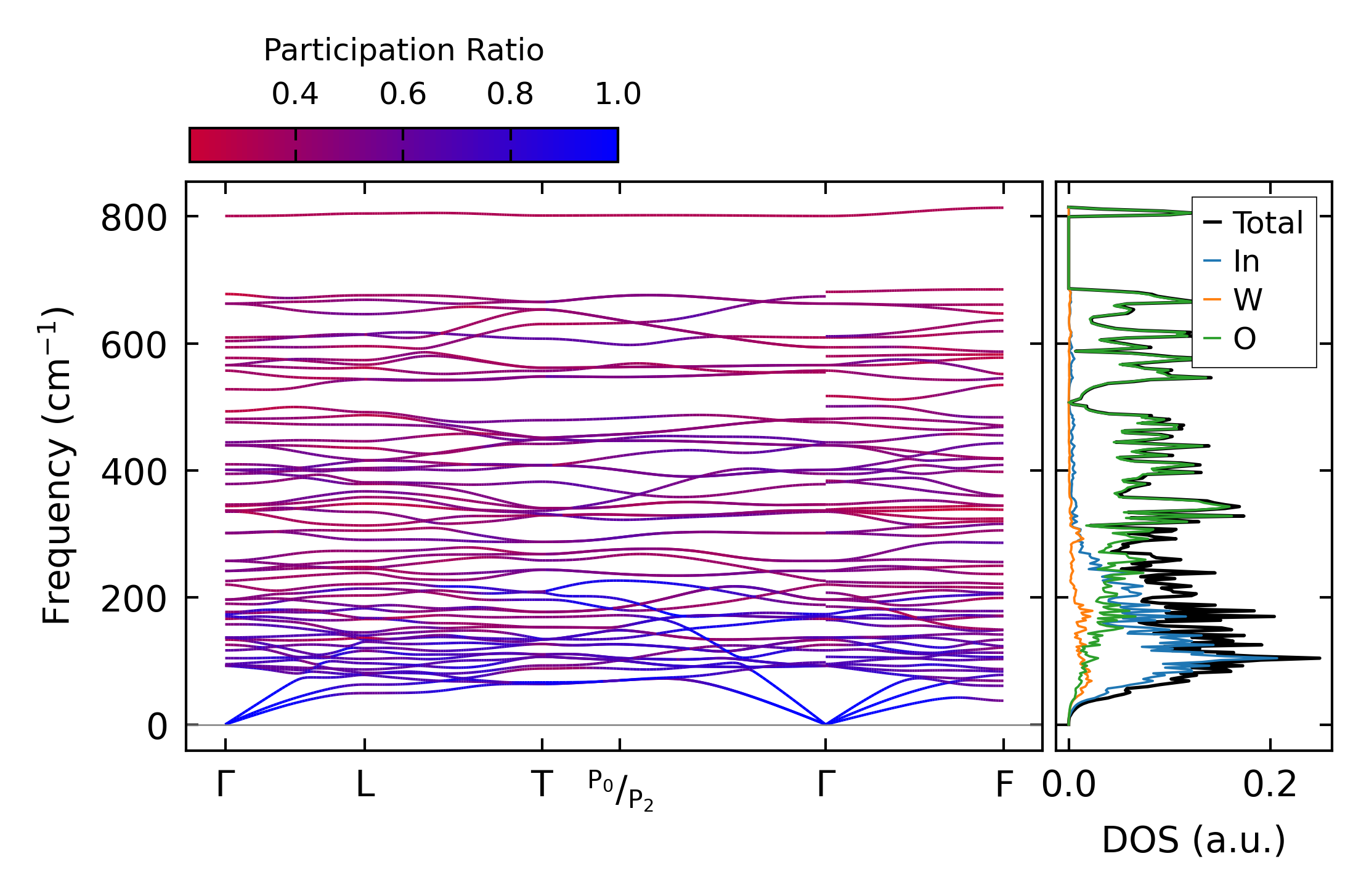

../../_images/fig_bandos_pr13431.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo13431.png — (b) Thermodynamic properties

Grüneisen parameters

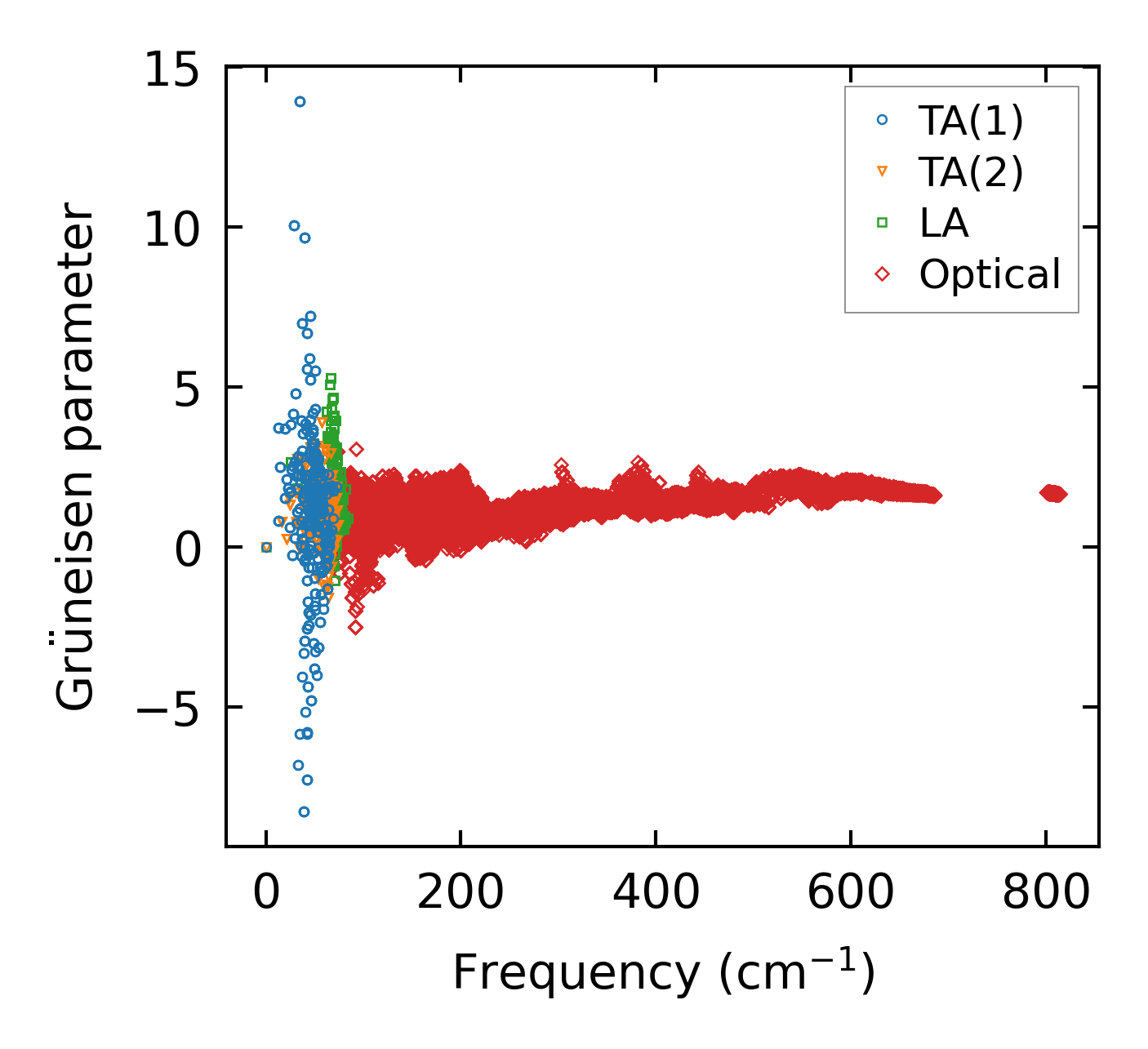

../../_images/fig_gru_all5667.png — (a) Grüneisen parameters

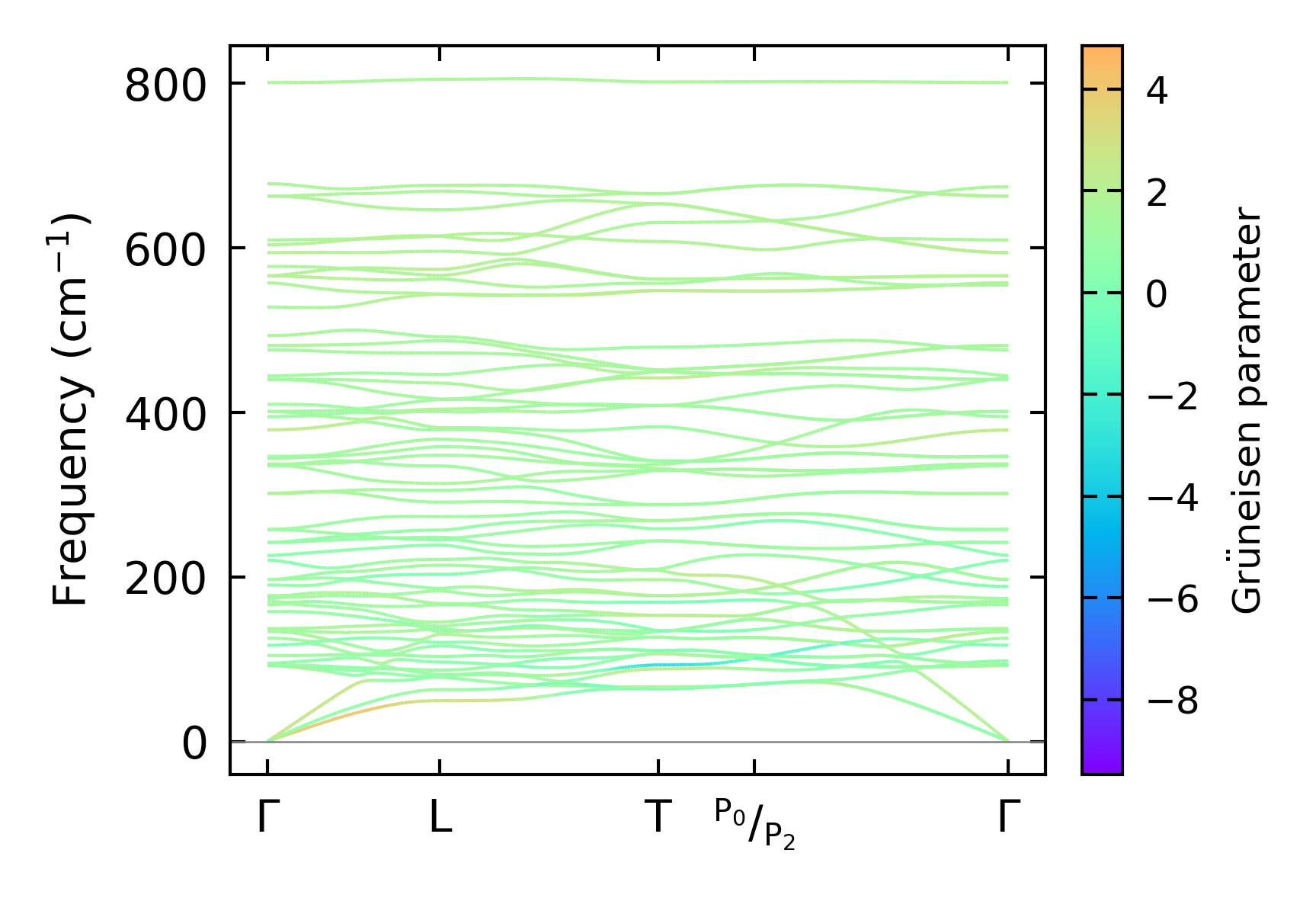

../../_images/fig_gruneisen5667.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 11x11x11, supercell: 1x1x2

../../_images/fig_kappa10648.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size5733.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

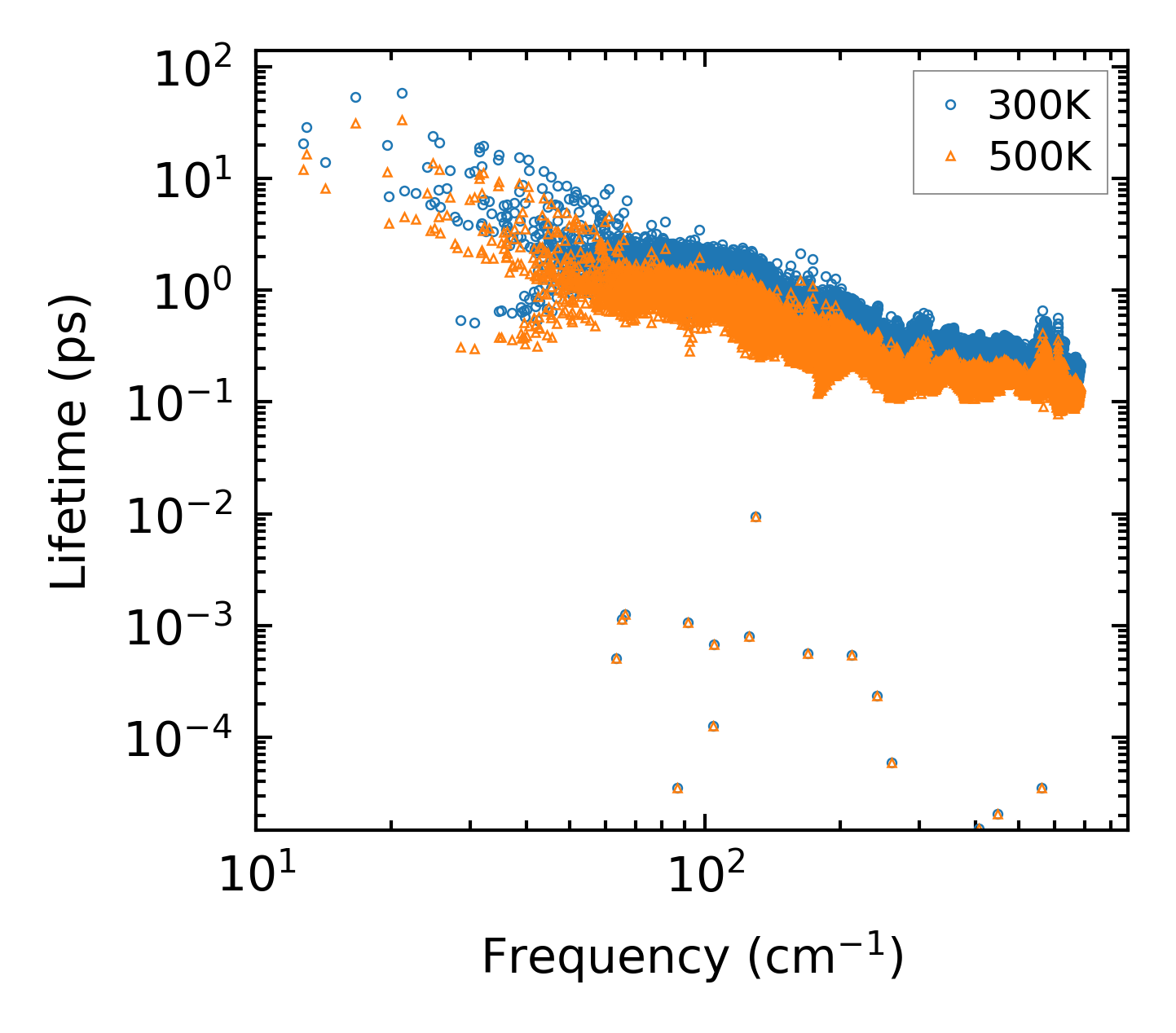

../../_images/fig_lifetime5612.png — (a) Phonon lifetime due to phonon-phonon scattering

../../_images/fig_scat_rates5611.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

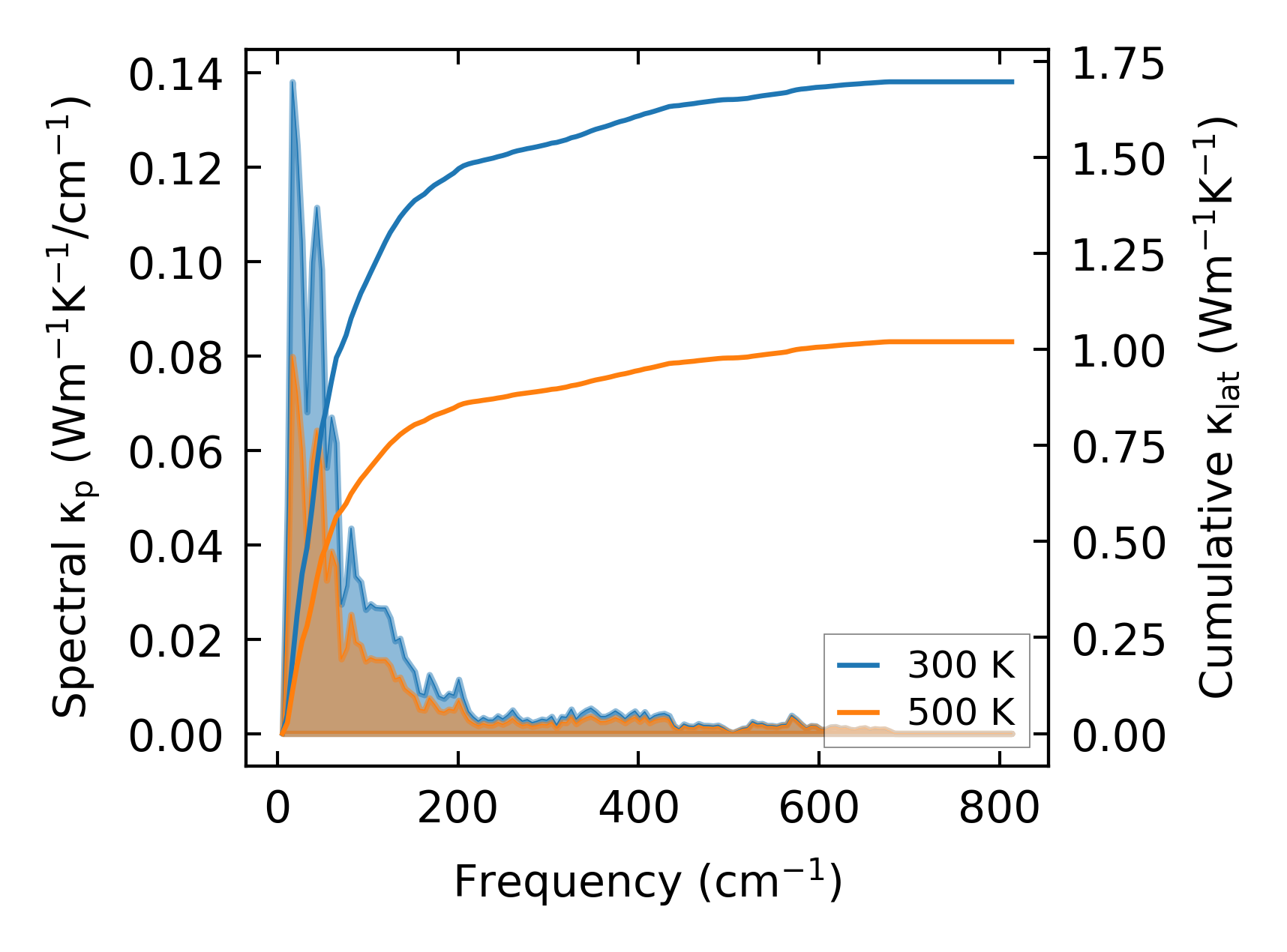

../../_images/fig_cumu_frequency5612.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

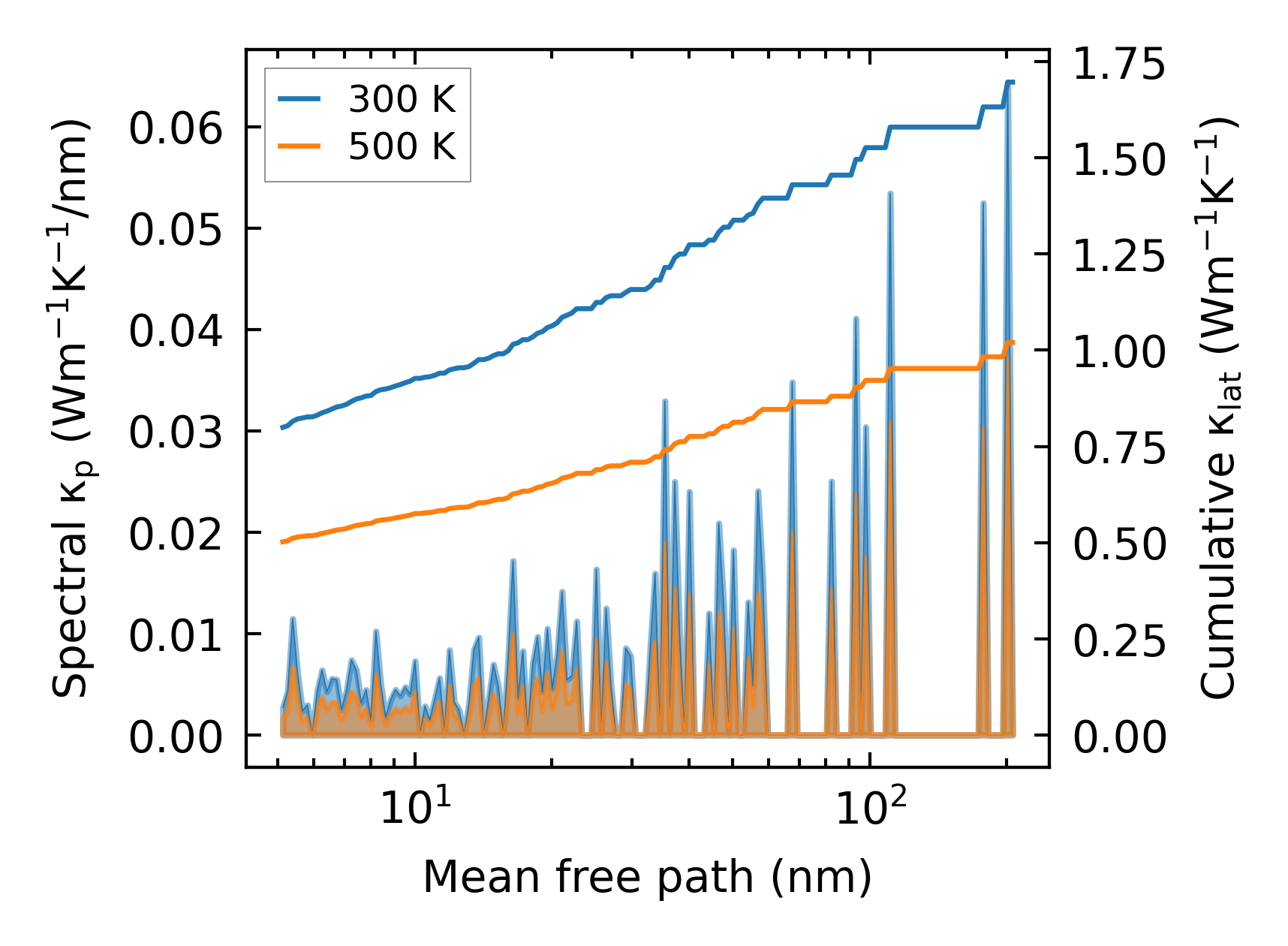

../../_images/fig_cumu_mfp5611.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

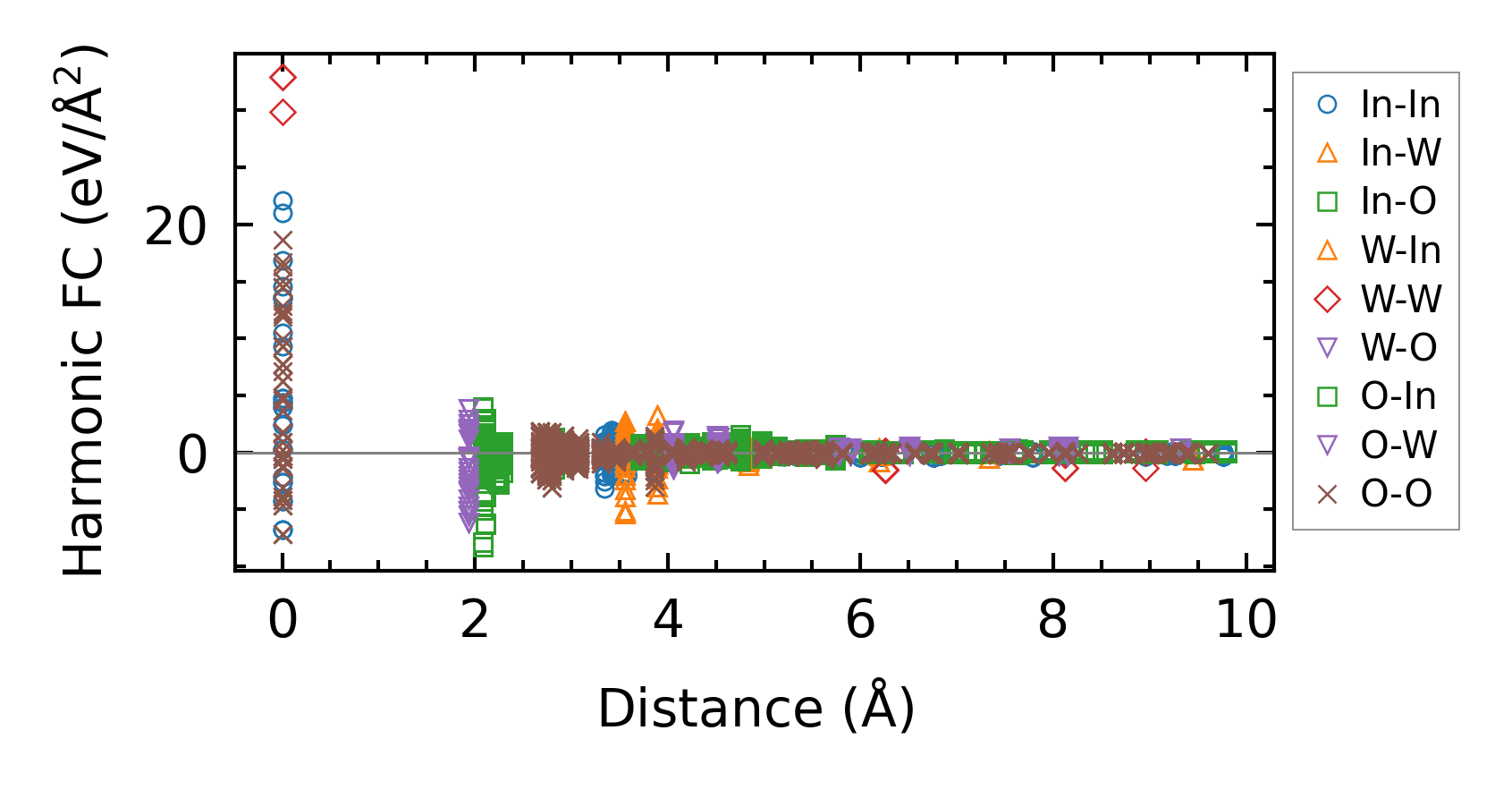

../../_images/fig_fc213068.png — (a) Force constants w.r.t atomic distance

Summary

../../_images/fig_kappa10649.png — (a) Temperature-dependent lattice thermal conductivity

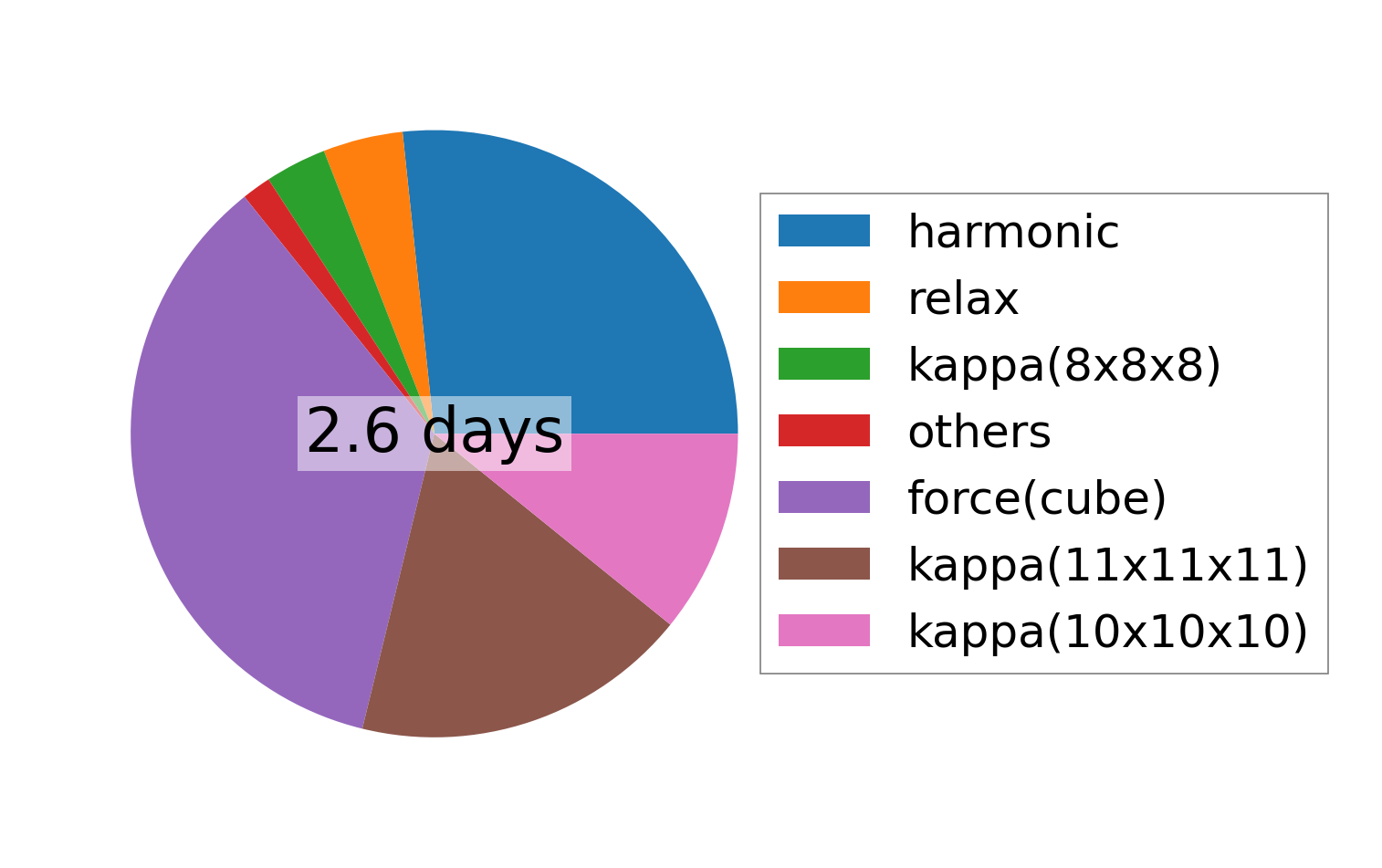

../../_images/fig_times22621.png — (b) Computation time
