mp-20205/Yb2Cu2O5/anharm

Space group: Pna2_1 (33)
Link: Materials Project
Download: mp-20205.tar.gz

Harmonic properties

../../_images/fig_bandos_pr13441.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo13441.png — (b) Thermodynamic properties

Grüneisen parameters

../../_images/fig_gru_all5674.png — (a) Grüneisen parameters

../../_images/fig_gruneisen5674.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 7x21x5, supercell: 1x4x1

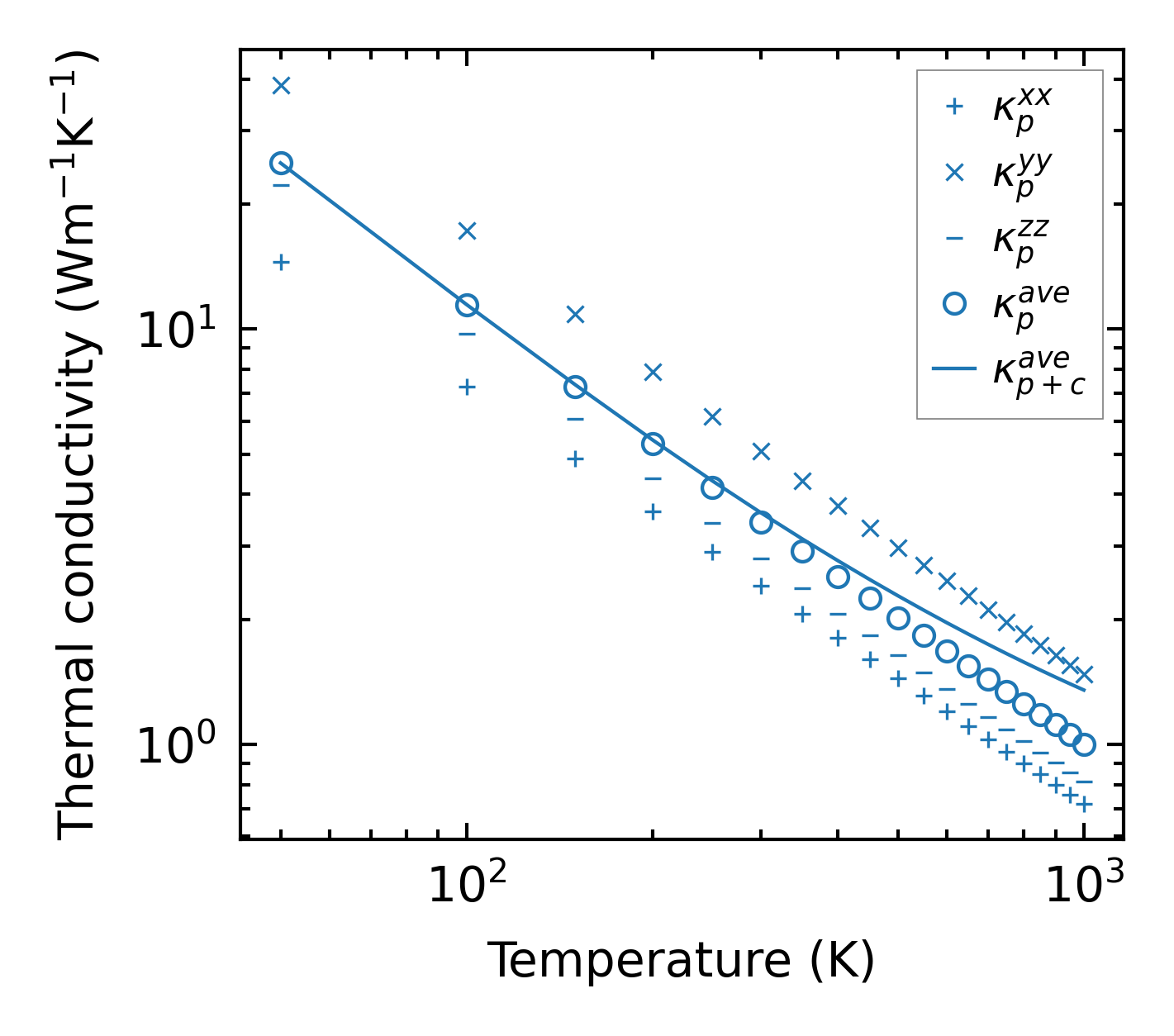

../../_images/fig_kappa10660.png — (a) Temperature-dependent lattice thermal conductivity

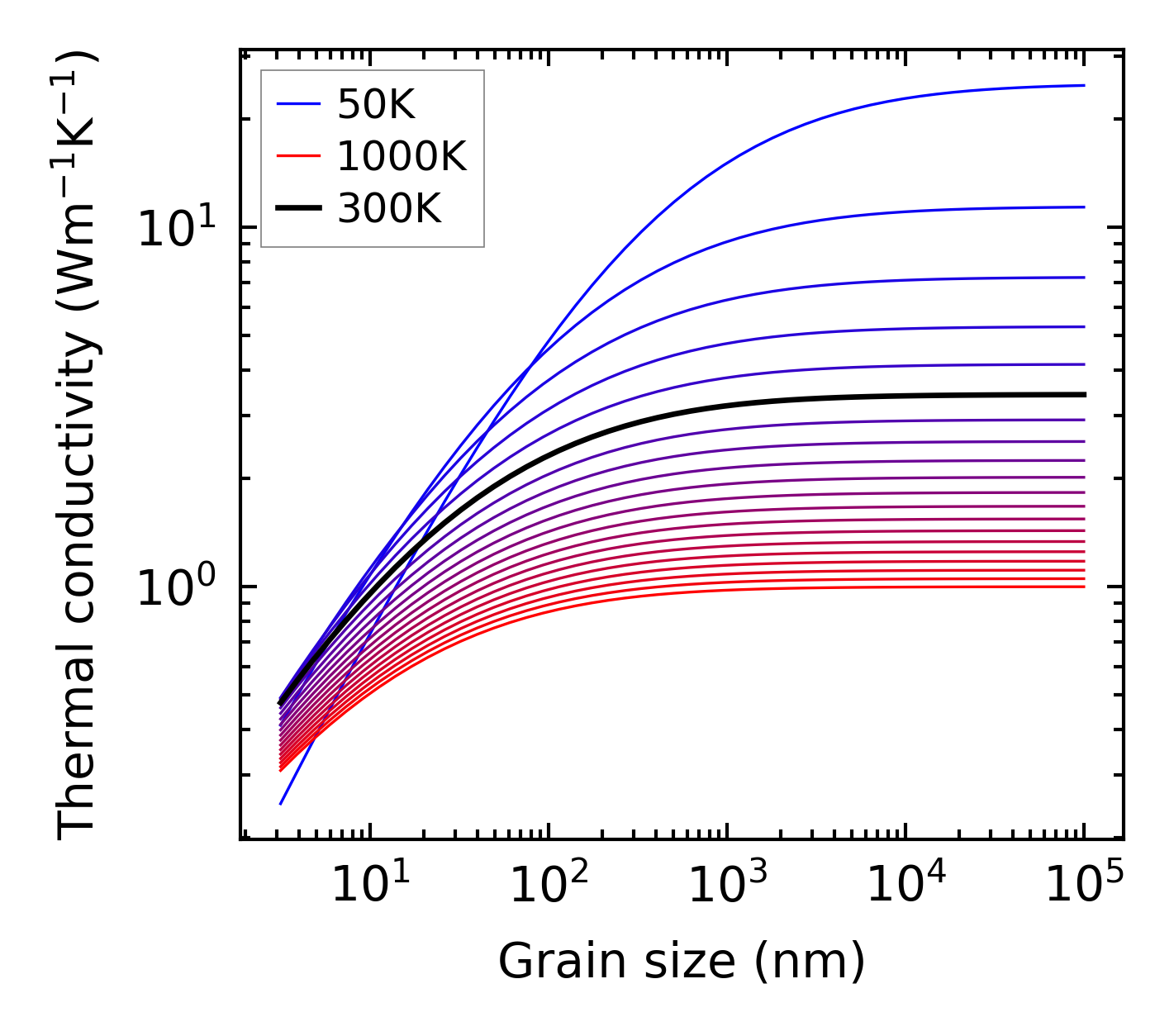

../../_images/fig_kappa_vs_grain_size5740.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

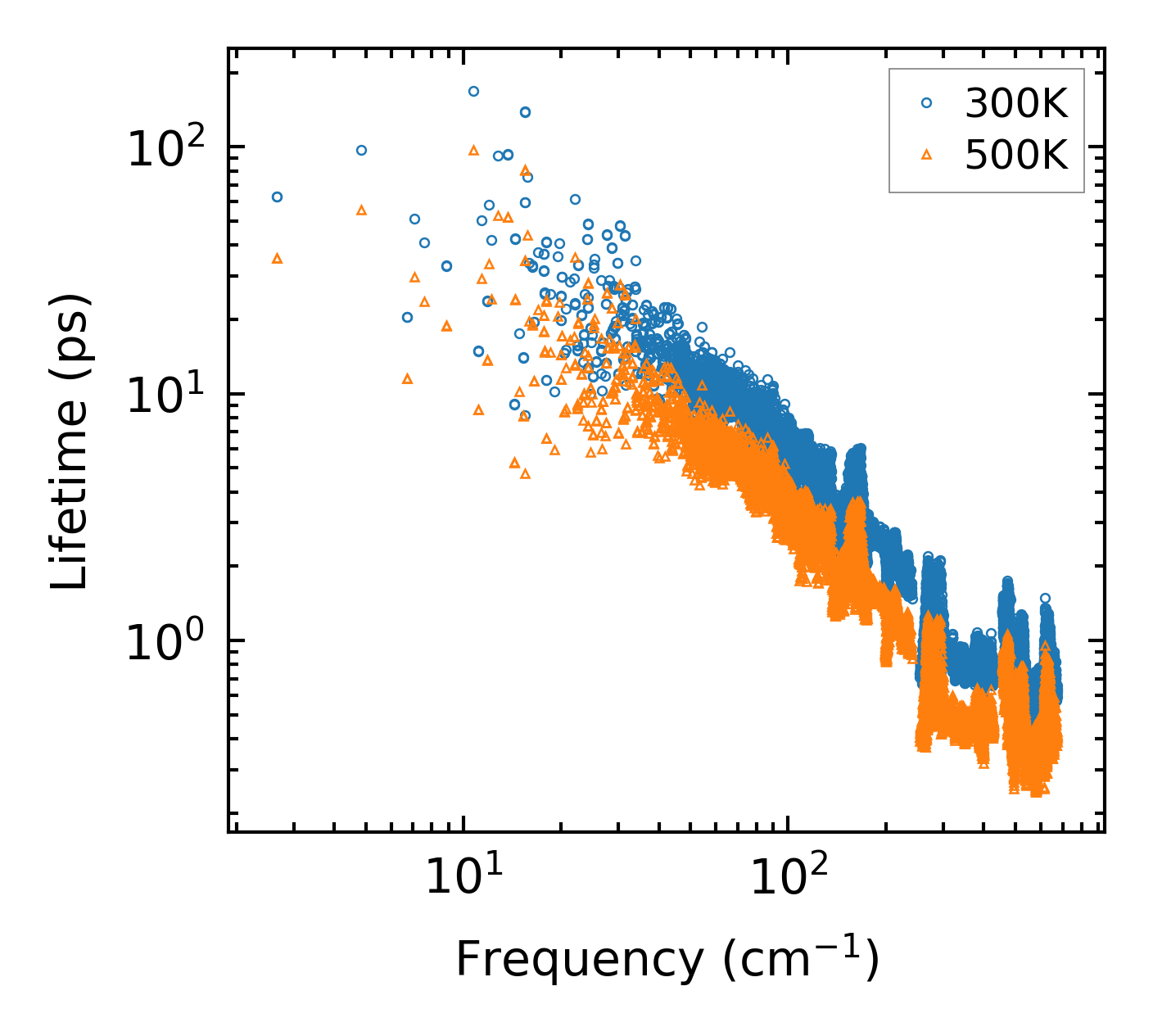

../../_images/fig_lifetime5619.png — (a) Phonon lifetime due to phonon-phonon scattering

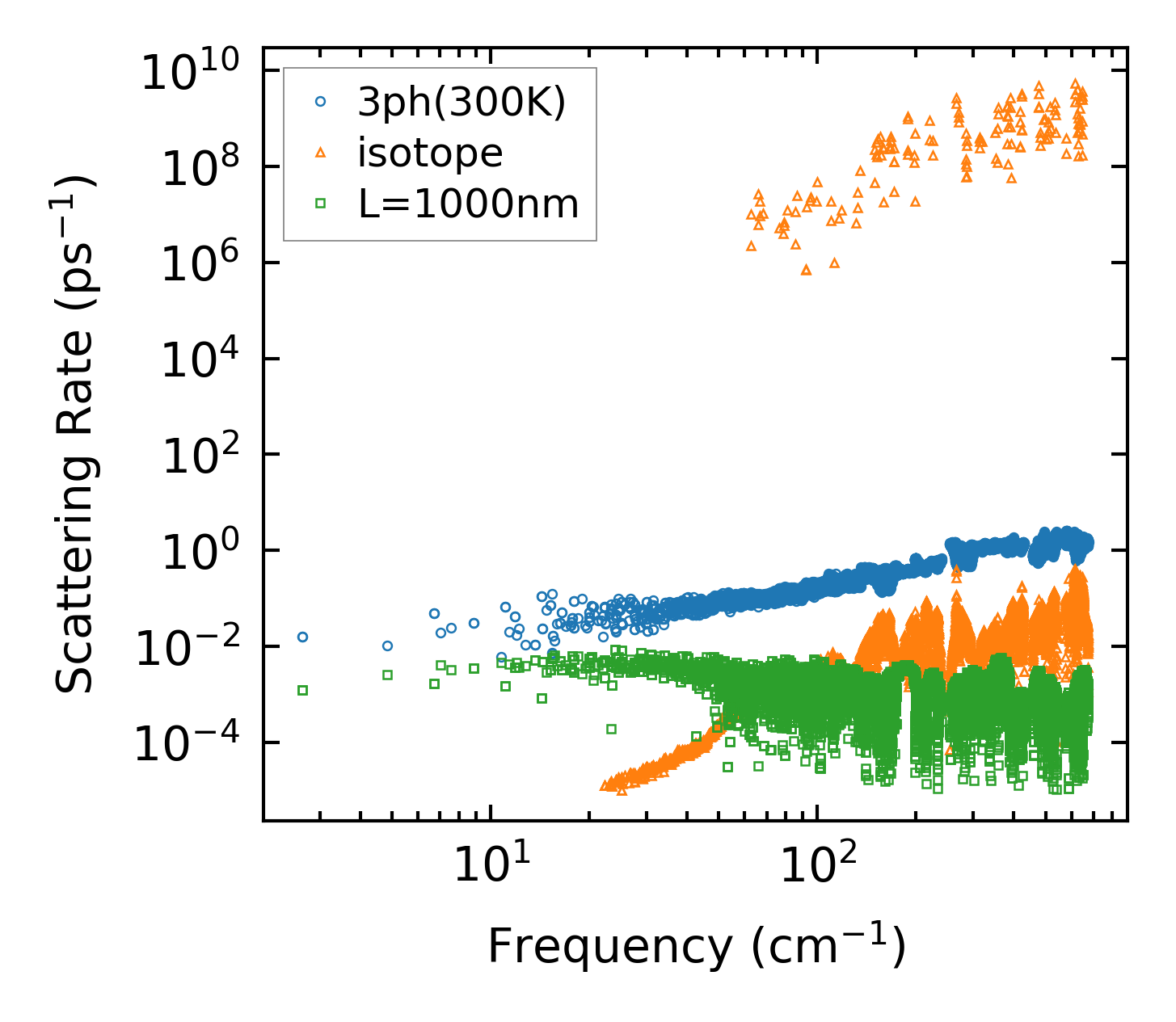

../../_images/fig_scat_rates5618.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

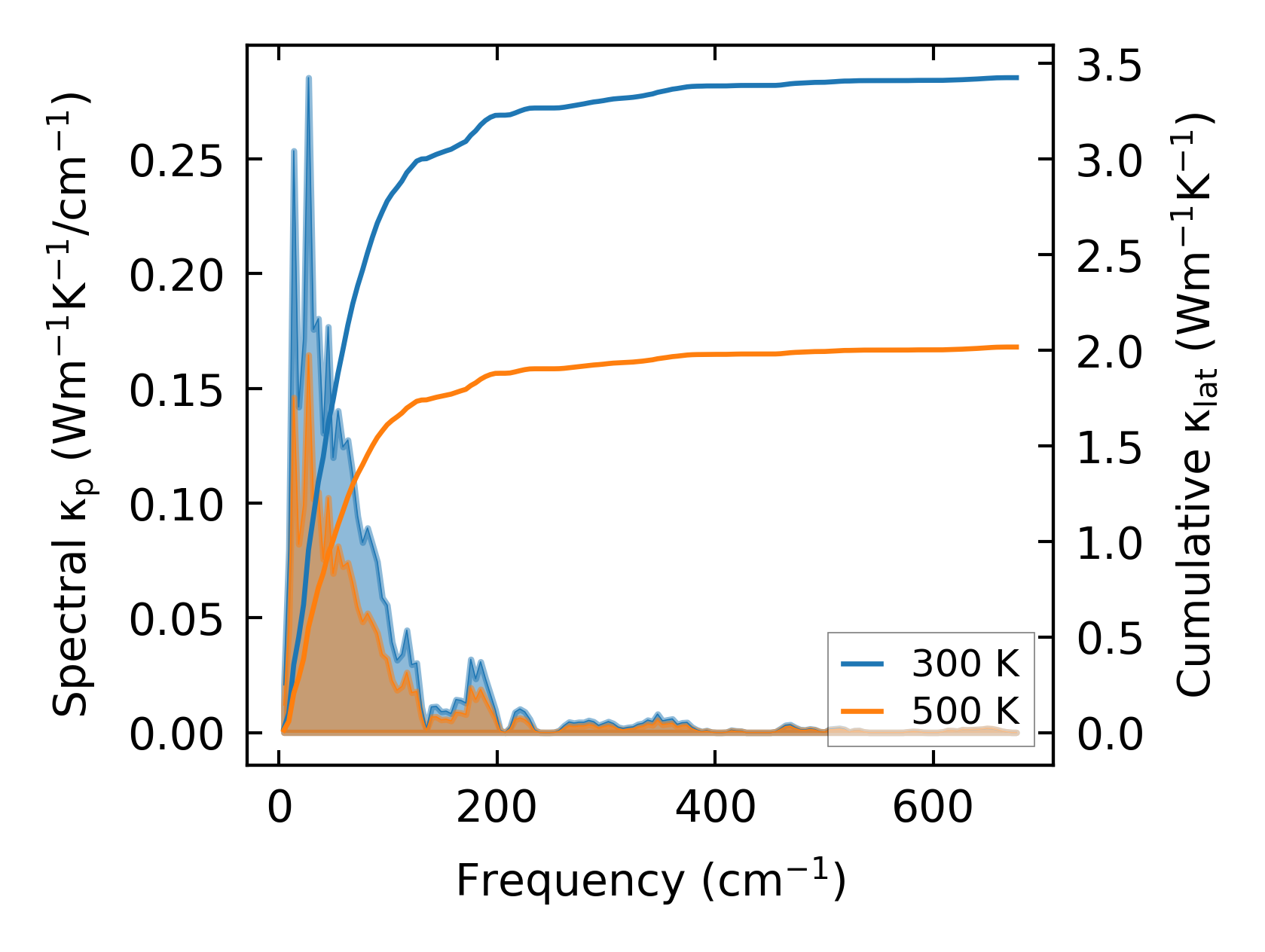

../../_images/fig_cumu_frequency5619.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

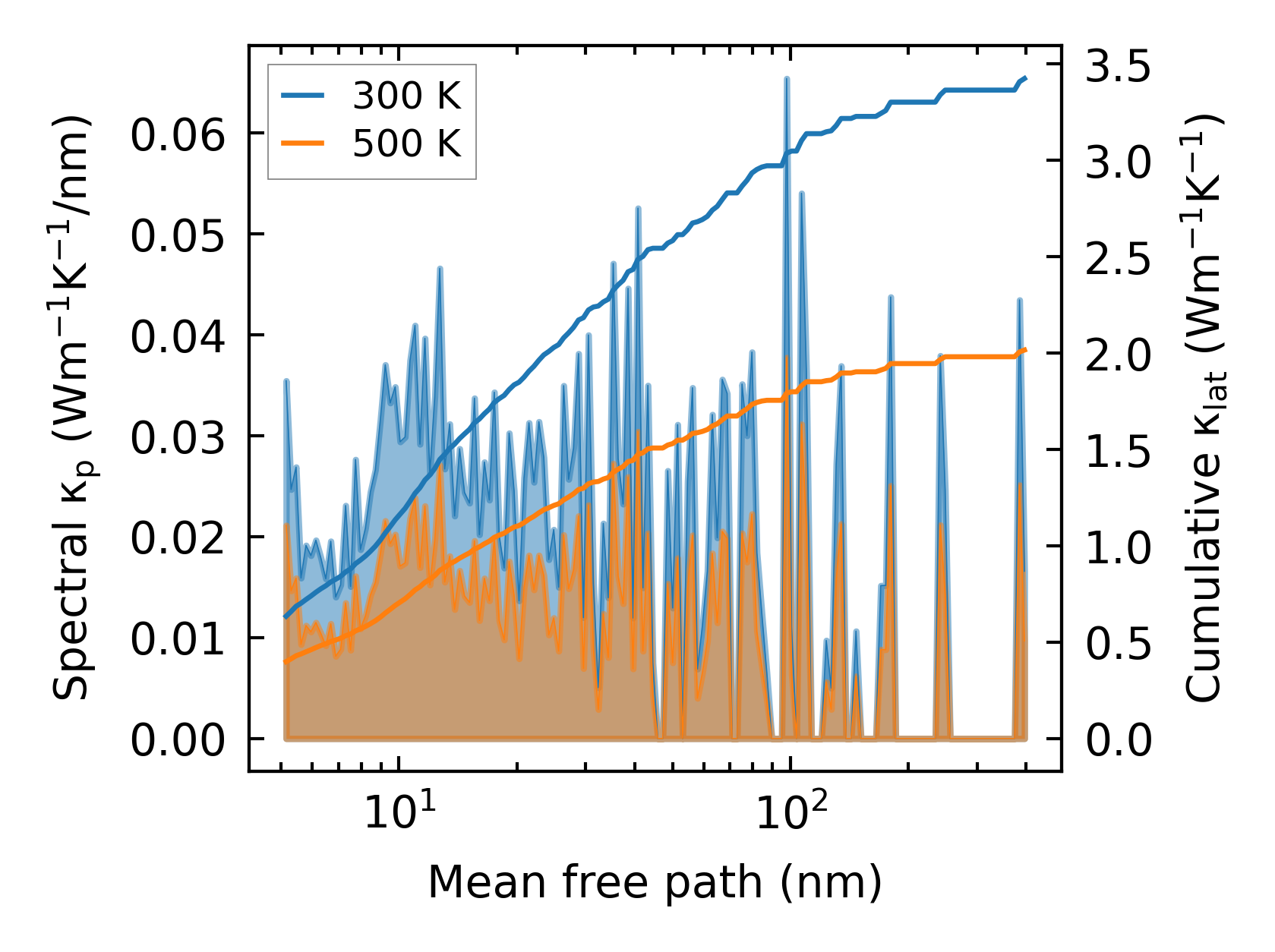

../../_images/fig_cumu_mfp5618.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

../../_images/fig_fc213077.png — (a) Force constants w.r.t atomic distance

Summary

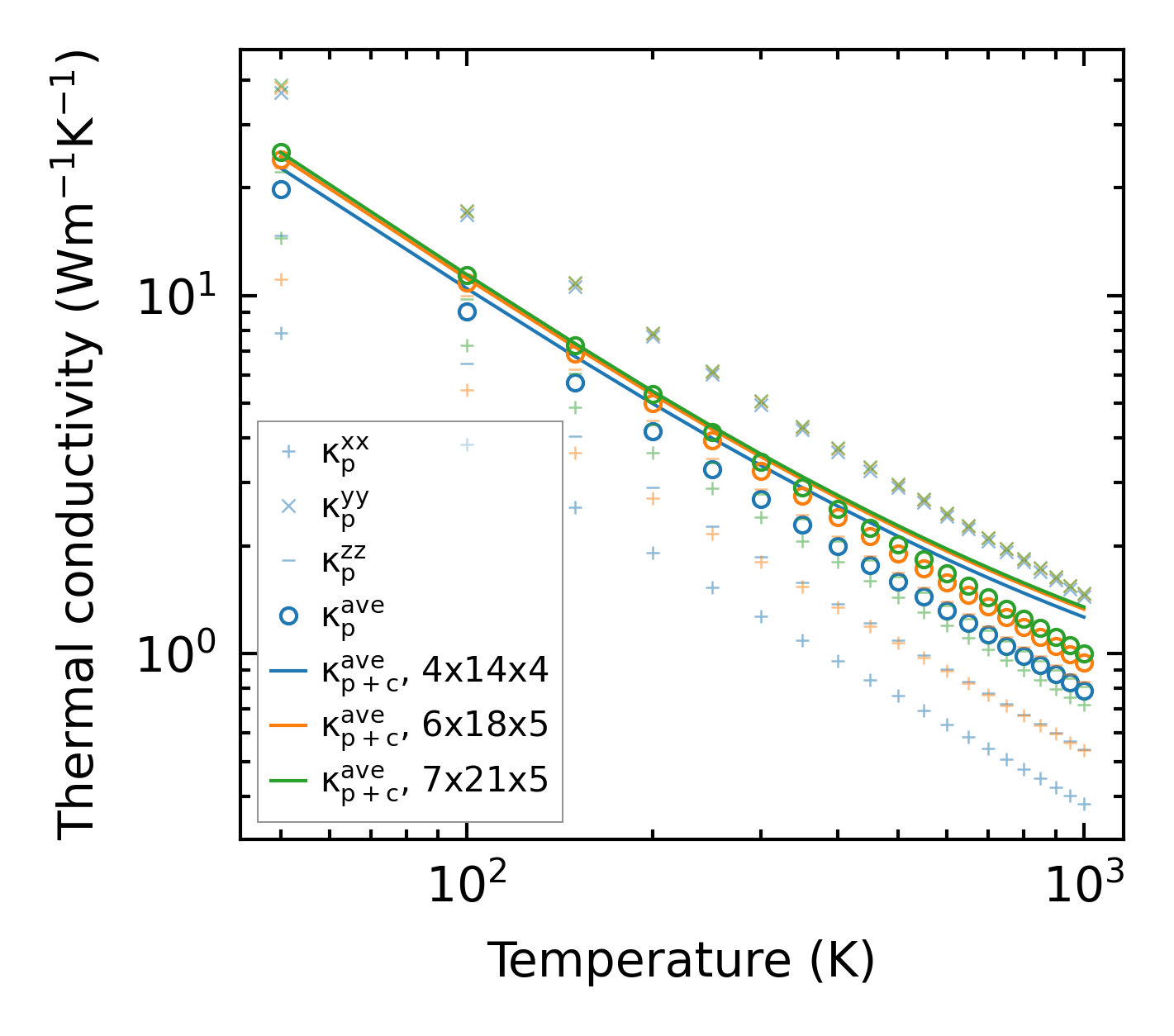

../../_images/fig_kappa10661.png — (a) Temperature-dependent lattice thermal conductivity

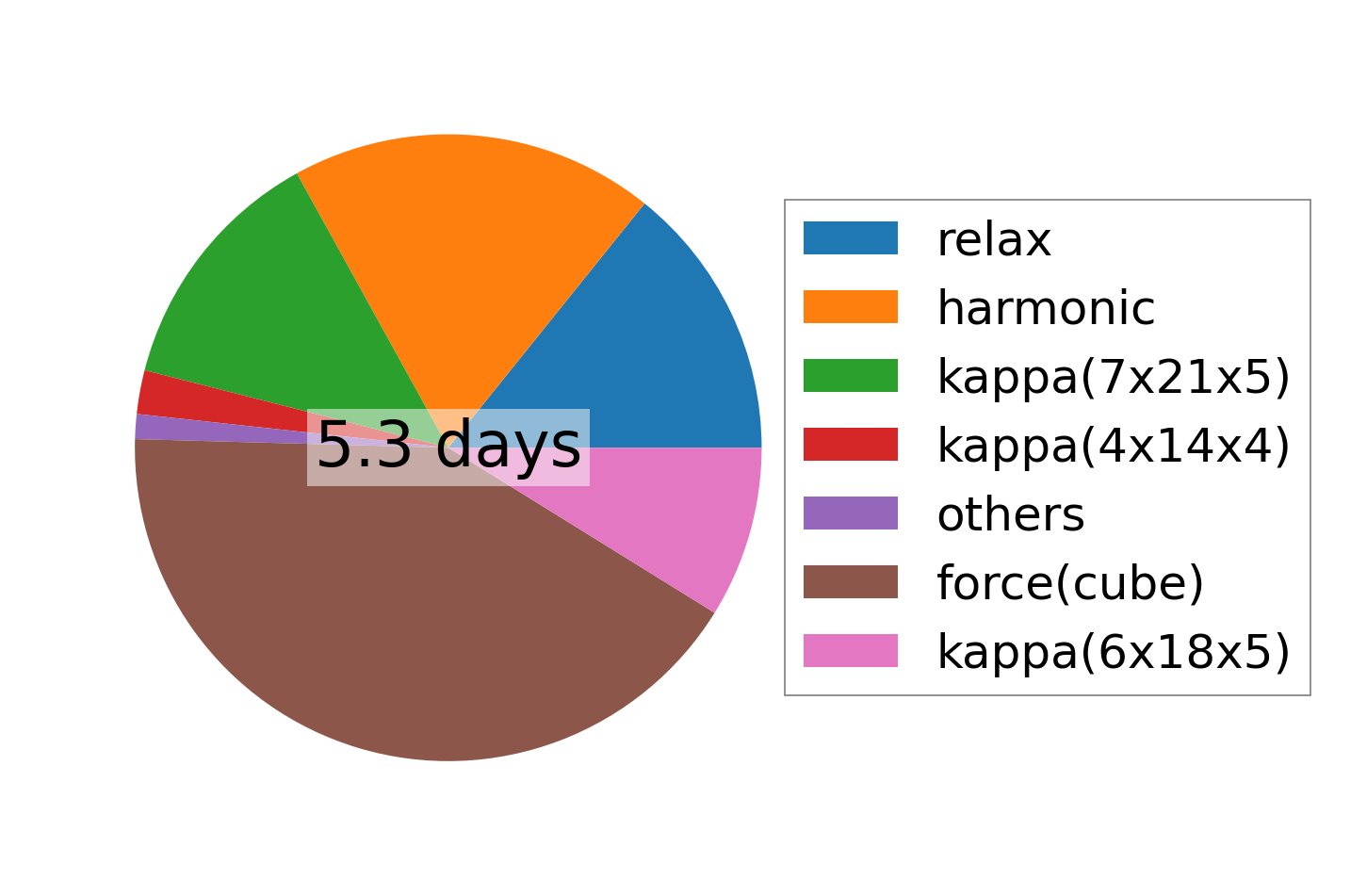

../../_images/fig_times22634.png — (b) Computation time
