mp-989651/HfTeSe4/anharm

Space group: P2/m (10)
Link: Materials Project
Download: mp-989651.tar.gz

Harmonic properties

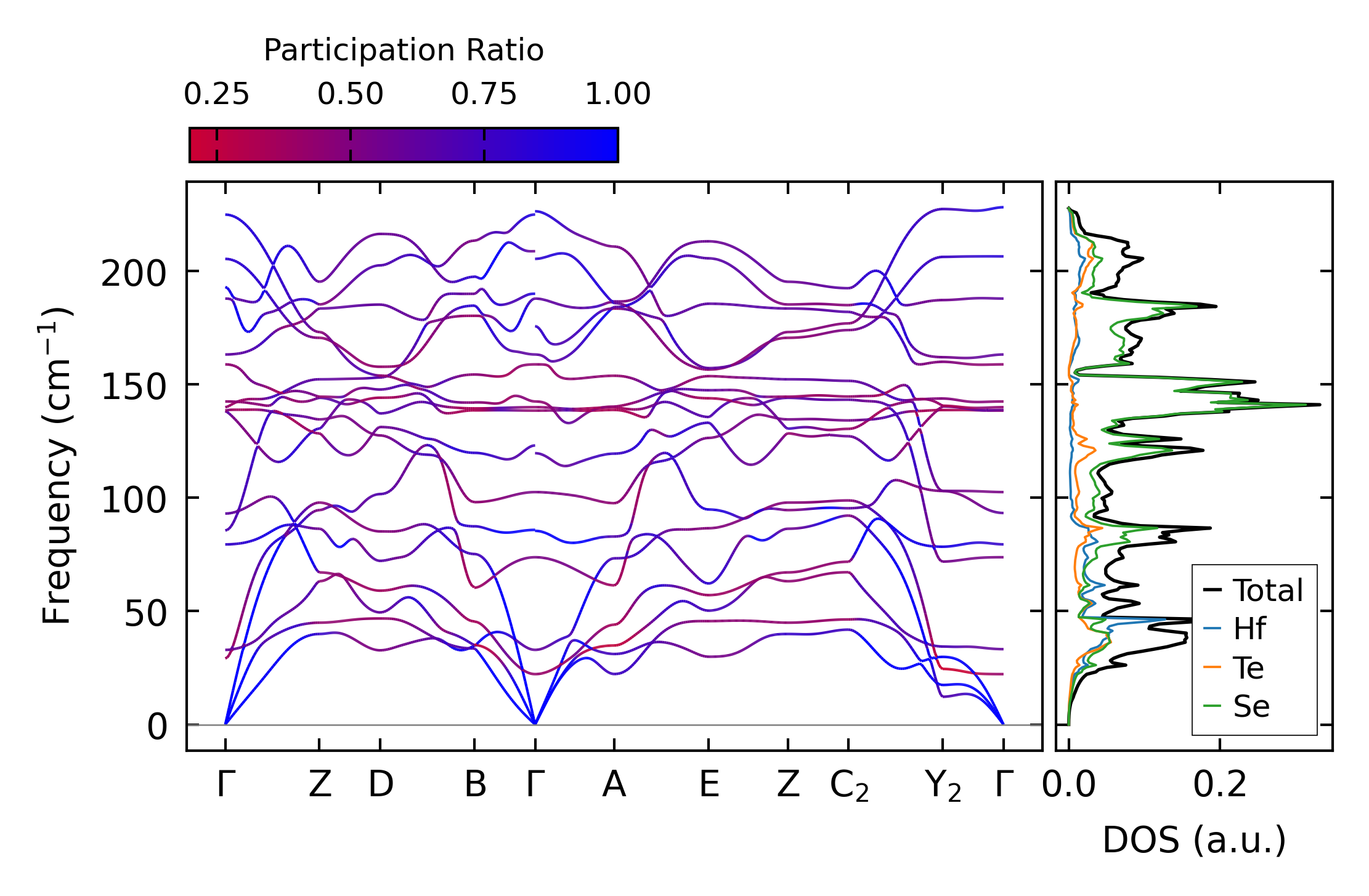

../../_images/fig_bandos_pr872.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo872.png — (b) Thermodynamic properties

Grüneisen parameters

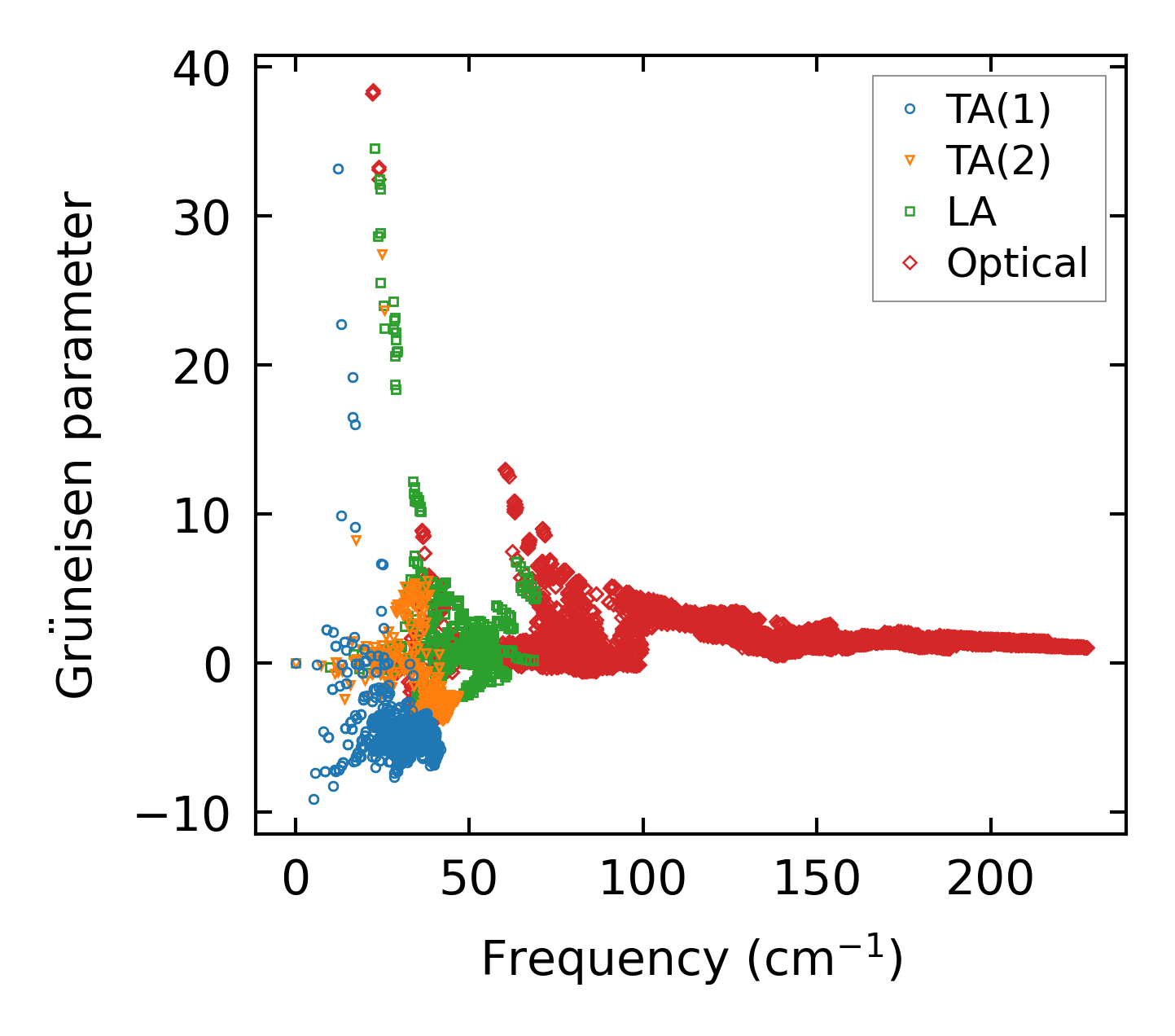

../../_images/fig_gru_all549.png — (a) Grüneisen parameters

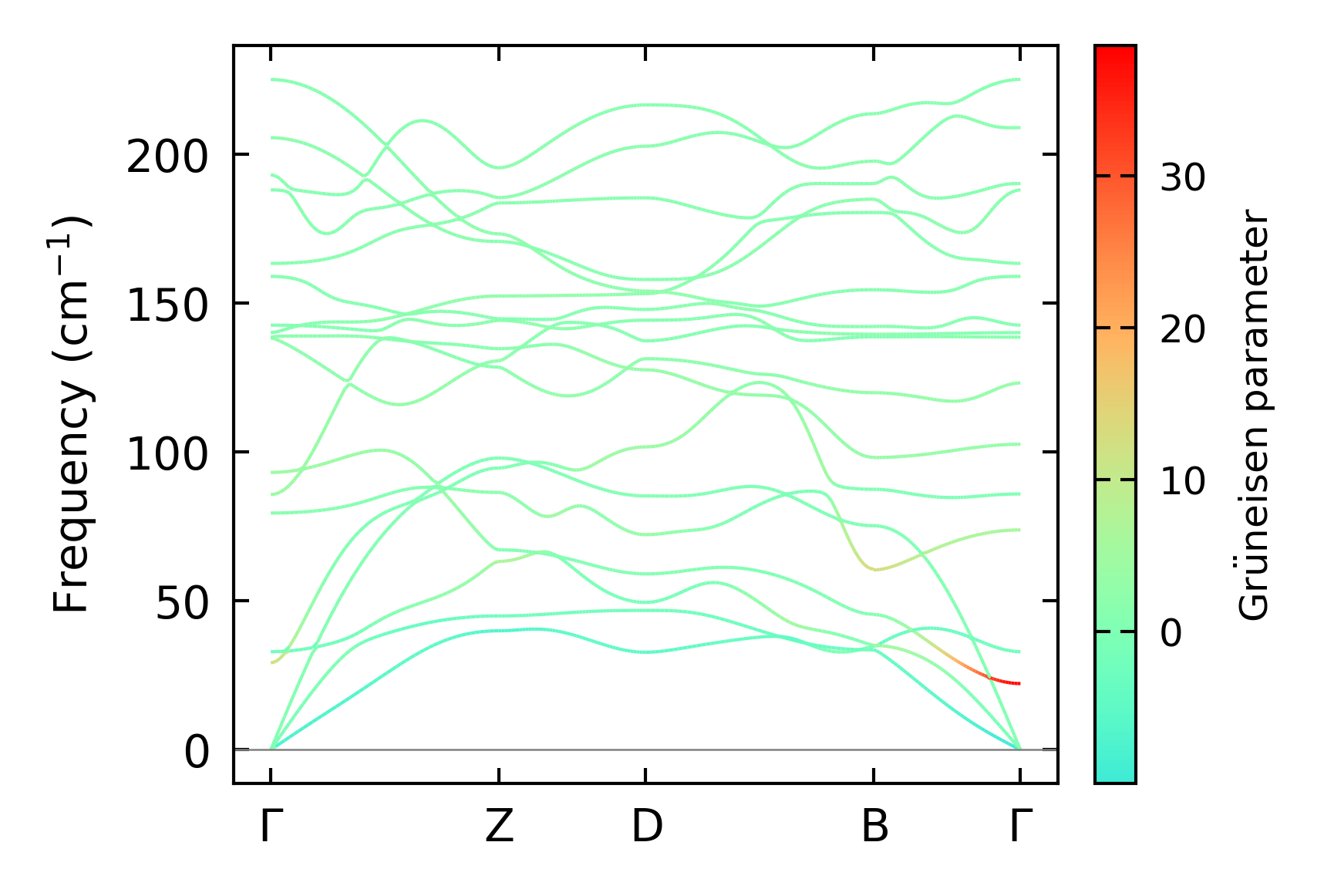

../../_images/fig_gruneisen549.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 11x18x10, supercell: 3x4x2

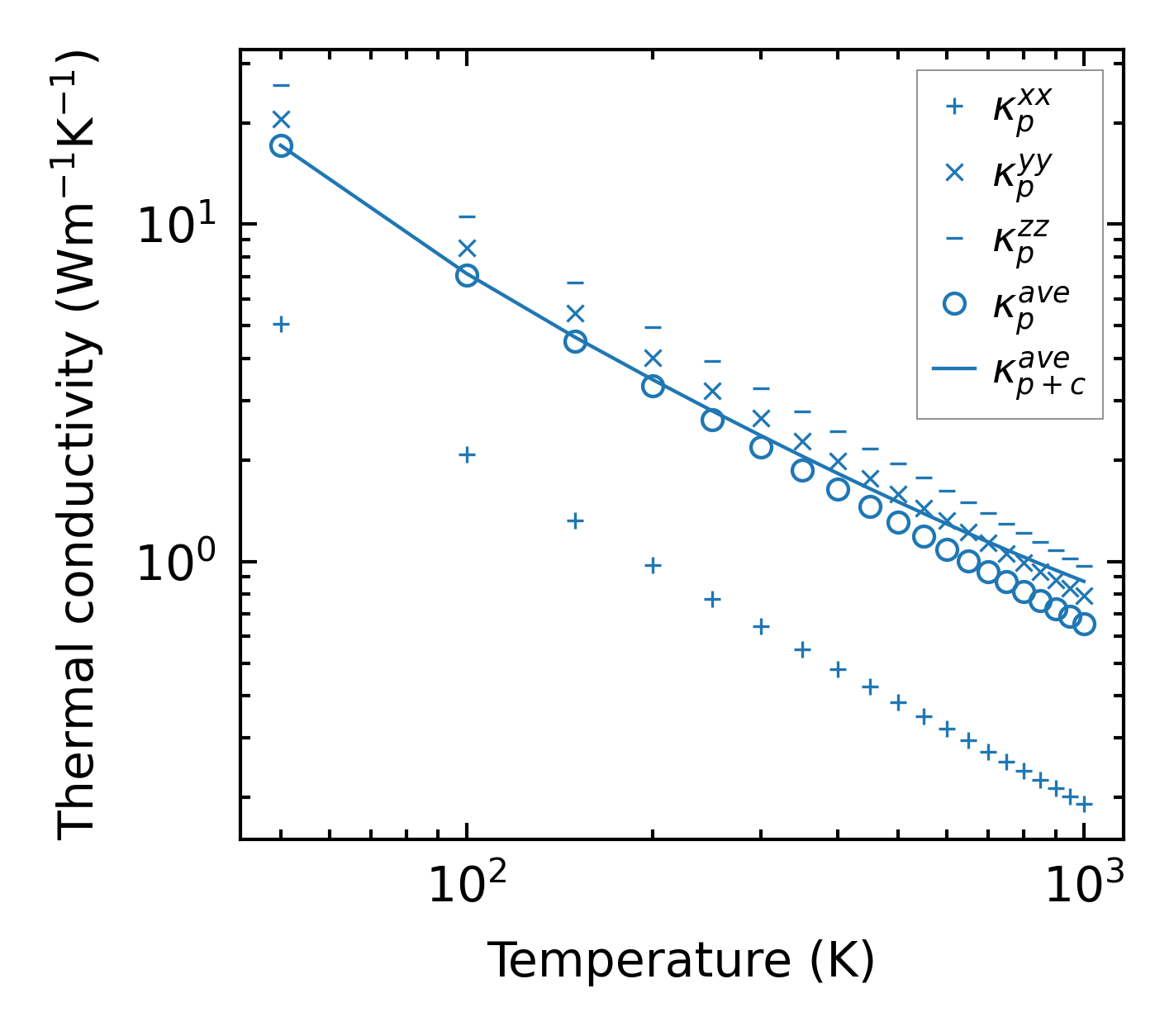

../../_images/fig_kappa1070.png — (a) Temperature-dependent lattice thermal conductivity

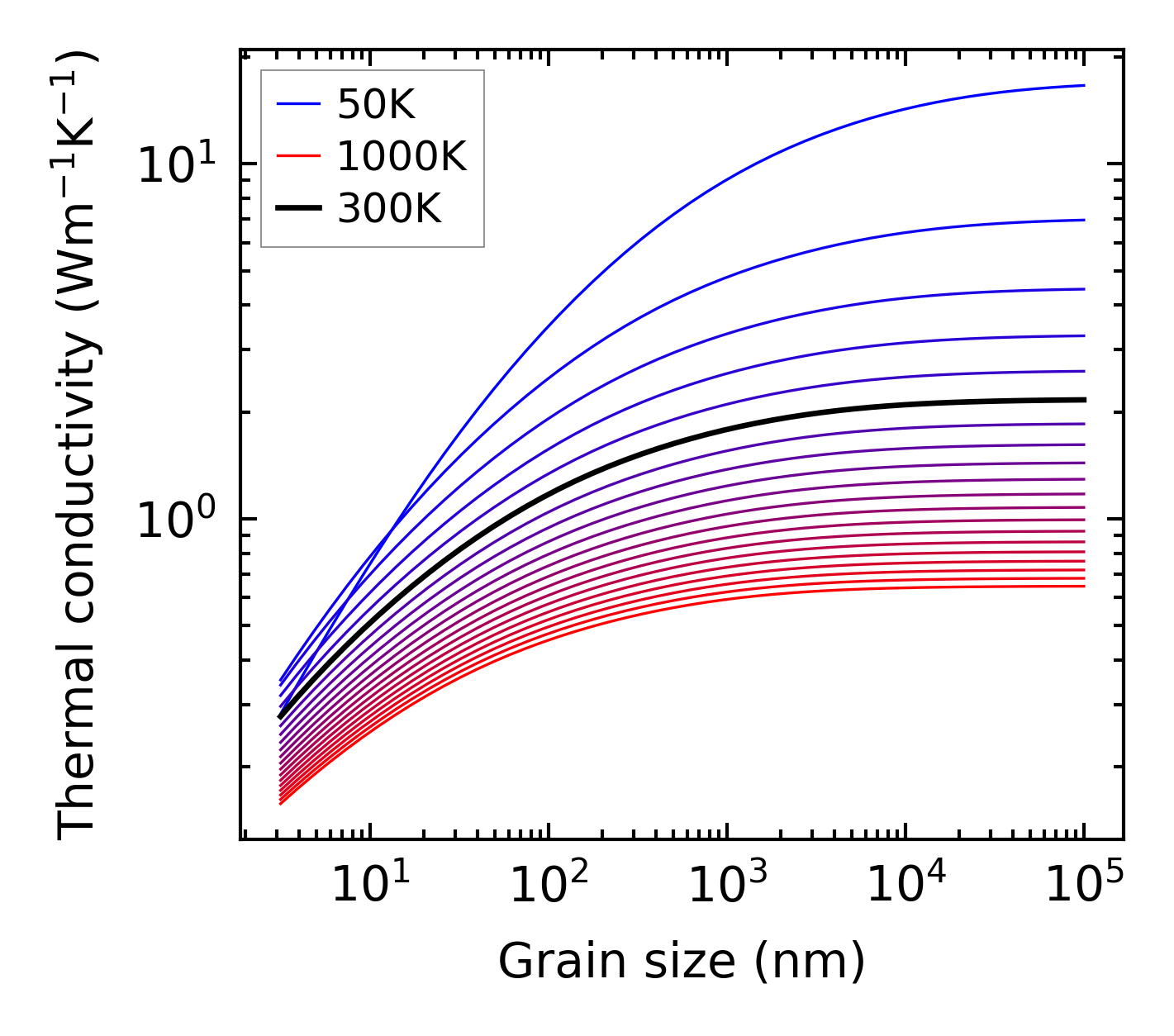

../../_images/fig_kappa_vs_grain_size556.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

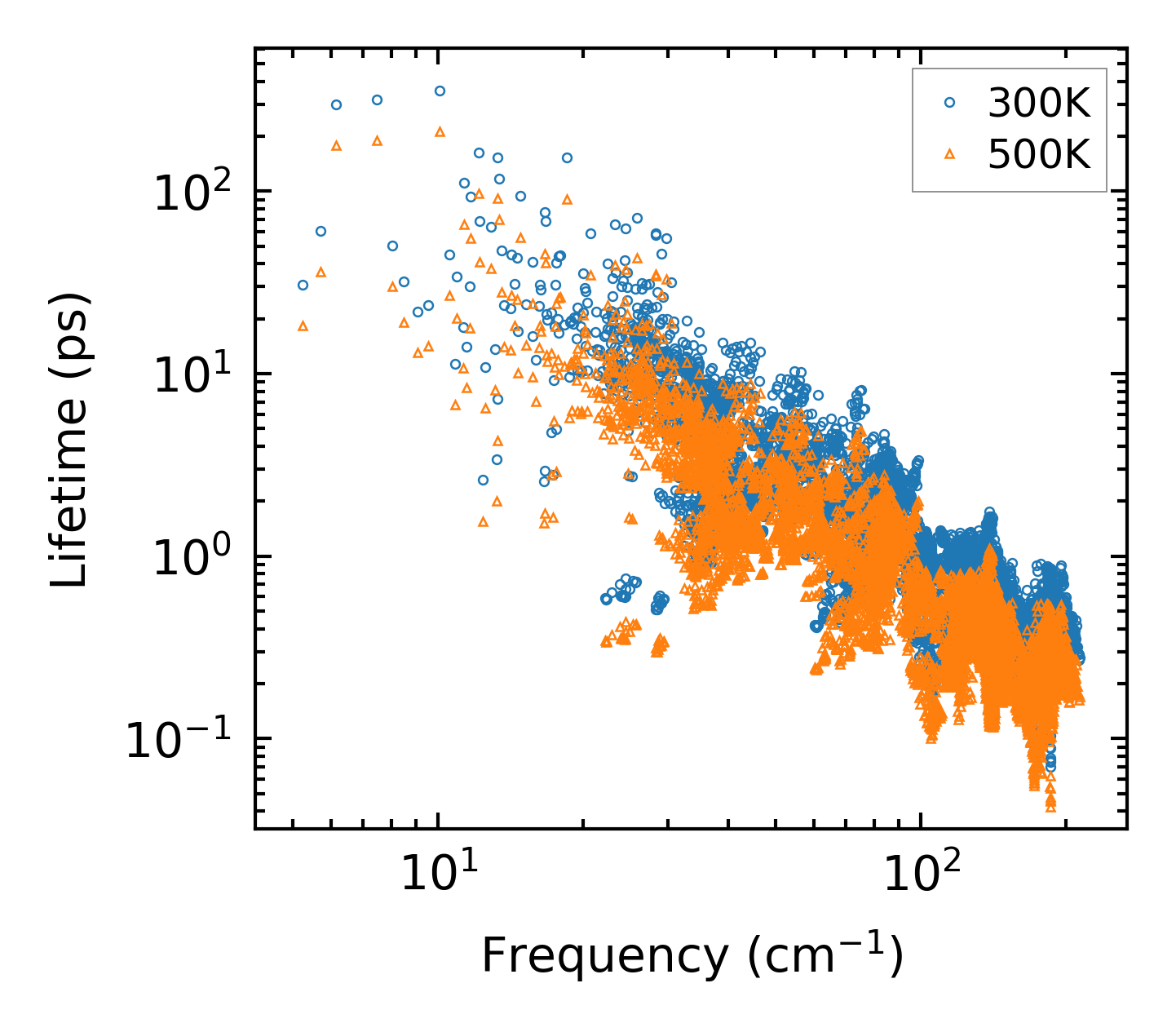

../../_images/fig_lifetime547.png — (a) Phonon lifetime due to phonon-phonon scattering

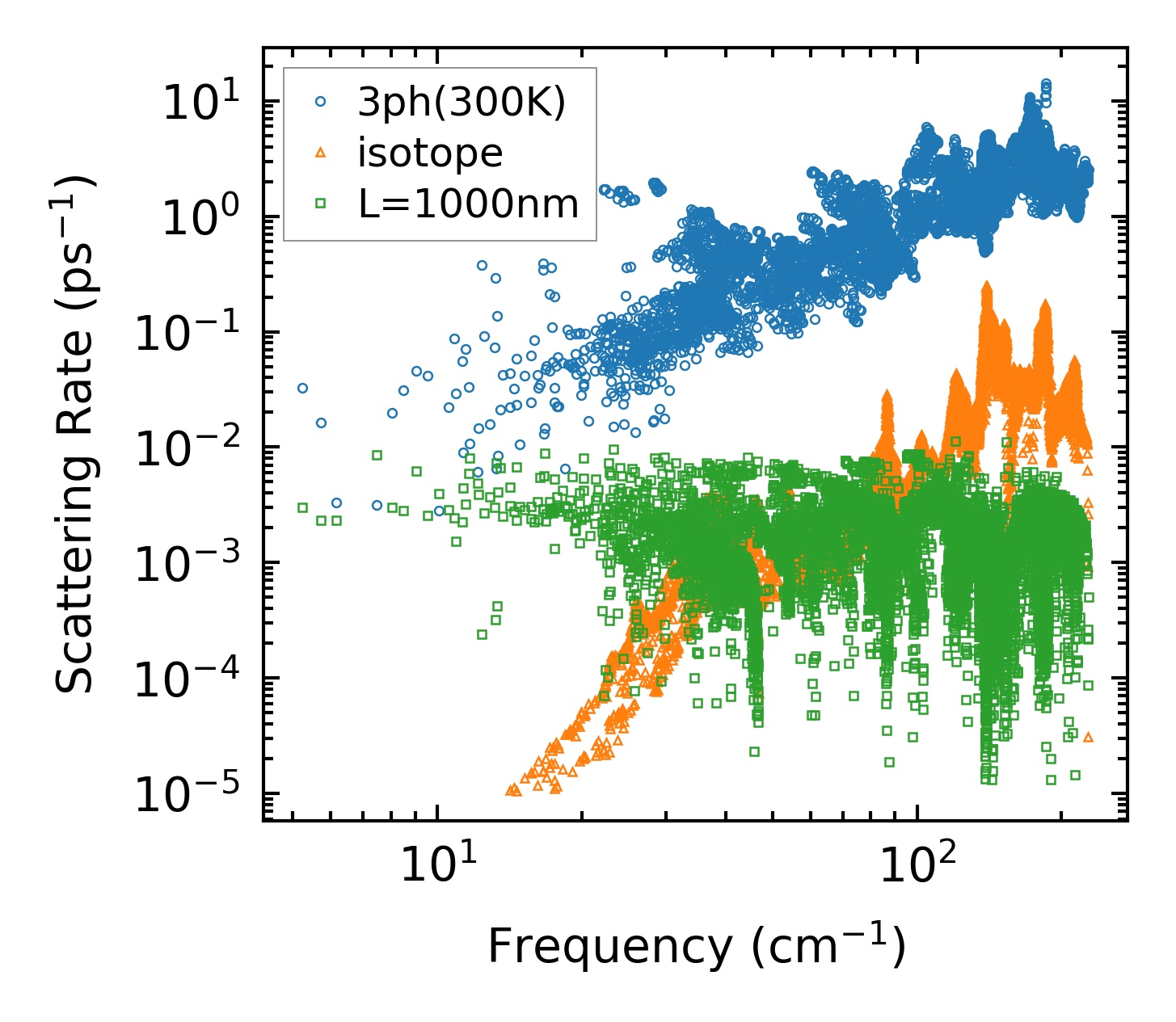

../../_images/fig_scat_rates546.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

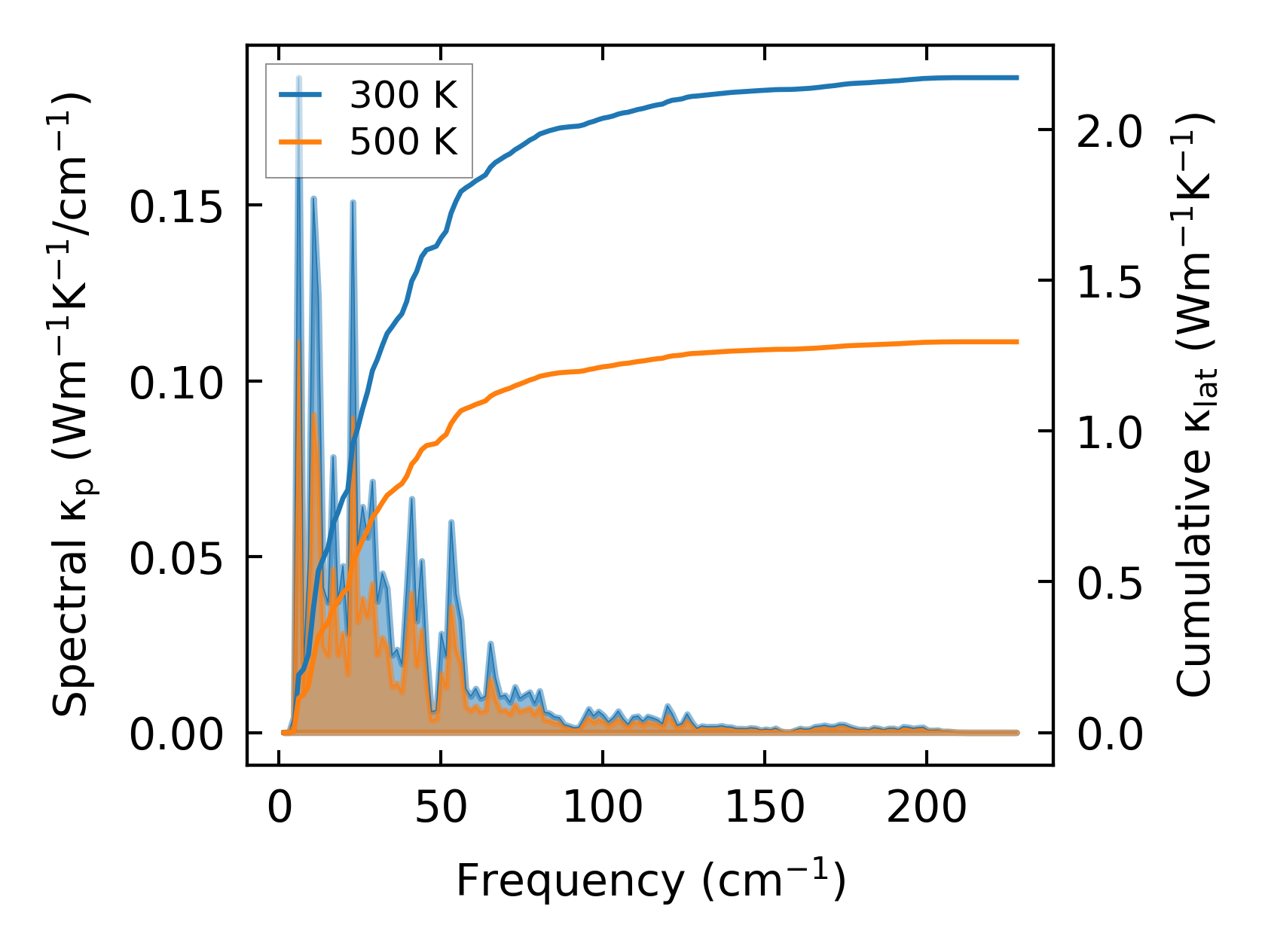

../../_images/fig_cumu_frequency547.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

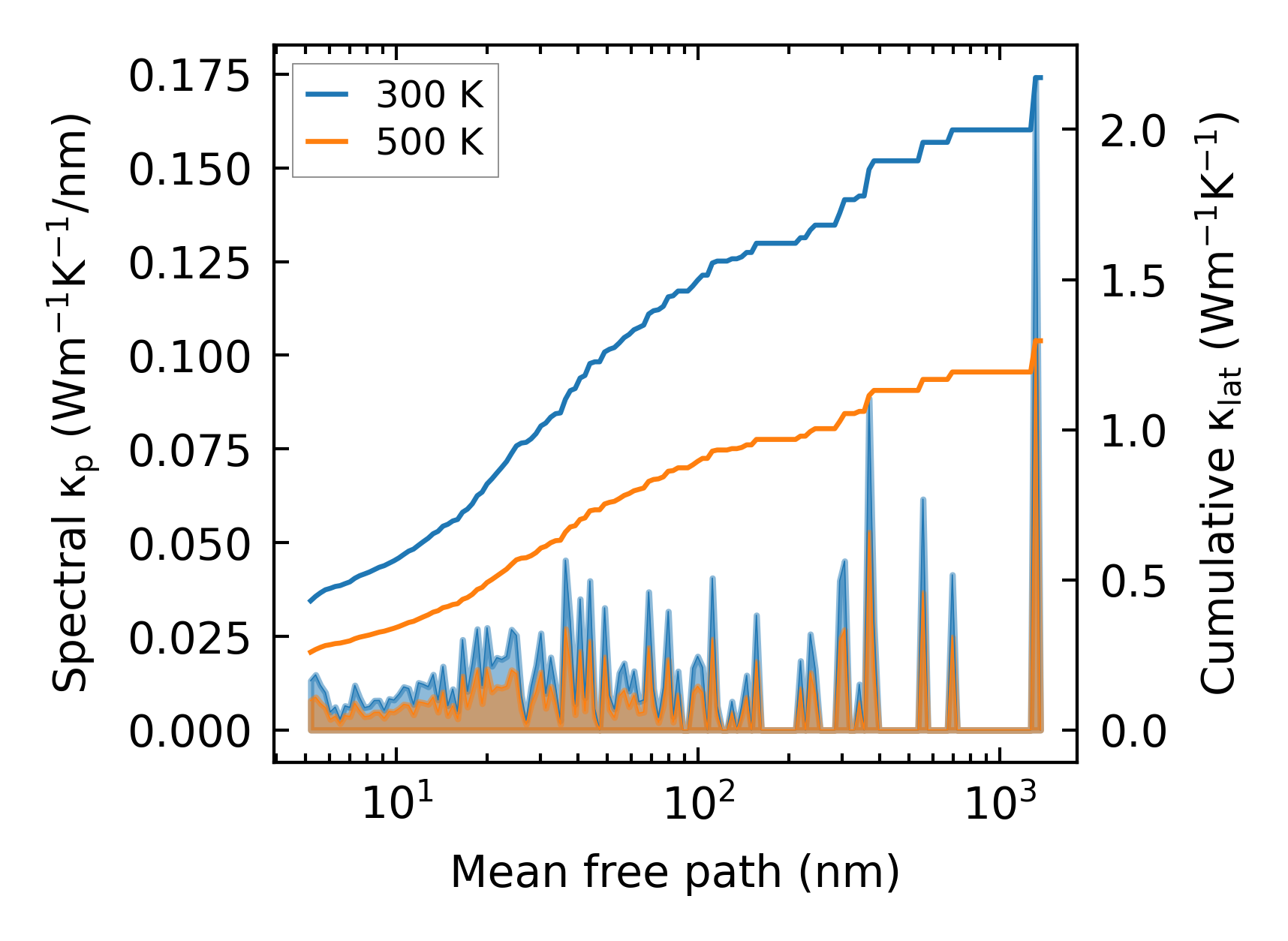

../../_images/fig_cumu_mfp547.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

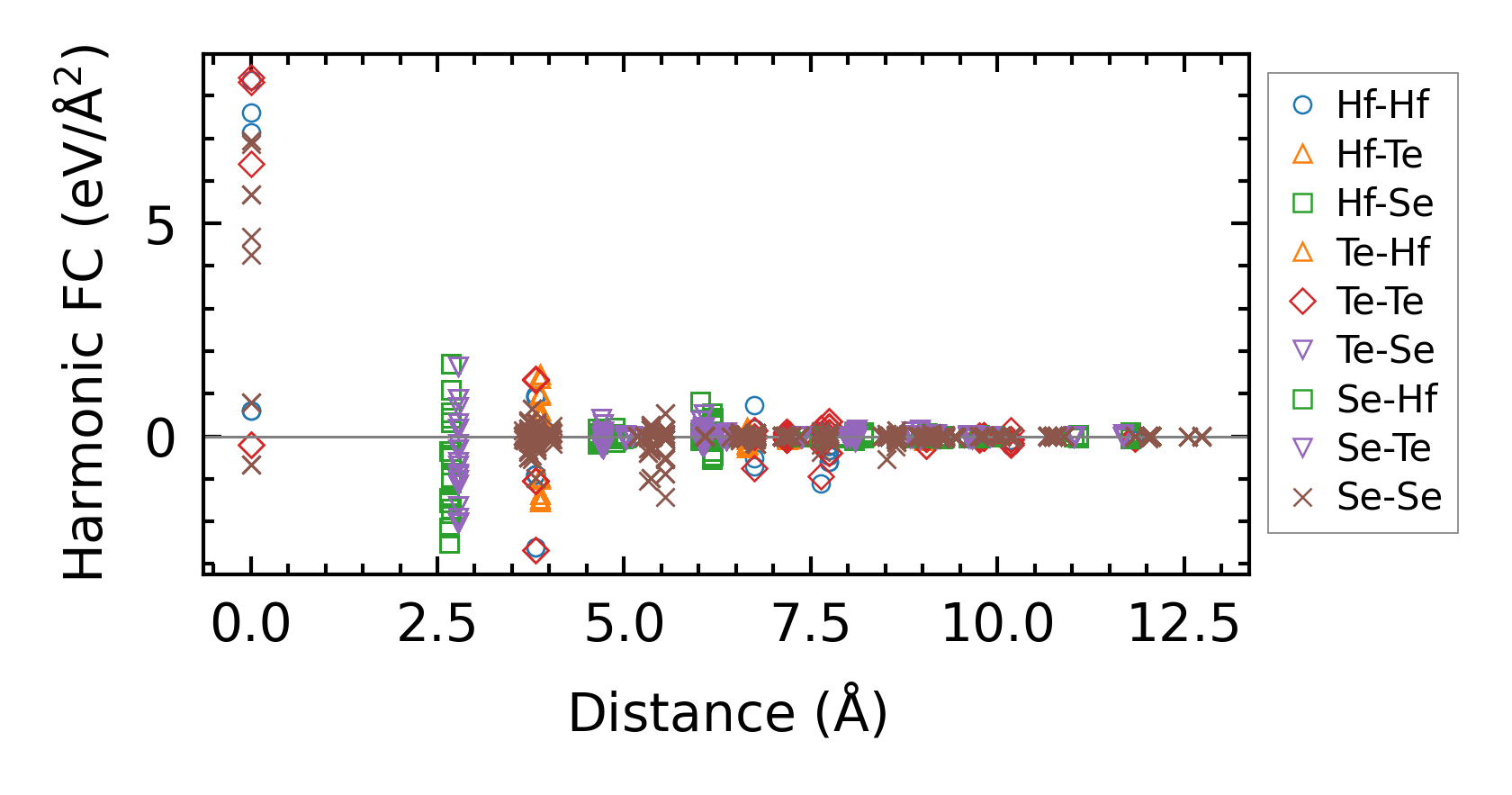

../../_images/fig_fc2767.png — (a) Force constants w.r.t atomic distance

Summary

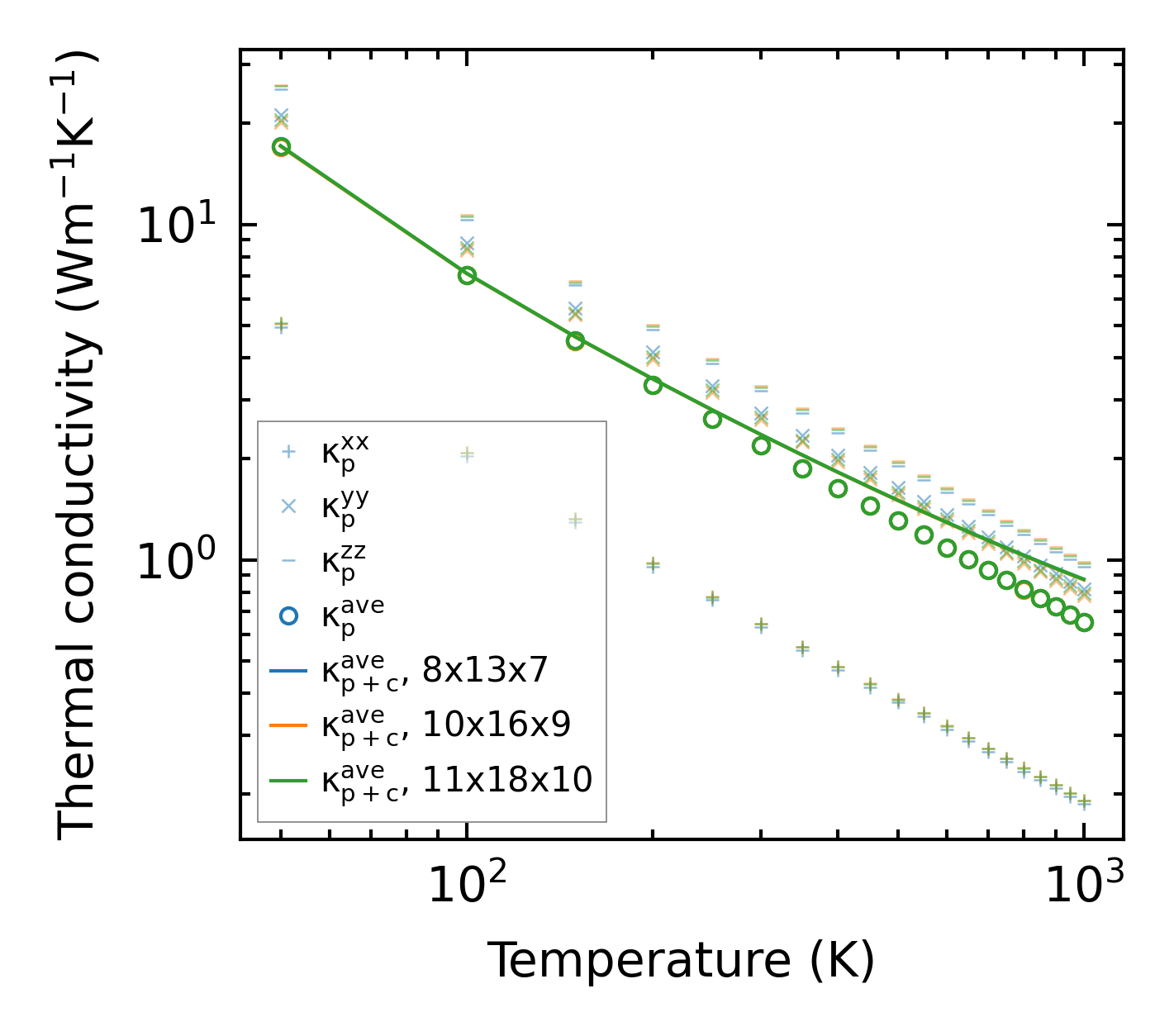

../../_images/fig_kappa1071.png — (a) Temperature-dependent lattice thermal conductivity

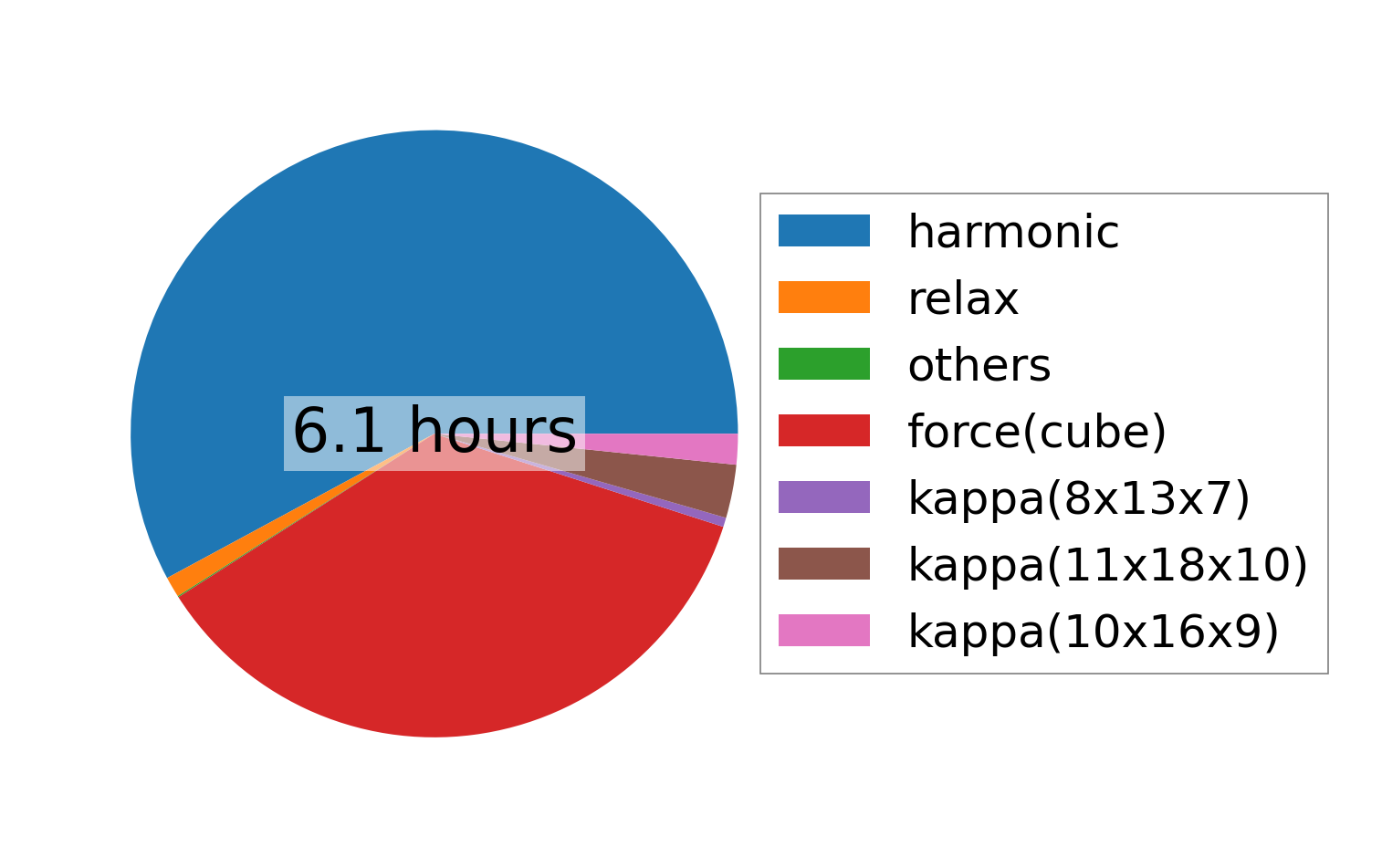

../../_images/fig_times1285.png — (b) Computation time
