mp-989195/ScClO/anharm

Space group: P4/nmm (129)
Link: Materials Project
Download: mp-989195.tar.gz

Harmonic properties

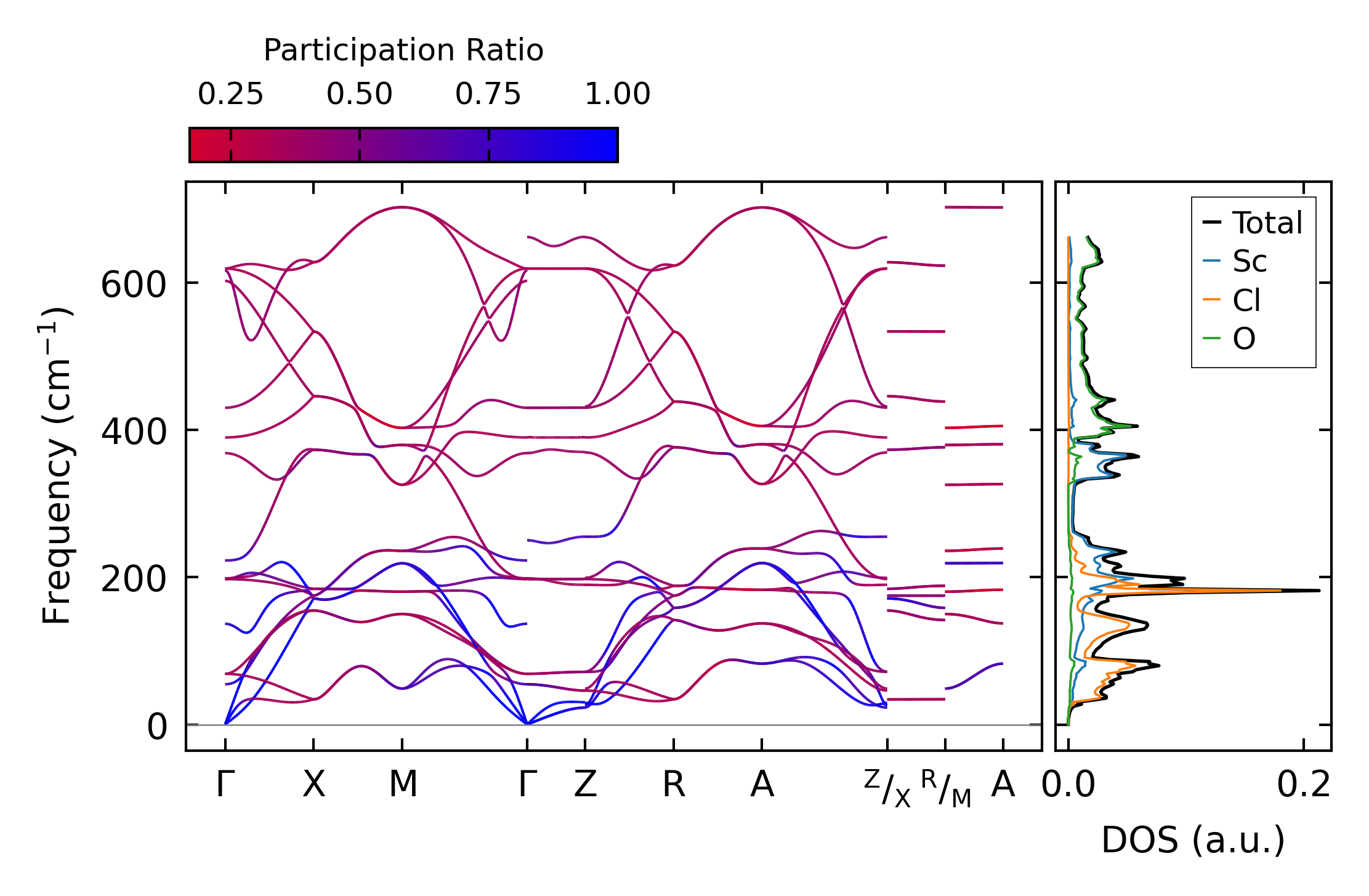

../../_images/fig_bandos_pr784.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo784.png — (b) Thermodynamic properties

Grüneisen parameters

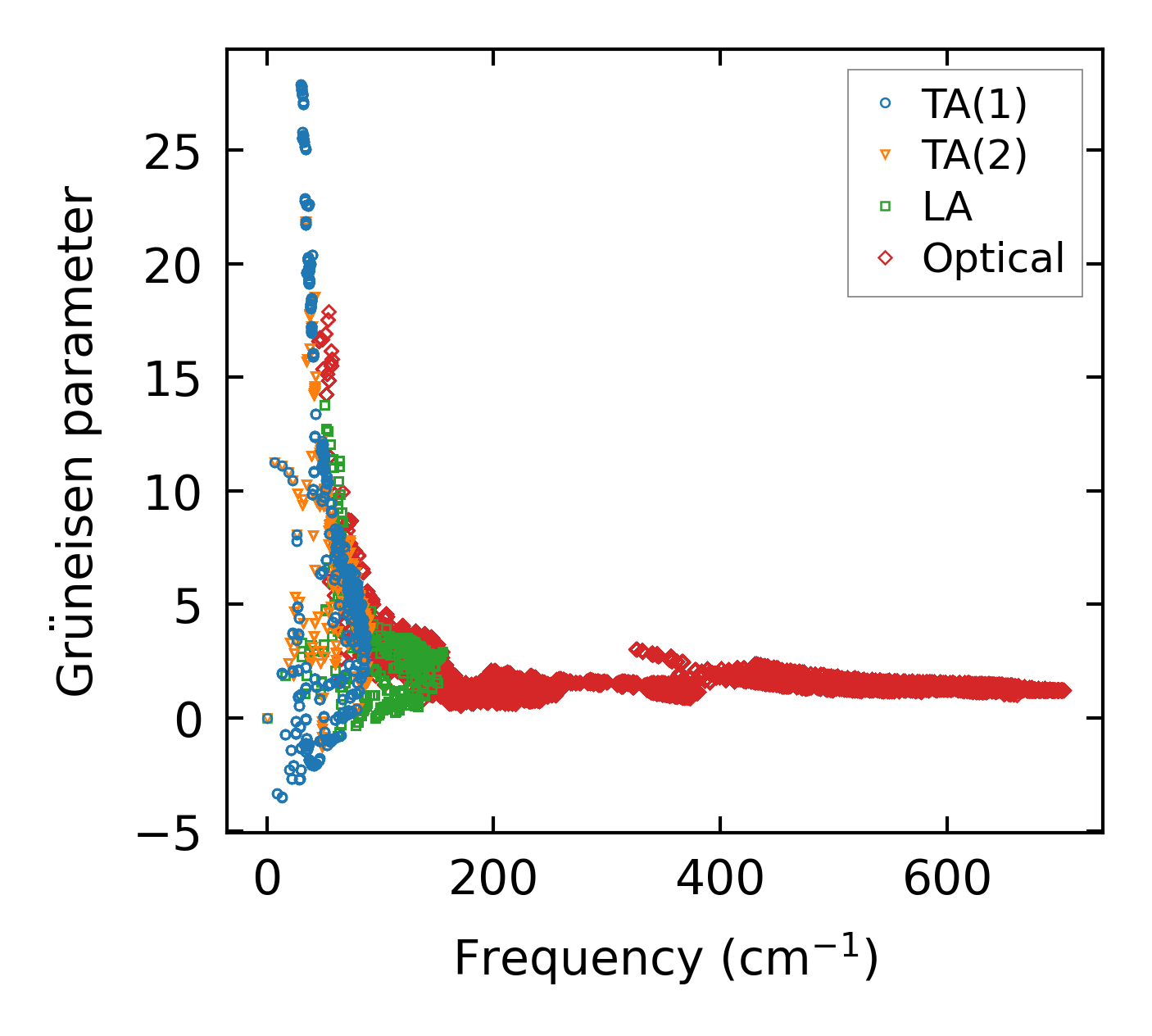

../../_images/fig_gru_all534.png — (a) Grüneisen parameters

../../_images/fig_gruneisen534.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 20x20x9, supercell: 3x3x2

../../_images/fig_kappa1040.png — (a) Temperature-dependent lattice thermal conductivity

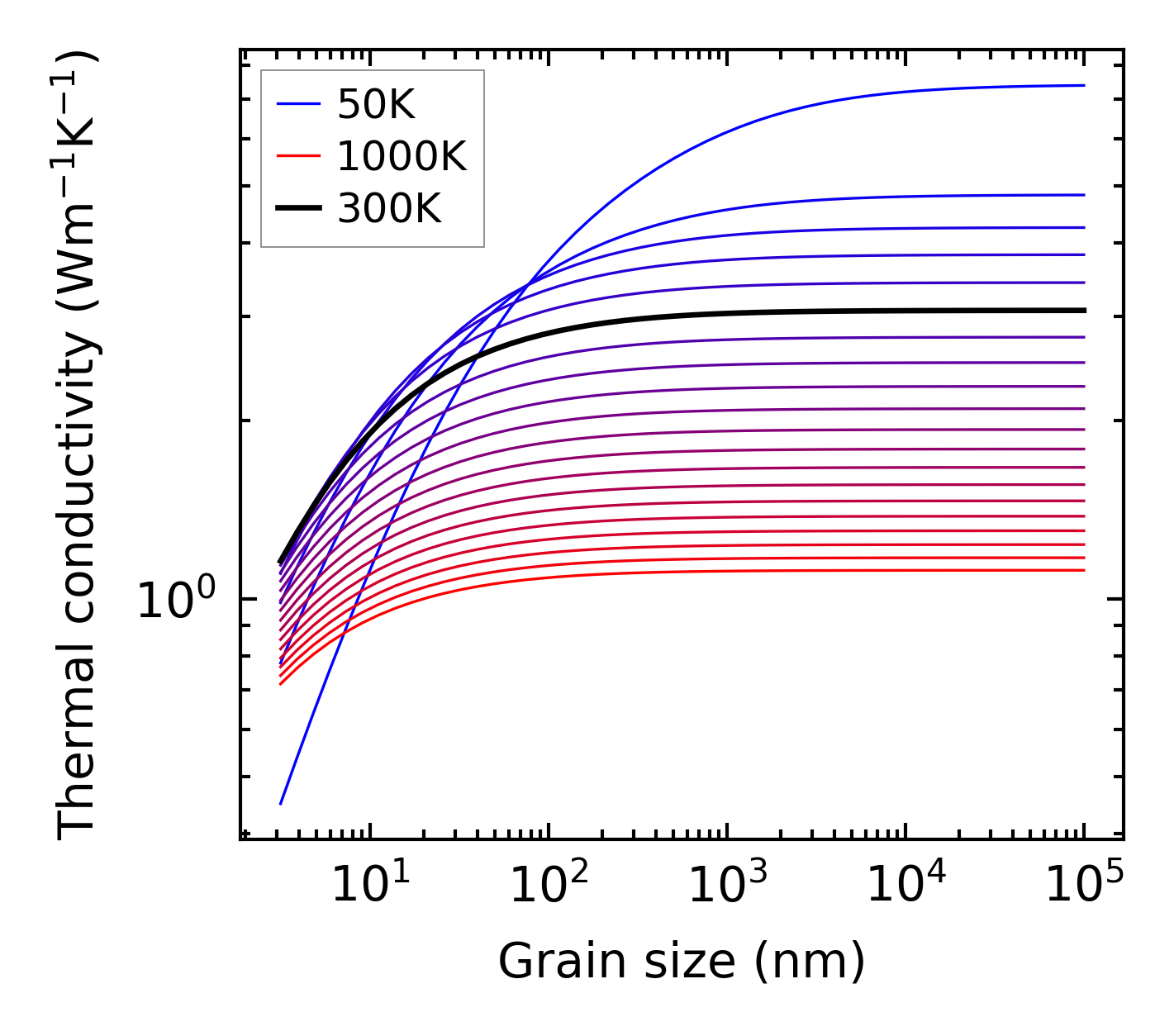

../../_images/fig_kappa_vs_grain_size541.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

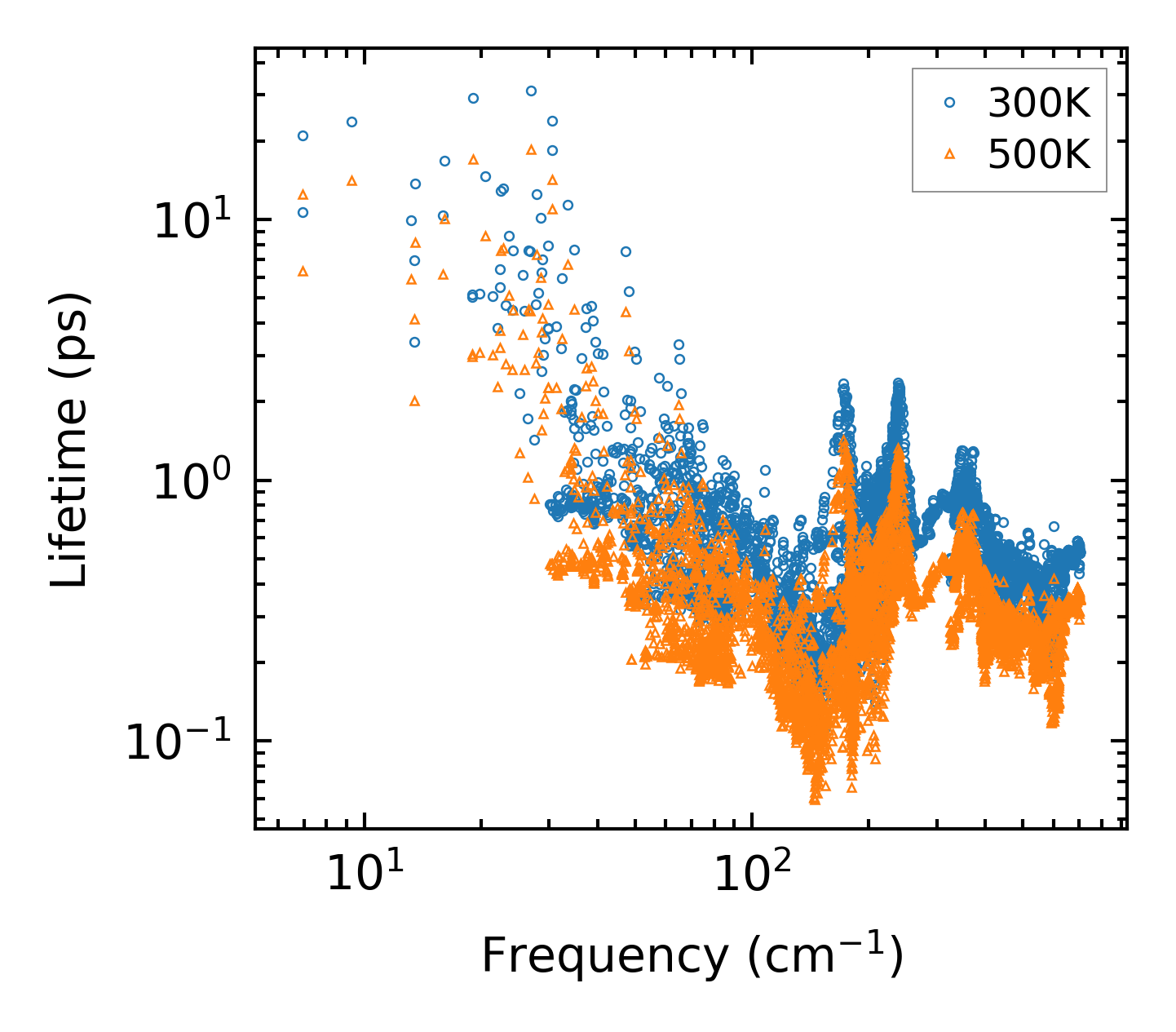

../../_images/fig_lifetime532.png — (a) Phonon lifetime due to phonon-phonon scattering

../../_images/fig_scat_rates531.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

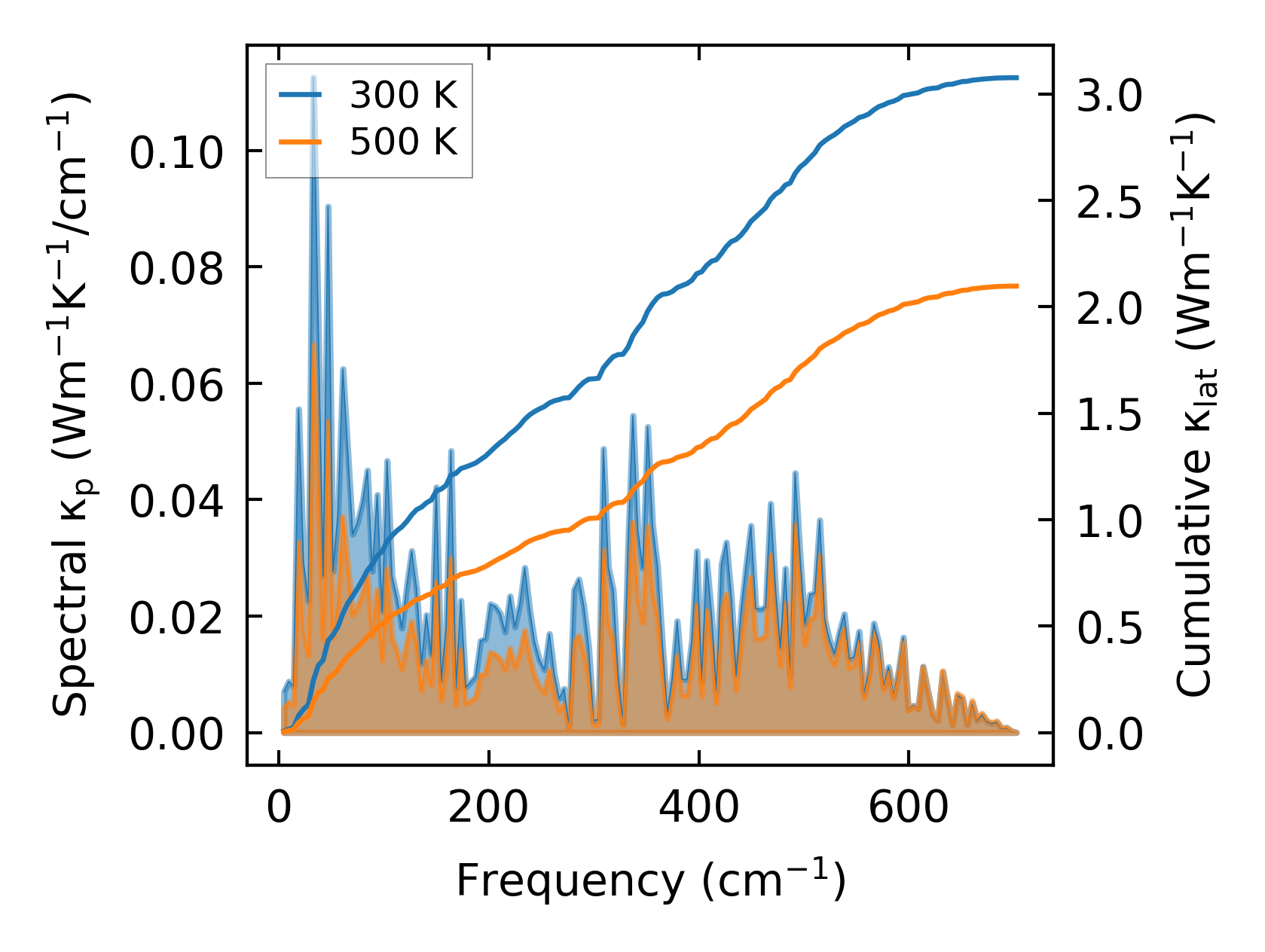

../../_images/fig_cumu_frequency532.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

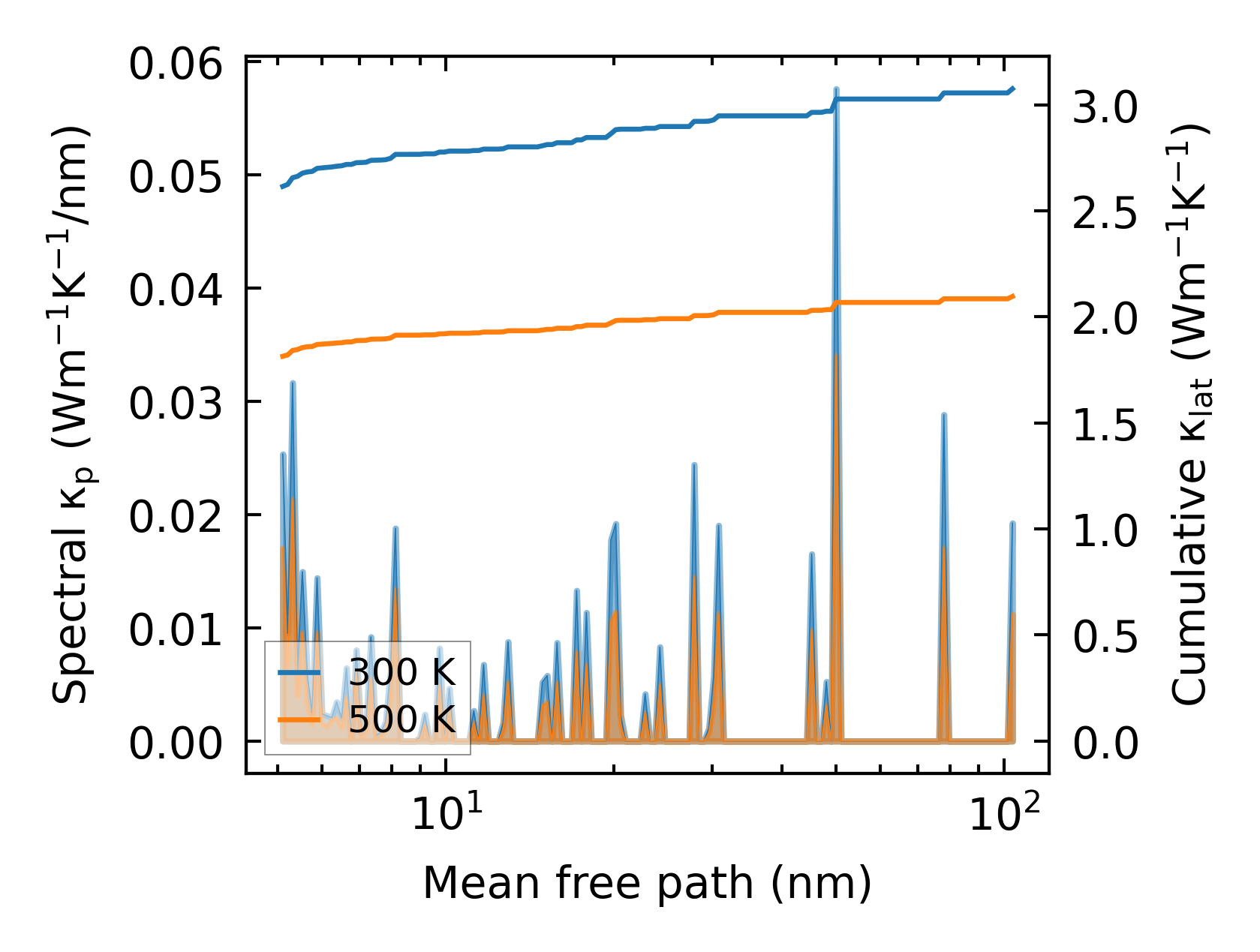

../../_images/fig_cumu_mfp532.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

../../_images/fig_fc2685.png — (a) Force constants w.r.t atomic distance

Summary

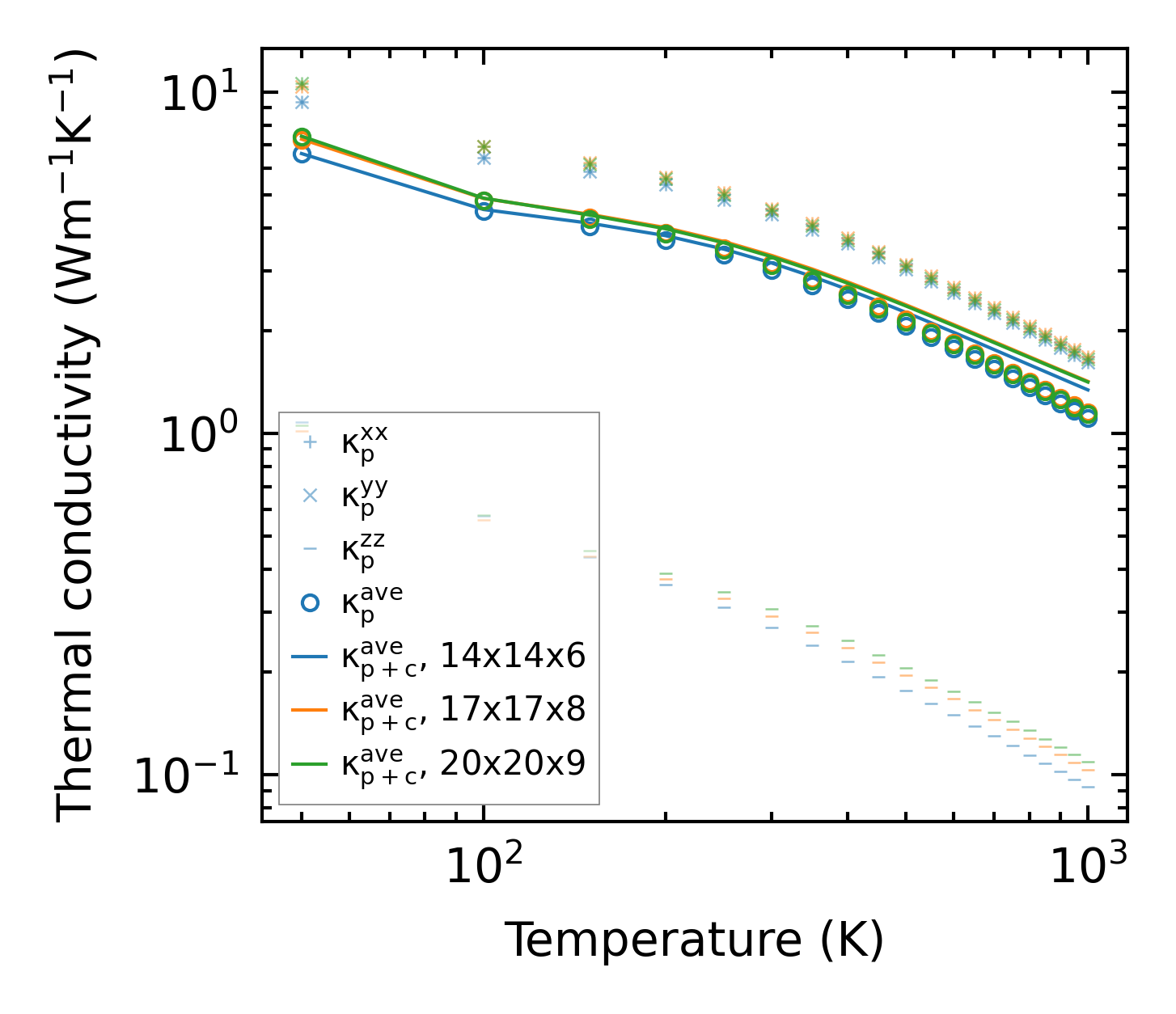

../../_images/fig_kappa1041.png — (a) Temperature-dependent lattice thermal conductivity

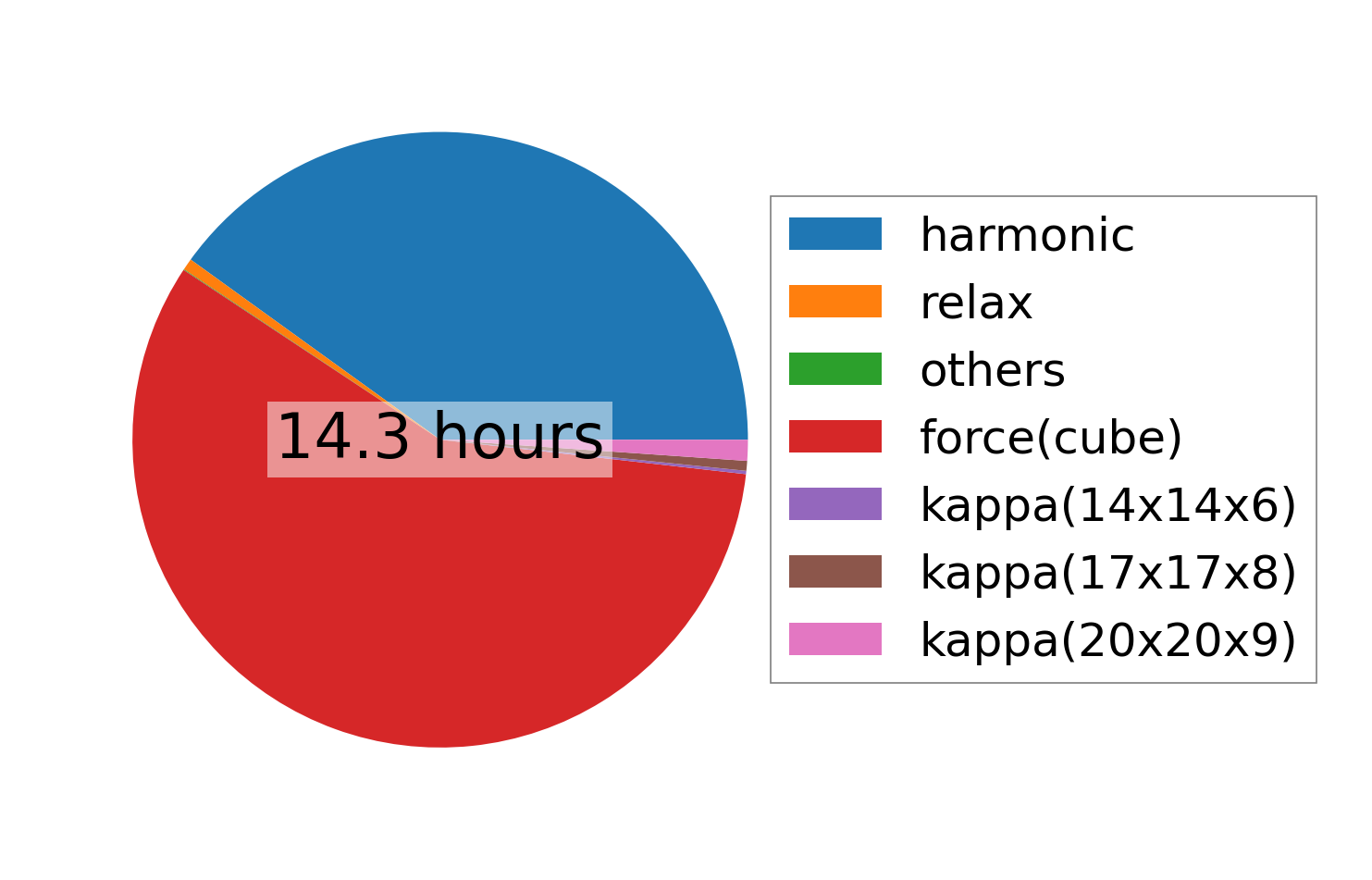

../../_images/fig_times1181.png — (b) Computation time
