mp-542826/Sc2PbSe4/anharm

Space group: Pnma (62)
Link: Materials Project
Download: mp-542826.tar.gz

Harmonic properties

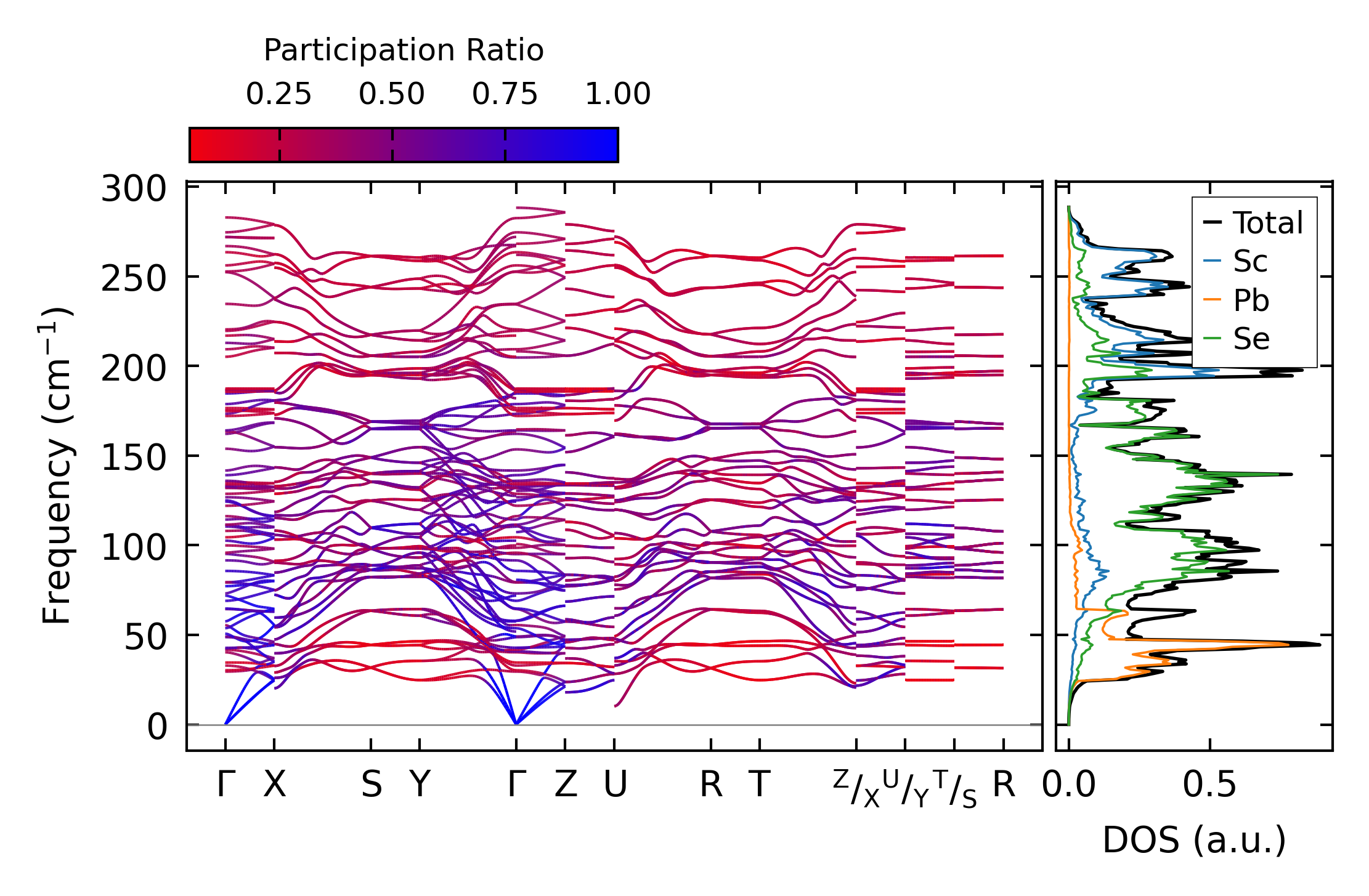

../../_images/fig_bandos_pr9352.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo9352.png — (b) Thermodynamic properties

Grüneisen parameters

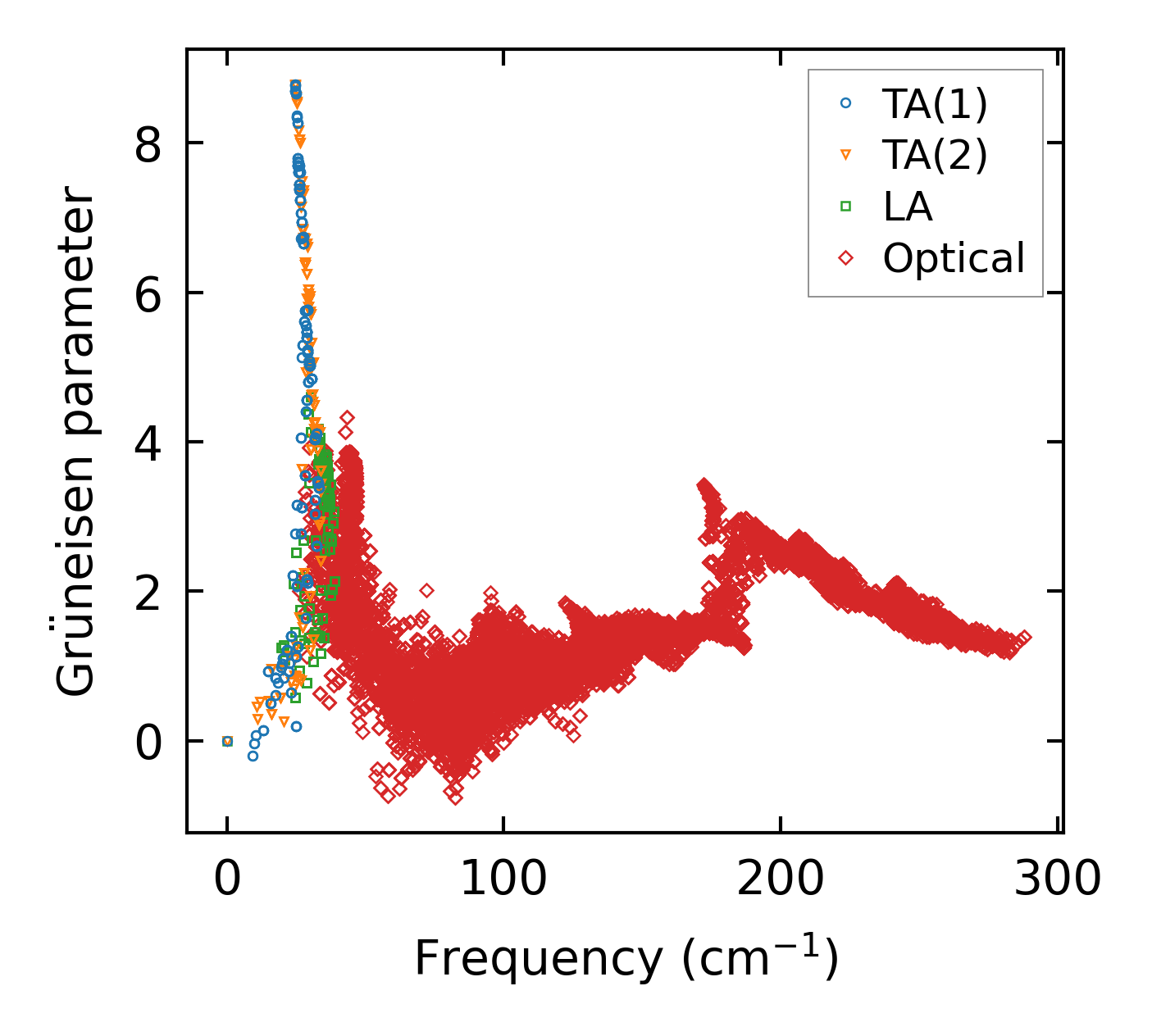

../../_images/fig_gru_all3727.png — (a) Grüneisen parameters

../../_images/fig_gruneisen3727.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 5x18x5, supercell: 1x4x1

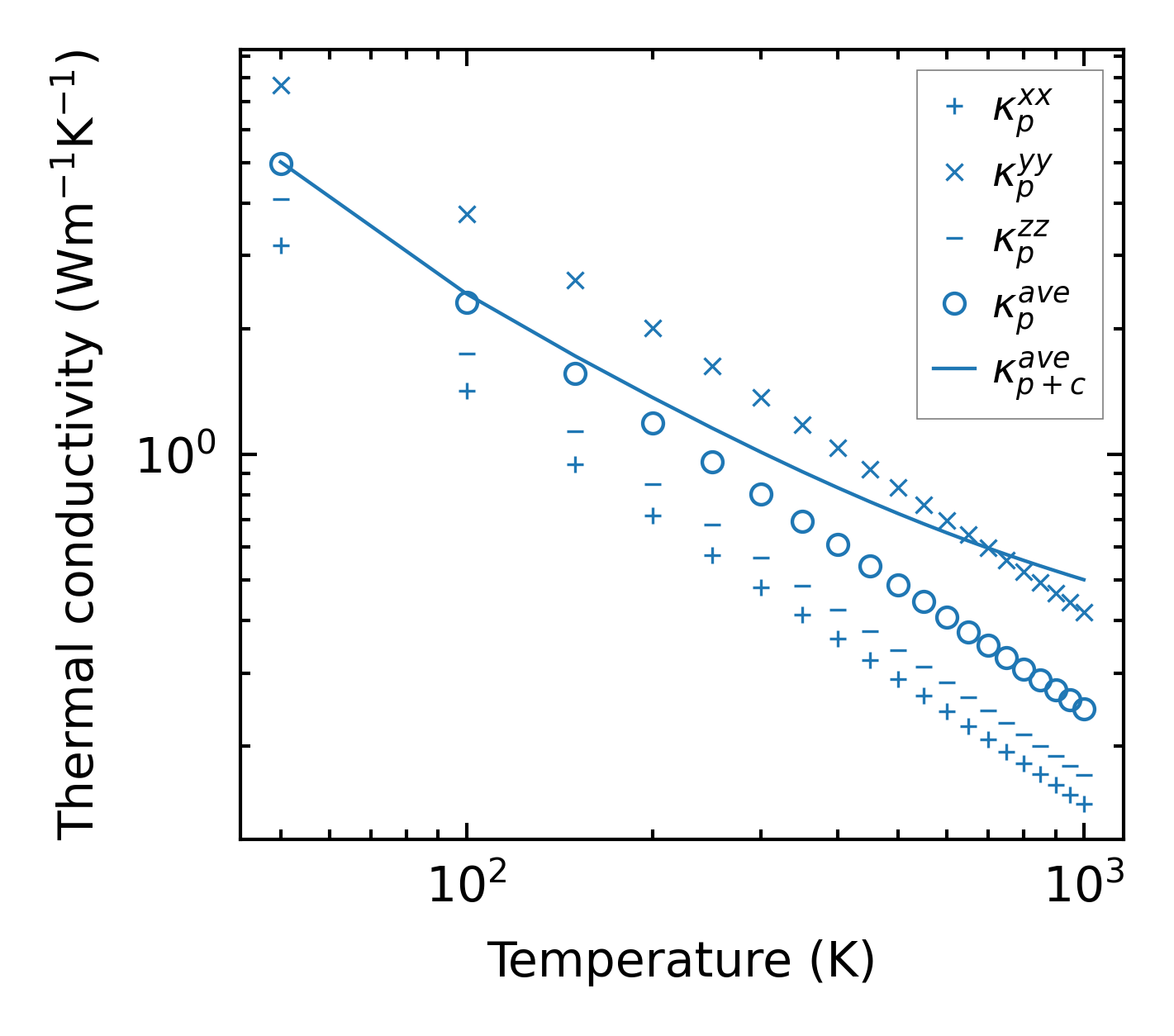

../../_images/fig_kappa7036.png — (a) Temperature-dependent lattice thermal conductivity

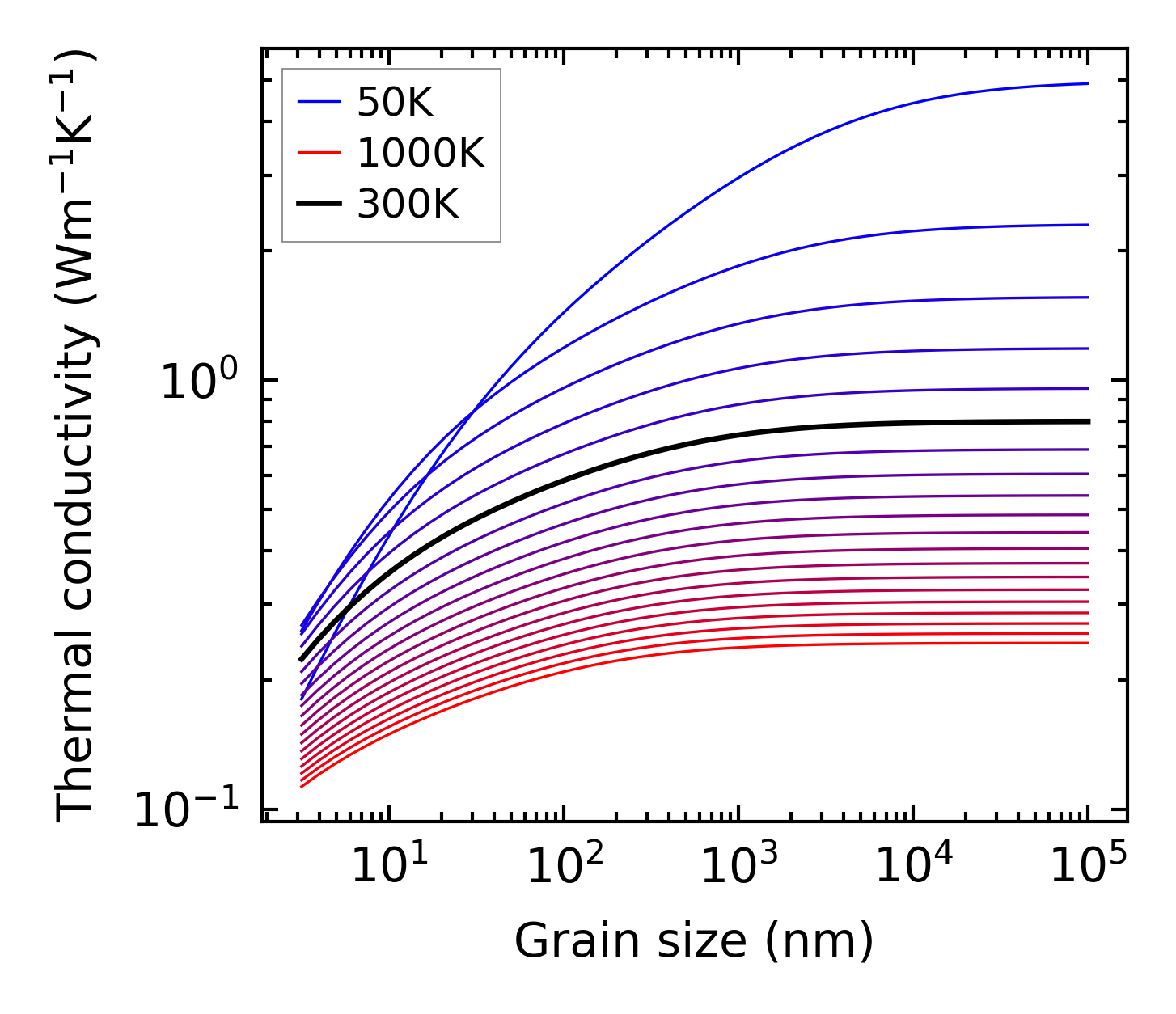

../../_images/fig_kappa_vs_grain_size3776.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

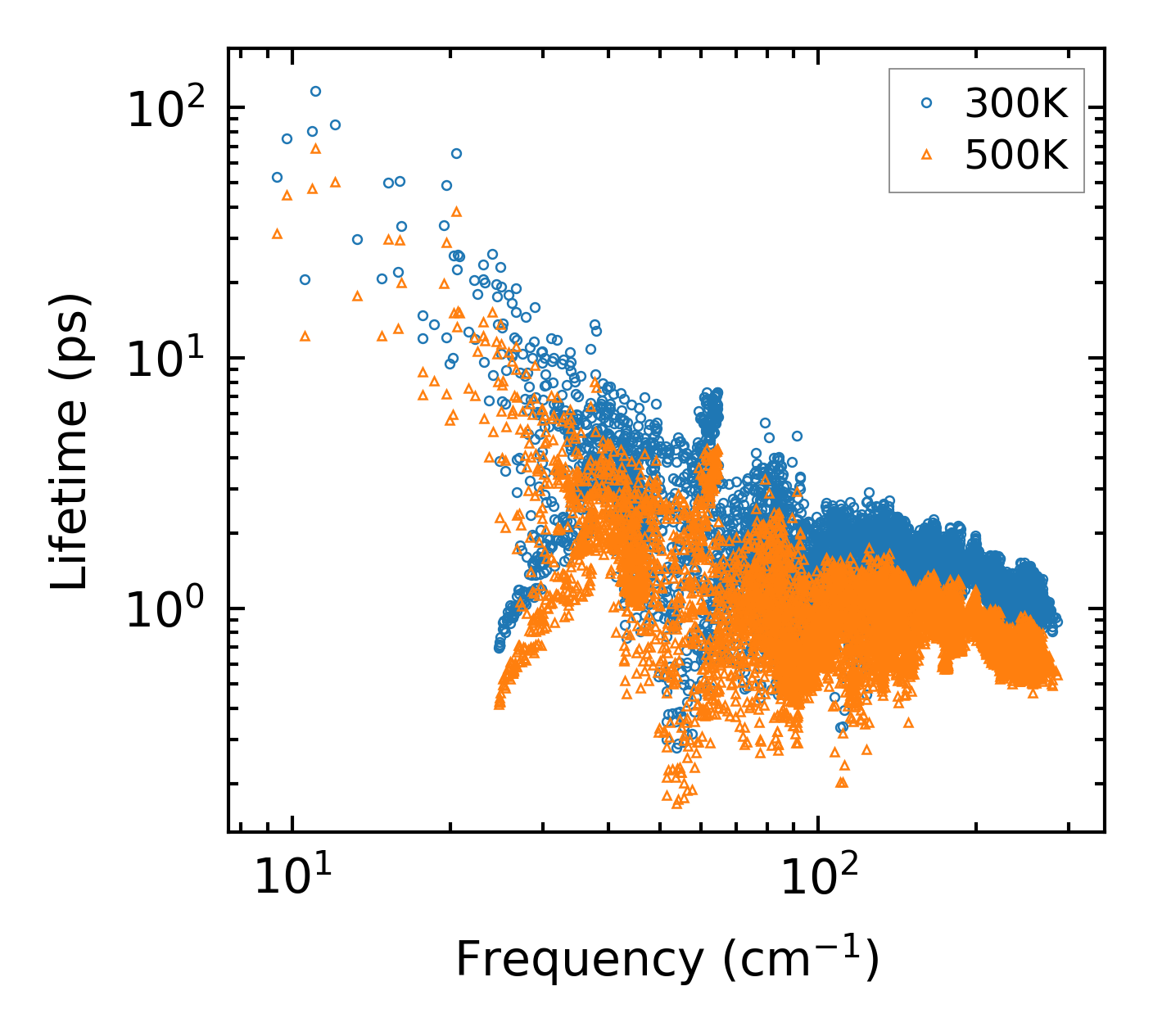

../../_images/fig_lifetime3692.png — (a) Phonon lifetime due to phonon-phonon scattering

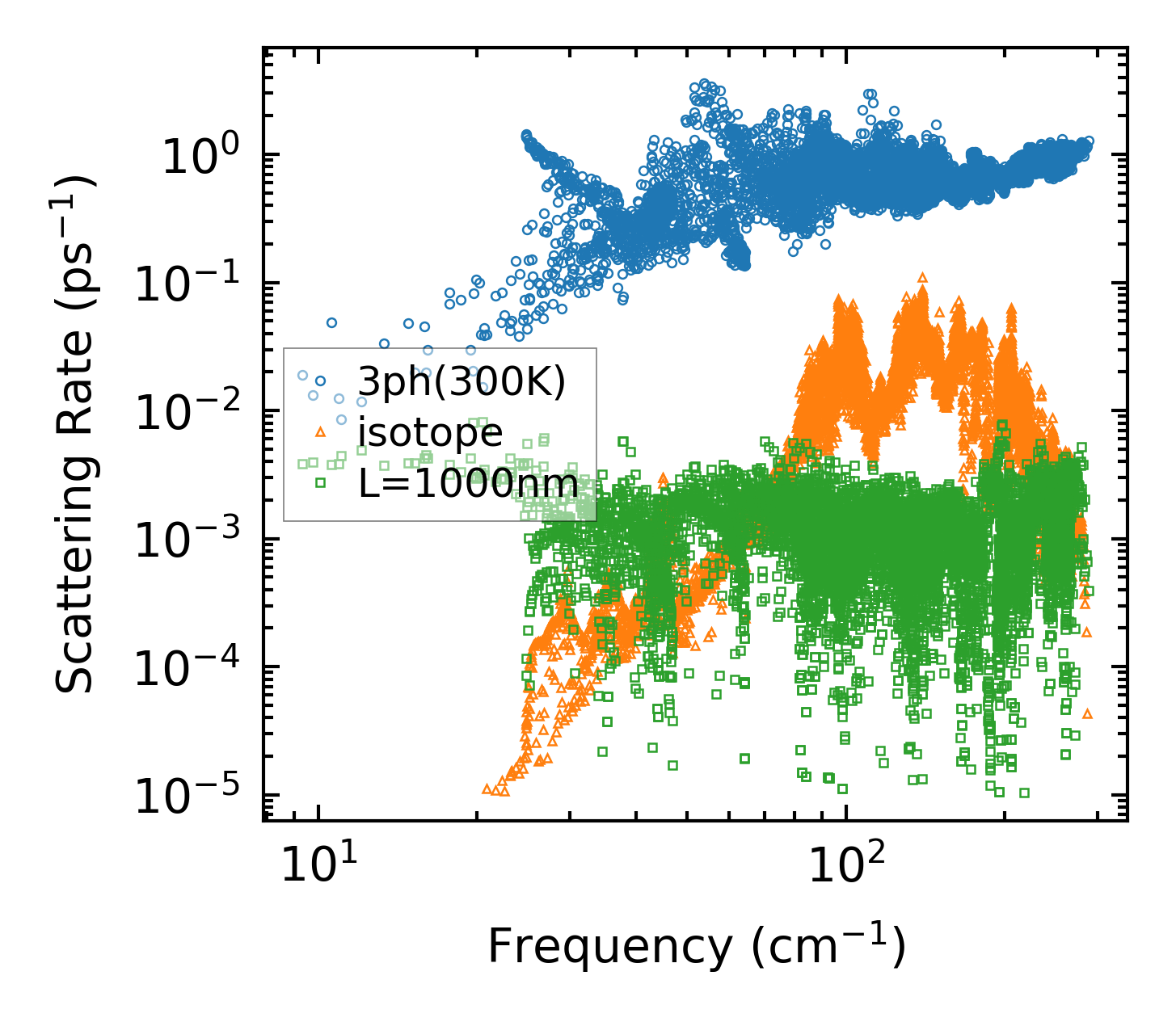

../../_images/fig_scat_rates3691.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

../../_images/fig_cumu_frequency3692.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

../../_images/fig_cumu_mfp3691.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

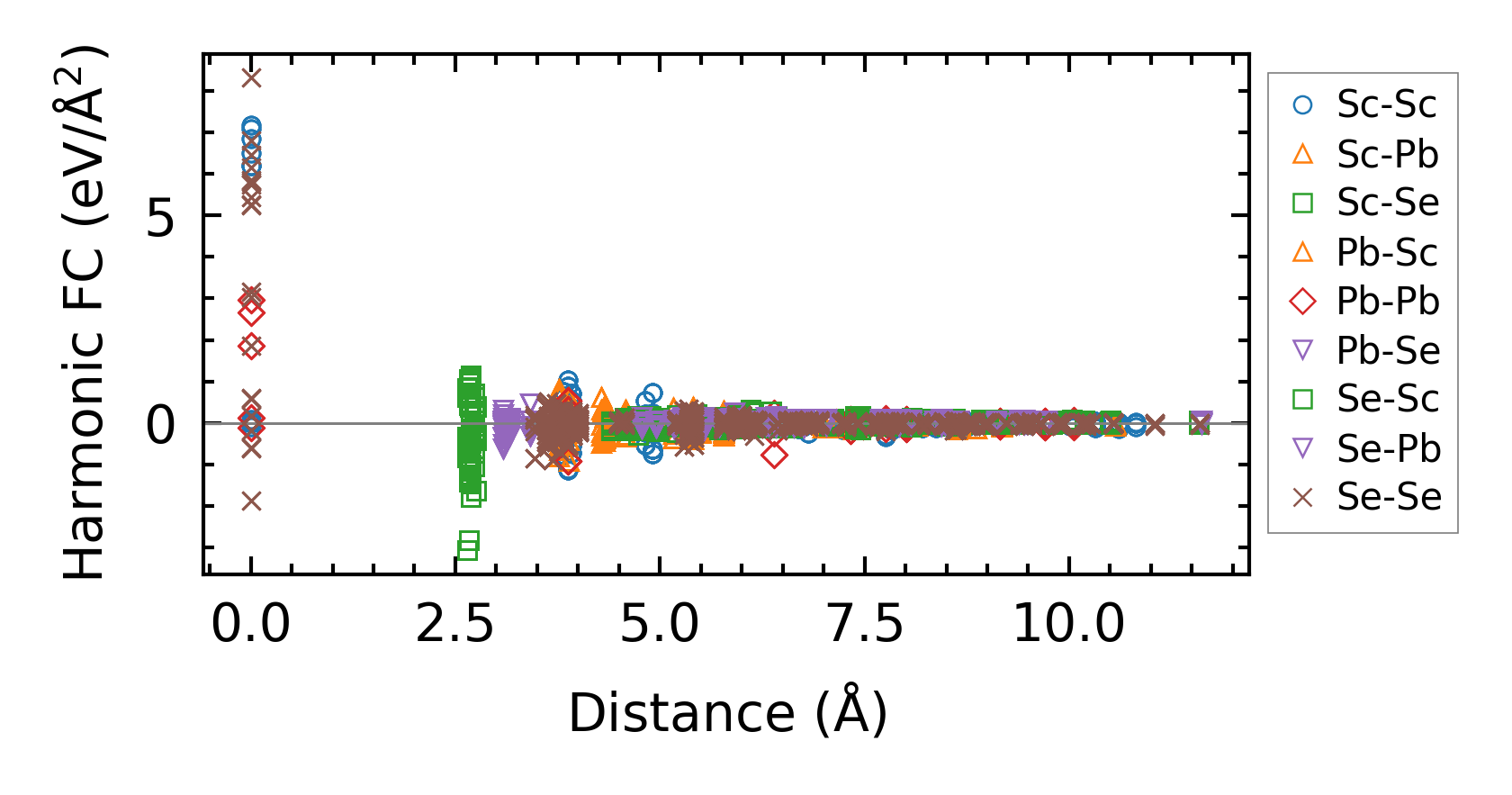

../../_images/fig_fc29114.png — (a) Force constants w.r.t atomic distance

Summary

../../_images/fig_kappa7037.png — (a) Temperature-dependent lattice thermal conductivity

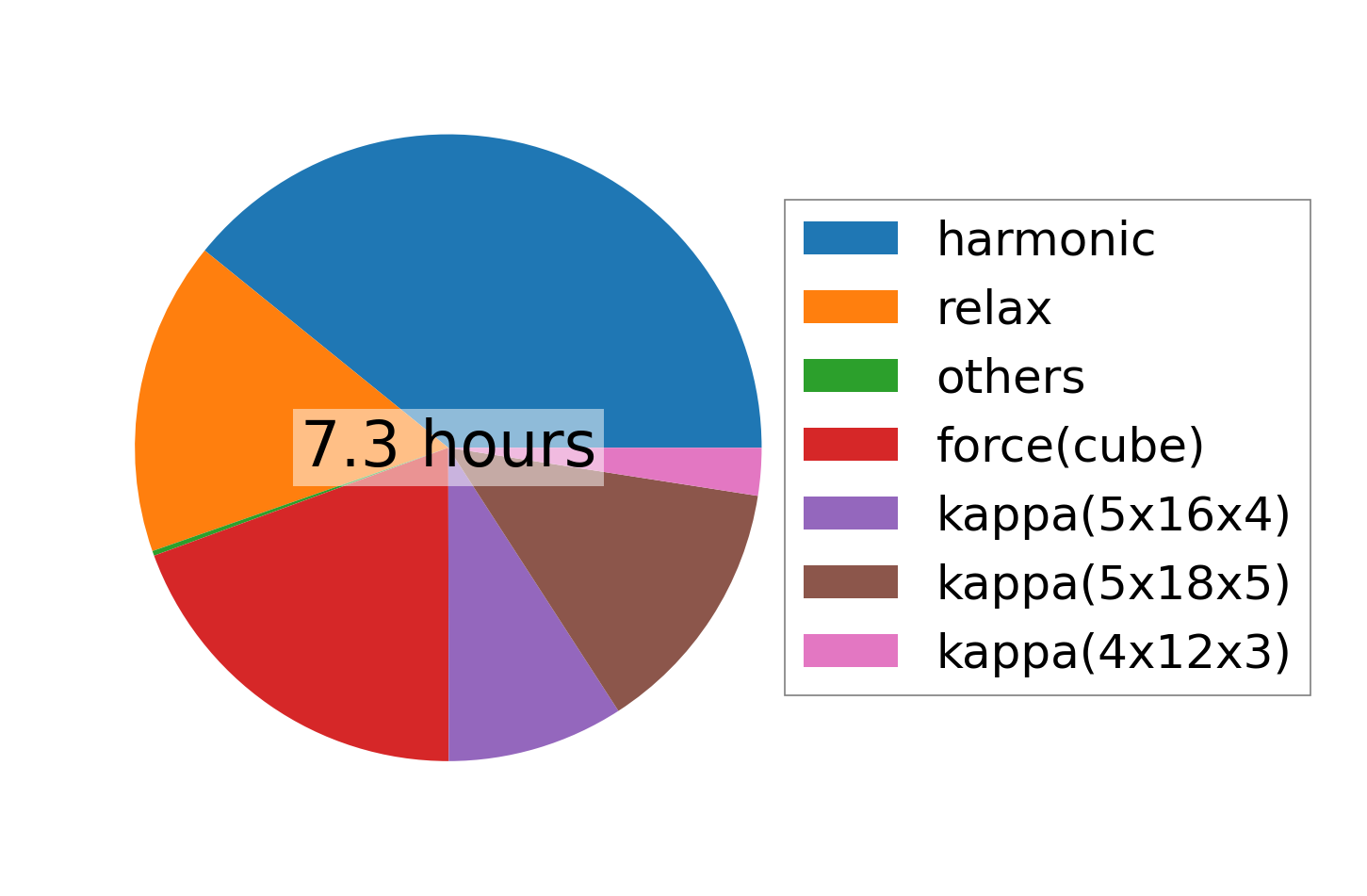

../../_images/fig_times16295.png — (b) Computation time
