mp-542819-2/Cs3B12H12Br/anharm

Space group: R-3m (166)
Link: Materials Project
Download: mp-542819-2.tar.gz

Equation of state

../../_images/fig_bm4696.png — (a) Equation of state

Harmonic properties

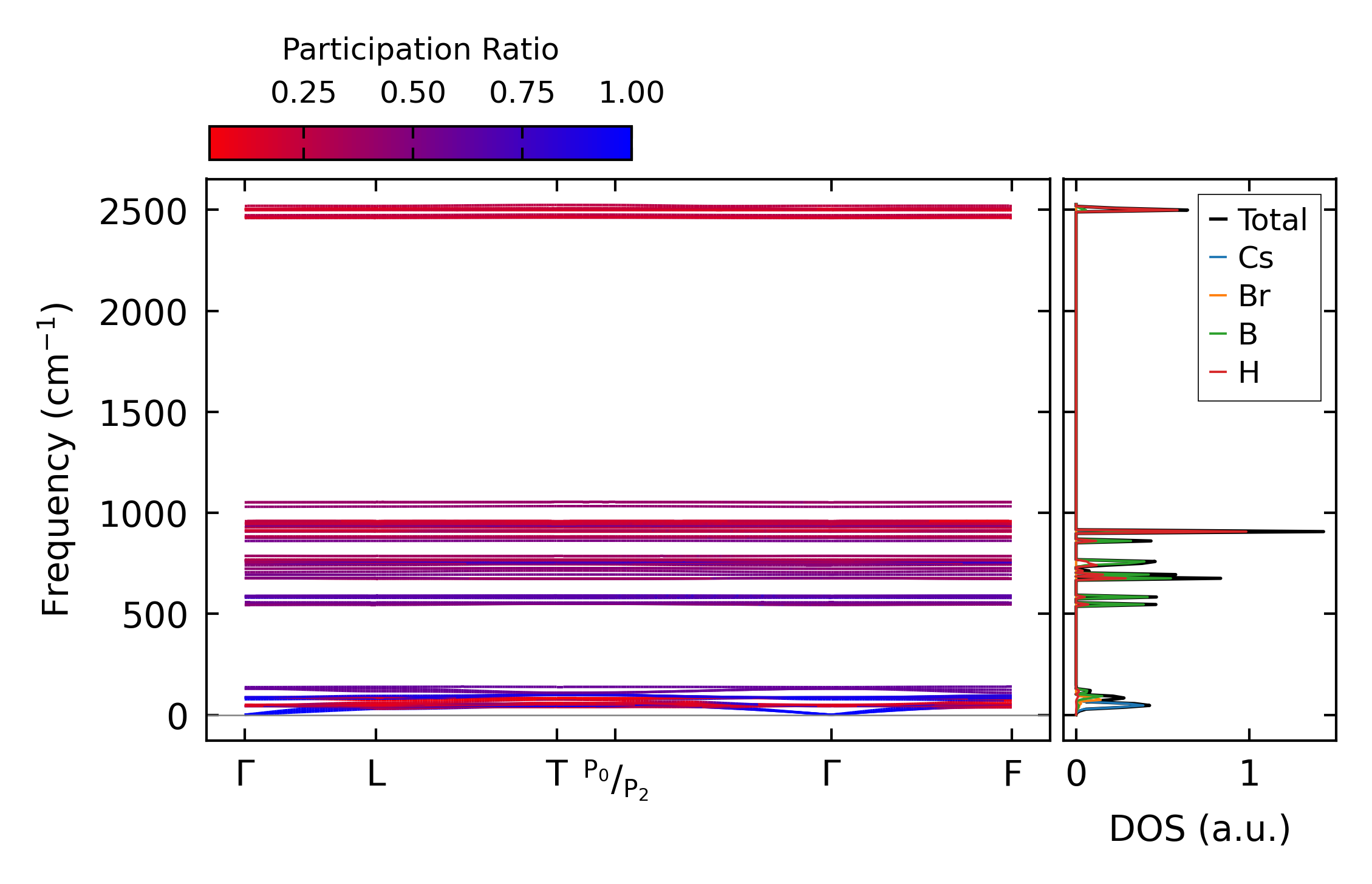

../../_images/fig_bandos_pr9351.png — (a) Phonon dispersion with participation ratio and DOS

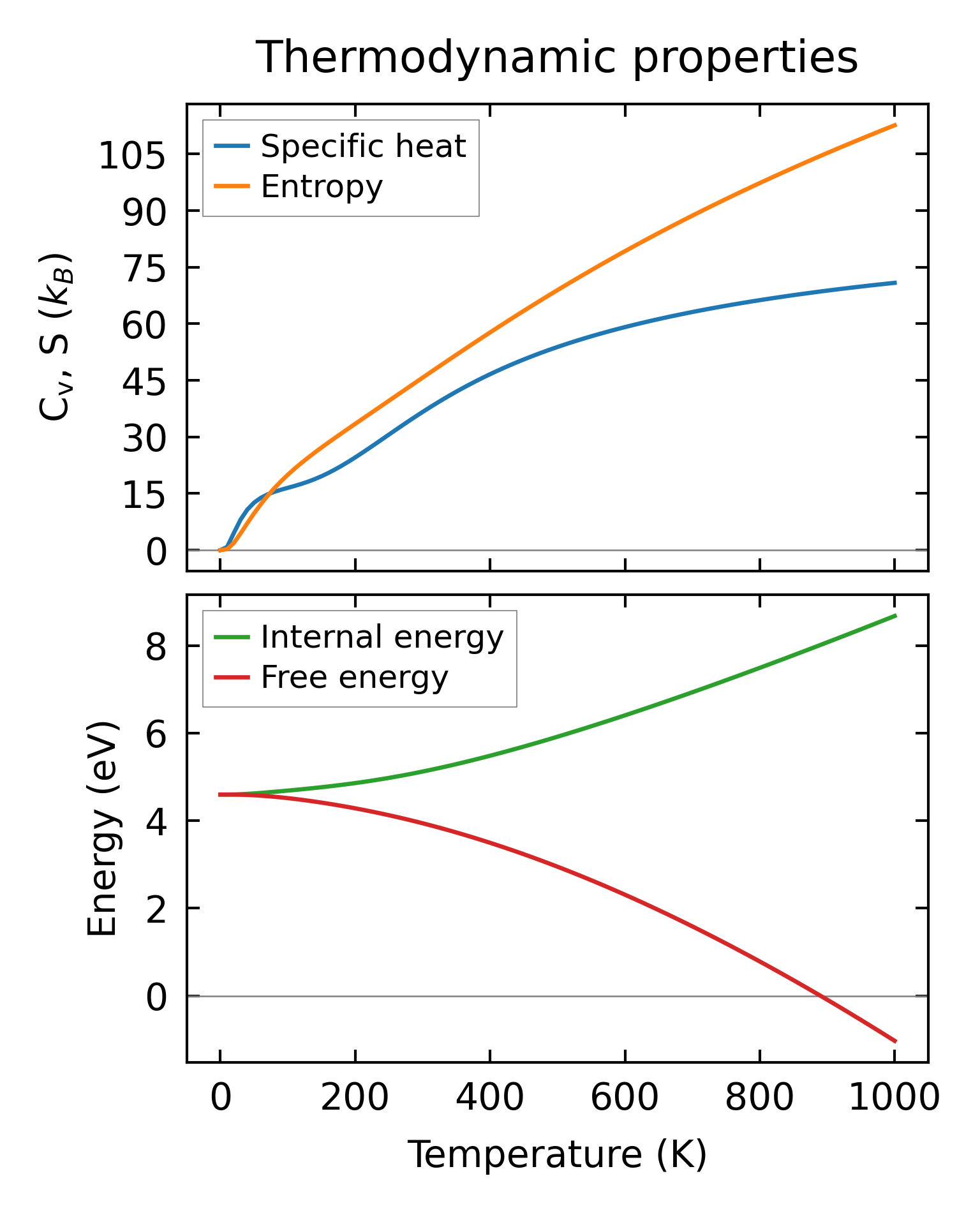

../../_images/fig_thermo9351.png — (b) Thermodynamic properties

Grüneisen parameters

../../_images/fig_gru_all3726.png — (a) Grüneisen parameters

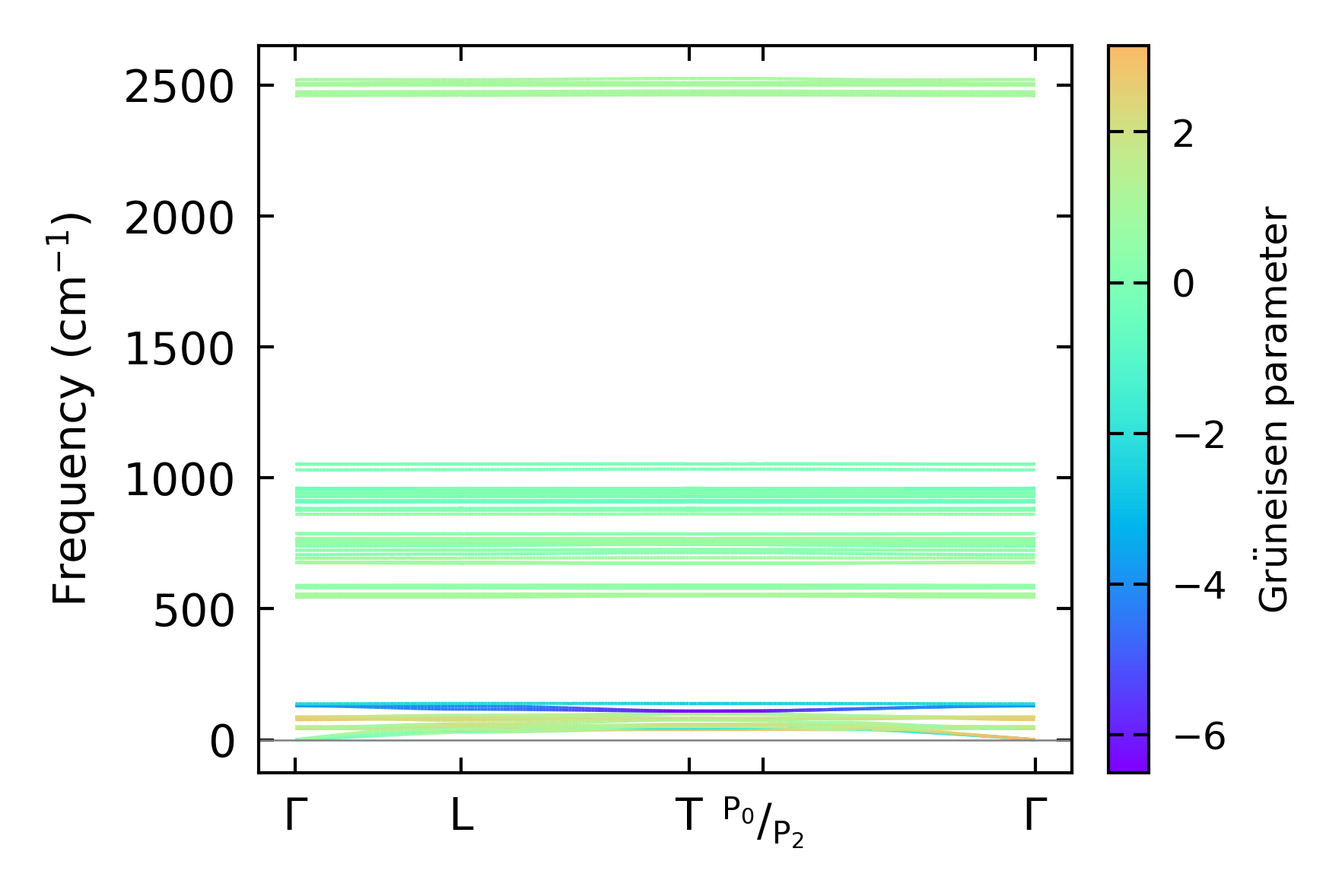

../../_images/fig_gruneisen3726.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 10x10x10, supercell: 1x1x1

../../_images/fig_kappa7034.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size3775.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

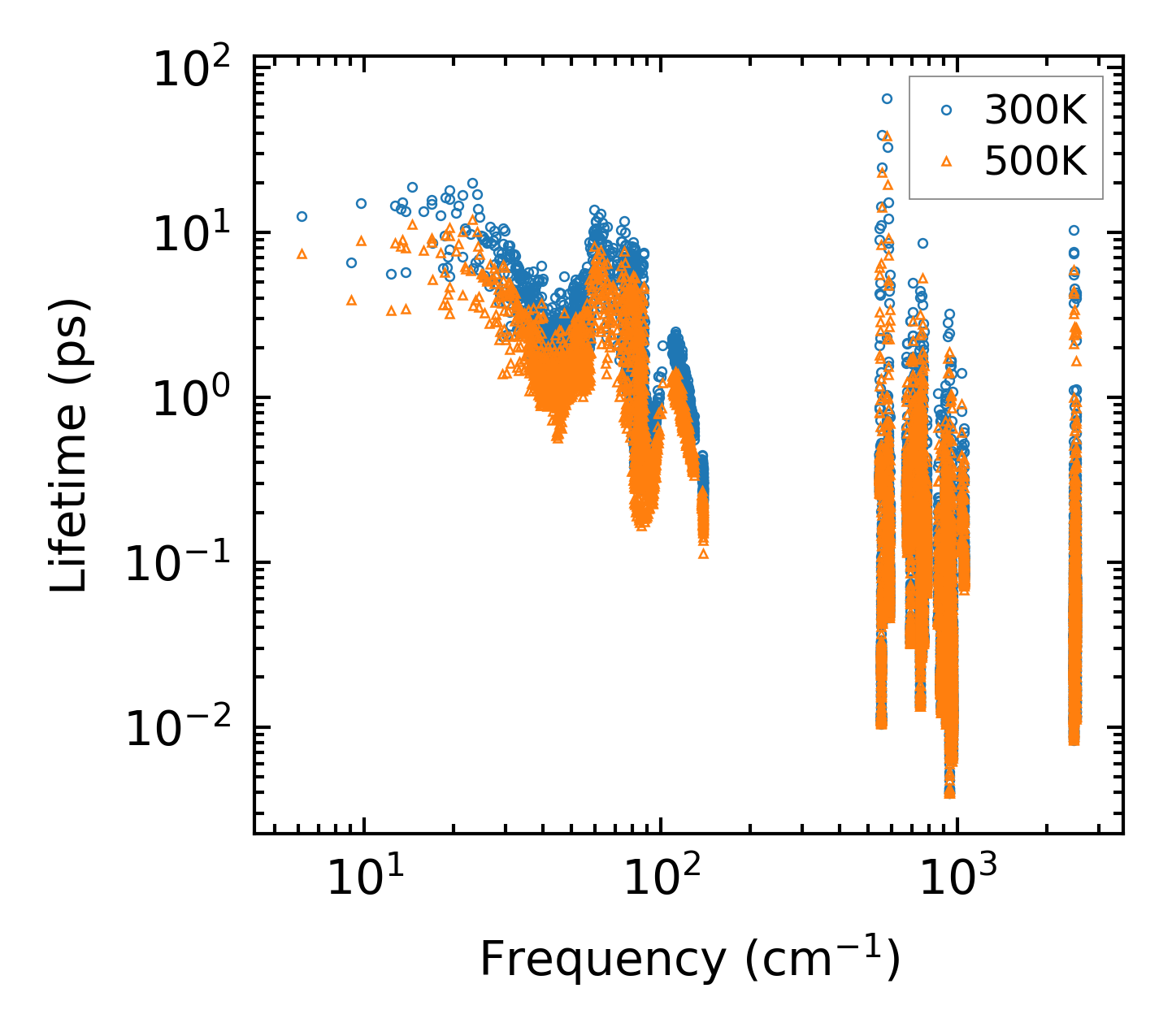

../../_images/fig_lifetime3691.png — (a) Phonon lifetime due to phonon-phonon scattering

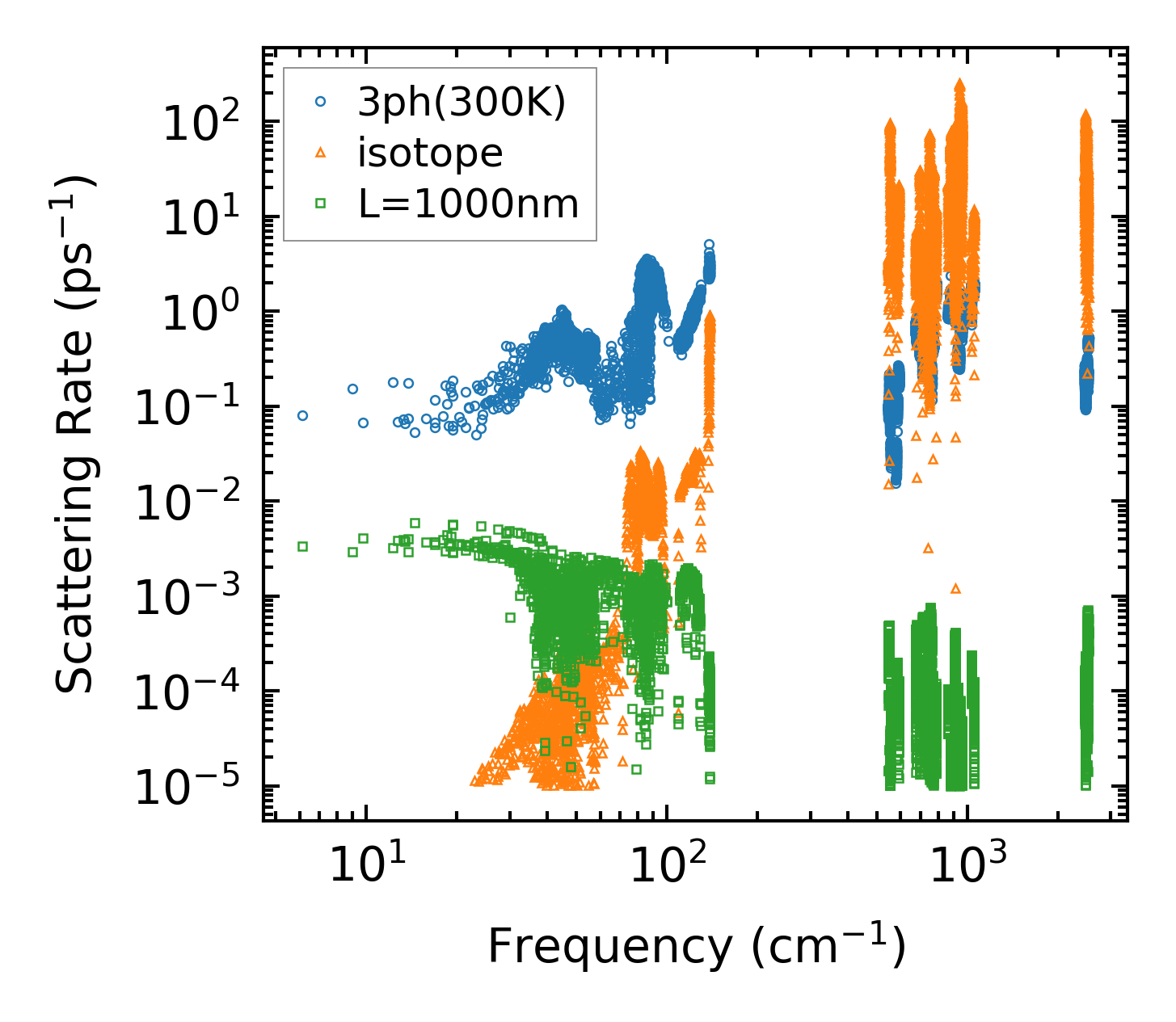

../../_images/fig_scat_rates3690.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

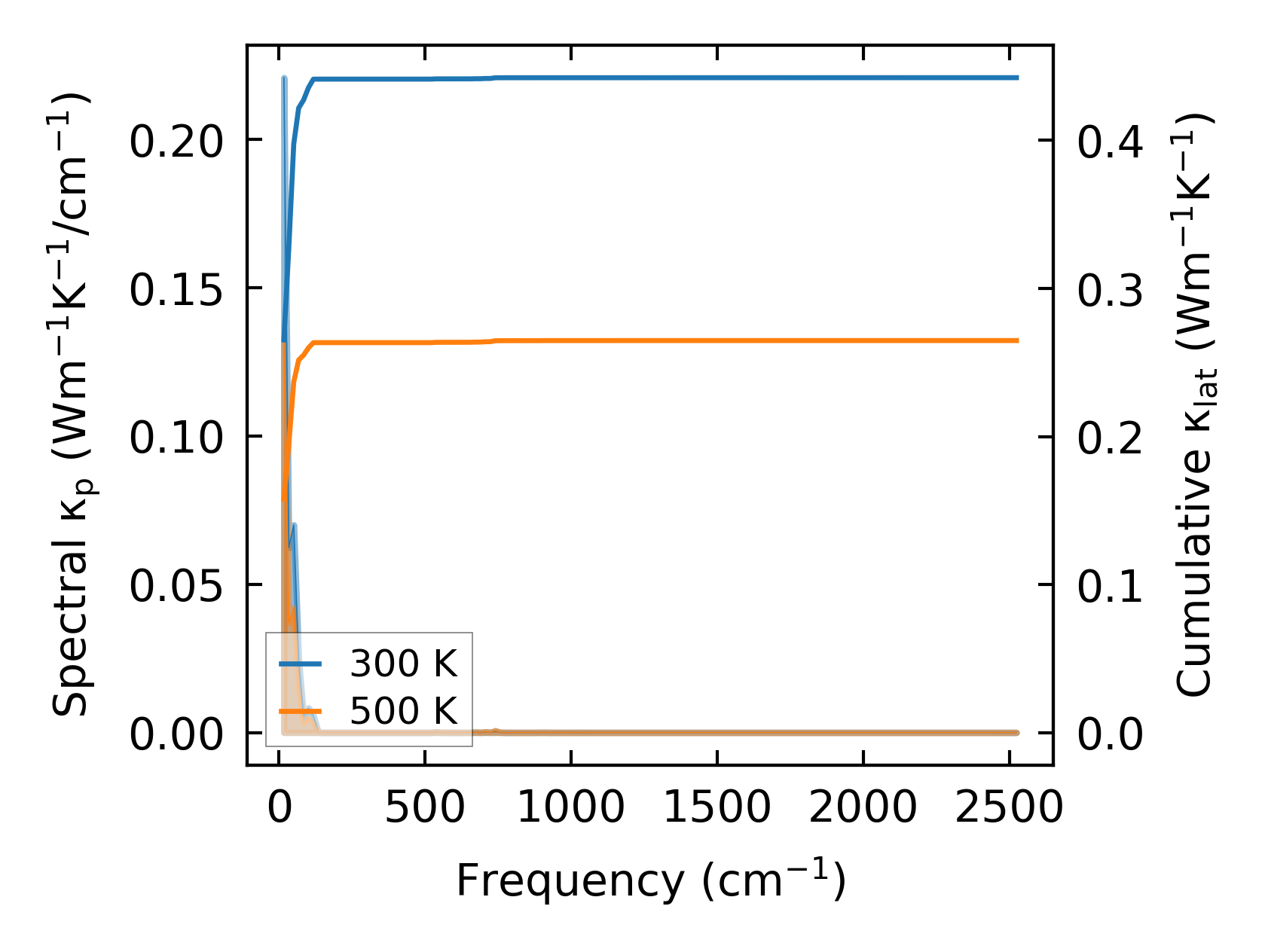

../../_images/fig_cumu_frequency3691.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

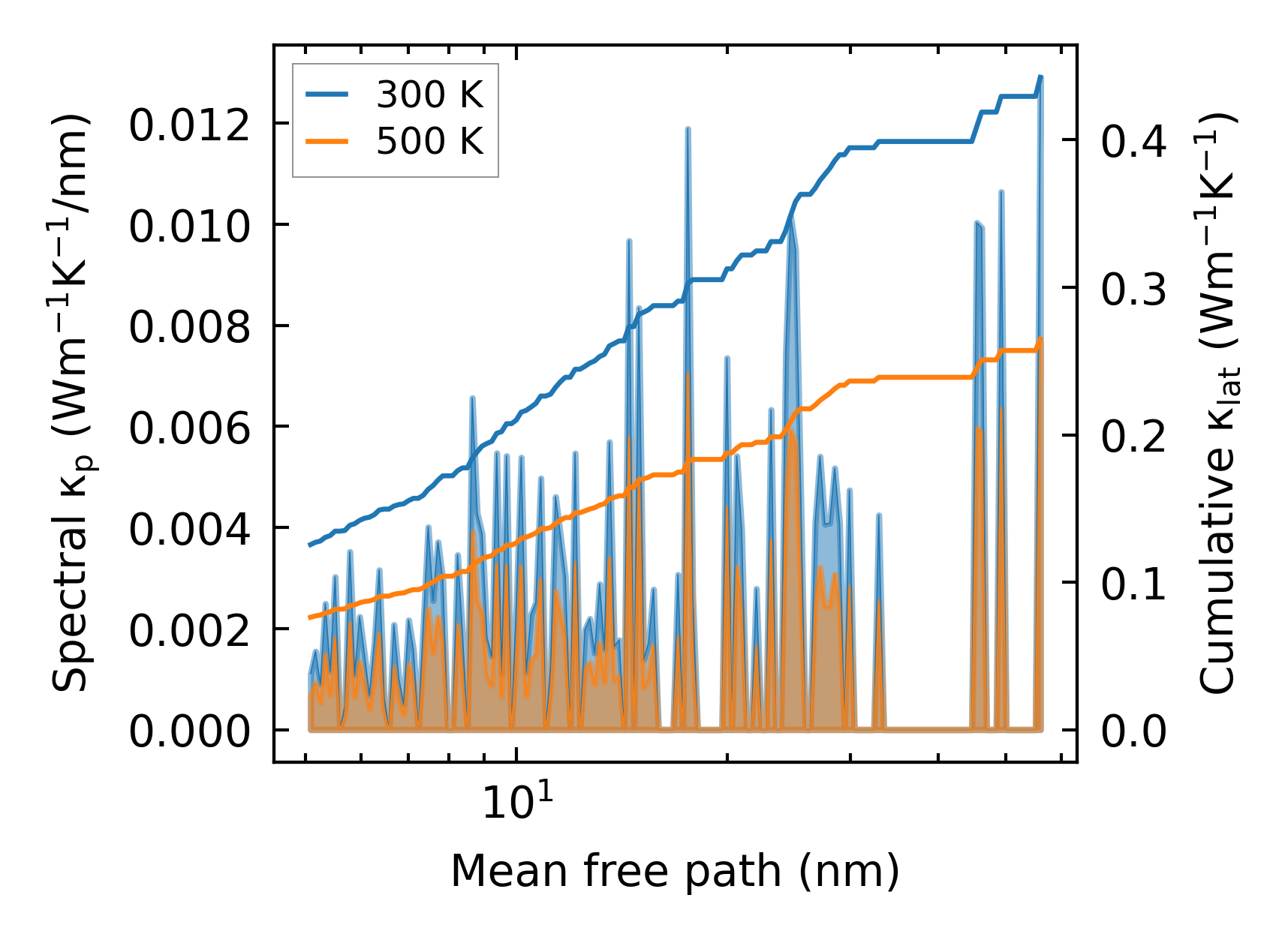

../../_images/fig_cumu_mfp3690.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

../../_images/fig_fc29113.png — (a) Force constants w.r.t atomic distance

Summary

../../_images/fig_kappa7035.png — (a) Temperature-dependent lattice thermal conductivity

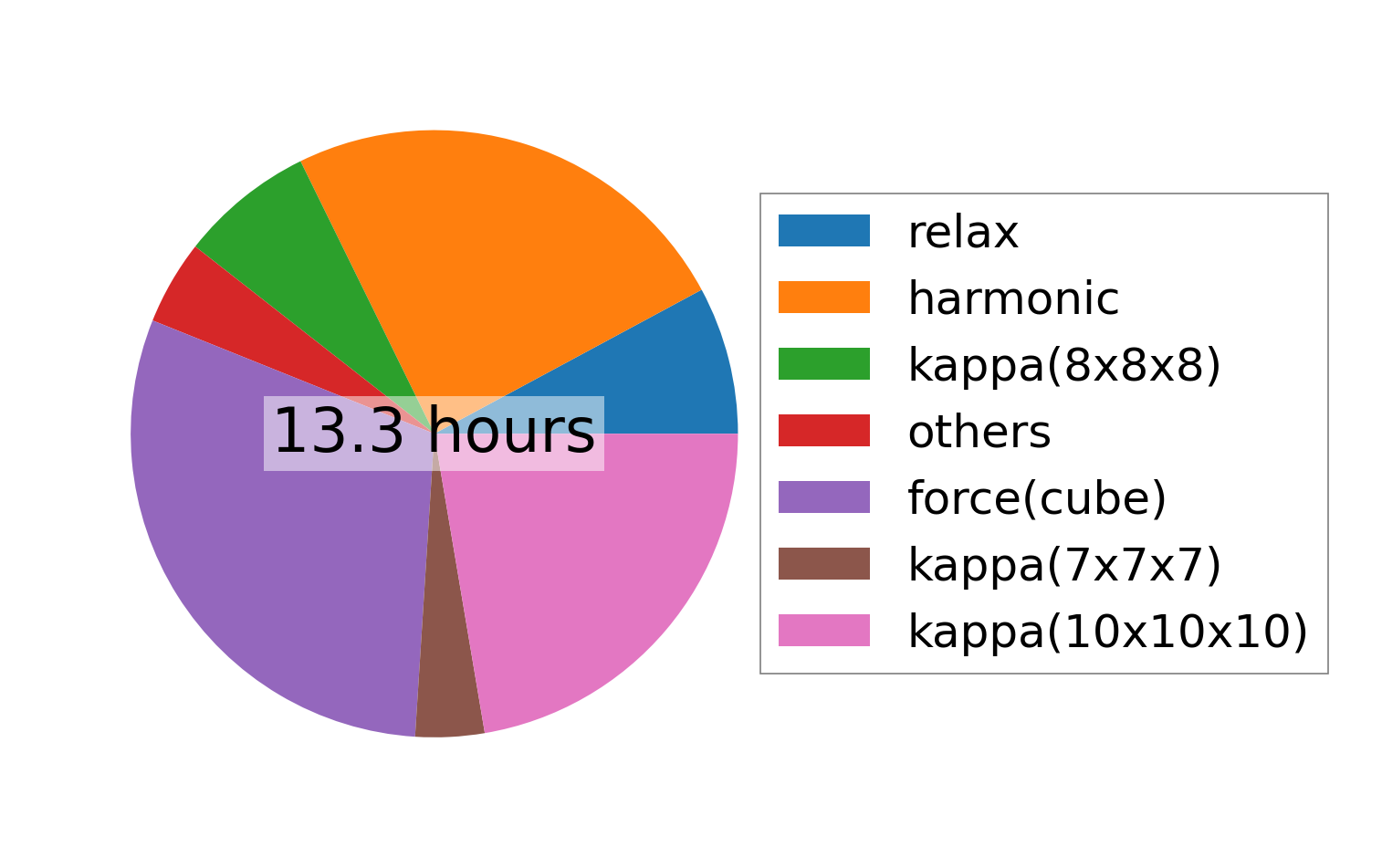

../../_images/fig_times16294.png — (b) Computation time
