mp-542314/NdCuSO/anharm

Space group: P4/nmm (129)
Link: Materials Project
Download: mp-542314.tar.gz

Harmonic properties

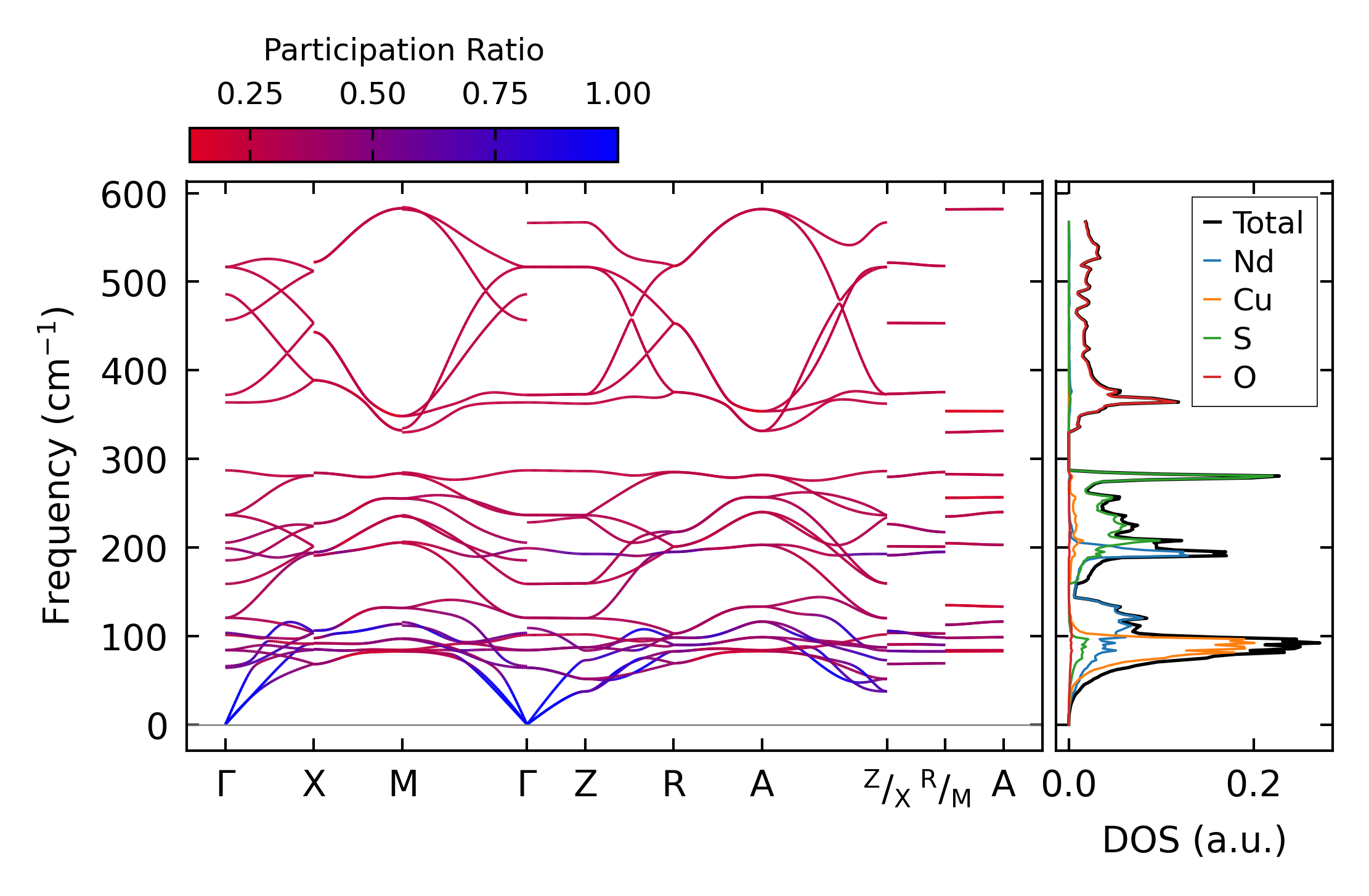

../../_images/fig_bandos_pr9308.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo9308.png — (b) Thermodynamic properties

Grüneisen parameters

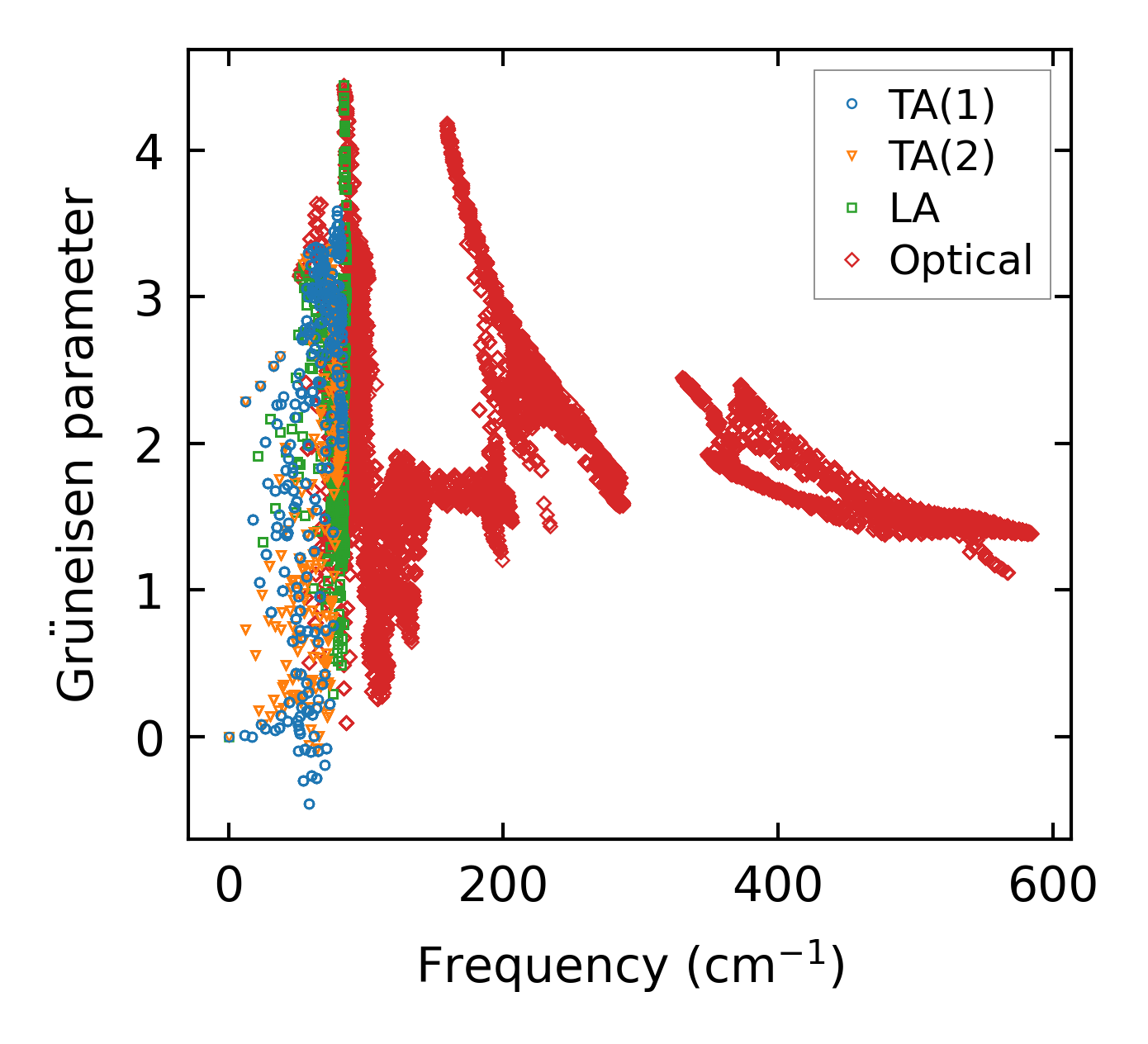

../../_images/fig_gru_all3712.png — (a) Grüneisen parameters

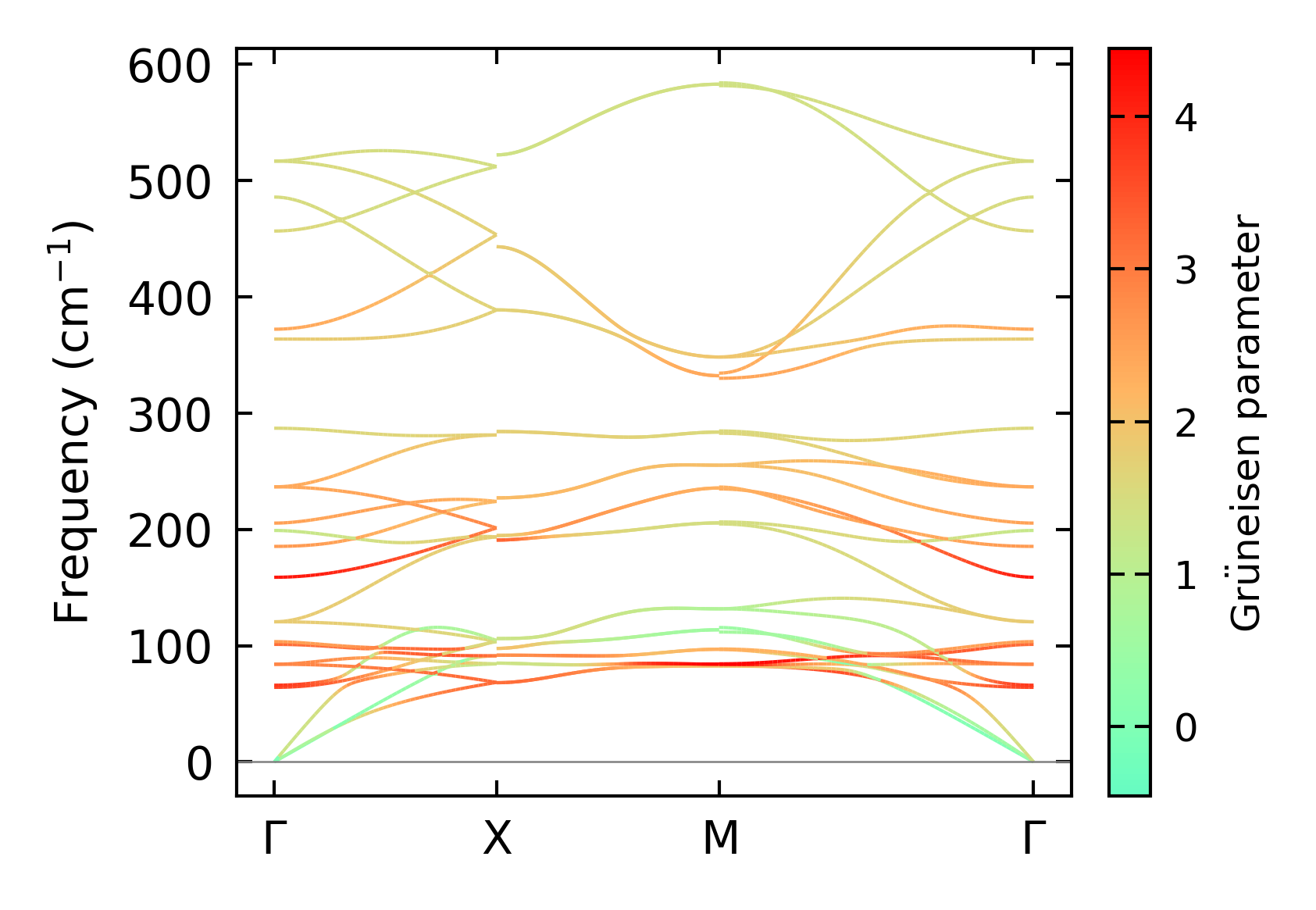

../../_images/fig_gruneisen3712.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 18x18x8, supercell: 3x3x2

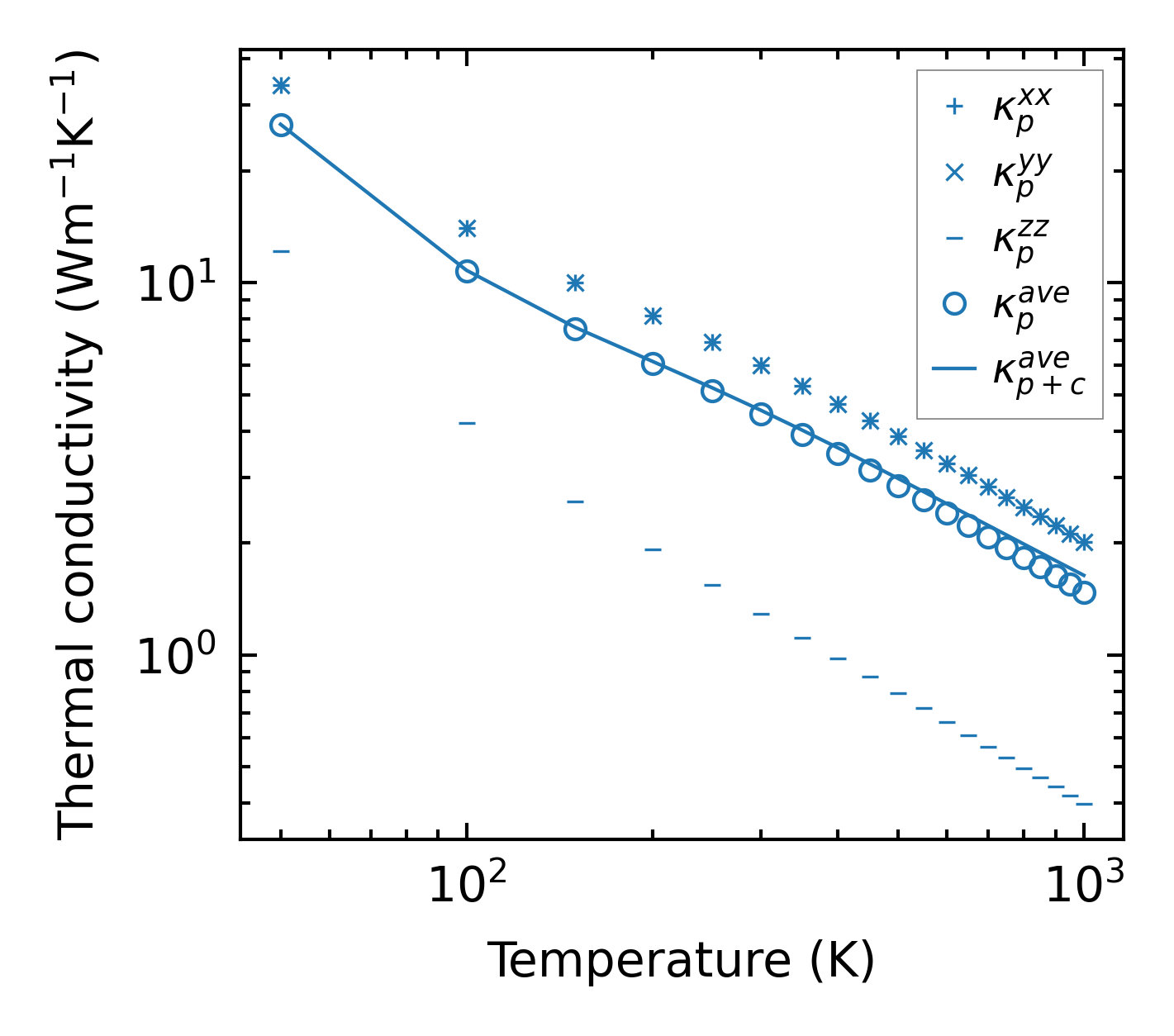

../../_images/fig_kappa7006.png — (a) Temperature-dependent lattice thermal conductivity

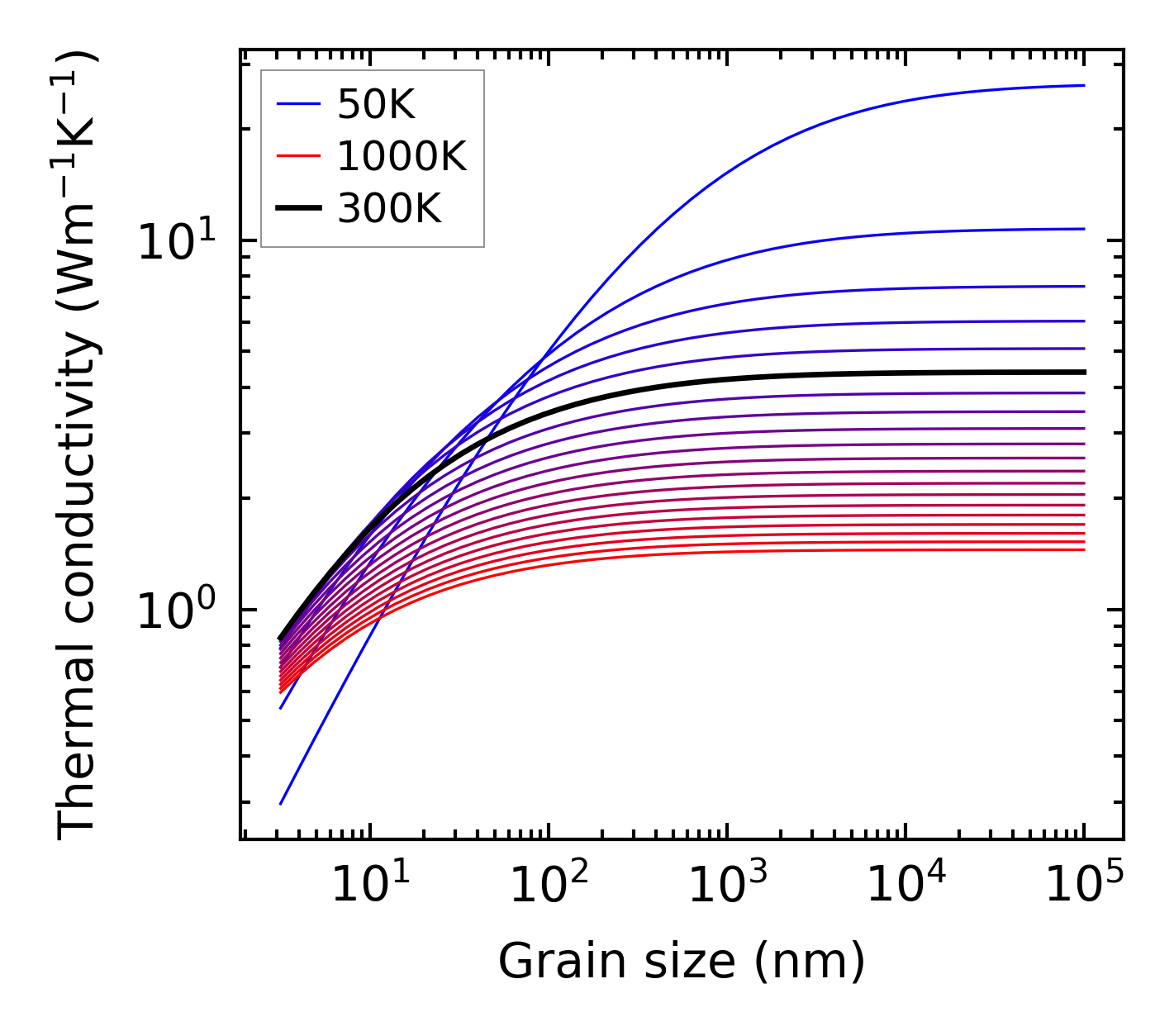

../../_images/fig_kappa_vs_grain_size3761.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

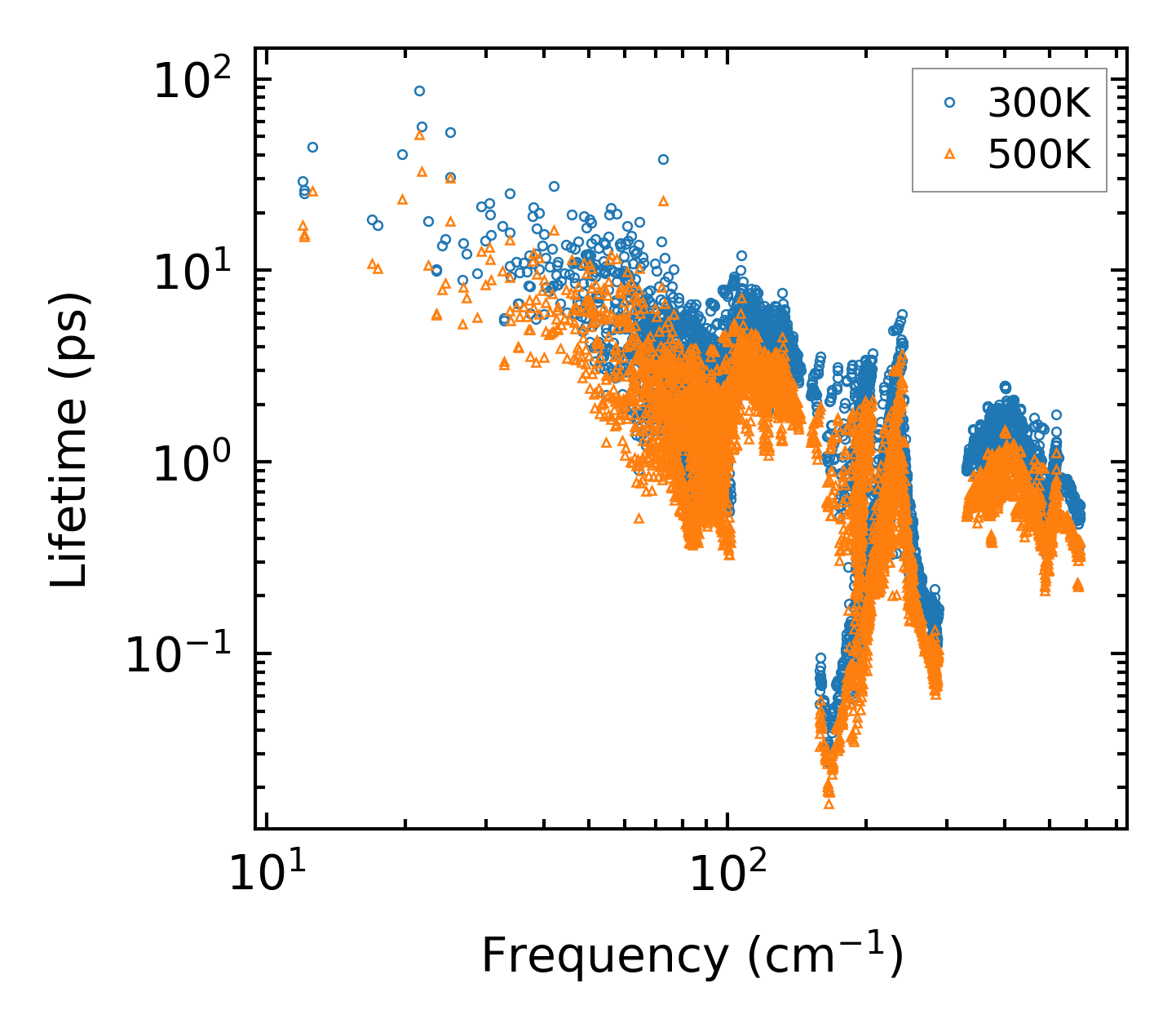

../../_images/fig_lifetime3677.png — (a) Phonon lifetime due to phonon-phonon scattering

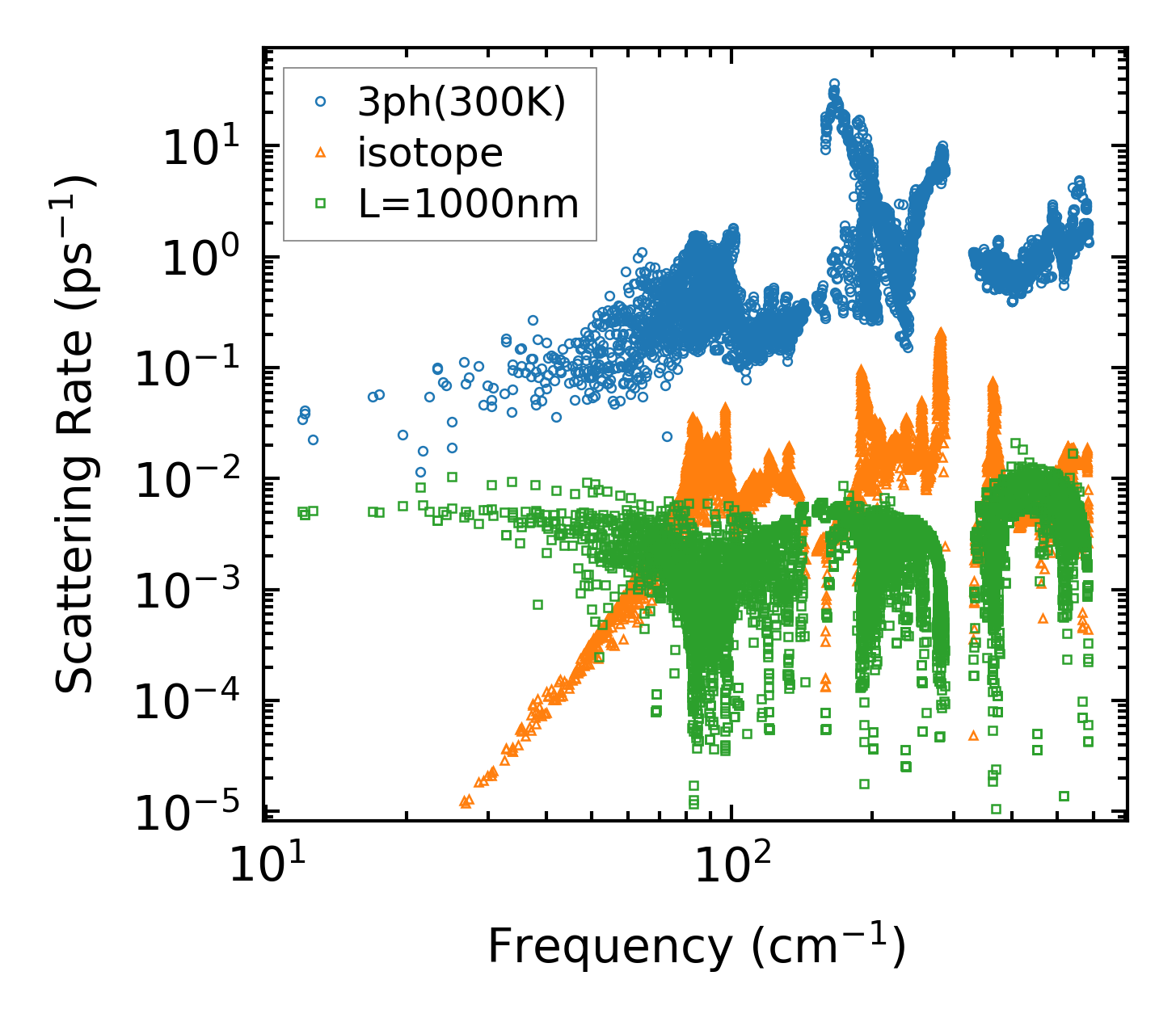

../../_images/fig_scat_rates3676.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

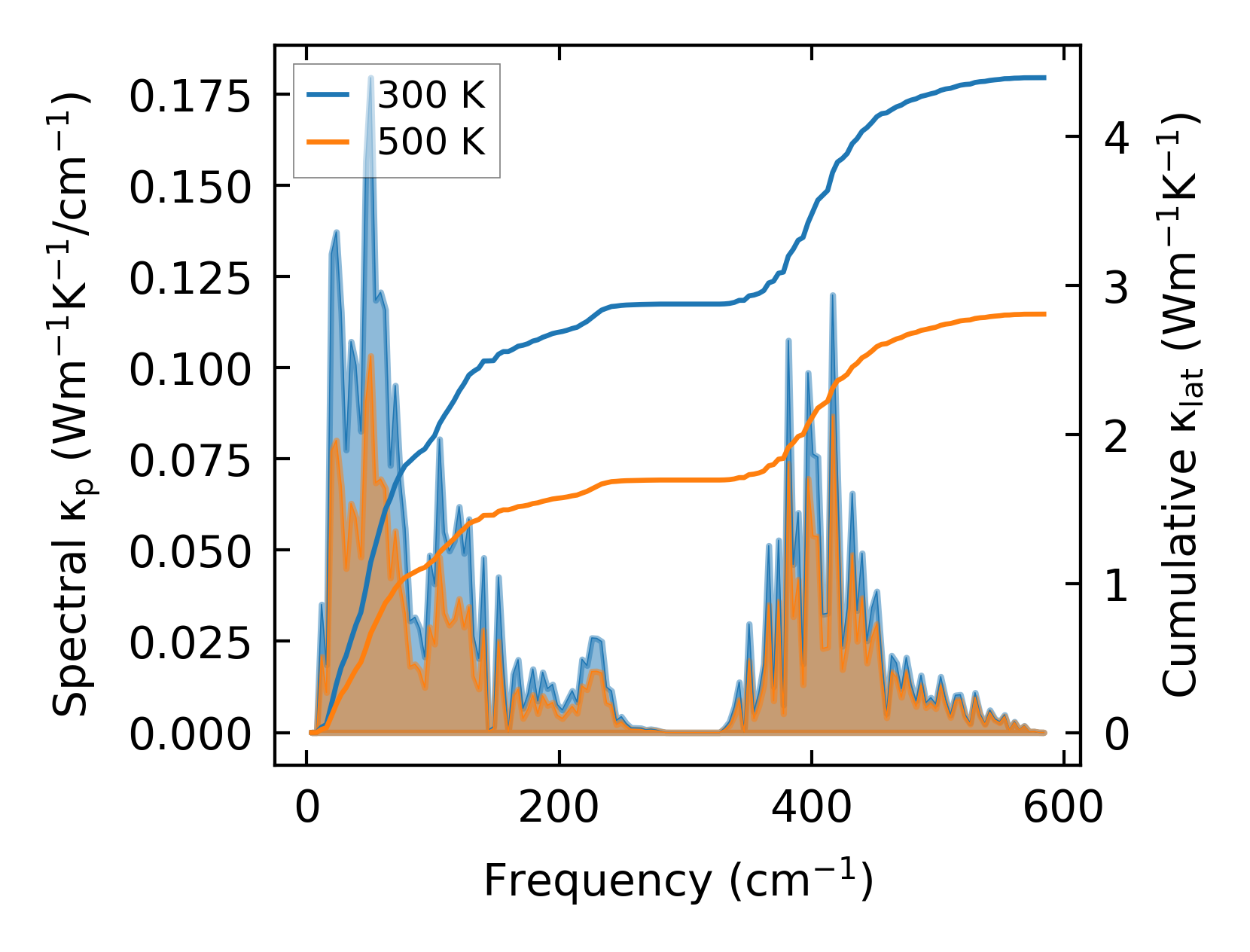

../../_images/fig_cumu_frequency3677.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

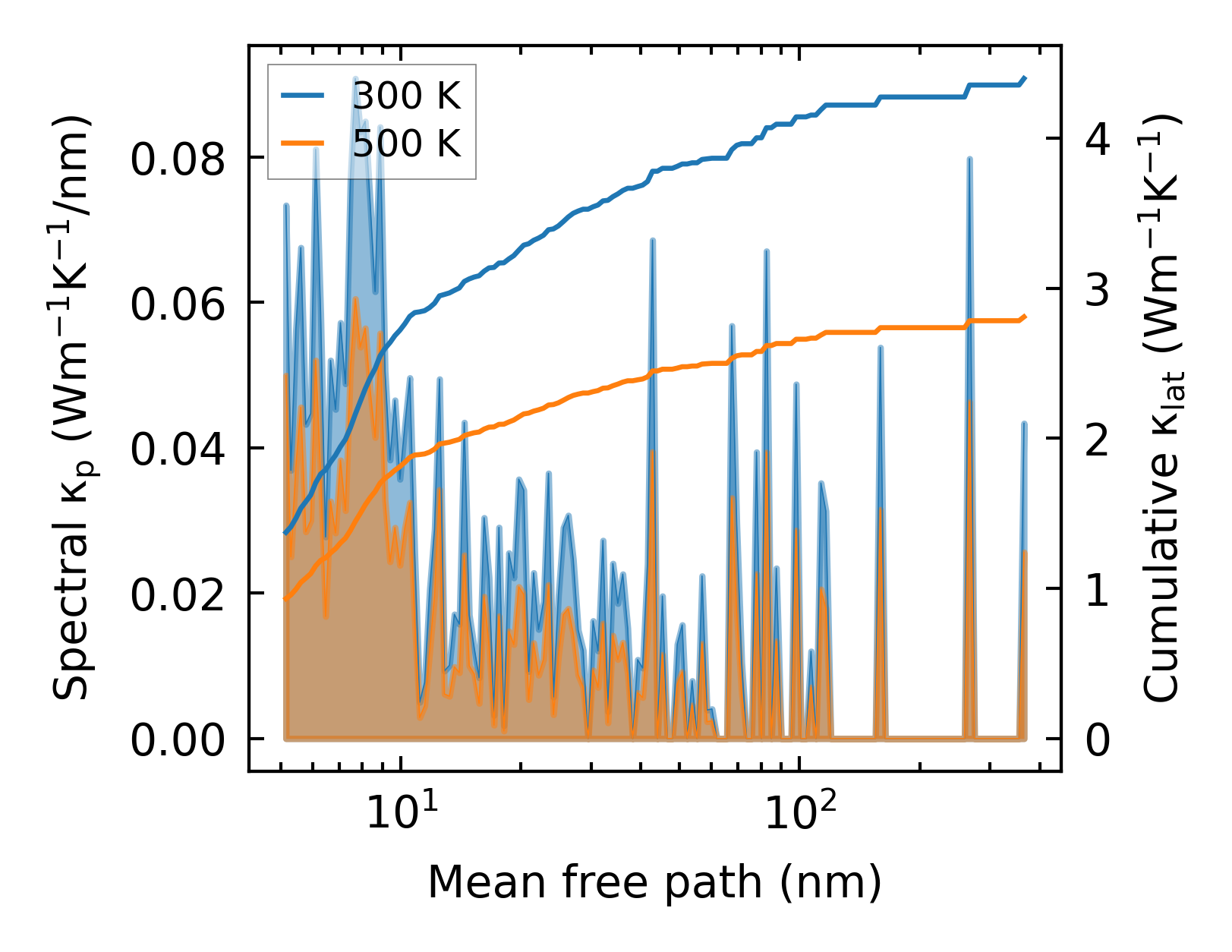

../../_images/fig_cumu_mfp3676.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

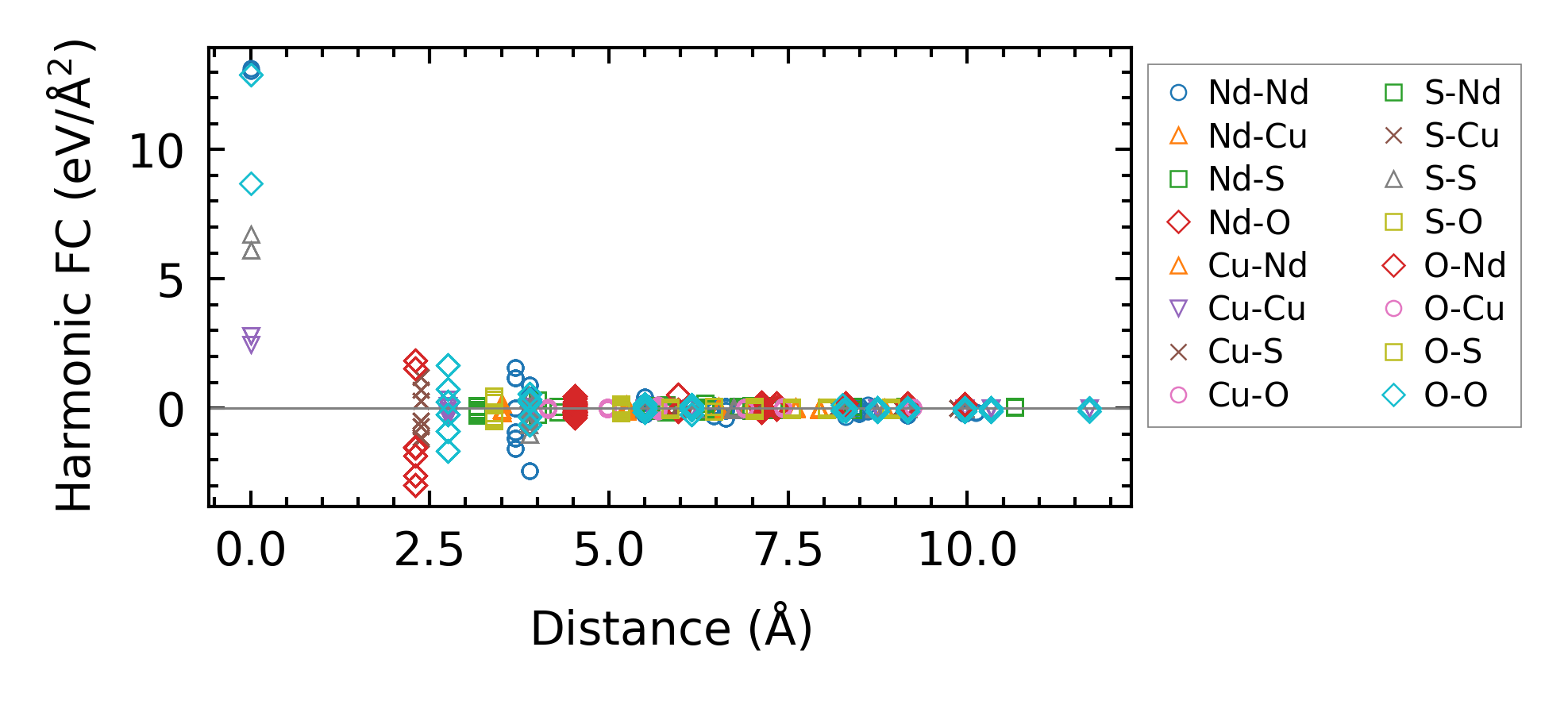

../../_images/fig_fc29070.png — (a) Force constants w.r.t atomic distance

Summary

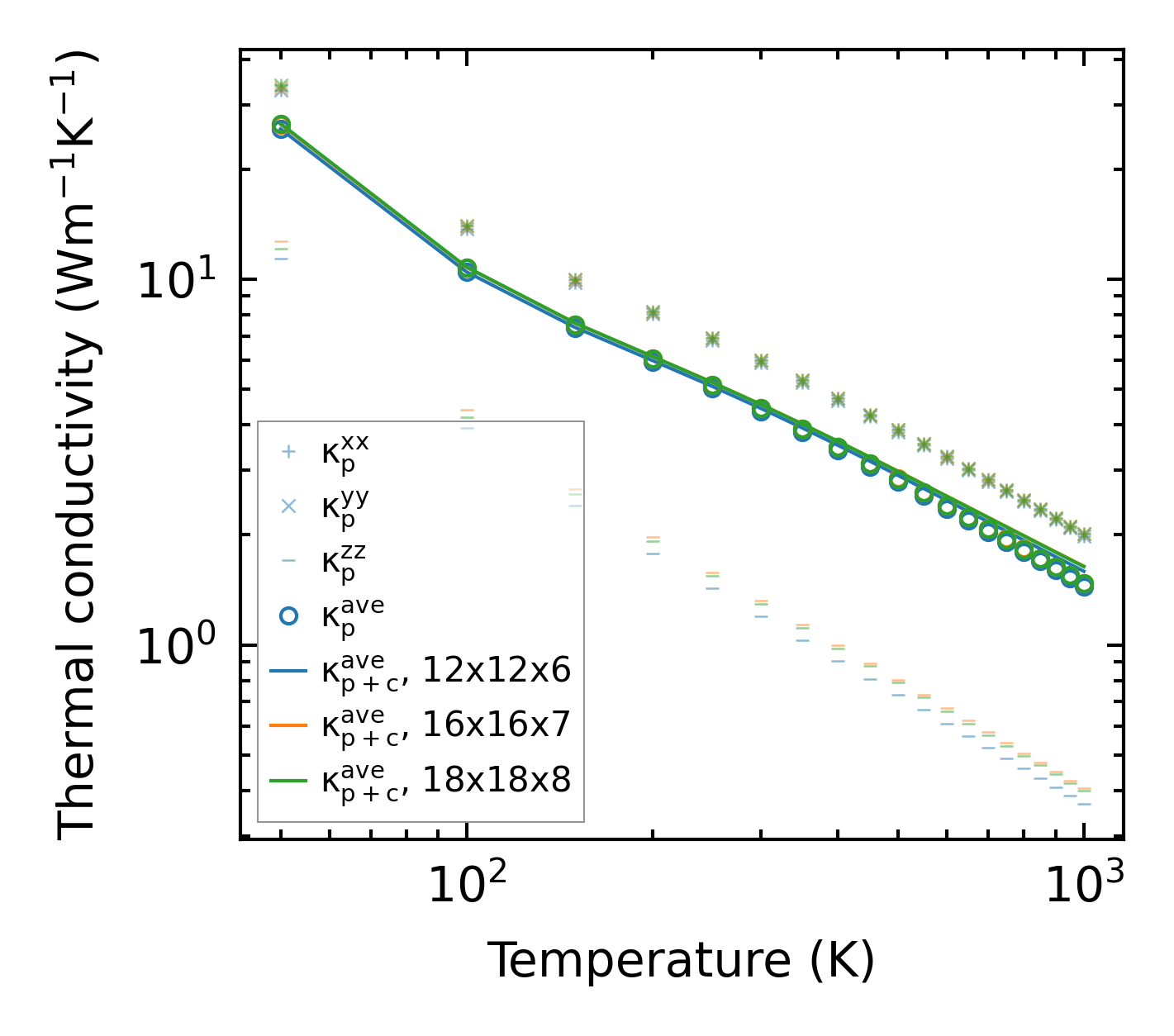

../../_images/fig_kappa7007.png — (a) Temperature-dependent lattice thermal conductivity

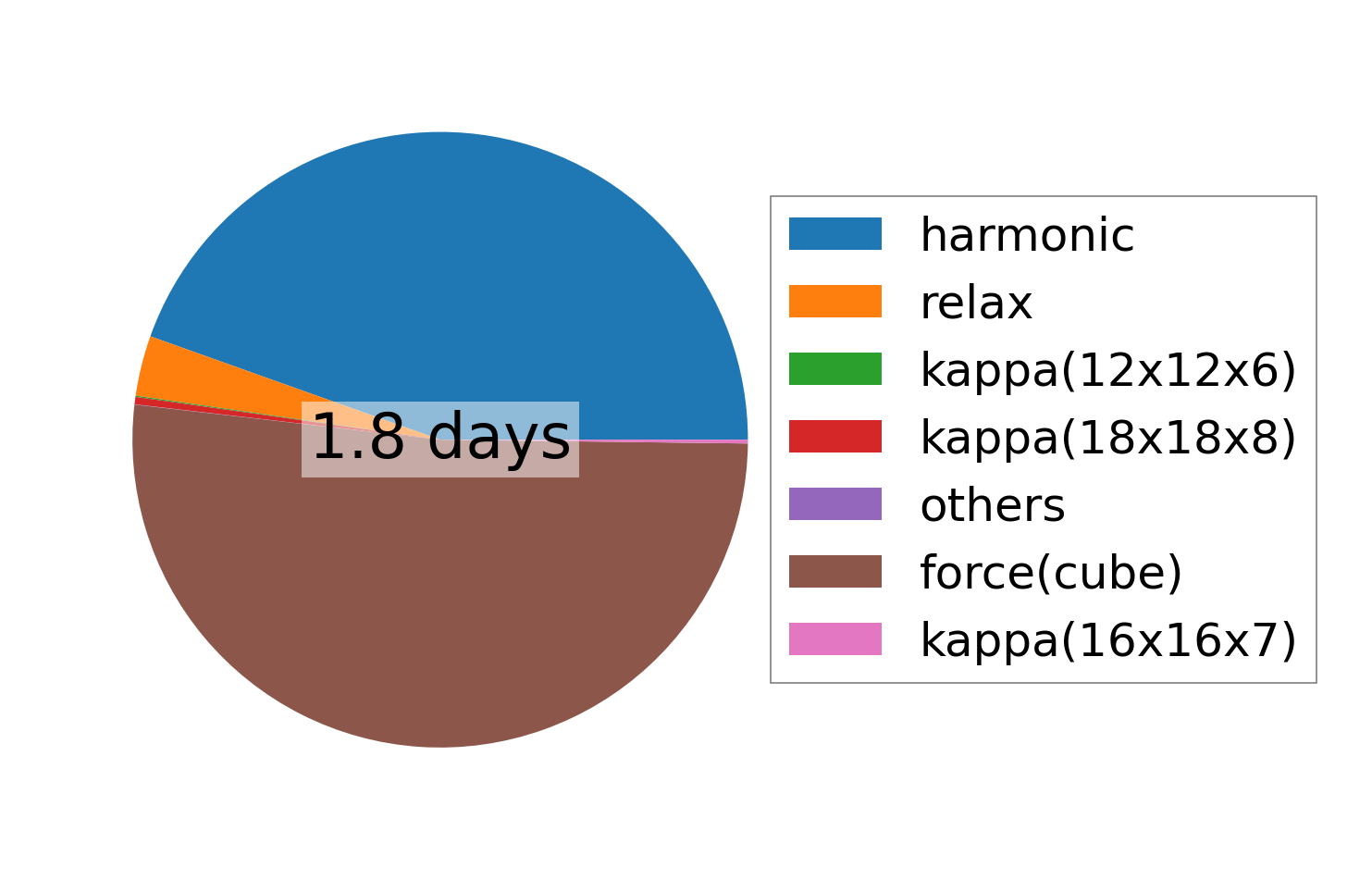

../../_images/fig_times16219.png — (b) Computation time
