mp-542374/KSn/anharm

Space group: I4_1/acd (142)
Link: Materials Project
Download: mp-542374.tar.gz

Harmonic properties

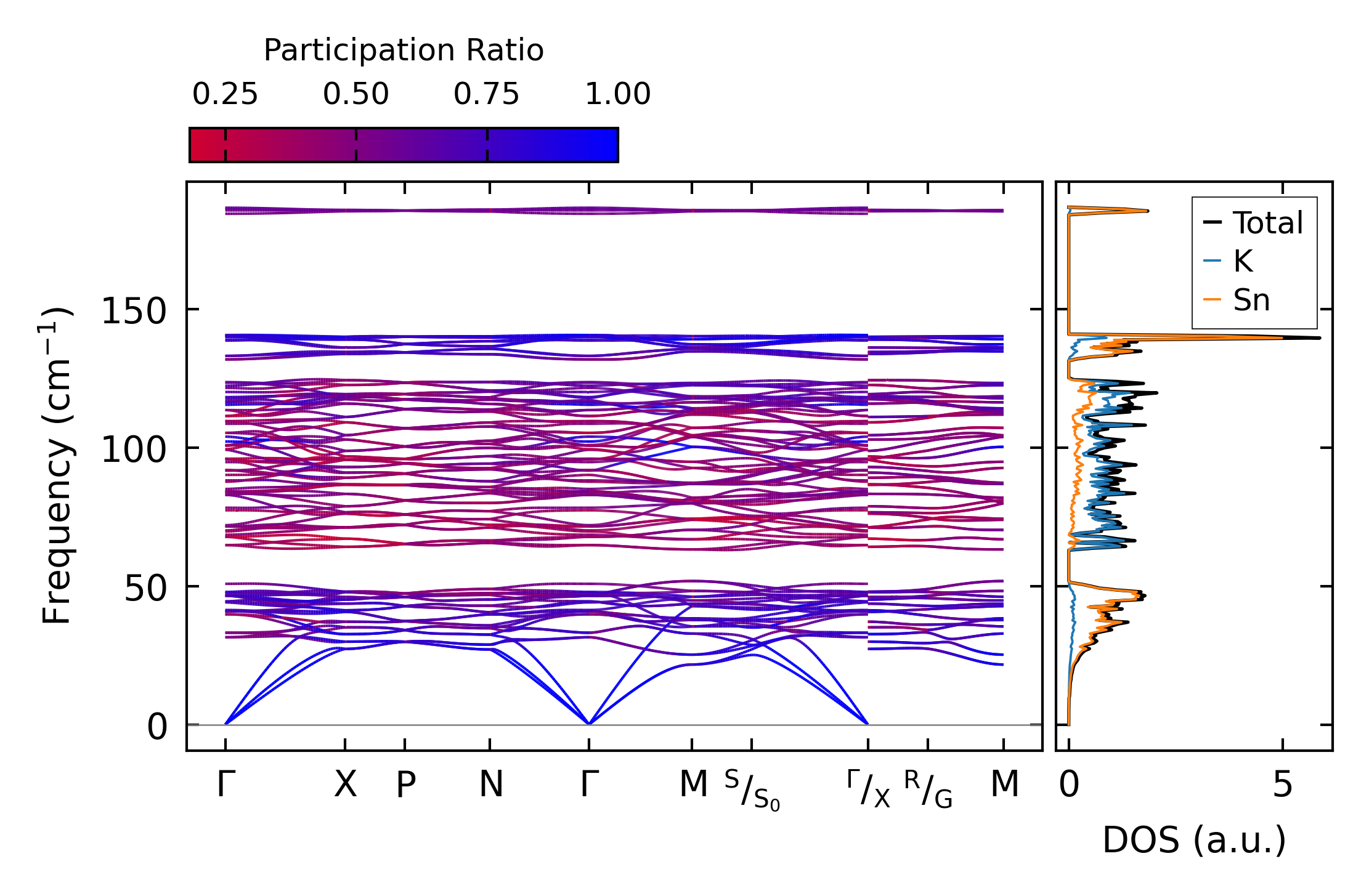

../../_images/fig_bandos_pr9309.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo9309.png — (b) Thermodynamic properties

Grüneisen parameters

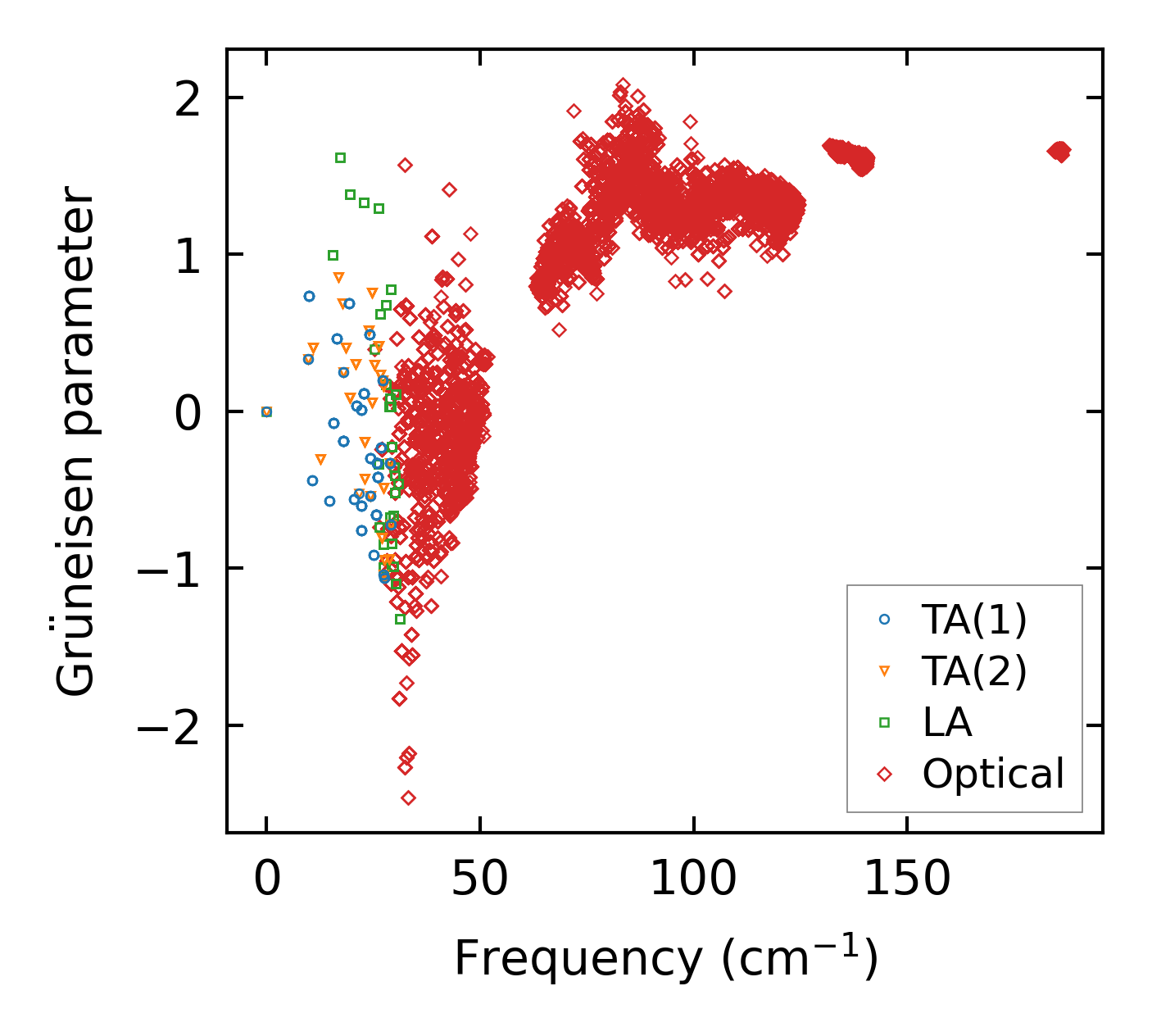

../../_images/fig_gru_all3713.png — (a) Grüneisen parameters

../../_images/fig_gruneisen3713.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 6x6x6, supercell: 1x1x1

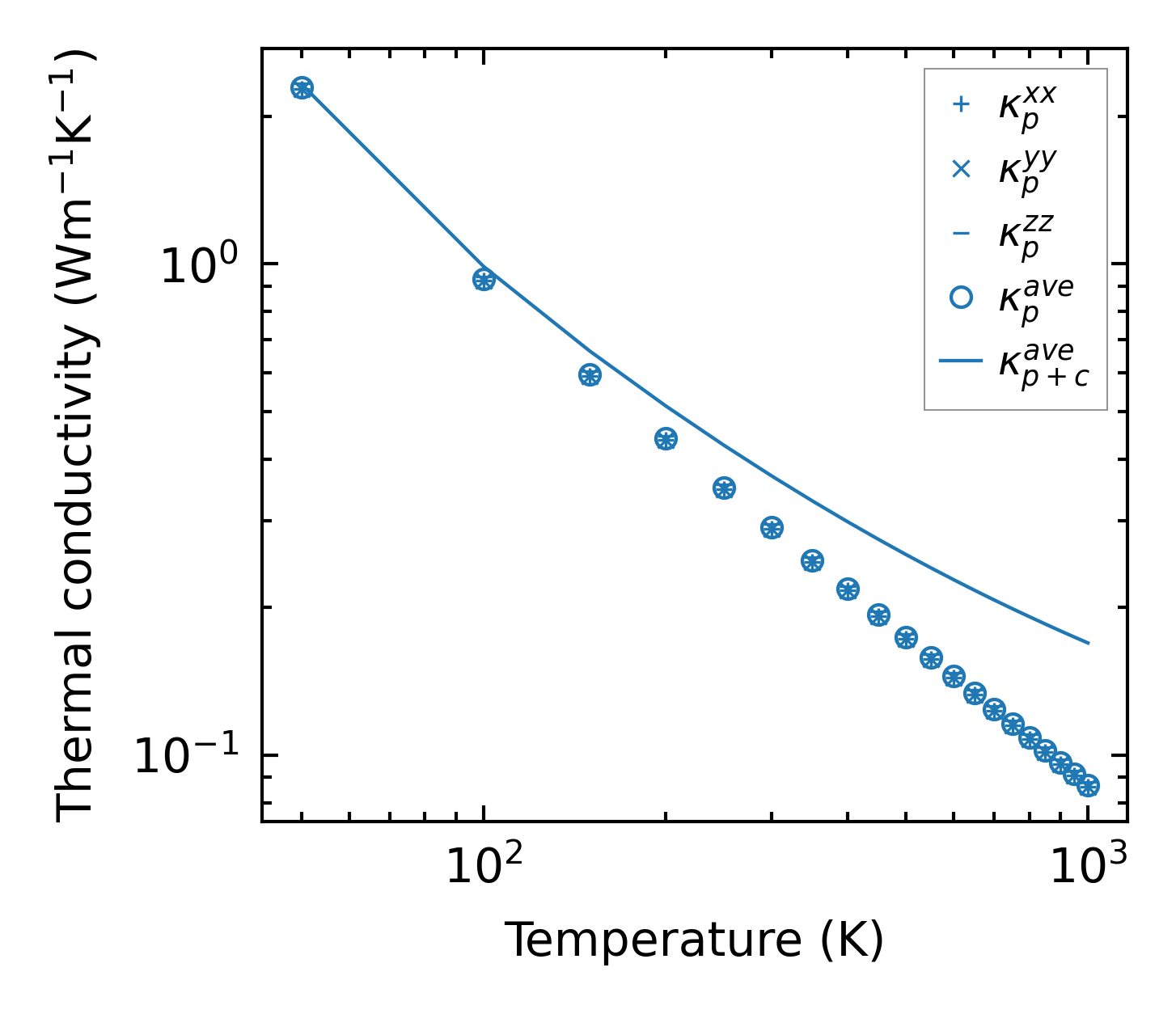

../../_images/fig_kappa7008.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size3762.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

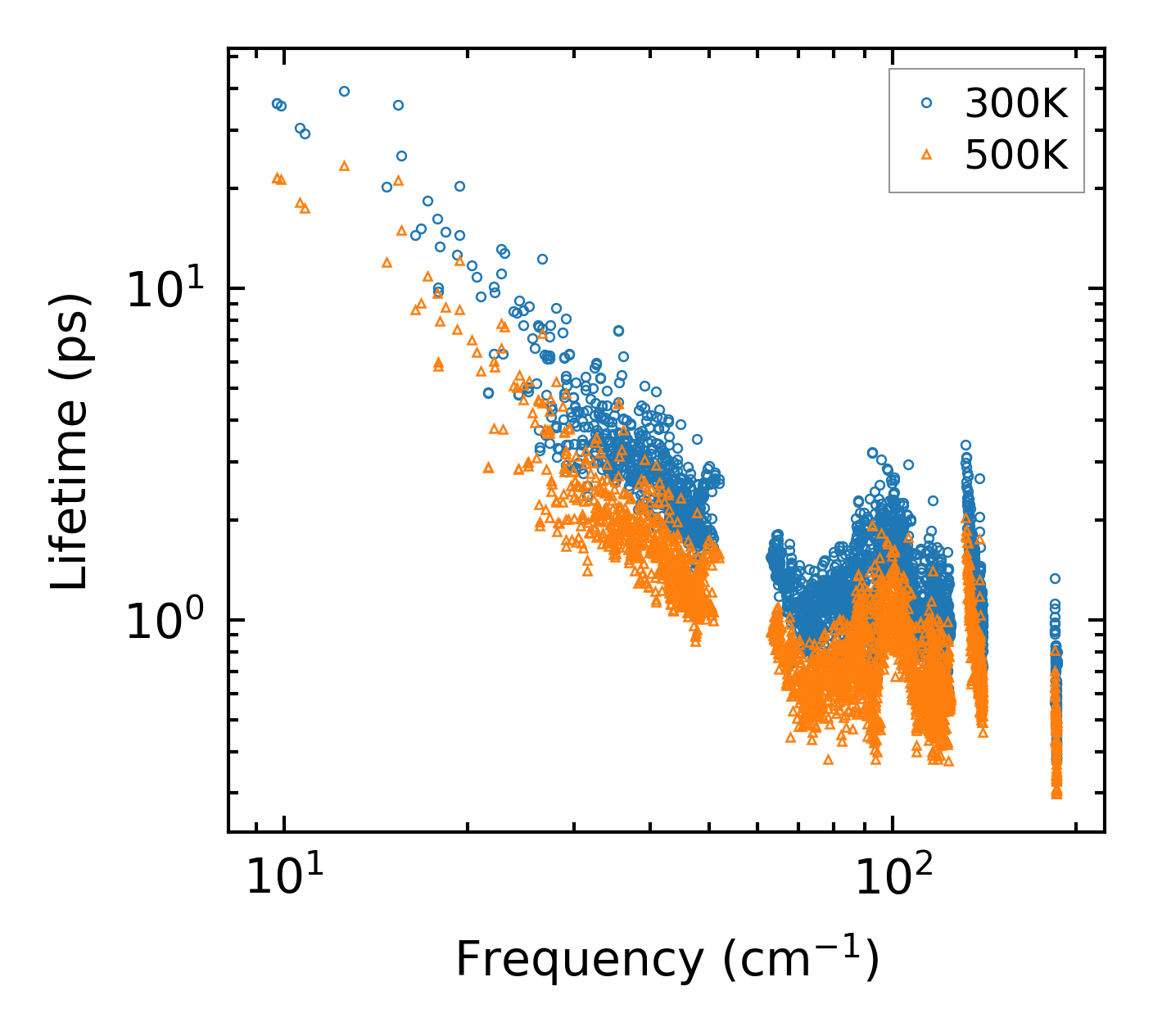

../../_images/fig_lifetime3678.png — (a) Phonon lifetime due to phonon-phonon scattering

../../_images/fig_scat_rates3677.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

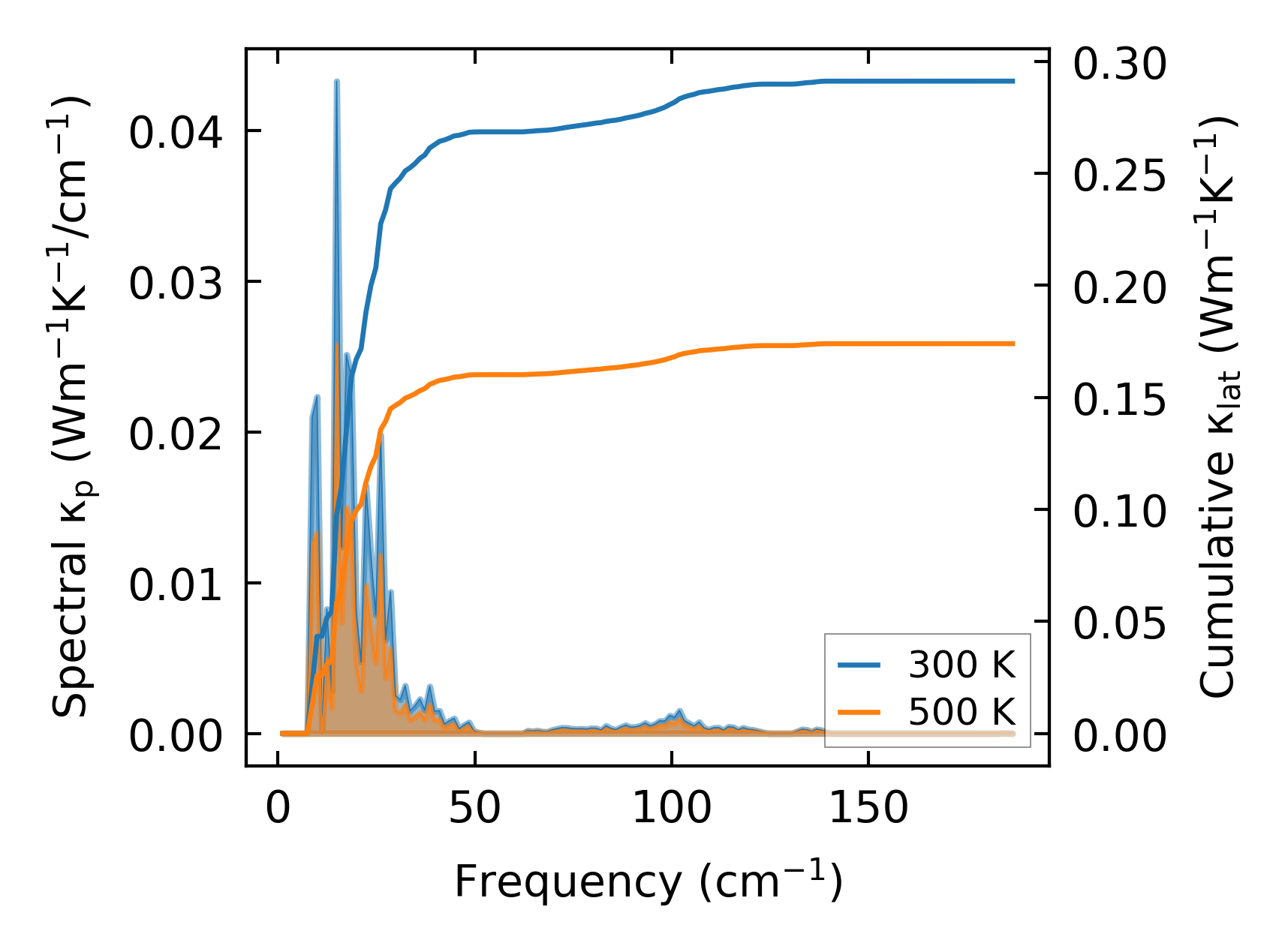

../../_images/fig_cumu_frequency3678.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

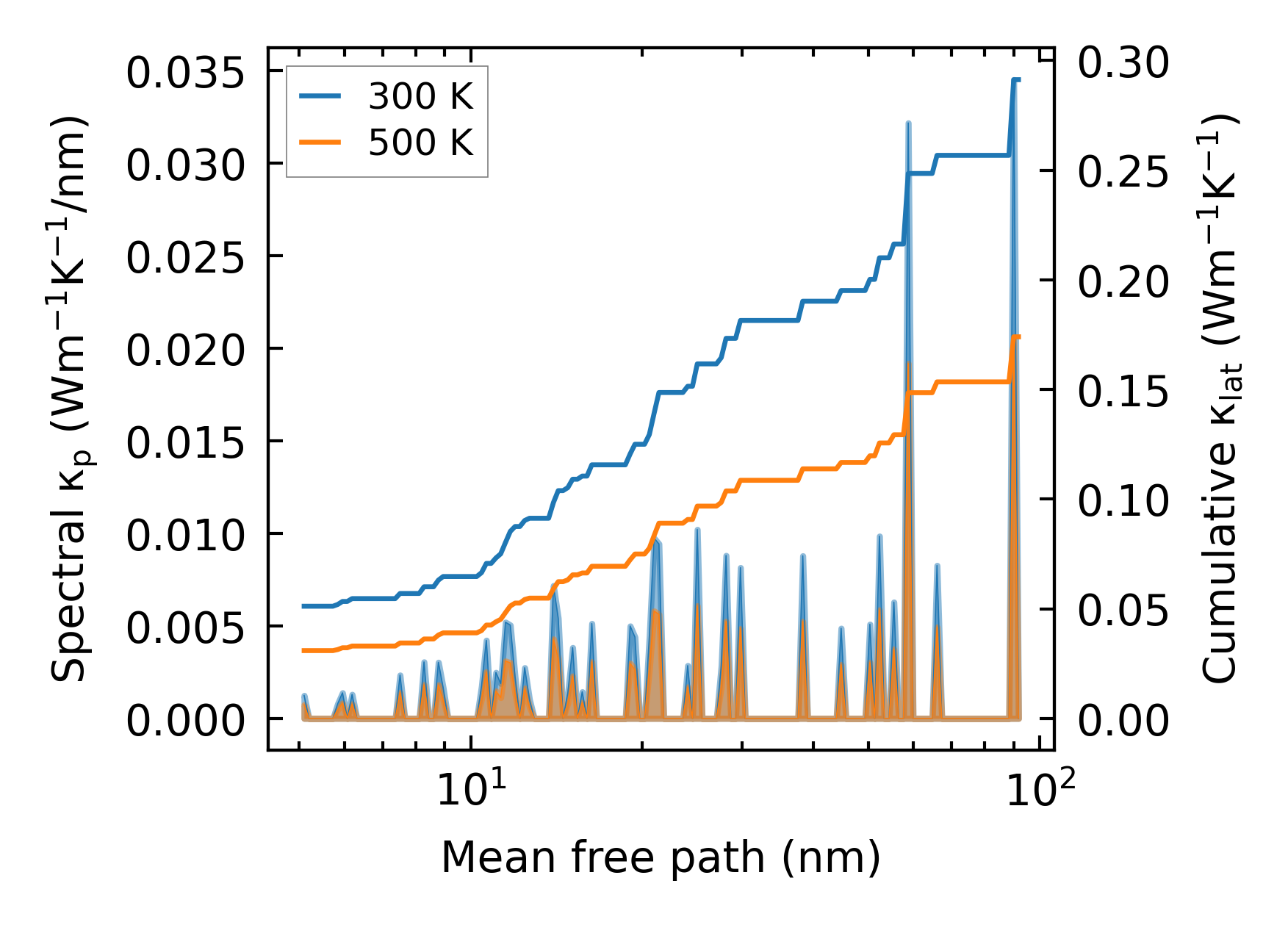

../../_images/fig_cumu_mfp3677.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

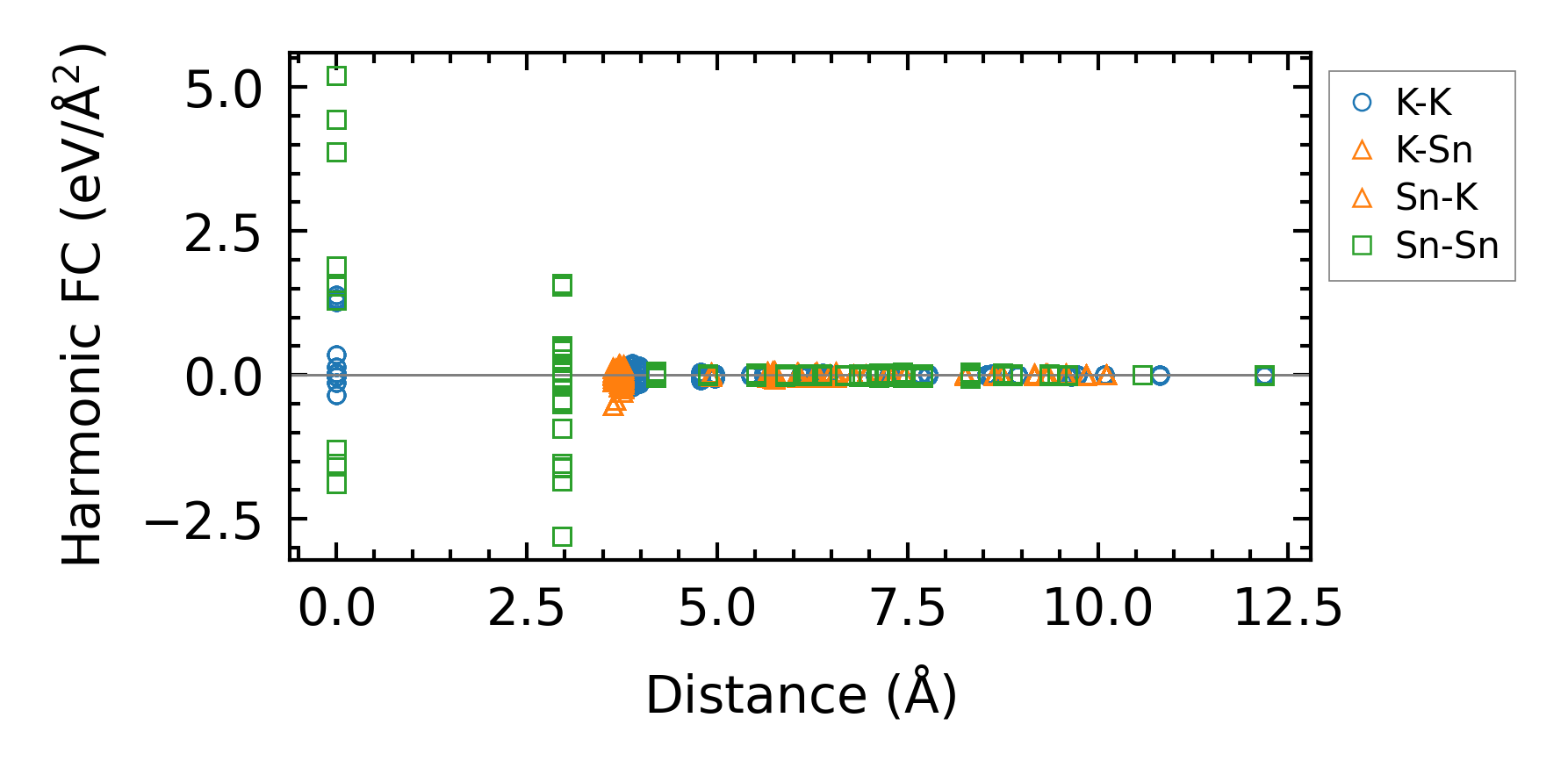

../../_images/fig_fc29071.png — (a) Force constants w.r.t atomic distance

Summary

../../_images/fig_kappa7009.png — (a) Temperature-dependent lattice thermal conductivity

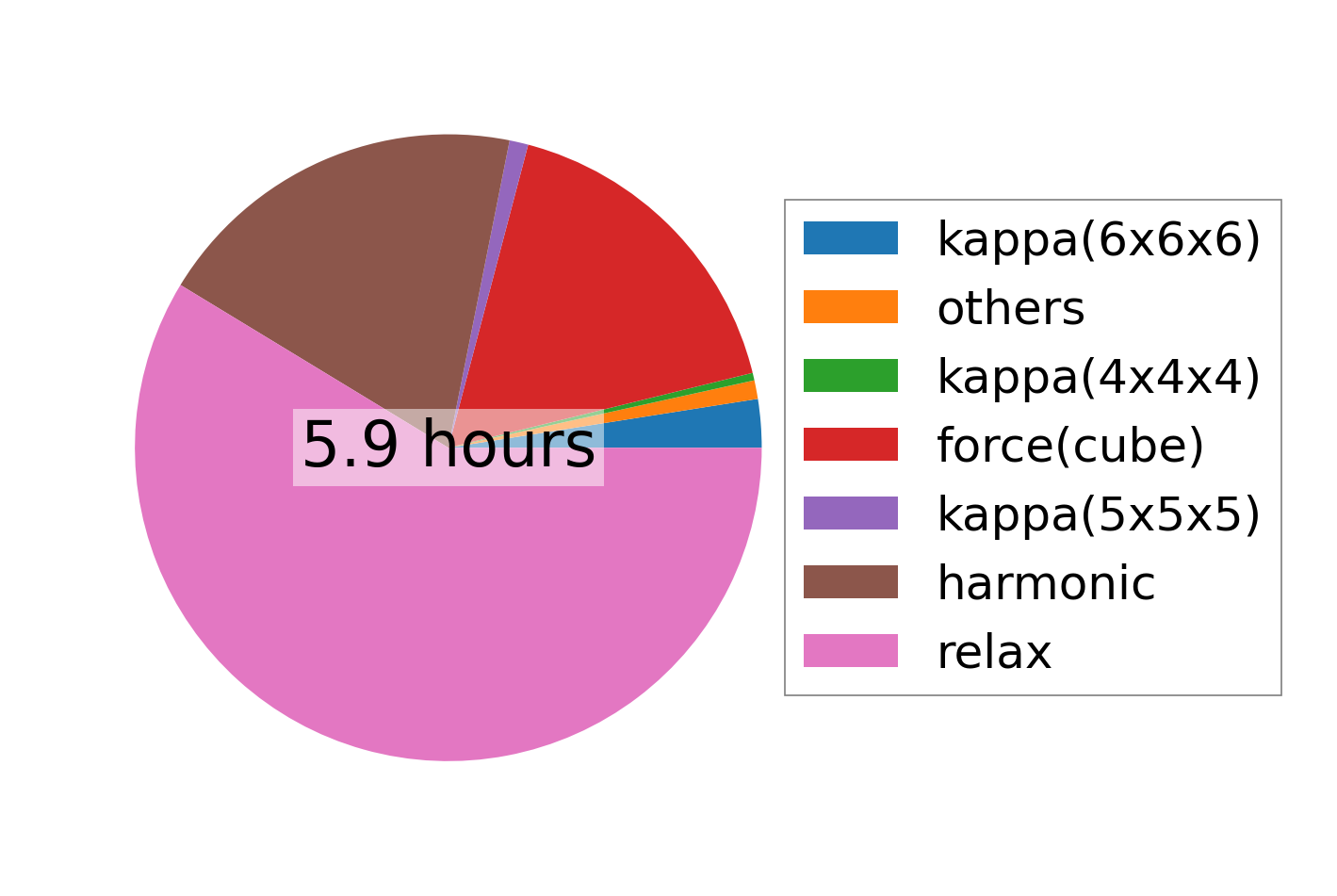

../../_images/fig_times16220.png — (b) Computation time
