mp-540789/PbI2/anharm

Space group: R-3m (166)
Link: Materials Project
Download: mp-540789.tar.gz

Harmonic properties

../../_images/fig_bandos_pr9720.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo9720.png — (b) Thermodynamic properties

Grüneisen parameters

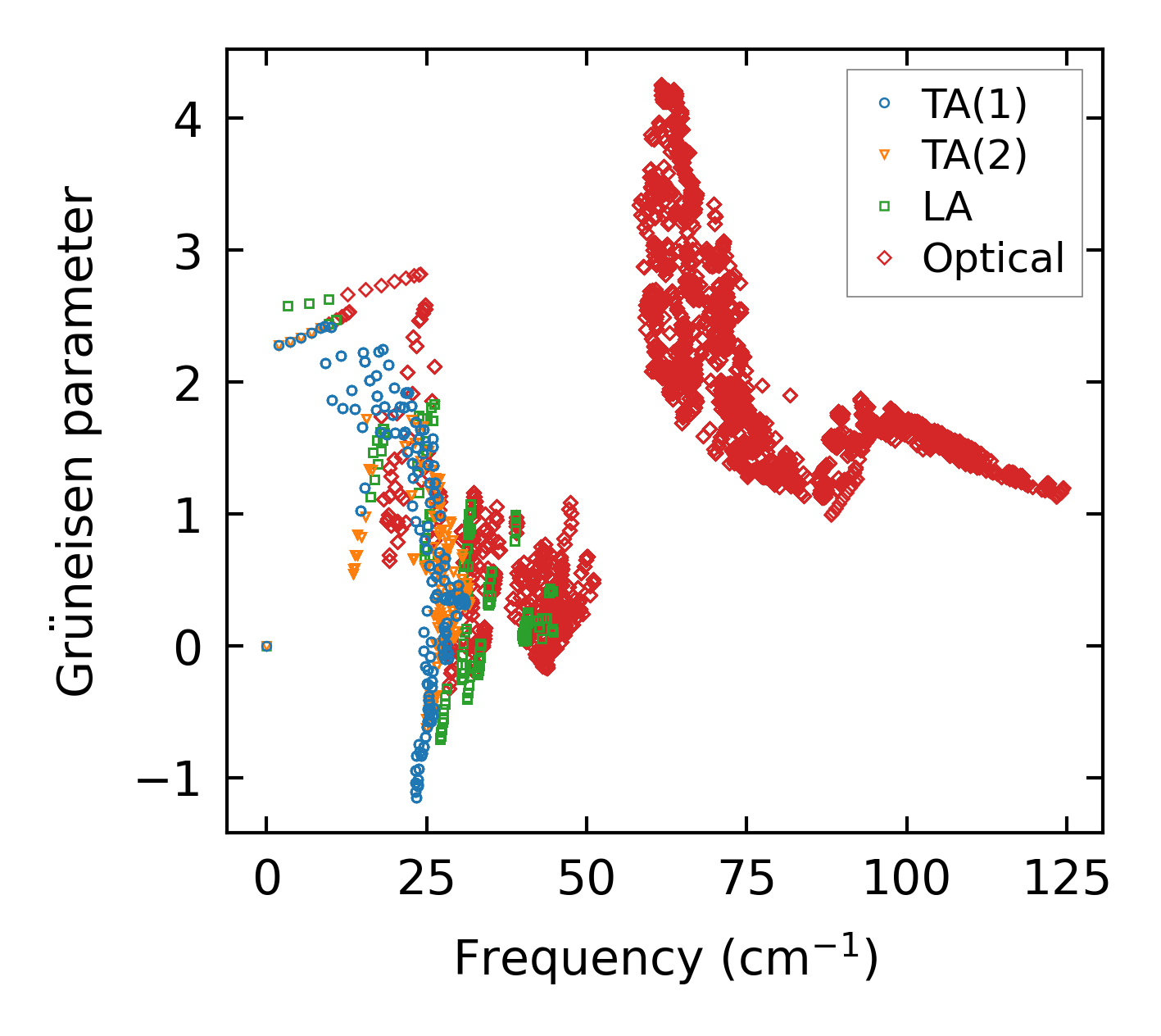

../../_images/fig_gru_all3882.png — (a) Grüneisen parameters

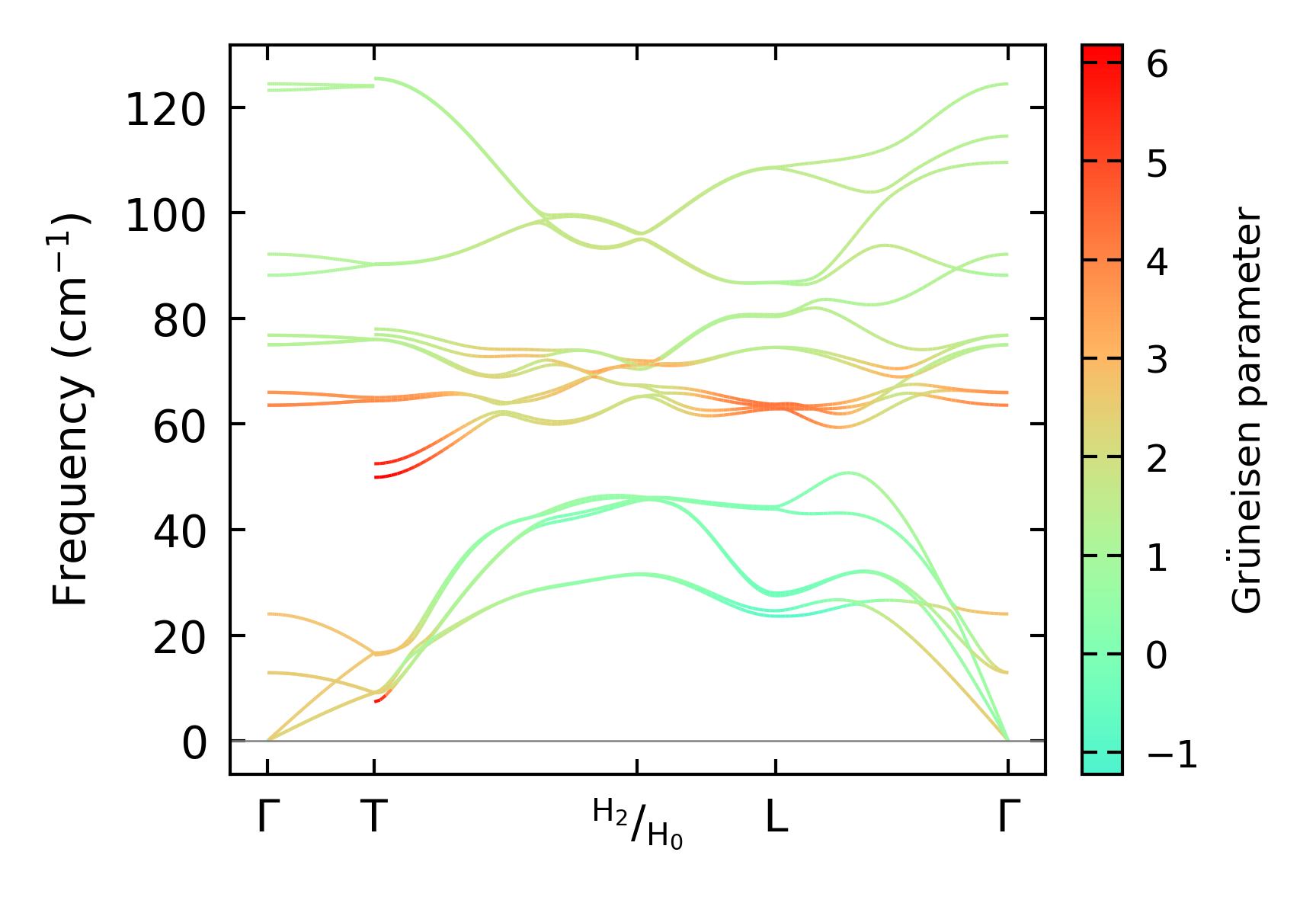

../../_images/fig_gruneisen3882.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon — q-mesh: 11x11x11, supercell: 2x2x1

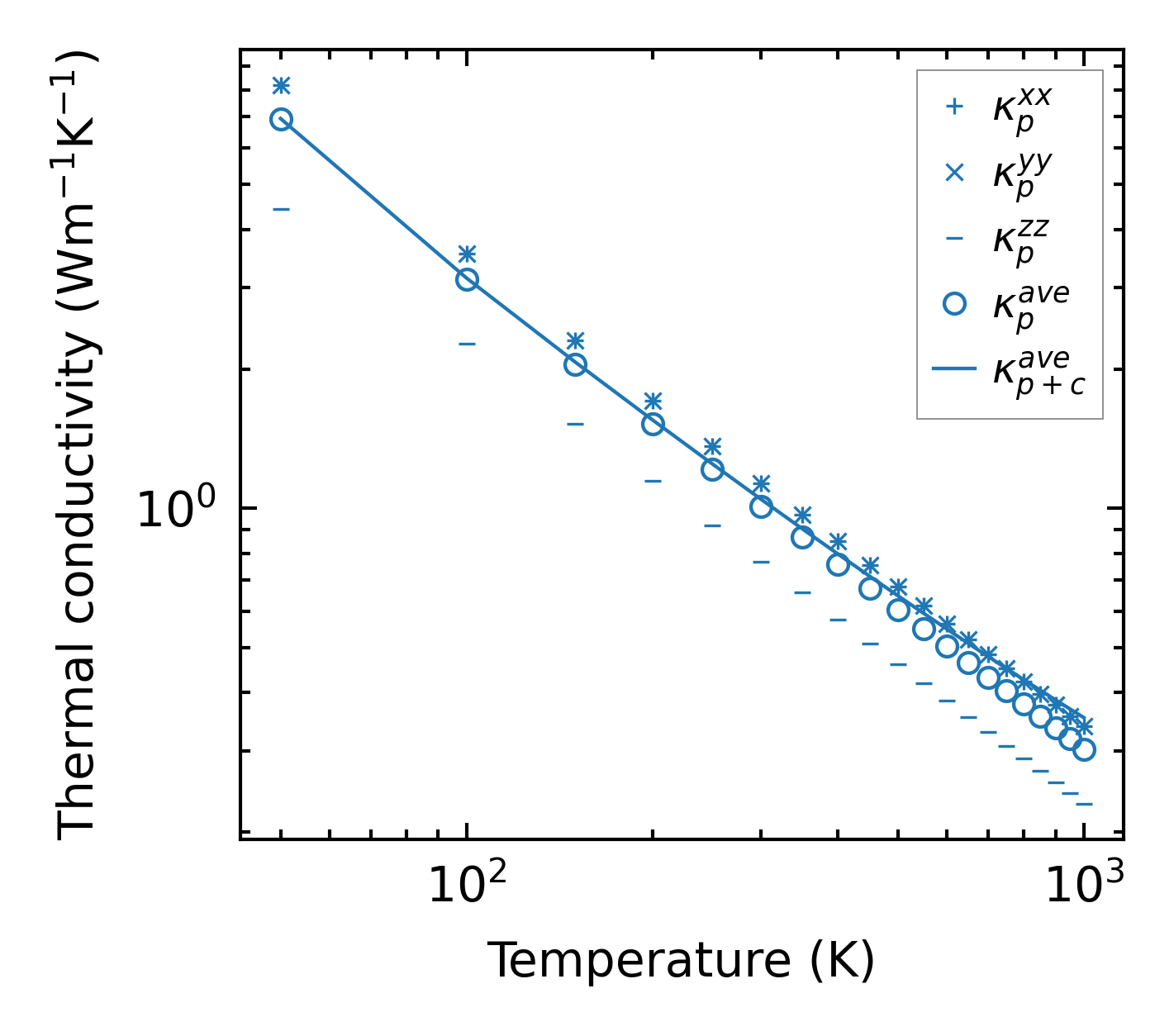

../../_images/fig_kappa7317.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size3932.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

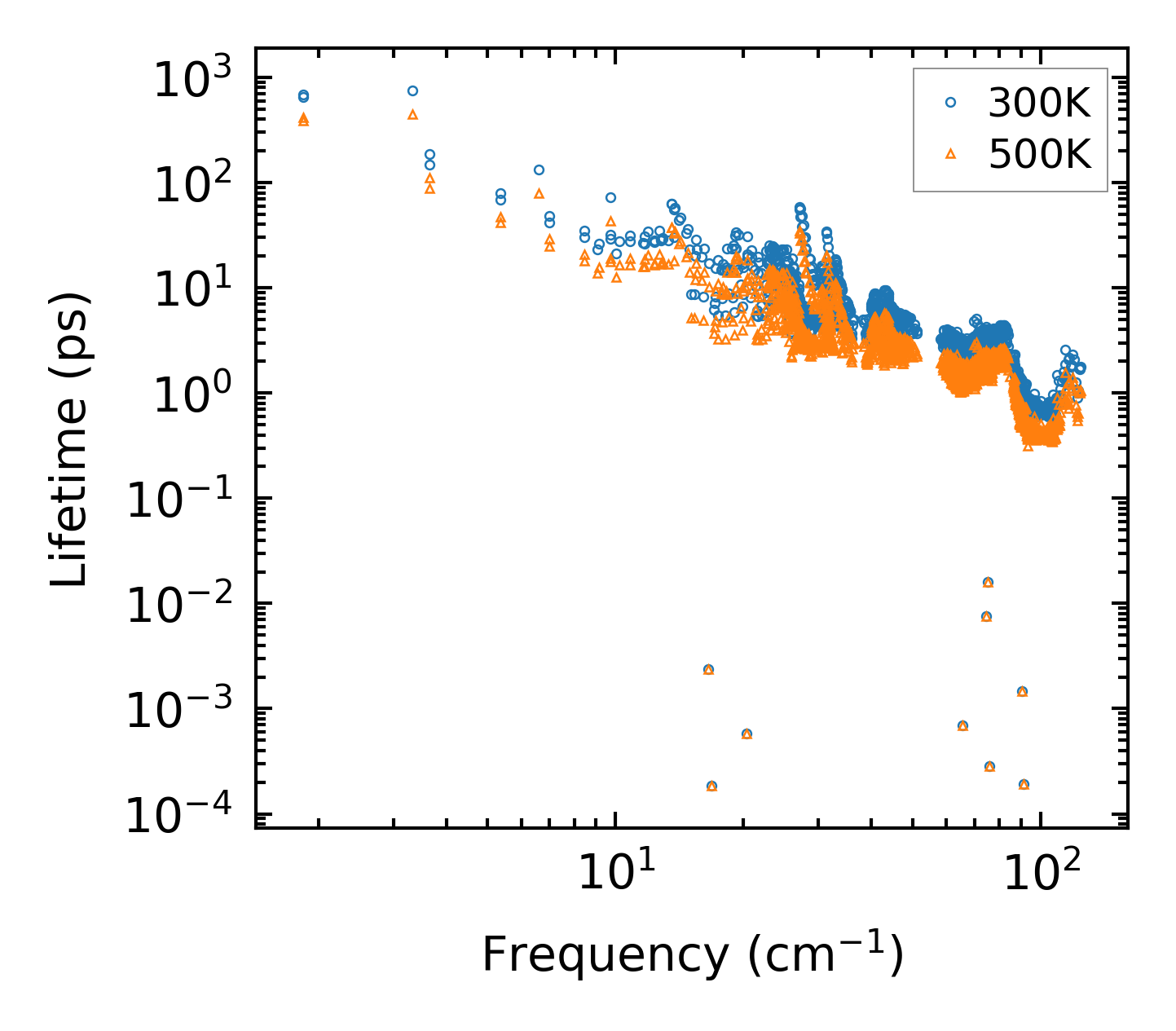

../../_images/fig_lifetime3846.png — (a) Phonon lifetime due to phonon-phonon scattering

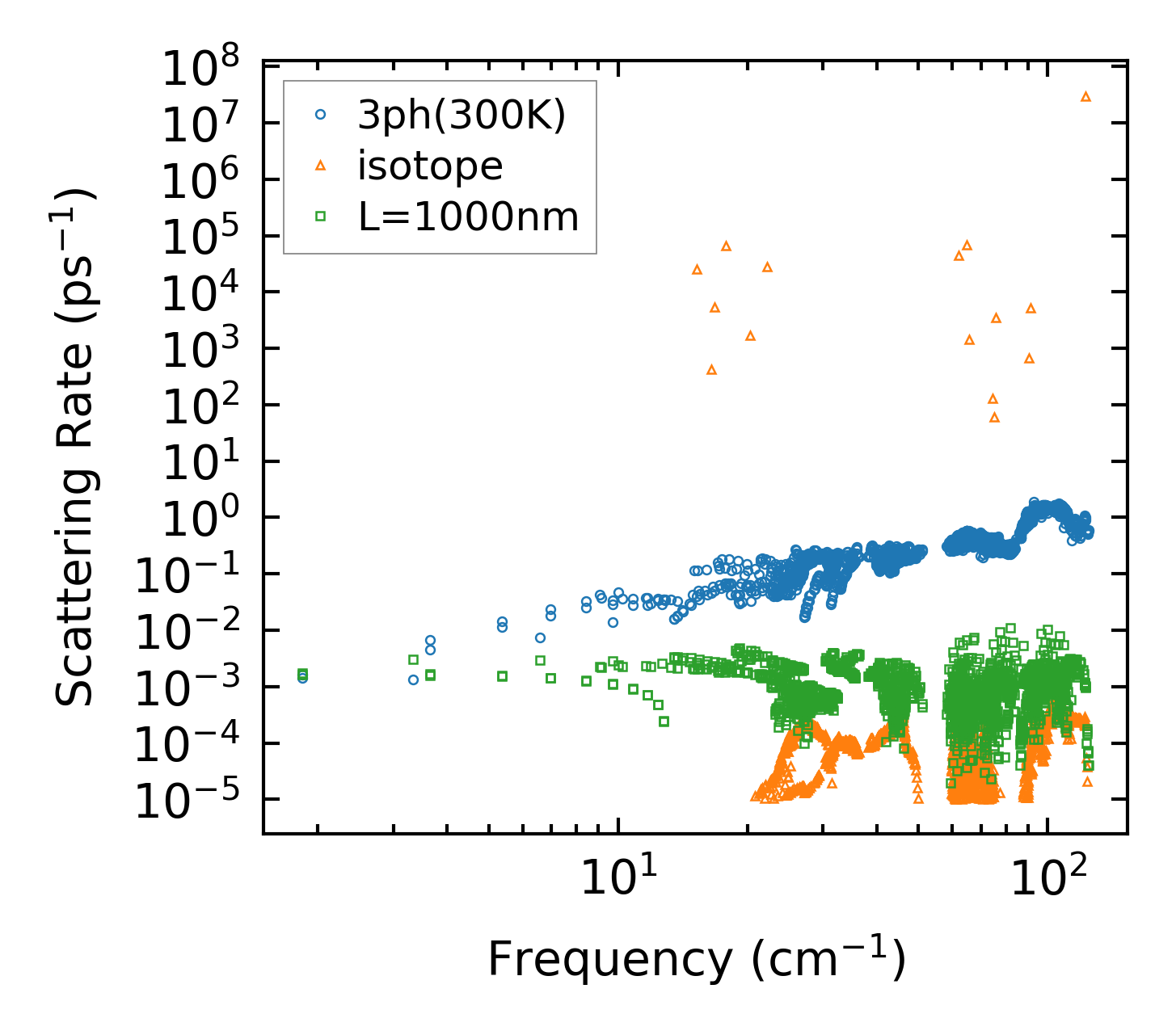

../../_images/fig_scat_rates3845.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

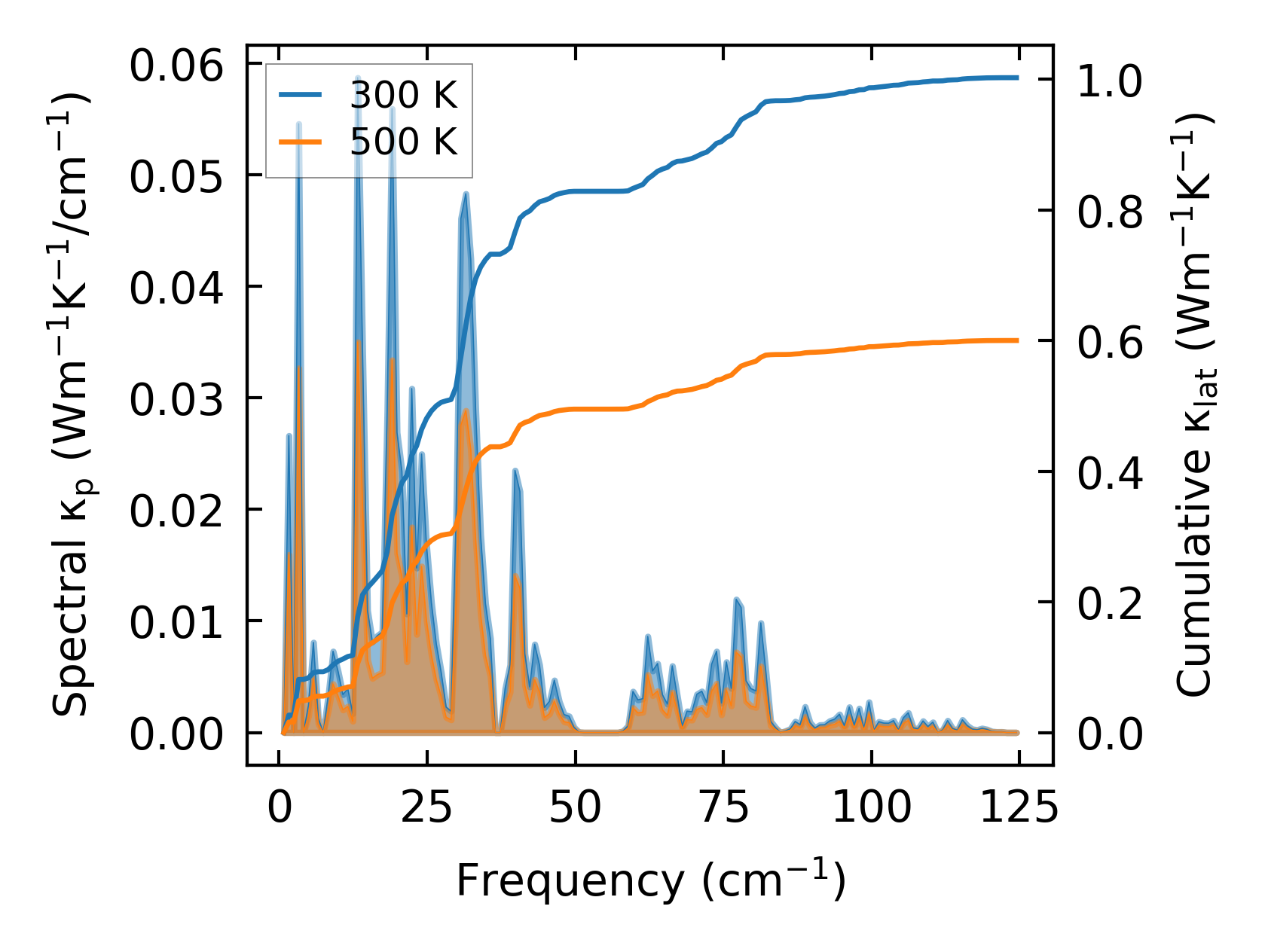

../../_images/fig_cumu_frequency3846.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

../../_images/fig_cumu_mfp3845.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

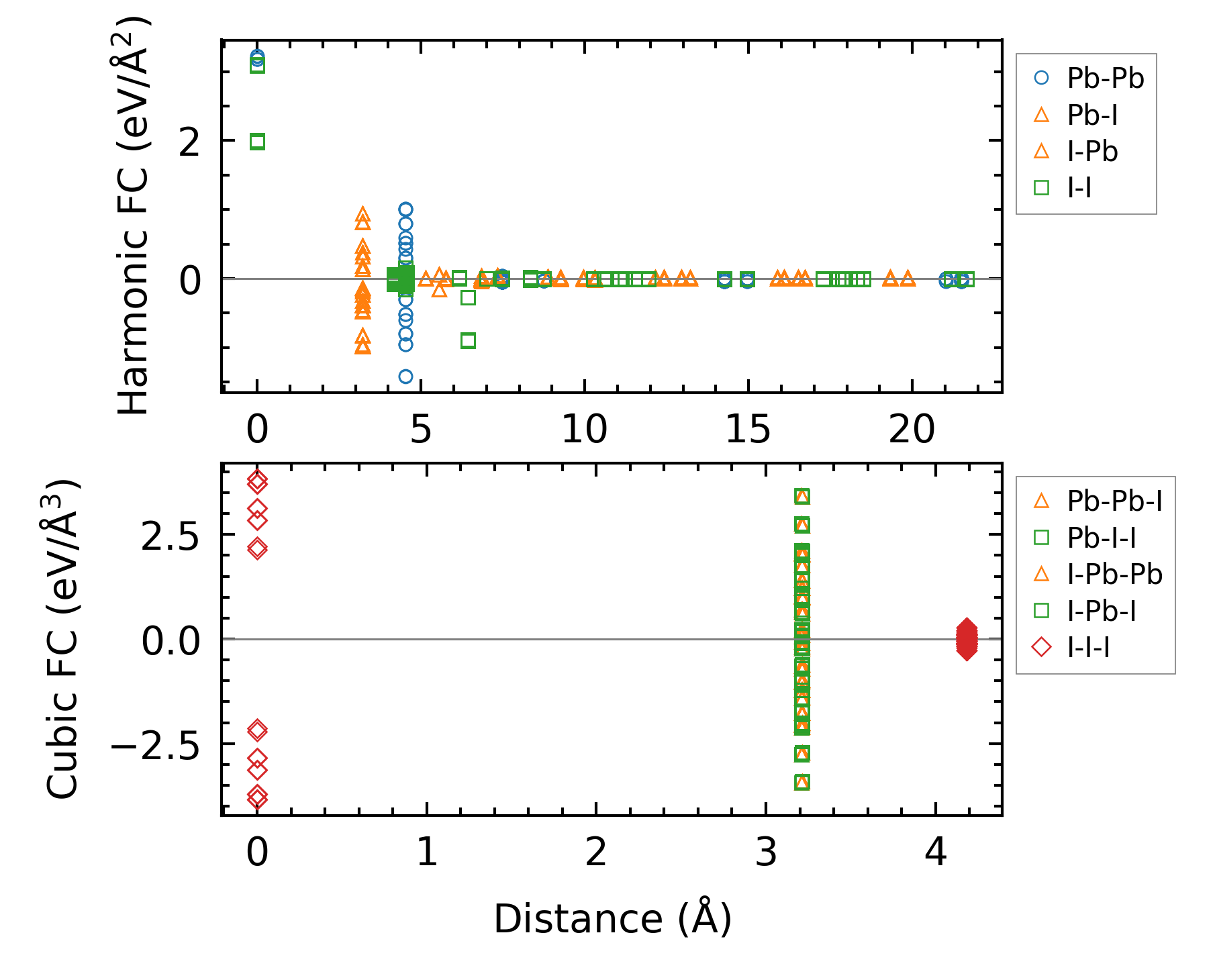

../../_images/fig_fc3241.png — (a) Force constants w.r.t atomic distance

Summary

../../_images/fig_kappa7318.png — (a) Temperature-dependent lattice thermal conductivity

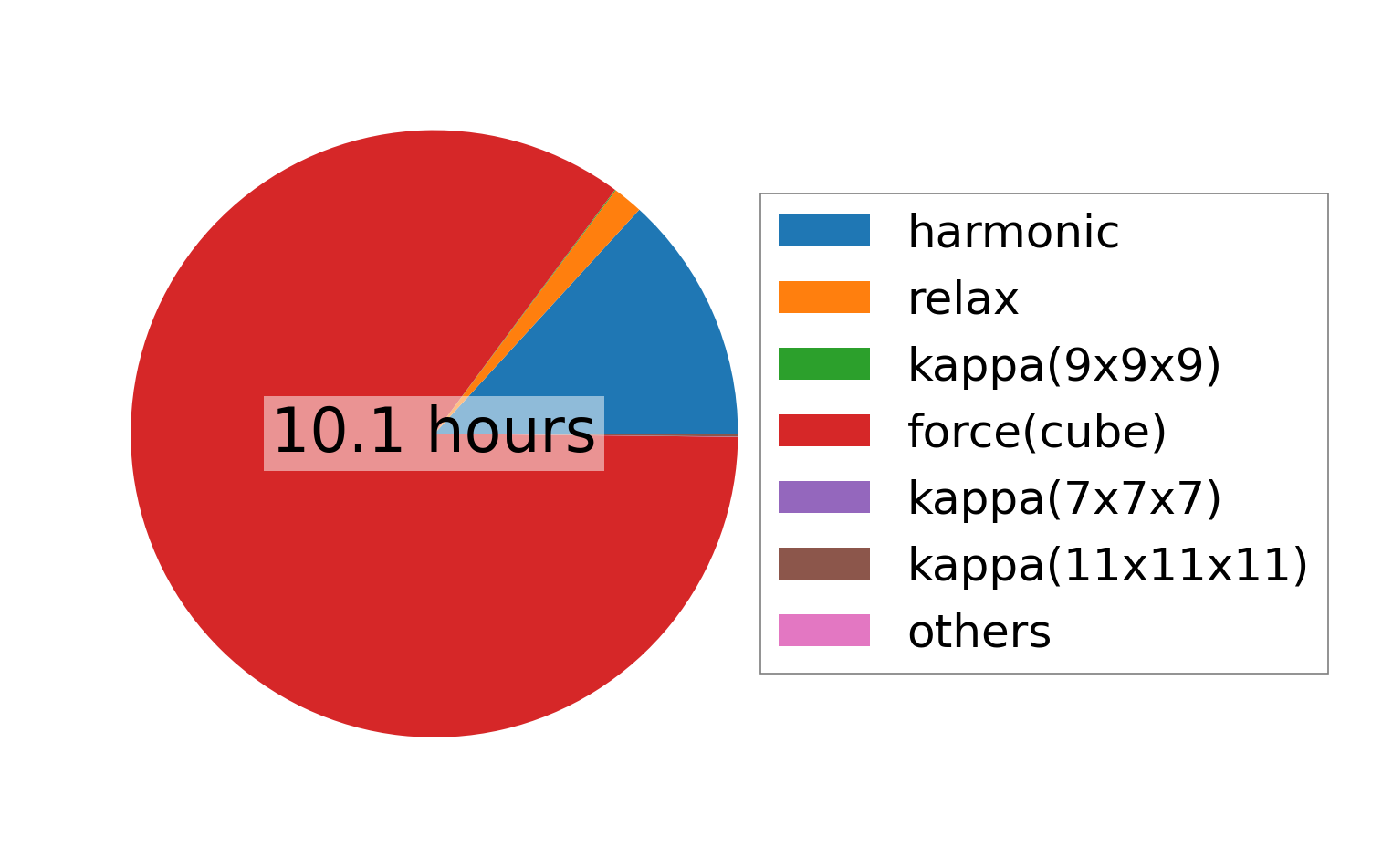

../../_images/fig_times16910.png — (b) Computation time
