mp-540678/Yb3S4/anharm

Space group: Pnma (62)
Link: Materials Project
Download: mp-540678.tar.gz

Harmonic properties

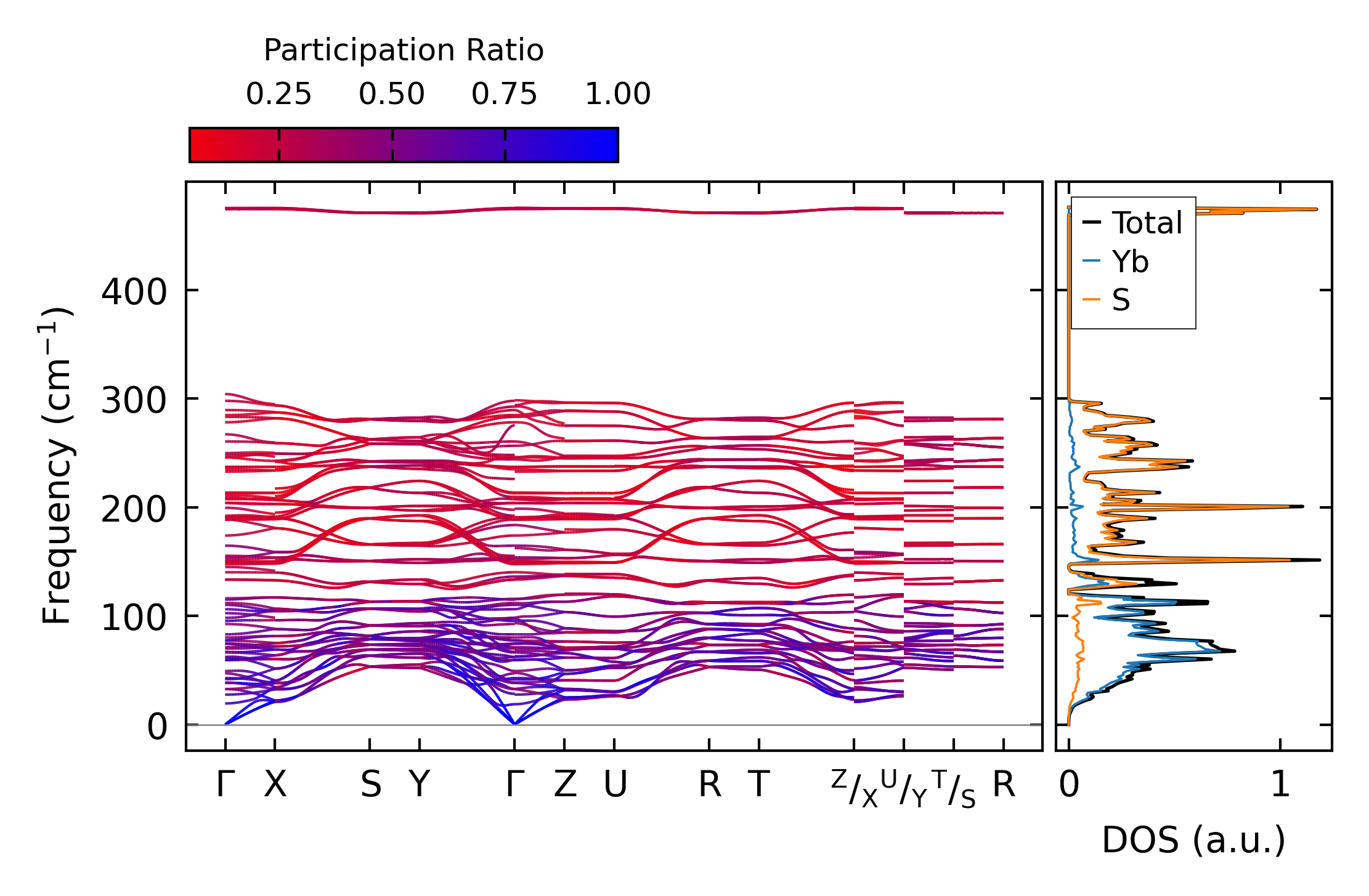

../../_images/fig_bandos_pr9700.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo9700.png — (b) Thermodynamic properties

Grüneisen parameters

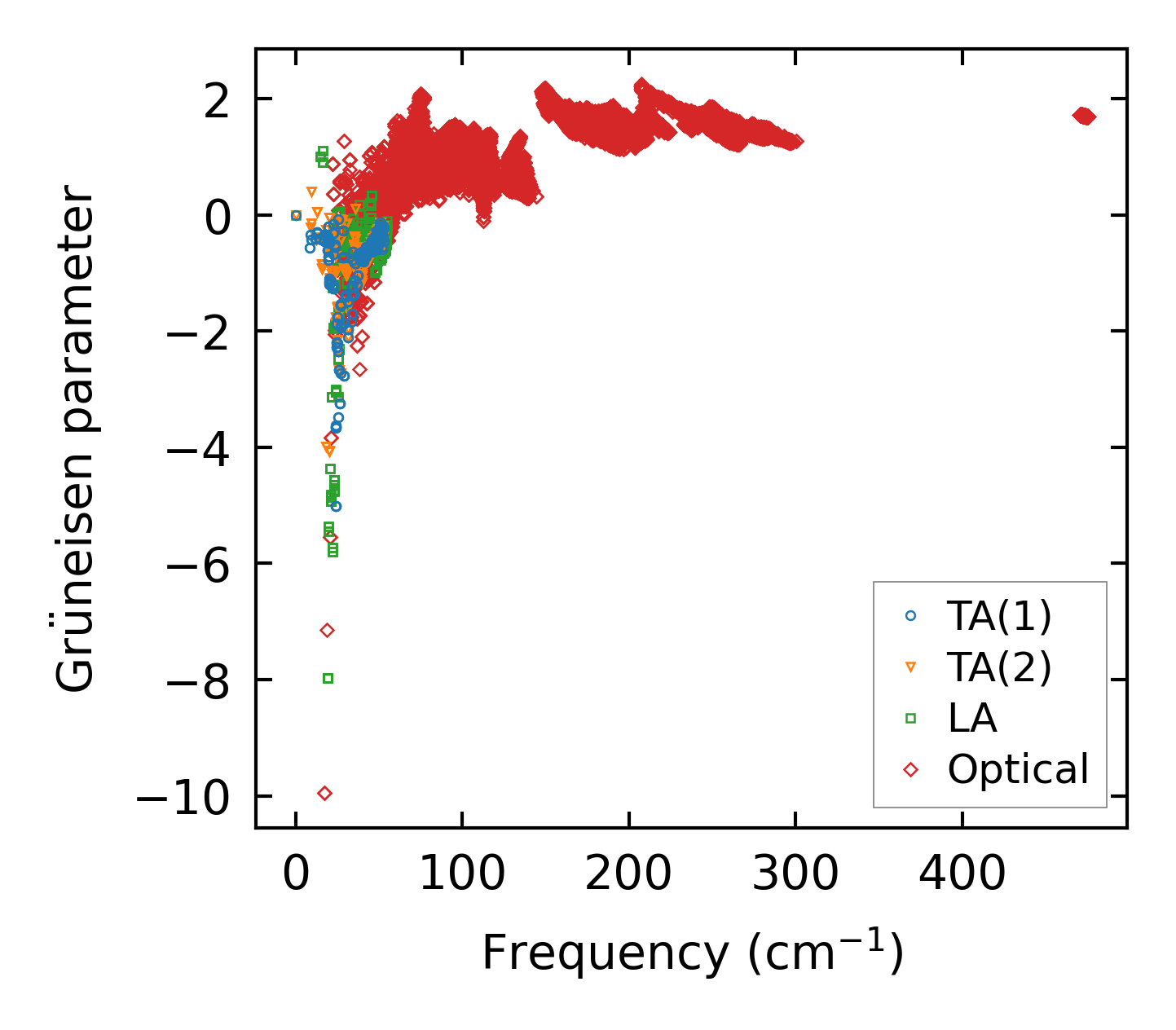

../../_images/fig_gru_all3869.png — (a) Grüneisen parameters

../../_images/fig_gruneisen3869.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 5x18x6, supercell: 1x3x1

../../_images/fig_kappa7290.png — (a) Temperature-dependent lattice thermal conductivity

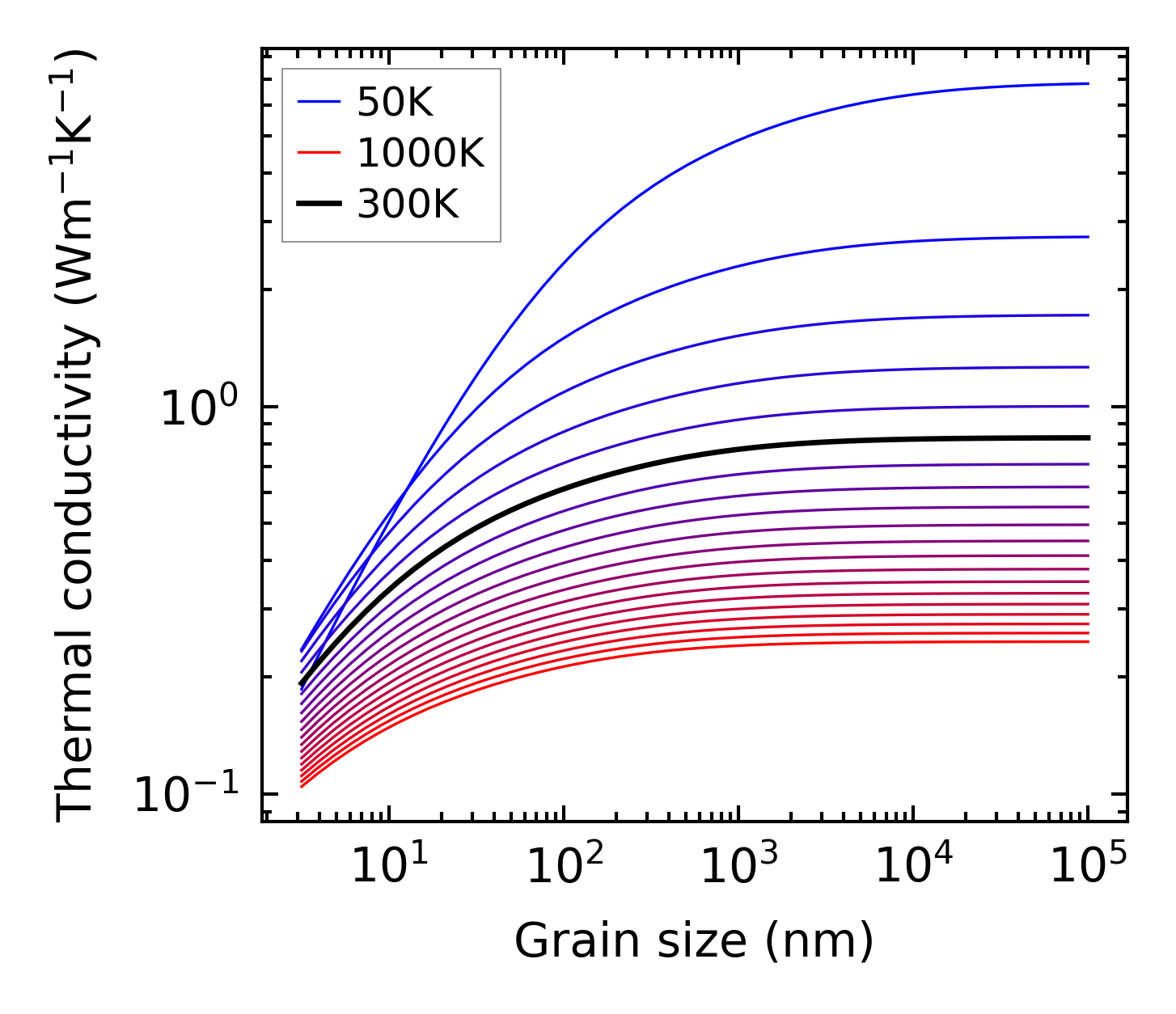

../../_images/fig_kappa_vs_grain_size3917.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

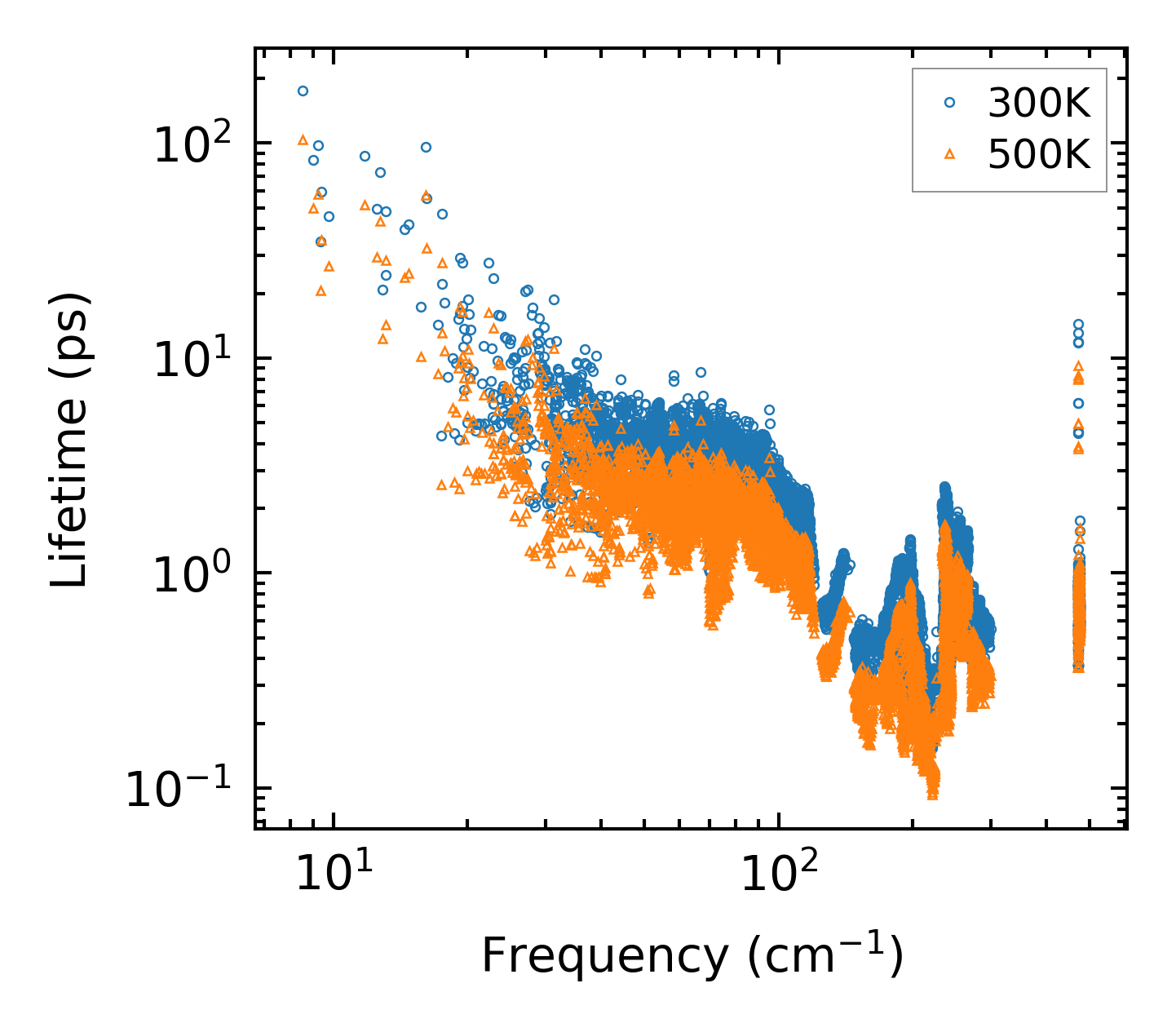

../../_images/fig_lifetime3833.png — (a) Phonon lifetime due to phonon-phonon scattering

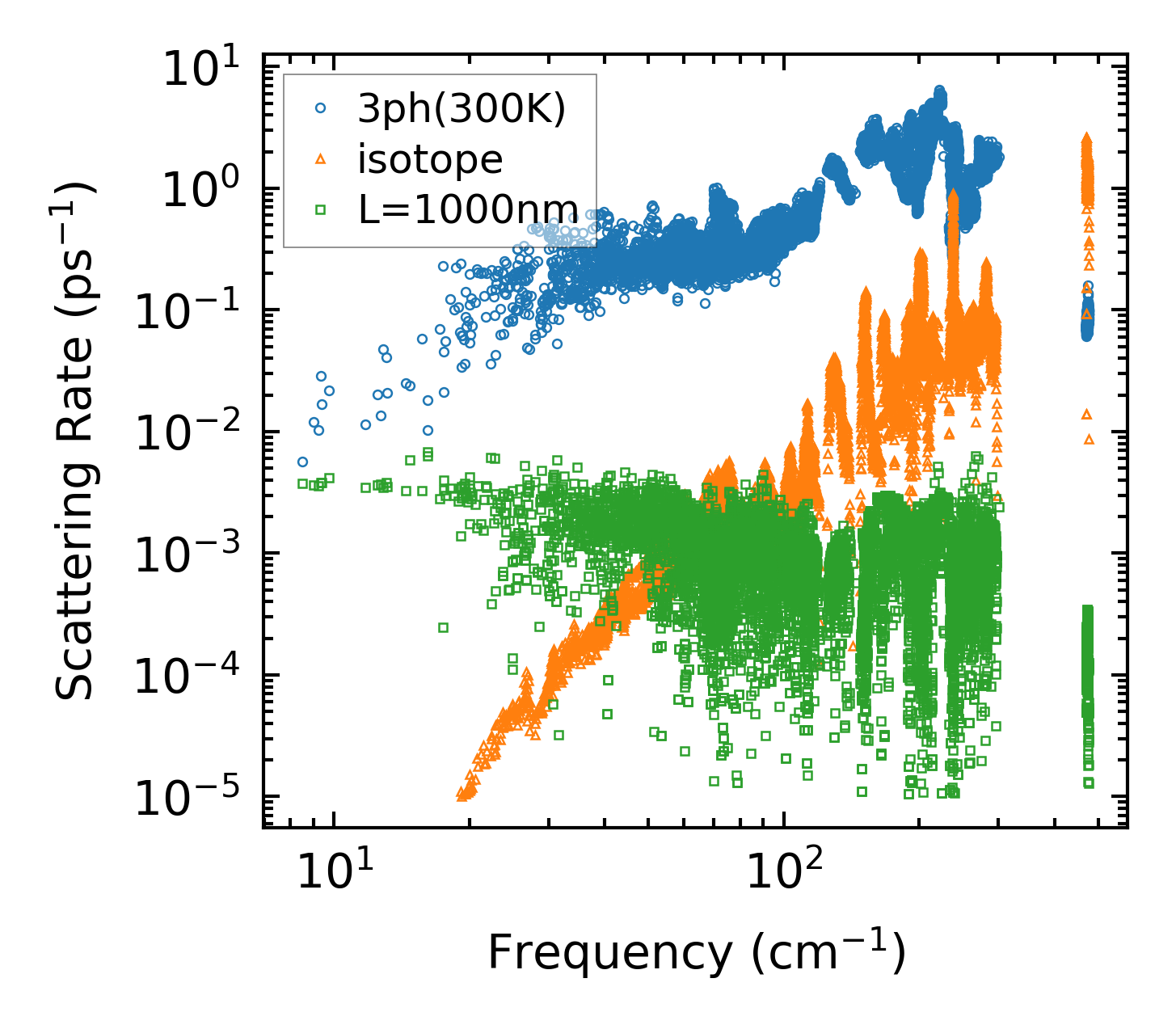

../../_images/fig_scat_rates3832.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

../../_images/fig_cumu_frequency3833.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

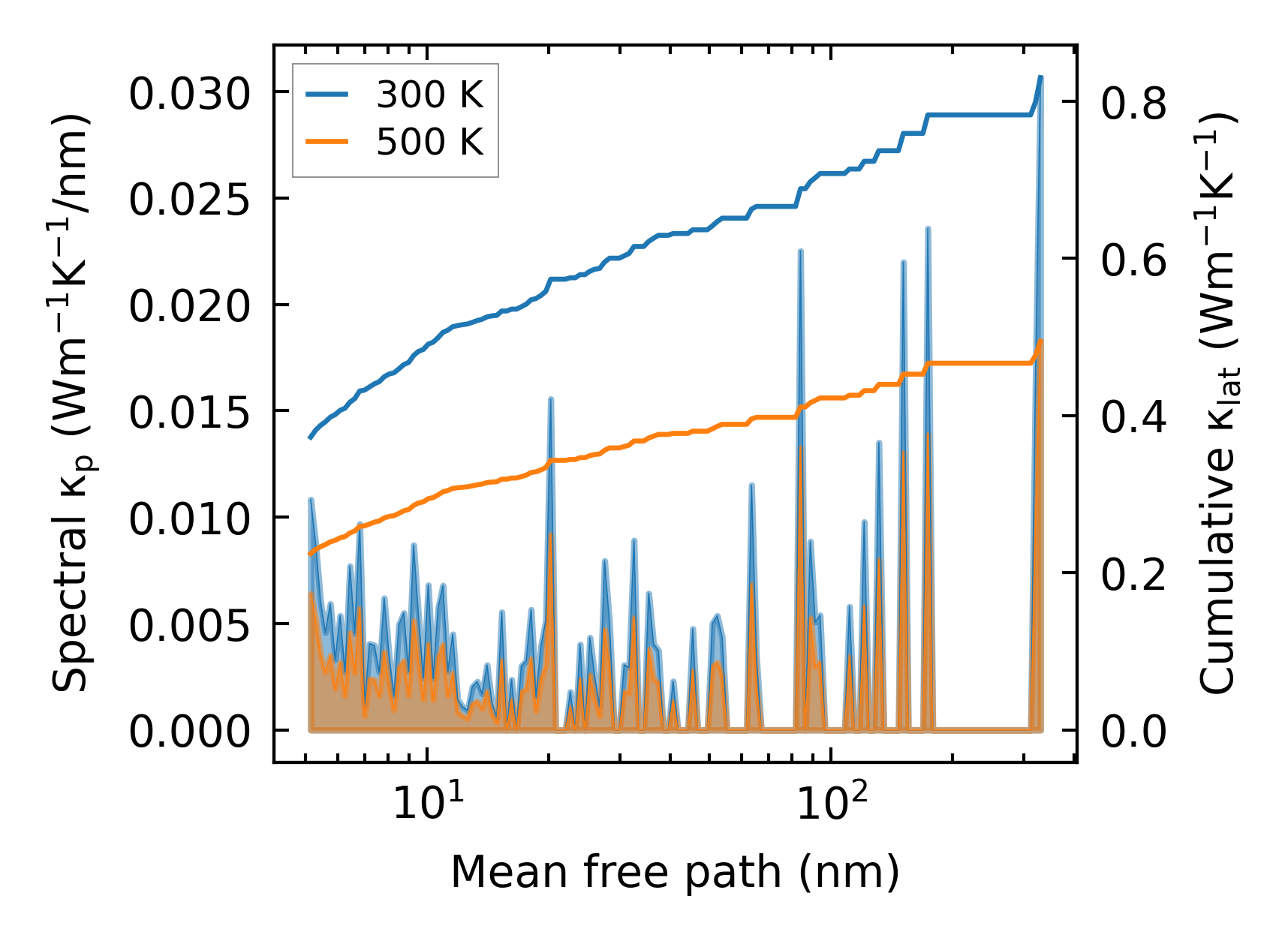

../../_images/fig_cumu_mfp3832.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

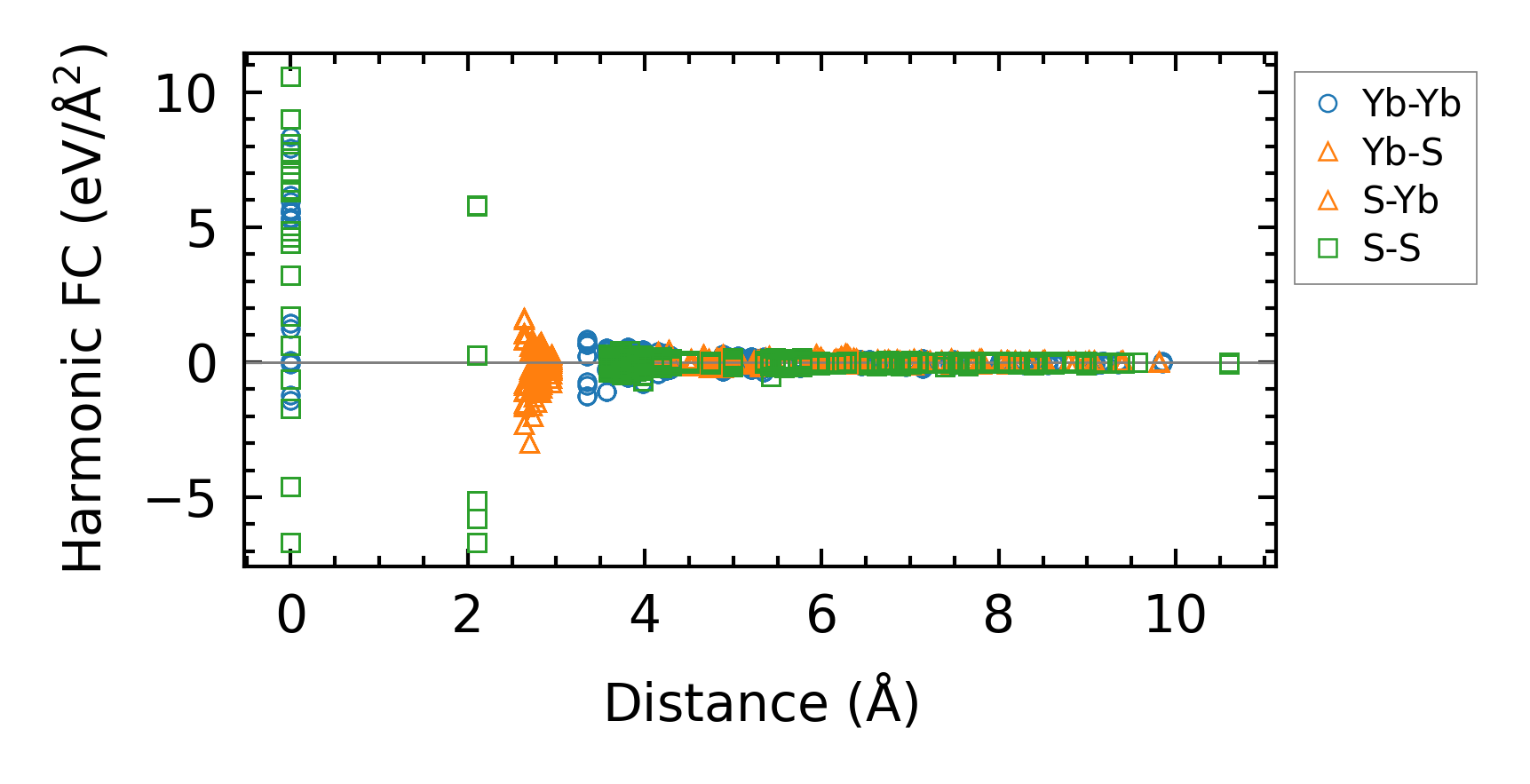

../../_images/fig_fc29461.png — (a) Force constants w.r.t atomic distance

Summary

../../_images/fig_kappa7291.png — (a) Temperature-dependent lattice thermal conductivity

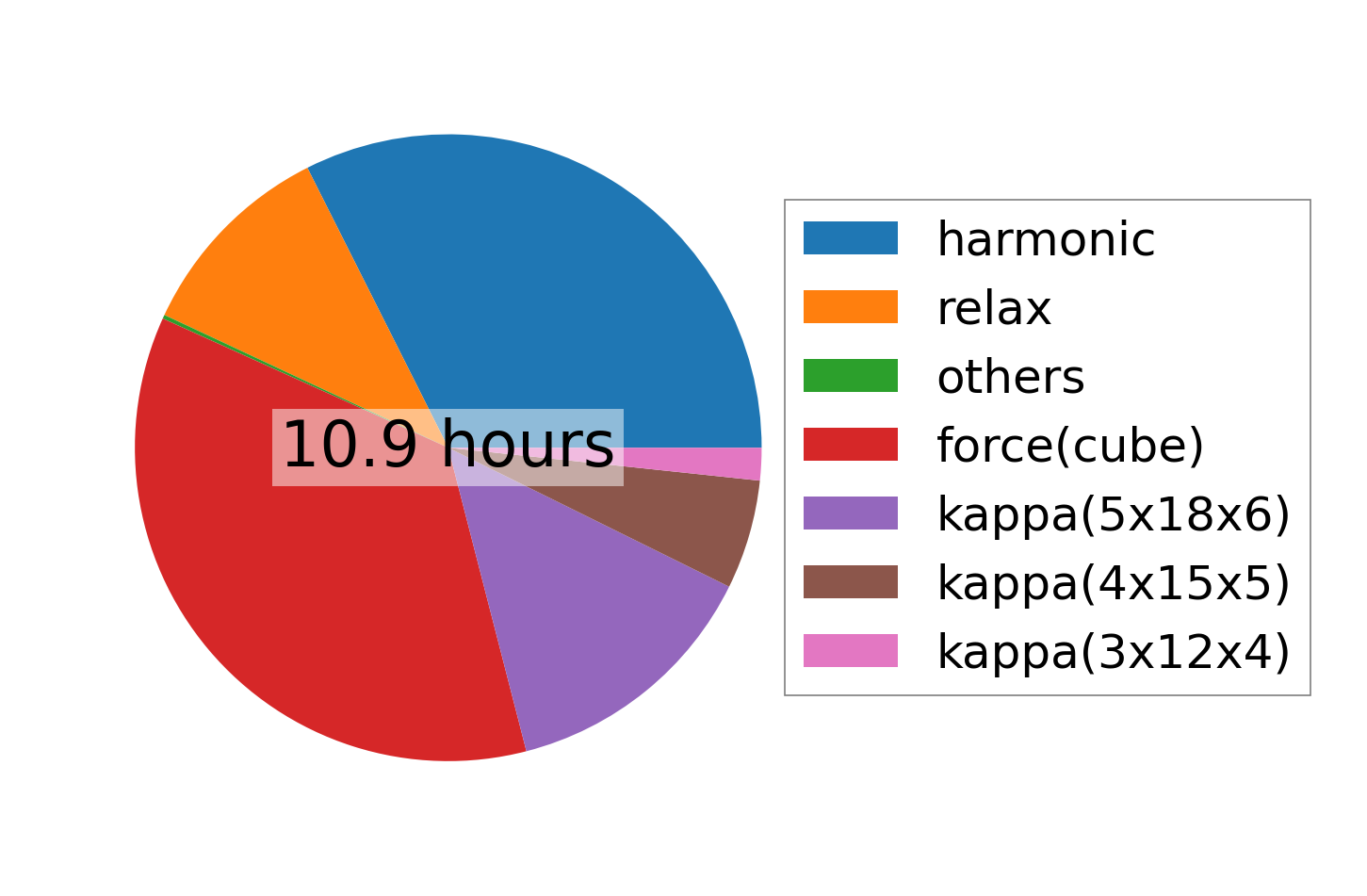

../../_images/fig_times16877.png — (b) Computation time
