mp-540577-2/KZr2P3O12/anharm

Space group: R-3c (167)
Link: Materials Project
Download: mp-540577-2.tar.gz

Equation of state

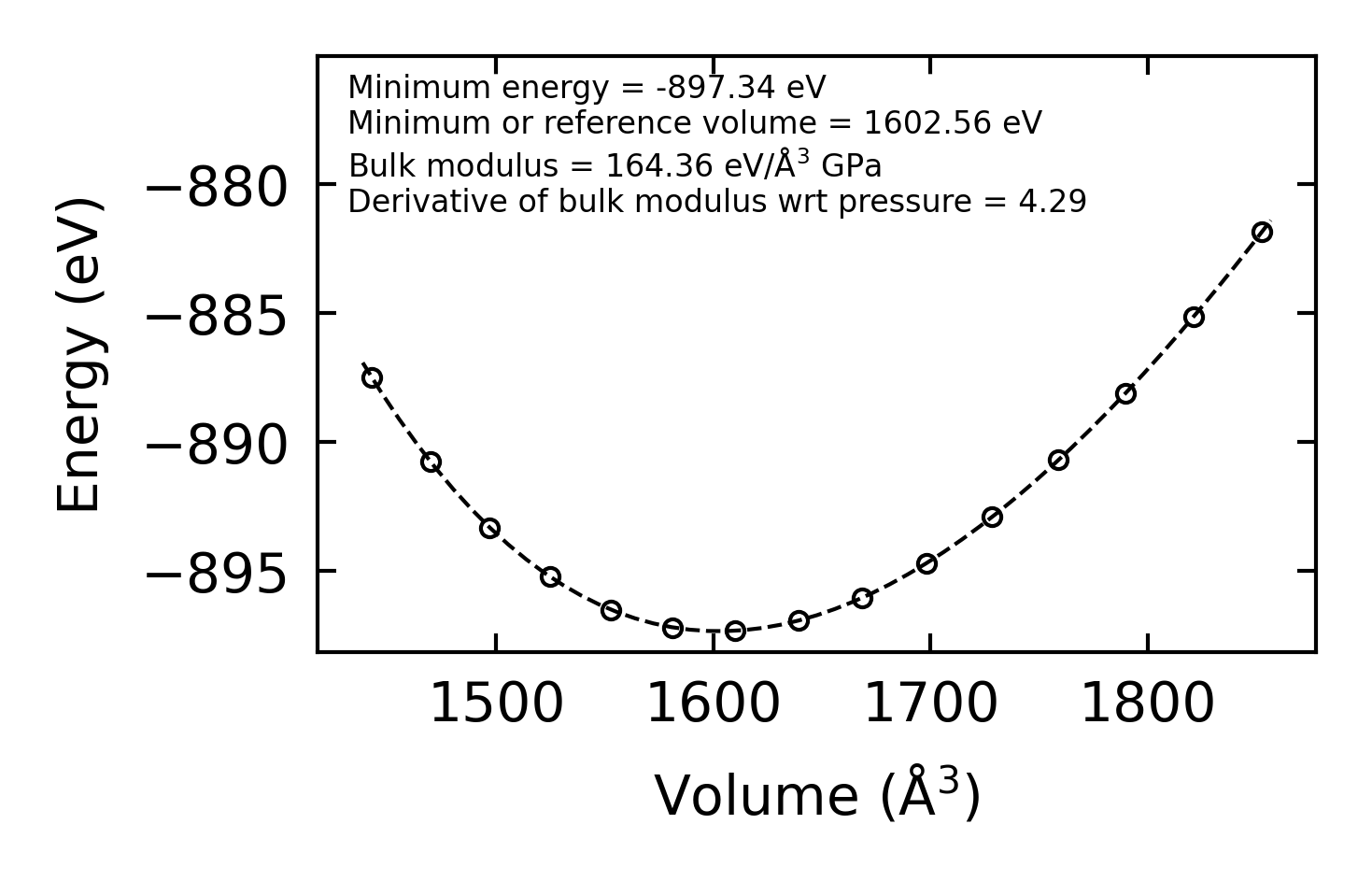

../../_images/fig_bm4824.png — (a) Equation of state

Harmonic properties

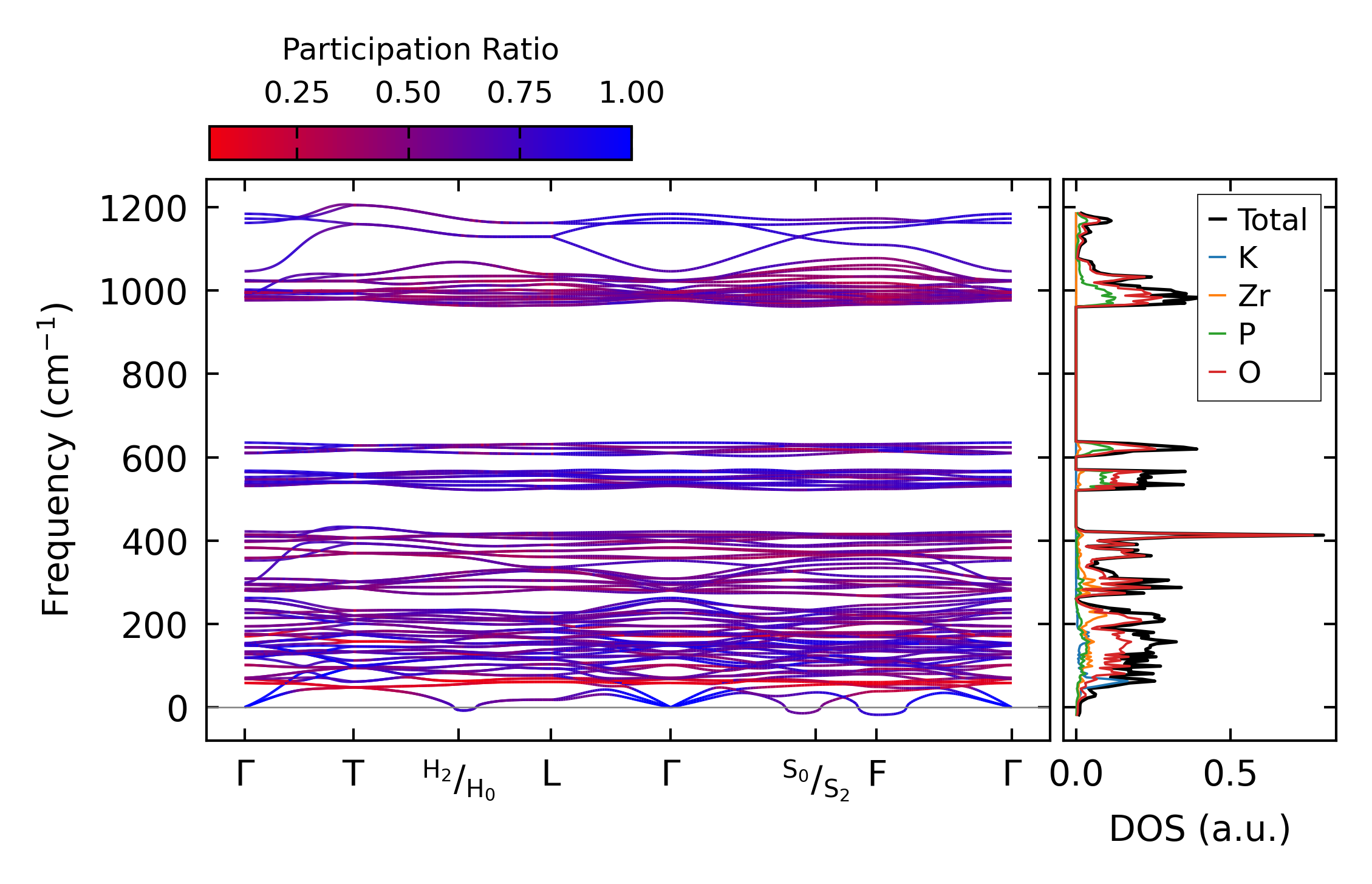

../../_images/fig_bandos_pr9680.png — (a) Phonon dispersion with participation ratio and DOS

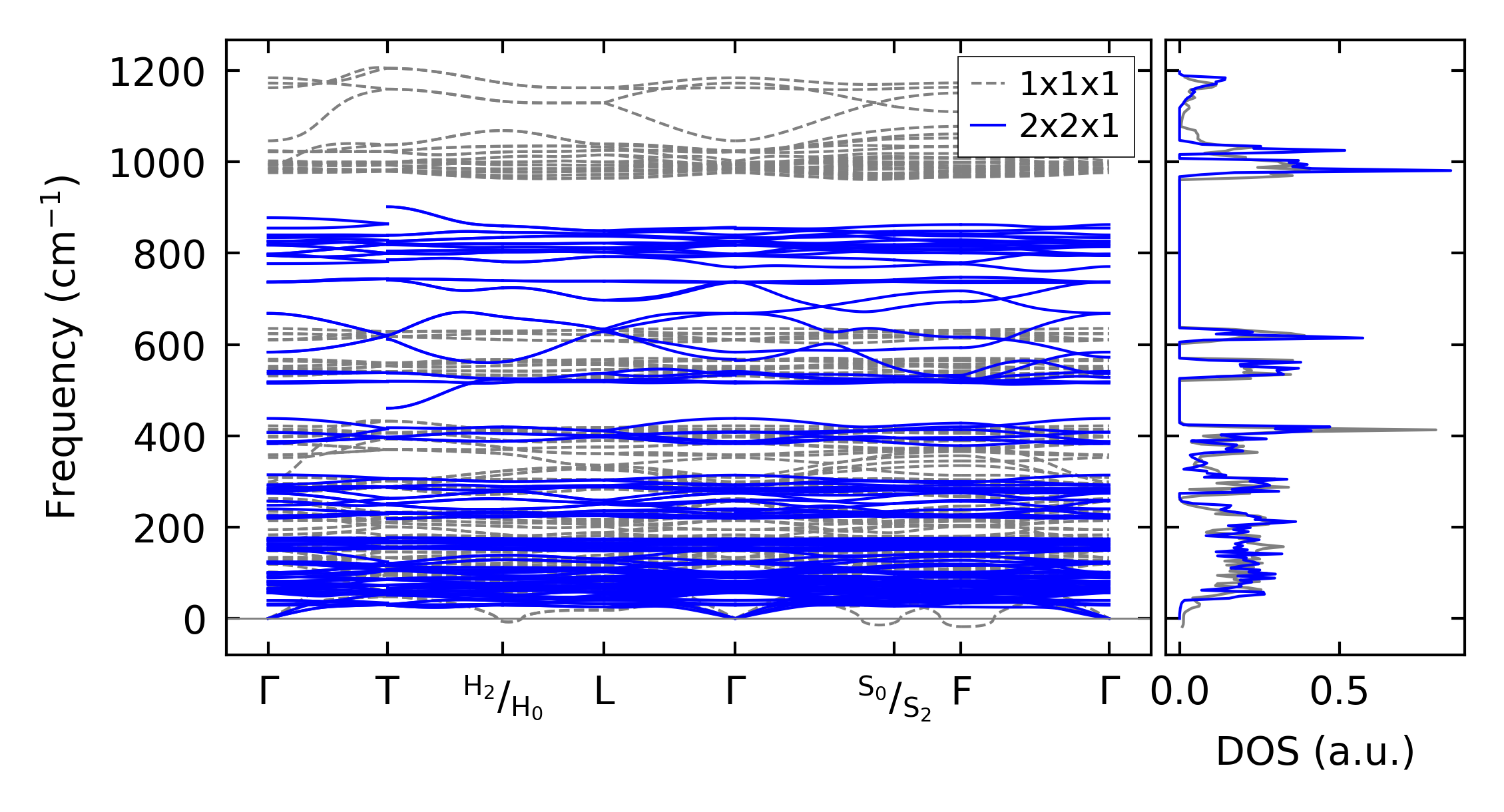

../../_images/fig_bandos13545.png — (b) Phonon dispersion and DOS

../../_images/fig_thermo9680.png — (c) Thermodynamic properties

Grüneisen parameters

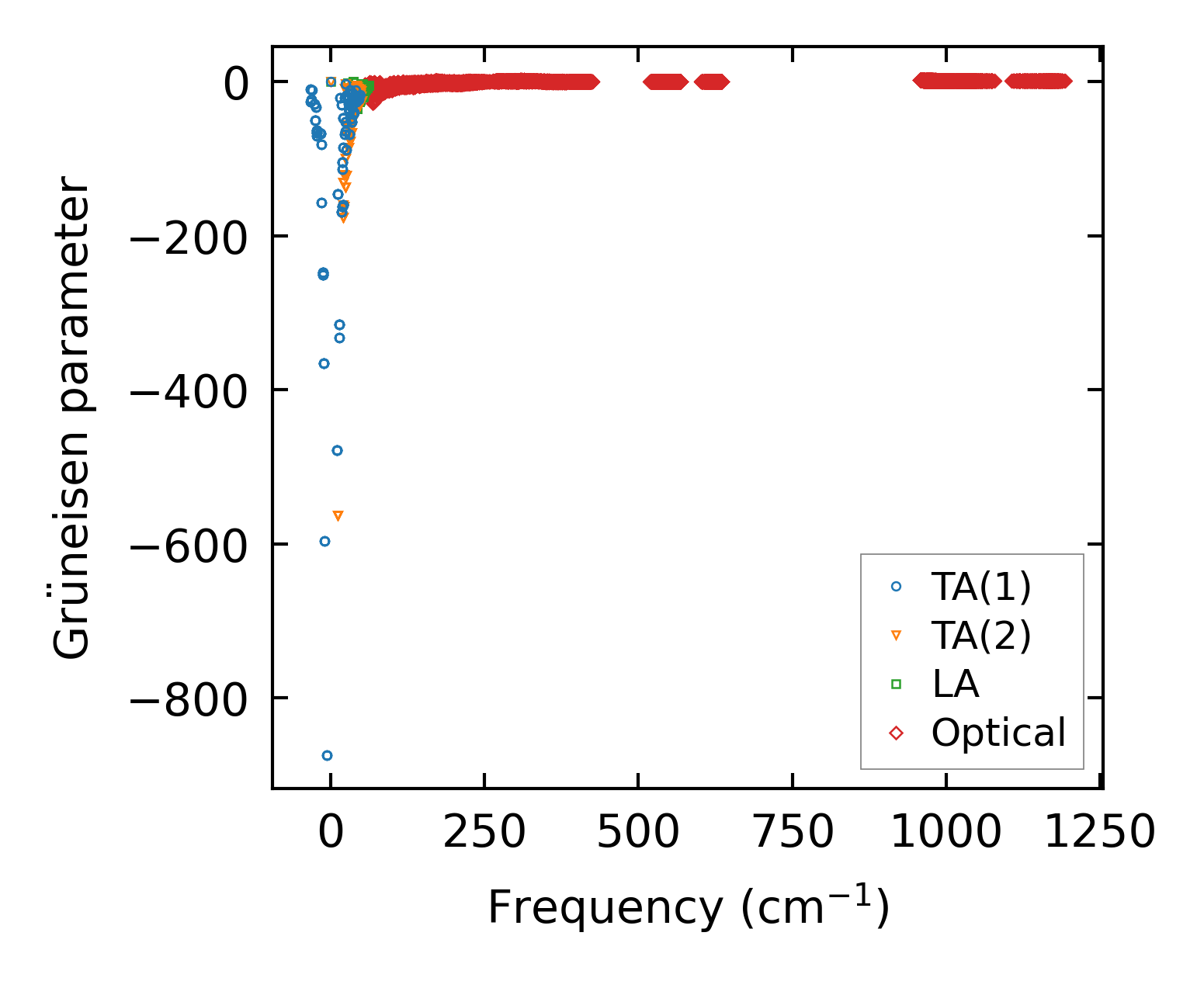

../../_images/fig_gru_all3863.png — (a) Grüneisen parameters

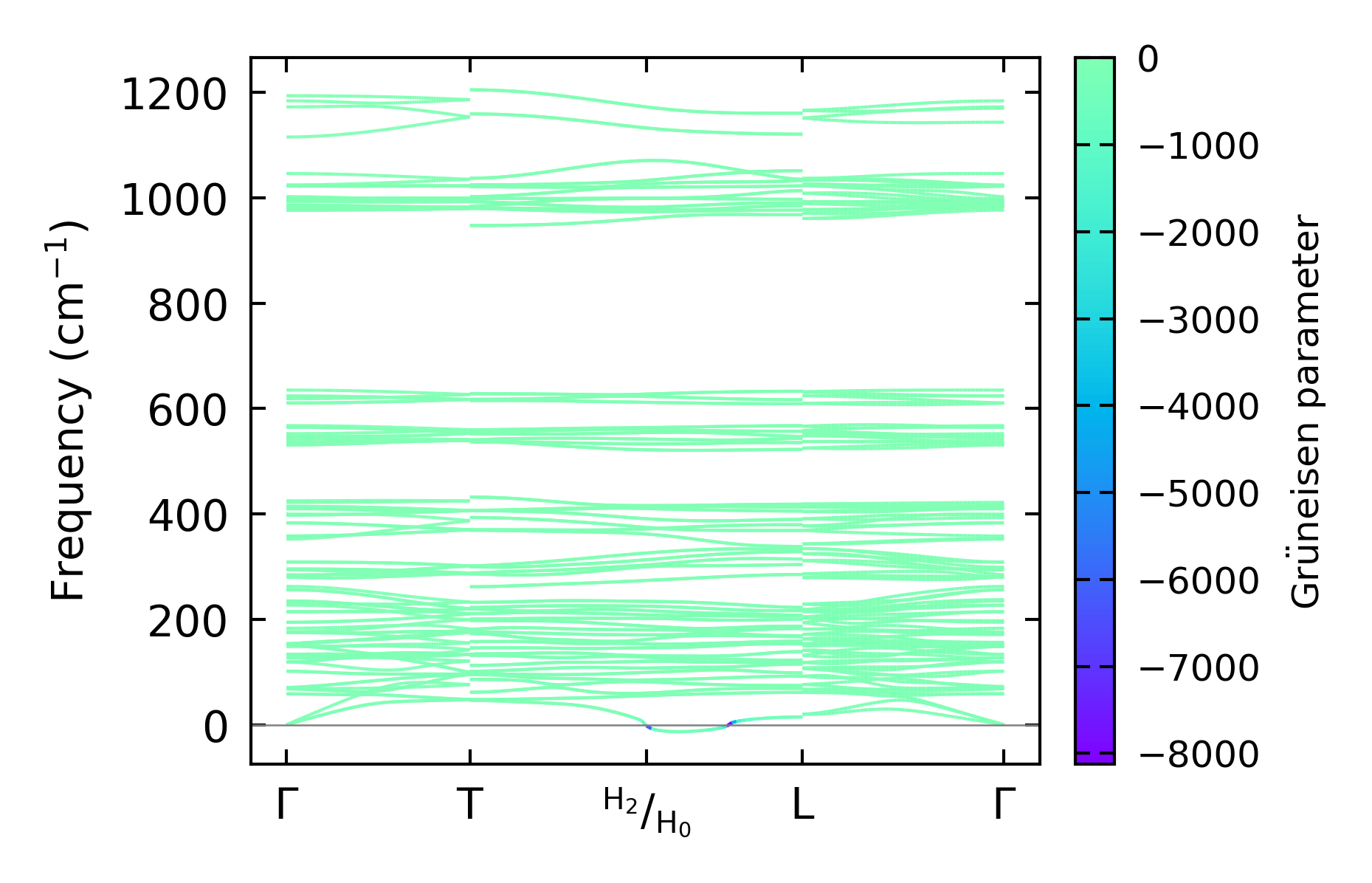

../../_images/fig_gruneisen3863.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO), supercell 2x2x1 — q-mesh: 8x8x8, supercell: 2x2x1

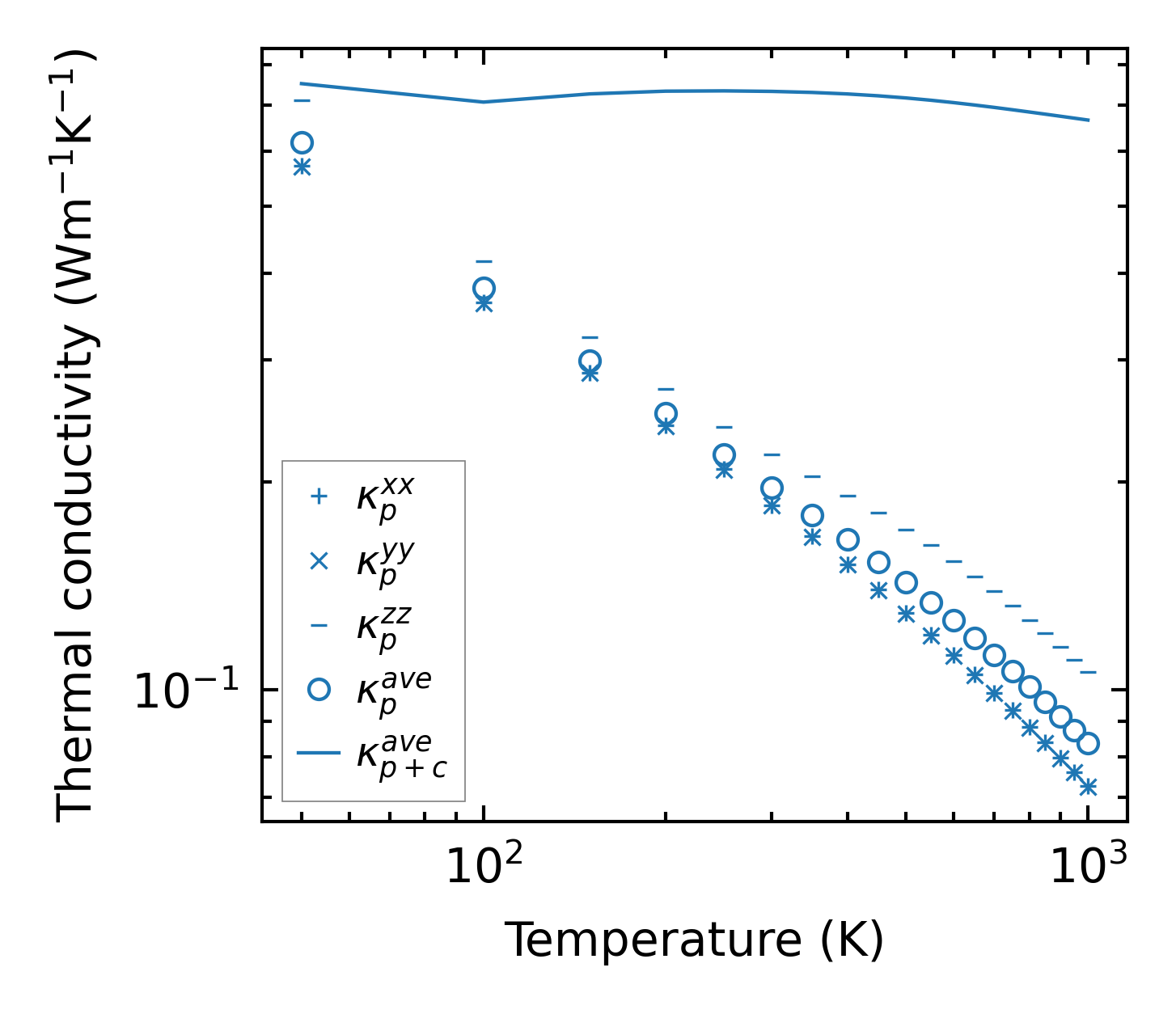

../../_images/fig_kappa7279.png — (a) Temperature-dependent lattice thermal conductivity

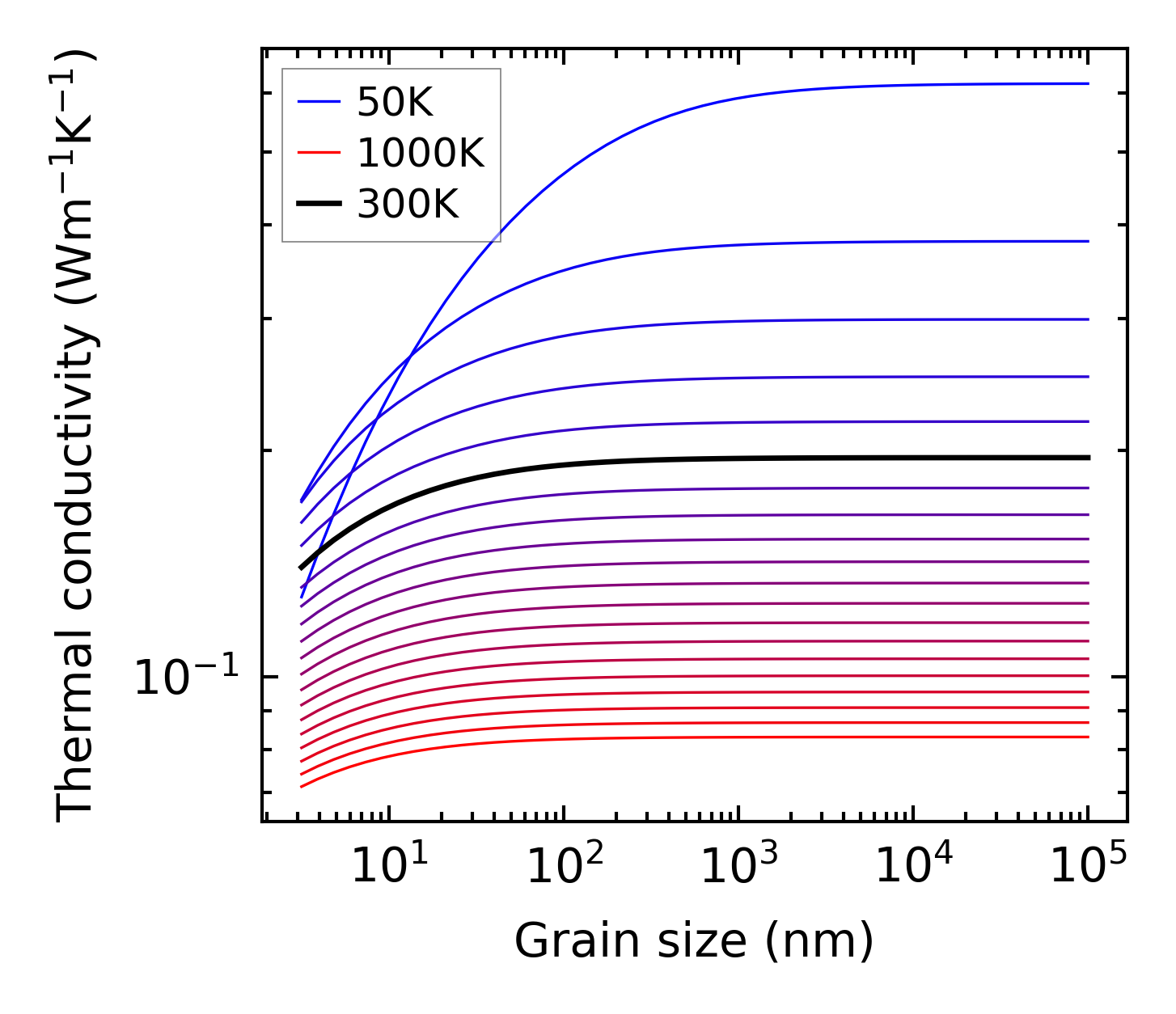

../../_images/fig_kappa_vs_grain_size3911.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

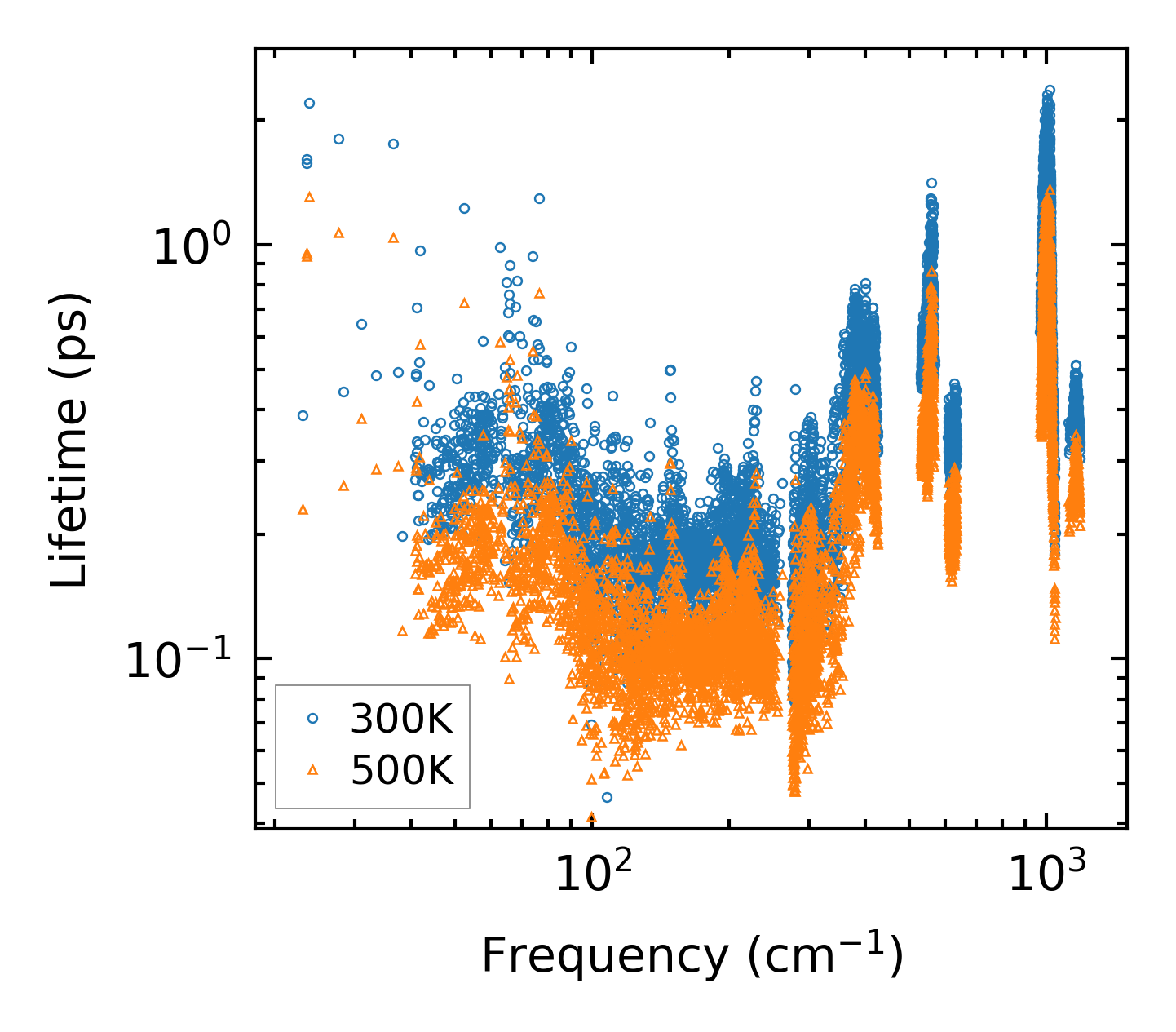

../../_images/fig_lifetime3827.png — (a) Phonon lifetime due to phonon-phonon scattering

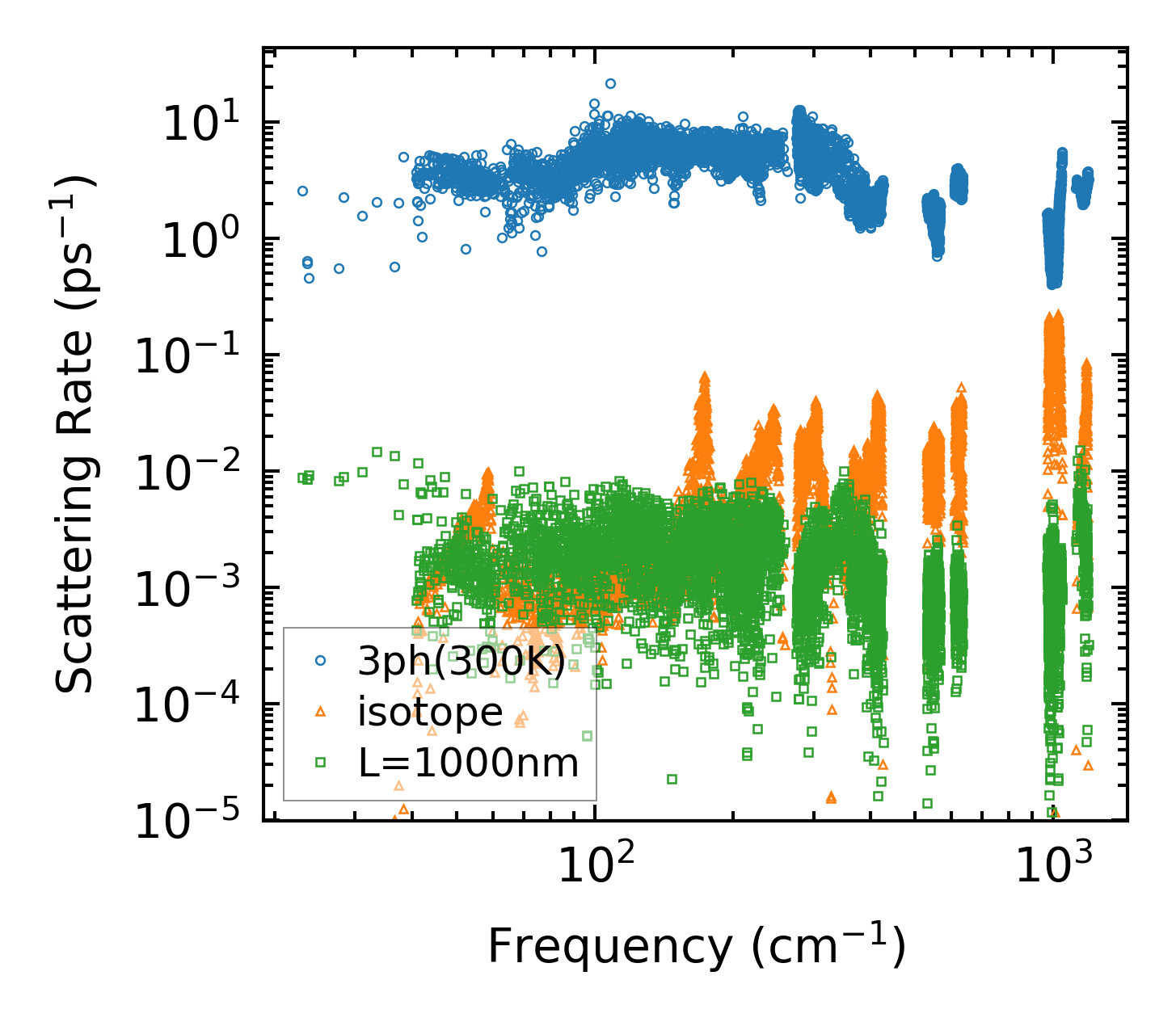

../../_images/fig_scat_rates3826.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

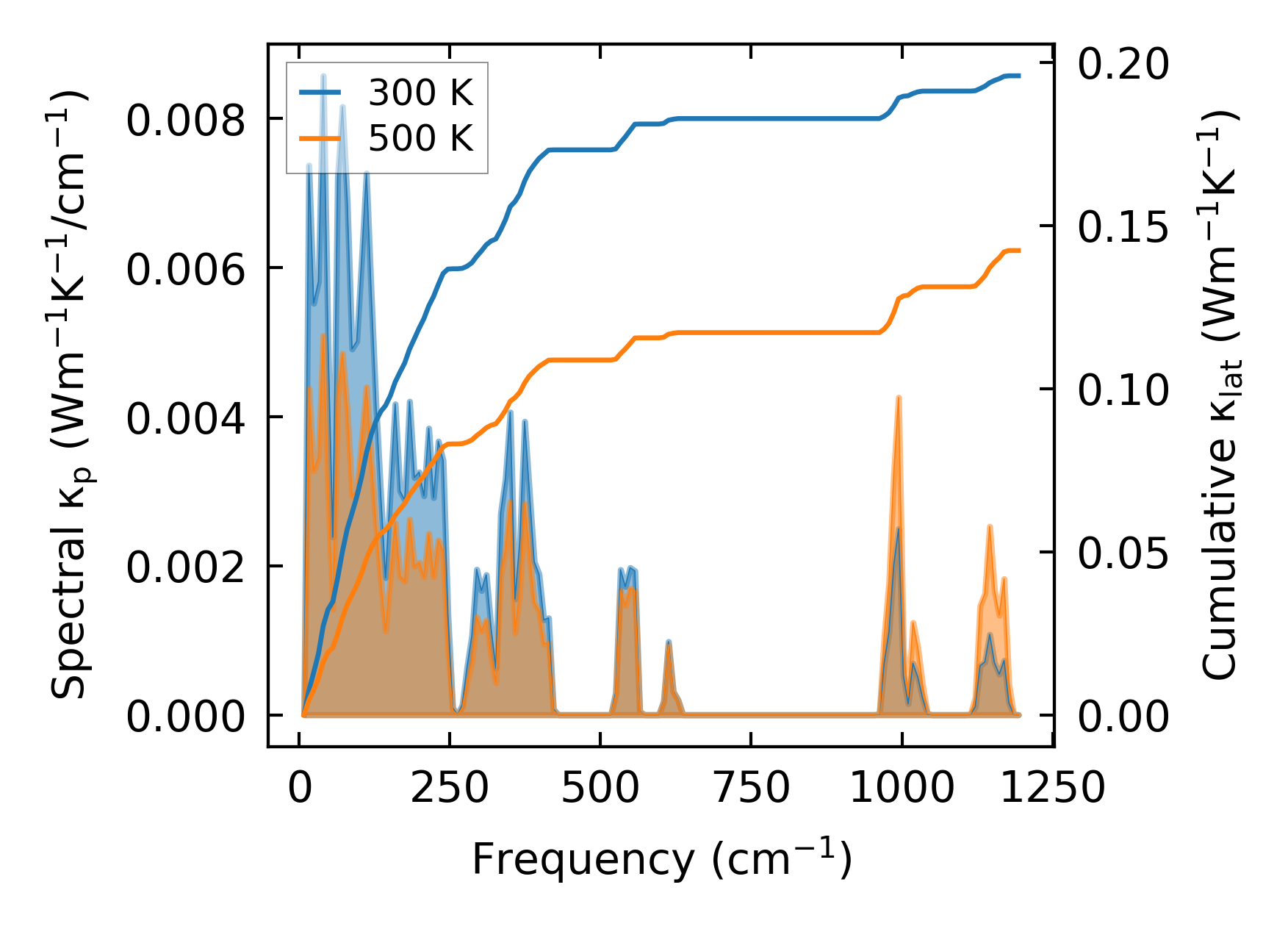

../../_images/fig_cumu_frequency3827.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

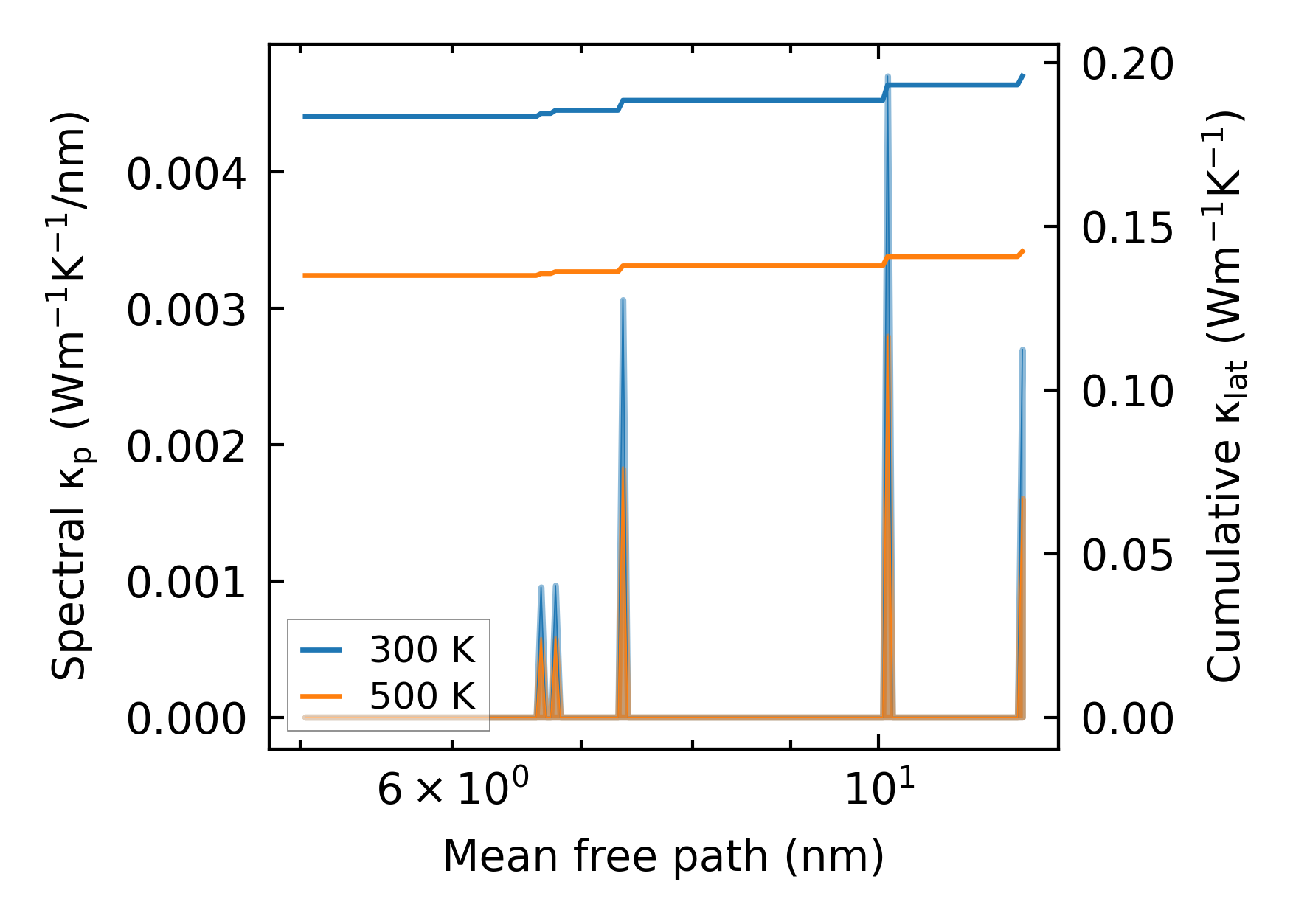

../../_images/fig_cumu_mfp3826.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

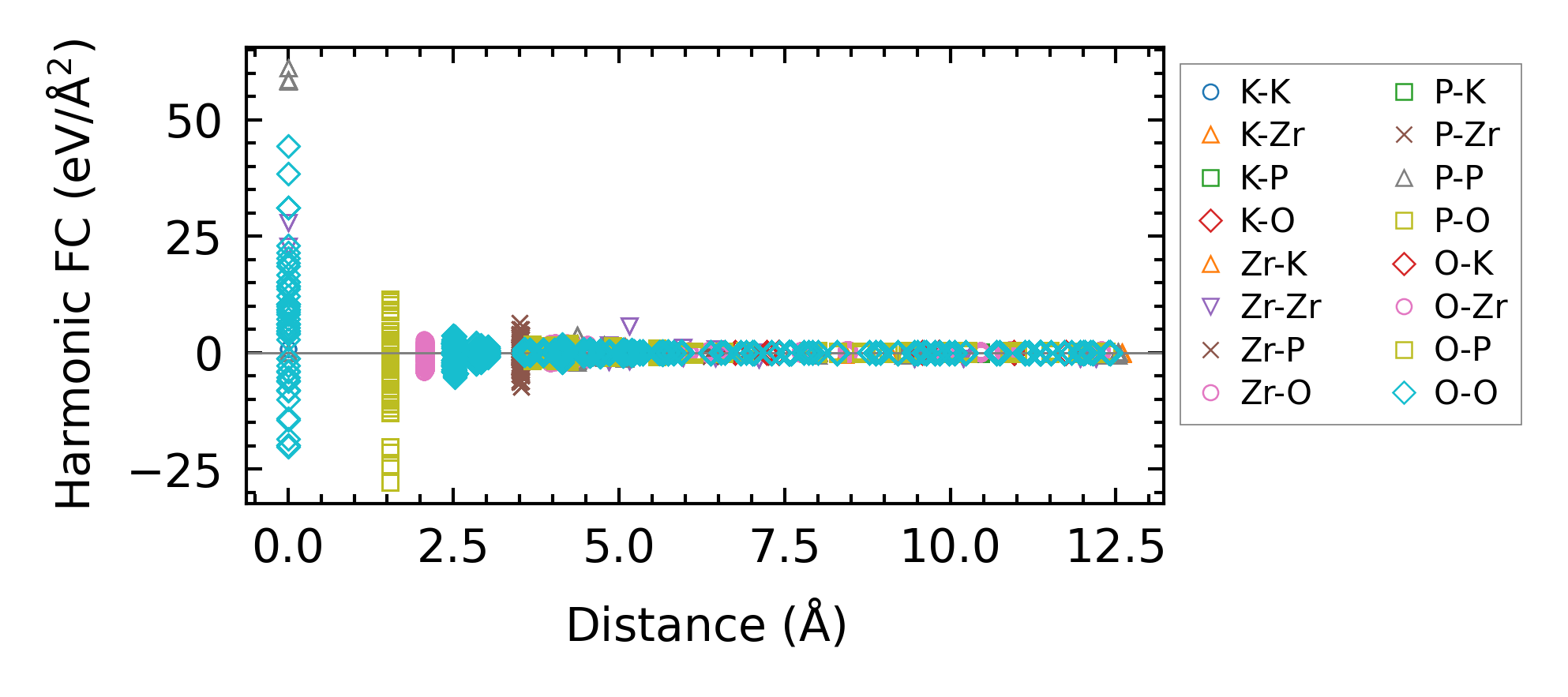

../../_images/fig_fc29441.png — (a) Force constants w.r.t atomic distance

Summary

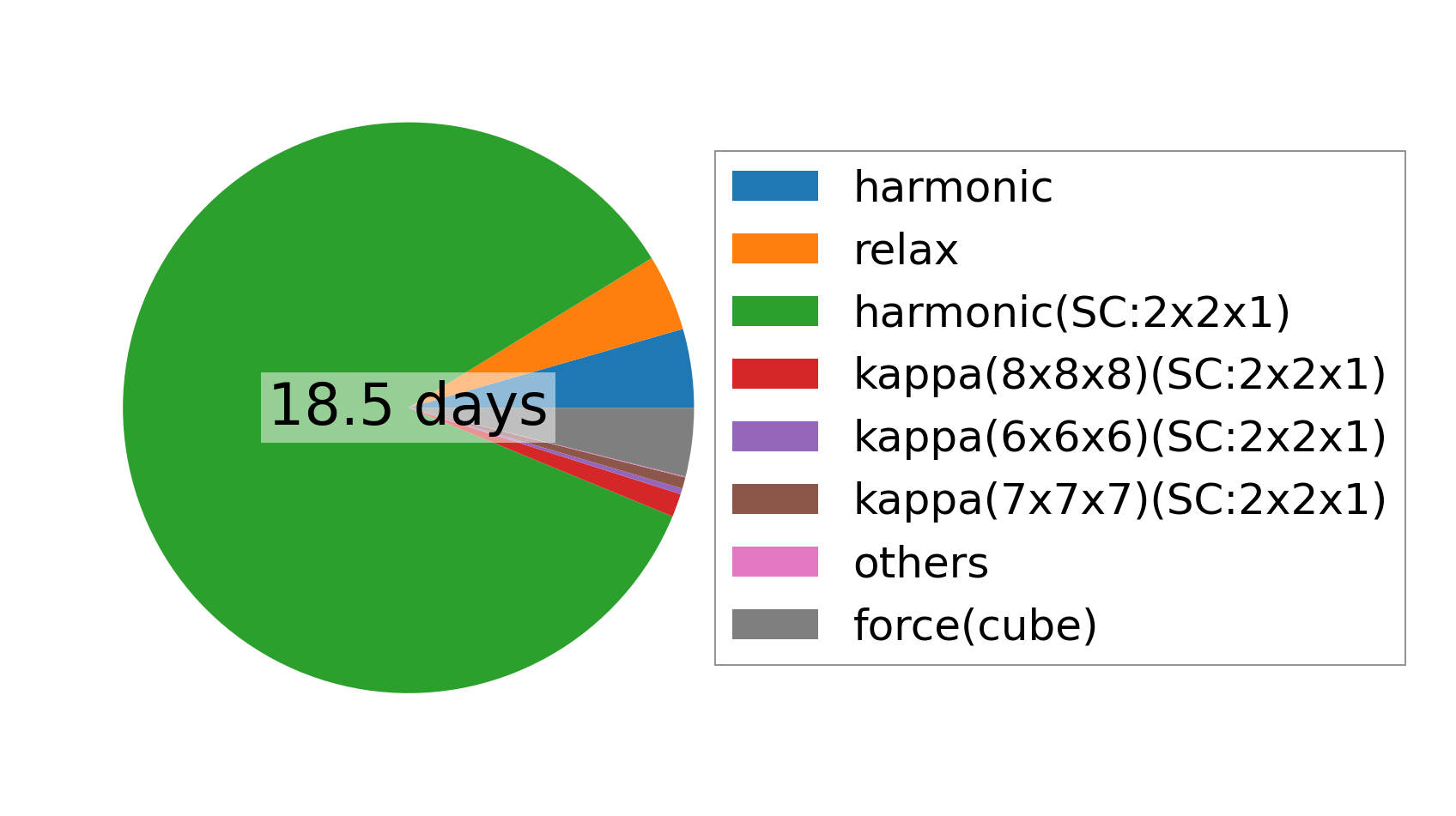

../../_images/fig_times16843.png — (a) Computation time
