mp-540729/Cs2KCoF6/anharm

Space group: Fm-3m (225)
Link: Materials Project
Download: mp-540729.tar.gz

Harmonic properties

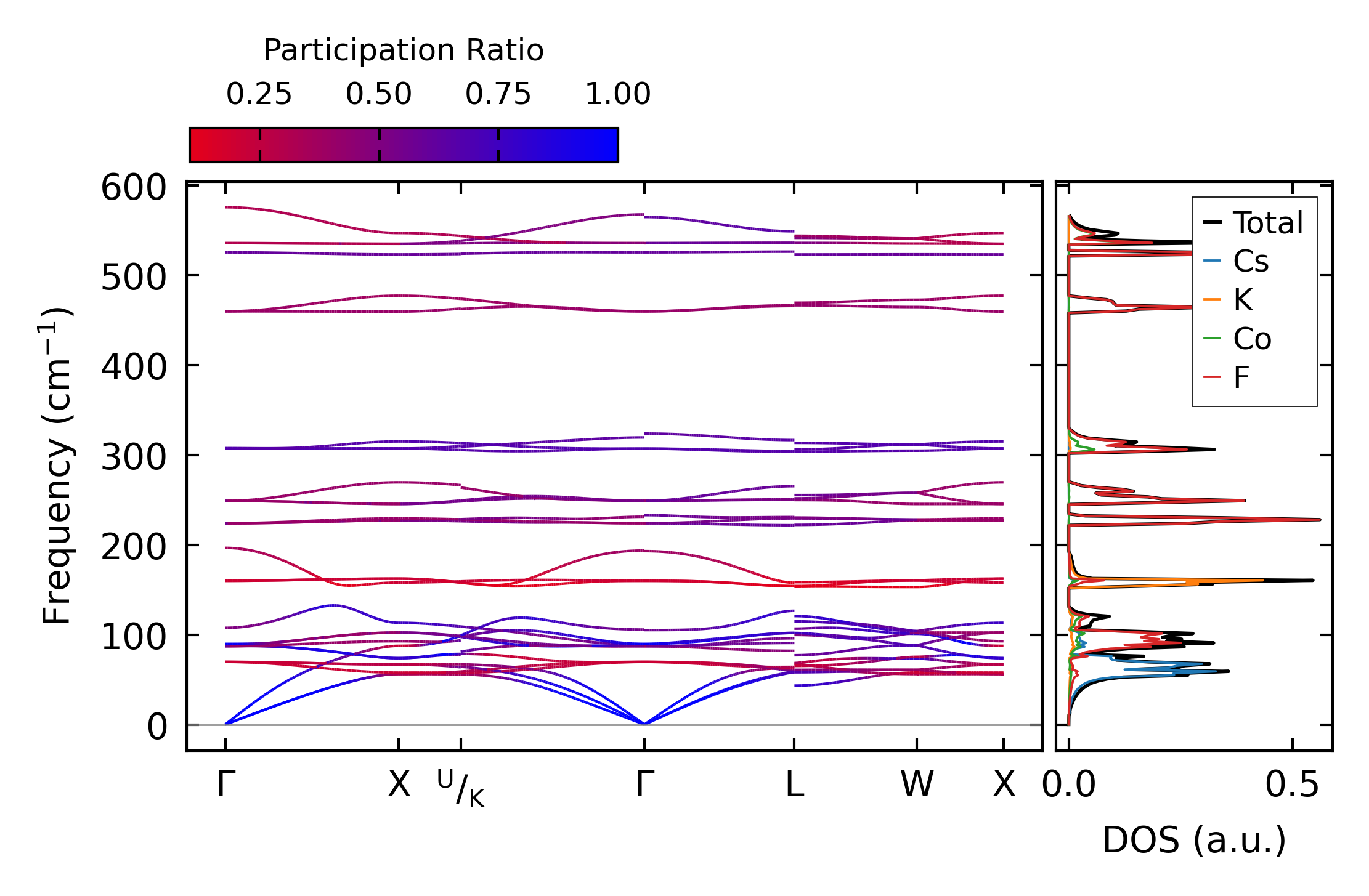

../../_images/fig_bandos_pr9714.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo9714.png — (b) Thermodynamic properties

Grüneisen parameters

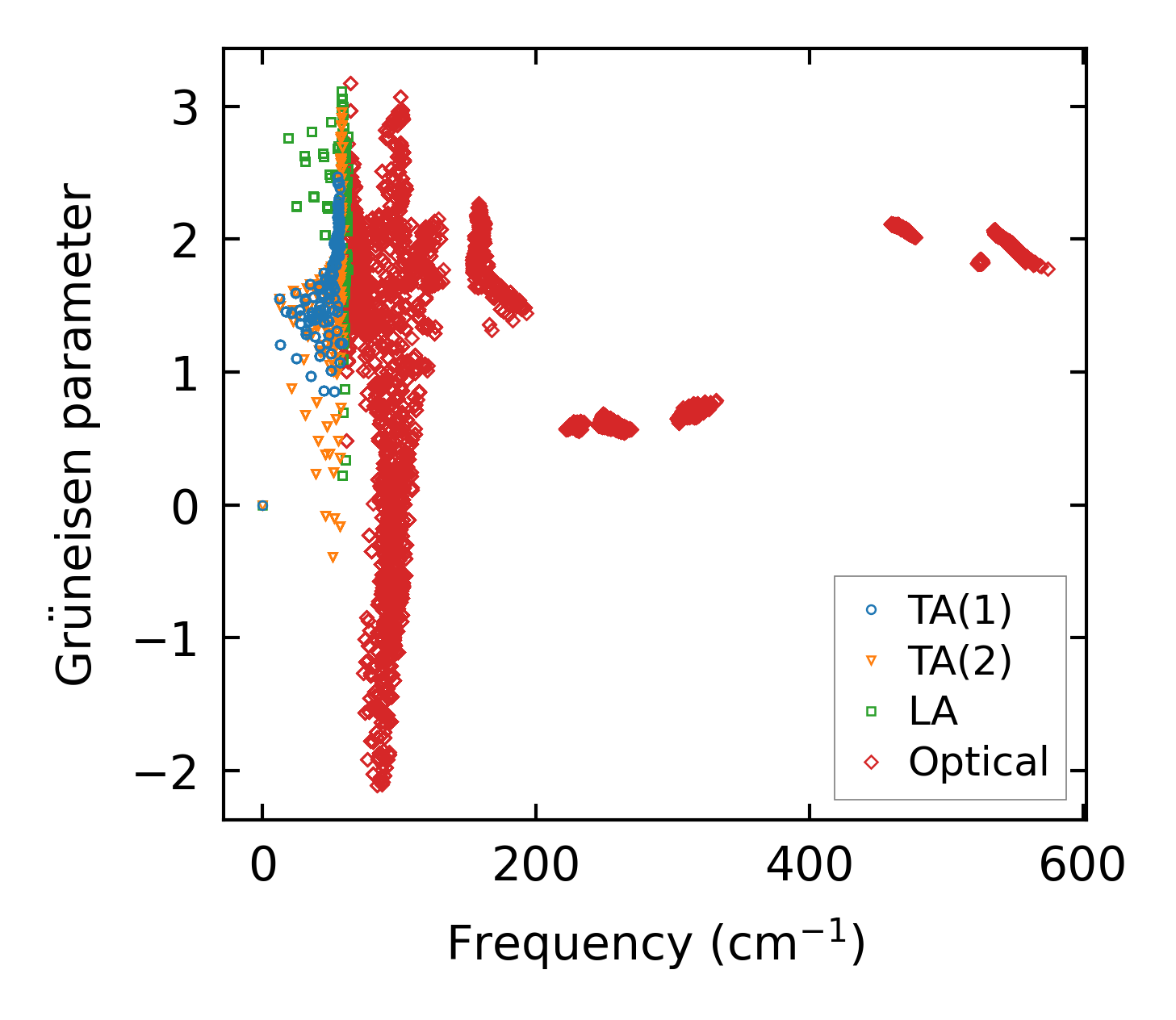

../../_images/fig_gru_all3879.png — (a) Grüneisen parameters

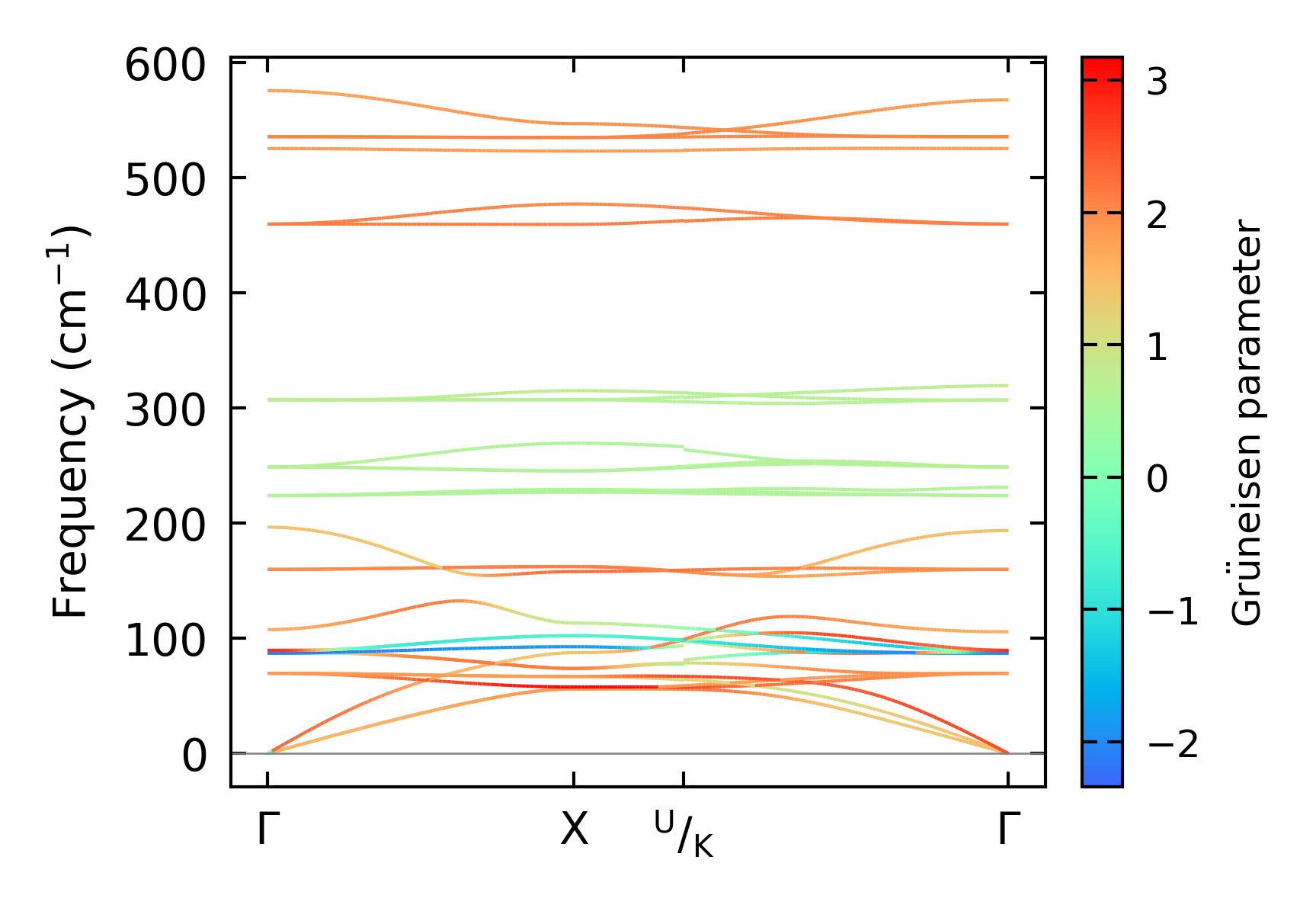

../../_images/fig_gruneisen3879.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon — q-mesh: 12x12x12, supercell: 1x1x1

../../_images/fig_kappa7312.png — (a) Temperature-dependent lattice thermal conductivity

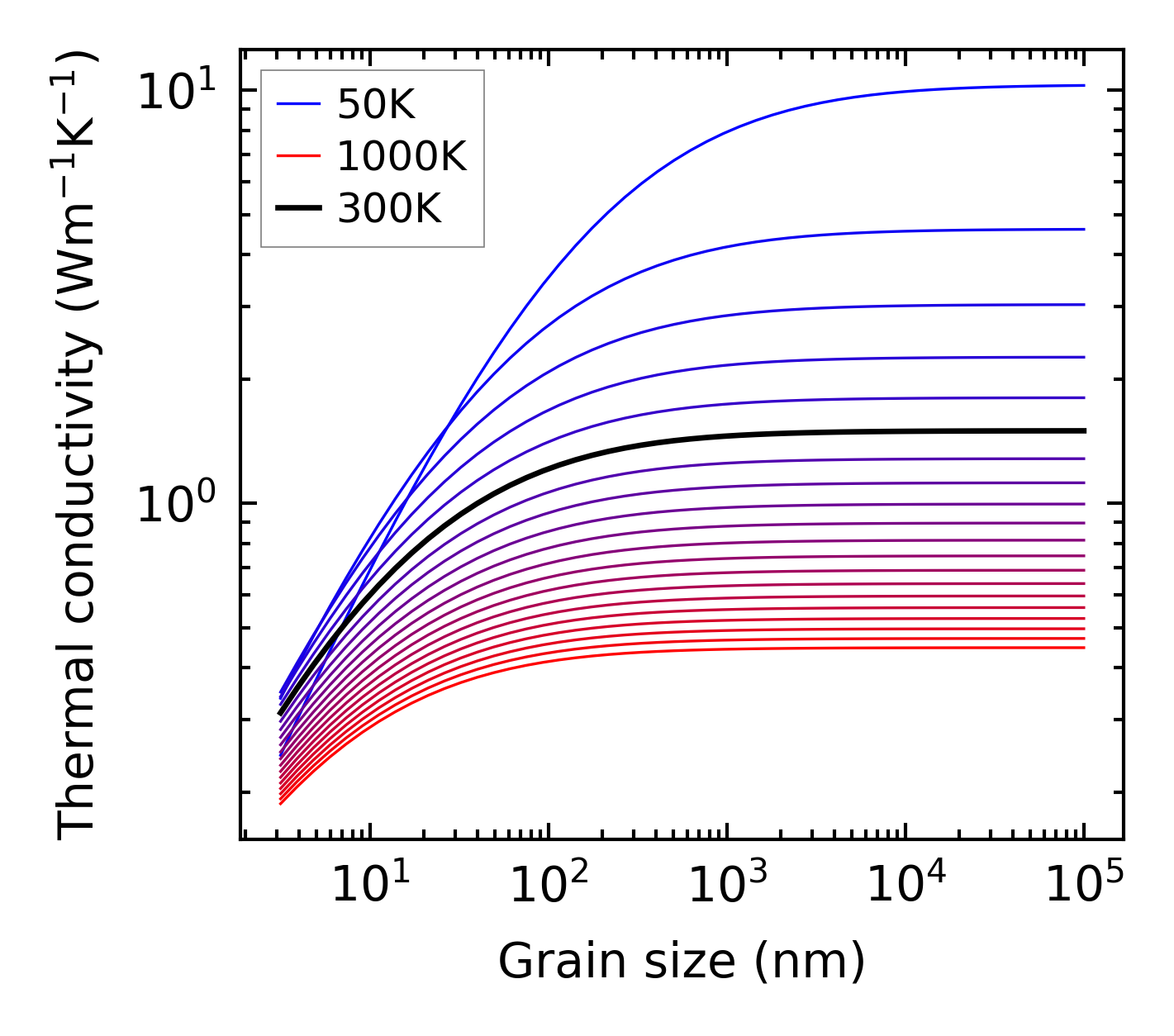

../../_images/fig_kappa_vs_grain_size3929.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

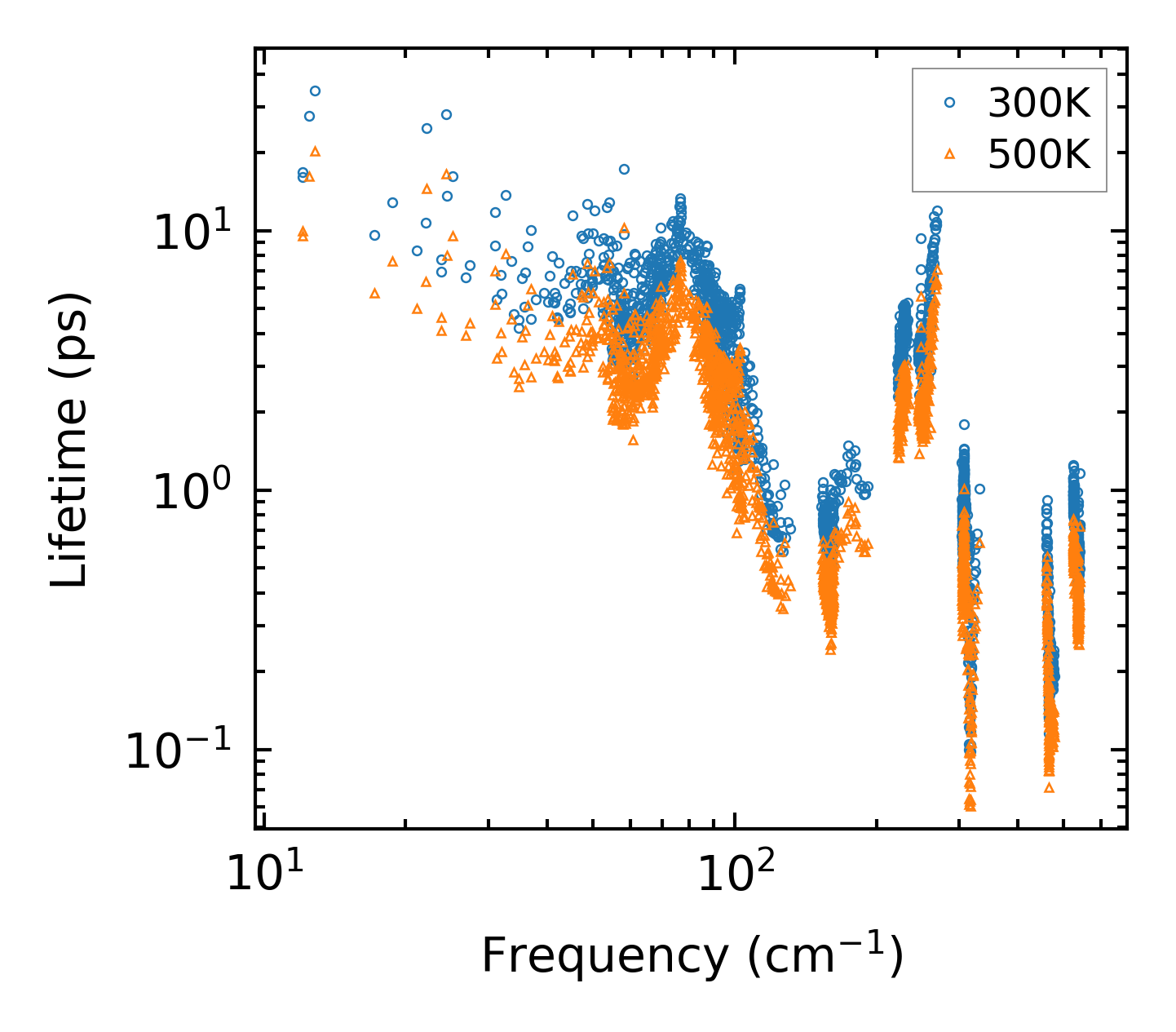

../../_images/fig_lifetime3843.png — (a) Phonon lifetime due to phonon-phonon scattering

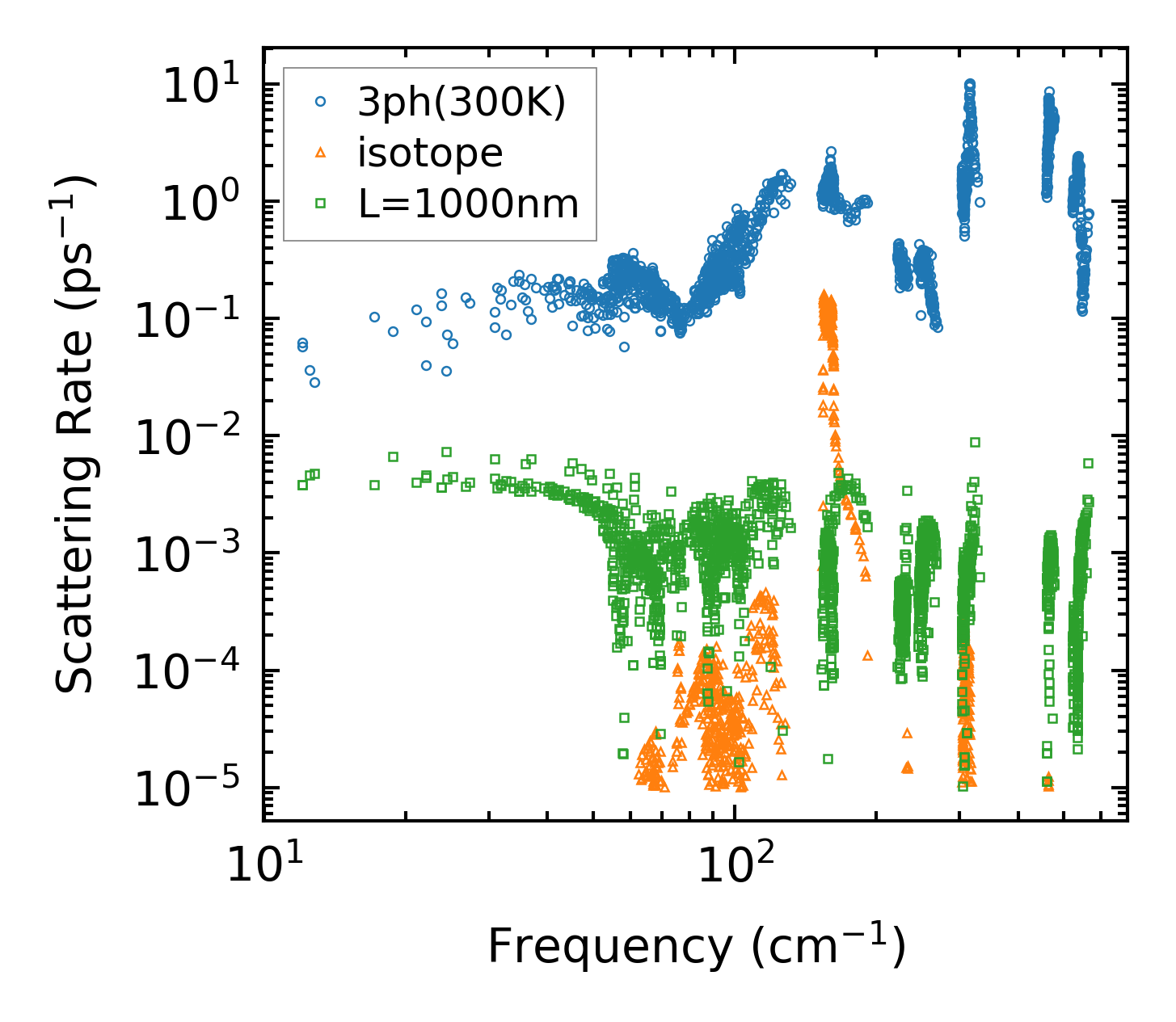

../../_images/fig_scat_rates3842.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

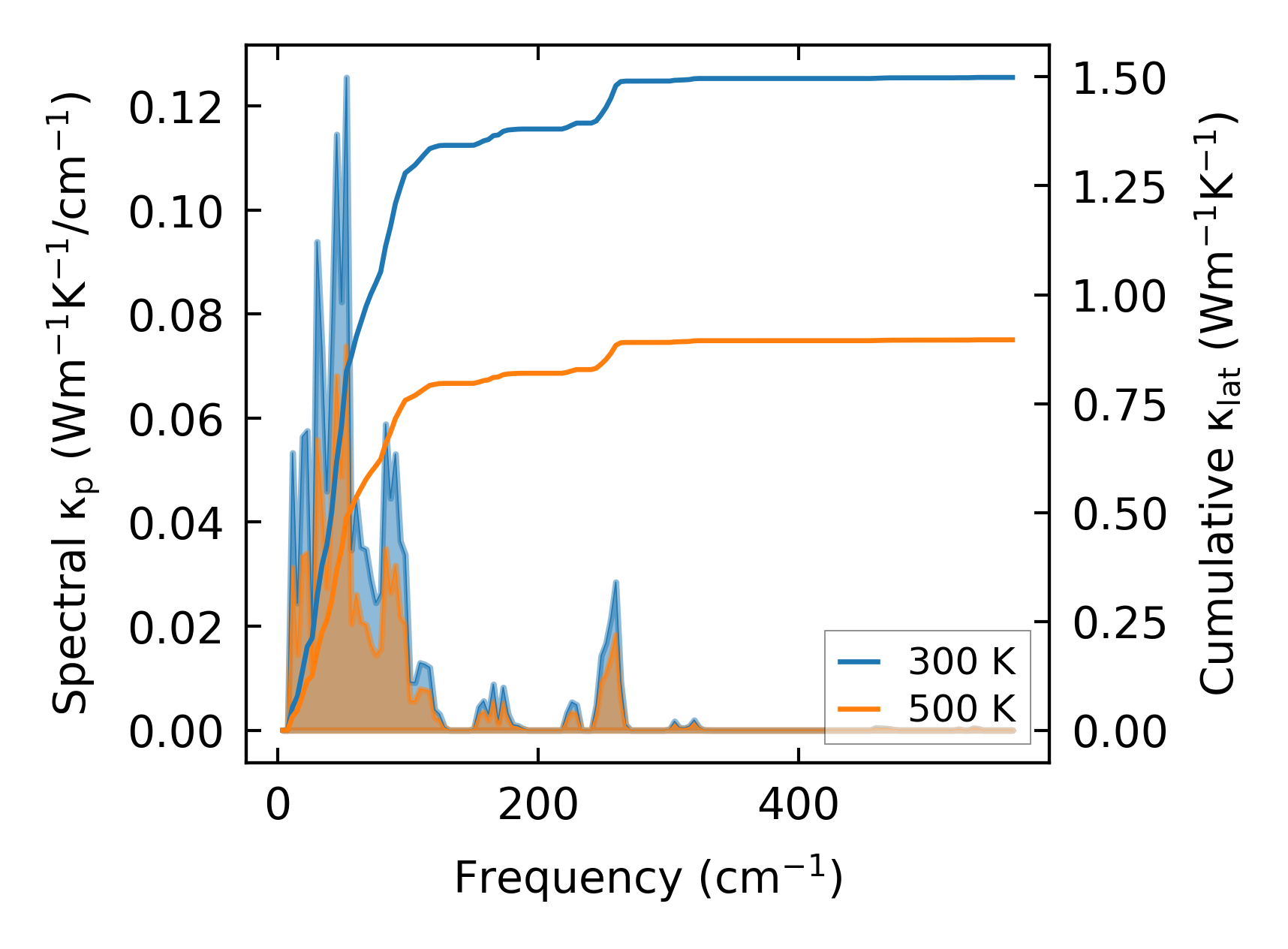

../../_images/fig_cumu_frequency3843.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

../../_images/fig_cumu_mfp3842.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

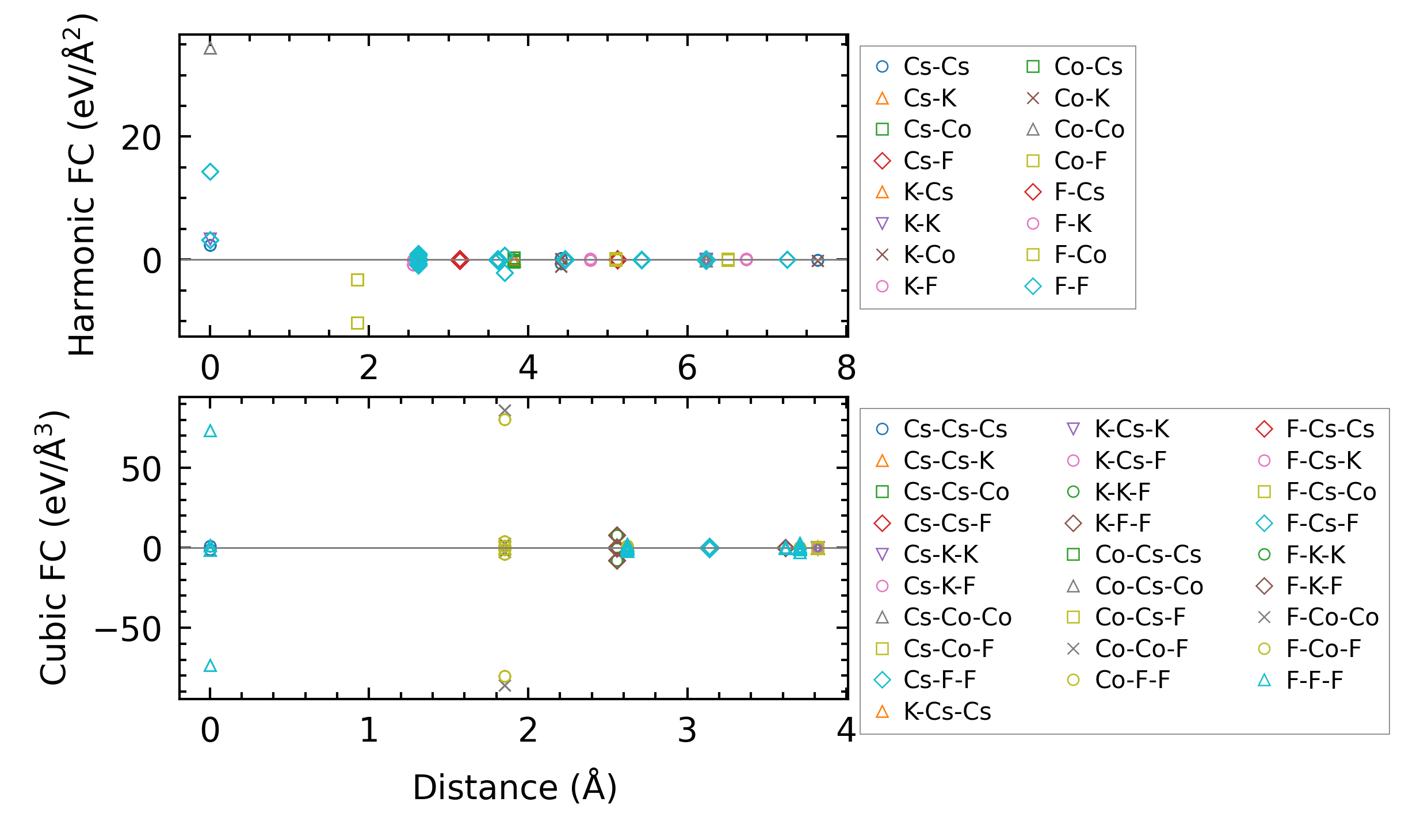

../../_images/fig_fc3240.png — (a) Force constants w.r.t atomic distance

Summary

../../_images/fig_kappa7313.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_times16897.png — (b) Computation time
