mp-540686-2/CsPrS2O8/anharm

Space group: Pnna (52)
Link: Materials Project
Download: mp-540686-2.tar.gz

Equation of state

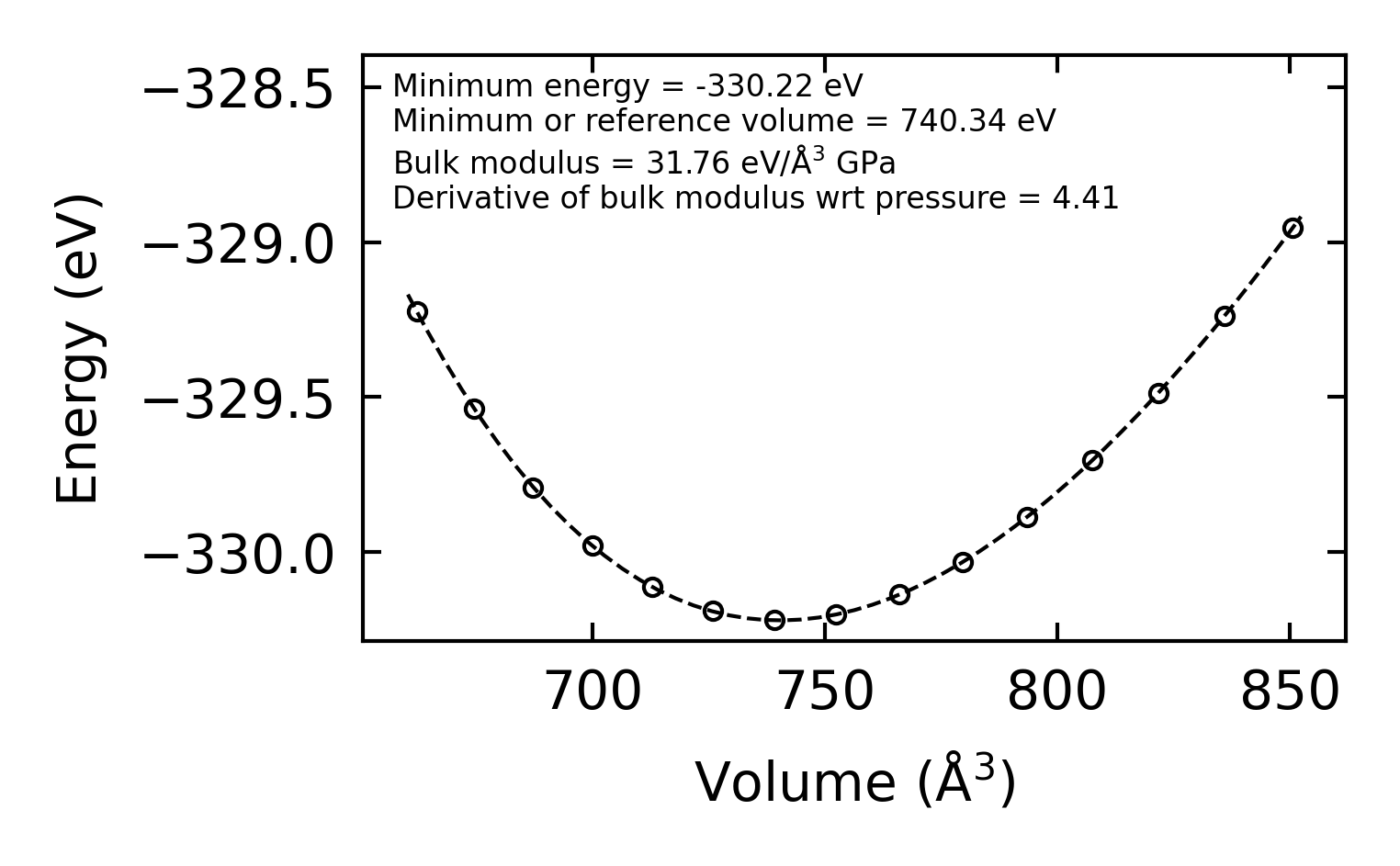

../../_images/fig_bm4837.png — (a) Equation of state

Harmonic properties

../../_images/fig_bandos_pr9702.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo9702.png — (b) Thermodynamic properties

Grüneisen parameters

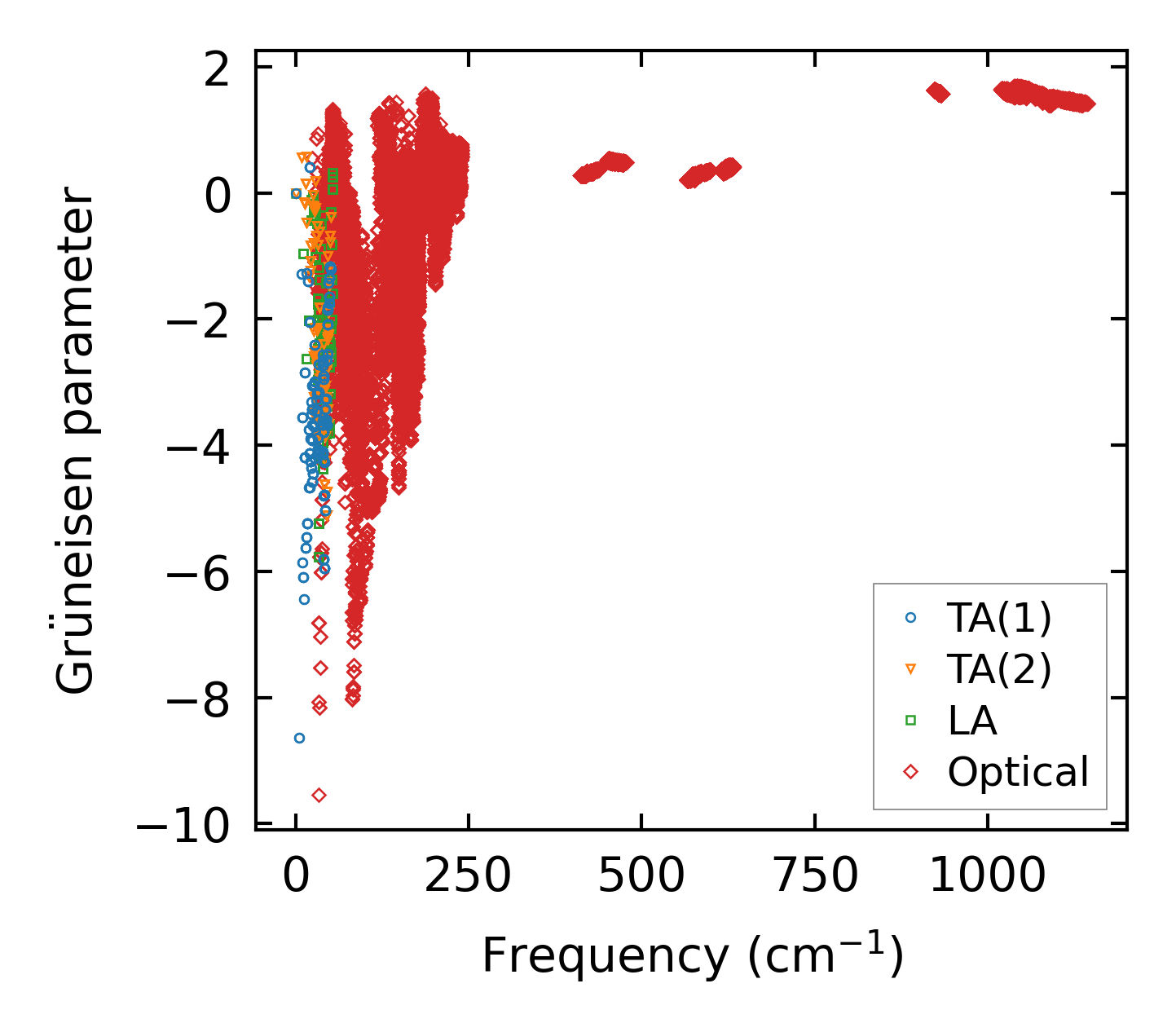

../../_images/fig_gru_all3871.png — (a) Grüneisen parameters

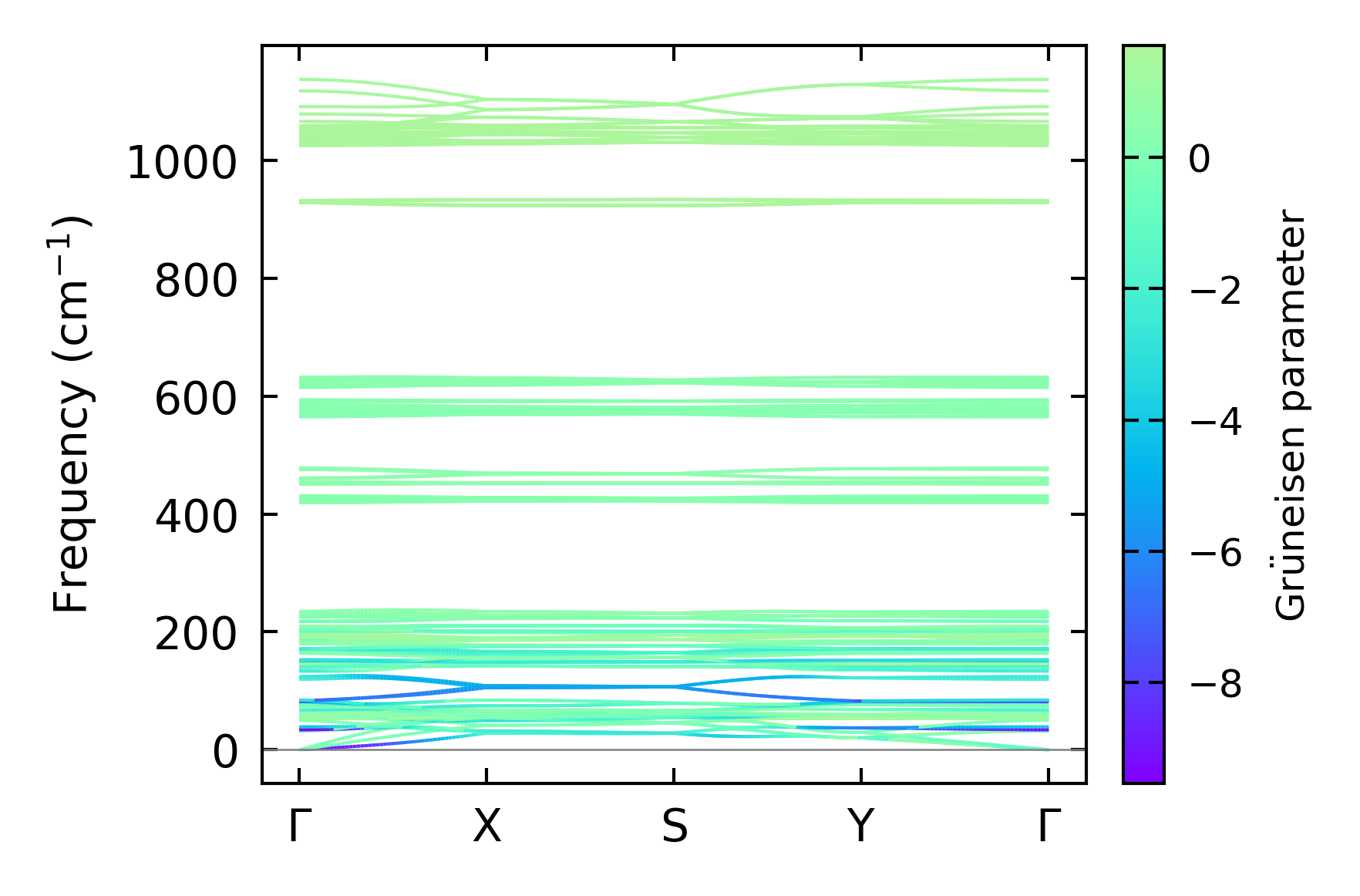

../../_images/fig_gruneisen3871.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 7x5x13, supercell: 1x1x2

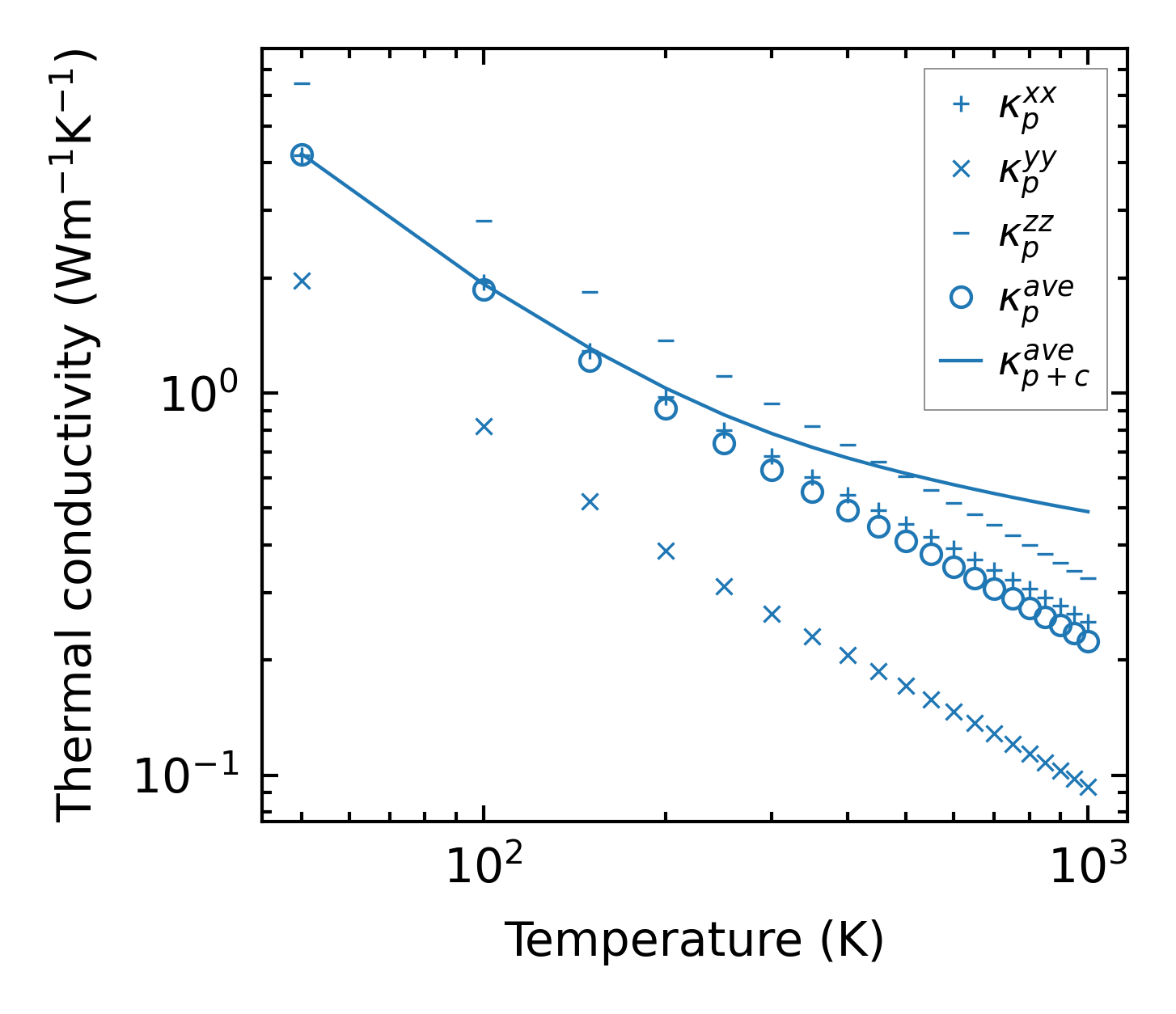

../../_images/fig_kappa7294.png — (a) Temperature-dependent lattice thermal conductivity

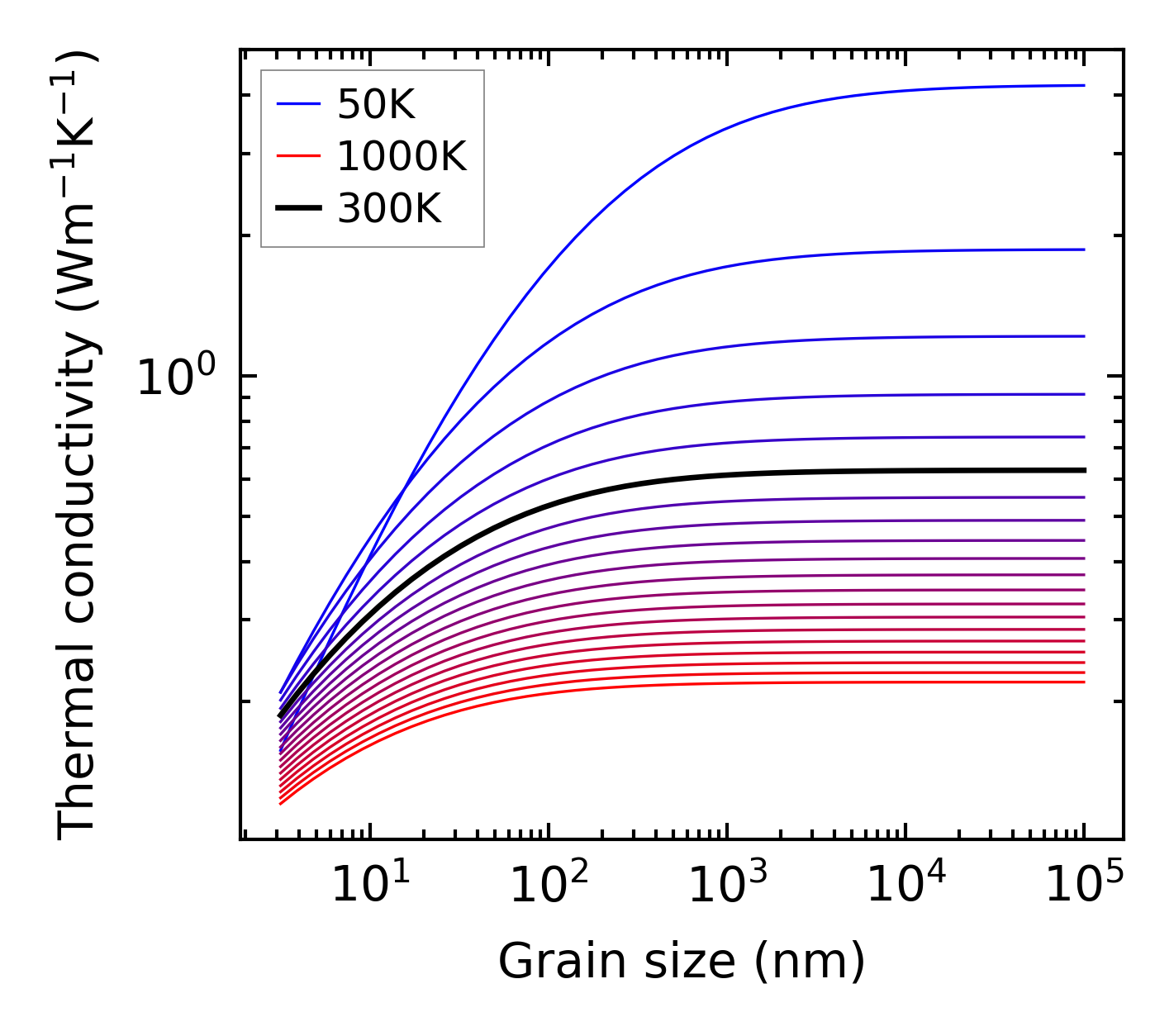

../../_images/fig_kappa_vs_grain_size3919.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

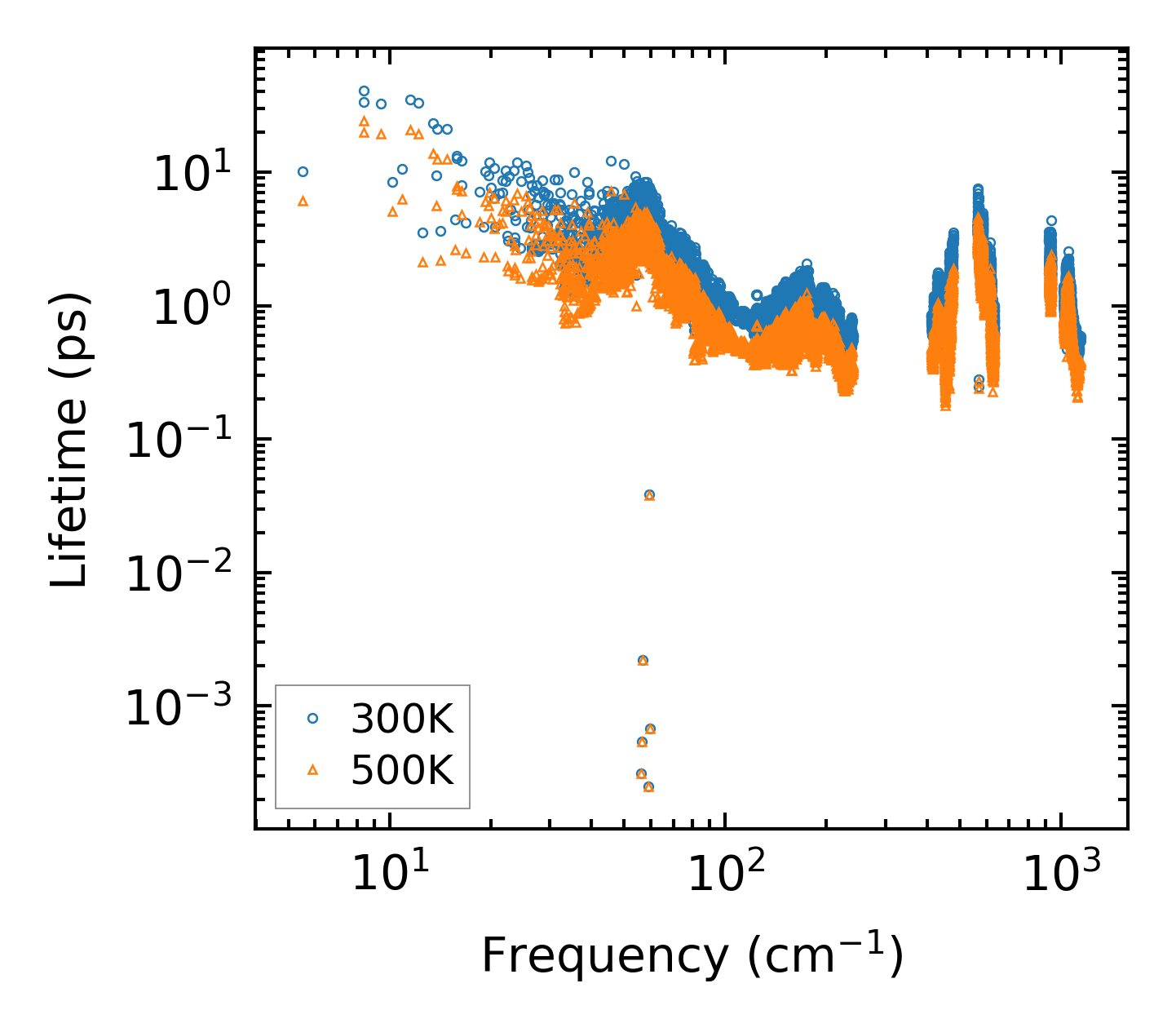

../../_images/fig_lifetime3835.png — (a) Phonon lifetime due to phonon-phonon scattering

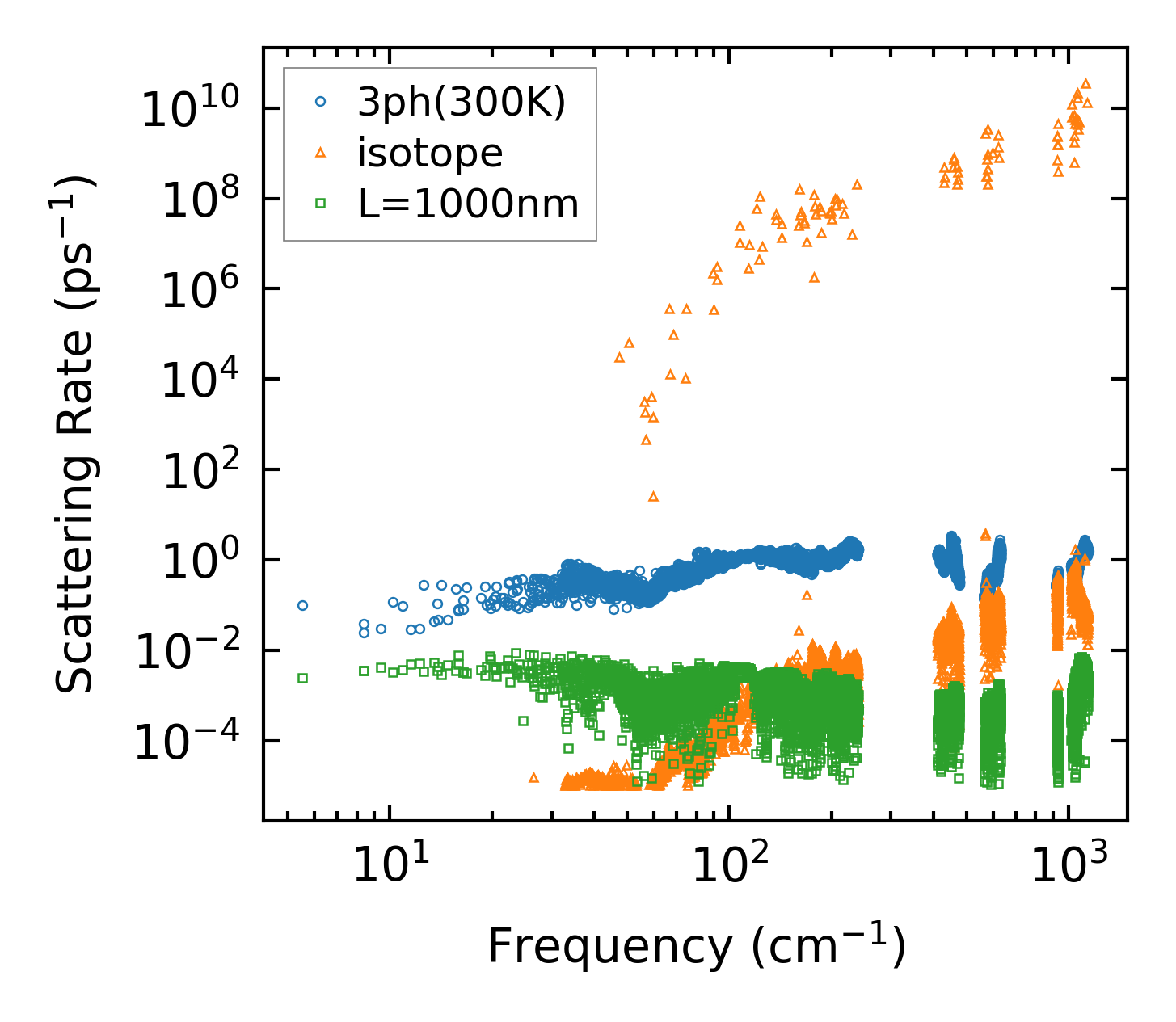

../../_images/fig_scat_rates3834.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

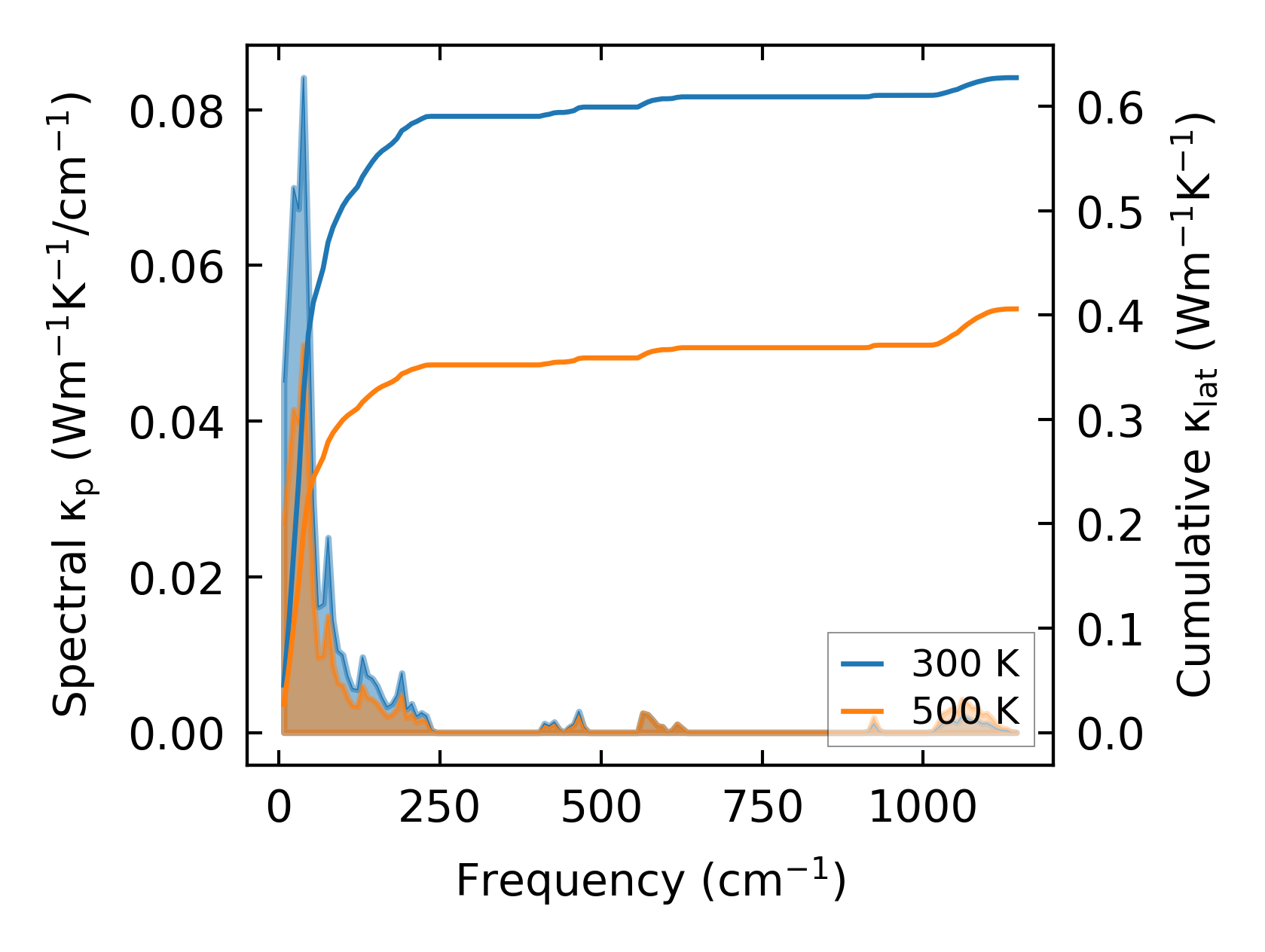

../../_images/fig_cumu_frequency3835.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

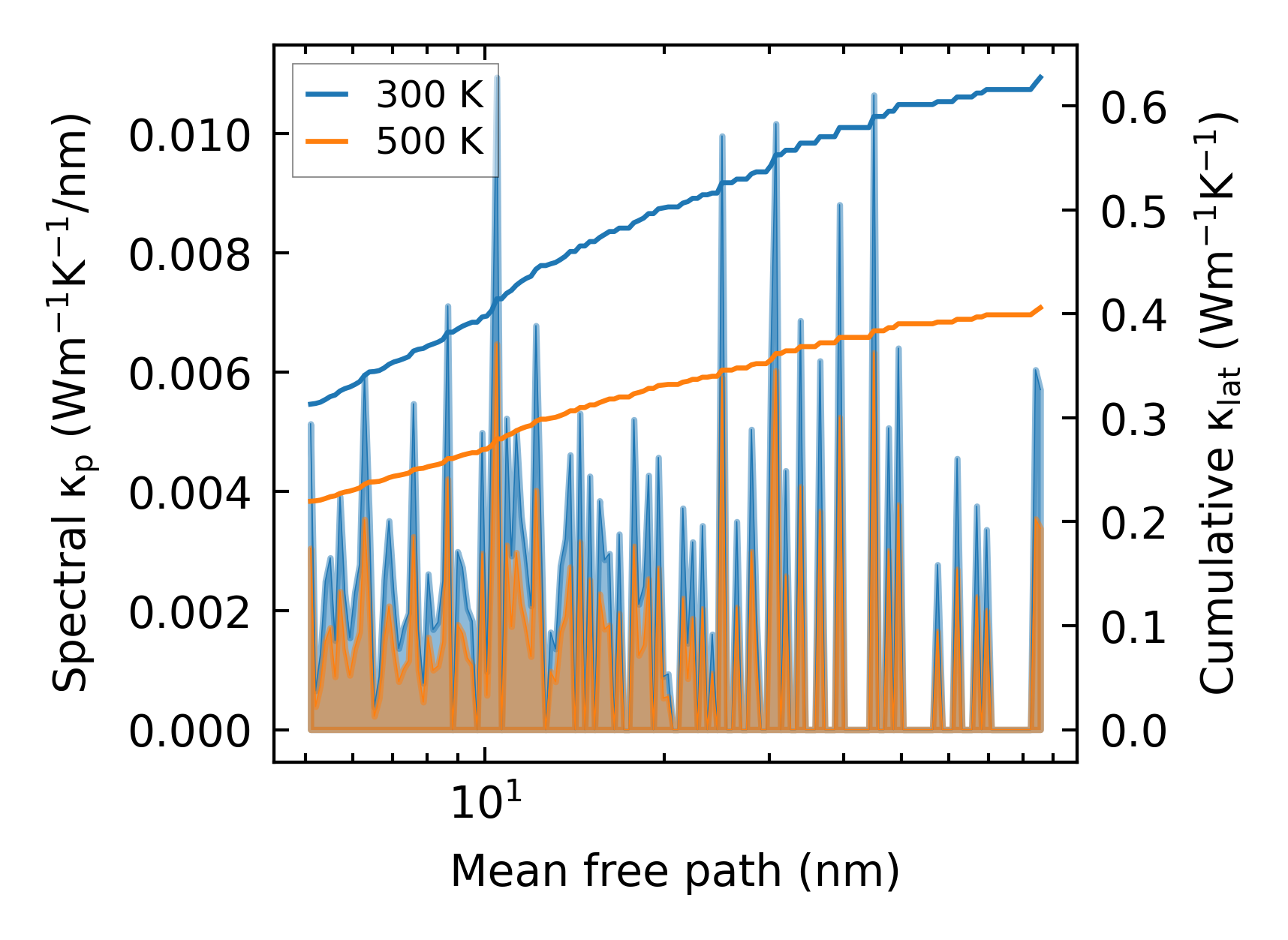

../../_images/fig_cumu_mfp3834.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

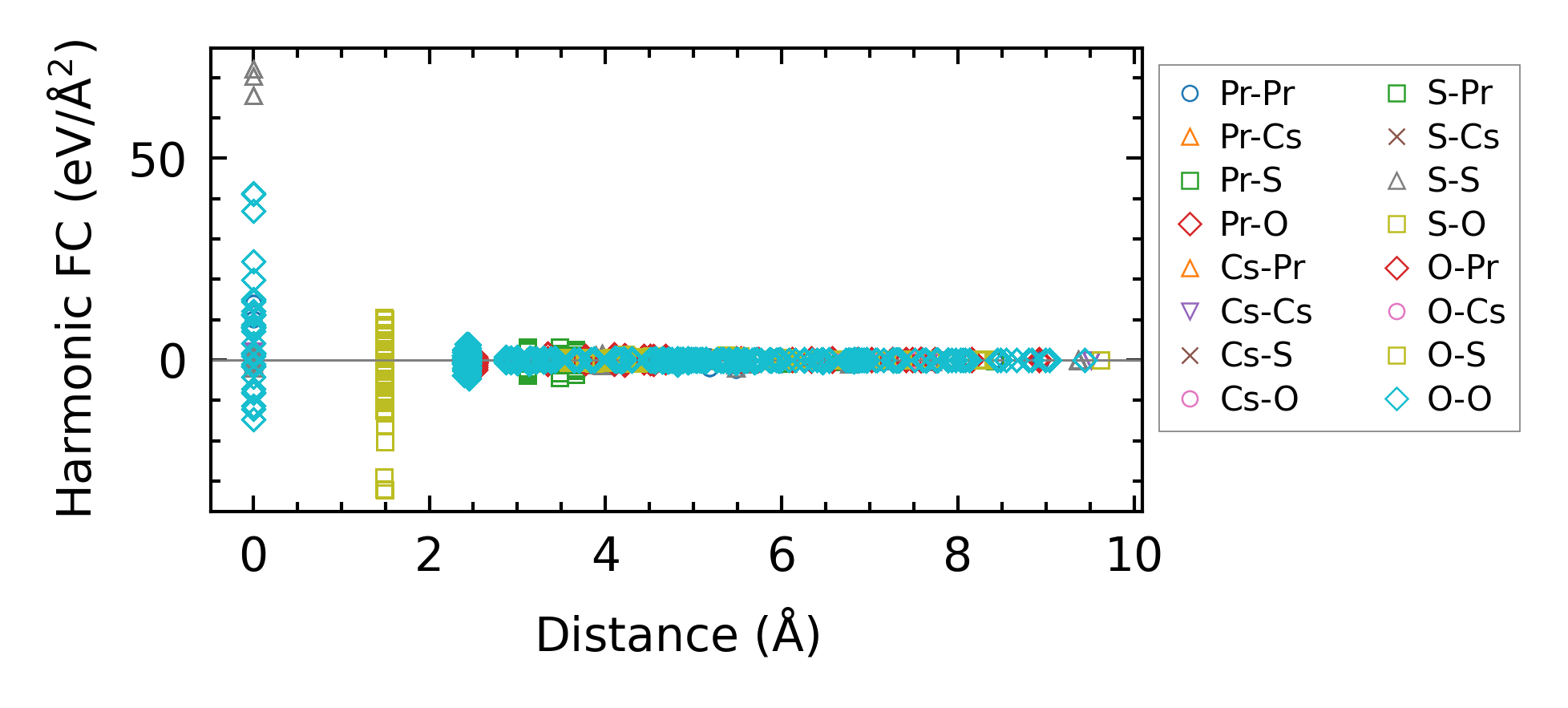

../../_images/fig_fc29463.png — (a) Force constants w.r.t atomic distance

Summary

../../_images/fig_kappa7295.png — (a) Temperature-dependent lattice thermal conductivity

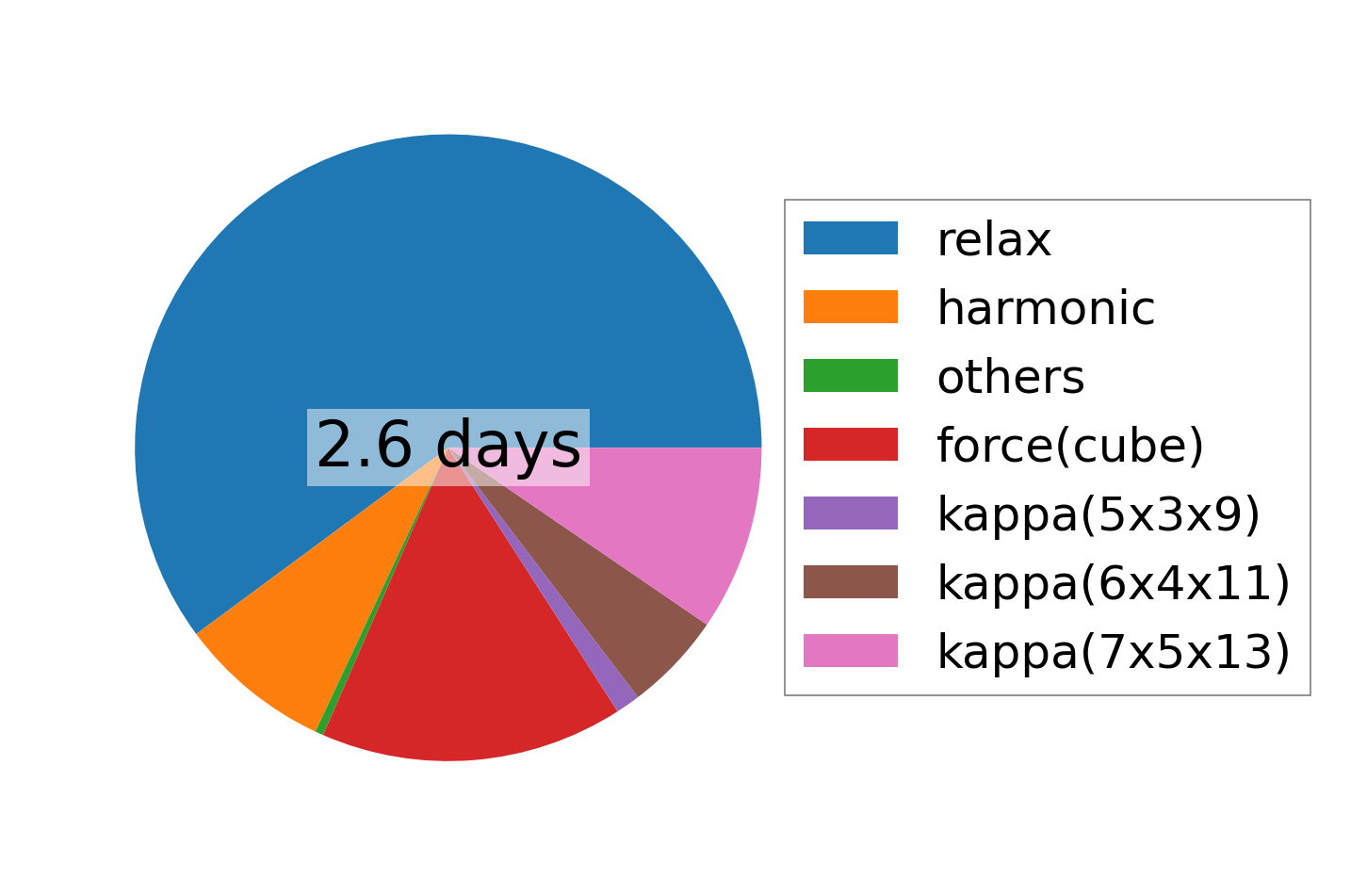

../../_images/fig_times16880.png — (b) Computation time
