mp-753968/Li2WS4/anharm

Space group: Pnma (62)
Link: Materials Project
Download: mp-753968.tar.gz

Harmonic properties

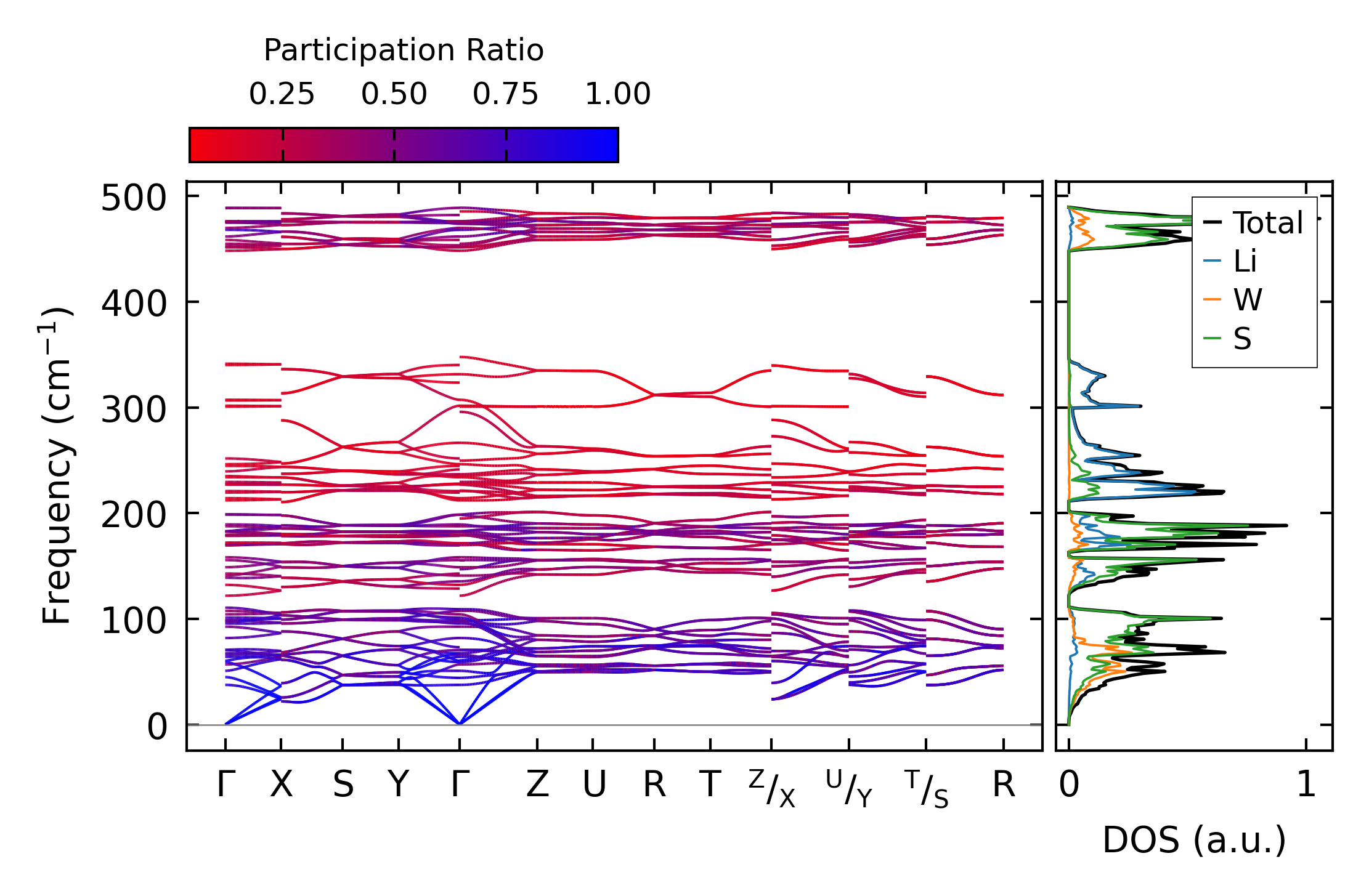

../../_images/fig_bandos_pr3776.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo3776.png — (b) Thermodynamic properties

Grüneisen parameters

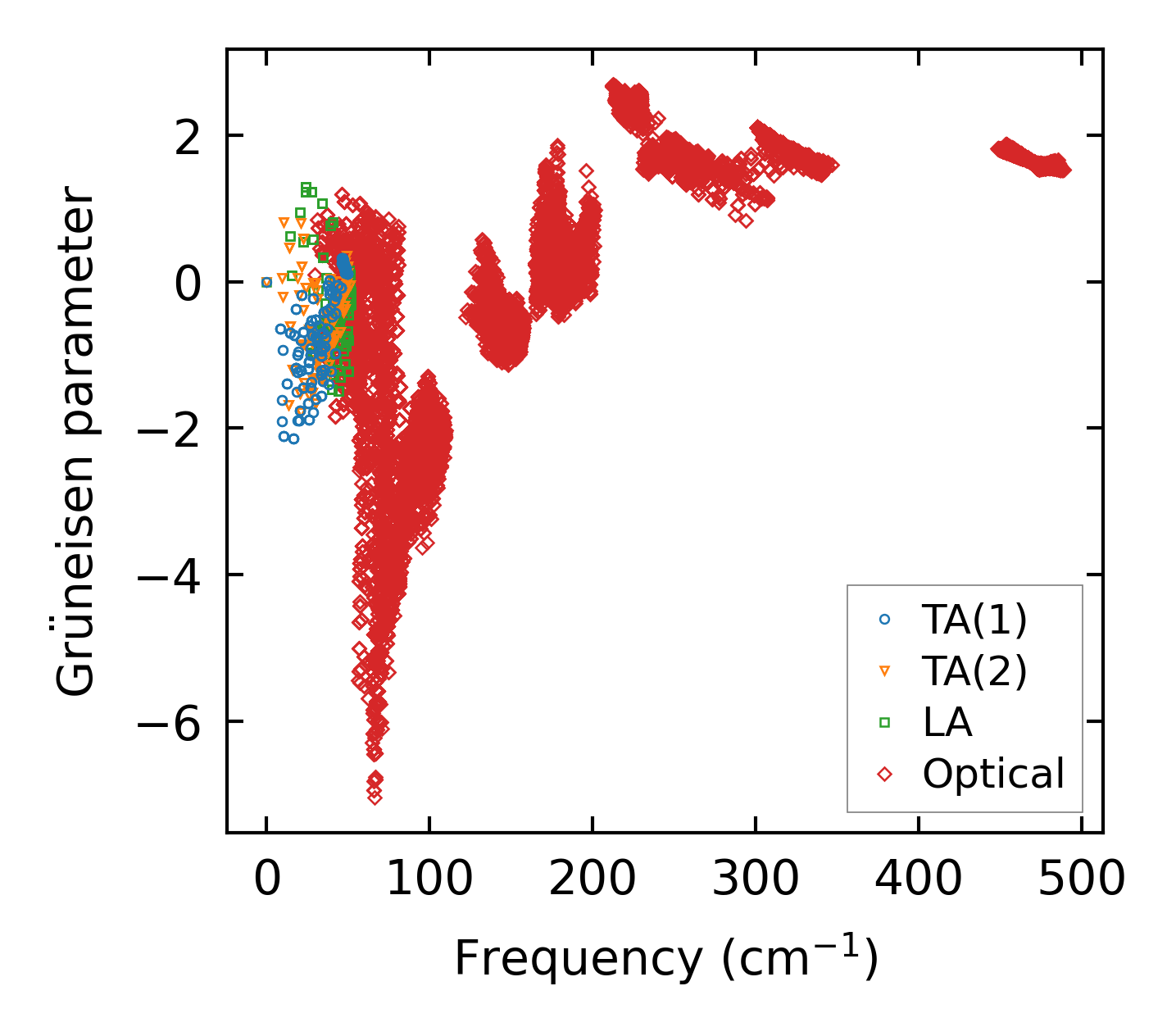

../../_images/fig_gru_all1697.png — (a) Grüneisen parameters

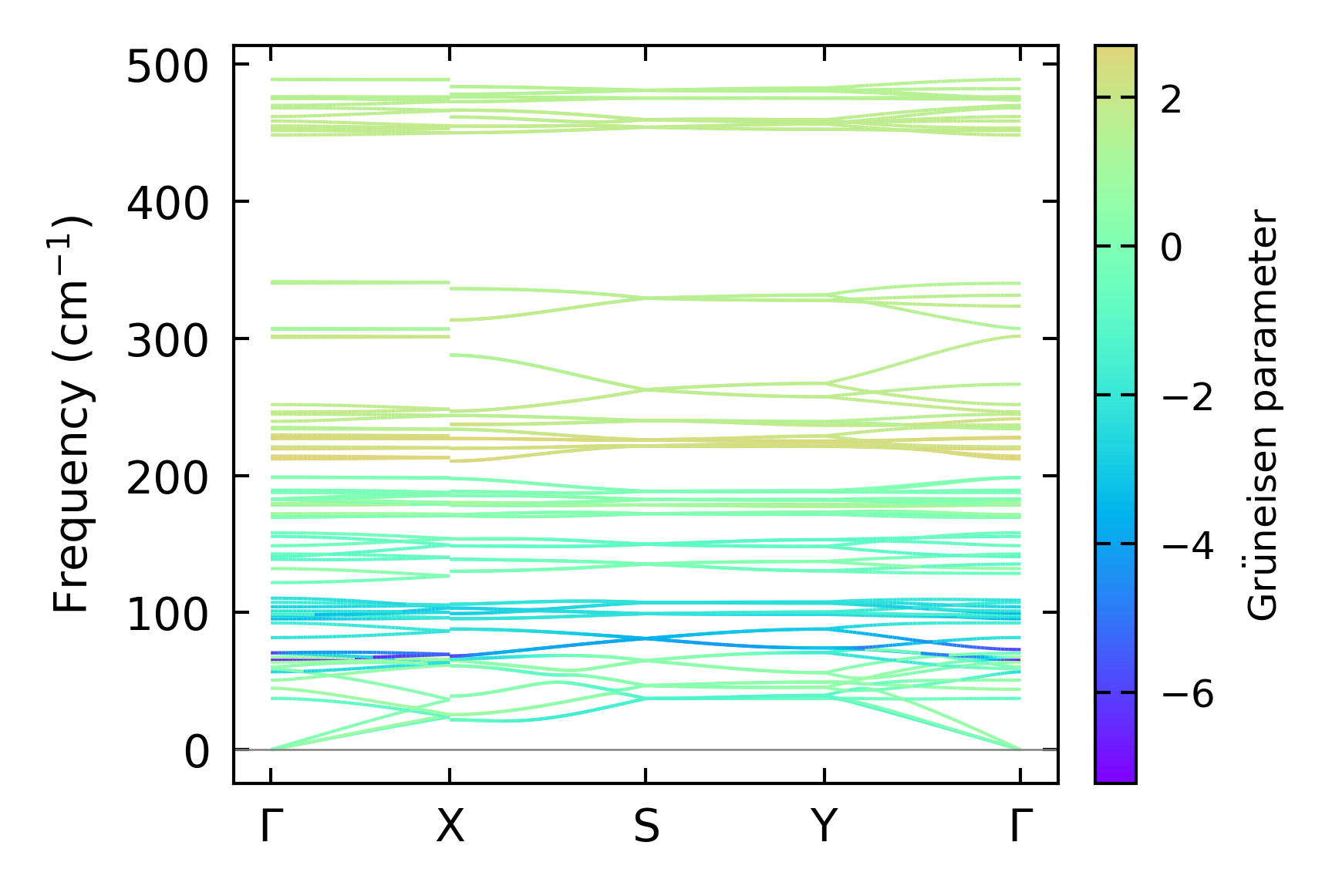

../../_images/fig_gruneisen1697.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 5x9x11, supercell: 1x2x2

../../_images/fig_kappa3262.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_kappa_vs_grain_size1721.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

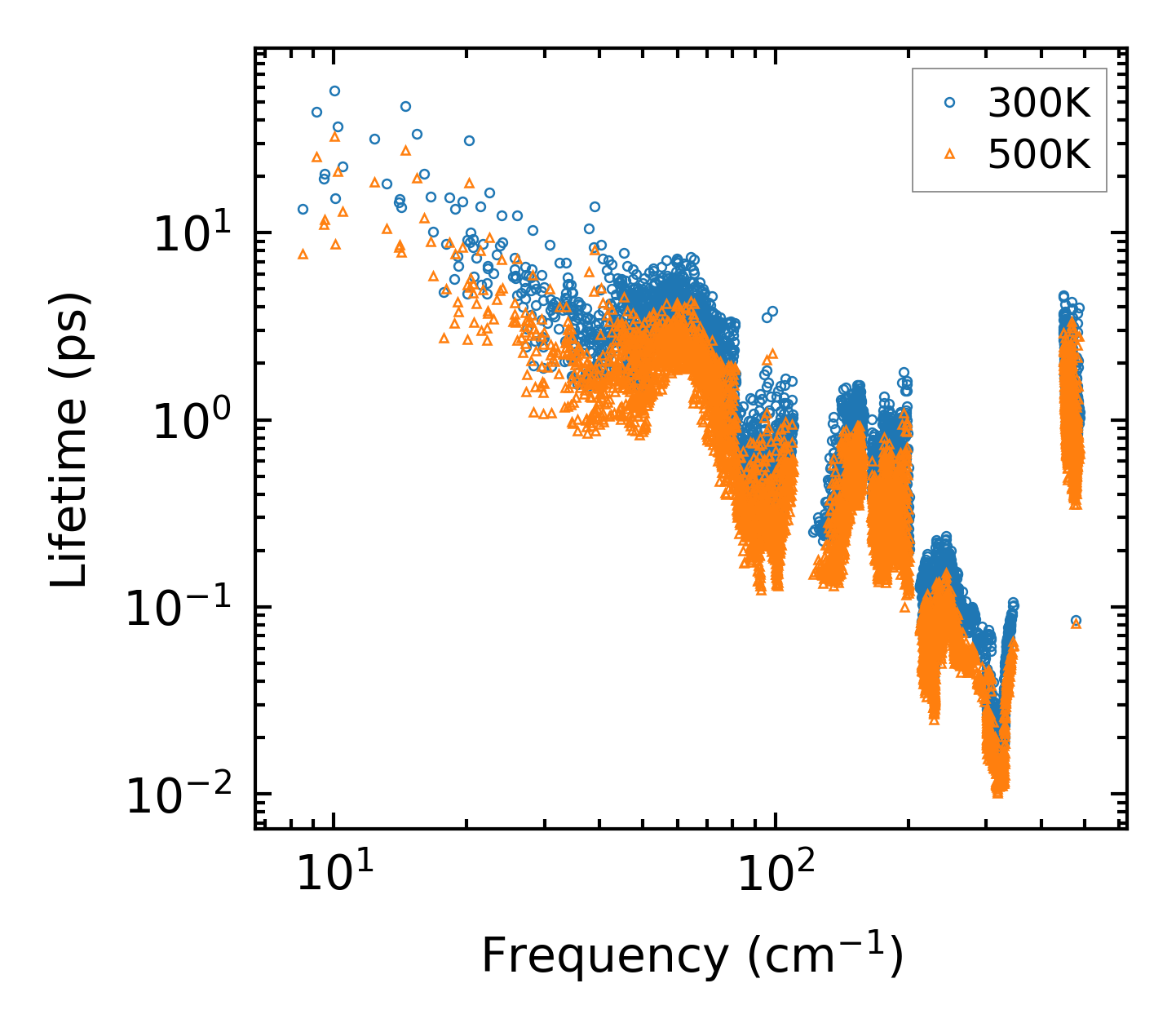

../../_images/fig_lifetime1687.png — (a) Phonon lifetime due to phonon-phonon scattering

../../_images/fig_scat_rates1686.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

../../_images/fig_cumu_frequency1687.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

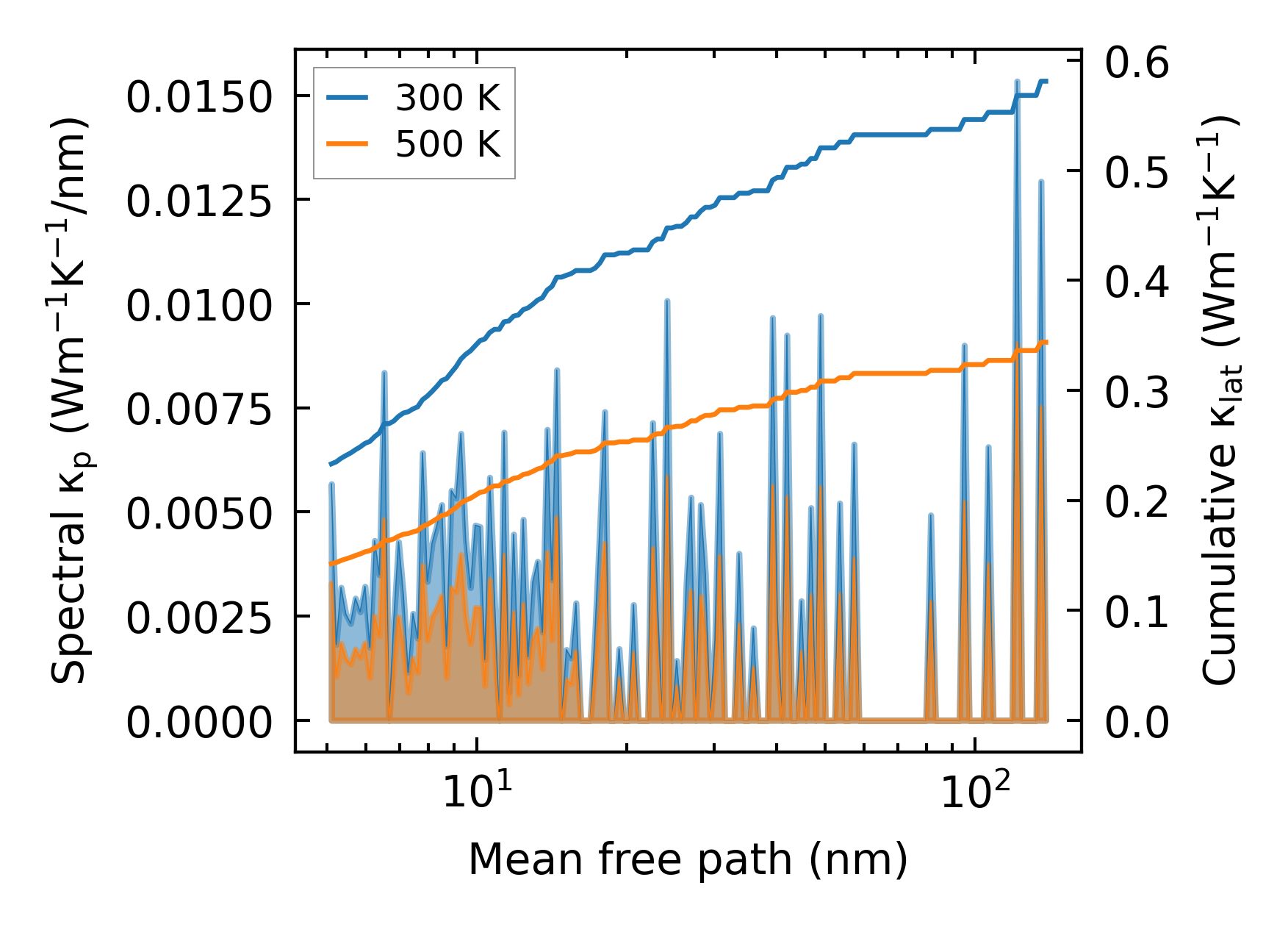

../../_images/fig_cumu_mfp1687.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

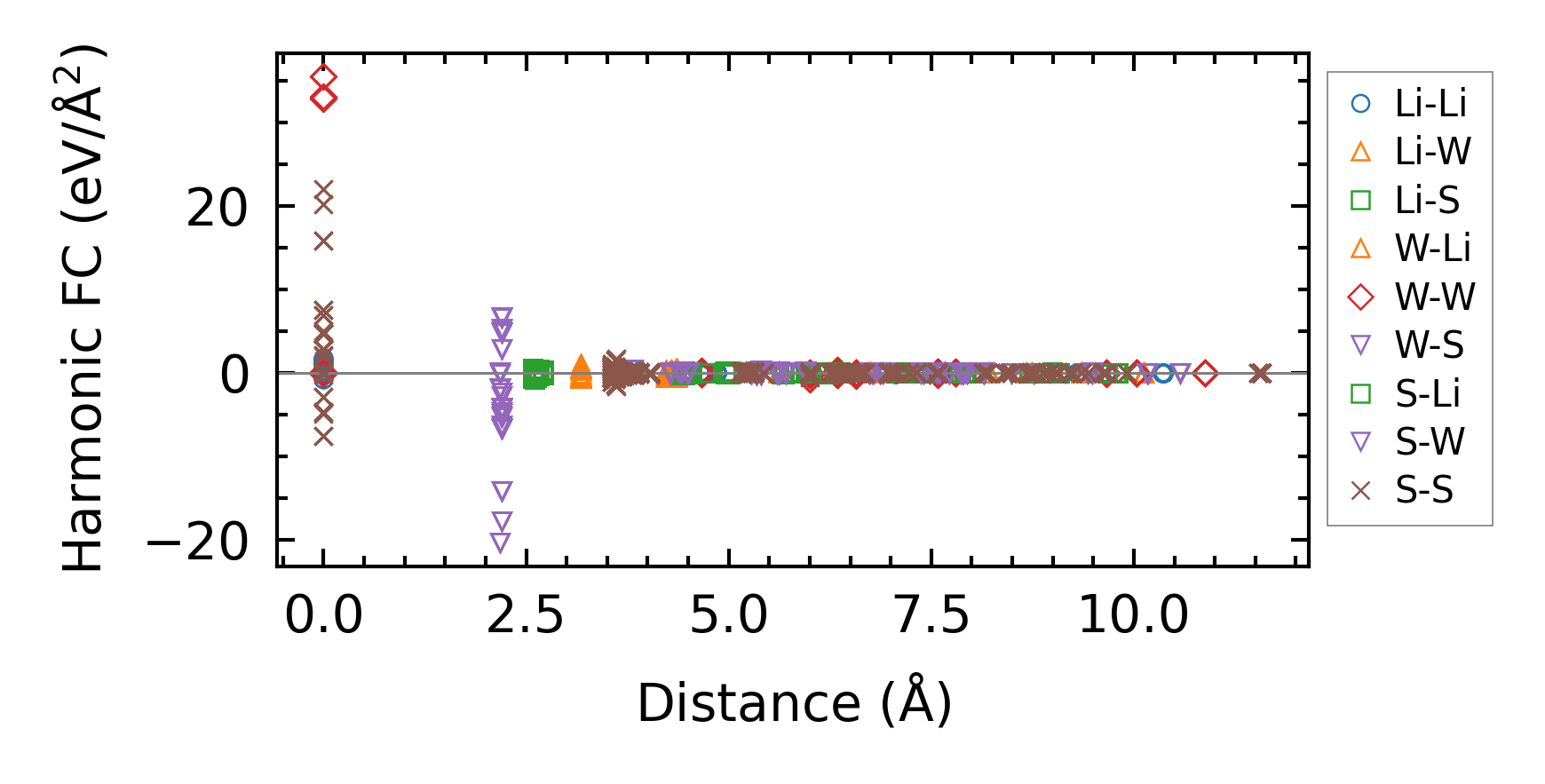

../../_images/fig_fc23591.png — (a) Force constants w.r.t atomic distance

Summary

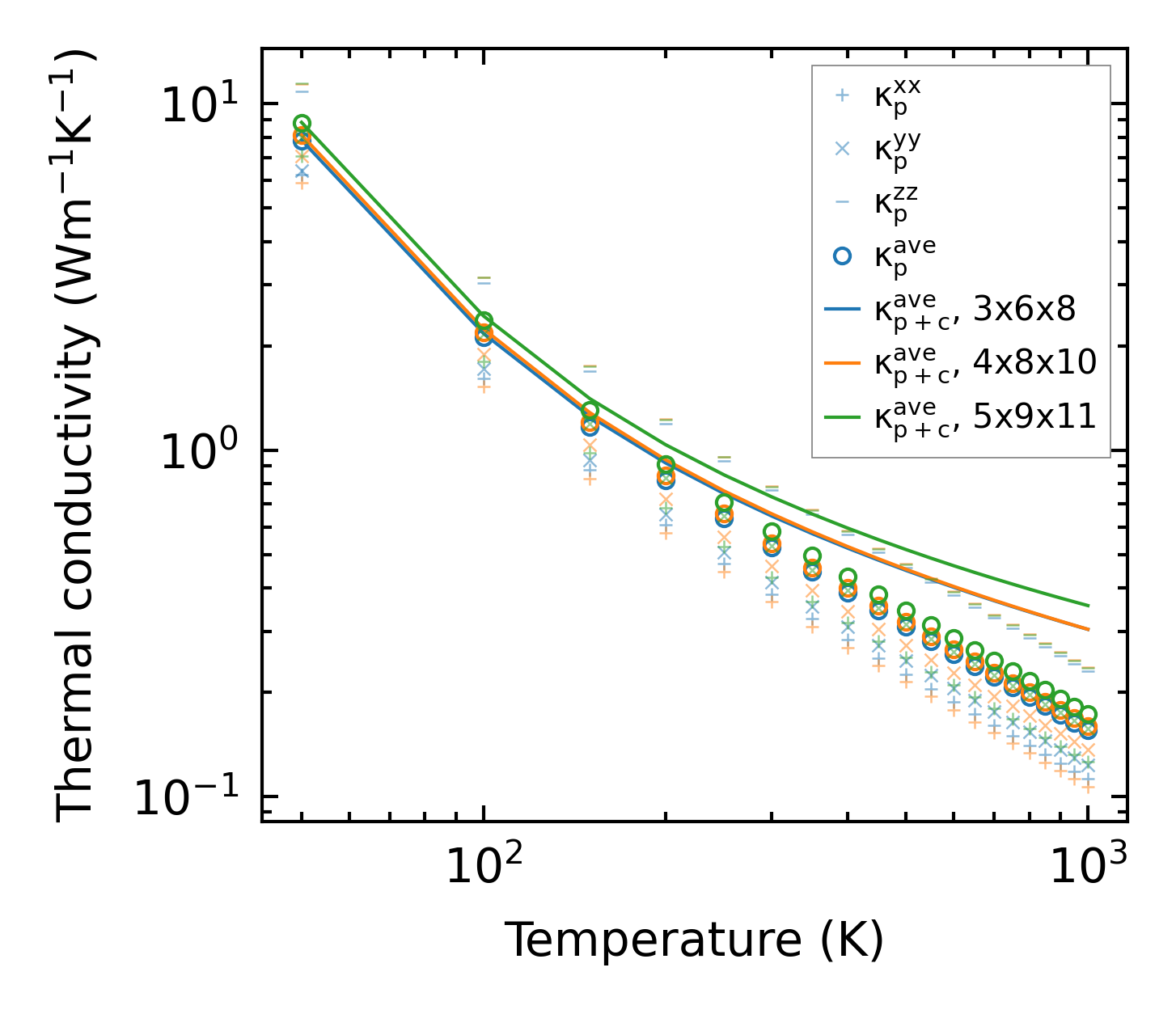

../../_images/fig_kappa3263.png — (a) Temperature-dependent lattice thermal conductivity

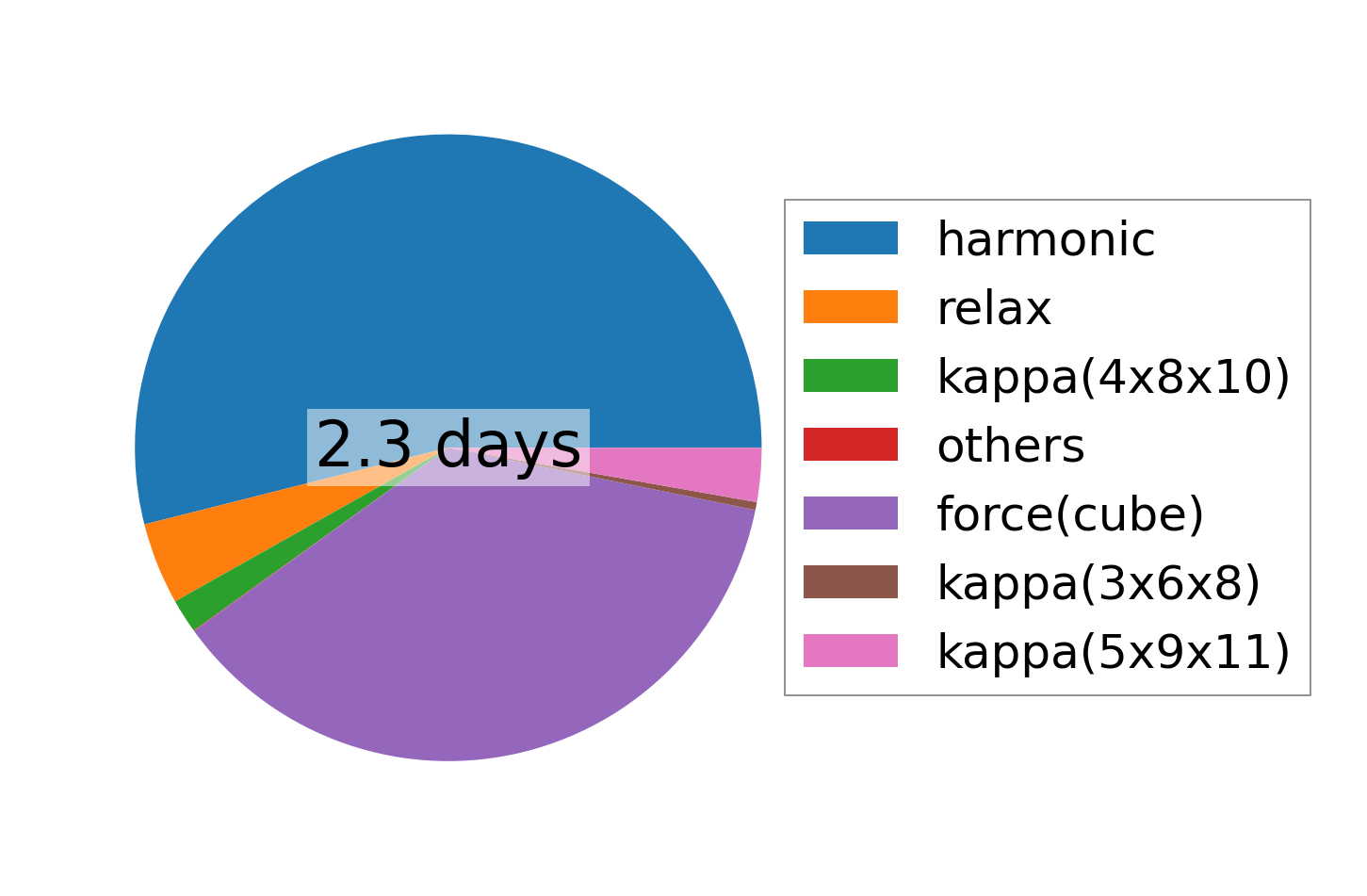

../../_images/fig_times6541.png — (b) Computation time
