mp-753192/Yb4Sb2O/anharm

Space group: I4/mmm (139)
Link: Materials Project
Download: mp-753192.tar.gz

Harmonic properties

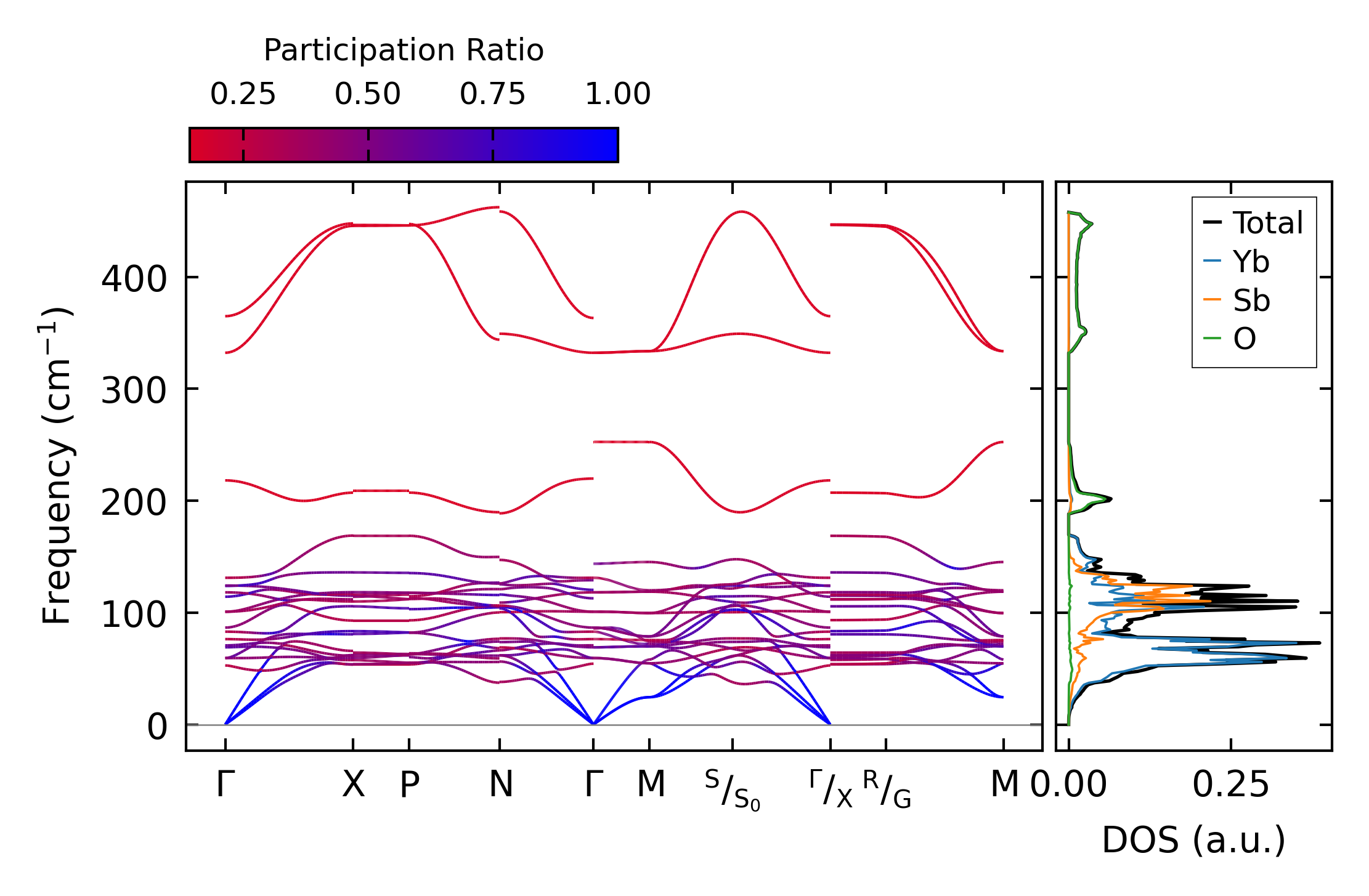

../../_images/fig_bandos_pr3985.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo3985.png — (b) Thermodynamic properties

Grüneisen parameters

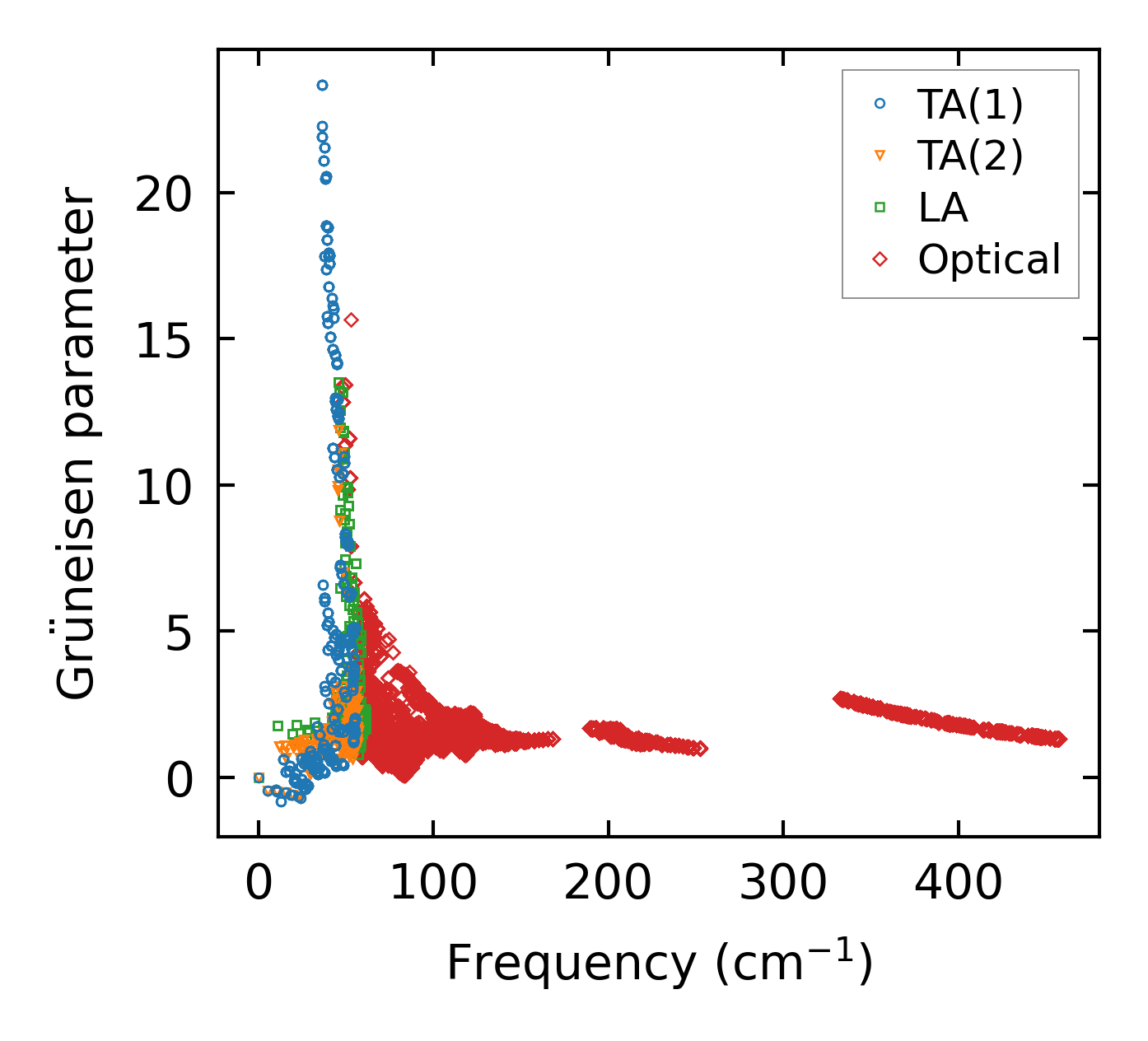

../../_images/fig_gru_all1795.png — (a) Grüneisen parameters

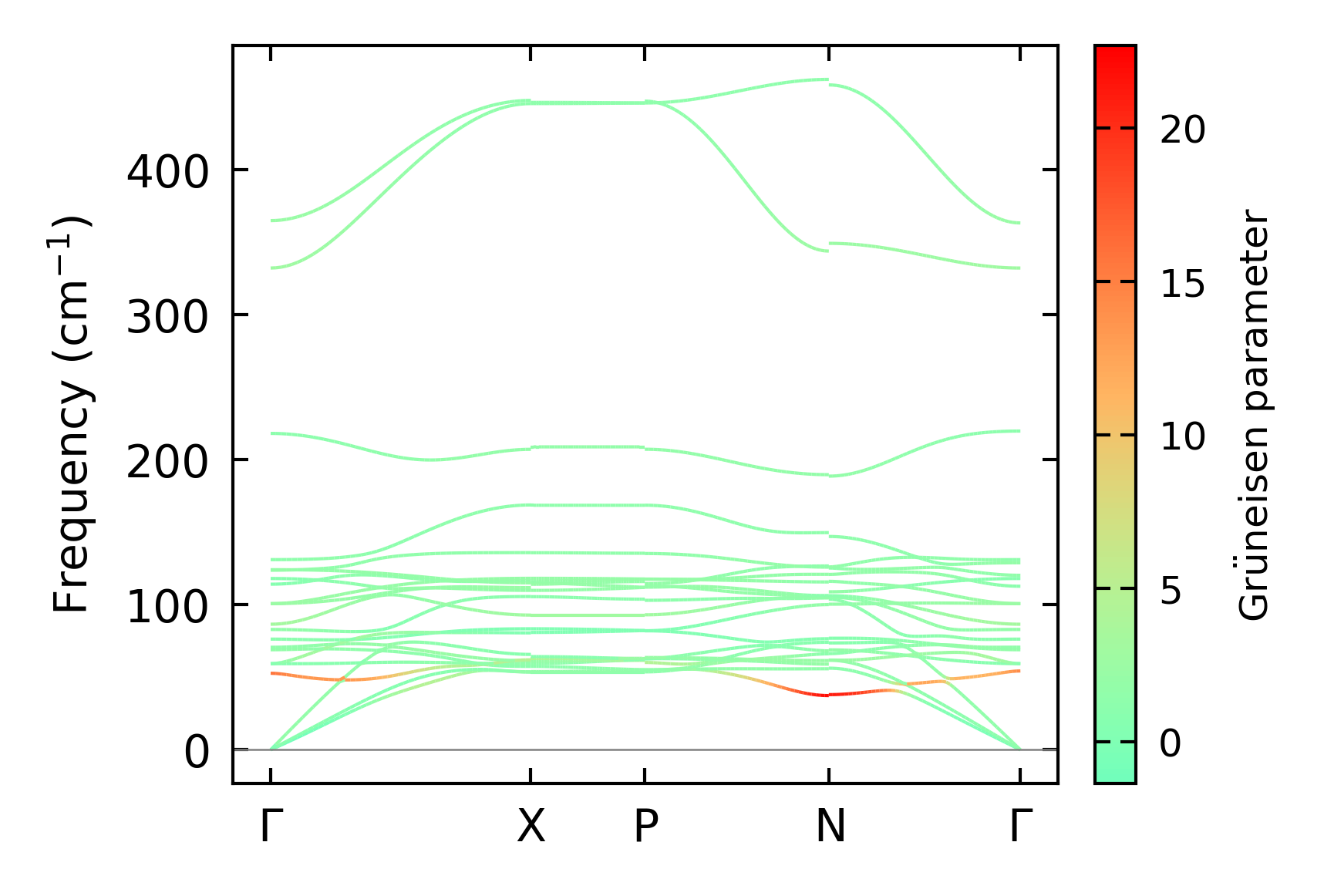

../../_images/fig_gruneisen1795.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 13x13x13, supercell: 3x3x1

../../_images/fig_kappa3448.png — (a) Temperature-dependent lattice thermal conductivity

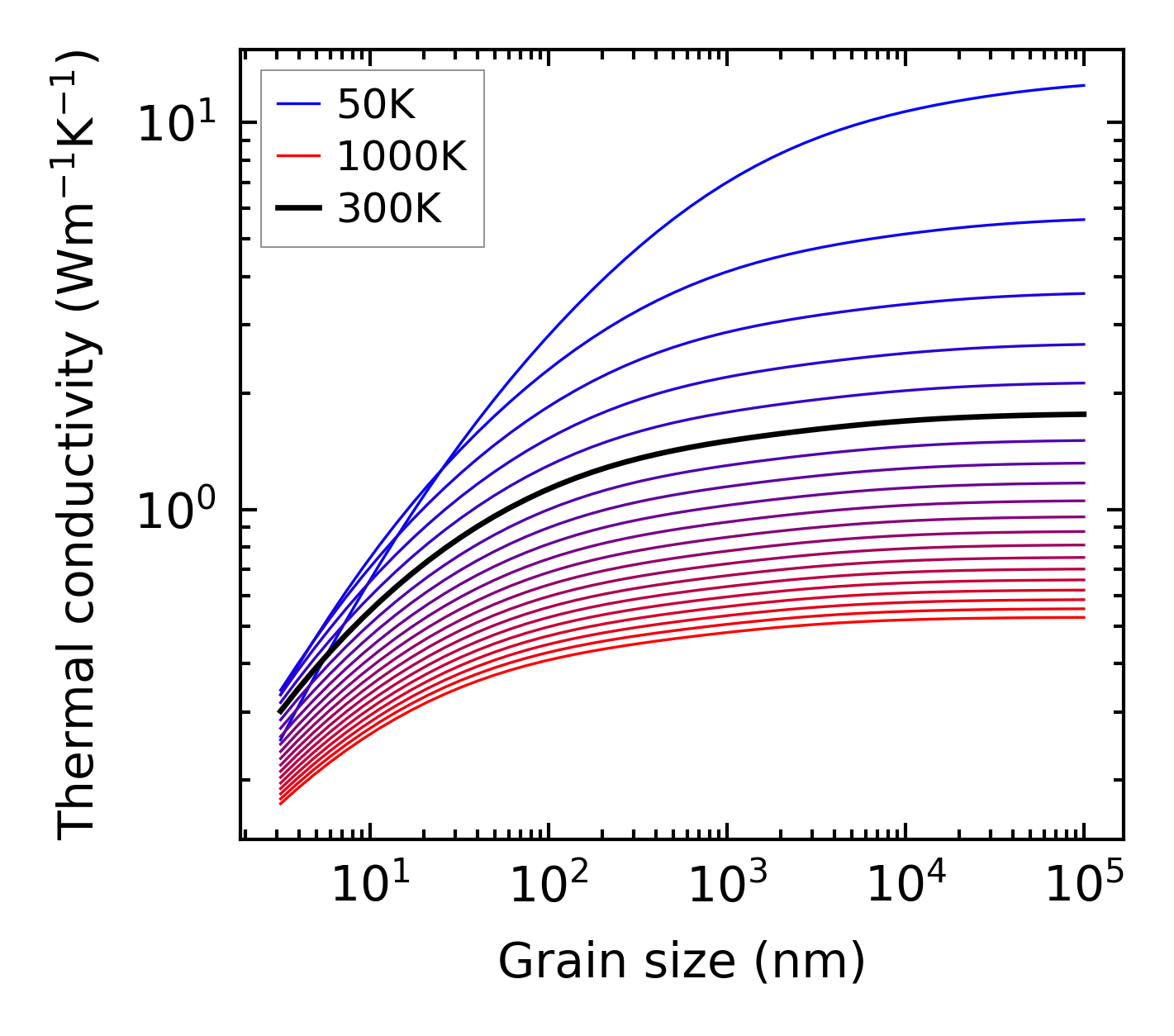

../../_images/fig_kappa_vs_grain_size1823.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

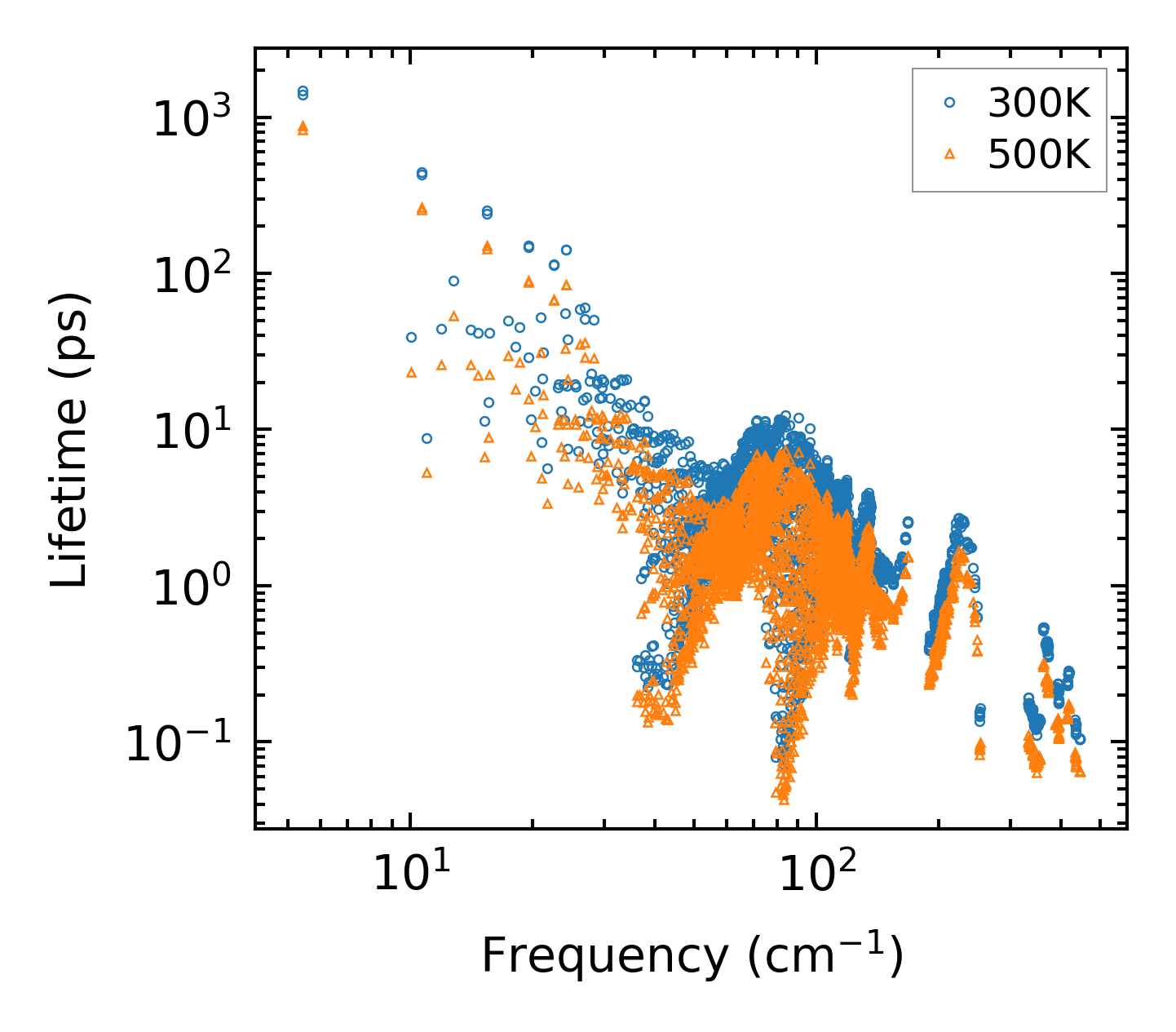

../../_images/fig_lifetime1785.png — (a) Phonon lifetime due to phonon-phonon scattering

../../_images/fig_scat_rates1784.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

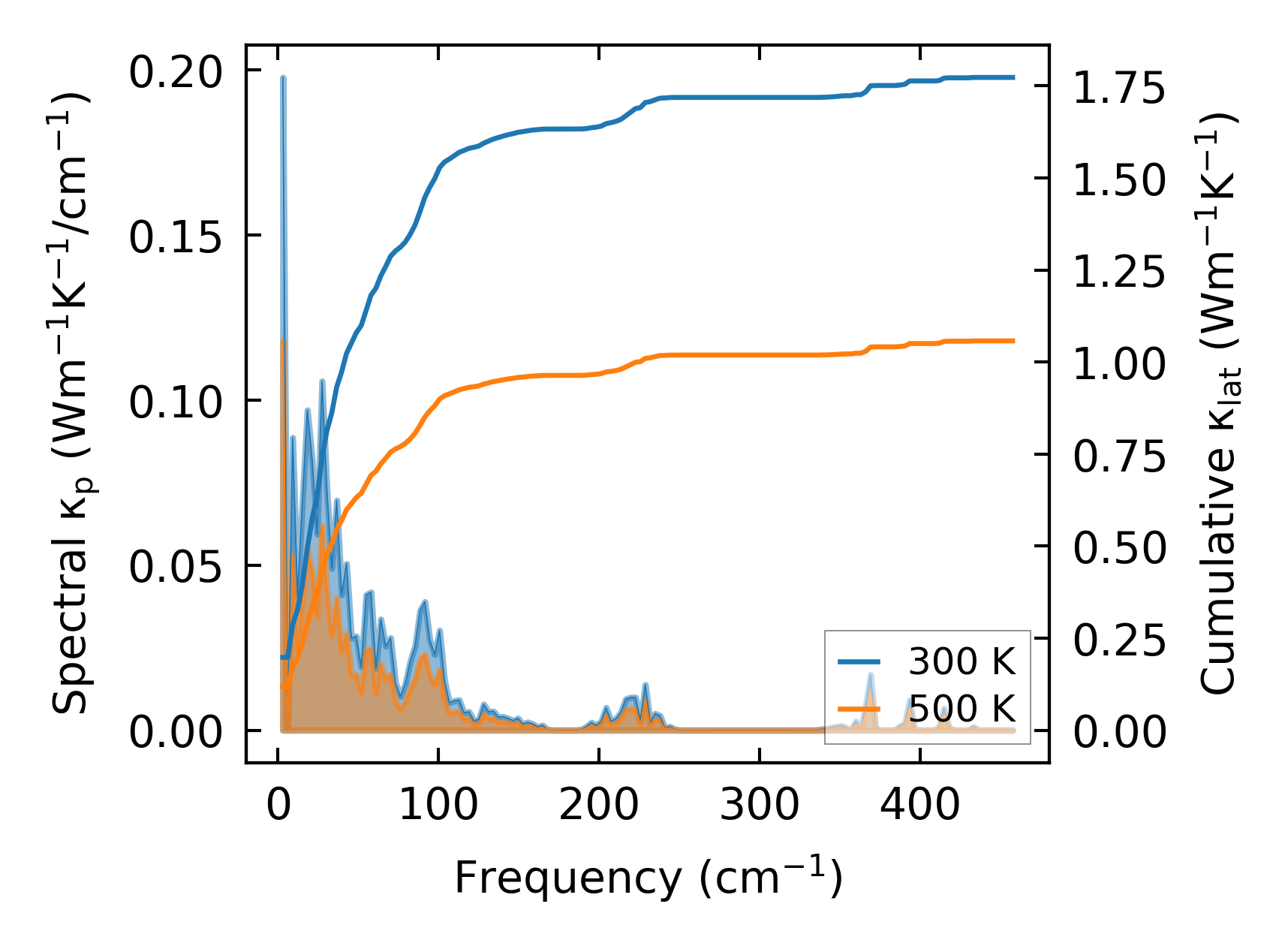

../../_images/fig_cumu_frequency1785.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

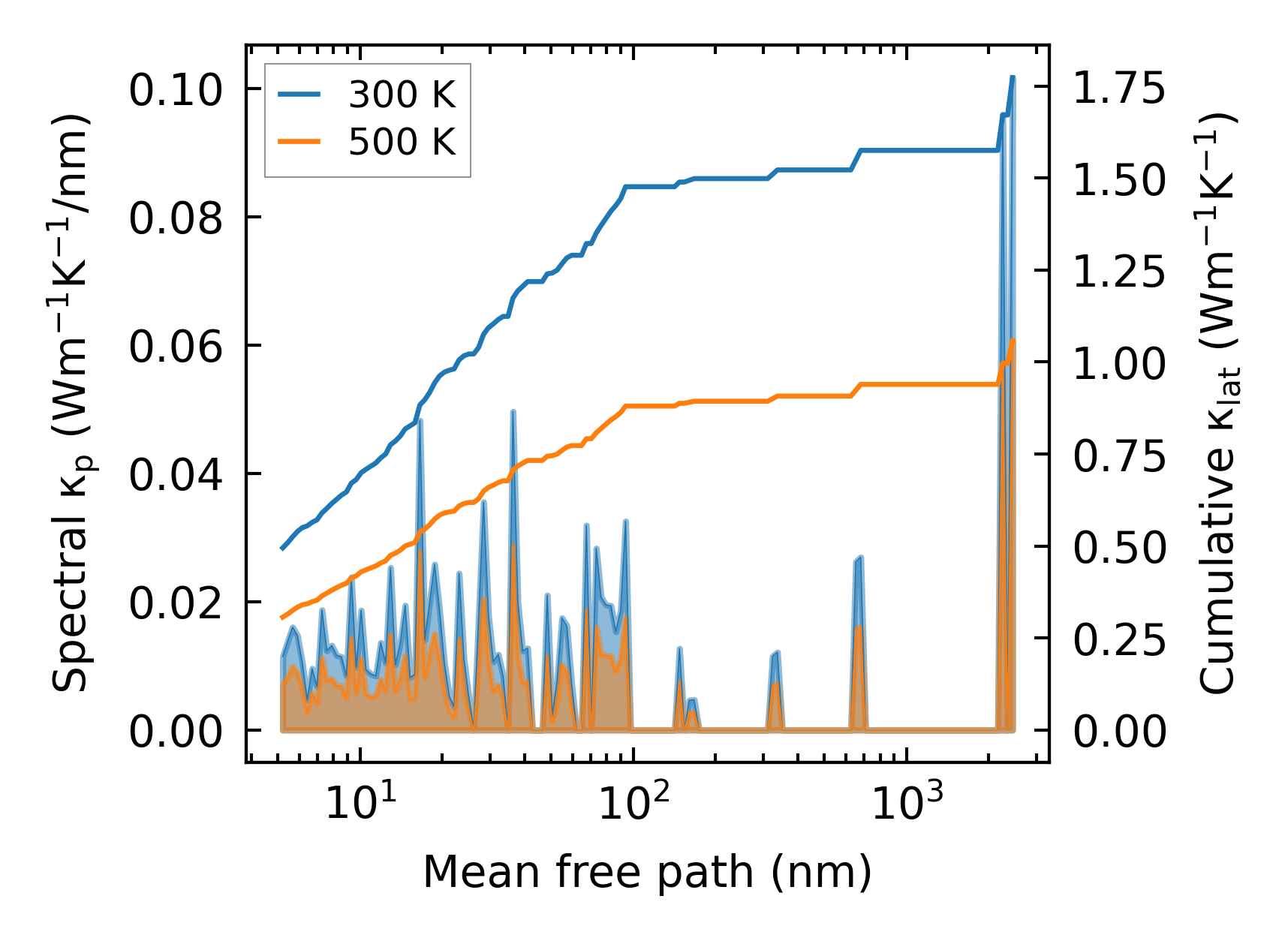

../../_images/fig_cumu_mfp1785.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

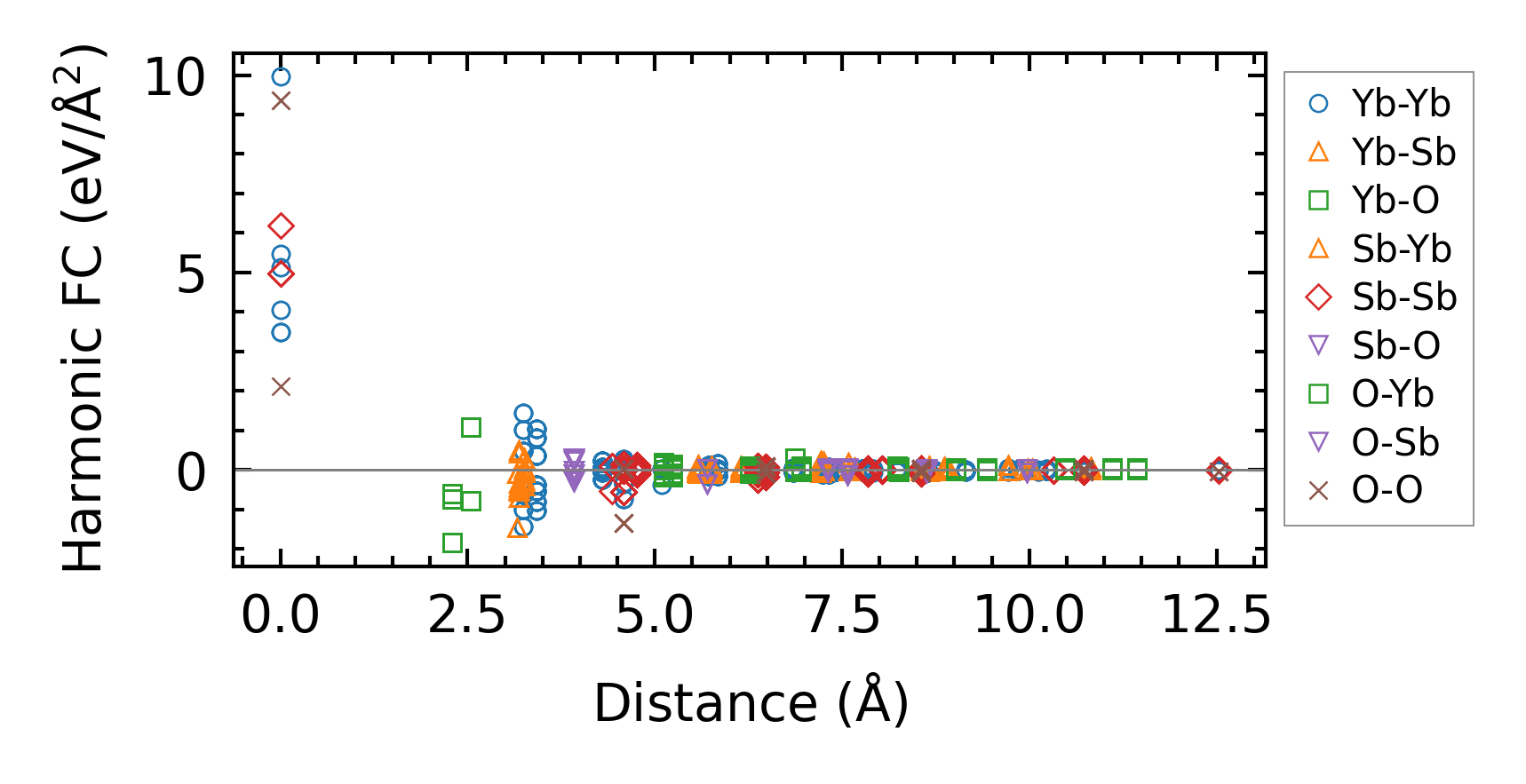

../../_images/fig_fc23798.png — (a) Force constants w.r.t atomic distance

Summary

../../_images/fig_kappa3449.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_times6901.png — (b) Computation time
