mp-753001/CoAgO2/anharm

Space group: R-3m (166)
Link: Materials Project
Download: mp-753001.tar.gz

Harmonic properties

../../_images/fig_bandos_pr3972.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo3972.png — (b) Thermodynamic properties

Grüneisen parameters

../../_images/fig_gru_all1790.png — (a) Grüneisen parameters

../../_images/fig_gruneisen1790.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 20x20x20, supercell: 3x3x1

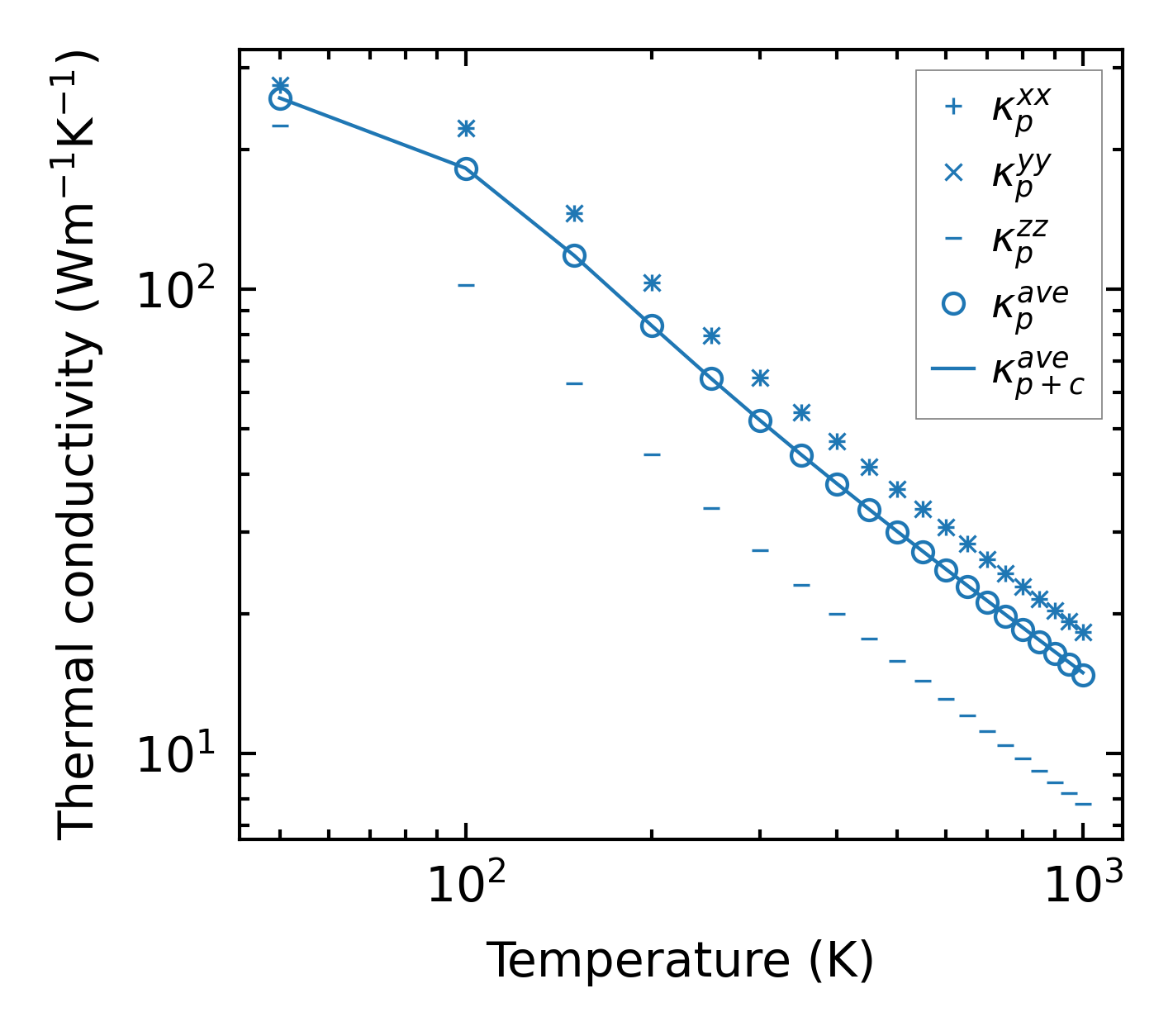

../../_images/fig_kappa3438.png — (a) Temperature-dependent lattice thermal conductivity

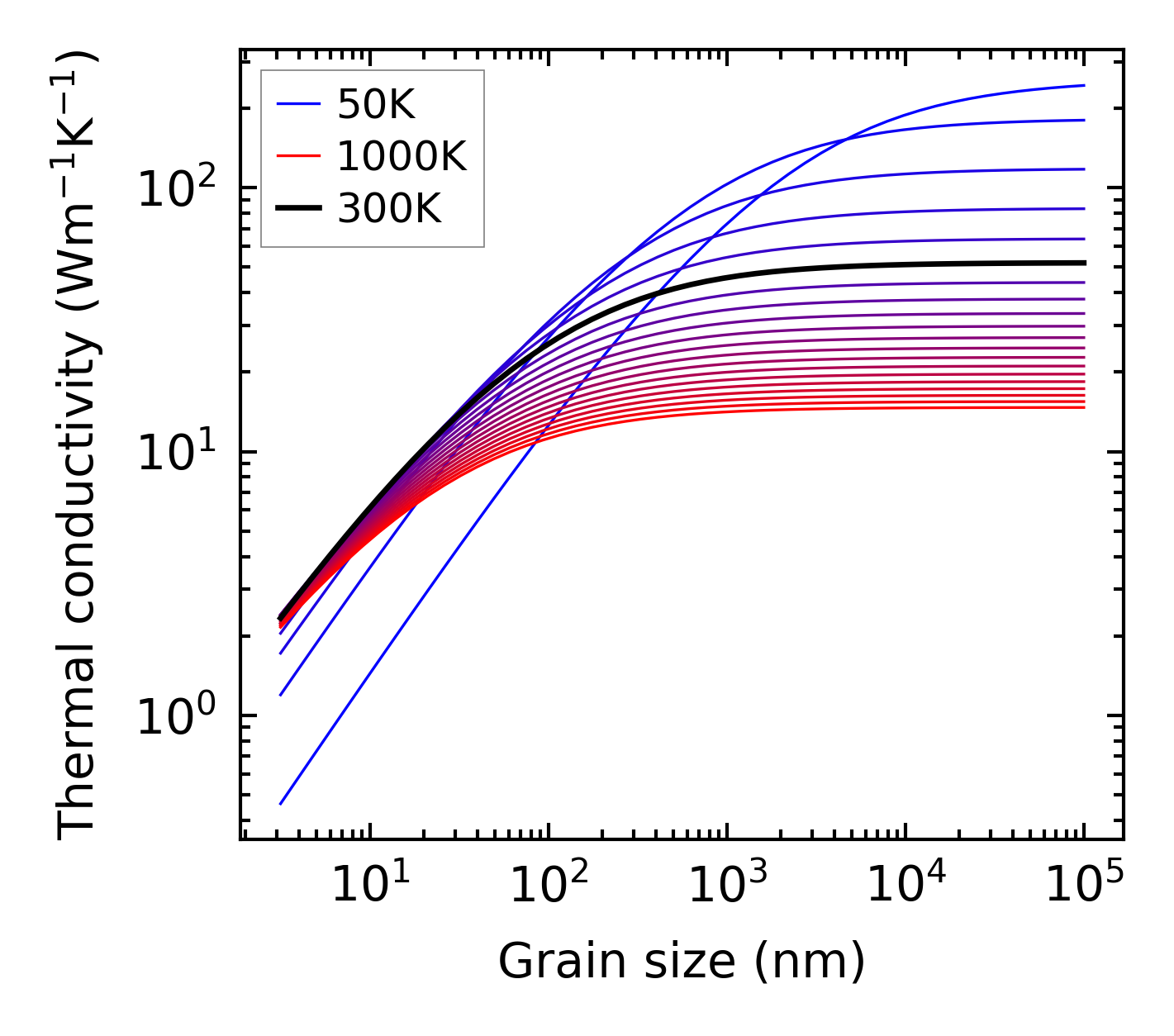

../../_images/fig_kappa_vs_grain_size1818.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

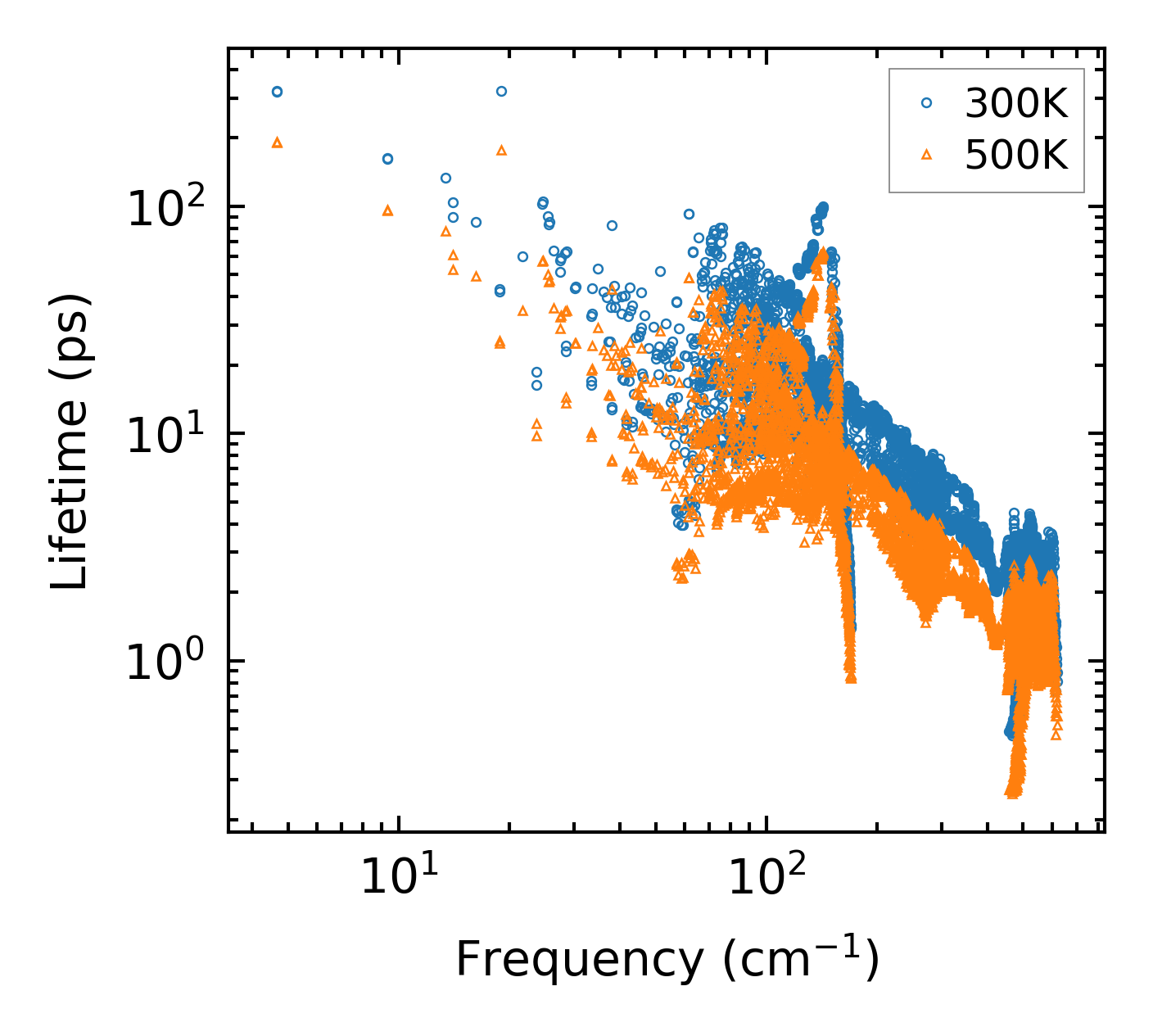

../../_images/fig_lifetime1780.png — (a) Phonon lifetime due to phonon-phonon scattering

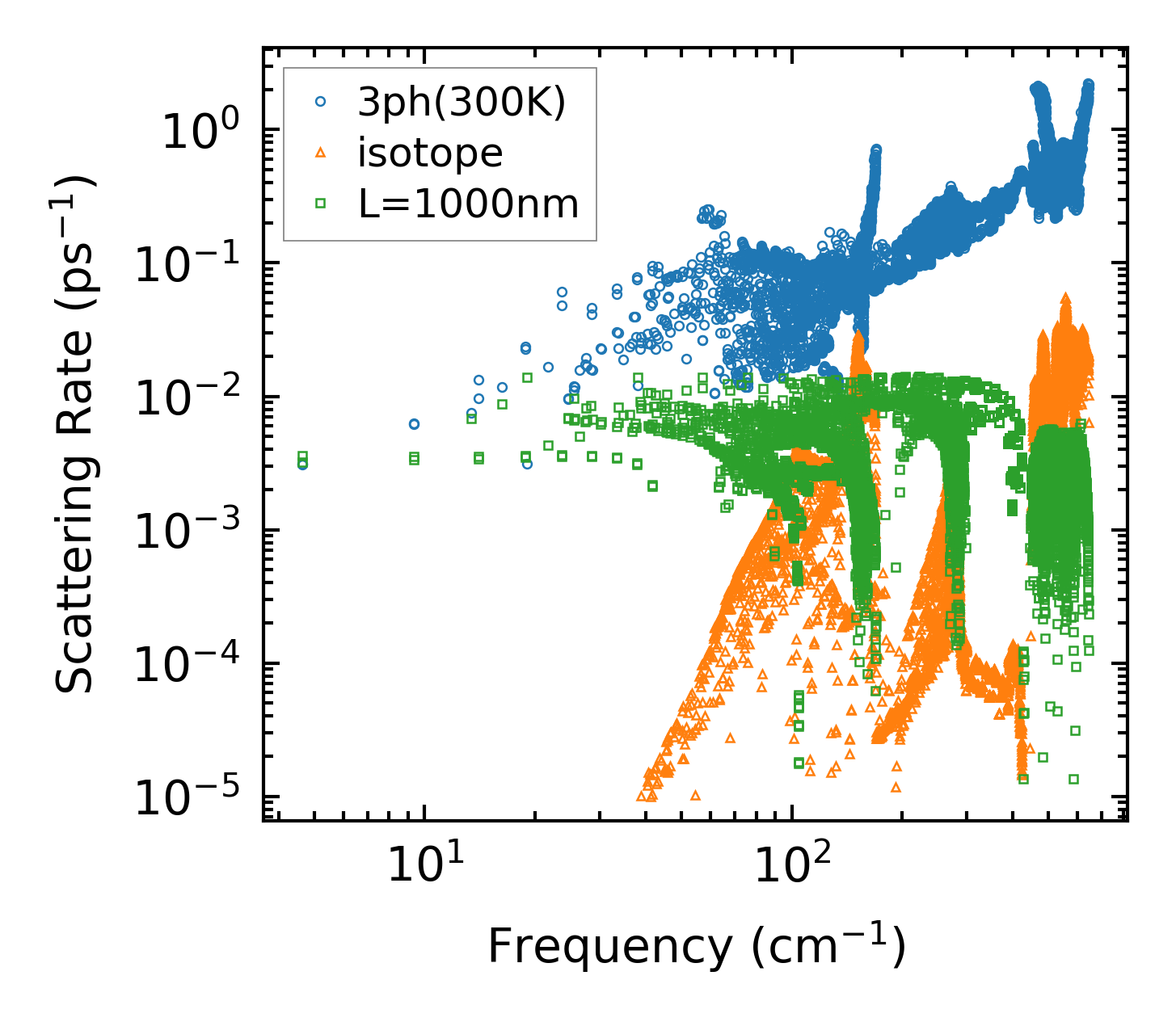

../../_images/fig_scat_rates1779.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

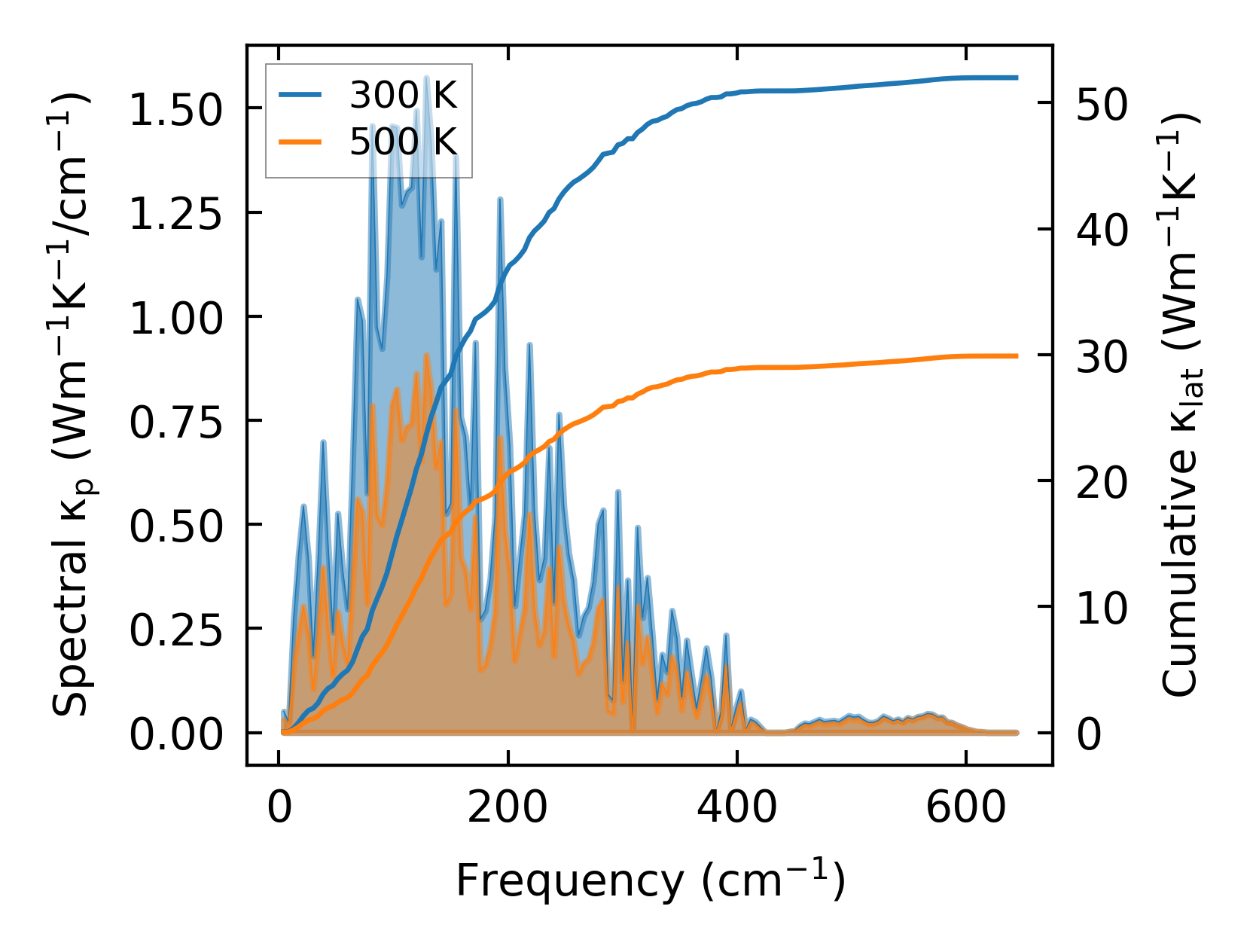

../../_images/fig_cumu_frequency1780.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

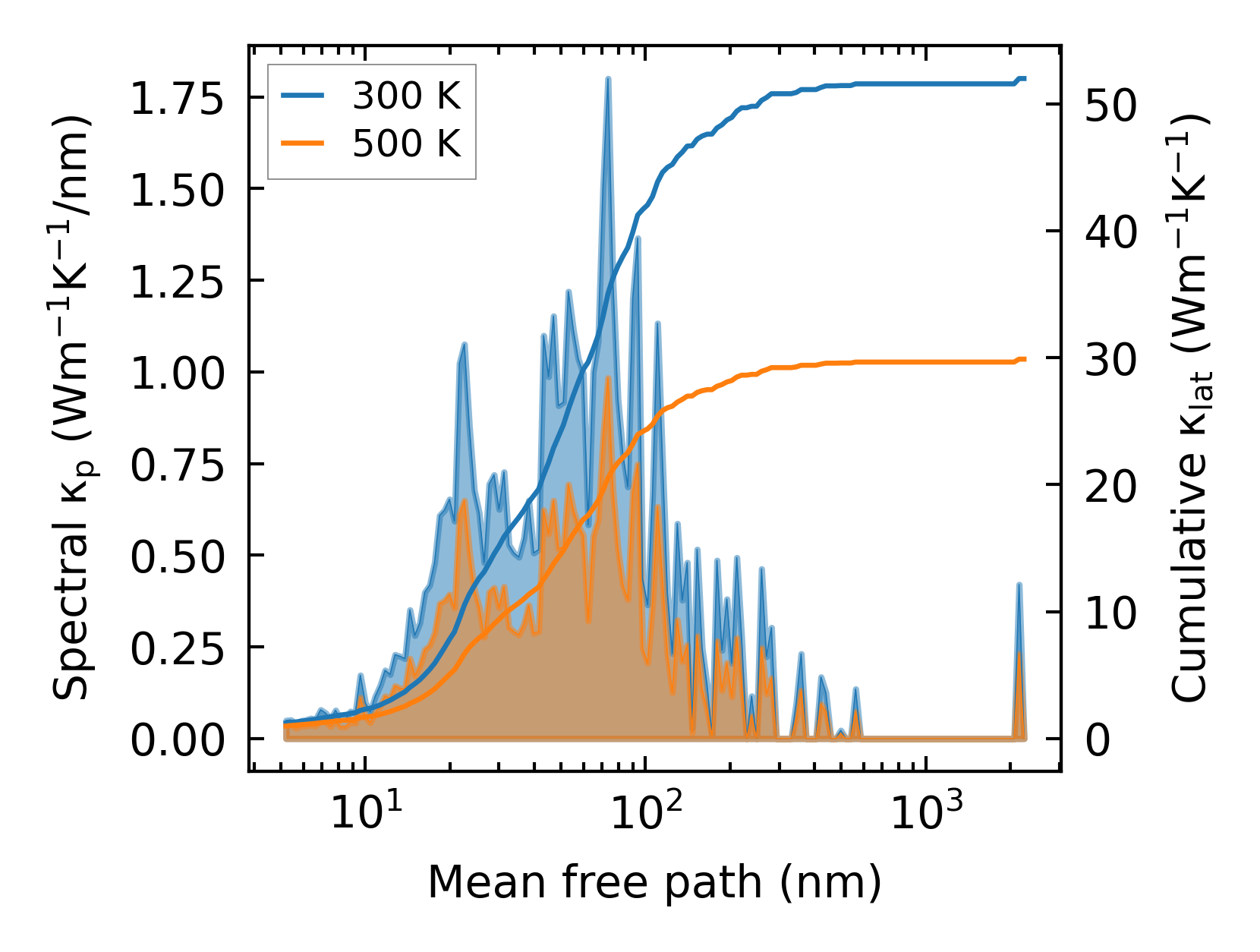

../../_images/fig_cumu_mfp1780.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

../../_images/fig_fc23785.png — (a) Force constants w.r.t atomic distance

Summary

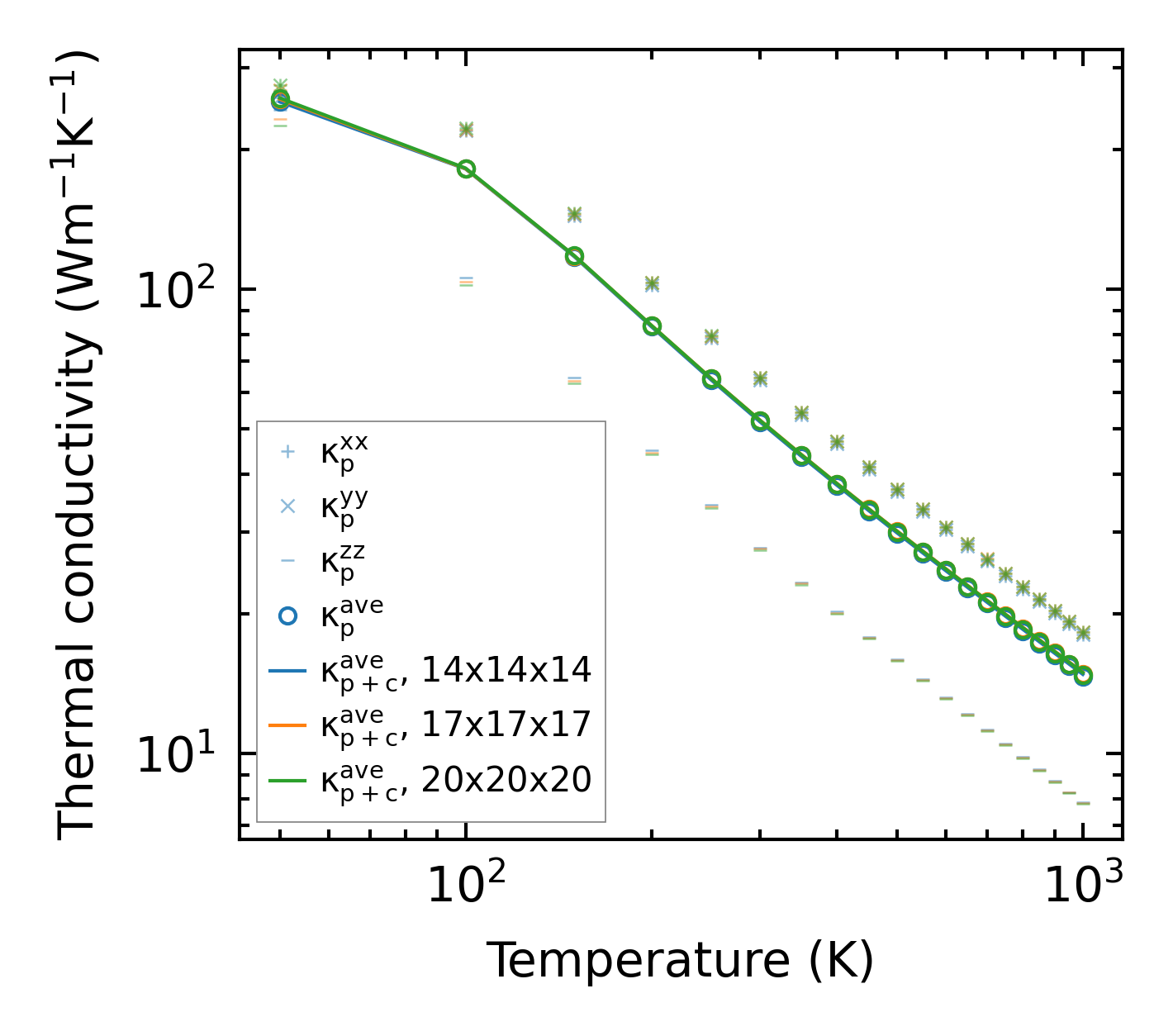

../../_images/fig_kappa3439.png — (a) Temperature-dependent lattice thermal conductivity

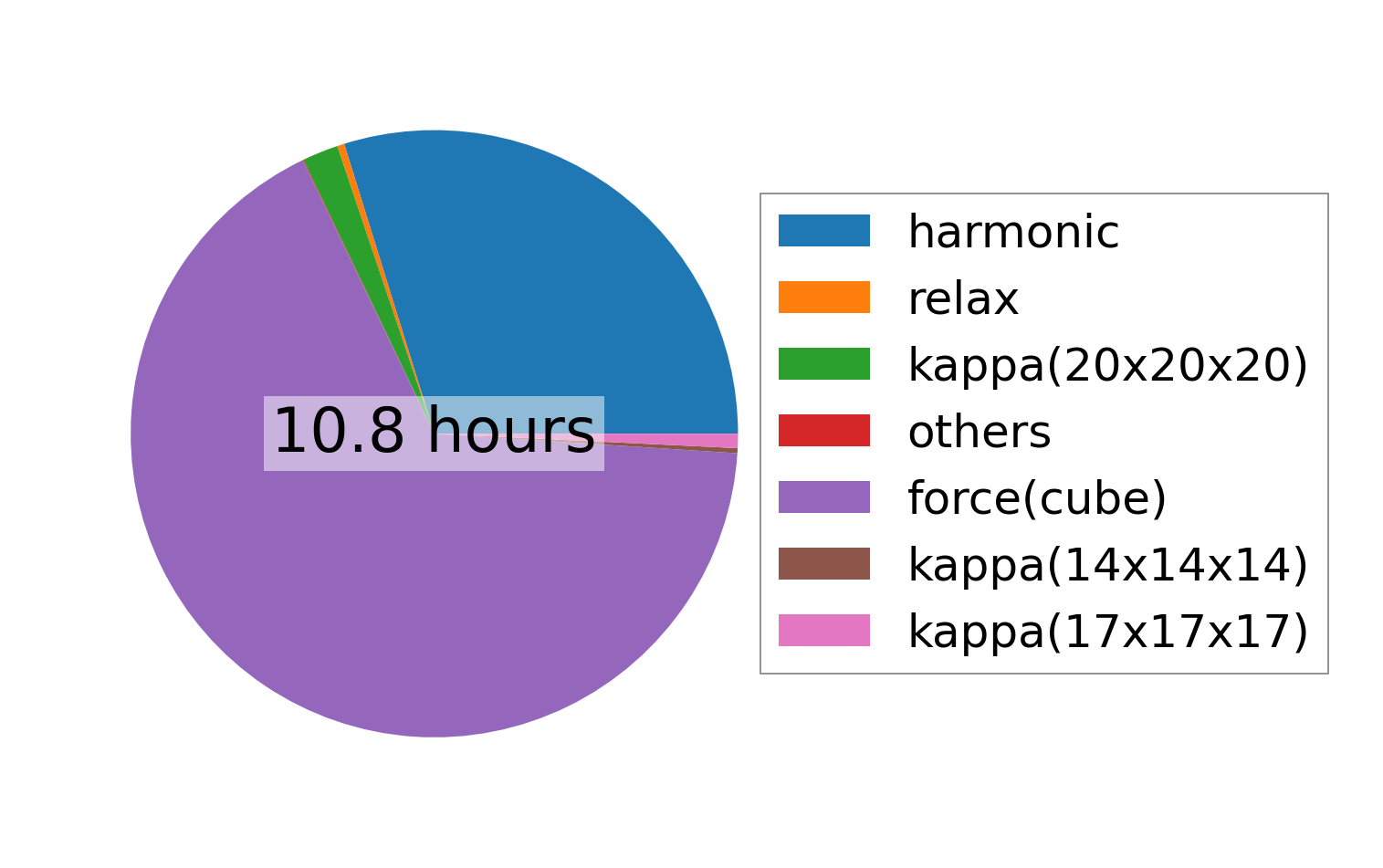

../../_images/fig_times6881.png — (b) Computation time
