mp-753798-2/Rb2SnO3/anharm

Space group: Cmc2_1 (36)
Link: Materials Project
Download: mp-753798-2.tar.gz

Equation of state

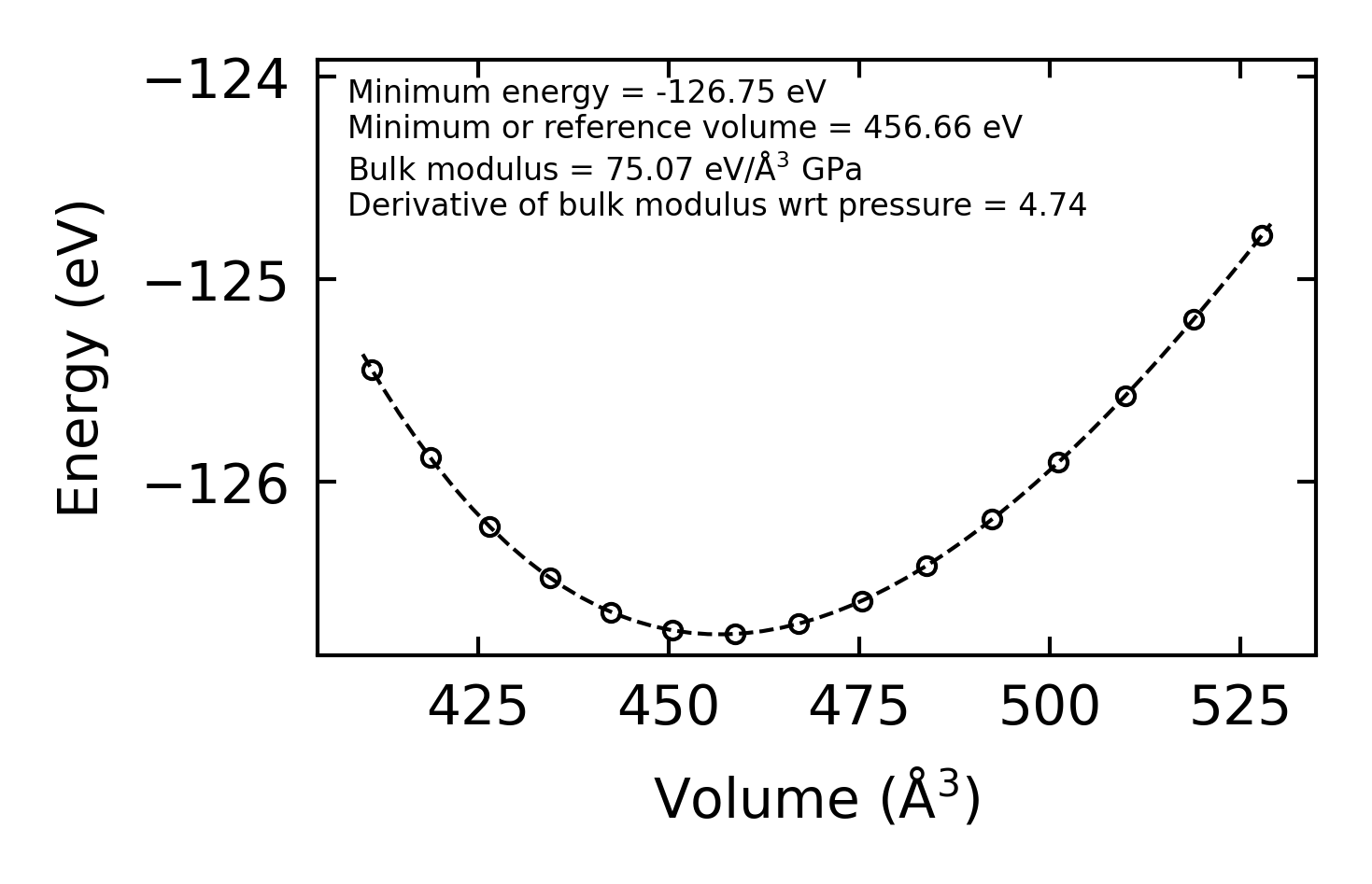

../../_images/fig_bm1834.png — (a) Equation of state

Harmonic properties

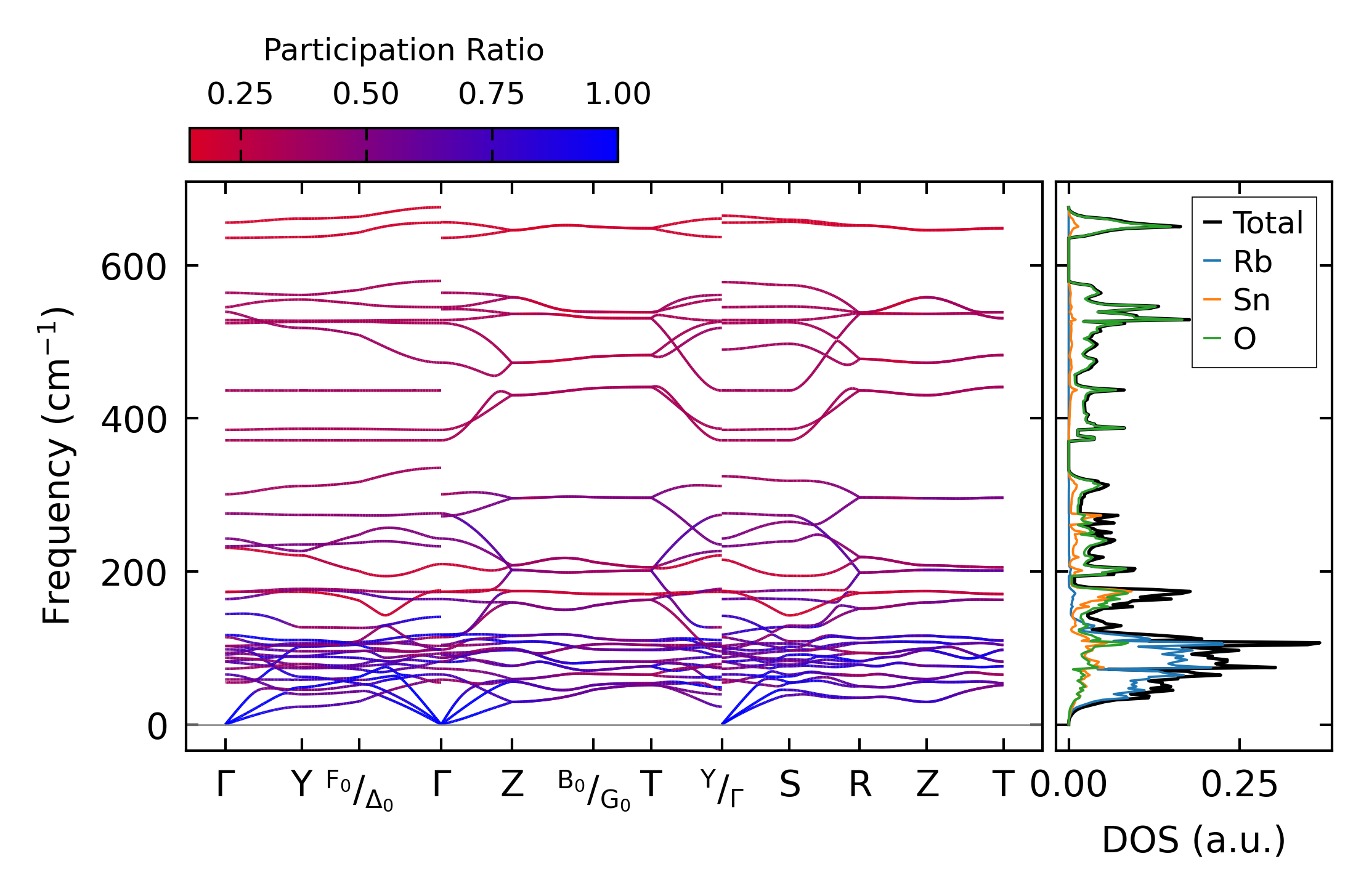

../../_images/fig_bandos_pr3746.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo3746.png — (b) Thermodynamic properties

Grüneisen parameters

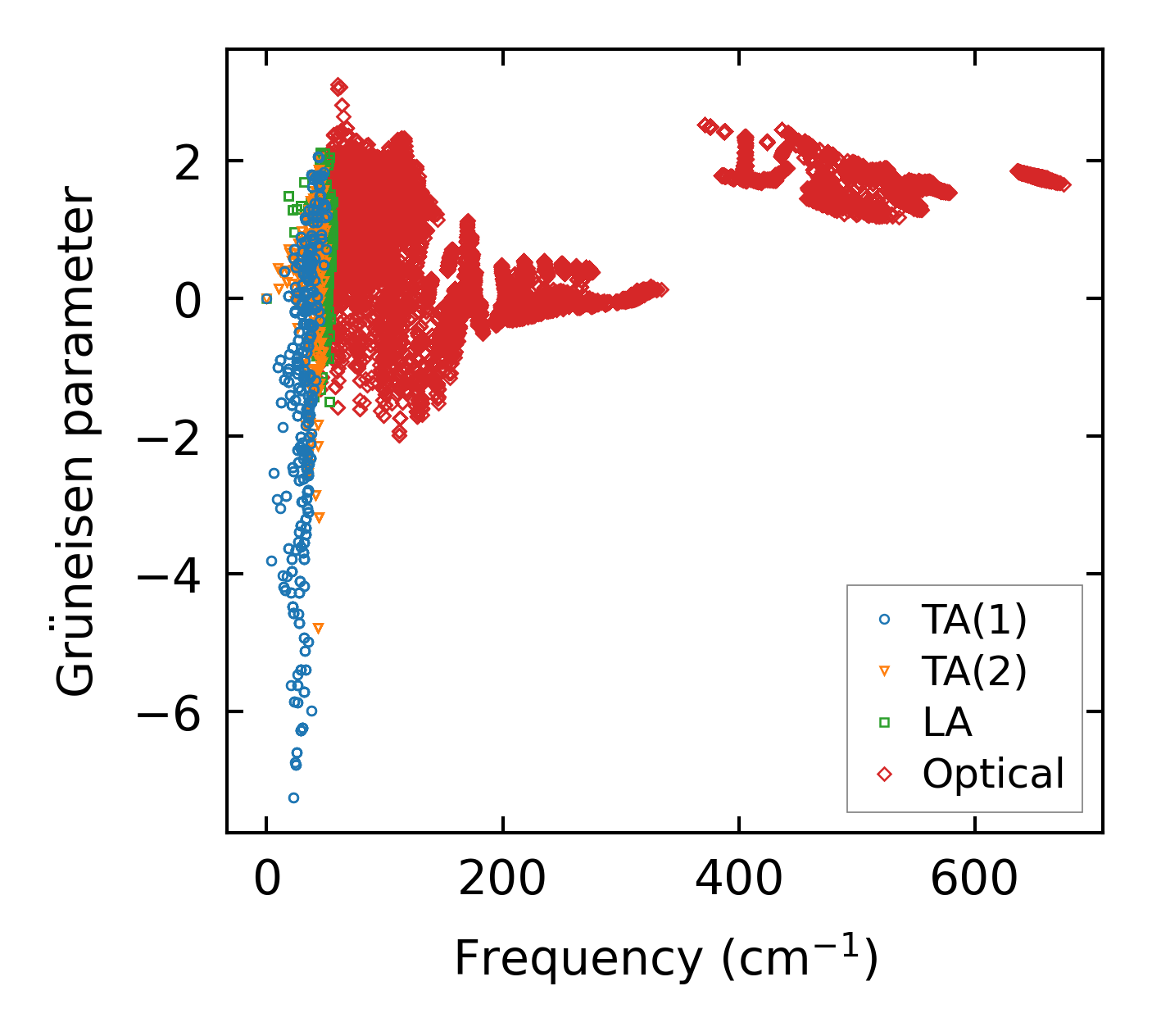

../../_images/fig_gru_all1686.png — (a) Grüneisen parameters

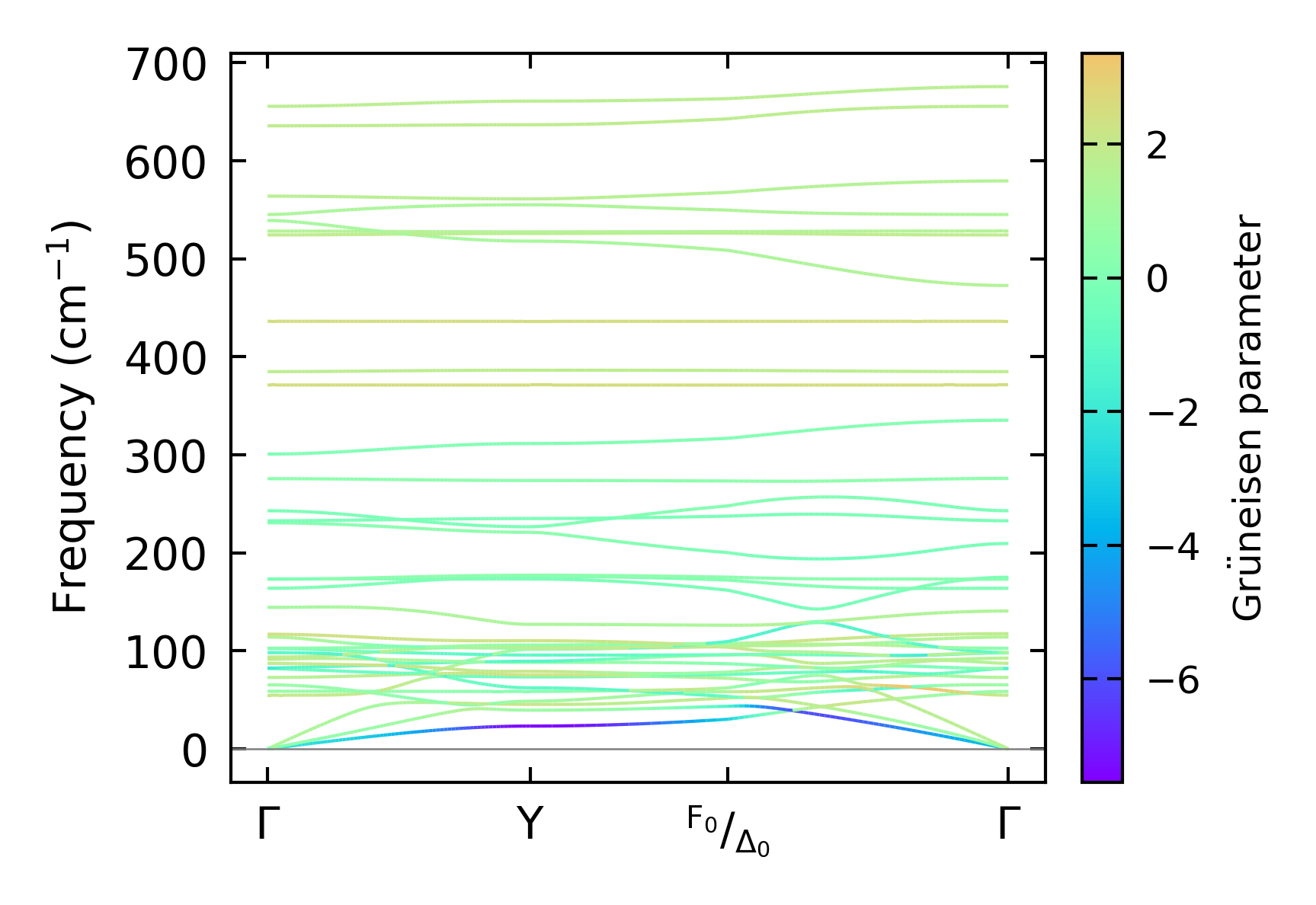

../../_images/fig_gruneisen1686.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 11x11x12, supercell: 1x2x2

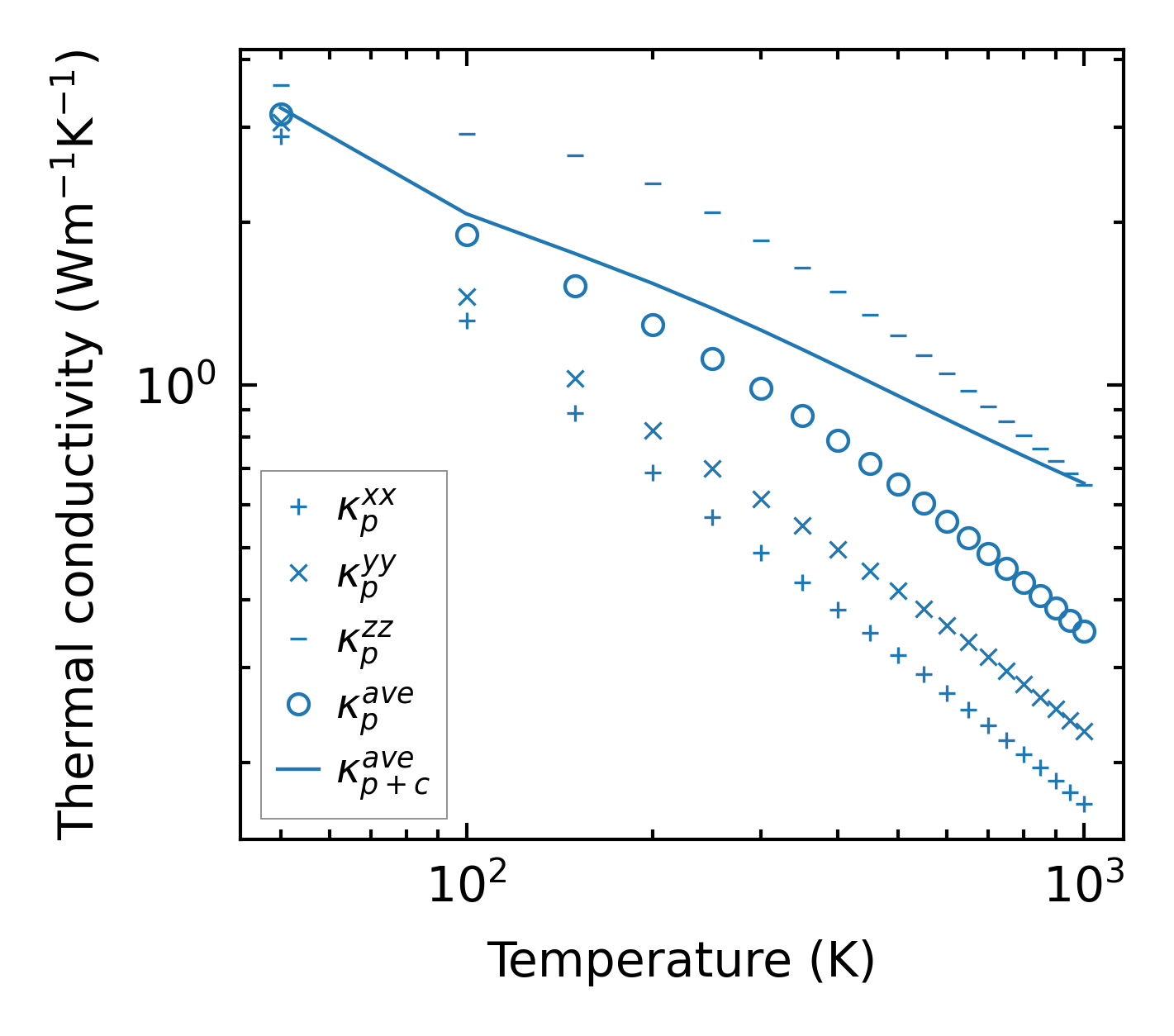

../../_images/fig_kappa3241.png — (a) Temperature-dependent lattice thermal conductivity

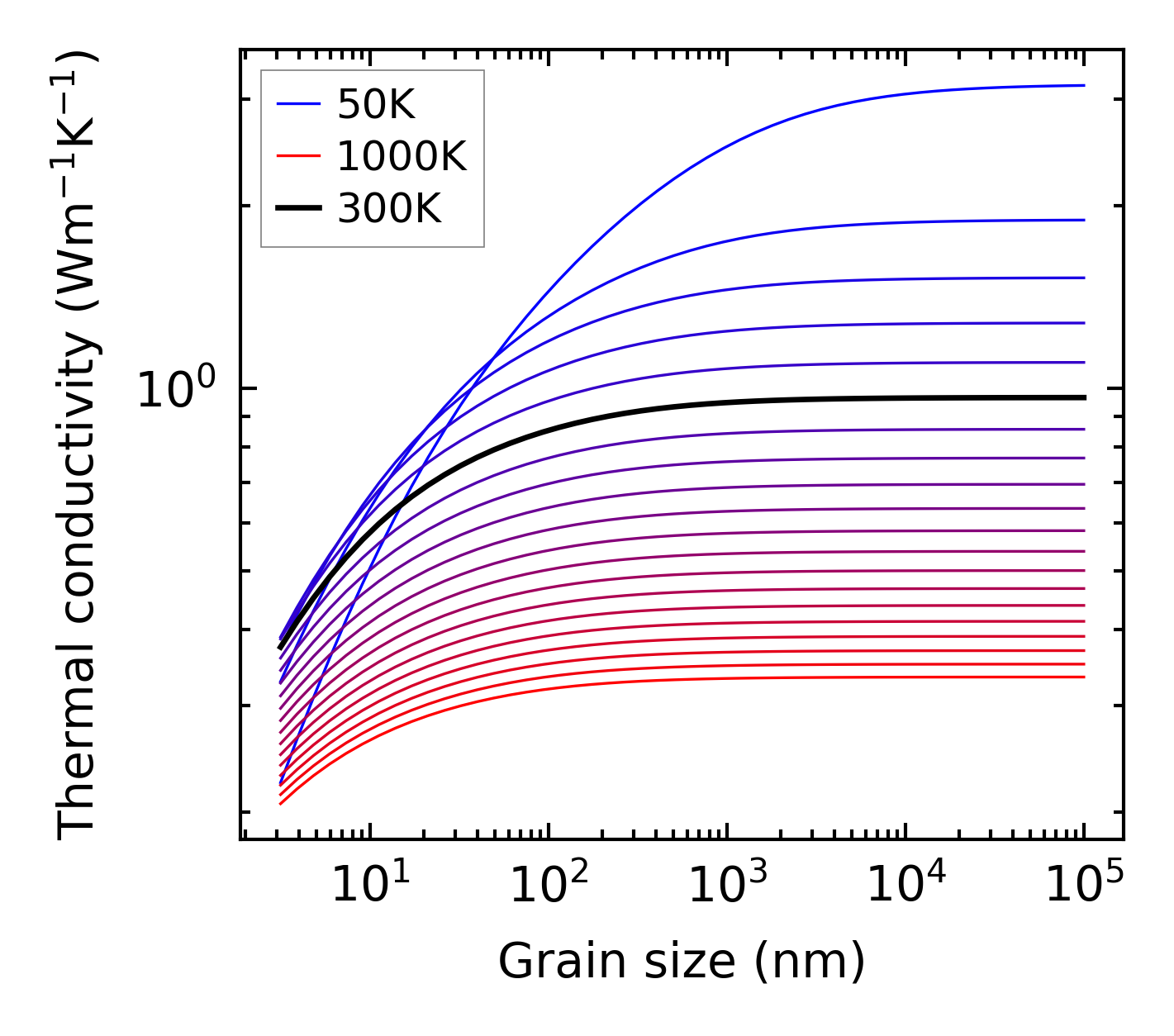

../../_images/fig_kappa_vs_grain_size1709.png — (b) Peierls lattice thermal conductivity w.r.t grain size

3-phonon (LASSO), supercell 2x2x2 — q-mesh: 11x11x12, supercell: 2x2x2

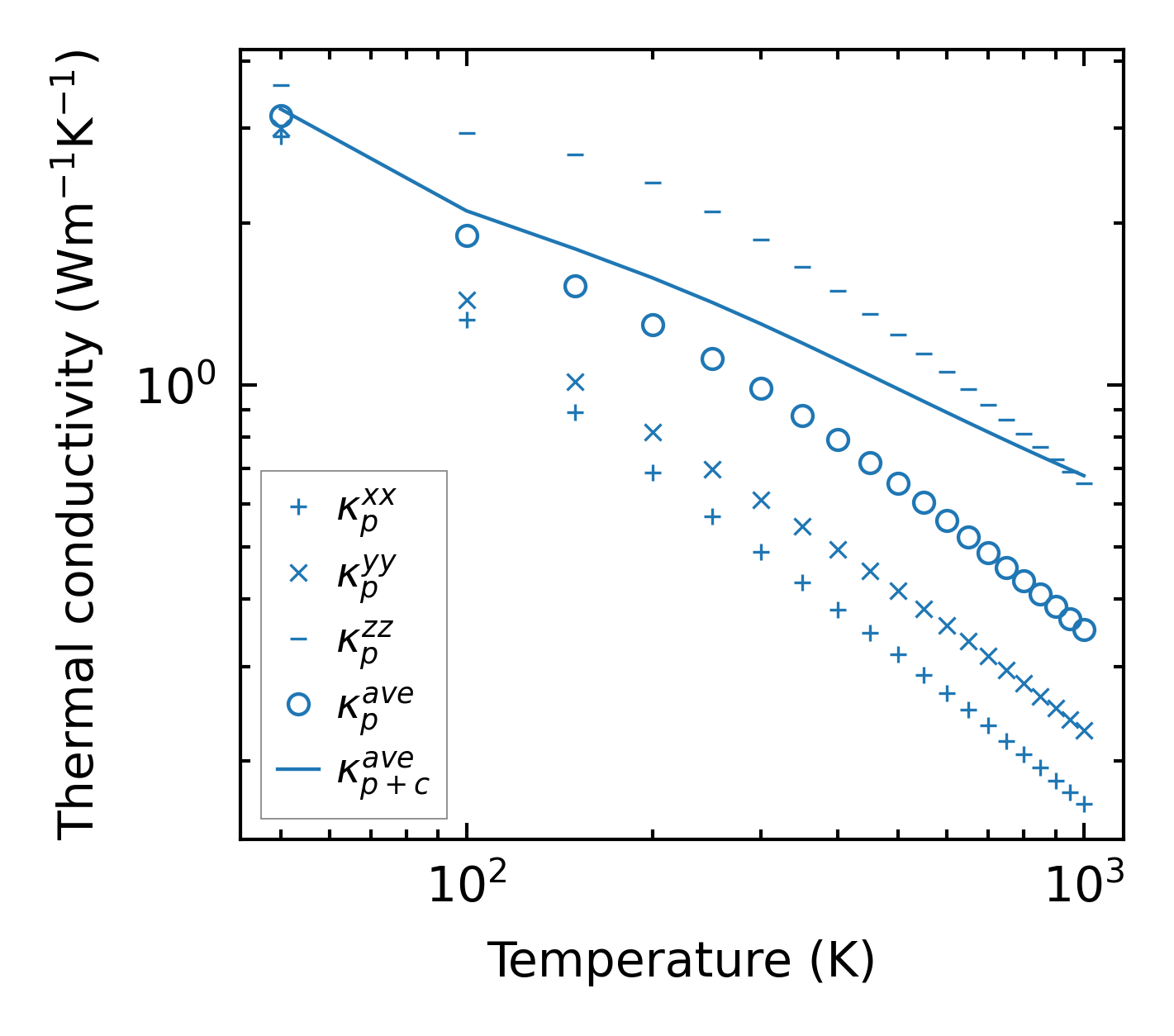

../../_images/fig_kappa3242.png — (a) Temperature-dependent lattice thermal conductivity

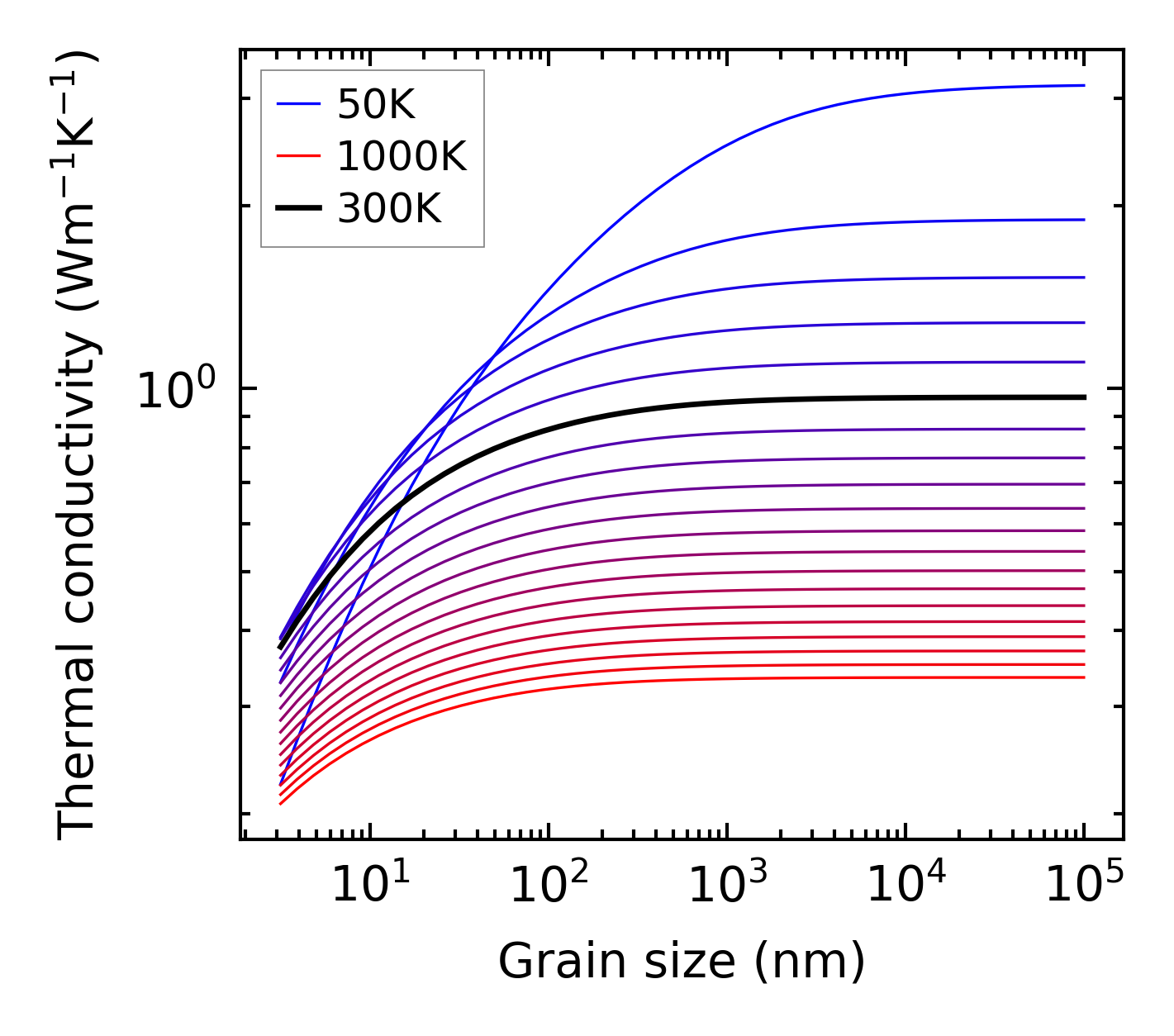

../../_images/fig_kappa_vs_grain_size1710.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

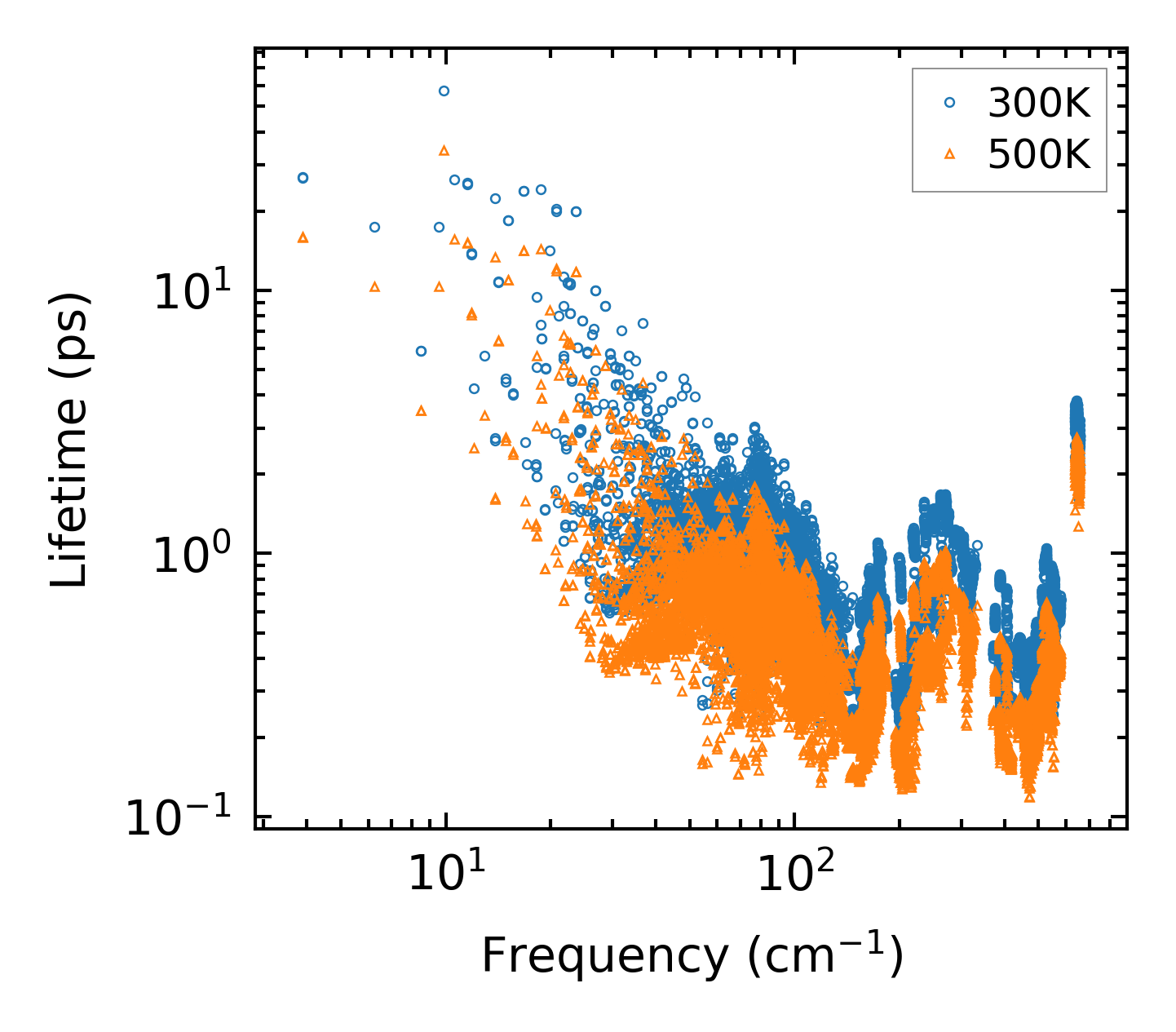

../../_images/fig_lifetime1676.png — (a) Phonon lifetime due to phonon-phonon scattering

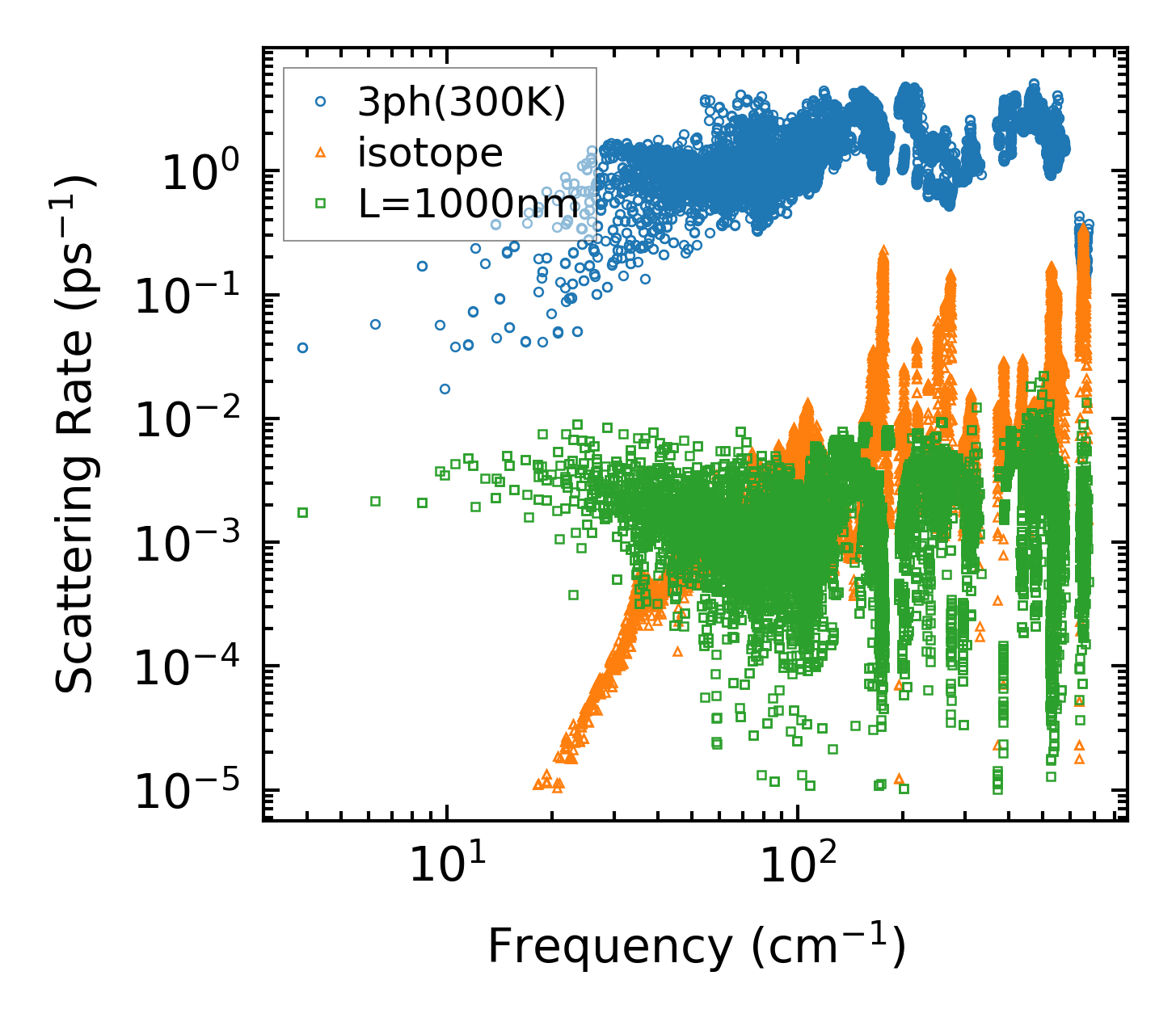

../../_images/fig_scat_rates1675.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

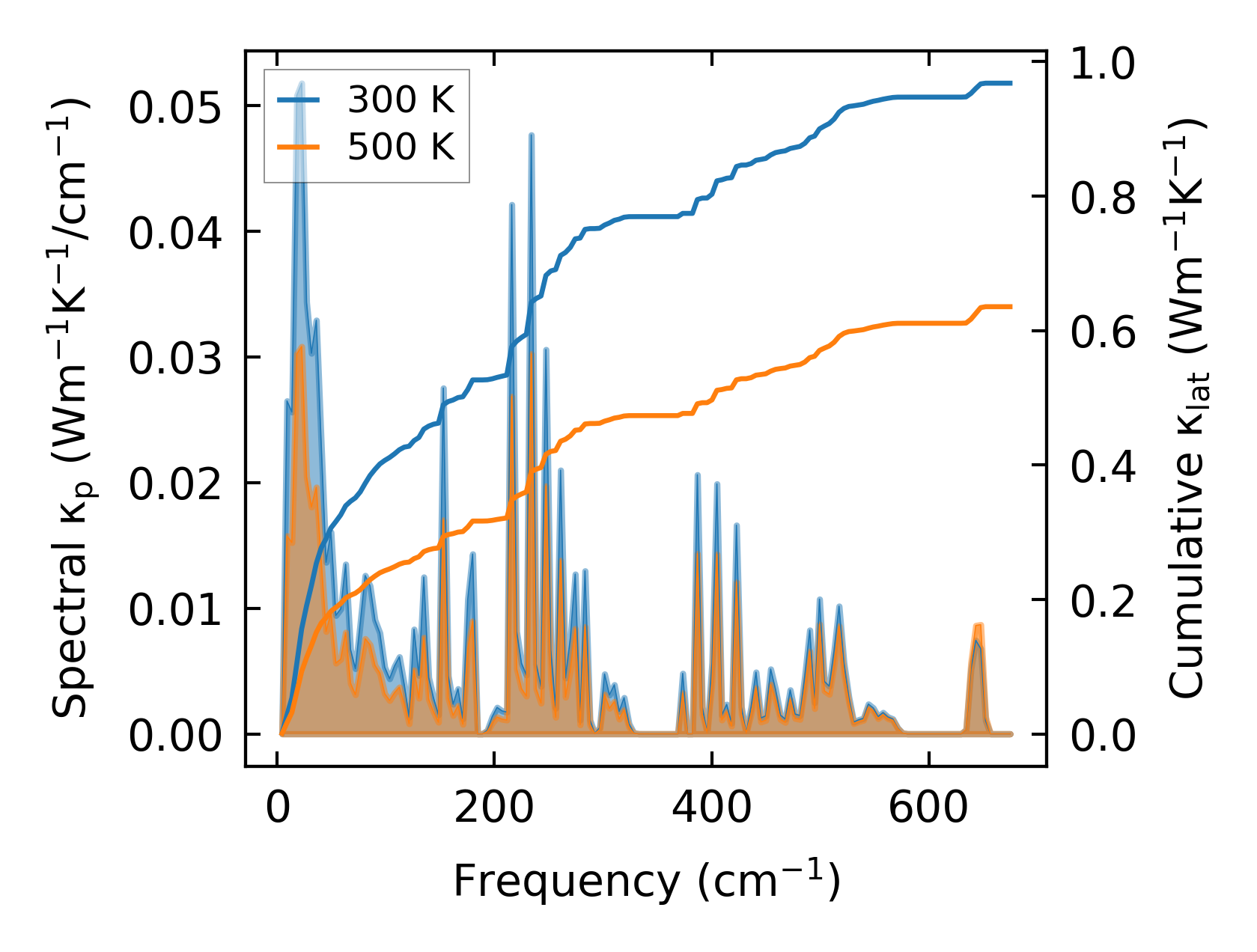

../../_images/fig_cumu_frequency1676.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

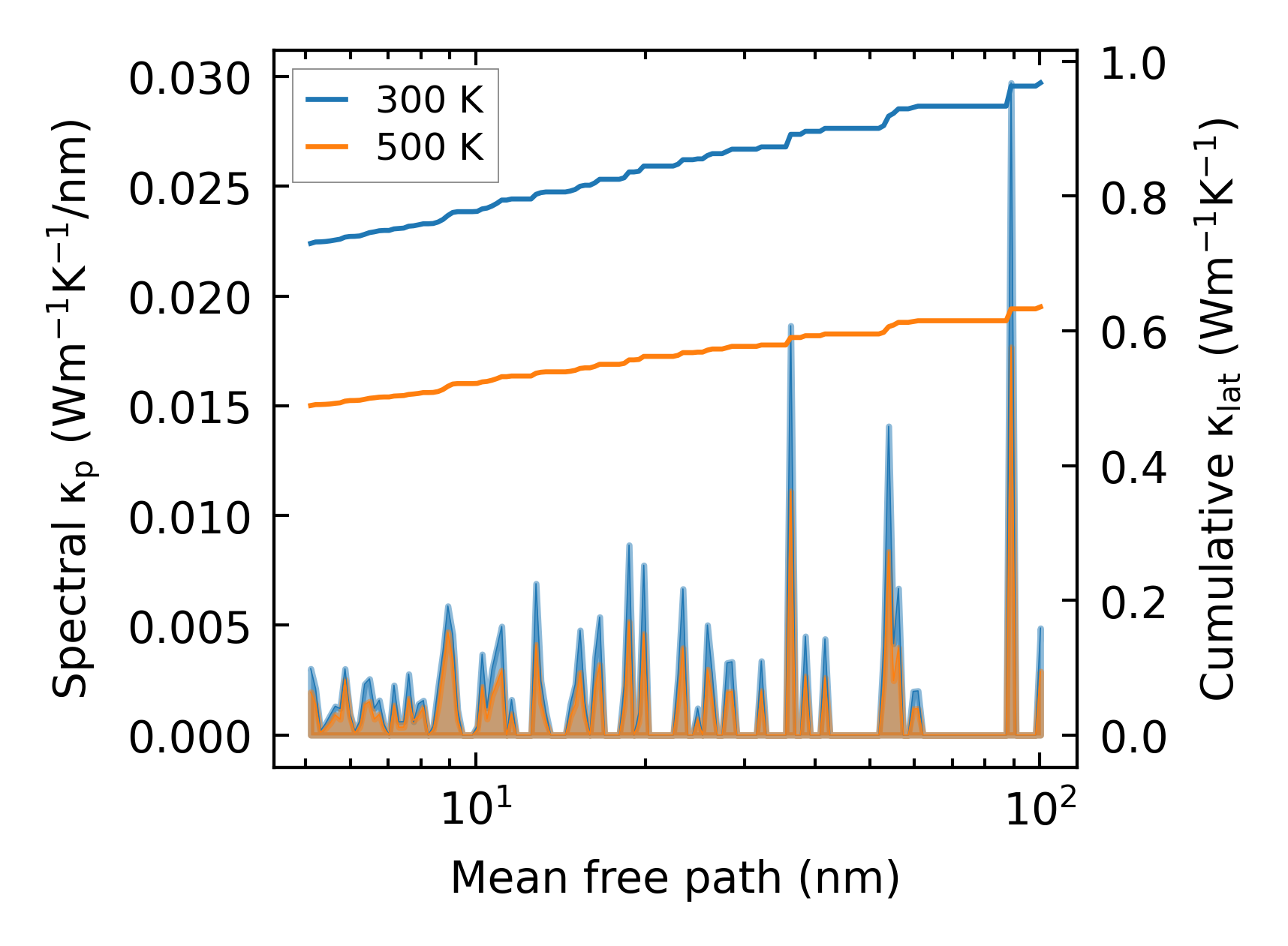

../../_images/fig_cumu_mfp1676.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

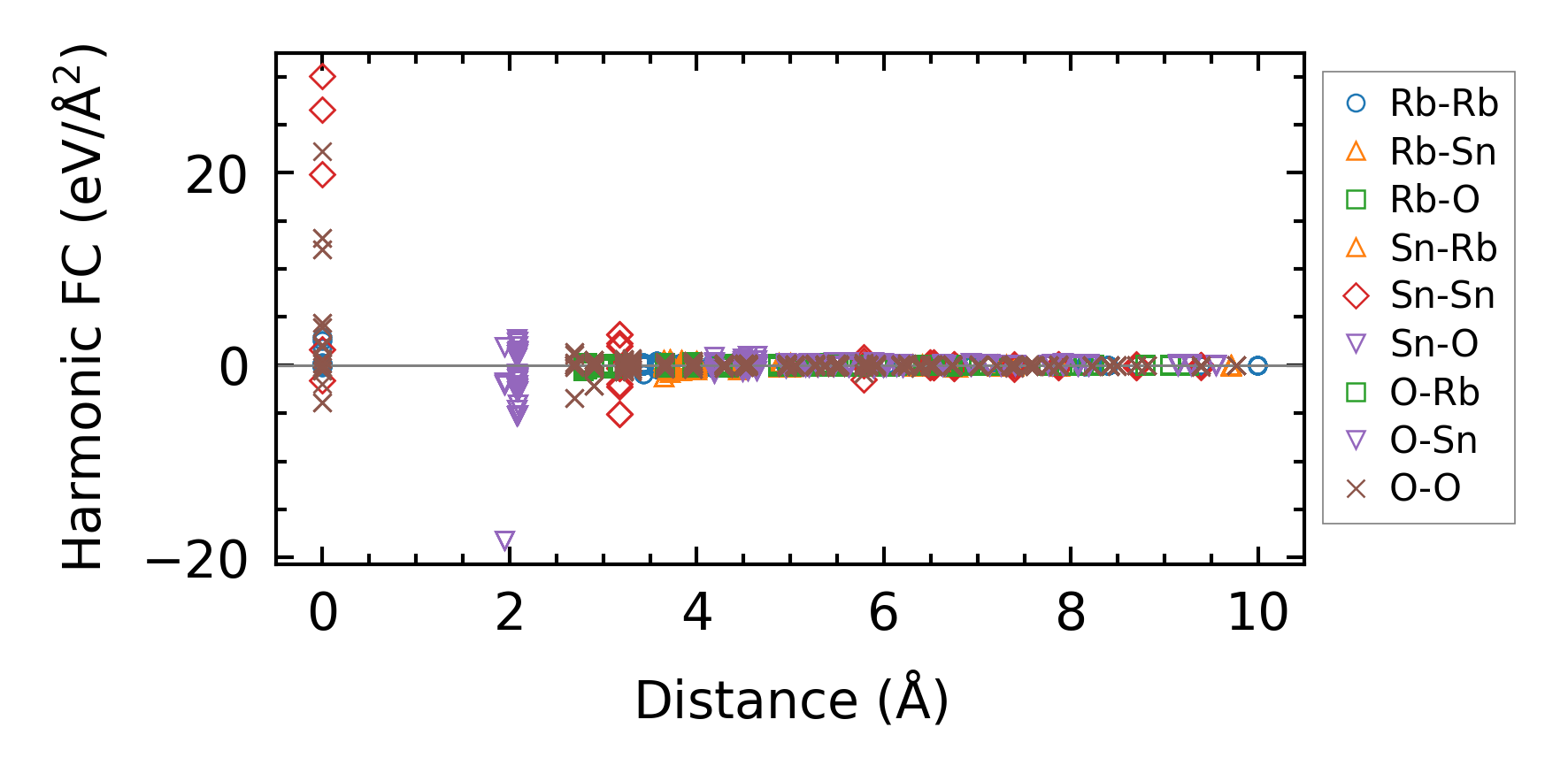

../../_images/fig_fc23561.png — (a) Force constants w.r.t atomic distance

Summary

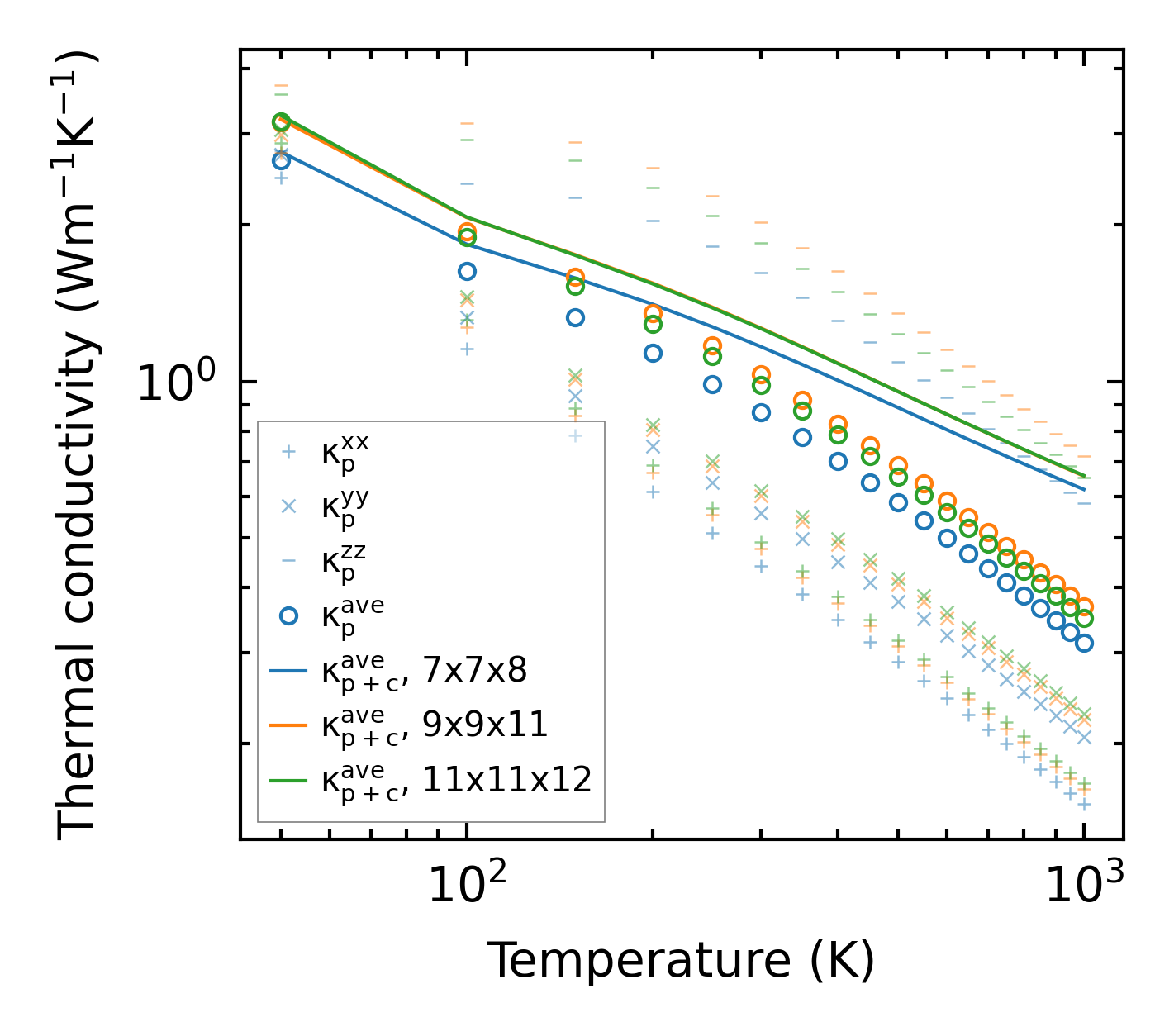

../../_images/fig_kappa3243.png — (a) Temperature-dependent lattice thermal conductivity

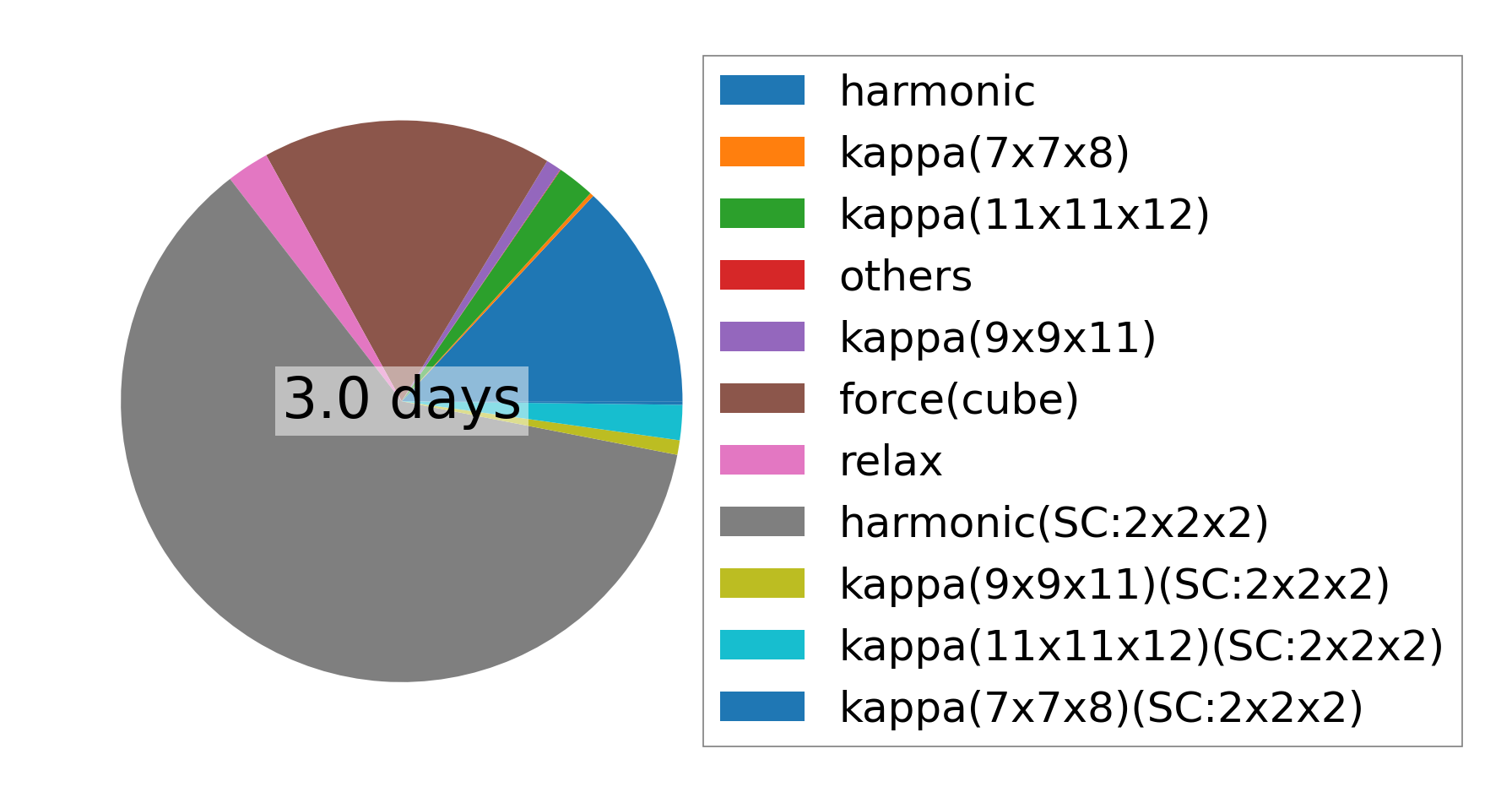

../../_images/fig_times6499.png — (b) Computation time
