mp-753508/LiCuS/anharm

Space group: Pnma (62)
Link: Materials Project
Download: mp-753508.tar.gz

Harmonic properties

../../_images/fig_bandos_pr4014.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo4014.png — (b) Thermodynamic properties

Grüneisen parameters

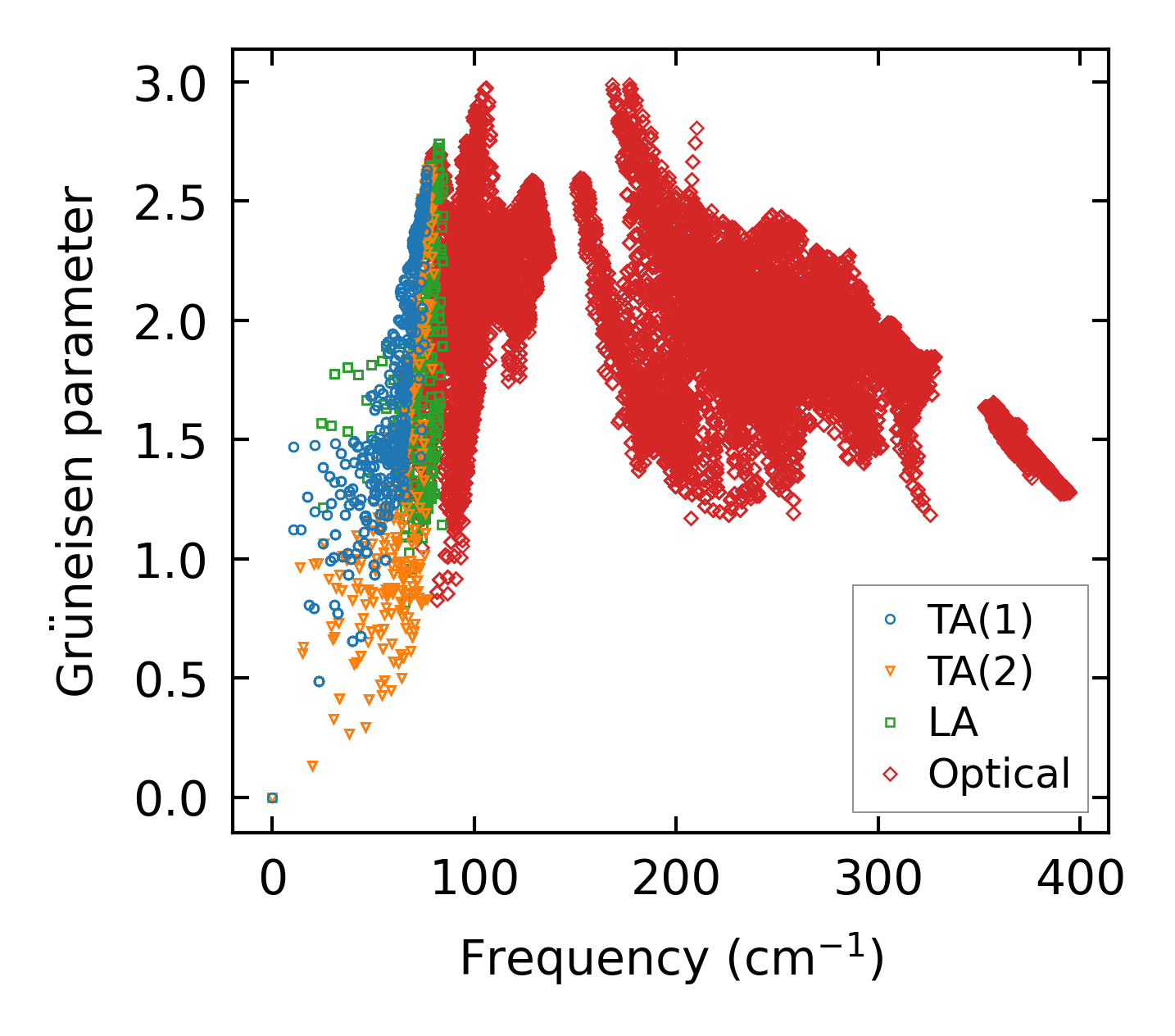

../../_images/fig_gru_all1806.png — (a) Grüneisen parameters

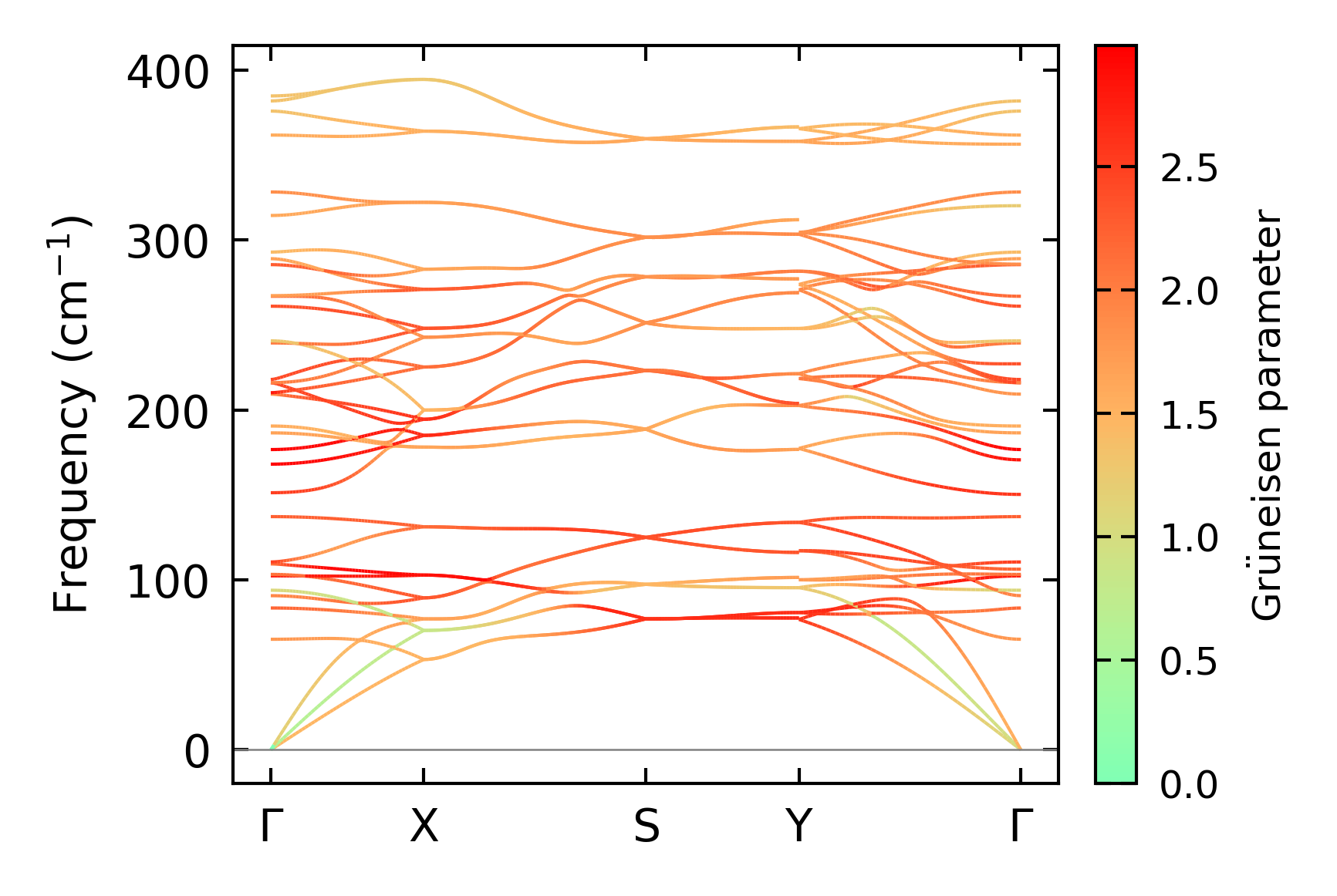

../../_images/fig_gruneisen1806.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 11x19x10, supercell: 2x3x2

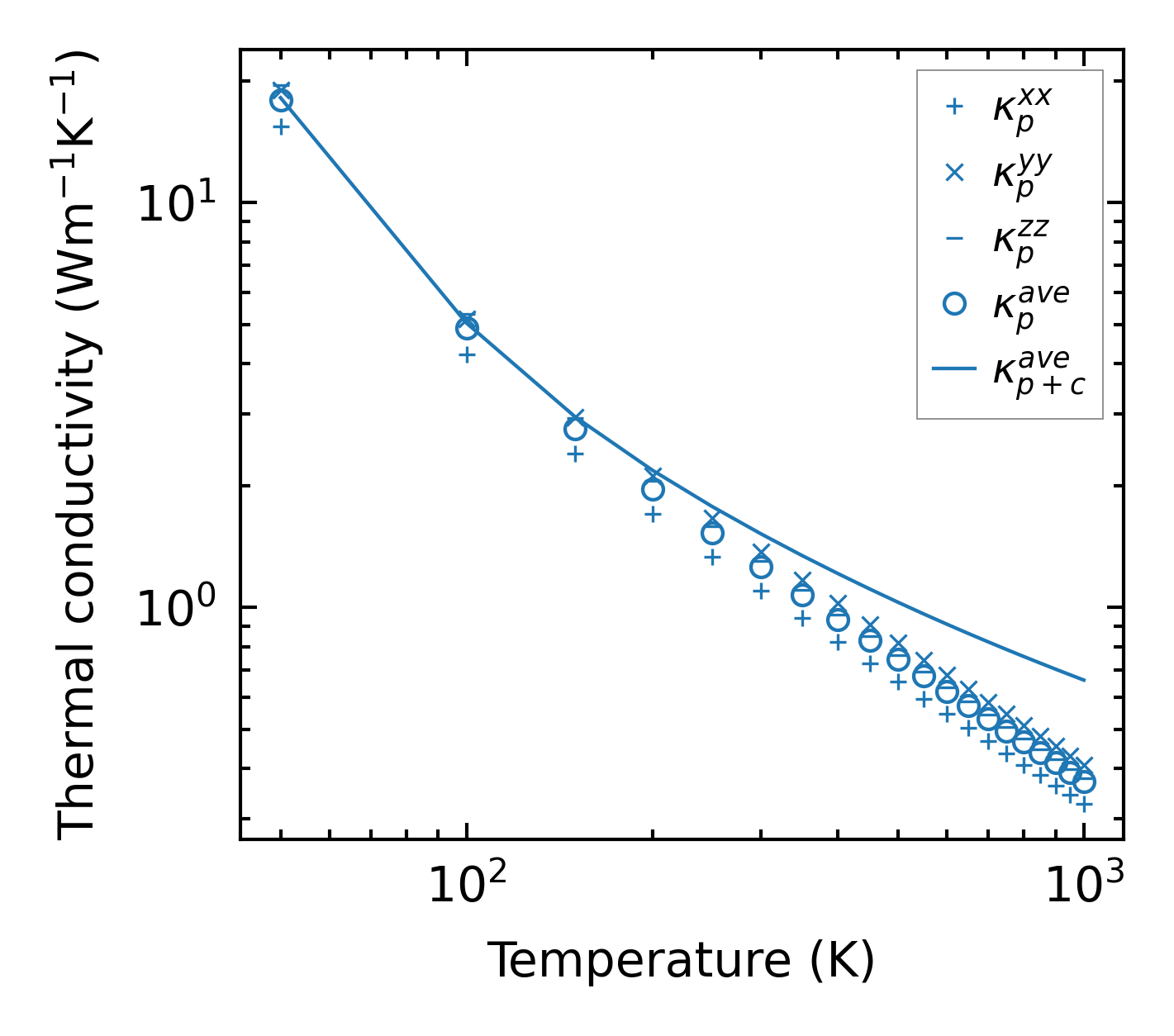

../../_images/fig_kappa3470.png — (a) Temperature-dependent lattice thermal conductivity

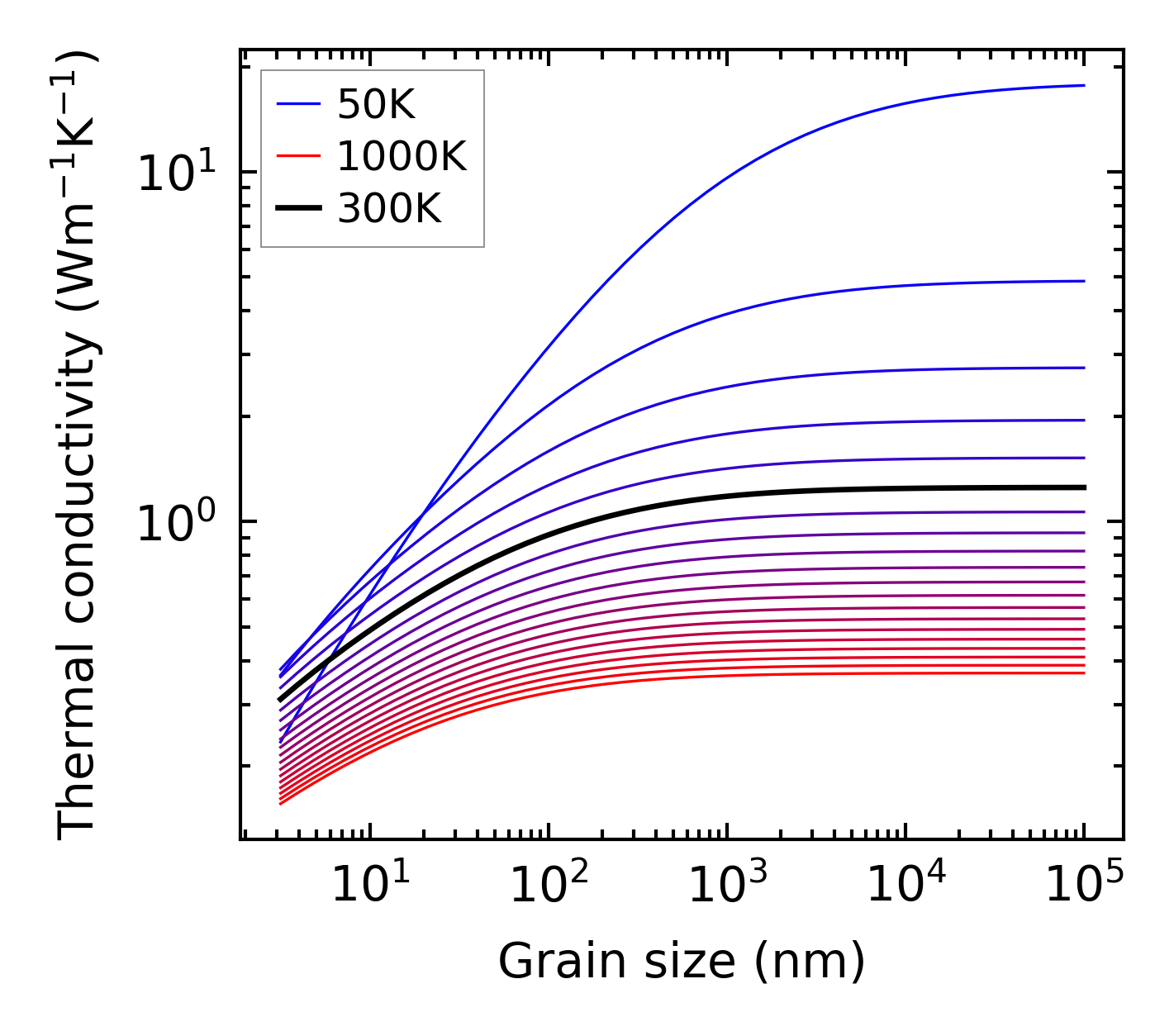

../../_images/fig_kappa_vs_grain_size1834.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

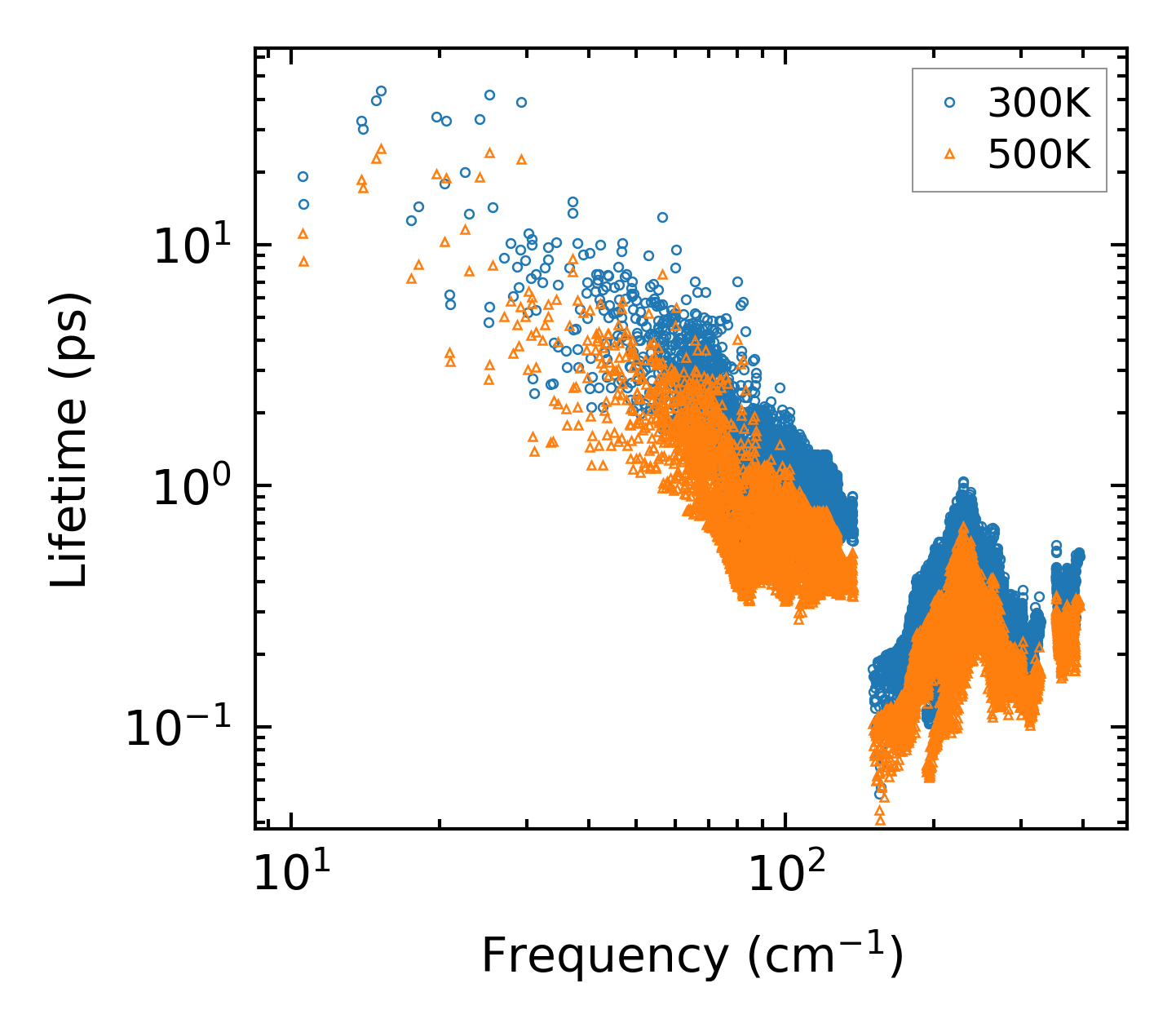

../../_images/fig_lifetime1796.png — (a) Phonon lifetime due to phonon-phonon scattering

../../_images/fig_scat_rates1795.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

../../_images/fig_cumu_frequency1796.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

../../_images/fig_cumu_mfp1796.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

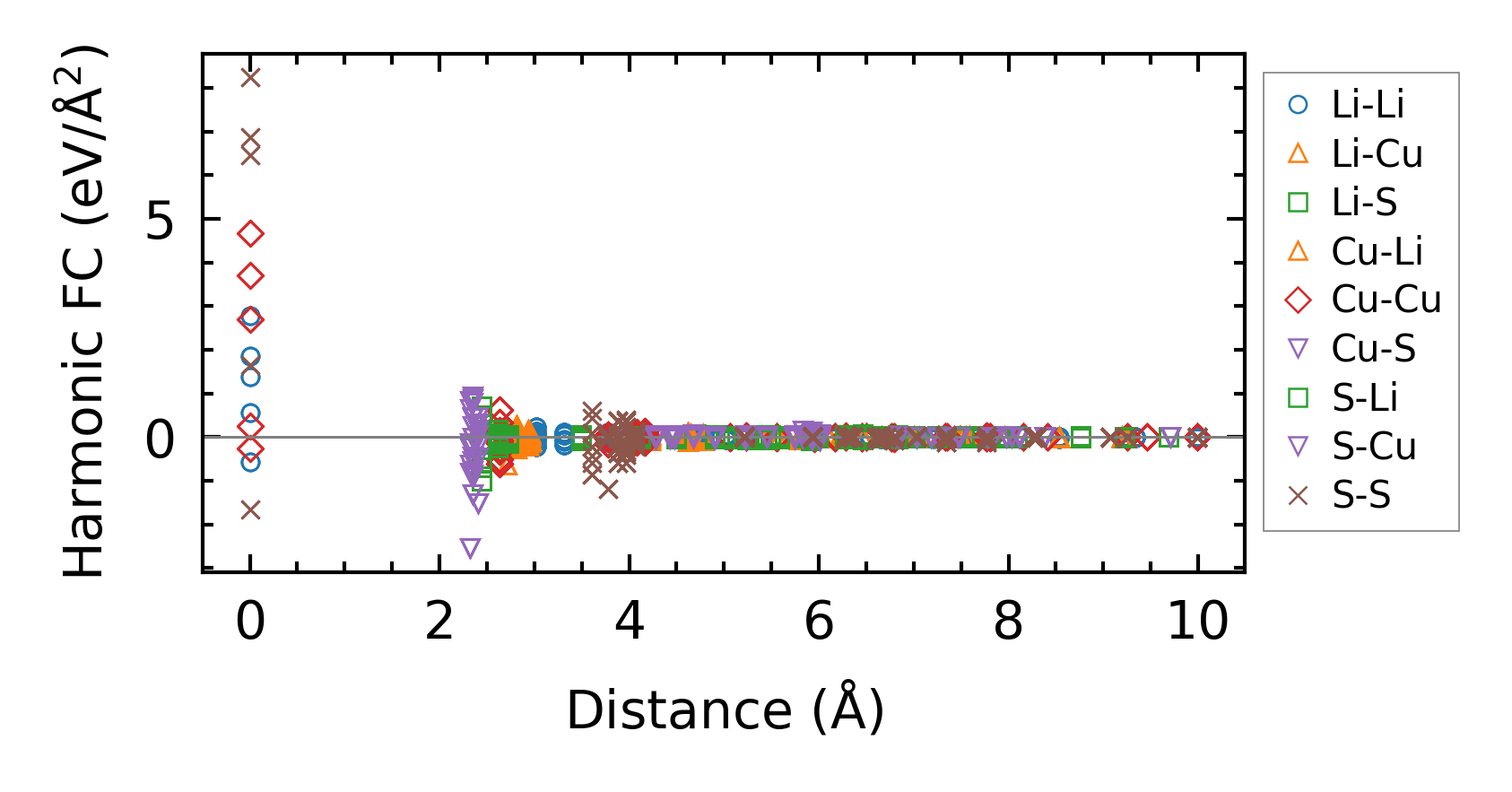

../../_images/fig_fc23827.png — (a) Force constants w.r.t atomic distance

Summary

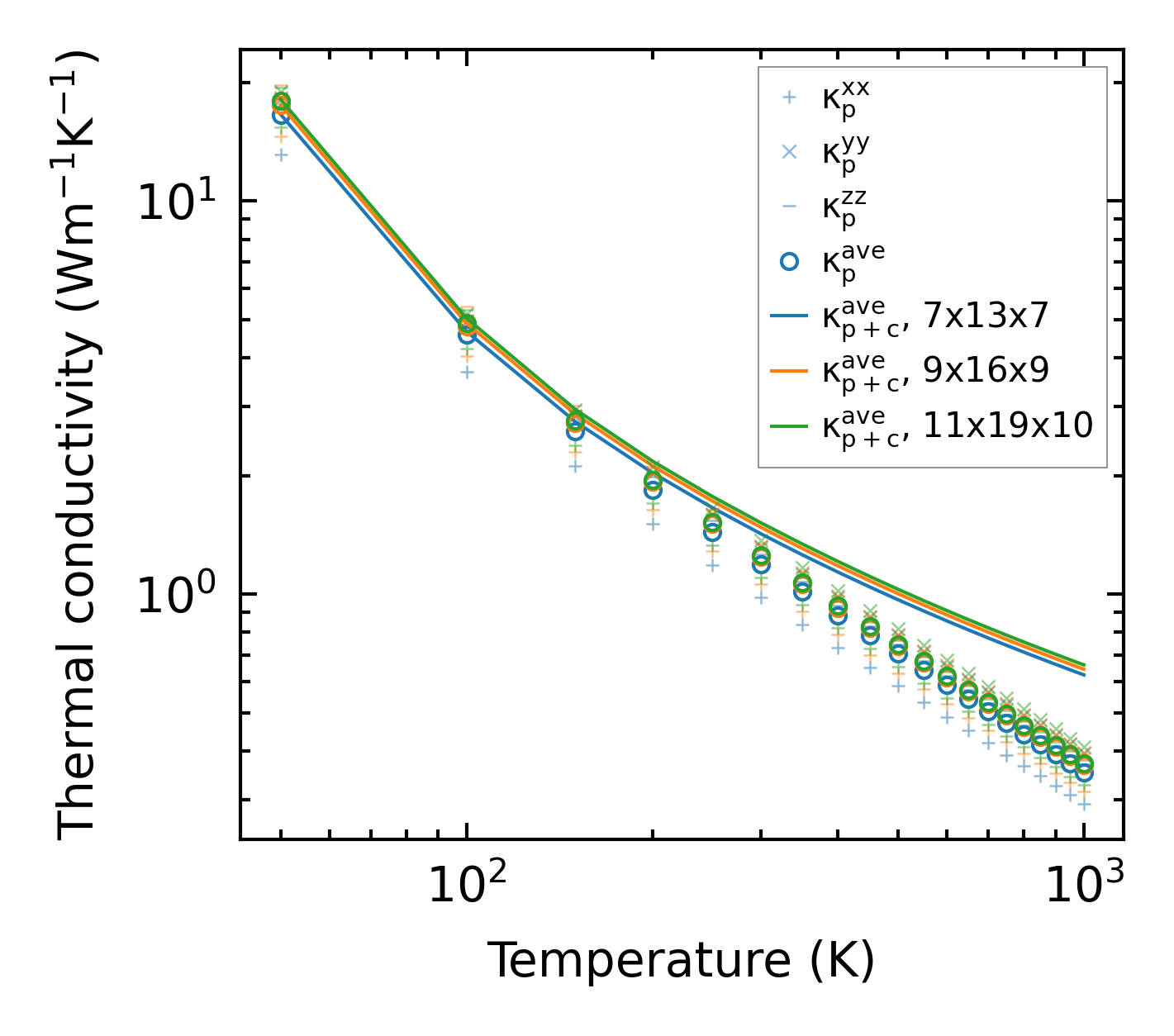

../../_images/fig_kappa3471.png — (a) Temperature-dependent lattice thermal conductivity

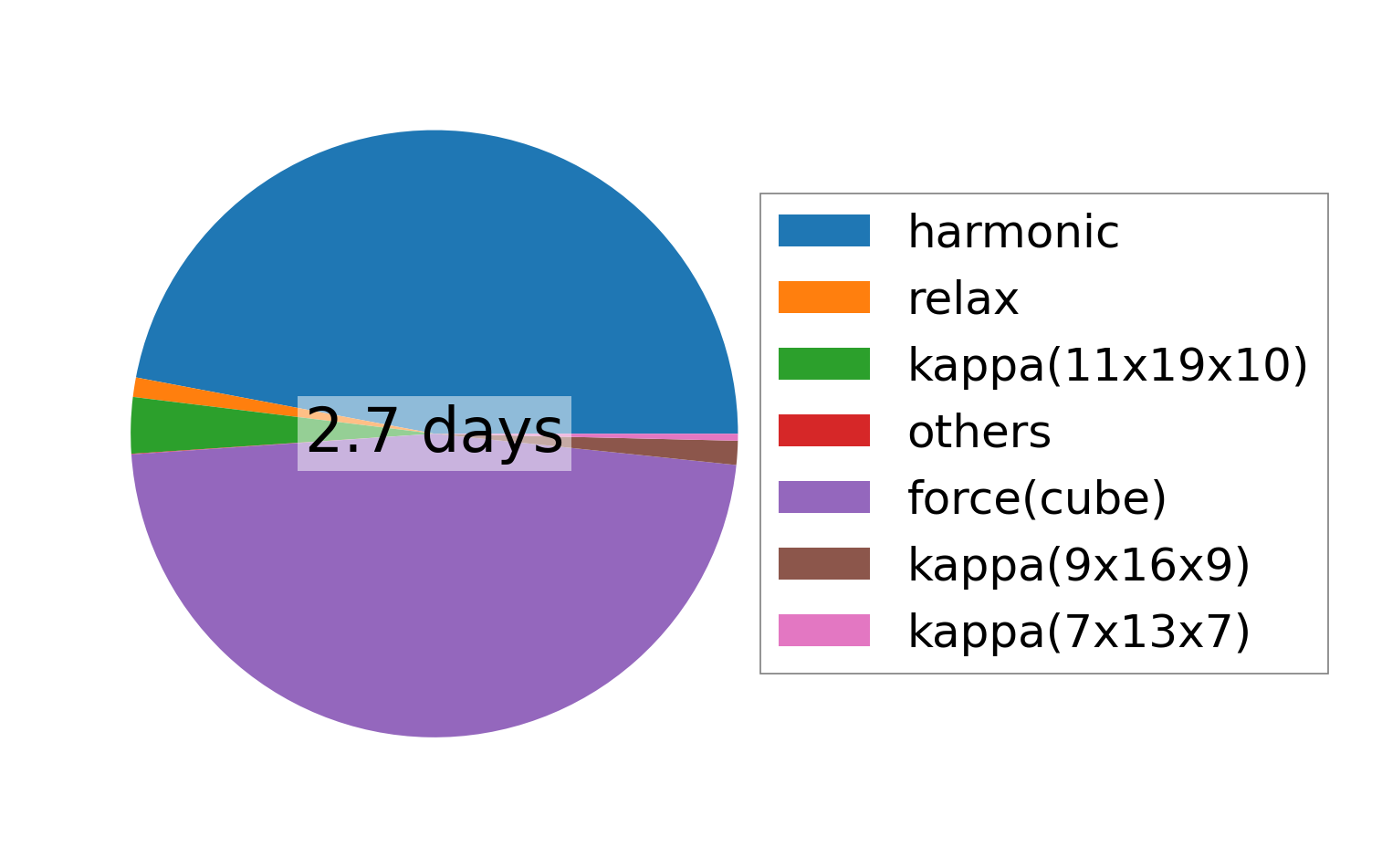

../../_images/fig_times6949.png — (b) Computation time
