mp-753098/LiCuF2/anharm

Space group: R-3m (166)
Link: Materials Project
Download: mp-753098.tar.gz

Harmonic properties

../../_images/fig_bandos_pr3977.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo3977.png — (b) Thermodynamic properties

Grüneisen parameters

../../_images/fig_gru_all1791.png — (a) Grüneisen parameters

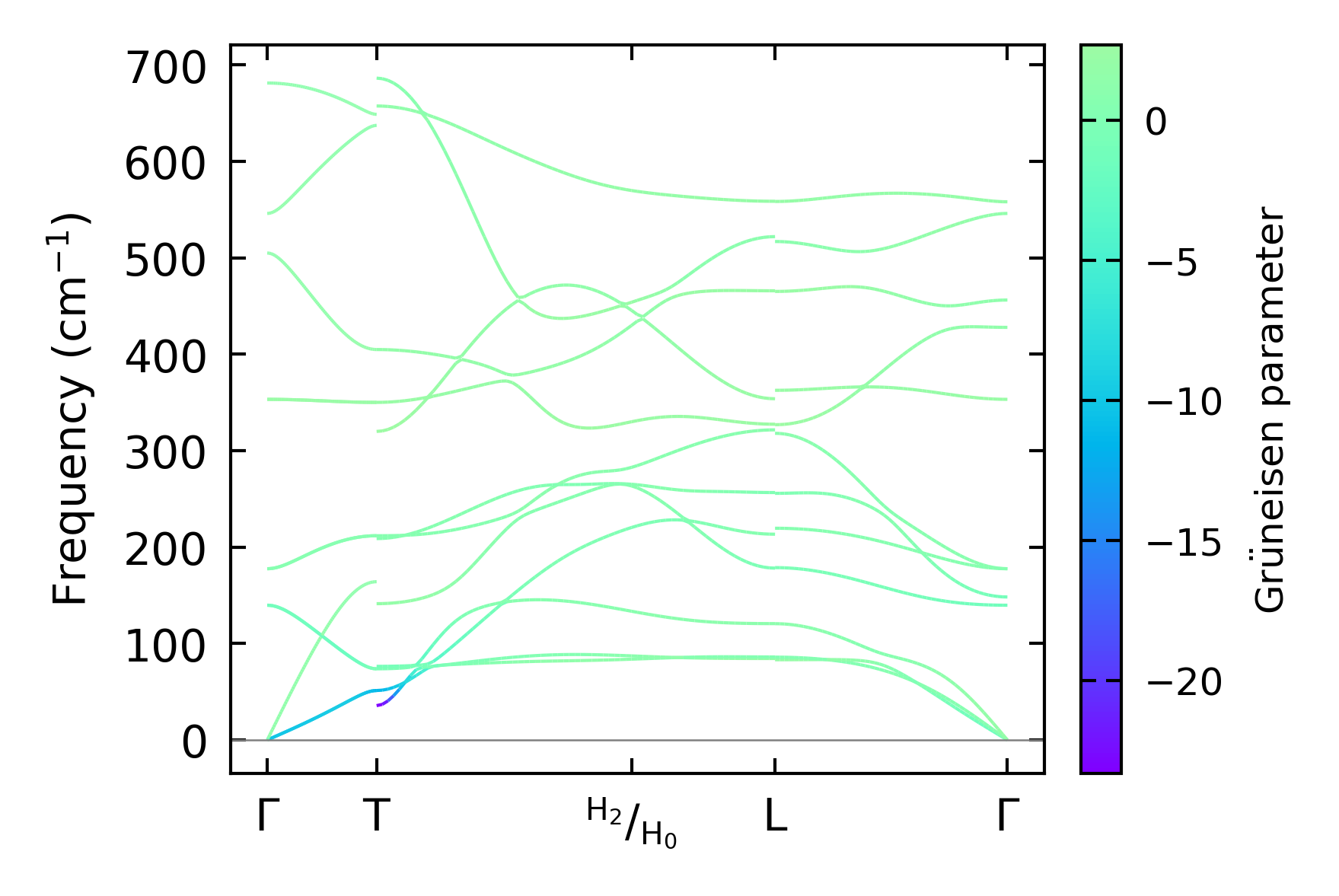

../../_images/fig_gruneisen1791.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 20x20x20, supercell: 3x3x1

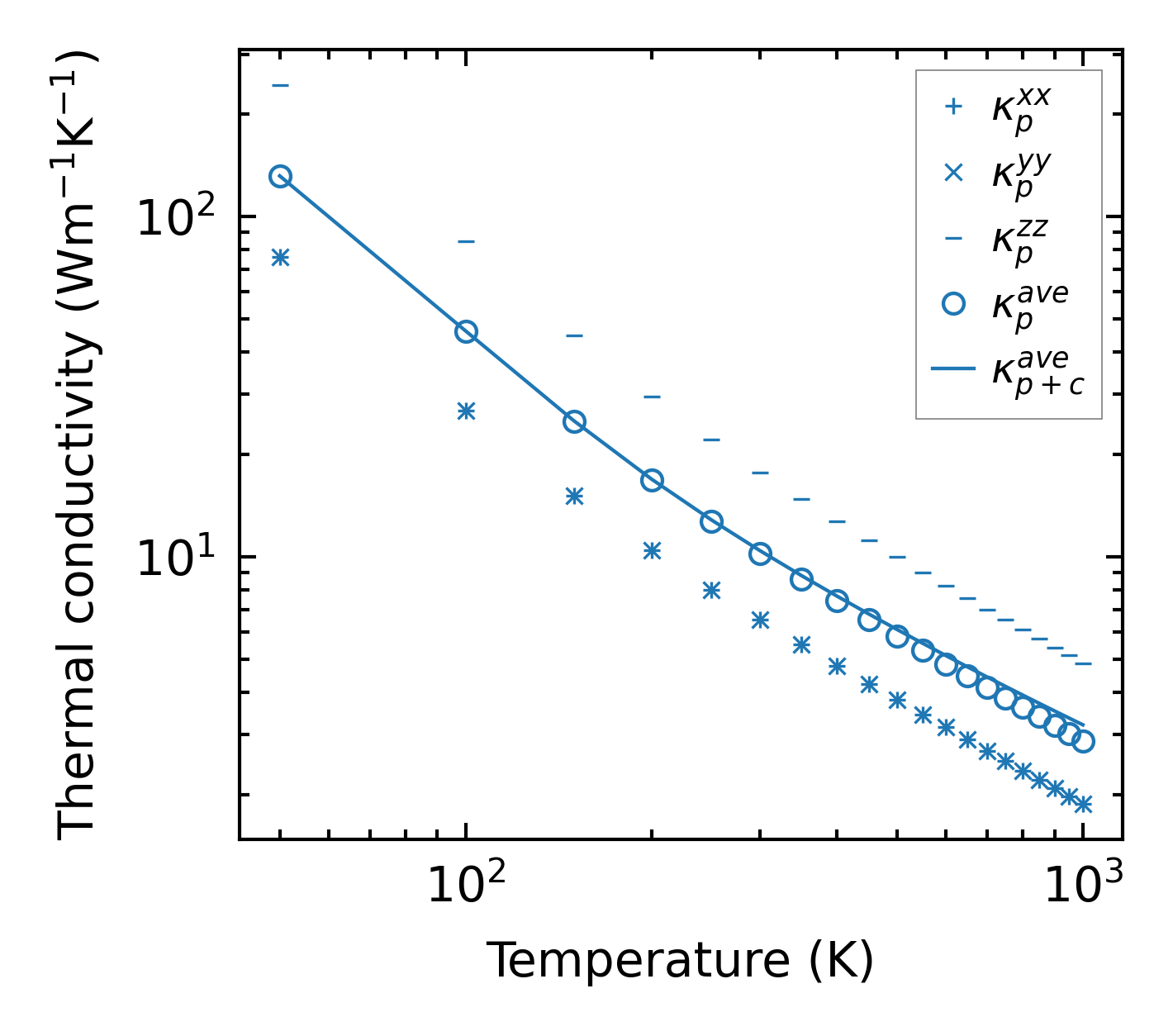

../../_images/fig_kappa3440.png — (a) Temperature-dependent lattice thermal conductivity

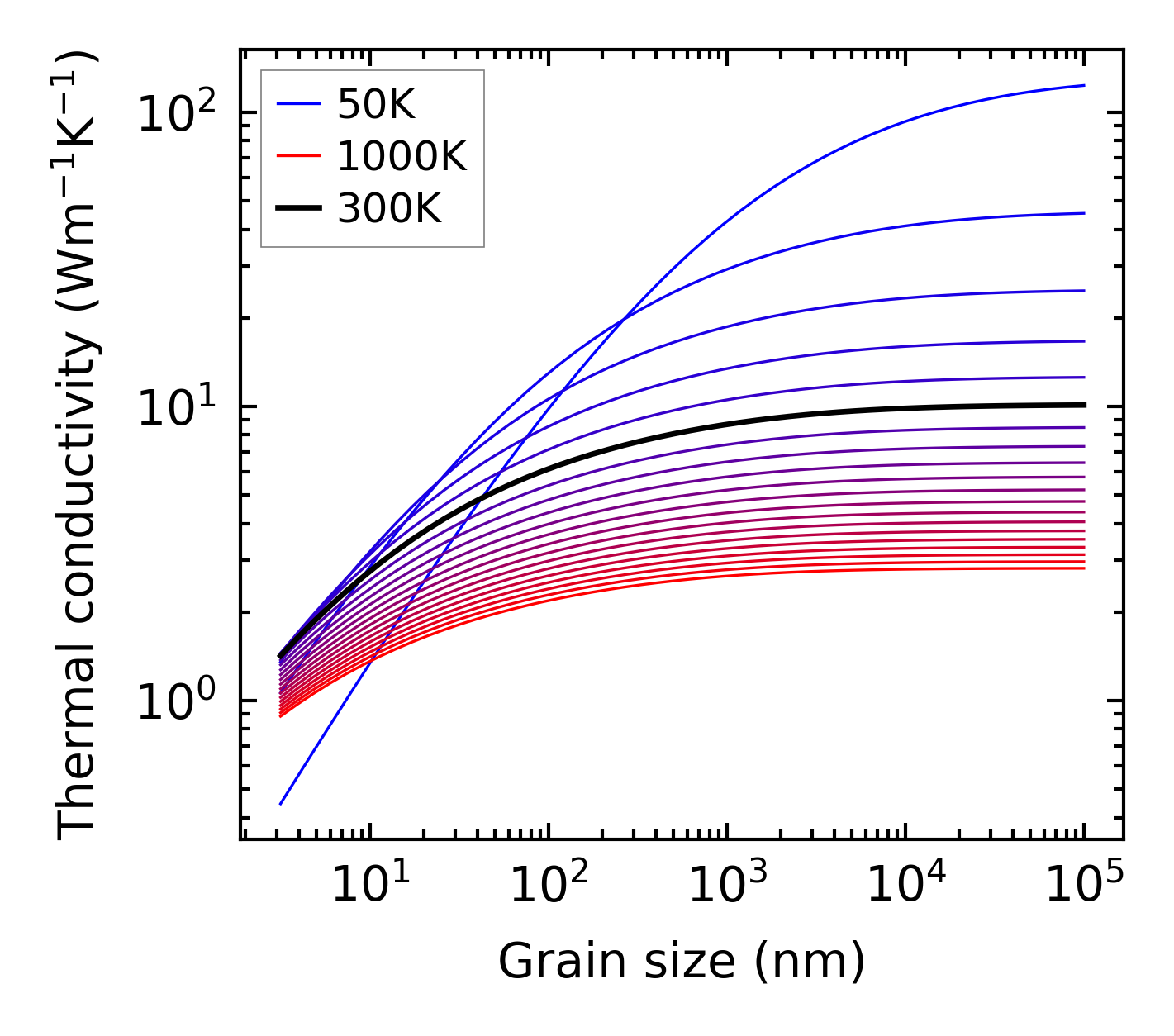

../../_images/fig_kappa_vs_grain_size1819.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

../../_images/fig_lifetime1781.png — (a) Phonon lifetime due to phonon-phonon scattering

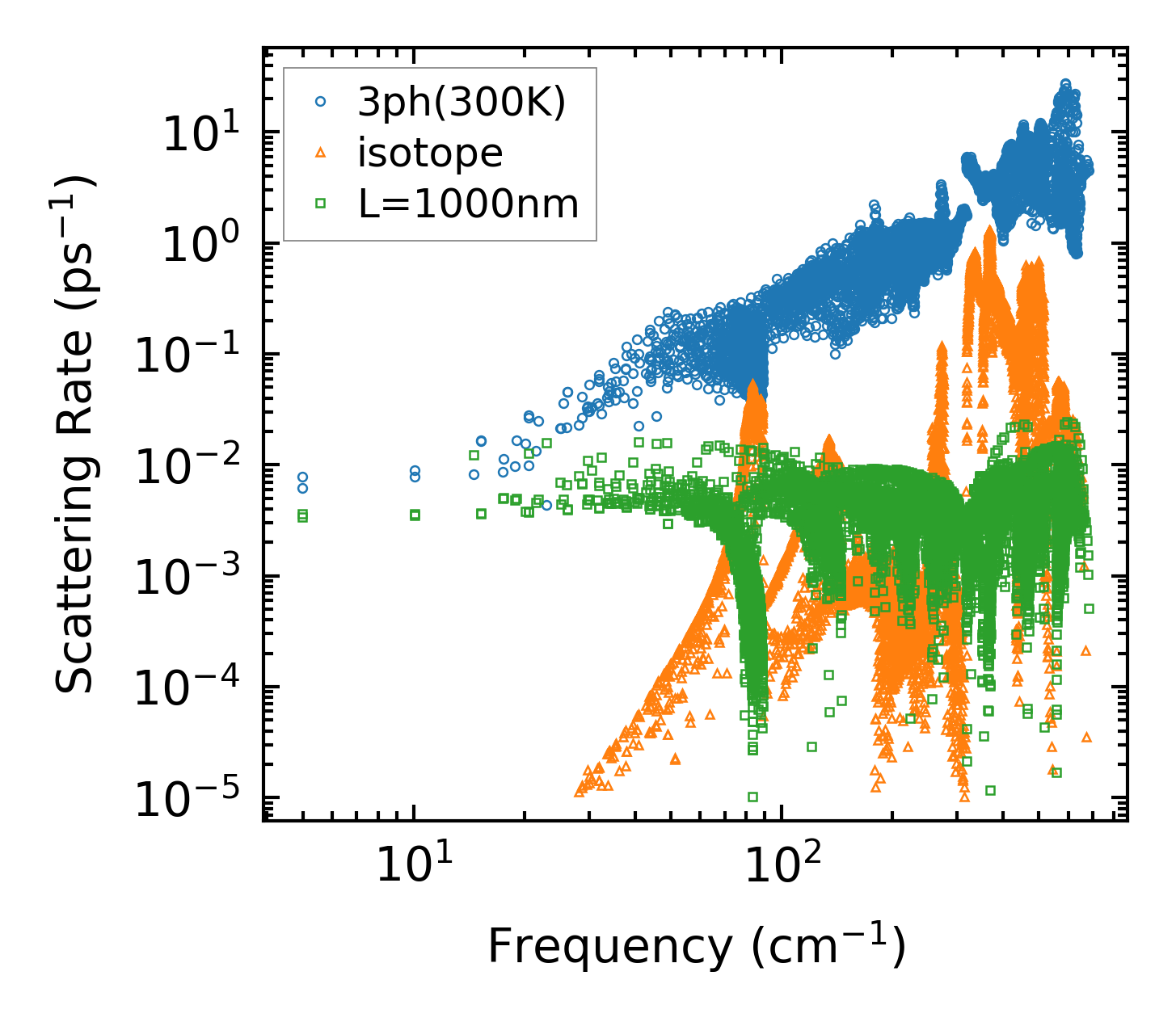

../../_images/fig_scat_rates1780.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

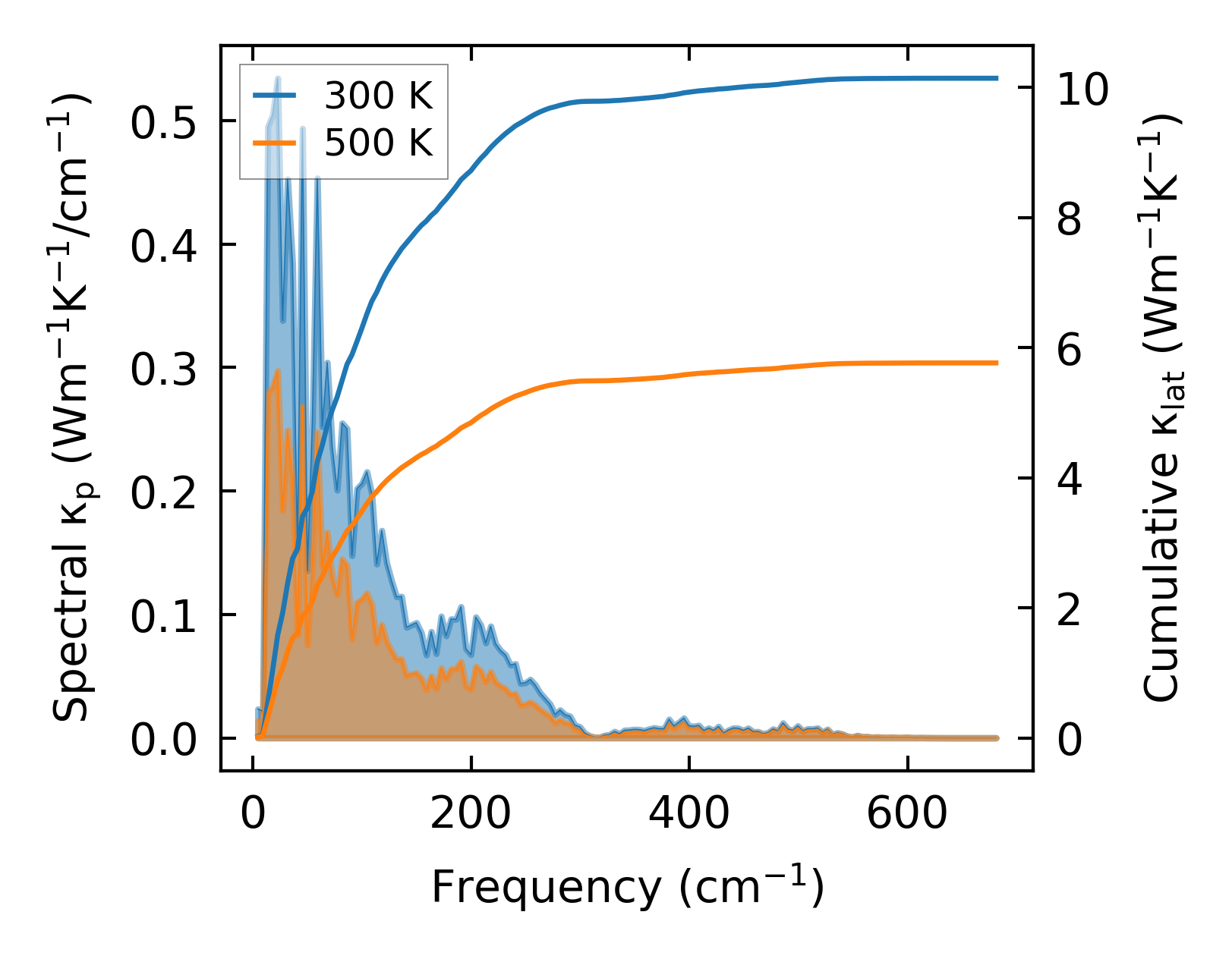

../../_images/fig_cumu_frequency1781.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

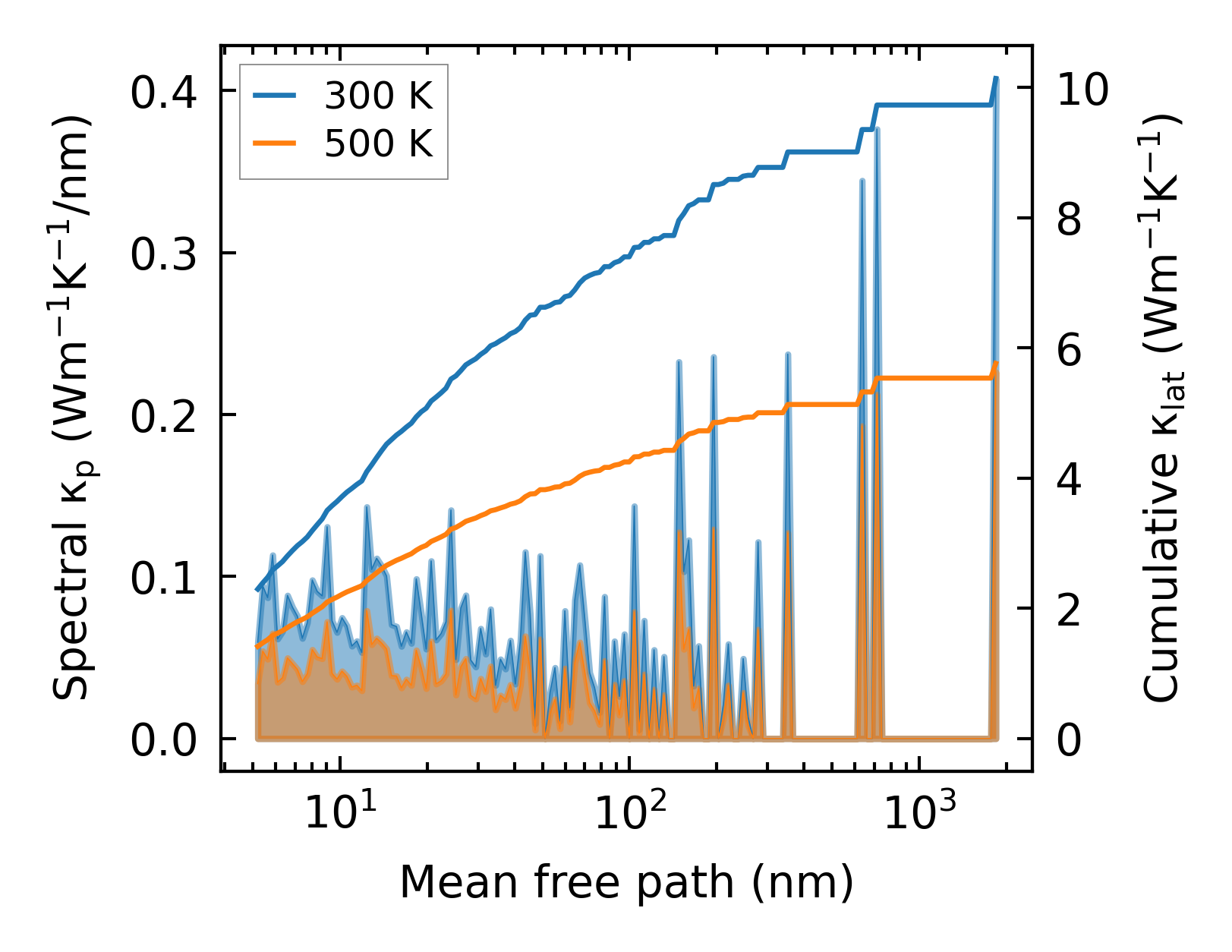

../../_images/fig_cumu_mfp1781.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

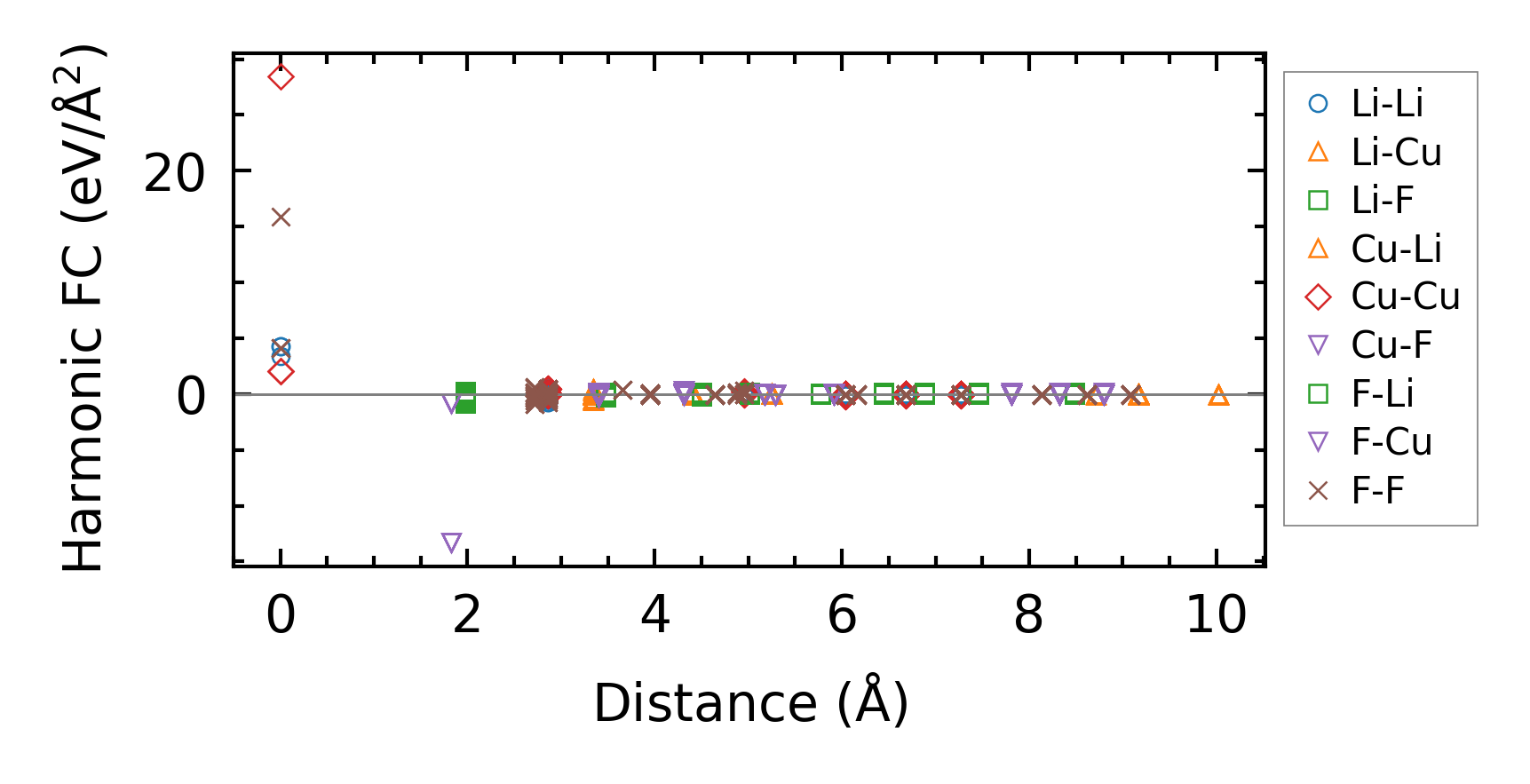

../../_images/fig_fc23790.png — (a) Force constants w.r.t atomic distance

Summary

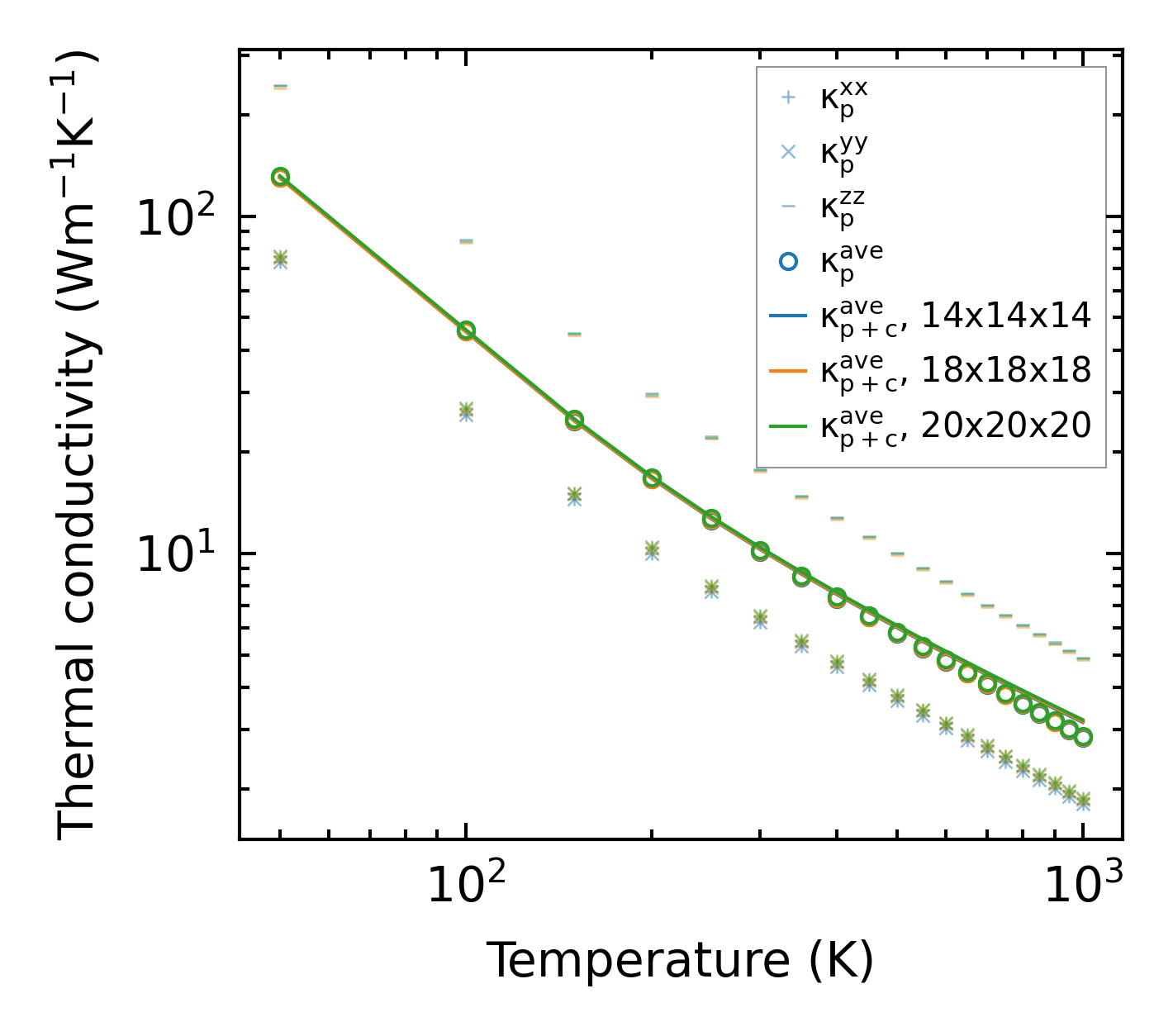

../../_images/fig_kappa3441.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_times6890.png — (b) Computation time
