mp-753677-2/Li3BiS3/anharm

Space group: R3c (161)
Link: Materials Project
Download: mp-753677-2.tar.gz

Equation of state

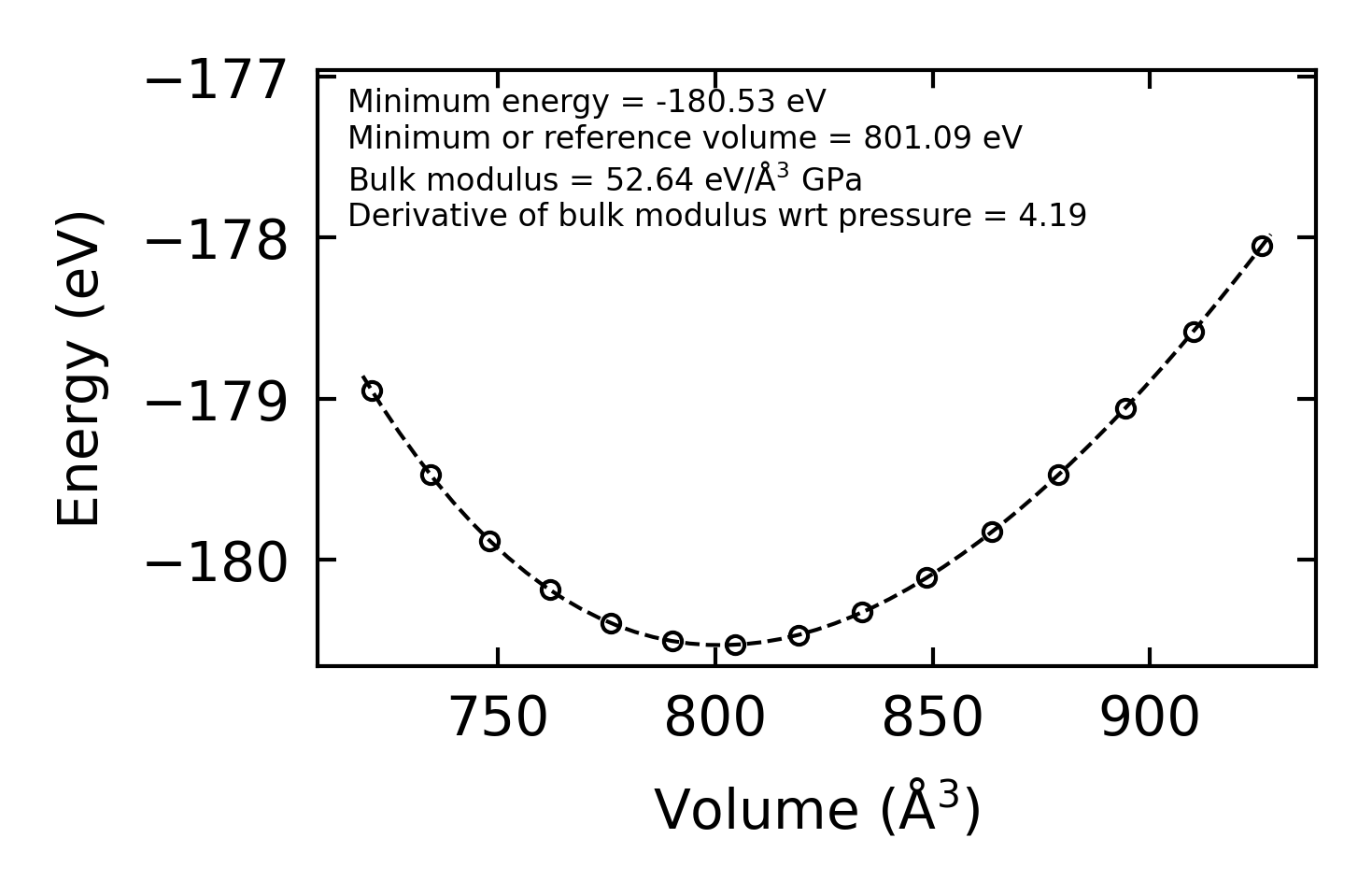

../../_images/fig_bm1819.png — (a) Equation of state

Harmonic properties

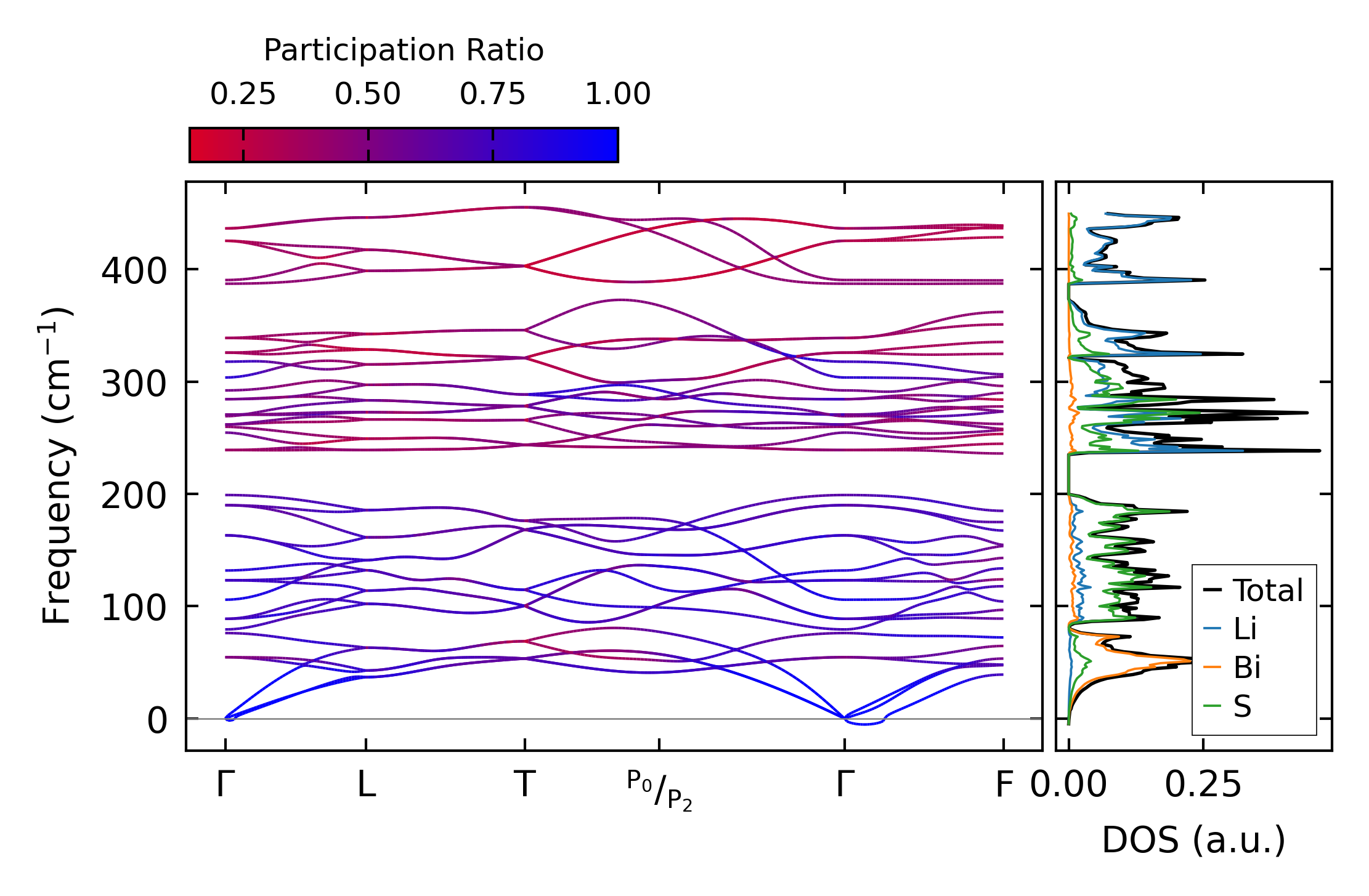

../../_images/fig_bandos_pr3717.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_bandos4959.png — (b) Phonon dispersion and DOS

../../_images/fig_thermo3717.png — (c) Thermodynamic properties

Grüneisen parameters

../../_images/fig_gru_all1677.png — (a) Grüneisen parameters

../../_images/fig_gruneisen1677.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO), supercell 2x2x2 — q-mesh: 11x11x11, supercell: 2x2x2

../../_images/fig_kappa3226.png — (a) Temperature-dependent lattice thermal conductivity

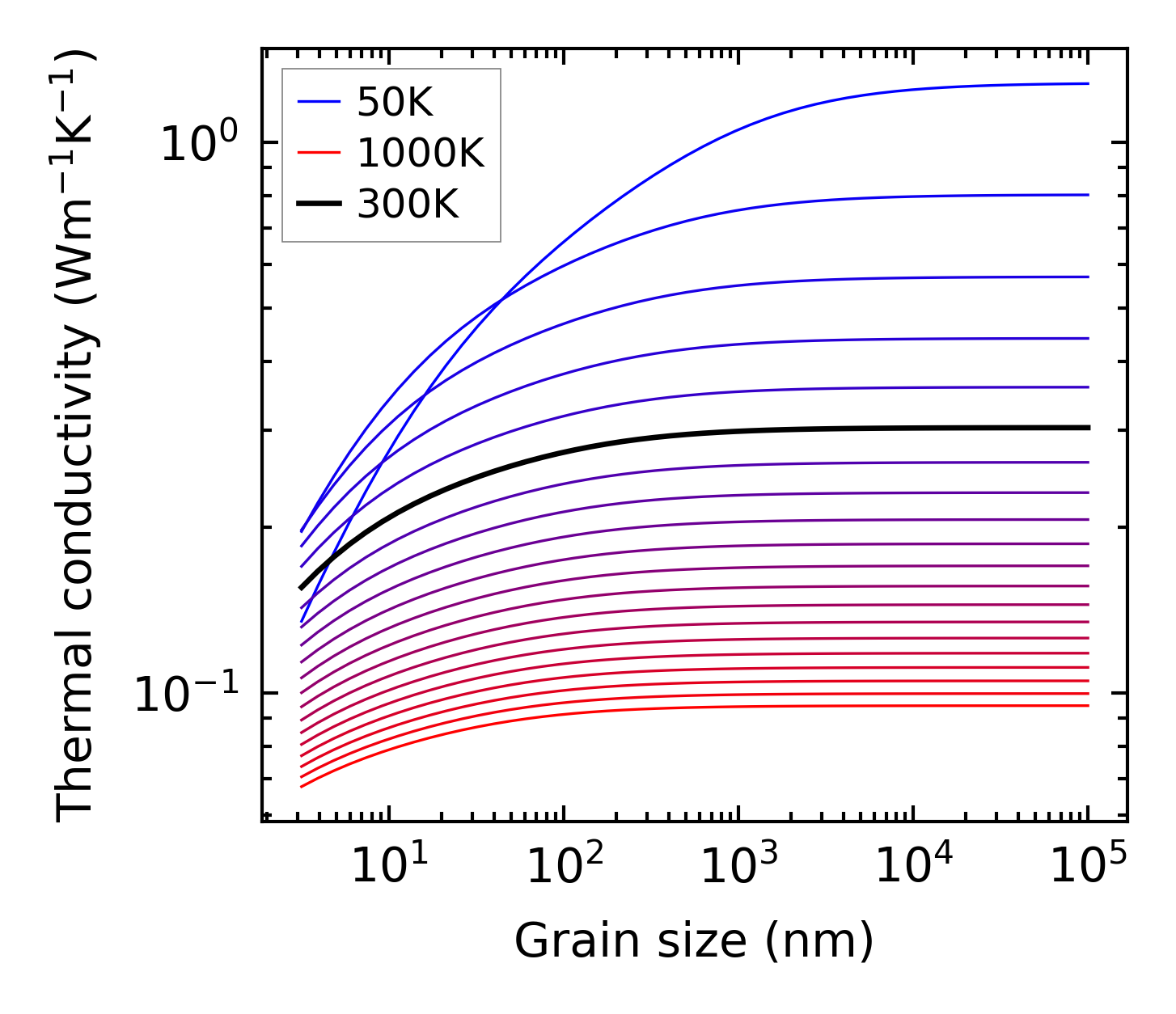

../../_images/fig_kappa_vs_grain_size1700.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

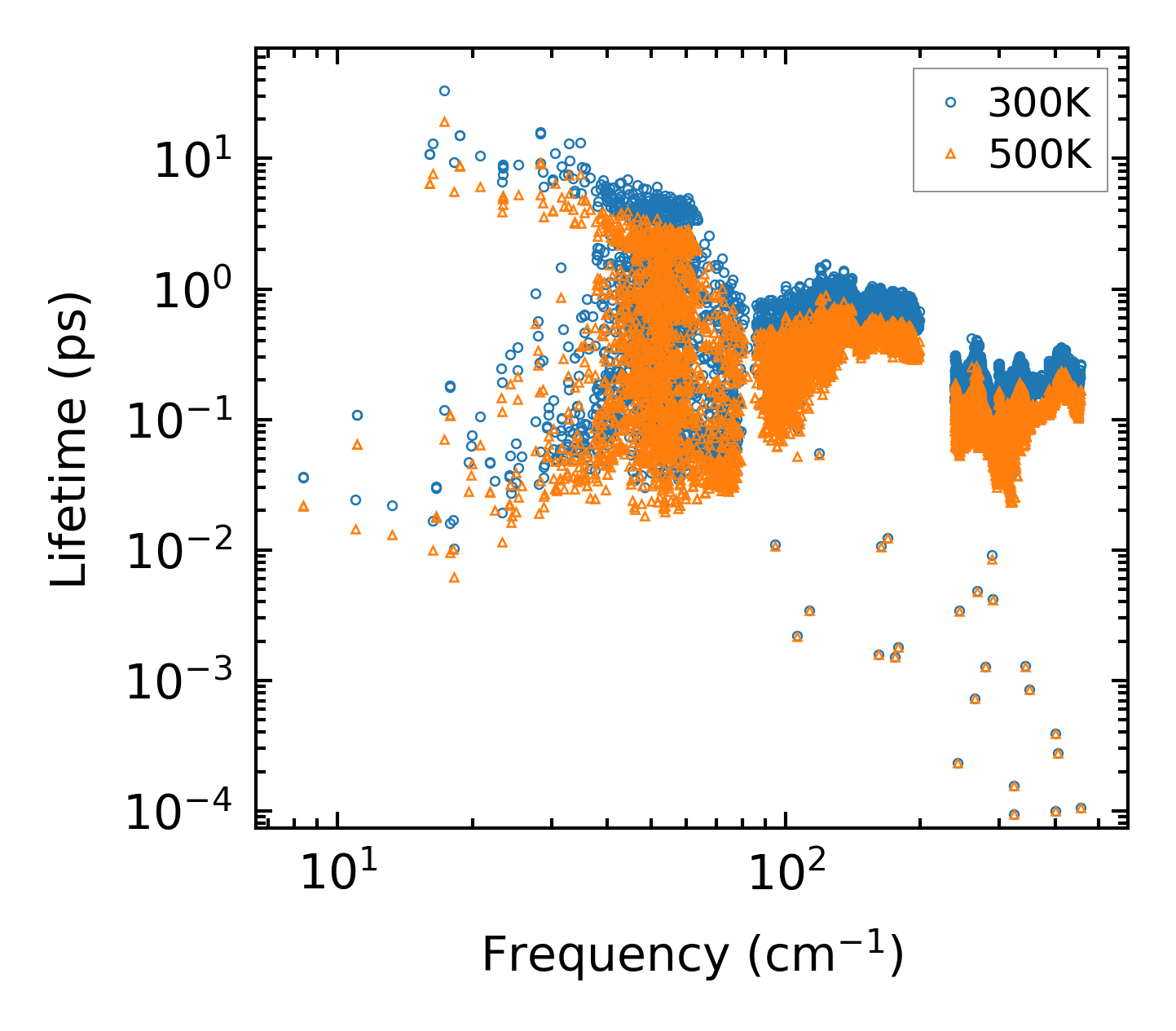

../../_images/fig_lifetime1667.png — (a) Phonon lifetime due to phonon-phonon scattering

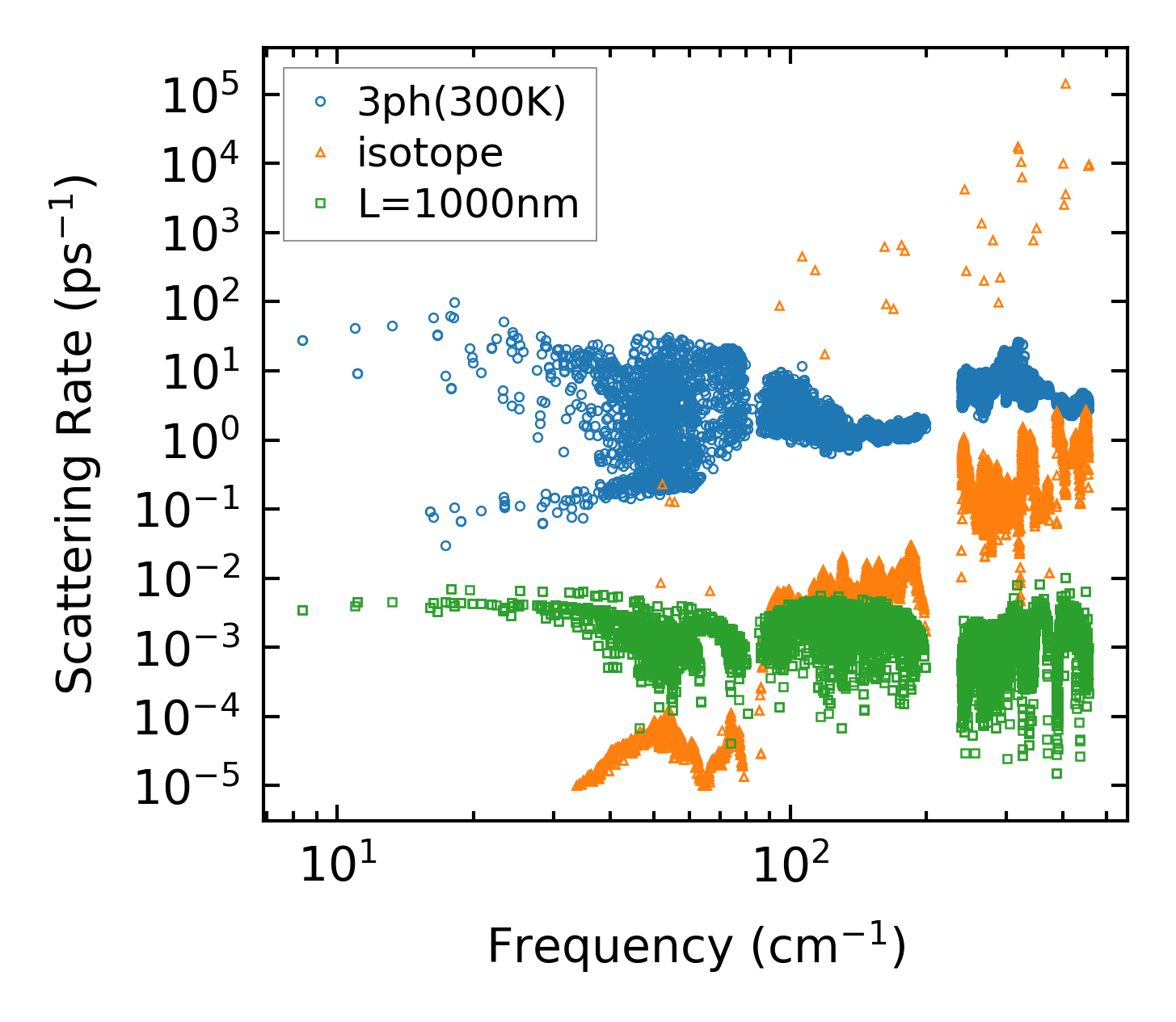

../../_images/fig_scat_rates1666.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

../../_images/fig_cumu_frequency1667.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

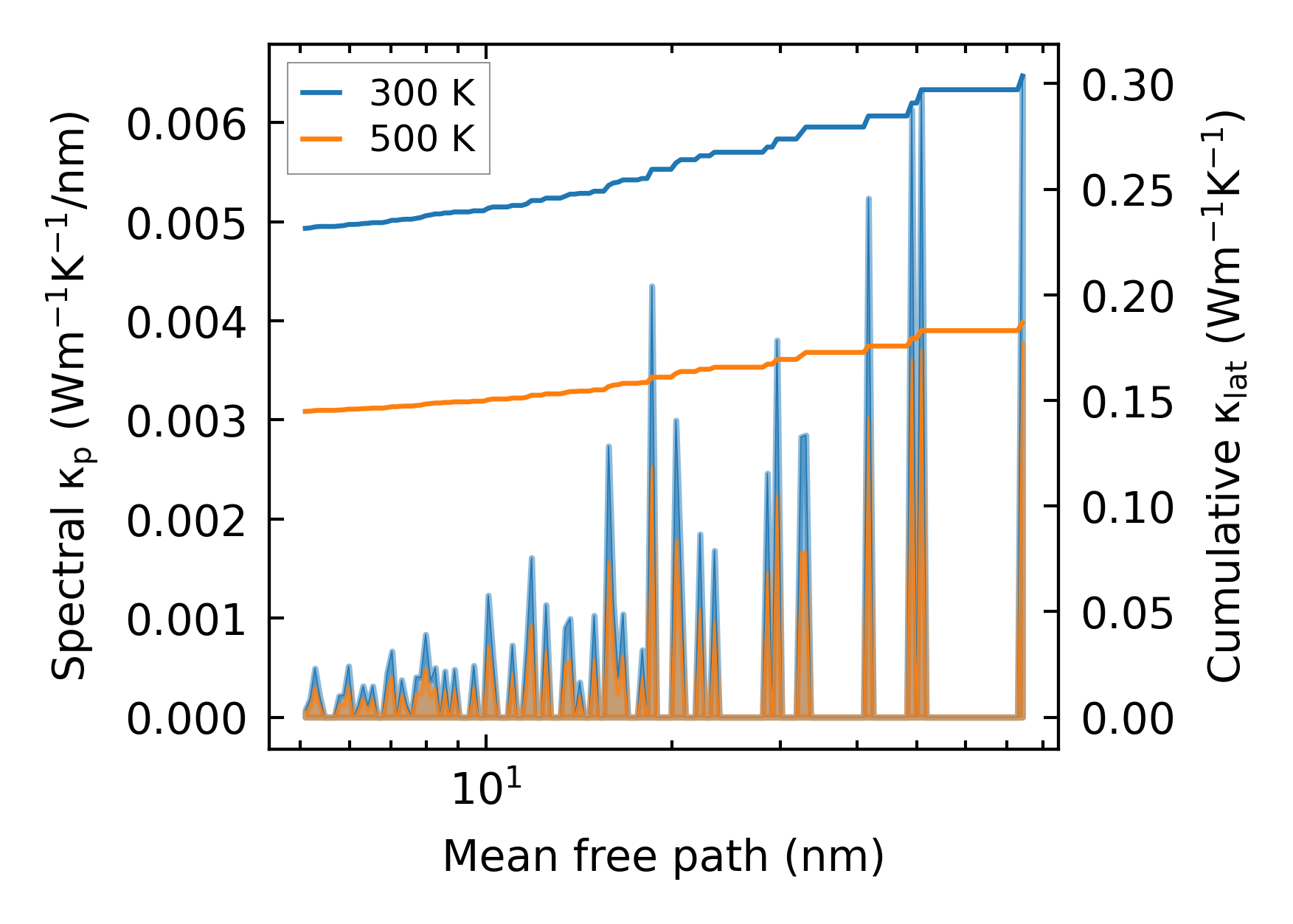

../../_images/fig_cumu_mfp1667.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

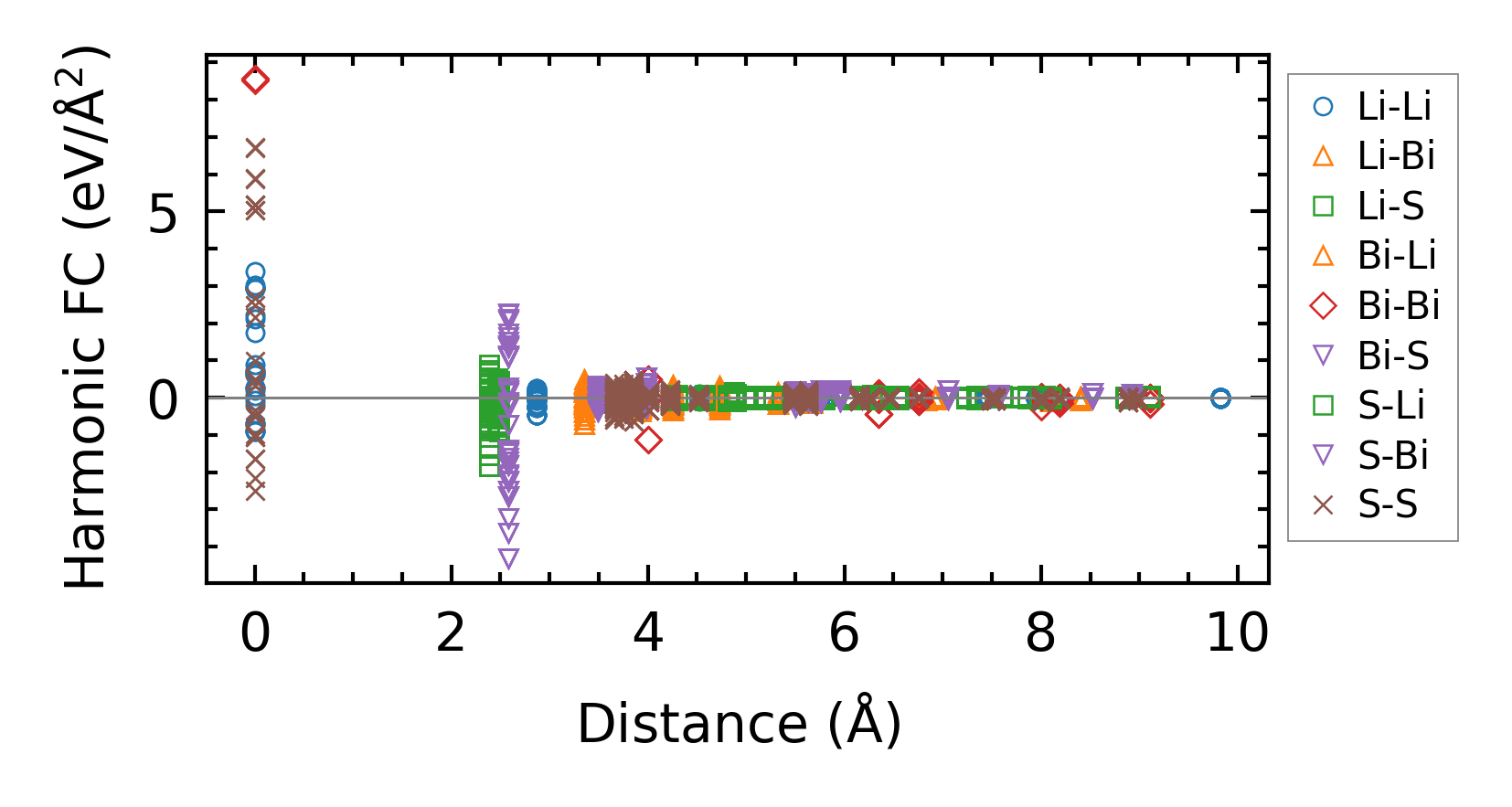

../../_images/fig_fc23533.png — (a) Force constants w.r.t atomic distance

Summary

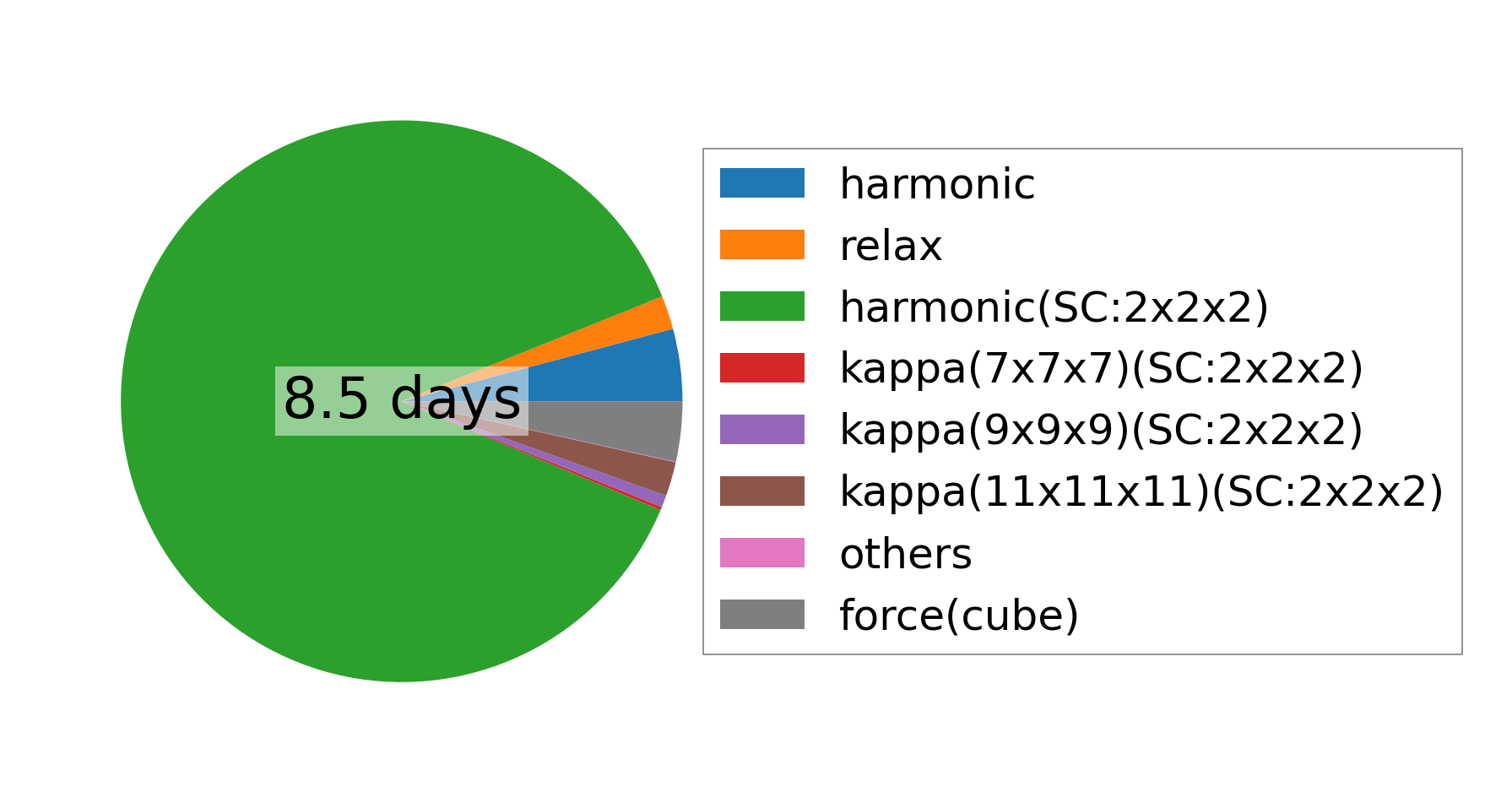

../../_images/fig_times6459.png — (a) Computation time
