mp-1189817/CsNaC2/anharm

Space group: Pbcm (57)
Link: Materials Project
Download: mp-1189817.tar.gz

Harmonic properties

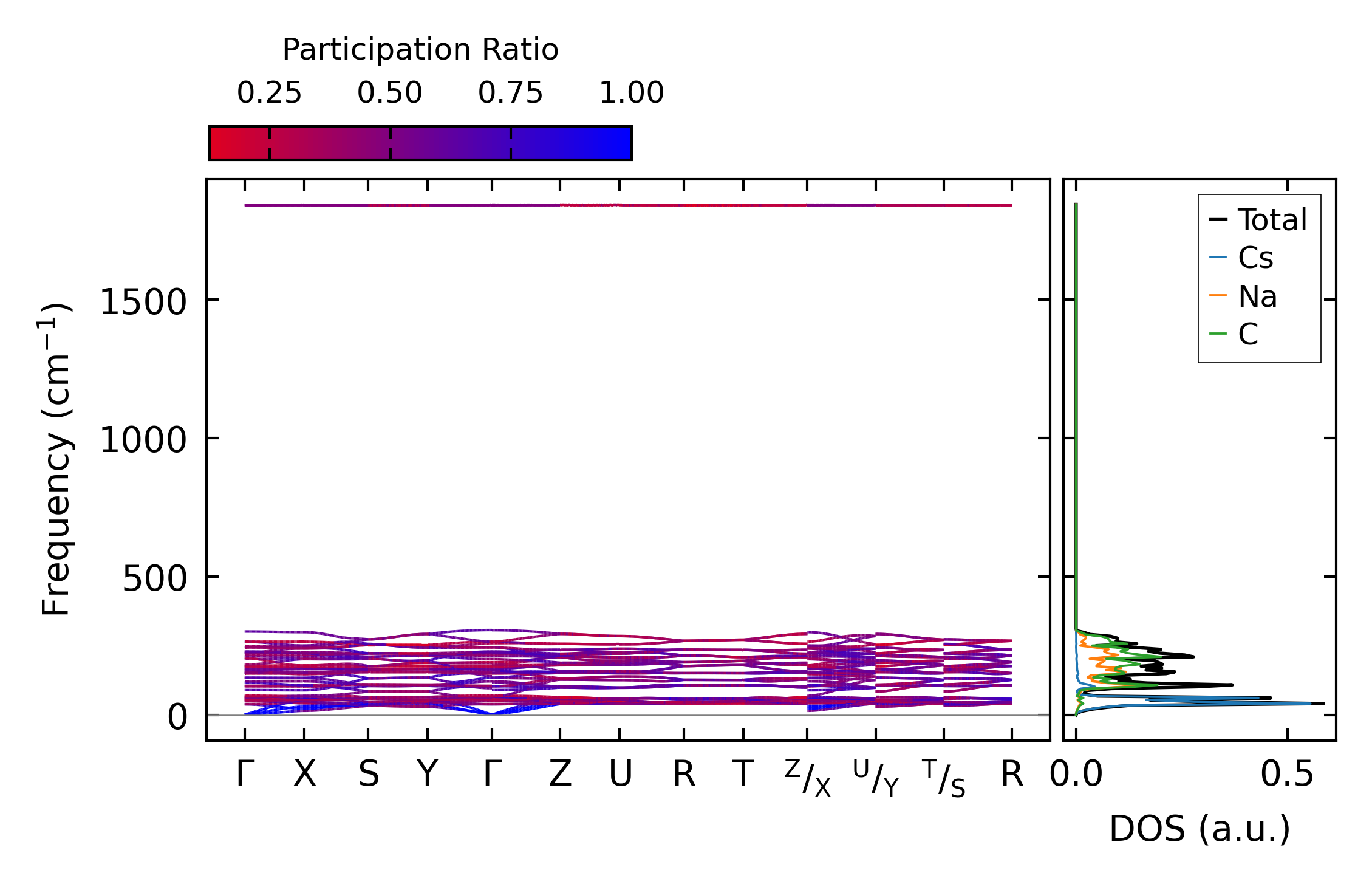

../../_images/fig_bandos_pr15941.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo15940.png — (b) Thermodynamic properties

Grüneisen parameters

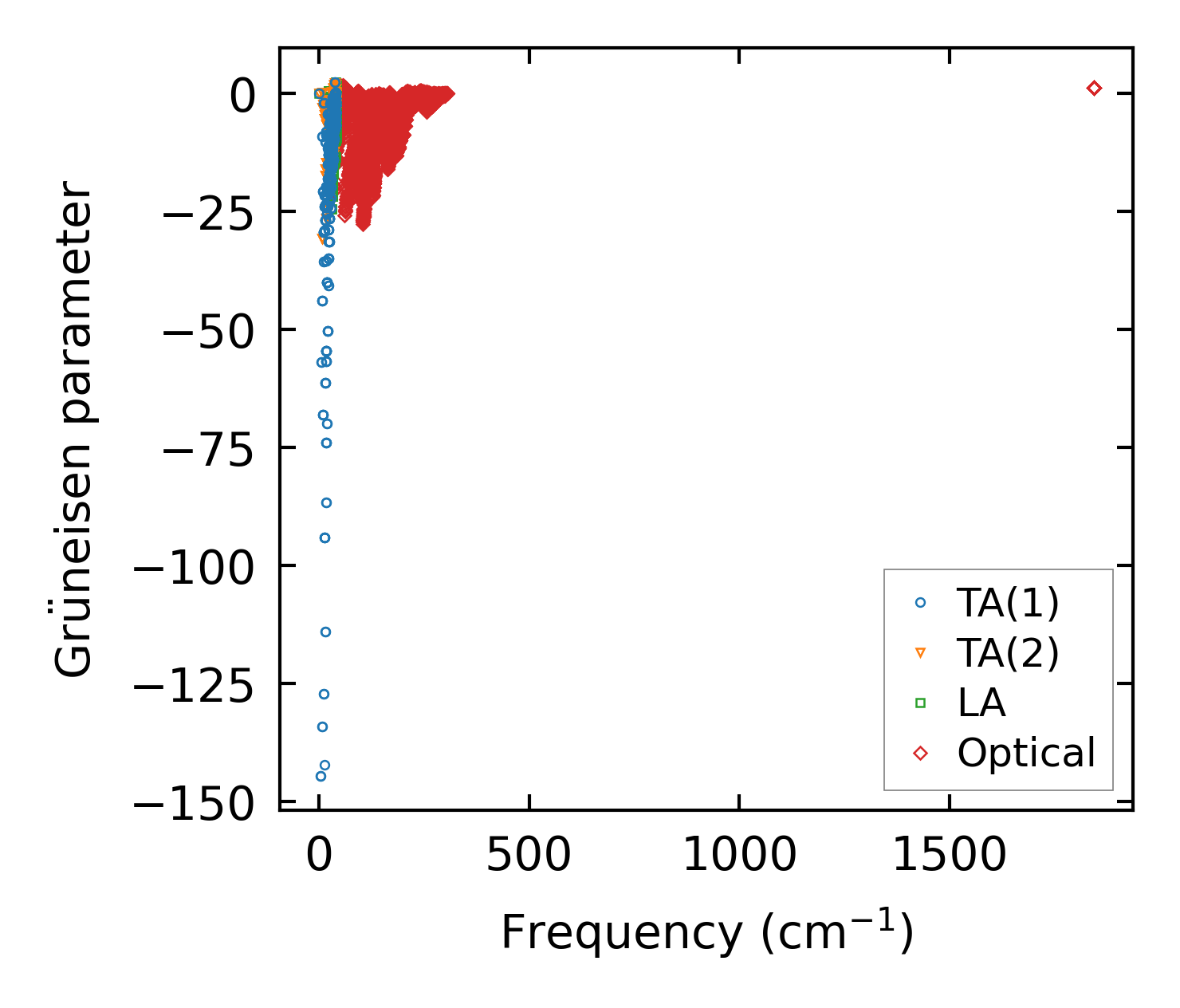

../../_images/fig_gru_all6912.png — (a) Grüneisen parameters

../../_images/fig_gruneisen6912.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 8x10x11, supercell: 2x2x2

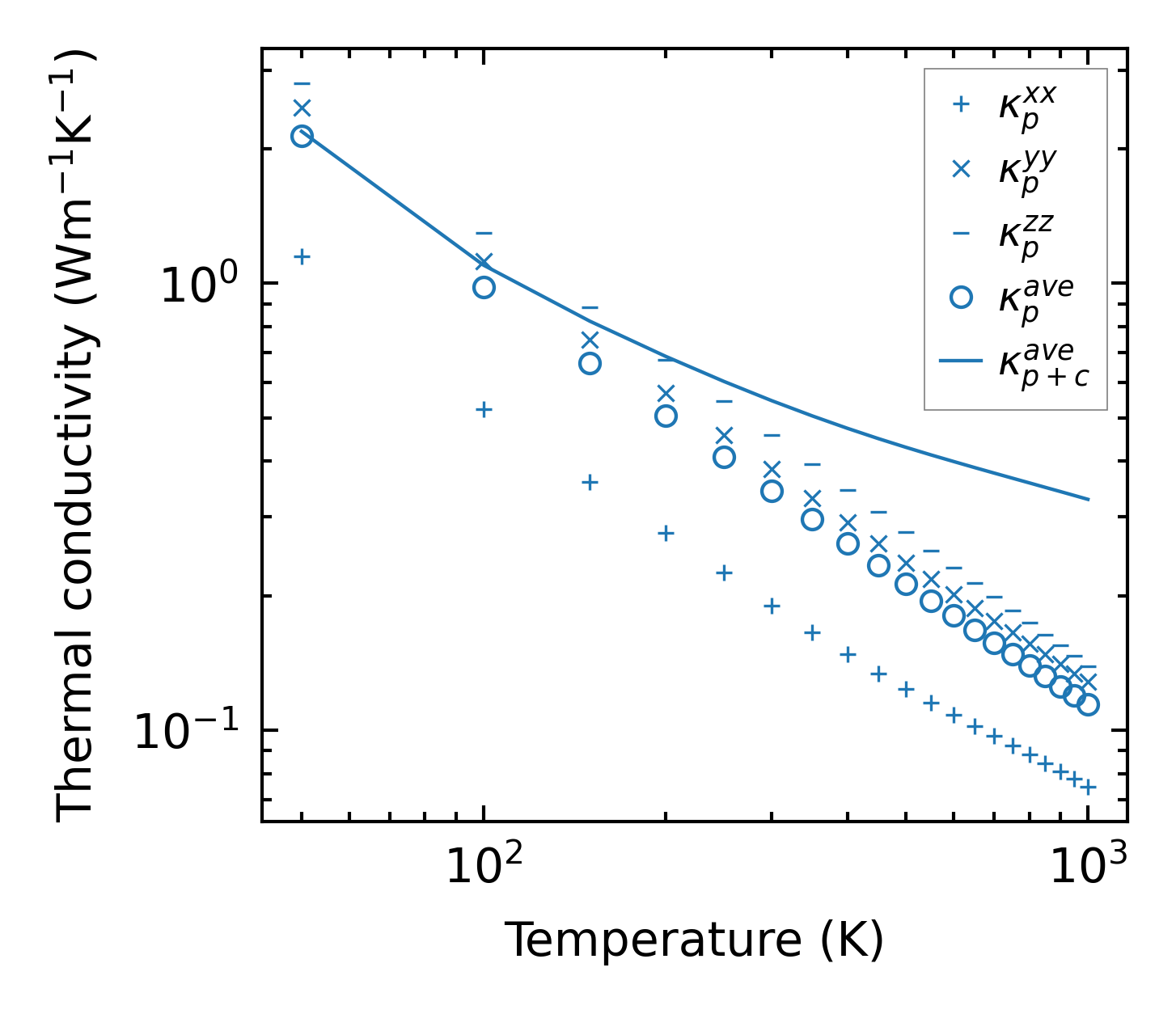

../../_images/fig_kappa13014.png — (a) Temperature-dependent lattice thermal conductivity

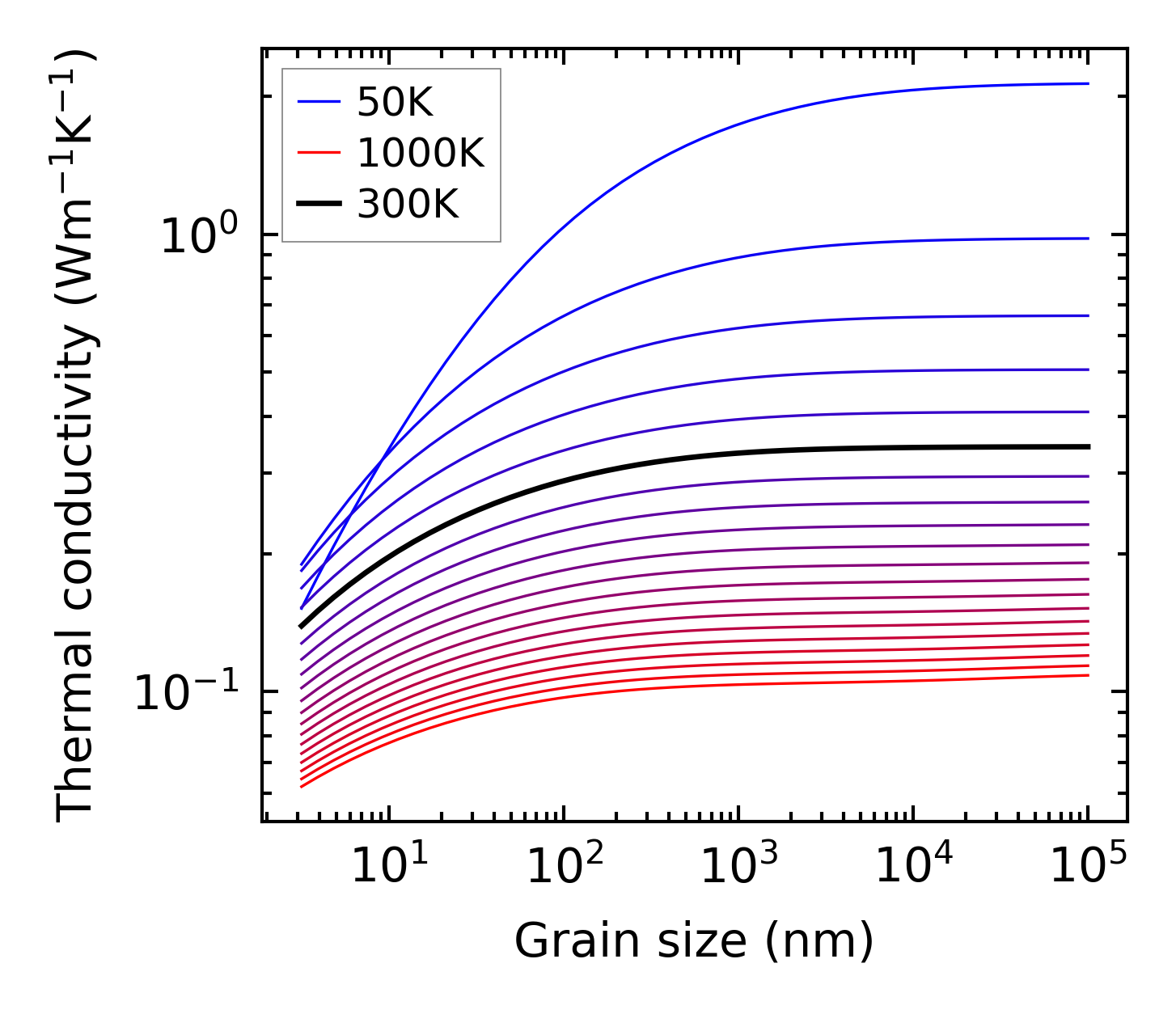

../../_images/fig_kappa_vs_grain_size6993.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

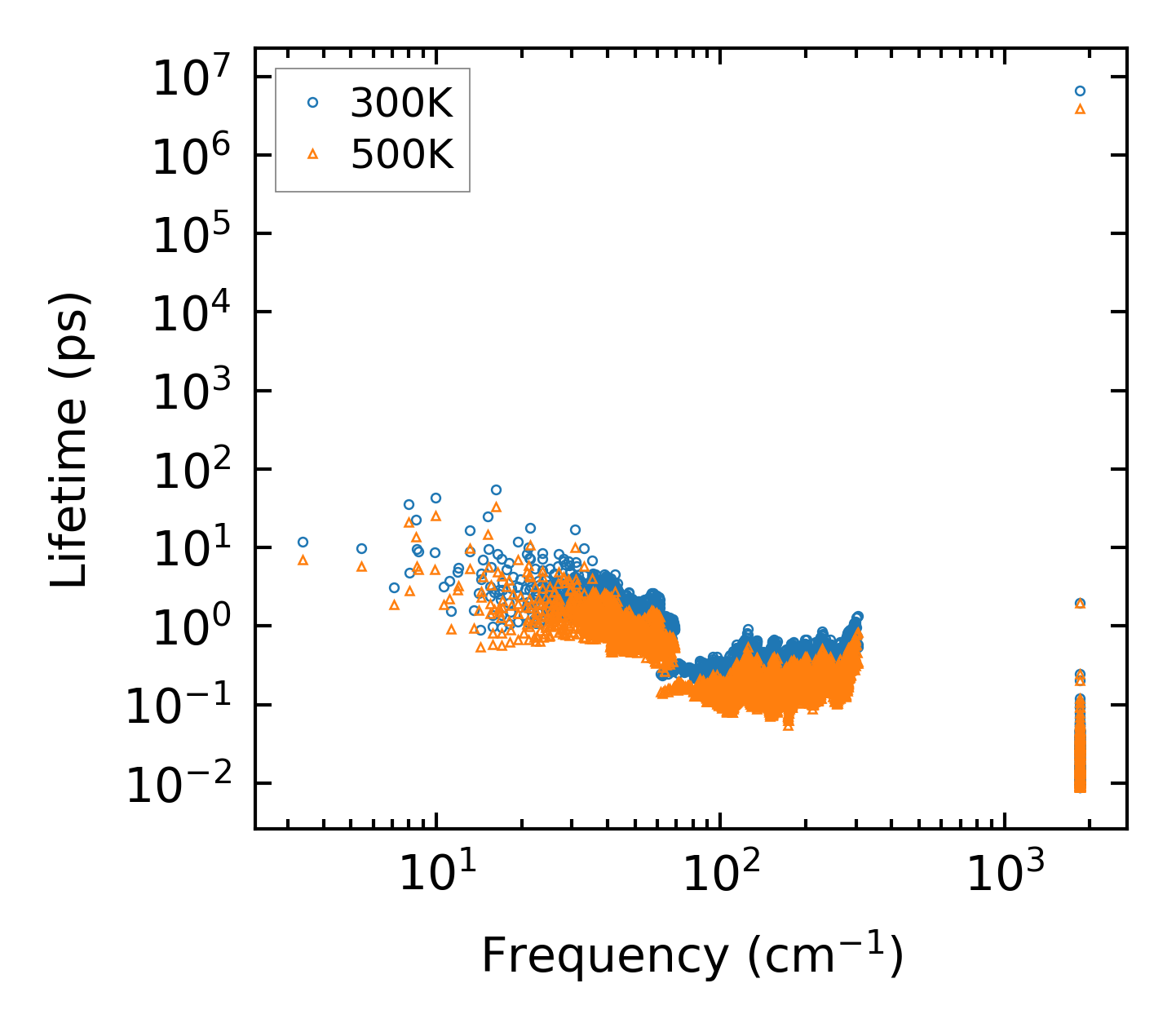

../../_images/fig_lifetime6846.png — (a) Phonon lifetime due to phonon-phonon scattering

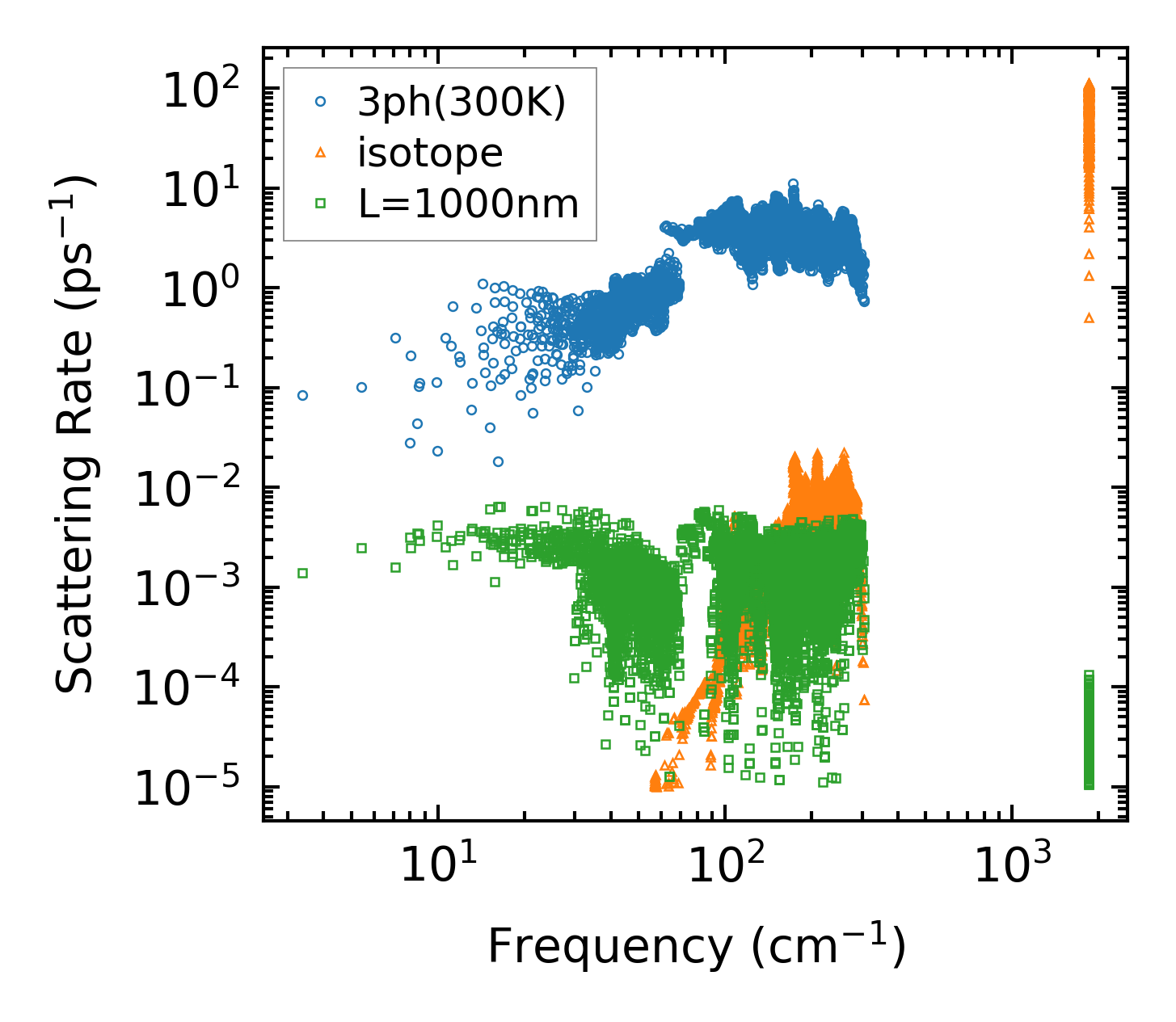

../../_images/fig_scat_rates6845.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

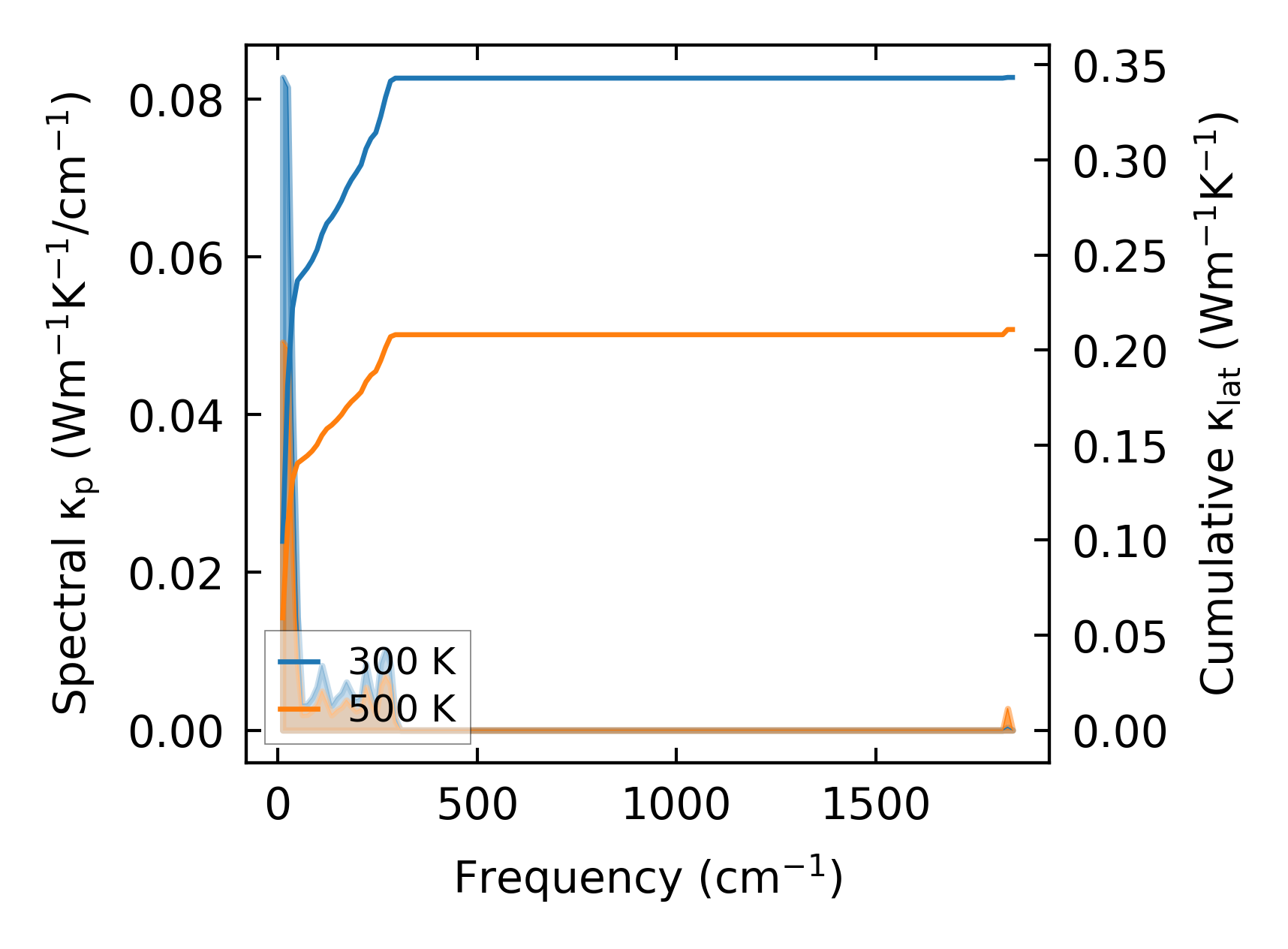

../../_images/fig_cumu_frequency6846.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

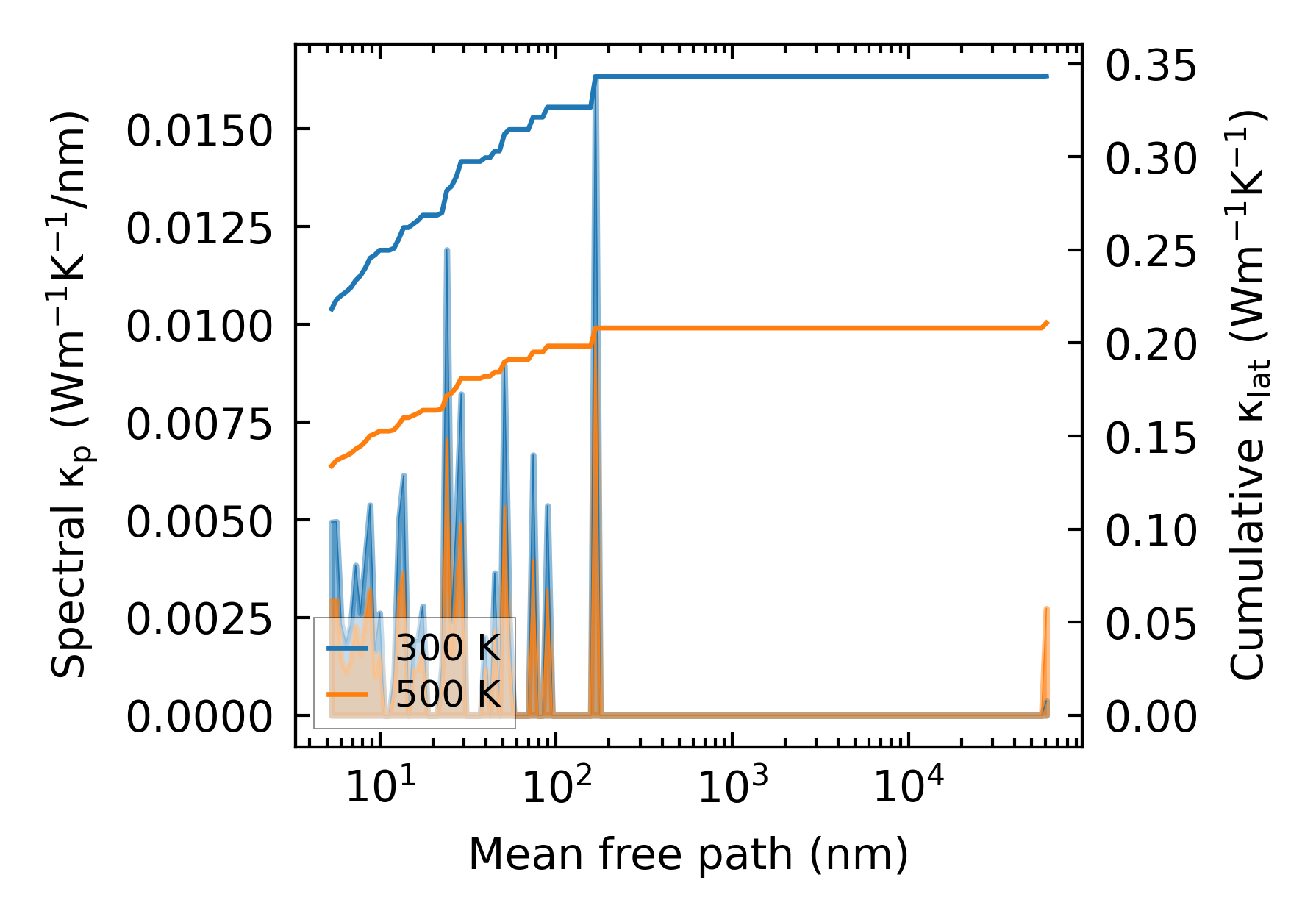

../../_images/fig_cumu_mfp6845.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

../../_images/fig_fc215536.png — (a) Force constants w.r.t atomic distance

Summary

../../_images/fig_kappa13015.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_times26255.png — (b) Computation time
