mp-1189341/HfTl2PbSe4/anharm

Space group: C2/c (15)
Link: Materials Project
Download: mp-1189341.tar.gz

Harmonic properties

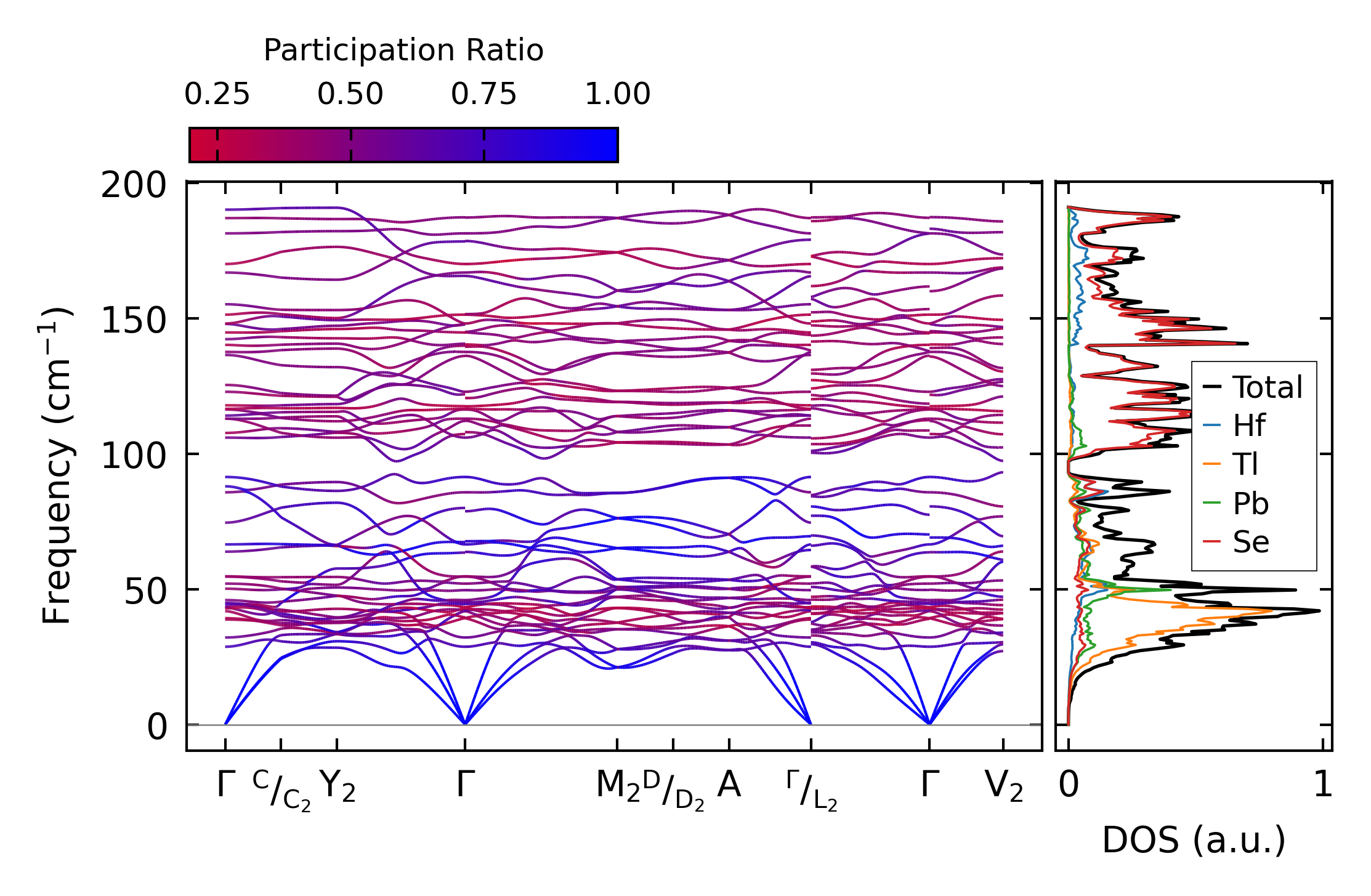

../../_images/fig_bandos_pr15916.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo15915.png — (b) Thermodynamic properties

Grüneisen parameters

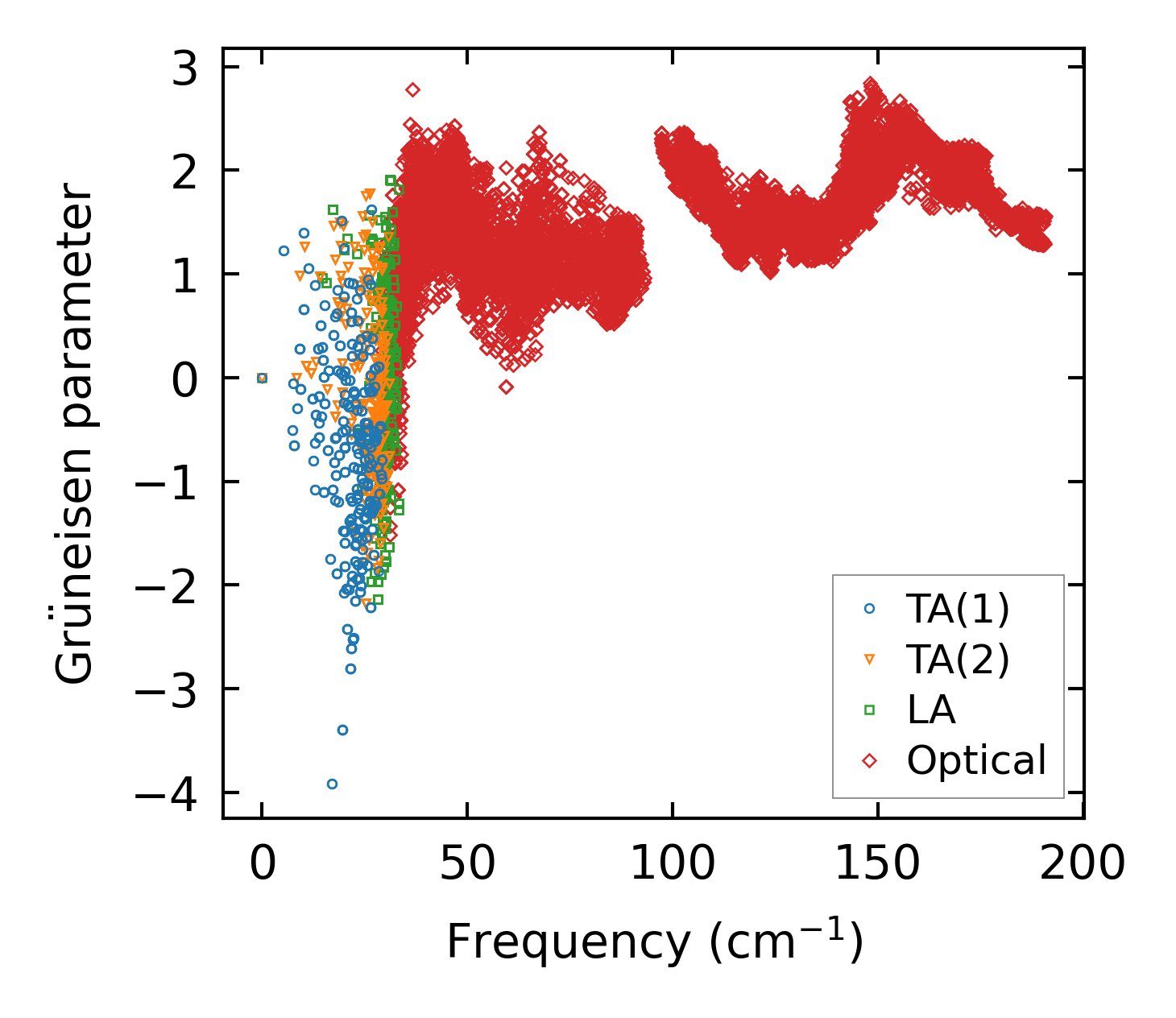

../../_images/fig_gru_all6897.png — (a) Grüneisen parameters

../../_images/fig_gruneisen6897.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 8x8x11, supercell: 1x2x2

../../_images/fig_kappa12985.png — (a) Temperature-dependent lattice thermal conductivity

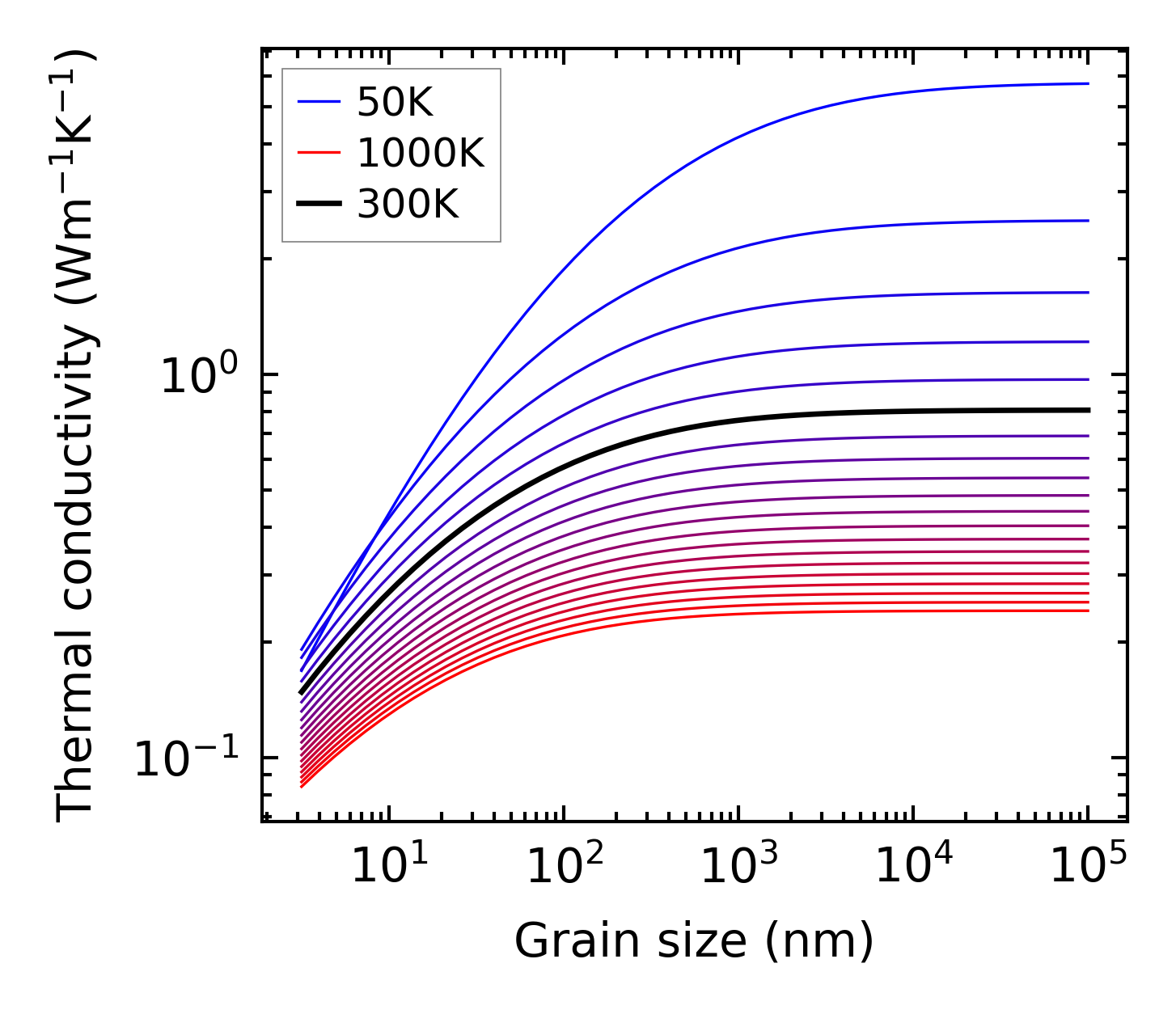

../../_images/fig_kappa_vs_grain_size6977.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

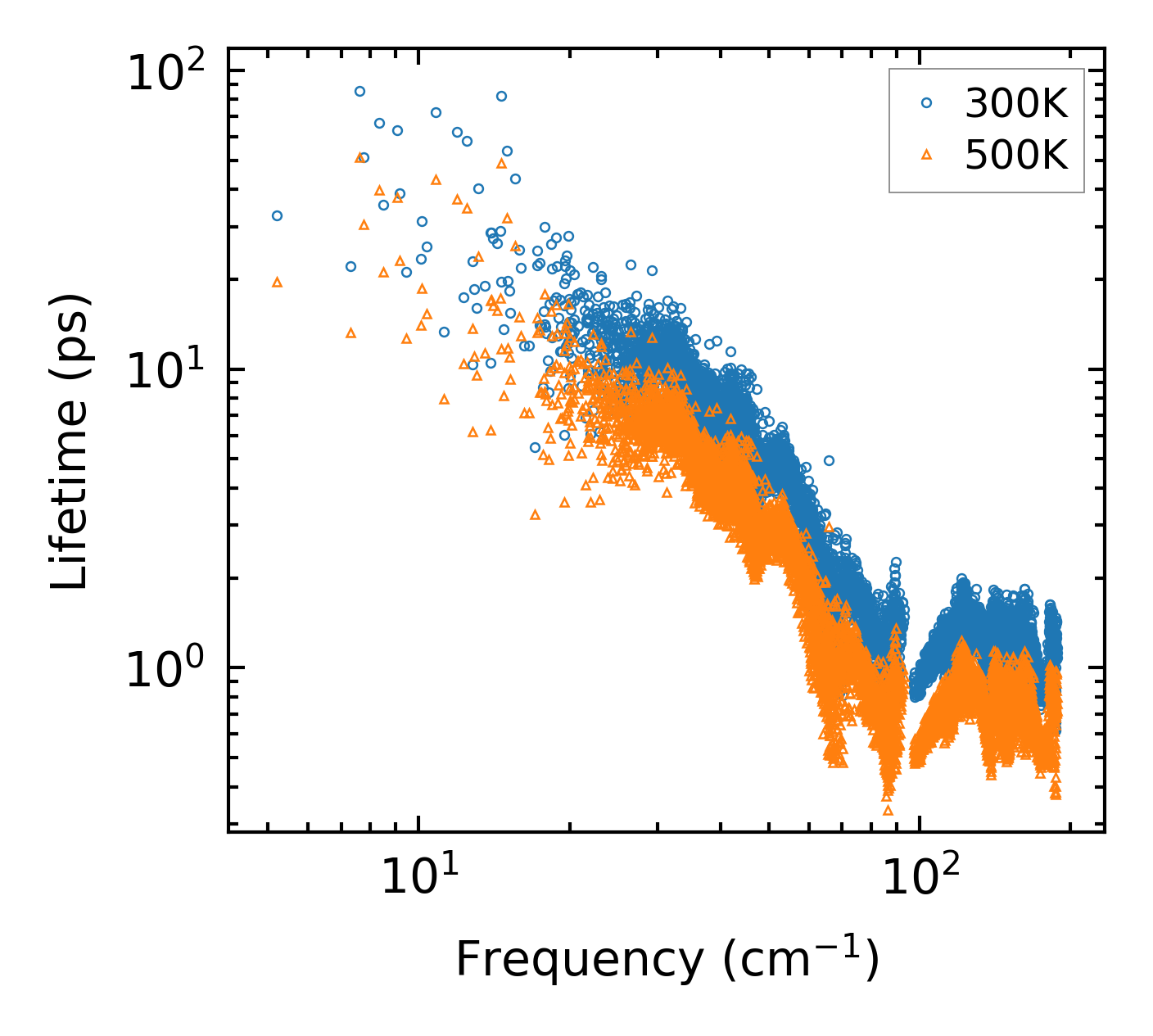

../../_images/fig_lifetime6831.png — (a) Phonon lifetime due to phonon-phonon scattering

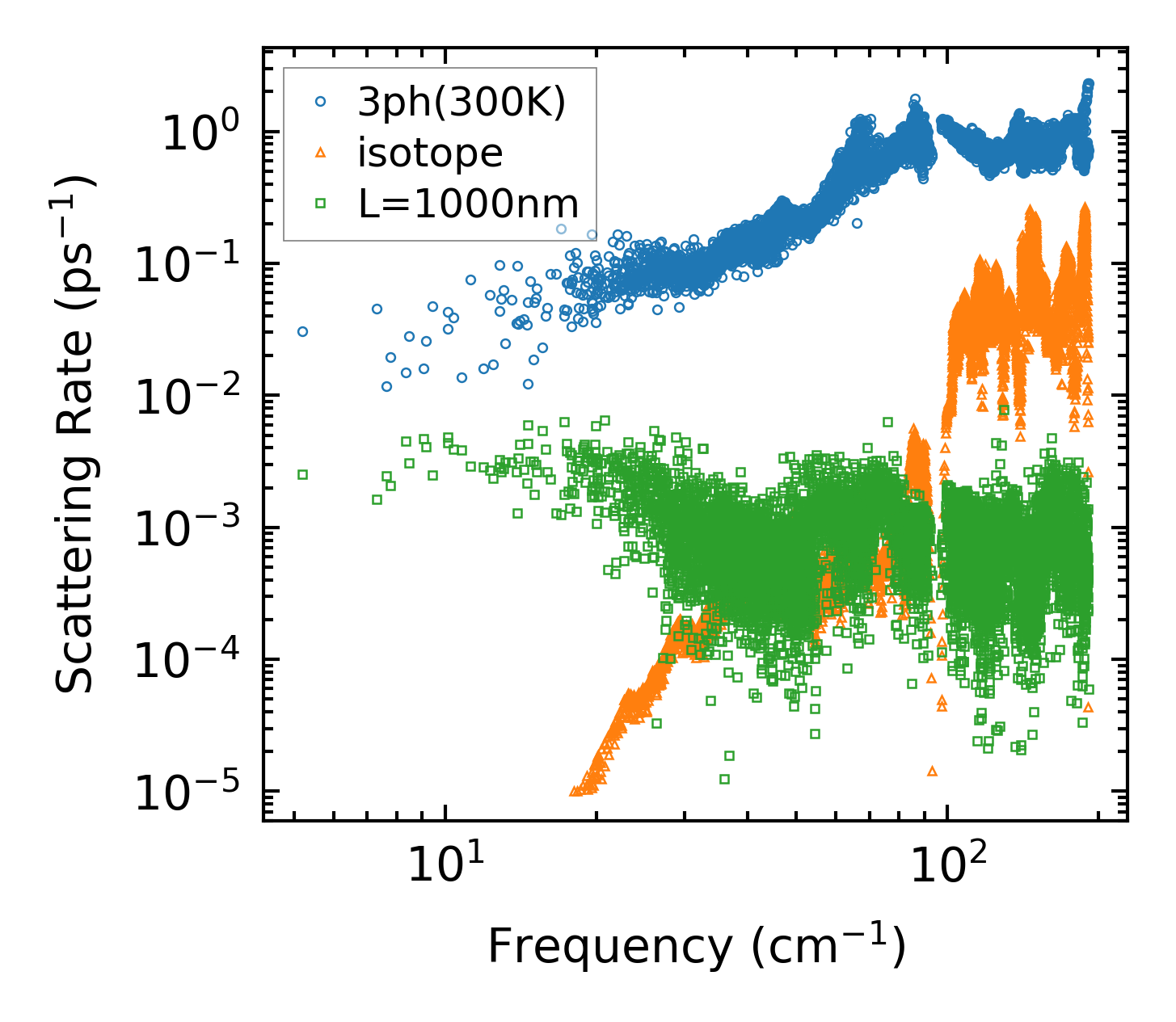

../../_images/fig_scat_rates6830.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

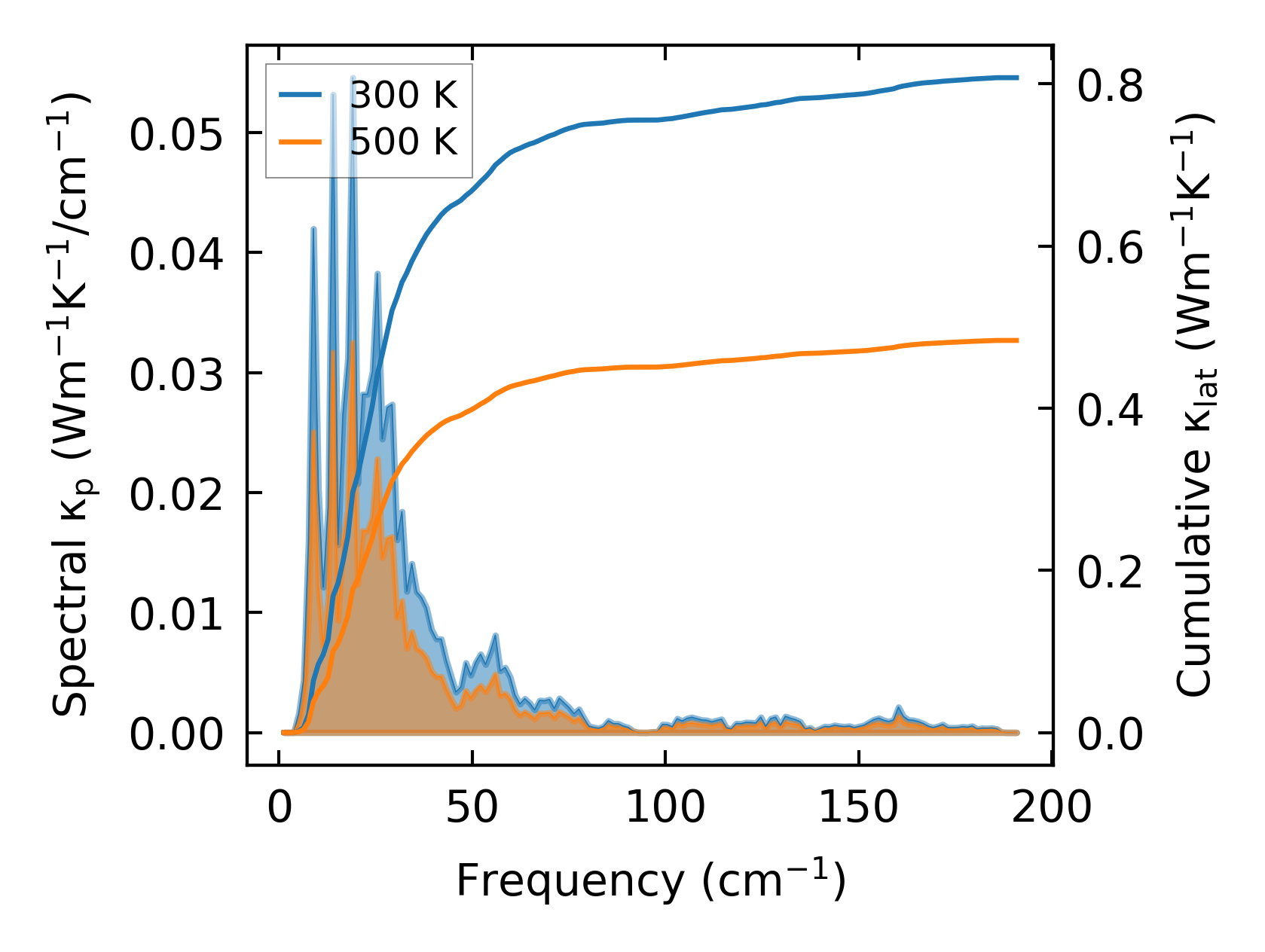

../../_images/fig_cumu_frequency6831.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

../../_images/fig_cumu_mfp6830.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

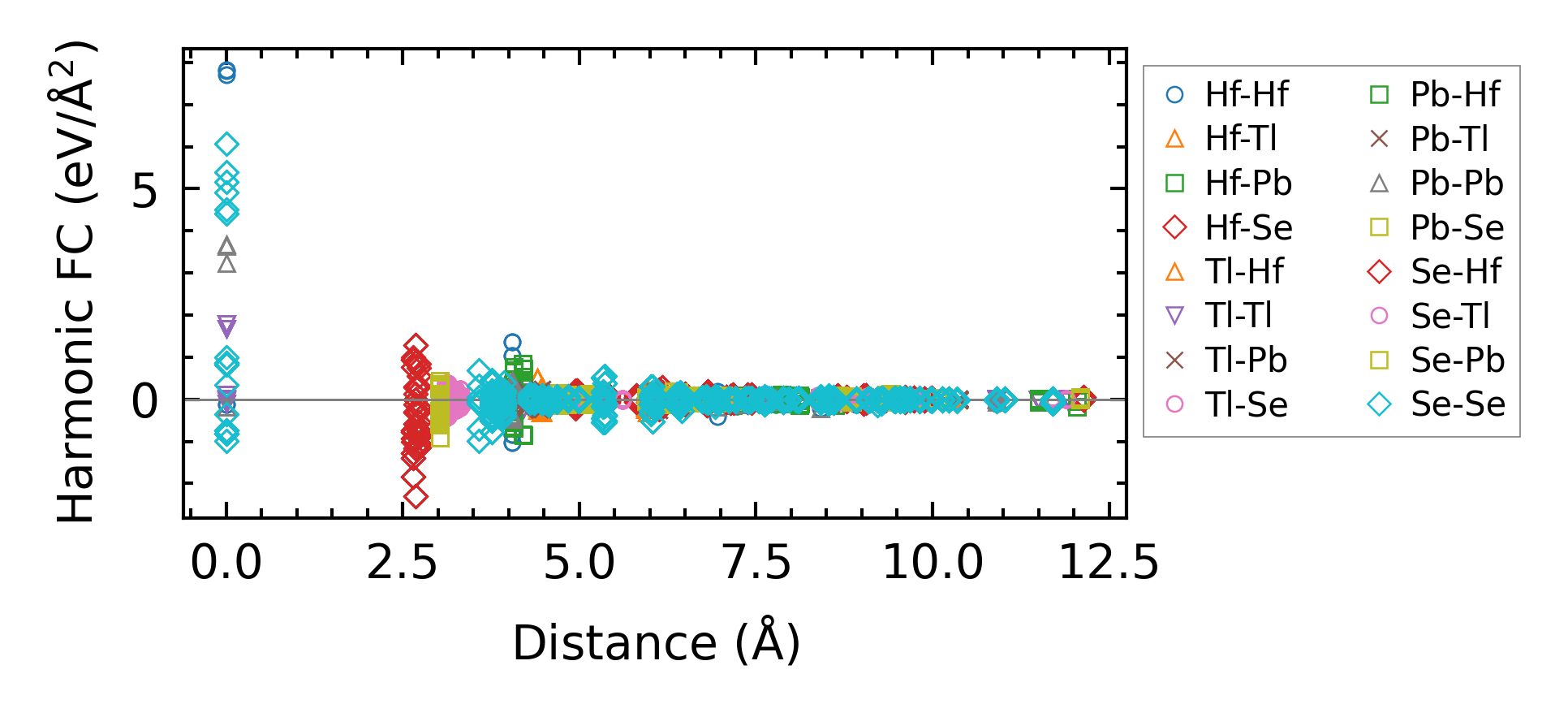

../../_images/fig_fc215511.png — (a) Force constants w.r.t atomic distance

Summary

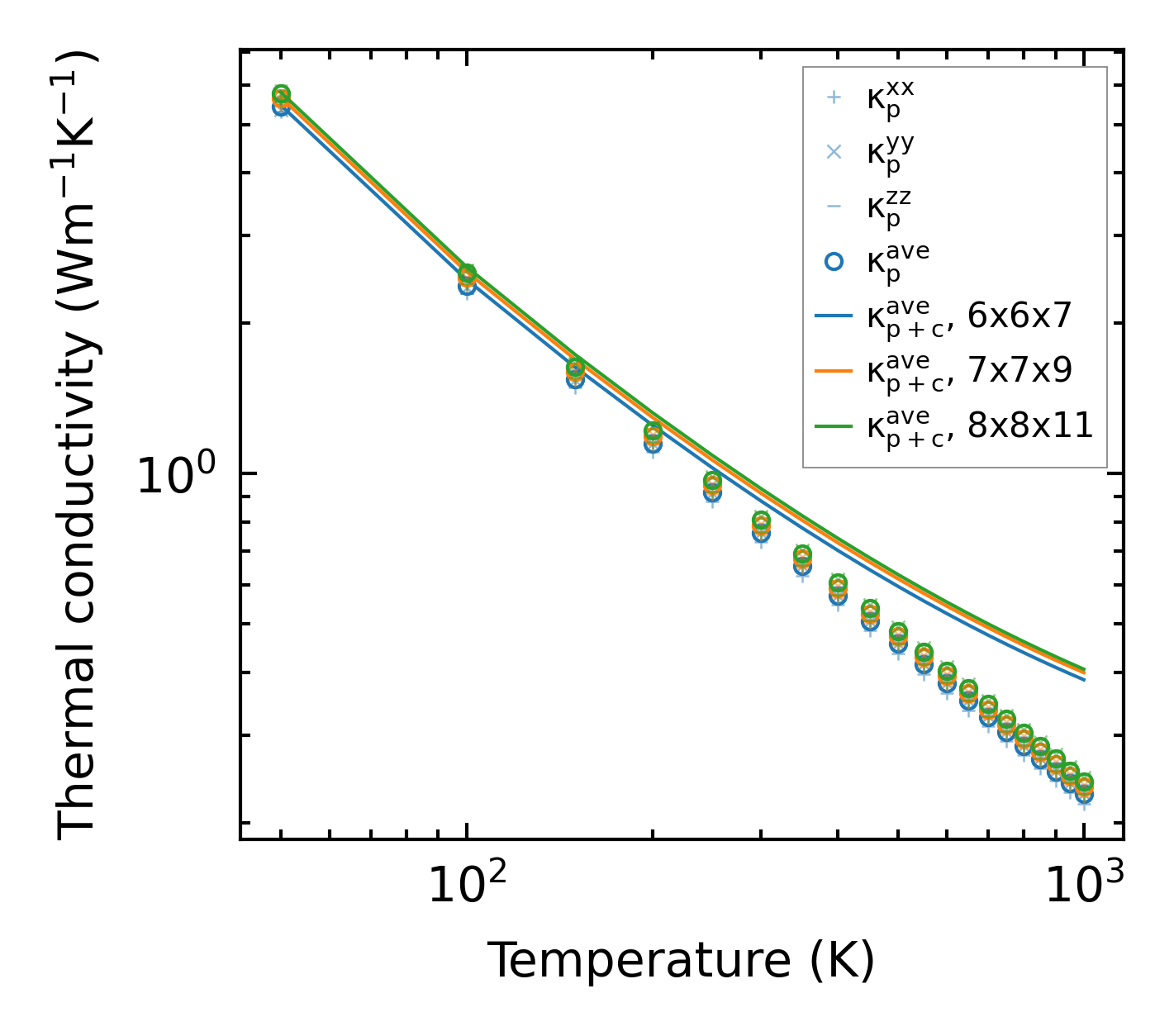

../../_images/fig_kappa12986.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_times26217.png — (b) Computation time
