mp-1189644-2/PrLu3S6/anharm

Space group: P2_1/m (11)
Link: Materials Project
Download: mp-1189644-2.tar.gz

Equation of state

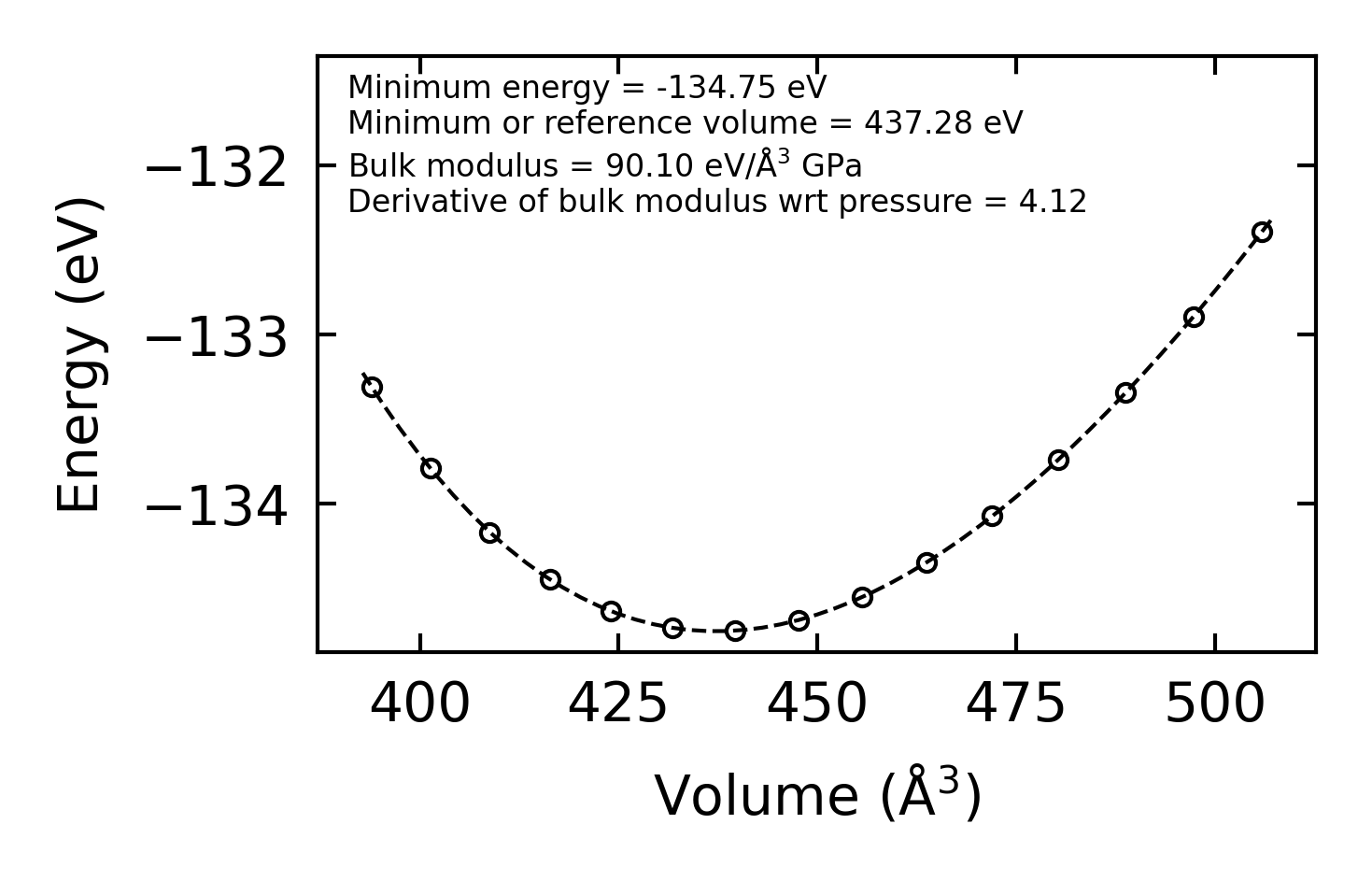

../../_images/fig_bm7696.png — (a) Equation of state

Harmonic properties

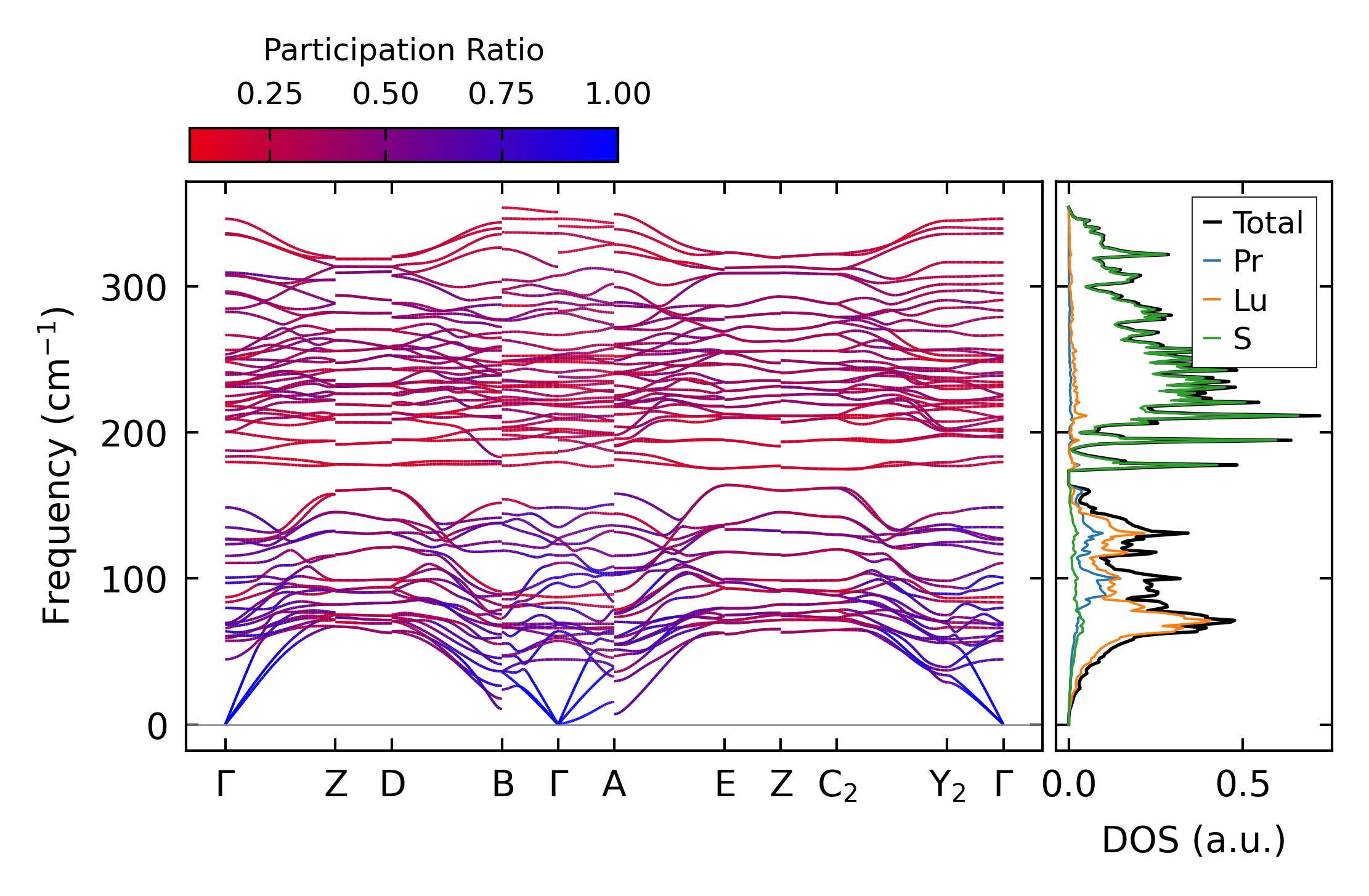

../../_images/fig_bandos_pr15929.png — (a) Phonon dispersion with participation ratio and DOS

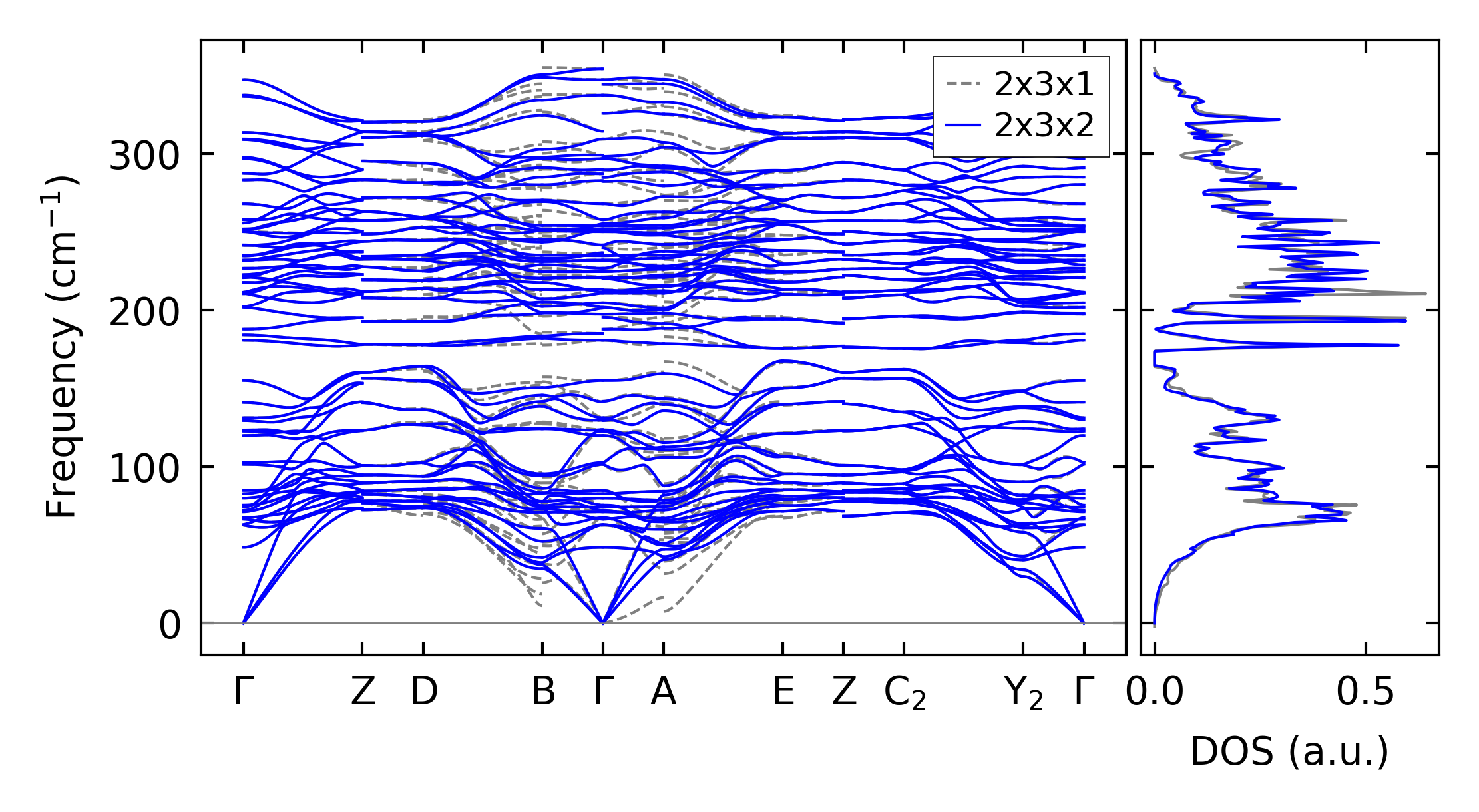

../../_images/fig_bandos20343.png — (b) Phonon dispersion and DOS

../../_images/fig_thermo15928.png — (c) Thermodynamic properties

Grüneisen parameters

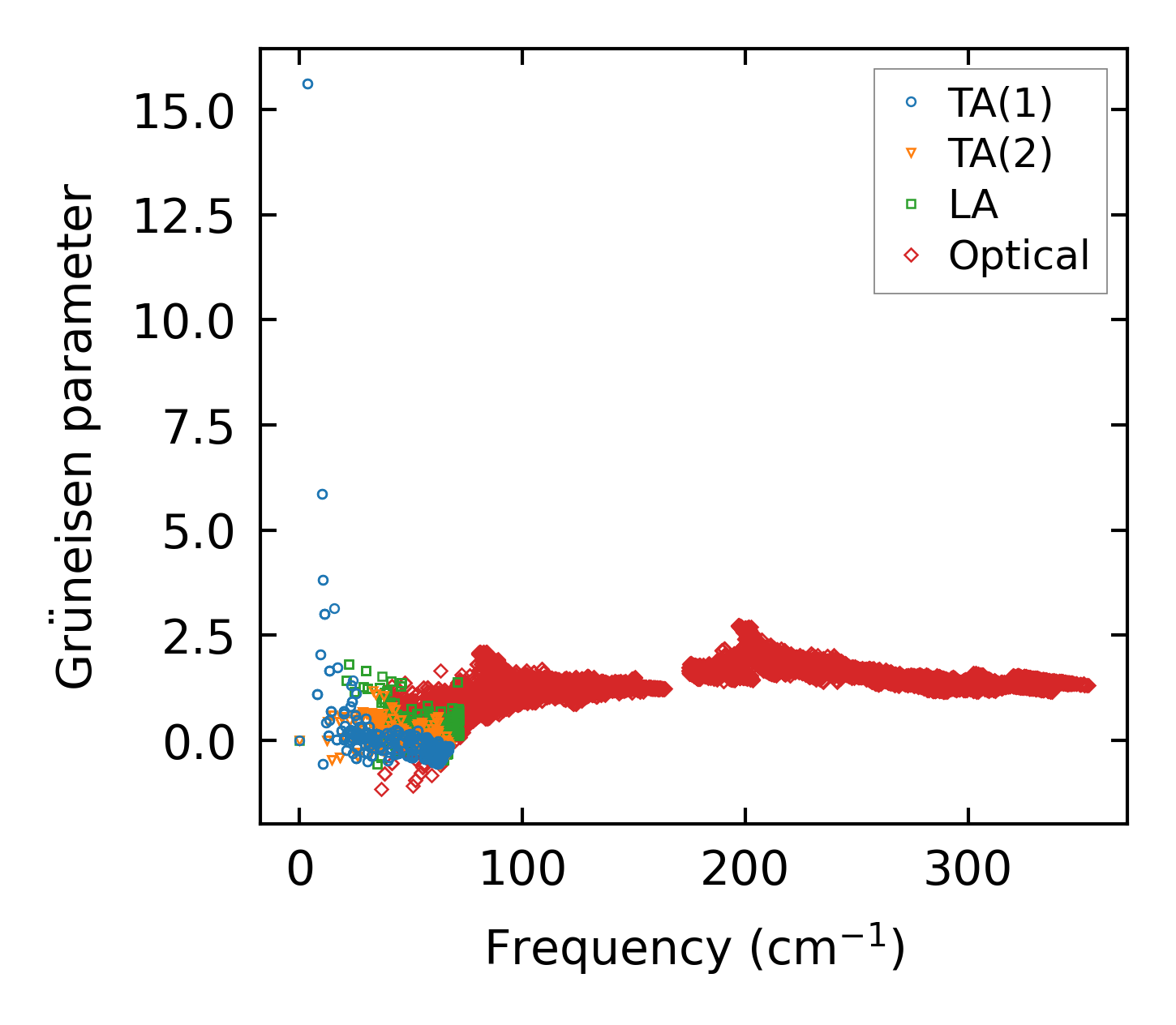

../../_images/fig_gru_all6903.png — (a) Grüneisen parameters

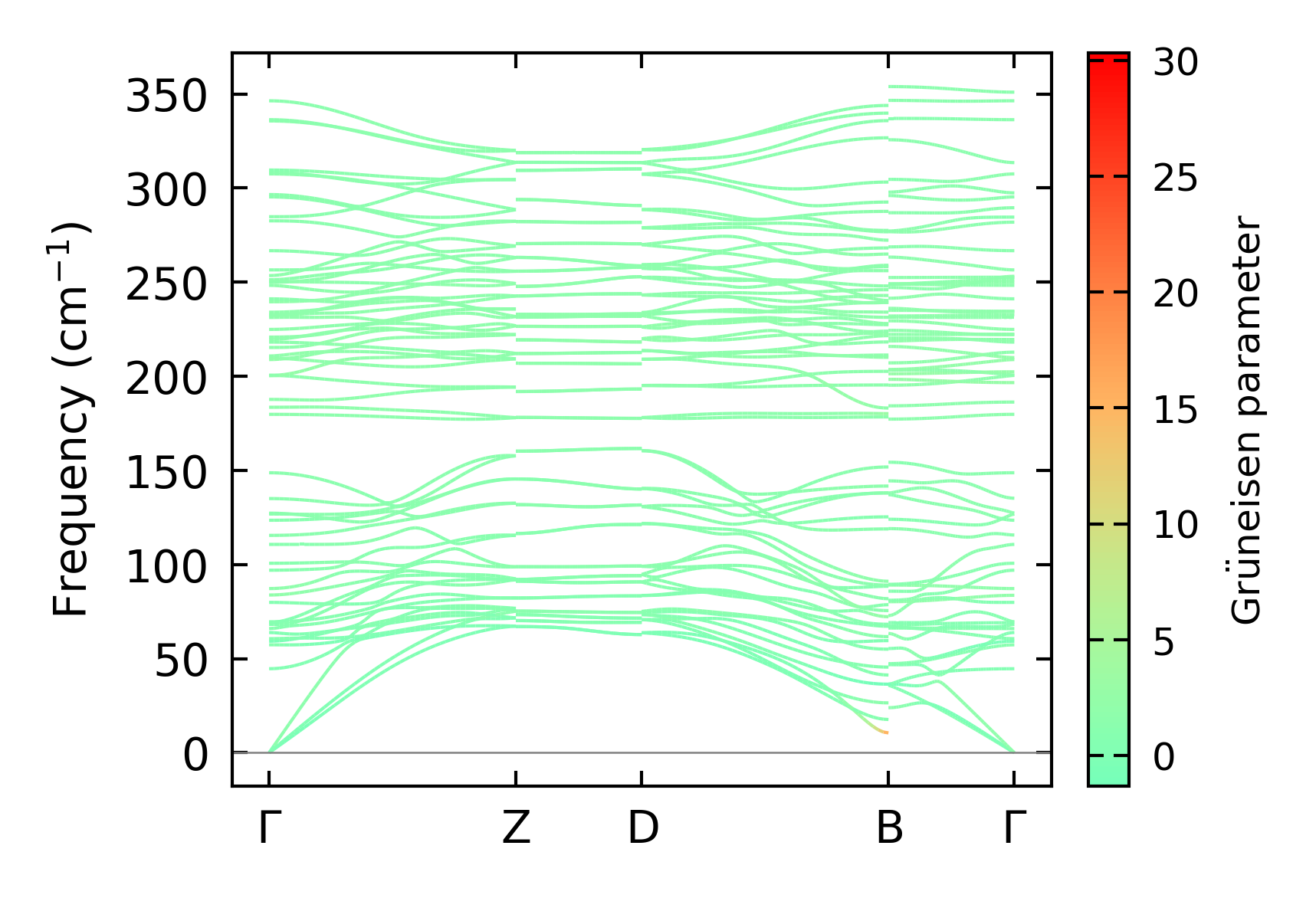

../../_images/fig_gruneisen6903.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 6x18x6, supercell: 2x3x1

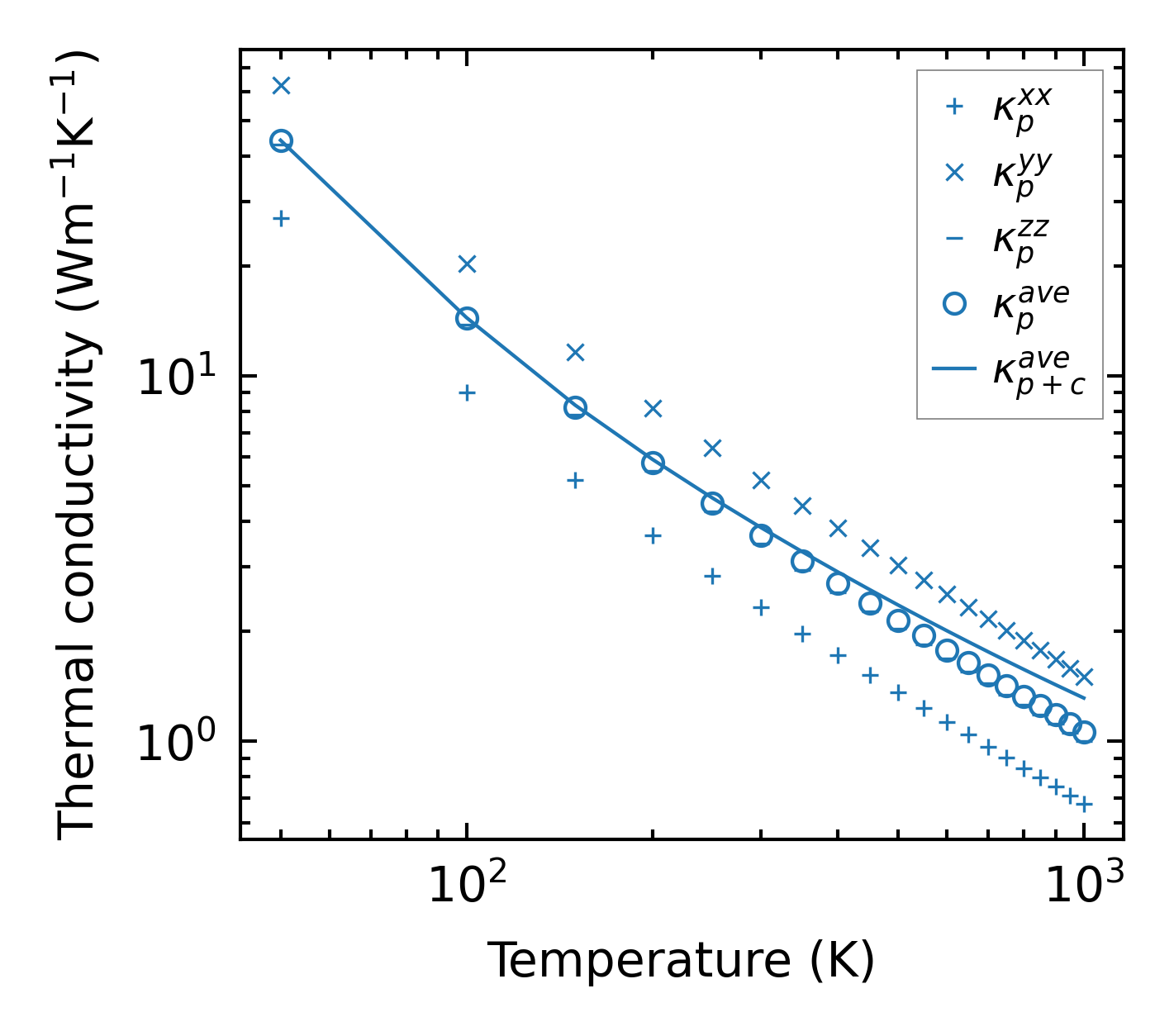

../../_images/fig_kappa12996.png — (a) Temperature-dependent lattice thermal conductivity

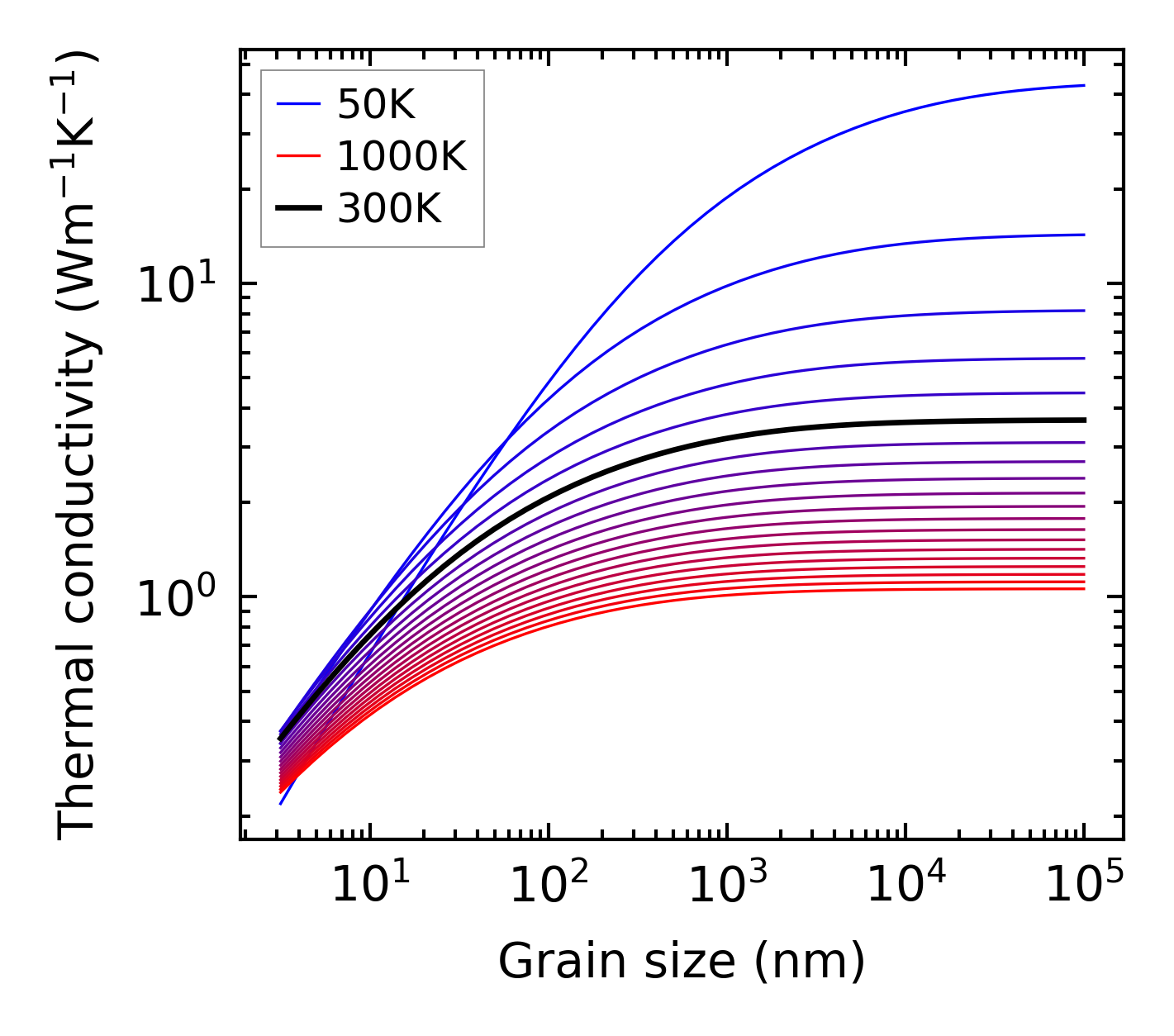

../../_images/fig_kappa_vs_grain_size6983.png — (b) Peierls lattice thermal conductivity w.r.t grain size

3-phonon (LASSO), supercell 2x3x2 — q-mesh: 6x18x6, supercell: 2x3x2

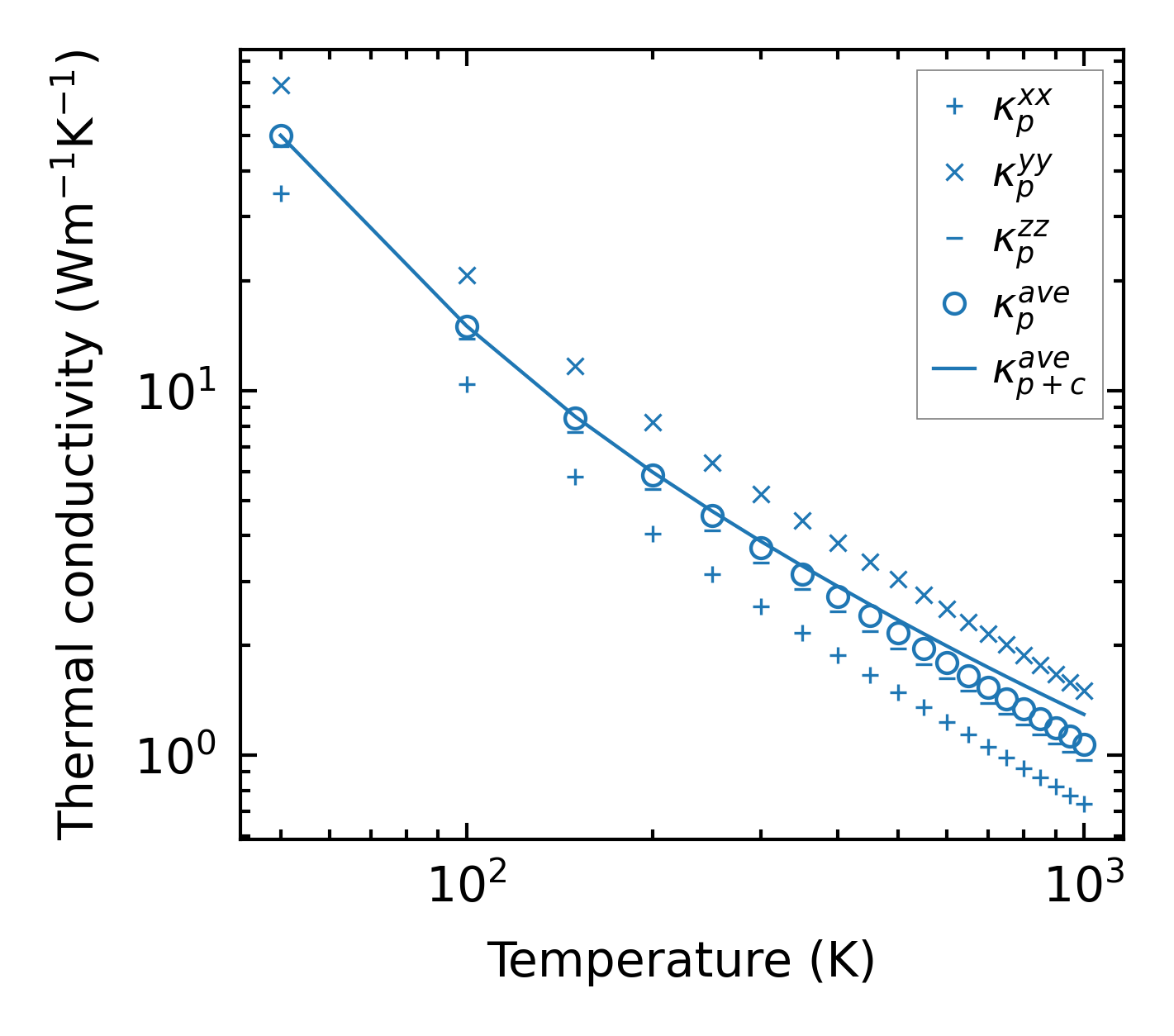

../../_images/fig_kappa12997.png — (a) Temperature-dependent lattice thermal conductivity

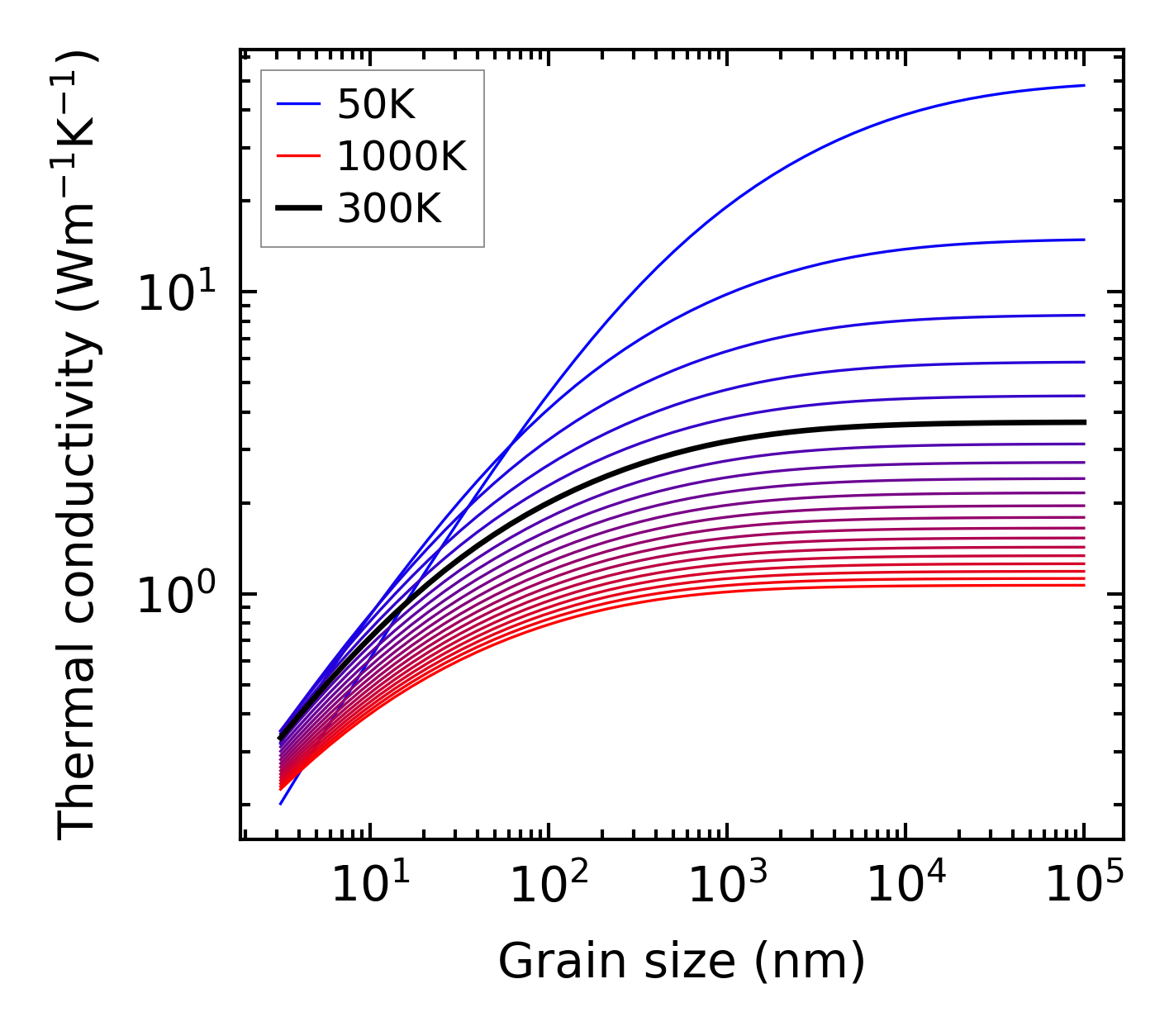

../../_images/fig_kappa_vs_grain_size6984.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

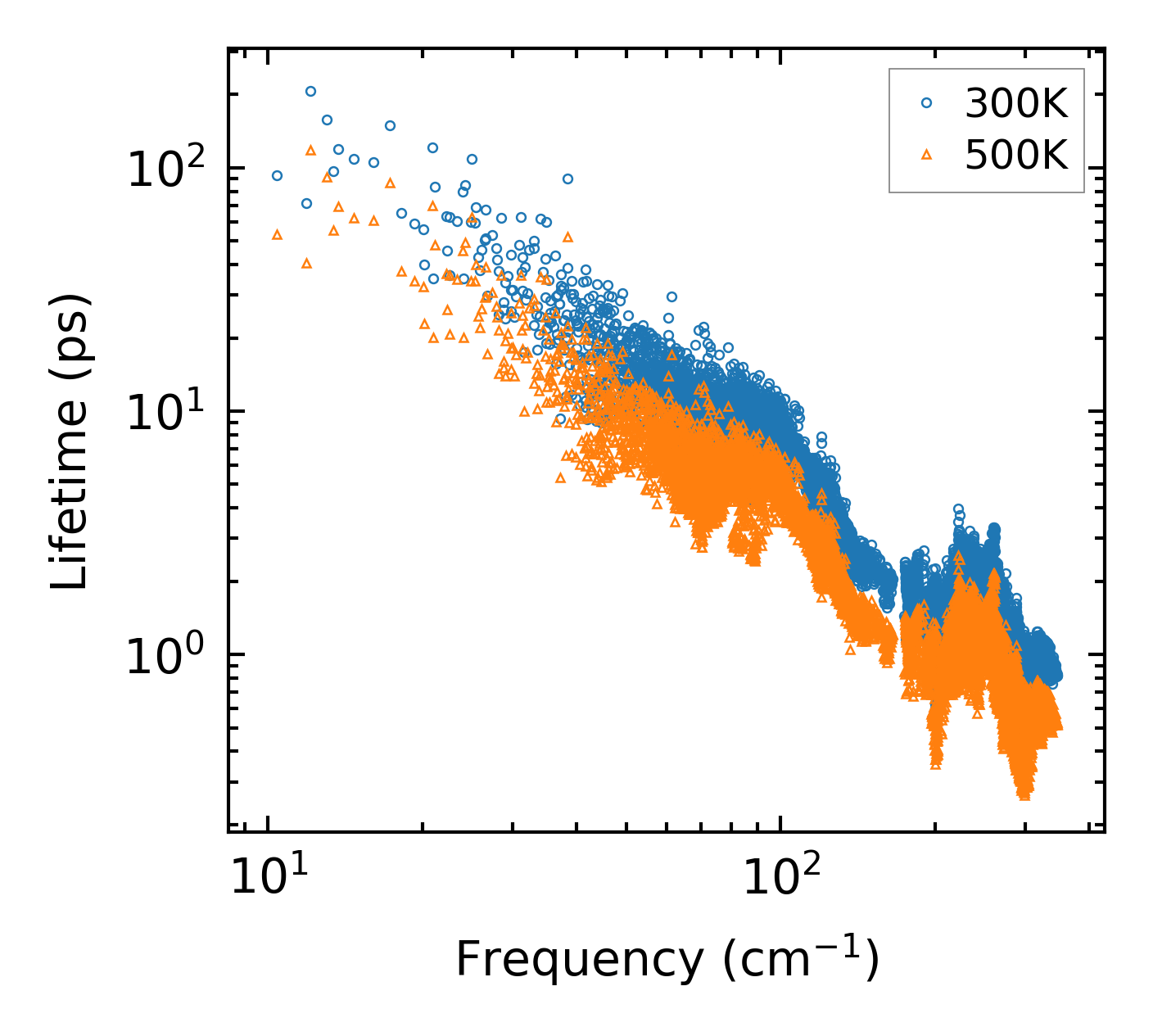

../../_images/fig_lifetime6837.png — (a) Phonon lifetime due to phonon-phonon scattering

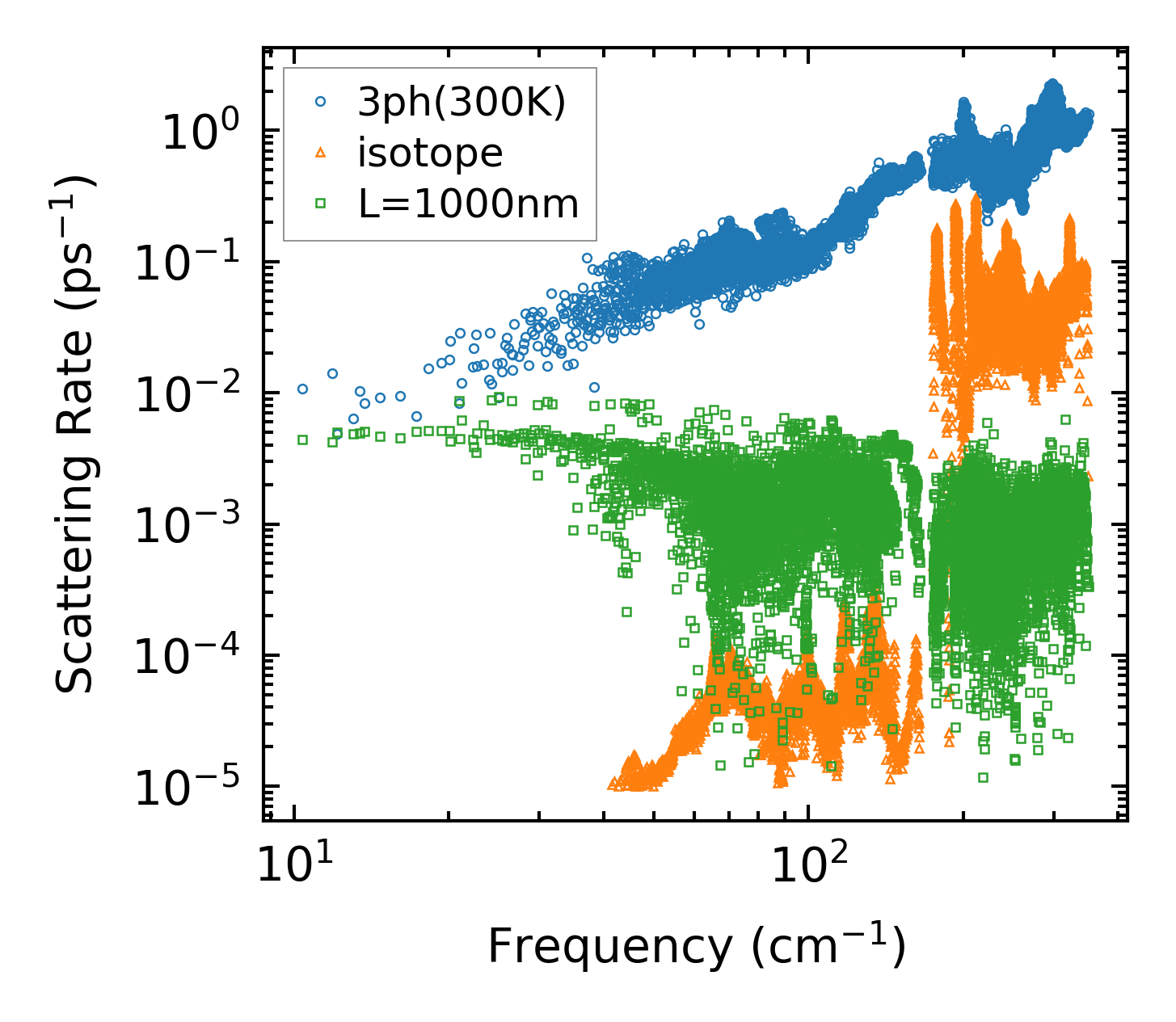

../../_images/fig_scat_rates6836.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

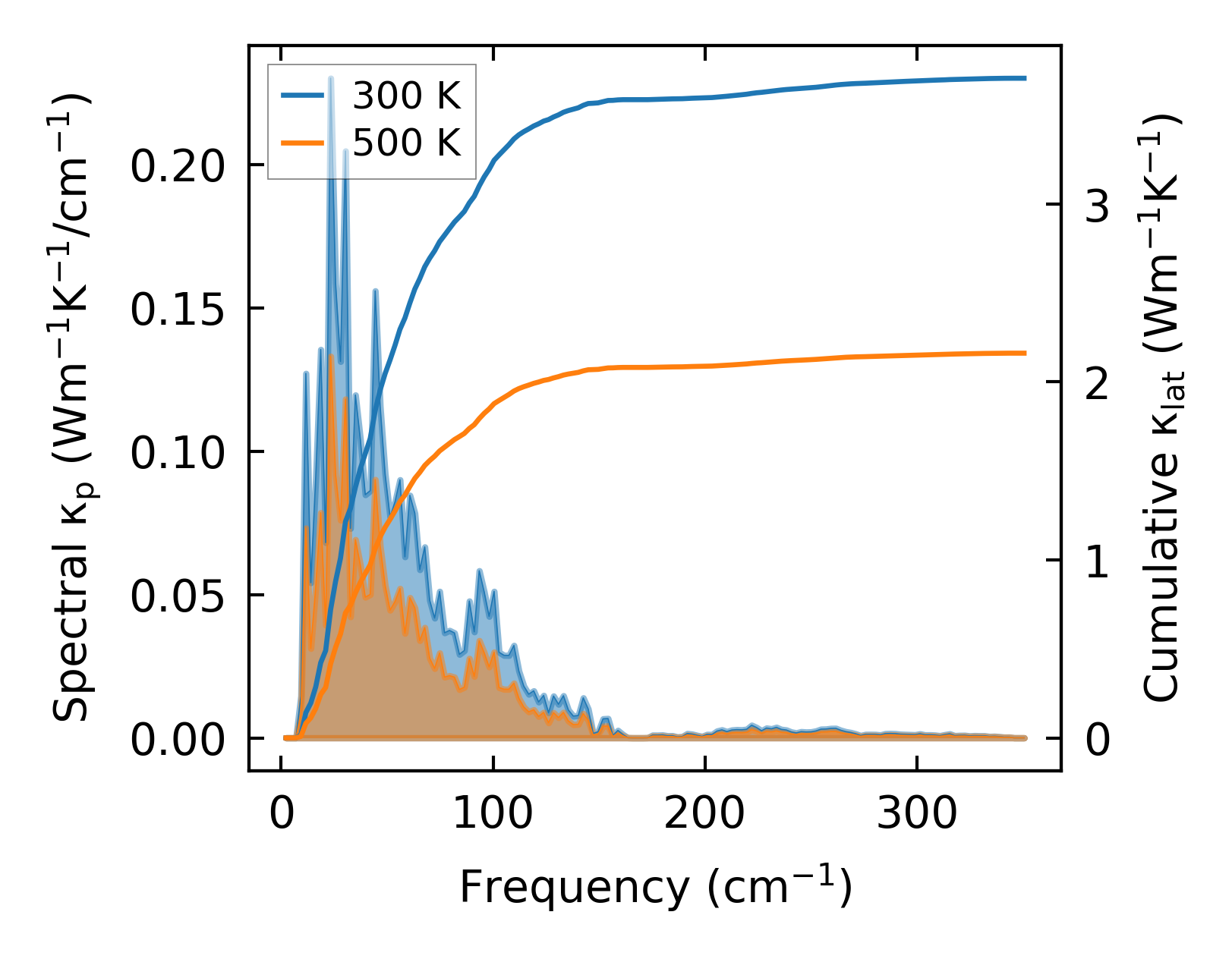

../../_images/fig_cumu_frequency6837.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

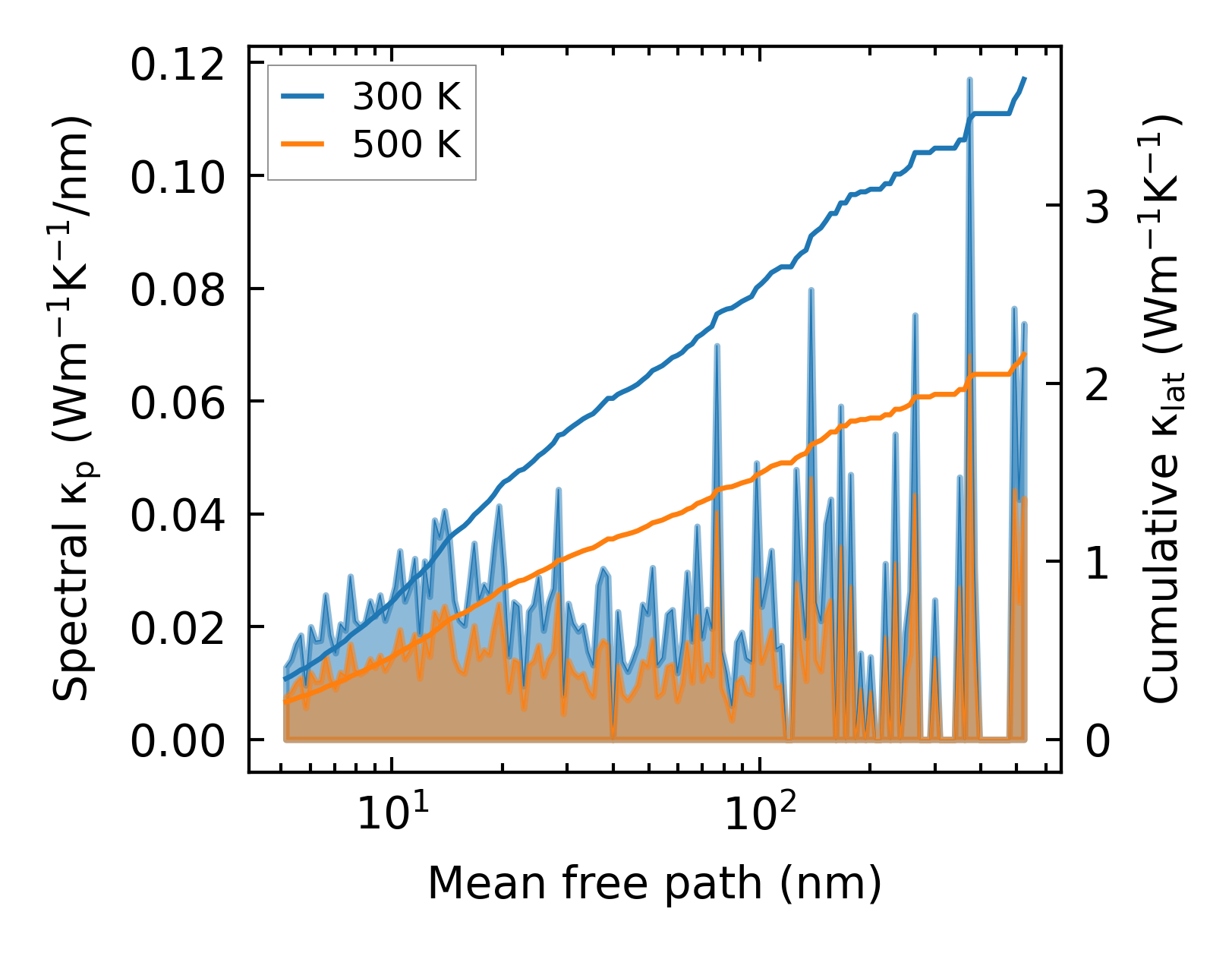

../../_images/fig_cumu_mfp6836.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

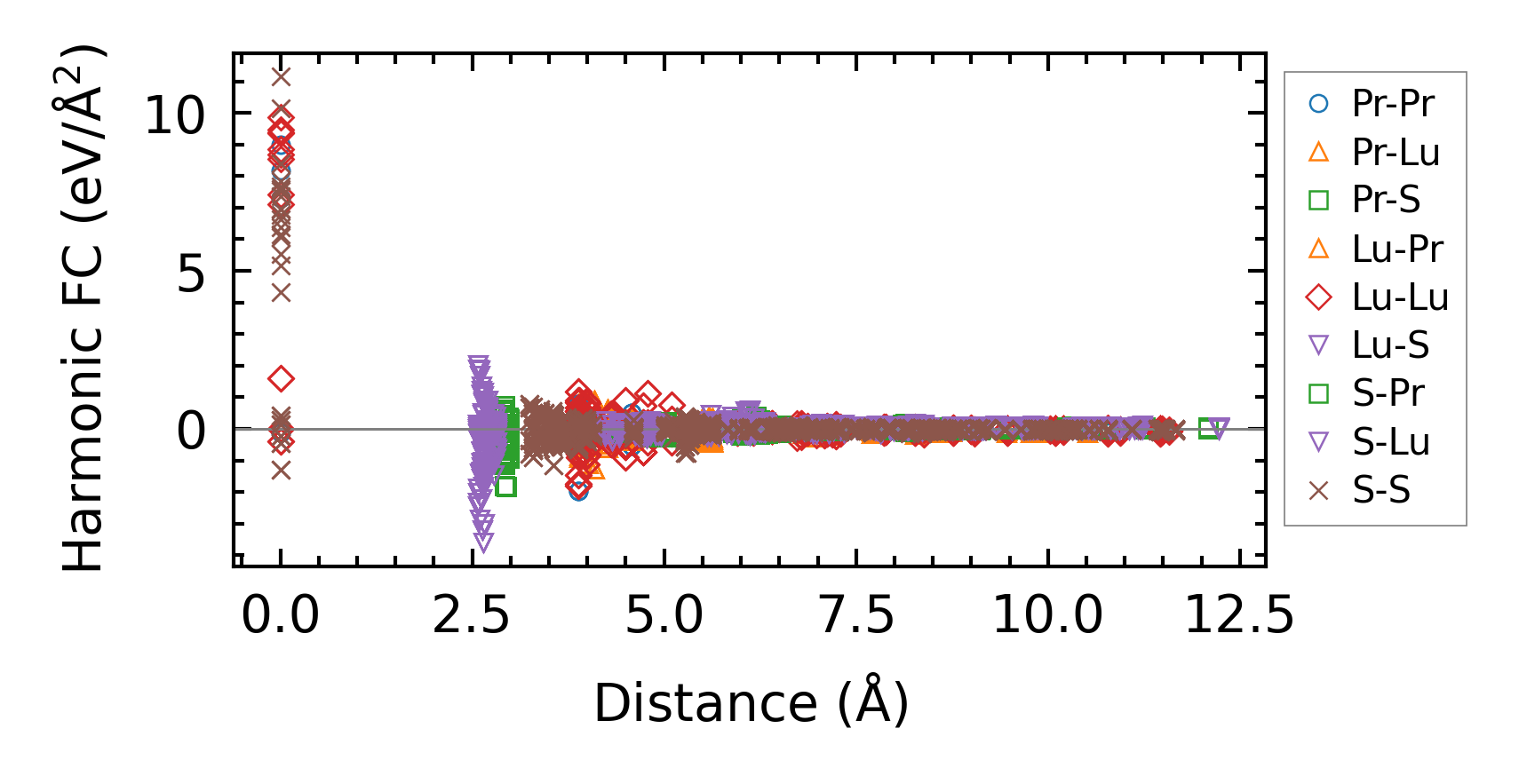

../../_images/fig_fc215524.png — (a) Force constants w.r.t atomic distance

Summary

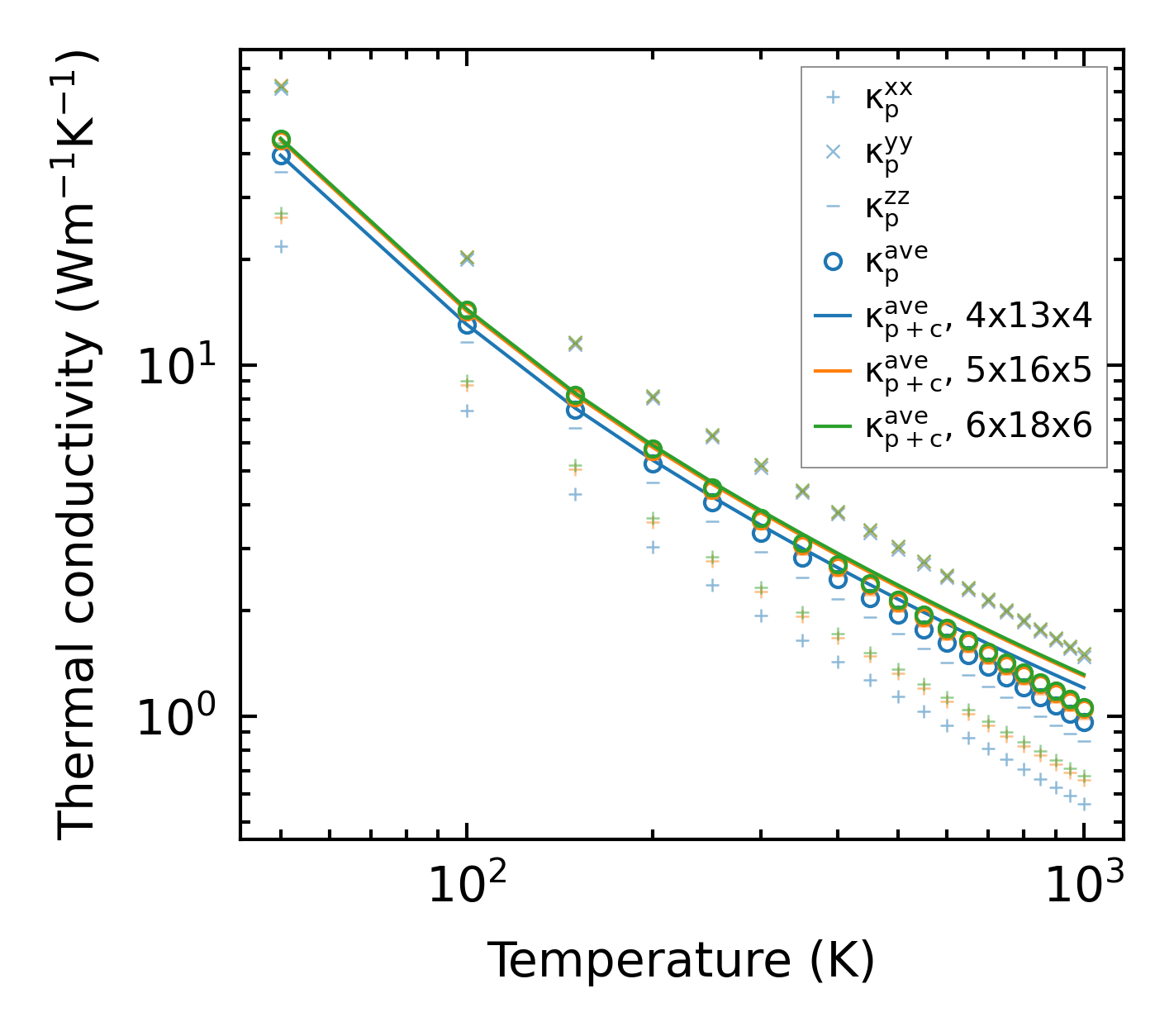

../../_images/fig_kappa12998.png — (a) Temperature-dependent lattice thermal conductivity

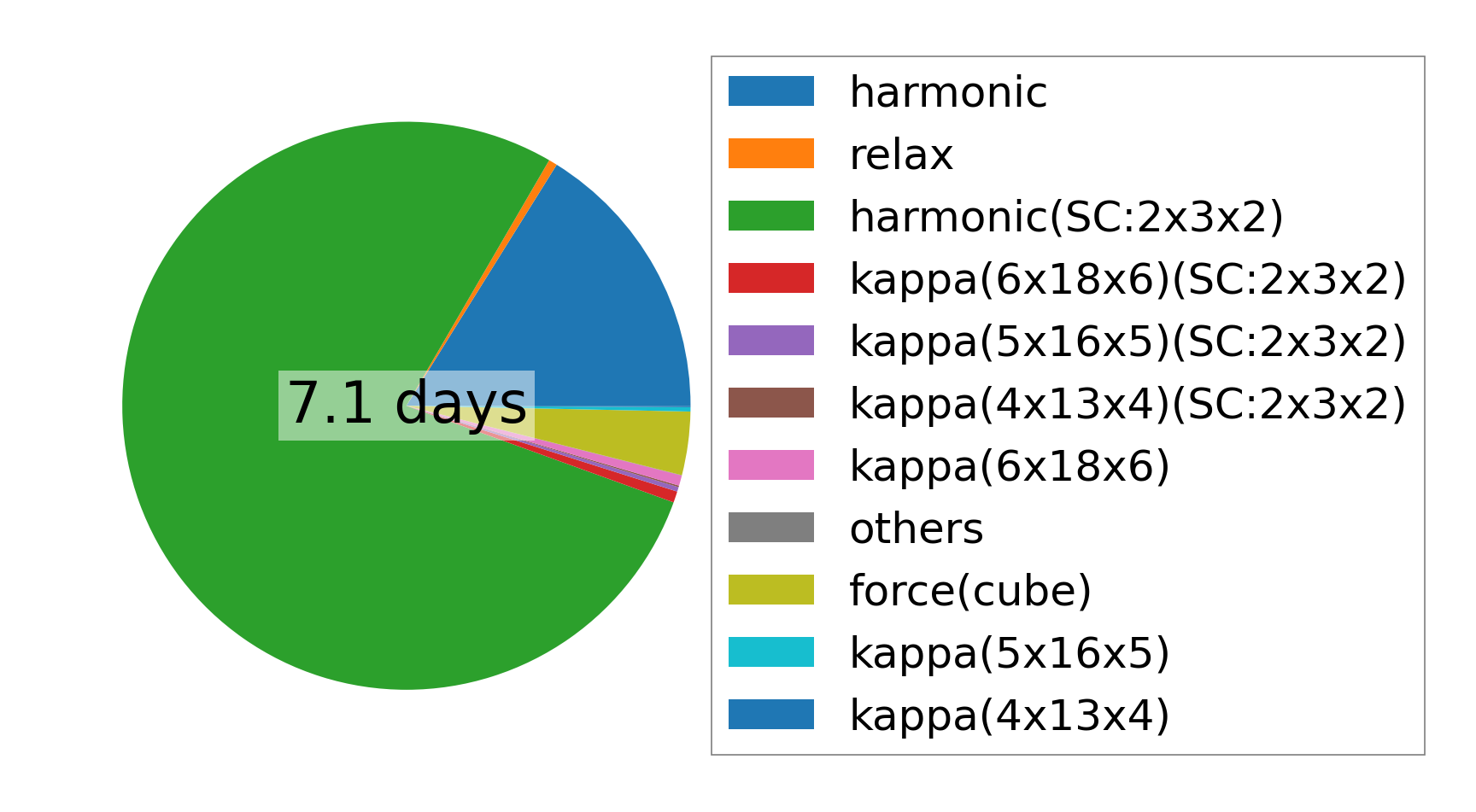

../../_images/fig_times26239.png — (b) Computation time
