mp-1189757/Dy2SnS5/anharm

Space group: Pbam (55)
Link: Materials Project
Download: mp-1189757.tar.gz

Harmonic properties

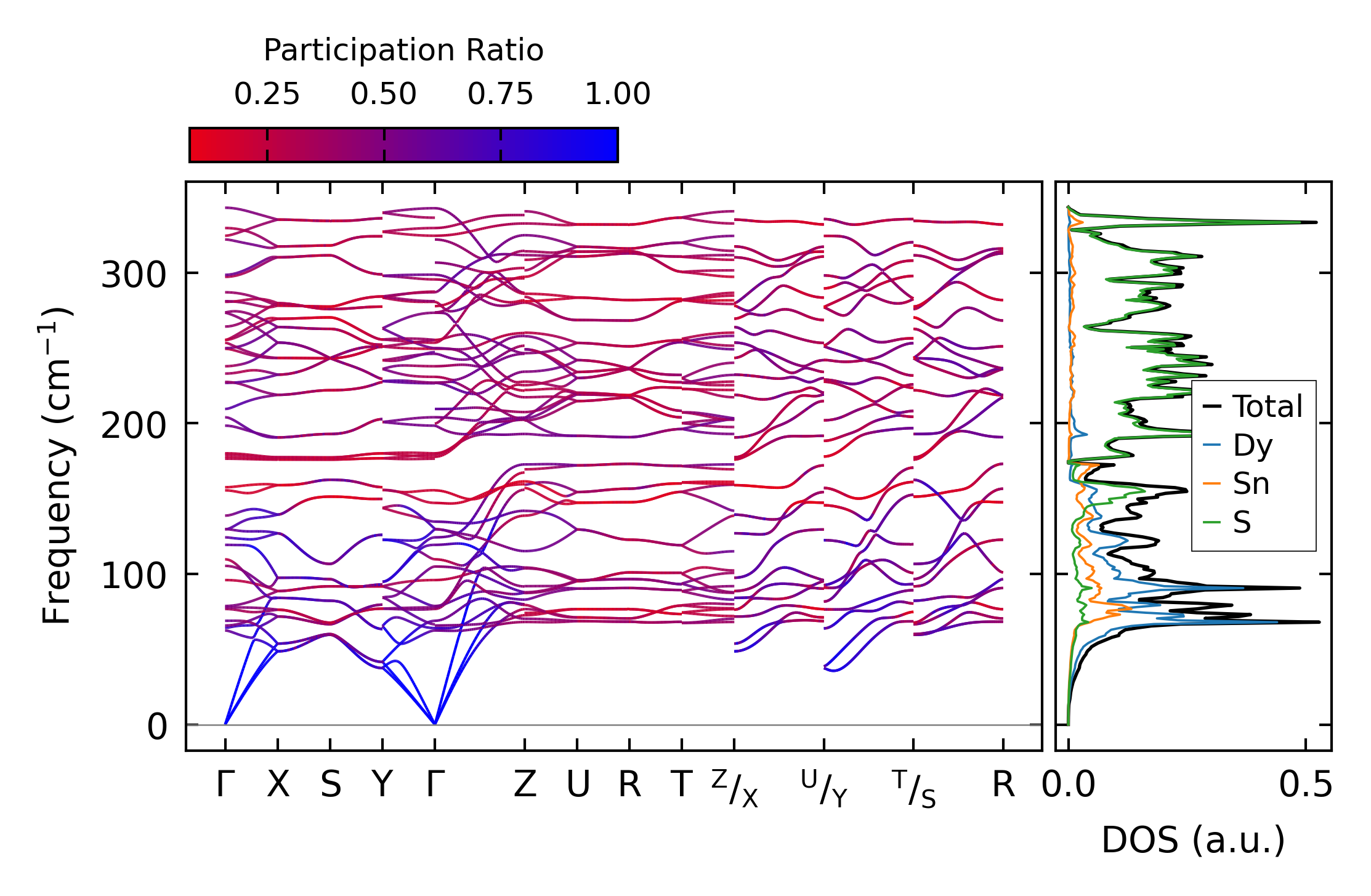

../../_images/fig_bandos_pr15936.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo15935.png — (b) Thermodynamic properties

Grüneisen parameters

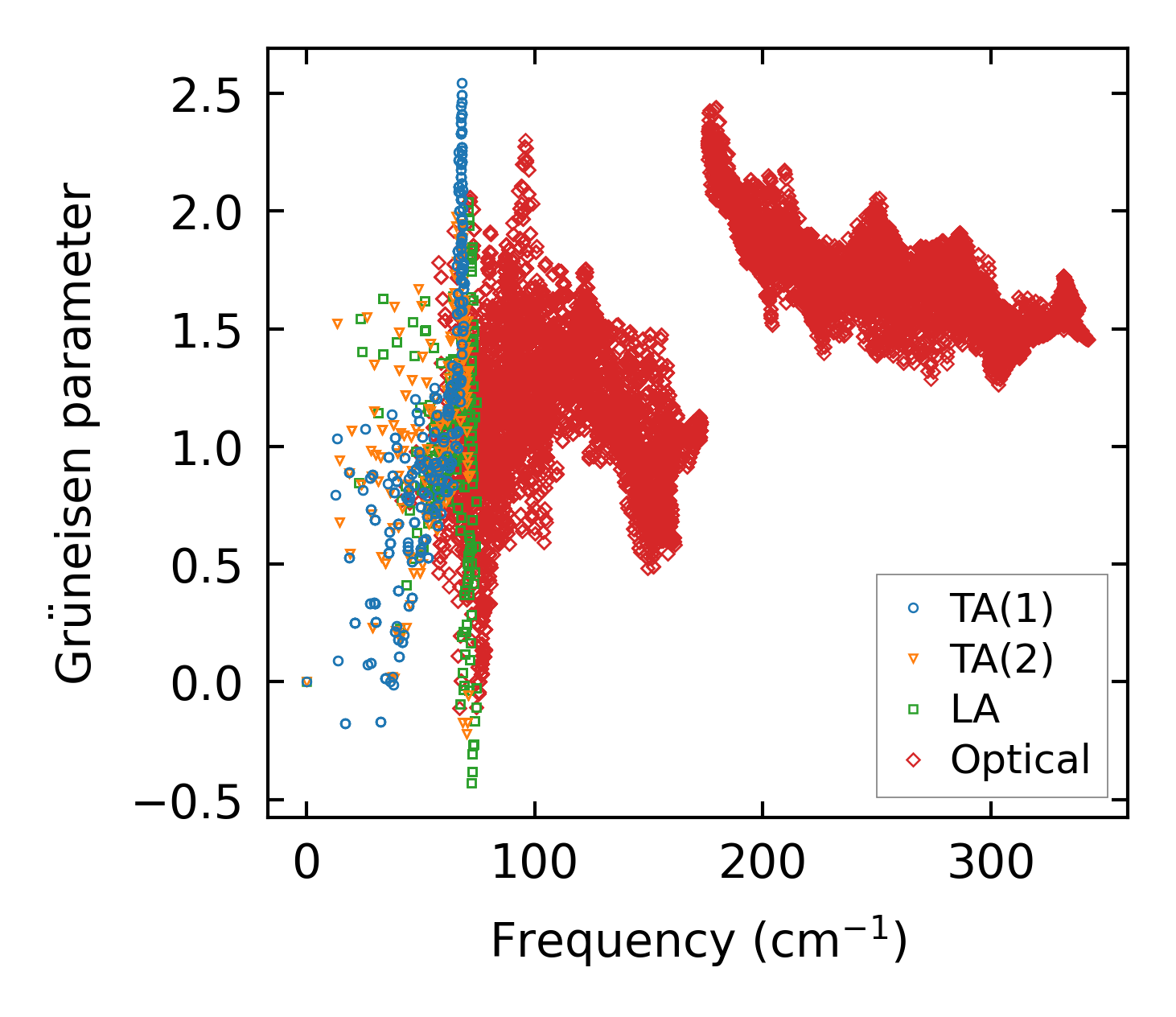

../../_images/fig_gru_all6908.png — (a) Grüneisen parameters

../../_images/fig_gruneisen6908.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 9x6x19, supercell: 2x1x3

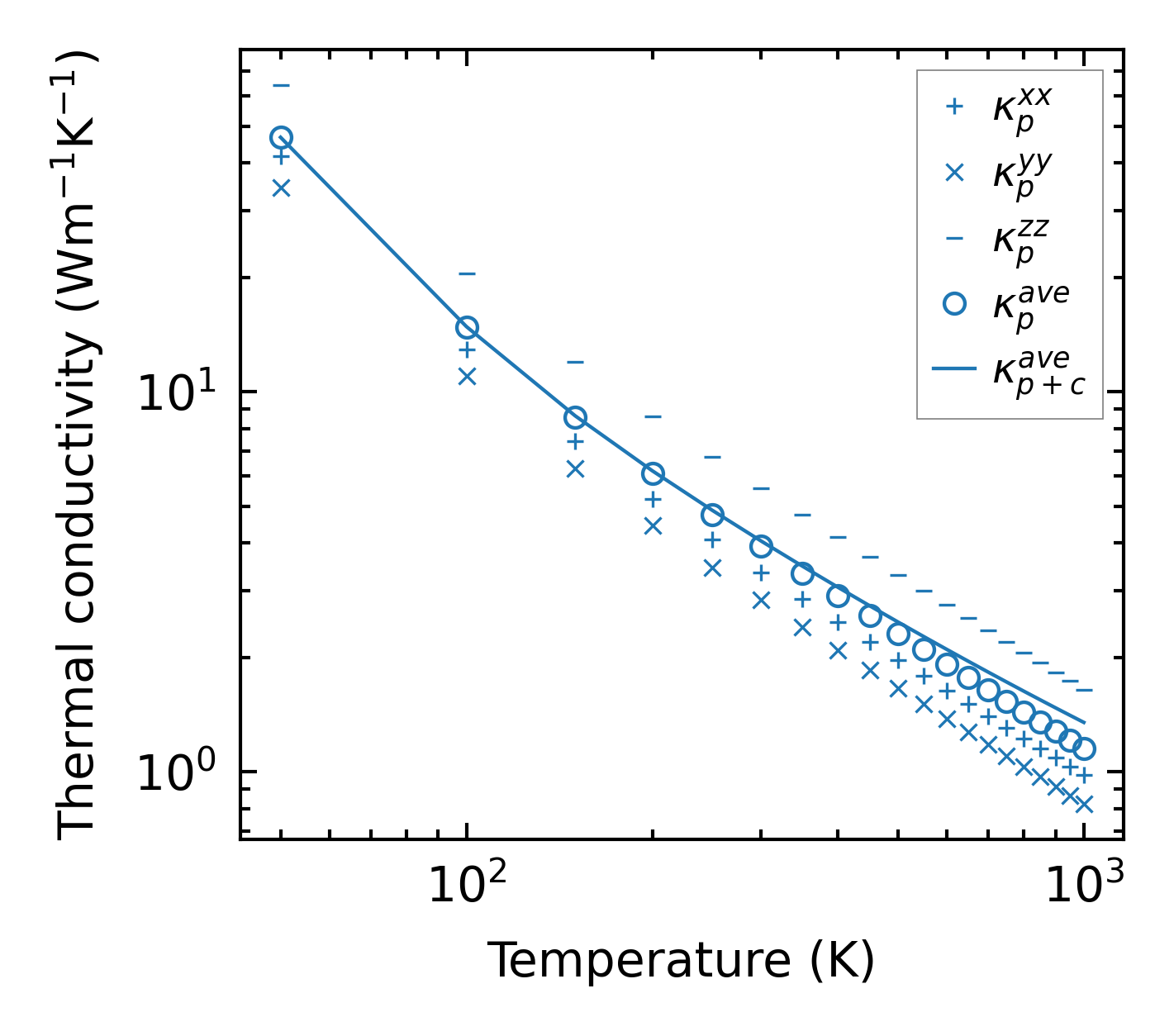

../../_images/fig_kappa13006.png — (a) Temperature-dependent lattice thermal conductivity

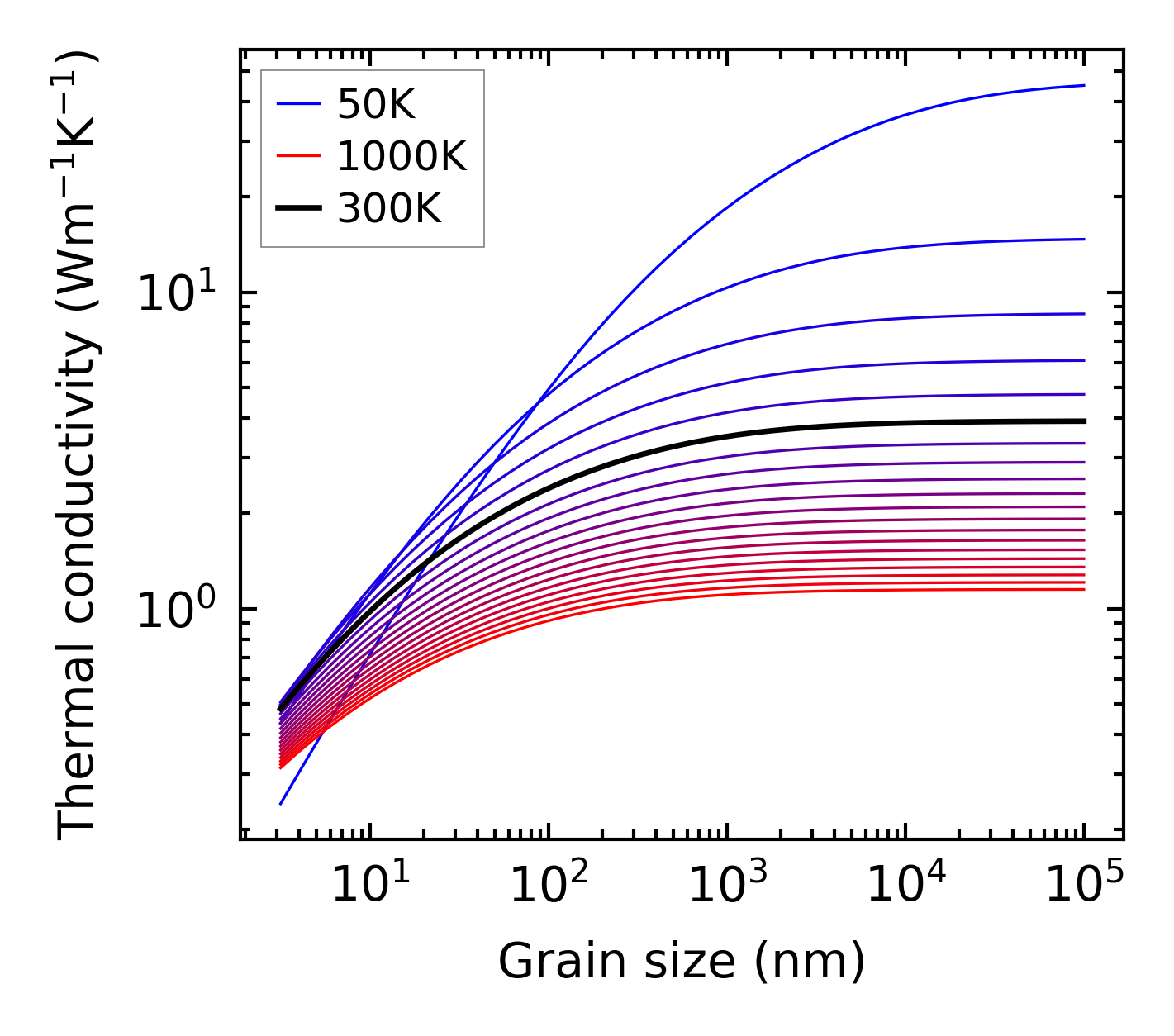

../../_images/fig_kappa_vs_grain_size6989.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

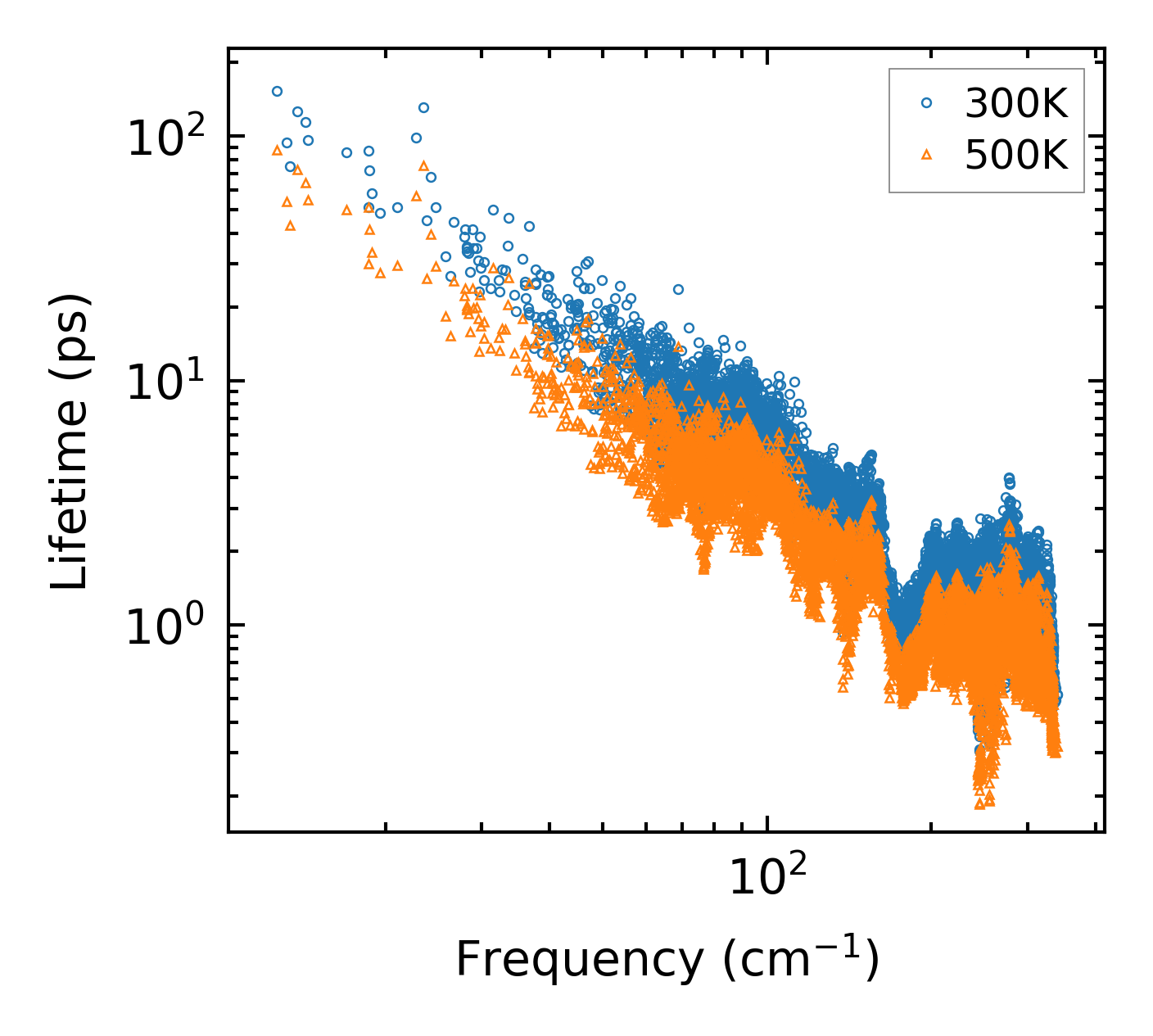

../../_images/fig_lifetime6842.png — (a) Phonon lifetime due to phonon-phonon scattering

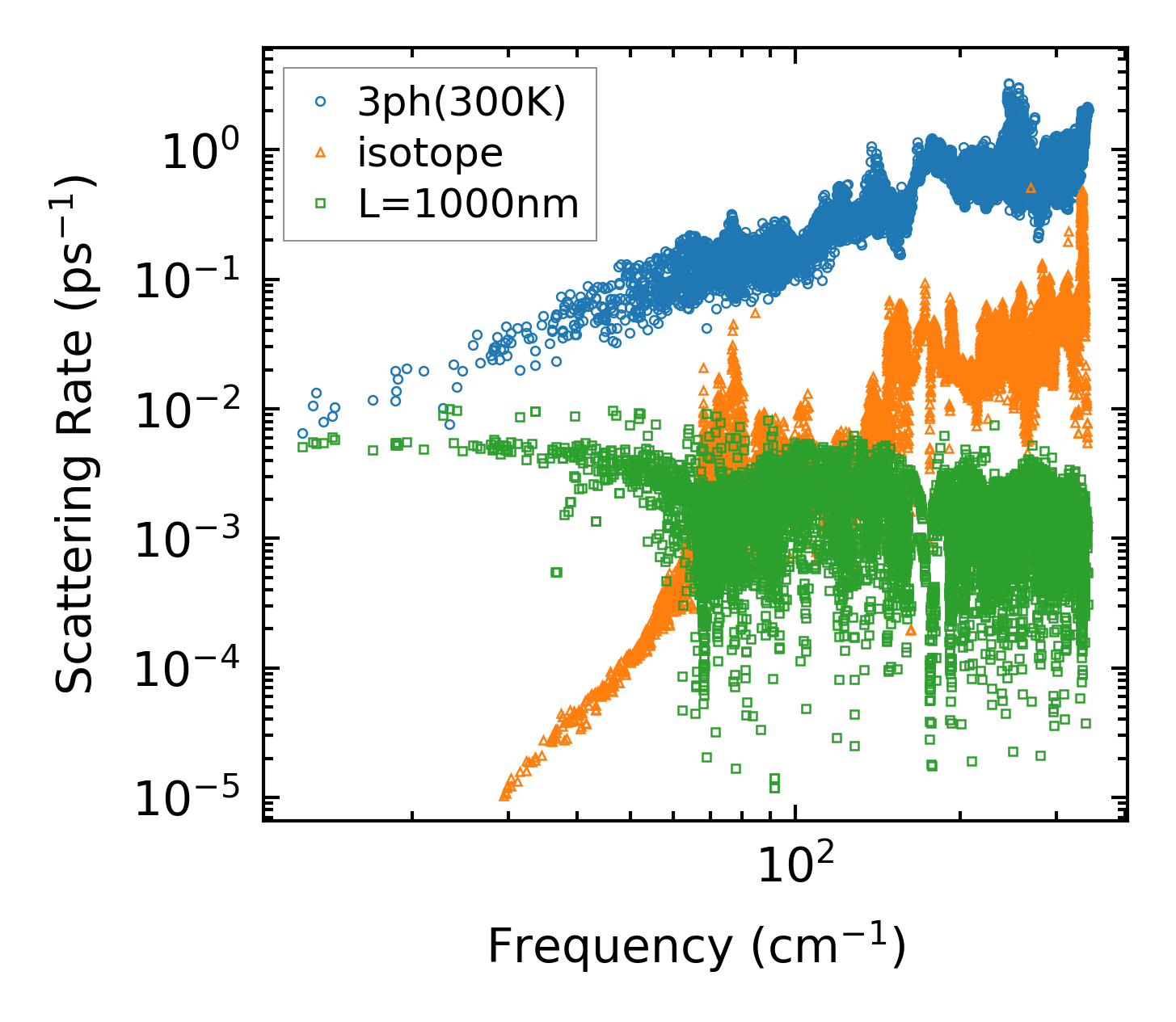

../../_images/fig_scat_rates6841.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

../../_images/fig_cumu_frequency6842.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

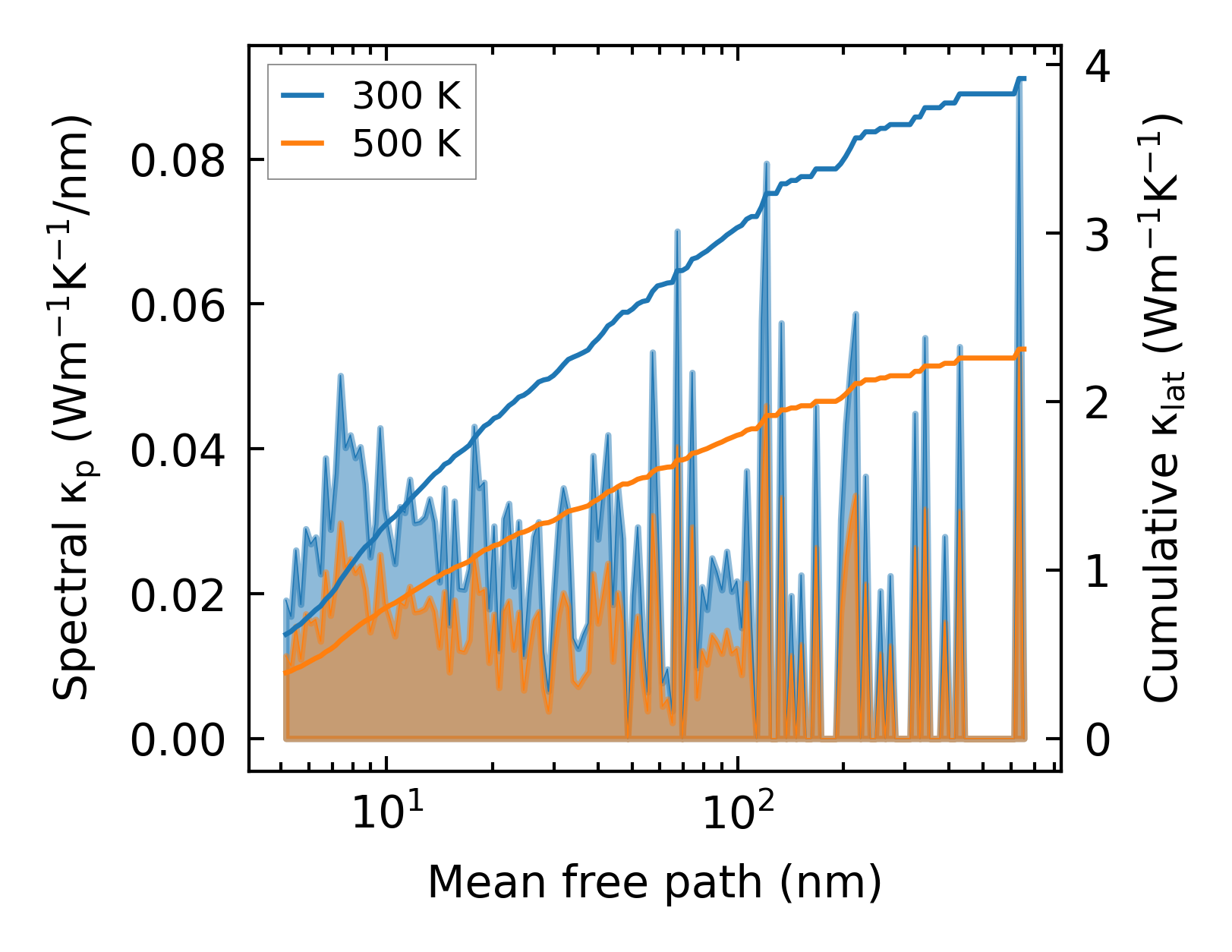

../../_images/fig_cumu_mfp6841.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

../../_images/fig_fc215531.png — (a) Force constants w.r.t atomic distance

Summary

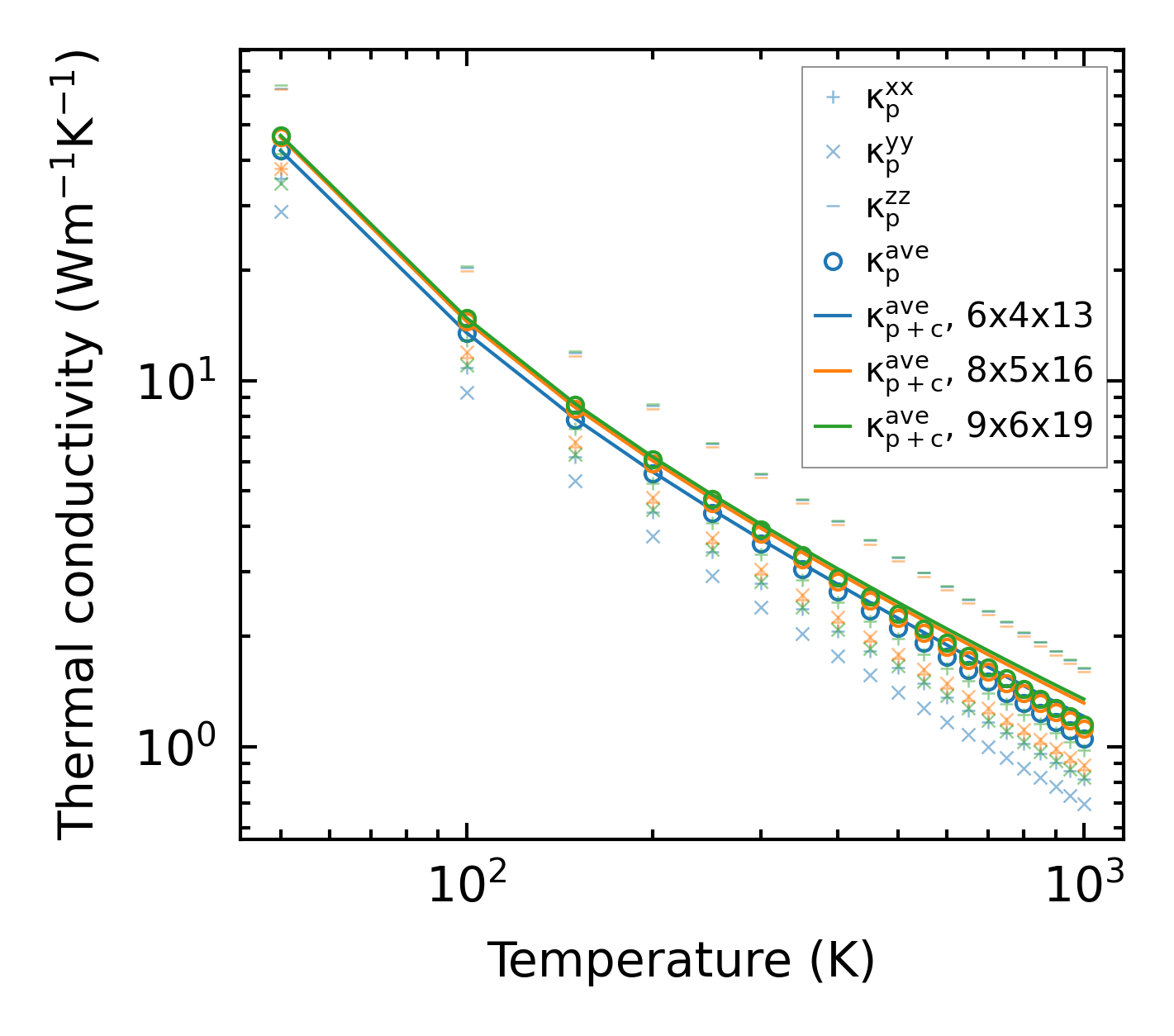

../../_images/fig_kappa13007.png — (a) Temperature-dependent lattice thermal conductivity

../../_images/fig_times26250.png — (b) Computation time
