mp-997102/KAgO2/anharm

Space group: C2/c (15)
Link: Materials Project
Download: mp-997102.tar.gz

Equation of state

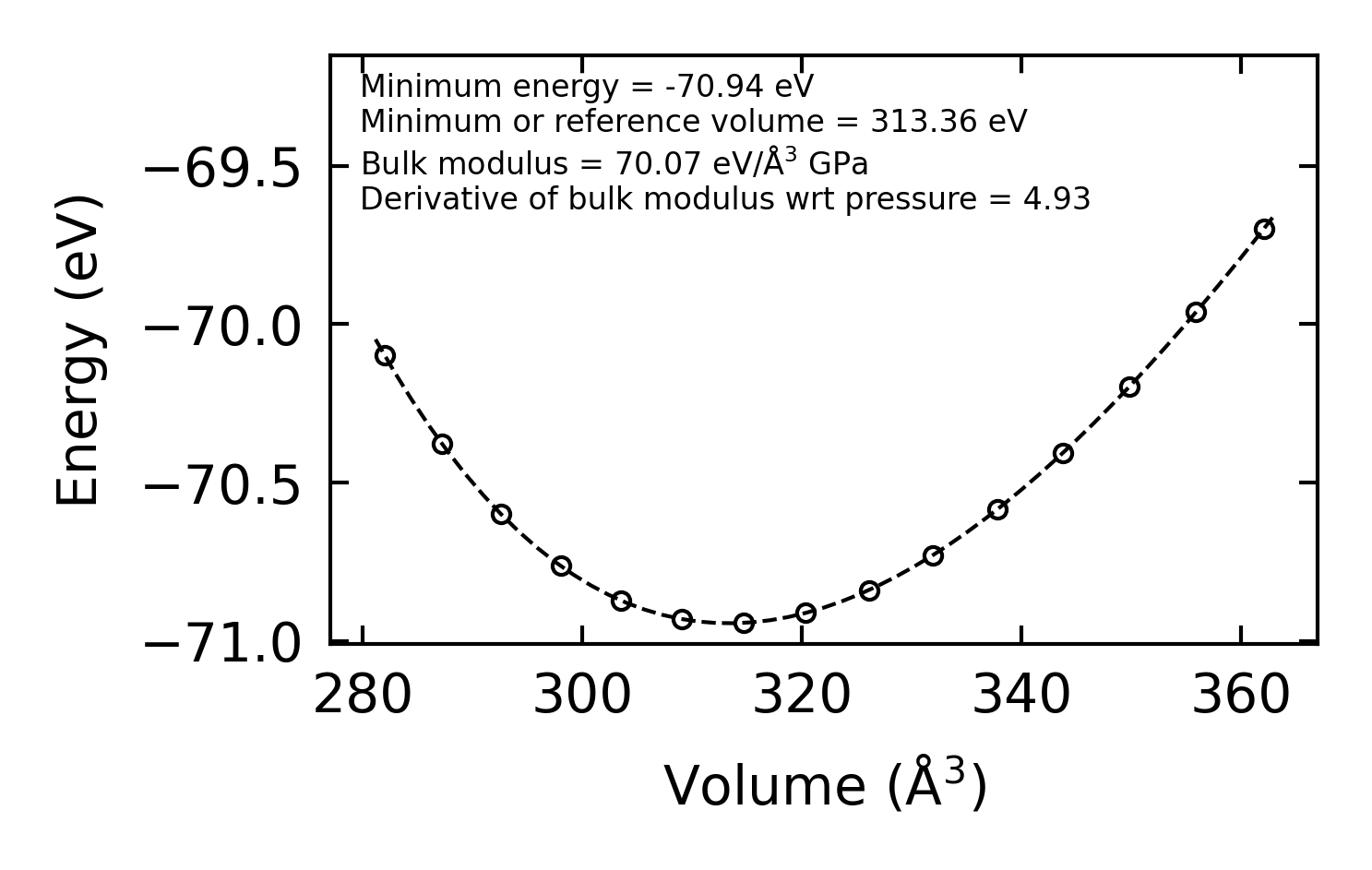

../../_images/fig_bm350.png — (a) Equation of state

Harmonic properties

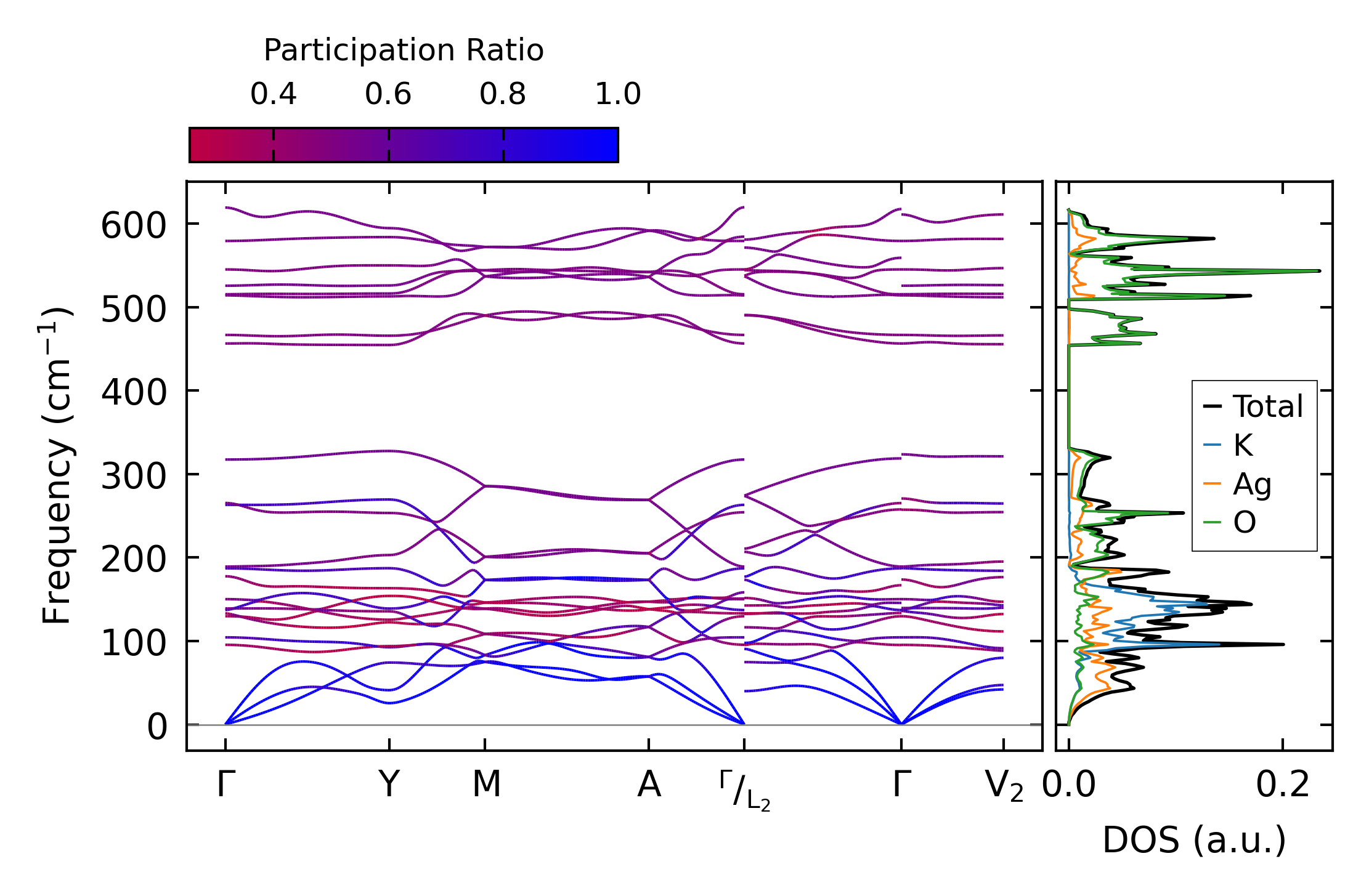

../../_images/fig_bandos_pr954.png — (a) Phonon dispersion with participation ratio and DOS

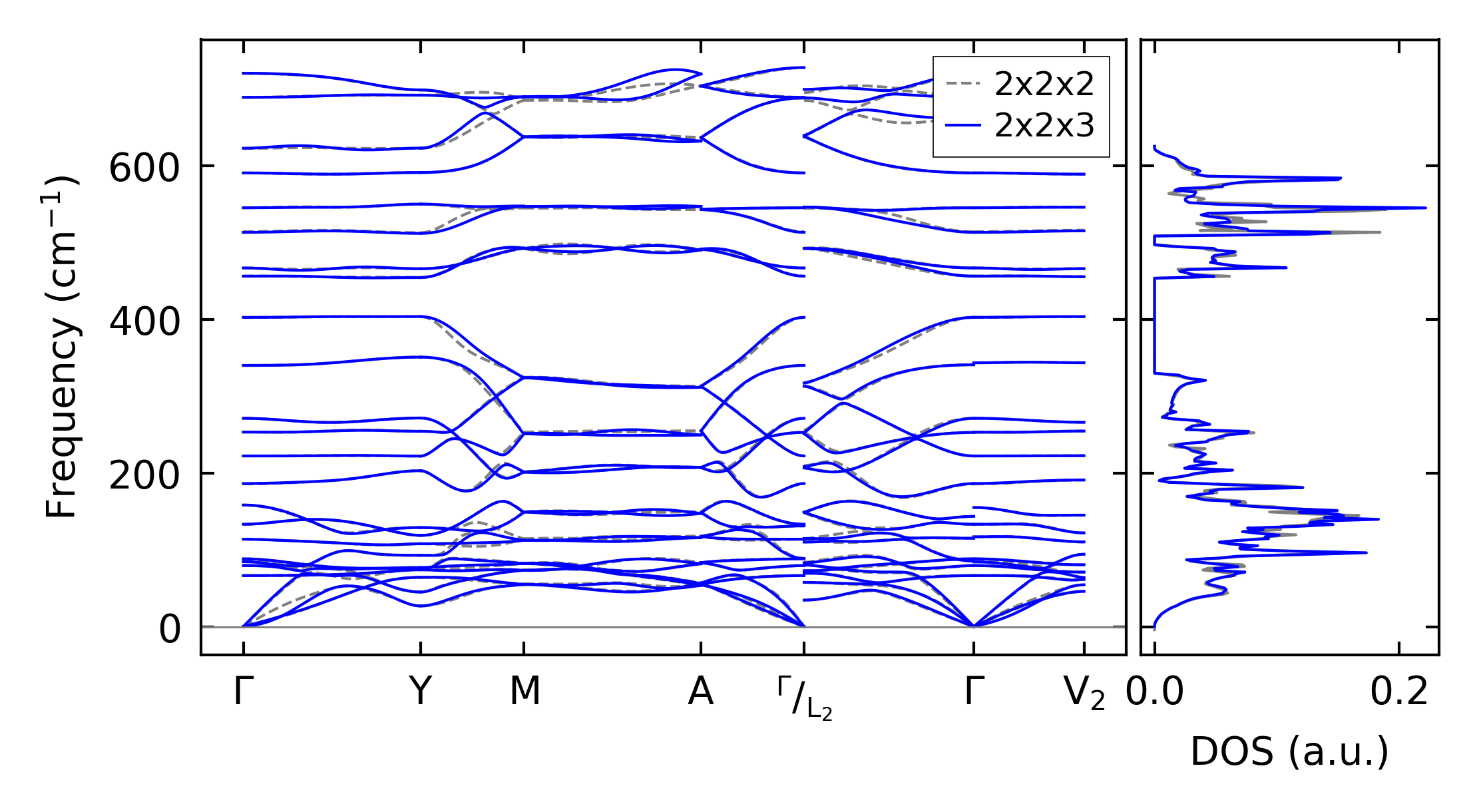

../../_images/fig_bandos891.png — (b) Phonon dispersion and DOS

../../_images/fig_thermo954.png — (c) Thermodynamic properties

Grüneisen parameters

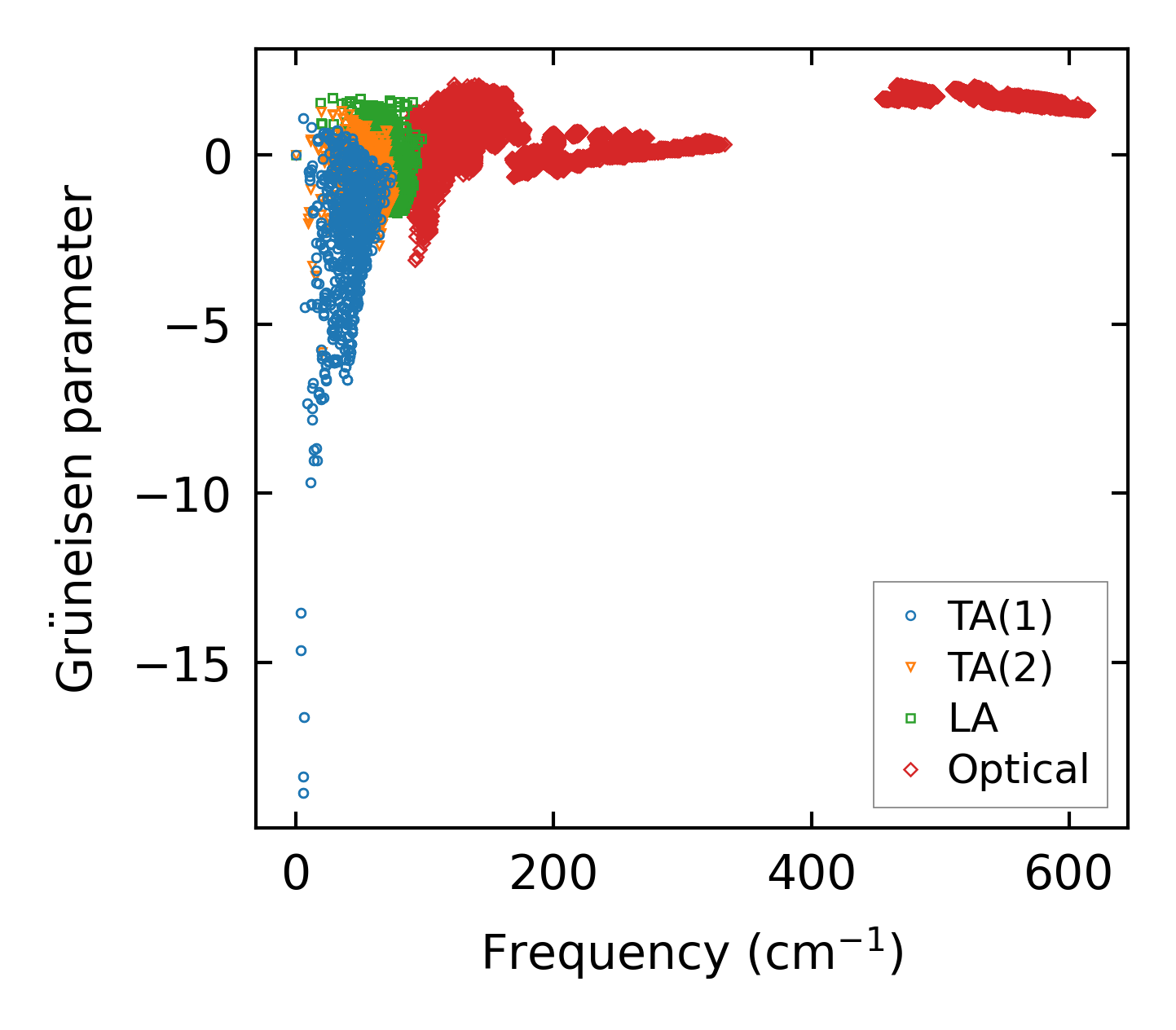

../../_images/fig_gru_all578.png — (a) Grüneisen parameters

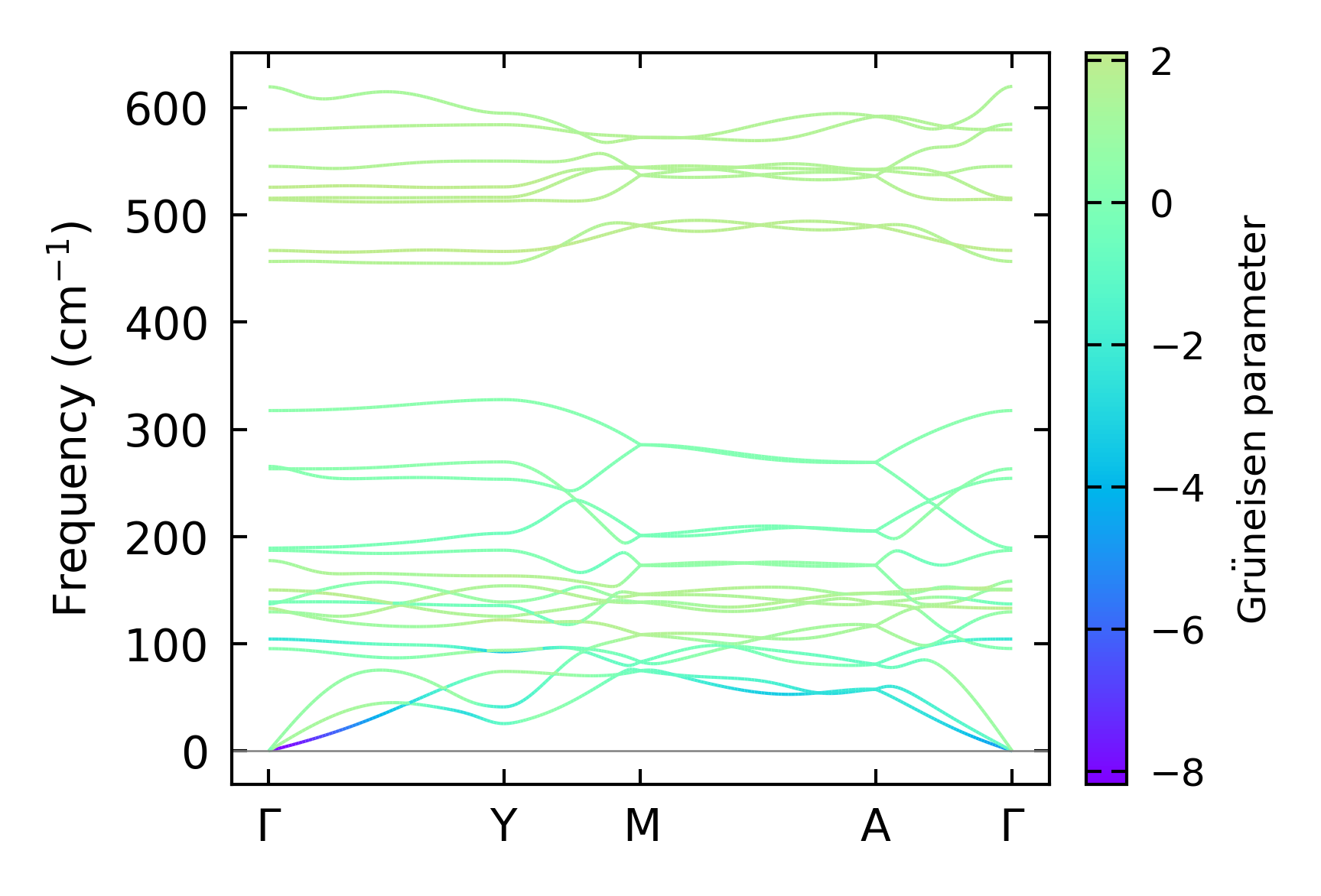

../../_images/fig_gruneisen578.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 13x13x12, supercell: 2x2x2

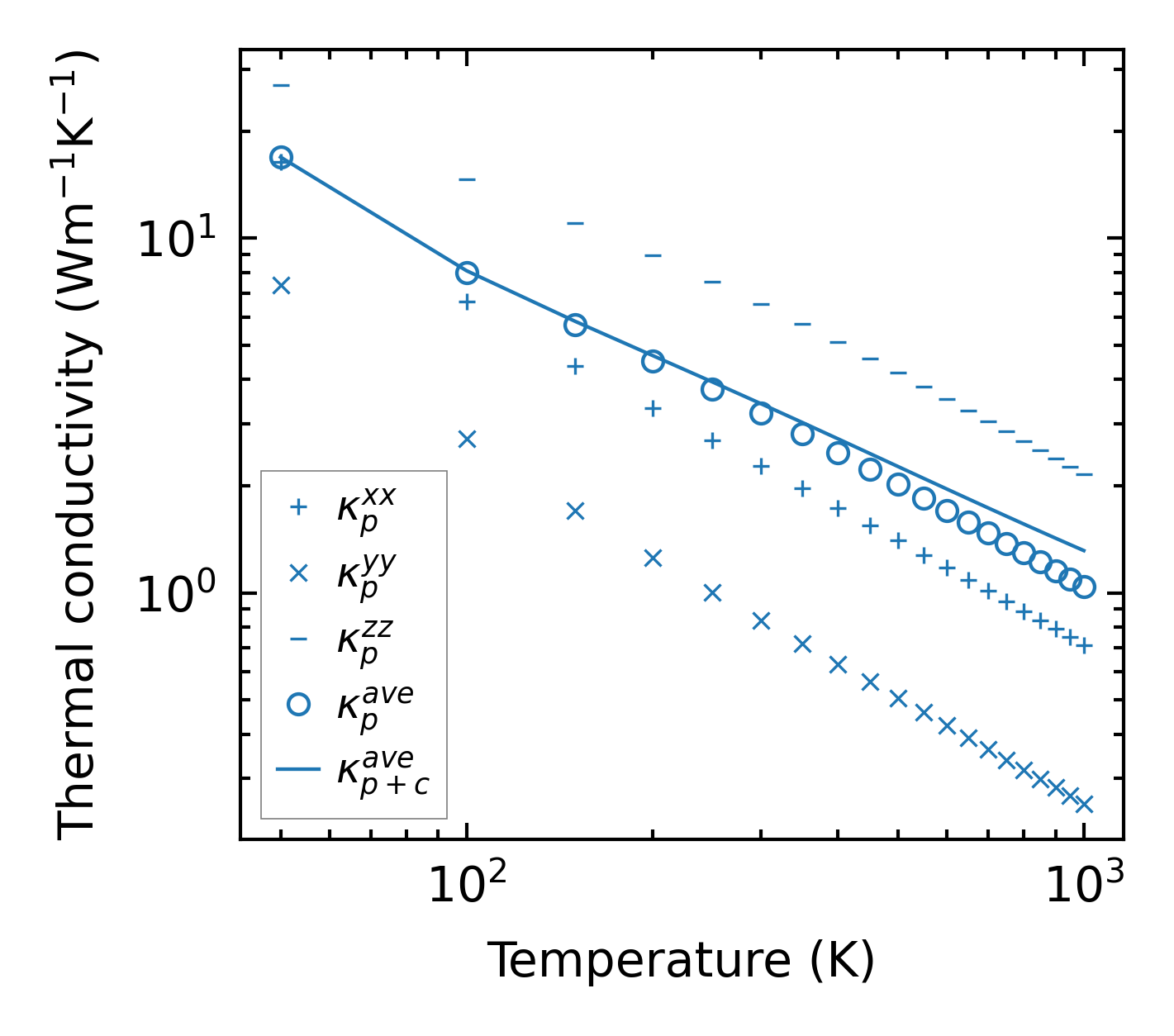

../../_images/fig_kappa1125.png — (a) Temperature-dependent lattice thermal conductivity

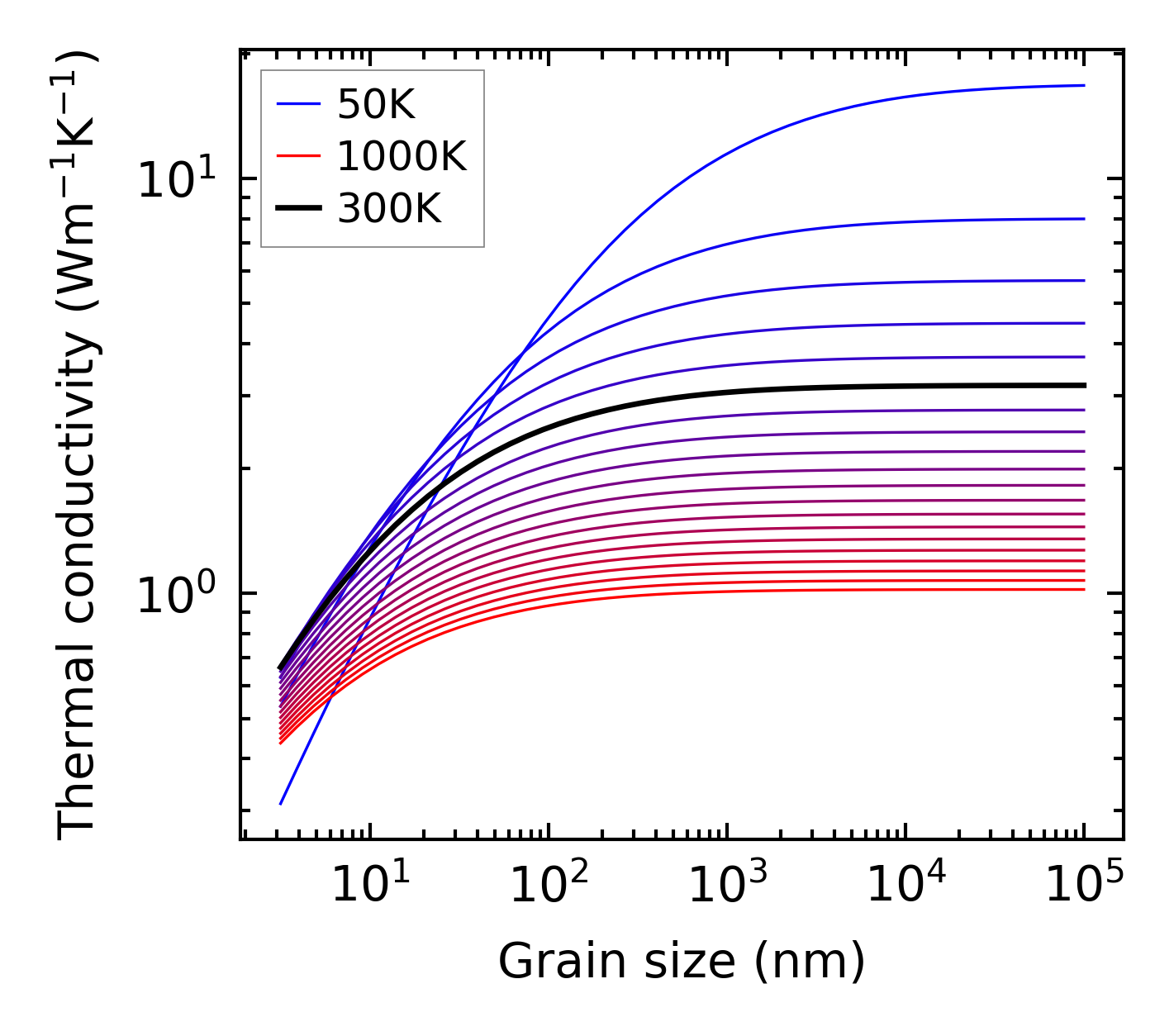

../../_images/fig_kappa_vs_grain_size585.png — (b) Peierls lattice thermal conductivity w.r.t grain size

3-phonon (LASSO), supercell 2x2x3 — q-mesh: 13x13x12, supercell: 2x2x3

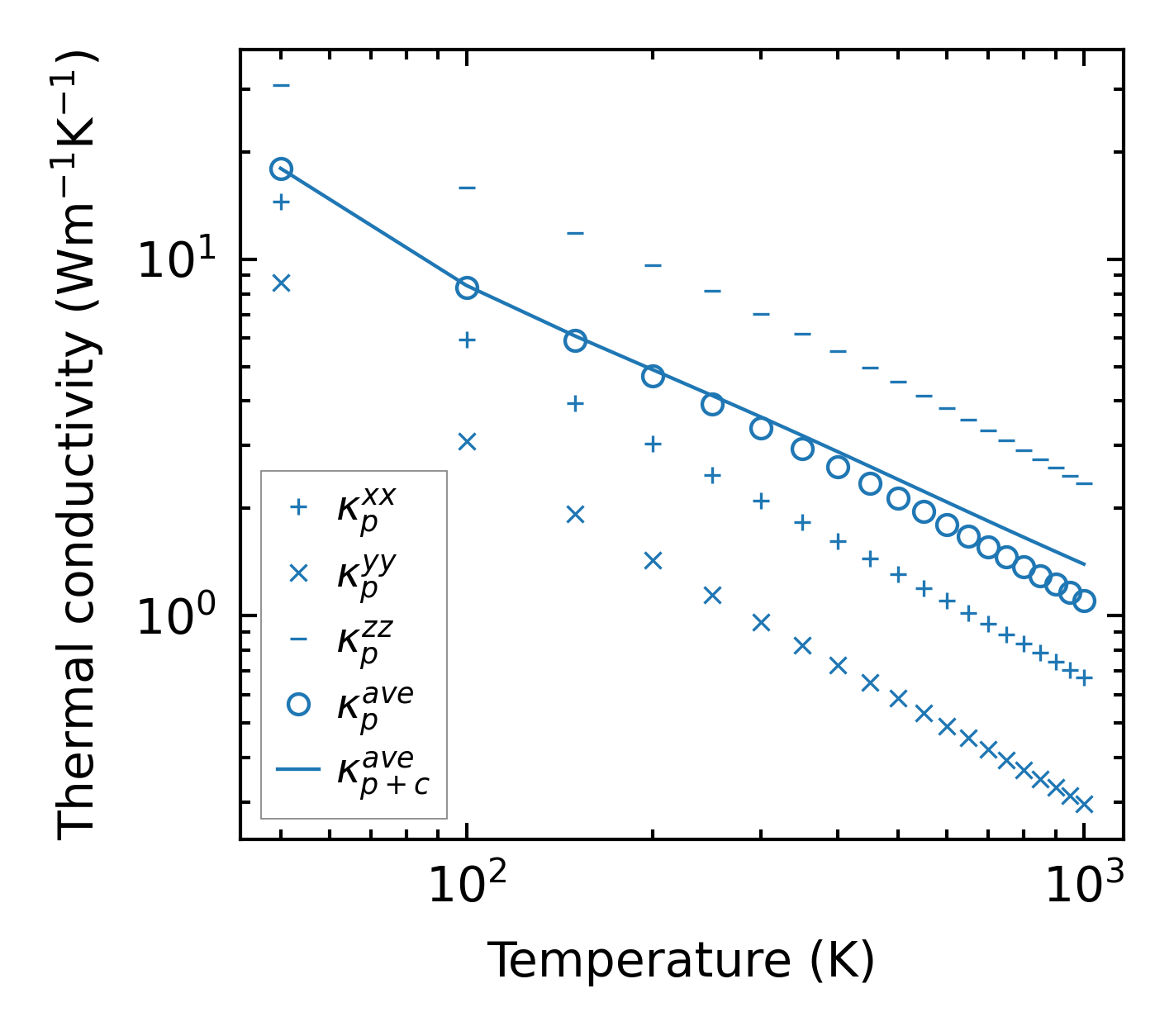

../../_images/fig_kappa1126.png — (a) Temperature-dependent lattice thermal conductivity

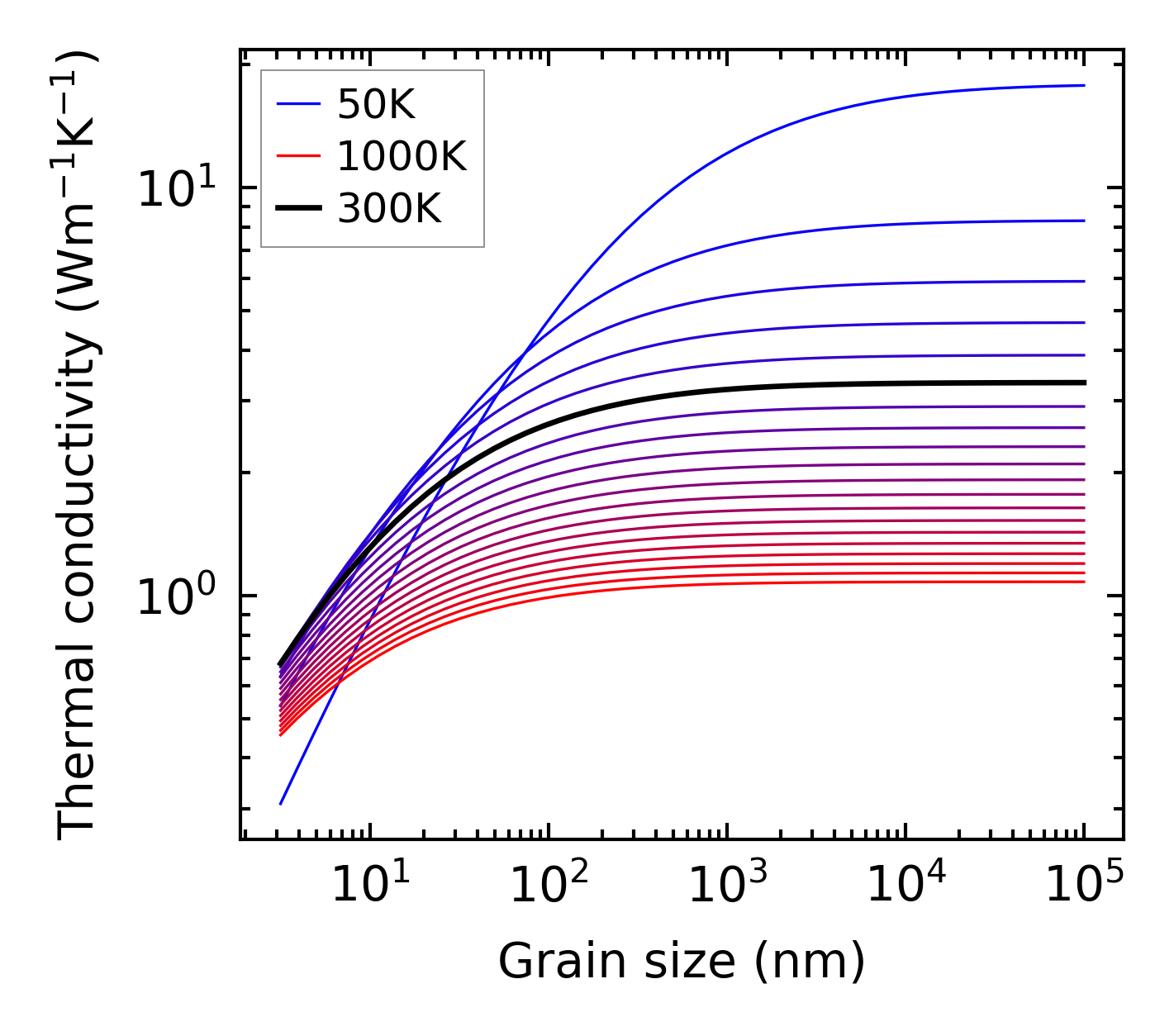

../../_images/fig_kappa_vs_grain_size586.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

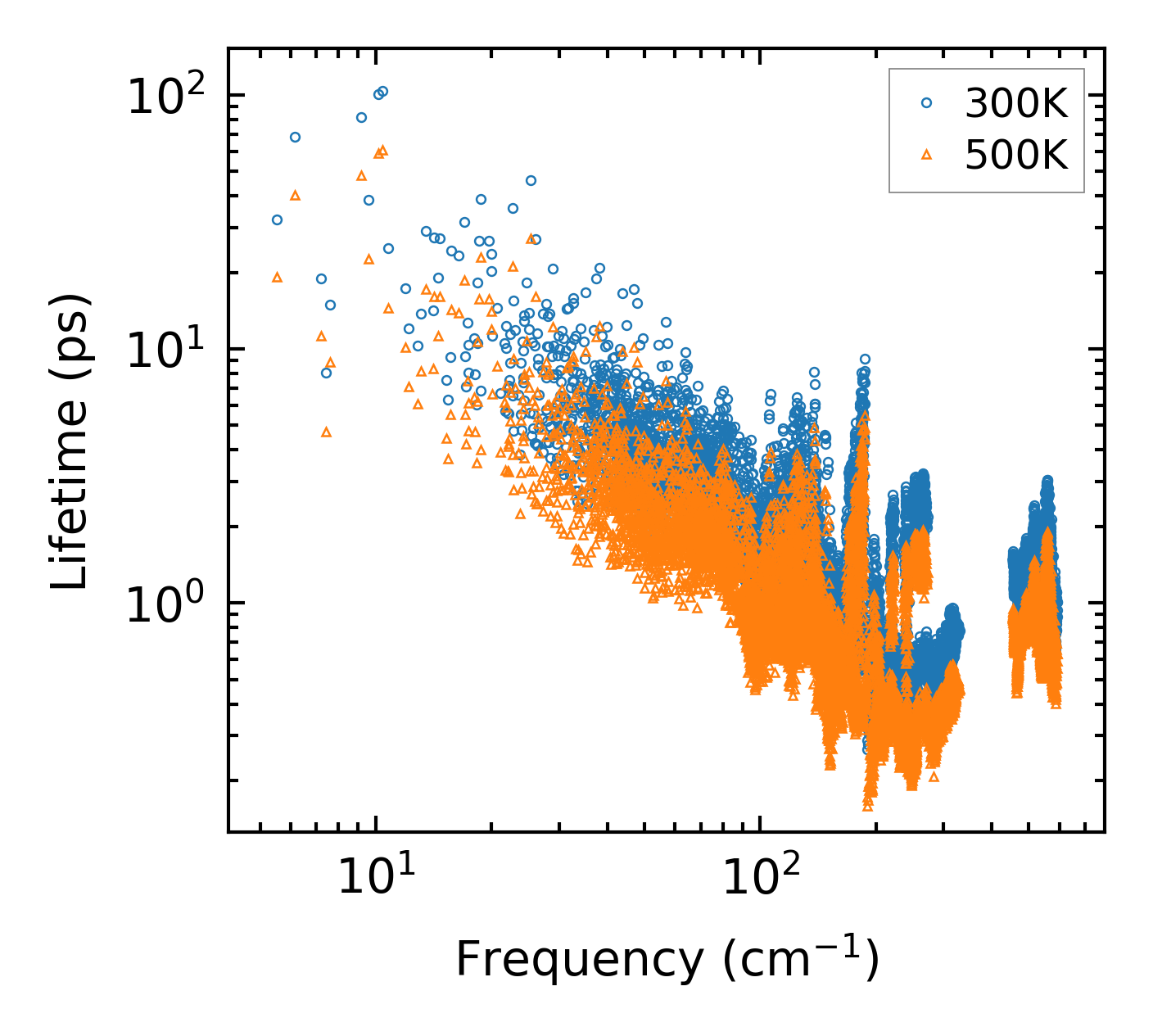

../../_images/fig_lifetime576.png — (a) Phonon lifetime due to phonon-phonon scattering

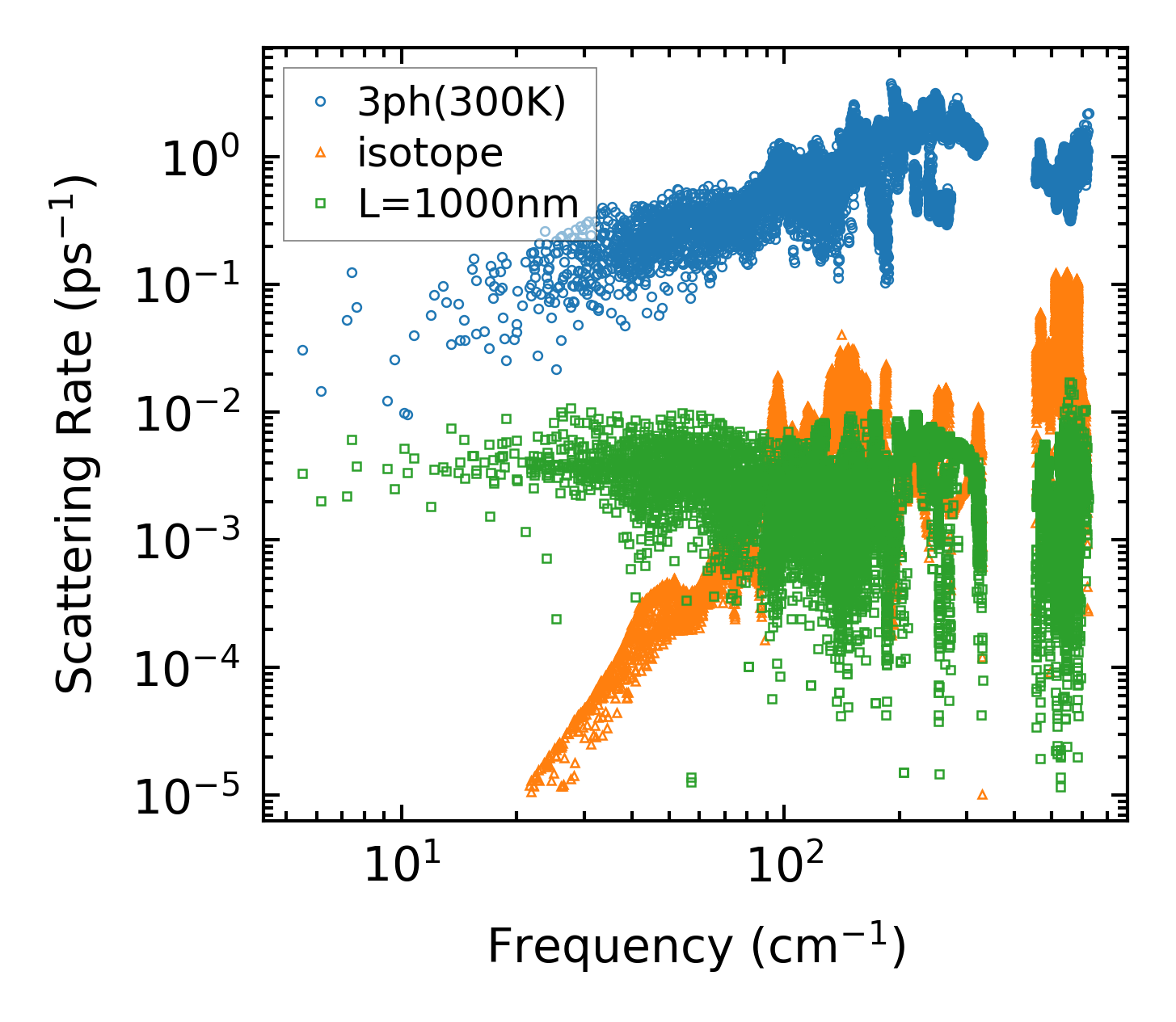

../../_images/fig_scat_rates575.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

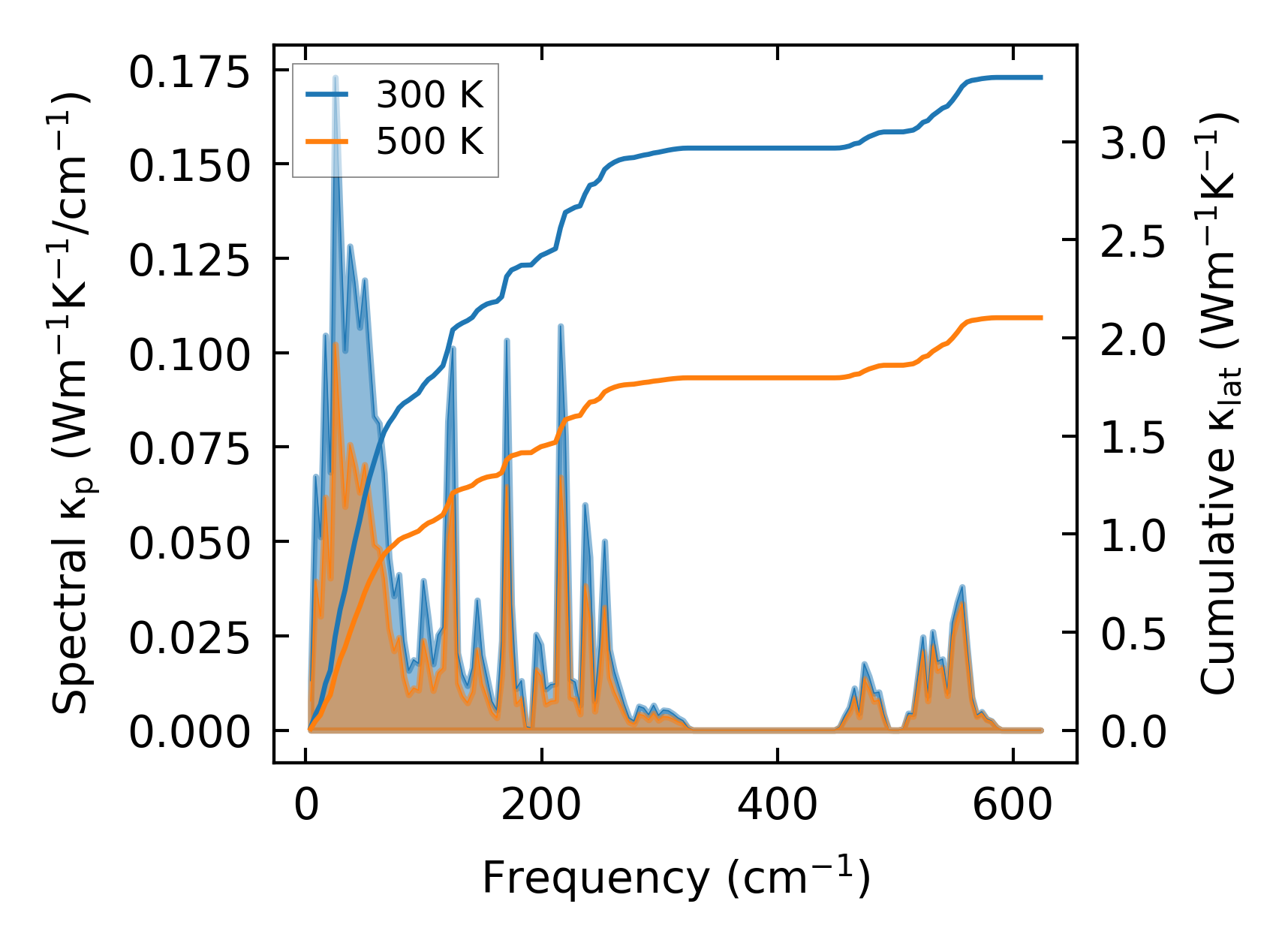

../../_images/fig_cumu_frequency576.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

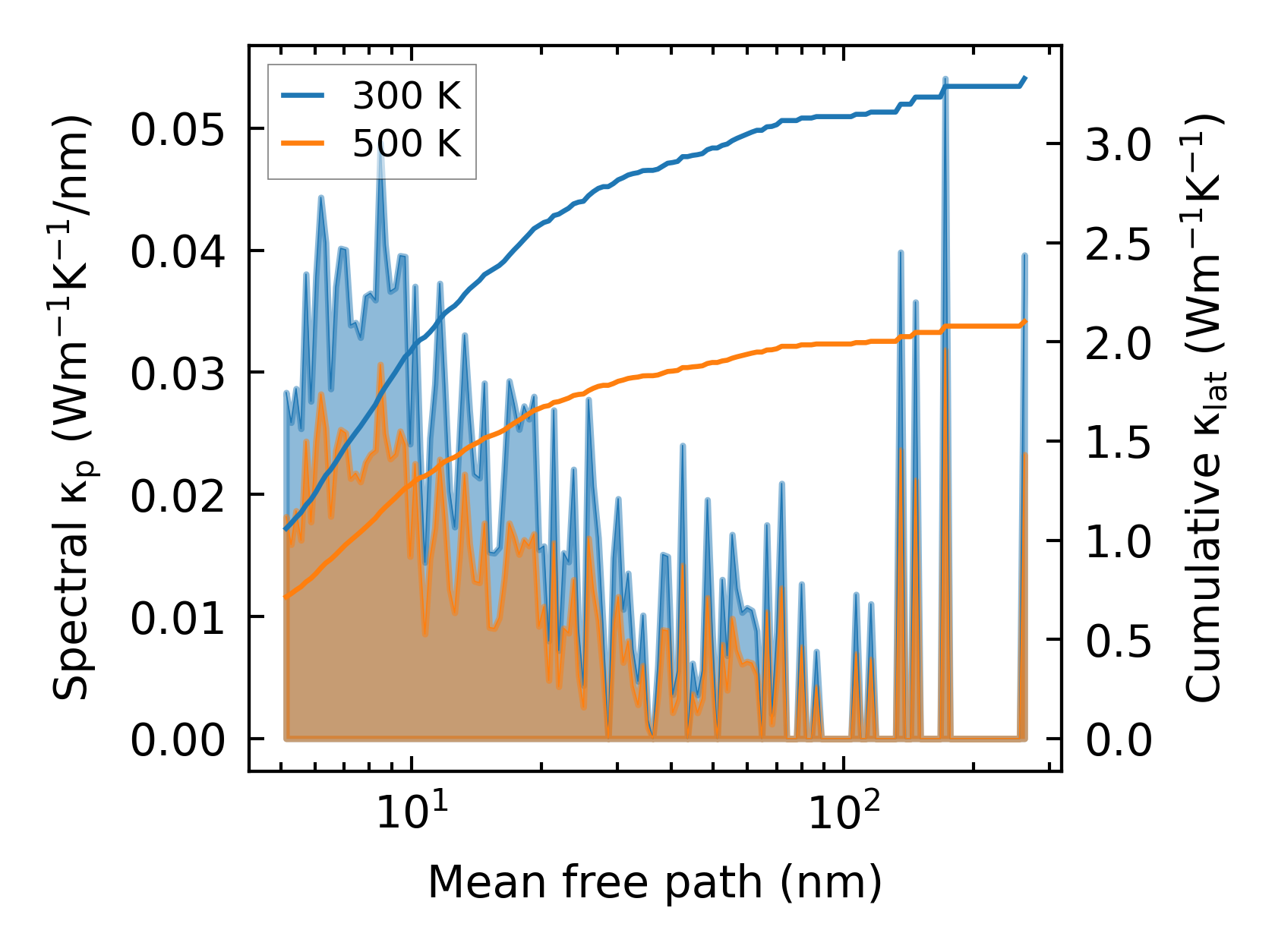

../../_images/fig_cumu_mfp576.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

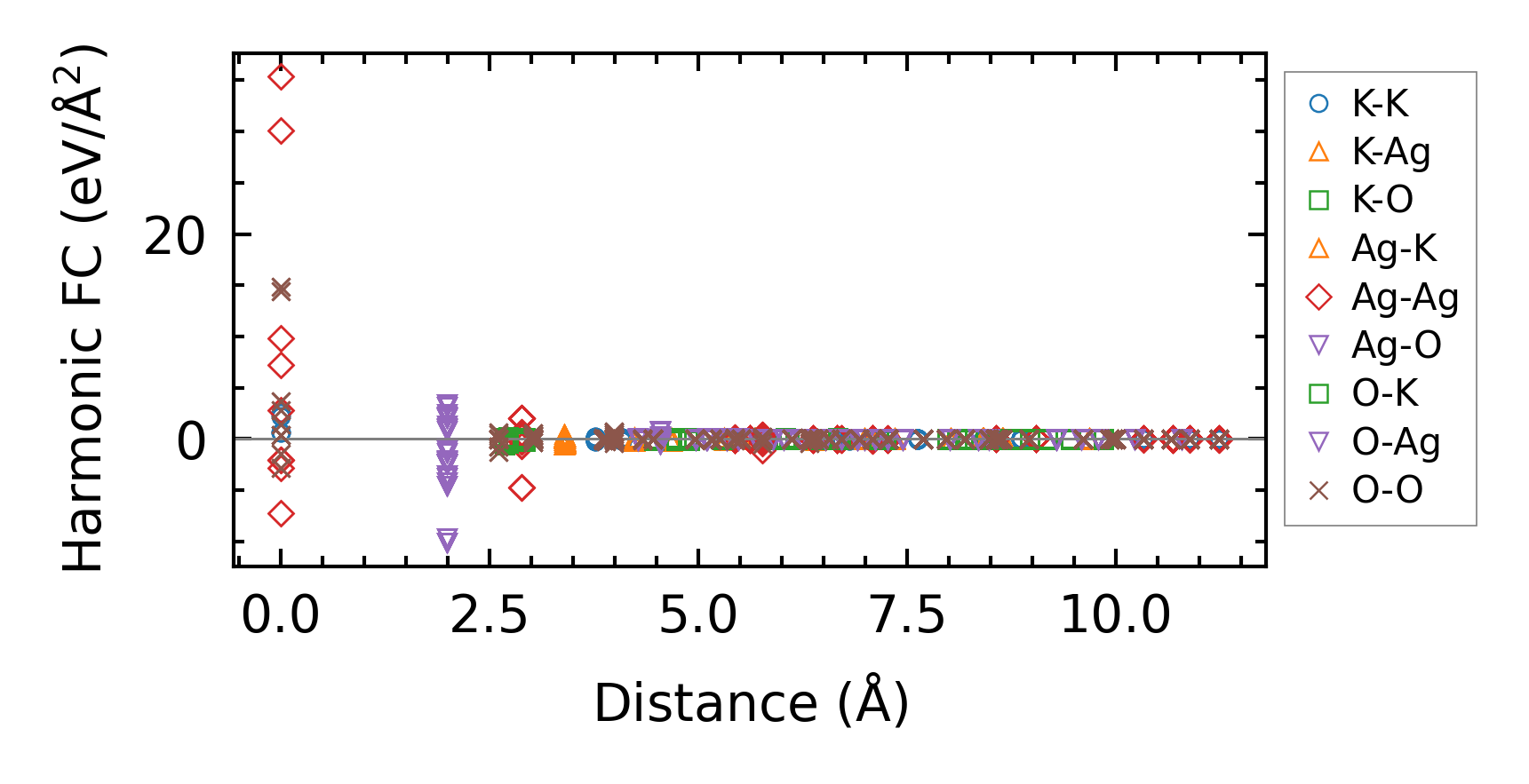

../../_images/fig_fc2845.png — (a) Force constants w.r.t atomic distance

Summary

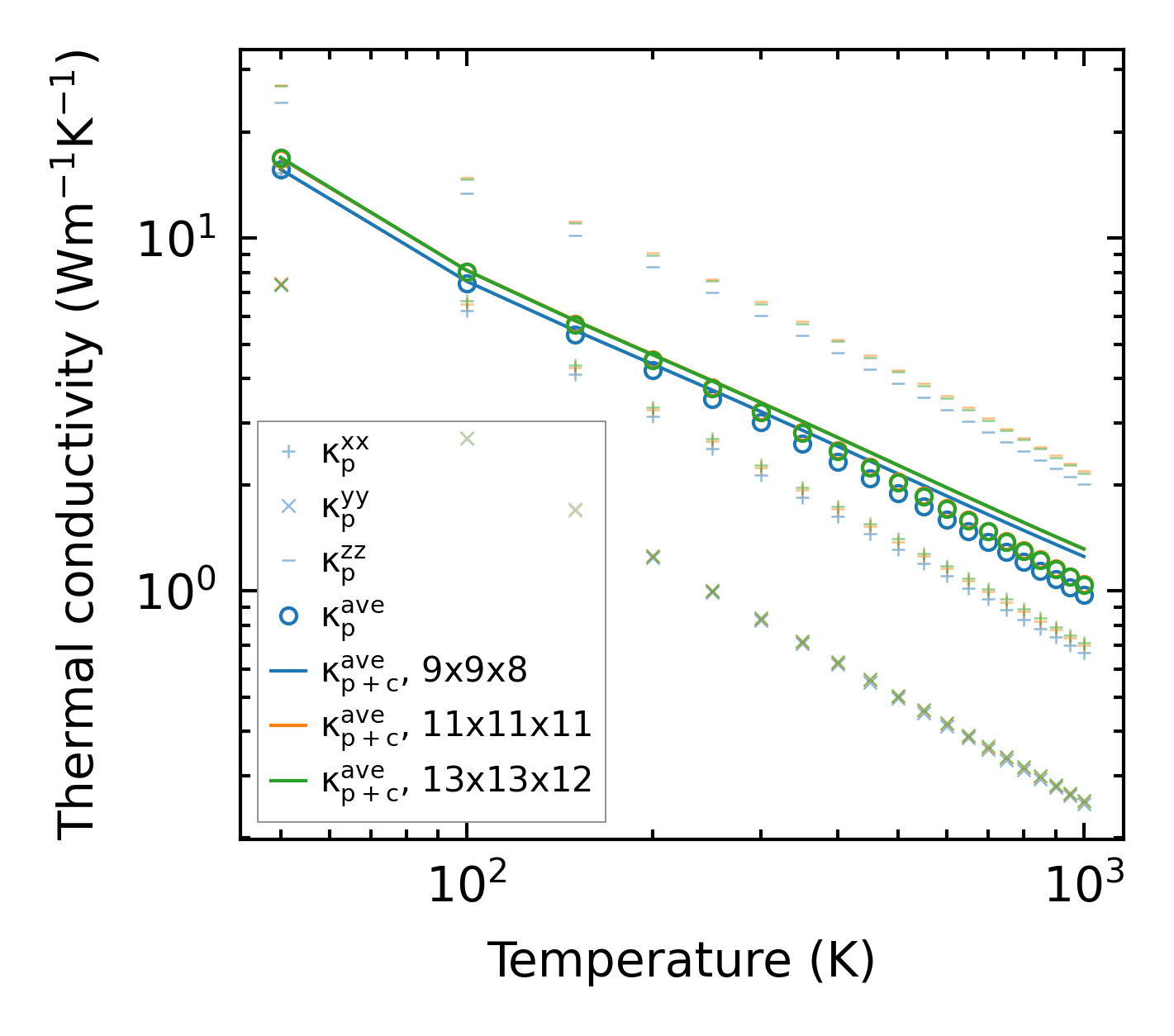

../../_images/fig_kappa1127.png — (a) Temperature-dependent lattice thermal conductivity

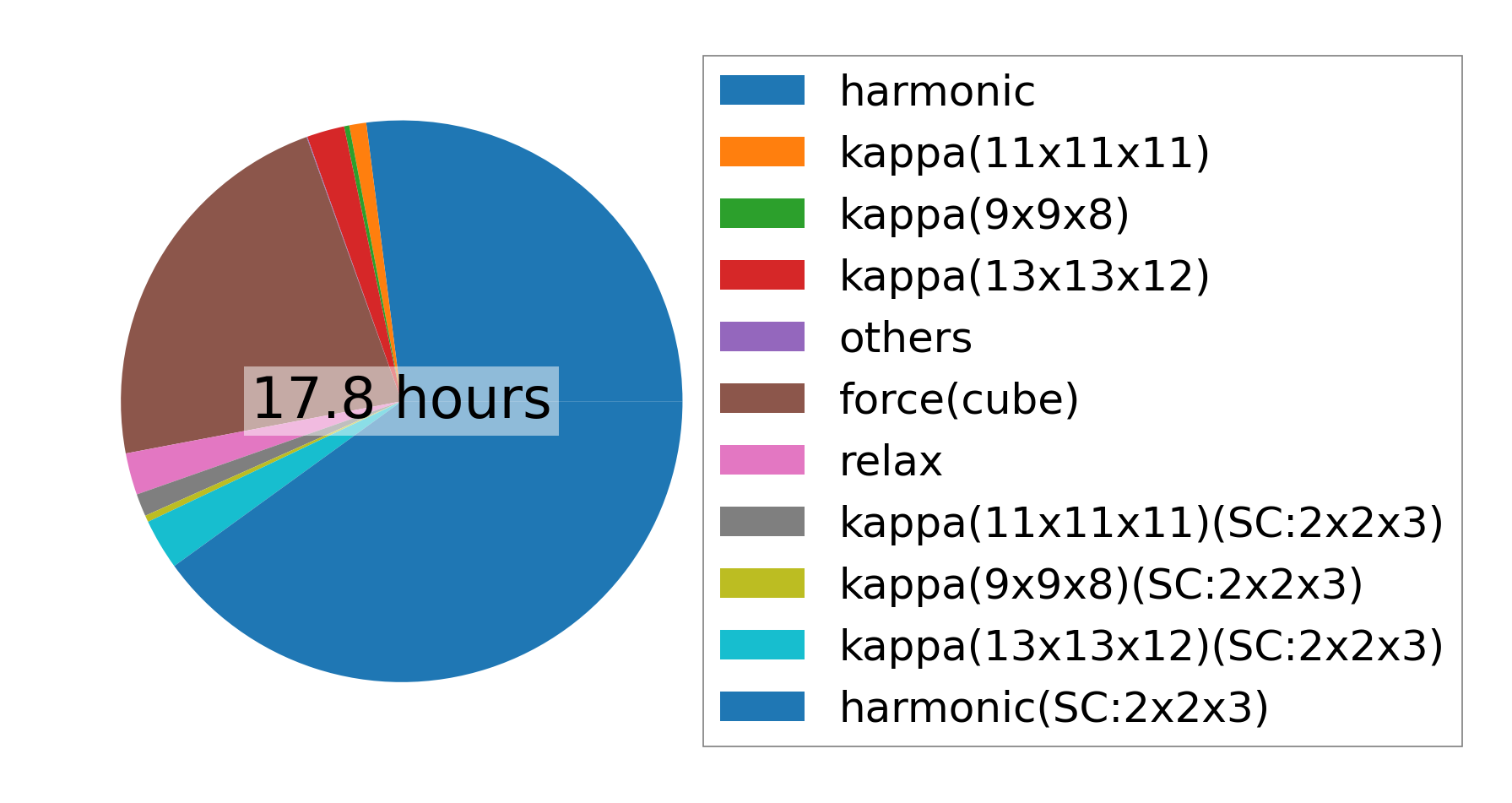

../../_images/fig_times1422.png — (b) Computation time
