mp-997024/CsAuO2/anharm

Space group: Cmcm (63)
Link: Materials Project
Download: mp-997024.tar.gz

Harmonic properties

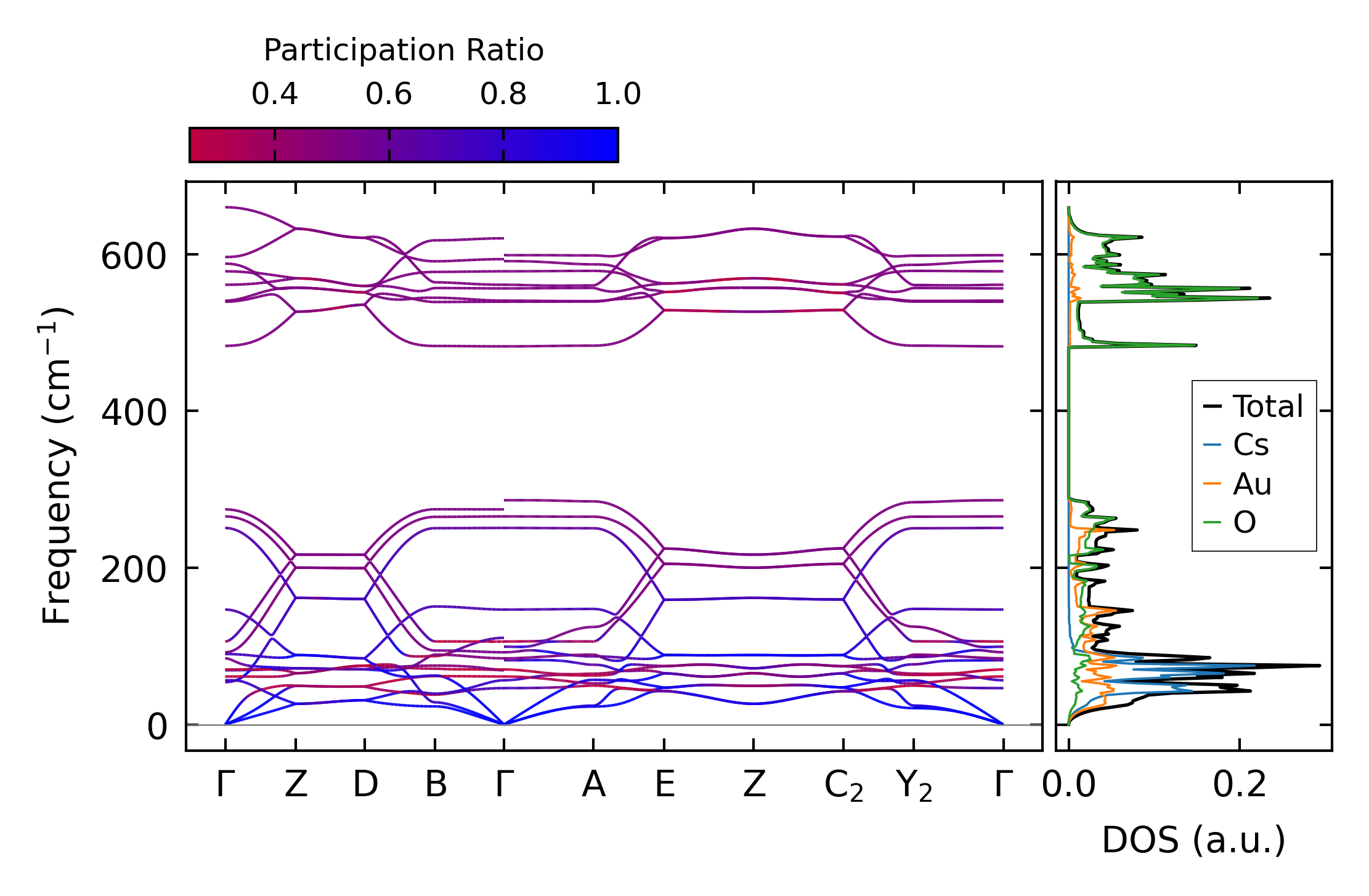

../../_images/fig_bandos_pr931.png — (a) Phonon dispersion with participation ratio and DOS

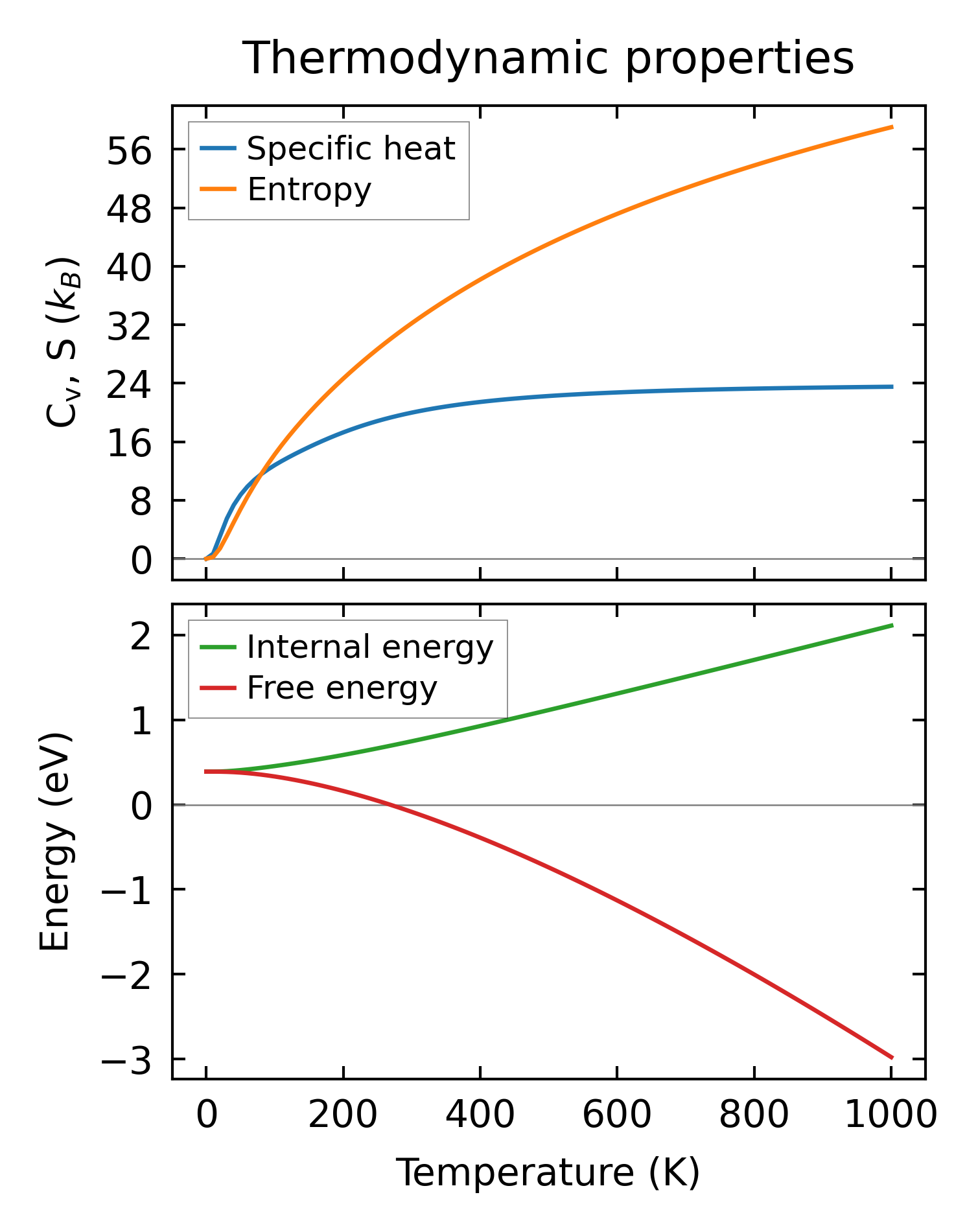

../../_images/fig_thermo931.png — (b) Thermodynamic properties

Grüneisen parameters

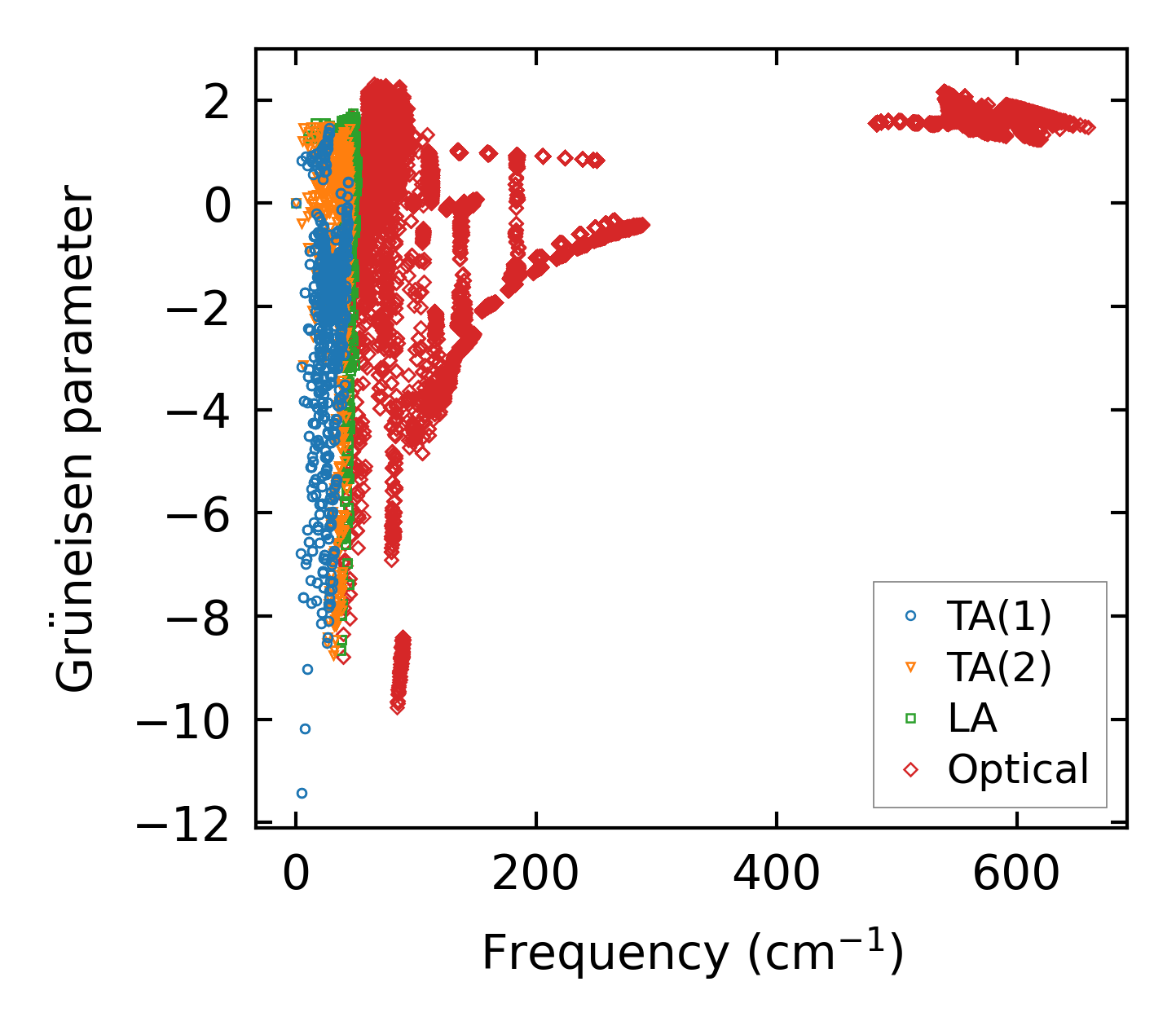

../../_images/fig_gru_all567.png — (a) Grüneisen parameters

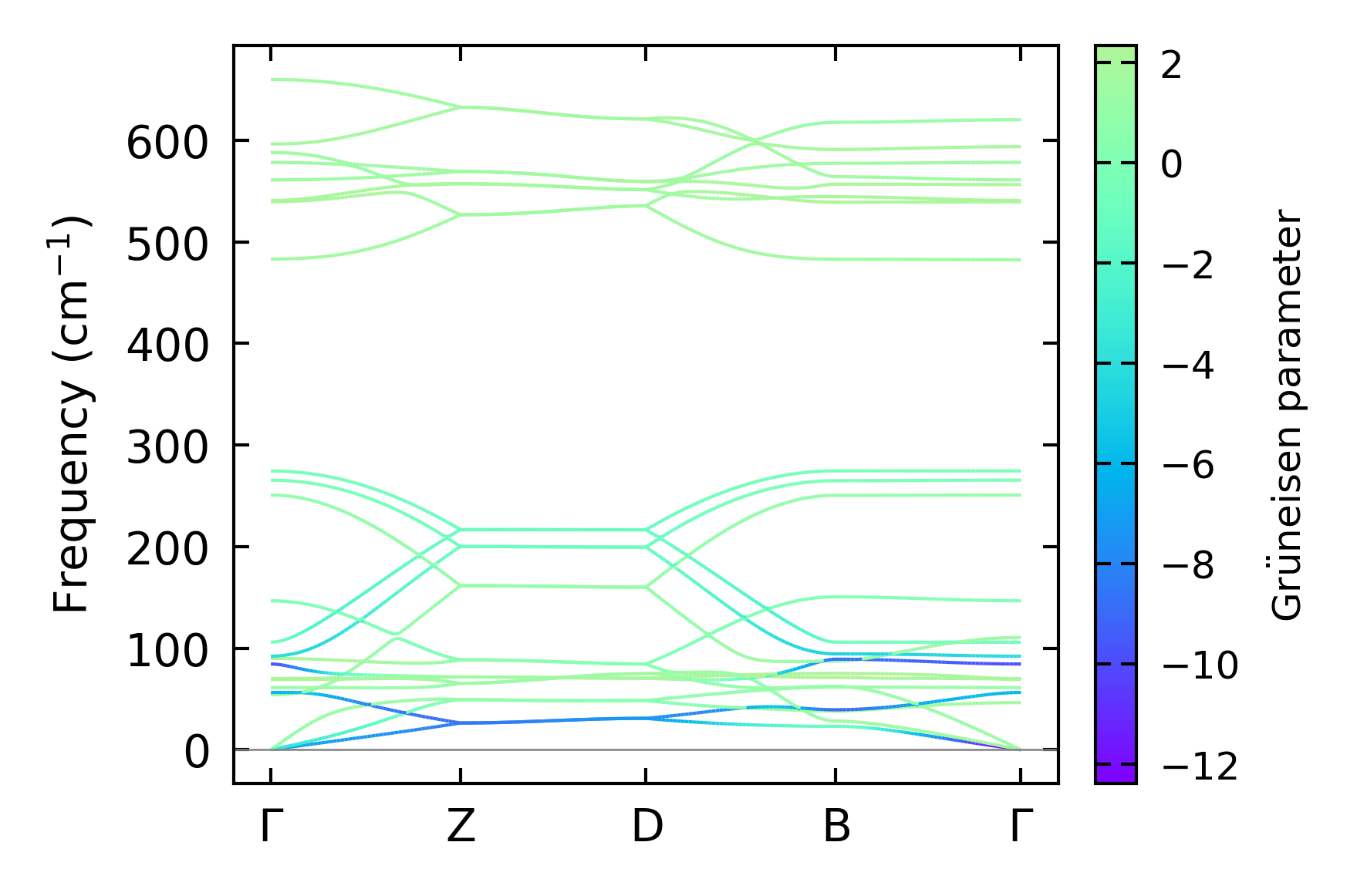

../../_images/fig_gruneisen567.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 14x12x11, supercell: 3x3x2

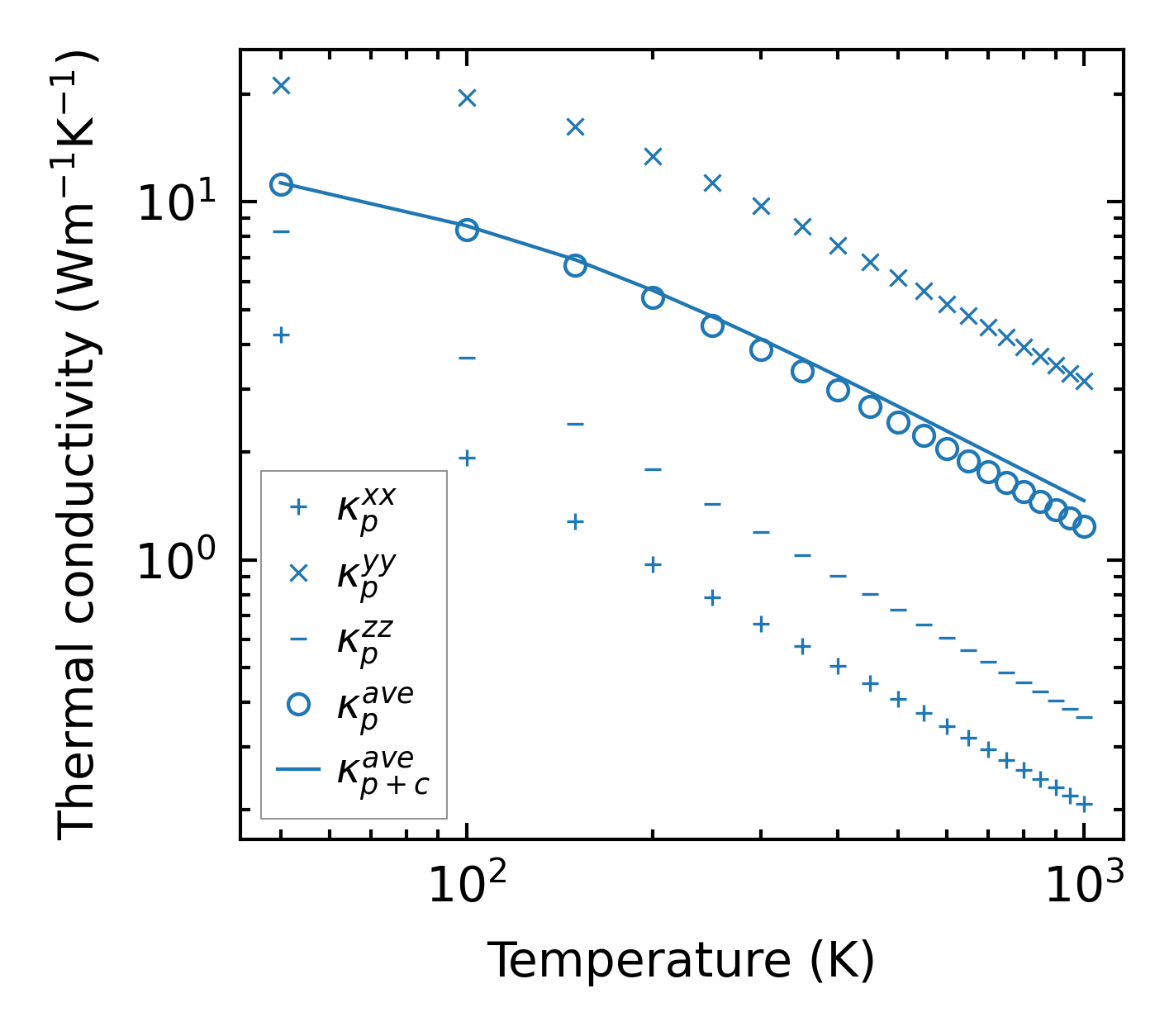

../../_images/fig_kappa1103.png — (a) Temperature-dependent lattice thermal conductivity

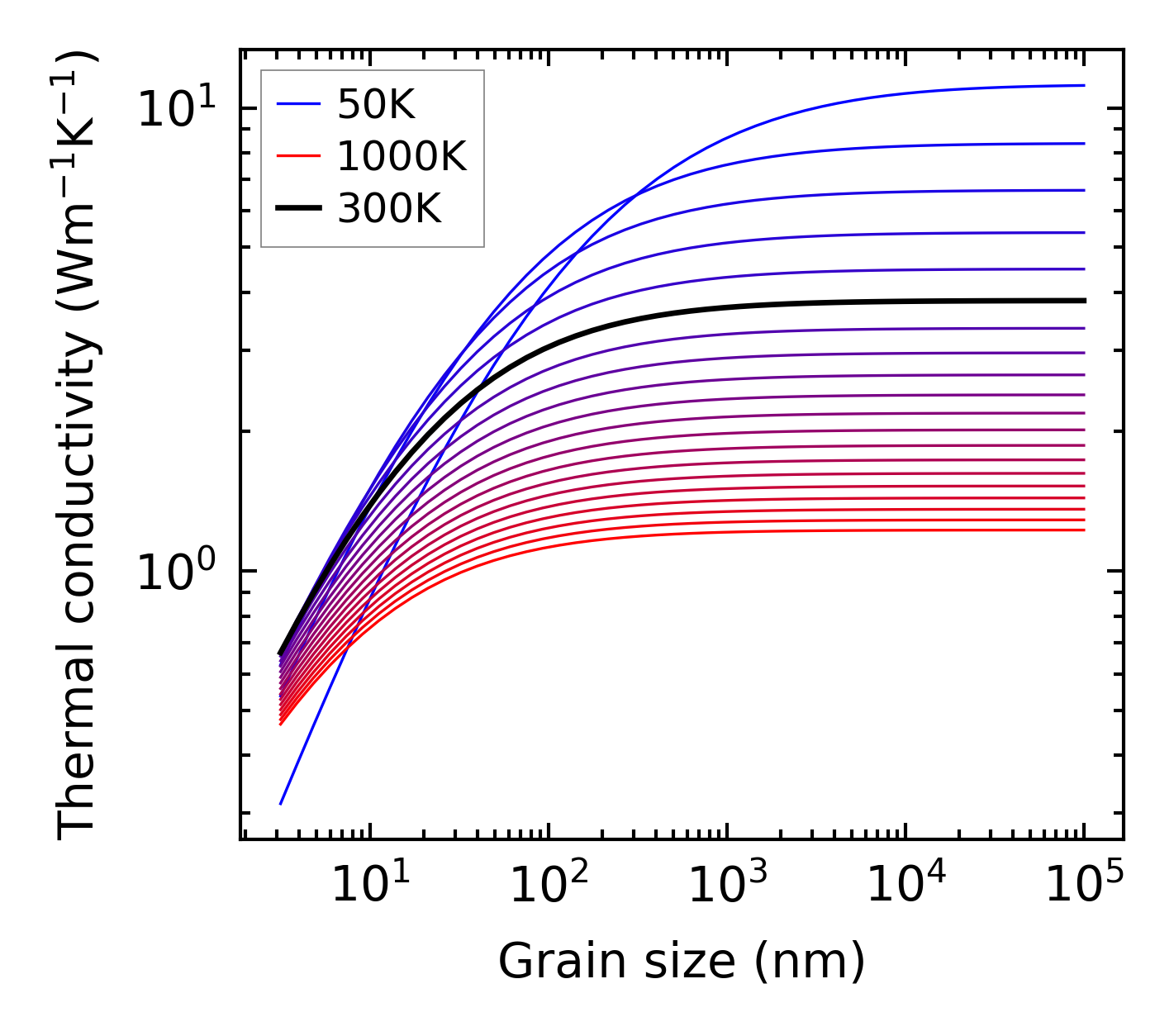

../../_images/fig_kappa_vs_grain_size574.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

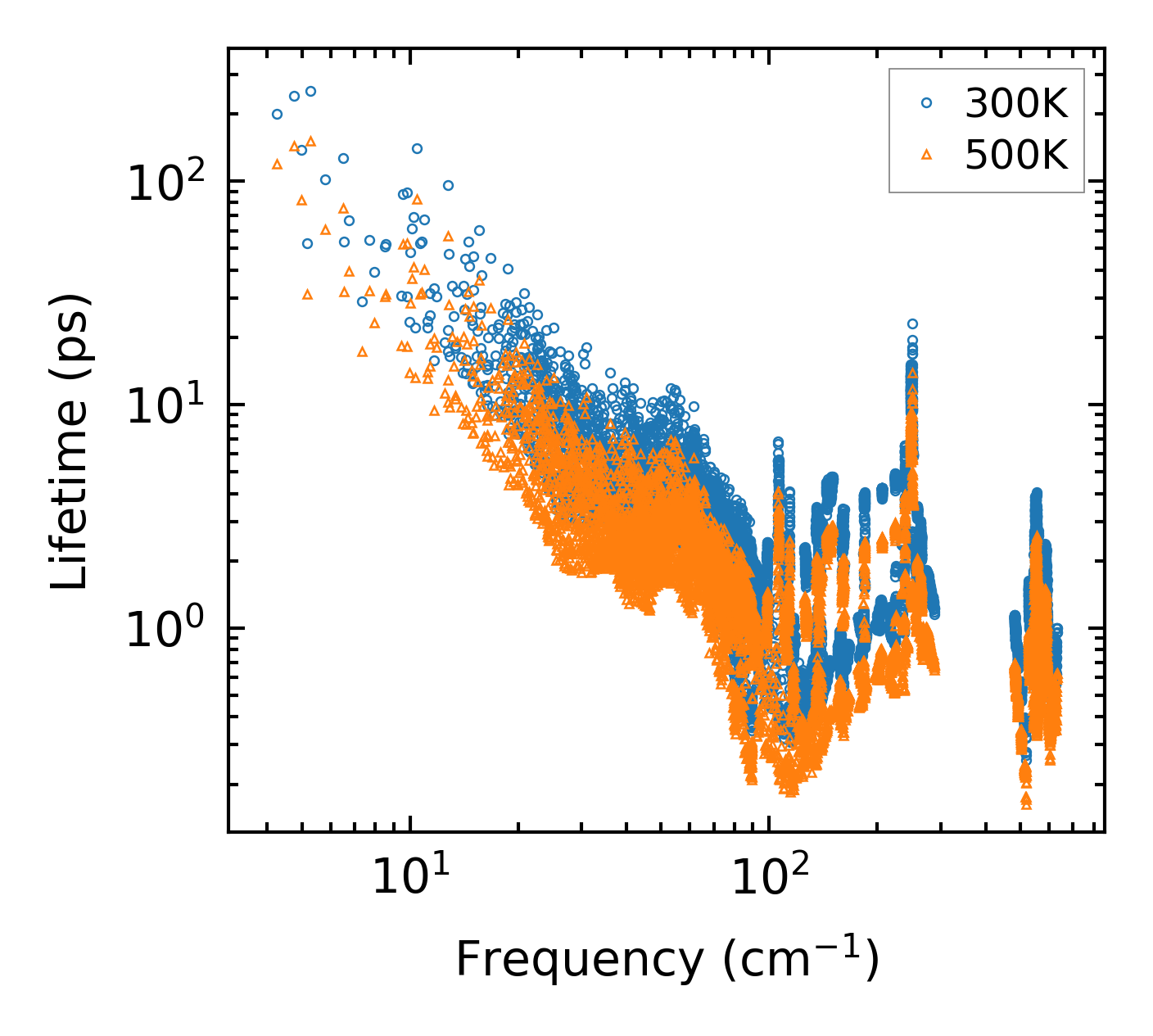

../../_images/fig_lifetime565.png — (a) Phonon lifetime due to phonon-phonon scattering

../../_images/fig_scat_rates564.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

../../_images/fig_cumu_frequency565.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

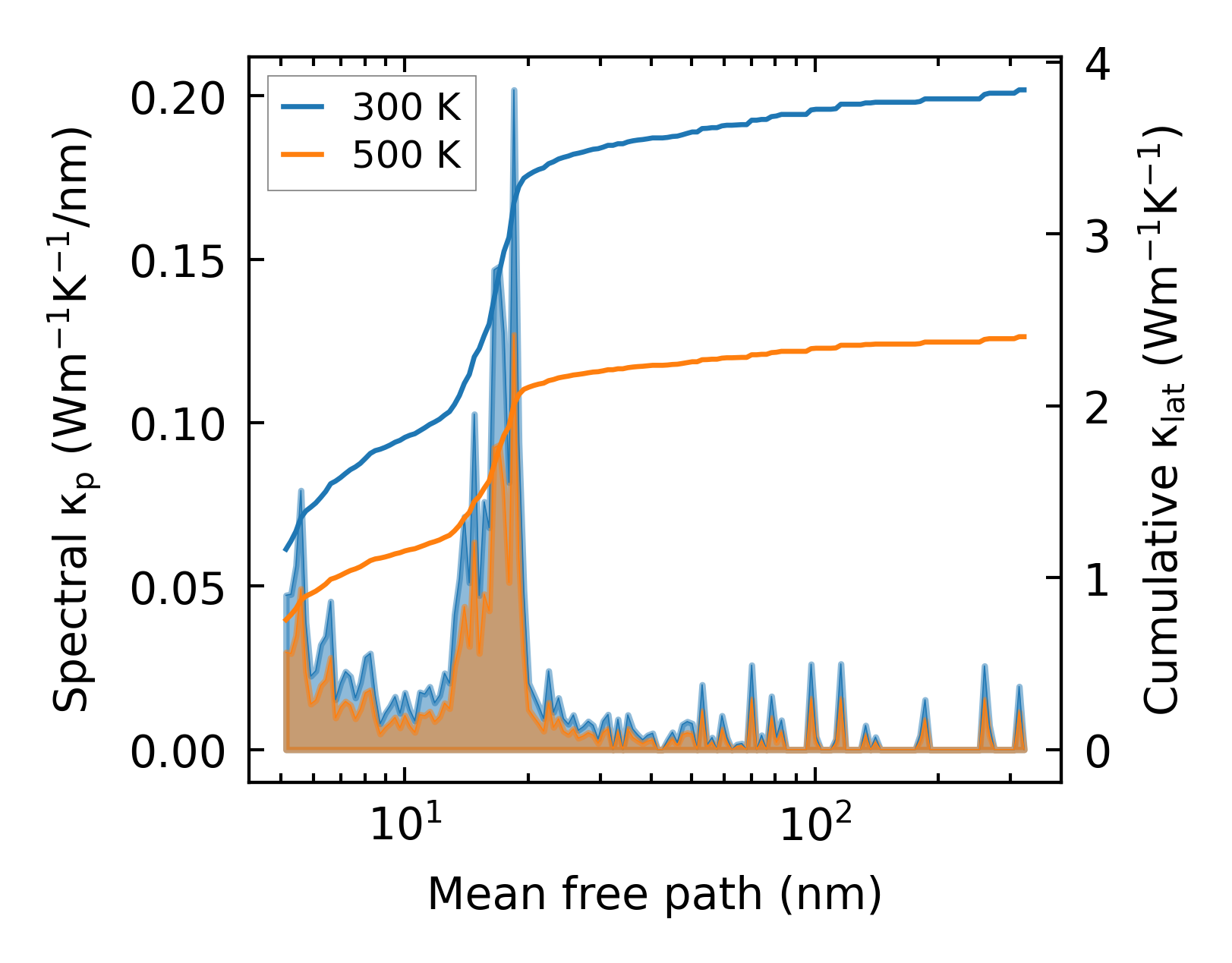

../../_images/fig_cumu_mfp565.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

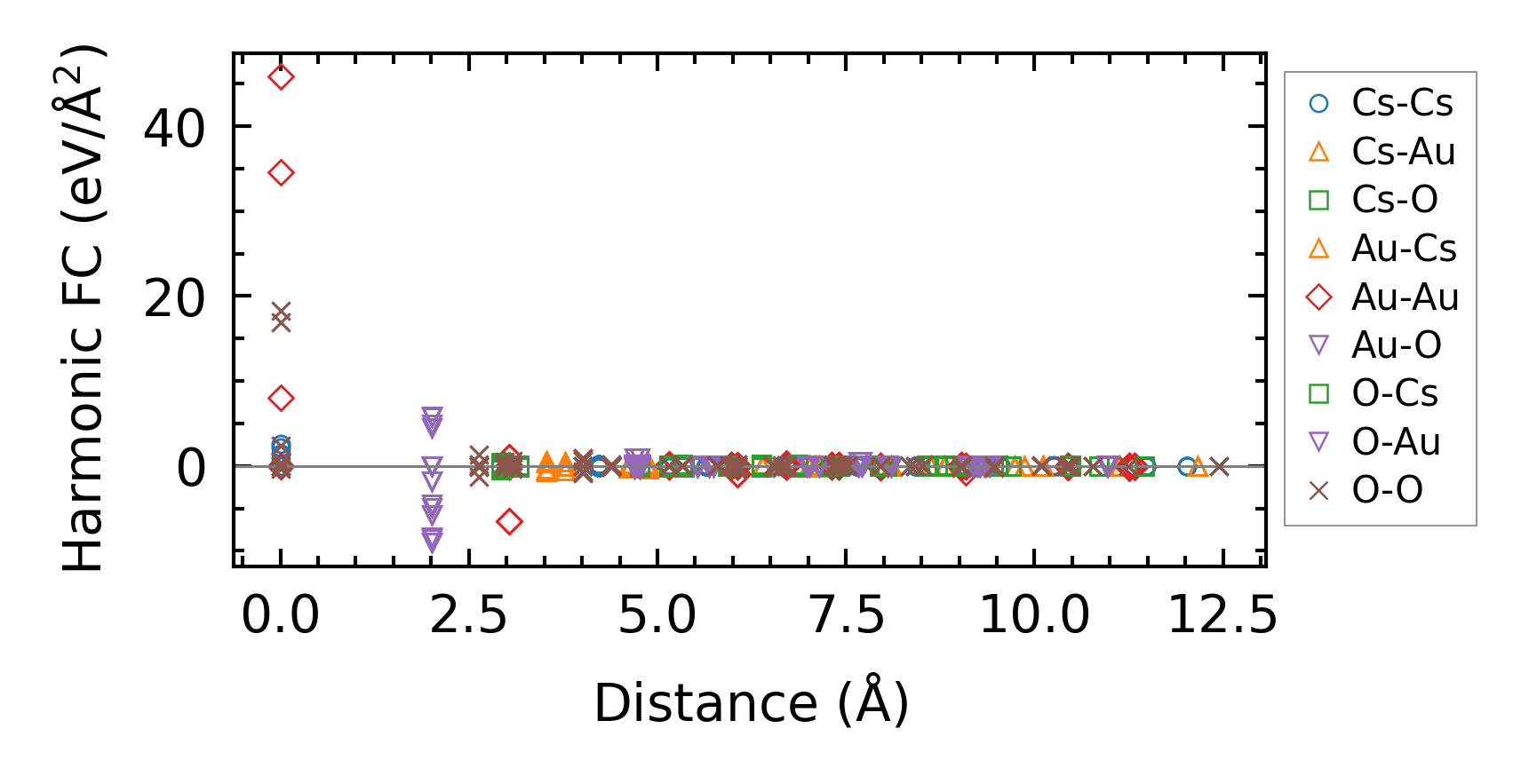

../../_images/fig_fc2822.png — (a) Force constants w.r.t atomic distance

Summary

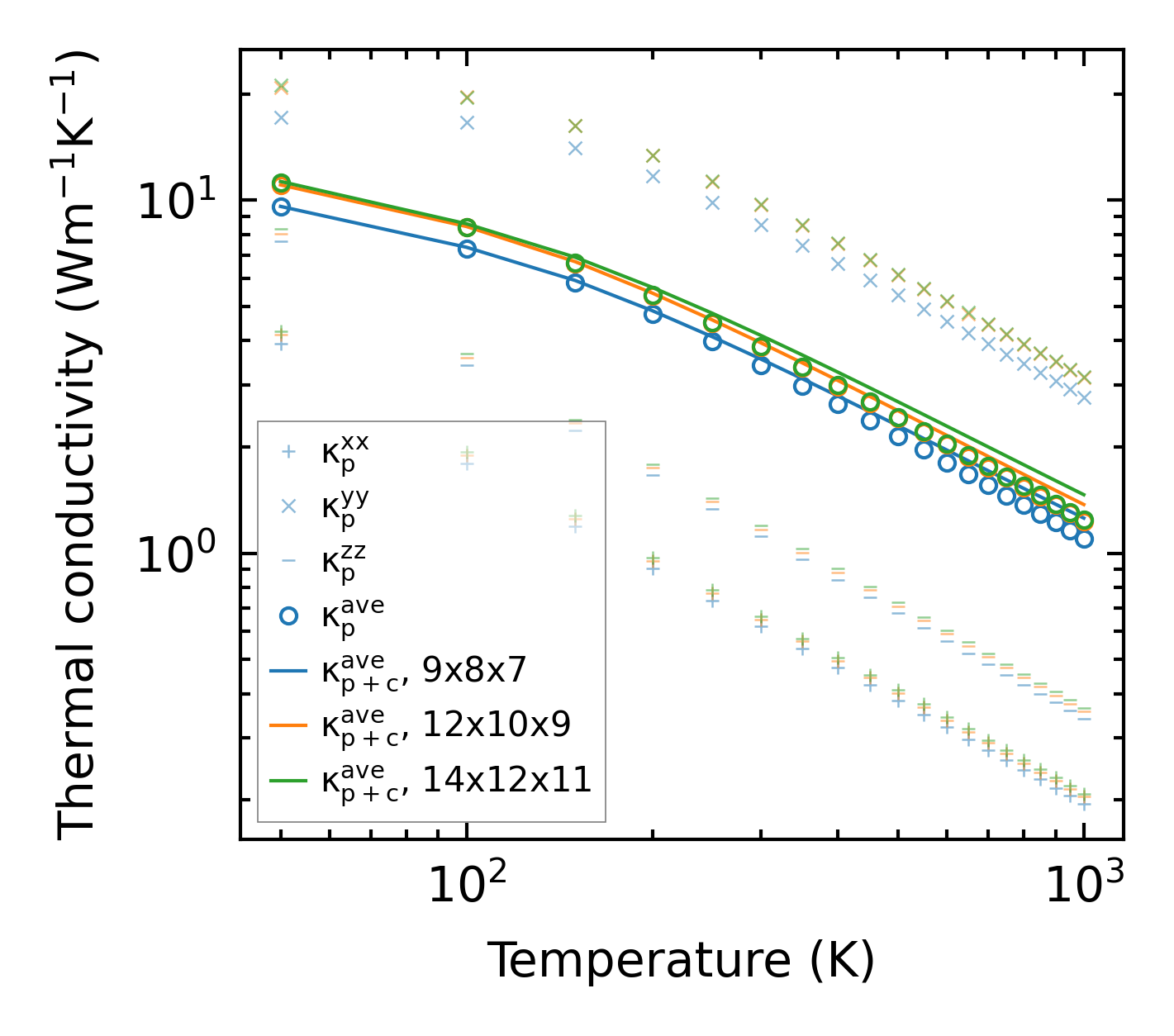

../../_images/fig_kappa1104.png — (a) Temperature-dependent lattice thermal conductivity

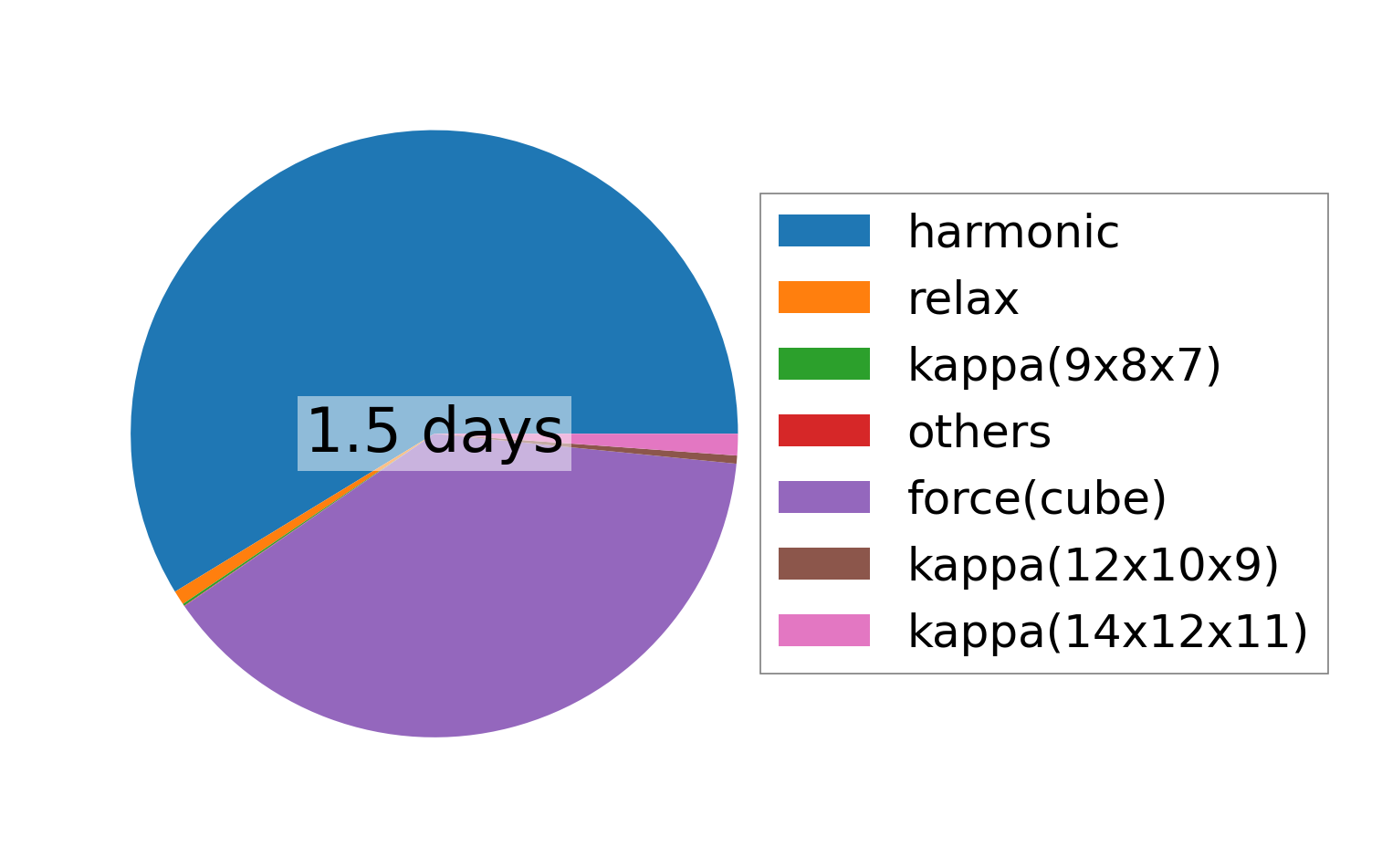

../../_images/fig_times1396.png — (b) Computation time
