mp-997055/CuBiO2/anharm

Space group: Immm (71)
Link: Materials Project
Download: mp-997055.tar.gz

Harmonic properties

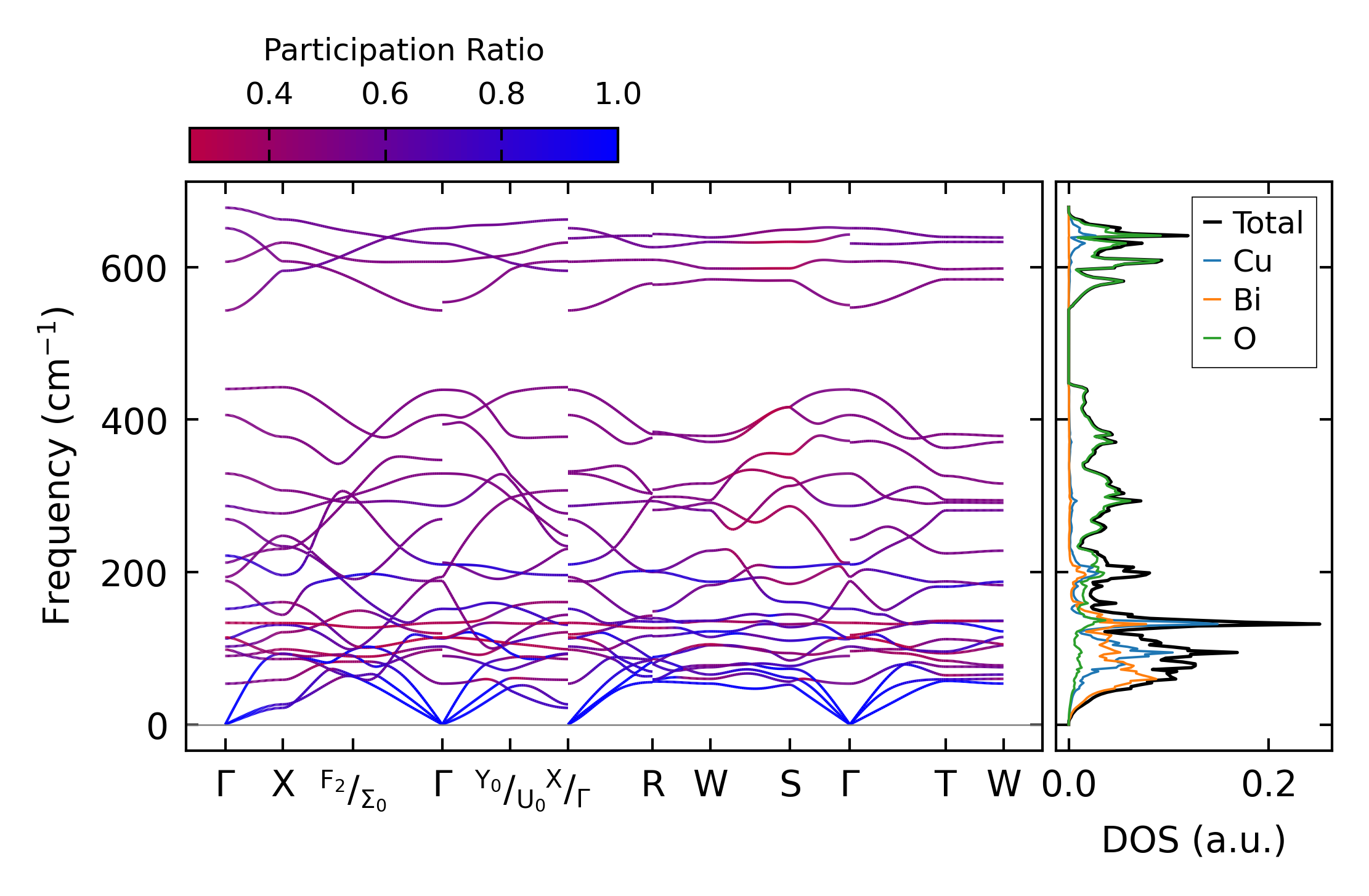

../../_images/fig_bandos_pr945.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo945.png — (b) Thermodynamic properties

Grüneisen parameters

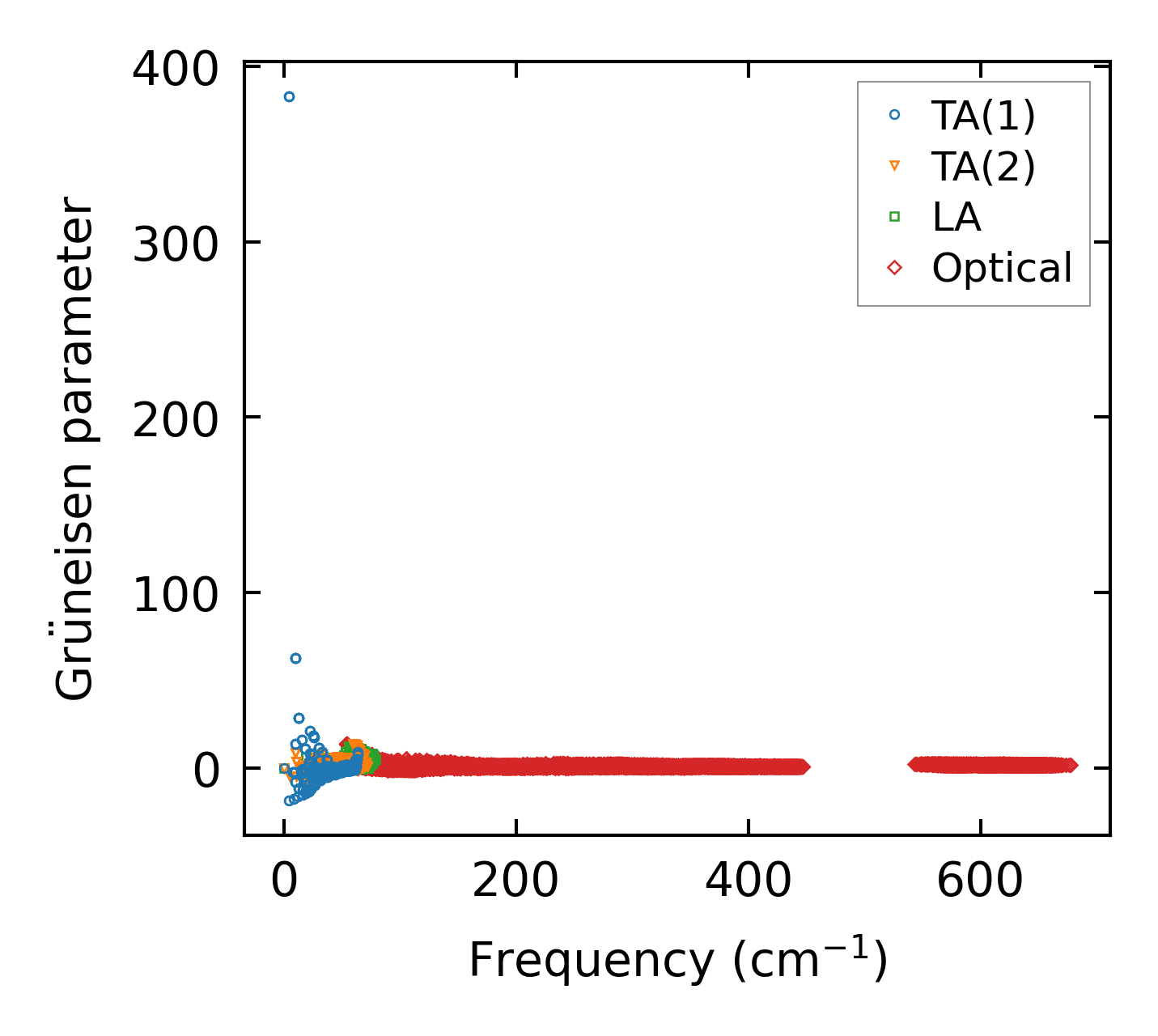

../../_images/fig_gru_all571.png — (a) Grüneisen parameters

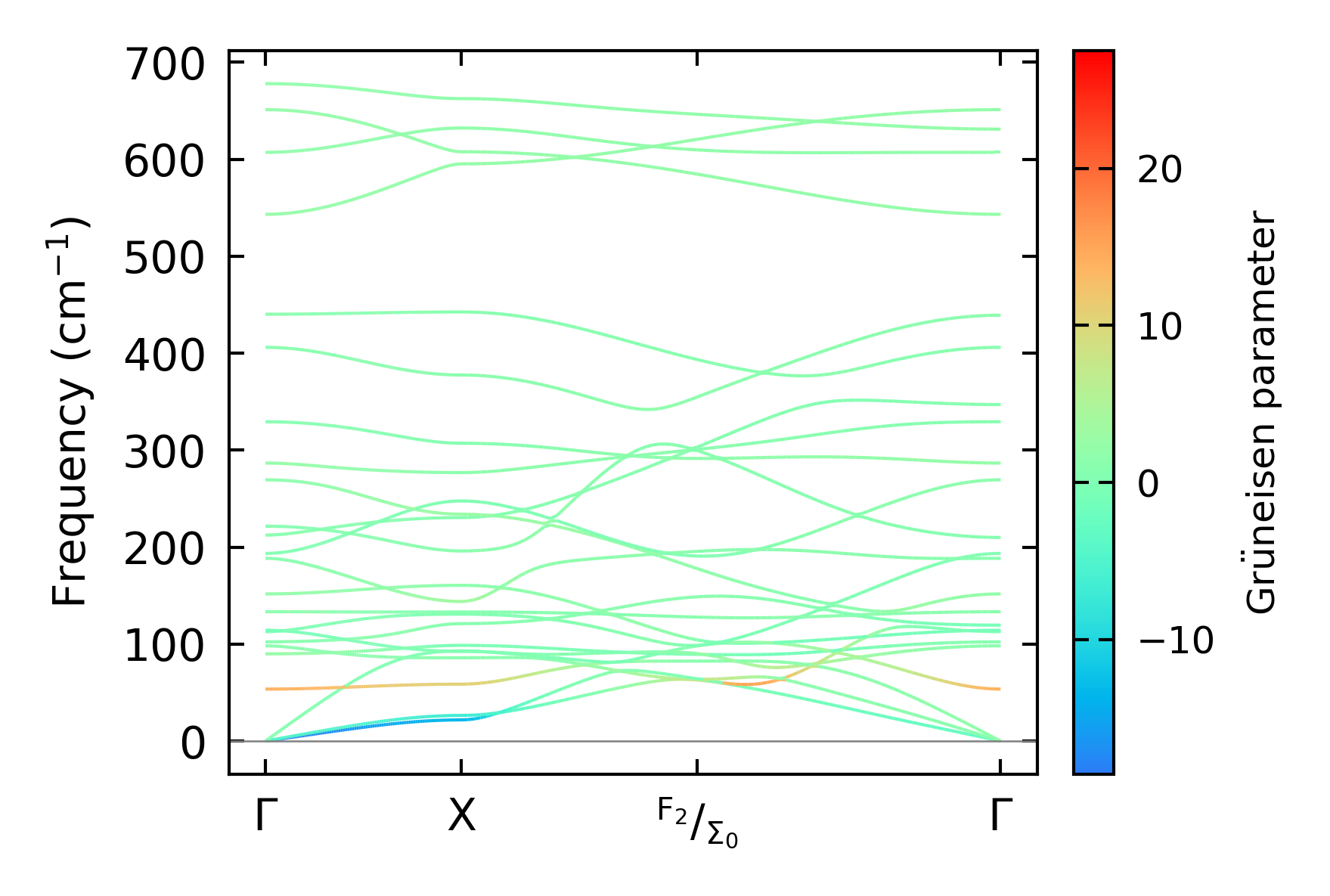

../../_images/fig_gruneisen571.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 14x14x14, supercell: 3x2x1

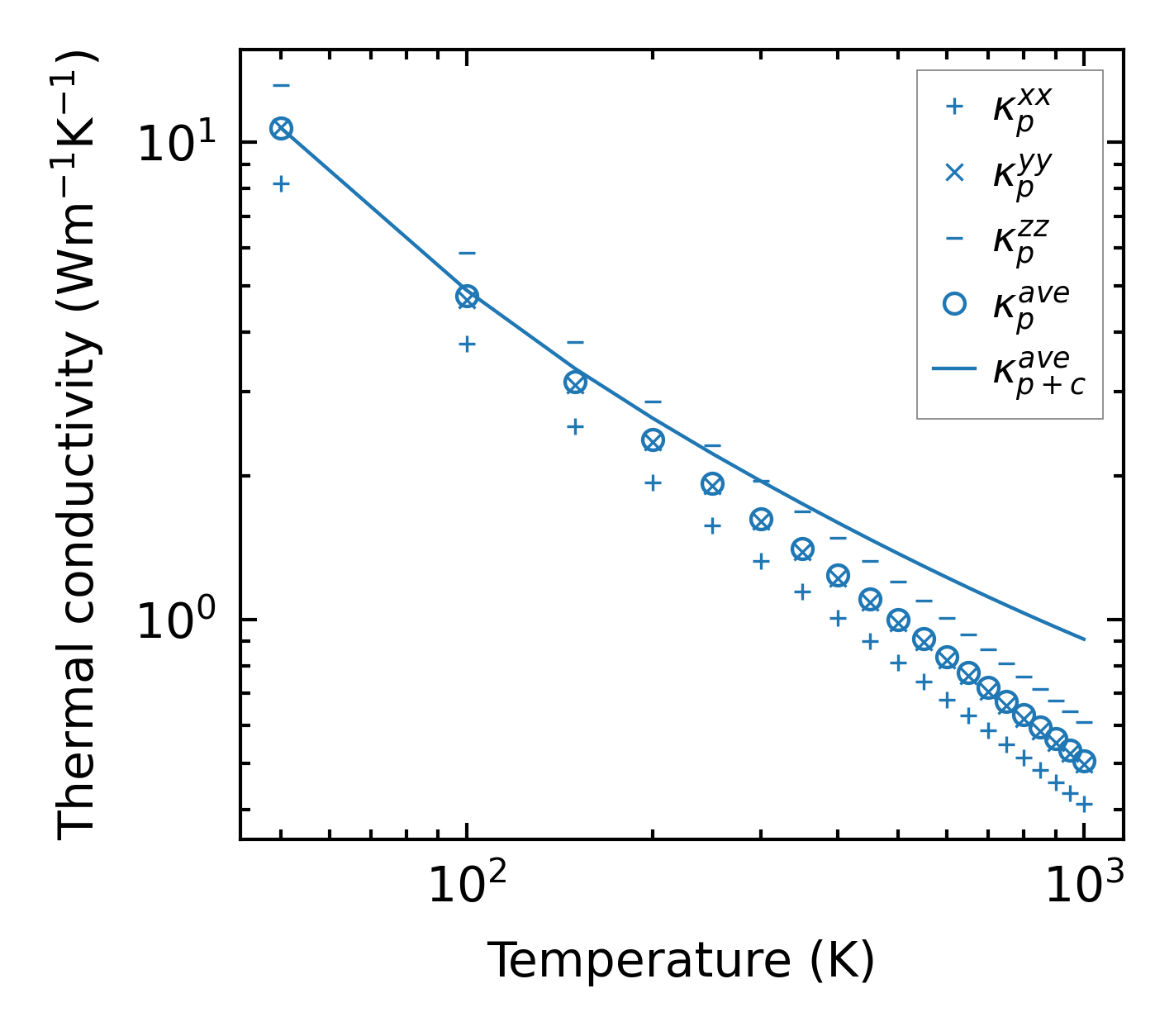

../../_images/fig_kappa1111.png — (a) Temperature-dependent lattice thermal conductivity

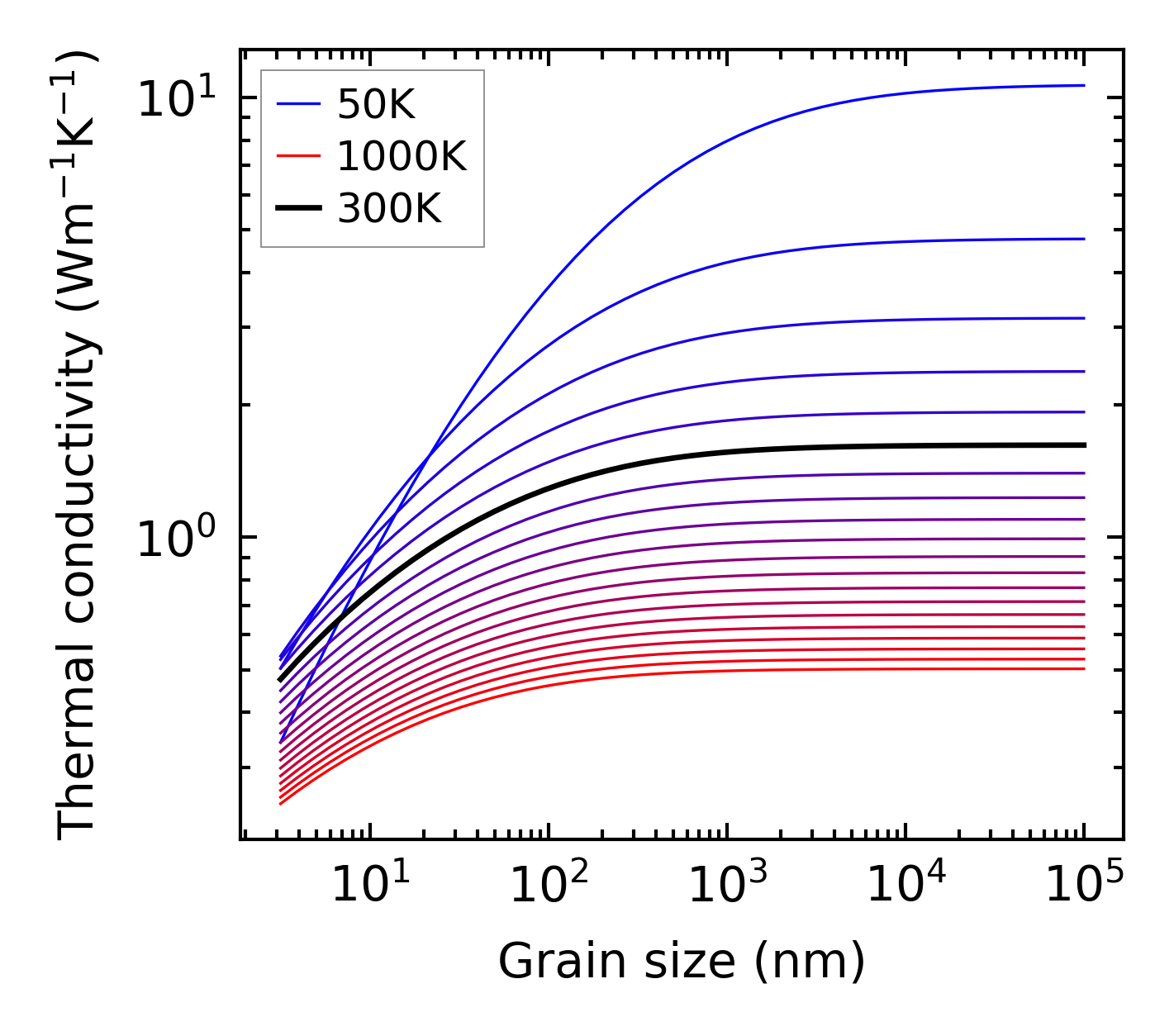

../../_images/fig_kappa_vs_grain_size578.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

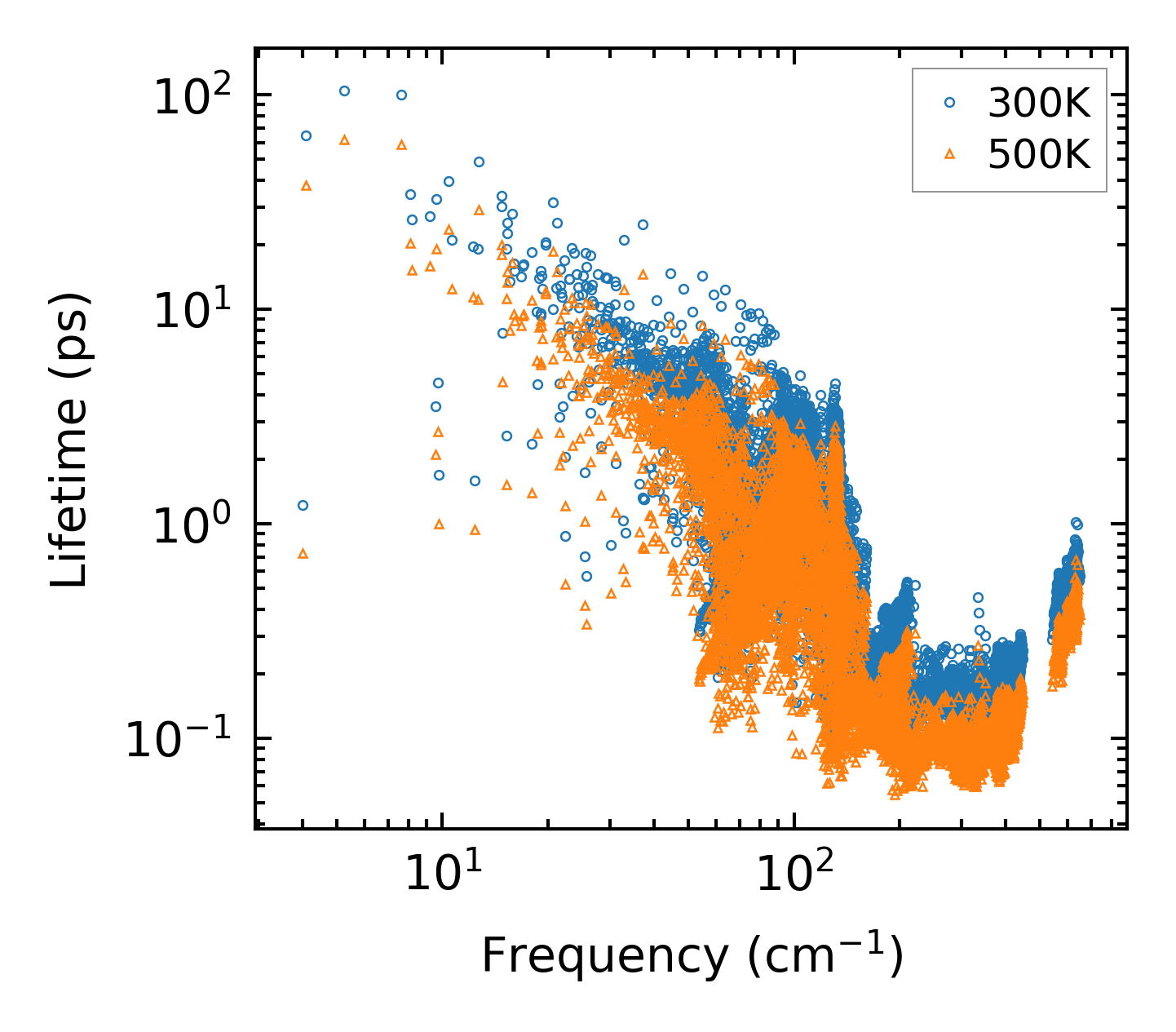

../../_images/fig_lifetime569.png — (a) Phonon lifetime due to phonon-phonon scattering

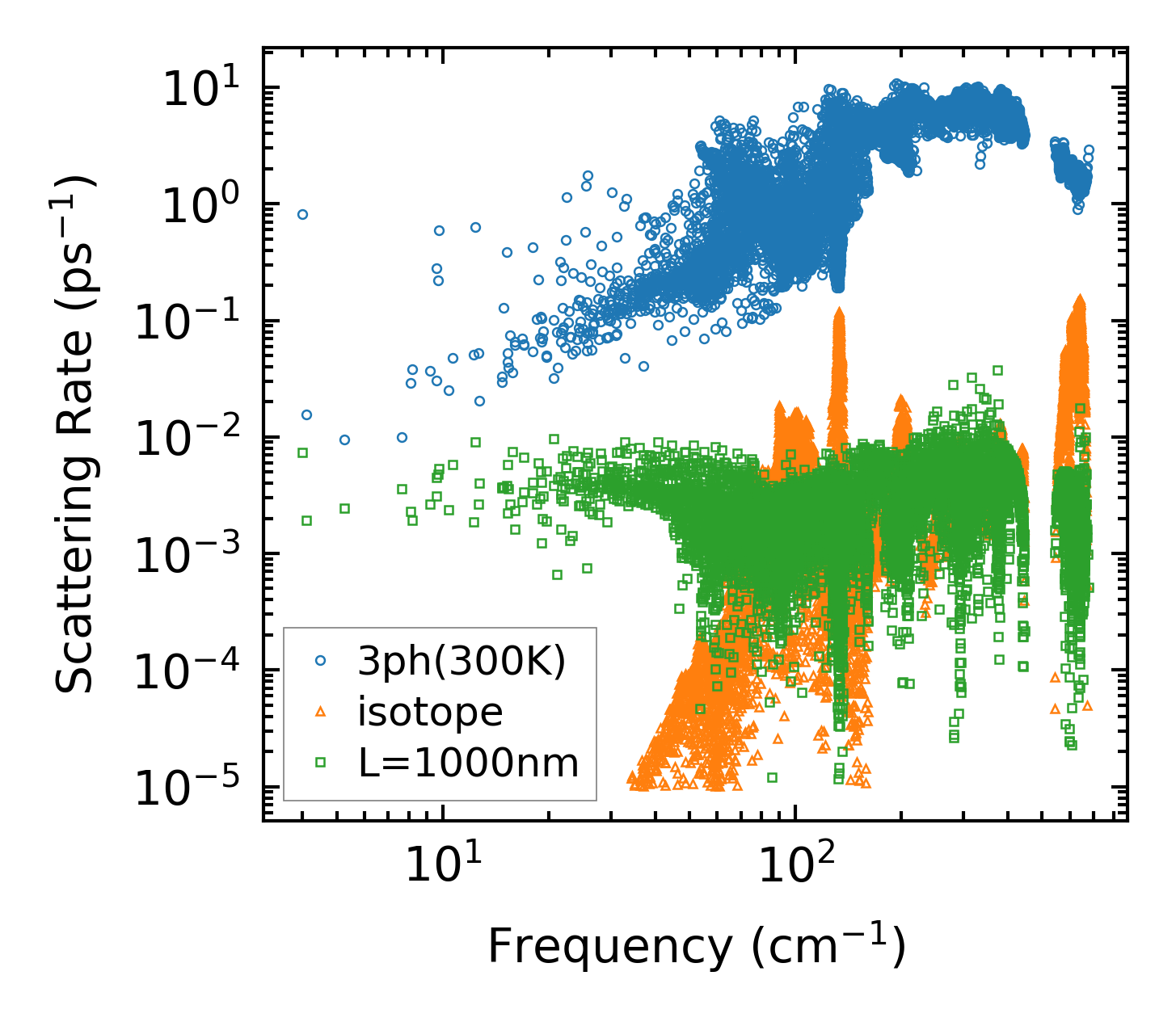

../../_images/fig_scat_rates568.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

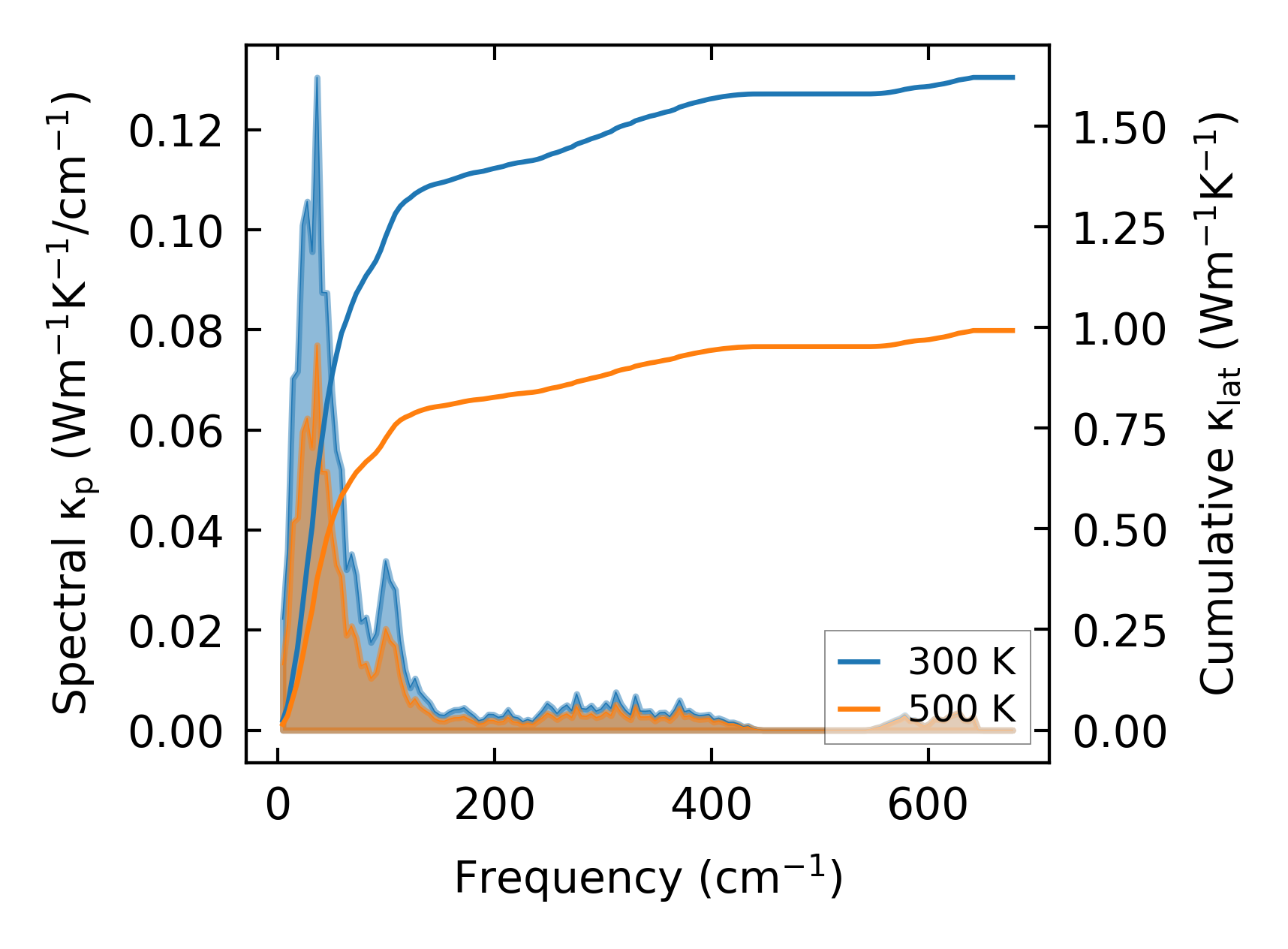

../../_images/fig_cumu_frequency569.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

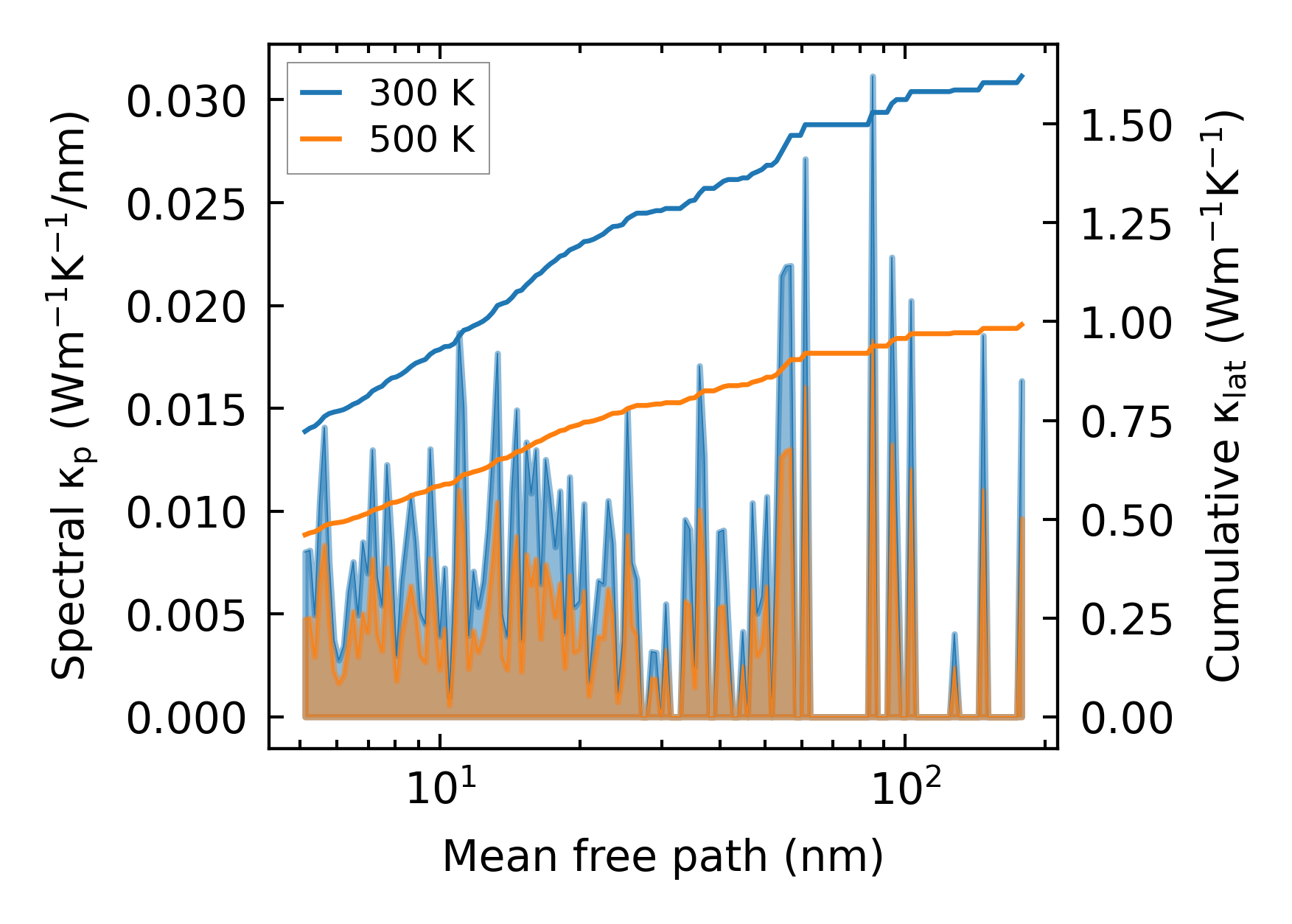

../../_images/fig_cumu_mfp569.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

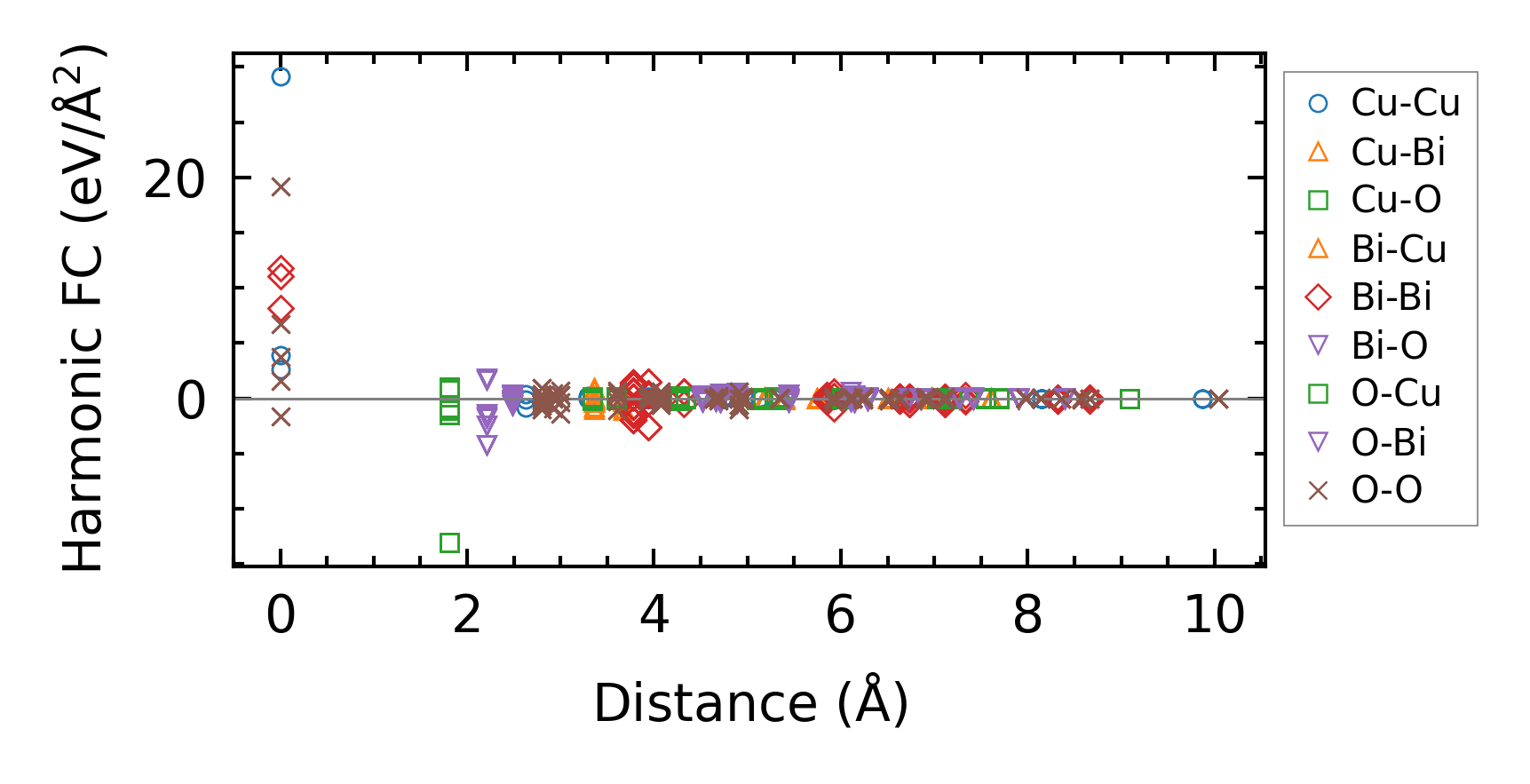

../../_images/fig_fc2836.png — (a) Force constants w.r.t atomic distance

Summary

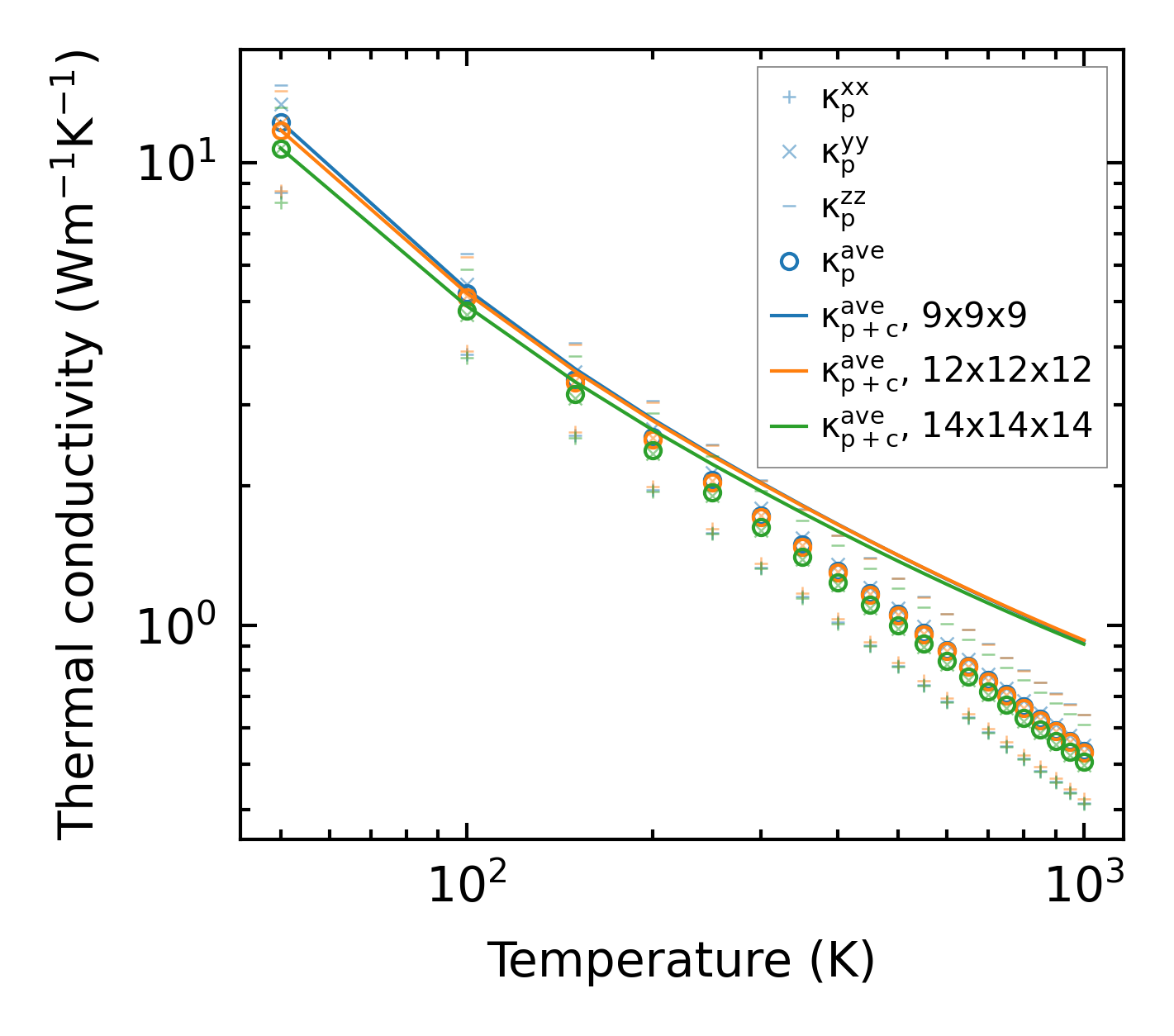

../../_images/fig_kappa1112.png — (a) Temperature-dependent lattice thermal conductivity

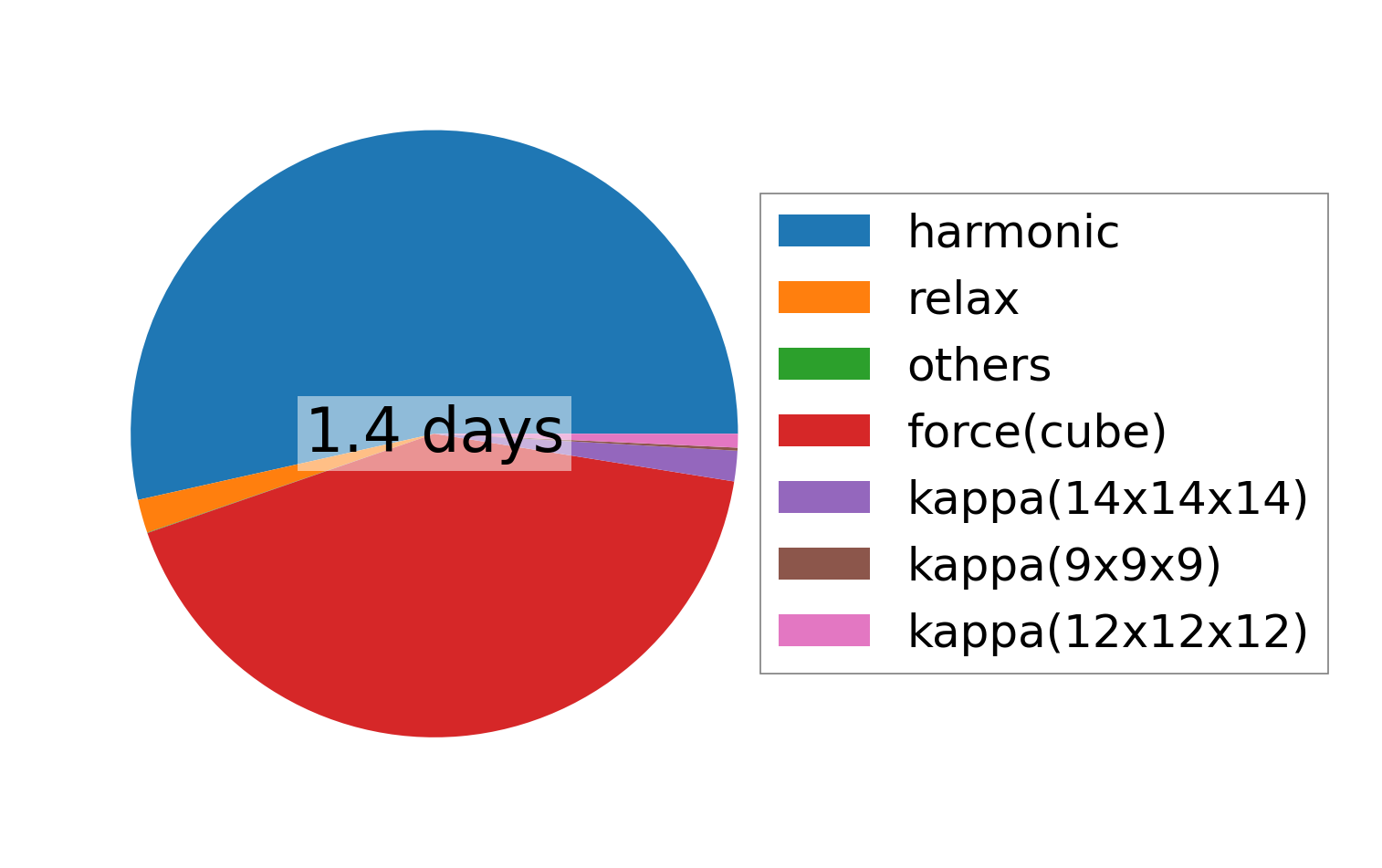

../../_images/fig_times1413.png — (b) Computation time
