mp-561623-2/Li4UO5/anharm

Space group: I4/m (87)
Link: Materials Project
Download: mp-561623-2.tar.gz

Equation of state

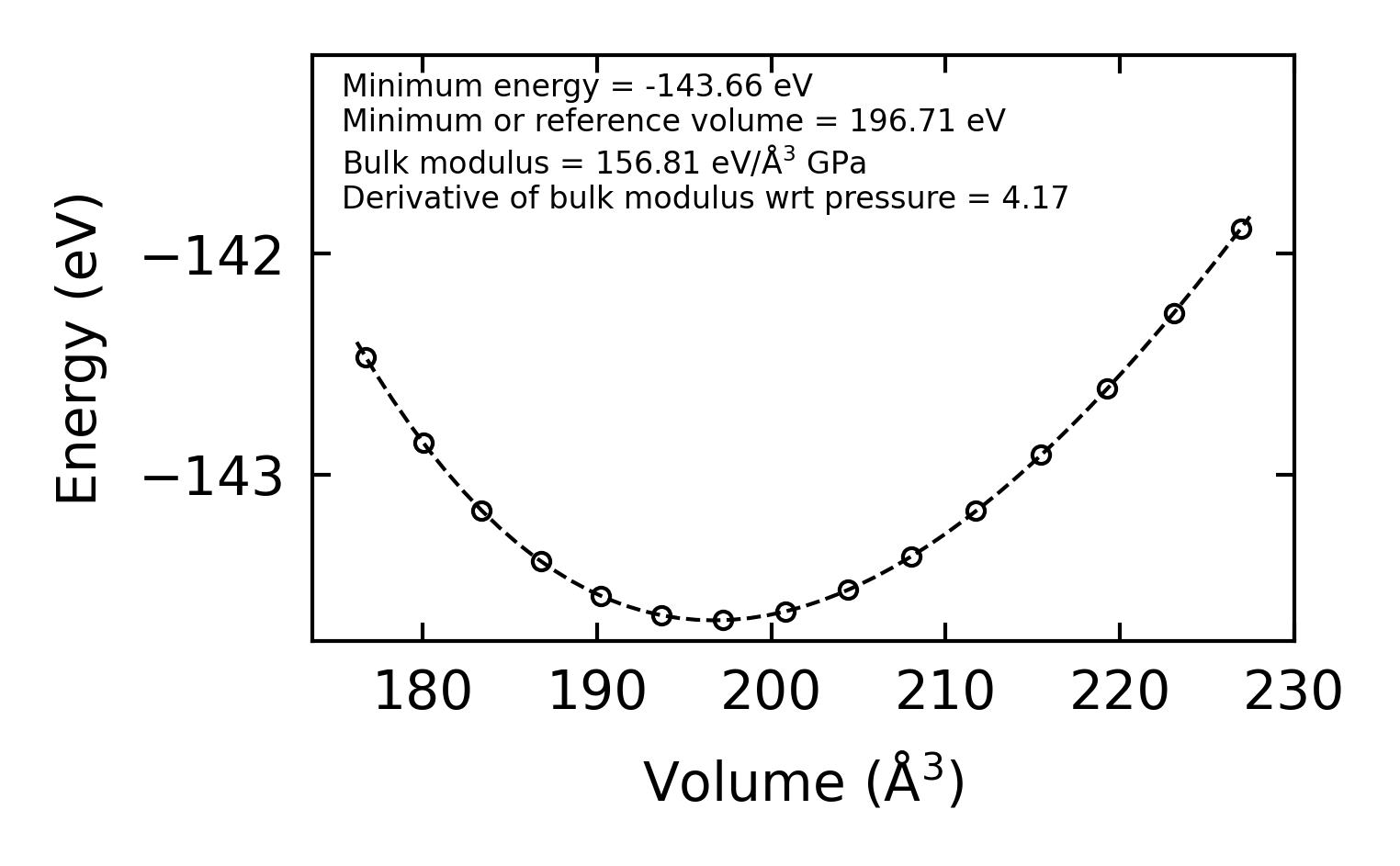

../../_images/fig_bm3910.png — (a) Equation of state

Harmonic properties

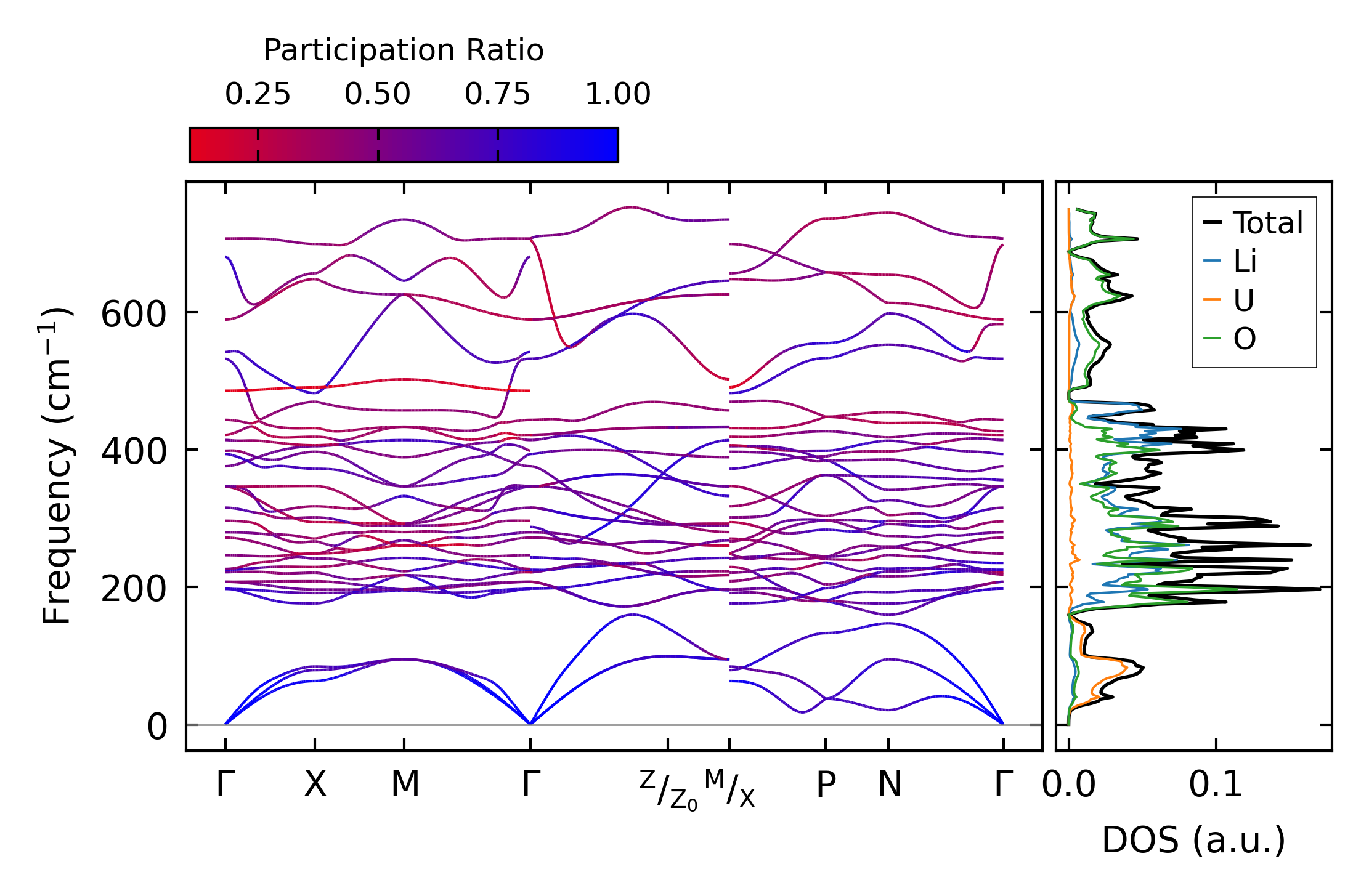

../../_images/fig_bandos_pr7430.png — (a) Phonon dispersion with participation ratio and DOS

../../_images/fig_thermo7430.png — (b) Thermodynamic properties

Grüneisen parameters

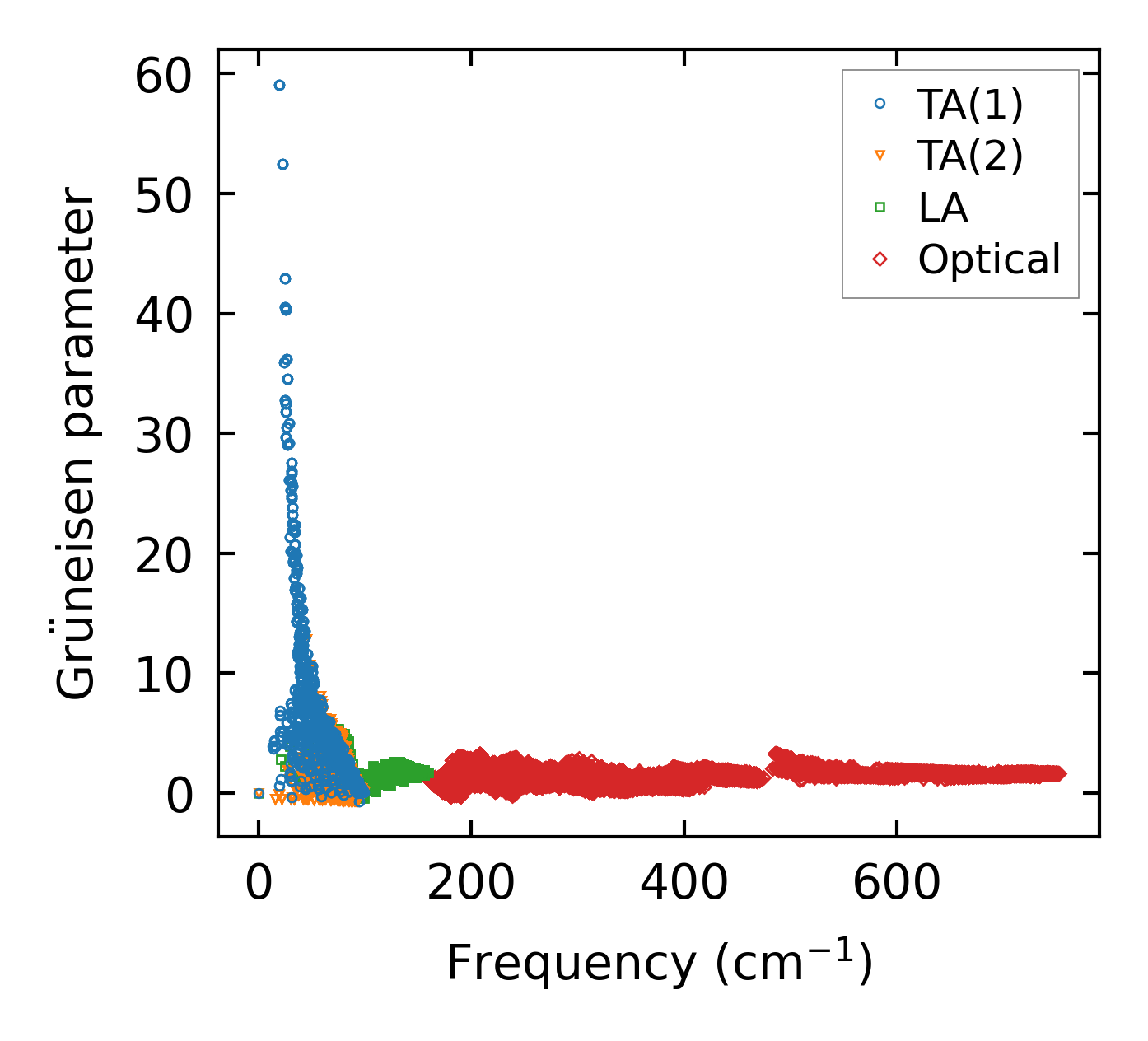

../../_images/fig_gru_all3118.png — (a) Grüneisen parameters

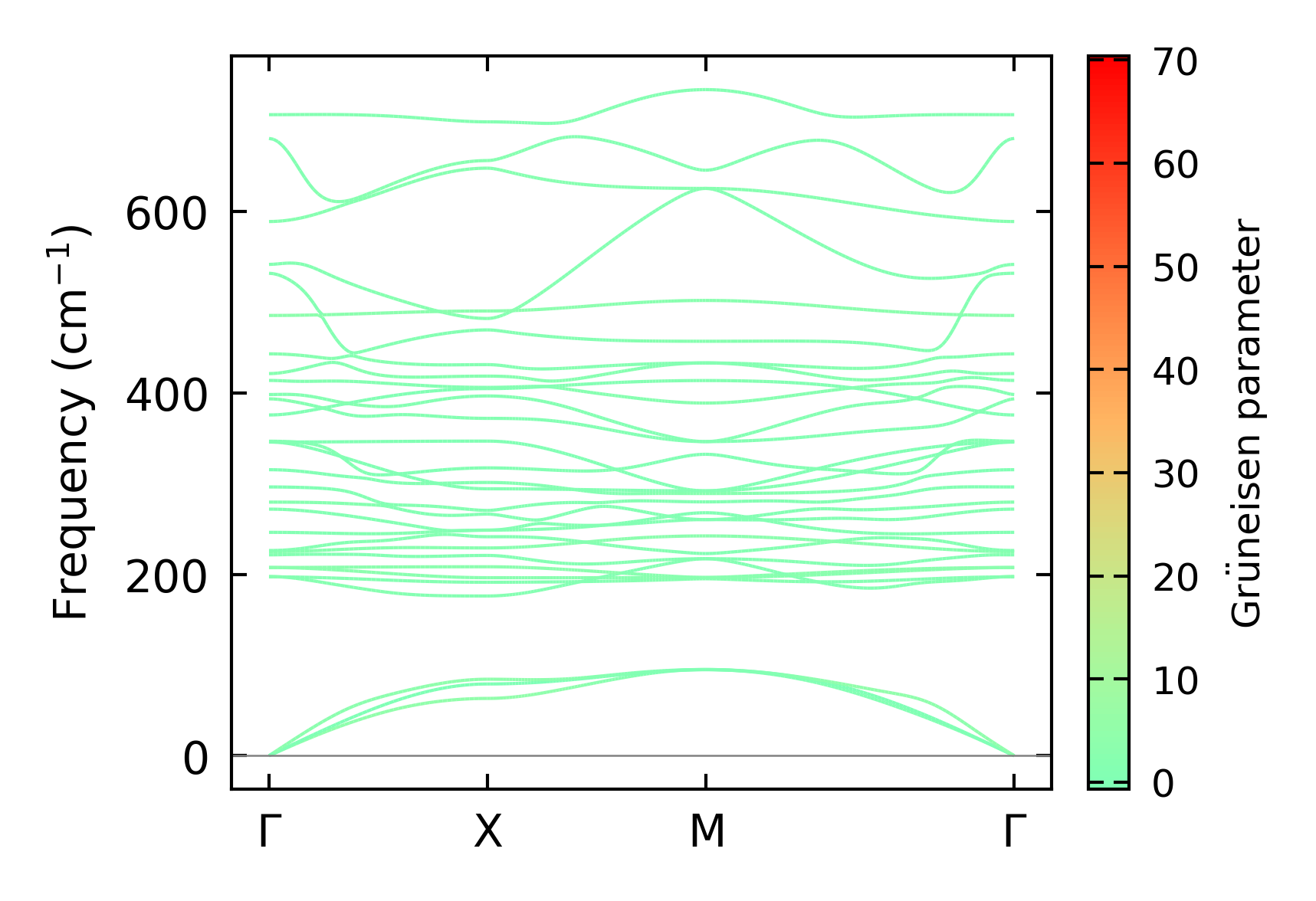

../../_images/fig_gruneisen3118.png — (b) Phonon dispersion with Grüneisen parameters

Thermal conductivity

3-phonon (LASSO) — q-mesh: 15x15x15, supercell: 1x1x2

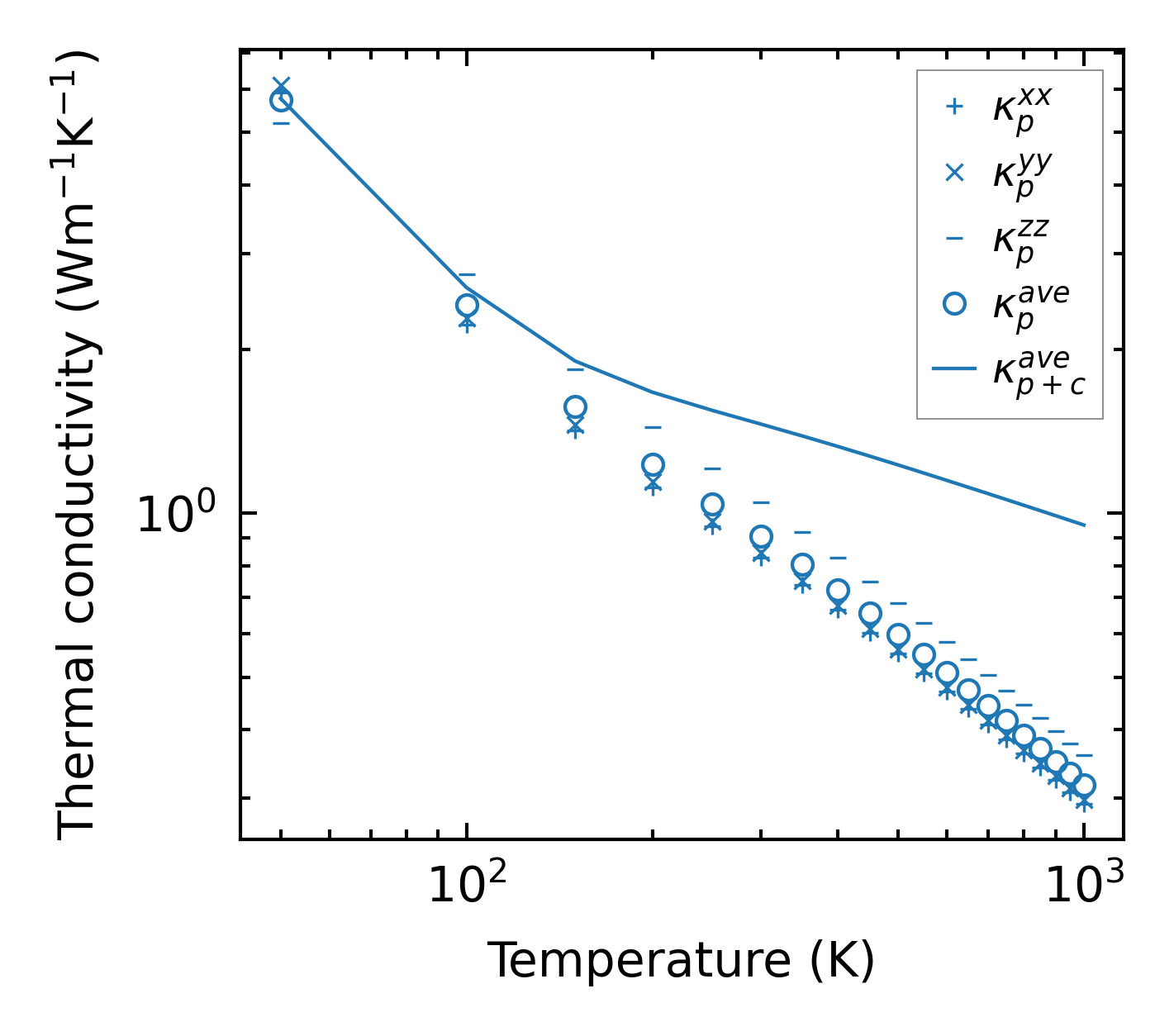

../../_images/fig_kappa5903.png — (a) Temperature-dependent lattice thermal conductivity

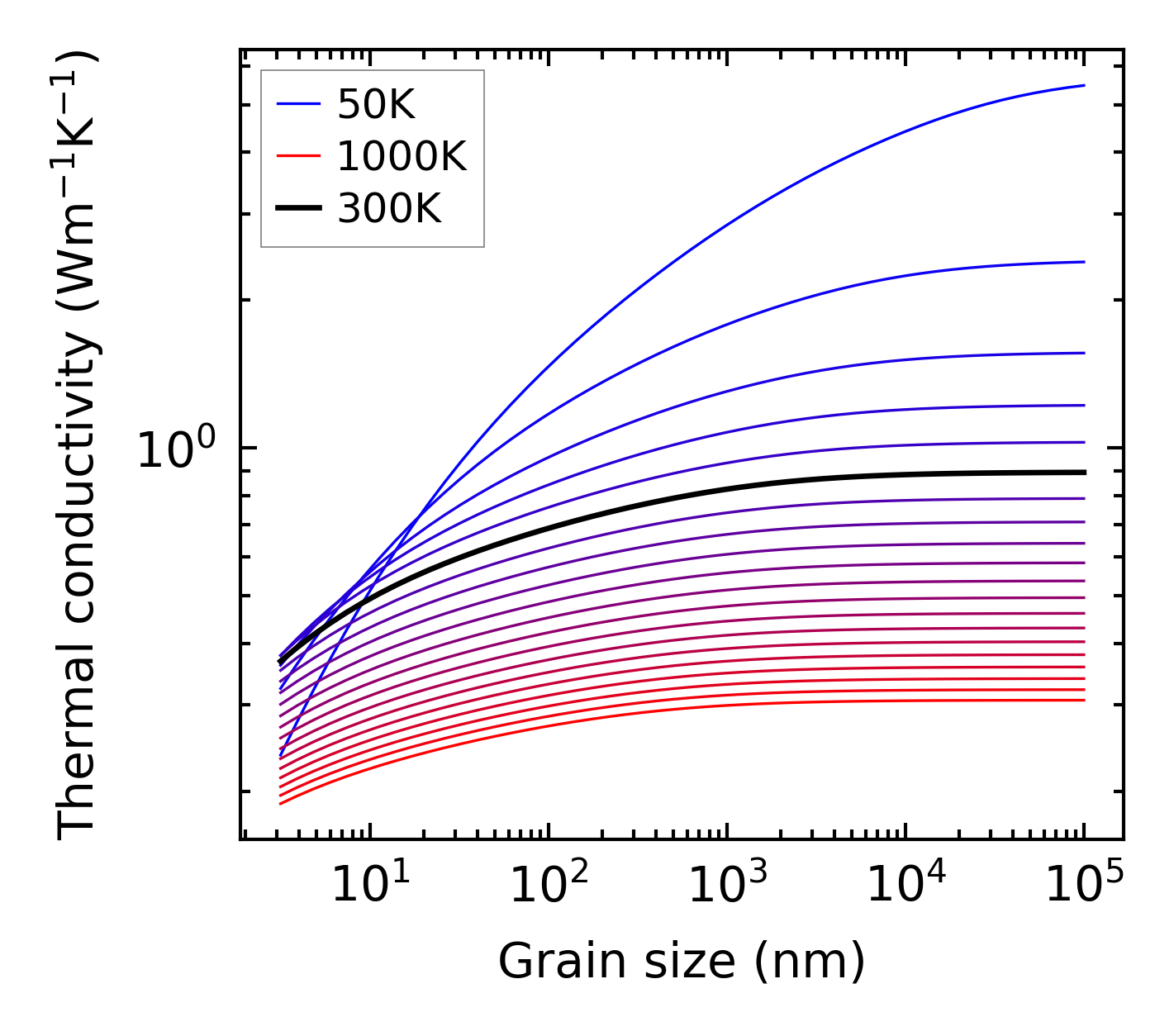

../../_images/fig_kappa_vs_grain_size3158.png — (b) Peierls lattice thermal conductivity w.r.t grain size

3-phonon (LASSO), supercell 2x2x2 — q-mesh: 15x15x15, supercell: 2x2x2

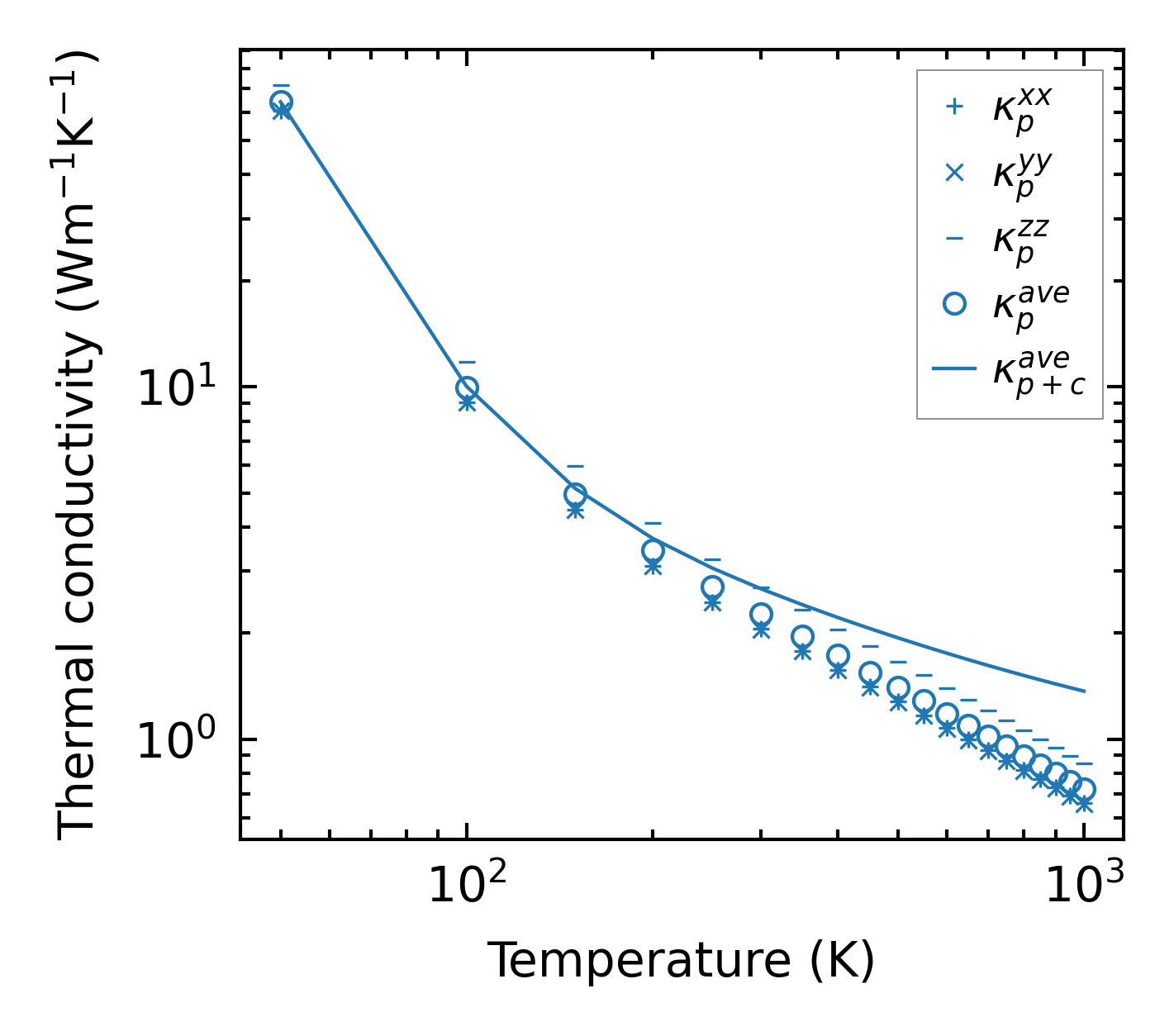

../../_images/fig_kappa5904.png — (a) Temperature-dependent lattice thermal conductivity

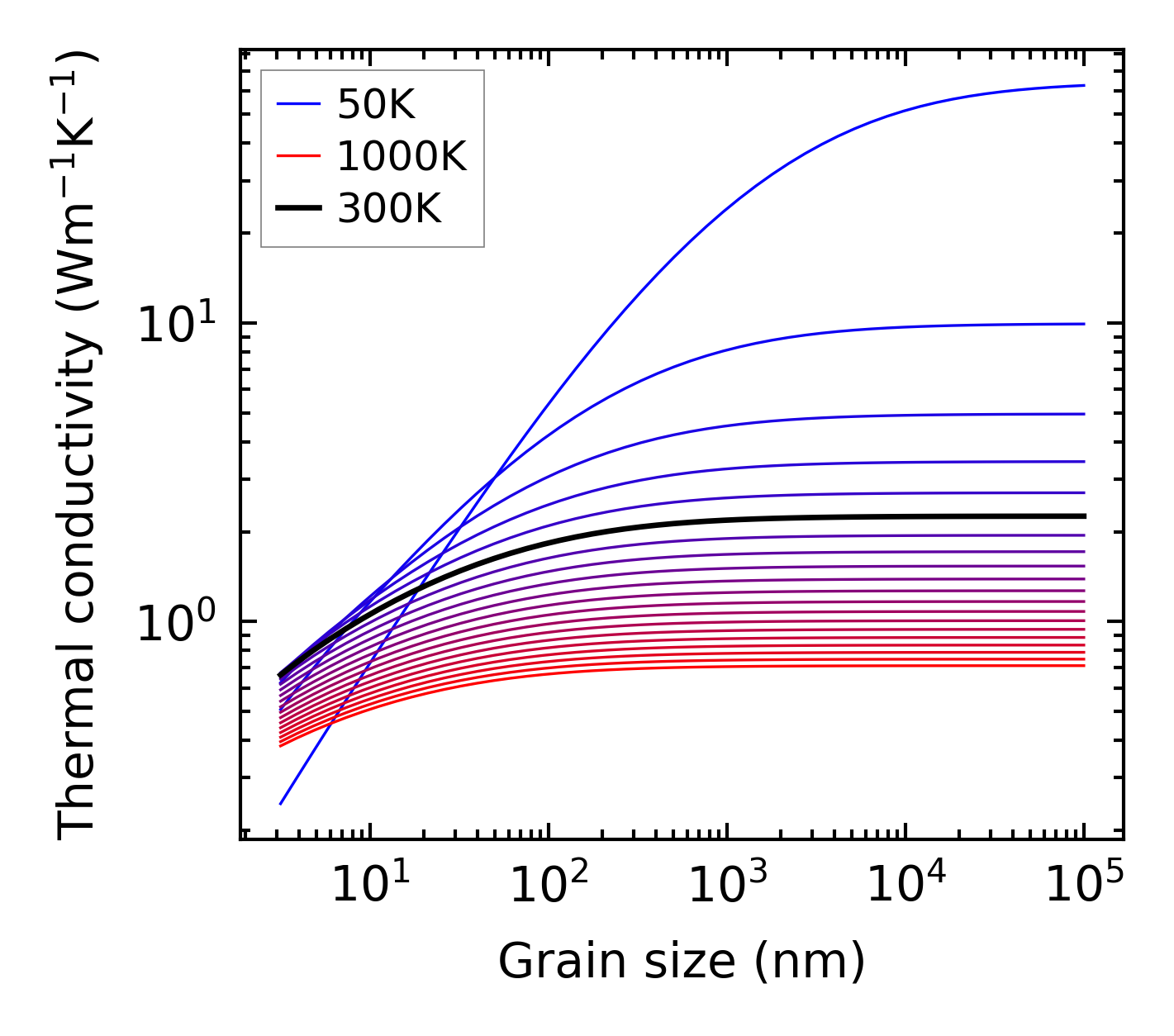

../../_images/fig_kappa_vs_grain_size3159.png — (b) Peierls lattice thermal conductivity w.r.t grain size

Phonon lifetime and scattering rates

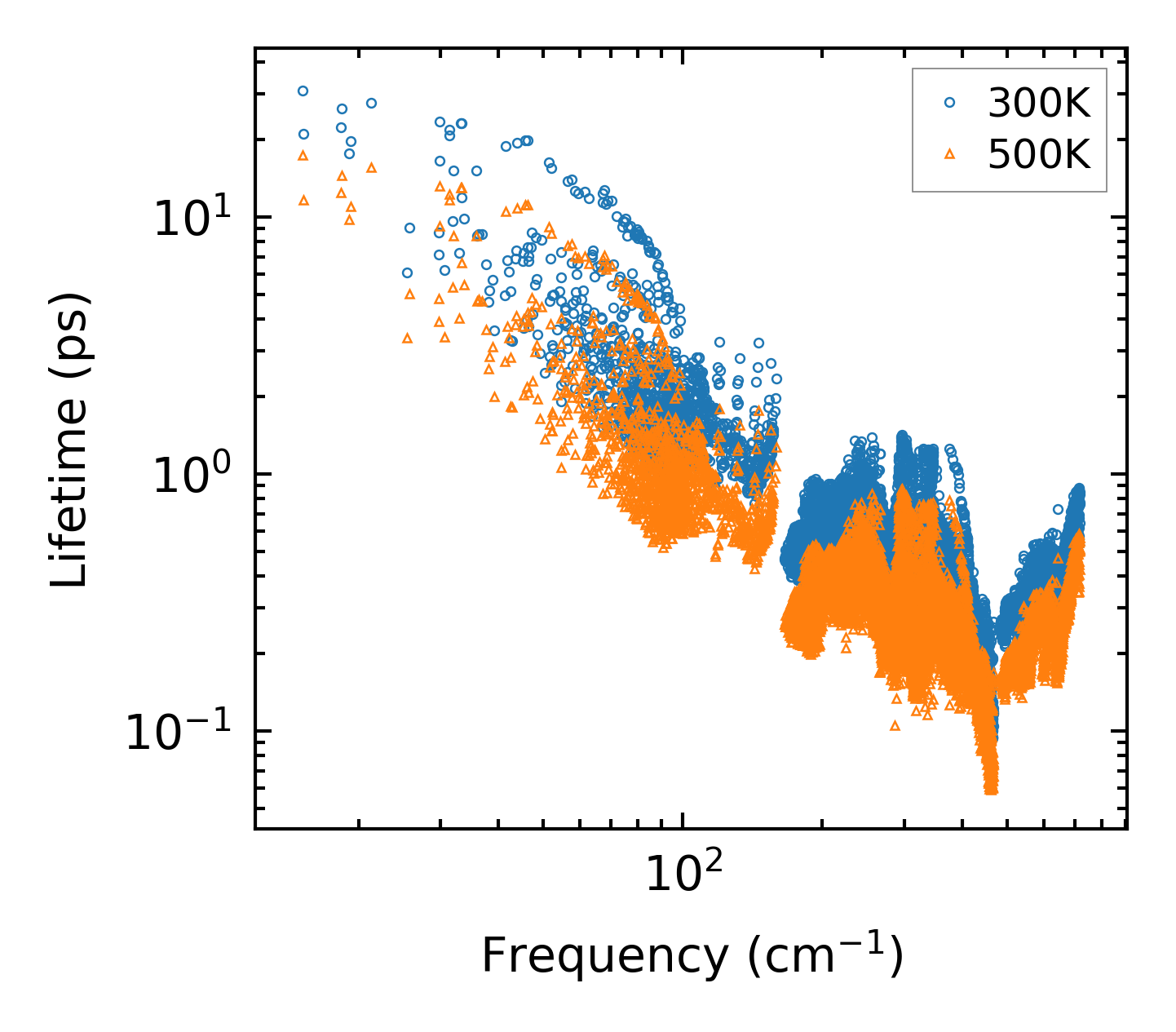

../../_images/fig_lifetime3090.png — (a) Phonon lifetime due to phonon-phonon scattering

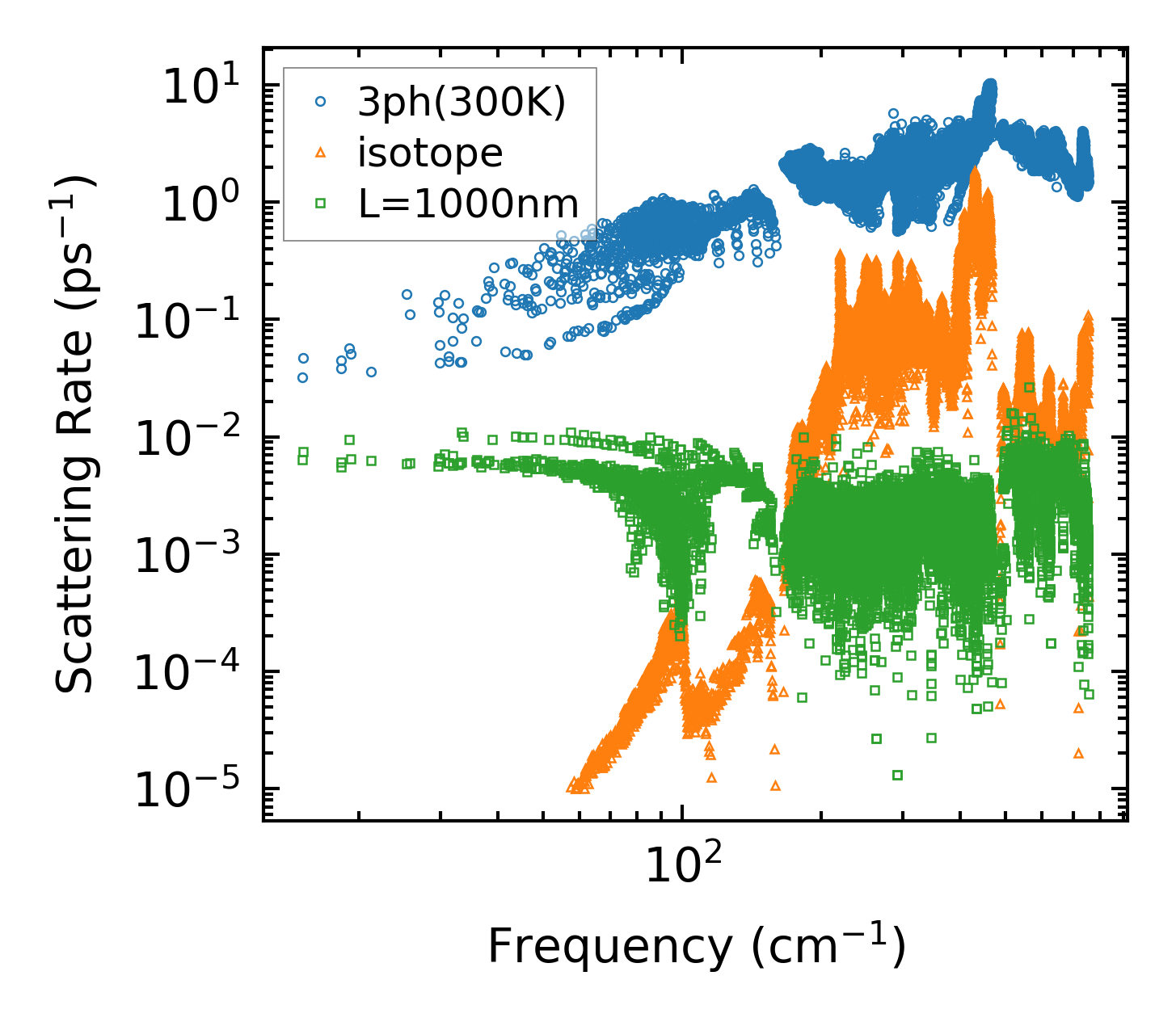

../../_images/fig_scat_rates3089.png — (b) Phonon scattering rates

Cumulative and spectral thermal conductivity

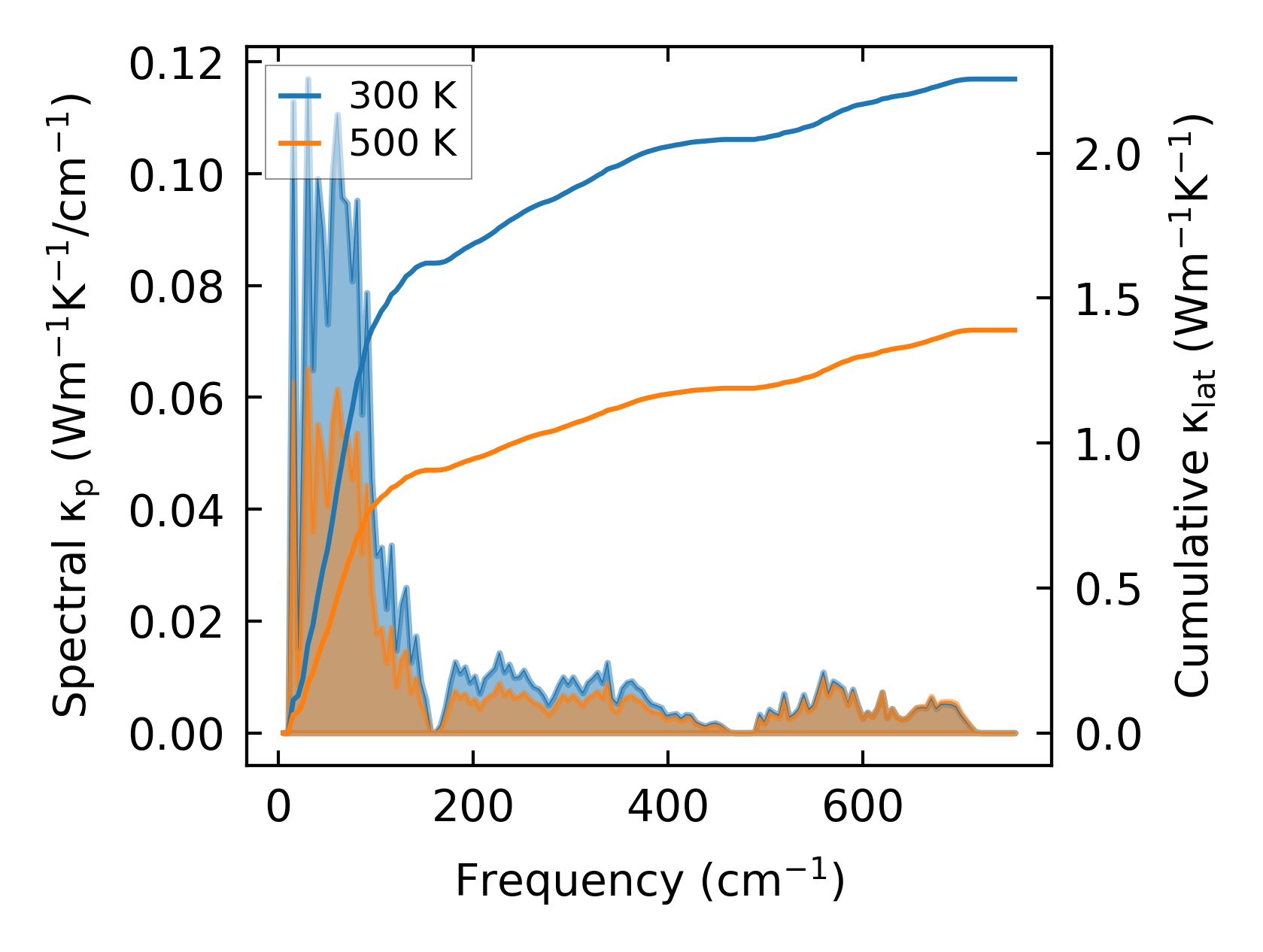

../../_images/fig_cumu_frequency3090.png — (a) Spectral and cumulative thermal conductivity w.r.t frequency

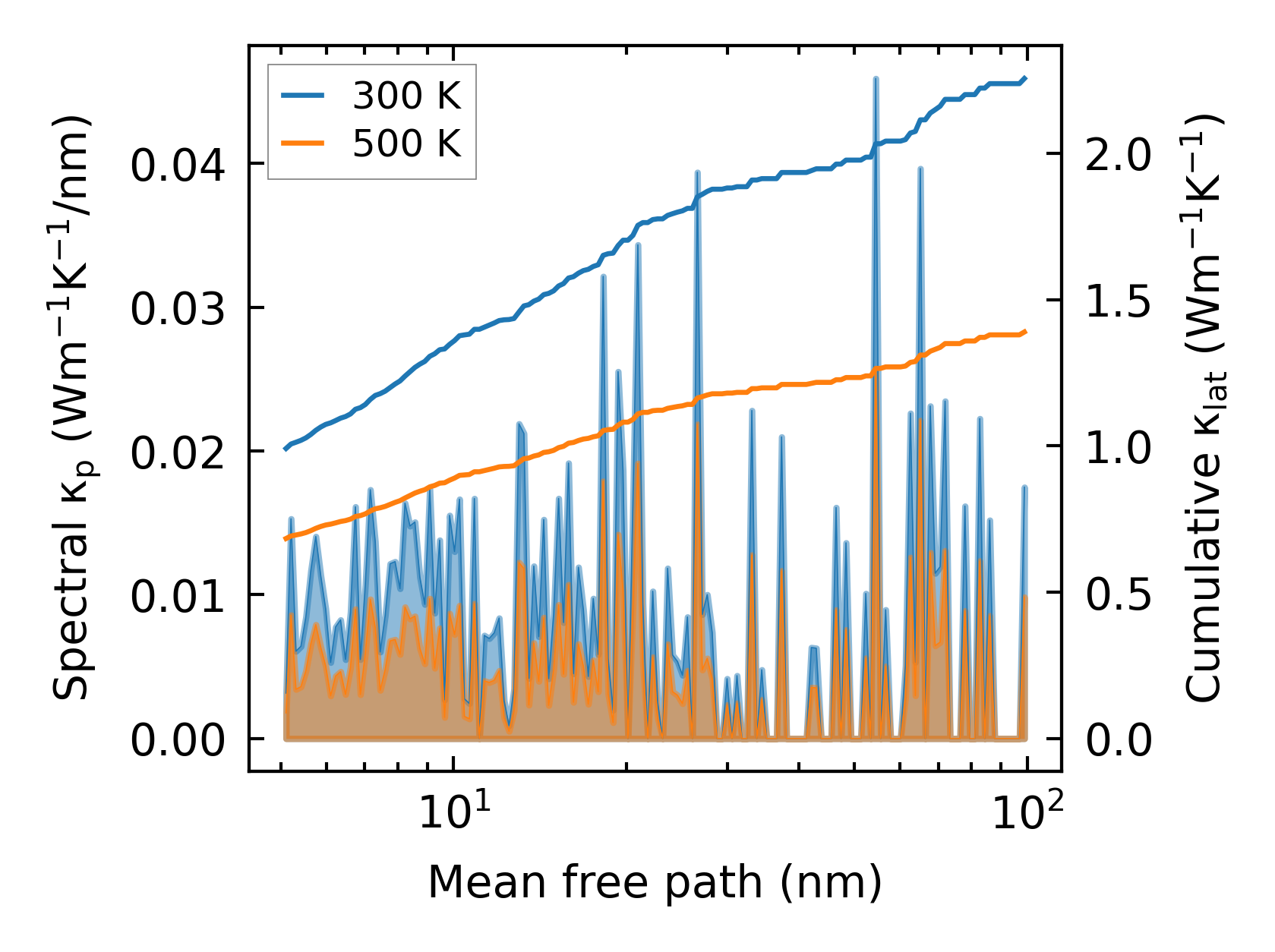

../../_images/fig_cumu_mfp3089.png — (b) Spectral and cumulative thermal conductivity w.r.t MFP

Force constants

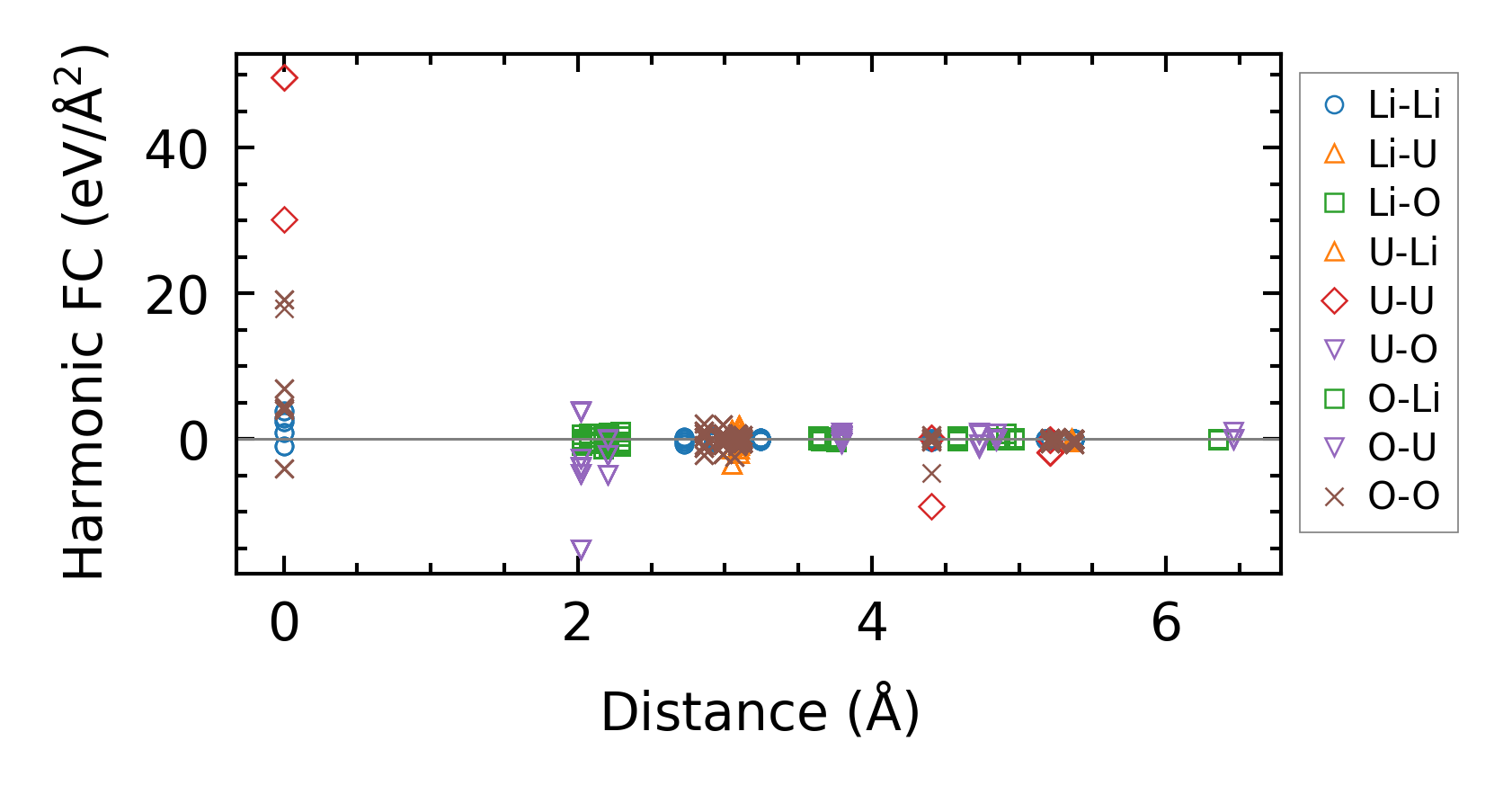

../../_images/fig_fc27194.png — (a) Force constants w.r.t atomic distance

Summary

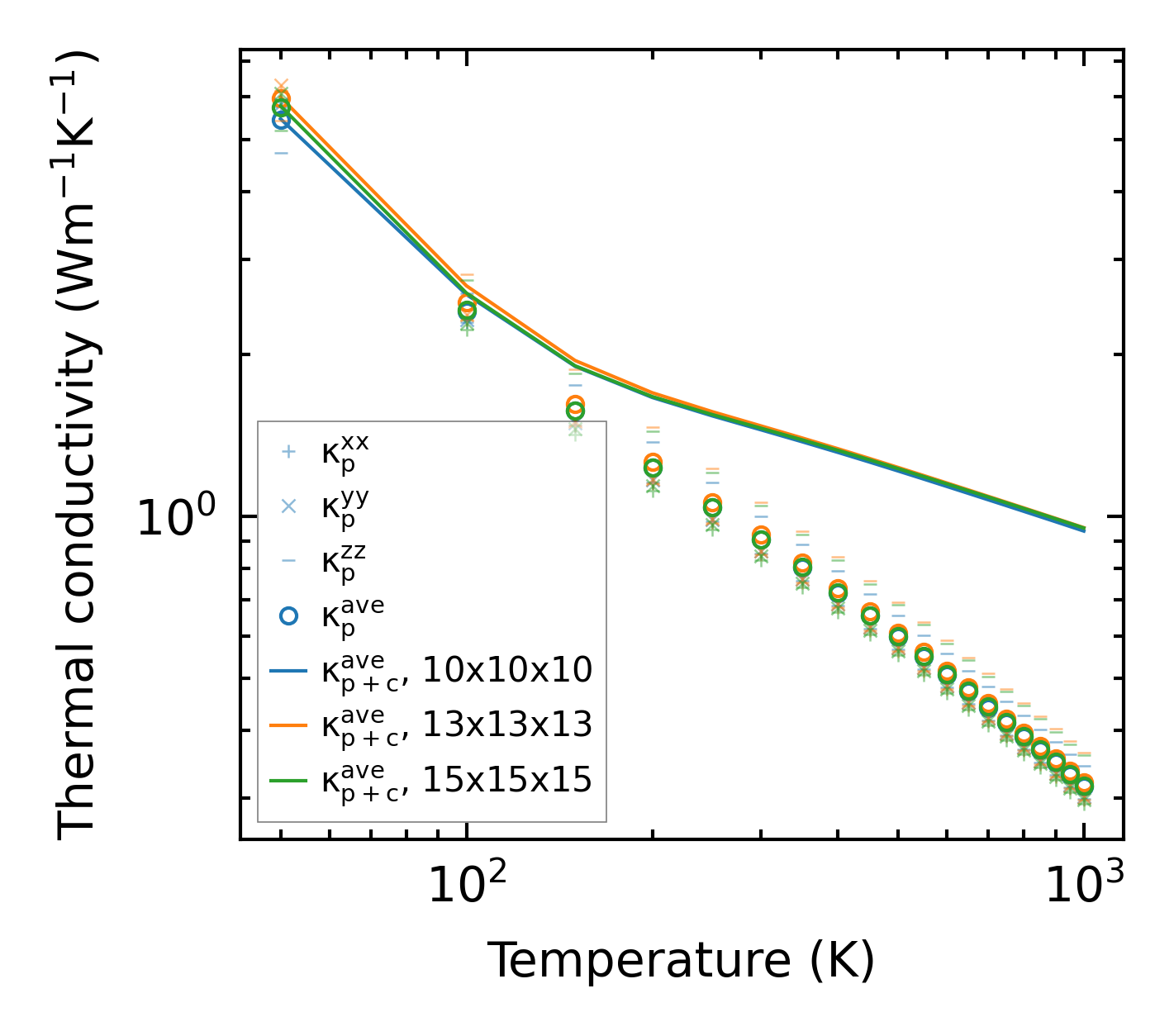

../../_images/fig_kappa5905.png — (a) Temperature-dependent lattice thermal conductivity

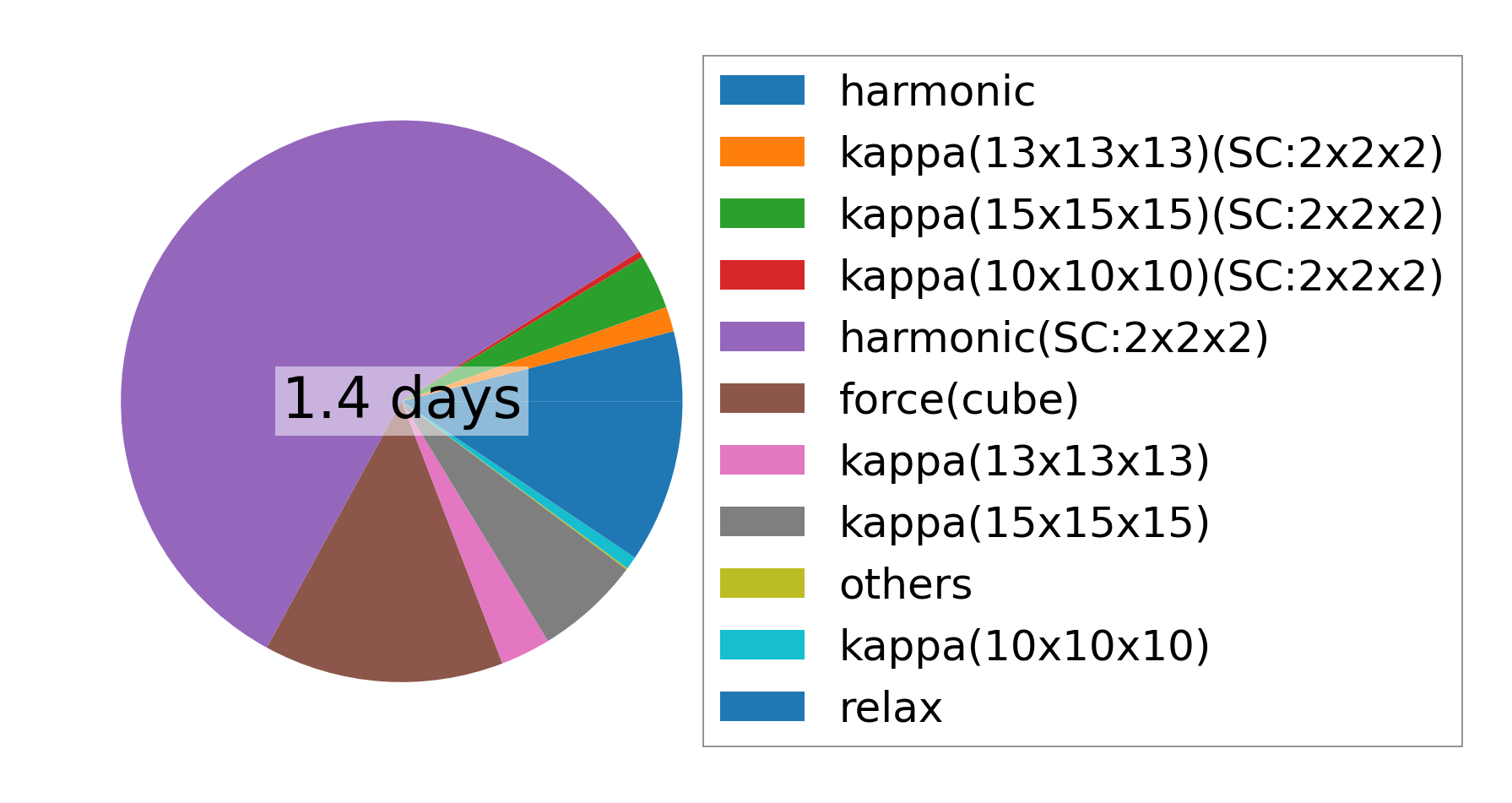

../../_images/fig_times13163.png — (b) Computation time
